Review

Head-to-Head Comparison between 18F-FES PET/CT and 18F-FDG PET/CT in Oestrogen Receptor-Positive Breast Cancer: A Systematic Review and Meta-Analysis

by
Arnoldo Piccardo
1,*,
Francesco Fiz
1,
Giorgio Treglia
2,3,4,
Gianluca Bottoni
1,† and
Pierpaolo Trimboli
2,5,†
1
Nuclear Medicine Department, Ente Ospedaliero “Ospedali Galliera”, 16128 Genoa, Italy
2
Faculty of Biomedical Sciences, University della Svizzera Italiana (USI), 6900 Lugano, Switzerland
3
Faculty of Biology and Medicine, University of Lausanne, 1015 Lausanne, Switzerland
4
Academic Education, Research and Innovation Area, General Directorate, Ente Ospedaliero Cantonale, 6500 Bellinzona, Switzerland
5
Clinic of Endocrinology and Diabetology, Lugano and Mendrisio Regional Hospital, Ente Ospedaliero Cantonale, 6500 Bellinzona, Switzerland
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
J. Clin. Med. 2022, 11(7), 1919; https://doi.org/10.3390/jcm11071919
Submission received: 11 February 2022 / Revised: 18 March 2022 / Accepted: 28 March 2022 / Published: 30 March 2022
(This article belongs to the Special Issue PET/CT Imaging in Oncology: Clinical Updates and Perspectives)

Abstract

:
18F-FDG PET/CT is a powerful diagnostic tool in breast cancer (BC). However, it might have a reduced sensitivity in differentiated, oestrogen receptor-positive (ER+) BC. In this setting, specific molecular imaging with fluorine-oestradiol (18F-FES) PET/CT could help in overcoming these limitations; however, the literature on the diagnostic accuracy of this method is limited. We therefore planned this systematic review and meta-analysis to compare 18F-FDG and 18F-FES PET/CT in ER+ BC patients. We performed a literature search to identify all studies performing a head-to-head comparison between the two methods; we excluded review articles, preclinical studies, case reports and small case series. Finally, seven studies were identified (overall: 171 patients; range: 7–49 patients). A patients-based analysis (PBA) showed that 18F-FDG and 18F-FES PET/CT had a similar high pooled sensitivity (97% and 94%, respectively) at the lesion-based analysis (LBA), 18F-FES performed slightly better than 18F-FDG (pooled sensitivity: 95% vs. 85%, respectively). Moreover, when we considered only the studies dealing with the restaging setting (n = 3), this difference in sensitivity was even more marked (98% vs. 81%, respectively). In conclusion, both tracers feature an excellent sensitivity in ER+ BC; however, 18F-FES PET/CT could be preferred in the restaging setting.

1. Introduction

18F-FDG PET/CT is a very useful imaging tool in staging breast cancer (BC) patients with locally advanced disease [1,2,3] or in restaging patients with biochemical relapse without evidence of structural recurrence on conventional imaging procedures [4,5]. However, the 18F-FDG avidity of BC is associated with histopathological features and can thus show relevant variations [6,7]. In particular, patients with less differentiated, triple-negative BC often present with 18F-FDG avid metastases and, in this setting, 18F-FDG PET/CT can provide relevant additional information when compared with morphological imaging modalities or with surgical staging [8]. Conversely, well-differentiated and oestrogen receptor-positive (ER+) BCs often present metastases with relatively low glucose consumption and thus inconstant positivity on 18F-FDG PET/CT. Therefore, in this particular field of patients, more specific PET/CT agents, such as receptor tracers, still represent an unmet diagnostic need.
Fluorine-oestradiol 18F-FES PET/CT has been introduced as an effective imaging procedure in patients with metastatic BC and previous histological confirmation of ER+ status on the primary tumour, to assess whether ERs are also expressed in loco-regional or distant metastases [9]. Indeed, 18F-FES PET/CT provides excellent whole-body information about heterogeneity in ER expression in BC metastases, thus allowing to predict the response to endocrine therapy [10]. However, little can be said about the diagnostic role of this receptor-specific tracer and, although some studies proved its low sensitivity in detecting BC liver metastases [11,12], others showed its relevant diagnostic impact on BC bone metastases [11,13]. Overall, it is not clear yet whether 18F-FES PET/CT could be proposed as a core imaging procedure in ER+ BC patients with suspected distant metastases and whether it could be preferred to 18F-FDG PET/CT, at least in some specific instances.
To clarify this diagnostic issue, we performed a systematic search of the literature to identify original studies reporting a diagnostic head-to-head comparison of 18F-FES PET/CT and 18F-FDG PET/CT in detecting ER+ BC metastases. We also carried out a meta-analysis of the available data using sensitivity as a diagnostic outcome measure.

2. Materials and Methods

The systematic review was conducted according with the PRISMA statement [14].

2.1. Search Strategy

Two authors (A.P. and G.B.) searched the available literature independently. The search and selection process consisted of four separate steps.
In the first step, so-called “sentinel” studies were identified in PubMed by entering various combinations of the following keywords: 18F-FES, 18F-FDG, PET/CT, breast cancer and oestrogen receptor. In the second step, the results were used to identify specific MeSH terms in PubMed. In the third step, PubMed, CENTRAL, Scopus, Web of Science and the web were searched using the selected MeSH terms. In the final step, we evaluated the studies that compared the sensitivity of 18F-FES PET/CT and 18F-FDG PET/CT in identifying disease localization in patients affected by ER+ BC. All initially eligible articles were screened, and those reporting a head-to-head comparison of 18F-FES PET/CT and 18F-FDG PET/CT in BC patients were included. Review articles, studies based on preclinical data, phantom studies, case reports, small case series and studies with overlapping data were excluded.
The references of the included studies were searched to identify further potential matches. The search process was concluded on 21 December 2021.

2.2. Data Extraction

The two authors (A.P. and G.B.) extracted independently:
  • General characteristics of the studies (authors, year of publication, country, study design, population).
  • Technical parameters (mode of acquisition, fasting before 18F-FDG injection and premedication, mean injected activity, uptake time, interval elapsed between the two imaging procedures, PET/CT scan field of view, PET/CT image analysis and use of reference standard).
  • Sensitivity of the two imaging procedures: this parameter was computed as a patient-based analysis (PBA) and a lesion-based analysis (LBA).
  • Standard of reference (SOR).
In the evaluation phase, full-text articles and their supplementary materials were included; in case of missing data, the responsible corresponding authors were contacted via e-mail. The extracted data were cross-checked and any discrepancy was discussed through a consensus meeting.

2.3. Study Quality Assessment

The risk of bias of included studies was assessed by one author (F.F.) using the QUADAS-2 method [15]. Briefly, for each study, an evaluation of the seven QUADAS-2 items was performed and each point was scored as having high, low or unclear risk of bias. High and unclear risk of bias were assigned 1 and 0.5 points, respectively; studies that totalled four or more points were excluded from the meta-analysis.

2.4. Statistical Analysis

A proportion meta-analysis was carried out using a random- effects statistical model. Pooled data are presented with their 95% confidence interval (95% CI) values. Heterogeneity across studies was assessed with the I-square statistic (I2): a value of 50% or higher was considered as a high heterogeneity. Publication bias was evaluated with Egger’s test [16].
The multidisciplinary follow-up was used as SOR to be able to compute the sensitivity of both image modalities (PBA/LBA). The OpenMeta[Analyst] statistical software (CEBM, Providence, RI, USA) was used for the statistical analyses.

3. Results

3.1. Literature Search Outcome

A total of 55 records were initially identified after duplicate removal, and their titles and abstracts were assessed; 12 articles had to be excluded since they reported single cases or small cases series. Out of the remaining 43 records, 36 were excluded because they did not meet the set inclusion criteria. Therefore, seven articles were finally selected [12,17,18,19,20,21,22], including 171 ER+ BC patients (Figure 1).

3.2. Qualitative Analysis (Systematic Review)

The seven articles included in the systematic review had been published between 2013 and 2021. All of them had a retrospective design. Three studies were carried out in China, while India, Republic of Korea, USA and Italy, contributed one study each. The characteristics of the studies and their patients’ populations are summarized in Table 1.

3.2.1. Technical Aspects

The imaging modality consisted of PET/CT with low-dose computed tomography settings in all cases. Information on fasting before 18F-FDG (4–6 h) injection were available in all articles. On the other hand, fasting was not required before 18F-FES injection.
The injected radiotracer activity ranged from 185 to 370 MBq for 18F-FDG PET/CT and from 111 to 222 for 18F-FES PET/CT. The time interval between radiotracer injection and PET/CT image acquisition was similar across the studies, being 60 min for both tracers in the majority of cases but one [19] in which 18F-FES PET/CT acquisition started 80–100 min after the tracer injection.
In all studies, PET image analysis was performed by a combination of qualitative (visual) and semi-quantitative analysis through the calculation of the maximum standardized uptake values (SUVmax).
On visual analysis, 18F-FDG focal uptake greater than the surrounding normal tissue that could not be explained by physiological activity was considered as positive in five studies [12,18,20,22,23]. In the remaining two studies, the criteria to classify 18F-FDG PET findings as positive were not clearly specified [17,21]. When 18F-FES PET/CT was considered, in three studies a SUVmax cut-off was introduced to interpret as positive each focal tracer uptake [18,20,22]. On the other hand, a visual interpretation (i.e., uptake higher than surrounding background) was used in another study [12], and in a further three analyses, the criteria were not reported [17,19,21]. All technical aspects are summarized in Table 2.

3.2.2. Diagnostic Performance

The seven articles selected for the systematic review were published between 2013 and 2021 and included populations consisting of 7 to 49 patients affected by ER+ BC (Table 1). Table 3 details the rate of positive cases at the PBA and LBA.
Overall, 18F-FDG PET/CT and 18F-FES PET/CT showed very high sensitivity in detecting sites of disease in ER+ BC patients. Indeed, in two studies, 18F-FDG PET/CT identified more patients with BC lesions/metastases than 18F-FES PET/CT [19,22]. Conversely, in one study, 18F-FES PET/CT showed more BC lesions than 18F-FDG PET/CT [21]. In the other four studies [12,17,18,20], both diagnostic procedures identified at least one BC lesion in the 75 patients analysed. Overall, no significant differences between the two methods were reported.
When the ability for detecting each single lesion/metastasis was considered (i.e., LBA), 18F-FES PET/CT identified more BC lesions in three studies [18,21,22] and 18F-FDG PET/CT identified more BC lesions in another three studies [12,19,20]. In one study, including only patients with primary BC, both modalities identified the same number of lesions [17]. As the main finding, we can point out that the studies reporting a higher number of 18F-FDG-positive lesions included patients often affected by ductal carcinoma (i.e., 96%) [19] among which were also included those with ER+ HER2 + BC (11%) [19] and those with liver metastases (>10%) [12]. In addition, these patients were studied at a time of suspicious relapse when heterogeneity, due to the comparison of metastatic ER- clones, is more frequent [12,20]. On the other hand, studies showing a higher number of 18F-FES-positive lesions often analysed patients affected by lobular BC [21] or patients with a high prevalence of bone metastases [22]. Moreover, patients were predominantly affected by ER+ HER- BC [18,22] and were often studied at the time of their first staging [18].
When the impact on clinical decision making was considered, only one study [18] reported that 18F-FES PET/CT was able to change therapeutic strategies in 5 out of the 19 (26.5%) patients analysed at the time of first staging. Indeed, this diagnostic procedure was able to properly downstage two patients and upstage three when compared with 18F-FDG PET/CT.

3.2.3. Quality Assessment of the Studies

The risk of bias was assessed according to seven items, which are listed in Table 4. The overall bias score ranged from none to 2.5; therefore, no study had to be excluded because of high bias risk. The most frequent sources of possible bias were the “study test” and “reference standard categories” since, in some studies, it was unclear whether a blinded evaluation of the two methods had been performed. In particular, in the study by Ulaner et al. [21], the same reader assessed both examinations. In opposition to this, risks regarding the feasibility were almost never detected.

3.3. Quantitative Analysis (Meta-Analysis)

The pooled sensitivity of 18F-FES PET/CT and 18F-FDG PET/CT in terms of PBA and LBA was computed (Table 5 and Figure 2, Figure 3, Figure 4 and Figure 5) based on the available data (see Table 3). Regarding PBA, the pooled sensitivity of 18F-FDG PET/CT and 18F-FES PET/CT was 97% and 94%, respectively, with overlapping 95% confidence intervals. In the LBA, however, we observed a wider difference between the pooled sensitivity of the two methods (95% for 18F-FES vs. 85% for 18F-FDG). Although the 95% confidence intervals of the two methods were overlapping, the values of 18F-FES PET/CT were consistently at the higher end of the spectrum (93–97%), while those of 18F-FDG PET/CT showed a much larger spread (68–100%). In all the analyses, high heterogeneity was found (Table 5).
On the basis of the above results, the heterogeneity of PBA and LBA was explored by using the following covariates: timing of the studies (i.e., PET/CT assessment on staging and on time of relapse), their sample sizes, the prevalence of ductal or lobular BC, and the prevalence of bone and liver metastases.
However, these last variables could not be tested, given incomplete and inconsistent data, and only the variable “timing of the studies” was explored. As illustrated in Figure 2 and Figure 3, the heterogeneity of the 18F-FES PET/CT and 18F-FDG PET/CT results was no longer present in the PBA when we considered these two groups separately. In fact, in the staging scenario, the sensitivity in the PBA of both the 18F-FES PET/CT and 18F-FDG PET/CT was 97% (Figure 2 and Figure 3). Conversely, at the time of restaging, the patient-based sensitivity of 18F-FES PET/CT and 18F-FDG PET/CT was 90% and 95% respectively (Figure 2 and Figure 3).
When LBA was conducted, the sensitivity of 18F-FES PET/CT and 18F-FDG PET/CT at the time of first staging was 88% and 89% respectively, while at the time of restaging it was 81% and 98%, respectively (Figure 4 and Figure 5). Interestingly, the sensitivity of 18F-FES PET/CT at the time of restaging was significantly higher than that of the same procedure at the time of staging (Figure 4).

4. Discussion

In this systematic review and meta-analysis, we aimed to clarify the diagnostic role of 18F-FES PET/CT in BC patients compared to 18F-FDG PET/CT. In fact, 18F-FES PET/CT has gained significant attraction as a non-invasive means to predict the effectiveness of hormone blockade. However, its potential in the mere diagnostic evaluation is still debated [1,8,21]. In this study, we gathered all the available evidence of its sensitivity in ER+ BC patients when compared with the more commonly used 18F-FDG PET/CT.
Our qualitative and quantitative assessment in this particular BC subpopulation showed that there are no significant differences in terms of sensitivity between the two PET tracers at the PBA. Indeed, both molecular imaging modalities proved able to detect patients affected by ER+ BC with similarly high sensitivity. The lack of significant difference between these two modalities can, however, be explained by the selection of patients included in the analysis. These patients were evaluated at the time of first staging for an already known primary tumour or who underwent PET at the time of relapse to evaluate the extension or the ER expression of the metastatic disease. This population is indeed characterized by a very high prevalence of a true positive BC lesion; the probability that at least one these lesions was detected by one of the two molecular imaging procedures was very high. The small diagnostic advantage of the 18F-FDG PET/CT over 18F-FES PET/CT (97% vs. 94%) reported in our analysis seems related to the variability in terms of the clinical characteristics of the patients. Indeed, the high prevalence of metastatic heterogeneity, often present at the time of restaging, can be associated to false negative 18F-FES PET/CT results. When the diagnostic performances of these two imaging procedures at the time of recurrence was explored by means of a PBA, the sensitivity of 18F-FDG PET/CT and that of 18F-FES PET/CT was 95% and 90%, respectively.
Conversely, when we investigated the diagnostic sensitivity of these diagnostic tools by means of an LBA, we found that the sensitivity of 18F-FDG PET/CT and that of 18F-FES PET/CT was 85% and 95%, respectively. Indeed, when the analysis was focused on the time of disease relapse, 18F-FES PET/CT was more sensitive than 18F-FDG PET/CT (98% vs. 81%) with a trend towards significance (95% CI: 97–100% and 56–100%, respectively).
Overall, the use 18F-FDG PET/CT as a first-line examination appears to be the best strategy to stage and restage the ER+ BC subjects, being able to identify the highest number of true positive patients. However, if this approach is applied to a population of ER+ BC with low metastatic heterogeneity (i.e., lobular breast cancer, or ductal breast cancer with a high percentage of ER positive and HER2 negative cells) it could underestimate the actual disease burden since such a clone could show low glucose avidity. Indeed, although 18F-FES PET/CT has low sensitivity in detecting liver metastases (given the intense background tracer uptake in this organ), it has a very high sensitivity in disclosing peripheral lesions in other organs or tissues, such as bone lesions, which represent the most frequent sites of disease in ER+ BC [22]. In addition, as reported by Gupta et al. [12], one of the diagnostic advantages of this receptor PET tracer is its higher specificity in characterizing cervical, axillary and mediastinal lymph nodes, which may often present unspecific uptake at 18F-FDG PET/CT and thus be misinterpreted on 18F-FDG PET/CT.
Although our systematic review and meta-analysis reported interesting and useful results to understand the weaknesses and strengths of the two imaging procedures, some limitations should also be borne in mind. First, only seven studies, investigating relatively small patient populations, were fit for inclusions in this meta-analysis. In addition, all these seven studies showed a retrospective design, and three out of seven included a low number of ER+ BC patients. However, the selection criteria limited us to studies that tested both 18F-FDG PET/CT and 18F-FES PET/CT within a restricted time frame. Second, a computation of specificity was not possible since none of the studies reported the true negative rate. Third, the absence of histological confirmation of suspected distant metastases detected by both modalities is an important bias that could have affected some of the studies included in this analysis [12,20,21,22], and we cannot exclude the possibility that some of the metastases detected by PET tracers may have been false-positive findings. However, given the elevated prevalence of patients with disseminated disease, the likelihood of any given finding to be a false negative was relatively low. Moreover, ethical and practical reasons prevented the execution of a biopsy evaluation of each single lesion. In addition, in at least 3 out of 7 studies, a multidisciplinary follow-up (consisting of clinical and imaging evaluation) was available. Fourth, only two out of the seven studies reported information regarding the menopausal status of the patients. Indeed, these data could be of value to correctly estimate the real sensitivity of 18F-FES PET/CT that could theoretically be affected by competitive binding of high oestradiol concentration. However, the exact endogenous oestrogen concentration that can have a measurable effect on tumour 1⁸F-FES uptake remains hitherto unexplored [9]. Statistically significant heterogeneity of the 18F-FES PET/CT pooled heterogeneity was found across studies. Regrettably, the sparse data available in the studies did not allow exploration of the heterogeneity with the exception of the variable “timing of the studies”.
Finally, at this time, data about the cost/effectiveness of 18F-FES PET/CT in comparison with that of 18F-FDG PET/CT do not exist. However, it is conceivable that, when the overall expense is considered, the additional information provided by FES might help in optimizing the cost by guiding the choice of the most appropriate therapeutic protocol.

5. Conclusions

The present data show that both 18F-FDG PET/CT and 18F-FES PET/CT represent accurate imaging procedures in patients with ER+ BC, providing comparable results in terms of sensitivity. However, in the field of lesion detection, we observed a non-negligible difference in favour of 18F-FES PET/CT. Thus, the use of 18F-FES PET/CT as a first-line molecular imaging procedure might be considered in lobular breast cancer or ductal breast cancer with a high percentage of ER and HER2 negative. However, larger, multicentre and prospective studies are required to confirm these preliminary indications.

Author Contributions

Conceiving the study and writing the manuscript draft, A.P., G.B., P.T.; performing the literature search and selecting the studies, F.F., G.B.; performing the meta-analysis, P.T.; reviewing the manuscript draft, F.F., G.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ulaner, G.A. PET/CT for Patients With Breast Cancer: Where Is the Clinical Impact? Am. J. Roentgenol. 2019, 213, 254–265. [Google Scholar] [CrossRef] [PubMed]
  2. Alberini, J.-L.; Lerebours, F.; Wartski, M.; Fourme, E.; Le Stanc, E.; Gontier, E.; Madar, O.; Cherel, P.; Pecking, A.P. 18F-fluorodeoxyglucose positron emission tomography/computed tomography (FDG-PET/CT) imaging in the staging and prognosis of inflammatory breast cancer. Cancer 2009, 115, 5038–5047. [Google Scholar] [CrossRef] [PubMed]
  3. Segaert, I.; Mottaghy, F.; Ceyssens, S.; De Wever, W.; Stroobants, S.; Van Ongeval, C.; Van Limbergen, E.; Wildiers, H.; Paridaens, R.; Vergote, I.; et al. Additional Value of PET-CT in Staging of Clinical Stage IIB and III Breast Cancer. Breast J. 2010, 16, 617–624. [Google Scholar] [CrossRef]
  4. Champion, L.; Brain, E.; Giraudet, A.-L.; Le Stanc, E.; Wartski, M.; Edeline, V.; Madar, O.; Bellet, D.; Pecking, A.; Alberini, J.-L. Breast cancer recurrence diagnosis suspected on tumor marker rising. Cancer 2010, 117, 1621–1629. [Google Scholar] [CrossRef] [PubMed]
  5. Hildebrandt, M.G.; Gerke, O.; Baun, C.; Falch, K.; Hansen, J.A.; Farahani, Z.A.; Petersen, H.; Larsen, L.B.; Duvnjak, S.; Buskevica, I.; et al. [18F]Fluorodeoxyglucose (FDG)-Positron Emission Tomography (PET)/Computed Tomography (CT) in Suspected Recurrent Breast Cancer: A Prospective Comparative Study of Dual-Time-Point FDG-PET/CT, Contrast-Enhanced CT, and Bone Scintigraphy. J. Clin. Oncol. 2016, 34, 1889–1897. [Google Scholar] [CrossRef] [PubMed]
  6. Gil-Rendo, A.; Martínez-Regueira, F.; Zornoza, G.; Garcia-Velloso, M.J.; Beorlegui, C.; Rodriguez-Spiteri, N. Association between [18F]fluorodeoxyglucose uptake and prognostic parameters in breast cancer. Br. J. Surg. 2009, 96, 166–170. [Google Scholar] [CrossRef] [PubMed]
  7. Kumar, R.; Chauhan, A.; Zhuang, H.; Chandra, P.; Schnall, M.; Alavi, A. Clinicopathologic factors associated with false negative FDG–PET in primary breast cancer. Breast Cancer Res. Treat. 2006, 98, 267–274. [Google Scholar] [CrossRef]
  8. Ulaner, G.A.; Castillo, R.; Goldman, D.A.; Wills, J.; Riedl, C.; Pinker-Domenig, K.; Jochelson, M.S.; Gönen, M. 18F-FDG-PET/CT for systemic staging of newly diagnosed triple-negative breast cancer. Eur. J. Pediatr. 2016, 43, 1937–1944. [Google Scholar] [CrossRef] [Green Version]
  9. van Kruchten, M.; de Vries, E.G.E.; Brown, M.; de Vries, E.F.J.; Glaudemans, A.W.J.M.; Dierckx, R.A.J.O.; Schröder, C.P.; Hospers, G.A.P. PET imaging of oestrogen receptors in patients with breast cancer. Lancet Oncol. 2013, 14, e465–e475. [Google Scholar] [CrossRef]
  10. Kurland, B.F.; Wiggins, J.R.; Coche, A.; Fontan, C.; Bouvet, Y.; Webner, P.; Divgi, C.; Linden, H.M. Whole-Body Characterization of Estrogen Receptor Status in Metastatic Breast Cancer with 16α-18F-Fluoro-17β-Estradiol Positron Emission Tomography: Meta-Analysis and Recommendations for Integration into Clinical Applications. Oncologist 2020, 25, 835–844. [Google Scholar] [CrossRef]
  11. van Kruchten, M.; Glaudemans, A.; de Vries, E.; Beets-Tan, R.G.; Schröder, C.P.; Dierckx, R.A.; de Vries, E.; Hospers, G. PET Imaging of Estrogen Receptors as a Diagnostic Tool for Breast Cancer Patients Presenting with a Clinical Dilemma. J. Nucl. Med. 2012, 53, 182–190. [Google Scholar] [CrossRef] [Green Version]
  12. Gupta, M.; Datta, A.; Choudhury, P.S.; Dsouza, M.; Batra, U.; Mishra, A. Can 18F-Fluoroestradiol positron emission tomography become a new imaging standard in the estrogen receptor-positive breast cancer patient: A prospective comparative study with 18F-Fluorodeoxyglucose positron emission tomography? World J. Nucl. Med. 2017, 16, 133–139. [Google Scholar] [CrossRef] [PubMed]
  13. Nienhuis, H.H.; Van Kruchten, M.; Elias, S.G.; Glaudemans, A.; De Vries, E.F.; Bongaerts, A.H.; Schröder, C.P.; De Vries, E.G.; Hospers, G.A. 18F-Fluoroestradiol Tumor Uptake Is Heterogeneous and Influenced by Site of Metastasis in Breast Cancer Patients. J. Nucl. Med. 2018, 59, 1212–1218. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. McInnes, M.D.F.; Moher, D.; Thombs, B.D.; McGrath, T.A.; Bossuyt, P.M.; Clifford, T.; Cohen, J.F.; Deeks, J.J.; Gatsonis, C.; Hooft, L.; et al. Preferred Reporting Items for a Systematic Review and Meta-analysis of Diagnostic Test Accuracy Studies. The PRISMA-DTA Statement. JAMA 2018, 319, 388–396. [Google Scholar] [CrossRef]
  15. Whiting, P.F.; Rutjes, A.W.S.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M.; QUADAS-2 Group. QUADAS-2: A Revised Tool for the Quality Assessment of Diagnostic Accuracy Studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef]
  16. Sadeghi, R.; Treglia, G. Systematic reviews and meta-analyses of diagnostic studies: A practical guideline. Clin. Transl. Imaging 2016, 5, 83–87. [Google Scholar] [CrossRef]
  17. Yang, Z.; Sun, Y.; Xue, J.; Yao, Z.; Xu, J.; Cheng, J.; Shi, W.; Zhu, B.; Zhang, Y.; Zhang, Y. Can Positron Emission Tomography/Computed Tomography with the Dual Tracers Fluorine-18 Fluoroestradiol and Fluorodeoxyglucose Predict Neoadjuvant Chemotherapy Response of Breast Cancer?—A Pilot Study. PLoS ONE 2013, 8, e78192. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, C.; Gong, C.; Liu, S.; Zhang, Y.; Zhang, Y.; Xu, X.; Yuan, H.; Wang, B.; Yang, Z. 18F-FES PET/CT Influences the Staging and Management of Patients with Newly Diagnosed Estrogen Receptor-Positive Breast Cancer: A Retrospective Comparative Study with 18F-FDG PET/CT. Oncologist 2019, 24, e1277–e1285. [Google Scholar] [CrossRef] [Green Version]
  19. Chae, S.Y.; Son, H.J.; Lee, D.Y.; Shin, E.; Oh, J.S.; Seo, S.Y.; Baek, S.; Kim, J.Y.; Na, S.J.; Moon, D.H. Comparison of diagnostic sensitivity of [18F]fluoroestradiol and [18F]fluorodeoxyglucose positron emission tomography/computed tomography for breast cancer recurrence in patients with a history of estrogen receptor-positive primary breast cancer. EJNMMI Res. 2020, 10, 1–9. [Google Scholar] [CrossRef]
  20. Liu, C.; Xu, X.; Yuan, H.; Zhang, Y.; Zhang, Y.; Song, S.; Yang, Z. Dual Tracers of 16α-[18F]fluoro-17β-Estradiol and [18F]fluorodeoxyglucose for Prediction of Progression-Free Survival After Fulvestrant Therapy in Patients With HR+/HER2- Metastatic Breast Cancer. Front. Oncol. 2020, 10, 580277. [Google Scholar] [CrossRef]
  21. Ulaner, G.A.; Jhaveri, K.; Chandarlapaty, S.; Hatzoglou, V.; Riedl, C.C.; Lewis, J.S.; Mauguen, A. Head-to-Head Evaluation of 18F-FES and 18F-FDG PET/CT in Metastatic Invasive Lobular Breast Cancer. J. Nucl. Med. 2020, 62, 326–331. [Google Scholar] [CrossRef] [PubMed]
  22. Bottoni, G.; Piccardo, A.; Fiz, F.; Siri, G.; Matteucci, F.; Rocca, A.; Nanni, O.; Monti, M.; Brain, E.; Alberini, J.L.; et al. Heterogeneity of bone metastases as an important prognostic factor in patients affected by oestrogen receptor-positive breast cancer. The role of combined [18F]Fluoroestradiol PET/CT and [18F]Fluorodeoxyglucose PET/CT. Eur. J. Radiol. 2021, 141, 109821. [Google Scholar] [CrossRef] [PubMed]
  23. Chae, S.Y.; Kim, S.-B.; Ahn, S.H.; Kim, H.O.; Yoon, D.H.; Ahn, J.-H.; Jung, K.H.; Han, S.; Oh, S.J.; Lee, S.J.; et al. A Randomized Feasibility Study of 18F-Fluoroestradiol PET to Predict Pathologic Response to Neoadjuvant Therapy in Estrogen Receptor–Rich Postmenopausal Breast Cancer. J. Nucl. Med. 2016, 58, 563–568. [Google Scholar] [CrossRef] [PubMed] [Green Version]

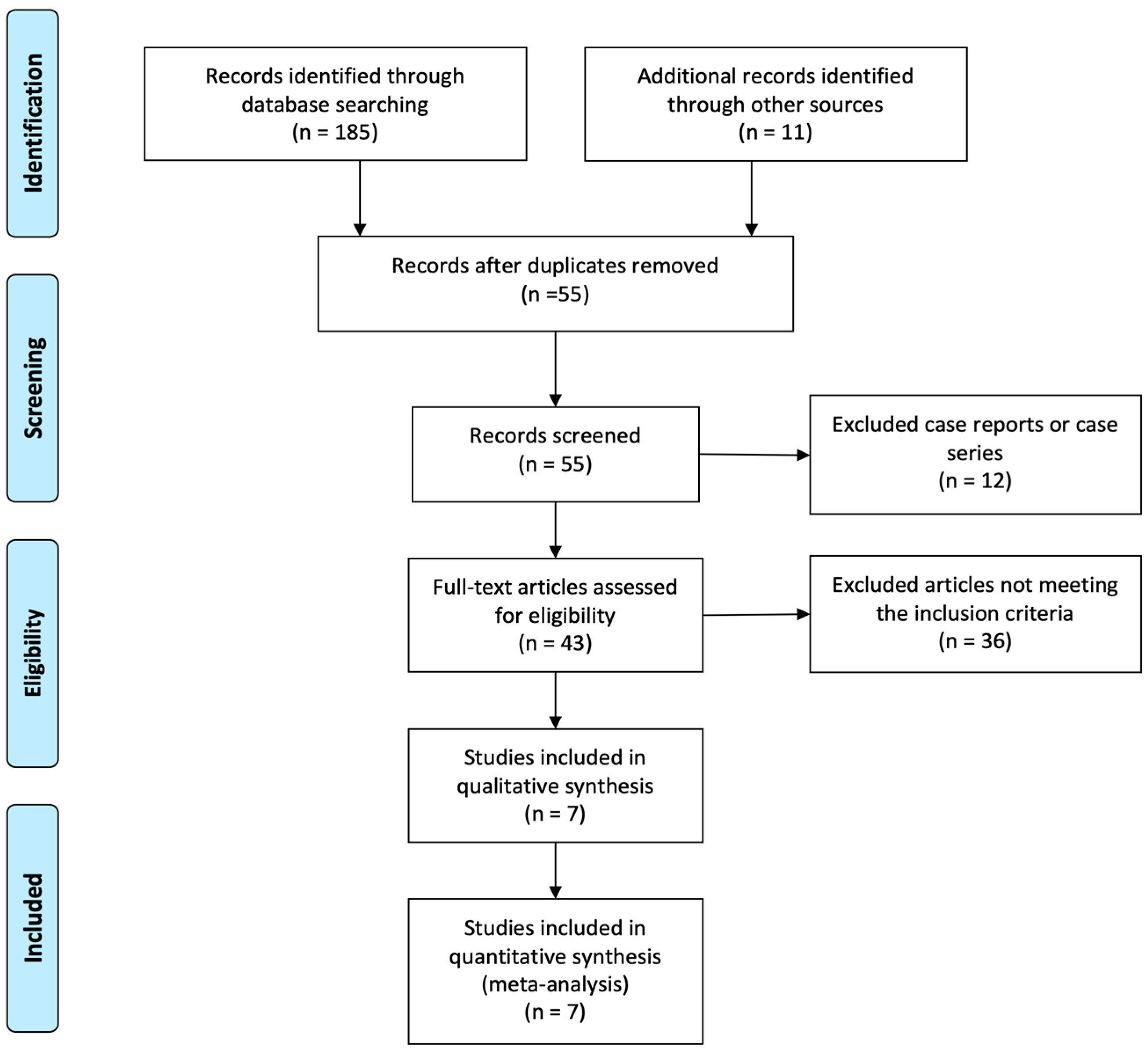

Figure 1. PRISMA flowchart, depicting the studies selection criteria.
Figure 1. PRISMA flowchart, depicting the studies selection criteria.
Jcm 11 01919 g001
Figure 2. Sensitivity of 18F-FDG PET/CT at the level of patients across studies.
Figure 2. Sensitivity of 18F-FDG PET/CT at the level of patients across studies.
Jcm 11 01919 g002
Figure 3. Sensitivity of 18F-FES PET/CT at the level of patients across studies.
Figure 3. Sensitivity of 18F-FES PET/CT at the level of patients across studies.
Jcm 11 01919 g003
Figure 4. Sensitivity of 18F-FDG PET/CT at the level of the lesions across studies.
Figure 4. Sensitivity of 18F-FDG PET/CT at the level of the lesions across studies.
Jcm 11 01919 g004
Figure 5. Sensitivity of 18F-FES PET/CT at the level of the lesions across studies.
Figure 5. Sensitivity of 18F-FES PET/CT at the level of the lesions across studies.
Jcm 11 01919 g005
Table 1. Study and patient characteristics.
Table 1. Study and patient characteristics.
AuthorsYearCountryStudy DesignPatientsER+ BC *Ductal/LobularHER2+Pre/Post-MenopauseStaging/RestagingLiver Metastases AnalysedSOR
Yang et al. [17]2013ChinaR181111/010NR11/0NoHistopathology *
Gupta et al. [12]2017IndiaR1010NRN.R.NR5/5YesN.R. *
Liu et al. [18]2019ChinaR1919NRN.R.NR19/0NoHistopathology *
Chae et al. [19]2020KoreaR464038/2513/330/40NoHistopathology *
Liu et al. [20]2020ChinaR353529/4 **07/280/35NoMultidisciplinary ***
Ulaner et al. [21]2021USAR770/70NR0/7YesMultidisciplinary ***
Bottoni et al. [22]2021ItalyR4940N.R.0NR0/49NoMultidisciplinary ***
* Legend: R = retrospective; NR = not reported; SOR = standard of reference. ** Two patients were affected by mucinous and tubular BC, respectively. *** Clinical and imaging-based follow-up.
Table 2. Technical aspects of PET imaging in the included studies.
Table 2. Technical aspects of PET imaging in the included studies.
AuthorsHybrid Imaging ModalityPET/CT TomographPatient PreparationMean Radiotracer Injected ActivityTime Interval between Radiotracer Injection and Image AcquisitionTimeframe between the Two PET/CTImage Analysis18F-FES PET/CT Interpreted as Positive When
Yang et al. (2013) [17]PET/CT with low-dose CTSiemens Biograph 16 HRFor 18F-FDG fasting (4 h)18F-FDG: 7.4 MBq/Kg
18F-FES:222 MBq
60 min for both tracersUp to 7 daysVisual and semi-quantitative (SUVmax)NR
Gupta et al. (2017) [12]PET/CT with low-dose CTSiemens Biograph
TruePoint 40
For 18F-FDG fasting (4 h)18F-FDG: 4–5 MBq/Kg
18F-FES: 200 MBq
60 min for both tracersUp to 7 daysVisual and semi-quantitative (SUVmax)18F-FES uptake higher than surrounding background
Liu et al. (2019) [18]PET/CT with low-dose CTSiemens Biograph 16 HRFor 18F-FDG fasting (6 h)18F-FDG: 7.4 MBq/Kg
18F-FES: 222 MBq
60 min for both tracersUp to 7 daysVisual and semi-quantitative (SUVmax)18F-FES uptake higher than surrounding background (SUVmax > 1.8)
Chae et al.(2020) [19]PET/CT with low-dose CTSiemens Biograph Sensation 16 or Biograph
TruePoint 40; or GE Discovery 690, 690 Elite, or 710
For 18F-FDG fasting18F-FDG: 5.2–7.4 MBq/Kg
18F-FES:111–222 MBq
80–100 min for 18F-FES
50–70 min for 18F-FDG
Median 10 daysVisual and semi-quantitative (SUVmax)NR
Liu et al. (2020) [20]PET/CT with low-dose CTSiemens Biograph 16 HR or mCT FlowFor 18F-FDG fasting (6 h)18F-FDG: 3.7–7.4 MBq/Kg
18F-FES: 222 MBq
60 min for both tracersUp to 28 daysVisual and semi-quantitative (SUVmax)18F-FES uptake higher than surrounding background (SUVmax > 1.8)
Ulaner et al. (2021) [21]PET/CT with low-dose CTNRFor 18F-FDG fasting (6h)18F-FDG: 444–555 MBq
18F-FES: 185 MBq
60 min for both tracersUp to 35 daysVisual and semi-quantitative (SUVmax)NR
Bottoni et al. (2021) [22]PET/CT with low-dose CTGE Discovery ST, Discovery LS or Siemens Biograph mCT FlowFor 18F-FDG fasting (4–6 h)18F-FDG: according to the patient’s body weight (Boellaard R. et al. EJNMMI 2014)
18F-FES: 200 MBq
60 min for both tracersUp to 10 daysVisual and semi-quantitative (SUVmax)18F-FES uptake higher than surrounding background (SUVmax > 2)
Legend: CT = computed tomography; MBq = megabecquerel; NR = not reported; PET/CT = positron emission tomography; SUVmax = maximal standardized uptake value.
Table 3. Data available in the seven studies included in the present systematic review.
Table 3. Data available in the seven studies included in the present systematic review.
First Author [ref]Patients18F-FES PET/CT18F-FDG PET/CTLesions18F-FES PET/CT18F-FDG PET/CT
n (tot)+ve+ven (tot)+ve+ve
Yang et al. (2013) [17]111111111111
Gupta et al. (2017) [12]101010146116134
Liu et al. (2019) [18]191919238216197
Chae et al.(2020) [19]403236453236
Liu et al. (2020) [20]353535235218235
Ulaner et al. (2021) [21]776254254111
Bottoni et al. (2021) [22]49424615361532912
Legend. +ve: positive.
Table 4. Quality assessment of the studies and risk of bias in each study considered.
Table 4. Quality assessment of the studies and risk of bias in each study considered.
Risk of BiasFeasibility
First AuthorYearPatient SelectionStudy TestReference StandardTimingPatient SelectionStudy TestReference Standard
Yang et al. [17]2013LLLLLLL
Gupta et al. [12]2017HULLHLL
Liu et al. [18]2019LUULLLL
Chae et al. [19]2020LLLULLL
Liu et al. [20]2020LUULLLL
Ulaner et al. [21]2021LHHLLLL
Bottoni et al. [22]2021LUULLLL
Legend: H = high, L = low, U = unclear.
Table 5. Pooled sensitivity for PBA and LBA of 18F-FES PET/CT and 18F-FDG PET/CT.
Table 5. Pooled sensitivity for PBA and LBA of 18F-FES PET/CT and 18F-FDG PET/CT.
PBALBA
Sensitivity (95% CI)I2Egger’s Test (p)Sensitivity (95% CI)I2 (%)Egger’s Test (p)
18F-FES PET/CT94% (89–99)52.7%p = 0.04895% (93–97)93.66%p < 0.01
18F-FDG PET/CT97% (94–99)0%p = 0.6285% (68–100)99.44%p < 0.001
Legend: PBA, patient-based analysis; LBA, lesion-based analysis.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Piccardo, A.; Fiz, F.; Treglia, G.; Bottoni, G.; Trimboli, P. Head-to-Head Comparison between 18F-FES PET/CT and 18F-FDG PET/CT in Oestrogen Receptor-Positive Breast Cancer: A Systematic Review and Meta-Analysis. J. Clin. Med. 2022, 11, 1919. https://doi.org/10.3390/jcm11071919

AMA Style

Piccardo A, Fiz F, Treglia G, Bottoni G, Trimboli P. Head-to-Head Comparison between 18F-FES PET/CT and 18F-FDG PET/CT in Oestrogen Receptor-Positive Breast Cancer: A Systematic Review and Meta-Analysis. Journal of Clinical Medicine. 2022; 11(7):1919. https://doi.org/10.3390/jcm11071919

Chicago/Turabian Style

Piccardo, Arnoldo, Francesco Fiz, Giorgio Treglia, Gianluca Bottoni, and Pierpaolo Trimboli. 2022. "Head-to-Head Comparison between 18F-FES PET/CT and 18F-FDG PET/CT in Oestrogen Receptor-Positive Breast Cancer: A Systematic Review and Meta-Analysis" Journal of Clinical Medicine 11, no. 7: 1919. https://doi.org/10.3390/jcm11071919

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
