Associations between Vertebral Localized Contrast Changes and Adjacent Annular Fissures in Patients with Low Back Pain: A Radiomics Approach

by
Christian Waldenberg
1,2,3,*,
Helena Brisby
2,4,
Hanna Hebelka
2,5 and
Kerstin Magdalena Lagerstrand
1,2,3
1
Department of Medical Radiation Sciences, Institute of Clinical Sciences, Sahlgrenska Academy, University of Gothenburg, 413 45 Gothenburg, Sweden
2
Institute of Clinical Sciences, Sahlgrenska Academy, University of Gothenburg, 405 30 Gothenburg, Sweden
3
Department of Medical Physics and Biomedical Engineering, Sahlgrenska University Hospital, 413 45 Gothenburg, Sweden
4
Department of Orthopaedics, Sahlgrenska University Hospital, 413 45 Gothenburg, Sweden
5
Department of Radiology, Sahlgrenska University Hospital, 413 45 Gothenburg, Sweden
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(15), 4891; https://doi.org/10.3390/jcm12154891
Submission received: 6 July 2023 / Revised: 21 July 2023 / Accepted: 22 July 2023 / Published: 25 July 2023
(This article belongs to the Section Orthopedics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Low back pain (LBP) is multifactorial and associated with various spinal tissue changes, including intervertebral disc fissures, vertebral pathology, and damaged endplates. However, current radiological markers lack specificity and individualized diagnostic capability, and the interactions between the various markers are not fully clear. Radiomics, a data-driven analysis of radiological images, offers a promising approach to improve evaluation and deepen the understanding of spinal changes related to LBP. This study investigated possible associations between vertebral changes and annular fissures using radiomics. A dataset of 61 LBP patients who underwent conventional magnetic resonance imaging followed by discography was analyzed. Radiomics features were extracted from segmented vertebrae and carefully reduced to identify the most relevant features associated with annular fissures. The results revealed three important texture features that display concentrated high-intensity gray levels, extensive regions with elevated gray levels, and localized areas with reduced gray levels within the vertebrae. These features highlight patterns within vertebrae that conventional classification systems cannot reflect on distinguishing between vertebrae adjacent to an intervertebral disc with or without an annular fissure. As such, the present study reveals associations that contribute to the understanding of pathophysiology and may provide improved diagnostics of LBP.

1. Introduction

Low back pain (LBP) is one of the most widespread disorders and is ranked highest in causing disability and societal costs globally [1,2]. The pathophysiological background of LBP is multifactorial, and regarding spinal tissue changes, degenerated intervertebral discs (IVDs) [3,4], pathological changes in the vertebra [5], and damaged cartilaginous and bony endplates [6,7] have been reported to be key risk factors. Specifically, annular fissures reaching the outer annulus fibrosus (AF) have been reported to be an entry point for the ingrowth of vascularized tissue and nociceptive nerve endings and participate in pain signaling [8,9]. In addition, vertebral bodies and endplates are highly innervated by nociceptors [10,11], which are densified in areas with damaged endplates. It has been suggested that such damage is associated with increased IVD degeneration and fissuring [12].
Overall decreased or locally impaired IVD nutrient supply due to damaged endplates is a recognized contributor to IVD degeneration [13], leading to altered extracellular matrix composition and weakened tissue strength [14]. Consequently, the disc tissue becomes prone to structural damage, e.g., fissuring, further propagating the degenerative progress [15]. Inversely, degenerated IVDs also may influence adjacent vertebrae. Although the etiology is unclear, it has been suggested that endplate bone marrow lesions, often referred to as Modic changes (MCs), result from inflammatory factors diffusing from adjacent IVDs at sites with endplate damage [16]. Such pro-inflammatory factors are abundant within the nucleus pulposus (NP) in degenerated discs [17], which may further drive the development of bone marrow lesions. Such crosstalk, i.e., tissue changes in the IVD that may affect the vertebra and vice versa, is confirmed by several histological studies [12,18]. However, previous studies using clinical radiological markers, i.e., MC, show inconclusive results [19,20,21], which is why more qualified markers of association would be valuable.
With superior contrast visualization, MR imaging is the primary tool used to establish the status of the spine. Earlier studies have exploited the MR contrast to study associations between degenerative disc changes and vertebral changes. However, they rely on human observers and gross radiological markers, such as high-intensity zones (HIZ) [8], MCs, and Pfirrmann categorization [21,22]. These categorization schemes are ordinal, forcing the observers to choose from a predefined set of explanations. Data-driven analysis of radiological images has recently found its way into the LBP research as it can offer a more detailed evaluation of the image contrast without the dependence on the observer [23,24,25]. Especially, texture analysis that can convert conventional MR images into quantitative features, so-called radiomics, has shown promise [26]. One key advantage of radiomics is its ability to provide an understanding of the basis for a possible association, as the method can reflect tissue changes that can be translated into pathological patterns. Furthermore, the features can reflect patterns and abnormalities not identified by subjective visual interpretation alone and relate those findings to pathology. As such, radiomics holds promise in identifying potential associations due to crosstalk between vertebrae and disrupted IVDs and can reveal image patterns that support the association.
By studying a unique imaging material of a cohort of LBP patients examined by conventional magnetic resonance imaging (MRI) and discography during the same day, this study focuses on determining possible associations between vertebral bone marrow lesions viewed on MRI and adjacent annular fissures in a clinical setting using radiomics.

2. Materials and Methods

The existing dataset was consecutively and prospectively collected between April 2007 and March 2010 initially to investigate the impact of spinal loading and disc degeneration on pain provocation at discography [27,28,29]. All current IVDs have previously been phenotyped to investigate the association between annular fissuring and LBP [30] and the predictive ability of radiomics to identify annular fissures in conventional MR images [24]. The present study investigates the association between vertebrae and adjacent IVDs using radiomics. Inclusion criteria were chronic LBP > 6 months with failed conservative therapy. Low-quality images (low signal-to-noise ratio, motion artifact) were excluded from the study.

2.1. Diagnostic Procedures and Imaging Protocols

Within one day, the lumbar spine (L1-S1) of each patient was examined in the following consecutive order: 1.5T MRI using clinically conventional protocols, including sagittal and axial T1-weighted (T1W) and T2-weighted (T2W) imaging, followed by low-pressure discography (<50 psi), and lastly, computer tomography (CT) (Table 1).

2.2. IVD and Vertebrae Tissue Grading

The sagittal and axial CT discograms were used to grade the extension of the fissures, according to the Dallas Discogram Description (DDD) [31]. Since mainly fissures reaching the outer AF inflict LBP [8,32], IVDs with fissures extending to the outer 1/3 of the AF (DDD = 2–3) were separated from the rest (DDD = 0–1). All vertebrae were categorized by a medical student, supervised by the senior radiologist, according to the Modic characterization system [33] using the T1W and T2W images.

2.3. Image Segmentation

Using ITK-SNAP v3.8.0 [34], a medical physicist, guided by a senior radiologist, manually segmented 5–7 midsagittal slices of the vertebrae adjacent to IVDs diagnosed with discography. The vertebral regions of interest (ROIs) were divided in half, forming superior and inferior units. The segmentation was performed on the T2W images, after which the delineations were transferred to T1W to enable feature extraction from the T1W images. To ensure proper ROI placement on the T1W images, the T1W and T2W volumes were first registered through rigid registration using DICOM header information. Manual adjustment of the ROIs was performed when necessary. In previous studies, similar vertebrae segmentation has shown excellent intra-observer agreement within our research group (ICC = 0.9–1.0) [35,36].

2.4. Radiomics

2.4.1. Image Preprocessing

Image processing was performed using MATLAB R2022b (Mathworks, Natick, MA, USA) and PyRadiomics v3.0.1 [37] on Python v3.7:
  • Interpolation—To ensure rotationally invariant features, the MR images were interpolated to isotropic voxels of size 1 × 1 × 1 mm3 [38].
  • Normalization—Each MR image volume was normalized to the mean volume signal intensity ± 3 standard deviations to increase the stability and reproducibility of calculated features [39,40]. Image voxels falling outside the boundaries were truncated to the lowest/highest value.
  • ∙ Intensity discretization—Discretization of the image intensities inside the ROI was performed to reduce the image noise level [41,42] and allow for feature calculation [43]. Even though the Image Biomarker Standardization Initiative (IBSI) recommends intensity discretization using a fixed bin number for MR images [44], studies have shown that a fixed bin width approach produces more reproducible features [45,46] when the number of bins is kept between 32 and 128 [47,48]. As such, with regard to the intensity range present inside the ROIs of the current images, intensity discretization was performed using an appropriate fixed bin width of three.

2.4.2. Feature Calculation and Standardization

All statistical and texture-based features available in the PyRadiomics-package were calculated for each ROI on the T1W and T2W images. As the study focused on the association between vertebral tissue pattern and IVD fissures, morphological shape features were not calculated. To increase the interpretability of the features, no features of filtered MR images were calculated.
As standardization of the calculated features has been shown to increase the robustness and prognostic power [49,50], each feature was standardized by the z-score formula, which transforms each feature to have a global mean of 0.0 and variance of 1.0 [51].

2.4.3. Feature Reduction

Radiomics features have been shown to be sensitive to image acquisition and reconstruction parameters [52], inter- and intra-observer variations during segmentation [53], and are often subjected to high correlations indicating data redundancy [52]. As such, the number of features to be included in the statistical and machine learning models was reduced to generate generalizable results [54]. The feature reduction was applied in a multi-step process:
  • The features’ robustness to the variability of ROI segmentation was investigated by calculating future values using the initial vertebral segmentation and segmentation contracted by one pixel in all directions. The Intraclass Correlation Coefficient (ICC) using one-way random effects with absolute agreement, ICC(1, 1), was calculated using individual feature values as subjects and the two ROI perturbations as the raters. Features indicating poor reliability (ICC(1, 1) < 0.5) [55] were excluded from further analysis (see Supplementary Table S1). A similar methodology has been applied in recent studies [56].
  • Similarly, features robustness to image acquisition and reconstruction was evaluated by interpolating the MR images into voxels of size 1 × 1 × 1 mm3 and 1.1 × 1.1 × 1.1 mm3 before feature calculation. ICC(1, 1) was calculated using individual feature values as subjects and the two voxel volume perturbations as the raters. Features with ICC < 0.5 were excluded from further analysis (Table S1).
  • Using the person correlation metric, features were pairwise tested for linear correlation. Pairs of features that displayed a very high linear correlation (R > 0.9) [57] were individually tested for correlation to the presence of fissure. The feature with the lowest correlation to the presence of a fissure was excluded from further analysis.
  • The remaining features were further reduced through sequential backward feature selection algorithms to select the most meaningful features that reflect an association between feature and fissure. Three separate algorithms were used to predict an annular fissure in an adjacent IVD (Figure 1):
    • A fully connected neural network with one hidden layer with 100 nodes (Multilayer perceptron);
    • A random forest ensemble of 100 trees built with bootstrap samples and balanced class weight;
    • K-nearest neighbor classifier using five neighbors with uniform weights, i.e., all points in each neighborhood were weighted equally.
Due to imbalanced datasets (approximately four times more IVDs with fissures compared to IVDs without fissures), balanced accuracy was used as a scoring metric during the backward feature selection for all models. A 5-fold cross-validation was implemented to reduce the risk of overfitting. The top five most important features selected by each algorithm were selected, and the remainder were excluded from further analysis.
5.
A binary logistic regression using backward elimination was applied to the top-performing features. The procedure establishes the importance of each feature to model fit, which reflects the association between features and fissures. Features that did not significantly contribute to the model fit (p > 0.05) were eliminated from further analysis.
Jcm 12 04891 g001 550
Figure 1. Balanced classification accuracy of identifying an annular fissure based on features calculated in an adjacent vertebra. The figure displays the mean accuracy ± one standard deviation (transparent colored area) calculated from 5-fold cross-validation. In two out of three models, the top five features were sufficient to achieve maximum classification accuracy.
Figure 1. Balanced classification accuracy of identifying an annular fissure based on features calculated in an adjacent vertebra. The figure displays the mean accuracy ± one standard deviation (transparent colored area) calculated from 5-fold cross-validation. In two out of three models, the top five features were sufficient to achieve maximum classification accuracy.
Jcm 12 04891 g001

2.5. IVD Fissure Association to Radiomic Features and Fissure Classification

The final model was based on a binary logistic regression fitted on the selected features that contributed significantly to model fit. To interpret associations between the vertebrae and adjacent IVD fissure, the beta value, p-value, and odds ratio was calculated for each feature.

2.6. Comparison between Radiomics and Radiological Markers of Vertebral Change

Previous studies have used clinical radiological markers i.e., MC, to study associations between vertebral changes and annular fissures but with inconclusive results [19,20,21]. For that purpose, a sub-study was included to put MC in perspective to radiomics.
To enable this comparison, classification results for associations between vertebrae and disc fissures were calculated both using the selected vertebrae features as well as MC to predict fissures, respectively.

2.7. Statistical Analysis

Statistical calculations were performed with MATLAB R2022b and IBM SPSS Statistics v29.0.0.0. The available data in the original studies determined the current patient sample size. The predictive ability of the logistic regression model using the selected features was evaluated in terms of sensitivity, specificity, and accuracy. Further, a receiver operating characteristic analysis was performed. The mid-p-value McNemar test at a 5% significance level was used to compare associations between IVD fissures and the selected features as well as MCs. That is, it was tested to identify whether the predictive accuracy of the logistic regression using the selected features was more accurate than using MC to identify an outer annular fissure. The intra- and inter-observer reliability/agreement for the grading of the DDD and segmentation were not evaluated here but in previous studies using current and other datasets [27,35,36].

3. Results

After excluding five patients due insufficient image quality, sixty-one patients (age 24–63 years, mean age 45 years ± 9 (standard deviation), 32 female) were included to study the association between the vertebral tissue patterns and adjacent annular fissures (Table 2).

3.1. Feature Dimensionality Reduction

One hundred and eighty-six first-order features and texture features were calculated from the T1W and T2W images of vertebrae. Five features were not robust to segmentation variability or displayed poor reliability (ICC(1, 1) < 0.5) [55] and were excluded from further analysis, and 139 features displayed very high linear correlation (R > 0.9) [57] and were excluded, leaving 42 features (see Supplementary Figure S1). The remaining features were processed through the sequential backward feature selection algorithms to select the most important features. The top five features selected for each model were exclusively texture features (Table 3).
The binary logistic regression using backward elimination eliminated two out of five features that did not significantly contribute to the model fit. The top three highly important features that probe variations in vertebral image contrast were the following:
  • gldm_LargeDependenceHighGrayLevelEmphasis_t1w (LDHGLE);
  • glszm_LargeAreaHighGrayLevelEmphasis_t1w (LAHGLE);
  • glszm_SmallAreaLowGrayLevelEmphasis_t1w (SALGLE).
Specifically, LDHGLE emphasizes high gray levels with strong spatial dependence, LAHGLE highlights large areas with high gray levels, and SALGLE accentuates small areas with low gray levels.

3.2. Association between Vertebra and Adjacent IVDs

The negative feature beta values (B) in the logistic regression model indicate that an increase in all or any feature values decreases the probability of an adjacent IVD having an outer fissure (Table 4). All three selected values significantly contributed to model fit (p ≤ 0.002).
Each of the selected features differed significantly between groups, i.e., the data in each group came from populations with unequal means (p ≤ 0.043). The largest overlap was found for the feature SALGLE. The feature maps of the selected features emphasized homogeneous regions in the vertebrae that were either large with high intensity (LDHGLE and LAHGLE) or small with low intensity (SALGLE) (Figure 2).

3.3. Fissure Classification

With the prediction threshold score set to 0.54 to maximize accuracy, the logistic regression correctly classified 291 out of 354 IVDs (each IVD was classified two times as it is adjacent to both superior and inferior vertebral units). The model reached a sensitivity of 96.5%, a specificity of 27.8%, and an accuracy of 82.5% (Figure 3). The ROC analysis displayed an area under curve (AUC) of 0.760, indicating acceptable discriminating ability [58].
Using MC to predict outer annular fissures yielded a sensitivity of 14.5%, a specificity of 100%, and an accuracy of 31.9% (Figure 4). The logistic binary regression model was significantly more accurate compared to using MC as a marker for an annular fissure (p < 0.001).

4. Discussion

This radiomics study suggests evidence of crosstalk between IVD fissuring and adjacent vertebrae, supported by the strong association between the discography-identified annular fissures and the MRI contrast features. The study may improve the basic understanding of what specific MRI contrast patterns in the vertebrae are associated with annular fissures. The classification results, achieved through the logistic regression, further confirmed the close relationship and the presence of crosstalk.
In the study, three textural features were identified that depicted the MR signal variations in the vertebrae which were associated with crosstalk between IVD fissures and adjacent vertebrae. It is important to address that the selected features do not directly reflect different types of tissues, but the behavior of the tissue is translated into image contrast. The features LDHGLE and LAHGLE emphasize large homogeneous bright areas on the T1W image. For these features, it was found that an IVD with a fissure was likely to be adjacent to a vertebra with low LDHGLE or LAHGLE feature values, reflecting an inhomogeneous vertebra with few or small bright areas (see example in Figure 2, row 2–4). In the T1W images, fat is displayed with a high signal where fattening of the bone marrow gives a distinctly higher signal in relation to the surrounding normal bone marrow. Hence, the absence of large bright areas (i.e., normal fatty bone marrow) might reflect that such vertebrae are affected mainly by edema or sclerotic components. Inversely, high feature values reflected a homogeneous vertebra with a little signal variation. IVDs without fissures were likely to be adjacent to such vertebrae (see example in Figure 2, top row). The third feature that the model selected to be of importance, i.e., SALGLE, has the property to emphasize small dark regions in MR images. In this study, the feature emphasized small dark regions on the T1W image that might correspond to sclerosis (Figure 2, column 3). Further, these findings, displaying a negative beta-value in logistic regression model, suggest that the absence of such pathology is more common in vertebras that are adjacent to IVDs with fissures. Although the causality is unclear, summarizing these three features, it is apparent that the presence of an adjacent inhomogeneous vertebrae seem to be an important factor for having a disrupted annular fissure.
Another interesting finding was that the T1W image was superior to the T2W image in reflecting a contrast behavior of importance for the crosstalk association. In fact, features extracted from the T2W image contributed with no additional information when the features from the T1W image were included in the analysis. The final most important features that the model selected only probed the T1W image, where both edema and sclerosis appeared dark. This might reflect a pathological process and might imply that the differentiation of edema from sclerosis is not of high importance for the crosstalk association. Dudli S. et al. concluded that inflammatory factors diffusing from degenerated IVDs might induce bone marrow lesions with active inflammation and edema [16], appearing dark on T1W images. This and the fact that Jensen T.S et al. have shown that these changes can directly convert to low signal sclerotic tissue [59] supports our findings.
There is no pathophysiological explanation or histological evidence indicating that MC should be directly linked to the presence of annular fissures, even if they often co-exist in a spinal motion segment. The actual pathology is more complex than the MC system categorizes, for example, the vertebra might be affected by bone marrow lesions with a mix of states, both an active inflammation (categorized into MC type 1) and fatty replacement of the marrow (categorized into MC type 2). As a result, these radiological markers are relatively insensitive and unspecific [24], which might explain the limited association between IVD disruption and MCs in current and other studies [19,20]. Furthermore, this suggests the need for more specific markers.
Medical data analysis has advanced significantly, with a recent focus on AI-driven techniques. Classical machine learning algorithms used here are well established through extensive study and development. What is more important is that they often offer the advantage of providing interpretable information, allowing clinicians and researchers to better understand underlying patterns that contribute to a certain outcome. Further, the present radiomics features used as input to the classical machine learning algorithms are based on well-defined mathematical equations, providing them with a solid theoretical foundation that can be used to explain image characteristics in a logical and derivable manner. The features provide valuable image information from routine clinical scans in a quantitative form, which potentially reflect underlying molecular changes of diseases at a cellular level [30,43]. By using such data-driven features, the analysis will not be limited by the human ability to detect complex and subtle image changes, and from these observations, draw conclusions. Thus, the combination of machine learning models with radiomics, will not eliminate the need for human interpretation but provide more comprehensive insights into medical imaging data and may have the potential to contribute to the development of trustworthy precision medicine.
The clinical value of diagnosing annulus fissures and tissue changes of the vertebrae for individual LBP patients is still unclear. However, increased knowledge of the relationship between different tissue injuries and the possibility of detecting small tissue changes, e.g., annular fissures, without invasive methods, may assist in our understanding of the causes of the pain in chronic LBP patients and should be evaluated further in normative populations to assess possible differences in prominent radiomic features.
Advanced image analysis methods are powerful tools to explore such different patterns of pathological changes that, in the next step, may be linked to specific symptoms, aiming to sharpen the diagnostics on an individual plan. However, the methods used in this study include both strengths and limitations. The design builds upon using a reliable but invasive diagnostic procedure (discography) to depict the annular fissures, which is a strength. However, due to its concomitant side effects and questionable reliability/reproducibility in detecting provoked pain [28,60], such diagnostics are seldom used in clinical practice nowadays, limiting the possibility of repeating the study. Furthermore, the proposed data-driven method holds great promise as it may be adopted into other research topics to explore associations with the possibility of increasing the understanding of causality.

5. Conclusions

The present study suggests that radiomics can objectively describe heterogeneity patterns in the vertebral tissue associated with adjacent disrupted annular fissures. The characteristic image patterns described by the radiomics features may improve the understanding of this crosstalk association and the quantitative nature of radiomic features enable objective longitudinal studies of LBP patients.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm12154891/s1, Figure S1: Feature correlation matrix, Table S1: ICC scores.

Author Contributions

Conceptualization, C.W. and K.M.L.; methodology, C.W. and K.M.L.; software, C.W.; validation, C.W.; formal analysis, C.W.; investigation, H.H.; resources, C.W., H.H. and K.M.L.; data curation, C.W.; writing—original draft preparation, C.W.; writing—review and editing, C.W., H.B., H.H. and K.M.L.; visualization, C.W.; supervision, H.B., H.H. and K.M.L.; project administration, C.W. and K.M.L.; funding acquisition, C.W. and K.M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Swedish state under the agreement between the Swedish government and the country councils, the ALF agreement (ALFGBG-942972 and ALFGBG-973078); King Gustaf V and Queen Victoria’s Foundation; Felix Neubergh Foundation; Sahlgrenska University Hospital Foundations (SU-971849); and the Healthcare Board, Region Västra Götaland (VGFOUREG-968893).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (Dnr:366-07, 14 November 2007).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to the confidentiality of the human participants.

Acknowledgments

The authors would like to thank Leif Torén at the Department of Radiology, Sahlgrenska University Hospital, Gothenburg for his help with the image grading.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hoy, D.; March, L.; Brooks, P.; Blyth, F.; Woolf, A.; Bain, C.; Williams, G.; Smith, E.; Vos, T.; Barendregt, J.; et al. The global burden of low back pain: Estimates from the Global Burden of Disease 2010 study. Ann. Rheum. Dis. 2014, 73, 968–974. [Google Scholar] [CrossRef]
  2. Hansson, E.K.; Hansson, T.H. The costs for persons sick-listed more than one month because of low back or neck problems. A two-year prospective study of Swedish patients. Eur. Spine J. 2005, 14, 337–345. [Google Scholar] [CrossRef] [Green Version]
  3. Videman, T.; Nurminen, M. The occurrence of anular tears and their relation to lifetime back pain history: A cadaveric study using barium sulfate discography. Spine 2004, 29, 2668–2676. [Google Scholar] [CrossRef]
  4. Lim, C.-H.; Jee, W.-H.; Son, B.C.; Kim, D.-H.; Ha, K.-Y.; Park, C.-K. Discogenic lumbar pain: Association with MR imaging and CT discography. Eur. J. Radiol. 2005, 54, 431–437. [Google Scholar] [CrossRef] [PubMed]
  5. Mok, F.P.S.; Samartzis, D.; Karppinen, J.; Fong, D.Y.T.; Luk, K.D.K.; Cheung, K.M.C. Modic changes of the lumbar spine: Prevalence, risk factors, and association with disc degeneration and low back pain in a large-scale population-based cohort. Spine J. 2016, 16, 32–41. [Google Scholar] [CrossRef] [PubMed]
  6. Urban, J.P.G.; Smith, S.; Fairbank, J.C.T. Nutrition of the Intervertebral Disc. Spine 2004, 29, 2700–2709. [Google Scholar] [CrossRef] [PubMed]
  7. Conger, A.; Smuck, M.; Truumees, E.; Lotz, J.C.; DePalma, M.J.; McCormick, Z.L. Vertebrogenic Pain: A Paradigm Shift in Diagnosis and Treatment of Axial Low Back Pain. Pain Med. 2022, 23, S63–S71. [Google Scholar] [CrossRef]
  8. Peng, B.; Hou, S.; Wu, W.; Zhang, C.; Yang, Y. The pathogenesis and clinical significance of a high-intensity zone (HIZ) of lumbar intervertebral disc on MR imaging in the patient with discogenic low back pain. Eur. Spine J. 2006, 15, 583–587. [Google Scholar] [CrossRef] [PubMed]
  9. Freemont, A.J.; Watkins, A.; Le Maitre, C.; Baird, P.; Jeziorska, M.; Knight, M.T.N.; Ross, E.R.S.; O’Brien, J.P.; Hoyland, J.A. Nerve growth factor expression and innervation of the painful intervertebral disc. J. Pathol. 2002, 197, 286–292. [Google Scholar] [CrossRef]
  10. Bailey, J.F.; Liebenberg, E.; Degmetich, S.; Lotz, J.C. Innervation patterns of PGP 9.5-positive nerve fibers within the human lumbar vertebra. J. Anat. 2011, 218, 263–270. [Google Scholar] [CrossRef]
  11. Antonacci, M.D.; Mody, D.R.; Heggeness, M.H. Innervation of the human vertebral body: A histologic study. Clin. Spine Surg. 1998, 11, 526–531. [Google Scholar] [CrossRef]
  12. Fields, A.J.; Liebenberg, E.C.; Lotz, J.C. Innervation of pathologies in the lumbar vertebral end plate and intervertebral disc. Spine J. 2014, 14, 513–521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Aoki, J.; Yamamoto, I.; Kitamura, N.; Sone, T.; Itoh, H.; Torizuka, K.; Takasu, K. End plate of the discovertebral joint: Degenerative change in the elderly adult. Radiology 1987, 164, 411–414. [Google Scholar] [CrossRef] [PubMed]
  14. Benneker, L.M.; Heini, P.F.; Alini, M.; Anderson, S.E.; Ito, K. 2004 Young Investigator Award Winner: Vertebral endplate marrow contact channel occlusions and intervertebral disc degeneration. Spine 2005, 30, 167–173. [Google Scholar] [CrossRef]
  15. Holm, S.; Holm, A.K.; Ekström, L.; Karladani, A.; Hansson, T. Experimental disc degeneration due to endplate injury. J. Spinal Disord. Tech. 2004, 17, 64–71. [Google Scholar] [CrossRef]
  16. Dudli, S.; Fields, A.J.; Samartzis, D.; Karppinen, J.; Lotz, J.C. Pathobiology of Modic changes. Eur. Spine J. 2016, 25, 3723–3734. [Google Scholar] [CrossRef] [Green Version]
  17. Risbud, M.V.; Shapiro, I.M. Role of cytokines in intervertebral disc degeneration: Pain and disc content. Nat. Rev. Rheumatol. 2014, 10, 44–56. [Google Scholar] [CrossRef]
  18. Dudli, S.; Sing, D.C.; Hu, S.S.; Berven, S.H.; Burch, S.; Deviren, V.; Cheng, I.; Tay, B.K.B.; Alamin, T.F.; Ith, M.A.M.; et al. ISSLS PRIZE IN BASIC SCIENCE 2017: Intervertebral disc/bone marrow cross-talk with Modic changes. Eur. Spine J. 2017, 26, 1362–1373. [Google Scholar] [CrossRef] [Green Version]
  19. Marshman, L.A.; Metcalfe, A.V.; Krishna, M.; Friesem, T. Are high-intensity zones and Modic changes mutually exclusive in symptomatic lumbar degenerative discs? J. Neurosurg. Spine 2010, 12, 351–356. [Google Scholar] [CrossRef]
  20. Teraguchi, M.; Samartzis, D.; Hashizume, H.; Yamada, H.; Muraki, S.; Oka, H.; Cheung, J.P.Y.; Kagotani, R.; Iwahashi, H.; Tanaka, S. Classification of high intensity zones of the lumbar spine and their association with other spinal MRI phenotypes: The Wakayama Spine Study. PLoS ONE 2016, 11, e0160111. [Google Scholar] [CrossRef] [Green Version]
  21. Lagerstrand, K.; Brisby, H.; Hebelka, H. Associations between high-intensity zones, endplate, and Modic changes and their effect on T2-mapping with and without spinal load. J. Orthop. Res. 2021, 39, 2703–2710. [Google Scholar] [CrossRef] [PubMed]
  22. Pfirrmann, C.W.; Metzdorf, A.; Zanetti, M.; Hodler, J.; Boos, N. Magnetic resonance classification of lumbar intervertebral disc degeneration. Spine 2001, 26, 1873–1878. [Google Scholar] [CrossRef] [PubMed]
  23. Waldenberg, C.; Hebelka, H.; Brisby, H.; Lagerstrand, K.M. MRI histogram analysis enables objective and continuous classification of intervertebral disc degeneration. Eur. Spine J. 2018, 27, 1042–1048. [Google Scholar] [CrossRef] [Green Version]
  24. Waldenberg, C.; Eriksson, S.; Brisby, H.; Hebelka, H.; Lagerstrand, K.M. Detection of Imperceptible Intervertebral Disc Fissures in Conventional MRI—An AI Strategy for Improved Diagnostics. J. Clin. Med. 2023, 12, 11. [Google Scholar] [CrossRef]
  25. Martín-Noguerol, T.; Oñate Miranda, M.; Amrhein, T.J.; Paulano-Godino, F.; Xiberta, P.; Vilanova, J.C.; Luna, A. The role of Artificial intelligence in the assessment of the spine and spinal cord. Eur. J. Radiol. 2023, 161, 110726. [Google Scholar] [CrossRef]
  26. Lambin, P.; Leijenaar, R.T.H.; Deist, T.M.; Peerlings, J.; de Jong, E.E.C.; van Timmeren, J.; Sanduleanu, S.; Larue, R.T.H.M.; Even, A.J.G.; Jochems, A.; et al. Radiomics: The bridge between medical imaging and personalized medicine. Nat. Rev. Clin. Oncol. 2017, 14, 749–762. [Google Scholar] [CrossRef] [Green Version]
  27. Torén, L.; Lagerstrand, K.; Waldenberg, C.; Brisby, H.; Hebelka, H. MRI During Spinal Loading Reveals Intervertebral Disc Behavior Corresponding to Discogram Findings of Annular Fissures and Pain Provocation. Spine 2020, 45, E1500–E1506. [Google Scholar] [CrossRef]
  28. Hebelka, H.; Nilsson, A.; Hansson, T. Pressure Increase in Adjacent Discs During Clinical Discography Questions the Methods Validity. Spine 2014, 39, 893–899. [Google Scholar] [CrossRef]
  29. Hebelka, H.; Hansson, T. HIZ’s relation to axial load and low back pain: Investigated with axial loaded MRI and pressure controlled discography. Eur. Spine J. 2013, 22, 734–739. [Google Scholar] [CrossRef] [Green Version]
  30. Eriksson, S.; Waldenberg, C.; Torén, L.; Grimby-Ekman, A.; Brisby, H.; Hebelka, H.; Lagerstrand, K. Texture Analysis of Magnetic Resonance Images Enables Phenotyping of Potentially Painful Annular Fissures. Spine 2021. [Google Scholar] [CrossRef] [PubMed]
  31. Sachs, B.L.; Vanharanta, H.; Spivey, M.A.; Guyer, R.D.; Videman, T.; Rashbaum, R.F.; Johnson, R.G.; Hochschuler, S.H.; Mooney, V. Dallas discogram description. A new classification of CT/discography in low-back disorders. Spine 1987, 12, 287–294. [Google Scholar] [CrossRef]
  32. Derby, R.; Kim, B.-J.; Chen, Y.; Seo, K.-S.; Lee, S.-H. The Relation Between Annular Disruption on Computed Tomography Scan and Pressure-Controlled Diskography. Arch. Phys. Med. Rehabil. 2005, 86, 1534–1538. [Google Scholar] [CrossRef] [PubMed]
  33. Modic, M.T.; Steinberg, P.M.; Ross, J.S.; Masaryk, T.J.; Carter, J.R. Degenerative disk disease: Assessment of changes in vertebral body marrow with MR imaging. Radiology 1988, 166, 193–199. [Google Scholar] [CrossRef] [PubMed]
  34. Yushkevich, P.A.; Piven, J.; Hazlett, H.C.; Smith, R.G.; Ho, S.; Gee, J.C.; Gerig, G. User-guided 3D active contour segmentation of anatomical structures: Significantly improved efficiency and reliability. Neuroimage 2006, 31, 1116–1128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Hebelka, H.; Khalil, M.; Brisby, H.; Lagerstrand, K. Lumbar vertebral T2-relaxation time investigated with T2-mapping at multiple time points in a day demonstrate large individual variations. Diagn. Interv. Radiol. 2022, 28, 92–97. [Google Scholar] [CrossRef] [PubMed]
  36. Lagerstrand, K.; Hebelka, H.; Brisby, H. Low back pain patients and controls display functional differences in endplates and vertebrae measured with T2-mapping. Eur. Spine J. 2019, 28, 234–240. [Google Scholar] [CrossRef] [Green Version]
  37. Van Griethuysen, J.J.; Fedorov, A.; Parmar, C.; Hosny, A.; Aucoin, N.; Narayan, V.; Beets-Tan, R.G.; Fillion-Robin, J.-C.; Pieper, S.; Aerts, H.J. Computational radiomics system to decode the radiographic phenotype. Cancer Res. 2017, 77, e104–e107. [Google Scholar] [CrossRef] [Green Version]
  38. Zwanenburg, A.; Leger, S.; Vallières, M.; Löck, S. Image biomarker standardisation initiative. arXiv 2016, arXiv:1612.07003. [Google Scholar]
  39. Hu, P.; Wang, J.; Zhong, H.; Zhou, Z.; Shen, L.; Hu, W.; Zhang, Z. Reproducibility with repeat CT in radiomics study for rectal cancer. Oncotarget 2016, 7, 71440–71446. [Google Scholar] [CrossRef] [Green Version]
  40. Scalco, E.; Belfatto, A.; Mastropietro, A.; Rancati, T.; Avuzzi, B.; Messina, A.; Valdagni, R.; Rizzo, G. T2w-MRI signal normalization affects radiomics features reproducibility. Med. Phys. 2020, 47, 1680–1691. [Google Scholar] [CrossRef]
  41. Zhao, B. Understanding sources of variation to improve the reproducibility of radiomics. Front. Oncol. 2021, 826. [Google Scholar] [CrossRef]
  42. Leijenaar, R.T.; Nalbantov, G.; Carvalho, S.; van Elmpt, W.J.; Troost, E.G.; Boellaard, R.; Aerts, H.J.; Gillies, R.J.; Lambin, P. The effect of SUV discretization in quantitative FDG-PET Radiomics: The need for standardized methodology in tumor texture analysis. Sci. Rep. 2015, 5, 11075. [Google Scholar] [CrossRef] [Green Version]
  43. Yip, S.S.; Aerts, H.J. Applications and limitations of radiomics. Phys. Med. Biol. 2016, 61, R150–R166. [Google Scholar] [CrossRef] [Green Version]
  44. Zwanenburg, A.; Vallières, M.; Abdalah, M.A.; Aerts, H.J.; Andrearczyk, V.; Apte, A.; Ashrafinia, S.; Bakas, S.; Beukinga, R.J.; Boellaard, R. The image biomarker standardization initiative: Standardized quantitative radiomics for high-throughput image-based phenotyping. Radiology 2020, 295, 328–338. [Google Scholar] [CrossRef] [Green Version]
  45. Duron, L.; Balvay, D.; Vande Perre, S.; Bouchouicha, A.; Savatovsky, J.; Sadik, J.C.; Thomassin-Naggara, I.; Fournier, L.; Lecler, A. Gray-level discretization impacts reproducible MRI radiomics texture features. PLoS ONE 2019, 14, e0213459. [Google Scholar] [CrossRef]
  46. Stamoulou, E.; Spanakis, C.; Manikis, G.C.; Karanasiou, G.; Grigoriadis, G.; Foukakis, T.; Tsiknakis, M.; Fotiadis, D.I.; Marias, K. Harmonization Strategies in Multicenter MRI-Based Radiomics. J. Imaging 2022, 8, 303. [Google Scholar] [CrossRef] [PubMed]
  47. Wichtmann, B.D.; Harder, F.N.; Weiss, K.; Schönberg, S.O.; Attenberger, U.I.; Alkadhi, H.; Pinto Dos Santos, D.; Baeßler, B. Influence of Image Processing on Radiomic Features From Magnetic Resonance Imaging. Invest. Radiol. 2022. [Google Scholar] [CrossRef] [PubMed]
  48. Carré, A.; Klausner, G.; Edjlali, M.; Lerousseau, M.; Briend-Diop, J.; Sun, R.; Ammari, S.; Reuzé, S.; Alvarez Andres, E.; Estienne, T.; et al. Standardization of brain MR images across machines and protocols: Bridging the gap for MRI-based radiomics. Sci. Rep. 2020, 10, 12340. [Google Scholar] [CrossRef]
  49. Haga, A.; Takahashi, W.; Aoki, S.; Nawa, K.; Yamashita, H.; Abe, O.; Nakagawa, K. Standardization of imaging features for radiomics analysis. J. Med. Invest. 2019, 66, 35–37. [Google Scholar] [CrossRef]
  50. Park, S.-H.; Lim, H.; Bae, B.K.; Hahm, M.H.; Chong, G.O.; Jeong, S.Y.; Kim, J.-C. Robustness of magnetic resonance radiomic features to pixel size resampling and interpolation in patients with cervical cancer. Cancer Imaging 2021, 21, 19. [Google Scholar] [CrossRef] [PubMed]
  51. Milligan, G.W.; Cooper, M.C. A study of standardization of variables in cluster analysis. J. Classif. 1988, 5, 181–204. [Google Scholar] [CrossRef]
  52. Mayerhoefer, M.E.; Materka, A.; Langs, G.; Häggström, I.; Szczypiński, P.; Gibbs, P.; Cook, G. Introduction to Radiomics. J. Nucl. Med. 2020, 61, 488–495. [Google Scholar] [CrossRef]
  53. Baeßler, B.; Weiss, K.; Pinto Dos Santos, D. Robustness and Reproducibility of Radiomics in Magnetic Resonance Imaging: A Phantom Study. Invest. Radiol. 2019, 54, 221–228. [Google Scholar] [CrossRef]
  54. Van Timmeren, J.E.; Cester, D.; Tanadini-Lang, S.; Alkadhi, H.; Baessler, B. Radiomics in medical imaging—“how-to” guide and critical reflection. Insights Imaging 2020, 11, 1–16. [Google Scholar] [CrossRef]
  55. Koo, T.K.; Li, M.Y. A Guideline of Selecting and Reporting Intraclass Correlation Coefficients for Reliability Research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef] [Green Version]
  56. Zwanenburg, A.; Leger, S.; Agolli, L.; Pilz, K.; Troost, E.G.C.; Richter, C.; Löck, S. Assessing robustness of radiomic features by image perturbation. Sci. Rep. 2019, 9, 614. [Google Scholar] [CrossRef] [Green Version]
  57. Mukaka, M.M. Statistics corner: A guide to appropriate use of correlation coefficient in medical research. Malawi Med. J. 2012, 24, 69–71. [Google Scholar] [PubMed]
  58. Mandrekar, J.N. Receiver Operating Characteristic Curve in Diagnostic Test Assessment. J. Thorac. Oncol. 2010, 5, 1315–1316. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Jensen, T.S.; Bendix, T.; Sorensen, J.S.; Manniche, C.; Korsholm, L.; Kjaer, P. Characteristics and natural course of vertebral endplate signal (Modic) changes in the Danish general population. BMC Musculoskelet. Disord. 2009, 10, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Carragee, E.J.; Don, A.S.; Hurwitz, E.L.; Cuellar, J.M.; Carrino, J.A.; Herzog, R. 2009 ISSLS Prize Winner: Does discography cause accelerated progression of degeneration changes in the lumbar disc: A ten-year matched cohort study. Spine 2009, 34, 2338–2345. [Google Scholar] [CrossRef] [PubMed]
Jcm 12 04891 g002 550

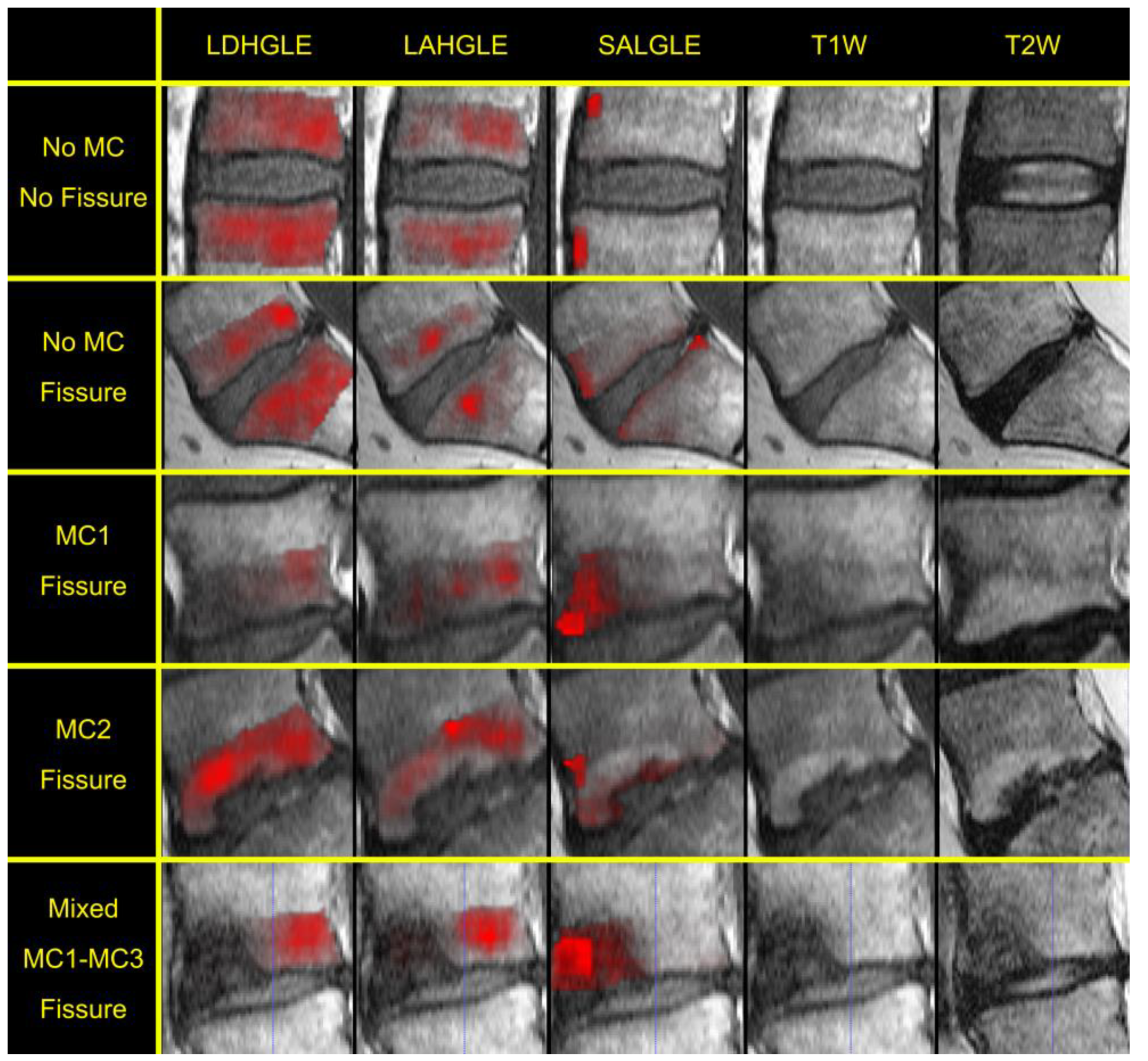

Figure 2. Feature map examples overlaid onto T1W images of the vertebra. In the examples, the logistic regression correctly classified the adjacent IVD. The selected feature values were calculated from T1W images; as such, the feature maps are overlaid on the T1W image. For reference, T1W and T2W image, without feature map overlay, is included. Feature maps are generally more homogeneous over larger areas when calculated from vertebra with no adjacent IVD fissure (top row) and have a more regional focus and irregular texture when calculated from vertebra with an adjacent IVD with an annular fissure.
Figure 2. Feature map examples overlaid onto T1W images of the vertebra. In the examples, the logistic regression correctly classified the adjacent IVD. The selected feature values were calculated from T1W images; as such, the feature maps are overlaid on the T1W image. For reference, T1W and T2W image, without feature map overlay, is included. Feature maps are generally more homogeneous over larger areas when calculated from vertebra with no adjacent IVD fissure (top row) and have a more regional focus and irregular texture when calculated from vertebra with an adjacent IVD with an annular fissure.
Jcm 12 04891 g002
Jcm 12 04891 g003 550

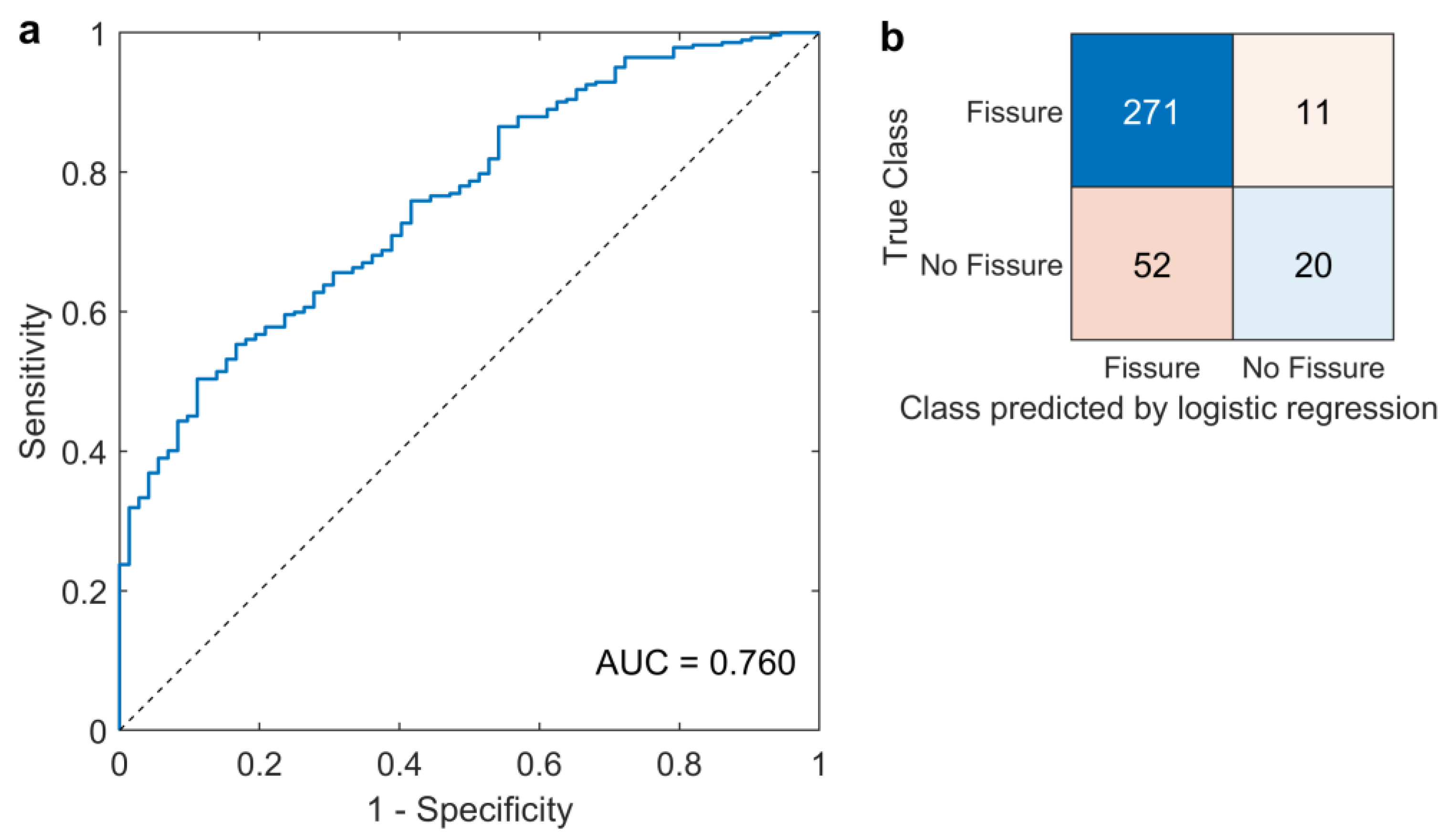

Figure 3. (a) Receiver operating characteristic (ROC) visualizing model sensitivity and specificity at different prediction cut-off scores. Area under curve (AUC) value of 0.760 was reached. (b) Confusion matrix displaying the classifying performance of the logistic regression using the selected features as a marker to identify an outer annular fissure in an adjacent intervertebral disc. The number of true positives (top left), true negatives (bottom right), false positives (bottom left), and false negatives (top right) is presented at a 0.537 cut-off score.
Figure 3. (a) Receiver operating characteristic (ROC) visualizing model sensitivity and specificity at different prediction cut-off scores. Area under curve (AUC) value of 0.760 was reached. (b) Confusion matrix displaying the classifying performance of the logistic regression using the selected features as a marker to identify an outer annular fissure in an adjacent intervertebral disc. The number of true positives (top left), true negatives (bottom right), false positives (bottom left), and false negatives (top right) is presented at a 0.537 cut-off score.
Jcm 12 04891 g003
Jcm 12 04891 g004 550

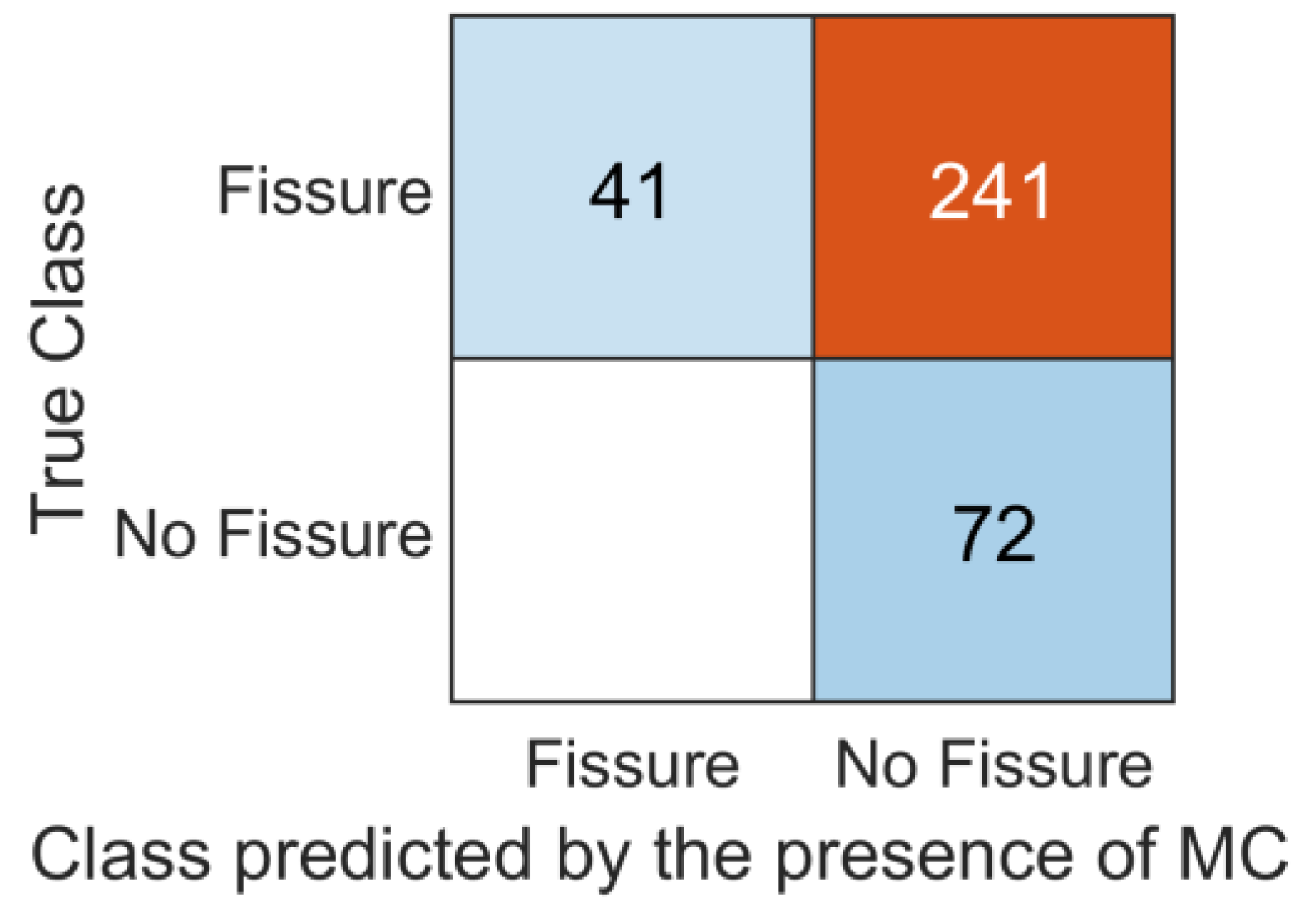

Figure 4. Confusion matrix displaying the classifying performance of MC as a marker to identify an outer annular fissure in an adjacent intervertebral disc. The number of true positives (top left), true negatives (bottom right), false positives (bottom left), and false negatives (top right) is presented.
Figure 4. Confusion matrix displaying the classifying performance of MC as a marker to identify an outer annular fissure in an adjacent intervertebral disc. The number of true positives (top left), true negatives (bottom right), false positives (bottom left), and false negatives (top right) is presented.
Jcm 12 04891 g004
Table
Table 1. Scan and reconstruction parameters for MRI and CT protocols.
Table 1. Scan and reconstruction parameters for MRI and CT protocols.
ParameterT1W MRI
(TSE) a		T1W MRI
(SE) a		T2W MRI
(TSE) a		T2W MRI
(TSE) a		CT b
Imaging planeSagittalAxialSagittalAxialSagittal, Axial
Repetition time (ms)44850048625000
Echo time (ms)111597119
Echo train length912125
Slice thickness (mm)4.04.04.04.00.75 (reconstructed)
Slice gap (mm)0.40.40.40.4
Number of averages4224
Pixel bandwidth (Hz)200100190190
Flip angle (degree)14990150150
Acquisition matrix512 × 256256 × 135512 × 256256 × 126
Reconstruction matrix512 × 512384 × 512512 × 512360 × 512512 × 512
Field of view (mm2)300 × 300135 × 180300 × 300127 × 180162 × 162
Convolution kernel B45s
a MRI system: 1.5T Siemens Magnetom Symphony Maestro Class, Erlangen, Germany. b CT system: Siemens Somatom Sensation 16-slice, Erlangen, Germany. T1W = T1-weighted; T2W = T2-weighted; MRI = magnetic resonance imaging; CT = computer tomography; SE = spin echo; TSE = turbo spin echo.
Table
Table 2. Demographic and radiographic characteristics of included patients.
Table 2. Demographic and radiographic characteristics of included patients.
Patient and IVD Characteristics
Age (years) 45 ± 9 a
No. of patients 61
No. of female 32 (52%)
No. of Modic Changes 41 (12%) b
No. of IVDs 177
IVD segmentL1–L22 (1%)
L2–L321 (12%)
L3–L457 (32%)
L4–L557 (32%)
L5–S140 (22%)
Dallas Discogram DescriptionGrade 0–136 (20%)
Grade 2–3141 (80%)
Note. Except where indicated, data are numbers of IVDs. a Numbers are presented as the mean value ± one standard deviation. b The number in parentheses refer to percentages of the total number of vertebral units (2 times the number of IVDs). IVD = intervertebral disc.
Table
Table 3. Top five features selected for each model using sequential backward feature selection.
Table 3. Top five features selected for each model using sequential backward feature selection.
Feature NameRandom
Forest		K-Nearest
Neighbors		Multilayer
Perceptron
gldm_LargeDependenceHighGrayLevelEmphasis [t1w]●●●
glszm_LargeAreaHighGrayLevelEmphasis [t1w]●●
glszm_SizeZoneNonUniformity [t1w]● ●
glszm_SmallAreaLowGrayLevelEmphasis [t1w] ●
glszm_LargeAreaHighGrayLevelEmphasis [t2w] ●
glszm_ZonePercentage [t2w]● ●
glszm_ZoneVariance [t2w]● ●
ngtdm_Coarseness [t2w] ●
ngtdm_Strength [t2w] ●
t1w = T1-weighted; t2w = T2-weighted.
Table
Table 4. Logistic regression summary.
Table 4. Logistic regression summary.
Selected FeaturesBSignificanceExp(B), (Odds Ratio)
gldm_LargeDependenceHighGrayLevelEmphasis_t1w−0.98<0.0010.38 (0.26 0.56) a
glszm_LargeAreaHighGrayLevelEmphasis_t1w−0.66<0.0010.52 (0.38 0.69) a
glszm_SmallAreaLowGrayLevelEmphasis_t1w−0.620.0020.54 (0.36 0.80) a
Constant (intercept)1.63<0.0015.11
a 95% confidence interval. B = beta value; t1w = T1-weighted.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Waldenberg, C.; Brisby, H.; Hebelka, H.; Lagerstrand, K.M. Associations between Vertebral Localized Contrast Changes and Adjacent Annular Fissures in Patients with Low Back Pain: A Radiomics Approach. J. Clin. Med. 2023, 12, 4891. https://doi.org/10.3390/jcm12154891

AMA Style

Waldenberg C, Brisby H, Hebelka H, Lagerstrand KM. Associations between Vertebral Localized Contrast Changes and Adjacent Annular Fissures in Patients with Low Back Pain: A Radiomics Approach. Journal of Clinical Medicine. 2023; 12(15):4891. https://doi.org/10.3390/jcm12154891

Chicago/Turabian Style

Waldenberg, Christian, Helena Brisby, Hanna Hebelka, and Kerstin Magdalena Lagerstrand. 2023. "Associations between Vertebral Localized Contrast Changes and Adjacent Annular Fissures in Patients with Low Back Pain: A Radiomics Approach" Journal of Clinical Medicine 12, no. 15: 4891. https://doi.org/10.3390/jcm12154891

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
