Predictive Value of MRI Pelvimetry in Vaginal Delivery and Its Practicability in Prolonged Labour—A Prospective Cohort Study
by
, and
Juan Li
1,2,†,
Ying Lou
1,†,
Cheng Chen
1,2,
Weizeng Zheng
3,
Yuan Chen
1,2,
Tian Dong
1,2,
Mengmeng Yang
1,2,
Baihui Zhao
1,2 and
Qiong Luo
1,2,* 1
Department of Obstetrics, Women’s Hospital, Zhejiang University School of Medicine, Hangzhou 310006, China
2
Key Labouratory of Women’s Reproductive Health of Zhejiang Province, Women’s Hospital, Zhejiang University School of Medicine, Hangzhou 310006, China
3
Department of Radiology, Women’s Hospital, Zhejiang University School of Medicine, Hangzhou 310006, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2023, 12(2), 442; https://doi.org/10.3390/jcm12020442
Submission received: 6 December 2022
/
Revised: 30 December 2022
/
Accepted: 1 January 2023
/
Published: 5 January 2023
(This article belongs to the Section Obstetrics & Gynecology)
Abstract
:Background: Pelvic dimensions are crucial variables in the labour process. We used magnetic resonance imaging (MRI) pelvimetry to predict the probability of vaginal delivery and distinguish the cephalopelvic disproportion risk in women with prolonged active labour. Methods: This prospective cohort study enrolled term nulliparous women willing to undergo MRI pelvimetry and a trial of labour. A nomogram, with vaginal birth as the outcome, was developed and evaluated by calibration curve and decision curve analyses. The pairwise association between maternal and fetal parameters and a prolonged first stage of labour was quantified. Results: Head circumference (HC), abdominal circumference (AC), intertuberous distance (ITD), interspinous diameter (ISD), and body mass index (BMI) were introduced to develop a nomogram with good diagnostic performance (area under the curve = 0.799, sensitivity = 83%, and specificity = 73%). The cephalopelvic index of diameter (CID) in 54 women with a prolonged first stage of labour was much smaller in those who delivered via cesarean section compared with those who delivered vaginally (18.09 ± 1.14 vs. 21.29 ± 1.06; p = 0.046). Conclusions: An MRI pelvimetry-based nomogram may predict the probability of vaginal delivery. Practitioners should reassess the pelvimetry parameters to decide whether the trial of labour should be continued if it is prolonged.
1. Introduction
A safe delivery that avoids adverse outcomes for both the mother and baby is important. A major factor that influences whether vaginal delivery is successful or not is fetal and pelvic compatibility [1]. The pelvic capacity enables the fetus to pass through the birth canal [2], thus, pelvimetry can help a clinician to decide whether to offer an elective cesarean section to a woman due to the risk of cephalopelvic disproportion (CPD).
Pelvimetry relies on imaging techniques, but X-ray and computed tomography pelvimetry are not ideal methods for pregnant women, as they expose the fetus to ionizing radiation and increase the risk of childhood cancer [3,4]. Magnetic resonance imaging (MRI) pelvimetry in pregnant women, first described by Stark et al. [5], may be a promising imaging modality. It is safe during pregnancy because of its minimal radioactivity and pelvimetric errors of approximately 1% [5]. Some researchers have indicated that hormonal changes during pregnancy may contribute to pelvic ligament laxity, which causes pelvic bone separation during delivery, thus increasing pelvic dimensions [6,7]. However, other researchers have proposed the different idea that pelvic dimensions do not change during pregnancy [8]. Currently, due to this concern about the change in pelvic dimensions, our hospital mainly performs MRI pelvimetry late in the third trimester to minimize errors in assessing pelvic adequacy. The financial cost makes the use of pelvic MRI in China limited, so there is a lack of well-established pelvic MRI data for Chinese people. Some pregnant women with good MRI pelvimetry-based parameters may still have adverse pregnancy outcomes and the reasons for this should be evaluated further.
Our study evaluates the multiple MRI pelvimetry-based factors influencing successful vaginal deliveries and seeks to establish an appropriate decision-making strategy for deliveries. We focused on women with a prolonged first stage of labour who ultimately delivered vaginally or via cesarean sections. Pelvic dimensions can be a practical and feasible way of helping practitioners change the delivery mode in time to reduce the risk of adverse outcomes.
2. Materials and Methods
This prospective cohort study was conducted between 2020 and 2021 in China. Approval was obtained from the ethics committee at the Women’s Hospital, School of Medicine Zhejiang University (IRB-20200044-R). We calculated the sample size required for the prediction model using an established rule of thumb that ensures at least 10 events for each predictor parameter [9]. Pregnant women willing to evaluate the matching degree of pelvis and fetus were enrolled. We eventually enrolled 215 nulliparous women with singleton term gestations. They underwent MRI pelvimetry between 37 to 39 weeks of gestation. The women had fetuses in either the cephalic or breech presentation. Women with fetuses in breech presentations intended to have a vaginal delivery after an external cephalic version. None of the women had contraindications for MRI imaging or fetuses with lethal congenital malformations. They all gave informed consent at enrollment. All pregnant women underwent a trial of labour, which means women without any severe complications for vaginal delivery who should try to deliver vaginally no matter if spontaneous or by induction. The exclusion criteria were as follows: (1) Women who were unable to deliver vaginally due to adverse complications, such as placental abruption and pre-eclampsia; (2) Women who underwent cesarean section without a trial of labour; (3) Women with suspected intrapartum fetal compromise on fetal electrical monitor or ultrasound; (4) Women who did not give birth at our hospital (Figure 1).
MRI pelvimetry measurements included the obstetric conjugate, intertuberous distance (ITD), interspinous diameter (ISD), pubic angle, pelvic width, bilateral acetabulum distance, sacral outlet diameter, coccygeal pelvic outlet, sacral length, and pelvic inclination (Figure 2). The fetal size was determined by the last prenatal ultrasound done within one week before expected date of delivery. The data on maternal and fetal outcomes and duration of labour were also collected.
During the examination of the bony pelvis (1.5-T MRI scanner, Signa HDxt; GE Healthcare, Milwaukee, WI, USA), the women were in a supine position for 10 to 15 min. All digital images were analyzed using a software picture archiving and communication system (version 1.0.0.25909) (Greenlander, Zhejiang Greenlander I.T. Co., Ltd., Hangzhou, Zhejiang, China). Two radiologists with at least five years of experience in gynecological MRI performed the investigation independently and the measurements were assessed for inter-observer reliability.
The cephalopelvic index of diameter (CID) is defined as the difference between the mean diameter of the midpelvis and the fetal BPD. It is calculated by the formula (OC + ISD)/2-BPD, which represents the relative fit of the fetal head and the maternal pelvis [10]. Women with CPD were defined as those with normal uterine contractions (at least two or more spontaneous contractions per 10 min within the last hour or longer) who experienced cervical arrest over 4 h after the cervix had reached 4 cm, and those who had protracted descent of at least 2 h after the cervix had dilated to 10 cm. All CPD patients underwent cesarean section. A prolonged first stage of labour based on patterns in the Chinese population was defined as a cervical arrest of over 4 h after reaching 3 cm in the presence of adequate contractions [11]. The practitioners managing labour were blind to the MRI results to avoid bias when choosing the delivery mode.
Continuous variables were presented as the mean ± standard deviation, and categorical variables were summarized as counts and percentages. The Shapiro–Wilk test was used to measure the normality of the distribution of continuous variables. Differences between pelvimetric dimensions were tested for significance using Student’s t-test and the Mann–Whitney U test. The Chi-squared test was used to evaluate nominal variables. Collinearity analysis was performed on all independent variables to eliminate those with a variance inflation factor of greater than 10.
Intraclass correlations (ICCs) were introduced to verify the inter-and intra-examiner variability [12]. ICCs were calculated for each MRI parameter. We interpreted an ICC greater than or equal to 0.75 as having good consistency.
The study population was divided into the training set (n = 75) and validation set (n = 75) using blocked randomization to ensure there was an equal number of prolonged labour cases in both groups. Univariable logistic regression analysis was performed to estimate the associations between the predictive variables and delivery outcomes, which were the fundamentals of the model after the adjusted odds ratios (ORs) and 95% confidence intervals (CIs) were calculated, then the nomogram was constructed using multivariable logistic regression. Each predictor point was first determined by drawing a vertical line to the points axis and then the points of each predictor were added. Finally, a line was drawn from the total point axis to determine the estimated vaginal delivery probabilities at the lower line of the nomogram. The score was applied to all women in the validation set, and a receiver operating characteristic (ROC) curve analysis was used to evaluate the vaginal birth prediction. We did a calibration curve to detect the concentricity between the model probability curve and the ideal curve. A decision curve analysis was also applied to evaluate the net benefit of the model. All tests were two-sided and had an alpha level of 0.05.
Women with a prolonged first stage of labour were divided into those who delivered via cesarean sections and those who delivered vaginally. We calculated the CID cutoff value of vaginal delivery in our study and then compared the demographic and MRI pelvimetry data between the cesarean section and vaginal delivery groups. The statistical analyses were performed using SPSS 26.0 (IBM Corp., Armonk, NY, USA) and R (http://www.r-project.org, accessed on 26 April 2022). A p value of less than 0.05 was considered statistically significant.
3. Results
The maternal age of the cohort was 30.3 ± 3.7 years old, gestational age was 39.3 ± 0.7 weeks, and the newborn birth weight was 3454.8 ± 396.5 g. The pre-pregnancy body mass index (BMI) was 26.5 ± 3.0 kg/m2, and 19 (13%) women had obesity. A total of 62 (41%) pregnant women delivered via cesarean sections, whereas 88 (59%) delivered vaginally. The 150 eligible pregnant women were split into the training (n = 75) and validation sets (n = 75). The maternal demographic data, labour information, neonatal outcome, and MRI parameters for the two groups are presented in Table 1. None of the maternal characteristics and neonate information differ between the two sets. All MRI dimensions with inter-and intra-observer ICCs greater than or equal to 0.8 indicated favorable stability for radiomics feature extraction.
Univariable logistic regression analyses indicated factors associated with vaginal birth (Table 2), and multivariate logistic regression introduced five factors, including HC, AC, ITD, ISD, and pre-pregnancy BMI (Table 3), which we used to develop a nomogram that predicts the vaginal delivery probability (Figure 3).
Women with lower pre-pregnancy BMI, bigger ISD and ITD, and fetuses with smaller HC and AC increased the likelihood of vaginal birth. Collinearity analysis was performed to exclude the dependent relationships. The ROC curve analysis measured the performance of this nomogram, and the AUC of this model was 0.799 in the validation set (Figure 4), indicating good diagnostic performance with a sensitivity of 83% and a specificity of 73% at the optimal cutoff value. A calibration curve demonstrated that our model showed good fit and calibration with the ideal curve (Figure 5). Our decision curve analysis demonstrated a favorable clinical effect of the predictive model (Figure 6).
There were 54 pregnant women with a prolonged first stage of labour based on the standard mentioned in the Methods section. We separated them into the cesarean section group (n = 25) and vaginal birth group (n = 29) according to the experienced practitioners’ decision, mostly due to CPD risk. We found that fetal BPD and AC were significantly increased for the women who eventually had a cesarean section (p < 0.05). The CID reflects the fit of the fetal head and the maternal pelvis. The cutoff value of CID calculated was 19.8, and women with a CID less than or equal to 19.8 were more likely to deliver by cesarean section, with a sensitivity of 78% and a specificity of 67%. The CID value of the cesarean section group was much smaller than the CID value of the vaginal birth group (18.09 ± 1.14 vs. 21.29 ± 1.06; p = 0.046). Pregnant women with a smaller pubic angle were at a greater risk of a cesarean section, but there was no statistically significant difference (Table 4).
4. Discussion
We constructed an MRI pelvimetry-based prediction model for the probability of vaginal delivery. We found that women with lower BMIs, bigger ISD and ITD dimensions, and fetuses with smaller HC and AC dimensions had a higher probability of vaginal delivery. We found that BMI, HC, and ISD might, therefore, be the most relevant to vaginal delivery based on the nomogram. Our model was further validated with good performance. The MRI pelvimetry-based CID cutoff value of vaginal delivery in our research was 19.8. To find a favorable pelvimetry parameter to distinguish the likelihood of CPD, we focused on women with a prolonged first stage of labour. Our results demonstrated that women with greater CID values, smaller fetal BPD, and AC should be allowed to continue trying labour under close monitoring. Also, our results revealed that MRI pelvimetry could be a valuable tool for selecting nulliparous women who can undergo a trial of labour. We are working hard to apply MRI pelvimetry to more pregnant women who can undergo a trial of labour. Because of the high costs involved, at the very least, it should be considered in pregnant women at risk of CPD.
Cesarean delivery rates approach 30% to 40% in China [13], which comes with associated morbidity and greater use of resources. Researchers have committed their time to establish a validated tool that can predict a successful vaginal birth. Factors related to a safe vaginal delivery include an adequately sized and shaped maternal bony pelvis, soft-tissue shaping of the birth canal during delivery, sufficient uterine contractions, and a fetal head of the proper size with the ability to mold [14]. The progress of labour in Chinese women is slower than that of their Western counterparts [11]. Therefore, we need an effective model suitable for clinical practice in the Chinese population.
The fetus–pelvis fit remains a priority during vaginal delivery. Previous studies have demonstrated that MRI can be reliable in evaluating labour outcomes [15,16,17]. Some researchers have attempted to validate MRI pelvimetry and its prediction of the success of vaginal delivery in women with previous cesarean sections but were limited by the small cohort size [18]. Of all the MRI pelvimetry parameters, an obstetric conjugate is the most valuable predictive pelvic metric because of its strong positive correlation with successful vaginal delivery [19]. In one study, scholars used an obstetric conjugate of 12 cm to represent a sufficient pelvic inlet for the trial of labour [20]. Another research proposed a minimum obstetric conjugate of 10 cm for a fetus weighing 3400 g to pass through [21]. However, various racial differences limited the applicability of the data.
A higher BMI may influence soft-tissue pelvic volume that is significantly associated with dystocia [19]. Our results indicated that women with a lower BMI had an increased vaginal birth probability. Additionally, maternal pelvimetry ISD and ITD, and fetus HC and AC are strongly associated with the success of vaginal deliveries. The ISD is the parameter that represents the midpelvis, and its stenosis usually results in obstructed internal rotation of the fetus that affects the head’s descent [22]. Our findings indicate that a smaller ISD is a risk for cesarean section, and the pelvic outlet ITD also plays an important role in the probability of vaginal delivery.
We introduced the CID that was previously used in ultrasound and innovatively proposed in MRI. Our results clarified that women with term pregnancies may benefit from planned cesarean sections when their CID was below the threshold value of 19.8, but further prospective validation is needed. During prolonged labour, decision-making strategies are important. Our results show that women in the cesarean section group carried larger fetuses and their CID was significantly smaller than that of those in the vaginal delivery group. Therefore, MRI pelvimetry can be a reliable adjunct tool in evaluating the risk of CPD in the prolonged first stage of labour. Based on this evaluation, women would benefit from early referral for cesarean section.
Strengths and Limitations
Our results demonstrated the high inter-and intra-examiner reliability of MRI pelvic measurements. Our radiologists were very experienced and hence the precision and reliability of the MRI imaging.
However, there are some shortcomings in our research. First, pregnant women were assessed by MRI in the supine position only. Previous studies indicate that MRI pelvimetry showed an increase in pelvic parameters when women were in the upright position [23,24]. Gravity also causes the descent of the fetal head, with pressure directly and evenly on the cervix, leading to more regular and frequent contractions [16]. Hence, women with borderline CPD who maintain an upright position may reduce the risk of an emergency cesarean section. However, most women in our hospital were in a low semi-recumbent position during labour, which may limit the results. We should also notice that the grand majority of shoulder dystocia incidents occur in patients with normal pelvic dimensions; MRI pelvimetry would not be useful for identifying patients at increased risk as traditional pelvimetry. Additionally, this study was limited by the relatively small sample size due to the high costs of MRI pelvimetry, as well as the limited geographic area. For this reason, the external validity of our study needs further investigation through a well-designed, randomized-control trial.
Other factors, including the degree of pelvic inclination and the angle of fetal entry into the pelvis, cannot be judged by in-plane measurements alone. Our research group is cooperating with artificial intelligence management to reconstruct pelvic imaging in 3D diagrams that imitate real scenarios for future research.
5. Conclusions
In summary, our study indicated that an MRI pelvimetry-based model could be a reliable method applied to predict vaginal delivery in clinical practice. When women have a prolonged first stage of labour, practitioners should reassess the pelvimetry parameters to decide whether it is worth continuing the trial of labour. Our MRI pelvimetry findings provide a better understanding of the pelvic characteristics in Chinese women that should be considered when making clinical decisions.
Author Contributions
Conceptualization, J.L., Y.L. and Q.L.; Data curation, T.D., M.Y. and B.Z.; Formal analysis, J.L. and C.C.; Funding acquisition, Q.L.; Investigation, Y.C. and Q.L.; Methodology, J.L. and C.C.; Project administration, W.Z., Y.C., T.D. and M.Y.; Resources, J.L. and W.Z.; Software, W.Z.; Supervision, B.Z. and Q.L.; Validation, J.L. and Y.L.; Visualization, C.C. and W.Z.; Writing—original draft, J.L. and Y.L.; Writing—review & editing, J.L. and Q.L. All authors have read and agreed to the published version of the manuscript.
Funding
This work was funded by the Natural Science Foundation of Zhejiang Province, grant number LQ20H040008, and the Scientific Research Foundation of the National Health Commission, grant number WKJ-ZJ-2126.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics Committee of Women’s Hospital, School of Medicine Zhejiang University (protocol code: IRB-20200044-R, date of approval: 2 February 2020).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Acknowledgments
We are grateful for midwife team for their efforts to increase the feasibility of this research and data collection.
Conflicts of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflict of interest.
References
- Salk, I.; Cetin, A.; Salk, S.; Cetin, M. Pelvimetry by Three-Dimensional Computed Tomography in Non-Pregnant Multiparous Women Who Delivered Vaginally. Pol. J. Radiol. 2016, 81, 219–227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kjeldsen, L.L.; Blankholm, A.D.; Jurik, A.G.; Salvig, J.D.; Maimburg, R.D. Pelvic capacity in pregnant women, identified using magnetic resonance imaging. Acta Obstet. Gynecol. Scandinavica. 2021, 100, 1454–1462. [Google Scholar] [CrossRef] [PubMed]
- Doll, R.; Wakeford, R. Risk of childhood cancer from fetal irradiation. Br. J. Radiol. 1997, 70, 130–139. [Google Scholar] [CrossRef] [PubMed]
- Wit, F.; Vroonland, C.C.; Bijwaard, H. Prenatal X-ray Exposure and the Risk of Developing Pediatric Cancer—A Systematic Review of Risk Markers and a Comparison of International Guidelines. Health Phys. 2021, 121, 225–233. [Google Scholar] [CrossRef] [PubMed]
- Stark, D.D.; McCarthy, S.M.; Filly, R.A.; Parer, J.T.; Hricak, H.; Callen, P.W. Pelvimetry by magnetic resonance imaging. Am. J. Roentgenol. 1985, 144, 947–950. [Google Scholar] [CrossRef] [Green Version]
- Cherni, Y.; Desseauve, D.; Decatoire, A.; Veit-Rubinc, N.; Begon, M.; Pierre, F.; Fradet, L. Evaluation of ligament laxity during pregnancy. J. Gynecol. Obstet. Hum. Reprod. 2019, 48, 351–357. [Google Scholar] [CrossRef]
- Bell, R.; Eddie, L.W.; Lester, A.R.; Wood, E.C.; Johnston, P.D.; Niall, H.D. Relaxin in human pregnancy serum measured with an homologous radioimmunoassay. Obstet. Gynecol. 1987, 69, 585–589. [Google Scholar]
- Huerta-Enochian, G.S.; Katz, V.L.; Fox, L.K.; Hamlin, J.A.; Kollath, J.P. Magnetic resonance-based serial pelvimetry: Do ma-ternal pelvic dimensions change during pregnancy? Am. J. Obstet. Gynecol. 2006, 194, 1689–1694, discussion 94–95. [Google Scholar] [CrossRef]
- Riley, R.D.; Ensor, J.; Snell, K.I.E.; Harell, F.E., Jr.; Martin, G.P.; Reitsma, J.B.; Moons, K.G.M.; Collins, G.; van Smeden, M. Calculating the sample size required for developing a clinical prediction model. BMJ 2020, 368, m441. [Google Scholar] [CrossRef] [Green Version]
- Bian, X.; Zhuang, J.; Cheng, X. Combination of ultrasound pelvimetry and fetal sonography in predicting cephalopelvic disproportion. Chin. Med. J. 1997, 110, 942–945. [Google Scholar]
- Shi, Q.; Tan, X.-Q.; Liu, X.-R.; Tian, X.-B.; Qi, H.-B. Labour patterns in Chinese women in Chongqing. Int. J. Obstet. Gynaecol. 2016, 123 (Suppl. 3), 57–63. [Google Scholar] [CrossRef]
- Shrout, P.E.; Fleiss, J.L. Intraclass correlations: Uses in assessing rater reliability. Psychol. Bull. 1979, 86, 420–428. [Google Scholar] [CrossRef]
- Li, H.-T.; Hellerstein, S.; Zhou, Y.-B.; Liu, J.-M.; Blustein, J. Trends in Cesarean Delivery Rates in China, 2008–2018. JAMA 2020, 323, 89–91. [Google Scholar] [CrossRef]
- Ami, O.; Maran, J.C.; Gabor, P.; Whitacre, E.B.; Musset, D.; DuBray, C.; Mage, G.; Boyer, L. Three-dimensional magnetic resonance imaging of fetal head molding and brain shape changes during the second stage of labor. PLoS ONE 2019, 14, e0215721. [Google Scholar] [CrossRef]
- Franz, M.; Von Bismarck, A.; Delius, M.; Ertl-Wagner, B.; Deppe, C.; Mahner, S.; Hasbargen, U.; Hübener, C. MR pelvimetry: Prognosis for successful vaginal delivery in patients with suspected fetopelvic disproportion or breech presentation at term. Arch. Gynecol. Obstet. 2017, 295, 351–359. [Google Scholar] [CrossRef]
- Pattinson, R.C.; Cuthbert, A.; Vannevel, V. Pelvimetry for fetal cephalic presentations at or near term for deciding on mode of delivery. Cochrane Database Syst. Rev. 2017, 5, CD000161. [Google Scholar]
- Van Loon, A.J.; Mantingh, A.; Serlier, E.K.; Kroon, G.; Mooyaart, E.L.; Huisjes, H.J. Randomised controlled trial of magnetic-resonance pelvimetry in breech presentation at term. Lancet 1997, 350, 1799–1804. [Google Scholar] [CrossRef]
- Fox, L.K.; Huerta-Enochian, G.S.; A Hamlin, J.; Katz, V.L. The magnetic resonance imaging–based fetal-pelvic index: A pilot study in the community hospital. Am. J. Obstet. Gynecol. 2004, 190, 1679–1685, discussion 85–88. [Google Scholar] [CrossRef]
- Zaretsky, M.V.; Alexander, J.M.; McIntire, D.D.; Hatab, M.R.; Twickler, D.M.; Leveno, K.J. Magnetic resonance imaging pel-vimetry and the prediction of labor dystocia. Obs. Gynecol. 2005, 106, 919–926. [Google Scholar] [CrossRef]
- Klemt, A.-S.; Schulze, S.; Brüggmann, D.; Louwen, F. MRI-based pelvimetric measurements as predictors for a successful vaginal breech delivery in the Frankfurt Breech at term cohort (FRABAT). Eur. J. Obstet. Gynecol. Reprod. Biol. 2019, 232, 10–17. [Google Scholar] [CrossRef]
- Joyce, D.N.; Giwa-Osagie, F.; Stevenson, G.W. Role of pelvimetry in active management of labour. Br. Med. J. 1975, 4, 505–507. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gleason, R.L., Jr.; Yigeremu, M.; Debebe, T.; Teklu, S.; Zewdeneh, D.; Weiler, M.; Frank, N.; Tolentino, L.; Attia, S.; Dixon, J.B.; et al. A safe, low-cost, easy-to-use 3D camera platform to assess risk of obstructed labor due to cephalopelvic disproportion. PLoS ONE 2018, 13, e0203865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Reitter, A.; Daviss, B.-A.; Bisits, A.; Schollenberger, A.; Vogl, T.; Herrmann, E.; Louwen, F.; Zangos, S. Does pregnancy and/or shifting positions create more room in a woman’s pelvis? Am. J. Obs. Gynecol. 2014, 211, 662.e1–662.e9. [Google Scholar] [CrossRef] [PubMed]
- Gregory, K.D.; Jackson, S.; Korst, L.; Fridman, M. Cesarean versus vaginal delivery: Whose risks? Whose benefits? Am. J. Perinatol. 2012, 29, 7–18. [Google Scholar] [CrossRef]

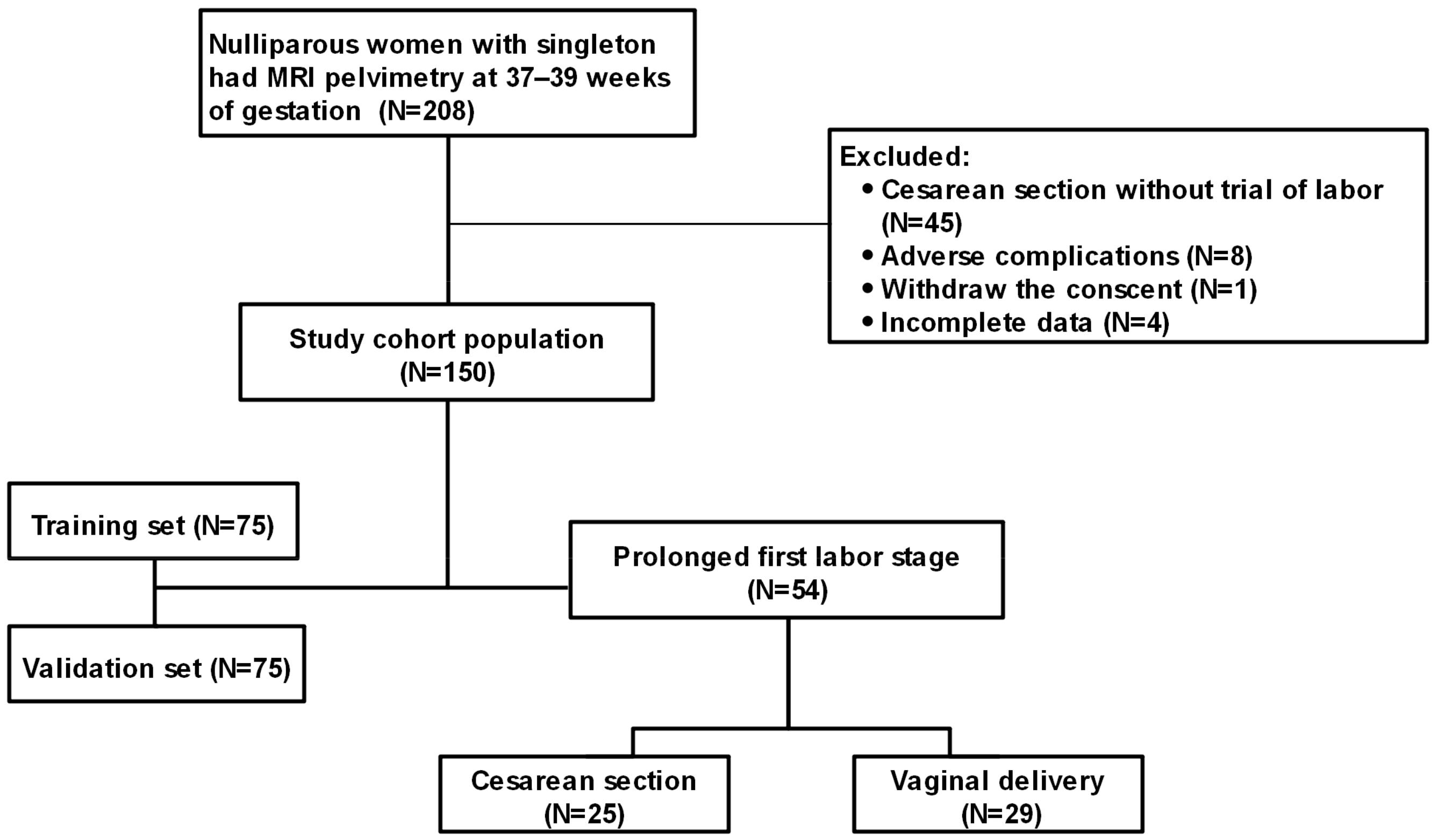

Figure 1.
The study participant flow diagram. Nulliparous women with singleton gestation had MRI pelvimetry (excluding those with comorbidities who underwent cesarean section without trial of labour) at 37 to 39 weeks of gestation. A study cohort of 150 pregnant women was first divided into the training and validation sets, then those with a prolonged first stage of labour were classified into the cesarean section and vaginal delivery groups.
Figure 1.
The study participant flow diagram. Nulliparous women with singleton gestation had MRI pelvimetry (excluding those with comorbidities who underwent cesarean section without trial of labour) at 37 to 39 weeks of gestation. A study cohort of 150 pregnant women was first divided into the training and validation sets, then those with a prolonged first stage of labour were classified into the cesarean section and vaginal delivery groups.

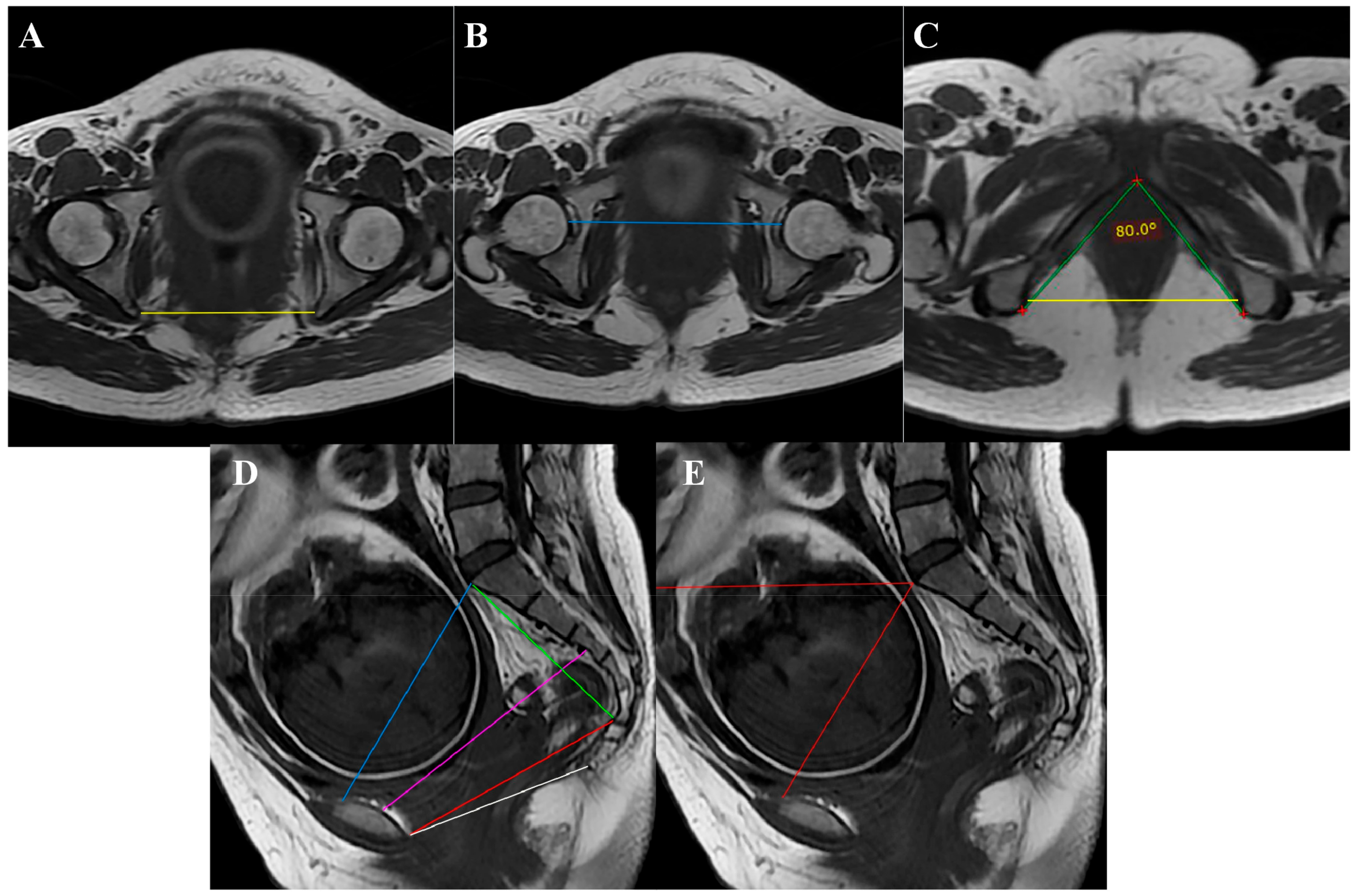

Figure 2.
MRI pelvimetry: (A) Intertuberous distance; (B) Bilateral femoral head distance; (C) Pubic angle (green line) and interspinous distance (yellow line); (D) Obstetric conjugate (blue line), pelvic width (purple line), sacral outlet diameter (red line), outlet diameter of the pelvis (white line), and sacral length (green line); (E) Pelvic inclination (red line).
Figure 2.
MRI pelvimetry: (A) Intertuberous distance; (B) Bilateral femoral head distance; (C) Pubic angle (green line) and interspinous distance (yellow line); (D) Obstetric conjugate (blue line), pelvic width (purple line), sacral outlet diameter (red line), outlet diameter of the pelvis (white line), and sacral length (green line); (E) Pelvic inclination (red line).

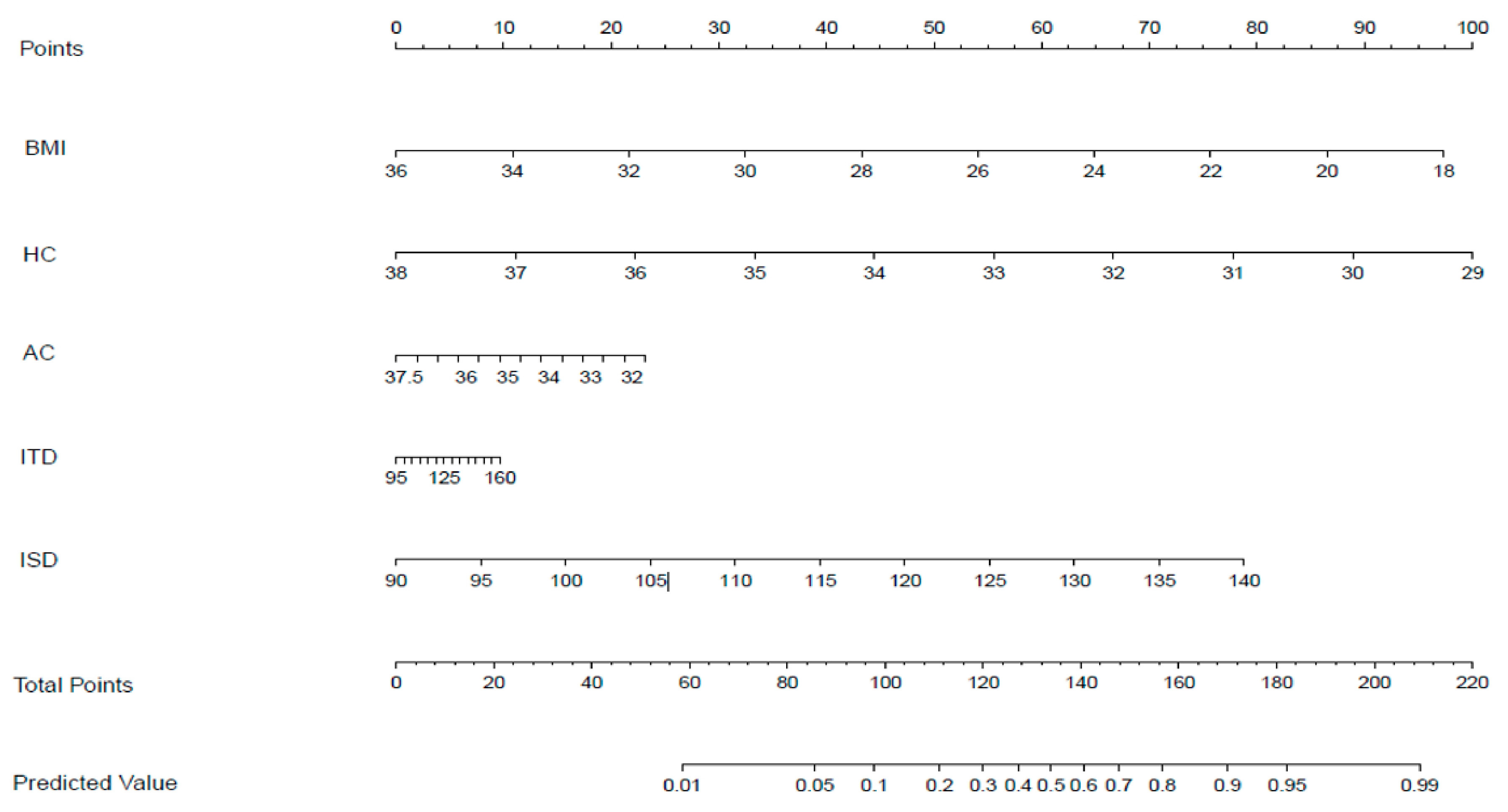

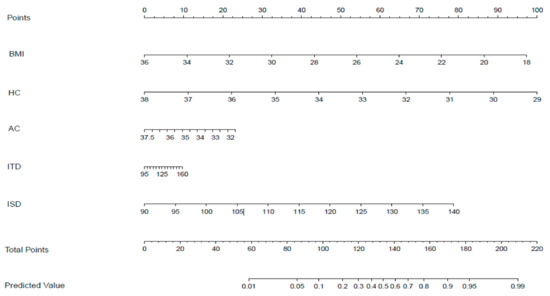

Figure 3.
A predictive nomogram for the probability of vaginal delivery. The nomogram is used as follows: (1) to obtain the nomogram-predicted probability, locate values on each axis; (2) draw a vertical line to the point axis to determine how many points are attributed for each variable value; (3) sum the points for all variables; (4) locate the sum on the total point line to assess the vaginal delivery probability at the lower line of the nomogram.
Figure 3.
A predictive nomogram for the probability of vaginal delivery. The nomogram is used as follows: (1) to obtain the nomogram-predicted probability, locate values on each axis; (2) draw a vertical line to the point axis to determine how many points are attributed for each variable value; (3) sum the points for all variables; (4) locate the sum on the total point line to assess the vaginal delivery probability at the lower line of the nomogram.

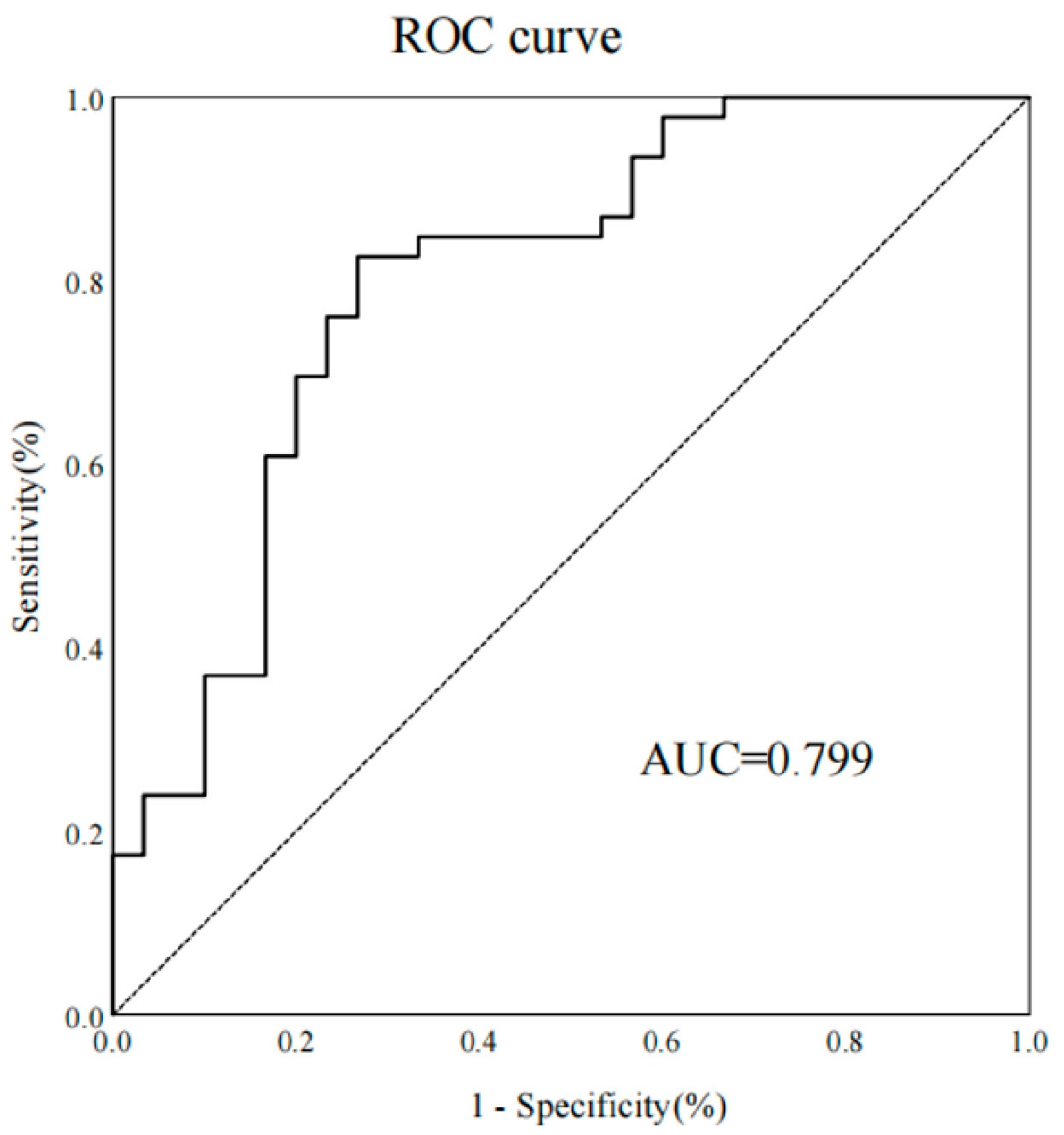

Figure 4.
The receiver operating characteristic (ROC) curve was measured using the validation set. AUC, area under the curve.
Figure 4.
The receiver operating characteristic (ROC) curve was measured using the validation set. AUC, area under the curve.

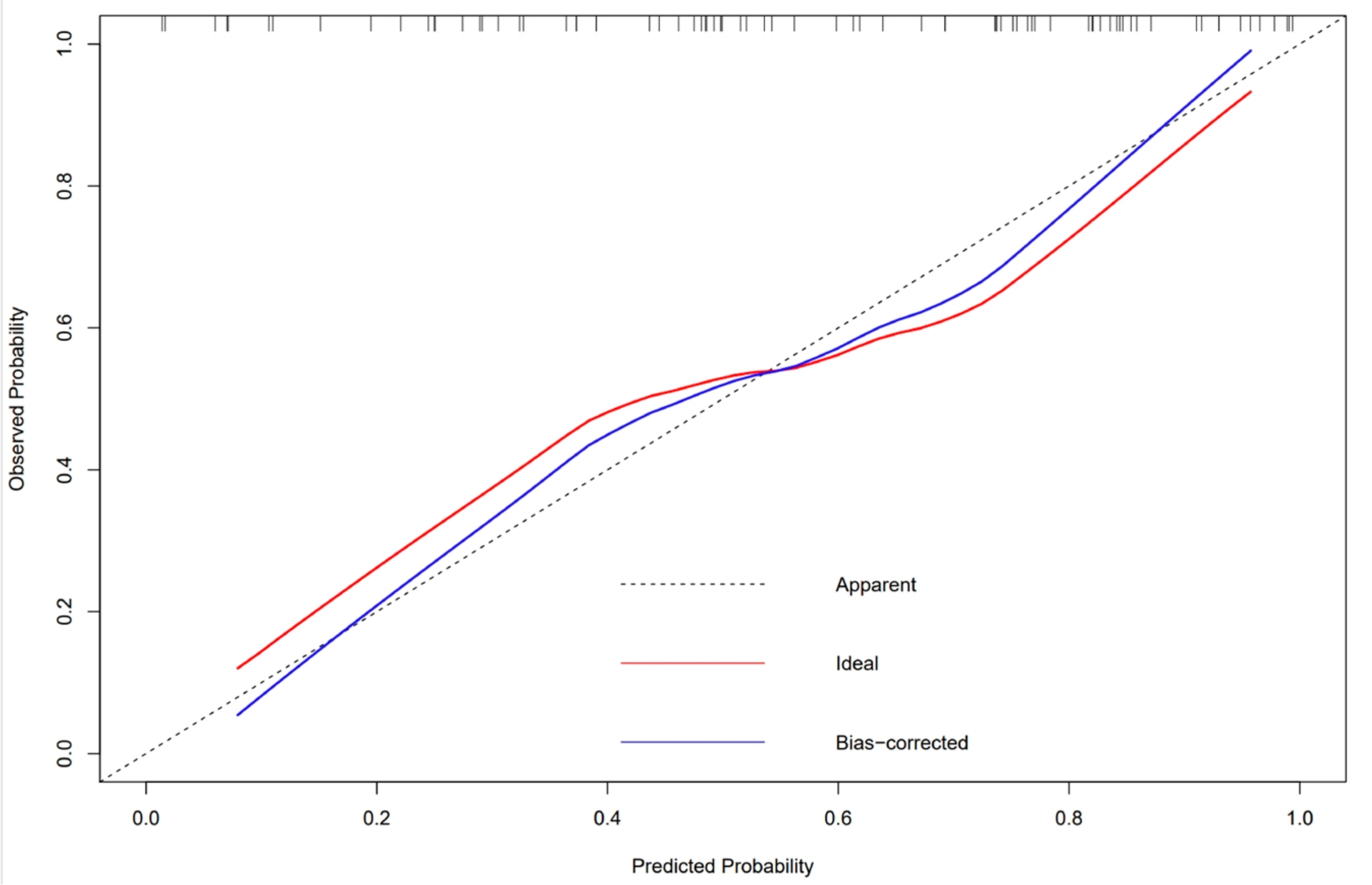

Figure 5.
Calibration curve. The red line represents ideal predictions. The plot illustrates the accuracy of the best-fit model (Apparent) and the validation model (Bias-corrected) for predicting vaginal delivery.
Figure 5.
Calibration curve. The red line represents ideal predictions. The plot illustrates the accuracy of the best-fit model (Apparent) and the validation model (Bias-corrected) for predicting vaginal delivery.

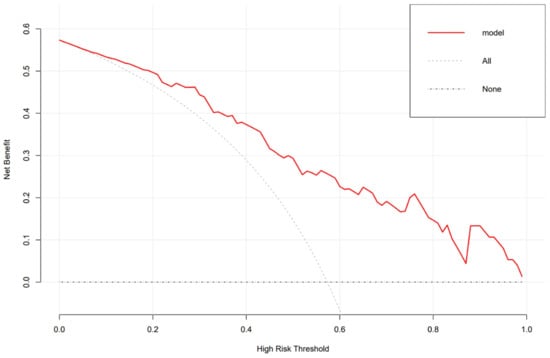

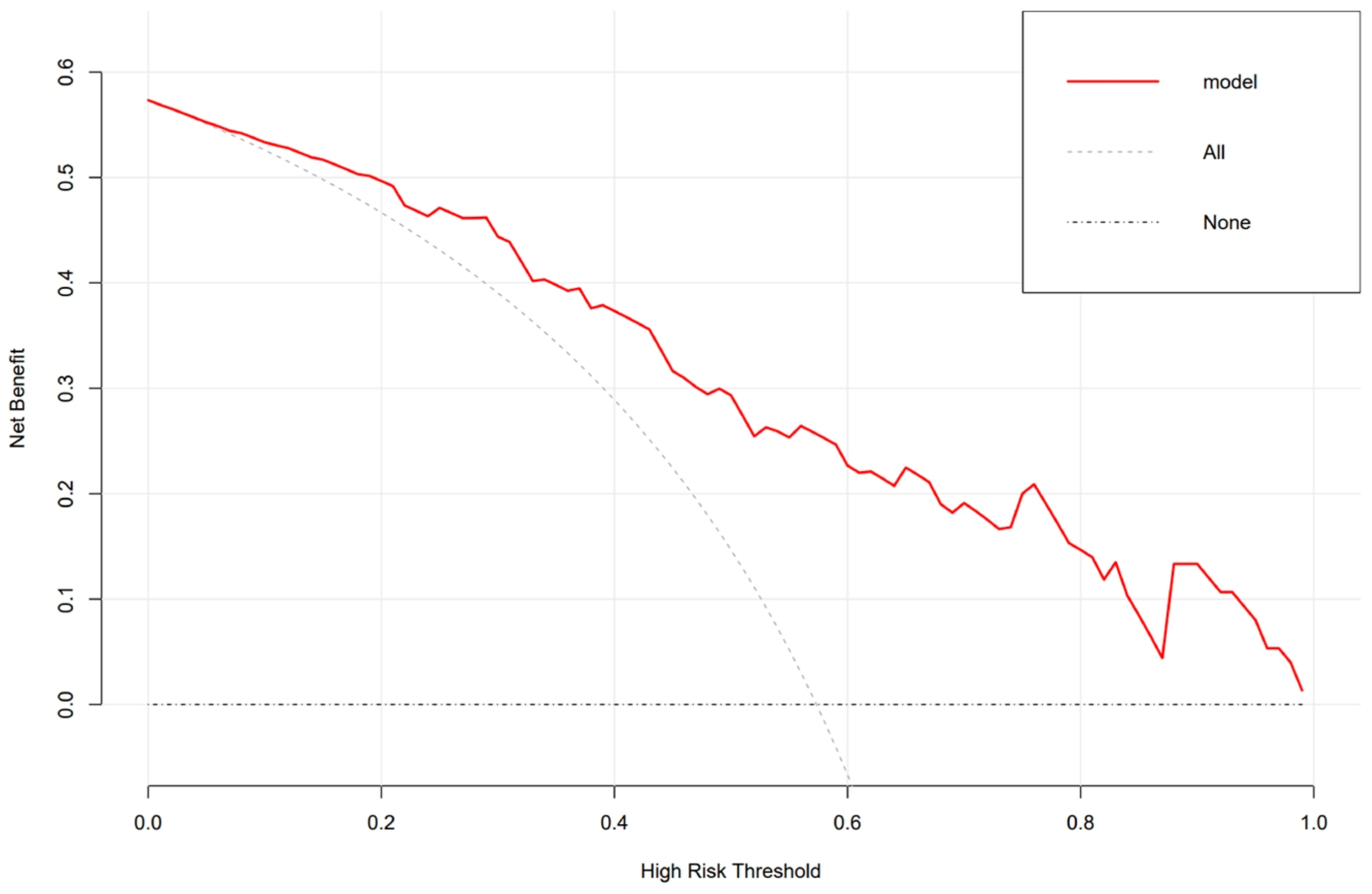

Figure 6.
Decision curve analysis for the predictive model. The red line represents the prediction model. The gray dashed line assumes all women delivered vaginally and the horizontal line assumes no woman delivered vaginally.
Figure 6.
Decision curve analysis for the predictive model. The red line represents the prediction model. The gray dashed line assumes all women delivered vaginally and the horizontal line assumes no woman delivered vaginally.
Table 1.
The Demographic Characteristics and MRI Parameters.
| Characteristic | Training Set (n = 75) | Validation Set (n = 75) | p Value |
|---|---|---|---|
| Maternal age (y), mean (SD) | 30.5 ± 3.8 | 30.1 ± 3.7 | 0.502 |
| Maternal weight (kg), mean (SD) | 66.0 ± 7.1 | 66.0 ± 7.5 | 0.999 |
| Maternal height (cm), mean (SD) | 157.5 ± 4.9 | 158.2 ± 5.5 | 0.378 |
| Gestational age at delivery (weeks), mean (SD) | 39.3 ± 0.7 | 39.1 ± 0.8 | 0.122 |
| Body mass index (kg/cm2), mean (SD) | 26.7 ± 2.9 | 26.4 ± 3.1 | 0.625 |
| Induction | 42 (56%) | 38 (51%) | 0.624 |
| Cesarean delivery, number (%) | 30 (40%) | 32 (43%) | 0.868 |
| Vaginal birth, number (%) | 45 (60%) | 43 (57%) | |
| Fetal biparietal diameter (cm), mean (SD) | 9.4 ± 0.3 | 9.4 ± 0.4 | 0.603 |
| Fetal femur length (cm), mean (SD) | 7.2 ± 0.3 | 7.2 ± 0.3 | 0.685 |
| Fetal head circumference (cm), mean (SD) | 33.3 ± 1.2 | 33.2 ± 1.2 | 0.493 |
| Fetal abdominal circumference (cm), mean (SD) | 34.8 ± 1.4 | 34.5 ± 1.8 | 0.274 |
| Pubic angle (°), mean (SD) | 81.0 ± 6.3 | 82.6 ± 5.9 | 0.117 |
| Intertuberous distance (cm), mean (SD) | 120.3 ± 10.1 | 119.3 ± 9.3 | 0.537 |
| Interspinous diameter (cm), mean (SD) | 105.2 ± 7.6 | 106.0 ± 7.3 | 0.522 |
| Obstetric conjugate (cm), mean (SD) | 123.1 ± 7.9 | 125.1 ± 9.5 | 0.169 |
| Bilateral acetabulum distance, mean (SD) | 126.2 ± 6.1 | 127.9 ± 7.2 | 0.182 |
| Pelvic width (cm), mean (SD) | 119.9 ± 6.4 | 120.6 ± 9.7 | 0.580 |
| Sagittal outlet diameter (cm), mean (SD) | 103.4 ± 6.8 | 104.6 ± 8.1 | 0.320 |
| Coccygeal pelvic outlet (cm), mean (SD) | 80.7 ± 7.9 | 79.1 ± 7.8 | 0.211 |
| Pelvic inclination (°), mean (SD) | 51.6 ± 5.0 | 51.4 ± 4.5 | 0.825 |
| Sacrum length (cm), mean (SD) | 109.7 ± 10.5 | 112.0 ± 9.9 | 0.168 |
| Birth weight (g), mean (SD) | 3478.5 ± 365.8 | 3431.1 ± 426.3 | 0.465 |
SD, standard deviation.
Table 2.
The Variables of Vaginal Birth in the Test Set Using Univariate Logistic Regression Analyses (n = 75).
Table 2.
The Variables of Vaginal Birth in the Test Set Using Univariate Logistic Regression Analyses (n = 75).
| Variable | OR | 95% CI | p Value |
|---|---|---|---|
| Maternal height | 1.10 | 0.99–1.21 | 0.078 |
| BMI | 0.74 | 0.61–0.91 | 0.003 a |
| Fetal head circumference | 0.51 | 0.31–0.84 | 0.008 a |
| Fetal abdominal circumference | 0.70 | 0.49–0.99 | 0.041 a |
| MRI pelvimetry | |||
| Bilateral acetabulum distance | 1.08 | 0.99–1.17 | 0.081 |
| Interspinous diameter | 1.12 | 1.03–1.22 | 0.006 a |
| Intertuberous diameter | 1.06 | 1.00–1.11 | 0.045 a |
| Obstetric conjugate | 1.03 | 0.97–1.01 | 0.281 |
| Pelvic width | 1.03 | 0.96–1.11 | 0.463 |
| Sagittal outlet diameter | 1.00 | 0.94–1.07 | 0.960 |
| Coccygeal pelvic outlet | 1.00 | 0.94–1.06 | 0.955 |
| Pubic angle | 1.08 | 1.00–1.17 | 0.060 |
| Pelvic inclination | 0.98 | 0.89–1.07 | 0.593 |
| Sacrum length | 1.01 | 0.97–1.06 | 0.599 |
ap < 0.05. BMI, body mass index; OR, odds ratio; CI, confidence interval.
Table 3.
The Predictive Model for Vaginal Birth in the Training Set Using Multivariate Logistic Regression (n = 75).
Table 3.
The Predictive Model for Vaginal Birth in the Training Set Using Multivariate Logistic Regression (n = 75).
| Covariate | Beta Coefficient | OR | 95% CI | p Value |
|---|---|---|---|---|
| Intercept | 28.755 | 0.021 | ||
| BMI | −0.330 | 0.72 | 0.57–0.9127 | 0.007 |
| Fetal head circumference | −0.677 | 0.51 | 0.28–0.91 | 0.023 |
| Fetal abdominal circumference | −0.234 | 0.79 | 0.49–1.28 | 0.342 |
| Interspinous diameter | 0.096 | 1.10 | 0.97–1.25 | 0.128 |
| Intertuberous diameter | 0.009 | 1.01 | 0.93–1.90 | 0.829 |
OR, odds ratio; CI, confidence interval. Candidates were recruited by univariate logistic regression analyses and the predictive model was constructed by multivariate logistic regression.
Table 4.
The Parameters of the Cesarean Section and Vaginal Delivery Groups in prolonged stage of labour (n = 54).
Table 4.
The Parameters of the Cesarean Section and Vaginal Delivery Groups in prolonged stage of labour (n = 54).
| Variable | Cesarean Section (n = 25) | Vaginal Delivery (n = 29) | p Value |
|---|---|---|---|
| Maternal age (years) | 30.32 ± 3.42 | 30.00 ± 3.47 | 0.735 |
| Gestational week | 39.36 ± 0.75 | 39.21 ± 0.62 | 0.418 |
| Height (mm) | 156.80 ± 4.15 | 158.27 ± 4.90 | 0.242 |
| BMI (kg/m2) | 26.82 ± 2.85 | 26.37 ± 2.74 | 0.551 |
| Fetal biparietal diameter (cm) | 9.63 ± 0.24 | 9.42 ± 0.32 | 0.008 a |
| Head circumstance (cm) | 33.83 ± 0.89 | 33.32 ± 1.11 | 0.071 |
| Abdomen circumstance (cm) | 35.89 ± 1.51 | 34.57 ± 1.46 | 0.002 a |
| Fetal femur length (cm) | 7.28 ± 0.16 | 7.19 ± 0.24 | 0.143 |
| Pubic angle (°) | 80.96 ± 5.77 | 82.83 ± 5.33 | 0.222 |
| Intertuberous distance (cm) | 119.59 ± 8.41 | 119.22 ± 8.80 | 0.875 |
| Interspinous diameter (cm) | 104.33 ± 6.37 | 105.99 ± 5.57 | 0.310 |
| Obstetric conjugate (cm) | 124.58 ± 8.26 | 124.96 ± 9.38 | 0.873 |
| CID | 18.09 ± 5.70 | 21.29 ± 5.74 | 0.046 a |
| Birth weight (g) | 3661.60 ± 324.07 | 3328.28 ± 329.48 | 0.000 a |
ap < 0.05. BMI, body mass index; CID, cephalopelvic index of diameter.
