Review

A Comprehensive Excursus of the Roles of Echocardiography in Heart Transplantation Follow-Up

by
Daniela Bacich
1,†,
Chiara Tessari
1,*,†,
Giulia Ciccarelli
1,
Giovanni Lucertini
1,
Alessia Cerutti
2,
Nicola Pradegan
1,
Giuseppe Toscano
1,
Giovanni Di Salvo
2,
Antonio Gambino
1 and
Gino Gerosa
1
1
Cardiac Surgery Unit, Department of Cardio-Thoracic-Vascular Sciences and Public Health, University Hospital of Padova, 35128 Padova, Italy
2
Pediatric Cardiology Unit, Department of Women’s and Children’s Health, University Hospital of Padova, 35128 Padova, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2024, 13(11), 3205; https://doi.org/10.3390/jcm13113205
Submission received: 24 April 2024 / Revised: 23 May 2024 / Accepted: 27 May 2024 / Published: 29 May 2024
(This article belongs to the Special Issue Clinical Echocardiography: Advances and Practice Updates)
Browse Figures
Versions Notes

Abstract

:
Current guidelines for the care of heart transplantation recipients recommend routine endomyocardial biopsy and invasive coronary angiography as the cornerstones in the surveillance for acute rejection (AR) and coronary allograft vasculopathy (CAV). Non-invasive tools, including coronary computed tomography angiography and cardiac magnetic resonance, have been introduced into guidelines without roles of their own as gold standards. These techniques also carry the risk of contrast-related kidney injury. There is a need to explore non-invasive approaches providing valuable information while minimizing risks and allowing their application independently of patient comorbidities. Echocardiographic examination can be performed at bedside, serially repeated, and does not carry the burden of contrast-related kidney injury and procedure-related risk. It provides comprehensive assessment of cardiac morphology and function. Advanced echocardiography techniques, including Doppler tissue imaging and strain imaging, may be sensitive tools for the detection of minor myocardial dysfunction, thus providing insight into early detection of AR and CAV. Stress echocardiography may offer a valuable tool in the detection of CAV, while the assessment of coronary flow reserve can unravel coronary microvascular impairment and add prognostic value to conventional stress echocardiography. The review highlights the role of Doppler echocardiography in heart transplantation follow-up, weighting advantages and limitations of the different techniques.

1. Introduction

Heart transplantation (HT) is the gold-standard therapy in advanced heart failure, providing survival gain and health-related quality of life [1]. However, HT patients remain at risk of developing complications during follow-up, including acute graft rejection (AR), coronary allograft vasculopathy (CAV), infections, cancer, and renal failure. Timely diagnosis of AR and CAV is mandatory for graft and patient survival. Current guidelines recommend routine invasive screening with endomyocardial biopsy (EMB) and invasive coronary angiography (ICA) at preset intervals as the gold standards for their early detection [2]. While carrying the risk of procedural complications, EMB may provide false negative histological results, due to the patchy nature of AR. Furthermore, EMB in infants and children is a problematic gold standard, and some centers seek to reduce the incidence of its use, limiting it in case of “clinical suspicion”. ISHLT guidelines for the care of pediatric heart transplant recipients suggest using detailed echocardiographic assessments [2]. ICA gives insight into the anatomy of major coronary vessels, but it lacks sensitivity in detecting diffuse concentric lesions, like those seen in early CAV, as it cannot visualize beyond the arterial lumen, and is not capable of wall and lesion characterization. Therefore, it needs to be performed in combination with intravascular ultrasound (IVUS) or optical coherence tomography (OCT) [3]. Furthermore, ICA only gives direct information about epicardial vessels, not about microcirculation. In order to avert the potential procedural risks of intracoronary diagnostics, non-invasive modalities, like coronary computed tomography angiography (CCTA) and cardiac magnetic resonance, have emerged in the long-term follow-up of HT patients [4]. Due to the high prevalence of renal impairment in HT recipients, these techniques still carry the risk of contrast-related acute kidney injury (AKI) and may not be adopted in the long-term follow-up in all patients [5].
Transthoracic echocardiography (TTE) is the first-line imaging modality for the investigation of HT recipients. It can be performed at bedside, serially repeated, and does not carry the burden of contrast-related AKI and procedure-related risk. It provides assessment of left and right ventricular systolic and diastolic function, valvular heart disease, pulmonary hypertension, and pericardial effusion. The additional introduction of Doppler tissue imaging (DTI), speckle tracking echocardiography (STE), stress echocardiography and coronary flow reserve may play a role in the early detection of AR and CAV.
In this article, we review the basic principles of echocardiography in HT recipients, weighing the advantages and limitations of the different techniques.

2. Echocardiography of the Normal Cardiac Allograft

Echocardiographic evaluation of HT patients is based on the assessment of the same parameters used for the general population. However, orthotopic HT involves many factors that affect myocardial function, such as abnormalities of the donor heart, physiologic changes of the allograft and pathologic changes occurring during the peri- and post-transplant period [6]. Therefore, echocardiographic assessment of the cardiac graft is complicated by the greater variability of echocardiographic parameters in this cohort compared with the general population and by a lack of specific reference values for this population [7]. Instead of relying on the absolute value of each measurement, it becomes of paramount importance to obtain a baseline evaluation, with which later results should be compared, in order to detect pathological changes over time. This comprehensive evaluation should be performed at least 6 months after HT [8].

2.1. Evaluation of Left Ventricular Function

Rejection-free grafts with normal coronary arteries exhibit diastolic left ventricular (LV) volumes in the lower normal range, mild LV hypertrophy and increased LV mass compared with reference values [6,7]. In the first post-transplant period, the increase in LV wall thickness may be explained with peri-transplantation injury and graft edema. In the long term, the persistence of LV hypertrophy is multifactorial: possible mechanisms include hypertension, the effect of immunosuppressive treatment (especially calcineurin inhibitors and prednisone) and hypertrophy of the implanted heart; still, a progressive increase in ventricular wall thickness may be associated with acute graft rejection [9].
Mean LV ejection fraction (EF) is within the normal range. However, like in other forms of cardiac surgery, patients frequently exhibit abnormalities of interventricular septum motion and thickening [6]. Although normal EF does not exclude significant AR or CAV, a progressive decrease in LV systolic function may be a consequence of both AR and CAV in the first post-transplant year. Late reduction of LV ejection fraction is frequently due to CAV progression and carries a poor prognosis [10].

2.2. Evaluation of Right Ventricular Function

Both transversal diameter measurements and area measurements of the right ventricle (RV) are increased compared with normal reference values, while conventional parameters measuring RV function, such as tricuspid annular plane systolic excursion (TAPSE), S’ wave at tissue Doppler imaging, fractional area shortening, and global longitudinal strain of the RV free wall, are lower compared with normal [7]. In the early post-transplant period, the dilatation is mainly due to afterload mismatch with relatively high pulmonary pressures of the recipient and loss of pericardial constraint [11,12]. Normalization of RV cavity sizes usually occurs within a few weeks, along with the progressive decrease in pulmonary vascular resistances. Conventional parameters of RV longitudinal function only partially recover within the first year. This can be explained by many factors, like prolonged ischemia time, tricuspid regurgitation, pre-transplant pulmonary pressures, cause of the donor death, and status of the donor heart [13]. Being unable to discern active contraction from passive entrainment caused by the left ventricle, TAPSE and S’ are not to be considered sensitive parameters of global RV function after cardiac surgery. On the other hand, 2D STE echocardiographic assessment of RV longitudinal strain is less angle- and load-dependent and less confounded by RV geometry. RV longitudinal strain is decreased even in healthy HT recipients (−16.9 ± 4.2%) when compared with reference values for the general population [7]. This reflects the changes in RV contractile pattern cardiac surgery, with a relative loss of longitudinal shortening and gain in transverse shortening even in the case of preserved global RV function [14]. Nonetheless, RV global and free wall longitudinal strain are decreased in the early postoperative period and gradually improve within the first year [15,16]. Therefore, a reduction in these parameters over time must be regarded as a pathological finding and prompt further evaluation of possible causes, including rejection but also cardiac allograft vasculopathy, hypertension or infection. Since RV global longitudinal strain includes strain of the right side of the inferior septum, which can be affected by EMB-related myocardial fibrosis, RV free wall strain is likely a more objective parameter of RV function in patients undergoing multiple endomyocardial biopsies [17]. Three-dimensional (3D) echocardiography overcomes the limitations of 2D imaging by assessing RV volume and function without any geometrical assumption [18] and can provide measurements that favorably compare with cardiac magnetic resonance data [19]. For these reasons, newer techniques like STE and 3D echocardiography may be useful tools when assessing RV function in this patient group.

2.3. Evaluation of Postoperative Valvular Function

Tricuspid regurgitation (TR) is the most common valvular abnormality in transplanted hearts, with a reported incidence ranging between 19 and 84%. The variability depends on differences in the definition of significant regurgitation and the surgical technique adopted for HT [20]. In the first post-transplant weeks, TR can be attributed to pulmonary hypertension. Its severity decreases spontaneously as pulmonary resistance decreases. The main causes of functional TR beyond the early postoperative period are persistent high pulmonary pressures, enlargement of the tricuspid annulus induced by right ventricular dilatation (Figure 1), and geometric distortion of the tricuspid annulus, the latter being more frequent in the case of the biatrial anastomosis implantation technique. In fact, the adoption of the bicaval technique has significantly reduced the prevalence of early tricuspid regurgitation in HT recipients [21]. Organic tricuspid regurgitation is mainly due to lesions of the chordal apparatus caused by repeated EMBs, with strong correlation between the number of performed biopsies and the severity of TR [22].
Mild mitral regurgitation, due to papillary muscle edema, is common in the early post-transplant period and usually decreases over time [10,23]. Doppler flow velocities at aortic and pulmonary level are usually normal. On some occasions, the mismatch in the size of the donor and recipient pulmonary artery and the suture line in the proximal pulmonary artery may result in an aspect of “pseudo-narrowing”. However, the detection of significant gradients by Doppler is uncommon [8].

2.4. Evaluation of Atrial Function

Atrial morphology is widely affected by surgical technique. The biatrial surgical approach resulted in bilateral enlargement of the long axis dimension of the atria, with an echo-dense ridge at mid-atrial level, being the site of the anastomosis, best seen in the apical 4-chamber view [24] (Figure 2A). The ridge resulted in impaired atrial hemodynamics, with abnormal LV filling pattern, valve annulus distortion and blood stasis within dilated atria [25]. With the now more widely adopted bicaval technique, atrial geometry is better preserved (Figure 2B). Nevertheless, patients may exhibit significant atrial enlargement, mainly correlated with allograft age [7].

2.5. Evaluation of Diastolic Function

Evaluation of diastolic function after HT using conventional Doppler technique is challenging: the elevated heart rate usually seen in the denervated heart results in overlapping of E and A waves (Figure 3). Moreover, the assessment of LV filling is influenced by many factors, including preload conditions, atrial dynamics and morphology, LV compliance and contractility, end systolic volume and heart rate. In fact, even in the absence of AR or CAV, the graft may show signs of diastolic dysfunction [8].

2.6. Evaluation of Tissue Doppler Imaging

Tissue Doppler imaging parameters are also altered in the normal cardiac graft, with e’ and s’ velocities lower than in normal population [26]. Both restrictive filling patterns and indirect signs of elevated filling pressures are often seen early post transplantation; they improve within the first post-transplant year and carry no prognostic value [27]. On the other hand, in some patients, restrictive physiology can be identified many years after HT, and this finding correlates with history of AR and heart failure episodes [28].

2.7. Evaluation of Postoperative Pericardial Effusion

Pericardial effusion has a high prevalence in HT patients as an early response to surgical injury or as the result of mismatch in volumes between the donor and the recipient heart. It may be seen in up to two-thirds of patients at 3 months but has a tendency to reduce over time [29,30]. However, a significant pericardial effusion may also be due to the effect of some immunosuppressive drugs, to an infective pericarditis in the immune-depressed patient, or to AR. Although these effusions rarely evolve into cardiac tamponade, frequent echocardiographic assessments are warranted, in order to detect extension and hemodynamic impact. Moreover, even the occurrence of hemodynamically irrelevant pericardial effusion is associated with an increased risk of hospitalization and mortality [31] and may in rare occasions lead to the development of constrictive pericarditis [32].

3. Primary Graft Dysfunction

Primary graft dysfunction (PGD) is the most common cause of early mortality after HT and occurs within 24 h after completion of transplant surgery. The ISHLT Consensus guidelines distinguish between PGD and secondary graft dysfunction, which may be attributed to a recognized cause, including pulmonary hypertension, hyperacute rejection, surgical complication and sepsis. In this setting, donor or recipient risk factors and intraprocedural aspects can further PGD. As a consequence of large discrepancies in treatment of left and right ventricular failure, PGD is further classified as left ventricular and right ventricular; left ventricular PGD also includes biventricular dysfunction and may be graded as mild, moderate and severe, depending on the necessity to adopt pharmacological inotropic support or mechanical circulatory support in order to maintain perfusion [33,34]. In this context, echocardiography has a role as a first-line diagnostic tool for detection of impaired left ventricular function (EF < 40%) and right ventricular function (i.e., TAPSE < 15) and exclusion of other causes of hemodynamic impairment. Frequent echocardiographic reassessments are crucial in the evaluation of graft function improvement in response to inotropic or mechanical circulatory support.

4. Echocardiography in Graft Rejection

The manifestation of rejection can occur from the intraoperative period to many years after transplant, and the timing of rejection has a significant role in establishing cause and diagnosis. Early graft dysfunction can be primary graft dysfunction, which does not include rejection etiology, or secondary graft dysfunction. In the latter condition, hyperacute graft rejection must be considered in case of either AB0 incompatibility or preformed cytotoxic antibodies that direct their activity against significant histocompatibility (MHC) antigens on the allograft. Late graft dysfunction includes AR, which can be cellular or antibody (humoral) mediated. Acute cellular rejection (ACR) is due to major and minor histocompatibility antigens, which are not equally expressed among all individuals; these proteins may act as alloantigens and activate alloimmunity by stimulating cytotoxic T cells [35]. Antibody-mediated humoral rejection (AMR) is poorly understood, but what is known is that the antibodies react with donor MHC antigens (HLA-I and HLA-II), leading to capillary endothelial changes with the deposition of immunoglobulin and complements within the myocardial capillary bed [36]. For a comprehensive description of AR, see Table 1. Notably, recent studies have established that effector B cells, and accordingly AMR, are involved in the development of CAV [37]. Other causes of allograft failure include recurrence of myocardial conditions such as amyloidosis, sarcoidosis, giant cell myocarditis, hereditary hemochromatosis, and malignancies like primary cardiac lymphoma.
Symptoms are uncommon in early stages of rejection, but eventually heart failure or sudden cardiac death can occur.
EMB is the gold standard for detection of graft rejection. However, the procedure carries the risk of complications, like cardiac tamponade, pulmonary embolism, pneumothorax, and damage to the tricuspid valve. Moreover, the patchy distribution of rejection may result in sampling errors, and interobserver variation in the interpretation of histological specimens may cause underestimation of the severity of rejection.
During AR, conventional echocardiography may detect changes in myocardial structure (LV wall thickening and mass increase, changes in myocardial echogenicity) (Figure 4) and function (decrease in LV ejection fraction and/or abnormalities in regional wall motion), or the appearance of pericardial effusion [38,39]. These conventional echo parameters are usually late findings and indicate a higher grade of rejection, while on the other hand, they do not correlate with the severity of rejection detected by EMB [40].
Abnormalities in diastolic function appear earlier during graft rejection. They are caused by myocardial edema and interstitial fibrosis, which alter regional myocardial stiffness before affecting myocardial contractile function. Doppler indices of mitral inflow, including increased E/A ratio, shortening of isovolumic relaxation time and mitral valve pressure half time, have been the first and most extensively explored [41,42]. However, no single Doppler parameter or combination of parameters is powerful enough to detect AR. The main reasons are the strong dependency of Doppler-derived measurements on loading conditions and the difficulty in obtaining clear Doppler waves from transplant patients because of tachycardia and fusion of mitral E and A waves. Moreover, cardiac grafts frequently exhibit baseline diastolic filling abnormalities unrelated to AR and may gradually develop restrictive patterns beyond the first year of follow-up.
Since graft rejection affects both systolic and diastolic function, attempts have been made to investigate the myocardial performance index (MPI), a Doppler-derived combination of systolic and diastolic time intervals, as a possible early marker of acute rejection [43,44,45]. However, AR is associated with both an increase in isovolumic contraction time and decrease in isovolumic relaxation time, which explains the controversial results regarding the accuracy of MPI in detecting graft rejection.
Tissue Doppler imaging (TDI) enables the measurement of systolic and diastolic velocities within the myocardium, providing parameters that are not preload-dependent. Most studies have revealed a reduction in systolic and diastolic myocardial velocities during AR: Dandel et al. reported the association of peak systolic and early diastolic peak velocities obtained at basal posterior LV wall with AR [46]; Lunze et al. have identified a <15% decline in peak systolic (s’) and <5% decline in late diastolic velocity (a’) to individually predict non-rejection with 99% accuracy in a pediatric population [47]. Mankad et al. described that the sum of lateral mitral annulus systolic and diastolic velocities s’ and e’ > 13.5 cm/s determined by color-coded tissue Doppler had 93% sensibility, 78% specificity and 98% negative predictive value for predicting rejection grade 1B [48]. More recently, Ruiz Ortiz et al. confirmed these data and, among a wide set of echo parameters, reported that an s’ + e’ value ≥ 23 cm/s had a negative predictive value of 98% for ruling out rejection grade ≥ 2R [49]. However, myocardial velocities must be interpreted with caution in HT: translational allograft motion affects TDI parameters, inducing inter-patient variability in measurements; also, TDI velocities are low shortly after transplantation and gradually increase over the first year, remaining lower in transplanted hearts than in the general population [8]. Finally, the power of studies previously performed on TDI in AR is limited by small sample size, single-center analysis and lack of validation [50].
Nevertheless, constant TDI velocities during follow-up (change < 10% compared with baseline) show good accuracy in excluding, rather than predicting, AR [46]. Thus, the detection of a change in myocardial motion velocity during follow-up is more useful than the absolute value of one single measurement.
Strain and strain rate echocardiography allow quantitative assessment of regional myocardial wall motion, reflecting both systolic and diastolic function, relatively independent of overall cardiac motion, which is more prominent in allografts. Myocardial deformation imaging has been shown to detect changes in regional systolic function at an earlier subclinical stage than conventional echocardiography. It can be derived either from TDI-based velocity measurements or from 2D STE. First findings on the usefulness of myocardial deformation imaging in early detection of subclinical rejection (grade 1B) were provided by TDI-derived data [51,52]. Interestingly, Marciniak et al. found that only regional strain from the lateral wall was predictive for acute rejection, not the regional strain from the septum, which is probably due to paradoxical septal motion that happens after cardiac surgery, including heart transplantation. However, an important limitation of TDI strain measurements is angle dependency. Two-dimensional STE overcomes this limitation and offers better spatial resolution, but requires good image quality [53]. Although different STE-derived parameters, including global longitudinal strain, radial strain and circumferential strain, have been investigated [54,55], most studies have described a significant correlation of LV global longitudinal strain (GLS) reduction with even mild acute rejection. Clemmensen et al. reported that GLS measured by STE was significantly reduced during moderate 2R-ACR and improved significantly in the resolving period, thus providing a dynamic monitor during treatment [56] (Figure 5A,B).
Mingo Santos et al. examined the RV free wall longitudinal strain in addition to LV strain parameters. An RV free wall longitudinal strain of less than 17% and an LV-GLS of less than 15.5% were independently associated with the presence of ACR of grade ≥ 2R, with negative predictive value of 98.8% in each case [57] (Figure 5C). Antonczyk et al. also investigated RV free wall strain and adopted a similar cut-off value < 16.8% for detection of ACR of grade ≥ 2R, with a negative predictive value of 95% [58]. On the other hand, other investigators found no correlation between ventricular strain and rejection, cellular or humoral [59,60]. Two recent meta-analyses, both concluding that GLS assessment of the LV may be useful in the detection of ACR [61,62], point out that the body of evidence on the diagnostic utility of GLS in ACR screening is largely based on observational studies. Therefore, heterogeneous results may be affected by differences in study design, lack of correspondence between different STE software packages and results, sampling errors in EMB and the fact that AMR has not been ruled out. STE detects subclinical graft dysfunction, irrespective of the cause. Notably, Ciarka et al. reported that patients with AMR showed a decline in GLS and global circumferential strain in the months preceding rejection (GLS < 15.5% and GCS < 15.2% could distinguish, with a sensitivity and specificity of 100.0%, AMR from controls 3 months before rejection) while control and ACR patients had stable strain values except for the moment of rejection [63].
Recently, STE has also been investigated in the context of multiparametric monitoring strategies: Clemmensen et al. developed a non-invasive model combining a change in LV-GLS and biomarkers for the detection of AR: a sudden drop in graft function, defined as a drop in LV-GLS ≥ −2% combined with either an increase in Troponin T ≥ 20% or NT-pro-BNP ≥ 30% compared with the levels at the last visit, showed a sensitivity of 49% and a specificity of 98% for the detection of ≥2R ACR [64].
Up to this point, no single echocardiographic parameter alone could be used for prediction of AR. However, as long as certain echo parameters (LV wall motion and myocardial strain, RV free wall strain) remain unchanged compared with the previous examination, the probability of rejection is very low, whereas, with the appearance of multiple predictors, the probability of rejection is significant.
Table 2 summarizes the literature on the diagnostic value of echocardiography in AR detection.

5. Echocardiography in CAV

CAV is a leading cause of late mortality and morbidity following HT, affecting almost 50% of patients within 5 years of cardiac transplant [65]. It is a diffuse, rapidly developing obliterative vasculopathy involving both large epicardial vessels and distal coronary microcirculation. The pathogenesis is complex and lies in the interplay between transplant-related factors (rejection episodes, especially antibody-mediated, cytomegalovirus infection and abrupt mode of donor death) and traditional cardiovascular risk factors (hypertension, hyperlipidemia, diabetes) [66,67]. Given the absence of afferent autonomic innervation, most HT recipients do not experience angina pectoris and may present with silent myocardial infarction, allograft dysfunction or sudden death [68]. ICA is recommended as the cornerstone technique for early CAV detection, while concurrent intravascular imaging using IVUS permits earlier detection of neointimal hyperplasia and has predictive value [2,69]. Table 3 describes CAV classifications using ICA.
However, ICA may underestimate the involvement of small distal vessels and overlook the occurrence of functional coronary alterations independent of morphological changes, while holding potential for procedure-related vascular injuries and contrast-related kidney damage.
CCTA has the potential, in experienced hands, for the early detection of coronary vessel wall changes, including atherosclerotic plaques and intimal hyperplasia, with the advantages of good spatial resolution [4,70]. Current guidelines recommend the use of CCTA as a non-invasive alternative for detection of CAV in >2 mm epicardial vessels (Class IIa, Level of evidence B recommendation) [2]. Still, the major concerns remain the exposure to ionizing radiation and nephrotoxic contrast. Renal impairment from multiple etiologies is common in HT patients, and contrast agents may precipitate kidney injury. Another method for CAV assessment is represented by single-photon emission computed tomography (SPECT) myocardial perfusion imaging (MPI). Studies of the diagnostic accuracy of SPECT MPI have reported variable sensitivity and specificity, and low to intermediate diagnostic accuracy in CAV detection. The main limitation in the diagnostic performance of SPECT is the diffuse nature of CAV disease, causing a scattered impairment in myocardial perfusion, with a lack of normal reference segments [2]. There remains a need to find a non-invasive kidney-friendly modality that can detect early development of CAV.
Standard two-dimensional echocardiography at rest has limited diagnostic accuracy for the detection of CAV. LVEF is usually within the normal range even in advanced forms of CAV, indicating the need for more-sophisticated non-invasive methods to detect impaired myocardial function caused by CAV. Nevertheless, late reduction of LVEF is often correlated with CAV and carries a poor prognosis [10,71]. The onset of new regional wall motion abnormalities should raise suspicion of CAV progression and prompt further investigation [72]. However, this is not a specific finding, as it may develop even in the absence of CAV or AR.
Diastolic dysfunction in CAV, related to the subversion of extracellular matrix by fibrosis and microvascular remodeling, develops prior to systolic impairment [73,74]. A restrictive filling pattern (defined as E/A velocity ratio > 2, IVRT < 60 msec, DT < 105 msec) is generally present in patients with severe CAV. Therefore, worsening of diastolic function during follow-up, although not specific for CAV, should prompt further evaluation [73]. Wall motion velocity analysis by PW-TDI appears to be suitable for the earlier detection of myocardial dysfunction in CAV: Dandel et al. found that reduced systolic radial wall motion peak velocity (Sm < 10 cm/s) in repeated measurements showed a sensitivity of nearly 90% for angiographic and/or IVUS detectable CAV in non-rejecting heart recipients, but the sensitivity decreased to 51% for detection of focal stenosis of major epicardial vessels [75]. Since endomyocardial fibers, which are mainly longitudinally oriented, are the most susceptible to macro- or microvascular ischemic insult, a reduction in GLS rest values has been associated with CAV in many reports [76,77]. Clemmensen et al. also reported that the entity of GLS reduction correlates not only with the presence but also with the severity of CAV, even in patients with preserved LVEF [76].
Stress echocardiography has been widely investigated as a non-invasive alternative imaging modality for the detection of CAV.
Exercise echocardiography is considered of limited value in HT patients because of resting tachycardia due to parasympathetic denervation, of impaired chronotropic response to exercise and of the diffuse nature of CAV abnormalities, which may result in balanced ischemia [78]. For this reason, current ISHLT guidelines no longer recommend exercise echocardiography for the detection of CAV [2]. Nevertheless, a recent report pointed out that exercise can induce a level of cardiac stress that is equal to or greater compared to dobutamine in HT patients who are able to exercise and prefer exercise stress testing [79].
Among pharmacologic stressors, dobutamine is the first choice because denervation of the transplanted heart increases the responsiveness to chronotropic stimulation [80], although some reports have described the adoption of dipyridamole in stress echocardiography for CAV surveillance [81].
Dobutamine stress echocardiography (DSE) has been the most widely used non-invasive tool to detect inducible ischemia in HT patients. Even so, the diagnostic value of DSE for detection of CAV remains unclear because of the wide range in reported sensitivity and specificity [82,83,84,85,86]. In a large meta-analysis by Elkaryoni et al., the sensitivity of DSE to detect CAV varied from 1.7% to 93.8% (pooled 60.2%), and specificity from 54.8% to 98.8% (pooled 85.7%) [87]. This variability may be explained with differences in the adopted definition of CAV, as DSE generally fails to detect mild CAV due to its diffuse nature; also, the accuracy of DSE depends on whether the gold standard adopted for comparison is ICA or IVUS [8,88]. Despite the suboptimal sensitivity for CAV, DSE still has important prognostic value: a positive dobutamine test, and even more, worsening of serial DSE, were found to be independent predictors of cardiac events and death during follow-up, while a normal DSE predicts an uneventful clinical course [89,90] and may justify postponement of invasive studies and CCTA in patients at high risk for AKI [2].
The accuracy of conventional stress echocardiography might be improved with the concurrent adoption of advanced echocardiographic techniques: quantitative analysis of segmental LV motion through strain rate imaging can increase DSE sensitivity in the detection of CAV from 63 to 88% [91]. Quantitative myocardial contrast echocardiography provides assessment of relative myocardial blood volume (rBV, a measure of microvascular density at rest), and its exchange after contrast bubble disruption induced by ultrasound could accurately detect severe CAV: an rBV < 14% at rest correlates with coronary intima thickness > 1 mm as determined by IVUS with a sensitivity of 90% and specificity of 75% [92]. However, these techniques require highly experienced professionals and advanced technologies that limit their widespread availability and application.
Coronary microvascular dysfunction defined by means of reduced coronary flow reserve (CFR) has emerged as a strong predictor of outcome in HT patients, also showing good accuracy for the detection of maximal intimal thickness of 0.5 mm on IVUS [93,94]. CFR is actually sensitive to both macrovascular and microvascular function and can be impaired before coronary abnormalities are even discernible on ICA. On this subject, Sade et al. reported that the assessment of CFR during DSE improved the sensibility and diagnostic accuracy of the latter method [95]. Otherwise, Pichel et al. proposed that the inclusion of CFR (with cut-off value < 2) during dipyridamole stress echocardiography could increase the negative predictive value for moderate-severe CAV [96].
Finally, Bjerre et al. have presented the combination of LV GLS and CFR as a feasible, reproducible and promising tool for non-invasive assessment of CAV and prognosis in HT patients: worsened LV GLS (>−15.5%) and low CFR (<2.0) were both independent predictors of major adverse cardiac events, while combined CFR and LV GLS represented a strong model to rule out significant CAV (CAV 2 and CAV 3) with NPV of 94.5% [97].
Table 4 summarizes the literature on the diagnostic value of echocardiography in CAV detection.

6. Echocardiography during Endomyocardial Biopsy

Traditionally, EMB has been performed with fluoroscopic guidance. Echocardiography is increasingly being adopted in this context because of several advantages: it avoids repeated X-ray exposure and may be performed at patients’ bedside when required. Echocardiographic monitoring permits adequately following the movement of the catheter in the RV and selecting the site of the biopsy, usually the apical segment of the right side of the interventricular septum [98,99]. It also affords the possibility of avoiding damage to the tricuspid valve, chordae and papillary muscles and promptly identifying the occurrence of complications like pericardial effusion [24,99,100]. In patients with difficult bioptome placement because of unusual anatomy or with a history of repeated biopsies of the same site (which degrade the ability to interpret the specimen for histologic evidence of rejection), the adoption of real-time 3D echocardiography may enhance the ability of the operator to identify the bioptome tip location within the RV [101].

7. Conclusions

Echocardiography is a primary non-invasive modality for the assessment of HT recipients. It is a versatile tool, providing information on both cardiac structure and function. It can be easily performed at bedside, serially repeated with no risk for the patient. For the detection of graft rejection, EMB is the gold standard and can not be replaced by standard echocardiography. Nevertheless, advanced echocardiographic techniques, like tissue Doppler imaging and strain imaging, in particular GLS, seem to be promising tools in the early detection of graft dysfunction [56,63]. In the detection of CAV, conventional stress echocardiography provides limited sensitivity, which may be improved by the adoption of speckle tracking techniques and CFR assessment. Nevertheless, stress echocardiography has recognized prognostic value in the assessment of CAV and represents an effective tool in the context of non-invasive multimodality imaging strategies, providing tailored screening modalities for patients that cannot afford to be investigated with contrast-bearing technologies.

8. Future Directions

Reliable and objective non-invasive modes of surveillance for HT recipients have to become relevant in clinical practice in order to reduce invasive and risky procedures.
Larger multicenter investigations and randomized controlled studies have to be performed to close the “gap in evidence” caused by small sample size, single center analysis and lack of validation of previously performed echo studies.
Actually, the overall reported sensitivity and specificity of single echo parameters are at most moderate, but multiparametric assessment and algorithm development have the potential to offer a predictive tool for cardiac graft complications.

Author Contributions

D.B. and C.T.: conceptualization, visualization, writing and review; G.C., G.L. and A.C.: resources, writing; N.P., G.T., G.D.S., A.G. and G.G.: supervision, editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

None of the authors has a financial relationship with a commercial entity that has an interest in the subject of the manuscript or other conflicts of interest to declare.

References

  1. McDonagh, T.A.; Metra, M.; Adamo, M.; Gardner, R.S.; Baumbach, A.; Böhm, M.; Burri, H.; Butler, J.; Čelutkienė, J.; Chioncel, O.; et al. 2021 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure: Developed by the Task Force for the diagnosis and treatment of acute and chronic heart failure of the European Society of Cardiology (ESC) with the special contribution of the Heart Failure Association (HFA) of the ESC. Eur. Heart J. 2021, 42, 3599–3726. [Google Scholar] [PubMed]
  2. Velleca, A.; Shullo, M.A.; Dhital, K.; Azeka, E.; Colvin, M.; DePasquale, E.; Farrero, M.; Garcia-Guereta, L.; Jamero, G.; Khush, K.; et al. The International Society for Heart and Lung Transplantation (ISHLT) guidelines for the care of heart transplant recipients. J. Heart Lung Transplant. 2023, 42, e1–e141. [Google Scholar] [CrossRef]
  3. Javaheri, A.; Saha, N.; Lilly, S.M. How to Approach the Assessment of Cardiac Allograft Vasculopathy in the Modern Era: Review of Invasive Imaging Modalities. Curr. Heart Fail. Rep. 2016, 13, 86–91. [Google Scholar] [CrossRef]
  4. Pergola, V.; Mattesi, G.; Cozza, E.; Pradegan, N.; Tessari, C.; Dellino, C.M.; Savo, M.T.; Amato, F.; Cecere, A.; Perazzolo Marra, M.; et al. New Non-Invasive Imaging Technologies in Cardiac Transplant Follow Up: Acquired Evidence and Future Options. Diagnostics 2023, 13, 2818. [Google Scholar] [CrossRef] [PubMed]
  5. Gonzales-Vilchez, F.; Vazquez de Prada, J.A. Chronic renal insufficiency in heart transplant recipients: Risk factors and management options. Drugs 2014, 74, 1481–1494. [Google Scholar] [CrossRef] [PubMed]
  6. Thorn, E.M.; de Filippi, C.R. Echocardiography in the cardiac transplant recipient. Heart Fail. Clin. 2007, 3, 51–67. [Google Scholar] [CrossRef]
  7. Ingvarsson, A.; Werther Evaldsson, A.; Waktare, J.; Nilsson, J.; Smith, G.J.; Stagmo, M.; Roijer, A.; Rådegran, G.; Meurling, C.J. Normal Reference Ranges for Transthoracic Echocardiography Following Heart Transplantation. J. Am. Soc. Echocardiogr. 2018, 31, 349–360. [Google Scholar] [CrossRef] [PubMed]
  8. Badano, L.P.; Miglioranza, M.H.; Edvardsen, T.; Colafranceschi, A.S.; Muraru, D.; Bacal, F.; Nieman, K.; Zoppellaro, G.; Marcondes Braga, F.G.; Binder, T.; et al. European Association of Cardiovascular Imaging/Cardiovascular Imaging Department of the Brazilian Society of Cardiology recommendations for the use of cardiac imaging to assess and follow patients after heart transplantation. Eur. Heart J. Cardiovasc. Imaging 2015, 16, 919–948. [Google Scholar] [CrossRef] [PubMed]
  9. Gorcsan, J., 3rd; Snow, F.R.; Paulsen, W.; Arrowood, J.A.; Thompson, J.A.; Nixon, J.V. Echocardiographic profile of the transplanted human heart in clinically well recipients. J. Heart Lung Transplant. 1992, 11 Pt 1, 80–89. [Google Scholar]
  10. Wilhelmi, M.; Pethig, K.; Wilhelmi, M.; Nguyen, H.; Strüber, M.; Haverich, A. Heart transplantation: Echocardiographic assessment of morphology and function after more than 10 years of follow-up. Ann. Thorac. Surg. 2002, 74, 1075–1079. [Google Scholar] [CrossRef] [PubMed]
  11. Bhatia, S.J.; Kirshenbaum, J.M.; Shemin, R.J.; Cohn, L.H.; Collins, J.J.; Di Sesa, V.J.; Young, P.J.; Mudge, G.H., Jr.; Sutton, M.G. Time course of resolution of pulmonary hypertension and right ventricular remodeling after orthotopic cardiac transplantation. Circulation 1987, 76, 819–826. [Google Scholar] [CrossRef] [PubMed]
  12. Reich, D.L.; Konstadt, S.N.; Thys, D.M. The pericardium exerts constraint on the right ventricle during cardiac surgery. Acta Anaesthesiol. Scand. 1990, 34, 530–533. [Google Scholar] [CrossRef] [PubMed]
  13. Bittner, H.B.; Chen, E.P.; Biswas, S.S.; Van Trigt, P., 3rd; Davis, R.D. Right ventricular dysfunction after cardiac transplantation: Primarily related to status of donor heart. Ann. Thorac. Surg. 1999, 68, 1605–1611. [Google Scholar] [CrossRef]
  14. Raina, A.; Vaidya, A.; Gertz, Z.M.; Chambers, S.; Forfia, P.R. Marked changes in right ventricular contractile pattern after cardiothoracic surgery: Implications for post-surgical assessment of right ventricular function. J. Heart Lung Transplant. 2013, 32, 777–783. [Google Scholar] [CrossRef] [PubMed]
  15. Antończyk, K.; Niklewski, T.; Antończyk, R.; Zakliczyński, M.; Zembala, M.; Kukulski, T. Evaluation of the Graft Mechanical Function Using Speckle-Tracking Echocardiography During the First Year After Orthotropic Heart Transplantation. Ann. Transplant. 2018, 23, 554–560. [Google Scholar] [CrossRef] [PubMed]
  16. Moñivas Palomero, V.; Mingo Santos, S.; Goirigolzarri Artaza, J.; Rodriguez Gonzalez, E.; Restrepo Córdoba, M.A.; Jiménez Sanchez, D.; Rivero Arribas, B.; Garcia Lunar, I.; Mitroi, C.D.; Sayago Silva, I.; et al. Two-Dimensional Speckle Tracking Echocardiography in Heart Transplant Patients: Two-Year Follow-Up of Right and Left Ventricular Function. Echocardiography 2016, 33, 703–713. [Google Scholar] [CrossRef] [PubMed]
  17. Romano, G.; Raffa, G.M.; Licata, P.; Tuzzolino, F.; Baravoglia, C.H.; Sciacca, S.; Scardulla, C.; Pilato, M.; Lancellotti, P.; Clemenza, F.; et al. Can multiple previous treatment-requiring rejections affect biventricular myocardial function in heart transplant recipients? A two-dimensional speckle-tracking study. Int. J. Cardiol. 2016, 209, 54–56. [Google Scholar] [CrossRef] [PubMed]
  18. Tamborini, G.; Muratori, M.; Brusoni, D.; Celeste, F.; Maffessanti, F.; Caiani, E.G.; Alamanni, F.; Pepi, M. Is right ventricular systolic function reduced after cardiac surgery? A two- and three-dimensional echocardiographic study. Eur. J. Echocardiogr. 2009, 10, 630–634. [Google Scholar] [CrossRef] [PubMed]
  19. D’Andrea, A.; Riegler, L.; Nunziata, L.; Scarafile, R.; Gravino, R.; Salerno, G.; Amarelli, C.; Maiello, C.; Limongelli, G.; Di Salvo, G.; et al. Right heart morphology and function in heart transplantation recipients. J. Cardiovasc. Med. 2013, 14, 648–658. [Google Scholar] [CrossRef] [PubMed]
  20. Wong, R.C.; Abrahams, Z.; Hanna, M.; Pangrace, J.; Gonzalez-Stawinski, G.; Starling, R.; Taylor, D. Tricuspid regurgitation after cardiac transplantation: An old problem revisited. J. Heart Lung Transplant. 2008, 27, 247–252. [Google Scholar] [CrossRef] [PubMed]
  21. Milano, C.A.; Shah, A.S.; Van Trigt, P.; Jaggers, J.; Davis, R.D.; Glower, D.D.; Higginbotham, M.B.; Russell, S.D.; Landolfo, K.P. Evaluation of early postoperative results after bicaval versus standard cardiac transplantation and review of the literature. Am. Heart J. 2000, 140, 717–721. [Google Scholar] [CrossRef] [PubMed]
  22. Nguyen, V.; Cantarovich, M.; Cecere, R.; Giannetti, N. Tricuspid regurgitation after cardiac transplantation: How many biopsies are too many? J. Heart Lung Transplant. 2005, 24 (Suppl. S7), S227–S231. [Google Scholar] [CrossRef] [PubMed]
  23. Stevenson, L.W.; Dadourian, B.J.; Kobashigawa, J.; Child, J.S.; Clark, S.H.; Laks, H. Mitral regurgitation after cardiac transplantation. Am. J. Cardiol. 1987, 60, 119–122. [Google Scholar] [CrossRef] [PubMed]
  24. Mondillo, S.; Maccherini, M.; Galderisi, M. Usefulness and limitations of transthoracic echocardiography in heart transplantation recipients. Cardiovasc. Ultrasound 2008, 6, 2. [Google Scholar] [CrossRef] [PubMed]
  25. Peteiro, J.; Redondo, F.; Calviño, R.; Cuenca, J.; Pradas, G.; Castro Beiras, A. Differences in heart transplant physiology according to surgical technique. J. Thorac. Cardiovasc. Surg. 1996, 112, 584–589. [Google Scholar] [CrossRef]
  26. Goland, S.; Siegel, R.J.; Burton, K.; De Robertis, M.A.; Rafique, A.; Schwarz, E.; Zivari, K.; Mirocha, J.; Trento, A.; Czer, L.S. Changes in left and right ventricular function of donor hearts during the first year after heart transplantation. Heart 2011, 97, 1681–1686. [Google Scholar] [CrossRef] [PubMed]
  27. StGoar, F.G.; Gibbons, R.; Schnittger, I.; Valantine, H.A.; Popp, R.L. Left ventricular diastolic function. Doppler echocardiographic changes soon after cardiac transplantation. Circulation 1990, 82, 872–878. [Google Scholar] [CrossRef]
  28. Valantine, H.A.; Appleton, C.P.; Hatle, L.K.; Hunt, S.A.; Billingham, M.E.; Shumway, N.E.; Stinson, E.B.; Popp, R.L. A hemodynamic and Doppler echocardiographic study of ventricular function in long-term cardiac allograft recipients. Etiology and prognosis of restrictive-constrictive physiology. Circulation 1989, 79, 66–75. [Google Scholar] [CrossRef] [PubMed]
  29. Ciliberto, G.R.; Anjos, M.C.; Gronda, E.; Bonacina, E.; Danzi, G.; Colombo, P.; Mangiavacchi, M.; Alberti, A.; Frigerio, M.; De Vita, C. Significance of pericardial effusion after heart transplantation. Am. J. Cardiol. 1995, 76, 297–300. [Google Scholar] [CrossRef]
  30. Almenar, L.; Osa, A.; Martínez-Dolz, L.; Miró, V.; Quesada, T.; Cano, O.; Bertomeu, V.; Salvador, A. Echocardiographic evaluation of the evolutionary changes after heart transplantation. Transplant. Proc. 2006, 38, 2575–2576. [Google Scholar] [CrossRef] [PubMed]
  31. Stämpfli, S.F.; Özkartal, T.; Hagenbuch, N.; Bernhart, S.; Flammer, A.J.; Vecchiati, A.; Fröhlich, G.M.; Ruschitzka, F.; Held, L.; Tanner, F.C. Pericardial effusion unrelated to surgery is a predictor of mortality in heart transplant patients. Cardiol. J. 2018, 25, 714–721. [Google Scholar] [CrossRef] [PubMed]
  32. Tchana-Sato, V.; Ancion, A.; Ansart, F.; Defraigne, J.O. Constrictive pericarditis after heart transplantation: A case report. Eur. Heart J. Case Rep. 2020, 4, 1–6. [Google Scholar] [CrossRef] [PubMed]
  33. Kobashigawa, J.; Zuckermann, A.; Macdonald, P.; Leprince, P.; Esmailian, F.; Luu, M.; Mancini, D.; Patel, J.; Razi, R.; Reichenspurner, H.; et al. Report from a consensus conference on primary graft dysfunction after cardiac transplantation. J. Heart Lung Transplant. 2014, 33, 327–340. [Google Scholar] [CrossRef] [PubMed]
  34. Hull, T.D.; Crowley, J.C.; Villavicencio, M.A.; D’Alessandro, D.A. Primary graft dysfunction in heart transplantation: How to recognize it, when to institute extracorporeal membrane oxygenation, and outcomes. JTCVS Open 2021, 8, 128–133. [Google Scholar] [CrossRef] [PubMed]
  35. Ingulli, E. Mechanism of cellular rejection in transplantation. Pediatr. Nephrol. 2010, 25, 61–74. [Google Scholar] [CrossRef] [PubMed]
  36. Colvin, M.M.; Cook, J.L.; Chang, P.; Francis, G.; Hsu, D.T.; Kiernan, M.S.; Kobashigawa, J.A.; Lindenfeld, J.; Masri, S.C.; Miller, D.; et al. Antibody-mediated rejection in cardiac transplantation: Emerging knowledge in diagnosis and management: A scientific statement from the American Heart Association. Circulation 2015, 131, 1608–1639. [Google Scholar] [CrossRef] [PubMed]
  37. Zorn, E. Effector B cells in cardiac allograft vasculopathy. Curr. Opin. Organ. Transplant. 2019, 24, 31–36. [Google Scholar] [CrossRef] [PubMed]
  38. Paulsen, W.; Magid, N.; Sagar, K.; Hastillo, A.; Wolfgang, T.C.; Lower, R.R.; Hess, M.L. Left ventricular function of heart allografts during acute rejection: An echocardiographic assessment. J. Heart Transplant. 1985, 4, 525–529. [Google Scholar] [PubMed]
  39. Ciliberto, G.R.; Cataldo, G.; Cipriani, M.; Mascarello, M.; Faletra, F.; Gronda, E.; De Maria, R.; Mauri, L.; Pezzano, A. Echocardiographic assessment of cardiac allograft rejection. Eur. Heart J. 1989, 10, 400–408. [Google Scholar] [CrossRef]
  40. Dandel, M.; Hummel, M.; Meyer, R.; Müller, J.; Kapell, S.; Ewert, R.; Hetzer, R. Left ventricular dysfunction during cardiac allograft rejection: Early diagnosis, relationship to the histological severity grade, and therapeutic implications. Transplant. Proc. 2002, 34, 2169–2173. [Google Scholar] [CrossRef] [PubMed]
  41. Sun, J.P.; Abdalla, I.A.; Asher, C.R.; Greenberg, N.L.; Popović, Z.B.; Taylor, D.O.; Starling, R.C.; Thomas, J.D.; Garcia, M.J. Non-invasive evaluation of orthotopic heart transplant rejection by echocardiography. J. Heart Lung Transplant. 2005, 24, 160–165. [Google Scholar] [CrossRef] [PubMed]
  42. Valantine, H.A.; Fowler, M.B.; Hunt, S.A.; Naasz, C.; Hatle, L.K.; Billingham, M.E.; Stinson, E.B.; Popp, R.L. Changes in Doppler echocardiographic indexes of left ventricular function as potential markers of acute cardiac rejection. Circulation 1987, 76 Pt 2, V86–V92. [Google Scholar] [PubMed]
  43. Vivekananthan, K.; Kalapura, T.; Mehra, M.; Lavie, C.; Milani, R.; Scott, R.; Park, M. Usefulness of the combined index of systolic and diastolic myocardial performance to identify cardiac allograft rejection. Am. J. Cardiol. 2002, 90, 517–520. [Google Scholar] [CrossRef] [PubMed]
  44. Burgess, M.I.; Bright-Thomas, R.J.; Yonan, N.; Ray, S.G. Can the index of myocardial performance be used to detect acute cellular rejection after heart transplantation? Am. J. Cardiol. 2003, 92, 308–311. [Google Scholar] [CrossRef] [PubMed]
  45. Bader, F.M.; Islam, N.; Mehta, N.A.; Worthen, N.; Ishihara, S.; Stehlik, J.; Gilbert, E.M.; Litwin, S.E. Noninvasive diagnosis of cardiac allograft rejection using echocardiography indices of systolic and diastolic function. Transplant. Proc. 2011, 43, 3877–3881. [Google Scholar] [CrossRef] [PubMed]
  46. Dandel, M.; Hummel, M.; Müller, J.; Wellnhofer, E.; Meyer, R.; Solowjowa, N.; Ewert, R.; Hetzer, R. Reliability of tissue Doppler wall motion monitoring after heart transplantation for replacement of invasive routine screenings by optimally timed cardiac biopsies and catheterizations. Circulation 2001, 104 (Suppl. S1), I184–I191. [Google Scholar] [CrossRef] [PubMed]
  47. Lunze, F.I.; Colan, S.D.; Gauvreau, K.; Perez-Atayde, A.R.; Smith, R.N.; Blume, E.D.; Singh, T.P. Tissue Doppler imaging for rejection surveillance in pediatric heart transplant recipients. J. Heart Lung Transplant. 2013, 32, 1027–1033. [Google Scholar] [CrossRef] [PubMed]
  48. Mankad, S.; Murali, S.; Kormos, R.L.; Mandarino, W.A.; Gorcsan, J., 3rd. Evaluation of the potential role of color-coded tissue Doppler echocardiography in the detection of allograft rejection in heart transplant recipients. Am. Heart J. 1999, 138 Pt 1, 721–730. [Google Scholar] [CrossRef] [PubMed]
  49. Ruiz Ortiz, M.; Rodríguez Diego, S.; Delgado Ortega, M.; Sánchez Fernández, J.J.; Ortega Salas, R.; Carnero Montoro, L.; Carrasco Ávalos, F.; López Aguilera, J.; López Granados, A.; Arizón Del Prado, J.M.; et al. Tissue Doppler velocities for ruling out rejection in heart transplant recipients in the context of myocardial strain imaging: A multivariate, prospective, single-center study. Int. J. Cardiovasc. Imaging. 2020, 36, 1455–1464. [Google Scholar] [CrossRef] [PubMed]
  50. Mena, C.; Wencker, D.; Krumholz, H.M.; McNamara, R.L. Detection of heart transplant rejection in adults by echocardiographic diastolic indices: A systematic review of the literature. J. Am. Soc. Echocardiogr. 2006, 19, 1295–1300. [Google Scholar] [CrossRef] [PubMed]
  51. Marciniak, A.; Eroglu, E.; Marciniak, M.; Sirbu, C.; Herbots, L.; Droogne, W.; Claus, P.; D’hooge, J.; Bijnens, B.; Vanhaecke, J.; et al. The potential clinical role of ultrasonic strain and strain rate imaging in diagnosing acute rejection after heart transplantation. Eur. J. Echocardiogr. 2007, 8, 213–221. [Google Scholar] [CrossRef] [PubMed]
  52. Kato, T.S.; Oda, N.; Hashimura, K.; Hashimoto, S.; Nakatani, T.; Ueda, H.I.; Shishido, T.; Komamura, K. Strain rate imaging would predict sub-clinical acute rejection in heart transplant recipients. Eur. J. Cardiothorac. Surg. 2010, 37, 1104–1110. [Google Scholar] [CrossRef] [PubMed]
  53. Dandel, M.; Hetzer, R. Echocardiographic strain and strain rate imaging—Clinical applications. Int. J. Cardiol. 2009, 132, 11–24. [Google Scholar] [CrossRef] [PubMed]
  54. Sera, F.; Kato, T.S.; Farr, M.; Russo, C.; Jin, Z.; Marboe, C.C.; Di Tullio, M.R.; Mancini, D.; Homma, S. Left ventricular longitudinal strain by speckle-tracking echocardiography is associated with treatment-requiring cardiac allograft rejection. J. Card. Fail. 2014, 20, 359–364. [Google Scholar] [CrossRef] [PubMed]
  55. Sehgal, S.; Blake, J.M.; Sommerfield, J.; Aggarwal, S. Strain and strain rate imaging using speckle tracking in acute allograft rejection in children with heart transplantation. Pediatr. Transplant. 2015, 19, 188–195. [Google Scholar] [CrossRef] [PubMed]
  56. Clemmensen, T.S.; Løgstrup, B.B.; Eiskjær, H.; Poulsen, S.H. Changes in longitudinal myocardial deformation during acute cardiac rejection: The clinical role of two-dimensional speckle-tracking echocardiography. J. Am. Soc. Echocardiogr. 2015, 28, 330–339. [Google Scholar] [CrossRef] [PubMed]
  57. Mingo-Santos, S.; Moñivas-Palomero, V.; Garcia-Lunar, I.; Mitroi, C.D.; Goirigolzarri-Artaza, J.; Rivero, B.; Oteo, J.F.; Castedo, E.; González-Mirelis, J.; Cavero, M.A.; et al. Usefulness of Two-Dimensional Strain Parameters to Diagnose Acute Rejection after Heart Transplantation. J. Am. Soc. Echocardiogr. 2015, 28, 1149–1156. [Google Scholar] [CrossRef] [PubMed]
  58. Antończyk, K.; Niklewski, T.; Antończyk, R.; Zakliczyński, M.; Zembala, M.; Kukulski, T. Speckle-Tracking Echocardiography for Monitoring Acute Rejection in Transplanted Heart. Transplant. Proc. 2018, 50, 2090–2094. [Google Scholar] [CrossRef] [PubMed]
  59. Ambardekar, A.V.; Alluri, N.; Patel, A.C.; Lindenfeld, J.; Dorosz, J.L. Myocardial strain and strain rate from speckle-tracking echocardiography are unable to differentiate asymptomatic biopsy-proven cellular rejection in the first year after cardiac transplantation. J. Am. Soc. Echocardiogr. 2015, 28, 478–485. [Google Scholar] [CrossRef] [PubMed]
  60. da Costa, R.C.P.L.; Rodrigues, A.C.T.; Vieira, M.L.C.; Fischer, C.H.; Monaco, C.G.; Filho, E.B.L.; Bacal, F.; Caixeta, A.; Morhy, S.S. Evaluation of the myocardial deformation in the diagnosis of rejection after heart transplantation. Front. Cardiovasc. Med. 2022, 9, 991016. [Google Scholar] [CrossRef] [PubMed]
  61. Elkaryoni, A.; Altibi, A.M.; Khan, M.S.; Okasha, O.; Ellakany, K.; Hassan, A.; Singh, A.; Qarajeh, R.; Mehta, S.; Nanda, N.C. Global longitudinal strain assessment of the left ventricle by speckle tracking echocardiography detects acute cellular rejection in orthotopic heart transplant recipients: A systematic review and meta-analysis. Echocardiography 2020, 37, 302–309. [Google Scholar] [CrossRef] [PubMed]
  62. Zhu, S.; Li, M.; Tian, F.; Wang, S.; Li, Y.; Yin, P.; Zhang, L.; Xie, M. Diagnostic value of myocardial strain using two-dimensional speckle-tracking echocardiography in acute cardiac allograft rejection: A systematic review and meta-analysis. Echocardiography 2020, 37, 561–569. [Google Scholar] [CrossRef] [PubMed]
  63. Ciarka, A.; Cordeiro, F.; Droogne, W.; Van Cleemput, J.; Voigt, J.U. Speckle-tracking-based global longitudinal and circumferential strain detect early signs of antibody-mediated rejection in heart transplant patients. Eur. Heart J. Cardiovasc. Imaging 2022, 23, 1520–1529. [Google Scholar] [CrossRef] [PubMed]
  64. Clemmensen, T.S.; Firooznia, N.; Olawi, F.M.; Løgstrup, B.B.; Poulsen, S.H.; Eiskjær, H. Assessment of Acute Rejection by Global Longitudinal Strain and Cardiac Biomarkers in Heart-Transplanted Patients. Front. Immunol. 2022, 13, 841849. [Google Scholar] [CrossRef] [PubMed]
  65. Khush, K.K.; Cherikh, W.S.; Chambers, D.C.; Harhay, M.O.; Hayes, D., Jr.; Hsich, E.; Meiser, B.; Potena, L.; Robinson, A.; Rossano, J.W.; et al. The International Thoracic Organ Transplant Registry of the International Society for Heart and Lung Transplantation: Thirty-sixth adult heart transplantation report—2019; focus theme: Donor and recipient size match. J. Heart Lung Transplant. 2019, 38, 1056–1066. [Google Scholar] [CrossRef] [PubMed]
  66. Colvin-Adams, M.; Agnihotri, A. Cardiac allograft vasculopathy: Current knowledge and future direction. Clin. Transplant. 2011, 25, 175–184. [Google Scholar] [CrossRef] [PubMed]
  67. Costello, J.P.; Mohanakumar, T.; Nath, D.S. Mechanisms of chronic cardiac allograft rejection. Tex. Heart Inst. J. 2013, 40, 395–399. [Google Scholar] [PubMed]
  68. Mehra, M.R.; Ventura, H.O.; Smart, F.W.; Stapleton, D.D.; Collins, T.J.; Ramee, S.R.; Murgo, J.P.; White, C.J. New developments in the diagnosis and management of cardiac allograft vasculopathy. Tex. Heart Inst. J. 1995, 22, 138–144. [Google Scholar] [PubMed]
  69. Mehra, M.R.; Crespo-Leiro, M.G.; Dipchand, A.; Ensminger, S.M.; Hiemann, N.E.; Kobashigawa, J.A.; Madsen, J.; Parameshwar, J.; Starling, R.C.; Uber, P.A. International Society for Heart and Lung echocardiographic assessment and prognosis. Front. Cardiovasc. Med. 2022, 9, 969270. [Google Scholar]
  70. Wever-Pinzon, O.; Romero, J.; Kelesidis, I.; Wever-Pinzon, J.; Manrique, C.; Budge, D.; Drakos, S.G.; Piña, I.L.; Kfoury, A.G.; Garcia, M.J.; et al. Coronary computed tomography angiography for the detection of cardiac allograft vasculopathy: A meta-analysis of prospective trials. J. Am. Coll. Cardiol. 2014, 63, 1992–2004. [Google Scholar] [CrossRef] [PubMed]
  71. Barbir, M.; Lazem, F.; Banner, N.; Mitchell, A.; Yacoub, M. The prognostic significance of non-invasive cardiac tests in heart transplant recipients. Eur. Heart J. 1997, 18, 692–696. [Google Scholar] [CrossRef] [PubMed]
  72. Störk, S.; Behr, T.M.; Birk, M.; Uberfuhr, P.; Klauss, V.; Spes, C.H.; Angermann, C.E. Assessment of cardiac allograft vasculopathy late after heart transplantation: When is coronary angiography necessary? J. Heart Lung Transplant. 2006, 25, 1103–1108. [Google Scholar] [CrossRef] [PubMed]
  73. Sciaccaluga, C.; Fusi, C.; Landra, F.; Barilli, M.; Lisi, M.; Mandoli, G.E.; D’Ascenzi, F.; Focardi, M.; Valente, S.; Cameli, M. Diastolic function in heart transplant: From physiology to early detection of left ventricular dysfunction related to transplant coronary artery disease. J. Heart Lung Transplant. 2003, 22, 1353–1364. [Google Scholar]
  74. Daud, A.; Xu, D.; Revelo, M.P.; Shah, Z.; Drakos, S.G.; Dranow, E.; Stoddard, G.; Kfoury, A.G.; Hammond, M.E.H.; Nativi-Nicolau, J.; et al. Microvascular Loss and Diastolic Dysfunction in Severe Symptomatic Cardiac Allograft Vasculopathy. Circ. Heart Fail. 2018, 11, e004759. [Google Scholar] [CrossRef] [PubMed]
  75. Dandel, M.; Wellnhofer, E.; Hummel, M.; Meyer, R.; Lehmkuhl, H.; Hetzer, R. Transplantation working formulation of a standardized nomenclature for cardiac allograft vasculopathy-2010. J. Heart Lung Transplant. 2010, 29, 717–727. [Google Scholar]
  76. Clemmensen, T.S.; Løgstrup, B.B.; Eiskjær, H.; Poulsen, S.H. Evaluation of longitudinal myocardial deformation by 2-dimensional speckle-tracking echocardiography in heart transplant recipients: Relation to coronary allograft vasculopathy. J. Heart Lung Transplant. 2015, 34, 195–203. [Google Scholar] [CrossRef] [PubMed]
  77. Sciaccaluga, C.; Mandoli, G.E.; Sisti, N.; Natali, M.B.; Ibrahim, A.; Menci, D.; D’Errico, A.; Donati, G.; Benfari, G.; Valente, S.; et al. Detection of cardiac allograft vasculopathy by multi-layer left ventricular longitudinal strain in heart transplant recipients. Int. J. Cardiovasc. Imaging 2021, 37, 1621–1628. [Google Scholar] [CrossRef] [PubMed]
  78. Cohn, J.M.; Wilensky, R.L.; O’Donnell, J.A.; Bourdillon, P.D.; Dillon, J.C.; Feigenbaum, H. Exercise echocardiography, angiography, and intracoronary ultrasound after cardiac transplantation. Am. J. Cardiol. 1996, 77, 1216–1219. [Google Scholar] [CrossRef] [PubMed]
  79. Gebska, M.A.; Williford, N.N.; Schadler, A.J.; Laxson, C.; Alvarez, P.; Briasoulis, A.; Cadaret, L.M.; Yumul-Non, I.K.T.; Kerber, R.E.; Weiss, R.M. Pharmacological vs Exercise Stress Echocardiography for Detection of Cardiac Allograft Vasculopathy. Mayo Clin. Proc. Innov. Qual. Outcomes 2020, 4, 65–75. [Google Scholar] [CrossRef] [PubMed]
  80. Akosah, K.O.; McDaniel, S.; Hanrahan, J.S.; Mohanty, P.K. Dobutamine stress echocardiography early after heart transplantation predicts development of allograft coronary artery disease and outcome. J. Am. Coll. Cardiol. 1998, 31, 1607–1614. [Google Scholar] [CrossRef] [PubMed]
  81. Ciliberto, G.R.; Massa, D.; Mangiavacchi, M.; Danzi, G.B.; Pirelli, S.; Faletra, F.; Frigerio, M.; Gronda, E.; De Vita, C. High-dose dipyridamole echocardiography test in coronary artery disease after heart transplantation. Eur. Heart J. 1993, 14, 48–52. [Google Scholar] [CrossRef] [PubMed]
  82. Derumeaux, G.; Redonnet, M.; Mouton-Schleifer, D.; Bessou, J.P.; Cribier, A.; Saoudi, N.; Koning, R.; Soyer, R.; Letac, B. Dobutamine stress echocardiography in orthotopic heart transplant recipients. VACOMED Research Group. J. Am. Coll. Cardiol. 1995, 25, 1665–1672. [Google Scholar] [CrossRef] [PubMed]
  83. Akosah, K.O.; Mohanty, P.K. Role of dobutamine stress echocardiography in heart transplant patients. Chest 1998, 113, 809–815. [Google Scholar] [CrossRef] [PubMed]
  84. Spes, C.H.; Klauss, V.; Mudra, H.; Schnaack, S.D.; Tammen, A.R.; Rieber, J.; Uberfuhr, P.; Reichart, B.; Theisen, K.; Angermann, C.E. Role of dobutamine stress echocardiography for diagnosis of cardiac allograft vasculopathy. Transplant. Proc. 1998, 30, 904–906. [Google Scholar] [CrossRef] [PubMed]
  85. Chirakarnjanakorn, S.; Starling, R.C.; Popović, Z.B.; Griffin, B.P.; Desai, M.Y. Dobutamine stress echocardiography during follow-up surveillance in heart transplant patients: Diagnostic accuracy and predictors of outcomes. J. Heart Lung Transplant. 2015, 34, 710–717. [Google Scholar] [CrossRef] [PubMed]
  86. Mahmoodurrahman, M.; Marek, J.; Juhardeen, H.R.; Al Otaibi, T.; Salemi, V.M.C.; Echahidi, N.; Al Buraiki, J.; Fadel, B.M.; Mohty, D. Diagnostic Accuracy of Dobutamine Stress Echocardiography for Detection of Cardiac Allograft Vasculopathy in Orthotopic Heart Transplant Patients. J. Saudi Heart Assoc. 2021, 33, 279–283. [Google Scholar] [CrossRef]
  87. Elkaryoni, A.; Abu-Sheasha, G.; Altibi, A.M.; Hassan, A.; Ellakany, K.; Nanda, N.C. Diagnostic accuracy of dobutamine stress echocardiography in the detection of cardiac allograft vasculopathy in heart transplant recipients: A systematic review and meta-analysis study. Echocardiography 2019, 36, 528–536. [Google Scholar] [CrossRef] [PubMed]
  88. Clerkin, K.J.; Farr, M.A.; Restaino, S.W.; Ali, Z.A.; Mancini, D.M. Dobutamine stress echocardiography is inadequate to detect early cardiac allograft vasculopathy. J. Heart Lung Transplant. 2016, 35, 1040–1041. [Google Scholar] [CrossRef] [PubMed]
  89. Bacal, F.; Moreira, L.; Souza, G.; Rodrigues, A.C.; Fiorelli, A.; Stolf, N.; Bocchi, E.; Bellotti, G.; Ramires, J.A. Dobutamine stress echocardiography predicts cardiac events or death in asymptomatic patients long-term after heart transplantation: 4-year prospective evaluation. J. Heart Lung Transplant. 2004, 23, 1238–1244. [Google Scholar] [CrossRef] [PubMed]
  90. Spes, C.H.; Klauss, V.; Mudra, H.; Schnaack, S.D.; Tammen, A.R.; Rieber, J.; Siebert, U.; Henneke, K.H.; Uberfuhr, P.; Reichart, B.; et al. Diagnostic and prognostic value of serial dobutamine stress echocardiography for noninvasive assessment of cardiac allograft vasculopathy: A comparison with coronary angiography and intravascular ultrasound. Circulation 1999, 100, 509–515. [Google Scholar] [CrossRef] [PubMed]
  91. Eroglu, E.; D’hooge, J.; Sutherland, G.R.; Marciniak, A.; Thijs, D.; Droogne, W.; Herbots, L.; Van Cleemput, J.; Claus, P.; Bijnens, B.; et al. Quantitative dobutamine stress echocardiography for the early detection of cardiac allograft vasculopathy in heart transplant recipients. Heart 2008, 94, e3. [Google Scholar] [CrossRef] [PubMed]
  92. Rutz, T.; de Marchi, S.F.; Roelli, P.; Gloekler, S.; Traupe, T.; Steck, H.; Eshtehardi, P.; Cook, S.; Vogel, R.; Mohacsi, P.; et al. Quantitative myocardial contrast echocardiography: A new method for the non-invasive detection of chronic heart transplant rejection. Eur. Heart J. Cardiovasc. Imaging 2013, 14, 1187–1194. [Google Scholar] [CrossRef] [PubMed]
  93. Tona, F.; Caforio, A.L.; Montisci, R.; Angelini, A.; Ruscazio, M.; Gambino, A.; Ramondo, A.; Thiene, G.; Gerosa, G.; Iliceto, S. Coronary flow reserve by contrast-enhanced echocardiography: A new noninvasive diagnostic tool for cardiac allograft vasculopathy. Am. J. Transplant. 2006, 6 Pt 1, 998–1003. [Google Scholar] [CrossRef] [PubMed]
  94. Tona, F.; Osto, E.; Tarantini, G.; Gambino, A.; Cavallin, F.; Feltrin, G.; Montisci, R.; Caforio, A.L.; Gerosa, G.; Iliceto, S. Coronary flow reserve by transthoracic echocardiography predicts epicardial intimal thickening in cardiac allograft vasculopathy. Am. J. Transplant. 2010, 10, 1668–1676. [Google Scholar] [CrossRef] [PubMed]
  95. Sade, L.E.; Eroğlu, S.; Yüce, D.; Bircan, A.; Pirat, B.; Sezgin, A.; Aydınalp, A.; Müderrisoğlu, H. Follow-up of heart transplant recipients with serial echocardiographic coronary flow reserve and dobutamine stress echocardiography to detect cardiac allograft vasculopathy. J. Am. Soc. Echocardiogr. 2014, 27, 531–539. [Google Scholar] [CrossRef] [PubMed]
  96. Pichel, I.Á.; Fernández Cimadevilla, O.C.; de la Hera Galarza, J.M.; Pasanisi, E.; Ruiz, J.M.G.; Molina, B.D.; Rodriguez, J.L.L.; Sicari, R.; Fernández, M.M. Usefulness of dual imaging stress echocardiography for the diagnosis of coronary allograft vasculopathy in heart transplant recipients. Int. J. Cardiol. 2019, 296, 109–112. [Google Scholar] [CrossRef] [PubMed]
  97. Bjerre, K.P.; Clemmensen, T.S.; Poulsen, S.H.; Hvas, A.M.; Løgstrup, B.B.; Grove, E.L.; Flyvholm, F.; Kristensen, S.D.; Eiskjær, H. Coronary Flow Velocity Reserve and Myocardial Deformation Predict Long-Term Outcomes in Heart Transplant Recipients. J. Am. Soc. Echocardiogr. 2021, 34, 1294–1302. [Google Scholar] [CrossRef] [PubMed]
  98. Bell, C.A.; Kern, M.J.; Aguirre, F.V.; Donohue, T.; Bach, R.; Wolford, T.; Penick, D.; Ofili, E.; Miller, L.; Labovitz, A.J.; et al. Superior accuracy of anatomic positioning with echocardiographic- over fluoroscopic-guided endomyocardial biopsy. Catheter. Cardiovasc. Diagn. 1993, 28, 291–294. [Google Scholar] [CrossRef] [PubMed]
  99. Toscano, G.; Gambino, A.; Bagozzi, L.; Guariento, A.; D’Amico, G.; Fedrigo, M.; Gerosa, G. Endomyocardial biopsy under echocardiographic monitoring. Multimed. Man. Cardiothorac. Surg. 2016, 2016, mmw006. [Google Scholar] [CrossRef] [PubMed]
  100. Grande, A.M.; Minzioni, G.; Martinelli, L.; Campana, C.; Rinaldi, M.; D’Armini, A.M.; Ragni, T.; Pederzolli, C.; Ardemagni, E.; Pederzolli, N.; et al. Echo-controlled endomyocardial biopsy in orthotopic heart transplantation with bicaval anastomosis. G. Ital. Cardiol. 1997, 27, 877–880. [Google Scholar] [PubMed]
  101. McCreery, C.J.; McCulloch, M.; Ahmad, M.; deFilippi, C.R. Real-time 3-dimensional echocardiography imaging for right ventricular endomyocardial biopsy: A comparison with fluoroscopy. J. Am. Soc. Echocardiogr. 2001, 14, 927–933. [Google Scholar] [CrossRef]
Jcm 13 03205 g001
Figure 1. Color Doppler assessment of a severe functional tricuspid regurgitation due to annulus dilatation.
Figure 1. Color Doppler assessment of a severe functional tricuspid regurgitation due to annulus dilatation.
Jcm 13 03205 g001
Jcm 13 03205 g002

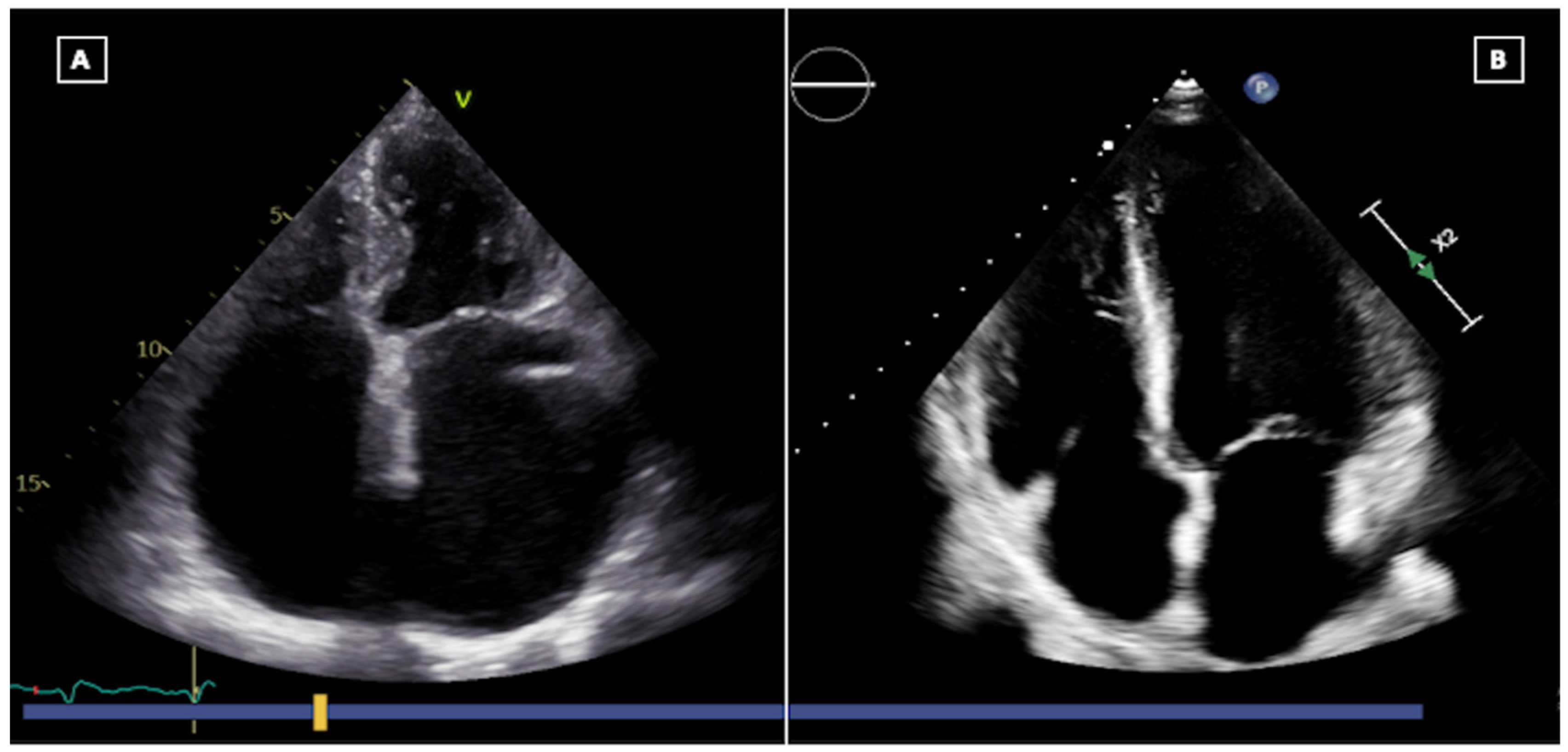

Figure 2. Four-chamber view of a heart transplantation performed through biatrial technique, showing how the atrial chambers are enlarged (A); and through bicaval technique, showing how atrial geometry is better preserved (B).
Figure 2. Four-chamber view of a heart transplantation performed through biatrial technique, showing how the atrial chambers are enlarged (A); and through bicaval technique, showing how atrial geometry is better preserved (B).
Jcm 13 03205 g002
Jcm 13 03205 g003
Figure 3. Doppler image showing the overlap of E wave (blue arrow) and A wave (orange arrow) due to the elevated heart rate (HR 94 bpm).
Figure 3. Doppler image showing the overlap of E wave (blue arrow) and A wave (orange arrow) due to the elevated heart rate (HR 94 bpm).
Jcm 13 03205 g003
Jcm 13 03205 g004

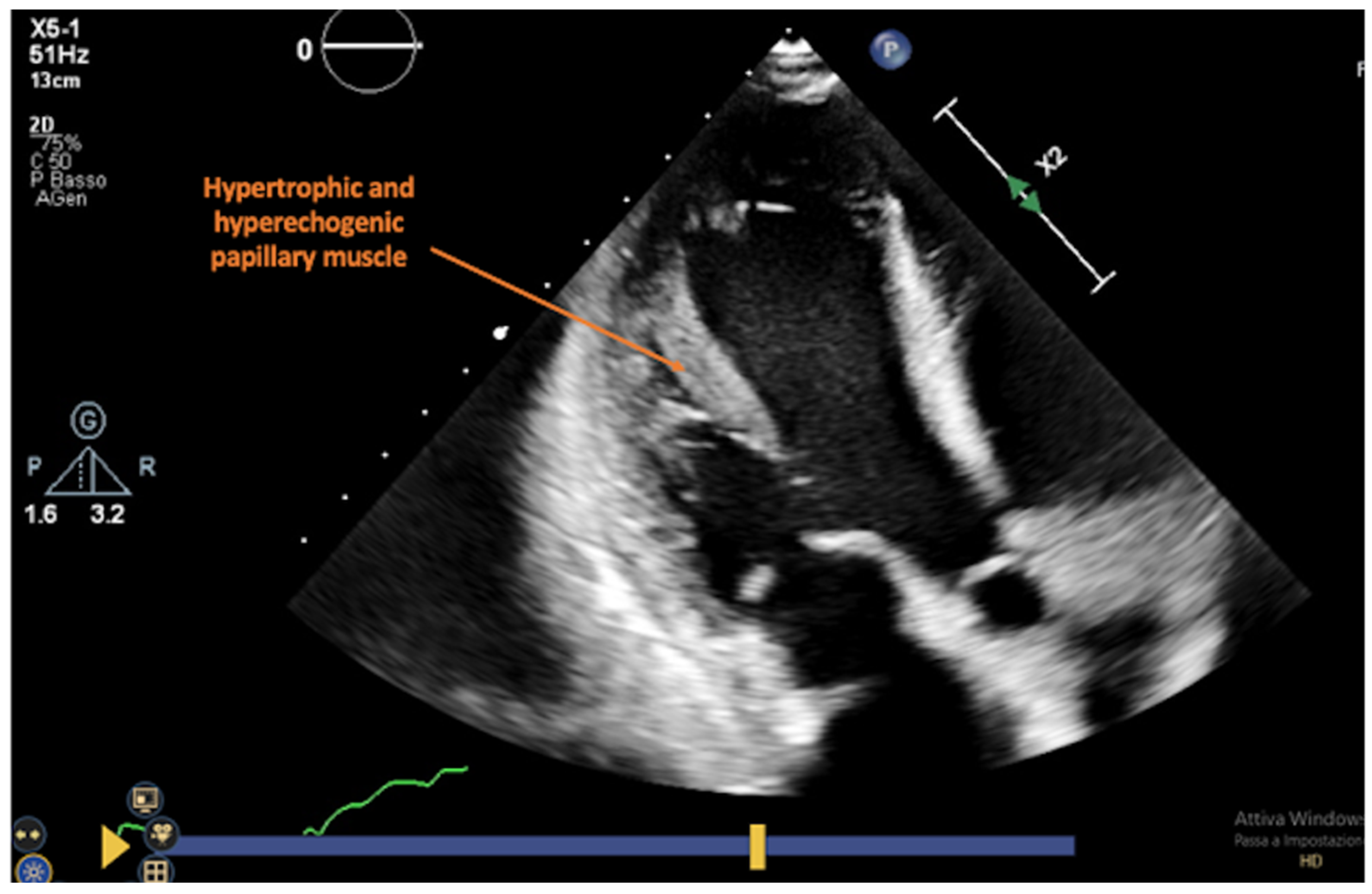

Figure 4. Four-chamber view focusing on the anterolateral papillary muscle that appears hypertrophic and hyperechogenic (ACR grade 3R at the endomyocardial biopsy).
Figure 4. Four-chamber view focusing on the anterolateral papillary muscle that appears hypertrophic and hyperechogenic (ACR grade 3R at the endomyocardial biopsy).
Jcm 13 03205 g004
Jcm 13 03205 g005

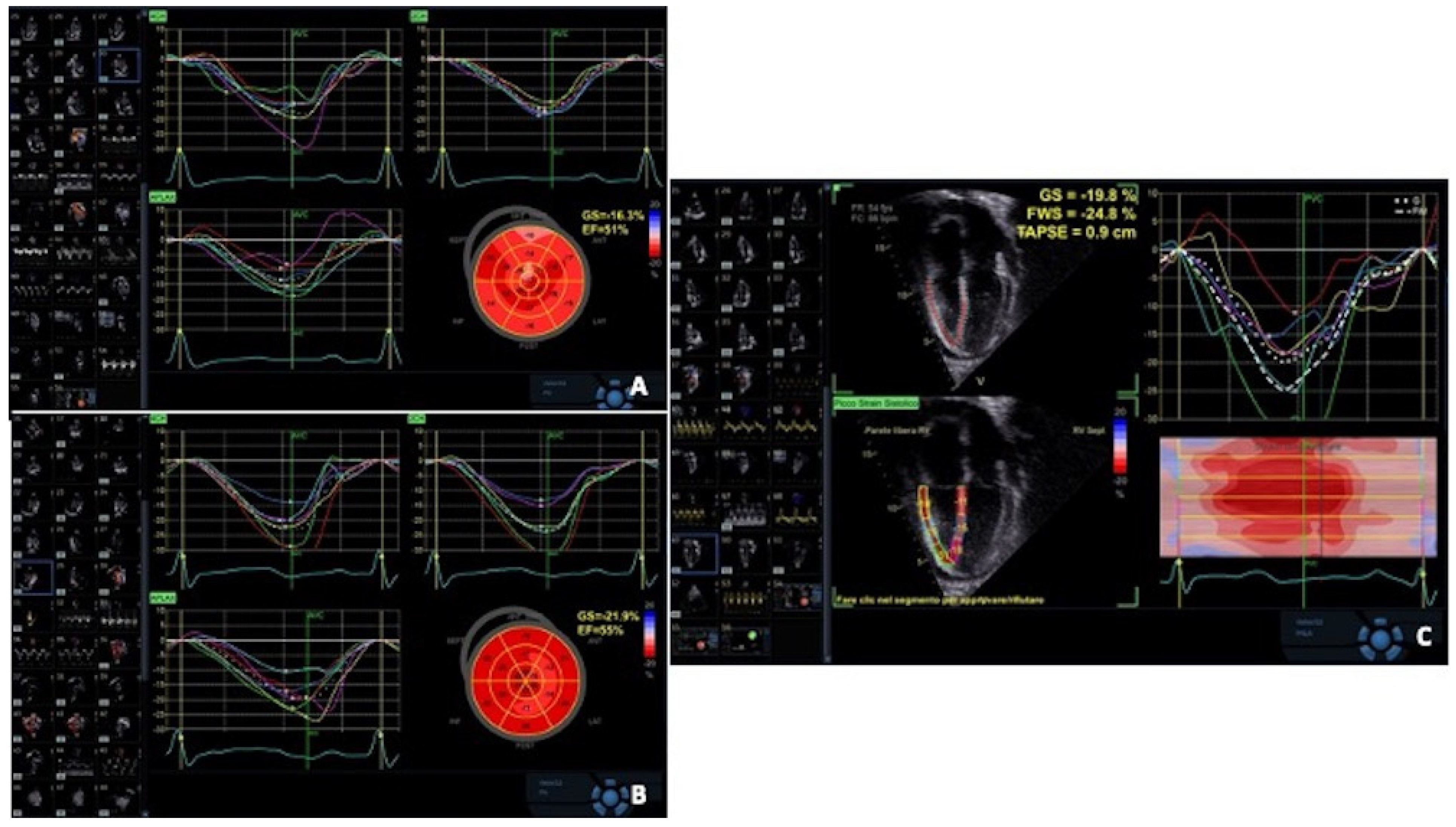

Figure 5. Global longitudinal strain (GLS) measured by speckle tracking echocardiography showing a reduced GLS for the left ventricle (3R—acute cellular rejection was confirmed by endomyocardial biopsy) (A); a normal GLS for the left ventricle (acute cellular rejection resolution confirmed by endomyocardial biopsy) (B); a reduced GLS for the right ventricle (3R—acute cellular rejection was confirmed by endomyocardial biopsy) (C).
Figure 5. Global longitudinal strain (GLS) measured by speckle tracking echocardiography showing a reduced GLS for the left ventricle (3R—acute cellular rejection was confirmed by endomyocardial biopsy) (A); a normal GLS for the left ventricle (acute cellular rejection resolution confirmed by endomyocardial biopsy) (B); a reduced GLS for the right ventricle (3R—acute cellular rejection was confirmed by endomyocardial biopsy) (C).
Jcm 13 03205 g005
Table 1. Acute cardiac allograft rejection grading, both cellular and antibody-mediated according to ISHLT grading.
Table 1. Acute cardiac allograft rejection grading, both cellular and antibody-mediated according to ISHLT grading.
ACUTE CELLULAR REJECTIONISHLT-1990 ACR GRADEISHLT-1990 SEVERITYHISTOPATHOLOGIC FINDINGSISHLT-2004 ACR GRADEISHLT-2004 SEVERITYHISTOPATHOLOGIC FINDINGS
0No ACRNo significant abnormality0RNo ACRNo significant abnormality
1AFocal, mild ACRFocal perivascular and/or interstitial infiltrate without myocyte damage1RMild, low-grade ACRInterstitial and/or perivascular infiltrate with up to one focus of myocyte damage
1BDiffuse, mild ACRDiffuse infiltrate without myocyte damage
2Focal, moderate ACROne focus of infiltrate with associated myocyte damage
3AMultifocal, moderate ACRMultifocal infiltrate with myocyte damage2RModerate, intermediate ACRTwo or more foci of infiltrate with associated myocyte damage
3BDiffuse, moderate ACRDiffuse infiltrate with myocyte damage3RSevere, high-grade ACRDiffuse infiltrate with multifocal myocyte damage +/− edema, +/− hemorrhage +/− vasculitis
4Severe ACRDiffuse, polymorphous infiltrate with extensive myocyte damage +/− edema, +/− hemorrhage + vasculitis
ANTIBODY-MEDIATED
REJECTION		ISHLT-2013 AMR GRADESEVERITYHISTOPATHOLOGIC FINDINGS
pAMR 0Negative for pathologic AMRHistologic and immunopathologic studies are both absent
pAMR 1 (H+)Histopathologic AMR aloneHistologic findings are present: large endothelial nuclei, macrophage accumulation within vascular lumen, edema, necrosis, capillary fragmentation. Immunopathologic findings are absent.
pAMR 1 (I+)Immunopathologic AMR aloneHistologic findings are absent. Immunopathologic findings are present: C4d, CD68, CD3, pan-B-cell CD20, CD31/34, complement proteins
pAMR 2Pathologic AMRHistologic and immunopathologic findings are both present
pAMR 3Severe pathologic AMRInterstitial hemorrhage, capillary fragmentation, mixed inflammatory infiltrates, endothelial cell pyknosis, and/or karyorrhexis, and marked edema with immunopathologic findings are present
ACR = acute cellular rejection; AMR = antibody-mediated rejection; ISHLT = International Society of Heart and Lung Transplantation.
Table 2. Summary of literature on diagnostic value of echocardiography in AR detection.
Table 2. Summary of literature on diagnostic value of echocardiography in AR detection.
AuthorsParameterN PatientsEMB RejectionSensibilitySpecificityNPV
Paulsen et al. [38]Increased LV mural thickness and mass
Abnormal diastolic function		9NANANANA
Ciliberto et al. [39]Increased LV mural thickness and mass, reduction in LV EF, RV dilatation and wall motion impairment, pericardial effusion, increased myocardial echogenicity21 NA89 with 1 parameter
72 with ≥2		90 with 1 parameter
100 with ≥2		NA
Dandel et al. [40]Sm of basal posterior wall ≥ 10% reduction
Ea of basal posterior wall ≥ 10% reduction		190Clinically
relevant rejection *		88
89		95
97		97
98
Sun et al. [41]≥2 among: Pericardial effusion, IVRT < 90 msec, Mitral inflow E/A ratio > 1.7264 ≥1B575468
Valantine et al. [42]IVRT and PHT shortening
E peak velocity increase		22 NANANANA
Vivekananthan et al. [43]MPI increase ≥ 20% 20 ≥3A9090NA
Burgess et al. [44]MPI50 NANANANA
Bader et al. [45]MPI54 NANANANA
Dandel et al. [46]Sm > 10% reduction
Em > 10% reduction
TEm > 10% extension		363 ptClinically relevant rejection *88.33
91.66
93.33		94.06
92.08
95.05		93
94.8
96
Lunze et al. [47]LV S’ −15% reduction
LV a’ −5% reduction		122 pt ≥2R or AMRAU ROC 0.93NA99
Mankad et al. [48]s’ + e’ > 13.5 cm/s78 ≥1B9371
Ruiz Ortiz et al. [49]S’ + E’ > 23 cm/s37≥2RNANA99
Marciniak et al. [50]LVPW Radial S ≤ 30%
LVPW Radial SR < 3.0 s−1		31≥1B85
80		90
86		93
90
Kato et al. [52]Systolic strain −27.4%
Diastolic SR −2.8 s−1		35≥1B82.2
75.6		82.3
74.9		82.3
75
Sera et al. [54]2D-STE-GLS < 14.8%59≥1B6463
Sehgal et al. [55]peak systolic longitudinal strain, radial strain circumferential strain82≥2RSignificant decline during rejection:
p = 0.05
p = 0.03
p = 0.05
Clemmensen et al. [56]GLS64≥2RSignificant decline during rejection:
−14.6% (−16.1 to −13 at baseline) vs. −13.3 (−14.9 to −11.8 at rejection). p = 0.0208
Mingo-Santos et al. [57]LV GLS < 15.5%
RV FW < 17%
LV + RV		34≥2R85.7
85.7
100		91.1
81.4
77		98.8
98.8
100
Antonczyk et al. [58]4CH LS ≤ 13.8%
RVFW ≤ 16.8%		45≥2R87
73		72
82		97
95
Ambardekar et al. [59]GLS, GCS, CSSR, CDSR, LSSR, LDSR30NANSNSNS
da Costa et al. [60]LV GLS, RV FW54≥2RNSNSNS
Ciarka et al. [63]GLS < 15.5%
GCS < 15.2		403AMR100100
* Clinically relevant rejection = EMB grade 2 rejection or grades 1A and 1B accompanied by clinical symptoms; IVRT = isovolumic relaxation time, PHT = pressure half time; Sm = peak systolic wall motion velocity by PW-TDI from the posterior basal wall; Em = early diastolic wall motion velocity; TEm = early diastolic time (from onset of second heart sound to peak of Em) obtained by PW-TDI from the posterior basal wall; LV S’ = peak systolic TDI derived from the basal lateral LV wall; LV a’ = late diastolic velocity TDI derived from the basal lateral LV wall; s’ + e’ = sum of lateral mitral annulus systolic and diastolic velocities determined by color-coded tissue Doppler; S’ + E’ = sum of lateral mitral annulus systolic and diastolic velocities determined by pulsed tissue Doppler; 2D-STE-GLS = 2D STE derived global longitudinal strain; S = strain; SR = strain rate; LV GLS = left ventricle global longitudinal strain; RV FW = free wall right ventricular longitudinal strain; 4CH LS = four-chamber longitudinal strain; GLS = global longitudinal strain; GCS = global circumferential strain; CSSR = circumferential systolic strain rate; CDSR = circumferential diastolic strain rate; LSSR = longitudinal systolic strain rate; LDSR = longitudinal diastolic strain rate; AMR = antibody mediated rejection.
Table 3. ISHLT-recommended nomenclature for coronary allograft vasculopathy.
Table 3. ISHLT-recommended nomenclature for coronary allograft vasculopathy.
ClassificationSeverityAngiographic Findings
CAV 0Non-significantNo detectable angiographic lesion
CAV 1MildAngiographic LM < 50% or
Primary vessel with maximum lesion < 70% or
Branch stenosis < 70%
CAV 2ModerateAngiographic LM < 50%,
Single primary vessel ≥ 70% or
Isolated branch stenosis in 2 systems ≥ 70%
CAV 3SevereAngiographic LM ≥ 50% or
≥2 primary vessels ≥ 70% or
Isolated branch stenosis in all 3 systems ≥ 70% or
CAV1 or CAV2 with allograft dysfunction (LVEF ≤ 45%) or evidence of significant restrictive physiology
CAV = coronary allograft vasculopathy; ISHLT = International Society of Heart and Lung Transplantation; LM = left main coronary artery; LVEF = left ventricular ejection fraction.
Table 4. Summary of literature on diagnostic value of echocardiography in CAV detection.
Table 4. Summary of literature on diagnostic value of echocardiography in CAV detection.
AuthorsParameterNr. Pts.SensitivitySpecificityNPV
Barbir et al. [71]LVEF < 60% with M-mode TTE91NANANA
Clemmensen et al. [76]FS, TT and S’
GLS
Decreased LVEF		19892.7%
94.5%		42.0%
24.6%		71.6%
66.4%
Cohn et al. [78]WMA at exercise-TTE, inducible ischemia, resting WMA5115%NANA
Gebska et al. [79]DSE vs. exercise TTE, LVEF81NANANA
Akosah et al. [80]WMA at DSE21NANANA
Ciliberto et al. [81]Resting Echo
WMSI		21poorhigh89%
Derumeaux et al. [82]WMA at DSE3786%91%91%
Spes et al. [84]WMA at DSE
Systolic septum/posterior wall thickening at MMode in 2DDSE		2879%
85%		83%
71%		91%
Chirakarnjanakorn et al. [85]DSE4977%98%41%
Mahmoodurrahman et al. [86]DSE and ICA993.2 ± 3.3%94 ± 2.9%NA
Clerkin et al. [88]DSE1540%99%81.7%
Bacal et al. [89]WMA at DSE 3964%91.3%84%
Spes et al. [90]2D Resting Echo
2D DSE
Serial rest Echo
Serial DSE		10957%
72%
60%
47%		88%
88%
71%
72%		51%
62%
80%
44%
Eroglu et al. [91]IVS thickness, LV posterior wall and the LV EDD and ESD, LVEF, LV mass4263%88%92%
Rutz et al. [92]rBV < 14%. 4590%75%NA
Tona et al. [93]Resting WMA
CFR		7357%85%85%
Tona et al. [94]ED thickness of IVS and posterior wall, LVEF and CFR using CE-TTE2280%100%89%
Sade et al. [95]CFR
WMSI at DSE
CFR and DSE		24100%
55.6%
77.8%		64.3%
64.3%
87.2%		100%
69.2%
Pichel et al. [96]Rest WMA
CFR		7415.3%
72.7%		96.7%
49.2%		84.2%
91.1%
Bjerre et al. [97]LV-GLS and CFR9884.2%67.5%94.5%
DT = deceleration time; CAD = coronary artery disease; CFR = coronary flow velocity reserve; DSE = dobutamine stress echocardiography; LVEF = left ventricular ejection fraction; IVSd = interventricular septal thickness in end-diastole; LVEDD = left ventricular end diastolic diameter; LVESD = left ventricular end systolic dimension; LVIDd = left ventricular internal diameter in end-diastole; LVIDs = left ventricular internal diameter in end-systole; LVPWd = left ventricular posterior wall thickness in end-diastole; LV-GLS = left ventricular global longitudinal strain; WMA = wall motion anomalies; WMSI = wall motion score index; rBV = relative myocardial blood volume.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bacich, D.; Tessari, C.; Ciccarelli, G.; Lucertini, G.; Cerutti, A.; Pradegan, N.; Toscano, G.; Di Salvo, G.; Gambino, A.; Gerosa, G. A Comprehensive Excursus of the Roles of Echocardiography in Heart Transplantation Follow-Up. J. Clin. Med. 2024, 13, 3205. https://doi.org/10.3390/jcm13113205

AMA Style

Bacich D, Tessari C, Ciccarelli G, Lucertini G, Cerutti A, Pradegan N, Toscano G, Di Salvo G, Gambino A, Gerosa G. A Comprehensive Excursus of the Roles of Echocardiography in Heart Transplantation Follow-Up. Journal of Clinical Medicine. 2024; 13(11):3205. https://doi.org/10.3390/jcm13113205

Chicago/Turabian Style

Bacich, Daniela, Chiara Tessari, Giulia Ciccarelli, Giovanni Lucertini, Alessia Cerutti, Nicola Pradegan, Giuseppe Toscano, Giovanni Di Salvo, Antonio Gambino, and Gino Gerosa. 2024. "A Comprehensive Excursus of the Roles of Echocardiography in Heart Transplantation Follow-Up" Journal of Clinical Medicine 13, no. 11: 3205. https://doi.org/10.3390/jcm13113205

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
