Review

The Role of Speckle Tracking Echocardiography in the Evaluation of Advanced-Heart-Failure Patients

by
Luca Martini
1,*,
Matteo Lisi
2,
Maria Concetta Pastore
1,
Francesca Maria Righini
1,
Andrea Rubboli
2,
Michael Y. Henein
3,† and
Matteo Cameli
1,†
1
Department of Medical Biotechnologies, Division of Cardiology, University of Siena, 53100 Siena, Italy
2
Department of Cardiovascular Disease, AUSL Romagna, Division of Cardiology, Ospedale S. Maria delle Croci, 48121 Ravenna, Italy
3
Institute of Public Health and Clinical Medicine, Umeå University, 90187 Umeå, Sweden
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to the work.
J. Clin. Med. 2024, 13(14), 4037; https://doi.org/10.3390/jcm13144037
Submission received: 11 June 2024 / Revised: 27 June 2024 / Accepted: 9 July 2024 / Published: 10 July 2024
(This article belongs to the Section Cardiovascular Medicine)
Browse Figures
Versions Notes

Abstract

:
Health care is currently showing a fall in heart failure (HF) incidence and prevalence, particularly in developed countries, but with only a subset receiving appropriate therapy to protect the heart against maladaptive processes such as fibrosis and hypertrophy. Appropriate markers of advanced HF remain unidentified, which would help in choosing the most suitable therapy and avoid major compliance problems. Speckle tracking echocardiography (STE) is a good choice, being a non-invasive imaging technique which is able to assess cardiac deformation in a variety of conditions. Several multicenter studies and meta-analyses have demonstrated the clinical application and accuracy of STE in early and late stages of HF, as well as its association with both left ventricular (LV) filling pressures and myocardial oxygen consumption. Furthermore, STE assists in assessing right ventricular free-wall longitudinal strain (RVFWLS), which is a solid predictor of right ventricle failure (RVF) following LV assist device (LVAD) implantation. However, STE is known for its limitations; despite these, it has been shown to explain symptoms and signs and also to be an accurate prognosticator. The aim of this review is to examine the advantages of STE in the early evaluation of myocardial dysfunction and its correlation with right heart catheterization (RHC) parameters, which should have significant clinical relevance in the management of HF patients.

1. Introduction

The European Society of Cardiology (ESC) defines heart failure (HF) as the presence of symptoms and/or signs of HF caused by a structural and/or functional abnormality of the heart, which cause high intracardiac pressures and/or insufficient cardiac output at rest and/or during exercise [1]. The 2021 ESC Guidelines categorize this pathology based on left ventricular ejection fraction (LVEF) as HF with reduced EF (HFrEF, EF ≤ 40%), mildly reduced EF (HFmrEF, EF 41–49%), or preserved EF (HFpEF, EF ≥ 50%). Despite optimum treatment, many patients progress to late-stage advanced HF [1].
Regardless of the decrease in the incidence and prevalence of HF in industrialized nations, not all patients are identified in the early stages of the disease. This inappropriate practice results in only a subset of patients who receive optimum therapy that protects their heart from maladaptive processes such as myocardial fibrosis and LV hypertrophy [2]. This under-diagnosis can be ascribed mainly to the lack of highly specific imaging markers, particularly echocardiographic ones [2]. Despite LVEF having been used as the guiding parameter for beginning advanced treatments such as Sacubitril/Valsartan and Gliflozins, cardioverter defibrillator implant (ICD) or cardiac resynchronization therapy (CRT) [1], several studies demonstrated its lower sensitivity to unmasking LV myocardial dysfunction compared to other echocardiographic parameters such as speckle tracking echocardiography (STE) [2,3]. Also, LVEF is limited by geometric assumptions, load dependency, reproducibility, and inter-observer variability, and is influenced by heart rate, rhythm disturbances and translational motion [3]. On the other hand, LV global longitudinal strain (LV GLS), has been shown to be superior to EF in several settings, such as predicting myocardial recovery and symptomatic improvement after aortic valve replacement [4], predicting all-cause and cardiovascular mortality in advanced chronic kidney disease (CKD) [5], and predicting major adverse cardiac events in HF patients [3].
Recent studies have applied STE to the left atrium (LA), based on the assumption that it is highly sensitive to pressure and volume overload because of the LA thin wall [6]. Global peak atrial longitudinal strain (PALS) has been proved the earliest parameter to alter in many conditions associated with myocardial dysfunction such as systemic hypertension and diabetes, even before the development of LV hypertrophy, reduced LVEF or LA enlargement [6,7]. Also, PALS has been shown to strongly relate to diastolic dysfunction and myocardial fibrosis (measured at histological analysis), and hence has been proposed to provide a non-invasive estimation of LV filling pressures (LVFPs) and explanations of HF symptoms and quality of life [8]. In addition to the use of STE in assessing LA function, it has been used to quantify RV longitudinal dysfunction, thus allowing evaluation of myocardial deformation using conventional two-dimensional echo images without angle dependency [9]. Indeed, several studies have demonstrated that RV free-wall longitudinal strain (RVFWLS) in advanced-HF patients strongly links with both RV stroke work index (RVSWI) and oxygen consumption (VO2) in end-stage HF, especially for LV assist device (LVAD) selection [10].
The aim of this review is to examine advantages of STE measurements in early evaluation of myocardial dysfunction and their correlation with right heart catheterization (RHC) parameters, in order to support the clinical application of these measurements in early- and advanced-HF patients.

2. Speckle Tracking Echocardiography Measurement

STE is a semi-automated and angle-independent echocardiographic technique that allows evaluation of myocardial deformation in a range of specific conditions. Using previously saved echocardiographic pictures, a specific software can differentiate each of the speckles, integrating them in functional units (kernels) that are unequivocally recognized, given their specific spatial disposition [10].
During a cardiac cycle, the computer tracks kernel movement in three spatial directions: radial, longitudinal, and circumferential. This technique allows the system to calculate deformation (strain), rate of deformation (strain rate), displacement, and rate of displacement (velocity) for the selected myocardial segments [10].
The strain ( ε ) can be defined as the degree of deformation (shortening) of the analyzed segment in relation to its initial dimensions. It is measured as a percentage and is expressed by the following equation:
ε = L − L 0 / L 0
where L is the final dimension of the segment and L0 is the initial dimension. A lengthening or thickening deformation has a positive value, while a shortening or thinning deformation has a negative one [10].
STE is often used to assess LV function using several parameters, among which is the longitudinal strain, which is the cardiac deformation directed from the base to the apex: negative curves imply a reduction in the distance between the kernels caused by myocardial fiber shortening from the base to the apex [11]. Longitudinal strain analyzed in 4-, 2- and 3-chambers can assess both regional and global strain (normal range is from −17.2% to −27.7%) [11,12]. As a result, during systole and shortening of the speckle-to-speckle distance, longitudinal strain values are displayed as negative curves (Figure 1) [10,11,12].
Using the same STE principle, the technique can also be used to assess LA function during different phases of the cardiac cycle: reservoir (when LA receives blood from the pulmonary veins), conduit (when blood flows passively from LA to LV), and contraction (when the remaining blood is pumped out from the LA into LV) [13]. The STE software analyses images recorded in the apical 2- and 4-chamber views to provide a PALS value for each and the peak atrial contraction strain (PACS) (Figure 2) [13].
STE can also be used to assess right ventricular (RV) myocardial function from the apical 4-chamber view (Table 1). After defining the region of interest, which includes the RV free wall and the interventricular septum, the software calculates both free-wall longitudinal strain (RVFWLS, typically > −20%, Figure 3) and RV global longitudinal strain (GRVLS) [14].

3. Right Heart Catheterization

Right heart catheterization (RHC) is an invasive diagnostic procedure used in patients with HF to assess both left and right heart function, diagnose pulmonary hypertension (PH), analyze therapeutic response, and determine patients’ prognosis (Table 2). It is performed via either the internal jugular vein or the femoral vein using a Swan–Ganz catheter [15,16,17].
RHC measures right atrial pressure (RAP), which usually varies from 2 to 8 mmHg. The pressure waveform is typically defined by three peaks: the a wave, reflecting atrial contraction and RV filling, based on RV end-diastolic pressure (RV EDP); the c wave, representing tricuspid valve closure; and the v wave, coinciding with RV contraction. The three waves are separated by two falls, the x-descent and the y-descent, respectively [2,18].
After studying the RA the Swan–Ganz catheter is advanced to record RV pressures, both in systole and at end-diastole [2]. Proceeding further, the pressure tip manometer measures the pulmonary artery pressure (PAP), whose waveform is characterized by a fast pressure propagation from the RV, followed by a pressure fall at end-systole and a dicrotic notch reflecting pulmonary valve closure [15,16,17,18]. Blood flow, raised left atrial pressure (LAP), and pulmonary vascular resistance (PVR) all influence these measurements [2].
Pulmonary capillary wedge pressure (PCWP) is measured while the catheter is placed into a small pulmonary branch and it reflects effective LA pressure [2]. PCWP differentiates post-capillary PH (PCWP ≥ 15 mmHg) from pre-capillary PH (PCWP < 15 mmHg) [19].
LAP is measured by balloon occlusion of the distal pulmonary branches; it has a waveform similar to that of RA with a, c, and v waves, as well as negative x and y descents [2].
Finally, the LV pressure can also be studied, with its well-defined waveform which is identical to that of RV, but with higher systolic and diastolic pressures. LVEDP is used to measure preload and LV diastolic function [2].
RHC also allows calculation of hemodynamic parameters that can be used to determine myocardial function: the thermodilution technique and the Fick principle are both used to quantify cardiac output (CO) [2]. The thermodilution method involves injecting a 10–20 mL cold bolus into the catheter’s proximal part, while a thermistor in the distal end registers the differential temperature, and a specific software calculates the CO based on the injected temperature, volume, and blood specific gravity [20]. On the other hand, the Fick principle’s determination is based on the following equation:
V O 2 = C O ∗ 1.34 ∗ H b ∗ ( S A O 2 − S V O 2 )
where VO2 is oxygen consumption, Hb is the hemoglobin blood concentration, and SAO2 and SVO2 represent, respectively, the arterial and mixed venous-blood oxygen saturation. Assuming an average VO2 value for every patient (usually 125 mL/min/m2), Hb, SAO2, and SVO2 can be directly measured, thus permitting CO determination [2,21].
RVSWI is a surrogate measurement of RV systolic function, being directly proportional to the stroke volume index (SVI). Values lower than 5 g × m2/beat, especially when paired with a PCWP > 20 mmHg and a VO2 < 14 mL/min/m2, are associated with increased mortality, the necessity for ventricular support device placement, and HTx at 1 year [2].
Finally, the pulmonary artery pulsatility index (PAPi) is a unique hemodynamic measure that is often used in the pre-operative evaluation of patients with advanced HF who require an LVAD or HTx [21] (Table 3). Most researchers have found an independent association between PAPi and survival [22].
The most common RHC complications are non-sustained ventricular and atrial tachycardia resulting from catheter contact with the chamber wall [2]; patients with left bundle branch block (LBBB) are more likely to experience intermittent complete atrioventricular block (AVB) [2]. Right bundle branch block (RBBB) occurs in 5% of patients [2]. Rare serious complications include RV rupture, pulmonary artery (PA) rupture, and RV infarction [23]. Minor complications, on the other hand, include venous spasm, bleeding, thrombophlebitis, atrial fibrillation, reversible LBBB or RBBB, and first- or second-degree AVB [2].

4. Speckle Tracking Echocardiography of Left Chambers

In 2020, the ESC described the HFpEF diagnostic algorithm (HFA-PEFF), which includes numerous Doppler echocardiographic measures related to LV filling pressures, such as indexed LA volume (LAVi), mitral annulus TDI, and E/e’ ratio, as well as pulmonary pressures, such as sPAP and retrograde tricuspid regurgitation peak velocity (TRPV) [24]. Novel echocardiographic measures, however, have been proved superior to traditional ones in assessing left heart function. PALS correlates strongly with LV filling pressures, particularly in patients with low EF, and it changes before LAVi [25]. Also, an inverse association between PALS and chronic HF patients’ quality of life measured by the Minnesota Living with Heart Failure Questionnaire (MLHFQ) has been shown [26].
Studies have demonstrated that STE has the ability to predict the presence of myocardial fibrosis (MF), with good accuracy [7]. Trials analyzing the presence of MF in hypertrophic cardiomyopathy (HCM) have shown how segments with MF detected by cardiac magnetic resonance (CMR) have lower longitudinal strain values [27] and extensive fibrosis, having reduced GLS [28]. Furthermore, in patients with myocarditis-related scars, segments with longitudinal strain < −12% have been associated with late gadolinium enhancement (LGE) on CMR, findings that are predictive of non-sustained ventricular tachycardias (NSVT) [29]. In the pediatric population, the technique was also able to identify oedema and sub-acute fibrosis in localized myocarditis despite a normal ejection fraction [30]. In patients with atrial fibrillation (AF) and end-stage HF, LA MF has been shown to be related to PALS, VO2max, NYHA class, LA stiffness, and E/e’ [7]. PALS, in particular, has a good correlation with NYHA class and VO2max, [31] and is a good predictor of MF [7]. These findings can be explained on the basis of the elevated LA pressure causing maladaptive remodeling including myocyte growth, hypertrophy, necrosis, and apoptosis. Furthermore, the fibroblast mitosis enhances extracellular matrix (ECM) with a switch into anaerobic metabolism, which leads to a reduction in the myocardial energy production [7]. Recently, PALS has been found to be accurate in reflecting LA reservoir function, with a capacity outperforming traditional measurement (LA volume and LV GLS) in predicting all-cause mortality and hospitalization [32].
The association between LA strain and cavity pressures was shown in a multicentric study of 322 patients with a mean LVEF 55%, where both PALS and PACS were found to be associated with LV filling pressures (LVFPs). The optimal cut-off for distinguishing normal from raised LVFP (PCWP > 12 mmHg) was 18% for PALS and 8% for PACS [33]. Similar results were obtained in 210 patients with LVEF >50%, where PALS accurately identified patients with increased PCWP > 15 mmHg compared to echocardiography and RHC, with an AUC of 0.76. Moreover, substituting TR peak velocity for PALS (<18%) in the 2016 ASE/EACVI algorithm led to 91% feasibility, 81% accuracy, and improved agreement with invasive measures [26]. Furthermore, the link between STE and LV pressures has been analyzed during stress tests, and showed PALS reduction in exercise-impaired HFrEF and HFpEF patients, which was associated with raised E/e′ [34]. A 2023 Chinese study found that, in patients with HCM, PALS measured at rest had the strongest association with METS ≤ 6.0 in treadmill stress echocardiography and had a good performance record in predicting different subtypes of HCM [35].
STE can also describe different systolic patterns of every myocardial layer: this feature, commonly known as multi-layer STE or layer-specific STE, has not been frequently used in the HF setting, but a few studies demonstrated how the epicardial layer GLS (GLSEpi) is a significant predictor of incident HF and cardiovascular diseases (CVDs) following ST-elevation myocardial infarction (STEMI) and also in the general male population [36,37] Furthermore, a 2019 trial demonstrated how the subendocardial-layer GLS (GLSEndo, −23.48 ± 2.70 vs. −23.02 ± 2.81; p = 0.043) and the GLSEndo/GLSEpi ratio (p = 0.034) were significantly associated with dyspnea, contrary to other echocardiographic variables [38].
In end-stage HF, LVEF has failed to predict clinical outcomes in the short- and long-term. In contrast, LVGCS outperformed LVGLS in predicting long-term mortality and future clinical events, with higher sensitivity and specificity [9]. This is most likely because the fibers in the LV mid-wall (associated with circumferential strain) have greater intrinsic contractile activity than other myocardial fibers [11]. In contrast, in HFrEF patients, there is a modest relationship between transverse LV function and MF, but a significant association with GLS, which proved to have a stronger predictive value than other echocardiographic measures [39]. A 2023 meta-analysis evidenced how this parameter was strongly related with peak VO2 measured during the cardiopulmonary exercise test compared with LV EF, and is even linked with cardiorespiratory fitness indices in HFrEF [40].
Recently, STE has also been applied to 3D real-time echocardiography (34 RTE), producing a 3D-STE technique. This method has proved accurate in left ventricular systolic function [10]. Several trials investigated the role of both 2D-STE GLS and 3D-STE GLS in HF, and have shown the latter to be a powerful independent predictor of MACE in asymptomatic aortic stenosis (2D GLS −14.7 ± 3.3 vs. −16.3 ± 3.3, p = 0.0168; 3D GLS −13.5 ± 2.5 vs. −16.1 ± 2.4, p < 0.0001) [41], and to be superior in predicting STEMI patients’ prognosis [42]. 3D-STE has also been applied to assess atrial function in the form of LA Emptying Fraction (LAEmpF), which proved an independent predictor of hospitalization in HF patients, thus providing higher prognostic power in future MACEs than all conventional 2D-based parameters (AUC = 0.82, p < 0.0001; cut-off value < 0.420) [43].

5. Speckle Tracking Echocardiography of Right Heart Chambers

RV remodeling limits longitudinal performance while increasing transverse function by reducing the circumferential fibers of the outer myocardial layer. This anatomical fact explains why RVFWLS is a sensitive measure for diagnosing RV dysfunction [9]. End-stage HF patients exhibit a significant relationship between RVFWLS and histologically confirmed MF, with RVFWLS being the primary determinant and the main predictor of MF [44]. This parameter has been shown to be the most reliable diagnostic tool for detecting severe MF in patients with extensive RV fibrosis [44]. The RV free-wall function itself has been proved to be the most accurate parameter that predicts exercise capacity and clinical outcome in patients with dilated cardiomyopathy (DCM) [45].
In patients with PH, RV strain can accurately predict clinical outcome, being associated with increased risk of all-cause mortality [46]. Ischemic patients with low RVFWLS values have been shown to have worse survival [12], having been proved to have profound transmural MF, particularly in AMI [46].
Also, RVFWLS is linked with structural cardiopathy risk of hospitalization, which is worse with increasing NYHA class and higher NT pro–B-type natriuretic peptide [47].
RV strain has been evaluated in advanced-HF patients, especially in the pre-operative LVAD evaluation. Standard echocardiographic indices, such as tricuspid annulus s’ and tricuspid annular plane systolic excursion (TAPSE), do not have a strong relationship with clinical prognosis [11]. On the other hand, recent studies have shown good correlation between pre-operative RVFWLS and the development of RV failure after LVAD implantation. The first study was published in 2012, when Grant et al. demonstrated poor prognosis and RVF in patients with RVFWLS lower than −12% [48]. More recent studies and a meta-analysis confirmed these results and also showed how RVFWLS is the best predictor of RV failure (RVF) following LVAD implantation, and an independent risk factor for RVF development such as RVSWI [49]. Furthermore, a reduced value has been shown after surgery, despite other RV echocardiographic parameters remaining unchanged during the stress test, with the pump speed optimized for resting conditions [50].
Three-dimensional STE has also been applied to RV, not only for assessing systolic function but also for determining its volumes [51]. Meng et al. showed 3D-STE parameters to have similar predictive value as 2D-STE indices in patients with HFpEF (3D STE RVFWLS HR 5.73; 95% CI 2.77–11.85; p < 0.001; 2D STE RVFWLS R 3.17; 95% CI 1.54–6.53; p = 0.002) [51]. Moreover, 3D-STE indices have proved to have comparable predictive ability for adverse cardiac events [52] and mortality in patients with PH [53].

6. Discussion

In HF patients, there is significant relationship between LA strain, MF and clinical outcome. PALS is also related to both LV filling pressures, and is a good measure of diastolic dysfunction and myocardial VO2, which is a HF fundamental survival marker. Furthermore, LA strain allows detailed analysis of heart chambers’ histopathologic status and metabolic activity, with the latter being a key prognostic marker in patients with advanced HF.
Studies have shown that STE has significant value for patient management and in guiding towards optimum treatment strategies. RVFWLS is not only related to RVSWI but also to development of RV failure, thus making it critical in the pre-LVAD implantation evaluation. Because of these relationships and the higher pace at which these parameters change with changes in medical condition, it has become evident that STE plays an essential role in the evaluation of both early and advanced HF, allowing not only the prevention of major myocardial damage but also treating it with the most appropriate therapy (Figure 4).
On the other hand, STE has significant limitations. Firstly, it requires an optimal echocardiographic window, which is not always possible because of either the patient’s clinical disease (e.g., COPD and interstitial fibrosis) and/or the setting (Intensive Care Units) where the echo study is performed. Moreover, optimum recording and analysis requires ECG gating with regular rhythm, which is not feasible in patients with atrial fibrillation (AF). Furthermore, post-operative transthoracic echocardiographic assessment could be limited because of the need for monitoring wires and management tubes. Even after hospital discharge, in patients with LVAD, the limited image acquisition remains because of the electromagnetic waves interfering with the ultrasound. The available studies of such issues are mostly single-centered with only one meta-analysis. Also, there is no established consensus regarding the RVFWLS cut-off below which LVAD implantation is contraindicated due to the RVF risk.
Three-dimensional STE suffers from the same 2D-STE’s limitations, requiring an optimal acoustic window and high temporal resolution. Also, 3D-STE requires multi-beat acquisition, thus limiting its use in arrhythmia patients. Moreover, the software does not permit manual ROI position adjustment and does not have an automatic validation of STE. Finally, with the optimal frame rate of 35–50 vps for 3D-STE, frame rates below 18 vps would lead to significant underestimation of strain magnitude.
The above issues highlight the fact that the STE is operator-dependent. In addition, the above limitations have contributed to the modest reproducibility of STE measurements, even when using the same echocardiographic system. Finally, the limitation of measurement reproducibility among different manufactures remains outstanding.

7. Conclusions

There is no consensus regarding the use of STE in patients with advanced HF, especially in pre-operative LVAD evaluation, and the limitation of an adequate acoustic window does not permit its reliable use in all patients. For STE to become valuable for routine use, stronger evidence for its accurate feasibility is required, as well as cut-off values for patients with advanced heart failure.

Author Contributions

L.M., M.L. and M.Y.H., wrote the review, and M.C., M.C.P., F.M.R. and A.R., revised it critically. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The publications can be read using the Pubmed platform, the journals and the books mentioned in the references.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Task Force Members; McDonagh, T.A.; Metra, M.; Adamo, M.; Gardner, R.S.; Baumbach, A.; Böhm, M.; Burri, H.; Butler, J.; Čelutkienė, J.; et al. 2021 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure: Developed by the Task Force for the diagnosis and treatment of acute and chronic heart failure of the European Society of Cardiology (ESC). With the special contribution of the Heart Failure Association (HFA) of the ESC. Eur. J. Heart Fail. 2022, 24, 4–131. [Google Scholar] [CrossRef] [PubMed]
  2. Seferovic, P.M.; Coats, A.J.S.; Filippatos, G.; Anker, S.D.; Bauersachs, J.; Rosano, G. The ESC Textbook of Heart Failure; Oxford University Press: Oxford, UK, 2023; pp. 418–422. [Google Scholar]
  3. Kalam, K.; Otahal, P.; Marwick, T.H. Prognostic implications of global LV dysfunction: A systematic review and meta-analysis of global longitudinal strain and ejection fraction. Heart 2014, 100, 1673–1680. [Google Scholar] [CrossRef] [PubMed]
  4. Kempny, A.; Diller, G.P.; Kaleschke, G.; Orwat, S.; Funke, A.; Radke, R.; Schmidt, R.; Kerckhoff, G.; Ghezelbash, F.; Rukosujew, A.; et al. Longitudinal left ventricular 2D strain is superior to ejection fraction in predicting myocardial recovery and symptomatic improvement after aortic valve implantation. Int. J. Cardiol. 2013, 167, 2239–2243. [Google Scholar] [CrossRef] [PubMed]
  5. Krishnasamy, R.; Isbel, N.M.; Hawley, C.M.; Pascoe, E.M.; Burrage, M.; Leano, R.; Haluska, B.A.; Marwick, T.H.; Stanton, T. Left Ventricular Global Longitudinal Strain (GLS) Is a Superior Predictor of All-Cause and Cardiovascular Mortality When Compared to Ejection Fraction in Advanced Chronic Kidney Disease. PLoS ONE 2015, 10, e0127044. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  6. Stefani, L.D.; Trivedi, S.J.; Ferkh, A.; Emerson, P.; Marschner, S.; Gan, G.; Altman, M.; Thomas, L. Left atrial mechanics evaluated by two-dimensional strain analysis: Alterations in essential hypertension. J. Hypertens. 2024, 42, 274–282. [Google Scholar] [CrossRef] [PubMed]
  7. Mandoli, G.E.; Cameli, M.; Pastore, M.C.; Loiacono, F.; Righini, F.M.; D’Ascenzi, F.; Focardi, M.; Cavigli, L.; Lisi, M.; Bisleri, G.; et al. Left Ventricular Fibrosis as a Main Determinant of Filling Pressures and Left Atrial Function in Advanced Heart Failure. Eur. Heart J. Cardiovasc. Imaging 2023, 18, jead340. [Google Scholar] [CrossRef] [PubMed]
  8. Sugimoto, T.; Dulgheru, R.; Bernard, A.; Ilardi, F.; Contu, L.; Addetia, K.; Caballero, L.; Akhaladze, N.; Athanassopoulos, G.D.; Barone, D.; et al. Echocardiographic reference ranges for normal left ventricular 2D strain: Results from the EACVI NORRE study. Eur. Heart J. Cardiovasc. Imaging 2017, 18, 833–840. [Google Scholar] [CrossRef] [PubMed]
  9. Saito, K.; Okura, H.; Watanabe, N.; Hayashida, A.; Obase, K.; Imai, K.; Maehama, T.; Kawamoto, T.; Neishi, Y.; Yoshida, K. Comprehensive evaluation of left ventricular strain using speckle tracking echocardiography in normal adults: Comparison of three-dimensional and two-dimensional approaches. J. Am. Soc. Echocardiogr. 2009, 22, 1025–1030. [Google Scholar] [CrossRef] [PubMed]
  10. Nabeshima, Y.; Seo, Y.; Takeuchi, M. A review of current trends in three-dimensional analysis of left ventricular myocardial strain. Cardiovasc. Ultrasound 2020, 18, 23. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  11. Badano, L.P.; Kolias, T.J.; Muraru, D.; Abraham, T.P.; Aurigemma, G.; Edvardsen, T.; D’Hooge, J.; Donal, E.; Fraser, A.G.; Marwick, T.; et al. Reviewers: This document was reviewed by members of the 2016–2018 EACVI Scientific Documents Committee. Standardization of left atrial, right ventricular, and right atrial deformation imaging using two-dimensional speckle tracking echocardiography: A consensus document of the EACVI/ASE/Industry Task Force to standardize deformation imaging. Eur. Heart J. Cardiovasc. Imaging 2018, 19, 591–600, Erratum in: Eur. Heart J. Cardiovasc. Imaging 2018, 19, 830–833. [Google Scholar] [CrossRef] [PubMed]
  12. Pathan, F.; D’Elia, N.; Nolan, M.T.; Marwick, T.H.; Negishi, K. Normal Ranges of Left Atrial Strain by Speckle-Tracking Echocardiography: A Systematic Review and Meta-Analysis. J. Am. Soc. Echocardiogr. 2017, 30, 59–70.e8. [Google Scholar] [CrossRef] [PubMed]
  13. Lee, J.H.; Park, J.H. Strain Analysis of the Right Ventricle Using Two-dimensional Echocardiography. J. Cardiovasc. Imaging 2018, 26, 111–124. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  14. Lang, R.M.; Badano, L.P.; Mor-Avi, V.; Afilalo, J.; Armstrong, A.; Ernande, L.; Flachskampf, F.A.; Foster, E.; Goldstein, S.A.; Kuznetsova, T.; et al. Recommendations for cardiac chamber quantification by echocardiography in adults: An update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J. Am. Soc. Echocardiogr. 2015, 28, 1–39.e14. [Google Scholar] [CrossRef] [PubMed]
  15. Gheorghiade, M.; Follath, F.; Ponikowski, P.; Barsuk, J.H.; Blair, J.E.; Cleland, J.G.; Dickstein, K.; Drazner, M.H.; Fonarow, G.C.; Jaarsma, T.; et al. European Society of Intensive Care Medicine. Assessing and grading congestion in acute heart failure: A scientific statement from the acute heart failure committee of the heart failure association of the European Society of Cardiology and endorsed by the European Society of Intensive Care Medicine. Eur. J. Heart Fail. 2010, 12, 423–433. [Google Scholar] [CrossRef] [PubMed]
  16. Mueller, H.S.; Chatterjee, K.; Davis, K.B.; Fifer, M.A.; Franklin, C.; Greenberg, M.A.; Labovitz, A.J.; Shah, P.K.; Tuman, K.J.; Weil, M.H.; et al. ACC expert consensus document. Present use of bedside right heart catheterization in patients with cardiac disease. American College of Cardiology. J. Am. Coll. Cardiol. 1998, 32, 840–864. [Google Scholar] [CrossRef] [PubMed]
  17. Del Rio-Pertuz, G.; Nugent, K.; Argueta-Sosa, E. Right heart catheterization in clinical practice: A review of basic physiology and important issues relevant to interpretation. Am. J. Cardiovasc. Dis. 2023, 13, 122–137. [Google Scholar] [PubMed] [PubMed Central]
  18. Bootsma, I.T.; Boerma, E.C.; Scheeren, T.W.L.; de Lange, F. The contemporary pulmonary artery catheter. Part 2: Measurements, limitations, and clinical applications. J. Clin. Monit. Comput. 2022, 36, 17–31. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  19. Humbert, M.; Kovacs, G.; Hoeper, M.M.; Badagliacca, R.; Berger, R.M.F.; Brida, M.; Carlsen, J.; Coats, A.J.S.; Escribano-Subias, P.; Ferrari, P.; et al. 2022 ESC/ERS Guidelines for the diagnosis and treatment of pulmonary hypertension. Eur. Respir. J. 2023, 61, 2200879. [Google Scholar] [CrossRef] [PubMed]
  20. Forrester, J.S.; Ganz, W.; Diamond, G.; McHugh, T.; Chonette, D.W.; Swan, H.J. Thermodilution cardiac output determination with a single flow-directed catheter. Am. Heart J. 1972, 83, 306–311. [Google Scholar] [CrossRef] [PubMed]
  21. Fagard, R.; Conway, J. Measurement of cardiac output: Fick principle using catheterization. Eur. Heart J. 1990, 11 (Suppl. S1), 1–5. [Google Scholar] [CrossRef] [PubMed]
  22. Lim, H.S.; Gustafsson, F. Pulmonary artery pulsatility index: Physiological basis and clinical application. Eur. J. Heart Fail. 2020, 22, 32–38. [Google Scholar] [CrossRef] [PubMed]
  23. Kearney, T.J.; Shabot, M.M. Pulmonary artery rupture associated with the Swan-Ganz catheter. Chest 1995, 108, 1349–1352. [Google Scholar] [CrossRef] [PubMed]
  24. Pieske, B.; Tschöpe, C.; de Boer, R.A.; Fraser, A.G.; Anker, S.D.; Donal, E.; Edelmann, F.; Fu, M.; Guazzi, M.; Lam, C.S.P.; et al. How to diagnose heart failure with preserved ejection fraction: The HFA-PEFF diagnostic algorithm: A consensus recommendation from the Heart Failure Association (HFA) of the European Society of Cardiology (ESC). Eur. Heart J. 2019, 40, 3297–3317, Erratum in: Eur. Heart J. 2021, 42, 1274. [Google Scholar] [CrossRef] [PubMed]
  25. Cameli, M.; Lisi, M.; Focardi, M.; Reccia, R.; Natali, B.M.; Sparla, S.; Mondillo, S. Left atrial deformation analysis by speckle tracking echocardiography for prediction of cardiovascular outcomes. Am. J. Cardiol. 2012, 110, 264–269. [Google Scholar] [CrossRef] [PubMed]
  26. Lisi, M.; Mandoli, G.E.; Cameli, M.; Pastore, M.C.; Righini, F.M.; Benfari, G.; Rubboli, A.; D’Ascenzi, F.; Focardi, M.; Tsioulpas, C.; et al. Left atrial strain by speckle tracking predicts atrial fibrosis in patients undergoing heart transplantation. Eur. Heart J. Cardiovasc. Imaging 2022, 23, 829–835. [Google Scholar] [CrossRef] [PubMed]
  27. Klettas, D.; Georgiopoulos, G.; Rizvi, Q.; Oikonomou, D.; Magkas, N.; Bhuva, A.N.; Manisty, C.; Captur, G.; Aimo, A.; Nihoyannopoulos, P. Echocardiographic and Cardiac Magnetic Resonance Imaging-Derived Strains in Relation to Late Gadolinium Enhancement in Hypertrophic Cardiomyopathy. Am. J. Cardiol. 2022, 171, 132–139. [Google Scholar] [CrossRef] [PubMed]
  28. Ota, S.; Hozumi, T.; Tanimoto, T.; Takemoto, K.; Wada, T.; Kashiwagi, M.; Shimamura, K.; Shiono, Y.; Kuroi, A.; Matsuo, Y.; et al. Global longitudinal strain evaluated by speckle-tracking echocardiography as a surrogate marker for predicting replacement fibrosis detected by magnetic resonance-late gadolinium enhancement in patients with nonischemic cardiomyopathy. J. Clin. Ultrasound 2021, 49, 479–487. [Google Scholar] [CrossRef] [PubMed]
  29. Sperlongano, S.; D’Amato, A.; Tagliamonte, E.; Russo, V.; Desiderio, A.; Ilardi, F.; Muscogiuri, G.; Esposito, G.; Pontone, G.; Esposito, G.; et al. Acute myocarditis: Prognostic role of speckle tracking echocardiography and comparison with cardiac magnetic resonance features. Heart Vessels 2022, 37, 121–131. [Google Scholar] [CrossRef] [PubMed]
  30. Chinali, M.; Franceschini, A.; Ciancarella, P.; Lisignoli, V.; Curione, D.; Ciliberti, P.; Esposito, C.; Del Pasqua, A.; Rinelli, G.; Secinaro, A. Echocardiographic two-dimensional speckle tracking identifies acute regional myocardial edema and sub-acute fibrosis in pediatric focal myocarditis with normal ejection fraction: Comparison with cardiac magnetic resonance. Sci. Rep. 2020, 10, 11321. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  31. Conrad, C.H.; Brooks, W.W.; Hayes, J.A.; Sen, S.; Robinson, K.G.; Bing, O.H. Myocardial fibrosis and stiffness with hypertrophy and heart failure in the spontaneously hypertensive rat. Circulation 1995, 91, 161–170. [Google Scholar] [CrossRef] [PubMed]
  32. Mandoli, G.E.; D’Ascenzi, F.; Vinco, G.; Benfari, G.; Ricci, F.; Focardi, M.; Cavigli, L.; Pastore, M.C.; Sisti, N.; De Vivo, O.; et al. Novel Approaches in Cardiac Imaging for Non-invasive Assessment of Left Heart Myocardial Fibrosis. Front. Cardiovasc. Med. 2021, 8, 614235. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  33. Venkateshvaran, A.; Tureli, H.O.; Faxén, U.L.; Lund, L.H.; Tossavainen, E.; Lindqvist, P. Left atrial reservoir strain improves diagnostic accuracy of the 2016 ASE/EACVI diastolic algorithm in patients with preserved left ventricular ejection fraction: Insights from the KARUM haemodynamic database. Eur. Heart J. Cardiovasc. Imaging 2022, 23, 1157–1168. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  34. Smiseth, O.A.; Morris, D.A.; Cardim, N.; Cikes, M.; Delgado, V.; Donal, E.; Flachskampf, F.A.; Galderisi, M.; Gerber, B.L.; Gimelli, A.; et al. Reviewers: This document was reviewed by members of the 2018–2020 EACVI Scientific Documents Committee. Multimodality imaging in patients with heart failure and preserved ejection fraction: An expert consensus document of the European Association of Cardiovascular Imaging. Eur. Heart J. Cardiovasc. Imaging 2022, 23, e34–e61. [Google Scholar] [CrossRef] [PubMed]
  35. Sengupta, S.P.; Okwose, N.C.; MacGowan, G.A.; Jakovljevic, D.G. Peak atrio-ventricular mechanics predicts exercise tolerance in heart failure patients. Int. J. Cardiol. 2022, 359, 84–90. [Google Scholar] [CrossRef] [PubMed]
  36. Su, Y.; Li, C.; Yin, L. Evaluation of the relationship between left atrial strain and exercise tolerance in patients with hypertrophic cardiomyopathy by treadmill stress echocardiography. Front. Cardiovasc. Med. 2023, 10, 1168514. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  37. Cho, G.Y.; Marwick, T.H.; Kim, H.S.; Kim, M.K.; Hong, K.S.; Oh, D.J. Global 2-dimensional strain as a new prognosticator in patients with heart failure. J. Am. Coll. Cardiol. 2009, 54, 618–624. [Google Scholar] [CrossRef] [PubMed]
  38. Grove, G.L.; Pedersen, S.; Olsen, F.J.; Skaarup, K.G.; Jørgensen, P.G.; Shah, A.M.; Biering-Sørensen, T. Layer-specific global longitudinal strain obtained by speckle tracking echocardiography for predicting heart failure and cardiovascular death following STEMI treated with primary PCI. Int. J. Cardiovasc. Imaging 2021, 37, 2207–2215. [Google Scholar] [CrossRef] [PubMed]
  39. Skaarup, K.G.; Lassen, M.C.H.; Johansen, N.D.; Sengeløv, M.; Marott, J.L.; Jørgensen, P.G.; Jensen, G.; Schnohr, P.; Prescott, E.; Søgaard, P.; et al. Layer-specific global longitudinal strain and the risk of heart failure and cardiovascular mortality in the general population: The Copenhagen City Heart Study. Eur. J. Heart Fail. 2021, 23, 1819–1827. [Google Scholar] [CrossRef] [PubMed]
  40. Huttin, O.; Girerd, N.; Coiro, S.; Bozec, E.; Selton-Suty, C.; Lamiral, Z.; Frikha, Z.; Kobayashi, M.; Argulian, E.; Narula, J.; et al. Association Between Layer-Specific Longitudinal Strain and Risk Factors of Heart Failure and Dyspnea: A Population-Based Study. J. Am. Soc. Echocardiogr. 2019, 32, 854–865.e8. [Google Scholar] [CrossRef] [PubMed]
  41. Nagata, Y.; Takeuchi, M.; Wu, V.C.; Izumo, M.; Suzuki, K.; Sato, K.; Seo, Y.; Akashi, Y.J.; Aonuma, K.; Otsuji, Y. Prognostic value of LV deformation parameters using 2D and 3D speckle-tracking echocardiography in asymptomatic patients with severe aortic stenosis and preserved LV ejection fraction. JACC Cardiovasc. Imaging 2015, 8, 235–245. [Google Scholar] [CrossRef] [PubMed]
  42. Iwahashi, N.; Horii, M.; Kirigaya, J.; Abe, T.; Gohbara, M.; Toya, N.; Hanajima, Y.; Takahashi, H.; Minamimoto, Y.; Kimura, Y.; et al. Clinical Usefulness of the Serial Examination of Three-Dimensional Global Longitudinal Strain After the Onset of ST-Elevation Acute Myocardial Infarction. Circ. J. 2022, 86, 611–619. [Google Scholar] [CrossRef] [PubMed]
  43. Tsujiuchi, M.; Yamauchi, T.; Ebato, M.; Maezawa, H.; Nogi, A.; Ikeda, N.; Mizukami, T.; Nagumo, S.; Iso, Y.; Nakadate, T.; et al. Prognostic Value of Left Atrial Size and Functional Indices Measured by 3-Dimensional Speckle-Tracking Analysis. Circ. J. 2019, 83, 801–808. [Google Scholar] [CrossRef] [PubMed]
  44. Tadic, M.; Pieske-Kraigher, E.; Cuspidi, C.; Morris, D.A.; Burkhardt, F.; Baudisch, A.; Haßfeld, S.; Tschöpe, C.; Pieske, B. Right ventricular strain in heart failure: Clinical perspective. Arch. Cardiovasc. Dis. 2017, 110, 562–571. [Google Scholar] [CrossRef] [PubMed]
  45. Motoki, H.; Borowski, A.G.; Shrestha, K.; Hu, B.; Kusunose, K.; Troughton, R.W.; Tang, W.H.; Klein, A.L. Right ventricular global longitudinal strain provides prognostic value incremental to left ventricular ejection fraction in patients with heart failure. J. Am. Soc. Echocardiogr. 2014, 27, 726–732. [Google Scholar] [CrossRef] [PubMed]
  46. Weidemann, F.; Herrmann, S.; Störk, S.; Niemann, M.; Frantz, S.; Lange, V.; Beer, M.; Gattenlöhner, S.; Voelker, W.; Ertl, G.; et al. Impact of myocardial fibrosis in patients with symptomatic severe aortic stenosis. Circulation 2009, 120, 577–584. [Google Scholar] [CrossRef] [PubMed]
  47. Cameli, M.; Loiacono, F.; Sparla, S.; Solari, M.; Iardino, E.; Mandoli, G.E.; Bernazzali, S.; Maccherini, M.; Mondillo, S. Systematic Left Ventricular Assist Device Implant Eligibility with Non-Invasive Assessment: The SIENA Protocol. J. Cardiovasc. Ultrasound 2017, 25, 39–46. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  48. Grant, A.D.; Smedira, N.G.; Starling, R.C.; Marwick, T.H. Independent and incremental role of quantitative right ventricular evaluation for the prediction of right ventricular failure after left ventricular assist device implantation. J. Am. Coll. Cardiol. 2012, 60, 521–528. [Google Scholar] [CrossRef] [PubMed]
  49. Barssoum, K.; Altibi, A.M.; Rai, D.; Kharsa, A.; Kumar, A.; Chowdhury, M.; Elkaryoni, A.; Abuzaid, A.S.; Baibhav, B.; Parikh, V.; et al. Assessment of right ventricular function following left ventricular assist device (LVAD) implantation-The role of speckle-tracking echocardiography: A meta-analysis. Echocardiography 2020, 37, 2048–2060. [Google Scholar] [CrossRef] [PubMed]
  50. Kato, T.S.; Jiang, J.; Schulze, P.C.; Jorde, U.; Uriel, N.; Kitada, S.; Takayama, H.; Naka, Y.; Mancini, D.; Gillam, L.; et al. Serial echocardiography using tissue Doppler and speckle tracking imaging to monitor right ventricular failure before and after left ventricular assist device surgery. JACC Heart Fail. 2013, 1, 216–222. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  51. Meng, Y.; Zhu, S.; Xie, Y.; Zhang, Y.; Qian, M.; Gao, L.; Li, M.; Lin, Y.; Wu, W.; Wang, J.; et al. Prognostic Value of Right Ventricular 3D Speckle-Tracking Strain and Ejection Fraction in Patients with HFpEF. Front. Cardiovasc. Med. 2021, 8, 694365. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  52. Sun, M.; Cao, X.; Guo, Y.; Tan, X.; Dong, L.; Pan, C.; Shu, X. Long-term impacts of hemodialysis on the right ventricle: Assessment via 3-dimensional speckle-tracking echocardiography. Clin. Cardiol. 2018, 41, 87–95. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  53. Vitarelli, A.; Mangieri, E.; Terzano, C.; Gaudio, C.; Salsano, F.; Rosato, E.; Capotosto, L.; D’Orazio, S.; Azzano, A.; Truscelli, G.; et al. Three-dimensional echocardiography and 2D-3D speckle-tracking imaging in chronic pulmonary hypertension: Diagnostic accuracy in detecting hemodynamic signs of right ventricular (RV) failure. J. Am. Heart Assoc. 2015, 4, e001584. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
Jcm 13 04037 g001
Figure 1. Left: LV 4-chambers view divided into six segments by the STE software https://www.gehealthcare.it/products/ultrasound/vivid/echopac/applications (accessed on 30 November 2023), each providing its own longitudinal strain value. Top: the curves of each segments’ longitudinal strain and the GLS’ curve. Bottom: the “bull’s eye”, the LV divided into seven segments, each with its own longitudinal strain; the GLS of each view and the average GLS is displayed on the right. LV: left ventricle; STE: speckle tracking echocardiography, GLS: global longitudinal strain.
Figure 1. Left: LV 4-chambers view divided into six segments by the STE software https://www.gehealthcare.it/products/ultrasound/vivid/echopac/applications (accessed on 30 November 2023), each providing its own longitudinal strain value. Top: the curves of each segments’ longitudinal strain and the GLS’ curve. Bottom: the “bull’s eye”, the LV divided into seven segments, each with its own longitudinal strain; the GLS of each view and the average GLS is displayed on the right. LV: left ventricle; STE: speckle tracking echocardiography, GLS: global longitudinal strain.
Jcm 13 04037 g001
Jcm 13 04037 g002

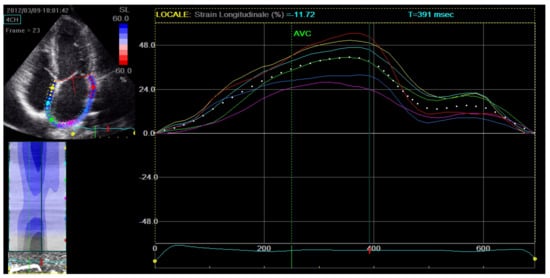

Figure 2. LA in a 4-chambers view divided into six segments by the STE software, each providing its own strain value. Top: the curves of the individual segments’ strain and the average curve, with the first peak representing PALS and the second peak PACS. LA: left atrium; STE: speckle tracking echocardiography, PALS: peak atrial longitudinal strain; PACS: peak atrial contraction strain.
Figure 2. LA in a 4-chambers view divided into six segments by the STE software, each providing its own strain value. Top: the curves of the individual segments’ strain and the average curve, with the first peak representing PALS and the second peak PACS. LA: left atrium; STE: speckle tracking echocardiography, PALS: peak atrial longitudinal strain; PACS: peak atrial contraction strain.
Jcm 13 04037 g002
Jcm 13 04037 g003

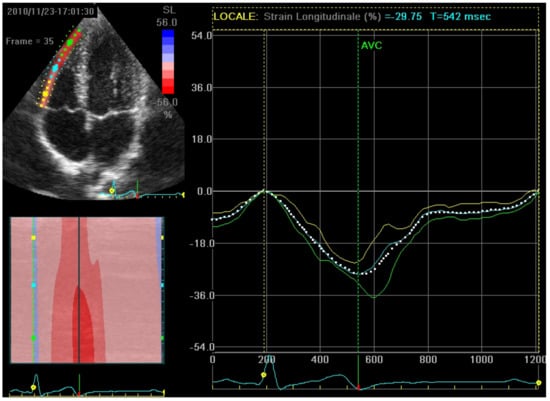

Figure 3. Top left: a RV free-wall in a 4-chambers view divided into three segments by the STE software, each providing its own longitudinal strain value. Right: the curve of each segment’s longitudinal strain and the average curve representing RVFWLS. RV: right ventricle; STE: speckle tracking echocardiography, RVFWLS: right ventricle free-wall longitudinal strain.
Figure 3. Top left: a RV free-wall in a 4-chambers view divided into three segments by the STE software, each providing its own longitudinal strain value. Right: the curve of each segment’s longitudinal strain and the average curve representing RVFWLS. RV: right ventricle; STE: speckle tracking echocardiography, RVFWLS: right ventricle free-wall longitudinal strain.
Jcm 13 04037 g003
Jcm 13 04037 g004

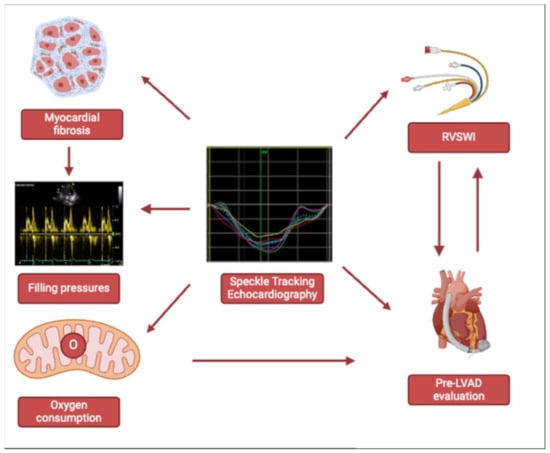

Figure 4. The STE network for advanced-HF evaluation and treatment. RVSWI: right ventricle stroke work index; LVAD: left ventricular assist device.
Figure 4. The STE network for advanced-HF evaluation and treatment. RVSWI: right ventricle stroke work index; LVAD: left ventricular assist device.
Jcm 13 04037 g004
Table 1. STE normal range for different cardiac chambers [10,11,12,13,14].
Table 1. STE normal range for different cardiac chambers [10,11,12,13,14].
ParameterReference Values (%)
Left ventricle
GLS−17.2–−27.7
Left atrium
PALS42.3–52.4 age 20–40
35.4–46.1 age 40–60
30.9–41.9 age > 60
PACS11.9–19.0 age 20–40
13.2–19.6 age 40–60
13.6–21.4 age > 60
Right ventricle
RVFWS>−20
STE: speckle tracking echocardiography; GLS: global longitudinal strain; PALS: left atrium strain reservoir; PACS: left atrium strain conduit phase; RVFWS: right ventricle free-wall strain.
Table 2. Current indications for RHC [2].
Table 2. Current indications for RHC [2].
HTx Check List
Diagnosis and differential diagnosis for PH
Fulminant myocarditis
Peripartum cardiomyopathy
Differential diagnosis for sepsis
ADHF requiring inotropic, vasopressor, and vasodilator therapy
Cardiogenic shock
Discordant left- and right-ventricular dysfunction
RHC: right heart catheterization; HTx: heart transplantation; PH: pulmonary hypertension; ADHF: acute decompensated heart failure.
Table 3. RHC main parameter reference values [2,21].
Table 3. RHC main parameter reference values [2,21].
ParameterReference Values
Right atrium
Mean RAP2–8 mmHg
Right ventricle
RVESP17–32 mmHg
RVEDP2–8 mmHg
Pulmonary artery
mPAP10–21 mmHg
sPAP17–32 mmHg
dPAP4–15 mmHg
PCWP2–8 mmHg
Left atrium
Mean LAP6–12 mmHg
Left ventricle
LVESP90–140 mmHg
LVEDP5–12 mmHg
Derived parameters
CO2.5–4.5 mL/min/m2
PVR<2 WU
RVSWI5–10 g*m2/beat
PAPi<0.9 in RV infarction
<1.85 in patients undergoing LVAD implantation
<3.65 in patients with advanced HF
RAP: right atrium pressure; RVESP: right ventricle end-systolic pressure; RVEDP: right ventricle end-diastolic pressure; mPAP: mean pulmonary artery pressure; sPAP: systolic pulmonary artery pressure; dPAP: diastolic pulmonary artery pressure; PCWP: pulmonary capillary wedge pressure; LAP: left atrium pressure; LVESP: left ventricle end-systolic pressure; LVEDP: left ventricle end-diastolic pressure; CO: cardiac output; PVR: pulmonary vascular resistance; RVSWI: right ventricle stroke work index; PAPi: pulmonary artery pulsatility index; LVAD: left ventricular assist device; HF: heart failure.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Martini, L.; Lisi, M.; Pastore, M.C.; Righini, F.M.; Rubboli, A.; Henein, M.Y.; Cameli, M. The Role of Speckle Tracking Echocardiography in the Evaluation of Advanced-Heart-Failure Patients. J. Clin. Med. 2024, 13, 4037. https://doi.org/10.3390/jcm13144037

AMA Style

Martini L, Lisi M, Pastore MC, Righini FM, Rubboli A, Henein MY, Cameli M. The Role of Speckle Tracking Echocardiography in the Evaluation of Advanced-Heart-Failure Patients. Journal of Clinical Medicine. 2024; 13(14):4037. https://doi.org/10.3390/jcm13144037

Chicago/Turabian Style

Martini, Luca, Matteo Lisi, Maria Concetta Pastore, Francesca Maria Righini, Andrea Rubboli, Michael Y. Henein, and Matteo Cameli. 2024. "The Role of Speckle Tracking Echocardiography in the Evaluation of Advanced-Heart-Failure Patients" Journal of Clinical Medicine 13, no. 14: 4037. https://doi.org/10.3390/jcm13144037

APA Style

Martini, L., Lisi, M., Pastore, M. C., Righini, F. M., Rubboli, A., Henein, M. Y., & Cameli, M. (2024). The Role of Speckle Tracking Echocardiography in the Evaluation of Advanced-Heart-Failure Patients. Journal of Clinical Medicine, 13(14), 4037. https://doi.org/10.3390/jcm13144037

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
