Leveraging 3D Atrial Geometry for the Evaluation of Atrial Fibrillation: A Comprehensive Review

Abstract

Atrial fibrillation (AF) is the most common sustained cardiac arrhythmia associated with significant morbidity and mortality. Managing risk of stroke and AF burden are pillars of AF management. Atrial geometry has long been recognized as a useful measure in achieving these goals. However, traditional diagnostic approaches often overlook the complex spatial dynamics of the atria. This review explores the emerging role of three-dimensional (3D) atrial geometry in the evaluation and management of AF. Advancements in imaging technologies and computational modeling have enabled detailed reconstructions of atrial anatomy, providing insights into the pathophysiology of AF that were previously unattainable. We examine current methodologies for interpreting 3D atrial data, including qualitative, basic quantitative, global quantitative, and statistical shape modeling approaches. We discuss their integration into clinical practice, highlighting potential benefits such as personalized treatment strategies, improved outcome prediction, and informed treatment approaches. Additionally, we discuss the challenges and limitations associated with current approaches, including technical constraints and variable interpretations, and propose future directions for research and clinical applications. This comprehensive review underscores the transformative potential of leveraging 3D atrial geometry in the evaluation and management of AF, advocating for its broader adoption in clinical practice.

1. Introduction

Atrial fibrillation (AF) is the most common sustained cardiac arrhythmia in adults, with a one in three lifetime risk of developing AF for individuals of European ancestry at age 55 years [1,2,3]. Global prevalence increased from approximately 33 million in 2010, to 50 million in 2020, with this rise expected to continue; this increase is multifactorial in nature, being associated with improved AF detection, life expectancy, and prevalence of comorbidities associated with AF (hypertension, diabetes mellitus, obesity, and obstructive sleep apnea) [1,2,4]. AF causes significant morbidity and mortality, representing a burden to both patients and health care economies, with more than 50% of AF patients having an impaired quality of life and a 10–40% annual hospitalization rate [1,2]. It is associated with a 1.5- to 3.5-fold increased risk of death and multiple adverse outcomes, including stroke, heart failure, cognitive impairment, myocardial infarction, sudden cardiac death, chronic kidney disease, and peripheral artery disease [1,2]. Both European and American guidelines describe three key elements in the management of AF: (1) managing risk of stroke; (2) symptom control, including managing AF burden through rhythm and rate control strategies; and (3) optimization of modifiable risk factors and addressing comorbidities [1,2].

The initial diagnostic evaluation of AF includes a comprehensive medical history, considering the aforementioned risk factors and concomitant conditions, in addition to those not previously mentioned, such as valvular heart disease, endocrine disorders, and infiltrative cardiomyopathies [1,2,5]. Subsequently, standard investigations include a 12-lead ECG to confirm the presence of both AF and ventricular rate, alongside assessing for the existence of conduction defects, ischemia, and structural heart disease; laboratory tests including full blood count, electrolytes, kidney, and thyroid function; and a transthoracic echocardiogram (TTE) to assess chamber size and function, valvular function, right ventricular pressure, and strain to detect underlying infiltrative cardiomyopathy [1,2]. Whilst not routine, depending on a patient’s signs or symptoms, additional imaging may be considered in the form of transesophageal echocardiography to assess valvular heart disease and for the presence of left atrial appendage (LAA) thrombus, computed tomography (CT) angiography for ischemia, and late gadolinium enhanced cardiac magnetic resonance imaging (MRI) to further guide AF treatment decisions [1,2].

All of these imaging modalities provide information on left atrial (LA) geometry, and the clinical utility of this has long been recognized. Two-dimensional (2D) approaches have utilized TTE in risk stratification of cardioembolic stroke [6] and predicting success of electrical cardioversion [7] or catheter ablation therapy with pulmonary vein isolation (PVI) [8]. However, 2D approaches have limitations due to their reliance on geometric assumptions; for example, echocardiographic measurement of LA diameter can underestimate the true LA size as it assumes a spherical shape [9,10]. Atrial remodeling is asymmetrical in nature, as highlighted by Cozma et al. [11] in 2007, who observed that with larger atria, there was a relatively greater increase in the LA basal than apical dimensions; this was termed trapezoidal remodeling. Whilst this can in part be accounted for by utilizing 2D measures of atrial area, true appreciation of changes in atrial geometry due to AF requires three-dimensional (3D) imaging modalities. High-resolution CT, MRI, and 3D echocardiography have paved the way for more accurate assessment of the atria’s asymmetrical 3D structure [9,10,12].

By leveraging 3D atrial geometry, we can improve the evaluation and management of AF, addressing existing knowledge gaps and enhancing patient outcomes. Given the significant advancements in this field and their impact on understanding the complex geometry of atria, there is need for a comprehensive review article that synthesizes current knowledge and identifies future research directions. This review aims to consolidate findings from recent studies, examining the advancements and challenges in LA geometry assessment to provide valuable insights for clinicians and researchers.

In this comprehensive review,

• We discuss the interplay between 3D atrial geometry, atrial cardiomyopathy, and susceptibility to AF.
• We explore the use of 3D atrial geometry in the assessment and treatment of AF, focusing on its use in stroke and rhythm management. We first discuss qualitative and simple quantitative metrics, before covering global quantitative metrics, and finally statistical shape modeling (SSM) approaches, covering measurement techniques and their clinical applications.
• We provide insights into the limitations of current technologies and latest research directions, including deep learning-based SSM and spatiotemporal SSM, in this exciting and evolving field.

2. Atrial Cardiomyopathy and Its Impact on Atrial Geometry

Atrial cardiomyopathy describes the negative remodeling which occurs due to AF. It has long been appreciated that “AF begets AF” [13,14,15]; sustained AF causes structural and functional changes within the atria that promote AF progression [16,17,18]. Experimental evidence since the 1990s has demonstrated atrial dilatation to be one such structural change [19]. The multiple wavelet hypothesis proposed by Moe [20,21] explains why dilated atria are more prone to AF. It considers fibrillation to be the result of the random propagation of multiple, independent electrical wavelets throughout the atria. These wavelets are generated by fractionation of the wavefront as it passes through tissue which is inhomogeneous with respect to excitability, refractory period, and conduction velocity; wavelets are self-sustaining and independent of the initial stimulus [17,18,22,23,24,25]. Dilated atria are more susceptible to maintaining AF, as the larger tissue mass supports a greater number of wavelets and the probability of them coalescing decreases [26].

In contrast, the hierarchical model of AF describes a degree of organization in AF, with distinct driver sites and disorganized propagation away from these sites. Driver sites may exhibit re-entrant, rotational, or focal activity, but they exist due to changes in the local functional and/or structural properties within the atria [17,18,27,28,29]. This has led to multiple studies investigating how these driver sites may be identified; these studies have demonstrated atrial cardiomyopathy to be a non-uniform process, both in regard to structural changes as identified by fibrosis formation using late gadolinium enhancement (LGE) on MRI [30,31,32,33] as well as areas of low voltage on electroanatomic voltage mapping (EAVM) [33,34,35,36] and functional changes as identified by areas of slow conduction velocity [16,33,37,38,39] as well as propagation patterns representing AF drivers [40,41,42]. Recognizing that atrial cardiomyopathy is not simply a global process gives us an appreciation of why 3D atrial geometry is required to truly understand geometric remodeling, considering not only atrial size, but also shape.

3. Qualitative and Basic Quantitative Approaches for Understanding Atrial Shape

Shape can be defined as the geometric information that describes an object irrespective of its pose; pose refers to the location, scale, and rotation of an object [43]. Geometric morphometrics combines descriptions of shape with statistical analyses describing patterns of shape variation [44]. Qualitative methods represent the simplest approach to describing elements of atrial shapes based on subjective morphological descriptions. These can be expanded through the inclusion of basic qualitative measures, such as measuring length and width of atrial sub-structures (Figure 1).

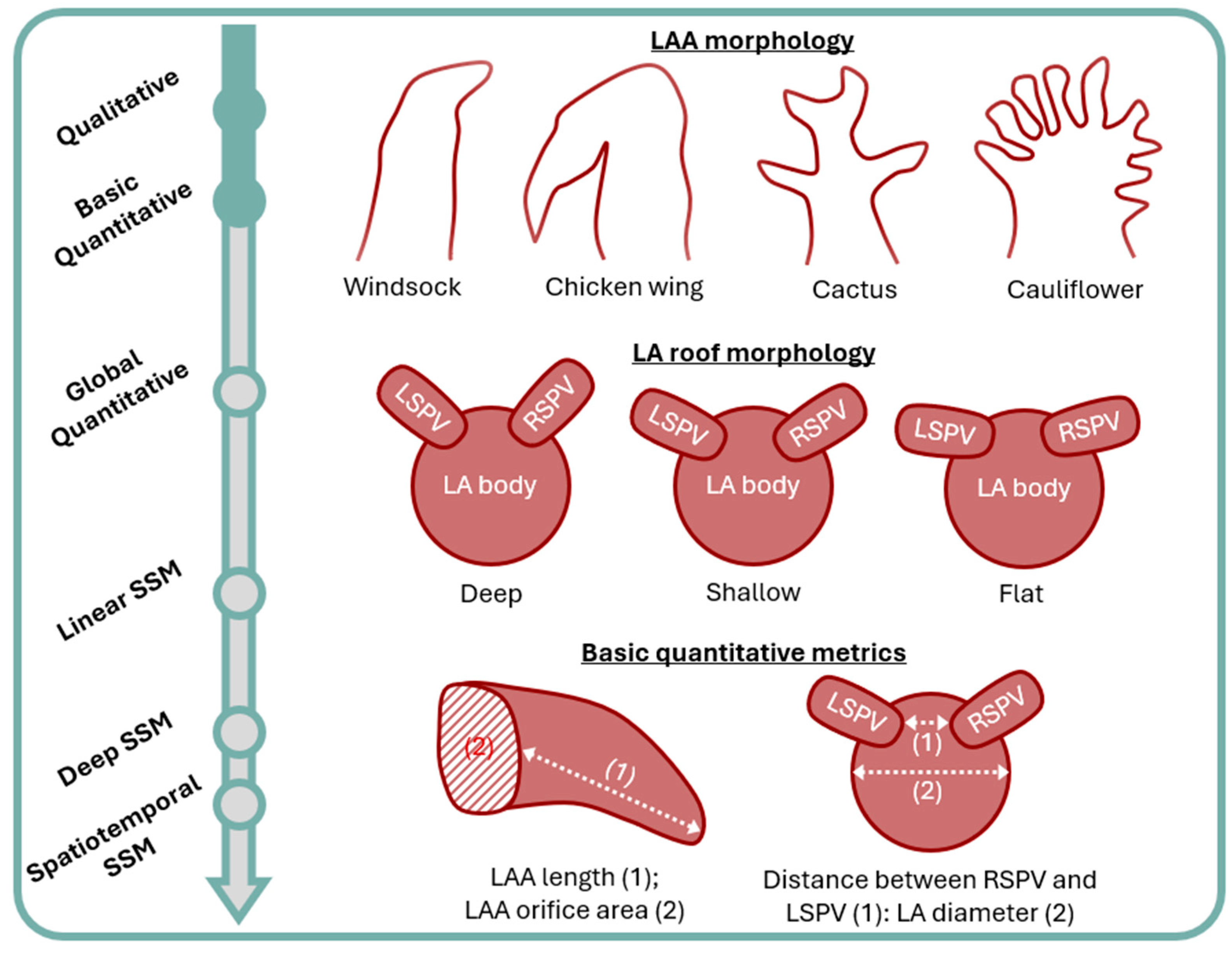

In practice, such approaches have been applied to predicting stroke risk based on LAA morphology, which is considered a frequent source of thrombus formation and systemic embolization [45,46]. Both CT [45,46,47,48,49,50]- and MRI [47]-based approaches have been utilized, with the LAA categorized as either ‘chicken wing’, ‘windsock’, ‘cauliflower’, or ‘cactus’ in shape [45,47,48,49]. In addition, the anatomical relationship between the LAA and left superior pulmonary vein has been described as either high-, mid-, or low-type [45], and the LAA ostium as oval, foot, triangular, water drop, or round [45]. Basic quantitative measurements include LAA volume, length, and LAA orifice area [46,50]. However, results of these studies can be contradictory, with both ‘chicken wing’ [47] and ‘windsock’ [48] morphologies being less frequently observed in patients with a history of stroke or transient ischemic attack (TIA) and with LAA ostium area found both useful [46] and not [50] as a predictive marker. A key issue of this approach is that LAA morphology is incredibly diverse, making classification into pre-defined categories challenging and prone to interobserver variation [45,51,52].

Regarding AF burden and rhythm control, the LA roof has been classified as either deep, shallow, or flat in shape, depending on the angle of insertion of the superior pulmonary veins to the LA body. A flat roof was associated with more significant atrial cardiomyopathy in a study by Kurotobi et al. [53], which demonstrated more persistent AF (perAF), larger LA volumes (LAV), larger LA diameters, and more burst inducible atrial tachycardia after PVI in this cohort. Chen et al. [54] investigated the ratio of distance between the right and left superior pulmonary veins and LA diameter, showing it to be an independent predictor of AF recurrence post PVI in a multivariable analysis. Kim et al. [55] assessed the impact of a narrow or wide left lateral ridge, in a multivariate analysis showing narrow ridges to be an independent predictor of recurrence. Interestingly, a follow-up experimental study using porcine atrial tissue demonstrated contact force and radio-frequency lesion formation to be significantly lower on narrow vs. wide ridges, implying recurrence in patients with this shape variation may not only be related to cardiomyopathy but our ability to deliver successful ablation treatment. Sorgente et al. [56] also investigated ablation technique, in this instance finding cryoballoon occlusion to be worse in patients with shallower angles between the LA body and pulmonary veins.

4. Global Quantitative Approaches

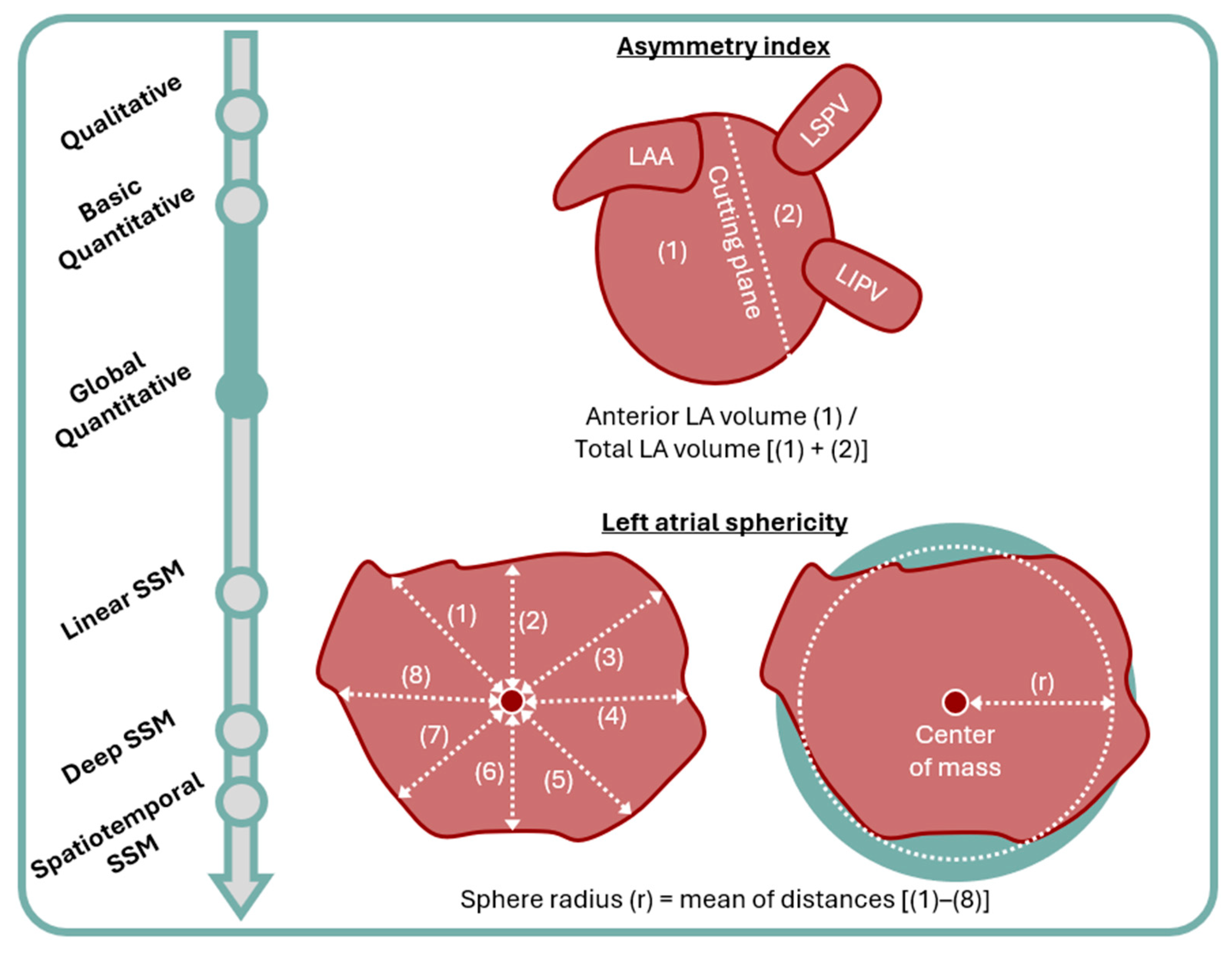

Atrial asymmetry index (ASI) and left atrial sphericity (LASP) (Figure 2) are the two most well-described global quantitative approaches for understanding atrial shapes. ASI [57] is a ratio of the anterior LA to total LA volume. It is calculated from 3D reconstructions of the LA, by dividing it into anterior and posterior segments via a cutting plane that runs parallel to the posterior wall, between the pulmonary vein ostia and LAA. Preferential anterior dilatation in AF is hypothesized to be the result of the physical constraints imposed by the spine. Pathophysiologically, the interplay of ASI and mechanical remodeling has been explored in studies utilizing both CT and echocardiographic imaging; these studies have shown higher asymmetry index to be associated with diastolic dysfunction and delayed anterior mechanical activation [58,59]. Furthermore, exploring the interplay of LAV and ASI, Nedios et al. [57] demonstrated increases in LAV and ASI in AF patients vs. healthy controls but, interestingly, only higher LAVs in paroxysmal (pAF) vs. perAF patients and only higher ASI in persistent vs. longstanding perAF patients; both LAV and ASI were shown to be independent predictors of AF recurrence post PVI. These results highlight the multifactorial nature of geometric remodeling in AF and the potential benefits of utilizing both in assessing patients. In contrast, Guo et al. [60] found ASI not to be an independent predictor of AF recurrence following catheter ablation. This study did not distinguish between persistent and longstanding perAF, which may in part explain these differing results.

LASP [61] is calculated as the variation between LA shape and a best fit sphere. The sphere’s radius is calculated as the mean distance between all points on the LA wall and its center of mass. The coefficient of variation is calculated as the ratio of standard deviation in this mean distance measurement and the mean radius. Volume overload is a key component of atrial cardiomyopathy. A sphere has the smallest surface area to volume ratio of all 3D shapes, as such spherical remodeling is hypothesized to occur because it represents the optimal geometrical adaptation for minimizing wall stress [61]. LASP has been applied to predicting stroke risk, where it was shown to outperform CHA₂DS₂-VASc scoring in a population of AF patients with a history of previous thromboembolic events, compared to the age- and sex-matched controls [62]. Primarily, however, studies have applied LASP to managing AF burden. Here, it has been shown to be an independent predictor of AF recurrence following external cardioversion [63] and catheter ablation [60,61,64,65]. Combining LASP with other independent predictors from these studies, such as LA minimal volume index [60] and clinical factors [65], may maximize its potential. Similarly, LASP has been shown to improve after successful catheter ablation [66]; for this use, combining it with LAV may serve as a better marker of response than LAV alone, as LAV may improve from ablation scar-related LA retraction rather than beneficial remodeling. Notwithstanding these encouraging results, a study by Mulder et al. [67] comparing AF and healthy control patients demonstrated no difference in LASP, despite differences in LA diameter, LAV, and LAV index. Likewise, Bossard et al. [68] did not find LASP to be an independent predictor of recurrence following catheter ablation of AF.

In interpreting these discrepancies, we should remember that cardiac anatomy is highly complex. Remodeled atria may have all the components of a flat LA roof, higher sphericity, and anterior dilatation, but clinical utilization of these measures requires establishing threshold values to separate abnormal from normal. Global measures may not be able to capture subtle changes [69]. Shape is complex and therefore requires a more complex analysis [70].

5. Statistical Shape Modeling

5.1. An Overview of Statistical Shape Modeling

SSM is the computational extension of geometric morphometrics [71], providing quantitative descriptions of shape with excellent geometric detail and statistical power [72]. To produce statistical shape models, 3D anatomical information must first be converted into a discrete representation [73]. In medical imaging, this is most commonly achieved through the use of correspondence points (Figure 3); these are dense sets of points that represent 3D geometry and, importantly, whose location corresponds between objects in a population [74]. This type of SSM is called a point distribution model (PDM); it has the advantage, over a deformation field approach, of being easier to visualize and therefore interpret for clinicians as well as being less impacted by noise [73,75,76]. PDMs are the evolution of morphometric landmark approaches, not relying on a limited number of manually identified landmarks/correspondence points but instead consisting of dense sets of hundreds to thousands of correspondence points that are produced automatically, meaning geometry is modeled with greater fidelity [77,78]; as the position of the correspondence points cannot be determined manually, their appropriate location is extrapolated from the shapes themselves [79].

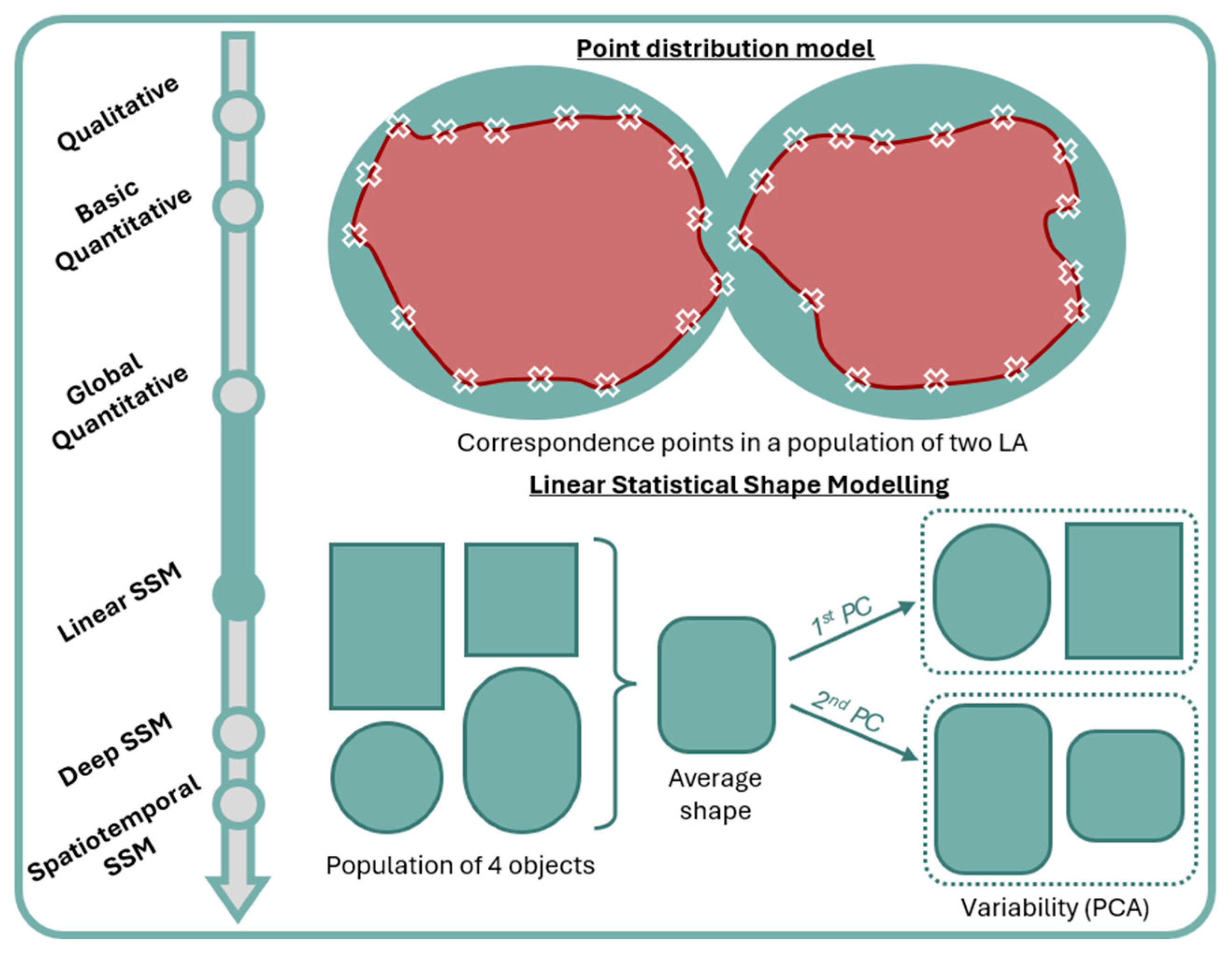

Subsequently, a sophisticated geometric model can be produced, which captures both the population average and variability [71,72,73,74,75] (Figure 3). Average geometry across a population is defined as the average of correspondence point positions [70]. A principal component analysis (PCA) is frequently utilized to describe variability. PCA is a multivariate statistical method which facilitates the interpretation of large datasets by reducing their dimensionality whilst maintaining information content [80,81]. A principal component (PC) is a linear function that combines information from multiple original variables to produce a new, single variable. A combination of uncorrelated PCs is sought, which maximally explains variance within all the original variables. The maximum possible number of PCs is the same as the number of original variables, and a combination of all possible PCs would explain all variance within a dataset. However, the aim of PCA is to reduce the dimensionality of a dataset by utilizing fewer PCs to aid interpretation and visualization of the original dataset. This is achieved by maximizing variance within the first PC, followed by maximizing remaining variance in the second PC and so forth, such that PCs with low information content can be disregarded.

In PDMs, by selecting PCs which account for the majority of observed variance, each object can be described as a vector of scalar values with a dimensionality equal to the number of selected PCs; disregarding PCs accounting for the lower end of variance likely equates to excluding variance which is the result of noise from the image sampling process itself [43,77,80]. Each PC describes a mode of shape variation [70,71,73], and this facilitates better appreciation of anatomical differences, both on individual and population levels [76]. Furthermore, this approach gives SSM generative power, as Gaussian variation in the PCs can produce new and plausible objects, not contained in the original dataset [73,74]. SSM has been widely utilized for modeling the human heart [82,83,84], including in the context of AF.

5.2. Applications of Statistical Shape Models in Atrial Fibrillation

Cates et al. [77] utilized SSM of the LA and LAA from MRI, to compare cohorts of patients with and without spontaneous echo contrast (SEC) in the LAA. SEC is a sign of blood stasis and therefore considered a risk of thrombus formation and stroke. Of the variation, 95% was captured by the first two PCs, with them finding longer LAA length and anterior orientation relative to the LA to be associated with SEC. SSM of the LAA has also been shown to be able to capture clinically relevant variation, with an ability to divide patients into the traditional four morphological groups, mitigating its previously subjective nature [71]. Whilst neither of these studies directly associated geometry with stroke, subsequent studies have compared groups with a history of stroke or TIA with a control group. These have shown relative alignment of the LA and LAA to be a key component of stroke prediction [85], as well as the LAA being broader, shorter, and less angulated [52]; combining such shape parameters with CHA₂DS₂-VASc score improved prediction performance [52].

Using SSM to compare LA geometry in pAF, perAF, and control patients, Cates et al. [77] demonstrated that the majority of variation (21%) was captured by a PC which captured dilation in the antero-posterior direction; such variation could be considered similar to increased ASI and LASP. Multiple studies have used LA SSM in predicting recurrence following catheter ablation. By comparing local area changes in patients with and without recurrence, Jia et al. [86] derived a shape score with predictive value that outperformed traditional methods and, in combination with AF persistence and LAV, showed a high predictive value. Bieging et al. [70] demonstrated that LA shape was independent of even LA fibrosis as a predictor of AF recurrence, suggesting that both LA shape and fibrosis are important factors in atrial cardiomyopathy; in this study, recurrence was again associated with more spherical LA. Similarly, Varela et al. [87] found recurrent LA to be more spherical, with flattening at the roof.

A comprehensive understanding of atrial remodeling involves combining multiple different measures which assess its multiple elements, for example, LGE MRI for assessing fibrosis and EAVM for assessing voltage and conduction velocity. Different technologies produce variations in 3D geometry; as such, SSM has been used to produce average atrial geometries which can then be used as a basis to combine multiple measures onto a single geometry, minimizing variation due to spatial displacement. This has been applied in clinical studies assessing correlation between these variables [33,88]. Similarly, SSM has been a fundamental step in the creation of in silico digital twins used in catheter ablation of AF; here, they facilitate the integration of the multiple variables which contribute to arrhythmogenesis, combining individual patient data from LGE MRI and EAVM, with data on fiber orientation from existing atrial atlases [89,90,91]. By simulating different treatment strategies based on patient-specific variables, the optimal approach can be chosen for a patient [92,93]. A further use of SSM in the creation of digital twins is their potential to enable 3D whole-heart reconstruction, including both atria and ventricles, from a limited number of clinical cine MRI slices [94].

The generative power of SSM is of particular value in the development of machine learning classifiers in silico. Training of machine learning models requires large and balanced datasets with reliable labeling. SSM’s generative ability means an almost infinite ability to generate realistic geometries and subsequently datasets with ground truth labels [74]. This can significantly expand the size of training datasets compared to studies utilizing clinical data [12,95]. For example, in the personalization of catheter ablation therapy, running multiple simulations of the impact of different ablation strategies is computationally expensive, with long simulation times, thus limiting clinical feasibility. Zolotarev et al. [92] addressed this limitation by simulating responses to various treatments in 1000 virtual patients. These simulations were then used to train a deep learning model which can predict treatment response to different therapies based on anatomical and physiological features from only the pre-ablation atrial fibrillation simulations.

6. Challenges and Future Directions

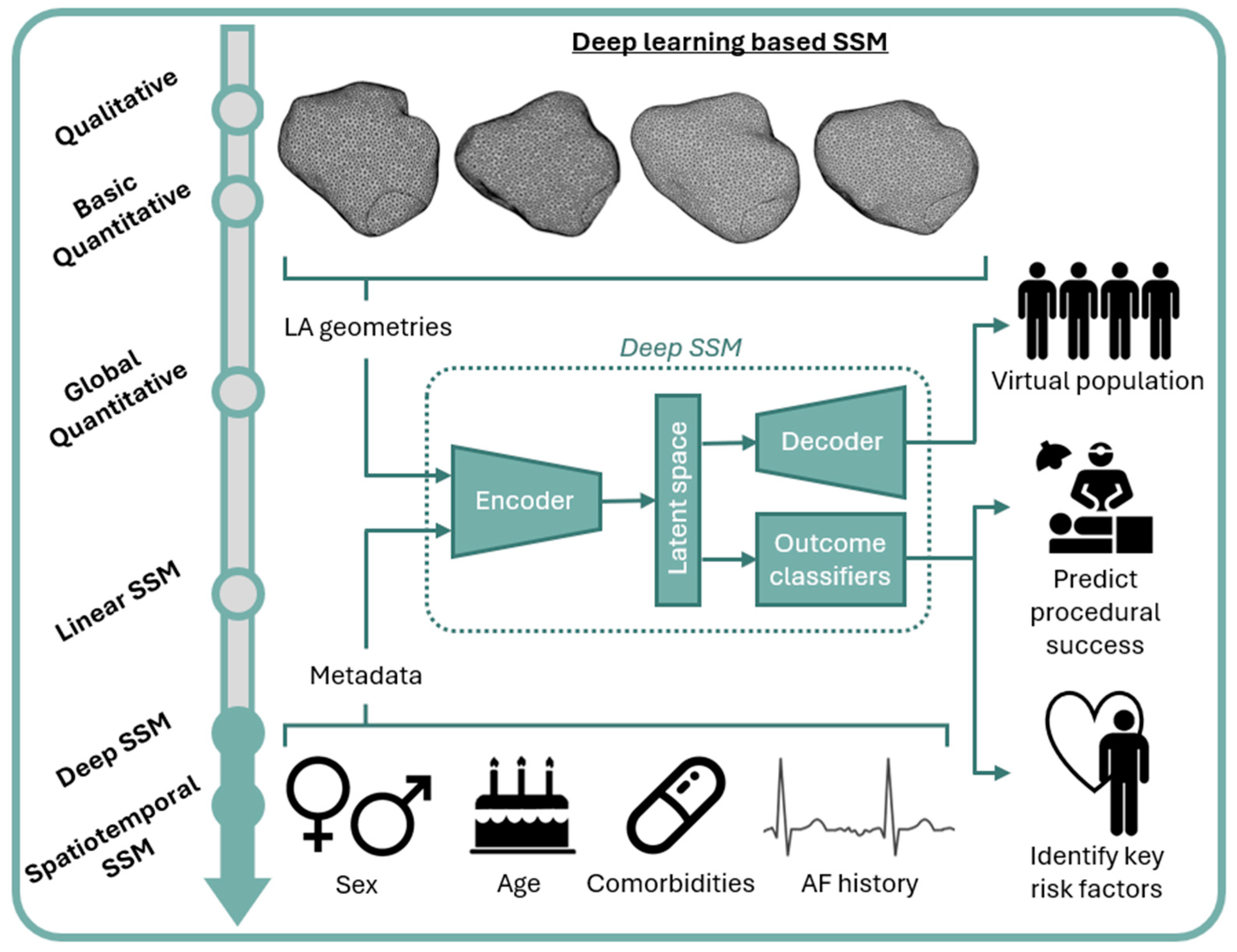

Traditional SSM exploring linear relationships such as PCA faces a key challenge in that variability in human anatomy may be non-linear. Deep learning-based SSM (Figure 4) may overcome this limitation, capturing population-wide anatomical variability [76]. An advantage of deep learning-based approaches is the existence of a latent space aiming to provide accurate low-dimensional and disentangled representation of the high-dimensional input data, where each latent dimension encodes a different aspect of the inter-subject variability. The non-linearities in the deep learning architecture enable the modeling of richer and more condensed relationships between high-dimensional input data and low-dimensional latent space representations [96,97,98].

A further advantage of this approach is the ability to include patient metadata such as age, sex, comorbidities, and AF clinical history in the model, which may greatly improve the ability of SSM to generate geometries relevant to specified sub-populations. Improved understanding of the impact of specific clinical characteristics on geometry may facilitate more targeted intervention [99]. Furthermore, such SSMs are generalizable to even under-represented patient cohorts in the original dataset [100,101]; this is a key consideration as we strive towards improved equality, diversity, and inclusion in research. An additional ethical concern is the potentially prohibitive cost and limited availability of imaging modalities such as MRI and CT, on which SSM is frequently reliant. To maximize the equitable distribution of scientific advancement, future work should seek to translate findings to alternative imaging modalities, for example, through deriving shape metrics which may then be applied to TTE [69].

This review has primarily focused on the role of atrial geometry in managing risk of stroke and AF burden; yet, the optimization of modifiable risk factors and addressing a patient’s comorbidities are key considerations in holistic management and an area where the role of atrial geometry is relatively unexplored.

Finally, we must consider that AF is not a static condition. There are temporal changes, in terms of dynamic atrial motion through the cardiac cycle, and also progression of atrial cardiomyopathy over time; spatiotemporal SSM [75,102,103,104] can capture this geometric variation. It may provide invaluable insights into the impact of atrial cardiomyopathy on mechanical function and improve the ability of computational fluid dynamics simulations [105,106] to model stroke risk based on dynamic LAA morphology. By tracking changes in atrial structure over time, these tools can help identify early signs of disease and monitor the efficacy of interventions, thus allowing for a more comprehensive understanding of the disease trajectory and facilitating personalized treatment strategies that can adapt to the patient’s evolving condition.

7. Conclusions

AF represents a significant and growing public health challenge, characterized by its complex interplay with various comorbidities and its substantial impact on morbidity and mortality. Three-dimensional imaging modalities have significantly advanced our understanding and management of AF, allowing for more accurate assessment of the atria’s asymmetrical structure. Whereas global quantitative approaches such as ASI and LASP benefit from their relative simplicity, SSM offers a more objective and powerful tool in the study of atrial geometry, providing detailed quantitative descriptions of shape and facilitating the integration of multiple variables affecting AF. By capturing both population averages and variability, SSM has improved our understanding of atrial remodeling and its clinical implications. Applications of SSM in assessing stroke risk, predicting AF recurrence, and personalizing catheter ablation therapy highlight its potential in enhancing patient-specific management strategies. Whilst traditional SSM may not fully capture the non-linear variability of human anatomy, advances in deep learning-based SSM offers promising solutions, which, in combination with spatiotemporal SSM’s ability to capture dynamic changes in atrial geometry over time, could lead to more precise and personalized treatment strategies for patients with AF. By continuing to refine these approaches and integrating new technologies, we can better address the complexities of AF and ultimately improve patient outcomes.
