Prediction of Renal Prognosis in Patients with Autosomal Dominant Polycystic Kidney Disease Using PKD1/PKD2 Mutations
by
,
Hiroshi Kataoka
1,2
,
Hinata Fukuoka
3,
Shiho Makabe
1,
Rie Yoshida
1,
Atsuko Teraoka
1,
Yusuke Ushio
1,
Taro Akihisa
1,
Shun Manabe
1,
Masayo Sato
1,
Michihiro Mitobe
1,
Ken Tsuchiya
4,
Kosaku Nitta
1 and
Toshio Mochizuki
1,2,* 1
Department of Nephrology, Tokyo Women’s Medical University, Tokyo 162-8666, Japan
2
Clinical Research Division for Polycystic Kidney Disease, Department of Nephrology, Tokyo Women’s Medical University, Tokyo 162-8666, Japan
3
Tokyo Women’s Medical University, Tokyo 162-8666, Japan
4
Department of Blood Purification, Tokyo Women’s Medical University, Tokyo 162-8666, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(1), 146; https://doi.org/10.3390/jcm9010146
Submission received: 19 December 2019
/
Accepted: 3 January 2020
/
Published: 5 January 2020
(This article belongs to the Section Nephrology & Urology)
Abstract
:Autosomal dominant polycystic kidney disease (ADPKD) patients with PKD1 mutations, particularly those with truncating mutations, show poor prognosis. However, the differences in disease progression with different mutation types are unclear. Here, a comparative study was conducted on the renal prognosis of patients with ADPKD who were categorized based on genotype (PKD1 versus PKD2 mutation), mutation type (truncating mutation: nonsense, frameshift, splicing mutation, and large deletion; non-truncating mutation: substitution and in-frame deletion), and mutation position. A total of 123 patients visiting our hospital were enrolled. Renal prognosis was poor for those with PKD1 splicing, PKD1 frameshift, and PKD2 splicing mutations. Despite the truncating mutation, the renal prognosis was relatively favorable for patients with nonsense mutations. Three out of five patients with PKD2 mutation required renal replacement therapy before 58 years of age. In conclusion, we showed that renal prognosis differs according to mutation types in both PKD1 and PKD2, and that it was favorable for those with nonsense mutations among patients with PKD1 truncating mutations. It was also confirmed that renal prognosis was not always favorable in patients with PKD2 mutations. A detailed assessment of mutation types may be useful for predicting the renal prognosis of patients with ADPKD.
1. Introduction
Autosomal dominant polycystic kidney disease (ADPKD), one of the most common hereditary kidney diseases, is characterized by the gradual growth of cysts in the kidneys. Studies have shown that approximately 50% of patients with ADPKD progress to end-stage renal failure by the age of 60 years [1]. Mutations in PKD1 and PKD2 have been identified to be responsible for the disease [2,3]. Polycystin 1 (PC1), encoded by PKD1, assists in the mechanosensing of urine flow by the cilia of the renal tubules. Polycystin 2 (PC2), encoded by PKD2, functions as a calcium channel in cooperation with PC1. PC1 and PC2 play critical roles in the suppression of renal tubule dilation, and the dysfunction of either gene may lead to renal tubule expansion and cyst formation [4]. Reportedly, approximately 80% of patients with ADPKD harbor PKD1 mutations, 15% harbor PKD2 mutations, and the remaining 5–10% are genetically unresolved or rare mutations in other genes, such as hepatocyte nuclear factor 1β (HNF1B) and neutral α-glucosidase AB (GANAB) [5]. As ADPKD is an autosomal dominant inherited disease, patients with ADPKD harbor one normal allele of PKD1 or PKD2, and cysts are not formed if this allele is functional. Reports show that the loss of function of both alleles because of somatic mutations in the normal allele, in addition to germline mutations, initiates cyst formation [6,7].
Several reports indicate that the progression of the disease varies with genotype [8,9,10,11,12,13]. Patients with mutations in PKD1 progress to end-stage renal disease (ESRD) between 53 and 67 years, whereas ESRD is reached between 69 and 79 years for those with PKD2 mutations. Studies suggest that the age at ESRD varies by approximately 10–20 years between those with PKD1 and PKD2 mutations. Another study reported that among patients with mutations in PKD1, those with truncating mutations progressed to ESRD at the age of 55 years, while those with non-truncating mutations did so at 67 years [9]. However, the relationship between differences in disease progression and mutation types is unclear. In this study, we investigated the differences in renal prognosis among 123 patients with ADPKD based on genotype, mutation type, and mutation position.
2. Experimental Section
2.1. Study Design
Kidney survival was retrospectively examined in 123 ADPKD patients with identified PKD1 or PKD2 mutations. ADPKD was diagnosed using previously described criteria [14], and genetic analyses were performed, as reported previously [15]. First, among 110 ADPKD patients in which mutations were detected at the Tokyo Women’s Medical University Hospital, Japan, between November 2010 and June 2016, patients who could not be followed up (n = 2) were excluded from participation. The remaining 108 patients and 15 family members from 12 out of 108 pedigrees who attended our hospital were ultimately enrolled in the present study (Figure S1). Written informed consent was obtained from each participant. All procedures performed in studies involving human participants were in accordance with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. This study was approved by the ethical committee of Tokyo Women’s Medical University (No. 196B). The dataset analyzed for this study is provided as supplementary material to make future comparisons feasible and reliable (Supplementary Data S1).
2.2. Mutation Analysis
Patients’ genomic DNA was extracted from peripheral blood lymphocytes using the QIAamp DNA blood maxi kit (Qiagen Inc., Hilden, Germany). Mutational analyses of PKD1 and PKD2 were performed using the Sanger method, next-generation sequence (NGS) method, and multiplex ligation-dependent probe amplification (MLPA) method. In 102 patients, mutation analyses had already been performed using NGS, Sanger sequencing in exon 1 of PKD1, or MLPA, as reported previously [15]. In the remaining eight patients, the regions containing each exon and splice junctions of PKD1 and PKD2 were amplified using polymerase chain reaction (PCR) and were sequenced using the Sanger method, as described previously (Table S1) [16,17,18].
2.3. Classification of Mutation Types
Frameshift mutations, nonsense mutations, splicing mutations, and large rearrangements were classified as truncating mutations, whereas in-frame insertions or deletions (indels) and substitutions were classified as non-truncating mutations.
2.4. Classification of Mutation Positions
The mutation positions of PKD1 were examined separately for the PKD1 N-terminal domain (cDNA nucleotide position; 1-2552), PKD domain (2553-6435), REJ (receptor for egg jelly) domain (6438-9180), TM (transmembrane) domain (9225-12318), and PKD1 C-terminal domain (12319-12906).
2.5. Outcome Evaluation (End-Point)
The outcome of interest was progression to renal replacement therapy (RRT), which was defined as the initiation of chronic dialysis or kidney transplantation. The subjects were followed up until June 2018.
2.6. Evaluation of Age at RRT
We evaluated the age at RRT between patients with PKD1 and PKD2 mutations, and among patients with various types of mutations in each gene.
2.7. Statistical Analysis
Continuous variables are reported as medians (minimum–maximum), and categorical variables are reported as percentages unless otherwise stated. We compared participant outcomes by performing a chi-square test or Fisher’s exact test. Prognostic variables for renal outcome were assessed using the univariate and multivariate Cox proportional hazards method. Variables with p-values < 0.1 in the univariate model were included in the multivariate analyses. Analyses were examined using two models. Model 1 examined all variables as the independent variables. Model 2 examined the outcomes using PKD1 splicing as the reference category. Time from birth to RRT was computed using the Kaplan–Meier method and evaluated using the log-rank test. p-values < 0.05 were considered statistically significant. All statistical analyses were performed using the JMP Pro ver.14.1.0 software program (SAS Institute, Cary, NC, USA).
3. Results
3.1. Patients’ Characteristics
The characteristics of the entire cohort at baseline with PKD1 and PKD2 mutations are shown in Table 1. The 123 subjects consisted of 52 men (42.3%) and 71 women (57.7%). Ninety-nine patients harbored PKD1 mutations (80.5%) and 24 harbored PKD2 mutations (19.5%). Truncating mutations were present in 74.0% cases and non-truncating mutations were present in 26.0% of cases. The truncating mutations were detected in 69.7% of patients with PKD1 mutations and 91.7% of patients with PKD2 mutations (p = 0.0277). Furthermore, the proportion of nonsense mutations in patients with PKD2 mutations was significantly higher than that in patients with PKD1 mutations (p = 0.0158; PKD1 versus PKD2 = 28.3% versus 54.2%). Patient characteristics stratified by sex are shown in Table S2. There were no significant differences between men and women regarding the ratio of mutation type.
3.2. Mutation Types as Renal Prognostic Indicators in Patients with ADPKD
3.2.1. Influence of the Mutated Gene on Renal Outcome (Age at RRT)
The median (minimum–maximum) follow-up period from birth for all patients was 50 (20–86) years. At the follow-up examination in June 2018, 37 (30.1%) out of 123 patients required RRT; RRT was required by 32 (32.3%) out of 99 patients with PKD1 mutations and five (20.8%) out of 24 patients with PKD2 mutations, and the median (minimum–maximum) age of patients who required RRT was 52 (34–79) years for patients with PKD1 mutations and 51 (44–73) years for patients with PKD2 mutations. Five out of 32 patients with mutations in PKD1 required RRT after 68 years of age. Three out of five patients with mutations in PKD2 required RRT before 58 years of age (Table S3).
In patients with PKD1 mutations, RRT was required for 24 (34.8%) out of 69 patients with PKD1 truncating mutations (PKD1T) and eight (26.7%) out of 30 patients with PKD1 non-truncating mutations (PKD1NT) until June 2018, and the median (minimum–maximum) age of patients who required RRT was 52 (34–72) years in patients with PKD1T and 57 (44–79) years in patients with PKD1NT. A detailed assessment of mutation types showed that RRT was required for 11 (44.0%) out of 25 patients with PKD1 frameshift mutation, five (45.5%) out of 11 patients with PKD1 splicing mutation, one out of five patients with PKD1 large deletion mutation, seven (25.0%) out of 28 patients with PKD1 nonsense mutation, and eight (29.6%) out of 28 patients with PKD1 substitution mutation, and the median (minimum–maximum) age of patients who required RRT was 48 (34–64) years in patients with PKD1 frameshift mutations, 49 (42–65) years in patients with PKD1 splicing mutations, 62 (45–72) years in patients with PKD1 nonsense mutations, 47 years in a patient with a PKD1 large deletion mutation, and 57 (44–79) years in patients with PKD1 substitution mutations.
In patients with PKD2 mutations, truncating mutations were present in 22 patients out of 24 patients with PKD2 mutations and all mutations in five patients with PKD2 who required RRT were truncating mutations. RRT was needed for the one patient with a PKD2 splicing mutation, three patients with PKD2 nonsense mutations, and one patient with a PKD2 large deletion mutation, and the ages of patients who required RRT were 44 years in a patient with a PKD2 splicing mutation, 50, 61, and 73 years in patients with PKD2 nonsense mutations, and 51 years in a patient with a PKD2 large deletion mutation (Figure 1).
3.2.2. Influence of Mutation Type on Renal Prognosis in the Entire Cohort
The univariate Cox regression analyses in the entire cohort showed that PKD1 (hazard ratio (HR) = 2.75, 95% CI (1.16–8.10), p = 0.0202) and PKD1T (HR = 2.77, 95% CI (1.36–5.98), p = 0.0046) mutations were significantly associated with RRT (Table 2). Regarding a detailed assessment of mutation types, the sex-adjusted multivariate Cox regression analyses in the entire cohort showed that PKD1 splicing (HR = 5.39, 95% CI (1.70–14.51), p = 0.0063), PKD1 frameshift (HR = 3.14, 95% CI (1.43–6.59), p = 0.0055), and PKD2 splicing (HR = 52.40, 95% CI (2.49–446.52), p = 0.0181) mutations were significantly associated with RRT (Table 2). When PKD1 splicing was used for the reference category, the sex-adjusted multivariate Cox regression analysis in the entire cohort showed that PKD1 nonsense (HR = 0.26, 95% CI (0.08–0.86), p = 0.0304), PKD1 substitution (HR = 0.20, 95% CI (0.06–0.66), p = 0.0081), and PKD2 nonsense (HR = 0.12, 95% CI (0.03–0.53), p = 0.0055) mutations were significantly less associated with RRT than PKD1 splicing mutation (Table 3).
The age-specific Kaplan–Meier method showed that the kidney survival rate of ADPKD patients with PKD1 mutations was significantly lower than that of those with PKD2 mutations in the entire cohort (Figure 2a; log-rank, p = 0.0308). When the PKD1 cohort was divided into truncating and non-truncating mutations, the kidney survival rate was the lowest in patients with PKD1T (Figure 2b; log-rank, p = 0.0144).
The age-specific Kaplan–Meier survival curves indicated that the kidney survival rates of patients with PKD1 splicing mutations were significantly lower than those of patients without PKD1 splicing mutations in the entire cohort (Figure 3a; log-rank, p = 0.0022). Moreover, the age-specific Kaplan–Meier survival curves indicated that the kidney survival rates of patients with PKD1 frameshift mutations were significantly lower than those of patients without PKD1 frameshift mutations in the entire cohort (Figure 3b; log-rank, p = 0.0126).
3.2.3. Influence of Mutation Type and Position on Renal Prognosis in PKD1 Truncating Cohort
In the subgroup analysis of the PKD1T cohort, the univariate Cox regression analyses showed that the PKD1 nonsense mutation was a favorable prognostic factor for RRT (HR = 0.36, 95% CI (0.14–0.85), p = 0.0189), while the mutation position did not have any effect on renal prognosis (Table 4). When PKD1 splicing was used for the reference category, the univariate Cox regression analysis in the PKD1T cohort showed that PKD1 nonsense (HR = 0.24, 95% CI (0.07–0.81), p = 0.0236) mutation was significantly less associated with RRT than PKD1 splicing mutation (Table 4).
In the age-specific Kaplan–Meier analysis, although there was no significant difference among patients with PKD1 nonsense mutations in the entire cohort (Figure 4a; log-rank; p = 0.6772), the kidney survival rate of patients with PKD1 nonsense mutations was significantly higher than that of patients without PKD1 nonsense mutations in the PKD1T cohort (Figure 4b; log-rank; p = 0.0202).
3.2.4. Influence of Mutation Type on Renal Prognosis in the Cohort Stratified by Sex
To examine the sex-specific differences in the renal prognosis of patients with ADPKD, we conducted Cox regression analyses using stratification by sex. The univariate Cox regression analyses in the sex-stratified cohort showed that PKD1 (HR = 3.64, 95% CI (1.02–23.23), p = 0.0462) and PKD1 splicing mutation (HR = 24.45, 95% CI (3.19–149.12), p = 0.0049) in women, and PKD1 truncating (HR = 4.02, 95% CI (1.38–14.75), p = 0.0093), PKD1 frameshift (HR = 2.85, 95% CI (1.03–7.47), p = 0.0449), PKD1 substitution (HR = 0.17, 95% CI (0.01–0.85), p = 0.0272), and PKD2 splicing (HR = 22.42, 95% CI (1.04–234.30), p = 0.0478) mutations in men were significantly associated with RRT (Table 5).
4. Discussion
This study analyzed differences in renal prognosis in patients with ADPKD by genotype, mutation type, and mutation position. From among these factors, no significant difference in renal prognosis was observed by mutation position; however, a significant difference was observed by genotype and mutation type, particularly mutation types such as frameshift mutations, nonsense mutations, and splicing mutations.
Several studies have reported differences in renal prognosis by genotype [8,9,10,11,12,13,19]. The kidney survival rate depends on the causal genes (PKD1, PKD2) and differences between truncating or non-truncating mutations. Patients with PKD1 mutations, particularly those with truncating mutations, show poor prognosis [8,9,10,11,12,13,19]. However, the relationship between differences in disease progression and mutation types, such as nonsense, frameshift, splicing mutation, and large deletions as truncating mutations, substitution, and in-frame deletion as non-truncating mutations, is unknown. In this study, we observed a significant difference between PKD1 and PKD2 mutations in terms of the proportion of patients who progressed to RRT within each genotype (32.3% in PKD1; 20.8% in PKD2), suggesting that renal prognosis is poorer in patients with mutations in PKD1 than in those with PKD2 mutations. This could be because the frequency of somatic mutations in PKD1 is higher than that in PKD2, as PKD1 is 4.4 times larger than PKD2 [20]. Therefore, a larger number of cysts are formed in ADPKD patients with PKD1 mutations, leading to poor renal prognosis [20,21].
In the present study, both Cox analyses and Kaplan–Meier curves showed that renal prognosis was poorer in patients with truncating mutations than in those with non-truncating mutations in PKD1. Several reports suggest that when mutation types are compared, progression in patients with truncating mutations is faster than that in those with non-truncating mutations. Rossetti et al. evaluated kidney survival by the age of reaching ESRD and observed no significant difference between the mutation types [13]. However, subsequent reports indicated that the renal prognosis of patients with truncating mutations is poor [9,10,19,22,23]. Furthermore, a study in which a knock-in mouse model of p.R3277C (RC) was used showed that progression was slower in PKD1RC/RC mice than in PKD1RC/null ones [24]. This occurs because non-truncating mutations, including substitution mutations, partially retain the function of the PKD1 gene as a hypomorphic allele. In other words, cyst formation starts when the expression of polycystins is below the threshold. Polycystins are still functional to a limited extent in patients with non-truncating mutations, and their expression becomes lower than the threshold after a long period in such cases. This is possibly responsible for the relatively favorable prognosis of patients with non-truncating mutations.
When we evaluated renal prognosis by mutation types, it was poor in patients with PKD1 splicing, PKD1 frameshift, and PKD2 splicing mutations; however, unexpectedly, it was relatively favorable in patients with PKD1 nonsense and PKD2 nonsense mutations (Table 3 and Table 4, Figure 4b). Considering that in our study, the proportion of nonsense mutations in patients with PKD2 mutations (54.2%) was significantly higher than that in patients with PKD1 mutations (28.3%), we need to pay more attention to the effect of nonsense mutations on the renal prognostic differences between patients with PKD1 mutation and with PKD2 mutations.
In the present study, we found sex-specific differences in mutation types regarding the renal outcome in patients with ADPKD. In men, PKD1 frameshift and PKD2 splicing showed a significantly positive association with RRT, and in women, PKD1 splicing mutation showed a strong positive association with RRT (Table 5). Although the reason for this difference is not clear, it might influence the sex-specific differences in renal prognosis for patients with ADPKD. Our study is the first report that compares renal prognosis by mutation types among PKD1 truncating mutations and highlights that renal prognosis is poorer in patients with splicing and frameshift mutations than in patients with nonsense mutations.
The reason for the difference in prognosis among truncating mutations is not proved. One possibility is the involvement of nonsense mRNA-mediated decay (NMD), which leads to the degradation of transcripts containing premature termination codons (PTCs) [25,26]. It is generally considered that NMD occurs for truncating mutations that generate PTCs, including frameshift and nonsense mutations and some splicing mutations. The efficacy of NMD varies between individuals, leading to modifications of the disease outcome. Reports show that in ADPKD, NMD does not occur rapidly for PKD1 mutants and that proteins are produced by the mutant gene [27]. Although the efficacy of NMD in each mutation type is unknown, the transcripts that escape from NMD may exert dominant-negative effects to decrease the dosage of normal polycystin, leading to cyst formation in ADPKD.
In this study, a comparison of only patients who progressed to RRT revealed no difference in the age of reaching RRT between patients with mutations in PKD1 and those with mutations in PKD2 (median 52 years versus 51 years). Barua et al. reported that no patient with PKD1 mutations progressed to ESRD at the age of 68 years or older, and no patient with PKD2 mutations progressed to ESRD at the age of 58 years or younger [11]. Meanwhile, another study has reported that 9.8% of patients with PKD2 mutations progressed to ESRD by 60 years [12]. In this study, from among 32 patients with PKD1 mutations who required RRT, five progressed to RRT at the age of 68 years or older, and from among five patients with PKD2 mutations who required RRT, three progressed to RRT at the age of 58 years or younger. These observations suggested that the renal prognosis of patients with PKD2 mutations was not always favorable compared to that of patients with PKD1 mutations. Furthermore, renal prognosis in patients with nonsense mutations in PKD1 or PKD2 was relatively favorable in terms of the age of reaching RRT (Figure 1, Table S3).
While these findings may have several implications for patients with ADPKD, our study has several limitations. First, the study was observational in nature, and any observed associations do not prove causality. Second, only the patients’ mutated genes and mutation types were considered, and their characteristics during the follow-up period were not considered. Third, the sample size was relatively small; hence, further studies are required to confirm our findings in a large patient cohort.
5. Conclusions
In conclusion, we showed that a detailed assessment of mutation types might be useful for determining the renal prognosis of patients with ADPKD. The renal prognosis was poor in patients with PKD1 splicing and frameshift mutations, but favorable in those with nonsense mutations among patients with truncating mutations. The prognosis was not always favorable in patients with PKD2 mutations. Further investigations using large cohorts and the elucidation of mechanisms using animal models are required.
Supplementary Materials
The following are available online at https://www.mdpi.com/2077-0383/9/1/146/s1, Figure S1: Patient selection flowchart, Table S1: Mutations in PKD1 and PKD2 detected in eight ADPKD patients, Table S2: Patient characteristics stratified by sex, Table S3: Patients reaching RRT with mutations in PKD1 and PKD2, Data S1: The datasets analyzed for the present study.
Author Contributions
Conceptualization: M.S., H.K. and T.M.; data curation: M.S., H.K., T.M., S.M. (Shiho Makabe), R.Y., A.T., Y.U., T.A., S.M. (Shun Manabe), S.W. and M.M.; formal analysis: H.K. and H.F.; supervision: T.M., K.T. and K.N. All authors contributed important intellectual content during manuscript drafting or revision accept personal accountability for their contributions, and agree to ensure that questions pertaining to the accuracy or integrity of any portion of the work are appropriately investigated and resolved. All authors have read and agreed to the published version of the manuscript.
Funding
This study was supported in part by JSPS KAKENHI Grant Number JP 15K09279 and by a Grant-in-Aid for Intractable Renal Diseases Research, Research on rare and intractable diseases, Health and Labor Sciences Research Grants from the Ministry of Health, Labor and Welfare of Japan.
Acknowledgments
We express our sincere appreciation to all the patients, collaborating physicians, and other medical staff for their important contributions to the study. We also want to thank Naomi Iwasa for contributing to this study by collecting the clinical data.
Conflicts of Interest
Toshio Mochizuki and Ken Tsuchiya received travel fees and honoraria for lectures from Otsuka Pharmaceutical Co. Toshio Mochizuki and Hiroshi Kataoka belong to an endowed department sponsored by Otsuka Pharmaceutical Co, Chugai Pharmaceutical Co, Kyowa Hakko Kirin Co, and JMS Co. All the other authors declare no conflicts of interest.
References
- Grantham, J.J. Clinical practice. Autosomal dominant polycystic kidney disease. N. Engl. J. Med. 2008, 359, 1477–1485. [Google Scholar] [CrossRef] [PubMed]
- The European Polycystic Kidney Disease Consortium. The polycystic kidney disease 1 gene encodes a 14 kb transcript and lies within a duplicated region on chromosome 16. Cell 1994, 77, 881–894. [Google Scholar] [CrossRef] [Green Version]
- Mochizuki, T.; Wu, G.; Hayashi, T.; Xenophontos, S.L.; Veldhuisen, B.; Saris, J.J.; Reynolds, D.M.; Cai, Y.; Gabow, P.A.; Pierides, A.; et al. PKD2, a gene for polycystic kidney disease that encodes an integral membrane protein. Science 1996, 272, 1339–1342. [Google Scholar] [CrossRef] [PubMed]
- Nauli, S.M.; Alenghat, F.J.; Luo, Y.; Williams, E.; Vassilev, P.; Li, X.; Elia, A.E.; Lu, W.; Brown, E.M.; Quinn, S.J.; et al. Polycystins 1 and 2 mediate mechanosensation in the primary cilium of kidney cells. Nat. Genet. 2003, 33, 129–137. [Google Scholar] [CrossRef]
- Bergmann, C.; Guay-Woodford, L.M.; Harris, P.C.; Horie, S.; Peters, D.J.M.; Torres, V.E. Polycystic kidney disease. Nat. Rev. Dis. Primers 2018, 4, 50. [Google Scholar] [CrossRef]
- Qian, F.; Watnick, T.J.; Onuchic, L.F.; Germino, G.G. The molecular basis of focal cyst formation in human autosomal dominant polycystic kidney disease type I. Cell 1996, 87, 979–987. [Google Scholar] [CrossRef] [Green Version]
- Brasier, J.L.; Henske, E.P. Loss of the polycystic kidney disease (PKD1) region of chromosome 16p13 in renal cyst cells supports a loss-of-function model for cyst pathogenesis. J. Clin. Investig. 1997, 99, 194–199. [Google Scholar] [CrossRef] [Green Version]
- Hateboer, N.; Dijk, M.A.V.; Bogdanova, N.; Coto, E.; Saggar-Malik, A.K.; San Millan, J.L.; Torra, R.; Breuning, M.; Ravine, D. Comparison of phenotypes of polycystic kidney disease types 1 and 2. European PKD1-PKD2 Study Group. Lancet 1999, 353, 103–107. [Google Scholar] [CrossRef]
- Cornec-Le Gall, E.; Audrezet, M.P.; Chen, J.M.; Hourmant, M.; Morin, M.P.; Perrichot, R.; Charasse, C.; Whebe, B.; Renaudineau, E.; Jousset, P.; et al. Type of PKD1 mutation influences renal outcome in ADPKD. J. Am. Soc. Nephrol. 2013, 24, 1006–1013. [Google Scholar] [CrossRef] [Green Version]
- Higashihara, E.; Horie, S.; Kinoshita, M.; Harris, P.C.; Okegawa, T.; Tanbo, M.; Hara, H.; Yamaguchi, T.; Shigemori, K.; Kawano, H.; et al. A potentially crucial role of the PKD1 C-terminal tail in renal prognosis. Clin. Exp. Nephrol. 2018, 22, 395–404. [Google Scholar] [CrossRef] [Green Version]
- Barua, M.; Cil, O.; Paterson, A.D.; Wang, K.; He, N.; Dicks, E.; Parfrey, P.; Pei, Y. Family history of renal disease severity predicts the mutated gene in ADPKD. J. Am. Soc. Nephrol. 2009, 20, 1833–1838. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cornec-Le Gall, E.; Audrezet, M.P.; Renaudineau, E.; Hourmant, M.; Charasse, C.; Michez, E.; Frouget, T.; Vigneau, C.; Dantal, J.; Siohan, P.; et al. PKD2-Related Autosomal Dominant Polycystic Kidney Disease: Prevalence, Clinical Presentation, Mutation Spectrum, and Prognosis. Am. J. Kidney Dis. 2017, 70, 476–485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rossetti, S.; Burton, S.; Strmecki, L.; Pond, G.R.; San Millan, J.L.; Zerres, K.; Barratt, T.M.; Ozen, S.; Torres, V.E.; Bergstralh, E.J.; et al. The position of the polycystic kidney disease 1 (PKD1) gene mutation correlates with the severity of renal disease. J. Am. Soc. Nephrol. 2002, 13, 1230–1237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pei, Y.; Obaji, J.; Dupuis, A.; Paterson, A.D.; Magistroni, R.; Dicks, E.; Parfrey, P.; Cramer, B.; Coto, E.; Torra, R.; et al. Unified criteria for ultrasonographic diagnosis of ADPKD. J. Am. Soc. Nephrol. 2009, 20, 205–212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mochizuki, T.; Teraoka, A.; Akagawa, H.; Makabe, S.; Akihisa, T.; Sato, M.; Kataoka, H.; Mitobe, M.; Furukawa, T.; Tsuchiya, K.; et al. Mutation analyses by next-generation sequencing and multiplex ligation-dependent probe amplification in Japanese autosomal dominant polycystic kidney disease patients. Clin. Exp. Nephrol. 2019, 23, 1022–1030. [Google Scholar] [CrossRef] [PubMed]
- Tsuchiya, K.; Komeda, M.; Takahashi, M.; Yamashita, N.; Cigira, M.; Suzuki, T.; Suzuki, K.; Nihei, H.; Mochizuki, T. Mutational analysis within the 3’ region of the PKD1 gene in Japanese families. Mutat. Res. 2001, 458, 77–84. [Google Scholar] [CrossRef]
- Hayashi, T.; Mochizuki, T.; Reynolds, D.M.; Wu, G.; Cai, Y.; Somlo, S. Characterization of the exon structure of the polycystic kidney disease 2 gene (PKD2). Genomics 1997, 44, 131–136. [Google Scholar] [CrossRef]
- Watnick, T.J.; Piontek, K.B.; Cordal, T.M.; Weber, H.; Gandolph, M.A.; Qian, F.; Lens, X.M.; Neumann, H.P.; Germino, G.G. An unusual pattern of mutation in the duplicated portion of PKD1 is revealed by use of a novel strategy for mutation detection. Hum. Mol. Genet. 1997, 6, 1473–1481. [Google Scholar] [CrossRef] [Green Version]
- Heyer, C.M.; Sundsbak, J.L.; Abebe, K.Z.; Chapman, A.B.; Torres, V.E.; Grantham, J.J.; Bae, K.T.; Schrier, R.W.; Perrone, R.D.; Braun, W.E.; et al. Predicted Mutation Strength of Nontruncating PKD1 Mutations Aids Genotype-Phenotype Correlations in Autosomal Dominant Polycystic Kidney Disease. J. Am. Soc. Nephrol. 2016, 27, 2872–2884. [Google Scholar] [CrossRef] [Green Version]
- Harris, P.C.; Bae, K.T.; Rossetti, S.; Torres, V.E.; Grantham, J.J.; Chapman, A.B.; Guay-Woodford, L.M.; King, B.F.; Wetzel, L.H.; Baumgarten, D.A.; et al. Cyst number but not the rate of cystic growth is associated with the mutated gene in autosomal dominant polycystic kidney disease. J. Am. Soc. Nephrol. 2006, 17, 3013–3019. [Google Scholar] [CrossRef] [Green Version]
- Rossetti, S.; Harris, P.C. Genotype-phenotype correlations in autosomal dominant and autosomal recessive polycystic kidney disease. J. Am. Soc. Nephrol. 2007, 18, 1374–1380. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hwang, Y.H.; Conklin, J.; Chan, W.; Roslin, N.M.; Liu, J.; He, N.; Wang, K.; Sundsbak, J.L.; Heyer, C.M.; Haider, M.; et al. Refining Genotype-Phenotype Correlation in Autosomal Dominant Polycystic Kidney Disease. J. Am. Soc. Nephrol. 2016, 27, 1861–1868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Liu, B.; Chen, S.C.; Yang, Y.M.; Yan, K.; Qian, Y.Q.; Zhang, J.Y.; Hu, Y.T.; Dong, M.Y.; Jin, F.; Huang, H.F.; et al. Identification of novel PKD1 and PKD2 mutations in a Chinese population with autosomal dominant polycystic kidney disease. Sci. Rep. 2015, 5, 17468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hopp, K.; Ward, C.J.; Hommerding, C.J.; Nasr, S.H.; Tuan, H.F.; Gainullin, V.G.; Rossetti, S.; Torres, V.E.; Harris, P.C. Functional polycystin-1 dosage governs autosomal dominant polycystic kidney disease severity. J. Clin. Investig. 2012, 122, 4257–4273. [Google Scholar] [CrossRef] [Green Version]
- Kurosaki, T.; Maquat, L.E. Nonsense-mediated mRNA decay in humans at a glance. J. Cell Sci. 2016, 129, 461–467. [Google Scholar] [CrossRef] [Green Version]
- Nguyen, L.S.; Wilkinson, M.F.; Gecz, J. Nonsense-mediated mRNA decay: Inter-individual variability and human disease. Neurosci. Biobehav. Rev. 2014, 46 Pt 2, 175–186. [Google Scholar] [CrossRef] [Green Version]
- Rossetti, S.; Strmecki, L.; Gamble, V.; Burton, S.; Sneddon, V.; Peral, B.; Roy, S.; Bakkaloglu, A.; Komel, R.; Winearls, C.G.; et al. Mutation analysis of the entire PKD1 gene: Genetic and diagnostic implications. Am. J. Hum. Genet. 2001, 68, 46–63. [Google Scholar] [CrossRef] [Green Version]
Figure 1.
Age at RRT. RRT = renal replacement therapy.

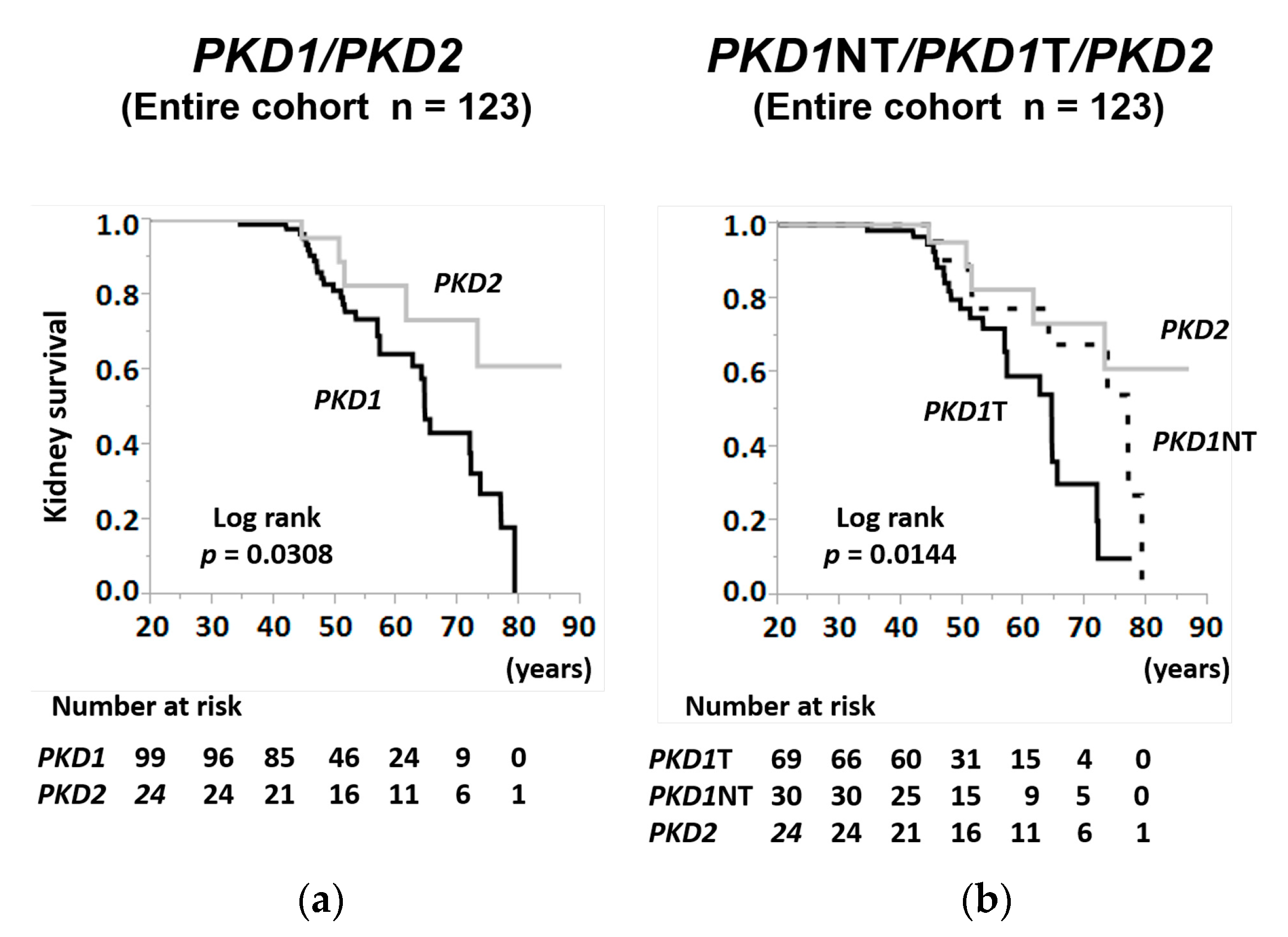

Figure 2.
Kidney survival rate of patients with autosomal dominant polycystic kidney disease (ADPKD) stratified by genotypes and mutation types in the entire cohort. (a) The kidney survival rates of ADPKD patients with PKD1 mutation and PKD2 mutation in the entire cohort (log-rank, p = 0.0308). (b) The kidney survival rates of ADPKD patients with PKD1T, PKD1NT, and PKD2 mutations in the entire cohort (log-rank, p = 0.0144). The number of patients at risk for progression to RRT at each time point is mentioned below the figures. PKD1T = PKD1 truncating; PKD1NT = PKD1 non-truncating.
Figure 2.
Kidney survival rate of patients with autosomal dominant polycystic kidney disease (ADPKD) stratified by genotypes and mutation types in the entire cohort. (a) The kidney survival rates of ADPKD patients with PKD1 mutation and PKD2 mutation in the entire cohort (log-rank, p = 0.0308). (b) The kidney survival rates of ADPKD patients with PKD1T, PKD1NT, and PKD2 mutations in the entire cohort (log-rank, p = 0.0144). The number of patients at risk for progression to RRT at each time point is mentioned below the figures. PKD1T = PKD1 truncating; PKD1NT = PKD1 non-truncating.

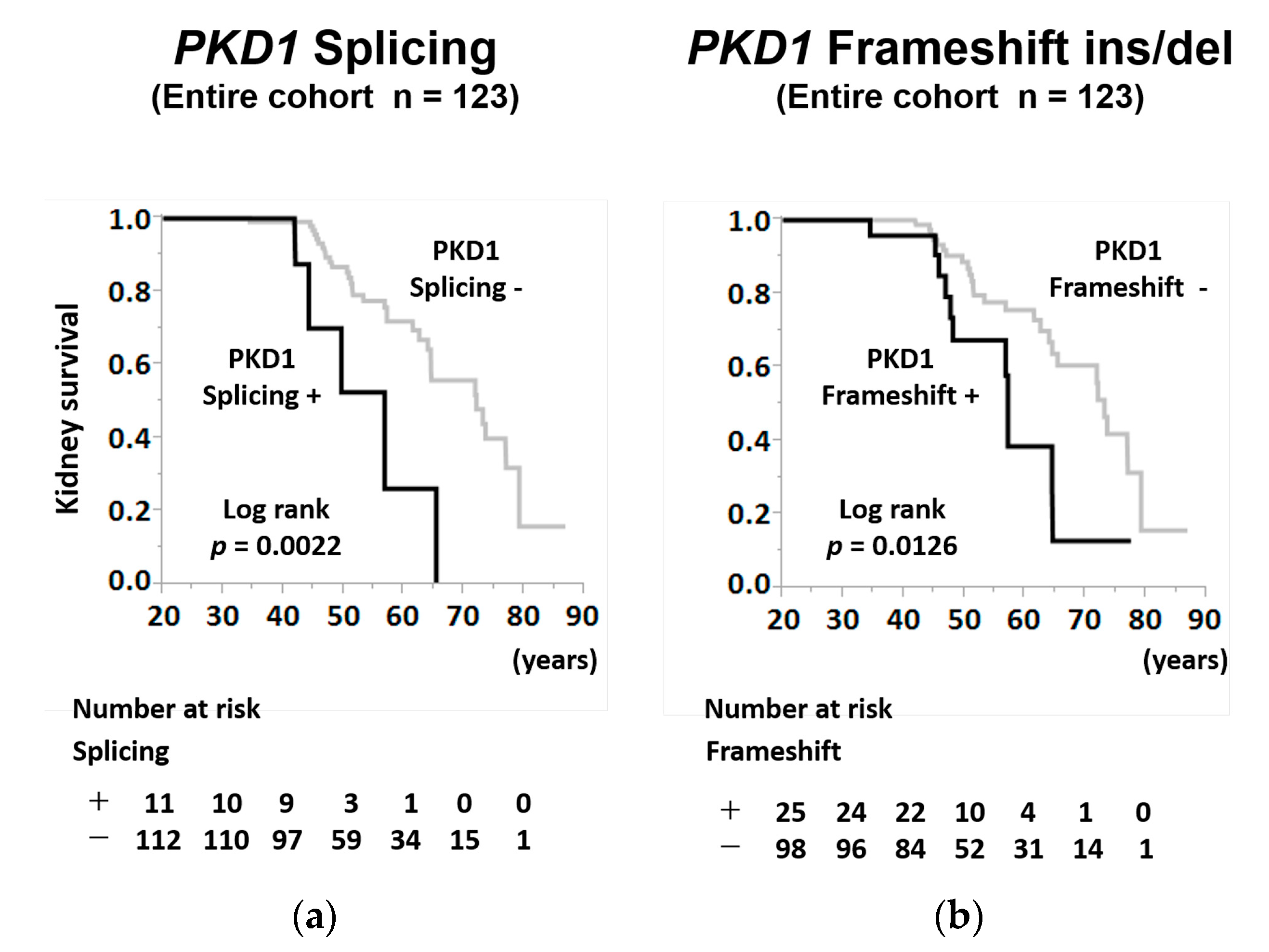

Figure 3.
Kidney survival rate of patients with ADPKD stratified by PKD1 splicing mutation and a PKD1 frameshift mutation in the entire cohort. (a) The kidney survival rates of ADPKD patients with PKD1 splicing mutation or without PKD1 splicing mutation in the entire cohort (log-rank, p = 0.0022). (b) The kidney survival rates of ADPKD patients with PKD1 frameshift mutation or without PKD1 frameshift mutation in the entire cohort (log-rank, p = 0.0126). The number of patients at risk for progression to RRT at each time point is mentioned below the figures. ins/del = insertion/deletion.
Figure 3.
Kidney survival rate of patients with ADPKD stratified by PKD1 splicing mutation and a PKD1 frameshift mutation in the entire cohort. (a) The kidney survival rates of ADPKD patients with PKD1 splicing mutation or without PKD1 splicing mutation in the entire cohort (log-rank, p = 0.0022). (b) The kidney survival rates of ADPKD patients with PKD1 frameshift mutation or without PKD1 frameshift mutation in the entire cohort (log-rank, p = 0.0126). The number of patients at risk for progression to RRT at each time point is mentioned below the figures. ins/del = insertion/deletion.
Figure 4.
Kidney survival rate of patients with ADPKD stratified by PKD1 nonsense mutation in the entire and PKD1 truncating cohort. (a) The kidney survival rates of ADPKD patients with PKD1 nonsense mutation or without PKD1 nonsense mutation in the entire cohort (log-rank, p = 0.6722). (b) The kidney survival rates of ADPKD patients with PKD1 nonsense mutation or without PKD1 nonsense mutation in the PKD1 truncating cohort (log-rank, p = 0.0202). The number of patients at risk for progression to RRT at each time point is mentioned below the figures; HR = hazard ratio; CI = confidence interval.
Figure 4.
Kidney survival rate of patients with ADPKD stratified by PKD1 nonsense mutation in the entire and PKD1 truncating cohort. (a) The kidney survival rates of ADPKD patients with PKD1 nonsense mutation or without PKD1 nonsense mutation in the entire cohort (log-rank, p = 0.6722). (b) The kidney survival rates of ADPKD patients with PKD1 nonsense mutation or without PKD1 nonsense mutation in the PKD1 truncating cohort (log-rank, p = 0.0202). The number of patients at risk for progression to RRT at each time point is mentioned below the figures; HR = hazard ratio; CI = confidence interval.
Table 1.
Patient characteristics.
| Variables | Entire | PKD1 | PKD2 | p-Value |
|---|---|---|---|---|
| n = 123 | n = 99 | n = 24 | ||
| Sex (Men) | 52 (42.3) | 42 (42.4) | 10 (41.7) | 0.9463 |
| Mutation Type | ||||
| Truncating | 91 (74.0) | 69 (69.7) | 22 (91.7) | 0.0363 |
| Splicing | 12 (9.8) | 11 (11.1) | 1 (4.2) | 0.4575 |
| Frameshift ins/del | 30 (24.4) | 25 (25.3) | 5 (20.8) | 0.6511 |
| Large deletion | 8 (6.5) | 5 (5.1) | 3 (12.5) | 0.1865 |
| Nonsense | 41 (33.3) | 28 (28.3) | 13 (54.2) | 0.0158 |
| Non-truncating | 32 (26.0) | 30 (30.3) | 2 (8.3) | 0.0363 |
| Substitution | 29 (23.6) | 27 (27.3) | 2 (8.3) | 0.0499 |
| In-frame ins/del | 3 (2.4) | 3 (3.0) | 0 (0.0) | 1.0000 |
| Mutation Position | ||||
| PKD1 N-terminal domain | NA | 19 (19.2) | NA | NA |
| PKD domain | NA | 18 (18.2) | NA | NA |
| REJ domain | NA | 21 (21.2) | NA | NA |
| TM domain | NA | 36 (36.4) | NA | NA |
| PKD1 C-terminal domain | NA | 5 (5.1) | NA | NA |
Count data are expressed as n (%). Abbreviations: n, number; %, percentages; PKD, polycystic kidney disease; ins/del, insertion/deletion; REJ, receptor for egg jelly; TM, transmembrane; NA, not applicable.
Table 2.
Univariate and multivariate analysis of risk factors associated with RRT (Entire cohort, n = 123; Model 1).
Table 2.
Univariate and multivariate analysis of risk factors associated with RRT (Entire cohort, n = 123; Model 1).
| Variables | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Hazard Ratio (95% CI) | p-Value | Hazard Ratio (95% CI) | p-Value | |
| PKD1 (vs. PKD2) | 2.75 (1.16–8.10) | 0.0202 | NA | NA |
| Mutation Type | ||||
| PKD1 Truncating | 2.77 (1.36–5.98) | 0.0046 | NA | NA |
| PKD1 Non-truncating | 0.72 (0.31–1.52) | 0.4068 | NA | NA |
| PKD2 Truncating | 0.44 (0.15–1.05) | 0.0645 | NA | NA |
| PKD2 Non-truncating | 5.191 × 10−9 (0–.) | 0.0961 | NA | NA |
| PKD1 Splicing | 4.01 (1.35–9.67) | 0.0156 | 5.39 (1.70–14.51) | 0.0063 |
| PKD1 Frameshift ins/del | 2.43 (1.14–4.88) | 0.0232 | 3.14 (1.43–6.59) | 0.0055 |
| PKD1 Large deletion | 1.14 (0.06–5.43) | 0.8975 | - | - |
| PKD1 Nonsense | 0.84 (0.33–1.83) | 0.6725 | - | - |
| PKD1 Substitution | 0.74 (0.31–1.57) | 0.4515 | - | - |
| PKD1 In-frame ins/del | 3.998 × 10−8 (0–.) | 0.5121 | - | - |
| PKD2 Splicing | 32.69 (1.62–255.79) | 0.0293 | 52.40 (2.49–446.52) | 0.0181 |
| PKD2 Frameshift ins/del | 1.776 × 10−9 (0–.) | 0.0258 | NA | NA |
| PKD2 Large deletion | 1.29 (0.07–6.15) | 0.8089 | - | - |
| PKD2 Nonsense | 0.41 (0.10–1.17) | 0.1035 | - | - |
| PKD2 Substitution | 5.191 × 10−9 (0–.) | 0.0961 | - | - |
| PKD2 In-frame ins/del | NA | NA | NA | NA |
| Men (vs. women) | 1.50 (0.78–2.89) | 0.2205 | 1.18 (0.59–2.36) | 0.6395 |
Variables with p-values of less than 0.1 with a 95% CI in the univariate model and sex were included in the multivariate model. Abbreviations: n, number; CI, confidence interval; PKD, polycystic kidney disease; ins/del, insertion/deletion; REJ, receptor for egg jelly; TM, transmembrane; NA, not applicable.
Table 3.
Univariate and multivariate analysis of risk factors associated with RRT (entire cohort, n = 123; Model 2).
Table 3.
Univariate and multivariate analysis of risk factors associated with RRT (entire cohort, n = 123; Model 2).
| Variables | Univariate Analysis | Multivariate Analysis | ||
|---|---|---|---|---|
| Hazard Ratio (95% CI) | p-Value | Hazard Ratio (95% CI) | p-Value | |
| Mutation Type | ||||
| PKD1 Truncating | 1 (reference) | NA | NA | |
| PKD1 Non-truncating | 0.46 (0.19–1.03) | 0.0601 | NA | NA |
| PKD2 Truncating | 0.31 (0.10–0.77) | 0.0106 | NA | NA |
| PKD2 Non-truncating | 2.953 × 10−9 (0–.) | 0.0384 | NA | NA |
| PKD1 Splicing | 1 (reference) | 1 (reference) | ||
| PKD1 Frameshift ins/del | 0.53 (0.19–1.71) | 0.2709 | 0.58 (0.19–1.75) | 0.3297 |
| PKD1 Large deletion | 0.33 (0.02–2.11) | 0.2684 | 0.38 (0.04–3.57) | 0.4005 |
| PKD1 Nonsense | 0.24 (0.07–0.81) | 0.0234 | 0.26 (0.08–0.88) | 0.0304 |
| PKD1 Substitution | 0.19 (0.06–0.65) | 0.0099 | 0.20 (0.06–0.66) | 0.0081 |
| PKD1 In-frame ins/del | 3.130 × 10−10 (0–.) | 0.2747 | 3.720 × 10−10 (0–.) | 0.9998 |
| PKD2 Splicing | 10.20 (0.47–94.14) | 0.1147 | 9.92 (0.90–109.16) | 0.0607 |
| PKD2 Frameshift ins/del | 2.820 × 10−10 (0–.) | 0.0010 | 3.190 × 10−10 (0–.) | 0.9990 |
| PKD2 Large deletion | 0.38 (0.02–2.42) | 0.3374 | 0.41 (0.05–3.61) | 0.4213 |
| PKD2 Nonsense | 0.11 (0.02–0.46) | 0.0032 | 0.12 (0.03–0.53) | 0.0055 |
| PKD2 Substitution | 2.910 × 10−10 (0–.) | 0.0060 | 2.930 × 10−10 (0–.) | 0.9993 |
| PKD2 In-frame ins/del | NA | NA | NA | NA |
| Men (vs. women) | 1.50 (0.78–2.89) | 0.2205 | 1.21 (0.60–2.45) | 0.5985 |
Variables with p-values of less than 0.1 with a 95% CI in the univariate model and sex were included in the multivariate model. Abbreviations: n, number; CI, confidence interval; PKD, polycystic kidney disease; ins/del, insertion/deletion; REJ, receptor for egg jelly; TM, transmembrane; NA, not applicable.
Table 4.
Univariate analysis of risk factors associated with RRT (PKD1 Truncating cohort, n = 69).
| Variables | Univariate Analysis (Model 1) | Univariate Analysis (Model 2) | ||
|---|---|---|---|---|
| Hazard Ratio (95% CI) | p-Value | Hazard Ratio (95% CI) | p-Value | |
| Mutation Type | ||||
| PKD1 Splicing | 2.69 (0.88–6.89) | 0.0796 | 1 (reference) | |
| PKD1 Frameshift ins/del | 1.72 (0.75–3.88) | 0.1953 | 0.60 (0.21–1.93) | 0.3637 |
| PKD1 Large deletion | 0.81 (0.04–3.99) | 0.8350 | 0.35 (0.02–2.30) | 0.3042 |
| PKD1 Nonsense | 0.36 (0.14–0.85) | 0.0189 | 0.24 (0.07–0.81) | 0.0236 |
| Mutation Position | ||||
| PKD1 N-terminal domain | 0.86 (0.24–2.36) | 0.7798 | 1 (reference) | |
| PKD domain | 1.08 (0.40–2.59) | 0.8749 | 1.24 (0.35–4.90) | 0.7440 |
| REJ domain | 1.01 (0.33–2.54) | 0.9904 | 1.16 (0.30–4.83) | 0.8241 |
| TM domain | 1.36 (0.55–3.17) | 0.4903 | 1.43 (0.44–5.44) | 0.5624 |
| PKD1 C-terminal domain | 4.873 × 10−9 (0–.) | 0.0927 | 5.877 × 10−9 (0–.) | 0.1461 |
Abbreviations: RRT, renal replacement therapy; n, number; PKD, polycystic kidney disease; CI, confidence interval; ins/del, insertion/deletion; REJ, receptor for egg jelly; TM, transmembrane.
Table 5.
Univariate analysis of risk factors associated with RRT in the cohort stratified by sex.
| Variables | Univariate Analysis (Model 1) Men, n = 52 | Univariate Analysis (Model 1) Women, n = 71 | ||
|---|---|---|---|---|
| Hazard Ratio (95% CI) | p-Value | Hazard Ratio (95% CI) | p-Value | |
| PKD1 (vs. PKD2) | 1.79 (0.58–7.76) | 0.3331 | 3.64 (1.02–23.23) | 0.0462 |
| Mutation Type | ||||
| PKD1 Truncating | 4.02 (1.38–14.75) | 0.0093 | 1.83 (0.70–5.04) | 0.2196 |
| PKD1 Non-truncating | 0.17 (0.01–0.85) | 0.0272 | 1.31 (0.45–3.42) | 0.5953 |
| PKD2 Truncating | 0.75 (0.17–2.27) | 0.6343 | 0.29 (0.05–1.05) | 0.0598 |
| PKD2 Non-truncating | 4.924 × 10−9 (0–.) | 0.1691 | 1.453 × 10−8 (0–.) | 0.4762 |
| PKD1 Splicing | 2.02 (0.47–6.17) | 0.3057 | 24.45 (3.19–149.12) | 0.0049 |
| PKD1 Frameshift ins/del | 2.85 (1.03–7.47) | 0.0449 | 1.57 (0.44–4.45) | 0.4494 |
| PKD1 Large deletion | 6.69 (0.35–39.26) | 0.1597 | 1.384 × 10−8 (0–.) | 0.3100 |
| PKD1 Nonsense | 0.79 (0.18–2.46) | 0.7052 | 0.97 (0.27–2.87) | 0.9596 |
| PKD1 Substitution | 0.17 (0.01–0.85) | 0.0272 | 1.37 (0.47–3.58) | 0.5386 |
| PKD1 In-frame ins/del | NA | NA | 3.883 × 10−8 (0–.) | 0.5782 |
| PKD2 Splicing | 22.42 (1.04–234.30) | 0.0478 | NA | NA |
| PKD2 Frameshift ins/del | 1.415 × 10−8 (0–.) | 0.2985 | 4.158 × 10−9 (0–.) | 0.0402 |
| PKD2 Large deletion | 1.76 (0.10–9.08) | 0.6164 | 1.453 × 10−8 (0–.) | 0.4762 |
| PKD2 Nonsense | 0.34 (0.02–1.68) | 0.2202 | 0.60 (0.09–2.14) | 0.4697 |
| PKD2 Substitution | 4.924 × 10−9 (0–.) | 0.1691 | 1.453 × 10−8 (0–.) | 0.4762 |
| PKD2 In-frame ins/del | NA | NA | NA | NA |
Abbreviations: n, number; CI, confidence interval; PKD, polycystic kidney disease; ins/del, insertion/deletion; REJ, receptor for egg jelly; TM, transmembrane; NA, not applicable.
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Kataoka, H.; Fukuoka, H.; Makabe, S.; Yoshida, R.; Teraoka, A.; Ushio, Y.; Akihisa, T.; Manabe, S.; Sato, M.; Mitobe, M.; et al. Prediction of Renal Prognosis in Patients with Autosomal Dominant Polycystic Kidney Disease Using PKD1/PKD2 Mutations. J. Clin. Med. 2020, 9, 146. https://doi.org/10.3390/jcm9010146
AMA Style
Kataoka H, Fukuoka H, Makabe S, Yoshida R, Teraoka A, Ushio Y, Akihisa T, Manabe S, Sato M, Mitobe M, et al. Prediction of Renal Prognosis in Patients with Autosomal Dominant Polycystic Kidney Disease Using PKD1/PKD2 Mutations. Journal of Clinical Medicine. 2020; 9(1):146. https://doi.org/10.3390/jcm9010146
Chicago/Turabian StyleKataoka, Hiroshi, Hinata Fukuoka, Shiho Makabe, Rie Yoshida, Atsuko Teraoka, Yusuke Ushio, Taro Akihisa, Shun Manabe, Masayo Sato, Michihiro Mitobe, and et al. 2020. "Prediction of Renal Prognosis in Patients with Autosomal Dominant Polycystic Kidney Disease Using PKD1/PKD2 Mutations" Journal of Clinical Medicine 9, no. 1: 146. https://doi.org/10.3390/jcm9010146
APA StyleKataoka, H., Fukuoka, H., Makabe, S., Yoshida, R., Teraoka, A., Ushio, Y., Akihisa, T., Manabe, S., Sato, M., Mitobe, M., Tsuchiya, K., Nitta, K., & Mochizuki, T. (2020). Prediction of Renal Prognosis in Patients with Autosomal Dominant Polycystic Kidney Disease Using PKD1/PKD2 Mutations. Journal of Clinical Medicine, 9(1), 146. https://doi.org/10.3390/jcm9010146
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
