Article

Immunofluorescence Analysis as a Diagnostic Tool in a Spanish Cohort of Patients with Suspected Primary Ciliary Dyskinesia

by
Noelia Baz-Redón
1,2,†,
Sandra Rovira-Amigo
1,2,3,4,†,
Mónica Fernández-Cancio
1,4,
Silvia Castillo-Corullón
5,
Maria Cols
6,
M. Araceli Caballero-Rabasco
7,
Óscar Asensio
8,
Carlos Martín de Vicente
9,
Maria del Mar Martínez-Colls
10,
Alba Torrent-Vernetta
1,2,3,4,
Inés de Mir-Messa
1,3,
Silvia Gartner
1,3,
Ignacio Iglesias-Serrano
1,3,
Ana Díez-Izquierdo
1,3,
Eva Polverino
1,11,
Esther Amengual-Pieras
12,
Rosanel Amaro-Rodríguez
13,
Montserrat Vendrell
14,15,16,
Marta Mumany
17,
María Teresa Pascual-Sánchez
18,
Belén Pérez-Dueñas
1,3,
Ana Reula
19,20,
Amparo Escribano
5,20,21,
Francisco Dasí
20,21,
Miguel Armengot-Carceller
16,19,20,22,
Marta Garrido-Pontnou
23,
Núria Camats-Tarruella
1,4,‡ and
Antonio Moreno-Galdó
1,2,3,4,*,‡add Show full author list remove Hide full author list
1
Vall d’Hebron Institut de Recerca (VHIR), Vall d’Hebron Hospital Universitari, Vall d’Hebron Barcelona Hospital Campus, 08035 Barcelona, Spain
2
Department of Pediatrics, Obstetrics, Gynecology, Preventative Medicine and Public Health. Universitat Autònoma de Barcelona, 08193 Barcelona, Spain
3
Department of Pediatrics, Vall d’Hebron Hospital Universitari, Vall d’Hebron Barcelona Hospital Campus, 08035 Barcelona, Spain
4
CIBER of Rare Diseases (CIBERER), Instituto de Salud Carlos III (ISCIII), 28029 Madrid, Spain
5
Pediatric Pulmonology Unit, Hospital Clínico Universitario de Valencia, 46010 Valencia, Spain
6
Pediatric Pulmonology Department and Cystic Fibrosis Unit, Hospital Sant Joan de Déu, 08950 Barcelona, Spain
7
Pediatric Pulmonology Unit, Department of Pediatrics, Hospital del Mar, 08003 Barcelona, Spain
8
Pediatric Pulmonology Unit, Hospital Parc Taulí de Sabadell, 08208 Sabadell, Spain
9
Pediatric Pulmonology Unit, Hospital Miguel Servet, 50009 Zaragoza, Spain
10
Pediatric Pulmonology Unit, Hospital Germans Trias i Pujol, 08916 Badalona, Spain
11
Pneumology Department, Vall d’Hebron Hospital Universitari, Vall d’Hebron Barcelona Hospital Campus, 08035 Barcelona, Spain
12
Department of Pediatrics, Hospital Universitario Son Llàtzer, 07198 Palma de Mallorca, Spain
13
Pneumology Department, Hospital Clínic, 08036 Barcelona, Spain
14
Pneumology Department, Hospital Josep Trueta, 17007 Girona, Spain
15
Girona Biomedical Research Institute (IDIBGI), Universitat de Girona, 17190 Girona, Spain
16
CIBER of Respiratory Diseases (CIBERES), Instituto de Salud Carlos III (ISCIII), 28029 Madrid, Spain
17
Pediatric Pulmonology Unit, Consorci Sanitari de Terrassa, 08191 Terrassa, Spain
18
Pediatric Pulmonology Unit, Hospital Universitari Sant Joan de Reus, 43204 Tarragona, Spain
19
Grupo de Biomedicina Molecular, Celular y Genómica, IIS La Fe, 46026 Valencia, Spain
20
Department of Paediatrics, Obstetrics and Gynecology, Universitat de Valencia, 46010 Valencia, Spain
21
UCIM, Rare Respiratory Diseases Research Group, Instituto de Investigación Sanitaria INCLIVA, 46010 Valencia, Spain
22
Otorhinolaryngology Department, Hospital Universitario y Politécnico La Fe, 46026 Valencia, Spain
23
Department of Pathology, Vall d’Hebron Hospital Universitari, Vall d’Hebron Barcelona Hospital Campus, 08035 Barcelona, Spain

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
Co-last authors.
J. Clin. Med. 2020, 9(11), 3603; https://doi.org/10.3390/jcm9113603
Submission received: 20 October 2020 / Revised: 5 November 2020 / Accepted: 6 November 2020 / Published: 9 November 2020
(This article belongs to the Special Issue Rare Respiratory Diseases: A Personal and a Public Health Problem)
Browse Figures
Review Reports Versions Notes

Abstract

:
Primary ciliary dyskinesia (PCD) is an autosomal recessive rare disease caused by an alteration of ciliary structure. Immunofluorescence, consisting in the detection of the presence and distribution of cilia proteins in human respiratory cells by fluorescence, has been recently proposed as a technique to improve understanding of disease-causing genes and diagnosis rate in PCD. The objective of this study is to determine the accuracy of a panel of four fluorescently labeled antibodies (DNAH5, DNALI1, GAS8 and RSPH4A or RSPH9) as a PCD diagnostic tool in the absence of transmission electron microscopy analysis. The panel was tested in nasal brushing samples of 74 patients with clinical suspicion of PCD. Sixty-eight (91.9%) patients were evaluable for all tested antibodies. Thirty-three cases (44.6%) presented an absence or mislocation of protein in the ciliary axoneme (15 absent and 3 proximal distribution of DNAH5 in the ciliary axoneme, 3 absent DNAH5 and DNALI1, 7 absent DNALI1 and cytoplasmatic localization of GAS8, 1 absent GAS8, 3 absent RSPH9 and 1 absent RSPH4A). Fifteen patients had confirmed or highly likely PCD but normal immunofluorescence results (68.8% sensitivity and 100% specificity). In conclusion, immunofluorescence analysis is a quick, available, low-cost and reliable diagnostic test for PCD, although it cannot be used as a standalone test.

1. Introduction

Primary ciliary dyskinesia (PCD) is an autosomal recessive rare disease (1/15,000) caused by an alteration of ciliary structure, which impairs mucociliary clearance [1,2]. Symptoms of PCD may include persistent wet cough from early infancy, recurrent respiratory infections, bronchiectasis, chronic rhinosinusitis, persistent otitis media with effusion and associated conductive hearing loss, male infertility, female subfertility, situs inversus in half of PCD patients [1,2,3] and heterotaxic defects in 6–12% of cases [4].
Diagnosis is often delayed, with the possibility of an impairment of lung function [1], because of non-specificity of PCD symptoms and limitations of the available techniques [5]. According to the European Respiratory Society (ERS), PCD diagnosis is commonly based on studying the ciliary function by high-speed video-microscopy (HSVM) and ciliary ultrastructure by transmission electron microscopy (TEM) [6]. As there is not a unique gold standard diagnostic test, the ERS [6] and the American Thoracic Society (ATS) [7] have recently proposed the use of different diagnostic techniques to improve the accuracy and diagnosis rate of PCD.
Immunofluorescence (IF) is a technique consisting in the use of fluorescently labeled antibodies for the detection of the presence and distribution of different ciliary proteins in human respiratory cells by fluorescence or confocal microscopy, and it has been recently proposed as a tool to improve the diagnosis rate in PCD and facilitate a better understanding of disease-causing genes [6,7]. Motile respiratory cilia (9 + 2 cilia) are composed of nine peripheral microtubular doublets (composed of A and B tubules) and a central pair (C1 and C2) surrounded by a protein central sheath. An important number of protein complexes are distributed among these microtubule structures: the outer (ODA) and inner dynein arms (IDA), the nexin links, the central sheath and the radial spokes [8,9] (Figure 1). The methodology for IF staining of ciliated respiratory epithelial cells was first described by Omran and Loges [10]. Nowadays, an important number of antibodies against different cilia proteins are available, including antibodies against proteins in ODA, IDA, radial spoke head and dynein regulatory complex [6]. IF is cheaper and easier than other techniques and the use of IF as a diagnostic test in PCD is likely to increase as more antibodies become available [6]. However, studies on the use of IF in diagnostic settings and IF validation studies are necessary to consider IF as a diagnostic tool for PCD in diagnostic cohort studies [6]. The ATS considers the IF as one of the emerging PCD diagnosis techniques, although it has emphasized the lack of consensus on a gold standard for diagnosis and the insufficient sensitivity and specificity when applied to the general population [7].
A study by Shoemark et al. demonstrated that IF is a useful diagnostic technique and presents the same accuracy as well-performed TEM analysis, which is why the authors support IF as a routine diagnostic test for PCD, especially when TEM expertise or equipment is not available [5]. To our knowledge, this is the only study evaluating the accuracy of conventional IF for the diagnosis of PCD. In a recent study, Liu et al. presented a quantitative super-resolution imaging workflow for the detection of cilia defects thanks to the validation of 21 commercially available IF antibodies. Molecular defects using this super-resolution imaging toolbox were described in 31 clinical PCD cases, including patients with negative TEM results and/or with genetic variants of uncertain significance (VUS) [11].
We hypothesized that an IF panel would be a useful technique to study the cilia structure and improve PCD diagnosis, especially in settings with low availability of TEM results. Our aim was to establish the utility and accuracy for PCD diagnosis of an IF panel in a Spanish cohort of patients with suspected PCD in relation to clinical characteristics, genetics and/or HSVM.

2. Experimental Section

2.1. Patients

This study belongs to a prospective multicentric study including all 74 consecutive patients with a clinical history suggestive of PCD during the period from 2016 to 2020.
This project was approved by the Clinical Research Ethics Committee (CEIC) of Hospital Universitari Vall d’Hebron (PR(AMI)148/2016). Written informed consent was obtained from ≥18-year-old patients, from ≥12-year-old patients and their parents or guardians and from <12-year-old patients’ parents or guardians.
The majority of patients attended the Hospital Universitari Vall d’Hebron (HUVH), and patients and samples from other hospitals from Spain were also analyzed: Hospital Sant Joan de Déu (Esplugues de Llobregat, Barcelona), Hospital del Mar (Barcelona), Hospital Parc Taulí (Sabadell, Barcelona), Hospital Germans Trias i Pujol (Badalona, Barcelona), Hospital Clínic (Barcelona), Hospital Miguel Servet (Zaragoza), Hospital Josep Trueta (Girona), Hospital Universitari Sant Joan de Reus (Reus, Tarragona), Consorci Sanitari de Terrassa (Terrasa, Barcelona) and PCD group Valencia (Hospital Universitario y Politécnico la Fe, Hospital Clínico Universitario de Valencia and INCLIVA).

2.2. PCD Diagnostic Evaluation

Patients were evaluated for PCD with a clinical symptoms questionnaire and PICADAR (PrImary CiliARy DyskinesiA Rule) score [12], nasal nitric oxide (nNO), high-speed video-microscopy analysis (HSVM) and genetic testing. In our setting, TEM analysis was available only in a few cases because of logistic difficulties.
ERS guidelines [6] were followed to classify patients as: confirmed PCD (suggestive clinical history with hallmark ciliary ultrastructure defects assessed by TEM and/or presence of pathogenic bi-allelic variants in PCD-associated genes); highly likely PCD (suggestive history with very low nNO and HSVM findings consistently suggestive of PCD after repeated analysis or cell culture); or highly unlikely PCD (weak clinical history, normal nNO and normal HSVM).
Nasal nitric oxide (nNO) measurements were performed using CLD 88sp NO-analyzer (ECO MEDICS, AG, Duerten, Switzerland) according to ERS guidelines [13].
Genetic testing was performed with a high-throughput 44 PCD gene panel using the SeqCap EZ Technology (Roche Nimblegen, Pleasanton, CA, USA) as previously described [14]. Genetic results for most of the patients included in this study have been previously published [14].
HSVM was performed to study ciliary beat frequency (CBF) and ciliary beat pattern (CBP) (local normal values: CBF 8.7–18.8 Hz; CBP ≤20% dyskinetic ciliated cells). Nasal respiratory epithelia were sampled at the inferior nasal meatus with a 2 mm diameter brush submerged in HEPES-supplemented Medium199. A minimum of ten lateral strips with 10 cells each and two overhead axes were captured at 37 ºC with an optical microscope coupled to a high-speed video camera (MotionPro® X4, IDT, CA, USA) using MotionPro® X4 software [15].

2.3. Immunofluorescence Technique and Analysis

Nasal-brush respiratory epithelial samples were spread or dropped, air dried and stored at −80 °C until use. Cells were fixed with 4% PFA for 15 min at room temperature (RT), washed 4 times with 1xPBS, permeabilized with 0.2% TritonX100 for 10 min at RT and blocked with 1% fat-free skim milk in PBS overnight at +4 °C to avoid nonspecific binding. Samples were incubated with primary antibodies (all Sigma Aldrich, St. Louis, MO, USA) for 4 h at RT using the following dilutions in 1% skim milk: anti-DNAH5 antibody 1:200, anti-DNALI1 1:100, anti-GAS8 1:200, anti-RSPH4A 1:200 and anti-RSPH9 1:70.
We washed 5 times with 1xPBS at RT (2 washes of 10 min), and all slides were incubated for 45 min at RT with 1:2500 anti-acetylated tubulin antibody (Sigma Aldrich) for cilia localization. After 5 more washes with 1xPBS at RT (2 washes of 10 min), cells were incubated for 30 min at RT with secondary monoclonal anti-rabbit Alexa Fluor 594 and anti-mouse Alexa Fluor 488 antibodies (Thermo Fisher, Waltham, MA, USA). Nuclei DNA was stained with Prolong antifade DAPI (Thermo Fisher).
Slides were analyzed using a fluorescence microscope at X100 magnification. A minimum of ten cells were analyzed for each target protein. The results were considered: (1) normal or present when the protein was present in 8 or more cells, (2) absent or aberrant when the protein was completely absent in the ciliary axoneme or had an abnormal distribution in 8 or more cells, (3) inconclusive when results differed from previously described ones, and (4) insufficient when less than ten cells were observed. In inconclusive or insufficient cases, IF was repeated when possible, following recommendations by Shoemark et al. [5].
Patients were analyzed using antibodies against component proteins for the different structures of the ciliary axoneme: DNAH5 (an ODA component), DNALI1 (an IDA component), GAS8 (a nexin-dynein regulatory complex component) and radial spoke head components RSPH4A (42 patients), RSPH9 (31 patients) or both (1 patient). When this analysis was designed, we specifically chose and optimized these commercial antibodies to detect most cilia defects, following Shoemark et al. [5] and expert recommendations. Anti-acetylated tubulin antibody was used to localize the microtubular doublet (protein location shown in Figure 1).

2.4. Data Analysis

Confirmed and highly likely PCD cases were considered as positive for calculation of sensitivity and specificity. Data were analyzed by using MedCalc Statistical Software version 19.5.3 (MedCalc Software bvba, Ostend, Belgium).

3. Results

Immunofluorescence analysis was performed in a cohort of 74 PCD-suspected patients. Sixty-six percent of patients included in this study were <18 years old (49/74) and the mean age at study was 17.9 years (range 1–63).
After PCD diagnostic evaluation, 25 patients were considered as confirmed PCD, 25 as highly likely and 24 as highly unlikely PCD (Table 1).
IF was technically evaluable for all tested antibodies in 68 patients (91.9%), whereas in six, the results were inconclusive/insufficient (8.1%) (Table 1). IF analysis demonstrated an absence or aberrant localization of one or more proteins in the ciliary axoneme in 33 cases: 15 patients presented absent DNAH5; 3 a proximal localization of DNAH5 in ciliary axoneme; 3 patients exhibited absent DNAH5 and DNALI1; 7 showed absent DNALI1 and a cytoplasmatic localization of GAS8; 1 patient presented absent GAS8; 3 showed absent RSPH9; and 1 had absent RSPH4A (Table 1). Figure 2 shows examples of absence/aberrant localization of IF markers in four patients with confirmed PCD.
To evaluate the usefulness of IF analysis as a tool for PCD diagnosis, IF results were compared with those obtained from our PCD gene panel and HSVM analyses (Table 2). The 33 patients with aberrant/absent ciliary axoneme proteins had been diagnosed with confirmed or highly likely PCD. All of them presented a concordant abnormal HSVM and 21 of them presented likely pathogenic variants in PCD-related genes (Table 2). The relation of these abnormal IF results with clinical characteristics and other PCD diagnostic tests for each patient is shown in Table S1.
Thirty-five patients had normal distribution or presence of all IF antibodies. The clinical characteristics and results of PCD diagnostic tests for each patient with normal IF are presented in Table S2. We confirmed PCD in three of these patients because they presented likely pathogenic variants in DNAH11 and hyperkinetic stiff cilia by HSVM (Table 2 and Table S2). Another patient presented two variants in SPAG1, but there was no concordance with HSVM and IF results (Table S2). Another 11 patients presented normal IF, but abnormal HSVM results together with typical PCD symptoms, so they were considered highly likely PCD (Table S2). Thus far, we have not detected any likely pathogenic genetic variants in these patients. Finally, 20 out of the 33 patients with normal IF were considered highly unlikely to have PCD because of weak clinical history, normal or mild HSVM results and/or negative genetics (Table S2).
It should be mentioned that six (8.1%) samples were not technically evaluable by our IF panel: two cases lacked enough cells to analyze and were considered insufficient; two cases remained inconclusive for one or more antibodies; and two cases resulted in being insufficient for some markers and inconclusive for others (Table S3). Only one patient with insufficient and inconclusive IF sample was diagnosed with PCD because of presenting stiff cilia by HSVM and likely pathogenic variants in CCDC39. Among the other cases, four were finally regarded as having no PCD or unlikely to have PCD because of normal or mild HSVM results (Table S3).
Considering all the previous results, IF analysis as a diagnostic test for PCD had a sensitivity of 68.8% (CI 95% 53.7–81.3%) and a specificity of 100% (CI 95% 83.2–100%). In our laboratory, the PCD prevalence (confirmed or highly likely cases) of patients referred for clinical suspicion in the last 4 years was 27.4% (non-published data). Assuming this prevalence, IF positive predictive value would be 100% and the negative predictive value 89.4% (CI 95% 84.8–92.8%).

4. Discussion

In this study, we have explored the diagnostic utility of an immunofluorescence panel of commercial antibodies in 74 patients with clinical suspicion of PCD. A technical evaluable result was possible in 91.9% of cases (Table 1). IF evidenced a protein defect in 44.6% of analyzed patients, all with confirmed or highly likely PCD (Table 1). A normal IF result (47.3% of cases) was seen not only in all non-PCD patients, but also in some patients with confirmed or highly likely PCD. This means that IF detected ciliary structural defects in 68.8% of confirmed or highly likely PCD patients. In our population, IF has shown the highest positive predictive value (a positive value is consistent with a PCD diagnosis) of 100% and a negative predictive value (a normal result may be seen not only in non-PCD patients but also in PCD patients) of 89.4%. Considering our low availability of TEM results, IF was a useful PCD diagnostic test, because it showed a sensitivity (68.8%) close to TEM studies, where 30% of all affected individuals had normal ciliary ultrastructure [16].
To our knowledge, only one previous study by Shoemark et al. [5] evaluated the accuracy of IF in PCD, concluding that IF and TEM have a similar diagnostic rate. Therefore, they proposed IF as a useful diagnostic tool when TEM equipment or expertise is not available, as IF is cheaper, easier to perform, requires more basic equipment and improves the turnaround time [5]. As TEM analysis was not available in most of our cases, we have confirmed that, under these circumstances, IF is a reliable test to study cilia structure. Furthermore, IF may be useful to confirm the results of other diagnostic tests like HSVM and genetics and guide new tests in those cases with absent or aberrant protein/s localization. In Shoemark’s study, IF failed to identify 12% of PCD cases [5], which is lower than the 31.3% of normal IF results that we found in our confirmed or highly likely PCD cases. This difference could be related to genetic differences between both series.
DNAH5 absence in ciliary axoneme correlated with immotile cilia by HSVM and variants in genes related to ODA defects concurring with other studies: DNAH5 [17,18], DNAI2 [19], TTC25 [20] and CCDC151 [21] (Table 2 and Table S1). Moreover, we found proximal axonemal DNAH5 IF staining in three unrelated patients (Figure 2d) with mild clinical symptoms and subtle HSVM defects (mainly stiff and disorganized ciliary beat). One of them presented likely pathogenic variants in DNAH9, in concordance with recently published data [22,23] (Table 2 and Table S1).
Some of the patients showed absence of both DNAH5 and DNALI1 (Figure 2a) also with completely immotile cilia. We could not find any candidate variant in these patients (Table 2 and Table S1). These IF and HSVM results could be explained by genetic alterations in proteins involved in the assembly of both ODA and IDA [24,25,26,27,28,29,30,31,32,33,34,35] and further studies are warranted.
The patients with absent DNALI1 and abnormal localization (cytoplasmatic) of GAS8 (Figure 2b) had mainly stiff (reduced amplitude) and immotile cilia and likely pathogenic variants in CCDC39 and CCDC40 (Table 2 and Table S1). These results are consistent with previous description of CCDC39 [36] and CCDC40 [37] as assembling factors of the IDA and the nexin–dynein regulatory complex structures [36,37,38].
Only one patient presented an absence of GAS8 in ciliary axoneme. This patient had hyperkinetic stiff cilia and respiratory symptoms beginning at neonatal age. These results could be explained by defects in the nexin–dynein regulatory complex (DRC) subunits, as previously described [39,40,41].
In our IF approach, radial spoke defects were first studied with the RSPH4A antibody and later with RSPH9. We decided to switch to RSPH9 because it is more informative for detecting all radial spoke head defects, and it has been recommended due to its reported absence from ciliary axonemes in radial spoke mutant cells [5,42]. In fact, one of our patients had normal RSPH4A, but absent RSPH9 (Figure 2c). Radial spoke defects in our patients were related to situs solitus and two different HSVM patterns: circular motion and stiff cilia, consistent with previously reported data (Table 2 and Table S1) [42,43,44].
Our IF panel could not detect defects caused by DNAH11 genetic variants in our patients, consistent with previously reported data [45]. For this reason, it would be interesting to include an anti-DNAH11 antibody in the IF panel, considering that it is commercially available, but it has not been optimized. As it happens with DNAH11, other ciliary proteins have been described to cause none or subtle ultrastructural defects: HYDIN [46], STK36 [47] and, most recently, SPEF2 [48]. STK36 has been described as a protein involved in the interaction between the central pair and the radial spoke [47]. HYDIN and SPEF2 have been functionally described to cause central pair defects in humans, and mutants of both proteins can be detected using antibodies against SPEF2 [48]. These ultrastructural defects could explain some of our normal IF results in highly likely PCD patients.
Some patients could not be resolved by IF as analysis was inconclusive and/or insufficient for some of the target proteins, requiring reevaluation of new brushing samples. Blood and mucus in the IF samples were found to be confounding factors in the analysis in a previous publication [5]. From our experience, we considered the slides with nasal brush sample prepared by dropping a better option than those by spreading. Slides with a dropped sample allowed a faster analysis due to having more cells in a smaller area. In addition, when the sample contained mucus, analysis was more complicated in spread samples, and usually there were not enough viable cells to complete the analysis.
The major limitation of the IF analysis is that, because of the use of primary antibodies directed to specific proteins, defects in unrelated proteins may be missed [5]. Moreover, patients with partial defects or missense mutations have been reported to have normal IF results [5], although we did not have any case with this particular observation in our cohort. As new genes and proteins related to PCD are discovered, the IF antibody panels may need to be revised and expanded in the future for an accurate diagnosis [49]. In fact, antibodies against a high number of ciliary proteins are already commercially available, although most of them have not yet been tested and/or validated for immunofluorescence or in human respiratory tissue [11]. For this reason, the optimization of antibodies in nasal brushing samples is difficult and time-consuming. Furthermore, from our experience, we have not even been able to properly optimize some commercially available antibodies, i.e., DNAH11. Further antibody optimization is necessary, and, as a matter of fact, Liu et al.’s extensive IF technical protocols may help with this [11]. Another pitfall is the lack of consensus regarding the performance of the IF technique and, more importantly, the agreement in the IF considerations when the analysis is performed. Currently, a consensus statement on IF, initiated during the European BEAT-PCD 2019, is on the way.
One important limitation of measuring the accuracy of IF for PCD diagnosis is the lack of a gold standard reference against which to measure it. In our study, we use the ERS task force criteria [6] assuming as a standard for comparison confirmed and highly likely PCD cases, with the added limitation of low availability of TEM analysis.
Moreover, the positive rate of our series was quite high (25 confirmed and 25 highly likely of 74 cases). This is related to a previous pre-screening for IF study of cases with more suggestive clinical symptoms.
Taking all into account, we propose a two-step IF analysis: a first panel with DNAH5, DNALI1, GAS8 and RSPH9 and, in cases with normal IF and consistent PCD suspicion (clinical symptoms and other techniques), a second IF round with antibodies against ciliary components associated with none or subtle ultrastructural defects: DNAH11 [45], STK36 [47] and SPEF2 [48]. Shoemark et al. [5] also recommended a first antibody panel with DNAH5, GAS8 and RSPH9 and omitted DNALI1 because its absence always coexists with an absence of DNAH5 or GAS8 [5]. This recommendation is supported by our cohort results, but as TEM is mostly unavailable and we are using IF results to clarify the genetics, we considered to maintain anti-DNALI1 antibody in our IF studies. Therefore, our proposed two-step IF analysis may be used in cases with non-available TEM. Alternatively, centers with available TEM analysis might use a first step IF panel with DNAH11, SPEF2, GAS8 and RSPH9 antibodies, omitting DNAH5 and DNALI1. For the translation to clinical diagnosis, Liu et al. also proposed a restricted 10-antibody panel (instead of 21) based on proteins which are non-detectable by TEM or those indirectly detecting mislocalization of other proteins (DNAH5, DNAH11, DNALI1, GAS8, CCDC65, RSPH4A, RSPH9, RPGR, OFD1 and SPEF2) [11]. Although a quantitative super-resolution imaging tool, such as the one proposed by Liu et al. [11], gives much more information and may solve so-called difficult or unsolved cases, it would be hard to implement in our clinical setting due to its high costs in time and personnel.
To conclude, the presented results confirm that IF is a reliable diagnosis technique for PCD (with a sensitivity of 68.8% and a specificity of 100%), even when TEM analysis is unavailable, although it cannot be used as a standalone test. Considering our results, we propose IF as a cheap, easy and widely available test to include in PCD diagnosis.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0383/9/11/3603/s1, Table S1: Patients with absence or aberrant distribution of target proteins by immunofluorescence and correlation with other PCD analysis techniques, Table S2: Patients with normal localization of target proteins by immunofluorescence and correlation with other PCD analysis techniques, Table S3: Patients with inconclusive and/or insufficient immunofluorescence results and correlation with other PCD analysis techniques.

Author Contributions

A.M.-G. and N.C.-T. were responsible for the conception and design of this study. N.B.-R., N.C.-T., M.F.-C., M.G.-P., S.R.-A., M.A.C.-R, F.D. and A.R. performed immunofluorescence studies and/or diagnostic PCD studies. S.R.-A., S.C.-C., M.C., M.A.C.-R., O.A., C.M.d.V., M.d.M.M.-C., A.T.-V., I.M.-M., S.G., I.I.-S., A.D.-I., E.P., E.A.-P., R.A.-R., M.V., M.M., M.T.P.-S., B.P.-D., A.R., A.E., F.D. and M.A.-C. recruited the patients and undertook the data collection. N.B.-R., N.C.-T. and A.M.-G. performed statistical analysis. N.B.-R., N.C.-T., S.R.-A. and A.M.-G. drafted the manuscript. All remaining authors revised and approved the manuscript before submission. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a grant from the Health Research and Development Strategy (AES) of Instituto de Salud Carlos III (ISCIII) (PI16/01233), co-financed by the European Regional Development Fund, Smart Growth Operational Programme 2014–2020, and with grants from the Spanish Society of Pediatric Pulmonology (SENP, 2016) and the Catalan Pneumology Foundation (FUCAP, 2016). N.C.-T. received a grant for a Short Term Scientific Mission from COST Action BM1407. It was also supported by the CIBER of Rare Diseases (CIBERER, ISCIII) U-712 to N.C.-T. and M.F.-C.

Acknowledgments

The authors have participated in COST Action BM1407 Translational research in primary ciliary dyskinesia: bench, bedside, and population perspectives (BEAT PCD). A.M.-G. and S.R.-A. participate at ERN-LUNG. This work has been carried out within the framework of the Doctorate Program of Pediatrics, Obstetrics and Gynecology of Universitat Autònoma de Barcelona.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lucas, J.S.; Burgess, A.; Mitchison, H.M.; Moya, E.; Williamson, M.; Hogg, C. Diagnosis and Management of Primary Ciliary Dyskinesia. Arch. Dis. Child. 2014, 99, 850–856. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Reula, A.; Lucas, J.S.; Moreno-Galdó, A.; Romero, T.; Milara, X.; Carda, C.; Mata-Roig, M.; Escribano, A.; Dasi, F.; Armengot-Carceller, M. New Insights in Primary Ciliary Dyskinesia. Expert Opin. Orphan Drugs 2017, 5, 537–548. [Google Scholar] [CrossRef] [Green Version]
  3. Wallmeier, J.; Nielsen, K.G.; Kuehni, C.E.; Lucas, J.S.; Leigh, M.W.; Zariwala, M.A.; Omran, H. Motile Ciliopathies. Nat. Rev. Dis. Prim. 2020, 6, 1–29. [Google Scholar] [CrossRef] [PubMed]
  4. Shapiro, A.J.; Davis, S.D.; Ferkol, T.; Dell, S.D.; Rosenfeld, M.; Olivier, K.N.; Sagel, S.D.; Milla, C.; Zariwala, M.A.; Wolf, W.; et al. Laterality Defects Other Than Situs Inversus Totalis in Primary Ciliary Dyskinesia. Chest 2014, 146, 1176–1186. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Shoemark, A.; Frost, E.; Dixon, M.; Ollosson, S.; Kilpin, K.; Patel, M.; Scully, J.; Rogers, A.V.; Mitchison, H.M.; Bush, A.; et al. Accuracy of Immunofluorescence in the Diagnosis of Primary Ciliary Dyskinesia. Am. J. Respir. Crit. Care Med. 2017, 196, 94–101. [Google Scholar] [CrossRef] [PubMed]
  6. Lucas, J.S.; Barbato, A.; Collins, S.A.; Goutaki, M.; Behan, L.; Caudri, D.; Dell, S.; Eber, E.; Escudier, E.; Hirst, R.A.; et al. European Respiratory Society Guidelines for the Diagnosis of Primary Ciliary Dyskinesia. Eur. Respir. J. 2017, 49, 1601090. [Google Scholar] [CrossRef]
  7. Shapiro, A.J.; Davis, S.D.; Polineni, D.; Manion, M.; Rosenfeld, M.; Dell, S.D.; Chilvers, M.; Ferkol, T.W.; Zariwala, M.A.; Sagel, S.D.; et al. Diagnosis of Primary Ciliary Dyskinesia. An Official American Thoracic Society Clinical Practice Guideline. Am. J. Respir. Crit. Care Med. 2018, 197, e24–e39. [Google Scholar] [CrossRef]
  8. Ibañez-Tallon, I.; Heintz, N.; Omran, H. To Beat or Not to Beat: Roles of Cilia in Development and Disease. Hum. Mol. Genet. 2003, 12, R27–R35. [Google Scholar] [CrossRef] [Green Version]
  9. Olm, M.A.K.; Caldini, E.G.; Mauad, T. Diagnosis of Primary Ciliary Dyskinesia. J. Bras. Pneumol. 2015, 41, 251–263. [Google Scholar] [CrossRef] [Green Version]
  10. Omran, H.; Loges, N.T. Immunofluorescence Staining of Ciliated Respiratory Epithelial Cells. Methods Cell Biol. 2009, 91, 123–133. [Google Scholar] [CrossRef]
  11. Liu, Z.; Nguyen, Q.P.H.; Guan, Q.; Albulescu, A.; Erdman, L.; Mahdaviyeh, Y.; Kang, J.; Ouyang, H.; Hegele, R.G.; Moraes, T.J.; et al. A Quantitative Super-Resolution Imaging Toolbox for Diagnosis of Motile Ciliopathies. Sci. Transl. Med. 2020, 12, eaay0071. [Google Scholar] [CrossRef] [Green Version]
  12. Behan, L.; Dimitrov, B.D.; Kuehni, C.E.; Hogg, C.; Carroll, M.; Evans, H.J.; Goutaki, M.; Harris, A.; Packham, S.; Walker, W.T.; et al. PICADAR: A Diagnostic Predictive Tool for Primary Ciliary Dyskinesia. Eur. Respir. J. 2016, 47, 1103–1112. [Google Scholar] [CrossRef] [Green Version]
  13. Horváth, I.; Barnes, P.J.; Loukides, S.; Sterk, P.J.; Högman, M.; Olin, A.-C.; Amann, A.; Antus, B.; Baraldi, E.; Bikov, A.; et al. A European Respiratory Society Technical Standard: Exhaled Biomarkers in Lung Disease. Eur. Respir. J. 2017, 49, 1600965. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Baz-Redón, N.; Rovira-Amigo, S.; Paramonov, I.; Castillo-Corullón, S.; Roig, M.C.; Antolín, M.; Arumí, E.G.; Torrent-Vernetta, A.; Messa, I.D.M.; Gartner, S.; et al. Implementation of a Gene Panel for Genetic Diagnosis of Primary Ciliary Dyskinesia. Arch. Bronconeumol. 2020, 20, 30073–30079. [Google Scholar] [CrossRef]
  15. Kempeneers, C.; Seaton, C.; Espinosa, B.G.; Chilvers, M.A. Ciliary Functional Analysis: Beating a Path towards Standardization. Pediatric Pulmonol. 2019, 54, 1627–1638. [Google Scholar] [CrossRef] [PubMed]
  16. Kouis, P.; Yiallouros, P.; Middleton, N.; Evans, J.S.; Kyriacou, K.; Papatheodorou, S.I. Prevalence of Primary Ciliary Dyskinesia in Consecutive Referrals of Suspect Cases and the Transmission Electron Microscopy Detection Rate: A Systematic Review and Meta-Analysis. Pediatric Res. 2016, 81, 398–405. [Google Scholar] [CrossRef] [Green Version]
  17. Fliegauf, M.; Olbrich, H.; Horvath, J.; Wildhaber, J.H.; Zariwala, M.A.; Kennedy, M.; Knowles, M.R.; Omran, H. Mislocalization of DNAH5 and DNAH9 in Respiratory Cells from Patients with Primary Ciliary Dyskinesia. Am. J. Respir. Crit. Care Med. 2005, 171, 1343–1349. [Google Scholar] [CrossRef] [Green Version]
  18. Baz-Redón, N.; Rovira-Amigo, S.; Camats-Tarruella, N.; Fernández-Cancio, M.; Garrido-Pontnou, M.; Antolín, M.; Reula, A.; Armengot-Carceller, M.; Carrascosa, A.; Moreno-Galdó, A. Role of Immunofluorescence and Molecular Diagnosis in the Characterization of Primary Ciliary Dyskinesia. Arch. Bronconeumol. 2019, 55, 439–441. [Google Scholar] [CrossRef]
  19. Loges, N.T.; Olbrich, H.; Fenske, L.; Mussaffi, H.; Horvath, J.; Fliegauf, M.; Kuhl, H.; Baktai, G.; Peterffy, E.; Chodhari, R.; et al. DNAI2 Mutations Cause Primary Ciliary Dyskinesia with Defects in the Outer Dynein Arm. Am. J. Hum. Genet. 2008, 83, 547–558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Wallmeier, J.; Shiratori, H.; Dougherty, G.W.; Edelbusch, C.; Hjeij, R.; Loges, N.T.; Menchen, T.; Olbrich, H.; Pennekamp, P.; Raidt, J.; et al. TTC25 Deficiency Results in Defects of the Outer Dynein Arm Docking Machinery and Primary Ciliary Dyskinesia with Left-Right Body Asymmetry Randomization. Am. J. Hum. Genet. 2016, 99, 460–469. [Google Scholar] [CrossRef]
  21. Hjeij, R.; Onoufriadis, A.; Watson, C.M.; Slagle, C.E.; Klena, N.T.; Dougherty, G.W.; Kurkowiak, M.; Loges, N.T.; Diggle, C.P.; Morante, N.F.; et al. CCDC151 Mutations Cause Primary Ciliary Dyskinesia by Disruption of the Outer Dynein Arm Docking Complex Formation. Am. J. Hum. Genet. 2014, 95, 257–274. [Google Scholar] [CrossRef] [Green Version]
  22. Loges, N.T.; Antony, D.; Maver, A.; Deardorff, M.A.; Güleç, E.Y.; Gezdirici, A.; Nöthe-Menchen, T.; Höben, I.M.; Jelten, L.; Frank, D.; et al. Recessive DNAH9 Loss-of-Function Mutations Cause Laterality Defects and Subtle Respiratory Ciliary-Beating Defects. Am. J. Hum. Genet. 2018, 103, 995–1008. [Google Scholar] [CrossRef] [Green Version]
  23. Fassad, M.R.; Shoemark, A.; Legendre, M.; Hirst, R.A.; Koll, F.; Le Borgne, P.; Louis, B.; Daudvohra, F.; Patel, M.P.; Thomas, L.; et al. Mutations in Outer Dynein Arm Heavy Chain DNAH9 Cause Motile Cilia Defects and Situs Inversus. Am. J. Hum. Genet. 2018, 103, 984–994. [Google Scholar] [CrossRef] [Green Version]
  24. Tarkar, A.; Loges, N.T.; Slagle, C.E.; Francis, R.; Dougherty, G.W.; Tamayo, J.V.; Shook, B.; Cantino, M.; Schwartz, D.; Jahnke, C.; et al. DYX1C1 is Required for Axonemal Dynein Assembly and Ciliary Motility. Nat. Genet. 2013, 45, 995–1003. [Google Scholar] [CrossRef]
  25. Knowles, M.R.; Ostrowski, L.E.; Loges, N.T.; Hurd, T.; Leigh, M.W.; Huang, L.; Wolf, W.E.; Carson, J.L.; Hazucha, M.J.; Yin, W.; et al. Mutations in SPAG1 Cause Primary Ciliary Dyskinesia Associated with Defective Outer and Inner Dynein Arms. Am. J. Hum. Genet. 2013, 93, 711–720. [Google Scholar] [CrossRef] [Green Version]
  26. Olcese, C.; UK10K Rare Group; Patel, M.P.; Shoemark, A.; Kiviluoto, S.; Legendre, M.; Williams, H.J.; Vaughan, C.K.; Hayward, J.; Goldenberg, A.; et al. X- Linked Primary Ciliary Dyskinesia Due to Mutations in the Cytoplasmic Axonemal Dynein Assembly Factor PIH1D3. Nat. Commun. 2017, 8, 14279. [Google Scholar] [CrossRef] [Green Version]
  27. Paff, T.; Loges, N.T.; Aprea, I.; Wu, K.; Bakey, Z.; Haarman, E.G.; Daniels, J.M.; Sistermans, E.A.; Bogunovic, N.; Dougherty, G.W.; et al. Mutations in PIH1D3 Cause X-Linked Primary Ciliary Dyskinesia with Outer and Inner Dynein Arm Defects. Am. J. Hum. Genet. 2017, 100, 160–168. [Google Scholar] [CrossRef] [Green Version]
  28. Loges, N.T.; Olbrich, H.; Becker-Heck, A.; Häffner, K.; Heer, A.; Reinhard, C.; Schmidts, M.; Kispert, A.; Zariwala, M.A.; Leigh, M.W.; et al. Deletions and Point Mutations of LRRC50 Cause Primary Ciliary Dyskinesia Due to Dynein Arm Defects. Am. J. Hum. Genet. 2009, 85, 883–889. [Google Scholar] [CrossRef] [Green Version]
  29. Austin-Tse, C.; Halbritter, J.; Zariwala, M.A.; Gilberti, R.M.; Gee, H.Y.; Hellman, N.; Pathak, N.; Liu, Y.; Panizzi, J.R.; Patel-King, R.S.; et al. Zebrafish Ciliopathy Screen Plus Human Mutational Analysis Identifies C21orf59 and CCDC65 Defects as Causing Primary Ciliary Dyskinesia. Am. J. Hum. Genet. 2013, 93, 672–686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Mitchison, H.; Schmidts, M.; Loges, N.T.; Freshour, J.; Dritsoula, A.; Hirst, R.A.; O’Callaghan, C.; Blau, H.; Al Dabbagh, M.; Olbrich, H.; et al. Mutations in Axonemal Dynein Assembly Factor DNAAF3 Cause Primary Ciliary Dyskinesia. Nat. Genet. 2012, 44, 381–389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Zariwala, M.A.; Gee, H.Y.; Kurkowiak, M.; Al-Mutairi, D.A.; Leigh, M.W.; Hurd, T.W.; Hjeij, R.; Dell, S.D.; Chaki, M.; Dougherty, G.W.; et al. ZMYND10 Is Mutated in Primary Ciliary Dyskinesia and Interacts with LRRC6. Am. J. Hum. Genet. 2013, 93, 336–345. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Diggle, C.P.; Toddie-Moore, D.; Mali, G.; Lage, P.Z.; Ait-Lounis, A.; Schmidts, M.; Shoemark, A.; Munoz, A.G.; Halachev, M.R.; Gautier, P.; et al. HEATR2 Plays a Conserved Role in Assembly of the Ciliary Motile Apparatus. PLoS Genet. 2014, 10, e1004577. [Google Scholar] [CrossRef] [Green Version]
  33. Horani, A.; Druley, T.E.; Zariwala, M.A.; Patel, A.C.; Levinson, B.T.; Van Arendonk, L.G.; Thornton, K.C.; Giacalone, J.C.; Albee, A.J.; Wilson, K.S.; et al. Whole-Exome Capture and Sequencing Identifies HEATR2 Mutation as a Cause of Primary Ciliary Dyskinesia. Am. J. Hum. Genet. 2012, 91, 685–693. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Fassad, M.R.; Shoemark, A.; Le Borgne, P.; Koll, F.; Patel, M.; Dixon, M.; Hayward, J.; Richardson, C.; Frost, E.; Jenkins, L.; et al. C11orf70 Mutations Disrupting the Intraflagellar Transport-Dependent Assembly of Multiple Axonemal Dyneins Cause Primary Ciliary Dyskinesia. Am. J. Hum. Genet. 2018, 102, 956–972. [Google Scholar] [CrossRef] [Green Version]
  35. Höben, I.M.; Hjeij, R.; Olbrich, H.; Dougherty, G.W.; Nöthe-Menchen, T.; Aprea, I.; Frank, D.; Pennekamp, P.; Dworniczak, B.; Wallmeier, J.; et al. Mutations in C11orf70 Cause Primary Ciliary Dyskinesia with Randomization of Left/Right Body Asymmetry Due to Defects of Outer and Inner Dynein Arms. Am. J. Hum. Genet. 2018, 102, 973–984. [Google Scholar] [CrossRef] [Green Version]
  36. Merveille, A.-C.; Davis, E.E.; Becker-Heck, A.; Legendre, M.; Amirav, I.; Bataille, G.; Belmont, J.W.; Beydon, N.; Billen, F.; Clément, A.; et al. CCDC39 is Required for Assembly of Inner Dynein Arms and the Dynein Regulatory Complex and for Normal Ciliary Motility in Humans and Dogs. Nat. Genet. 2011, 43, 72–78. [Google Scholar] [CrossRef]
  37. Becker-Heck, A.; Zohn, I.E.; Okabe, N.; Pollock, A.; Lenhart, K.B.; Sullivan-Brown, J.; McSheene, J.; Loges, N.T.; Olbrich, H.; Haeffner, K.; et al. The Coiled-Coil Domain Containing Protein CCDC40 Is Essential for Motile Cilia Function and Left-Right Axis Formation. Nat. Genet. 2011, 43, 79–84. [Google Scholar] [CrossRef] [Green Version]
  38. Antony, D.; Becker-Heck, A.; Zariwala, M.A.; Schmidts, M.; Onoufriadis, A.; Forouhan, M.; Wilson, R.; Taylor-Cox, T.; Dewar, A.; Jackson, C.; et al. Mutations in CCDC39 and CCDC40 are the Major Cause of Primary Ciliary Dyskinesia with Axonemal Disorganization and Absent Inner Dynein Arms. Hum. Mutat. 2013, 34, 462–472. [Google Scholar] [CrossRef] [Green Version]
  39. Olbrich, H.; Cremers, C.; Loges, N.T.; Werner, C.; Nielsen, K.G.; Marthin, J.K.; Philipsen, M.; Wallmeier, J.; Pennekamp, P.; Menchen, T.; et al. Loss-of-Function GAS8 Mutations Cause Primary Ciliary Dyskinesia and Disrupt the Nexin-Dynein Regulatory Complex. Am. J. Hum. Genet. 2015, 97, 546–554. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Wirschell, M.; Olbrich, H.; Werner, C.; Tritschler, D.; Bower, R.; Sale, W.S.; Loges, N.T.; Pennekamp, P.; Lindberg, S.; Stenram, U.; et al. The Nexin-Dynein Regulatory Complex Subunit DRC1 Is Essential for Motile Cilia Function in Algae and Humans. Nat. Genet. 2013, 45, 262–268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Horani, A.; Brody, S.L.; Ferkol, T.W.; Shoseyov, D.; Wasserman, M.G.; Ta-Shma, A.; Wilson, K.S.; Bayly, P.V.; Amirav, I.; Cohen-Cymberknoh, M.; et al. CCDC65 Mutation Causes Primary Ciliary Dyskinesia with Normal Ultrastructure and Hyperkinetic Cilia. PLoS ONE 2013, 8, e72299. [Google Scholar] [CrossRef] [PubMed]
  42. Frommer, A.; Hjeij, R.; Loges, N.T.; Edelbusch, C.; Jahnke, C.; Raidt, J.; Werner, C.; Wallmeier, J.; Große-Onnebrink, J.; Olbrich, H.; et al. Immunofluorescence Analysis and Diagnosis of Primary Ciliary Dyskinesia with Radial Spoke Defects. Am. J. Respir. Cell Mol. Biol. 2015, 53, 563–573. [Google Scholar] [CrossRef] [Green Version]
  43. Kott, E.; Legendre, M.; Copin, B.; Papon, J.-F.; Moal, F.D.-L.; Montantin, G.; Duquesnoy, P.; Piterboth, W.; Amram, D.; Bassinet, L.; et al. Loss-of-Function Mutations in RSPH1 Cause Primary Ciliary Dyskinesia with Central-Complex and Radial-Spoke Defects. Am. J. Hum. Genet. 2013, 93, 561–570. [Google Scholar] [CrossRef] [Green Version]
  44. Castleman, V.H.; Romio, L.; Chodhari, R.; Hirst, R.A.; De Castro, S.C.; Parker, K.A.; Ybot-Gonzalez, P.; Emes, R.D.; Wilson, S.W.; Wallis, C.; et al. Mutations in Radial Spoke Head Protein Genes RSPH9 and RSPH4A Cause Primary Ciliary Dyskinesia with Central-Microtubular-Pair Abnormalities. Am. J. Hum. Genet. 2009, 84, 197–209. [Google Scholar] [CrossRef] [Green Version]
  45. Dougherty, G.W.; Loges, N.T.; Klinkenbusch, J.A.; Olbrich, H.; Pennekamp, P.; Menchen, T.; Raidt, J.; Wallmeier, J.; Werner, C.; Westermann, C.; et al. DNAH11 Localization in the Proximal Region of Respiratory Cilia Defines Distinct Outer Dynein Arm Complexes. Am. J. Respir. Cell Mol. Biol. 2016, 55, 213–224. [Google Scholar] [CrossRef] [Green Version]
  46. Olbrich, H.; Schmidts, M.; Werner, C.; Onoufriadis, A.; Loges, N.T.; Raidt, J.; Banki, N.F.; Shoemark, A.; Burgoyne, T.; Al Turki, S.; et al. Recessive HYDIN Mutations Cause Primary Ciliary Dyskinesia without Randomization of Left-Right Body Asymmetry. Am. J. Hum. Genet. 2012, 91, 672–684. [Google Scholar] [CrossRef] [Green Version]
  47. Edelbusch, C.; Cindrić, S.; Dougherty, G.W.; Loges, N.T.; Olbrich, H.; Rivlin, J.; Wallmeier, J.; Pennekamp, P.; Amirav, I.; Omran, H. Mutation of Serine/Threonine Protein Kinase 36 (STK36 ) Causes Primary Ciliary Dyskinesia with a Central Pair Defect. Hum. Mutat. 2017, 38, 964–969. [Google Scholar] [CrossRef]
  48. Cindrić, S.; Dougherty, G.W.; Olbrich, H.; Hjeij, R.; Loges, N.T.; Amirav, I.; Philipsen, M.C.; Marthin, J.K.; Nielsen, K.G.; Sutharsan, S.; et al. SPEF2-and HYDIN-Mutant Cilia Lack the Central Pair–associated Protein SPEF2, Aiding Primary Ciliary Dyskinesia Diagnostics. Am. J. Respir. Cell Mol. Biol. 2020, 62, 382–396. [Google Scholar] [CrossRef]
  49. Knowles, M.R.; Leigh, M.W. Primary Ciliary Dyskinesia Diagnosis. Is Color Better Than Black and White? Am. J. Respir. Crit. Care Med. 2017, 196, 9–10. [Google Scholar] [CrossRef]
Jcm 09 03603 g001 550

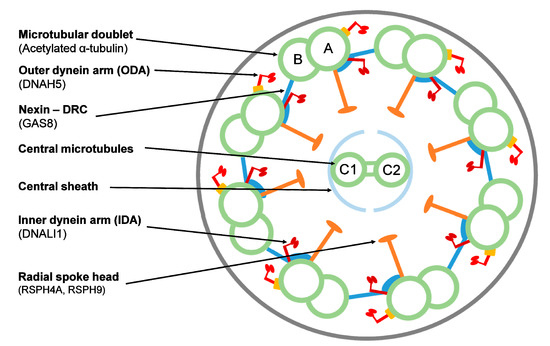

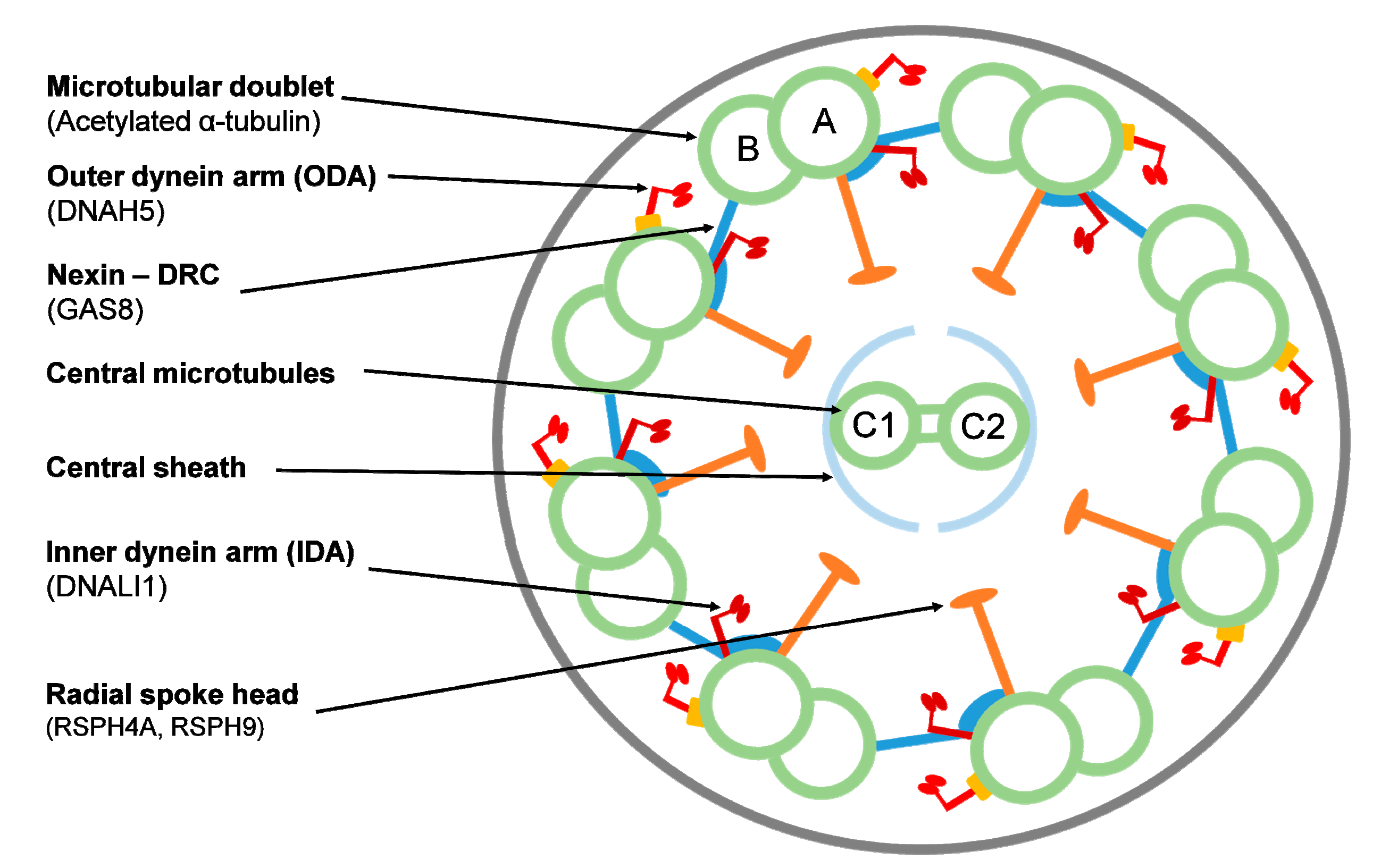

Figure 1. Ciliary axoneme in transverse section indicating the ultrastructural parts and the target proteins by immunofluorescence. Proteins are indicated in parentheses. DRC = dynein regulatory complex. A and B: outer microtubule doublets; C1 and C2: central pair.
Figure 1. Ciliary axoneme in transverse section indicating the ultrastructural parts and the target proteins by immunofluorescence. Proteins are indicated in parentheses. DRC = dynein regulatory complex. A and B: outer microtubule doublets; C1 and C2: central pair.
Jcm 09 03603 g001
Jcm 09 03603 g002 550
Figure 2. Example results of immunofluorescence technique in control subjects and patients with primary ciliary dyskinesia. The first column shows cilia by acetylated α-tubulin (green); the second column shows the protein of interest (red); and the third column shows the final merged image with the nuclei stained with DAPI (blue). (a) Patient IF-024 exhibited absent DNAH5 and DNALI1. (b) Patient IF-056 had absent DNALI1 and cytoplasmatic localization of GAS8. (c) Patient IF-050 showed a normal axonemal localization of RSPH4A and absent RSPH9. (d) Patient IF-046 presented a proximal localization of DNAH5.
Figure 2. Example results of immunofluorescence technique in control subjects and patients with primary ciliary dyskinesia. The first column shows cilia by acetylated α-tubulin (green); the second column shows the protein of interest (red); and the third column shows the final merged image with the nuclei stained with DAPI (blue). (a) Patient IF-024 exhibited absent DNAH5 and DNALI1. (b) Patient IF-056 had absent DNALI1 and cytoplasmatic localization of GAS8. (c) Patient IF-050 showed a normal axonemal localization of RSPH4A and absent RSPH9. (d) Patient IF-046 presented a proximal localization of DNAH5.
Jcm 09 03603 g002
Table
Table 1. Immunofluorescence results from 74 primary ciliary dyskinesia (PCD) suspected patients related to the results of the PCD diagnostic evaluation.
Table 1. Immunofluorescence results from 74 primary ciliary dyskinesia (PCD) suspected patients related to the results of the PCD diagnostic evaluation.
PCD Diagnostic Evaluation
Immunofluorescence Test Outcome (n = 74)Confirmed (n = 25)Highly Likely (n = 25)Highly Unlikely (n = 24)
Evaluable/Closed68 (91.9%)242420
Normal results (all markers presents)35 (47.3%)31220
Absent/aberrant results33 (44.6%)21120
DNAH5 (-) (ODA)15
Proximal DNAH5 (ODA)3
DNAH5 (-), DNALI1 (-) (ODA+IDA)3
DNALI1 (-), GAS8 (-) (IDA+Nexin-DRC)7
GAS8 (-) (Nexin-DRC)1
RSPH9 (-) (Radial spoke)3
RSPH4A (-) (Radial spoke)1
Inconclusive/insufficient results6 (8.1%)114
(-): absent in ciliary axoneme; ODA: outer dynein arm; IDA: inner dynein arm; DRC: dynein regulatory complex.
Table
Table 2. Correlation among immunofluorescence analysis, high-speed video-microscopy, genetics and clinical characteristics in our PCD patients.
Table 2. Correlation among immunofluorescence analysis, high-speed video-microscopy, genetics and clinical characteristics in our PCD patients.
IF Affected Markers (Ultrastructural Part)#HSVM Genetics (#)PCD Symptoms
Neonatal DistressUpper Respiratory TractLower Respiratory TractBronchiectasisChronic Otitis or Hearing lossSitus Abnormality
DNAH5 (ODA)15Completely immotile cilia or residual motilityCCDC151 (1), DNAH5 (5), DNAI2 (4), TTC25 (1),
NA (4)		+/−+++/−+/−+/−
Proximal DNAH5 (ODA)3Subtle defects (stiff and disorganized ciliary beat)DNAH9 (1), Neg. (2)-++/−+/−+/−+/−
DNAH5+DNALI1 (ODA+IDA)3Completely immotile ciliaNeg. (2),
NA (1)		++++++/−
DNALI1+GAS8 (IDA+Nexin-DRC)7Mainly stiff cilia and immotile ciliaCCDC39 (3), CCDC40 (3),
NA (1)		+/−++/−+/−+/−+/−
GAS8 (Nexin-DRC)1Hyperkinetic stiff ciliaNA (1)+++++−
RSPH4A or RSPH9 (Radial spoke)4Stiff and circular motionRSPH1 (1), RSPH4A (1), RSPH9 (1),
NA (1)		+/−++/−+/−+/−−
All markers present (normal result)3Hyperkinetic stiff ciliaDNAH11 (3)+/−++/−+/−+/−+/−
IF: immunofluorescence; #: number of patients; HSVM: high-speed video-microscopy; ODA: outer dynein arm; IDA: inner dynein arm; DRC: dynein regulatory complex; NA: not available data; Neg.: negative results; +: symptoms present in all patients; -: symptoms absent in all patients; +/-: symptoms present in some patients.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baz-Redón, N.; Rovira-Amigo, S.; Fernández-Cancio, M.; Castillo-Corullón, S.; Cols, M.; Caballero-Rabasco, M.A.; Asensio, Ó.; Martín de Vicente, C.; Martínez-Colls, M.d.M.; Torrent-Vernetta, A.; et al. Immunofluorescence Analysis as a Diagnostic Tool in a Spanish Cohort of Patients with Suspected Primary Ciliary Dyskinesia. J. Clin. Med. 2020, 9, 3603. https://doi.org/10.3390/jcm9113603

AMA Style

Baz-Redón N, Rovira-Amigo S, Fernández-Cancio M, Castillo-Corullón S, Cols M, Caballero-Rabasco MA, Asensio Ó, Martín de Vicente C, Martínez-Colls MdM, Torrent-Vernetta A, et al. Immunofluorescence Analysis as a Diagnostic Tool in a Spanish Cohort of Patients with Suspected Primary Ciliary Dyskinesia. Journal of Clinical Medicine. 2020; 9(11):3603. https://doi.org/10.3390/jcm9113603

Chicago/Turabian Style

Baz-Redón, Noelia, Sandra Rovira-Amigo, Mónica Fernández-Cancio, Silvia Castillo-Corullón, Maria Cols, M. Araceli Caballero-Rabasco, Óscar Asensio, Carlos Martín de Vicente, Maria del Mar Martínez-Colls, Alba Torrent-Vernetta, and et al. 2020. "Immunofluorescence Analysis as a Diagnostic Tool in a Spanish Cohort of Patients with Suspected Primary Ciliary Dyskinesia" Journal of Clinical Medicine 9, no. 11: 3603. https://doi.org/10.3390/jcm9113603

APA Style

Baz-Redón, N., Rovira-Amigo, S., Fernández-Cancio, M., Castillo-Corullón, S., Cols, M., Caballero-Rabasco, M. A., Asensio, Ó., Martín de Vicente, C., Martínez-Colls, M. d. M., Torrent-Vernetta, A., de Mir-Messa, I., Gartner, S., Iglesias-Serrano, I., Díez-Izquierdo, A., Polverino, E., Amengual-Pieras, E., Amaro-Rodríguez, R., Vendrell, M., Mumany, M., ... Moreno-Galdó, A. (2020). Immunofluorescence Analysis as a Diagnostic Tool in a Spanish Cohort of Patients with Suspected Primary Ciliary Dyskinesia. Journal of Clinical Medicine, 9(11), 3603. https://doi.org/10.3390/jcm9113603

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
