Shear Wave Dispersion Predicts Liver Fibrosis and Adverse Outcomes in Patients with Heart Failure

by
Himika Ohara
1,
Akiomi Yoshihisa
1,2,*,
Shinji Ishibashi
3,
Mitsuko Matsuda
3,
Yukio Yamadera
3,
Yukiko Sugawara
1,
Yasuhiro Ichijo
1,
Yu Hotsuki
1,
Koichiro Watanabe
1,
Fumiya Anzai
1,
Yu Sato
1,
Yusuke Kimishima
1,
Tetsuro Yokokawa
1,
Tomofumi Misaka
1,2,
Takamasa Sato
1,
Masayoshi Oikawa
1,
Atsushi Kobayashi
1 and
Yasuchika Takeishi
1
1
Department of Cardiovascular Medicine, Fukushima Medical University, Fukushima 960-1295, Japan
2
Department of Advanced Cardiac Therapeutics, Fukushima Medical University, Fukushima 960-1295, Japan
3
Department of Clinical Laboratory Medicine, Fukushima Medical University, Fukushima 960-1295, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(12), 3953; https://doi.org/10.3390/jcm9123953
Submission received: 10 November 2020 / Revised: 1 December 2020 / Accepted: 4 December 2020 / Published: 6 December 2020
(This article belongs to the Section Cardiology)
Browse Figures
Versions Notes

Abstract

:
Background: It has been recently reported that liver stiffness assessed by transient elastography reflects right atrial pressure (RAP) and is associated with worse outcomes in patients with heart failure (HF). However, the relationship between shear wave dispersion (SWD, a novel indicator of liver viscosity) determined by abdominal ultrasonography and RAP, and the prognostic impact of SWD on HF patients have not been fully examined. We aimed to clarify the associations of SWD with parameters of liver function test (LFT) and right heart catheterization (RHC), as well as with cardiac events such as cardiac death and worsening HF, in patients with HF. Methods: We performed abdominal ultrasonography, LFT and RHC in HF patients (n = 195), and followed up for cardiac events. We examined associations between SWD and parameters of LFT and RHC. Results: There were significant correlations between SWD and circulating levels of direct bilirubin (R = 0.222, p = 0.002), alkaline phosphatase (R = 0.219, p = 0.002), cholinesterase (R = −0.184, p = 0.011), and 7S domain of collagen type IV (R = 0.177, p = 0.014), but not with RAP (R = 0.054, p = 0.567) or cardiac index (R = −0.015, p = 0.872). In the Kaplan–Meier analysis, cardiac event rate was significantly higher in the high SWD group (SWD ≥ 10.0 (m/s)/kHz, n = 103) than in the low SWD group (SWD < 10.0 (m/s)/kHz, n = 92; log-rank, p = 0.010). In the Cox proportional hazard analysis, high SWD was associated with high cardiac event rates (hazard ratio, 2.841; 95% confidence interval, 1.234–6.541, p = 0.014). In addition, there were no interactions between SWD and all subgroups, according to the subgroup analysis. Conclusions: SWD assessed by abdominal ultrasonography reflects liver fibrosis rather than liver congestion, and is associated with adverse prognosis in HF patients.

1. Introduction

The number of patients with heart failure (HF) has been rapidly increasing to an estimated 26 million patients worldwide [1,2,3,4]. HF and liver dysfunction can coexist owing to complex cardiohepatic interactions including the development of hypoxic hepatitis (reduced arterial perfusion) and congestive hepatopathy (passive congestion) in HF patients [5,6,7]. Liver congestion and fibrosis might be mutually associated with liver stiffness [5,6,7,8]. To evaluate liver stiffness using image testing non-invasively, measurement of shear-wave propagation velocity, namely, shear-wave elastography (SWE), has been recently reported [9,10,11,12]. SWE uses acoustic radiation force to create laterally propagating shear waves that can be traced to determine the SW propagation velocity [13,14,15,16]. It has been reported that liver stiffness assessed by SWE reflects right atrial pressure (RAP) and is associated with worse outcomes in patients with HF [8,17,18,19].
On the other hand, in clinical hepatology, prior to liver fibrosis, inflammation, increased biliary pressure and congestion occur [20,21]. It has been reported that SWE mainly reflects the degree of fibrosis, and that shear wave dispersion (SWD) can evaluate the degree of inflammation, necrosis and fatty deposition more accurately than SWE [22,23]. Although SWE reflects both elasticity and viscosity (i.e., viscoelasticity) [22]. SWD is calculated based on SWD measurements and reflects viscosity only [24,25]. Since liver fibrosis advances gradually as hepatitis progresses [26], SWD may be able to estimate liver damage in an earlier stage than SWE. In this regard, SWD is gathering attention in terms of superiority to SWE in patients with chronic liver disease [27].
In patients with HF, we hypothesize that SWD (viscosity) seems to reflect tissue congestion and inflammation more accurately than SWE (viscoelasticity) and could detect functional liver disorder more accurately in HF patients. However, the relationship between SWD and RAP, and the prognostic impact of liver viscosity on HF patients have not yet been examined. Therefore, we aimed to clarify the associations of SWD with parameters of liver function test (LFT) and right heart catheterization (RHC), as well as with cardiac events such as cardiac death and worsening HF, in patients with HF.

2. Experimental Section

2.1. Subjects and Study Protocol

This was a prospective observational study of 232 decompensated HF patients who had undergone abdominal ultrasonography and were discharged from Fukushima Medical University Hospital between June 2018 and March 2020. Diagnosis of decompensated HF was made by each patient’s attending cardiologist based on the established HF guidelines. Blood samples, abdominal ultrasonography and echocardiography were obtained at hospital discharge. All patients underwent testing for hepatitis B surface antigen and hepatitis C antibodies, and their medical histories were checked for chronic liver disease (cirrhosis, hepatic tumors, bile duct disease, etc.) and alcohol abuse (≥30 g/day for men, ≥20 g/day for women). We subsequently excluded those patients who had the above-mentioned liver diseases (n = 31), and/or were undergoing dialysis (n = 6). Finally, 195 patients were enrolled in this study, among whom 116 had undergone RHC within 3 days of abdominal ultrasonography. The patients were divided into two groups on the basis of the median SWD: the low SWD group (SWD < 10.0 (m/s)/kHz, n = 92, 47%) or the high SWD group (SWD ≥ 10 (m/s)/kHz, n = 103, 53%).
First, we compared the clinical features as well as the results from laboratory tests and echocardiography between the two groups. In addition, we performed a correlation analysis of the interaction between SWD levels and the parameters of laboratory tests and echocardiography. Second, the patients were followed up until July 2020 for cardiac events as composites of cardiac death or unplanned re-hospitalization for HF treatment. For patients who experienced ≥2 events, only the first event was included in the analysis. Since these patients visited the hospital monthly or every other month, we were able to follow up on all patients. Status and dates of death were obtained from the patient’s medical records. Those administering the survey were blind to the analyses, and written informed consent was obtained from all study subjects. The study protocol was approved by the Ethics Committee of Fukushima Medical University, and was carried out in accordance with the principles outlined in the Declaration of Helsinki. Reporting of the study conforms to Strengthening the Reporting of Observational Studies in Epidemiology and the Enhancing the Quality and Transparency of Health Research guidelines.
Hypertension was defined as the recent use of antihypertensive drugs, a systolic blood pressure of ≥140 mmHg, or a diastolic blood pressure of ≥90 mmHg. Dyslipidemia was defined as the recent use of cholesterol-lowering drugs, a triglyceride value of ≥150 mg/dL, a low-density lipoprotein cholesterol value of ≥140 mg/dL, or a high-density lipoprotein cholesterol value of <40 mg/dL. Chronic kidney disease was defined as an estimated glomerular filtration rate of <60 mL/min per 1.73 cm2, and anemia was defined as hemoglobin levels of <12.0 g/dL in women and <13.0 g/dL in men [28]. Atrial fibrillation (AF) was identified via electrocardiogram performed during hospitalization or from medical records, including past history.

2.2. Abdominal Ultrasonography

Due to the absence of guidelines in the literature for ensuring proper SWD measurements, we employed recommended 2D-SWE methods [29]. The methods of the actual acquisition are as follows. We performed abdominal ultrasonography in the patients who were in a stable condition without changes in medications at hospital discharge. Two experienced sonographers performed abdominal ultrasonography (S.I, with 15 years of experience in abdominal ultrasonography, and M.M, with 23 years of experience) who were blinded to all clinical data. The patients fasted for at least 12 h before the abdominal ultrasonography, and were placed in the supine position. The transducer was placed in the intercostal space, and the patient’s right arm was raised above the head to obtain a proper acoustic window. The tip of the probe transducer was placed perpendicular to the liver capsule to avoid refraction of the acoustic radiation force impulse. The measurement was made while the patients were holding their breath. A sample box (we usually define it as an area of 3 × 3 cm) was placed 1.5–2.0 cm below the liver capsule to avoid reverberation artifacts and increased subcapsular stiffness. Within the sample box, two regions of interest for the measurement (we usually use a region of interest with a diameter of 1.0 cm) were placed manually to avoid large blood vessels, bile ducts and masses within the reference propagation map (Figure 1). Measurements were performed seven times, and the median value was defined as the SWD ((m/s)/kHz).

2.3. Echocardiography

Echocardiography was performed by experienced echocardiographers using standard techniques [30]. The echocardiographic parameters included left ventricular ejection fraction (LVEF), left atrial volume, early transmitral flow velocity to mitral annular velocity ratio (mitral valve E/e’), right atrium and ventricle areas, right ventricular fractional area change (RV-FAC), inferior vena cava diameter, tricuspid regurgitation pressure gradient (TRPG), tissue Doppler-derived tricuspid lateral annular systolic velocity (tricuspid valve S’), and tricuspid annular plane systolic excursion (TAPSE) [31]. The LVEF was calculated using Simpson’s method. The RV-FAC, defined as (end-diastolic area—end-systolic area)/end-diastolic area × 100, was a measure of right ventricular systolic function [31]. All measurements were performed using ultrasound systems (ACUSON Sequoia, Siemens Medical Solutions USA, Inc., Mountain View, CA, USA).

2.4. Right Heart Catheterizations and Hemodynamic Measurements

Of the total 195 patients, RHC was partly performed based on the remedial judgment of the attending physician in 116 patients. The RHCs were all performed within 3 days of abdominal ultrasonography, and with the patients in a stable condition without changes in medications, including doses, similar to the setting for abdominal ultrasonography. All RHCs were performed with the patients, in a resting supine position under fluoroscopic guidance, at room air, and at rest for more than 30 min after catheter placement. Mean RAP and cardiac output were measured using a 7F Swan–Ganz catheter (Edwards Lifesciences, Irvine, CA, USA). Cardiac output was calculated based on the direct Fick method [32].

2.5. Measurement of Laboratory Data

The B-type natriuretic peptide (BNP) levels were measured using a specific immunoradiometric assay (Shionoria BNP kit, Shionogi, Osaka, Japan). The serum 7S domain of collagen type IV (P4NP 7S), which indicates liver fibrosis, was measured by radioimmunoassay (Type IV collagen 7S kit, SCETI MEDICAL LABO K.K., Tokyo, Japan) [32,33]. These assays were blindly performed by experienced laboratory technicians.

2.6. Statistical Analysis

Normally distributed data are presented as mean ± standard deviation, and nonnormally distributed data are presented as median and interquartile range. The categorical variables are expressed as numbers and percentages, and the Chi-square test was used for their comparisons. Parametric variables were compared using Student’s t-test, and nonparametric variables were compared using the Mann–Whitney U test. Correlations between SWD and the parameters of laboratory data, echocardiography or RHC, were assessed using Pearson’s correlation analysis for parametric variables and Spearman’s correlation analysis for non-parametric variables. Kaplan–Meier analysis was used with a log-rank test to assess cardiac event rates as composites of cardiac death or unplanned re-hospitalization for HF treatment. These curves helped in identifying non-proportionality patterns in hazard function such as convergence (difference in risk between the groups decreases with time), divergence, or crossing of the curves. In addition, a Schoenfeld test for the violation of proportional hazards, which can be used to assess the correlation between scaled residuals and time, was also conducted. We assessed SWD as a predictor for post-discharge cardiac events using the Cox proportional hazard analysis. To adjust clinical confounding factors, because of the small number of events and sample size, as well as the presence of multicollinearity, we did not perform multivariate Cox proportional hazard analysis, but instead performed subgroup analysis. The univariate Cox proportional hazard analysis led to subdivision into subgroups based on the presence or absence of categorical factors, and the median of continuous variables. Interaction p values were obtained using a multivariate model including SWD, subgroup factors, and interactions between SWD and subgroup factors. In the subgroup analysis, we considered p values of < 0.0028, which were determined by the Bonferroni correction, as statistically significant for all comparisons. In all comparisons other than those in the subgroup analysis, p values < 0.05 were considered statistically significant. These analyses were performed using a statistical software package (SPSS ver. 24.0, IBM, Armonk, NY, USA).

3. Results

Comparisons of patient characteristics between the low and high SWD groups are summarized in Table 1. The patients in the high SWD group were older, had a lower body mass index, and a higher prevalence of AF. In contrast, sex, blood pressure, heart rate, NYHA class, and other comorbidities, including coronary artery disease, hypertension, diabetes mellitus and anemia, did not differ between the groups. With regard to laboratory data, levels of direct bilirubin, alkaline phosphatase (ALP) and P4NP 7S were higher, and cholinesterase levels were lower in the high SWD group than in the low SWD group. However, total protein, albumin, aspartate aminotransferase, alanine aminotransferase, C-reactive protein, BNP, creatinine, estimated glomerular filtration rate and sodium did not differ between the two groups. Regarding the parameters of echocardiography and RHC, left atrial volume, mitral valve E/e′, right atrial end-systolic area, and inferior vena cava diameter were higher in the high SWD group than in the low SWD group. In contrast, LVEF, RV-FAC, TRPG, tricuspid valve S’, TAPSE, RAP, mean pulmonary artery pressure, and cardiac index were similar between the groups. In addition, there were significant associations between SWD and age, body mass index, the prevalence of AF and chronic kidney disease, levels of direct bilirubin, ALP, cholinesterase, P4NP 7S, and left atrial volume, but not with RAP or cardiac index. As shown in Figure 2, SWD was significantly correlated with P4NP 7S (R = 0.177, p = 0.014). These results suggest that elevated SWD indicates liver fibrosis, rather than liver congestion.
During the follow-up period (median 259 days; range 11–754 days), 26 cardiac events, including 5 cardiac deaths and 23 unplanned hospitalizations due to HF, occurred. As shown in Figure 3, in the Kaplan–Meier analysis, cardiac event rates were significantly higher in the high SWD group than in the low SWD group (log-rank, p = 0.010). In the univariate Cox proportional hazard analysis, high SWD was associated with high cardiac event rates (hazard ratio, 2.841; 95% confidence interval, 1.234–6.541, p = 0.014). In addition, there were no interactions between SWD and all subgroups (e.g., HFrEF, HFmrEF and HFpEF), according to the subgroup analysis (Table 2).

4. Discussion

In this study, we investigated the associations of SWD assessed by abdominal ultrasonography with LFT, RHC and echocardiography, as well as its prognostic impact in HF patients. The present study is, to the best of our knowledge, the first to report that the SWD, a marker of liver viscosity, is associated with higher cardiac events in HF patients.
Cardio-hepatic interaction has been reported. Increased central venous pressure causes hepatocyte atrophy and perisinusoidal edema in the liver, namely, hepatic congestion [5,7,34,35]. In HF patients, increased pressure within the hepatic sinusoid favors bile duct damage by disrupting endothelial cells, and the inter hepatocyte tight junctions that separate the extravascular space from the bile canaliculus. Further, stagnant flow favors thrombosis within sinusoids, hepatic venules, and portal tracts, thereby contributing to liver fibrosis [6,36]. Centrilobular necrosis can extend to peripheral areas and cause deposition and spread of connective tissue, bridging one central vein to another, finally leading to liver cirrhosis [6]. Cardiogenic ischemic hepatitis, known also as acute cardiogenic liver injury, is a clinical and histological syndrome leading to the reduction of hepatic blood flow due to acute fall in cardiac output [34,35]. Reduced hepatic blood flow can cause hypoxic hepatopathy, and hypoxia can cause centrilobular necrosis and sinusoidal damage in the liver, and leads to the elevation of transaminase [35].
With regards to LFT, liver dysfunction, such as the elevation of serum bilirubin, transaminase, ALP, gamma-glutamyl transferase and P4NP 7S, frequently occurs in right-sided HF, and is associated with disease severity and prognosis [6,37,38,39,40]. On the other hand, liver image testing (i.e., SWD) might reflect liver damage and histological findings and may predict prognosis more accurately than LFT.
In the present study, contrary to our expectations, high SWD was associated with liver fibrosis (P4NP 7S), but not with increased central venous pressure (i.e., RAP, inferior vena cava, TRPG), inflammation, necrosis (i.e., transaminase, gamma-glutamyl transferase) and hypoperfusion (i.e., cardiac index). Possible explanations are as follows: (1) Since we performed abdominal ultrasonography, echocardiography and RHC in HF patients who were in a stable condition, we may have failed to detect the peak of the increased central venous pressure in acute decompensated HF, and SWD might have reflected remaining fibrosis after improvement of congestion. (2) In general, liver fibrosis increases gradually in parallel with the stage progression of chronic liver disease. However, shear waves propagate disproportionally as fibrosis progresses [22,25,41,42,43]. Namely, SWD is increased in hepatitis patients, whereas SWD is decreased in cirrhosis patients (with grade 4 or 5 severe fibrosis) [41,44]. Thus, SWD is not an indicator of the degree of liver fibrosis in subjects with severe fibrosis. Fortunately, since we excluded distinct liver disease (including severe fibrosis) in the present study, we were able to precisely measure SWD, and observed associations between SWD and P4NP 7S (liver fibrosis). It has been reported that SWD decreases with the improvement of hepatic lobule inflammation by risk factor management in patients with nonalcoholic fatty liver disease [25]. HF patients with high SWD might indicate liver fibrosis, and decreasing central venous pressure by diuretic agents or anti-inflammatory therapy by statins, etc., might be useful to improve prognosis in such patients

5. Study Limitations

The current study has several limitations. First, as a prospective cohort study of a single center with a relatively small number of patients and a short follow-up period, the study may be somewhat underpowered. Although we performed subgroup analysis, we could not fully adjust the confounding factors. Second, although HF patients with documented liver disease were excluded, we were unable to completely exclude the presence of liver diseases, which may have affected the hepatic ultrasound imaging results. Therefore, if these HF patients already had disorders of liver stiffness or fibrosis, it would not be related to only increased central venous pressure. The relationships between SWD and other fibrosis evaluations such as liver biopsy, which is not generally performed in HF patients, or imaging (e.g., computed tomography, magnetic resonance imaging), or biomarker other than P4NP 7S (e.g., circulating pro-collagen type I or propeptide of type III collagen) should be assessed in further studies. Third, we conducted the present study using only variables during hospitalization, without taking into consideration changes in medical parameters or treatments after discharge. Fourth, since the attending physicians were the ones who decided whether RHC should be performed, there might be a potential selection bias. Therefore, the present results should be viewed as preliminary, and further studies with a larger population are needed. Fifth, the hemodynamics of HF patients changes dynamically. Thus, we should assess alterations of SWD in response to hemodynamic changes in further studies.

6. Conclusions

SWD assessed by abdominal ultrasonography reflects liver fibrosis rather than liver congestion, and is associated with adverse prognosis in HF patients.

Author Contributions

Conceptualization, H.O., A.Y., Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.S. (Yu Sato), Y.K., T.Y., T.M., T.S., M.O., A.K. and Y.T.; methodology, H.O., A.Y., Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.S. (Yu Sato), Y.K., T.Y., T.M., T.S., M.O., A.K. and Y.T.; formal analysis, H.O., A.Y., Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.S. (Yu Sato), Y.K., T.Y., T.M., T.S., M.O. and A.K.; investigation, H.O., A.Y., Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.S. (Yu Sato), Y.K., T.Y., T.M., T.S., M.O. and A.K.; resources, S.I., M.M. and Y.Y.; data curation, H.O., A.Y., Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.S. (Yu Sato), Y.K., T.Y., T.M., T.S., M.O., A.K. and Y.T.; writing—original draft preparation, H.O., A.Y. and Y.S. (Yu Sato); writing—review and editing, Y.S. (Yukiko Sugawara), Y.I., Y.H., K.W., F.A., Y.K., T.Y., T.M., T.S., M.O., A.K. and Y.T.; visualization, H.O., S.I., M.M. and Y.Y.; supervision, A.Y. and Y.T.; project administration, A.Y. and Y.T.; funding acquisition, A.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by a grant-in-aid for Scientific Research (No. 20K07828) from the Japan Society for the Promotion of Science, Tokyo, Japan.

Acknowledgments

The authors acknowledge the efforts of Kumiko Watanabe, Yumi Yoshihisa, and Tomiko Miura for their outstanding technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ambrosy, A.P.; Fonarow, G.C.; Butler, J.; Chioncel, O.; Greene, S.J.; Vaduganathan, M.; Nodari, S.; Lam, C.S.; Sato, N.; Shah, A.N.; et al. The global health and economic burden of hospitalizations for heart failure: Lessons learned from hospitalized heart failure registries. J. Am. Coll. Cardiol. 2014, 63, 1123–1133. [Google Scholar] [CrossRef] [PubMed]
  2. Lloyd-Jones, D.M.; Larson, M.G.; Leip, E.P.; Beiser, A.; D’Agostino, R.B.; Kannel, W.B.; Murabito, J.M.; Vasan, R.S.; Benjamin, E.J.; Levy, D. Lifetime risk for developing congestive heart failure: The Framingham Heart Study. Circulation 2002, 106, 3068–3072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Go, A.S.; Mozaffarian, D.; Roger, V.L.; Benjamin, E.J.; Berry, J.D.; Blaha, M.J.; Dai, S.; Ford, E.S.; Fox, C.S.; Franco, S.; et al. Heart disease and stroke statistics--2014 update: A report from the American Heart Association. Circulation 2014, 129, e28–e292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Okura, Y.; Ramadan, M.M.; Ohno, Y.; Mitsuma, W.; Tanaka, K.; Ito, M.; Suzuki, K.; Tanabe, N.; Kodama, M.; Aizawa, Y. Impending epidemic: Future projection of heart failure in Japan to the year. Circ. J. 2008, 72, 489–491. [Google Scholar] [CrossRef] [Green Version]
  5. Samsky, M.D.; Patel, C.B.; Dewald, T.A.; Smith, A.D.; Felker, G.M.; Rogers, J.G.; Hernandez, A.F. Cardiohepatic interactions in heart failure: An overview and clinical implications. J. Am. Coll. Cardiol. 2013, 61, 2397–2405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Moller, S.; Bernardi, M. Interactions of the heart and the liver. Eur. Heart J. 2013, 34, 2804–2811. [Google Scholar] [CrossRef]
  7. Nikolaou, M.; Parissis, J.; Yilmaz, M.B.; Seronde, M.-F.; Kivikko, M.; Laribi, S.; Paugam-Burtz, C.; Cai, D.; Pohjanjousi, P.; Laterre, P.-F.; et al. Liver function abnormalities, clinical profile, and outcome in acute decompensated heart failure. Eur. Hear. J. 2012, 34, 742–749. [Google Scholar] [CrossRef]
  8. Jalal, Z.; Iriart, X.; De Lédinghen, V.; Barnetche, T.; Hiriart, J.-B.; Vergniol, J.; Foucher, J.; Thambo, J.-B. Liver stiffness measurements for evaluation of central venous pressure in congenital heart diseases. Hear. 2015, 101, 1499–1504. [Google Scholar] [CrossRef]
  9. Xie, L.-T.; Yan, C.-H.; Zhao, Q.-Y.; He, M.-N.; Jiang, T. Quantitative and noninvasive assessment of chronic liver diseases using two-dimensional shear wave elastography. World J. Gastroenterol. 2018, 24, 957–970. [Google Scholar] [CrossRef]
  10. Chung, M.; Baird, G.L.; Weiss, K.E.; Beland, M.D. 2D shear wave elastography: Measurement acquisition and reliability criteria in noninvasive assessment of liver fibrosis. Abdom. Radiol. 2019, 44, 3285–3294. [Google Scholar] [CrossRef]
  11. European Association for the Study of the Liver; Asociación Latinoamericana para el Estudio del Hígado. EASL-ALEH Clinical Practice Guidelines: Non-invasive tests for evaluation of liver disease severity and prognosis. J. Hepatol. 2015, 63, 237–264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Dietrich, C.F.; Bamber, J.; Berzigotti, A.; Bota, S.; Cantisani, V.; Castera, L.; Cosgrove, D.O.; Ferraioli, G.; Friedrich-Rust, M.; Gilja, O.H.; et al. EFSUMB Guidelines and Recommendations on the Clinical Use of Liver Ultrasound Elastography, Update 2017 (Long Version). Ultraschall. Med. 2017, 38, e16–e47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ferraioli, G.; Tinelli, C.; Bello, B.D.; Zicchetti, M.; Filice, G.; Filice, C. Group Accuracy of real-time shear wave elastography for assessing liver fibrosis in chronic hepatitis C: A pilot study. Hepatology 2012, 56, 2125–2133. [Google Scholar] [CrossRef] [PubMed]
  14. Leung, V.Y.-F.; Shen, J.; Wong, V.W.-S.; Abrigo, J.; Wong, G.L.-H.; Chim, A.M.-L.; Chu, S.H.-T.; Chan, A.W.-H.; Choi, P.C.-L.; Ahuja, A.T.; et al. Quantitative Elastography of Liver Fibrosis and Spleen Stiffness in Chronic Hepatitis B Carriers: Comparison of Shear-Wave Elastography and Transient Elastography with Liver Biopsy Correlation. Radiol. 2013, 269, 910–918. [Google Scholar] [CrossRef]
  15. Park, S.H.; Kim, S.Y.; Suh, C.H.; Lee, S.S.; Kim, K.W.; Lee, S.J.; Lee, M.-G. What we need to know when performing and interpreting US elastography. Clin. Mol. Hepatol. 2016, 22, 406–414. [Google Scholar] [CrossRef] [Green Version]
  16. Sandrin, L.; Fourquet, B.; Hasquenoph, J.-M.; Yon, S.; Fournier, C.; Mal, F.; Christidis, C.; Ziol, M.; Poulet, B.; Kazemi, F.; et al. Transient elastography: A new noninvasive method for assessment of hepatic fibrosis. Ultrasound Med. Biol. 2003, 29, 1705–1713. [Google Scholar] [CrossRef]
  17. Yoshihisa, A.; Ishibashi, S.; Matsuda, M.; Yamadera, Y.; Ichijo, Y.; Sato, Y.; Yokokawa, T.; Misaka, T.; Oikawa, M.; Kobayashi, A.; et al. Clinical Implications of Hepatic Hemodynamic Evaluation by Abdominal Ultrasonographic Imaging in Patients With Heart Failure. J. Am. Hear. Assoc. 2020, 9, 016689. [Google Scholar] [CrossRef]
  18. Taniguchi, T.; Sakata, Y.; Ohtani, T.; Mizote, I.; Takeda, Y.; Asano, Y.; Masuda, M.; Minamiguchi, H.; Kanzaki, M.; Ichibori, Y.; et al. Usefulness of Transient Elastography for Noninvasive and Reliable Estimation of Right-Sided Filling Pressure in Heart Failure. Am. J. Cardiol. 2014, 113, 552–558. [Google Scholar] [CrossRef]
  19. Colli, A.; Pozzoni, P.; Berzuini, A.; Gerosa, A.; Canovi, C.; Molteni, E.E.; Barbarini, M.; Bonino, F.; Prati, D. Decompensated Chronic Heart Failure: Increased Liver Stiffness Measured by Means of Transient Elastography. Radiology 2010, 257, 872–878. [Google Scholar] [CrossRef]
  20. Mueller, S.; Sandrin, L. Liver stiffness: A novel parameter for the diagnosis of liver disease. Hepat. Med. 2010, 2, 49–67. [Google Scholar] [CrossRef] [Green Version]
  21. Millonig, G.; Friedrich, S.; Adolf, S.; Fonouni, H.; Golriz, M.; Mehrabi, A.; Stiefel, P.; Pöschl, G.; Büchler, M.W.; Seitz, H.K.; et al. Liver stiffness is directly influenced by central venous pressure. J. Hepatol. 2010, 52, 206–210. [Google Scholar] [CrossRef] [PubMed]
  22. Sugimoto, K.; Moriyasu, F.; Oshiro, H.; Takeuchi, H.; Yoshimasu, Y.; Kasai, Y.; Furuichi, Y.; Itoi, T. Viscoelasticity Measurement in Rat Livers Using Shear-Wave US Elastography. Ultrasound Med. Biol. 2018, 44, 2018–2024. [Google Scholar] [CrossRef] [PubMed]
  23. Barry, C.T.; Mills, B.; Hah, Z.; Mooney, R.A.; Ryan, C.K.; Rubens, D.J.; Parker, K.J. Shear Wave Dispersion Measures Liver Steatosis. Ultrasound Med. Biol. 2012, 38, 175–182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lee, D.H.; Lee, J.Y.; Bae, J.S.; Yi, N.-J.; Lee, K.-W.; Suh, K.-S.; Kim, H.; Lee, K.B.; Han, J.K. Shear-Wave Dispersion Slope from US Shear-Wave Elastography: Detection of Allograft Damage after Liver Transplantation. Radiology 2019, 293, 327–333. [Google Scholar] [CrossRef]
  25. Sugimoto, K.; Moriyasu, F.; Oshiro, H.; Takeuchi, H.; Yoshimasu, Y.; Kasai, Y.; Itoi, T. Clinical utilization of shear wave dispersion imaging in diffuse liver disease. Ultrasonography 2020, 39, 3–10. [Google Scholar] [CrossRef] [Green Version]
  26. Czaja, A.J. Hepatic inflammation and progressive liver fibrosis in chronic liver disease. World J. Gastroenterol 2014, 20, 2515–2532. [Google Scholar] [CrossRef]
  27. Chen, S.; Urban, M.W.; Pislaru, C.; Kinnick, R.; Greenleaf, J.F. Liver elasticity and viscosity quantification using shearwave dispersion ultrasound vibrometry (SDUV). Conf. Proc. IEEE Eng. Med. Biol. Soc. 2009, 2009, 2252–2255. [Google Scholar] [CrossRef]
  28. Yancy, C.W.; Jessup, M.; Bozkurt, B.; Butler, J.; Casey, D.E.; Drazner, M.H.; Fonarow, G.C.; Geraci, S.A.; Horwich, T.; Januzzi, J.L.; et al. 2013 ACCF/AHA guideline for the management of heart failure: A report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines. J. Am. Coll. Cardiol. 2013, 62, e147–e239. [Google Scholar] [CrossRef] [Green Version]
  29. Ferraioli, G.; Wong, V.W.-S.; Castera, L.; Berzigotti, A.; Sporea, I.; Dietrich, C.F.; Choi, B.I.; Wilson, S.R.; Kudo, M.; Barr, R.G. Liver Ultrasound Elastography: An Update to the World Federation for Ultrasound in Medicine and Biology Guidelines and Recommendations. Ultrasound Med. Biol. 2018, 44, 2419–2440. [Google Scholar] [CrossRef] [Green Version]
  30. Yoshihisa, A.; Takiguchi, M.; Shimizu, T.; Nakamura, Y.; Yamauchi, H.; Iwaya, S.; Owada, T.; Miyata, M.; Abe, S.; Sato, T.; et al. Cardiovascular function and prognosis of patients with heart failure coexistent with chronic obstructive pulmonary disease. J. Cardiol. 2014, 64, 256–264. [Google Scholar] [CrossRef] [Green Version]
  31. Rudski, L.G.; Lai, W.W.; Afilalo, J.; Hua, L.; Handschumacher, M.D.; Chandrasekaran, K.; Solomon, S.D.; Louie, E.K.; Schiller, N.B. Guidelines for the echocardiographic assessment of the right heart in adults: A report from the American Society of Echocardiography endorsed by the European Association of Echocardiography, a registered branch of the European Society of Cardiology, and the Canadian Society of Echocardiography. J. Am. Soc. Echocardiogr. 2010, 23, 685–713. [Google Scholar] [CrossRef] [PubMed]
  32. Yoshihisa, A.; Kimishima, Y.; Kiko, T.; Sato, Y.; Watanabe, S.; Kanno, Y.; Abe, S.; Miyata-Tatsumi, M.; Sato, T.; Suzuki, S.; et al. Liver fibrosis marker, 7S domain of collagen type IV, in patients with pre-capillary pulmonary hypertension. Int. J. Cardiol. 2018, 258, 269–274. [Google Scholar] [CrossRef] [PubMed]
  33. Leeming, D.J.; Nielsen, M.J.; Dai, Y.; Veidal, S.S.; Vassiliadis, E.; Zhang, C.; He, Y.; Vainer, B.; Zheng, Q.; Karsdal, M.A. Enzyme-linked immunosorbent serum assay specific for the 7S domain of Collagen Type IV (P4NP 7S): A marker related to the extracellular matrix remodeling during liver fibrogenesis. Hepatol. Res. 2012, 42, 482–493. [Google Scholar] [CrossRef]
  34. Xanthopoulos, A.; Starling, R.C.; Kitai, T.; Triposkiadis, F. Heart Failure and Liver Disease: Cardiohepatic Interactions. JACC Heart Fail 2019, 7, 87–97. [Google Scholar] [CrossRef] [PubMed]
  35. El Hadi, H.; Di Vincenzo, A.; Vettor, R.; Rossato, M. Relationship between Heart Disease and Liver Disease: A Two-Way Street. Cells 2020, 9, 567. [Google Scholar] [CrossRef] [Green Version]
  36. Cogger, V.C.; Fraser, R.; Le Couteur, D.G. Liver dysfunction and heart failure. Am. J. Cardiol. 2003, 91, 1399. [Google Scholar] [CrossRef]
  37. Verbrugge, F.H.; Dupont, M.; Steels, P.; Grieten, L.; Malbrain, M.; Tang, W.W.; Mullens, W. Abdominal Contributions to Cardiorenal Dysfunction in Congestive Heart Failure. J. Am. Coll. Cardiol. 2013, 62, 485–495. [Google Scholar] [CrossRef]
  38. Sato, Y.; Yoshihisa, A.; Kanno, Y.; Watanabe, S.; Yokokawa, T.; Abe, S.; Misaka, T.; Sato, T.; Suzuki, S.; Oikawa, M.; et al. Liver stiffness assessed by Fibrosis-4 index predicts mortality in patients with heart failure. Open Hear. 2017, 4, e000598. [Google Scholar] [CrossRef]
  39. Yoshihisa, A.; Sato, Y.; Yokokawa, T.; Sato, T.; Suzuki, S.; Oikawa, M.; Kobayashi, A.; Yamaki, T.; Kunii, H.; Nakazato, K.; et al. Liver fibrosis score predicts mortality in heart failure patients with preserved ejection fraction. ESC Hear. Fail. 2018, 5, 262–270. [Google Scholar] [CrossRef]
  40. Abe, S.; Yoshihisa, A.; Takiguchi, M.; Shimizu, T.; Nakamura, Y.; Yamauchi, H.; Iwaya, S.; Owada, T.; Miyata, M.; Sato, T.; et al. Liver Dysfunction Assessed by Model for End-Stage Liver Disease Excluding INR (MELD-XI) Scoring System Predicts Adverse Prognosis in Heart Failure. PLoS ONE 2014, 9, e100618. [Google Scholar] [CrossRef]
  41. Chen, S.; Sanchez, W.; Callstrom, M.R.; Gorman, B.; Lewis, J.T.; Sanderson, S.O.; Greenleaf, J.F.; Xie, H.; Shi, Y.; Pashley, M.; et al. Assessment of Liver Viscoelasticity by Using Shear Waves Induced by Ultrasound Radiation Force. Radiology 2013, 266, 964–970. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Deffieux, T.; Gennisson, J.-L.; Bousquet, L.; Corouge, M.; Cosconea, S.; Amroun, D.; Tripon, S.; Terris, B.; Mallet, V.; Sogni, P.; et al. Investigating liver stiffness and viscosity for fibrosis, steatosis and activity staging using shear wave elastography. J. Hepatol. 2015, 62, 317–324. [Google Scholar] [CrossRef] [PubMed]
  43. Sugimoto, K.; Moriyasu, F.; Oshiro, H.; Takeuchi, H.; Abe, M.; Yoshimasu, Y.; Kasai, Y.; Sakamaki, K.; Hara, T.; Itoi, T. The Role of Multiparametric US of the Liver for the Evaluation of Nonalcoholic Steatohepatitis. Radiology 2020, 296, 532–540. [Google Scholar] [CrossRef] [PubMed]
  44. Huwart, L.; Sempoux, C.; Salameh, N.; Jamart, J.; Annet, L.; Sinkus, R.; Peeters, F.; Ter Beek, L.C.; Horsmans, Y.; Van Beers, B.E. Liver Fibrosis: Noninvasive Assessment with MR Elastography versus Aspartate Aminotransferase–to-Platelet Ratio Index. Radiology 2007, 245, 458–466. [Google Scholar] [CrossRef] [PubMed]
Jcm 09 03953 g001 550
Figure 1. Representative images of shear wave dispersion (SWD) in a patient with heart failure (HF). A 3 × 3 cm sized sample box was placed in the liver parenchyma and then shear wave propagation was activated by using acoustic radiation force. The shear wave propagation was seen within the sample box as smooth parallel lines indicating a stable measurement condition. Two regions of interest with a diameter of 1.0 cm are placed within the sample box. The SWD on its map is as follows. T1: 11.55 (m/s)/kHz, T2: 11.27 (m/s)/kHz.
Figure 1. Representative images of shear wave dispersion (SWD) in a patient with heart failure (HF). A 3 × 3 cm sized sample box was placed in the liver parenchyma and then shear wave propagation was activated by using acoustic radiation force. The shear wave propagation was seen within the sample box as smooth parallel lines indicating a stable measurement condition. Two regions of interest with a diameter of 1.0 cm are placed within the sample box. The SWD on its map is as follows. T1: 11.55 (m/s)/kHz, T2: 11.27 (m/s)/kHz.
Jcm 09 03953 g001
Jcm 09 03953 g002 550

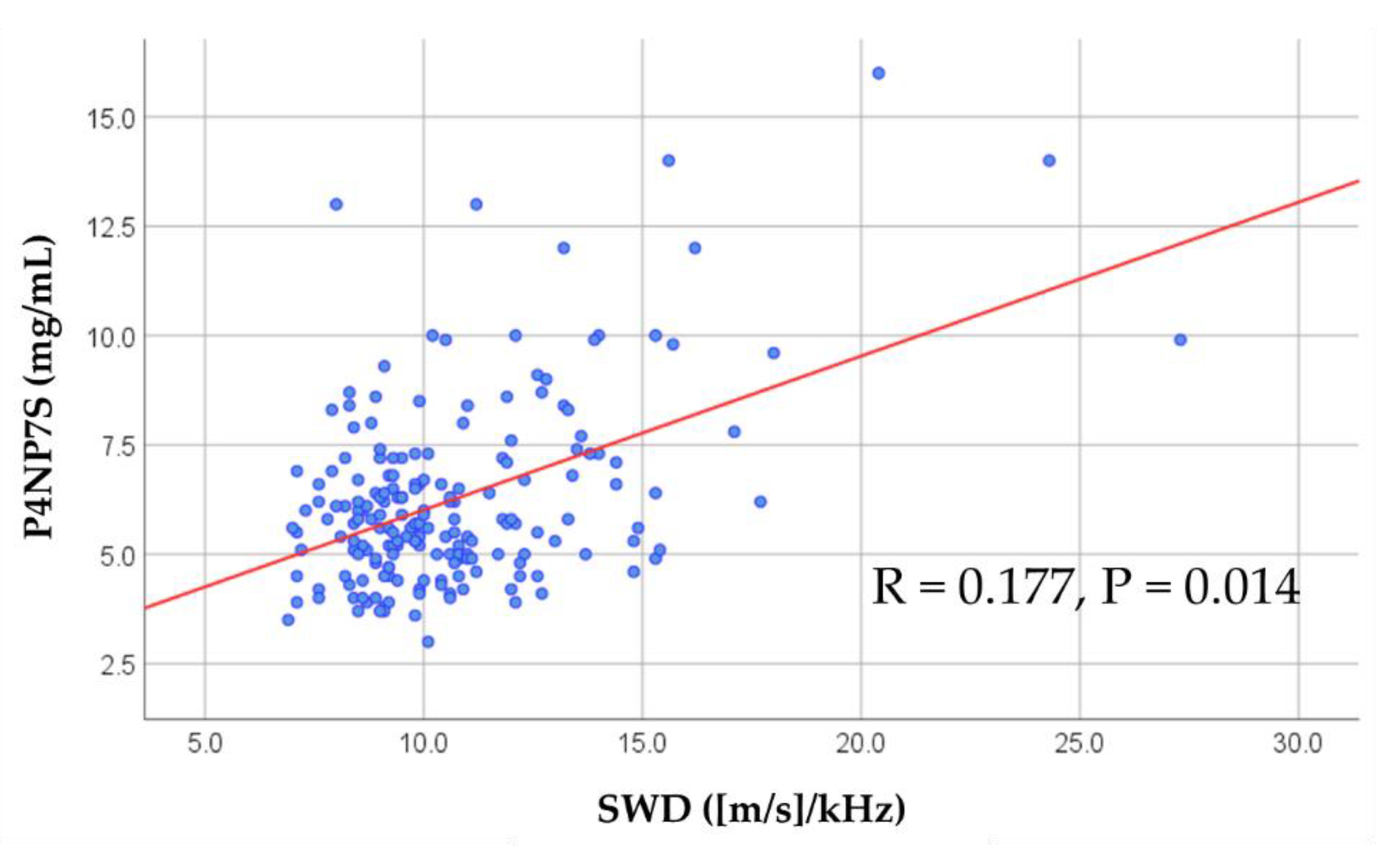

Figure 2. Correlation between SWD and P4NP 7S. SWD indicates shear wave dispersion and P4NP 7S indicates 7S domain of collagen type IV.
Figure 2. Correlation between SWD and P4NP 7S. SWD indicates shear wave dispersion and P4NP 7S indicates 7S domain of collagen type IV.
Jcm 09 03953 g002
Jcm 09 03953 g003 550

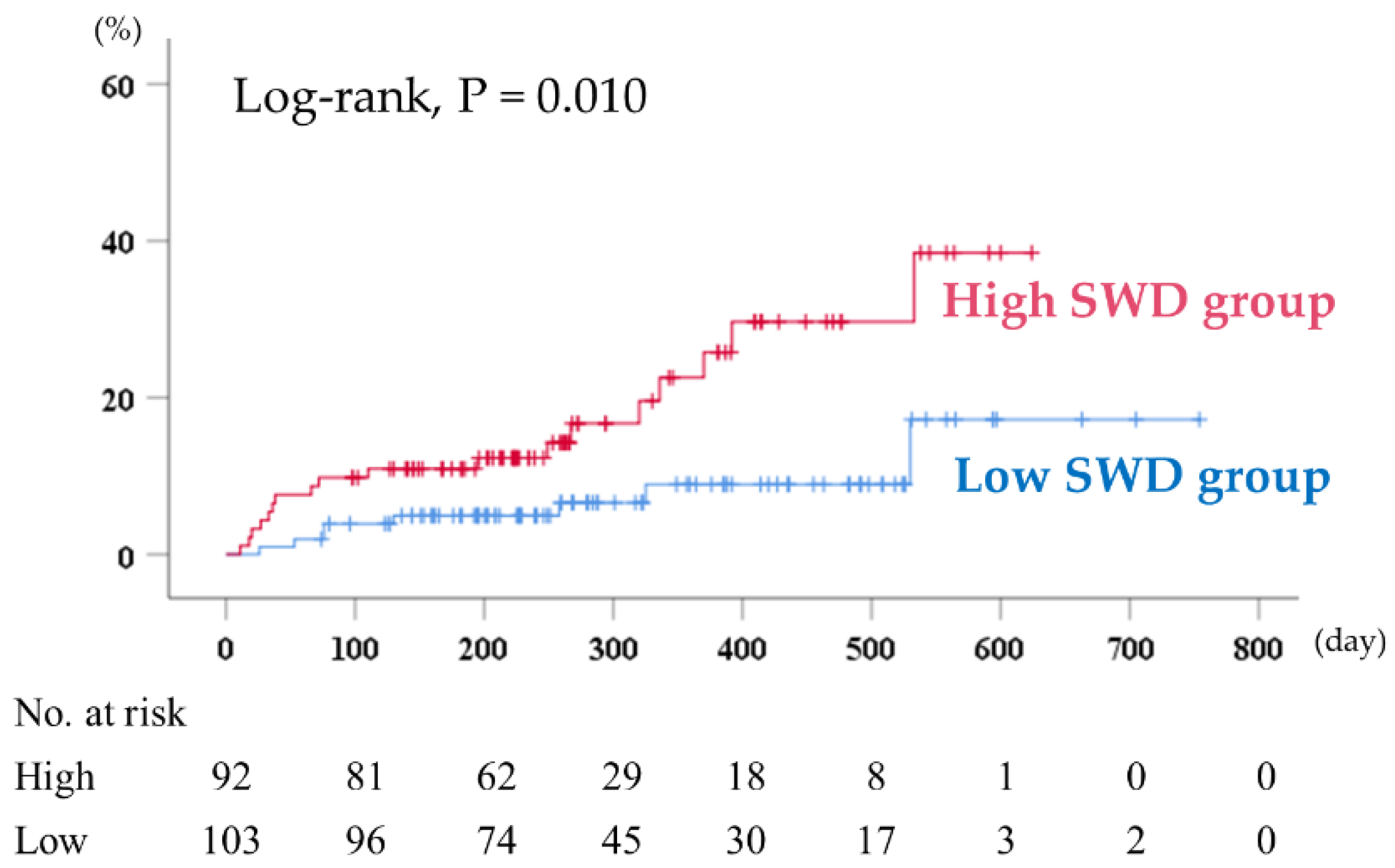

Figure 3. Kaplan–Meier analysis for cardiac event rates stratified by SWD levels. SWD indicates shear wave dispersion.
Figure 3. Kaplan–Meier analysis for cardiac event rates stratified by SWD levels. SWD indicates shear wave dispersion.
Jcm 09 03953 g003
Table
Table 1. Comparisons of patient characteristics (n = 195).
Table 1. Comparisons of patient characteristics (n = 195).
SWD Group (Low vs. High)Correlation with SWD
Low SWD
(SWD < 10.0, n = 103)		High SWD
(10.0 ≤ SWD, n = 92)		p-ValueCorrelation Coefficientp-Value
SWD ((m/s)/kHz)9.0 (8.4–9.4)12.0 (10.7–13.7)<0.001--
Demographics
Age (years)70.0 (61.0–80.0)75.5 (67.0–83.0)0.0030.1730.015
Male sex (n, %)38 (41.3)54 (58.7)0.5430.0550.442
Body mass index (kg/m2)23.8 ± 3.322.2 ± 4.10.003−0.2080.003
Systolic BP (mmHg)119.0 (108.0–137.0)122.0 (101.0–132.0)0.236−0.0750.298
Diastolic BP (mmHg)69.0 ± 12.767.2 ± 12.30.339−0.0690.340
Heart rate (bpm)67.0 (59.0–80.0)70.0 (62.0–82.0)0.2570.0910.205
NYHA class III or IV8 (7.8)6 (6.6)0.753−0.0100.885
Past hospitalization due to HF35 (34.0)24 (26.1)0.231−0.0860.233
The use of more than
once class of a diuretic		29 (28.2)32 (34.8)0.3190.0710.322
Etiology
Ischemic/myopathy/
valvular/arrhythmia/pulmonary/congenital/others		19(18.4)/28 (27.2)/
35 (34.0)/10 (9.7)/
7 (6.8)/
2 (1.9)/2(1.9)		17(18.5)/16 (17.4)/45 (48.9)/8 (8.7)/3 (3.3)/
2(2.2)/1(1.1)		0.402--
Comorbidities
CAD (n, %)27 (26.2)24 (26.1)0.984−0.0320.653
Atrial fibrillation (n, %)27 (26.2) 42 (45.7)0.0050.1640.022
Hypertension (n, %)70 (68.0)59 (64.1)0.5730.0190.791
Dyslipidemia (n, %)75 (72.8)57 (62.0)0.106−0.0730.309
Diabetes mellitus (n, %)37 (35.9)39 (42.4)0.3550.0710.323
CKD (n, %)58 (56.3)64 (69.6)0.0560.1930.007
Anemia (n, %)43 (41.7)47 (51.1)0.1920.0670.355
Laboratory data
Total protein (g/dL)7.0 ± 0.76.9 ± 0.80.291−0.0790.273
Albumin (g/dL)4.0 (3.6–4.3)3.8 (3.4–4.2)0.100−0.1180.100
Total bilirubin (mg/dL)0.7 (0.6–1.0)0.8 (0.6–1.1)0.1810.0960.182
Direct bilirubin (mg/dL)0.1 (0.1–0.1)0.1 (0.1–0.1)0.0020.2220.002
AST (U/L)21.0 (17.0–27.0)23.0 (18.0–28.0)0.1240.1100.125
ALT (U/L)19.0 (12.0–26.0)16.5 (13.0–23.0)0.496−0.0490.498
Alkaline phosphatase (U/L)223.0 (176.0–269.0)257.0 (203.0–314.3)0.0020.2190.002
Gamma-glutamyl transferase (U/L)33.0 (18.0–58.0)42.5 (21.0–82.8)0.1420.1050.143
Cholinesterase (U/L)266.0 (217.0–331.0)232.5 (185.8–303.0)0.011−0.1840.011
Log CRP (mg/dL)−0.82 (−1.22–−0.19)−0.66 (−1.05–−0.09)0.0900.1220.090
P4NP 7S (ng/mL)5.6 (4.7–6.5)6.0 (5.0–8.1)0.0150.1770.014
Log BNP (pg/mL)2.26 (1.94–2.48)2.34 (1.90–2.69)0.1410.0950.185
Creatinine (mg/dL)0.99 (0.86–1.19)1.09 (0.82–1.34)0.5050.0480.507
eGFR (mL/min/1.73 cm2)52.0 (41.0–64.0) 48.5 (36.8–60.3)0.435−0.0560.437
Sodium (mEq/L)140.0 (138.0–141.0) 140.0 (139.0–141.0) 0.742−0.0240.743
Echocardiography
LV ejection fraction (%)55.1 ± 15.854.4 ± 15.70.8580.0230.753
Left atrial volume (mL)77.8 ± 41.096.7 ± 55.50.0010.1970.007
Mitral valve E/e’12.7 ± 8.314.8 ± 8.50.0290.1350.066
RA end-systolic area (cm2)16.6 ± 6.620.0 ± 7.50.0060.1180.275
RV area diastole (cm2)19.5 ± 7.821.7 ± 7.70.154−0.2040.299
RV area systole (cm2)12.4 ± 6.613.8 ± 7.00.303−0.1510.442
RV-FAC (%)38.1 ± 11.338.6 ± 11.70.808−0.1540.112
IVC (mm)14.7 ± 3.616.1 ± 4.80.0040.1040.148
TRPG (mmHg)25.3 ± 12.226.8 ± 12.80.3500.1380.067
Tricuspid valve S’ (cm)10.9 ± 3.610.2 ± 3.30.161−0.1650.224
TAPSE18.7 ± 4.318.4 ± 4.90.607−0.0300.688
Right heart catheterization
RAP (mmHg)7.0 (5.0–9.0)7.0 (5.0–10.0)0.5640.0540.567
Mean PAP (mmHg)22.5 (17.0–33.0)22.5 (18.0–29.0)0.871−0.0150.872
Cardiac index (L/min/m2)2.4 (2.1–2.9)2.4 (2.1–2.8)0.879−0.0150.880
SWD, shear wave dispersion; BP, blood pressure; NYHA, New York Heart Association; CAD, coronary artery disease; CKD, chronic kidney disease; AST, aspartate aminotransferase; ALT, alanine aminotransferase; log CRP, log-transformed C-reactive protein; Gamma-glutamyl transferase P4NP 7S, 7S domain of collagen type IV; log BNP, log-transformed B-type natriuretic peptide; eGFR, estimated glomerular filtration rate; LV, left ventricle; RA, right atrial; RV, right ventricle; RV-FAC, right ventricle fractional area change; IVC, inferior vena cava diameter; TRPG, tricuspid regurgitation pressure gradient; TAPSE, tricuspid annular plane systolic excursion; RAP, right atrium pressure; PAP, pulmonary artery pressure.
Table
Table 2. Subgroup analysis for predicting cardiac events (26 events/n = 195): the impact of high SWD (vs. low SWD).
Table 2. Subgroup analysis for predicting cardiac events (26 events/n = 195): the impact of high SWD (vs. low SWD).
FactorSubgroupnHR95% CIp-ValueInteraction
p-Value
Total 1952.8411.234–6.5410.014-
Demographic data
Age<72892.3560.713–7.7820.1600.656
≥72 1063.4660.976–12.3090.055
Sex Male1101.8220.662–5.0190.2460.200
Female855.6791.203–26.8150.028
Body mass index <23962.0790.738–5.8530.1660.269
≥23993.1970.760–13.4520.113
Systolic blood pressure<120953.7471.334–10.5260.0120.432
≥1201001.7610.420–7.3790.439
Diastolic blood pressure<67902.4190.838–6.9820.1020.793
≥671053.2330.835–12.5160.089
Heart rate<69911.3090.440–3.8970.6280.053
≥6910412.8151.663–98.7610.014
NYHA functional class I or II1802.5551.041–6.2720.0410.598
III or IV144.5460.349–59.1920.248
Past hospitalization
due of HF		Yes593.4541.038–11.4950.0430.815
No1362.7320.856–8.7190.090
The use of more than
once class of a diuretic		Yes612.7710.750–10.2380.1260.954
No1342.5390.848–7.6010.096
CAD Yes510.8750.212–3.6210.8540.057
No1444.9851.631–15.2380.005
Atrial fibrillation Yes693.2960.707–15.3700.1290.862
No1262.6870.948–7.6120.063
Hypertension Yes1296.3791.831–22.2210.0040.033
No660.7540.217–3.0270.810
Dyslipidemia Yes1314.7331.522–14.7170.0070.111
No631.1520.321–4.1260.828
Diabetes mellitus Yes752.7230.954–7.7730.0610.993
No1192.7210.680–10.8910.157
CKDYes1222.8301.026–7.8080.0450.760
No732.0150.403–10.0820.394
AnemiaYes904.1941.194–14.7250.0250.294
No1051.6370.470–5.7090.439
BNP<195.4972.7730.506–15.1870.2400.885
≥195.4982.4490.941–6.3760.067
EFHFrEF1105.0181.084–23.2290.0390.207
HFmrEF24---
HFpEF611.8760.666–5.2880.234
HR, hazard ratio; CI, confidence interval; HFrEF, heart failure with reduced ejection fraction; HFmrEF, heart failure with mid-range ejection fraction; HFpEF, heart failure with preserved ejection fraction.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ohara, H.; Yoshihisa, A.; Ishibashi, S.; Matsuda, M.; Yamadera, Y.; Sugawara, Y.; Ichijo, Y.; Hotsuki, Y.; Watanabe, K.; Anzai, F.; et al. Shear Wave Dispersion Predicts Liver Fibrosis and Adverse Outcomes in Patients with Heart Failure. J. Clin. Med. 2020, 9, 3953. https://doi.org/10.3390/jcm9123953

AMA Style

Ohara H, Yoshihisa A, Ishibashi S, Matsuda M, Yamadera Y, Sugawara Y, Ichijo Y, Hotsuki Y, Watanabe K, Anzai F, et al. Shear Wave Dispersion Predicts Liver Fibrosis and Adverse Outcomes in Patients with Heart Failure. Journal of Clinical Medicine. 2020; 9(12):3953. https://doi.org/10.3390/jcm9123953

Chicago/Turabian Style

Ohara, Himika, Akiomi Yoshihisa, Shinji Ishibashi, Mitsuko Matsuda, Yukio Yamadera, Yukiko Sugawara, Yasuhiro Ichijo, Yu Hotsuki, Koichiro Watanabe, Fumiya Anzai, and et al. 2020. "Shear Wave Dispersion Predicts Liver Fibrosis and Adverse Outcomes in Patients with Heart Failure" Journal of Clinical Medicine 9, no. 12: 3953. https://doi.org/10.3390/jcm9123953

APA Style

Ohara, H., Yoshihisa, A., Ishibashi, S., Matsuda, M., Yamadera, Y., Sugawara, Y., Ichijo, Y., Hotsuki, Y., Watanabe, K., Anzai, F., Sato, Y., Kimishima, Y., Yokokawa, T., Misaka, T., Sato, T., Oikawa, M., Kobayashi, A., & Takeishi, Y. (2020). Shear Wave Dispersion Predicts Liver Fibrosis and Adverse Outcomes in Patients with Heart Failure. Journal of Clinical Medicine, 9(12), 3953. https://doi.org/10.3390/jcm9123953

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
