Review

Currents Status, Challenges, and Future Directions in Identifying Critical Source Areas for Non-Point Source Pollution in Canadian Conditions

1
School of Engineering, University of Guelph, Guelph, ON N1G 2W1, Canada
2
Ontario Ministry of the Environment, Conservation and Parks, Etobicoke, ON M9P 3V6, Canada
3
School of Environmental Sciences, University of Guelph, ON N1G 2W1, Canada
*
Author to whom correspondence should be addressed.
Agriculture 2020, 10(10), 468; https://doi.org/10.3390/agriculture10100468
Submission received: 9 September 2020 / Revised: 2 October 2020 / Accepted: 5 October 2020 / Published: 12 October 2020
(This article belongs to the Section Agricultural Water Management)

Abstract

:
Non-point source (NPS) pollution is an important problem that has been threatening freshwater resources throughout the world. Best Management Practices (BMPs) can reduce NPS pollution delivery to receiving waters. For economic reasons, BMPs should be placed at critical source areas (CSAs), which are the areas contributing most of the NPS pollution. The CSAs are the areas in a watershed where source coincides with transport factors, such as runoff, erosion, subsurface flow, and channel processes. Methods ranging from simple index-based to detailed hydrologic and water quality (HWQ) models are being used to identify CSAs. However, application of these methods for Canadian watersheds remains challenging due to the diversified hydrological conditions, which are not fully incorporated into most existing methods. The aim of this work is to review potential methods and challenges in identifying CSAs under Canadian conditions. As such, this study: (a) reviews different methods for identifying CSAs; (b) discusses challenges and the current state of CSA identification; and (c) highlights future research directions to address limitations of currently available methods. It appears that applications of both simple index-based methods and detailed HWQ models to determine CSAs are limited in Canadian conditions. As no single method/model is perfect, it is recommended to develop a ‘Toolbox’ that can host a variety of methods to identify CSAs so as to allow flexibility to the end users on the choice of the methods.

1. Introduction

Deterioration of water quality has become a leading problem as human populations continue to grow, and industrial and agricultural activities are expanding [1,2,3]. Furthermore, climate change threatens alterations to the hydrological cycle that in turn will have serious implications on water quality [4,5,6]. Impacts are expected to be greater in cold and temperate climate regions, which are characterized by extreme temperature, frozen ground, freeze-thaw cycles, snowpack accumulation and melting, and mixed precipitation patterns (e.g., [7,8]). A leading water quality problem on a global scale is eutrophication due to high nutrient loads (i.e., phosphorus, P, and nitrogen, N) from agricultural land use activities [3,9,10]. Waters are classified as eutrophic when P levels exceed 16 mg/m3 and N concentration is higher than 390 mg/m3 [11]. The eutrophication ‘crisis’ of the North American Great Lakes, for instance, has deteriorated water quality of the region to a critical level [9,12,13]. The problem was greater for Lake Erie during the 1960s and 1970s, which was once declared the ‘Dead Sea of North America’ because of massive algal blooms, which are often not only toxic themselves, but also caused enormous dead zones in the lake, killing off fish and other aquatic biota [13,14,15,16]. In response, P reduction strategies were initiated and implemented. The Great Lakes Water Quality Agreement (GLWQA) signed in 1972 (amended in 1983, 1987, and 2012) between the United States (US) and Canada is among several strategies initiated in the Great Lakes Region [17,18,19]. To address the algal issue in Lake Erie, new phosphorus loading targets have been approved for the U.S. and Canada [20].
Despite substantial efforts in controlling water pollution, non-point source pollution from agriculture and other anthropogenic activities still pose a major concern in the Great Lakes region, and in the globe [21,22,23]. For example, frequent resurgence of algal blooms is seen in Lake Erie in the recent decades [24]. Best Management Practices (BMPs) are important to reduce the problem [25,26,27]. Such strategies have indeed been practiced for many years. However, random placement of BMPs across a whole watershed might not be economically feasible [28,29,30]. This is because most non-point source (NPS) pollution comes from a small fraction of a watershed only [31,32,33,34,35]. As a result, it is generally accepted that agricultural NPS pollution management strategies should target areas that contribute the most pollution [28,29,32]. These areas of the landscape, which contribute disproportionately high levels NPS pollution relative to other areas, are often called Critical Source Areas (CSAs) [36]. The concept of CSAs is relatively new as compared to historically well-defined concepts of overland flow generation mechanisms [37,38,39,40].
The CSAs, also termed as ‘partial watershed areas’ (TVA, 1964) or ‘effective areas’ [41], are defined as areas in a watershed where source (function of soil, crop, and management practices) coincides with transport factors (runoff, erosion, subsurface flow, and channel processes) [28,33,42]. It is, therefore, important to understand both source and transport processes of the watershed to identify CSAs. CSAs can be determined through field monitoring and/or using models [43,44,45]. Collecting field observations for a range of watersheds is an expensive, labor-intensive, and time-consuming process; and hence, often is not practical [45,46]. In contrast, the use of computer models has greatly increased researchers’ ability to identify CSAs both at the field and watershed scales [47,48]. Substantial research efforts have been made to determine CSAs using different methods [31]. Currently, numerous methods are available for use to identify CSAs (e.g., [36,49,50]. These methods cover a spectrum from very simple indicators such as index-based (e.g., [28]) to the application of complex and detailed simulation Hydrological and Water Quality (HWQ) models such as the Soil and Water Assessment Tool (SWAT) model [50].
Despite the existence of several methods, determination of CSAs remains a challenging task. This is because of the complexity of the generation and transport processes involved in NPS losses [51]. Furthermore, both source and transport factors are dynamic with time and space. In identifying P loss CSAs, the challenge is mainly attributed to the difficulty of mathematically describing complicated phenomena involved in the transport of various forms of P from the landscape to receiving waters [52]. The challenge of determining P loss CSAs is further complicated for Canadian watersheds as diffuse P loss over the region occurs under the existence of some unique hydrological conditions that have significant influences on transport and transformation of P while moving from the landscape to the watershed outlet [53]. Cold-climate related conditions (such as freeze-thaw cycles, snow accumulation and melt, etc.); existence of numerous landscape depressions, tile drains, and saturation and infiltration excess runoff generation mechanisms are some of the conditions exhibited by Canadian watersheds. Unfortunately, most of these conditions are not fully incorporated in most of the existing methods.
Several studies of CSAs in the past have been carried out for rainfall-dominated watersheds outside of Canada (e.g., [42,54]). A limited number of studies of CSAs for diffuse P loss have been conducted for Canadian watersheds. Moreover, most of these studies mainly focus on simple index based methods (e.g., [44,55]). Additionally, these studies have not incorporated most of the unique properties exhibited by Canadian watersheds. This review work, therefore, tries to address the following aspects of CSA identification in Canadian conditions: (a) review of currently available methods (both simple index and detailed HWQ model based) to identify CSAs; (b) overview of challenges and limitations of using these methods; and (c) highlight possible future research directions to accurately identify CSAs for Canadian conditions.

2. Methods to Determine CSAs

2.1. Simple Methods

Simple methods are generally practical tools that are easy to apply by the end users [28]. Their main limitation, however, is the inability to quantify P loads in terms of absolute values. Rather they provide ranked risk vulnerability, and, therefore, are only qualitative. In addition, they cannot answer future management scenario questions like how long it takes after BMPs are implemented before meaningful improvements in water quality can be expected. In this review work, simple methods are categorized into three classes. These include P index (PI), topographic index (TI), and other miscellaneous methods.

2.1.1. Phosphorus Index (PI)

The PI method was first developed in the early 1990s by the U.S. Department of Agriculture (USDA) [56]. The PI method estimates the risk of P loss from farmland through a simple combination of several factors related to source and transport conditions [28]. Different versions of PIs may vary in terms of the type of factors included and the way they are combined. In the original PI (Lemunyon and Gilbert [56]); however, soil P and rate, method, timing, and type of P applied are used as source factors. Runoff, erosion, and proximity to streams are used as transport factors. The P loss risk is calculated based on a simple arithmetic computation of all factors, and then usually is divided into four categories (low, medium, high, and very high). Since its initial development in the early 1990s [56], the PI method has been evolving to suit site specific conditions [57,58,59]. The PI method is the most widely applied method throughout the world [28]. It has been applied over the U.S. (in 47 States, e.g., [42,58,60]), Canada (e.g., [59,61,62]), China (e.g., [63]), Europe (e.g., [64,65]), Denmark (e.g., [66]), Sweden (e.g., [29]), Australia (e.g., [67,68]), and New Zealand (e.g., [69,70]). The broad acceptance of the PI method over wider regions is associated with the numerous advantages, which have been summarized by Maguire et al. [71]. It is relatively low demand for input data and manpower, compared to process based models, is the foremost factor [28]. Detailed reviews of the PI applications can be found from past review papers, such as Buczko and Kuchenbuch [55] for applications in the U.S. and European watersheds, and Heckrath et al. [44] on Nordic watershed applications. Both source and transport factors are considered in most of the studies. Importantly, some studies considered connectivity of the landscape to the stream system in applying the PI method (e.g., [59,61,66,68,72,73,74,75]).
In Canada, development of a countrywide PI was first initiated by Agriculture and Agri-Food Canada (AAFC) in 1993 under the Agri-Environmental Indicator Project [76]. In 2000, the first adapted version, Indicator of Risk of Water Contamination by Phosphorus (IROWC-P), was developed and applied only for Quebec [77]. The IROWC-P is based on a P indexing system initially developed by Lemunyon and Gilbert [56] and adapted to Canadian conditions [77]. The IROWC-P was designed at the Soil Landscapes of Canada (SLC) polygon scale and considers P saturation, P soil test, excess, manure, and fertilizer as source factors. Soil erosion and overland flow are considered as transport factors. The IROWC-P indicator assigns a risk class (very low, low, moderate, high, and very high) to each Soil Landscapes of Canada (SLC) V3.0 agricultural polygon [78,79]. Van Bochove et al. [23] have suggested improving the transport component of the IROWC-P by incorporating additional transport factors to represent Canadian conditions. They proposed to include more transport factors for particulate P (erosion rate), dissolved P (surface and subsurface runoff), and connectivity (topographic index, tile drainage, preferential flow, and surface drainage density). Since then, several researchers have applied the modified IROWC to assess the vulnerability of Canadian watersheds (e.g., van Bochove et al., [79,80,81]). In addition, Reid [59] has developed a PI for Ontario, while Schendel et al. [61] used the original PI for British Columbia, Canada.

2.1.2. Topographic Index (TI)

The TI method is primarily based on the idea that topography has strong control on spatial variations in hydrological conditions [82]. The concept of the TI was initially suggested as an indicator for surface runoff generating areas by Kirkby [83]. It has been used as the basis for the rainfall-runoff model called TOPMODEL [84]. The use of the TI as an indicator for P loss has been then suggested by Endreny and Wood [85]. The most commonly used form of the TI is defined as ln(α/tanβ), where α is the upslope contributing area to a given point in the catchment, and β is the local surface slope angle [86].
Even if the TI is a good indicator of the occurrence of surface runoff, high surface runoff does not necessarily indicate high P source availability. Therefore, the TI alone cannot accurately estimate CSAs for P loss, which is a function of both the occurrence of runoff and the potential for mobilization of P at a location [28]. The TI can only quantify ‘potential’ CSAs, but not necessarily actual CSAs. Thus, the method should be used with caution. In response, researchers suggested to use the TI in conjunction with other methods that can indicate source availability (e.g., [85]).
Though it is not as popular as the PI, the TI also is being applied in several places. The TI is mainly used in combination with other approaches that includes source factors. Endreny and Wood [85], for example, combined a topographic index with landscape based export coefficients to identify locations of pollutant loading risk areas. Similarly, Heathwaite et al. [87] combined the TI with field information to assess pollutants loss risk areas. Van Bochove et al. [23] incorporated the TI into the modified version of the PI for Canada called IROWC-P [77] to improve IROWC-P prediction capability in areas dominated by saturation excess runoff generation processes. Others combined the Generalized Watershed Loading Function (GWLF) model [88] with the TI to modify the USDA Soil Conservation Service Curve Number (SCS CN) equation for variable source area hydrology (e.g., [89,90,91]). Meals et al. [92] coupled TI with a spatially explicit mass-balance model to estimate CSAs for P loss over time for a Vermont watershed. Moreover, Djodjic and Villa [93] used the modified Unit Stream Power Erosion Deposition (USPED) model in combination with a high-resolution DEM to identify erosion- and overland flow-prone areas on arable land. In the USPED model, slope length (L) and steepness (S) factors of the Universal Soil Loss Equation (USLE) [94] and the Revised Universal Soil Loss Equation [95] are replaced by upslope contributing area.

2.1.3. Other Miscellaneous Methods

There are also several miscellaneous methods, which do not fall within either the PI or the TI methods, but are available for use to determine CSAs. Some of the simple inventory methods that fall within this category are the export coefficient (e.g., [96]), hydrologic unit codes (HUCs) (e.g., [97]), curve number (e.g., [98]), and others. They are mostly source or availability-based models, but they often do not consider transport factors. Such methods, therefore, identify ‘potential’ CSAs, but not actual CSAs. In reality, however, actual CSAs are affected by both source and transport factors. These methods, therefore, should be used cautiously while identifying CSAs. In the past, these methods have been used in several countries to identify CSAs (e.g., [49,96,97,98,99]). More importantly, a method based on export coefficient modeling has been developed and applied in several watersheds in Ontario, Canada, to assess P loadings [100]. In this method, P export from cropland is based on a relation between soil loss estimated using the USLE and P export. They modified export coefficients to reflect site-specific soil and runoff characteristics for those land use classes that are most often changed with urbanization. Similarly, a regression model called SPAtially Referenced Regressions on Watershed attributes (SPARROW) model has been applied in the Red and Assiniboine river basins to identify hot spot areas of nutrient loadings [101].

2.2. Detailed HWQ Models for CSAs

The other approach that has been used by many researchers is the use of HWQ models to identify CSAs (e.g., [50]). Currently, numerous HWQ models are available for use in water pollution studies. Shoemaker et al. [102] provided a list of HWQ models that are currently available for use. In this section, however, only a few of them that have better potential for Canadian conditions were selected and reviewed. Booty and Benoy [103] assessed several HWQ models based on their potential to simulate Canadian watersheds. They implemented multi-criteria analysis for quantitative evaluation of HWQ models. The multi-criteria analysis used by Booty and Benoy [103] considers 21 model characteristics. Based on the multi-criteria quantitative evaluation, Booty and Benoy [103] identified five potential models for successful application for Canadian watersheds, and further discussion in this review will concentrate only on those five models. They included the Soil and Water Assessment Tool (SWAT) model [104], Annualized Agricultural Non-Point Source (AnnAGNPS) model [105], Better Assessment Science Integrating Point and Nonpoint Sources (BASINS) (U.S. Environmental Protection Agency [106]), Gestion Intégrée des Bassins versants à l’aide d’un Système Informatisé (GIBSI) [107], and Agricultural Non-Point Source pollution (AGNPS) model [108].
Applications of the selected five HWQ models to determine CSAs are listed in Table 1. It appears that the SWAT model is the most widely applied model followed by the AnnAGNPS and AGNPS models to identify CSAs as compared to other detailed HWQ models. As noted in the previous section, the wider applicability of SWAT for CSA identification is attributed to advantages of the SWAT model over other HWQ models. Despite the relatively wider applicability of the SWAT model as compared to other HWQ models, its application is still less popular as compared to the PI method. The review of literature also shows that most detailed HWQ models were applied within the U.S. In contrast, application of detailed HWQ models to determine CSAs of P loss is very limited for Canadian watersheds [109].

3. Current State and Challenges of Determining CSAs

Substantial research efforts have been made to understand and develop techniques that can be used to identify CSAs of diffuse P loss since the mid-1990s [28]. However, identification of CSAs still remains challenging. Selection of appropriate model complexity level, scale issues, site-specific conditions representation (such as runoff generation mechanism, landscape depressions, tile drains, etc.), and modeling practices implemented prior to using models to identify CSAs are among the challenges that need to be addressed.

3.1. Level of Model Complexity and Scaling Issues

The issue of model complexity has been at the center of a debate in the hydrologic community, perhaps throughout all science [127]. These concerns become even more apparent when the issue moved to models of NPS pollution. In determining CSAs, the debate appears to be between the uses of simple index-based or detailed, complex HWQ models. However, there is no clear agreement among all the users regarding which method to use. One group argues to use of detailed HWQ models for identifying CSAs as they can provide the magnitude of P loss, and even may also provide the amount of different forms of P (such as soluble and particulate). More importantly, they are able to answer future management as well as climate change scenario analysis. In addition, development and application of a detailed HWQ model is becoming increasingly common with the advancement of computing resources over time [128]. On the other hand, the opposing group argues that detailed HWQ models are complex and require extensive input datasets, computational time, and manpower, unlike simple index-based methods. For a similar reason, detailed HWQ models are rarely used by conservation agents and farmers. They often implement simple index methods, such as the PI, as they are cost effective, user-friendly, and easy to apply [28,46].
Recently, there has been an increasing interest to use both methods in combination. Indeed, some researchers are trying to develop a ‘Toolbox’ that contains different methods (e.g., [28]) as it is difficult to answer all questions using a single method. As described by Sharpley et al. [28], such an approach has numerous merits as compared to the use of a single method. For instance, both simple indicators and detailed HWQ models could be included in the ‘Toolbox’. This allows users to have an alternative for their problems. In such an approach, simple methods can be used in screening large area watersheds and detailed models can be used to answer complex questions, such as future management scenarios, like how long it takes after BMPs are implemented before meaningful improvements in water quality can be expected.
Scaling issues also are a challenge in CSA identification, as both source and transport factors vary with time so that P loss is variable over time. Variability of P loss with time leads to dynamic CSAs. CSAs are highly variable especially when they are considered over shorter time scales. However, static site assessment tools such as the PI are not able to account for the temporal variability of CSAs. They tend to make predictions on the long-term average annual temporal scale. In contrast, detailed HWQ models have the capability to simulate temporal variability of CSAs. However, these models are data intensive. In addition, spatial discretization is another issue in identifying CSAs. CSAs targeted BMPs are often implemented at the field level. However, semi-distributed models have been widely used to identify CSAs for a computational reason. The SWAT model, for example, is among the most widely applied semi-distributed models. In such semi-distributed models, a watershed is subdivided into smaller units such as the sub-basins and the heterogeneity of hydrological conditions within a sub-basin is handled using Hydrological Response Units (HRUs). The problem with such methods is that spatial location of HRUs within a sub-basin is not known. Thus, identification of CSAs at the HRU level is difficult. It is not easy to identify CSAs at the field scale level using semi-distributed HWQ models. To solve the problem, researchers suggest the development of an ArcGIS extension that is capable of tracking the location of HRUs. In this regard, researchers (e.g., [30,129]) have developed an ArcGIS tool to map SWAT outputs at the field level for conservation practice targeting.

3.2. Representation of Phosphorus Transformation and Transport Processes

As noted in the ‘Introduction’ section, the complexity of P in soils, sediment, water, and the phenomena involved in the transport of varying forms of P from the landscape to surface water bodies is complex and difficult to describe mathematically [52]. For instance in-stream (channel) processes, which include a combination of physical, chemical, and biological processes, regulate the downstream delivery of P [130]. Indeed, many studies (e.g., [131,132]) have shown that P entering rivers do not match with those measured at the watershed outlet. In-stream processes are influenced by several factors that include physicochemical controls, such as sorption/desorption reactions, mineral precipitation and dissolution, advection and diffusion and biological controls, such as periphyton and phytoplankton, microorganisms, and macrophytes [130]. However, most HWQ models often do not fully include the role of these factors in the algorithms used for in-stream retention and cycling processes. For example, most conventional models SWAT, Water Quality Analysis Simulation Program—5 (WASP5), and MIKE 11 focus on biological processes in which nutrient decomposition is considered as a first-order decay process without explicitly accounting for the role of the hyporheic zone processes [133]. In addition, the SWAT model does not consider mineral precipitation and dissolution of P in the river system [134].
The other issue in identifying diffuse P loss is the legacy P. Numerous studies have reported that legacy P significantly affects P dynamics in a watershed system. As described by Sharpley et al. [135], a portion of P can be accumulated at various locations along transport pathways from the landscape to the watershed outlet. Soils, downslope areas, ditches, streams, rivers, lakes, wetlands, and riparian areas are some of the important areas of P accumulation. Legacy P refers to a continuing supply of P to downstream water bodies from remobilization of the accumulated P [51]. Sharpley et al. [135] categorized legacy P into three groups: terrestrial, river, and standing water P legacies. The effects of land and nutrient management practices on the buildup of soil P to levels in excess of the crop needs are considered under the terrestrial P legacies. Though the legacies of P stored in land, river, and lake systems are clearly important issues, little has been done to include these processes into currently available methods of identifying CSAs.
Substantial research efforts have been made to understand and model P transport and chemical transformation processes [51]. There are three important stages of development that water quality models passed through since Phelps and Streeter [136] built the first water quality model. These include: an early stage (1925–1965), an improvement stage (1965–1995), and the broadening stage (after 1995) [137]. In these stages, HWQ models have made progress from point source models to the integrated models of point and NPS model, and from single variable water quality to multi-variable water quality, steady-state to the dynamic models, and one-dimensional to two and three-dimensional models [137]. The development of modeling theory and computing resources has contributed significantly to this progress in water quality modeling. Currently available HWQ models may represent the P cycle in soils and water in any of several ways, differing in the number of components (stores) and P transformation processes included [138]. The SWAT model, for instance, represents the P cycle in the soil using six different pools [134].
Some processes of P, however, are not yet fully integrated or are formulated in a simplified way in most HWQ models. Dissolved P transport in overland flow, for instance, is simulated in many HWQ models such as AnnAGNPS, SWAT, among others by assuming a single value of an extractable coefficient for the whole watershed to estimate surface runoff dissolved P [134]. In reality, however, the soluble P-extractable coefficient varies with soil type and management (e.g., [139]). Soil texture, aggregate diffusion, the degree of interaction between soil and water, organic matter content, vegetative soil cover, and P sorption capacities are some of the factors that influence P release [28]. Furthermore, the SWAT does not model dissolved P transport in subsurface flow. However, a concentration of soluble P in the shallow aquifer and groundwater flow can be specified to account for loadings of phosphorous from groundwater. The subsurface dissolved P transport algorithm also keeps the concentration constant throughout the simulation period, unlike in reality.

3.3. Landscape Connectivity to Stream System Accounted for

The link or connectivity between the landscape and the stream is an important factor in nutrient export and/or CSAs at the watershed scale [140]. In reality, all areas that generate nutrients are not necessarily contributing to the stream system. Furthermore, hydrologic connectivity is heterogeneous in space and often temporally transient [140]. However, connectivity between the source areas and the stream is not properly simulated by most existing HWQ models. The SWAT model, which is the most widely applied HWQ model [128], for instance, does not simulate landscape connectivity between nutrient generating areas to the stream. The SWAT model does not have a routine to route generated nutrients from landscape areas to the stream, but it assumes that all the nutrients generating areas would contribute to the stream or the watershed outlet. In SWAT, nutrients generated at any point within the sub-basin are treated identically regardless of position [128]. Such an assumption may not be valid for areas that have no pathway to the streams. Though the HRU concept used by the SWAT model reduces excessive computational requirements, the assumption about HRU connectivity may not be valid over some watersheds. Similarly, the use of the grid cell concept (such as that in the AnnAGNPS model) does not account for the position of the grid cell relative to the nearest water body in terms of connectivity between nutrient generation areas to the stream [140].

3.4. Modeling Practices

Accurate identification of CSAs depends on the reliability of the HWQ model used to identify CSAs. Therefore, HWQ models need to pass through good modeling practices prior to their application to identify CSAs. Nowadays, it is increasingly becoming common to observe misuse of HWQ models. Watershed modeling textbooks (e.g., [141]) present a scheme of good modeling practices. The suggested scheme contains sequences of activities that include sensitivity analysis, calibration, validation, and uncertainty analysis. According to Moriasi et al. [142,143], sensitivity analysis is the process of estimating the rate of change in output with respect to changes in model input parameters. The process is important to identify key parameters required for model calibration. It reduces the number of parameters that should be considered for the model calibration (parameter estimation stage). Otherwise, calibrating all the parameters of a detailed HWQ models could be time consuming. In the model calibration stage, the values of the selected model parameters, within acceptable ranges, are estimated. This process involves identifying the ‘optimal’ or ‘near optimal’ acceptable values of the selected parameters. There are two types of calibration approaches: manual (heuristic) and automatic calibration. Automatic calibration, which involves the use of a search algorithm, is fast and less subjective as compared to manual calibration. It is particularly important for distributed models. Otherwise, it would have been time consuming to use manual calibration.
As model calibration does not guarantee the reliability of model predictions for other periods [144]; therefore, the calibrated model needs to be validated. During model validation stage, the model is run using the optimized parameters obtained during the calibration process. The other important component of a good modeling practice scheme is uncertainty analysis. Modeling uncertainty arises from multiple sources, which include input data used, parameter estimates, model structure, and even observed data used for calibration and validation [145]. Traditional modeling practices often involve fitting a single best simulation. However, there is no single best model as there is always an inevitable ‘equifinality’ problem [146]. It is, therefore, important to include uncertainty analysis as part of good modeling practices.
With better access to computational resources, a lot of research effort has been devoted to developing sensitivity analysis, optimization, and uncertainty analysis techniques in the watershed modeling literature. However, modelers often are not consistently following good modeling practices. A review by Wellen et al. [109] has shown that only 25% of water quality modeling studies reported results of sensitivity analysis. The number is even much lower for quantifying modeling uncertainty. Only 10% of water quality modeling studies tried to account for the uncertainty of the model predictions in a quantitative way. Similarly, only 17% of studies reported the use of any kind of optimization technique.
Researchers have recommended to use both graphical and statistical evaluation procedures while evaluating model performance during calibration and validation periods [143]. Indeed, model evaluation guidelines that consider the recommended model evaluation statistics with corresponding performance ratings and appropriate graphical analyses were established (e.g., [142,143]). According to Wellen et al. [109], 77% of water quality modeling studies quantified the goodness of fit of flow and water quality variables. However, such practices are rarely seen in estimating CSAs. Due to field data limitation, studies of water quality model application to identify CSAs often do not perform field verifications at all or not in a rigorous way.

3.5. Canadian Hydrological Conditions Conceptualization in Models

Numerous HWQ models have been developed, but most of them are not primarily designed for Canadian hydrological conditions. Canada exhibits highly diversified hydrology due to its landscape diversity that includes the Arctic tundra of the north, great prairies of the central area, the Rocky Mountains in the west to the Great Lakes, the St Lawrence River, and Niagara Falls in the southeast of Canada (Figure 1). The occurrence of infiltration and saturation excess runoff generation mechanisms, cold-climate hydrology, landscape depressions, and tile drainage system are among the diversified hydrologic conditions present in Canadian watersheds. The influence of each process is variable in time and space across Canada [23].

3.5.1. Runoff Generation Mechanism

Saturation excess and infiltration excess runoff generation are the two types of generally accepted runoff generation mechanisms. The former, saturation excess, occurs when soil becomes saturated, and any additional precipitation causes runoff [148]. The concept of Variable Source Area (VSA) hydrology often is used to explain this type of runoff generation mechanism [149,150]. This type of runoff generation generally occurs in humid and thickly vegetated regions with permeable shallow soils underlain by an impervious layer [37,151]. The later, infiltration excess also called Hortonian overland flow, occurs when the net precipitation exceeds the infiltration capacity of the soil [40,152]. The infiltration rate depends on soil properties, land use, and landscape conditions [153,154,155] and on the rainfall intensity.
However, many HWQ models that have potential for use to identify CSAs, often are designed for infiltration the excess runoff generation mechanism [156] such as the AGNPS [108], Chemicals, Runoff, and Erosion from Agricultural Management Systems (CREAMS) [157], SWAT [104], and the GWLF [88]. These models use the USDA SCS CN equation [158] to predict runoff. In reality, both infiltration excess and saturation excess runoff generation mechanisms contribute to overland flow. However, often only one of the processes dominates in a specific time and location. The SCS CN should only be used ‘if it is known a priori that the runoff is produced by the infiltration excess mechanism [156]. However, Steenhuis et al. [159] suggested that the theoretical basis of the CN method is valid for both infiltration and saturation excess runoff generating mechanisms [160].
In Canada, both infiltration and saturation excess runoff generation mechanisms occur; though the dominant process varies between seasons. In summer when the soils are dry, the infiltration excess runoff generation mechanism is dominant. As such, the original CN method can be used to simulate runoff generation. However, using the curve number method will have some serious implications [156] while trying to simulate runoff generation in areas where the saturation excess mechanism prevails, such as the case in winter and early spring months in Canada as soils are nearly saturated. Therefore, most of the currently available HWQ models, which use the CN method, need to be modified to accommodate the saturation excess runoff generation mechanism [90].
In general, appropriate representation of the runoff generation mechanism is important for accurate estimation of NPS pollution export to the water system. In this regard, there have been some research efforts to upgrade the existing HWQ models to include the saturation excess runoff generation process. Winchell et al. [50], for instance, upgraded the SWAT model to identify CSAs in Lake Champlain’s Missisquoi Bay watershed, which is dominated by saturation excess runoff generation processes. In order to properly represent the runoff generation process in the region, Winchell et al. [50] modified the SCS curve number method of SWAT. In their work, they developed and applied an approach for adjusting curve numbers based on the local compound topographic index. Similarly, Mishra and Singh [161] recommended the use of SCS CN method in cases when the potential maximum retention is less than or equal to twice the amount of precipitation. Withstanding the need to include the saturation excess mechanism in rural, humid regions, Easton et al. [90] re-conceptualized the SWAT model. As such, they modified the way the CN and available soil water content are defined in the SWAT model.

3.5.2. Landscape Depressions

Landscape depressions are important features that have an influence on both runoff and pollutant generation and transport across a watershed. They are more important in watersheds that fall within the Canadian Prairie Pothole Region (PPR), where millions of landscape depressions exist. In this region, the runoff and pollutant generation and transport occur under the existence of numerous landscape depressions varying in storage capacity and having dynamic connectivity to one another. This leads to a dynamic area contributing to streamflow and pollutant export, which invalidates the application of conventional HWQ models requiring a basin’s contributing area to be a fixed value [162].
For computational reasons, semi-distributed HWQ models have wider applicability as compared to fully distributed models. However, semi-distributed HWQ models such as SWAT allow only a single depression storage per sub-watershed. In reality, numerous landscape depressions exist within a sub-basin, which invalidates the applicability of semi-distributed models in the Canadian PPR. To overcome this problem, several researchers aggregated all the depressions within a sub-basin and represented them by a single synthetic storage. Kiesel at al. [163] and Almendinger et al. [164], for instance, applied the SWAT model in depression-dominated watersheds by aggregating depressions and representing them by a single storage. Such an approach, however, does not represent the real processes as landscape depression response depends on depression’s storage capacity and connectivity. Alternatively, Mekonnen et al. [165] have proposed and applied new modeling techniques to handle numerous landscape depressions within a watershed (e.g., [166]). In the upgraded SWAT model, the numerous landscape depressions within a sub-basin are incorporated using a probability distribution function. The modified SWAT model, also called SWAT with Probability Distributed Landscape Depressions (SWAT-PDLD), was tested over two Canadian prairie watersheds and an improved streamflow simulation was reported [166].
In addition, several researchers have also confirmed the existence of significant chemical transformations within landscape depressions. In a Canadian prairie watershed, for instance, the transformation of pollutants is expected to be significant in potholes [167]. HWQ models, however, often neglected such transformation processes. The SWAT model, for instance, assumes, as there is a transformation within the storage modules called ‘Pothole’, ‘Pond’, and ‘Wetland’. For a better simulation of P processes in depression-dominated watersheds, existing HWQ models need to be improved to include transformation processes in the landscape depressions.

3.5.3. Cold-Climate Conditions

Most Canadian watersheds exhibit cold-climate hydrology that includes frozen ground, snowpack accumulation, melting, and freeze-thaw cycles. The cold-climate condition has a significant influence on streamflow and water quality [31]. Surface runoff from frozen or partially frozen soils increases due to reduced infiltration [168,169]. Spring runoff is an important component of streamflow in Canadian watersheds. The influence is not limited to streamflow, but also to water quality variables. In cold-climate watersheds, sediment export is expected to be high during the spring [7,170,171]. In Canada, more than 75% of the stream flow and sediment loads occur during late winter and early spring [31,171]. This is because of three main reasons: (a) increased surface runoff enhanced by reduced infiltration in frozen or partially frozen soils [168,169]; (b) an increased soil erodibility during freeze-thaw cycles [171,172,173]; and (c) the longer duration of the snowmelt-runoff period as compared to individual rainfall-runoff events [174]. Indeed, several researchers have revealed reduced erosion resistance of frozen soils both in laboratory (e.g., [171,175,176]), and field conditions (e.g., [7,172]). The erosion resistance of the soil is thought to be reduced by the freeze-thaw cycles as the ice that forms in soil voids during freezing pushes the soil grains apart [175,176]. The influence of cold-climate conditions is not only limited to the soil erodibility factor, but also to other variables such as hydraulic conductivity of soil as well as to the source, transformation, and P loss as the latter processes are disturbed by soil frost, freeze-thaw cycles, and snowpack accumulation and melting [5,173].
Cold-climate conditions are missing or not yet well incorporated in most existing watershed models [5]. The original SWAT model, for instance, uses a constant annual value of soil erodibility throughout the simulation period. To take into account seasonality of soil erodibility, a recent upgrading of the sediment module of the SWAT model was made by Mekonnen et al. [165] to incorporate cold-climate conditions into the sediment module of SWAT. The improved model was tested for two Canadian watersheds for sediment and nutrient export, and improved simulations are reported by Mekonnen et al. [53,165]. The modification considers a variation of the weighting factor of seasonal soil erodibility between soil types. An experimental study, however, shows that the weighting factor varies between seasons [173]. Therefore, the improved upgraded sediment module needs to be further reformulated to incorporate variations of the weighting factor with soil type.

3.5.4. Tile Drains

In some parts of Canada, indeed in some parts of North America, tile drainage is a common practice in agricultural areas with high water tables [177]. The USDA [178] claims that settlement in North America is land drainage facilitated. Currently, about 62 million ha of agricultural areas are tile drained over the North American landscape [179]. In Ontario, about 43% of the total 3.5 million ha of land classified as cropland (OMAFRA, [180]), have been tile drained. Such practice changes the hydrology of the watershed in several ways as compared to natural, undrained lands. For instance, tile drains can change the way P is exported from the landscape into the streams [181]. Studies have shown that tile drains in Canada are significant contributors of P export from agricultural land [181,182,183,184,185,186,187].
For accurate simulation of areas dominated by tile drains, it is important to understand all processes occurring in tile drains system. However, understanding tile drains process is complex as tile outflow consists of water that has drained quickly through macropores (also called preferential flow) and water that has percolated through the soil matrix to the drain [188]. Furthermore, often tile drain systems were built so long ago that the actual details of these systems are unknown making it difficult to model these systems in detail. The differences in transformation and transport processes of P between the preferential flow and soil matrix pathways are significant. In a preferential flow pathway, which constitutes channels of earthworm burrows, root channels, and others, the interaction between the channel walls and P losses being transported through them is relatively minimal. Due to the minimal interaction, researchers often assume similar proportions of particulate and dissolved P in tile flow as in surface runoff (e.g., [188]). Field data support similar findings (e.g., [181]). In contrast, P has plenty of time to interact when it moves through the soil matrix often is precipitated out of solution [188].
In the glacial soils of Canada and the northern U.S. states, the movement of P through the soil matrix to tile drains often is assumed negligible due to high levels of calcium, iron, and aluminum available to react with and precipitate P out of solution. The P portion that reaches the tile drains continue its movement through the tile drains, which represent a direct conduit from the field to the outlet. Thus, P that reaches the tile outlet can be carried from a larger part of the landscape than would otherwise be possible. Tile drainage system design factors, such as tile spacing and depth, also influence tile drain outflows. Furthermore, for Canadian conditions, the movement of P losses through the different pathways need to be adjusted seasonally to account for the effect of many factors including antecedent moisture, snow accumulation and melting, and freeze-thaw cycles. Importantly, macropore flow also is highly affected by these factors. Indeed, they can range from an increase in macropores from freeze-thaw actions to a complete blockage of macropores with ice that blocks this pathway until after spring thaw.
Generally, for the application of different methods to determine CSAs, the proportion of P delivery through tile drain system is either neglected or incorporated in a simplified way without explicit representation of the process. For example, a simplified concept of the P movement mechanism through the tile drains, as a component of the PI method, was introduced by Reid [59]. Similar attempts also are made to incorporate tile drains into detailed HWQ models. For example, Arnold et al. [104] enhanced the capability of the SWAT model by introducing a subsurface drainage component. The modification, however, does not allow change in tile spacing and tile size. To address this problem, further improvements were made by Moriasi et al. [142] by incorporating the steady-state Hooghoudt’s [189] and Kirkham [190] tile drain equations into the SWAT model. The improved tile flow simulation approach considers tile spacing and drain tube size as well as the depth of tile drain. Golmohammadi et al. [191] explicitly incorporated tile drainage into the SWAT model by replacing the subsurface hydrology of SWAT with the subsurface hydrology of DRAINMOD. Several other researchers have also reported an improved simulation of tile drain dominated watersheds using an improved tile drainage module in SWAT (e.g., [192]), including a module that can explicitly simulate dissolved reactive phosphorus through tile drains [193]. These improved methods still need a thorough evaluation to test their ability in simulating P loss and identifying CSAs in Canadian conditions.
In conjunction with tile drainage, Water and Sediment Control Basins (WASCoBs) are becoming increasingly popular in Canadian agricultural watersheds [194,195]. A WASCoB generally consists of a berm, surface inlets, and a drainage system which diverts surface runoff ponded behind the berm in underground tiles and traps NPS pollution within the berm [196,197]. A WASCoB is generally placed in depressions in order to impede gradual formation of ephemeral or permanent gullies [198].
Withstanding the drainage mechanism of a WASCoB, the upstream areas draining to the WASCoB, previously non-contributing, are, thus, becoming contributing area for runoff. Hence, such widespread use of WASCoBs in Canadian agricultural watersheds is profoundly altering hydrology of these watersheds. Most of them are not designed to represent complex hydraulic interactions, and feasible integration with hydraulic models is, therefore, sought [199]. Proper representation of such complex interactions occurring between the berm, surface inlets, and drainage system of a WASCoB is a challenging task. As such, modeling of a WASCoB system in popular HWQ models, such as the SWAT, has rarely been practiced. Her et al. [196] simulated WASCoBs in a similar way to the terraces on the contour by adjusting related SWAT parameters such as CN, P-factor of the USLE, average slope length of the HRU, etc. Similarly, Yang et al. [200] developed a new SWAT module to explicitly represent hydraulic behavior of a WASCoB. The module is similar to a reservoir implementation in SWAT, and, thus, is a simplification of reality. A more robust representation of hydraulic as well as the NPS pollution entrapment behavior of WASCoBs is warranted for more accurate simulation of P loss to identify CSAs in Canadian conditions.

4. Future Research Directions

Encouraging progress has been made to identify CSAs of diffuse P where runoff and high P sources coincide. This was also the topic of a keynote paper at the Fifth International Phosphorus Workshop (IPW5) [201]. However, numerous challenges remain to identify CSAs under Canadian conditions. The following future research directions are recommended to further improve currently available methods to identify CSAs for Canadian conditions:
  • A better database is needed to improve the model prediction capability. More importantly, the TI method will benefit from better resolution data, such as Light Detection and Ranging (LiDAR) data, which could also be helpful to incorporate the saturation excess runoff generation into HWQ models.
  • Most BMPs are implemented at the field scale. Therefore, it is important to improve field or sub-field scale modeling capability of the existing methods. This is particularly important while using semi-distributed HWQ models such as SWAT. This can be achieved by developing an ArcGIS extension that can identify an HRU location within a sub-basin. This will also facilitate evaluation of field and sub-field level output.
  • There also is a need for improvements in the predictions of dissolved P in surface runoff from soil, which is now typically based on simple extraction coefficients relating a measure of soil P (usually routine soil tests) to dissolved P concentrations in runoff. Most existing methods use a constant value for all soil types. It is, therefore, necessary to conduct research to identify the variations in extraction coefficients with soil properties such as soil texture.
  • With significant variations at field and watershed scale estimation of P loss, it is important to further investigate if different algorithms for sediment and P loss should be used.
  • Canadian hydrology exhibits a distinct seasonal pattern. It is, therefore, necessary to quantify and include the impact of seasonal hydrology of P generation and transport processes in HWQ modeling approaches.
  • With better understanding of physical, chemical, and biological processes affecting water quality, future research should also focus on improving the representation of processes, such as P stratification and legacy sources in HWQ models. Both vertical stratifications of P in no-till soils and legacy sources of P need to be incorporated as they affect the short-term benefits of remedial practices applied to CSAs.
  • Another research area that needs attention is nutrient processes in the wetland modules. For example, the ‘Wetland’ and ‘Pond’ modules of the SWAT model do not consider nutrient transformation. However, several field studies have indicated that transformation of nutrients indeed occurs within the ponds, wetlands, or potholes.
  • Development of a ‘Toolbox’ to identify CSAs also needs serious attention and could be a step forward. In fact, Sharpley et al. [28] envisioned the need and value of such a ‘Toolbox’. Especially given the fact that it is very difficult to answer all pertaining questions related to identifying CSAs of NPS pollution using a single model/method. The envisioned ‘Toolbox’ can host a range of different models/methods, ranging from a simple method such as topographic index to a complex HWQ model. This will provide the end users with a variety of options to try to use different methods/models to identify CSAs. Users may opt to use the simple methods for screening larger watersheds while detailed HWQ models may be used to provide absolute values of P loss and long-term effects of future management scenarios on P loss. The ‘Toolbox’ can be hosted in a dedicated platform or can be made available as a web-based modeling framework such as the Hydrology and Water Quality System (HAWQS) using SWAT framework [202]. The ‘Toolbox’ essentially offers features such as an automated workflow of input data preparing and processing for an area of user’s choice and output data repository to store model and scenario runs. We believe that provision of such a ‘Toolbox’ renders the redundancies associated with pre-processing of large volume of input data (e.g., spatial and meteorological) which is often time-intensive and error-prone. Recent advances in computing facilities and web technologies also support the idea of making the envisioned ‘Toolbox’ available to the wider public.
  • With advances in computational resources and techniques, future research on CSAs should focus on the sources of uncertainty, uncertainty quantification methods, and incorporation of all possible uncertainties in HWQ modeling approaches.
  • With advances in instrumentation technology, future research should also focus on field research to identify CSAs. Special attention is needed on the quantification on the seasonal variability of CSAs. Data collected from such experiments will be useful to evaluate the CSA prediction capability of HWQ models.
  • It has been shown that the majority of NPS pollution would be exported in the late winter and early spring months [31,171,203] and, therefore, constitute hot-moments of NPS pollution export. Sampling campaigns should be effective enough to capture the variability in such important time/seasons. Identification of the proper locations for water quality monitoring is equally important too. Thus, a cost-effective and efficient water quality monitoring framework, as suggested by Alilou et al. [204] is desired. Moreover, detailed HWQ model ideally needs continuous water quality data for proper calibration (and/or validation). However, such data are rarely available because of logistic issues. Often, sporadic water quality measurements are available which hinders proper model calibration (and/or validation) and model results may deem to be unreliable. This is a general problem in NPS pollution modeling. One possible solution is to carryout dedicated sampling campaigns to cover wide range of streamflow/field conditions (e.g., dry, wet, 24 h, etc.) which helps to verify a model’s ability in respective conditions [205]. However, this requires a team of dedicated crew waiting for such an event to occur, which may not always be available [206]. Another possibility is to install automatic samplers to measure some explanatory variables (e.g., specific conductance, turbidity) and using an established relationship (e.g., regression model), other water quality variables (e.g., total suspended solids, total phosphorus) are predicted [207]. However, uncertainties associate with such estimations render their use in calibrating (and/or validating) detailed HWQ models. The use of remote sensing technologies in validating HWQ model based CSAs can also be an alternative as shown by Shrestha et al. (in press). In the study, they used oblique aerial images to qualitatively validate CSA of phosphorus in a watershed. Such a technique may be useful for a large watershed, which needs water quality monitoring at multiple locations.

5. Conclusions

Currently, different types of methods, ranging from simple indicators to detailed HWQ models, are available to identify CSAs of NPS pollution. Selecting the right method has been a challenge for many years. In general, it appears that the PI method is the most widely used method amongst the simple methods. On the other hand, the SWAT model is ranked first as a continuous simulation model for long-term studies, whereas AGNPS is used as an event-based model for more detailed studies of specific events.
As no single method/model is perfect, there has been a growing tendency towards the development of a ‘Toolbox’ that could host a variety of methods/models to identify CSAs. Such an approach also facilitates the use of simple index-based methods in conjunction with detailed HWQ models. Results from detailed methods will also help to evaluate and improve the accuracy of simple methods. Otherwise, it is difficult to verify the results, as field monitoring of CSAs is almost non-existent. Furthermore, such a ‘Toolbox’ allows users to compare the performance of different methods. However, a direct comparison between different methods often is challenging due to differences in the scale of applications.
For Canadian watersheds, applications of both simple index-based and detailed HWQ models are limited. There are, however, some notable recent efforts to determine CSAs in Canadian watersheds. Most of these studies focus on modifying and applying PI and TI methods. Despite their limited applications in the past, HWQ models such as SWAT, AnnAGNPS, BASINS, GIBSI, and AGNPS have potential to use in Canadian watersheds. Direct application of these HWQ models for Canadian watersheds has proven to be a limited success, as Canada’s unique hydrological conditions are not fully incorporated in these models. As a result, currently available models should be adapted to represent specific conditions of the region prior to their application. Some of the processes that should be incorporated include the cold-climate conditions, landscape depressions, tile drains, saturation, and infiltration excess runoff generation mechanisms, and incorporation of more detailed processes in phosphorus cycle, such as source legacy, among others. Furthermore, a good modeling practice, including quantification of different sources of uncertainties, should be followed.

Author Contributions

Conceptualization, R.P.R., P.D., P.K.G., and A.B.; methodology, B.A.M.; writing—original draft preparation, B.A.M., R.S., and N.K.S.; writing—review and editing, R.P.R., B.A.M., R.S., P.K.G., P.D., A.B., and N.K.S.; project administration, R.P.R. and P.D.; funding acquisition, R.P.R., P.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of the Environment, Conservation and Parks, Ontario.

Acknowledgments

The authors would like to thank Nabil Allataifeh, Andrew Saiedy, Anand Gupta, Jessica Mark, and Bimal Acharya for their help in shaping the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Peters, N.E.; Meybeck, M. Water Quality Degradation Effects on Freshwater Availability: Impacts of Human Activities. Water Int. 2000, 25, 185–193. [Google Scholar] [CrossRef]
  2. Hanjra, M.A.; Qureshi, M.E. Global water crisis and future food security in an era of climate change. Food Policy 2010, 35, 365–377. [Google Scholar] [CrossRef]
  3. United Nations. Water for Life Decade: Water Quality. 2016. Available online: http://www.un.org/waterforlifedecade/quality.shtml (accessed on 25 October 2016).
  4. Mitchell, M.J.; Driscoll, C.T.; Kahl, J.S.; Murdoch, A.P.S.; Pardo, L.H. Climatic Control of Nitrate Loss from Forested Watersheds in the Northeast United States. Environ. Sci. Technol. 1996, 30, 2609–2612. [Google Scholar] [CrossRef]
  5. Han, C.-W.; Xu, S.; Liu, J.; Lian, J.-J. Nonpoint-source nitrogen and phosphorus behavior and modeling in cold climate: A review. Water Sci. Technol. 2010, 62, 2277–2285. [Google Scholar] [CrossRef] [PubMed]
  6. Shrestha, N.K.; Wang, J. Water Quality Management of a Cold Climate Region Watershed in Changing Climate. J. Environ. Inform. 2019. [Google Scholar] [CrossRef]
  7. McConkey, B.; Nicholaichuk, W.; Steppuhn, H.; Reimer, C.D. Sediment yield and seasonal soil erodibility for semiarid cropland in western Canada. Can. J. Soil Sci. 1997, 77, 33–40. [Google Scholar] [CrossRef] [Green Version]
  8. Callesen, I.; Borken, W.; Kalbitz, K.; Matzner, E. Long-term development of nitrogen fluxes in a coniferous ecosystem: Does soil freezing trigger nitrate leaching? J. Plant Nutr. Soil Sci. 2007, 170, 189–196. [Google Scholar] [CrossRef]
  9. Dinar, A.; Seidl, P.; Olem, H.; Jorden, V.; Duda, A.; Johnson, R. Restoring and Protecting the World’s Lakes and Reservoirs; The World Bank: Washington, DC, USA, 1995; p. 155. [Google Scholar]
  10. Hanrahan, G.; Gardolinski, P.; Gledhill, M.; Worsfold, P. Environmental monitoring of nutrients. In Environmental Monitoring Handbook; Burden, F.R., Donnert, D., Goodish, T., McKelvie, I., Eds.; McGraw-Hill: New York, NY, USA, 2004; pp. 8.1–8.16. [Google Scholar]
  11. Brown, T.; Simpson, J. Managing phosphorus inputs to urban lakes: I. Determining the trophic state of your lake. Watershed Prot. Tech. 2001, 3, 771–781. [Google Scholar]
  12. Jørgensen, S.E.; Williams, W.D.; Centre, U.I.E.T.; International Lake Environment, C. Water Quality: The Impact of Eutrophication; UNEP-International Environment Technology Centre, International Lake Environment Committee Foundation: Kusatsu, Japan, 2001. [Google Scholar]
  13. Michalak, A.M.; Anderson, E.J.; Beletsky, D.; Boland, S.; Bosch, N.S.; Bridgeman, T.B.; Chaffin, J.D.; Cho, K.; Confesor, R.; Daloğlu, I.; et al. Record-setting algal bloom in Lake Erie caused by agricultural and meteorological trends consistent with expected future conditions. Proc. Natl. Acad. Sci. USA 2013, 110, 6448–6452. [Google Scholar] [CrossRef] [Green Version]
  14. Davis, C.C. Evidence for the Eutrophication of Lake Erie from Phytoplankton Records. Limnol. Oceanogr. 1964, 9, 275–283. [Google Scholar] [CrossRef]
  15. Makarewicz, J.C. Phytoplankton Biomass and Species Composition in Lake Erie, 1970 to 1987. J. Great Lakes Res. 1993, 19, 258–274. [Google Scholar] [CrossRef]
  16. Sweeney, R.A. Introduction: “Dead” sea of North America? Lake Erie in the 1960s and 70s. J. Great Lakes Res. 1993, 19, 198–199. [Google Scholar] [CrossRef]
  17. De Pinto, J.V.; Young, T.C.; McIlroy, L.M. Great lakes water quality improvement. Environ. Sci. Technol. 1986, 20, 752–759. [Google Scholar] [CrossRef] [PubMed]
  18. GLWQA. Great Lakes Water Quality Agreement. Available online: http://www.epa.gov/greatlakes/glwqa/1978/index.html (accessed on 25 August 2016).
  19. Lakes, G. Great Lakes Water Quality Agreement. Available online: http://ijc.org/files/tinymce/uploaded/GLWQA%202012.pdf (accessed on 25 August 2016).
  20. EPA. Recommended Phosphorus Loading Targets for Lake Erie. Available online: https://www.epa.gov/sites/production/files/2015-06/documents/report-recommended-phosphorus-loading-targets-lake-erie-201505.pdf (accessed on 13 January 2018).
  21. Sharpley, A.N.; Smith, S. Wheat tillage and water quality in the Southern plains. Soil Tillage Res. 1994, 30, 33–48. [Google Scholar] [CrossRef]
  22. Pieterse, N.; Bleuten, W.; Jørgensen, S. Contribution of point sources and diffuse sources to nitrogen and phosphorus loads in lowland river tributaries. J. Hydrol. 2003, 271, 213–225. [Google Scholar] [CrossRef]
  23. Van Bochove, E.; Thériault, G.; Dechmi, F.; Rousseau, A.; Quilbé, R.; Leclerc, M.-L.; Goussard, N. Indicator of risk of water contamination by phosphorus from Canadian agricultural land. Water Sci. Technol. 2006, 53, 303–310. [Google Scholar] [CrossRef] [PubMed]
  24. MOECC. Water Quality in Ontario 2014 Report. Available online: https://www.ontario.ca/page/water-quality-ontario-2014-report (accessed on 15 September 2016).
  25. Logan, T.J. Agricultural best management practices for water pollution control: Current issues. Agric. Ecosyst. Environ. 1993, 46, 223–231. [Google Scholar] [CrossRef]
  26. Parry, R. Agricultural Phosphorus and Water Quality: A U.S. Environmental Protection Agency Perspective. J. Environ. Qual. 1998, 27, 258–261. [Google Scholar] [CrossRef]
  27. D’Arcy, B.; Frost, A. The role of best management practices in alleviating water quality problems associated with diffuse pollution. Sci. Total. Environ. 2001, 265, 359–367. [Google Scholar] [CrossRef]
  28. Sharpley, A.N.; Kleinman, P.J.A.; Flaten, D.N.; Buda, A.R. Critical source area management of agricultural phosphorus: Experiences, challenges and opportunities. Water Sci. Technol. 2011, 64, 945–952. [Google Scholar] [CrossRef]
  29. Djodjic, F.; Spännar, M. Identification of critical source areas for erosion and phosphorus losses in small agricultural catchment in central Sweden. Acta Agric. Scand. Sect. B Plant Soil Sci. 2012, 62, 229–240. [Google Scholar] [CrossRef]
  30. Daggupati, P.; Douglas-Mankin, K.R.; Sheshukov, A.Y.; Barnes, P.L.; Devlin, D.L. Field-Level Targeting Using SWAT: Mapping Output from HRUs to Fields and Assessing Limitations of GIS Input Data. Trans. ASABE 2011, 54, 501–514. [Google Scholar] [CrossRef]
  31. Dickinson, W.T.; Rudra, R.; Wall, G.J. Identification of soil erosion and fluvial sediment problems. Hydrol. Process. 1986, 1, 111–1244. [Google Scholar] [CrossRef]
  32. Dickinson, W.T.; Rudra, R.P.; Sharma, D.N.; Singh, S.P. Employing a Watershed Model as a Basis for Planning A Sediment Monitoring Program. Can. Water Resour. J. 1994, 19, 289–303. [Google Scholar] [CrossRef]
  33. Pionke, H.B.; Gburek, W.J.; Sharpley, A.N.; Schnabel, R.R. Flow and nutrient export patterns for an agricultural hill-land watershed. Water Resour. Res. 1996, 32, 1795–1804. [Google Scholar] [CrossRef]
  34. Gburek, W.J.; Sharpley, A. Hydrologic Controls on Phosphorus Loss from Upland Agricultural Watersheds. J. Environ. Qual. 1998, 27, 267–277. [Google Scholar] [CrossRef]
  35. Yang, W.; Weersink, A. Cost-effective Targeting of Riparian Buffers. Can. J. Agric. Econ./Rev. Can. d’agroecon. 2004, 52, 17–34. [Google Scholar] [CrossRef]
  36. Sharpley, A.N.; Daniel, T.C.; Edwards, D.R. Phosphorus Movement in the Landscape. J. Prod. Agric. 1993, 6, 492–500. [Google Scholar] [CrossRef]
  37. Dunne, T.; Black, R.D. An Experimental Investigation of Runoff Production in Permeable Soils. Water Resour. Res. 1970, 6, 478–490. [Google Scholar] [CrossRef]
  38. Dunne, T.; Black, R.D. Partial Area Contributions to Storm Runoff in a Small New England Watershed. Water Resour. Res. 1970, 6, 1296–1311. [Google Scholar] [CrossRef] [Green Version]
  39. Hewlett, J.D.; Hibbert, A.R. Factors affecting the response of small watersheds to precipitation in humid areas. For. Hydrol. 1997, 1, 275–290. [Google Scholar]
  40. Horton, R.E. The Rôle of infiltration in the hydrologic cycle. Eos Trans. Am. Geophys. Union 1933, 14, 446–460. [Google Scholar] [CrossRef]
  41. Zavodchikov, A.B. Computation of spring high water hydrographs using genetic formula of runoff. Sov. Hydrol. 1965, 5, 464–476. [Google Scholar]
  42. Gburek, W.J.; Sharpley, A.N.; Heathwaite, L.; Folmar, G.J. Phosphorus Management at the Watershed Scale: A Modification of the Phosphorus Index. J. Environ. Qual. 2000, 29, 130–144. [Google Scholar] [CrossRef] [Green Version]
  43. Sharpley, A.N.; Kleinman, P.J.A.; McDowell, R.W.; Gitau, M.; Bryant, R.B. Modeling phosphorus transport in agricultural watersheds: Processes and possibilities. J. Soil Water Conserv. 2002, 57, 425–439. [Google Scholar]
  44. Heckrath, G.; Bechmann, M.; Ekholm, P.; Ulén, B.; Djodjic, F.; Andersen, M.S. Review of indexing tools for identifying high risk areas of phosphorus loss in Nordic catchments. J. Hydrol. 2008, 349, 68–87. [Google Scholar] [CrossRef]
  45. Niraula, R.; Kalin, L.; Srivastava, P.; Anderson, C.J. Identifying critical source areas of nonpoint source pollution with SWAT and GWLF. Ecol. Model. 2013, 268, 123–133. [Google Scholar] [CrossRef]
  46. Veith, T.L.; Sharpley, A.N.; Weld, J.L.; Gburek, W.J. Comparison of Measured and Simulated Phosphorus Losses With Indexed Site Vulnerability. Trans. ASAE 2005, 48, 557–565. [Google Scholar] [CrossRef]
  47. Gitau, M.; Veith, T.; Gburek, W.J. Farm-Level Optimization of BMP Placement for Cost-Effective Pollution Reduction. Trans. Am. Soc. Agric. Eng. 2004, 47. [Google Scholar] [CrossRef]
  48. Veith, T.L.; Wolfe, M.L.; Heatwole, C.D. Cost-effective bmp placement: Optimization versus targeting. Trans. ASAE 2004, 47, 1585–1594. [Google Scholar] [CrossRef]
  49. Sivertun, A.; Prange, L. Non-point source critical area analysis in the Gisselö watershed using GIS. Environ. Model. Softw. 2003, 18, 887–898. [Google Scholar] [CrossRef]
  50. Winchell, M.; Folle, S.; Meals, D.; Moore, J.; Srinivasan, R.; Howe, E.A. Using SWAT for sub-field identification of phosphorus critical source areas in a saturation excess runoff region. Hydrol. Sci. J. 2015, 60, 1–19. [Google Scholar] [CrossRef]
  51. Kleinman, P.J.A.; Sharpley, A.N.; McDowell, R.; Flaten, D.N.; Buda, A.R.; Tao, L.; Bergström, L.; Zhu, Q. Managing agricultural phosphorus for water quality protection: Principles for progress. Plant Soil 2011, 349, 169–182. [Google Scholar] [CrossRef]
  52. Schaller, F.W.; Bailey, G.W. Agricultural Management and Water Quality; Iowa State University Press: Ames, IA, USA, 1983. [Google Scholar]
  53. Mekonnen, B.A. Modeling and Management of Water Quantity and Quantity in Cold-Climate Prairie Watersheds. Ph.D. Thesis, Deptartment of Civil and Geological Engineering, University of Saskatchewan, Saskatchewan, SK, Canada, 2016. [Google Scholar]
  54. Sharpley, A. Identifying Sites Vulnerable to Phosphorus Loss in Agricultural Runoff. J. Environ. Qual. 1995, 24, 947–951. [Google Scholar] [CrossRef]
  55. Buczko, U.; Kuchenbuch, R.O. Phosphorus indices as risk-assessment tools in the U.S.A. and Europe—A review. J. Plant Nutr. Soil Sci. 2007, 170, 445–460. [Google Scholar] [CrossRef]
  56. Lemunyon, J.L.; Gilbert, R.G. The Concept and Need for a Phosphorus Assessment Tool. J. Prod. Agric. 1993, 6, 483–486. [Google Scholar] [CrossRef]
  57. Heathwaite, A.; Sharpley, A.; Gburek, W. A Conceptual Approach for Integrating Phosphorus and Nitrogen Management at Watershed Scales. J. Environ. Qual. 2000, 29, 158–166. [Google Scholar] [CrossRef]
  58. McDowell, R.; Sharpley, A.N.; Kleinman, P.J.A. Integrating Phosphorus and Nitrogen Decision Management at Watershed Scales. JAWRA J. Am. Water Resour. Assoc. 2002, 38, 479–491. [Google Scholar] [CrossRef]
  59. Reid, D.K. A modified Ontario P index as a tool for on-farm phosphorus management. Can. J. Soil Sci. 2011, 91, 455–466. [Google Scholar] [CrossRef]
  60. Sharpley, A.N.; Weld, J.L.; Beegle, D.B.; Kleinman, P.J.A.; Gburek, W.J., Jr.; Moore, P.A.; Mullins, G. Development of phosphorus indices for nutrient management planning strategies in the United States. J. Soil Water Conserv. 2003, 58, 137–152. [Google Scholar]
  61. Schendel, E.K.; Schreier, H.; Lavkulich, L.M. Linkages between phosphorus index estimates and environmental quality indicators. J. Soil Water Conserv. 2004, 59, 243–251. [Google Scholar]
  62. Hilborn, D.; Stone, R. Determining the Phosphorus Index for a Field; OMAFRA Factsheet 05-067; Queen’s Printer for Ontario: Toronto, ON, Canada, 2005. [Google Scholar]
  63. Zhou, H.; Gao, C. Assessing the Risk of Phosphorus Loss and Identifying Critical Source Areas in the Chaohu Lake Watershed, China. Environ. Manag. 2011, 48, 1033–1043. [Google Scholar] [CrossRef]
  64. Heathwaite, L.; Sharpley, A.; Bechmann, M.; Heathwaite, A. The conceptual basis for a decision support framework to assess the risk of phosphorus loss at the field scale across Europe. J. Plant Nutr. Soil Sci. 2003, 166, 447–458. [Google Scholar] [CrossRef]
  65. Hughes, K.; Magette, W.L.; Kurz, I. Identifying critical source areas for phosphorus loss in Ireland using field and catchment scale ranking schemes. J. Hydrol. 2005, 304, 430–445. [Google Scholar] [CrossRef]
  66. Andersen, H.E.; Kronvang, B. Modifying and Evaluating a P Index for Denmark. Water Air Soil Pollut. 2006, 174, 341–353. [Google Scholar] [CrossRef]
  67. Melland, R.; Smith, A.; Waller, R. Farm nutrient loss index. In A Nitrogen and Phosphorus Loss Index for the Australian Grazing Industries; Department of Primary Industries, Ellinbank: Victoria, Australia, 2007. [Google Scholar]
  68. Drewry, J.J.; Newham, L.; Greene, R. Index models to evaluate the risk of phosphorus and nitrogen loss at catchment scales. J. Environ. Manag. 2011, 92, 639–649. [Google Scholar] [CrossRef]
  69. Hart, M.R.; Elliot, S.; Petersen, J.; Stroud, M.J.; Cooper, A.B.; Nguyen, M.L.; Quin, F. Assessing and managing the potential risk of phosphorus losses from agricultural land to surface waters. In Proceedings of the 15th Annual FLRC Workshop, Palmerston North, New Zealand, 13–14 February 2002; pp. 155–166. [Google Scholar]
  70. McDowell, R.; Monaghan, R.M.; Wheeler, D. Modelling phosphorus losses from pastoral farming systems in New Zealand. N. Z. J. Agric. Res. 2005, 48, 131–141. [Google Scholar] [CrossRef]
  71. Maguire, R.O.; Ketterings, Q.M.; Lemunyon, J.L.; Leytem, A.B.; Mullins, G.; Weld, J.L. Phosphorus Indices to Predict Risk for Phosphorus Losses. SERA17 Position Paper. Available online: http://www.sera17.ext.vt.edu/Documents/P_Index_for_%20Risk_Assessment.pdf (accessed on 15 October 2016).
  72. Bechmann, M.; Krogstad, T.; Sharpley, A. A phosphorus Index for Norway. Acta Agric. Scand. Sect. B Plant Soil Sci. 2005, 55, 205–213. [Google Scholar] [CrossRef]
  73. Djodjic, F.; Bergström, L. Conditional Phosphorus Index as an Educational Tool for Risk Assessment and Phosphorus Management. Ambio 2005, 34, 296–300. [Google Scholar] [CrossRef]
  74. Ou, Y.; Wang, X. Identification of critical source areas for non-point source pollution in Miyun reservoir watershed near Beijing, China. Water Sci. Technol. 2008, 58, 2235–2241. [Google Scholar] [CrossRef]
  75. Zhou, B.; Vogt, R.D.; Xu, C.; Lu, X.; Xu, H.; Bishnu, J.P.; Zhu, L. Establishment and Validation of an Amended Phosphorus Index: Refined Phosphorus Loss Assessment of an Agriculture Watershed in Northern China. Water Air Soil Pollut. 2014, 225, 2103–2108. [Google Scholar] [CrossRef] [Green Version]
  76. Rousseau, N.; Quilbe, R.; Villeneuve, J.-P. Integration of a Topographic Index in the Hydrology Component of the Indicator of Risk of Water Contamination by Phosphorus; Report No R-727; Centre Eau Terre et Environnement Institut National de la Recherche Scientifique (INRS-ETE): Québec, QC, Canada, 2004. [Google Scholar]
  77. Bolinder, M.A.; Simard, R.R.; Beauchemin, S.; Macdonald, K.B. Indicator of risk of water contamination by P for Soil Landscape of Canada polygons. Can. J. Soil Sci. 2000, 80, 153–163. [Google Scholar] [CrossRef]
  78. Soil Landscapes of Canada (SLC) Working Group. Soil landscapes of Canada (SLC) Version 3.1.1. 2007. Available online: http://sis.agr.gc.ca/cansis/nsdb/slc/v3.1.1/intro.html (accessed on 26 September 2016).
  79. Van Bochove, E.; Van Thériault, G.; Dechmi, F.; Leclerc, M.-L.; Goussard, N. Indicator of risk of water contamination by phosphorus: Temporal trends for the Province of Quebec from 1981 to 2001. Can. J. Soil Sci. 2007, 87, 121–128. [Google Scholar] [CrossRef]
  80. Van Bochove, E.; Denault, J.-T.; Leclerc, M.-L.; Thériault, G.; Dechmi, F.; Allaire, S.; Rousseau, A.; Drury, C. Temporal trends of risk of water contamination by phosphorus from agricultural land in the Great Lakes Watersheds of Canada. Can. J. Soil Sci. 2011, 91, 443–453. [Google Scholar] [CrossRef]
  81. Van Bochove, E.; Thériault, G.; Denault, J.-T.; Dechmi, F.; Allaire, S.E.; Rousseau, A.N. Risk of Phosphorus Desorption from Canadian Agricultural Land: 25-Year Temporal Trend. J. Environ. Qual. 2012, 41, 1402–1412. [Google Scholar] [CrossRef]
  82. Sørensen, R.; Zinko, U.; Seibert, J. On the calculation of the topographic wetness index: Evaluation of different methods based on field observations. Hydrol. Earth Syst. Sci. 2006, 10, 101–112. [Google Scholar] [CrossRef] [Green Version]
  83. Kirkby, M. Hydrograph modelling strategies. In Processes in Physical and Human Geography: Bristol Essays; Peel, R., Chisholm, M., Hagget, P., Eds.; Heinemann Educational: London, UK, 1975. [Google Scholar]
  84. Beven, K.J.; Kirkby, M.J. A physically based, variable contributing area model of basin hydrology / Un modèle à base physique de zone d’appel variable de l’hydrologie du bassin versant. Hydrol. Sci. Bull. 1979, 24, 43–69. [Google Scholar] [CrossRef] [Green Version]
  85. Endreny, T.A.; Wood, E.F. Watershed Weighting of Export Coefficients to Map Critical Phosphorous Loading Areas. JAWRA J. Am. Water Resour. Assoc. 2003, 39, 165–181. [Google Scholar] [CrossRef]
  86. Page, T.; Haygarth, P.M.; Beven, K.J.; Joynes, A.; Butler, T.; Keeler, C.; Freer, J.; Owens, P.N.; Wood, G.A. Spatial Variability of Soil Phosphorus in Relation to the Topographic Index and Critical Source Areas. J. Environ. Qual. 2005, 34, 2263–2277. [Google Scholar] [CrossRef] [Green Version]
  87. Heathwaite, A.; Quinn, P.; Hewett, C.J. Modelling and managing critical source areas of diffuse pollution from agricultural land using flow connectivity simulation. J. Hydrol. 2005, 304, 446–461. [Google Scholar] [CrossRef]
  88. Haith, D.A.; Shoemaker, L.L. Generalized Watershed Loading Functions for Stream Flow Nutrients. JAWRA J. Am. Water Resour. Assoc. 1987, 23, 471–478. [Google Scholar] [CrossRef]
  89. Schneiderman, E.M.; Steenhuis, T.S.; Thongs, D.J.; Easton, Z.M.; Zion, M.S.; Neal, A.L.; Mendoza, G.F.; Walter, M.T. Incorporating variable source area hydrology into a curve-number-based watershed model. Hydrol. Process. 2007, 21, 3420–3430. [Google Scholar] [CrossRef]
  90. Easton, Z.M.; Fuka, D.R.; Walter, M.T.; Cowan, D.M.; Schneiderman, E.M.; Steenhuis, T.S. Re-conceptualizing the soil and water assessment tool (SWAT) model to predict runoff from variable source areas. J. Hydrol. 2008, 348, 279–291. [Google Scholar] [CrossRef]
  91. Rao, N.S.; Easton, Z.M.; Schneiderman, E.M.; Zion, M.S.; Lee, D.R.; Steenhuis, T.S. Modeling watershed-scale effectiveness of agricultural best management practices to reduce phosphorus loading. J. Environ. Manag. 2009, 90, 1385–1395. [Google Scholar] [CrossRef]
  92. Meals, D.W.; Cassell, E.A.; Hughell, D.; Wood, L.; Jokela, W.E.; Parsons, R. Dynamic spatially explicit mass-balance modeling for targeted watershed phosphorus management. Agric. Ecosyst. Environ. 2008, 127, 189–200. [Google Scholar] [CrossRef]
  93. Djodjic, F.; Villa, A. Distributed, high-resolution modelling of critical source areas for erosion and phosphorus losses. Ambio 2015, 44, S241–S251. [Google Scholar] [CrossRef] [Green Version]
  94. Wischmeier, W.H.; Smith, D.D. Predicting rainfall erosion losses. In Agriculture Handbook; US Department of Agriculture: Washington, DC, USA, 1978. [Google Scholar]
  95. Renard, K.G.; Foster, G.R.; Weesies, G.A.; Mclood, D.K.; Yoder, D.C. Predicting Soil Erosion by Water: A Guide to Conservation Planning with the Revised Universal Soil Loss Equation (RUSLE); Department of Agriculture: Washinghton, DC, USA, 1997.
  96. Dillon, P.; Kirchner, W. The effects of geology and land use on the export of phosphorus from watersheds. Water Res. 1975, 9, 135–148. [Google Scholar] [CrossRef]
  97. Meals, D.W.; Budd, L.F. Lake Champlain Basin Nonpoint Source Phosphorus Assessment. JAWRA J. Am. Water Resour. Assoc. 1998, 34, 251–265. [Google Scholar] [CrossRef]
  98. Srinivasan, M.; McDowell, R. Identifying critical source areas for water quality: 1. Mapping and validating transport areas in three headwater catchments in Otago, New Zealand. J. Hydrol. 2009, 379, 54–67. [Google Scholar] [CrossRef]
  99. Pionke, H.B.; Gburek, W.J.; Sharpley, A.N. Critical source area controls on water quality in an agricultural watershed located in the Chesapeake Basin. Ecol. Eng. 2000, 14, 325–335. [Google Scholar] [CrossRef]
  100. Karst-Riddoch, T. Managing New Urban Development in Phosphorus Sensitive Watersheds; Hutchinson Environmental Sciences Ltd.: Bracebridge, ON, Canada, 2014. [Google Scholar]
  101. Benoy, G.A.; Jenkinson, R.W.; Robertson, D.M.; Saad, D.A. Nutrient delivery to Lake Winnipeg from the Red—Assiniboine River Basin—A binational application of the SPARROW model. Can. Water Resour. J. 2016, 41, 1–19. [Google Scholar] [CrossRef]
  102. Shoemaker, L.; Dai, T.; Koenig, J.; Hantush, M. TMDL Model Evaluation and Research Needs; National Risk Management Research Laboratory, US Environmental Protection Agency: Cincinnati, OH, USA, 2005.
  103. Booty, W.G.; Benoy, G. Multicriteria Review of Nonpoint Source Water Quality Models for Nutrients, Sediments, and Pathogens. Water Qual. Res. J. 2009, 44, 365–377. [Google Scholar] [CrossRef]
  104. Arnold, J.G.; Srinivasan, R.; Muttiah, R.S.; Williams, J.R. Large Area Hydrologic Modeling and Assessment Part I: Model Development. J. Am. Water Resour. Assoc. 1998, 34, 73–89. [Google Scholar] [CrossRef]
  105. Bingner, R.L.; Theurer, F.D. Topographic factors for RUSLE in the continuous-simulation, watershed model for predicting agricultural, non-point source pollutants (AnnAGNPS). In Proceedings of the Soil Erosion for the 21st Century—An International Symposium, Honolulu, HI, USA, 3–5 January 2001. [Google Scholar]
  106. US EPA. BASINS 4.1 (Better Assessment Science Integrating point & Non-point Sources) Modeling Framework. National Exposure Research Laboratory, RTP, North Carolina. 2015. Available online: https://www.epa.gov/exposure-assessment-models/basins (accessed on 7 November 2015).
  107. Villeneuve, J.P.; Fortin, J.P.; Mailhot, A.; Mamouny, K.; Montminy, M. Project GIBSI Phase I: Analysis des Basoins Rapport Final (Tome 1); Rapport No. R-416; INRS-Eau: Ste-Foy, QC, Canada, 1995. [Google Scholar]
  108. Young, R.A.; Onstad, C.A.; Bossch, D.D.; Anderson, W.P. AGNPS: A non-point source pollution model for evaluating agricultural watersheds. J. Soil Water Conserv. 1989, 44, 168–173. [Google Scholar]
  109. Wellen, C.; Kamran-Disfani, A.-R.; Arhonditsis, G.B. Evaluation of the Current State of Distributed Watershed Nutrient Water Quality Modeling. Environ. Sci. Technol. 2015, 49, 3278–3290. [Google Scholar] [CrossRef]
  110. Arabi, M.; Govindaraju, R.S.; Hantush, M.M.; Engel, B.A. Role of Watershed Subdivision on Modeling the Effectiveness of Best Management Practices with Swat. J. Am. Water Resour. Assoc. 2006, 42, 513–528. [Google Scholar] [CrossRef]
  111. Bello, A.-A.D.; Haniffah, M.R.M.; Hanapi, M.N.; Usman, A.B. Identification of critical source areas under present and projected land use for effective management of diffuse pollutants in an urbanized watershed. Int. J. River Basin Manag. 2018, 17, 171–184. [Google Scholar] [CrossRef]
  112. Cho, J.; Vellidis, G.; Bosch, D.D.; Lowrance, R.; Strickland, T.C. Water quality effects of simulated conservation practice scenarios in the Little River Experimental watershed. J. Soil Water Conserv. 2010, 65, 463–473. [Google Scholar] [CrossRef] [Green Version]
  113. Ghebremichael, L.T.; Veith, T.L.; Watzin, M.C. Determination of Critical Source Areas for Phosphorus Loss: Lake Champlain Basin, Vermont. Trans. ASABE 2010, 53, 1595–1604. [Google Scholar] [CrossRef]
  114. Ghebremichael, L.T.; Veith, T.L.; Hamlett, J.M. Integrated watershed- and farm-scale modeling framework for targeting critical source areas while maintaining farm economic viability. J. Environ. Manag. 2013, 114, 381–394. [Google Scholar] [CrossRef]
  115. Guo, Y.; Wang, X.; Zhou, L.; Melching, C.S.; Li, Z. Identification of Critical Source Areas of Nitrogen Load in the Miyun Reservoir Watershed under Different Hydrological Conditions. Sustainability 2020, 12, 964. [Google Scholar] [CrossRef] [Green Version]
  116. Ning, S.-K.; Chang, N.-B.; Jeng, K.-Y.; Tseng, Y.-H. Soil erosion and non-point source pollution impacts assessment with the aid of multi-temporal remote sensing images. J. Environ. Manag. 2006, 79, 88–101. [Google Scholar] [CrossRef] [PubMed]
  117. Niraula, R.; Kalin, L.; Wang, R.; Srivastava, P. Determining Nutrient and Sediment Critical Source Areas with SWAT: Effect of Lumped Calibration. Trans. ASABE 2011, 55, 137–147. [Google Scholar] [CrossRef]
  118. Ouyang, W.; Hao, F.-H.; Wang, X.-L. Regional Non point Source Organic Pollution Modeling and Critical Area Identification for Watershed Best Environmental Management. Water Air Soil Pollut. 2007, 187, 251–261. [Google Scholar] [CrossRef]
  119. Panagopoulos, Y.; Makropoulos, C.K.; Baltas, E.; Mimikou, M. SWAT parameterization for the identification of critical diffuse pollution source areas under data limitations. Ecol. Model. 2011, 222, 3500–3512. [Google Scholar] [CrossRef]
  120. Pease, L.M.; Oduor, P.; Padmanabhan, G. Estimating sediment, nitrogen, and phosphorous loads from the Pipestem Creek watershed, North Dakota, using AnnAGNPS. Comput. Geosci. 2010, 36, 282–291. [Google Scholar] [CrossRef]
  121. Rousseau, A.N.; Savary, S.; Hallema, D.W.; Gumiere, S.J.; Foulon, É. Modeling the effects of agricultural BMPs on sediments, nutrients, and water quality of the Beaurivage River watershed (Quebec, Canada). Can. Water Resour. J./Rev. Can. Ressour. Hydr. 2013, 38, 99–120. [Google Scholar] [CrossRef]
  122. Shang, X.; Wang, X.; Zhang, D.; Chen, W.; Chen, X.; Kong, H. An improved SWAT-based computational framework for identifying critical source areas for agricultural pollution at the lake basin scale. Ecol. Model. 2012, 226, 1–10. [Google Scholar] [CrossRef]
  123. Shrestha, N.K.; Allataifeh, N.; Rudra, R.P.; Daggupati, P.; Goel, P.K.; Dickinson, T.; Dickinson, W. Identifying threshold storm events and quantifying potential impacts of climate change on sediment yield in a small upland agricultural watershed of Ontario. Hydrol. Process. 2019, 33, 920–931. [Google Scholar] [CrossRef]
  124. Tripathi, M.; Panda, R.; Raghuwanshi, N. Identification and Prioritisation of Critical Sub-watersheds for Soil Conservation Management using the SWAT Model. Biosyst. Eng. 2003, 85, 365–379. [Google Scholar] [CrossRef]
  125. Wang, X.; Lin, Q. Effect of DEM mesh size on AnnAGNPS simulation and slope correction. Environ. Monit. Assess. 2010, 179, 267–277. [Google Scholar] [CrossRef] [PubMed]
  126. White, M.J.; Storm, D.E.; Busteed, P.R.; Stoodley, S.H.; Phillips, S.J. Evaluating Nonpoint Source Critical Source Area Contributions at the Watershed Scale. J. Environ. Qual. 2009, 38, 1654–1663. [Google Scholar] [CrossRef] [PubMed]
  127. Hunt, R.; Zheng, C. Debating complexity in modeling. Eos 1999, 80, 29. [Google Scholar] [CrossRef]
  128. Gassman, P.W.; Reyes, M.R.; Green, C.H.; Arnold, J.G. The Soil and Water Assessment Tool: Historical Development, Applications, and Future Research Directions. Trans. ASABE 2007, 50, 1211–1250. [Google Scholar] [CrossRef] [Green Version]
  129. Pai, N.; Saraswat, D.; Srinivasan, R. Field_SWAT: A tool for mapping SWAT output to field boundaries. Comput. Geosci. 2012, 40, 175–184. [Google Scholar] [CrossRef]
  130. Withers, P.; Jarvie, H.P. Delivery and cycling of phosphorus in rivers: A review. Sci. Total. Environ. 2008, 400, 379–395. [Google Scholar] [CrossRef]
  131. Reddy, K.R.; Kadlec, R.H.; Flaig, E.; Gale, P.M. Phosphorus Retention in Streams and Wetlands: A Review. Crit. Rev. Environ. Sci. Technol. 1999, 29, 83–146. [Google Scholar] [CrossRef]
  132. Bukaveckas, P.A. Effects of Channel Restoration on Water Velocity, Transient Storage, and Nutrient Uptake in a Channelized Stream. Environ. Sci. Technol. 2007, 41, 1570–1576. [Google Scholar] [CrossRef]
  133. Wagenschein, D.; Rode, M. Modelling the impact of river morphology on nitrogen retention—A case study of the Weisse Elster River (Germany). Ecol. Model. 2008, 211, 224–232. [Google Scholar] [CrossRef]
  134. Neitsch, S.L.; Arnold, J.G.; Kiniry, J.R.; Williams, J.R. Soil and Water Assessment Tool Theoretical Documentation; Version 2005; Grassland, Soil and Water Research Laboratory, Blackland Research Center: Temple, TX, USA, 2011.
  135. Sharpley, A.; Jarvie, H.P.; Buda, A.; May, L.; Spears, B.; Kleinman, P. Phosphorus Legacy: Overcoming the Effects of Past Management Practices to Mitigate Future Water Quality Impairment. J. Environ. Qual. 2013, 42, 1308–1326. [Google Scholar] [CrossRef] [Green Version]
  136. Streeter, H.W.; Phelps, E.B. A Study of the Pollution and Natural Purification of the OHIO RIVER; US Department of Health, Education, & Welfare: Newark, DE, USA, 1958. [Google Scholar]
  137. Gao, L.; Li, D. A review of hydrological/water-quality models. Front. Agric. Sci. Eng. 2014, 1, 267. [Google Scholar] [CrossRef] [Green Version]
  138. Robson, B.J. State of the art in modelling of phosphorus in aquatic systems: Review, criticisms and commentary. Environ. Model. Softw. 2014, 61, 339–359. [Google Scholar] [CrossRef] [Green Version]
  139. Sharpley, A.; Daniel, T.C.; Sims, J.T.; Pote, D.H. Determining environmentally sound soil phosphorus levels. J. Soil Water Conserv. 1996, 51, 160–166. [Google Scholar]
  140. Stieglitz, M.; Shaman, J.; McNamara, J.; Engel, V.; Shanley, J.; Kling, G. An approach to understanding hydrologic connectivity on the hillslope and the implications for nutrient transport. Glob. Biogeochem. Cycles 2003, 17, 1105. [Google Scholar] [CrossRef]
  141. Beven, K. Rainfall-Runoff Modelling: The Primer; John Wiley & Sons: New York, NY, USA, 2012. [Google Scholar]
  142. Moriasi, D.N.; Arnold, J.G.; Van Liew, M.W.; Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model Evaluation Guidelines for Systematic Quantification of Accuracy in Watershed Simulations. Trans. ASABE 2007, 50, 885–900. [Google Scholar] [CrossRef]
  143. Moriasi, D.N.; Gitau, M.W.; Pai, N.; Daggupati, P. Hydrologic and Water Quality Models: Performance Measures and Evaluation Criteria. Trans. ASABE 2015, 58, 1763–1785. [Google Scholar] [CrossRef] [Green Version]
  144. Daggupati, P.; Pai, N.; Ale, S.; Douglas-Mankin, K.R.; Zeckoski, R.W.; Jeong, J.; Parajuli, P.B.; Saraswat, D.; Youssef, M.A. A Recommended Calibration and Validation Strategy for Hydrologic and Water Quality Models. Trans. ASABE 2015, 58, 1705–1719. [Google Scholar]
  145. Leta, O.T.; Nossent, J.; Velez, C.; Shrestha, N.K.; Van Griensven, A.; Bauwens, W. Assessment of the different sources of uncertainty in a SWAT model of the River Senne (Belgium). Environ. Model. Softw. 2015, 68, 129–146. [Google Scholar] [CrossRef]
  146. Beven, K. Prophecy, reality and uncertainty in distributed hydrological modelling. Adv. Water Resour. 1993, 16, 41–51. [Google Scholar] [CrossRef]
  147. Li, T.; Helie, R. Eco-regions of Canada. Canadian Council on Ecological Areas (CCEA): Canada, 2014. Available online: https://www.ccea.org/Downloads/shapefiles/CA_ecozones_15M_v5_final_map%20v20140213.pdf (accessed on 12 October 2020).
  148. Dunne, T.; Leopold, L.B. Water in Environmental Planning; W.H. Freeman: San Francisco, CA, USA, 1978; p. 818. [Google Scholar]
  149. Frankenberger, J.R.; Brooks, E.S.; Walter, M.T.; Walter, M.F.; Steenhuis, T.S. A GIS-based variable source area model. Hydrol. Process. 1999, 13, 804–822. [Google Scholar] [CrossRef]
  150. Walter, M.T.; Walter, M.F.; Brooks, E.S.; Steenhuis, T.S.; Boll, J.; Weiler, K.R. Hydrologically sensitive areas: Variable source area hydrology implications for water quality risk assessment. J. Soil Water Conserv. 2000, 3, 277–284. [Google Scholar]
  151. Merwin, I.A.; Stiles, W.C.; Van Es, H.M. Orchard Groundcover Management Impacts on Soil Physical Properties. J. Am. Soc. Hortic. Sci. 1994, 119, 216–222. [Google Scholar] [CrossRef] [Green Version]
  152. Horton, R.E. An Approach Toward a Physical Interpretation of Infiltration-Capacity. Soil Sci. Soc. Am. J. 1941, 5, 399–417. [Google Scholar] [CrossRef]
  153. Hewlett, J.D.; Hibbert, A.R. Moisture and energy conditions within a sloping soil mass during drainage. J. Geophys. Res. 1963, 68, 1081–1087. [Google Scholar] [CrossRef] [Green Version]
  154. Hornbeck, J.W.; Reinhart, K.G. Water quality and soil erosion as affected by logging in steep terrain. J. Soil Water Conserv. 1964, 19, 23–27. [Google Scholar]
  155. Whipkey, R.Z. Subsurface stormflow from forested slopes Bull. Int. Assoc. Sci. Hydrol. 1965, 10, 74–85. [Google Scholar] [CrossRef] [Green Version]
  156. Garen, D.C.; Moore, D.S. Curve Number Hydrology in Water Quality Modeling: Uses, Abuses, and Future Directions. JAWRA J. Am. Water Resour. Assoc. 2005, 41, 377–388. [Google Scholar] [CrossRef]
  157. Knisel, W.G. CREAMS: A Field Scale Model for Chemicals, Runoff, and Erosion from Agricultural Management Systems; Department of Agriculture, Science and Education Administration: Washington, DC, USA, 1980; Available online: https://agris.fao.org/agris-search/search.do?recordID=US8025878 (accessed on 12 October 2020).
  158. Soil Conservation Service National Engineering Handbook, section 4, Hydrology. 1969. Available online: https://www.nrcs.usda.gov/wps/portal/nrcs/detail/?cid=nrcs141p2_024573 (accessed on 12 October 2020).
  159. Steenhuis, T.S.; Winchell, M.; Rossing, J.; Zollweg, J.A.; Walter, M.F. SCS Runoff Equation Revisited for Variable-Source Runoff Areas. J. Irrig. Drain. Eng. 1995, 121, 234–238. [Google Scholar] [CrossRef]
  160. Hjelmfelt, A.T., Jr. Curve number procedure as infiltration method. J. Hydraul. Div. 1980, 106, 1107–1111. [Google Scholar]
  161. Mishra, S.K.; Singh, V.P. Long-term hydrological simulation based on the Soil Conservation Service curve number. Hydrol. Process. 2004, 18, 1291–1313. [Google Scholar] [CrossRef]
  162. Shook, K.R.; Pomeroy, J.W.; Spence, C.; Boychuk, L. Storage dynamics simulations in prairie wetland hydrology models: Evaluation and parameterization. Hydrol. Process. 2013, 27, 1875–1889. [Google Scholar] [CrossRef]
  163. Kiesel, J.; Fohrer, N.; Schmalz, B.; White, M.J. Incorporating landscape depressions and tile drainages of a northern German lowland catchment into a semi-distributed model. Hydrol. Process. 2010, 24, 1472–1486. [Google Scholar] [CrossRef]
  164. Almendinger, J.E.; Murphy, M.S.; Ulrich, J.S. Use of the Soil and Water Assessment Tool to Scale Sediment Delivery from Field to Watershed in an Agricultural Landscape with Topographic Depressions. J. Environ. Qual. 2014, 43, 9–17. [Google Scholar] [CrossRef] [PubMed]
  165. Mekonnen, B.A.; Mazurek, K.A.; Putz, G. Sediment Export Modeling in Cold-Climate Prairie Watersheds. J. Hydrol. Eng. 2016, 21, 05016005. [Google Scholar] [CrossRef]
  166. Mekonnen, B.A.; Mazurek, K.A.; Putz, G. Incorporating landscape depression heterogeneity into the Soil and Water Assessment Tool (SWAT) using a probability distribution. Hydrol. Process. 2016, 30, 2373–2389. [Google Scholar] [CrossRef]
  167. Crumpton, W.G.; Goldsborough, L.G. Nitrogen transformation and fate in prairie wetlands. Gt. Plains Res. 1998, 8, 57–72. [Google Scholar]
  168. Granger, R.J.; Gray, D.M.; Dyck, G.E. Snowmelt infiltration to frozen Prairie soils. Can. J. Earth Sci. 1984, 21, 669–677. [Google Scholar] [CrossRef] [Green Version]
  169. Gray, D.M.; Toth, B.; Zhao, L.; Pomeroy, J.W.; Granger, R.J. Estimating areal snowmelt infiltration into frozen soils. Hydrol. Process. 2001, 15, 3095–3111. [Google Scholar] [CrossRef]
  170. Aldrich, J.W.; Slaughter, C.W. Soil erosion on subarctic forest slopes. J. Soil Water Conserv. 1983, 38, 115–118. [Google Scholar]
  171. Wall, G.J.; Dickinson, W.T.; Rudra, R.P.; Coote, D.R. Seasonal soil erodibility variation in southwestern ontario. Can. J. Soil Sci. 1988, 68, 417–424. [Google Scholar] [CrossRef] [Green Version]
  172. Kirby, P.C.; Mehuys, G.R. Seasonal variation of soil erodibilities in southwestern Quebec. J. Soil Water Conserv. 1987, 42, 211–215. [Google Scholar]
  173. Asare, S.N.; Rudra, R.P.; Dickinson, W.T.; Wall, G.J. Seasonal Variability of Hydraulic Conductivity. Trans. ASAE 1993, 36, 451–457. [Google Scholar] [CrossRef]
  174. Tiessen, K.; Elliott, J.; Yarotski, J.; Lobb, D.A.; Flaten, D.N.; Glozier, N.E. Conventional and Conservation Tillage: Influence on Seasonal Runoff, Sediment, and Nutrient Losses in the Canadian Prairies. J. Environ. Qual. 2010, 39, 964–980. [Google Scholar] [CrossRef] [Green Version]
  175. Ferrick, M.G.; Gatto, L.W. Quantifying the effect of a freeze-thaw cycle on soil erosion: Laboratory experiments. Earth Surf. Process. Landf. 2005, 30, 1305–1326. [Google Scholar] [CrossRef]
  176. Dagesse, D.F. Freezing cycle effects on water stability of soil aggregates. Can. J. Soil Sci. 2013, 93, 473–483. [Google Scholar] [CrossRef]
  177. Donnan, W.W. An overview of drainage worldwide. In Proceedings of the 3rd National Drainage Symposium, Chicago, IL, USA, 6–9 December 1976. [Google Scholar]
  178. USDA. Water—Yearbook of Agriculture; United States Department of Agriculture: Washington, DC, USA, 1955.
  179. Lrwin, R.W.; Clayton, R.C. Drainage Guide for Ontario; Ministry of Agriculture, Food and Rural Affairs (OMAFRA): Toronto, ON, Canada, 1978.
  180. OMAFRA 1996. Census of Agriculture and Policy & Programs Branch; Ontario Ministry of Agriculture, Food, and Rural Affairs: Toronto, ON, Canada, 1996.
  181. Zhang, T.Q.; Hu, Q.C.; Wang, Y.T.; Tan, C.S.; O’Halloran, I.; Drury, C.F.; Reid, D.K.; Ball-Coelho, B.; Ma, B.L.; Welacky, T.; et al. Determination of Some Key Factors for Ontario Soil P Index and Effectiveness of Manure Application Practices for Mitigating Risk to Water Resources; Report NM8002 to the Nutrient Management Joint Research Program; Ontario Ministry of Agriculture, Food and Rural Affairs, Ontario Ministry of Environment: Guelph, ON, Canada, 2009. [Google Scholar]
  182. Culley, J.L.B.; Bolton, E.F.; Bernyk, V. Suspended Solids and Phosphorus Loads from a Clay Soil: I. Plot Studies. J. Environ. Qual. 1983, 12, 493–498. [Google Scholar] [CrossRef]
  183. Gaynor, J.D.; Findlay, W.I. Soil and Phosphorus Loss from Conservation and Conventional Tillage in Corn Production. J. Environ. Qual. 1995, 24, 734–741. [Google Scholar] [CrossRef]
  184. Simard, R.R.; Beauchemin, S.; Haygarth, P.M. Potential for Preferential Pathways of Phosphorus Transport. J. Environ. Qual. 2000, 29, 97–105. [Google Scholar] [CrossRef]
  185. Kinley, R.D.; Gordon, R.J.; Stratton, G.W.; Patterson, G.T.; Hoyle, J. Phosphorus Losses through Agricultural Tile Drainage in Nova Scotia, Canada. J. Environ. Qual. 2007, 36, 469–477. [Google Scholar] [CrossRef] [Green Version]
  186. Eastman, M.; Gollamudi, A.; Stämpfli, N.; Madramootoo, C.; Sarangi, A. Comparative evaluation of phosphorus losses from subsurface and naturally drained agricultural fields in the Pike River watershed of Quebec, Canada. Agric. Water Manag. 2010, 97, 596–604. [Google Scholar] [CrossRef]
  187. Tan, C.; Zhang, T.Q. Surface runoff and sub-surface drainage phosphorus losses under regular free drainage and controlled drainage with sub-irrigation systems in southern Ontario. Can. J. Soil Sci. 2011, 91, 349–359. [Google Scholar] [CrossRef]
  188. Reid, D.K.; Ball, B.; Zhang, T.Q. Accounting for the Risks of Phosphorus Losses through Tile Drains in a Phosphorus Index. J. Environ. Qual. 2012, 41, 1720–1729. [Google Scholar] [CrossRef] [PubMed]
  189. Hooghoudt, S.B. Contributions to the knowledge of some physical constants of the soil. Versl. Landbouwkd. Onderz. 1940, 46, 515–707. (In Dutch) [Google Scholar]
  190. Kirkham, D. Theory of land drainage In: Drainage of agricultural lands. Agron. Monogr. 1957. Available online: https://acsess.onlinelibrary.wiley.com/doi/book/10.2134/agronmonogr7 (accessed on 12 October 2020).
  191. Golmohammadi, G.; Prasher, S.O.; Madani, A.; Rudra, R.P.; Youssef, M.A. SWATDRAIN, a new model to simulate the hydrology of agricultural Lands, model development and evaluation. Biosyst. Eng. 2016, 141, 31–47. [Google Scholar] [CrossRef]
  192. Koch, S.; Bauwe, A.; Lennartz, B. Application of the SWAT Model for a Tile-Drained Lowland Catchment in North-Eastern Germany on Subbasin Scale. Water Resour. Manag. 2012, 27, 791–805. [Google Scholar] [CrossRef]
  193. Bauwe, A.; Eckhardt, K.-U.; Lennartz, B. Predicting dissolved reactive phosphorus in tile-drained catchments using a modified SWAT model. Ecohydrol. Hydrobiol. 2019, 19, 198–209. [Google Scholar] [CrossRef]
  194. Coelho, B.B.; Lapen, D.; Murray, R.; Topp, E.; Bruin, A.; Khan, B. Nitrogen loading to offsite waters from liquid swine manure application under different drainage and tillage practices. Agric. Water Manag. 2012, 104, 40–50. [Google Scholar] [CrossRef]
  195. Coelho, B.B.; Murray, R.; Lapen, D.; Topp, E.; Bruin, A. Phosphorus and sediment loading to surface waters from liquid swine manure application under different drainage and tillage practices. Agric. Water Manag. 2012, 104, 51–61. [Google Scholar] [CrossRef]
  196. Her, Y.G.; Chaubey, I.; Frankenberger, J.; Jeong, J. Implications of spatial and temporal variations in effects of conservation practices on water management strategies. Agric. Water Manag. 2017, 180, 252–266. [Google Scholar] [CrossRef]
  197. Gupta, A.K.; Rudra, R.P.; Gharabaghi, B.; Daggupati, P.; Goel, P.K.; Shukla, R. CoBAGNPS: A toolbox for simulating water and sediment control basin, WASCoB through AGNPS model. CATENA 2019, 179, 49–65. [Google Scholar] [CrossRef]
  198. Fiener, P.; Auerswald, K.; Weigand, S. Managing erosion and water quality in agricultural watersheds by small detention ponds. Agric. Ecosyst. Environ. 2005, 110, 132–142. [Google Scholar] [CrossRef]
  199. Shrestha, N.K.; Leta, O.T.; De Fraine, B.; Van Griensven, A.; Bauwens, W. OpenMI-based integrated sediment transport modelling of the river Zenne, Belgium. Environ. Model. Softw. 2013, 47, 193–206. [Google Scholar] [CrossRef]
  200. Yang, W.L.; Simmons, J.; Oginskyy, A.; McKague, K. SWAT Modelling of Agricultural BMPs and Analysis of BMP Cost Effectiveness in the Gully Creek Watershed; OMAFRA: Norfolk, ON, Canada, 2013.
  201. Heathwaite, L.; Reaney, S.; Lane, S. Understanding spatial signals in catchments: Linking critical areas, identifying connection and evaluating response. In Proceedings of the 5th International Phosphorus Workshop, Silkeborg, Denmark, 3–7 September 2007; p. 25. [Google Scholar]
  202. Yen, H.; Daggupati, P.; White, M.J.; Srinivasan, R.; Gossel, A.; Wells, D.; Arnold, J.G. Application of Large-Scale, Multi-Resolution Watershed Modeling Framework Using the Hydrologic and Water Quality System (HAWQS). Water 2016, 8, 164. [Google Scholar] [CrossRef]
  203. Zhang, B.; Shrestha, N.K.; Rudra, R.; Shukla, R.; Daggupati, P.; Goel, P.; Dickinson, W.; Allataifeh, N. Threshold storm approach for locating phosphorus problem areas: An application in three agricultural watersheds in the Canadian Lake Erie basin. J. Great Lakes Res. 2020, 46, 132–143. [Google Scholar] [CrossRef]
  204. Alilou, H.; Moghaddamnia, A.; Keshtkar, H.; Han, D.; Bray, M. A cost-effective and efficient framework to determine water quality monitoring network locations. Sci. Total. Environ. 2018, 624, 283–293. [Google Scholar] [CrossRef] [Green Version]
  205. Shrestha, N.K.; Punzal, C.; Leta, O.T.; Bauwens, W. Trace Metal Modelling of a Complex River Basin Using the Suite of Models Integrated in the OpenMI Platform. Environments 2018, 5, 48. [Google Scholar] [CrossRef] [Green Version]
  206. Van Griensven, A.; Vandenberghe, V.; Bols, J.; De Pauw, N.; Goethals, P.; Meirlaen, J.; Vanrolleghem, P.A.; Van Vooren, L.; Bauwens, W. Experience and organistation of automated measuring stations for river water quality monitoring. 2000. Available online: https://www.semanticscholar.org/paper/Experience-and-organisation-of-automated-measuring-Griensven-Vandenberghe/9ca1d609e857aae8cdee97fe729abe8abfc4f50f (accessed on 12 October 2020).
  207. Anderson, C.W.; Rounds, S.A. Use of Continuous Monitors and Autosamplers to Predict Unmeasured Waterquality Constituents in Tributaries of the Tualatin River, Oregon; U.S. Geological Survey Scientific Investigations Report; US Department of the Interior, US Geological Survey: Reston, VA, USA, 2010; Volume 5008, p. 76.

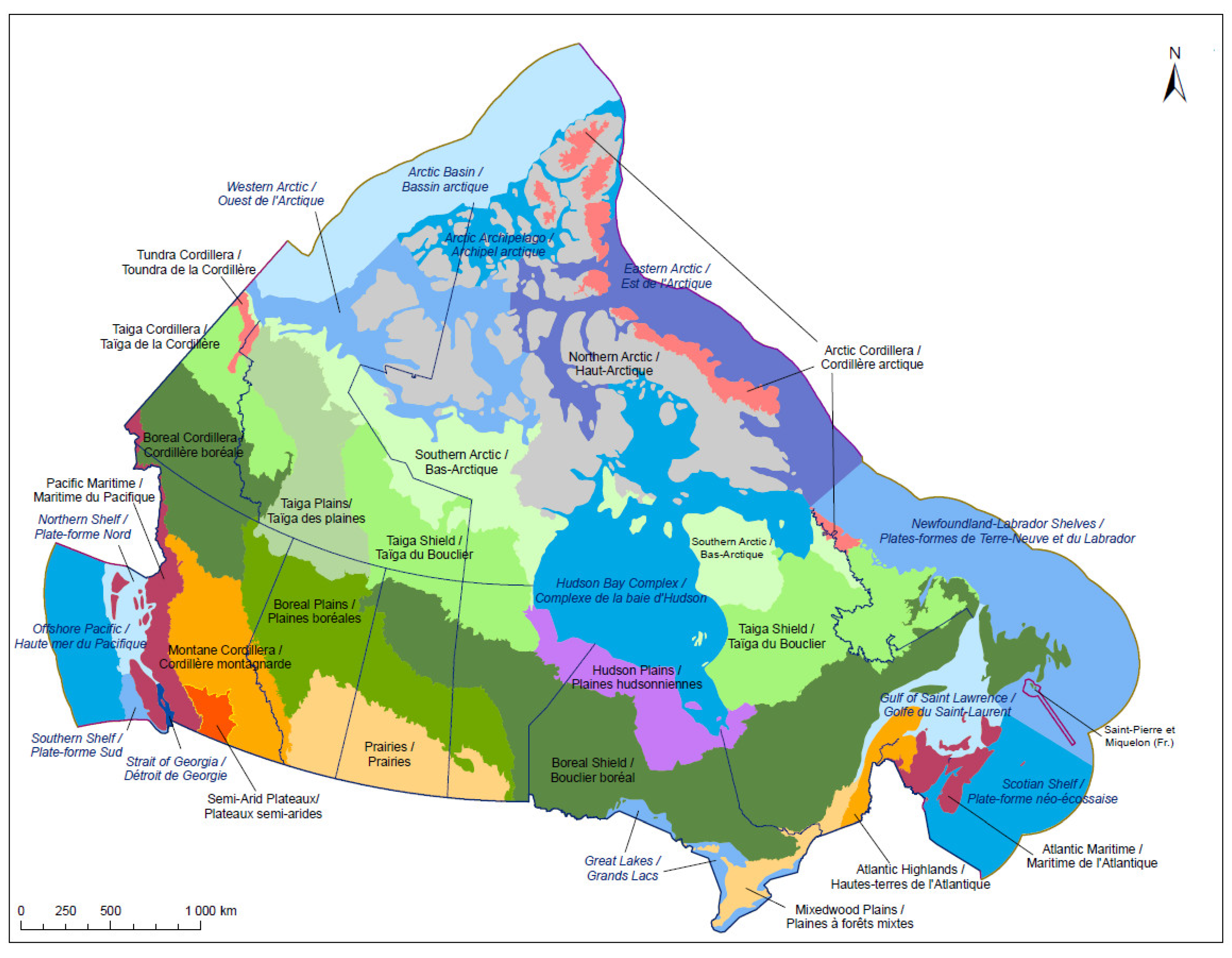

Figure 1. Ecoregions of Canada (Adapted from the Canadian Council on Ecological Areas (CCEA), [147]).
Figure 1. Ecoregions of Canada (Adapted from the Canadian Council on Ecological Areas (CCEA), [147]).
Agriculture 10 00468 g001
Table 1. Overview of the top five hydrologic and water quality (HWQ) models applied to identify critical source areas (CSAs).
Table 1. Overview of the top five hydrologic and water quality (HWQ) models applied to identify critical source areas (CSAs).
ReferencesModel Used and Location of Study AreaScale of Application and Modeling Approach
Arabi et al., [110]SWAT, Northeast Indiana, USA, Black Creek BasinField scale, but connectivity of HRUs not considered
Bello et al., [111]BASINS/HSPF, Malaysia, Skudai watershedWatershed (287 km2), CSAs identified in present and future land use scenarios
Cho et al., [112]SWAT, Georgia, USA;
Little River Experimental Watershed
Watershed scale (334 km2); both stream order based and HRU based scenarios are done. CSAs identified at HRU level
Ghebremichael et al., [113]SWAT, Vermont, USA; Rock River Watershed of Lake ChamplainCSAs are identified at HRU level, connectivity not considered
Ghebremichael et al., [114]SWAT, USA; Rock River Watershed & Cannonsville Reservoir WatershedField scale (0.027–0.04 km2), connection between HRUs not considered
Guo et al., [115]SWAT, China; Miyun Reservoir WatershedWatershed scale (4888 km2), connection between HRUs not considered
Ning et al., [116]GWLF, Kao-Ping River Basin, South TaiwanWatershed scale (3256 km2)
Niraula et al., [117]SWAT, USA; Saugahatchee Creek Watershed & Magnolia River WatershedCSAs identified at HRU level
Niraula et al., [45]SWAT and GWLF, Alabama, USA; Saugahatchee Creek WatershedStudy area of 570 km2, CSAs identified at sub-basin level
Ouyoung et al., [118]SWAT, China; Bahe River WatershedCSAs identified at sub-basin level
Panagopoulos et al., [119]SWAT, Greece; Arachthos CatchmentCSAs identified at HRU level
Pease et al., [120]AnnAGNPS, North Dakota, USA, Pipestem CreekWatershed scale (1697 km2)
Rousseau et al., [121]GIBSI, Quebec, Canada, Beaurivage River BasinWatershed scale (718 km2)
Shang et al., [122]SWAT, China; Lake Erhai BasinCSAs are identified at sub-basin level
Shrestha et al., [123]AGNPS, Canada, Holtby watershedWatershed (3.74 km2), CSAs identified at cell level
Tripathi et al., [124]SWAT, Bihar, India; Nagwan WatershedWatershed (92.46 km2), CSAs are identified at sub-watershed level
Wang and Lin, [125]AnnAGNPS, China, Dage subwatershed of Chaohe RiverWatershed (1876 km2)
Winchell et al., [50]SWAT, USA-CAN border; Lake Champlain Missisquoi Bay WatershedWatershed (310 km2), CSAs identified at HRU level, considers saturation excess using topographic index
White et al., [126]SWAT, Oklahoma, USA; 6 different watershedsWatershed (23,000–174,000 km2), CSAs are identified at HRU level
Note: HRU = Hydrological Response Unit, which is the finest subdivision in Soil and Water Assessment Tool (SWAT).

Share and Cite

MDPI and ACS Style

Rudra, R.P.; Mekonnen, B.A.; Shukla, R.; Shrestha, N.K.; Goel, P.K.; Daggupati, P.; Biswas, A. Currents Status, Challenges, and Future Directions in Identifying Critical Source Areas for Non-Point Source Pollution in Canadian Conditions. Agriculture 2020, 10, 468. https://doi.org/10.3390/agriculture10100468

AMA Style

Rudra RP, Mekonnen BA, Shukla R, Shrestha NK, Goel PK, Daggupati P, Biswas A. Currents Status, Challenges, and Future Directions in Identifying Critical Source Areas for Non-Point Source Pollution in Canadian Conditions. Agriculture. 2020; 10(10):468. https://doi.org/10.3390/agriculture10100468

Chicago/Turabian Style

Rudra, Ramesh P., Balew A. Mekonnen, Rituraj Shukla, Narayan Kumar Shrestha, Pradeep K. Goel, Prasad Daggupati, and Asim Biswas. 2020. "Currents Status, Challenges, and Future Directions in Identifying Critical Source Areas for Non-Point Source Pollution in Canadian Conditions" Agriculture 10, no. 10: 468. https://doi.org/10.3390/agriculture10100468

APA Style

Rudra, R. P., Mekonnen, B. A., Shukla, R., Shrestha, N. K., Goel, P. K., Daggupati, P., & Biswas, A. (2020). Currents Status, Challenges, and Future Directions in Identifying Critical Source Areas for Non-Point Source Pollution in Canadian Conditions. Agriculture, 10(10), 468. https://doi.org/10.3390/agriculture10100468

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
