Study on the Atomization Characteristics of Flat Fan Nozzles for Pesticide Application at Low Pressures

Abstract

Spraying is the most widely used means of pesticide application for pest control in agriculture and forestry. The atomization characteristics of the nozzles are directly related to the spray drift, rebound, and deposition. Previous research studies have mainly focused on the change pattern of atomization characteristics. Mathematical descriptions of the atomization characteristics of flat fan nozzles are rare, and pesticide application theories are also insufficient. Atomization characteristics mainly include droplet size and velocity. This study analyzes the influence of the spray parameters (spray angle, pressure, and equivalent orifice diameter of nozzles) and the spatial position in the flow field. To obtain the atomization characteristics of flat fan nozzles, the phase Doppler particle analyzer (PDPA) was selected for the accurate measurement of the droplet sizes and velocities at distances 0.30–0.60 m, using low spray pressures (0.15–0.35 MPa). The droplet size and velocity models were then established and validated. The results revealed that the average absolute error of the droplet size model was 23.74 µm and the average relative error was 8.23%. The average absolute and relative errors of the droplet velocity model were 0.37 m/s and 7.86%, respectively. At a constant spray pressure and angle, there was a positive correlation between the droplet size and the equivalent orifice diameter of the nozzles. The test also verified that the spray angle and distance had a negative correlation with the droplet velocity at a given pressure. The spray distance had no effect on the spray axial droplet size at constant spray pressure. In addition, the spray angle greatly affected the droplet velocity along the X-axis; similarly, the spray parameters, especially spray angle, greatly affected the droplet size.

1. Introduction

In pesticide application using sprayers, the atomization characteristics of the nozzles play an important role in pesticide utilization [1,2,3]. While small-sized droplets have good deposition and coverage, they easily drift [4]. Droplet velocities also influence pesticide utilization; for example, droplets with very low velocities fail to reach the targets and those with very high velocities are prone to rebounding [5,6,7]. Therefore, understanding and mastering the atomization characteristics are important for using pesticide sprayers in agriculture and forestry.

Since the 1930s, researchers have studied the atomization characteristics of different nozzle outlet shapes (circular, square, rectangular, triangular, and elliptical) from two-dimensional spray to three-dimensional spray. Based on a study of the breaking mechanism of liquid films, Dombrowsi and coworkers established the relationship between spray pressure and droplet size; they observed that the higher the pressure, the smaller the droplet, [8,9]. Sforza found that the droplet velocity along the spray direction decreased as a power function law and that the atomization characteristics between spray cross-sections along the spray direction were similar [10]. By measuring the droplet velocity and size at 0.50 m from the nozzle exit, Nuyttens found that the nozzle type and size had a significant effect on droplet velocity and size. Droplet velocities consistently decreased with the decrease in droplet size when the droplets were below a size of 400 μm [11,12]. Yao studied the droplet size distribution of nozzles with different equivalent orifice diameters using a PDPA and observed that the Sauter mean diameter (SMD) was nonlinearly, but positively, correlated with the nozzle orifice diameter [13]. Xia performed water-air impinging jet tests and the impinging angle was 90° [14]. The atomization characteristics in the far and near fields were then analyzed. The results showed that SMD was smallest in the spray center and increased toward the spray edge. Xia also showed that the droplet velocity was the highest at the spray center and decreased gradually with increasing distance from the spray center. Kooij confirmed the parameters that determined the droplet size during the breaking of liquid films [15]. The results showed that fluid inertia and surface tension determined the droplet size, and the droplet size could be predicted using the Weber and nozzle parameters. Based on assumption that the flow field is two-dimensional, Kang established a droplet size model using an actual test and theoretical calculation and a droplet velocity model along the spray axis using numerical simulation and theoretical calculation [16]. Kang also indicated that the droplet size did not change significantly at distances of 0.30–0.50 m. Although several studies have been done on atomization characteristics, simple mathematical models are still very rare in far-field field at low pressures.

Because of their large spray range, flat fan nozzles are widely used in pesticide application in agriculture and forestry, especially in field spray and forest barrier treatment [17]. The flow field of flat fan nozzles is fan-shape and the spray cross-section is the elliptic [18]. The long axis determines the spray range during pesticide spraying, and based on the droplet characteristics along the long axis, the droplet characteristics along the short axis can be analyzed. Thus, the droplet characteristics along the spray axis and the long axis in the flow field are of profound significance in the study on the atomization characteristics of the whole field.

This study was conducted to establish the exact droplet size and velocity models on the long axis plane of flat fan nozzles based on the spray pressure, angle, and equivalent orifice diameter. According to the atomization model on the long axis plane, it is easy for workers to obtain the desired atomization effect by adjusting the spray pressure and the nozzle type, thereby improving the utilization rate of pesticides. Additionally, this research compensates for the shortcomings of the atomization theory in pesticide application, provides a method for further establishing a perfected atomization model of flat fan nozzles, and serves as a resource for subsequent research on droplet rebounding and deposition while hitting a given target. This study also provides a theoretical method for establishing atomization models of other nozzles, including conical, square, and rectangular nozzles.

2. Materials and Methods

2.1. Selection of Flat Fan Nozzle Types

Currently, the mainstream brands of flat fan nozzles available on the market include Teejet (Wheaton, IL, USA), Lechler (Metzingen, Germany), and Feizhuo (Shanghai, China), which are widely used in surface treatment, food industry, environmental protection, and pesticide spraying in agriculture and forestry. The internal structure of the 75 nozzles (

Table 1. Nozzle types of the three brands for mapping. The flow rate increases in the order of AT to ET, AF to EF, and AL to EL. At a pressure of 0.30 MPa, AT–ET are 0.79, 1.18, 1.58, 1.97, and 2.37 L/min, AF–EF are 0.79, 1.20,1.60, 1.90, and 2.40 L/min, and AL–EL are 0.77, 1.23, 1.53, 1.96, and 2.33 L/min.

Manufacturer	Flow Rate Class	d	α
			25	40	65	80	110
Teejet	AT	0.80	2502	4002	6502	8002	11002
	BT	1.00	2503	4003	6506	8003	11003
	CT	1.20	2504	4004	6504	8004	11004
	DT	1.40	2505	4005	6505	8005	11005
	ET	1.50	2506	4006	6506	8006	11006
Manufacturer	Flow Rate Class	d	α
			25	40	65	80	110
Feizhuo	AF	0.91	2502	4002	6502	8002	11002
	BF	1.10	2503	4003	6506	8003	11003
	CF	1.30	2504	4004	6504	8004	11004
	DF	1.40	2505	4005	6505	8005	11005
	EF	1.60	2506	4006	6506	8006	11006
Manufacturer	Flow Rate Class	d	α
			30	45	60	90	120
Lechler	AL	1.00	632.362	632.363	632.364	632.366	632.367
	BL	1.20	632.402	632.403	632.404	632.406	632.407
	CL	1.35	632.442	632.443	632.444	632.446	632.447
	DL	1.50	632.482	632.483	632.484	632.486	632.487
	EL	1.65	632.512	632.513	632.514	632.516	632.517

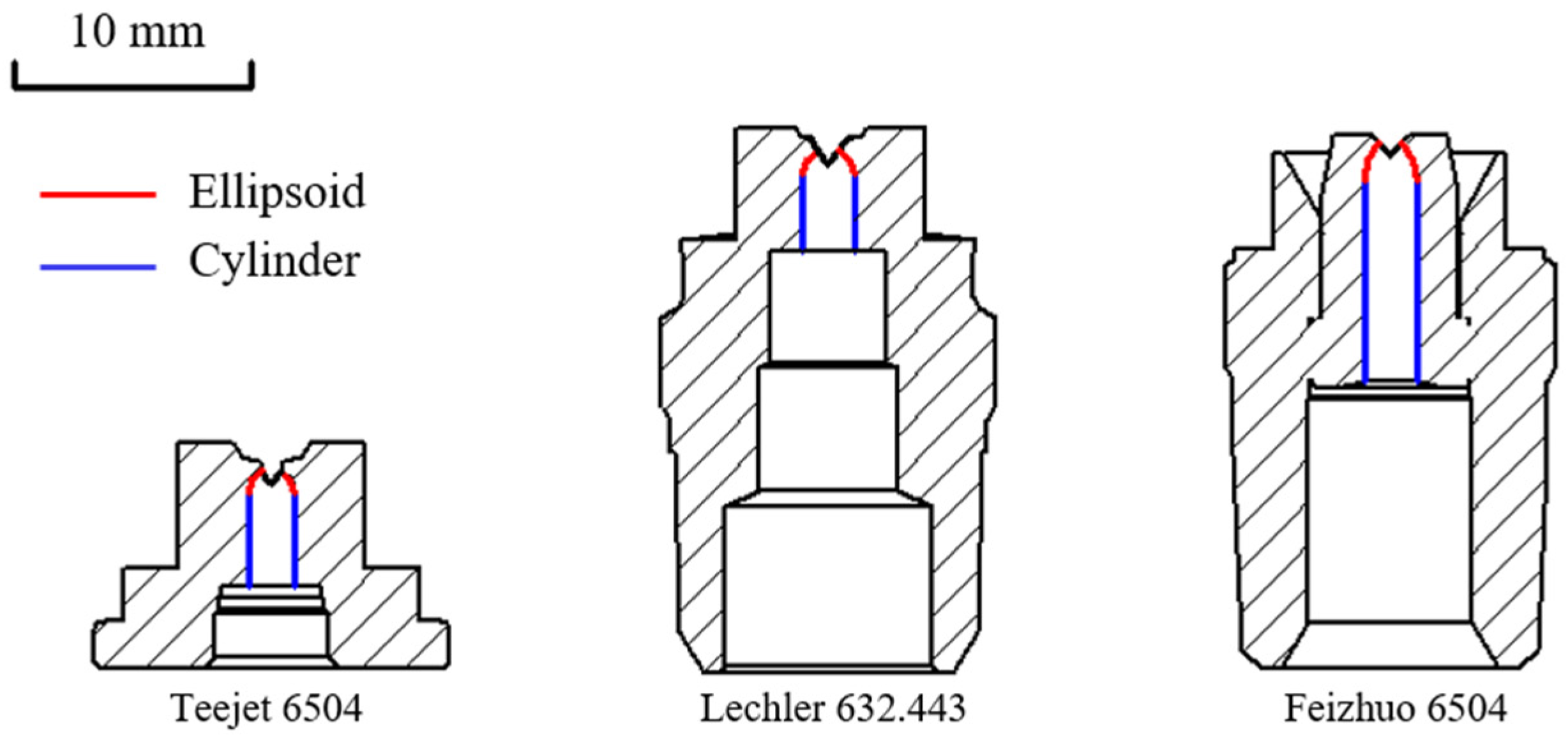

) corresponding to the three brands were mapped using the Coordinate Measuring Machine (Leader NC8107, Wuxi Meider Measurement Technology Co., Jiangsu, China). The internal structure of the outlet of the nozzles of the three brands was cylindrical and ellipsoidal (Figure 1). Compared with the other two brands, the Teejet nozzle is more widely used in agriculture and forestry, and the commonly used angles are relatively large. Therefore, the 25 types of Teejet flat fan nozzles in Table 1 were selected for pesticide application in this study.

2.2. Basic Theory

The findings of this study would mainly serve pesticide application using sprayers in agriculture and forestry. Since the droplet size distribution function is very complicated, the average droplet size has been used as one of the spray characteristics [19]. In this study, we used the volume mean diameter (D_v) as the average droplet size, which is the most commonly used average diameter in the analysis of the spray characteristics in pesticide spraying [20]. D_v is calculated as follows:

$$D_v={(\frac{{\displaystyle {\int }_{D_{\min }}^{D_{\max }}{D}^{3}dN}}{{\displaystyle {\int }_{D_{\min }}^{D_{\max }}dN}})}^{\frac{1}{3}}$$

(1)

The droplet velocity is expressed in terms of the average velocity as follows:

$$u=\frac{{\displaystyle {\int }_{U_{\min }}^{U_{\max }}UdN}}{{\displaystyle {\int }_{U_{\min }}^{U_{\max }}dN}}$$

(2)

Based on the nozzle size and spray pressure, a function model of droplet size was obtained by Post [21] as follows:

$$D_v\propto {(\frac{FR}{01})}^{\frac{1}{3}}{P}^{-\frac{1}{3}}{(\frac{\alpha }{110°})}^{-\frac{2}{3}}$$

(3)

Under a stable field, since the probabilities of breakage and fusion of droplets are greatly reduced, the influence of spray distance on atomization characteristics can be neglected. In addition, the change rule of droplet size along the Z-axis was similar to that in the flow field:

$$D_z=C_v{d}^p{P}^{-\frac{1}{3}}{\alpha }^q$$

(4)

Sforza proposed that the droplet velocity along the Z-axis decreases as an exponential function and was related to the ratio of the spray distance and minor axis of the elliptical opening [10]. The observation can be mathematically expressed as

$$\frac{u_z}{u_0}\propto z^{-m}$$

(5)

$$\frac{u_z}{u_0}\propto f(\frac{z}{b})$$

(6)

The effective hydraulic area (A_hyd) and b satisfied the following function:

$$b=\sqrt{\frac{2A_{hyd}}{3\pi }}$$

(7)

where A_hyd = C_DA in which A = πd²/4.

The pressure and velocity of the nozzle outlet and inlet satisfy the Bernoulli equation, and the velocity changes caused by gravity and the nozzle inlet velocity are negligible [22]. The droplet velocity along the spray distance is given as follows:

$$u_z\propto P^{\frac{1}{2}}{z}^m{d}^n$$

(8)

The relationship between the maximum droplet size and velocity satisfies a power function under a stable field. From Equation (4), the function of droplet velocity along the Z-axis based on the spray angle could be obtained as follows:

$$u_z=C_u{P}^{\frac{1}{2}}{z}^m{d}^n{\alpha }^l$$

(9)

To better understand the atomization characteristics along the X-axis, the dimensionless quantities D_x/D_z and u_x/u_z were introduced. Previous research studies have indicated that the droplet size along the X-axis satisfies a quadratic function and the droplet velocity a Gaussian distribution:

$$\frac{D_x}{D_z}=A_x{x}^2+B_{x}x+C_x$$

(10)

$$\frac{u_x}{u_z}=a_x{e}^{-\frac{{(x-x)}^2}{2w_x{}^2}}$$

(11)

2.3. Experimental Design

2.3.1. Test System Composition

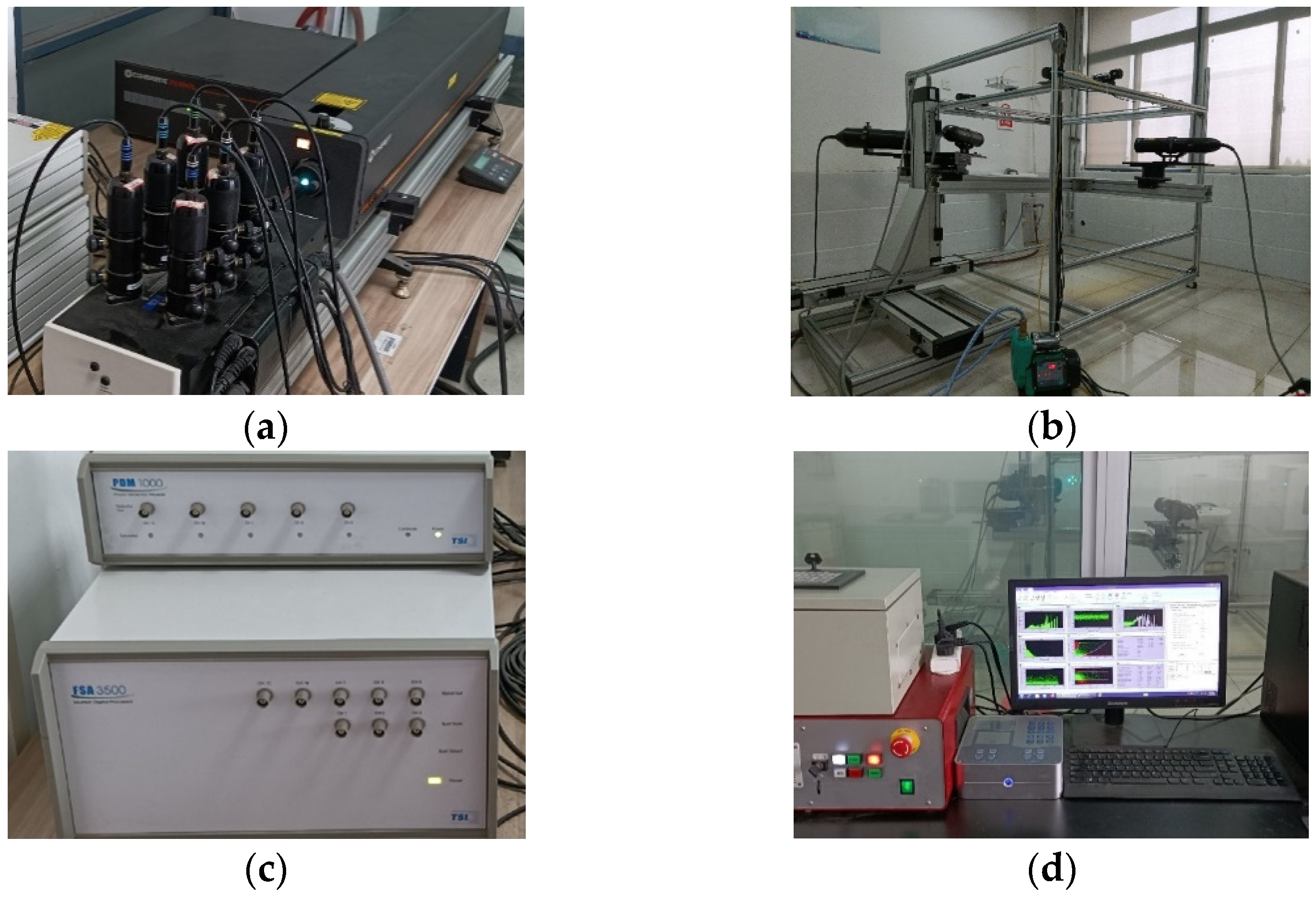

All experiments were conducted at the Mining Science Center, China University of Mining and Technology, Xuzhou, China. The data acquisition system is shown in Figure 2. The system mainly comprised the PDPA system (TSI, Inc., Shoreview, MI, USA) and a 1WZB-25Z PRODN pressure pump (Intelligent Electronic Technology Co., Zhejiang, China) for providing stable pressure. A 3DOF mobile platform was used to control the PDPA position precisely. Additionally, the system included flow meters, pressure gauges, and nozzle holders.

2.3.2. Test Methods

This study is an investigation of the basic model. Tests were conducted indoors with no wind at a stable temperature and humidity so that the amount of droplet evaporation could be ignored. To minimize the influence of gravity, the nozzles were arranged in a downward direction (Figure 3). To clearly describe the characteristics, a rectangular coordinate system in space was established with the nozzle exit center as the coordinate origin. The X, Y, and Z axes represent the long and short axes of the spray cross-section and the spray axis, respectively. Seven horizontal spray cross-sections were selected along the Z-axis ranging from 0.30 to 0.60 m with an interval of 0.05 m. Different intervals along the X-axis were chosen for data acquisition on horizontal planes based on the spray angles of the flat fan nozzles. An interval of 0.01 m was chosen for flat fan nozzles with spray angles 25° and 40° and 0.02 m for the ones with spray angles 65°, 80°, and 110°. The preset pressure values were 0.15, 0.20, 0.25, 0.30, and 0.35 MPa. Three replicates were conducted at each measurement point, and at least 5000 droplets were measured per replicate to ensure the data accuracy of the measurement. The average of the three replicates was used as the droplet size and velocity at the measurement position.

3. Results and Discussion

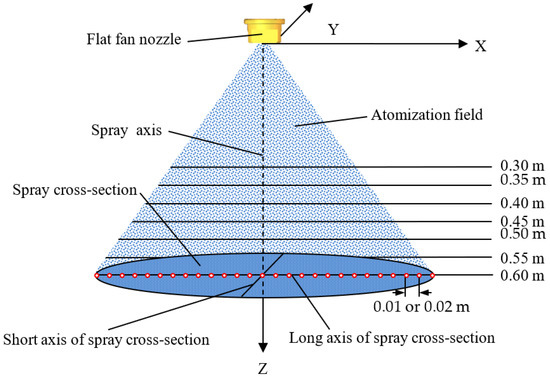

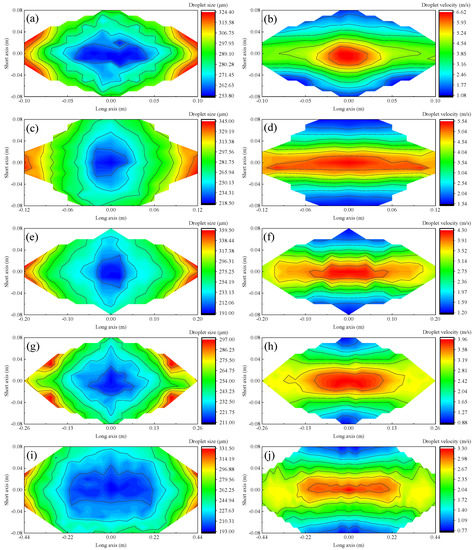

For uniform coverage, adjacent fields are made to overlap by 50–100% when pesticides are being sprayed. To understand the flow field of flat fan nozzles, three nozzles were selected for measurement at different spray pressures and distances. The atomization characteristics for different across-sections of the five nozzles with the same flow rate at pressure 0.25 MPa and 0.50 m away from the nozzle outlet are shown in Figure 4, which validates previous research [23,24,25]. The results indicated that the change trend of the droplet size and velocity was the same for the three nozzles. The droplet size was observed to be smaller at the center and larger at the edge. The droplet velocity was found to be the highest at the center of the flow field and decreased gradually toward the edge. These cases also showed that the changes in the droplet size and velocity on the spray cross-section were continuous and symmetrical in the spray center. The characteristics of the droplets along the long axis could be linked to those at the center of the cross-section. In the following, the part of the flow field with x > 0 will be analyzed.

In this section, the establishment of the droplet size and velocity models on the XZ plane are mainly discussed and the same method was used to establish the droplet size and velocity on the XZ plane. Firstly, by fitting part of the experimental data with the single variable method, the coefficients in Equations (4), (9)–(11) were determined. Then, the exact droplet characteristic models on the XZ plane were obtained. Finally, the models were validated by other experimental data.

3.1. Establishment of the Droplet Size Model

3.1.1. Droplet Size Model on Z-Axis

In the flow field, the droplet size is related to the spray pressure, spray angle, equivalent orifice diameter, and spatial position. The distributions between the droplet size along the Z-axis and different spray parameters are shown in Figure 5, Figure 6, Figure 7, Figure 8.

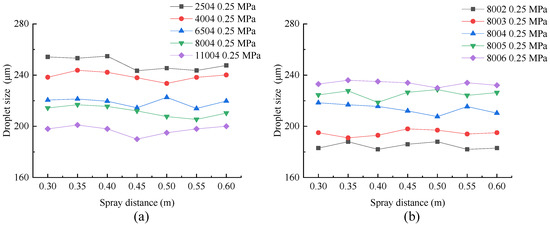

As can be seen in Figure 5, there were no noticeable changes in the droplet size and spray distance among the nine nozzles that were selected. This occurred because the droplets were not easily blended and they ran along the original motion trajectory after the liquid film broke twice and formed stable droplets. Additionally, the evaporation of the droplets could basically be ignored through the measurement range. Therefore, the droplet size hardly changed along the Z-axis, and the droplet size was independent of the spray distance. For this reason, in the process of establishing the droplet size model along the Z-axis, we took the average droplet size at the seven spray distances under certain spray parameters as the droplet size.

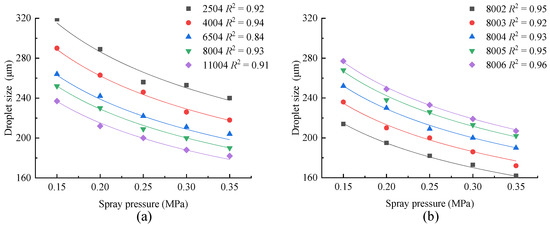

As can be seen in Figure 6, the droplet size along the Z-axis gradually decreased with the increase in the spray pressure. According to the Bernoulli equation, the droplet velocity at the nozzle outlet increases with the increase in the spray pressure, causing the liquid film to break to produce smaller droplets. The fitting function between the droplet size along the Z-axis and the spray pressure is represented as follows:

$$D_z\propto P^{-\frac{1}{3}}$$

(12)

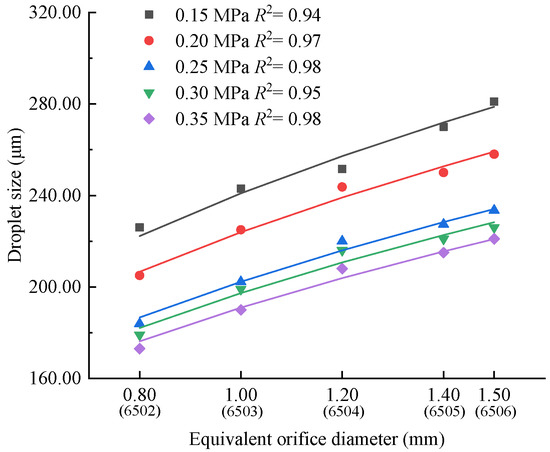

As can be seen in Figure 7, the droplet size along the Z-axis was positively correlated with the equivalent orifice diameter for nozzles 6502, 6503, 6504, 6505, and 6506 at five different pressure values. The fitting function between the droplet size along the Z-axis and the equivalent orifice diameter is represented as follows:

$$D_z\propto d^{\frac{2}{5}}$$

(13)

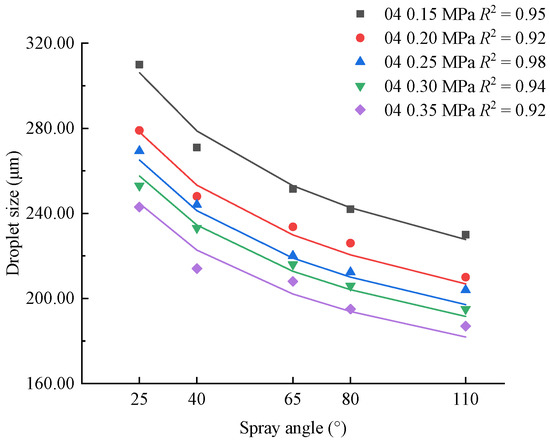

The relationship between the spray angle and the droplet size at different pressure values with the same equivalent orifice diameter is shown in Figure 8. The droplet size along the Z-axis decreased with the increase in the spray angle. At constant spray pressure and flow rate, the increase in the spray angle was observed to lead to a decrease in the thickness of the liquid film after liquid ejection, with the thickness of the film was positively correlated with the size of the droplet formed after breaking. Therefore, the larger the spray angle, the smaller the droplet size. The fitting function between the spray angle and the droplet size along the Z-axis is represented as follows:

$$D_z\propto {\alpha }^{-\frac{1}{5}}$$

(14)

The droplet size model along the Z-axis (Equation (15)) was obtained from Equations (12)–(14). The value of coefficient C_v was 300, which was obtained by measuring the droplet size of nozzle 6504 at 0.15 MPa.

$$D_z=C_v{\alpha }^{-\frac{1}{5}}{P}^{-\frac{1}{3}}{d}^{\frac{2}{5}}$$

(15)

3.1.2. Droplet Size Model on the X-Axis

The dimensionless quantity D_x/D_z along the X-axis is shown in Figure 9. Since the droplet size along the X-axis is centrosymmetric, B_x = 0 and C_x = 1. This section further explores the relationship between A_x and the spray parameters based on the experimental data.

As can be seen from Figure 9, the spray pressures, spray angles, equivalent orifice diameters, and spray distances were correlated with D_x/D_z, and the size of the droplets at the center was smaller than the size of the droplets at the edge along the X-axis under different spray parameters. It can be seen from Figure 9a that the spray pressure had no effect on the change trend of the droplet size along the X-axis. Figure 9b–d indicates that the dimensionless quantity decreased greatly with the decrease in the spray angle, equivalent orifice diameter, and spray distance. Without considering the influence of evaporation and drift, the larger the difference in the droplet velocities at the center and the edge of the flow field, the more small droplets were entrained in the center, which led to the faster change of droplet size along the X-axis. Therefore, the change in the droplet size along the X-axis was more uniform with the increase in the spray angle, equivalent orifice diameter, and spray distance.

The data were fitted using Equation (10), and the A_x values are shown in

Table 2. A_x and the fitting degrees for different spray parameters.

6504 z = 0.60 m
P	Ax	R2
0.15	9.64	0.99
0.20	8.67	0.98
0.25	9.18	0.85
0.30	8.08	0.91
0.35	9.16	0.89
P =0.25 MPa z = 0.50 m
α	Ax	R2
2504	31.22	0.95
4004	29.34	0.99
6504	11.68	0.98
8004	5.15	0.96
11004	2.39	0.97
P = 0.25 MPa z = 0.40 m
d	Ax	R2
6502	16.13	0.98
6503	15.55	0.96
6504	13.94	0.98
6505	11.51	0.97
6506	9.47	0.93
6504 P = 0.25 MPa
z	Ax	R2
0.30	16.79	0.98
0.35	16.46	0.95
0.40	15.32	0.98
0.45	13.63	0.99
0.50	11.69	0.99
0.55	11.29	0.96
0.60	10.91	0.92

for different spray parameters. From Table 2, it can be observed that the A_x values for spray angle 65° fluctuated between 8.08 and 16.79, with an average of 12.20. Further, the values varied greatly based on the spray angle. Therefore, the A_x values determined using spray angles are listed in

Table 3. A_x values based on the spray angle.

α	25	40	65	80	110
Ax	31.00	29.00	12.00	5.00	2.00

to facilitate validation.

3.2. Establishment of the Velocity Model

3.2.1. Droplet Velocity Model on the Z-Axis

This section analyzes the droplet velocity along the Z-axis with respect to spray pressure, spray distance, spray angle, and equivalent orifice diameter using Equation (9).

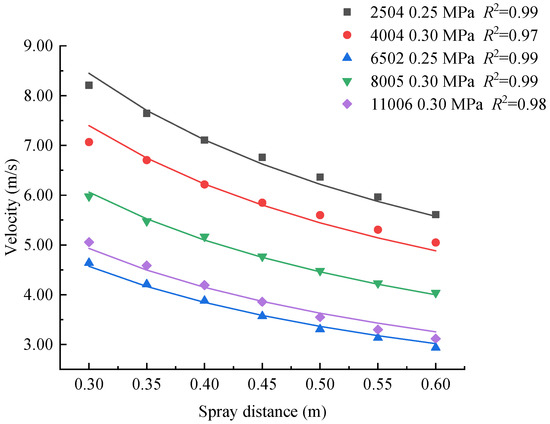

Figure 10 shows the droplet velocities along the Z-axis at different spray distances from the selected five nozzles. For all five flat fan nozzles, the droplet velocity was observed to gradually decrease with the increase in the spray distance; this was because after the breakage of the liquid film and formation of the stable droplets, the kinetic energy of each droplet decreased due to the air resistance, and thus the droplet’s velocity also decreased. In addition, the velocity reduction rate was also observed to decrease gradually with the increase in the spray distance. The reason for the phenomenon was that the air resistance of the droplet was inversely proportional to the square of its velocity. The lower the droplet velocity, the smaller the air resistance. The mathematical function of the best fit curve between the droplet velocity along the Z-axis and the spray distance was obtained using the following equation:

$$u_z\propto z^{-\frac{3}{5}}$$

(16)

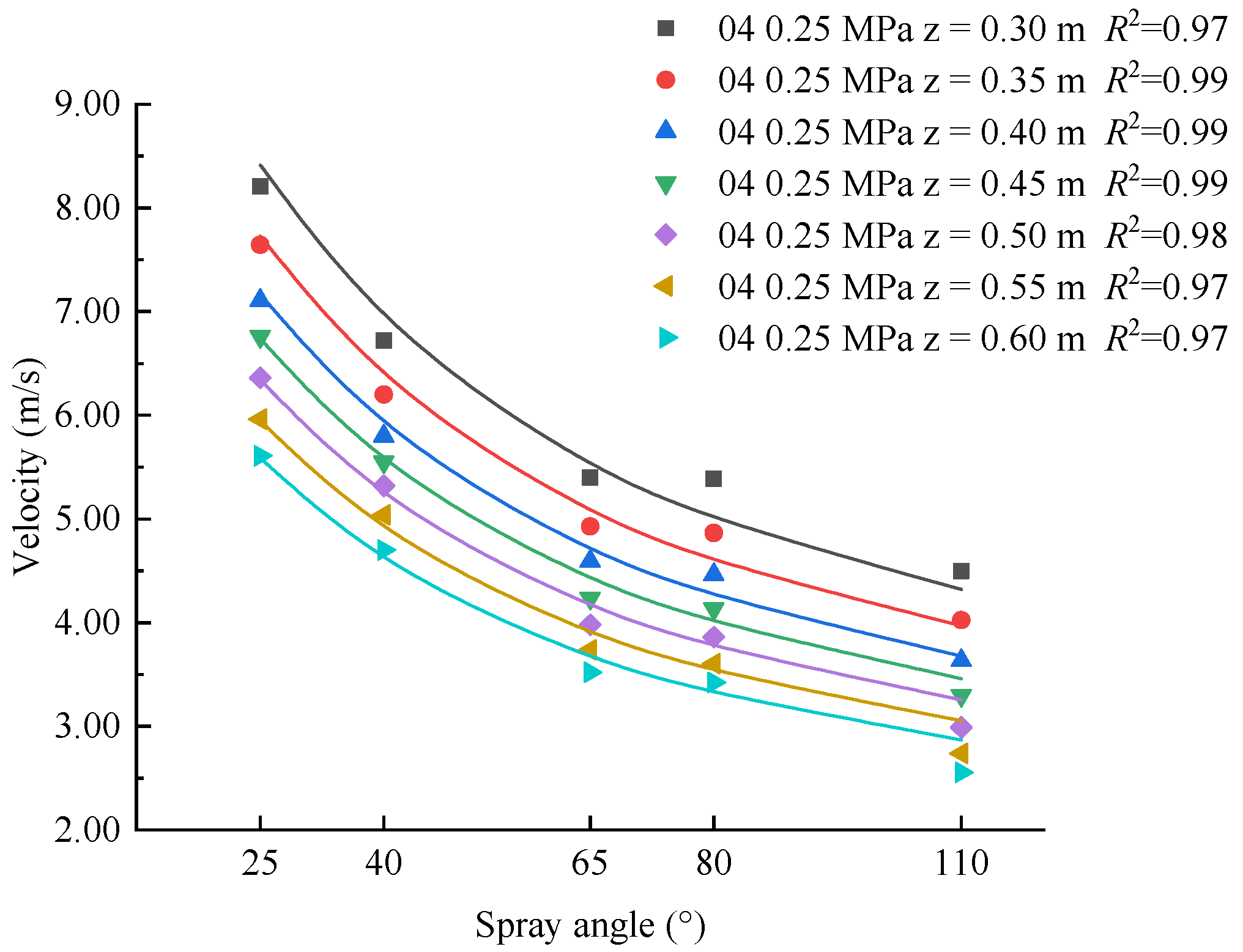

As can be seen from Figure 11, the droplet velocity along the Z-axis decreased with the increase in the spray angle at a pressure of 0.25 MPa, and the reduction rate was decreased. The spray coverage increased with the increase in the spray angle, subjecting the droplets to greater air resistance, so the droplet velocity in the flow field of nozzles with a large spray angle was less than that in the flow field of nozzles with a small spray angle given the same spray distance. The central entrainment decreased with the increase in the spray angle, which caused fewer droplets with small velocity to move from the edge into the central region. Therefore, the reduction in droplet velocity decreased with the increase in the spray angle. The fitting function between the spray angle and droplet velocity is represented as follows:

$$u_z\propto {\alpha }^{-\frac{1}{2}}$$

(17)

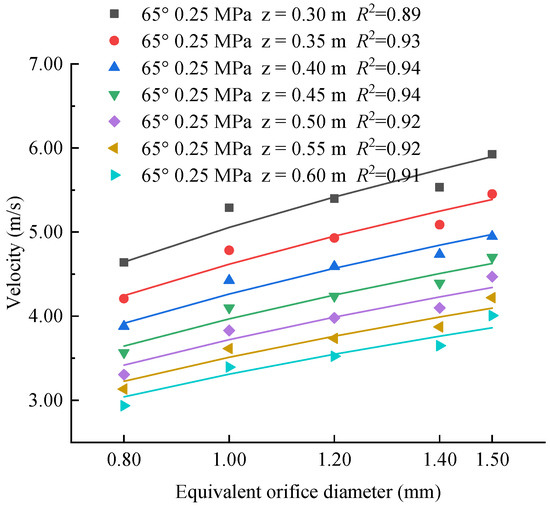

As can be seen in Figure 12, the droplet velocity along the Z-axis increased with the increase in the equivalent orifice diameter at a constant spray angle of 65°. The fitting function between the equivalent orifice diameter and droplet velocity is represented as follows:

$$u_z\propto d^{\frac{2}{5}}$$

(18)

The droplet velocity model along the Z-axis (Equation (19)) was obtained from Equations (16)–(18). The value of coefficient C_u was 40, which was obtained by measuring the droplet velocity of nozzle 6504 at 0.15 MPa.

$$u_z=C_u{P}^{\frac{1}{2}}{z}^{-\frac{3}{5}}{d}^{\frac{2}{5}}{\alpha }^{-\frac{1}{2}}$$

(19)

3.2.2. Droplet Velocity Model on the X-Axis

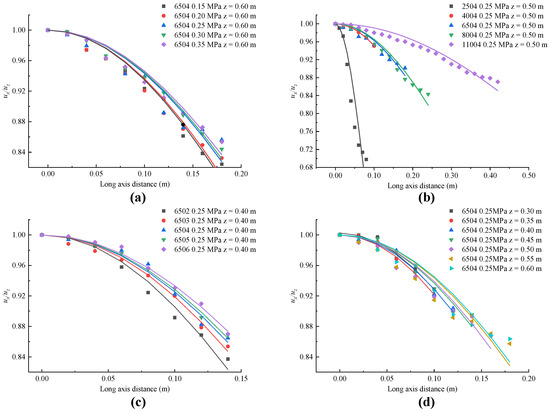

The dimensionless quantity u_x/u_z along the X-axis is shown in Figure 13. Since the droplet velocity along the X-axis is centrosymmetric, x_x = 0 and a_x = 1. This section further explores the relationship between w_x and the spray parameters based on the experimental data.

As can be seen from Figure 13, the spray pressures, spray angles, equivalent orifice diameters, and spray distances were correlated with u_x/u_z, and the velocity of the droplets at the center was higher than that of the droplets at the edge along the X-axis. The dimensionless curve with respect to the different spray parameters showed that the decrease in the droplet velocities along the X-axis was more severe with the decrease in the spray pressure, spray angle, and equivalent orifice diameters. This is because the difference in the velocities of the droplets at the center and the edge may lead to an entrainment of the low-velocity droplets from the edge to the central area; since a higher number of low-velocity droplets are entrained at the center when the difference is large, the reduction rate of the velocity of the droplets along the X-axis increases with the decrease in the spray pressure, angle, and equivalent orifice diameter. Because of environmental resistance, the droplet velocities at the cross-section are expected to be gradually consistent with the increase in the spray distance, which explains why the velocities along the X-axis decreased slowly with the increase in the spray distance.

The w_x values and fitting degrees for different spray parameters are shown in

Table 4. w_x and the fitting degrees for different spray parameters.

6504 z = 0.60 m
P	wx	R2
0.15	0.28	0.92
0.20	0.28	0.94
0.25	0.29	0.90
0.30	0.30	0.98
0.35	0.30	0.95
P = 0.25 MPa z = 0.50 m
α	wx	R2
2504	0.08	0.88
4004	0.32	0.97
6504	0.28	0.91
8004	0.38	0.96
11004	0.74	0.92
P = 0.25 MPa z = 0.40 m
d	wx	R2
6502	0.22	0.98
6503	0.24	0.99
6504	0.25	0.98
6505	0.26	0.99
6506	0.27	0.99
6504 P = 0.25 MPa
z	wx	R2
0.30	0.26	0.97
0.35	0.25	0.99
0.40	0.26	0.98
0.45	0.28	0.96
0.50	0.28	0.91
0.55	0.29	0.86
0.60	0.30	0.90

, after fitting the data using Equation (11). From Table 4, it can be seen that the w_x values for nozzles with 65° fluctuated between 0.22 and 0.30, with an average of 0.27. However, the w_x values varied greatly based on the spray angle. The w_x values determined using the spray angle are shown in

Table 5. w_x values based on the spray angle.

α	25	40	65	80	110
wx	0.08	0.32	0.28	0.38	0.74

.

3.3. Validation of the Models

In this section, two groups of nozzles were used to validate the droplet size and velocity models. One group with the same flow rate (CT) and different spray angles (25, 40, 65, 80, and 110) was verified at 0.20 MPa and 0.50 m away from the nozzle outlet, and the other group with the same spray angle (80) and different flow rates (AT, BT, CT, DT, and ET) was verified at 0.25 MPa and 0.50 m away from the nozzle outlet. A comparison of the error values between the measured and theoretical data on the size and velocity of the droplets along the X-axis is shown in Figure 14 and Figure 15, respectively. The figures show that the error occurred mainly at a point away from the spray center and that the error corresponding to nozzle 2502 was very large. The main reason for the increase in the error is the small number of droplets and their unstable nature at the edges. The large error of nozzle 2502 is due to the influence of the nozzle structure on the increase rate of surface wave length in the transition part of the jet spray. The nozzle outlet with a small spray angle has a small aspect ratio, which improves the increase rate of the surface wave wavelength, causes a larger interval width in the transition part, and intensifies the instability of nozzle atomization [26]. Additionally, machining accuracy may also be a reason for the large error. The errors corresponding to the measured and theoretical data were further analyzed, as shown in

Table 6. Errors of measured and theoretical data.

	Absolute Error	Relative Error
Dx	23.74 μm	8.23%
ux	0.37 m/s	7.86%

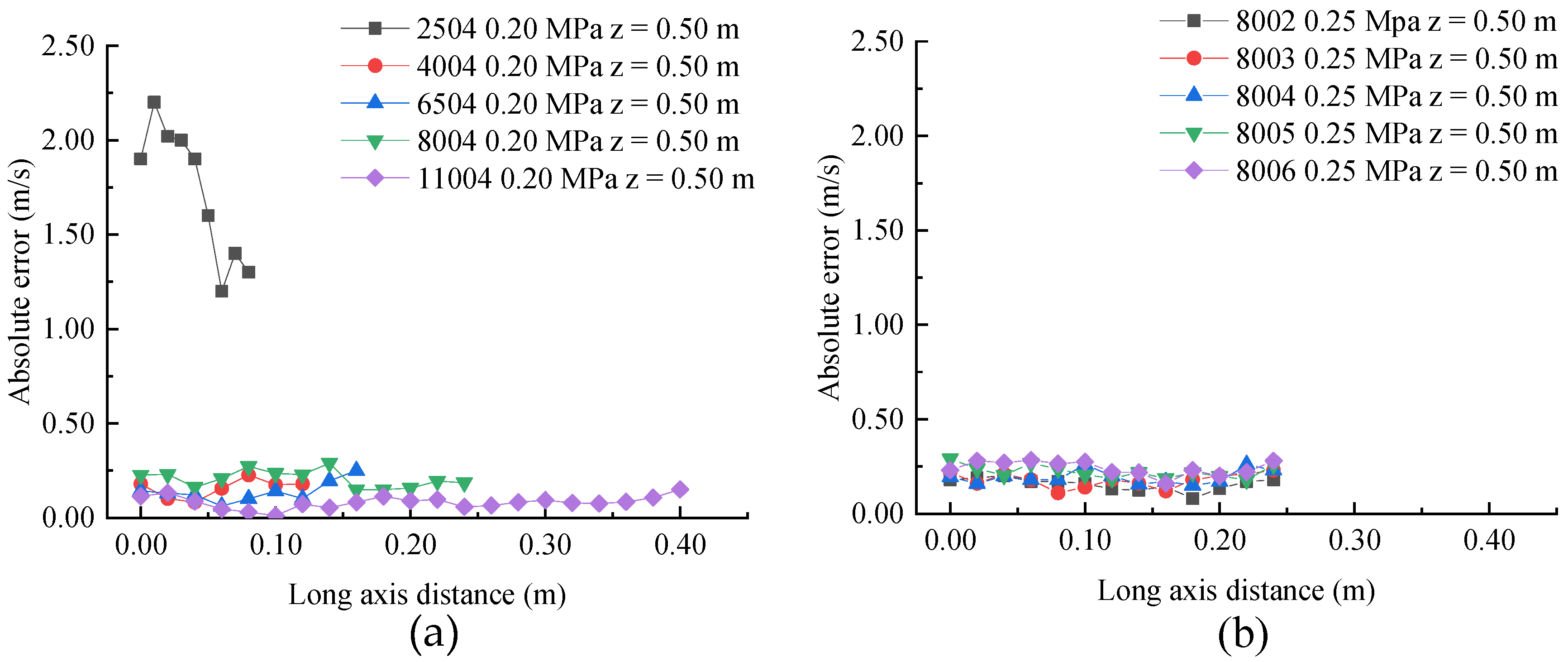

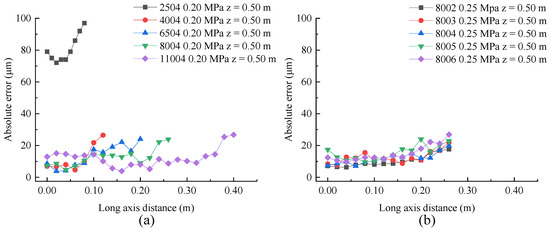

. The average absolute error for droplet size was 23.74 µm, and the average relative error was 8.23%. The average absolute and average relative errors corresponding to the droplet velocity were 0.37 m/s and 7.86%, respectively.

4. Conclusions

Based on the theoretical derivation and actual tests, this study established the exact droplet size and velocity models on the XZ plane. According to this model, it is easier for workers to obtain the desired spray size and speed by adjusting the spray pressure and nozzle type during pesticide spraying, so as to improve the spray effect. The results of the validation revealed that the average absolute error and average relative error corresponding to the droplet size model were 23.74 µm and 8.23%, respectively, and the average absolute error and average relative error corresponding to the droplet velocity model were 0.37 m/s and 7.86%, respectively. Thus, the theoretical atomization model was suitable for the actual test results. In addition, this study also illustrated that the droplet size was higher at the center than at the edge in the flow field, and the maximum difference exceeded 50%. The droplet velocity model showed the opposite change trend, and the maximum difference exceeded 30%. The spray angle greatly influenced the atomization characteristics along the X-axis. From the atomization characteristics, it was found that the increase in the spray angle could increase the droplet uniformity under the condition of ensuring spray volume. This study provides a method to further explore atomization models on the short axis and to establish complete three-dimensional atomization models.
