Foliar Application of Zn Agrichemicals Affects the Bioavailability of Arsenic, Cadmium and Micronutrients to Rice (Oryza sativa L.) in Flooded Paddy Soil

Abstract

Zinc (Zn) is a key micronutrient affecting bio-functions of crops. Impacts of foliar application of three forms of Zn-containing agrichemicals on the physiology of rice seedlings and their uptake of heavy metal(loid)s and micronutrients from fully flooded paddy soils were investigated in a greenhouse study. Rice seedlings 45 days after germination were randomly exposed to an equivalent amount of 100 mg L⁻¹ of zinc oxide nanoparticles (ZnONPs), zinc oxide bulk particles (ZnOBPs), and zinc salts (Zn²⁺) through foliar exposure. At termination, rice seedlings were divided into roots and shoots and the concerned metal contents in plant tissues were determined with an inductively coupled plasma mass spectrometry (ICP-MS). Our results demonstrated that all Zn agrichemicals displayed a similar effect on plant growth, but ZnONPs led to the greatest root exudate excretion and greatest inhibition in arsenic (As) uptake. Foliar application of ZnONPs resulted in 28% less As in rice shoots while Zn²⁺ only caused a 15% decrease in As accumulation in the same tissues. ZnOBPs had minimal impact on As concentration in rice shoots. ZnONPs also promoted iron (Fe) and copper (Cu) uptake in rice shoots, both of which are essential micronutrients for humans. The results suggest that foliar application of ZnONPs resulted in more favorable outcomes for plant growth and food safety than other two types of Zn. Overall, our results showed that application of nanoagrichemicals have important food safety and nutrition implications in addition to their agronomical roles and ZnONPs could be potentially used to alleviate As uptake and fortify Zn and other essential micronutrients in rice grains.

1. Introduction

The projected global population growth to 9.7 billion by 2050 requires an increase in agricultural production by at least 50% to achieve sustainable food security [1]. Rice is a staple food for over half of the world’s population. Therefore, enhancing rice productivity and the nutritional value of rice grains can be an effective strategy to meet the food and nutritional needs of the world’s population. Applications of nano-enabled agrichemicals as soil amendments have generated promising results in improving nutrient utilization efficiency and plant growth [2,3]. Among them, zinc oxide nanoparticles (ZnONPs) have been investigated as a more efficient nanofertilizer than bulk ZnO particles (ZnOBPs) or Zn salts [4,5]. Currently, zinc deficiency is a widespread health risk affecting a large population in developing countries [6,7]. Biofortification of rice grain with Zn through Zn fertilization is an economical option because rice is a staple food in most countries suffering from Zn deficiency [8]. ZnONPs can also function as antimicrobial agents at higher concentrations [9]. This dual functionality of ZnONPs makes them appealing candidates for broad applications in agriculture. However, the introduction of nanoparticles or other agrichemicals as soil amendments can be costly due to their low utilization rate [7,10]. Direct applications of nanoparticles as soil amendments can also have unexpected consequences because their close interactions with coexisting environmental chemicals can affect the availability of heavy metals and micronutrients in soil [11]. The observation is consistent with studies with other types of soil amendments that were found to alter the plant uptake and accumulation of coexisting toxic heavy metals [12,13]. Contamination of agricultural soils with various coexisting heavy metals and metalloids is a rising concern that has been frequently reported [14,15,16]. Arsenic is particularly concerning due to its carcinogenicity and widespread presence in rice paddies [17]. Intriguingly, ZnONPs applied to paddy soil as a soil amendment were shown to lower arsenic (As) concentration in rice shoot tissues in a lab scale study [18]. In a hydroponic study, ZnONPs were shown to increase the iron concentration in lettuce (Lactuca sativa L.) shoots by 80% [19], indicating that ZnONPs applied as a soil amendment may also modify plant nutrient uptake.

However, in almost all previous studies that investigated the impact of nanoparticles on plant uptake and accumulation of coexisting environmental pollutants or plant nutrients, nanoparticles were applied through the root exposure [20,21,22]. While it is common that nanoagrichemicals are applied as soil amendments [23], this approach can be costly due to their low utilization rate. Recently, foliar application of agrichemicals has become more popular due to its lower demand for chemicals and easier application [24]. Previous studies have shown that different pathways of nanoparticle exposure (e.g., root exposure vs. foliar exposure) can lead to different phytotoxicity and accumulation of nanoparticles in plant tissues because of the distinctive physiological and anatomical differences of root and shoot tissues [25,26]. In general, foliar exposure appears to have less negative impact on plant growth than root exposure at the same exposure level. For example, ZnONPs introduced through foliar application improved the growth of cucumber and rice by increasing the physiological and metabolic functions of plants, while root exposure of the same concentration of ZnONPs caused toxicity [27,28]. Importantly, some nanoparticles introduced to plants through the foliar application will not directly contact with environmental chemicals and plant nutrients in soil, therefore, their impact on the availability of these chemicals and plant nutrients could be markedly different from those introduced through root exposure. However, few studies have investigated the effects of engineered nanoparticles on the plant uptake and accumulation of environmental chemicals and plant nutrients after they are introduced to plants through the foliar application. This knowledge gap in nanoparticles uptake through the rice leaf surface and their in planta behavior constrict the rational design for efficient foliar applications of ZnONPs.

Also, ZnONPs are highly soluble and it remains unsettled whether any observed effects by ZnONPs are due to the dissolved Zn ions. However, elucidating which form of Zn is beneficial or detrimental to rice performance in contaminated paddy soils is critical [24]. For example, Zhang et al. in 2018 found that foliar application of ZnONPs led to greater Zn contents in rice grains than an equivalent amount of Zn salt [29]. The distribution of Zn in plant tissues was also slightly different. Such differences could affect rice nutritional values and other minerals in rice grains. The objectives of this study were to (1): investigate the impact of foliar application of ZnONPs on the physiological health of rice; (2) determine how foliar application of ZnONPs affect plant uptake and accumulation of As and cadmium (Cd); and (3) evaluate the impact of foliarly applied ZnONPs on plant micronutrients uptake. Equivalent amounts of ZnOBPs and Zn salts were introduced to plants in parallel experiments to generate more insight into the potentially varying impacts of different forms of Zn agrichemicals.

2. Materials and Methods

Negatively charged ZnONPs (20% by weight, 10–30 nm) were purchased from the U.S. Research Nanomaterials, Inc. (Houston, TX, USA). High purity As(V) (Na₂HAsO₄·7H₂O > 98%) and zinc sulfate heptahydrate (ZnSO₄·7H₂O > 99%) were obtained from Sigma Aldrich (St. Louis, MO, USA) and Acros Organics (Geel, Belgium), respectively. Cadmium sulfate (CdSO₄) was purchased from Fisher Scientific, Inc. (Pittsburgh, PA, USA). Standard solutions of As, Zn, iron (Fe), and copper (Cu) (10,000 ppm in 3% nitric acid) for inductively coupled plasma mass spectrometry (ICP-MS) were obtained from RICCA Chemical Co. (Arlington, TX, USA).

2.1. Characterization of Zinc Oxide Nanoparticles (ZnONPs)

The size and shape of the ZnONPs were fully characterized in our previous study using a Tecnai G2 F20 transmission electron microscope (TEM) [19]. These nanoparticles are primarily spherical, with some triangular and irregular-shaped ZnONPs observed at low percentage. The mean diameter of the primary nanoparticles was around 68.1 nm, ranging from 15 to 137 nm. ZnONPs underwent substantial aggregation in solution and the hydrodynamic diameter increased to 621.08 ± 7.63 nm in 100 mg L⁻¹ deionized water as measured by dynamic light scattering (DLS) (Delsa Nano C, Beckman Coulter Inc., Miami, FL, USA). The zeta potential was about −28.80 ± 2.04 mV.

2.2. Soil Preparation

Raw soil was randomly collected from six points of a rice paddy at Beaumont, TX. Coarse organic materials and other large pieces of debris were handpicked first. The cleaned soil was then air-dried for six days at 35 °C. The dried soil was sieved through a 2 mm sieve following a previous study [30]. The essential physicochemical characteristics of the soil can be found in the same study. The soil was classified as a league clay soil (65.2% clay, 4.3% sand, 30.5% silt, and ~1.76% of organic matter) according to the U.S. Department of Agriculture (USDA) guideline [30]. The pH of the soil was around 5.5 measured in a 1:2.5 (v/v) soil to water suspension.

The background concentrations of As, Cd, and Zn in the soil were quantified with an ICP-MS (Perkin Elmer mod. DRCII, Waltham, MA, USA) after acid digestion. Briefly, three replicates of the soil samples (100 g) were randomly selected and oven-dried for 72 h at 85 °C. One gram of soil subsample was acid digested (4 mL HNO₃ and 2 mL H₂O₂) in a 50 mL tube using DigiPREP MS hot block digester (SCP science, Quebec, Canada) at 95 °C for 8 h. After being cooled to room temperature, the digested solutions were centrifuged (6000 g) for 10 min and filtered through 0.45 µm membrane filters. The target elements in the supernatant were then analyzed by ICP-MS. The background concentrations of As, Cd, and Zn were 1.76, 0.13, and 17.4 mg Kg⁻¹, respectively.

2.3. Experimental Setup

After the preparation and characterization of the soil, a fresh solution of As and Cd salts was added to the soil to a level of 5 mg kg⁻¹ As and 1 mg kg⁻¹ Cd to mimic the average As and Cd concentrations in agricultural soils in the U.S. More details on the preparation of the soil were described in our earlier publication [18]. We used the same concentration of As and Cd as in our previous study so that comparisons could be made between the two different exposure pathways of ZnONPs with regard to their impact on the fate and accumulation of As and Cd in rice paddies. Approximately 500 g of contaminated soil was added to each pot (25 × 8.5 × 8.5 cm³). Afterward, each pot was soaked with 2 cm standing tap water above the soil surface for 48 h to condition the soil for the rice seed germination. The seeds (Oryza sativa L.) were provided by the Texas A&M AgriLife Research Center at Beaumont. The seed’s surface was sterilized using 30% H₂O₂ for about 15 min and carefully rinsed with deionized water [31]. The sterilized seeds were then gently placed about 1 cm below the soil surface for germination. Once the seedlings started growing, tap water was used to replenish the evapotranspiration daily to maintain about 2 cm of water above the soil surface. During the growth period, pots were randomly rearranged every other day to minimize the impact of light shading. The ambient temperature in the growth chamber was about 28~30 °C. The seedlings were exposed to fluorescence light with a 6 h/8 h light/dark cycle for 1.5 months before the foliar treatments.

The plant seedlings were randomly subjected to three targeted foliar applications of 100 mg L⁻¹ Zn agrichemicals in the form of (i) ZnONPs, (ii) ZnSO₄, and (iii) ZnOBPs. A control treatment with DI water was also prepared. The Zn concentration was chosen due to its potential effects on the reduction of heavy metal uptake and higher biomass production in rice [32]. Foliar applications on each treatment were conducted twice with two weeks interval. During the course of treatment, the soil surface was fully covered with a plastic film to avoid the entrance of Zn into the soil. In each application, a ½ gallon polyethylene hand-held sprayer was used to spray approximately 1 L of premade solution to each treatment (n = 3) before reaching the dripping point [10]. The solutions of ZnONPs and ZnOBPs were ultra-sonicated for 30 min before spraying [32]. After the second application, plants were allowed to grow for another 14 d before harvest. After the termination, the roots were gently rinsed by DI water, and the rice plants were separated into shoots and roots. The biomass was oven-dried at 75 °C for 72 h for further analysis of the total As and Cd and micronutrients of copper (Cu), Fe, and Zn.

2.4. Total As, Cd, Cu, Fe, and Zn Analysis in Plant Tissues

The total uptake of As, Cd, Cu, Fe, and Zn in rice tissues was quantified after strong acid digestion in compliance with EPA protocol 3050b. Briefly, 0.65 g of dried biomass of shoots and 0.3 g of roots were digested into a 50 mL digestion tube by 3 mL 70% H₂NO₃ W/W acid and 2 mL H₂O₂ 30% (Certified ACS) for 10 h at 95 °C on a DigiPREP MS hot block digester (SCP Science, Clark Graham, Canada) [33,34]. The total concentration of metals in each treatment was measured by ICP-MS (PerkinElmer mod. DRCII, Waltham, MA, USA).

2.5. Soil Organic Content by Loss-on-Ignition (LOI)

Five grams of homogenized and sieved (1 mm) soil sample (n = 3) was weighed into pre-weighed 55 mm porcelain crucibles. They were then placed in an oven at 110 °C overnight. After full dehydration, the dried samples were ground and 2 g of sample was weighed. The oven-dried samples were subsequently placed in a muffle at 550 °C for 4 h and cooled down in a desiccator. The combusted samples were weighed again. The weight difference was considered as the total soil organic content as shown by Equation (1) [35].

$$\mathrm{SOC}\left({\mathrm{g} \mathrm{g}}^{-1}\right)=\frac{\mathrm{DW}-\mathrm{CW}}{\mathrm{DW}-{ \mathrm{W}}_{\mathrm{c}}}$$

(1)

where SOC is the soil organic content (g g⁻¹); DW refers to the weight of the sample at 110 °C plus the weight of crucible (g); W_c is the weight of the porcelain crucible (g); and CW is the cumulative weight of the calcinated sample and the crucible (g).

2.6. Statistical Analysis

Data acquired on elemental concentrations of Zn, Fe, As, Cd, and Cu in dry root and shoot tissues as well as associated biomass and soil organic materials were processed using Minitab 18 Statistical Software (Minitab Inc., State College, PA, USA). Through the one-way ANOVA, the mean data differentiation between treatments was analyzed, assisted by Tukey’s post hoc test at significance level 5% (p < 0.05).

3. Results and Discussion

3.1. Biomass

The shoot height, root length, and shoot biomass were all unaffected by the foliar treatment with Zn-containing agrichemicals (Figure 1). However, the dry weight of root biomass was significantly increased by 100, 66, and 64% after treatment with Zn²⁺, ZnONPs, and ZnOBPs, respectively, compared to the control. The differences between the three Zn agrichemicals were not statistically significant. The greater effect of Zn salt on rice growth might be due to its easier and faster assimilation into plant tissues that increase the photosynthesis, leading to rice growth. Previous research has shown that sprayed ZnONPs and ZnOBPs are mostly retained in the waxy layer of plant leaves [10].

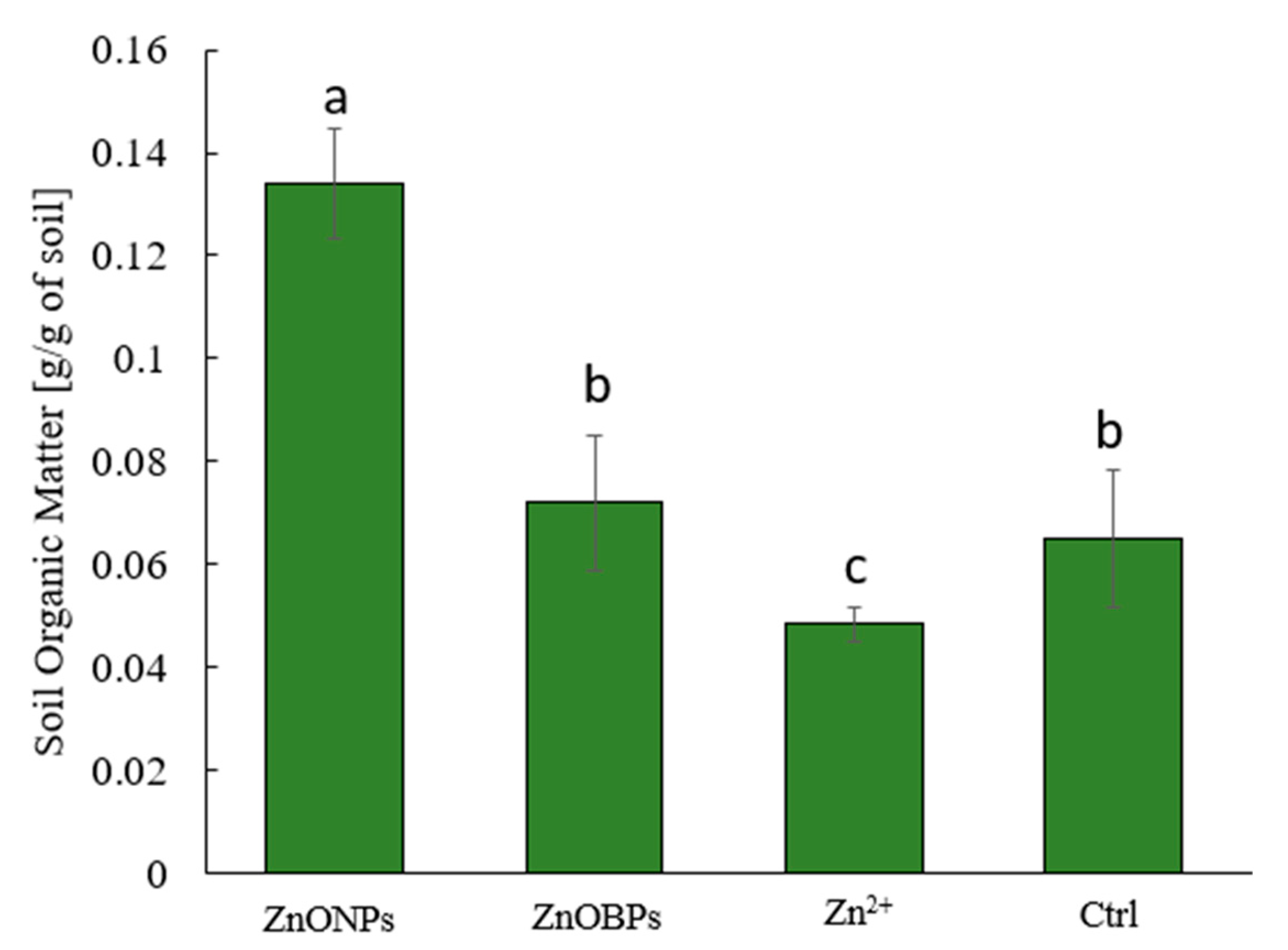

While the net photosynthesis rate and chlorophyll contents are common indicators of plant physiological health, we instead determined the potential formation of photosynthates and the release of exudates by quantifying the soil organic carbon (SOC) in soil (Figure 2). Consequently, higher SOC could have affected the activity of soil microorganisms and the bioavailability of soil-borne heavy metals and micronutrients. Compared with the control, ZnONPs significantly increased the SOC while Zn²⁺ significantly decreased the SOC. These differences were attributed to the differences in the excretion of root exudates and, potentially, the different net photosynthesis rates because root exudates are considered as part of the surplus carbon from photosynthesis [36].

3.2. Arsenic and Cadmium

The foliar application of different Zn-containing agrichemicals affected the As accumulation in rice tissues differently. ZnONPs and Zn salt significantly lowered the total As accumulation by 28 and 15% in rice shoots but did not affect the total As in rice roots (Figure 3). In contrast, ZnOBPs did not affect the total As in rice shoots but significantly elevated the total As in rice roots by approximately 40%, compared to the control. None of the Zn agrichemicals affected Cd in plant tissues through foliar treatment (Figure 4). However, the Cd level in roots was slightly higher in cultivars exposed to ZnONPs, compared to the control. We found in our previous study that the application of ZnONPs through root exposure simultaneously reduced (p < 0.05) both As and Cd accumulation in rice shoots, while Zn²⁺ only decreased As concentration in rice shoots but increased Cd concentration in rice shoot by 26.8% [18]. This study agreed with the previous study that ZnONPs and Zn²⁺ affected the plant uptake and accumulation of coexisting heavy metals differently. Furthermore, it was found that the particle size of ZnO particles played a role in the interactions of plants and co-occurring heavy metals. The significantly higher As in both rice roots and shoots following ZnOBPs treatment was noticed, but the underlying mechanism of ZnOBPs for its stronger effect was unknown. The relatively unaffected Cd by foliar Zn spray was understandable because the bioavailability of Cd to rice is primarily governed by the redox potential in rice paddies. Cd is more bioavailable in aerobic conditions because Cd is primarily in the form of Cd²⁺ in aerobic conditions, but it forms insoluble cadmium sulfide (CdS) in the anaerobic environment. In this study, an anaerobic environment was largely maintained by the standing water above the soil surface. Therefore, Cd bioavailability to rice seedlings was unaffected by the Zn-containing agrichemicals applied foliarly. The relatively higher Cd in plant tissues in this study than in our previous study might have resulted because 2 cm standing water was not adequate to maintain a totally anaerobic environment in the soil. Importantly, this study showed that different pathways of exposure of agrichemicals affected the fate and plant accumulation of various heavy metals differently. Therefore, the food safety implication should be considered when the different pathways of agrichemical applications are considered.

3.3. Micronutrients

In addition to evaluating the impact of foliar application of Zn agrichemicals on heavy metals, we also investigated how the foliar exposure to Zn-containing agrichemicals affected plant micronutrient uptake due to their key roles in maintaining the plants’ physiological health. Figure 5 shows the plant uptake of Fe in rice roots and shoots from different treatments. ZnONPs and Zn²⁺ significantly enriched Fe in rice shoots by 71 and 48%, respectively, compared to the control. Interestingly, the Fe concentration in rice roots was significantly increased by ZnOBPs, while the other two Zn agrichemicals did not show a significant impact on the Fe concentration in plant roots. In combination with the Fe concentration in rice shoots, it appeared that foliar application of different Zn agrichemicals affected iron transport from roots to shoots. Similar observations on the effects of ZnONPs on promoting the Fe uptake were reported in an earlier study [37] and the positive correlation between total nitrogen content and the Fe concentration in plant shoots suggests that the promoting effects of ZnONPs on Fe concentration might have led to higher plant photosynthesis efficiency. The observation is consistent with the greater root exudates from ZnONP-exposed rice seedlings, Figure 2.

Another micronutrient we examined was Cu, an essential metal cofactor in activating many photosynthesis enzymes and respiratory processes [38]. As shown in Figure 6, the accumulation of Cu in both roots and shoots was significantly promoted by the foliar application of ZnONPs and ZnOBPs, while Zn²⁺ showed limited impact on the Cu content in both rice roots and shoots, compared to the control. ZnONPs increased the Cu concentration in rice shoots and roots by 5 and 8%, respectively, and ZnOBPs increased the Cu concentration in rice shoots and roots by 6 and 2%, respectively.

As expected, the application of Zn-containing agrichemicals to rice cultivars significantly increased the Zn concentration in plant shoots, and significant differences were observed between different forms of Zn (Figure 7). ZnONPs, ZnOBPs, and Zn²⁺ increased the total Zn content in rice shoots by 16-, 14-, and 12-fold, compared with the control. The Zn element might be primarily absorbed in the wax layer of leaves, but previous studies have shown that Zn²⁺ and possibly ZnONPs can enter into the leaf matrix through stomata [10]. Most likely, the size is a limiting factor in the diffusion of ZnOBPs through the stomata (19.1 to 71.5 μm) [39], which only allows particles of sizes smaller than its opening to pass through. Surprisingly, the foliar application of ZnONPs and ZnOBPs led to substantially higher Zn in rice roots, while the root tissues from Zn²⁺-treated seedlings had minimal Zn. This observation may be explained by the incorporation of Zn²⁺ into the structure of macromolecules through different complexation processes once it enters into the shoot biomass, while ZnONPs and ZnOBPs were less available to complex with other molecules and were transported down to the roots from the phloem. Previous studies have shown that cerium oxide nanoparticles (CeO₂NPs) were transported down from shoots to roots through the phloem [40].

In summary, our study showed that foliar application of Zn-containing agrichemicals will not only affect the physiology of rice seedlings but will also affect the plant uptake of heavy metals and micronutrients from the soil. The effect differed between different forms of Zn agrichemicals and between different pathways of applications. The concentration of Zn in rice shoots was highest from the ZnONP treatment, which also resulted in lowest As accumulation in rice shoots. Overall, our results showed that ZnONPs displayed a more favorable outcome than other two forms of Zn in promoting plant physiology, inhibiting plant accumulation of toxic heavy metal(loid)s, and promoting the uptake of essential micronutrients. Future studies should explore how different concentrations of Zn nanoagrichemicals would affect these various aspects of plant health and food safety differently and how these consequences could be affected by the properties of paddy soil, water management, and nutrient management practices. In an era of exponential population growth, nanotechnology may be one of the most important tools to achieve adequate safe and nutritious food effectively and economically. Detailed studies on the speciation of foliarly applied ZnONPs and other forms of Zn in plant tissues using more advanced techniques such as X-ray diffraction spectroscopy (XRD) will shed more light on the impact of ZnONPs on rice growth and the nutritional values of rice grains.
