Article

Effects of Humic Acid Added to Controlled-Release Fertilizer on Summer Maize Yield, Nitrogen Use Efficiency and Greenhouse Gas Emission

by
Yanqing Guo
†,
Zhentao Ma
†,
Baizhao Ren
,
Bin Zhao
,
Peng Liu
and
Jiwang Zhang
*
State Key Laboratory of Crop Biology, Agronomy College of Shandong Agricultural University, Taian 271018, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Agriculture 2022, 12(4), 448; https://doi.org/10.3390/agriculture12040448
Submission received: 23 February 2022 / Revised: 17 March 2022 / Accepted: 21 March 2022 / Published: 23 March 2022
(This article belongs to the Section Crop Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
Humic acid plays an important role in improving grain yield and reducing N losses. In order to explore the effects of humic acid added to controlled-release fertilizer on summer maize yield, nitrogen use efficiency (NUE) and the characteristics of greenhouse gas (GHG) emissions in maize farmland soil, a two-year field experiment was set up. The treatments consisted of two fertilizers: 3% humic acid added to controlled-release fertilizer (HACRF), controlled-release fertilizer (CRF) and a control (without N fertilizer, N0). The results demonstrate that the yield and NUE of summer maize were significantly increased with the addition of humic acid in N fertilizer. Compared with N0 and CRF, the yield of maize was increased by 99.1% and 5.0%, respectively. Compared with CRF, the contents of soil ammonium–nitrogen (NH4+-N) and nitrate–nitrogen (NO3−-N) in HACRF were higher during early maize growth stage but lower during the late grain-filling stage. The NUE and soil nitrogen interdependent rate of HACRF were significantly increased by 4.6–5.4% and 7.2–11.6%, respectively, across the years compared with those of CRF. Moreover, the annual cumulative N2O emissions in HACRF were decreased by 29.0% compared with the CRF. Thus, the global warming potential and greenhouse emission intensity of HACRF were significantly decreased by 29.1% and 32.59%, respectively, compared with CRF. In conclusion, adding humic acid to controlled-release fertilizer can result in higher yield and nitrogen uptake, improve nitrogen use efficiency and reduce greenhouse gas emissions, which have better yield and environmental effects.

1. Introduction

Excessive emissions of greenhouse gases aggravate global warming, which is increasingly triggering a serious global environmental problem. Carbon dioxide (CO2), methane (CH4) and nitrous oxide (N2O) are the main greenhouse gases (GHG), which contribute nearly 80% of gases to the greenhouse effect [1]. Soils can be both sources and sinks of CO2, CH4 and N2O [2]. Total emissions from food systems may account for 25–30% of total GHG emissions [3]. Soil GHGs mainly result from root respiration, microbial respiration and soil fauna respiration, which can be influenced by fertilization, cultivation and irrigation in agricultural production activities [4,5,6,7]. How to reduce the environmental cost under the premise of ensuring stable and even increased grain yield has aroused widespread attention. The optimal management of nitrogen fertilizer, such as adjusting nitrogen fertilizer types, recycling organic wastes, adding soil conditioners and optimizing water and fertilizer management, is an important measure at present in agricultural production research.
Controlled-release fertilizers (CRF) have a more controlled rate of release based on the engineering of the coating type, which can better match plant N needs throughout the growing season, reduce N losses to the environment and thus increase N availability for plants [8,9]. CRF can significantly reduce the total amount of greenhouse gas emissions relative to conventional fertilization [10,11]. Compared with conventional fertilization, CRF reduces N2O emission by 15.5% [12]. Yao et al. [13] found that CRF had no significant effect on soil CH4 absorption compared to conventional fertilization. Banger et al. [14], using a meta-analysis, concluded that the application of N fertilizers in paddy soil increased CH4 emissions, which can be reduced by slow/controlled-release fertilizer [12]. Combined application of organic and inorganic fertilizers mitigates GHG emissions [15,16], and biochar is widely used as a soil amendment to restrain greenhouse gas production in cropland soils [17]. Agegnehu et al. [18] pointed out that the addition of organic modifiers significantly improved the physical and chemical properties of soil and may help to mitigate greenhouse gas emissions in certain systems while increasing maize yield. Therefore, we hypothesized that the emission reduction ability of CRF can be further improved by adding organic matter to fertilizer.
Humic acid is a kind of macromolecular organic matter produced by aerobic fermentation of plant residues [19]. It has many aromatic structures, phenolic hydroxyl structures and carboxyl structures, which make humic acid faintly acid and show solubility, electrification, adsorbability, ion exchange and complexation chelating properties [20]. The addition of humic acid to fertilizer can significantly increase crop yield, improve soil physical and chemical properties, increase soil adsorption capacity for NH4+, promote microbial activity, increase soil organic carbon content and fix inorganic nitrogen into organic nitrogen [21,22]. After the application of urea with humic acid, the carboxyl group and phenolic hydroxyl group of humic acid interact with the amide group of urea to form a complex with high stability, which improves the availability of NH4+-N and NO3−-N in soil and nitrogen use efficiency and reduces nitrogen loss [23,24,25,26]. Compared with urea, urea with humic acid significantly reduces N2O emissions [27]. Yu et al. [28] pointed out that the option of chemical N fertilizer fully substituted by organic N fertilizer can reconcile low climatic impact and high nitrogen agronomic efficiency (NAE). However, some studies have pointed out that humic acid can increase soil organic matter, which is not only the main carbon source of soil respiration but also an important source of CH4 and N2O production [29]. Therefore, humic acid fertilizers promote greenhouse gas emissions [15,30,31]. CRF is a good fertilizer for emission reduction and efficiency improvement; however, whether adding humic acid to CRF can further improve this ability remains to be studied. The aims of this study were, therefore, to test the hypotheses that adding humic acid to CRF (HACRF) (1) improves summer maize yield, (2) promotes nitrogen uptake and utilization and (3) mitigates greenhouse gas emissions.

2. Materials and Methods

2.1. Experimental Site and Design

This study was conducted in 2019 and 2020 at the test demonstration base of Heyuan Seed Technology Co., Ltd. in Mazhuang, Tai’an, and the State Key Laboratory of Crop Biology, China (117°09′ E, 36°20′ N). The site has a temperate continental monsoon climate with an annual average temperature of approximately 16.4 °C and accumulated precipitation of 601.3 mm, which occurs mainly from June to August. The meteorological conditions during the summer maize growth stage are shown in Figure 1. The meteorological data were obtained through the field meteorological real-time monitoring platform of Jixing farm Wuxin station in Tai’an, Shandong Province. The meteorological station was set in our experimental field. The location is characterized by brown loam, where the basic nutrient content of organic matter was 15.18 g·kg−1, total nitrogen was 1.86 g·kg−1, NO3−-N was 10.00 mg·kg−1, NH4+-N was 2.19 mg·kg−1 and pH was 6.8 at the 0–20 cm soil layer. The experiment was arranged as a randomized block design with three replicates, each of which was 72 m2, and it included the following three treatments: humic acid adding to 210 kg N/ha controlled-release fertilizer (HACRF), in which the content of humic acid was 3%; 210 kg N/ha controlled-release fertilizer (CRF); and a control (without N fertilizer, N0). The experiment material was Denghai 618 (mid-early hybrid), and the planting density was 75,000 plants·ha−1, which were sowed on June 15 and harvested on October 3. In the growth season of summer maize, N, P2O5 and K2O were applied at concentrations of 210, 52.5 and 67.5 kg·ha−1, respectively. Our fertilizer was a finished product provided by Shandong Agricultural University Fertilizer Sci. & Tech. Co., Ltd. in Tai’an, China. The ratio of N to P2O5 to K2O in CRF was 28:7:9. The ratio of N to P2O5 to K2O in N0 was 0:7:9. The fertilizers were applied once during sowing. The nitrogen fertilizer type was controlled-release fertilizer, which regulates nitrogen release rate through coating technology, and the control ratio was 30%, and the nitrogen release time was 60–70 days. During the growing period of maize, good field management was practiced according to the production habits of local farmers, and micro spray belt was used for irrigation.

2.2. Measurements

2.2.1. Grain Yield and Production Value

To determine maize yield and ear traits, 30 ears were harvested at the physiological maturity stage (R6) from three rows at the center of each plot. All kernels were air-dried, and grain yield was measured at 14% moisture, the standard moisture content of maize in storage or for sale in China (GB/T 29890-2013). According to the local market price (N0 input value, 2183 USD/ha; CRF input value, 2485 USD/ha; and HACRF input value, 2519 USD/ha; corn in 2019 was 0.25 USD/kg, 0.30 USD/kg in 2020 and 0.40 USD/kg in 2021),the production value, economic benefits and the ratio of production to investment were calculated.

2.2.2. GHG Emission

N2O, CH4 and CO2 were collected using static chamber–gas chromatographic techniques. Two chambers were set for each treatment, which were placed between the rows of corn. The chamber was insulated using sponge material and aluminum foil, which was enclosed by plastic sheets, and an air vent was installed in the middle of chamber. A pedestal was placed under chamber, which was sealed with water to ensure that the external environment did not affect the interior of chamber during the air extraction process. The dimensions of the chamber were 0.40 × 0.40 × 0.2 (length × width × height). Gas samples (50 mL) were collected once every two days within a week after fertilization, and then once a week until corn harvest for collection at 9:00–11:00 a.m. using glass syringes from chamber headspace 0, 10, 20 and 30 min after soil sample was covered. The concentrations of N2O, CH4 and CO2 in the collected samples were detected by an Agilent GC7890 (Agilent, California, USA) gas chromatograph [32].
The N2O, CH4 and CO2 fluxes were calculated according to the linear variation in N2O, CH4 and CO2 concentrations during the sampling process, and the formula for calculation is as follows [33]:
F = ρ × H × dC/dT × 273/(273 + T)
where F is gas emissions flux (mg·m−2·h−1), ρ is gas density in standard state (g·cm−3), H is the height of headspace in chamber (m), dC/dT is the increment of gas concentration in unit time (ppm·h−1) and T is the absolute temperature during sampling.
The calculation formula of accumulated greenhouse gas emissions is as follows [33]:
CF = ∑ i = 1 n F i + 1 + F i 2   ×   ( t i + 1   − t i )   ×   24
where CF is the accumulated greenhouse gas emissions, the unit of N2O is kg N·ha−1, CH4 and CO2 are given in kg C·ha−1, F is the first measurement of gas emission flux, unit is the same as above, 24 is the conversion coefficient from hourly emissions to daily emissions, ti+1 − ti is the number of days between two consecutive measurements and n is the total number of observations.
The calculation formula of global warming potential (GWP) is as follows [28]:
GWP = CFN2O × 265 + CFCH4 × 28
where GWP is the global warming potential (kg CO2-eq·ha−1) and CFN2O and CFCH4 are the accumulated emissions of N2O and CH4, respectively. CH4 and N2O are considered as 28- and 265-fold, respectively, the GWP of CO2 for 100 years [34,35].
The calculation formula of greenhouse gas intensity (GHGI) is as follows [28]:
GHGI = GWP/Y
where GHGI is global warming potential per unit output (kg CO2-eq·kg−1) and Y is crop yield (kg·ha−1).

2.2.3. Nitrogen Accumulation and Utilization

At maturity stage (R6), the five representative plant samples were randomly selected from each treated plot and divided into stems and leaves. Samples were placed in the oven at 105 °C until green and then dried at 80 °C to constant weight. Nitrogen content of samples was measured by AA3 continuous flow analyzer (SFA CFA FIA BRAN+LUEBBE III) (AutoAnalyzer 3, SEAL Analytical GmbH, Norderstedt, Germany). Nitrogen accumulation and utilization were calculated as follows [36,37]:
Total N accumulation amount (TNAA, kg·ha−1) = plant nitrogen content amount × plant biomass
N partial factor productivity (NPFP, kg·kg−1) = grain yield/N rate
N use efficiency (NUE, %) = grain yield/(available nitrogen of soil in current season + N rate) × 100
Soil nitrogen dependency rate (SNDR, %) = (total N uptake by plant with applied N0/total N uptake by plant with applied N) × 100

2.2.4. NH4+-N and NO3−-N of Soil

Soil samples were extracted by using an earth drill from a 0 to 60 cm depth in each plot, which were divided into three layers with a height of 20 cm, to measure the concentrations of NH4+-N and NO3−-N at jointing stage (V6), booting stage (V12), tasseling stage (VT), milking stage (VT + 30) and maturity stage (R6). Soil was extracted with 1 M KCl and filtered through a 0.45 μm membrane filter to remove insoluble particulates. The contents of soil NH4+-N and NO3−-N were measured by AA3 continuous flow analyzer. Before sowing, 0–20 cm of soil was extracted to measure the foundation fertility [38].

2.2.5. Statistical Analysis

Dates were analyzed by one-way analysis of variance (one-way ANOVA) procedure using SPSS 17.0 software (SPSS, Inc., Chicago, IL, USA) with p ≤ 0.05 considered significant, and SigmaPlot 10.0 was used to make figures.

3. Results

3.1. Yield and Its Components

Grain yield of summer maize was significantly increased by applying nitrogen, which was further improved with the addition of humic acid in N fertilizer. The trend of yield change in 2020 was generally the same as that in 2019. With the addition of humic acid, the HACRF resulted in 4.8% and 5.1% higher yields than that of CRF in 2019 and 2020, respectively. The main reason for the increased yield of summer maize with nitrogen application was that it increased the thousand-kernel weight and kernel number per ear, while the higher grain yield with the addition of humic acid in CRF was due primarily to increased thousand-kernel weight. Compared with N0, the application of CRF significantly improved the economic benefits of summer maize. Moreover, the application of humic acid improved the production value of summer maize. The output value, economic benefits and the ratio of production to investment of HACRF treatment improved by 4.9%, 15.5% and 3.8% across the years, respectively, compared to those of CRF treatment (Table 1).

3.2. Nitrogen Accumulation and Utilization

The TNAA and NUE were significantly increased by the addition of humic acid in fertilizer. Compared with CRF, the total nitrogen accumulation in HACRF-treated soil was significantly increased by 7.7% and 11.4% in 2019 and 2020, respectively. Compared with CRF, the NUE and NPFP resulting from HACRF treatment were significantly increased by 4.6% and 5.3% in 2019 and by 4.6% and 5.4% in 2020, respectively. However, the SNDR of HACRF-treated soil was significantly decreased by 7.2% and 11.6% in 2019 and 2020, respectively, compared to that of CRF-treated soil (Table 2).

3.3. NH4+-N and NO3−-N Content of Soil

With the advance of the growing stages, the contents of NH4+-N and NO3−-N in soil were first increased and then decreased, and significantly increased in the early growth stage of maize. The content of NH4+-N in soil reached the maximum at the tasseling stage. Compared with the NH4+-N content of CRF-treated soil, HACRF-treated soil at 0–20 cm and 20–40 cm soil layers was significantly increased by 22.0% and 22.7% in 2019 and by 18.9% and 25.3% in 2020, respectively. The content of NH4+-N in the 40–60 cm soil layer of HACRF-treated soil was significantly increased by 25.9% in 2019, while there was no significant difference in 2020, compared to that of CRF-treated soil. At the maturity stage, there was no significant difference in soil NH4+-N content between HACRF- and CRF-treated soil (Figure 2). Compared with CRF-treated soil, the content of NO3--N in 0–20 cm soil layer at the booting stage and jointing stage was significantly increased by HACRF, while the content of NO3−-N in the 0–20 cm soil layer was decreased after anthesis. At maturity, compared with CRF, the NO3--N content in 0–20 cm soil layer of HACRF-treated soil was significantly decreased by 26.1% and 13.5% in 2019 and 2020, respectively (Figure 3).

3.4. GHG Emission

3.4.1. Dynamic Change in Gas Emission Flux

During the whole maize season, there was no obvious N2O emission peak from N0 treatment, and the emission was very low. The soil N2O emission peak was significantly increased by nitrogen application, which was significantly reduced with the addition of humic acid to CRF (Figure 4). The peaks of N2O emission flux from CRF and HACRF treatments appeared on the 28th and 46th days after fertilization in 2019. Compared with the peak values of CRF, those of HACRF were significantly reduced by 24.5% and 10.9%, respectively. The peak of N2O emission flux from CRF treatments appeared on the 30th and 49th days after fertilization, while the peak of N2O emission flux from HACRF treatments appeared on the 28th and 49th days after fertilization in 2020. Compared with the peak values of CRF, those of HACRF were significantly reduced by 44.9% and 32.1%, respectively.
In the whole maize season, soil CO2 emission showed the same tendency in different treatments, as follows: increased firstly, then decreased, and then increased and finally decreased. The soil CO2 emission was mainly concentrated in the 26–64 days after fertilization, and the first peak of CO2 emission flux appeared on the 4th and 5th days after fertilization, which was significantly higher for HACRF than for CRF. To a certain extent, the soil CO2 emission was increased by nitrogen application, which was significantly reduced with the addition of humic acid to CRF in most periods, and the change trend in 2020 was generally the same as that in 2019 (Figure 4).
In the whole maize season, soil CH4 emission showed a fluctuating change, with positive and negative fluxes after fertilization. In general, the emission of CH4 showed an absorption mode, which was promoted by nitrogen application to a certain extent compared with no nitrogen application, and the change trend in 2020 was generally the same as that in 2019 (Figure 4).

3.4.2. Cumulative Gas Emissions and Global Warming Potential

The total GHG emissions were significantly increased by nitrogen application, which was significantly decreased with the addition of humic acid, and the change trend was the same in the two years. Compared with CRF, the cumulative emissions of N2O and CO2 for HACRF treatment were significantly decreased by 29.0% and 2.4% in 2019 and by 28.8% and 2.9% in 2020, respectively. The total absorption of CH4 was increased by 193.3% and 60.0% in 2019 and 2020, respectively. The GWP and GHGI were significantly increased by nitrogen application, which was decreased with the addition of humic acid to fertilizer. Compared with CRF treatment, the GWP and GHGI of HACRF treatment were significantly decreased by 29.3% and 32.7% in 2019 and by 28.9% and 32.5% in 2020, respectively (Table 3).

4. Discussion

Crop productivity can be improved by nitrogen application, but the N losses and environmental pollution risk will increase as the accumulated mineral N exceeds crops demand [39]. Improving the absorption and utilization rate of urea nitrogen in fertilizer plays a very important role in agricultural production and environmental protection [27,40,41]. Controlled-release fertilizer can regulate nutrient release synchronously with crop nutrient absorption, which can significantly improve the nitrogen absorption of maize compared with common urea [42]. Studies at home and abroad have shown that partial replacement of inorganic N with organic materials could further increase nitrogen accumulation [43,44]. Humic acid is an economically available organic macromolecular matter that can improve soil nutrients, stimulate plant growth, regulate plant metabolism and promote the absorption of nutrients by plants [45,46,47,48,49,50,51]. We found that adding humic acid to CRF can significantly improve the total nitrogen accumulation of summer maize. In addition, humic acids have a large specific surface area, complex surface structure and numerous functional groups, and therefore possess strong adsorbability, hydrophilicity and complexation chelating properties and are faintly acid, which can improve soil physical and chemical properties, enhance the ability of soil to retain nutrient ions, promote mineral nutrient absorption and improve the fertilizer utilization efficiency [52,53]. Suntari et al. [25] showed that the contents of NH4+-N and NO3−-N in soil 28 and 42 days after rice planting increased due to the addition of humic acid in urea. Chen et al. [54] found that humic acid urea fertilizer significantly increased nitrogen absorption and NUE compared with N treatment alone. In our study, the contents of NH4+-N and NO3−-N in soil at the stage of VT may be due to: (1) the nitrogen fertilizer type was controlled-release fertilizer, which regulates the release period of fertilizer by coating technology to meet the demand for nitrogen fertilizer in the key period of crops [8,9]; (2) the maize changed from vegetative growth to reproductive growth at VT, and in that time the total absorption area and active absorption area of the root system reached its maximum [55]. Additionally, the content of NH4+-N in soil at the early stage was significantly increased, while the content of NO3−-N in the soil after the booting stage was reduced by HACRF compared to CRF. Thus, the NPFE and NUE of summer maize were significantly improved, and the SNDR was significantly reduced with the addition of humic acid to CRF. Nitrogen (N) is one of primary essential nutrient elements for maize growth and yield formation. The yield of summer maize significantly increased with the nitrogen application. The improvement of nitrogen availability and utilization efficiency can optimize the growth environment of maize and further improve crop yield. In our study, the yield of summer maize was significantly increased by about 5.0% with the addition of humic acid to CRF.
GHG emissions are affected by many factors, such as precipitation, soil temperature and humidity and organic matter content. Appropriate irrigation can significantly reduce N2O and CO2 emissions [56,57]. CH4 is produced in an anaerobic environment, and its absorption has a significant negative correlation with soil moisture content [58]. In our study, the precipitation in 2020 was significantly higher than that in 2019, resulting in lower N2O and CO2 emissions and CH4 uptake. However, in 2020, the moisture was concentrated in August, especially in mid- and early August, which saw continuous heavy rainfall that coincided with the flowering and pollination period of maize. Then, the seed setting and nutrients transport were seriously affected, which in turn reduced the yield. Nitrate is very mobile in soil and can be lost through the flow of water [59], resulting in serious groundwater pollution and reduced NUE. Humic acid is an economically available organic macromolecular matter that can improve soil physical and chemical properties. The nitrogen is transformed into NH4+-N and NO3-N, which can be directly absorbed and utilized by plants through decomposition and mineralization after it is applied to the soil, providing sufficient nitrogen sources for nitrification and denitrification, and ultimately promoting the increase in N2O emissions [60,61]. Our results show that the N2O emission was significantly increased with nitrogen application, which was significantly reduced by about 29% with the addition of humic acid. The reason for this result may be that humic acid can promote the expression of genes related to nitrate absorption and assimilation in roots, reducing the pH on the surface of plasma membrane of root cells, so as to promote the absorption of NO3− by roots. At the same time, it can also fix NH4+-N in fertilizer through abiotic action [50]. Thus, humic acid delays the release of urea by inhibiting nitrification and ammoniation of urea in soil, so as to reduce the N2O emission [27]. Compared with N2O and CH4, CO2 has a greater impact on the greenhouse effect. We found that the soil CO2 emission was significantly reduced in most periods with the addition of humic acid to CRF, which may be because humic acid fertilizer can improve the composition and binding form of humus and store carbon in soil [62]. There was an obvious CO2 emission peak that was appeared on the 4th and 5th day after fertilization. The CO2 emission flux of HACRF was significantly higher than that of CRF, which may be related to humic acid increasing the content of organic matter in soil and improving soil microbial activity [18,63]. The emission of CH4 was promoted by nitrogen application [14,64], which can be significantly decreased by the combined application of organic manure and inorganic fertilizer, as the organic fertilizer can increase soil total organic carbon, which can reduce CH4 emission by changing the microbial community [18,65,66,67,68,69]. In our study, the emission of CH4 showed an absorption mode and the absorption was promoted by the addition of humic acid.
As a simple relative index based on radiation characteristics, GWP is often used to estimate the potential effects of different GHGs on the climate system. In the estimation, CO2 is regarded as a reference gas, and the increase or decrease in N2O and CH4 emissions is converted into the CO2 equivalent using GWP values [70]. In our study, the emissions of N2O were significantly decreased, while CH4 absorption was promoted by HACRF compared to CRF; thus, the GWP was significantly reduced. Meanwhile, the yield of summer maize was significantly increased with the addition of humic acid, so the GHGI was significantly reduced.

5. Conclusions

In this experiment, the yield and economic benefits of summer maize were significantly improved by basal application of 210 kg/ha controlled-release fertilizer provided by Shandong Agricultural University Fertilizer Sci. & Tech. Co., Ltd. Adding 3% humic acid to CRF was conducive to increasing nitrogen accumulation, improving the use efficiency of nitrogen and reducing greenhouse gas emissions, which resulted in a better yield, economic benefits and environmental performance. It is suitable for large-scale promotion and use in the Huang Huai Hai region.

Author Contributions

Conceptualization and methodology, J.Z.; investigation, data curation and writing—original draft, Y.G.; investigation, Z.M.; project administration, B.R.; methodology, P.L. and B.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the China Agriculture Research System of MOF and MARA(CARS-02-21), Shandong Central Guiding the Local Science and Technology Development (YDZX20203700002548), and Shandong Agricultural Application Technology Innovation Project (SD2019ZZ013).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Tian, Z. Effects of Different Management Practices on Ammonia, Greenhouse Gas Emissions and Soil Organic Carbon Sequestration from Cotton Field. Ph.D. Thesis, Northwest A & F University, Shanxi, China, 2017. [Google Scholar]
  2. Vilarrasa-Nogue, M.; Teira-Esmatges, M.R.; Pascual, M.; Villar, J.M.; Rufat, J. Effect of N dose, fertilisation duration and application of a nitrification inhibitor on GHG emissions from a peach orchard. Sci. Total Environ. 2020, 699, 134042. [Google Scholar] [CrossRef]
  3. Tian, Z.; Jim, J.; Wang, S.H.; Gerald, O.M.; Zhang, Z.Q. Application effects of coated urea and urease and nitrification inhibitors on ammonia and greenhouse gas emissions from a subtropical cotton field of the Mississippi Delta Region. Sci. Total Environ. 2015, 533, 329–338. [Google Scholar] [CrossRef]
  4. Zhong, Y.M.; Wang, X.P.; Yang, J.P.; Zhao, X.; Ye, X.Y. Exploring a suitable nitrogen fertilizer rate to reduce greenhouse gas emissions and ensure rice yields in paddy fields. Sci. Total Environ. 2016, 565, 420–426. [Google Scholar] [CrossRef]
  5. Chi, Y.B.; Yang, P.L.; Ren, S.M.; Ma, N.; Yang, J.; Xu, Y. Effects of fertilizer types and water quality on carbon dioxide emissions from soil in wheat-maize rotations. Sci. Total Environ. 2020, 698, 134010. [Google Scholar] [CrossRef]
  6. Puga, A.P.; Grutzmacher, P.; Cerri, C.E.P.; Ribeirinho, V.S.; de Andrade, C.A. Biochar-based nitrogen fertilizers: Greenhouse gas emissions, use efficiency, and maize yield in tropical soils. Sci. Total Environ. 2020, 704, 135375. [Google Scholar] [CrossRef]
  7. Wang, C.; Zhao, J.C.; Feng, Y.P.; Shang, M.F.; Bo, X.Z.; Gao, Z.Z.; Chen, F.; Chu, Q.Q. Optimizing tillage method and irrigation schedule for greenhouse gas mitigation, yield improvement, and water conservation in wheat–maize cropping systems. Agric. Water Manag. 2021, 248, 106762. [Google Scholar] [CrossRef]
  8. Ransom, C.J.; Jolley, V.D.; Blair, T.A.; Sutton, L.E.; Hopkins, B.G. Nitrogen release rates from slow- and controlled-release fertilizers influenced by placement and temperature. PLoS ONE 2020, 15, e0234544. [Google Scholar] [CrossRef]
  9. Sun, H.; Zhou, S.; Zhang, J.; Zhang, X.; Wang, C. Effects of controlled-release fertilizer on rice grain yield, nitrogen use efficiency, and greenhouse gas emissions in a paddy field with straw incorporation. Field Crop. Res. 2020, 253, 107814. [Google Scholar] [CrossRef]
  10. Duan, Z.Y.; Li, Y.E.; Wan, Y.F.; Qin, X.B.; Wang, B. Emission of greenhouse gases for spring maize on different fertilizer treatments. Editor. Off. Trans. Chin. Soc. Agric. Eng. 2014, 30, 216–224. [Google Scholar]
  11. Tian, C.; Zhou, X.; Ding, Z.l.; Liu, Q.; Xie, G.X.; Peng, J.W.; Rong, X.M.; Zhang, Y.P.; Yang, Y.; Eissa, M.A. Controlled-release N fertilizer to mitigate ammonia volatilization from double-cropping rice. Nutr. Cycl. Agroecosyst. 2021, 119, 123–137. [Google Scholar] [CrossRef]
  12. Guo, C.; Xu, Z.W.; Wang, B.; Ren, T.; Wan, Y.F.; Zou, J.L.; Lu, J.W.; Li, X.K. Effects of slow/controlled release urea on annual CH4 and N2O emissions in paddy field. Chin. J. Appl. Ecol. 2016, 27, 1489–1495. [Google Scholar]
  13. Yao, F.Y.; Wang, L.C.; Duo, X.Q.; Liu, Z.M.; Lv, Y.J.; Cao, Y.J.; Wei, W.W.; Wang, Y.J. Effects of different nitrogen fertilizers on annual emissions of greenhouse gas from maize field in Northeaset China. Chin. J. Appl. Ecol. 2019, 30, 1303–1311. [Google Scholar]
  14. Banger, K.; Tian, H.Q.; Lu, C.Q. Do nitrogen fertilizers stimulate or inhibit methane emissions from rice fields? Glob. Chang. Biol. 2012, 18, 3259–3267. [Google Scholar] [CrossRef]
  15. Gao, H.J.; Zhang, W.J.; Peng, C.; Zhang, X.Z.; Li, Q.; Zhu, P. Emission characteristics of greenhouse gas from maize field of black soil region under long-term fertilization. J. Agric. Resour. Environ. 2017, 24, 422–430. [Google Scholar]
  16. Zhang, D.J.; Zong, J.J.; Ma, J.H.; Yang, X.Q.; Hu, X.; Xu, S. Effects of wheat-maize rotation system tillage method and enhanced organic fertilizer on soil organic carbon pool and greenhouse gas emission in maize soil. Ecol. Environ. Sci. 2019, 28, 1927–1935. [Google Scholar]
  17. Yang, W.; Feng, G.; Miles, D.; Gao, L.H.; Jia, Y.L.; Li, C.J.; Qu, Z.Y. Impact of biochar on greenhouse gas emissions and soil carbon sequestration in corn grown under drip irrigation with mulching. Sci. Total Environ. 2020, 729, 138752. [Google Scholar] [CrossRef]
  18. Agegnehu, G.; Bass, A.M.; Nelsona, P.N.; Bird, M.I. Benefits of biochar, compost and biochar–compost for soil quality, maize yield and greenhouse gas emissions in a tropical agricultural soil. Sci. Total Environ. 2016, 543, 295–306. [Google Scholar] [CrossRef]
  19. Susic, M.; Genc, Y.; Lyons, G. Replenishing humic acids in agricultural soils. Agronomy 2016, 6, 45. [Google Scholar] [CrossRef] [Green Version]
  20. Schlten, H.R.; Schnitzer, M. A state of the art structural concept for humic substances. Naturwissenschaflen 1993, 80, 29–30. [Google Scholar] [CrossRef]
  21. Purwanto, B.H.; Wulandari, P.; Sulistyaningsih, E.; Utami, S.N.H.; Handayani, S. Improved corn yields when humic acid extracted from composted manure is applied to acid soils with phosphorus fertilizer. Appl. Environ. Soil Sci. 2021, 2021, 8838420. [Google Scholar] [CrossRef]
  22. Xiao, Q.L.; Zhu, J.; Peng, H.; Li, S.N.; Ji, X.H. Ammonia volatilization loss and emission reduction measures in paddy fields. J. Agro-Environ. Sci. 2021, 40, 16–25. [Google Scholar]
  23. Reeza, A.A.; Ahmed, O.H.; Majid, N.M.N.A.; Jalloh, M.B. Reducing ammonia loss from urea by mixing with humic and fulvic acids isolated from coal. Am. J. Environ. Sci. 2009, 5, 420–426. [Google Scholar] [CrossRef]
  24. Osman, E.A.M.; El-Masry, A.A.; Khatab, K.A. Effect of nitrogen fertilizer sources and foliar spray of humic and/or fulvic acids on yield and quality of rice plants. Adv. Appl. Sci. Res. 2013, 4, 174–183. [Google Scholar]
  25. Suntari, R.; Retnowati, R.; Soemarno, S.; Munir, M. Determination of urea-humic acid dosage of vertisols on the growth and production of rice. AGRIVITA J. Agric. Sci. 2015, 37, 185–192. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, S.Q.; Yuan, L.; Li, W.; Lin, Z.A.; Li, Y.T.; Hu, S.W.; Zhao, B.Q. Effects of urea enhanced with different weathered coal-derived humic acid components on maize yield and fate of fertilizer nitrogen. J. Intergrative Agric. 2019, 18, 656–666. [Google Scholar] [CrossRef]
  27. Shen, Y.W.; Lin, H.T.; Gao, W.S.; Li, M.L. The effects of humic acid urea and polyaspartic acid urea on reducing nitrogen loss compared with urea. J. Sci. Food Agric. 2020, 100, 4425–4432. [Google Scholar] [CrossRef]
  28. Yu, K.; Fang, X.T.; Zhang, Y.H.; Miao, Y.C.; Liu, S.W.; Zou, J.W. Low greenhouse gases emissions associated with high nitrogen use efficiency under optimized fertilization regimes in double-rice cropping systems. Appl. Soil Ecol. 2021, 160, 103846. [Google Scholar] [CrossRef]
  29. Luo, L.G.; Kondo, M.; Itoh, S. N2O and CH4 emission from Japan rice fields under different long-term fertilization patterns and its environmental impact. Chin. J. Appl. Ecol. 2010, 21, 3200–3206. [Google Scholar]
  30. Jones, S.K.; Rees, R.M.; Skiba, U.M.; Ball, B.C. Greenhouse gas emissions from a managed grassland. Glob. Planet. Chang. 2005, 47, 201–211. [Google Scholar] [CrossRef]
  31. Wang, X.J.; Zhang, R.Z.; Qi, P.; Jiao, Y.P.; Cai, L.Q.; Wu, J.; Xie, H.J. Meta-analysis on farmland soil CO2 emission in Northern China affected by organic fertilizer. Trans. Chin. Soc. Agric. Eng. 2019, 5, 99–107. [Google Scholar]
  32. Zhang, A.; Cui, L.; Pan, G.; Li, L.; Hussain, Q.; Zhang, X.; Crowley, D. Effect of biochar amendment on yield and methane and nitrous oxide emissions from a rice paddy from Tai Lake plain, China. Agric. Ecosyst. Environ. 2010, 139, 469–475. [Google Scholar] [CrossRef]
  33. Shu, X.X.; Wang, Y.Q.; Wang, Y.L.; Ma, Y.; Men, M.X.; Zheng, Y.P.; Xue, C.; Peng, Z.P.; Noulas, C. Response of soil N2O emission and nitrogen utilization to organic matter in the wheat and maize rotation system. Sci. Rep. 2021, 11, 4396. [Google Scholar] [CrossRef]
  34. IPCC. Impacts, adaptation, and vulnerability. In Working Group II Contribution to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Technical Report; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2014. [Google Scholar]
  35. Liao, B.; Wu, X.; Yu, Y.F.; Luo, S.Y.; Hu, R.G.; Lu, G.A. Effects of mild alternate wetting and drying irrigation and mid-season drainage on CH4 and N2O emissions in rice cultivation. Sci. Total Environ. 2020, 698, 134212. [Google Scholar] [CrossRef]
  36. Zhao, B.; Dong, S.T.; Zhang, J.W.; Liu, P. Effects of controlled-release fertilizer on yield and nitrogen accumulation and distribution in summer maize. Acta Agron. Sin. 2010, 36, 1760–1768. [Google Scholar]
  37. Ranjan, R.; Yadav, R. Targeting nitrogen use efficiency for sustained production of cereal crops. J. Plant Nutr. 2019, 42, 1086–1113. [Google Scholar] [CrossRef]
  38. Bao, S.D. Soil Agricultural Chemistry Analysis; China Agriculture Press: Beijing, China, 2000. [Google Scholar]
  39. Yuan, L.; Chen, X.; Jia, J.; Chen, H.; Shi, Y.; Ma, J.; Liang, C.; Liu, Y.; Xie, H.; He, H.; et al. Stover mulching and inhibitor application maintain crop yield and decrease fertilizer N input and losses in no-till cropping systems in Northeast China. Agric. Ecosyst. Environ. 2021, 312, 107360. [Google Scholar] [CrossRef]
  40. Ni, B.L.; Liu, M.Z.; Lü, S.Y.; Xie, L.H.; Wang, Y.F. Multifunctional slow-release organic-inorganic compound fertilizer. Agric. Food Chem. 2010, 58, 12373–12378. [Google Scholar] [CrossRef]
  41. Yang, Q.L.; Liu, P.; Dong, S.T.; Zhang, J.W.; Zhao, B. Combined application of organic and inorganic fertilizers mitigates ammonia and nitrous oxide emissions in a maize field. Nutr. Cycl. Agroecosyst. 2020, 117, 13–27. [Google Scholar] [CrossRef]
  42. Shoji, S. Innovative use of controlled availability fertilizers with high performance for intensive agriculture and environmental conservation. Sci. China Ser. C Life Sci. 2005, 48, 912–920. [Google Scholar]
  43. Gao, H.J.; Zhu, P.; Peng, C.; Zhang, X.Z.; Li, Q.; Zhang, W.J. Effects of partially replacement of inorganic N with organic materials on nitrogen efficiency of spring maize and soil inorganic nitrogen content under the same N input. J. Plant Nutr. Fertil. 2015, 21, 318–325. [Google Scholar]
  44. Wen, Z.H.; Shen, J.B.; Blackwell, M.; Li, H.G.; Zhao, B.Q.; Yuan, H.M. Combined applications of nitrogen and phosphorus fertilizers with manure increase maize yield and nutrient uptake via stimulating root growth in a long-term experiment. Pedosphere 2016, 26, 62–73. [Google Scholar] [CrossRef]
  45. Orlov, D.S.; Sadovnikova, L.K. Soil organic matter and protective functions of humic substances in the bioshere. In Use of Humic Substances to Remediate Polluted Environments: From the Ory to Practice; Springer: Dordrecht, The Netherlands, 2005; pp. 37–52. [Google Scholar]
  46. Trevisan, S.; Francioso, O.; Quaggiotti, S.; Nardi, S. Humic substances biological activity at the plant-soil interface. Plant Signal. Behav. 2010, 6, 635–643. [Google Scholar] [CrossRef] [Green Version]
  47. Liu, M.L.; Wang, C.; Wang, F.Y.; Xie, Y.J. Maize (Zea mays) growth and nutrient uptake following integrated improvement of vermicompost and humic acid fertilizer on coastal saline soil. Appl. Soil Ecol. 2019, 142, 147–154. [Google Scholar] [CrossRef]
  48. Deng, A.N.; Luo, J.H.; Su, C.L.; Wu, X.F.; Zhao, M. Reduced inorganic fertilizer in combination with an alkaline humic acid fertilizer amendment on acid growth media properties and cherry tomato growth. N. Z. J. Crop Hortic. Sci. 2021, 49, 225–242. [Google Scholar] [CrossRef]
  49. Pang, L.Y.; Song, F.P.; Song, X.L.; Guo, X.S.; Lu, Y.Y.; Chen, S.G.; Zhu, F.J.; Zhang, N.D.; Zou, J.C.; Zhang, P.H. Effects of different types of humic acid isolated from coal on soil NH3 volatilization and CO2 emissions. Environ. Res. 2021, 194, 110711. [Google Scholar] [CrossRef]
  50. Zhang, S.Q.; Yuan, L.; Lin, Z.A.; Li, Y.T.; Hu, S.W.; Zhao, B.Q. Advances in humic acid fou promoting plant growth and its mechanism. J. Plant Nutr. Fertil. 2017, 23, 1065–1076. [Google Scholar]
  51. Jindo, K.J.; Martim, A.S.; Navarro, E.C.; Pérez-Alfocea, F.; Hernandez, T.; Garcia, C.; Aguiar, N.O.; Canellas, L.P. Root growth promotion by humic acids from composted and non-composted urban organic wastes. Plant Soil 2012, 353, 209–220. [Google Scholar] [CrossRef]
  52. Hala, S.M.E.B.; Bakry, A.B.; Amany, A.E.M.A.; Maha, M.A.A. Physiological Role of humic acid and nicotinamide on improving plant growth, yield, and mineral nutrient of wheat (triticum durum) grown under newly reclaimed sandy soil. Agric. Sci. 2014, 5, 687–700. [Google Scholar]
  53. Bayat, H.; Shafie, F.; Aminifard, M.H.; Daghighi, S. Comparative effects of humic and fulvic acids as biostimulants on growth, antioxidant activity and nutrient content of yarrow (Achillea millefolium L.). Sci. Hortic. 2021, 279, 109912. [Google Scholar] [CrossRef]
  54. Chen, X.G.; Kou, M.; Tang, Z.H.; Zhang, A.J.; Li, H.M. The use of humic acid urea fertilizer for increasing yield and utilization of nitrogen in sweet potato. Plant Soil Environ. 2017, 63, 201–206. [Google Scholar]
  55. Ma, Z.T.; Ren, B.Z.; Zhao, B.; Liu, P.; Zhang, J.W. Optimising the root traits of summer maize to improve nutrient uptake and utilisation through rational application of urea ammonium nitrate solution. Plant Soil Environ. 2022, 68, 98–107. [Google Scholar] [CrossRef]
  56. Akbolat, D.; Senyigit, U. Short-term effect of different irrigation water levels on soil carbon dioxide (CO2) emission. Fresenius Environ. Bull. 2012, 21, 3869–3873. [Google Scholar]
  57. Han, B.; Ye, X.H.; Li, W.; Zhang, X.C.; Zhang, Y.L.; Lin, X.G.; Zou, H.T. The effects of different irrigation regimes on nitrous oxide emissions and influencing factors in greenhouse tomato fields. J. Soils Sediments 2017, 17, 2457–2468. [Google Scholar] [CrossRef]
  58. Ni, X.; Jiang, C.S.; Chen, S.J.; Li, X.X.; Shi, X.J.; Hao, Q.J. Effects of plastic film mulching and nitrogen fertilizer application on CH4 emissions from a vegetable field. Environ. Sci. 2019, 40, 893–903. [Google Scholar]
  59. Gioacchini, P.; Nastri, A.; Marzadori, C.; Giovannini, C.; Antisari, L.V.; Gessa, C. Influence of urease and nitrification inhibitors on N losses from soils fertilized with urea. Biol. Fertil. Soils 2002, 36, 129–135. [Google Scholar] [CrossRef]
  60. Rizhiya, E.; Bertora, C.; Vliet, P.C.J.; Kuikman, P.J.; Faber, J.H.; Groenigen, J.W. Earthworm activity as a determinant for N2O emission from crop residue. Soil Biol. Biochem. 2007, 39, 2058–2069. [Google Scholar] [CrossRef]
  61. Gao, F.; Li, B.; Ren, B.Z.; Liu, P.; Zhang, J.W. Effects of residue management strategies on greenhouse gases and yield under double cropping of winter wheat and summer maize. Sci. Total Environ. 2019, 687, 1138–1146. [Google Scholar] [CrossRef]
  62. Jie, X.H.; Zou, D.Y.; Sui, X.H.; Chen, C.F. Application of humic acid fertilizers to reduce greenhouse gas emissions. Humic Acid 2010, 5, 43–44. [Google Scholar]
  63. Yang, F.; Antonietti, M. Artificial humic acids: Sustainable materials against climate change. Adv. Sci. 2020, 7, 1902992. [Google Scholar] [CrossRef] [Green Version]
  64. Ma, J.; Ji, Y.; Zhang, G.B.; Xu, H.; Yagi, K. Timing of midseason aeration to reduce CH4 and N2O emissions from double rice cultivation in China. Soil Sci. Plant Nutr. 2013, 59, 35–45. [Google Scholar] [CrossRef] [Green Version]
  65. Fan, Y.Q.; Hao, X.M.; Carswell, A.; Misselbrook, T.; Ding, R.S.; Li, S.E.; Kang, S.Z. Inorganic nitrogen fertilizer and high N application rate promote N2O emission and suppress CH4 uptake in a rotational vegetable system. Soil Tillage Res. 2021, 206, 104848. [Google Scholar] [CrossRef]
  66. Qi, L.; Ma, Z.l.; Chang, S.X.; Zhou, P.; Huang, R.; Wang, Y.Y.; Wang, Z.F.; Gao, M. Biochar decreases methanogenic archaea abundance and methane emissions in a flooded paddy soil. Sci. Total Environ. 2021, 752, 141958. [Google Scholar] [CrossRef] [PubMed]
  67. Feng, Y.Z.; Xu, Y.P.; Yu, Y.C.; Xie, Z.B.; Lin, X.G. Mechanisms of biochar decreasing methane emission from Chinese paddy soils. Soil Biol. Biochem. 2012, 46, 80–88. [Google Scholar] [CrossRef]
  68. Liu, Y.X.; Yang, M.; Wu, Y.M.; Wang, H.L.; Chen, Y.X.; Wu, W.X. Reducing CH4 and CO2 emissions from waterlogged paddy soil with biochar. J. Soils Sediments 2011, 11, 930–939. [Google Scholar] [CrossRef]
  69. Qin, X.B.; Li, Y.e.; Wang, H.; Liu, C.; Li, J.l.; Wan, Y.F.; Gao, Q.Z.; Fan, F.L.; Liao, Y.L. Long-term effect of biochar application on yield-scaled greenhouse gas emissions in a rice paddy cropping system: A four-year case study in south China. Sci. Total Environ. 2016, 569, 1390–1401. [Google Scholar] [CrossRef]
  70. Zhang, A.F. A Study of Effect of Biochar Amendment on Greenhouse Gases Emissions and Crop Productivity in Agriculture. Ph.D. Thesis, Nanjing Agricultural University, Nanjing, China, 2012. [Google Scholar]
Agriculture 12 00448 g001 550

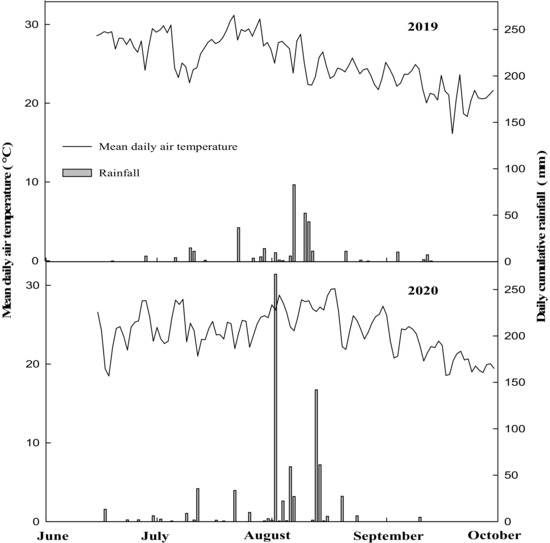

Figure 1. Meteorological conditions during the summer maize growth stage in 2019 and 2020.
Figure 1. Meteorological conditions during the summer maize growth stage in 2019 and 2020.
Agriculture 12 00448 g001
Agriculture 12 00448 g002 550

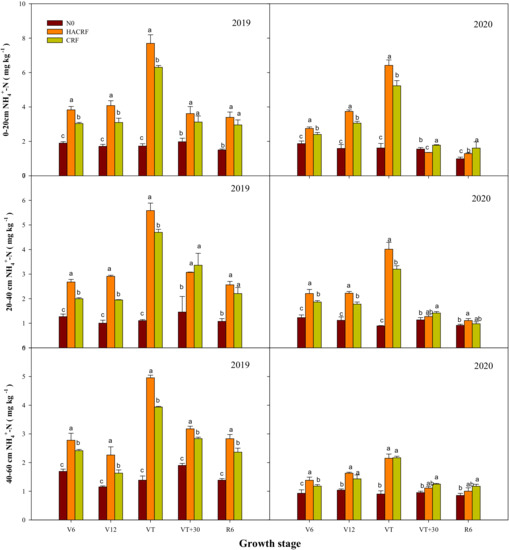

Figure 2. Effects of humic acid added to controlled-release fertilizer on NH4+-N during summer maize growth stage. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD).
Figure 2. Effects of humic acid added to controlled-release fertilizer on NH4+-N during summer maize growth stage. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD).
Agriculture 12 00448 g002
Agriculture 12 00448 g003 550

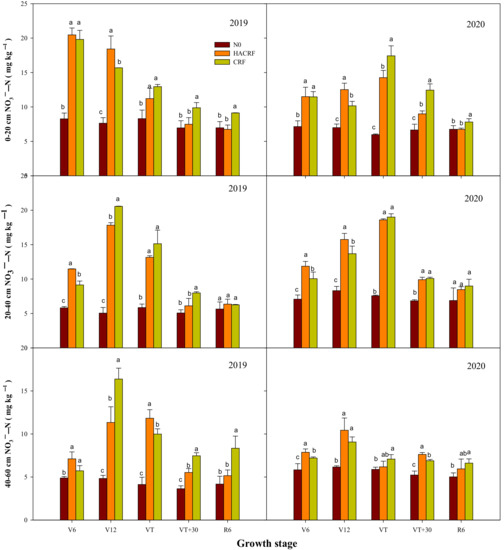

Figure 3. Effects of humic acid added to controlled-release fertilizer on NO3−-N during summer maize growth stage. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD).
Figure 3. Effects of humic acid added to controlled-release fertilizer on NO3−-N during summer maize growth stage. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD).
Agriculture 12 00448 g003
Agriculture 12 00448 g004 550

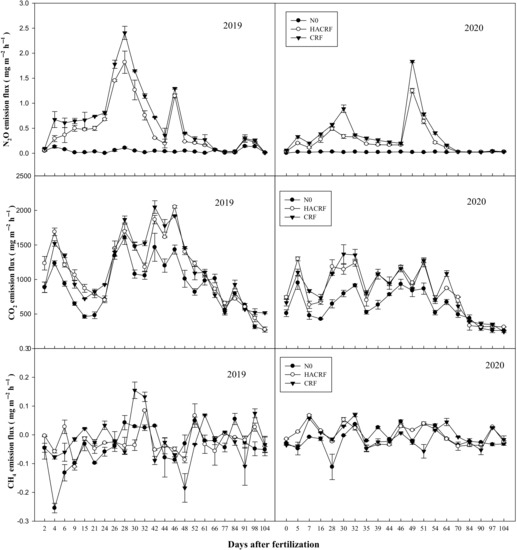

Figure 4. Effects of humic acid added to controlled-release fertilizer on greenhouse gas emission fluxes during summer maize growth in 2019 and 2020. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer.
Figure 4. Effects of humic acid added to controlled-release fertilizer on greenhouse gas emission fluxes during summer maize growth in 2019 and 2020. N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer.
Agriculture 12 00448 g004
Table
Table 1. Effects of humic acid added to controlled-release fertilizer on the yield and production values of summer maize.
Table 1. Effects of humic acid added to controlled-release fertilizer on the yield and production values of summer maize.
YearTreatment1000-Grain Weight (g)Grains per EarEars (No·ha−1)Grain Yield (t·ha−1)Production Value (USD·ha-1)Economic Benefits (USD·ha−1)The Ratio of Production to Investment (USD·ha−1)
2019N0277.6 c319 b69,997 a6.2 c1559 c−624 c0.71 c
CRF328.2 b529 a72,989 a12.7 b3187 b701 b1.27 b
HACRF336.5 a536 a73,645 a13.3 a3339 a820 a1.32 a
2020N0337.9 c291 b66,945 a6.6 c1986 c−196 c0.90 c
CRF392.4 b446 a65,834 a11.5 b3478 b993 b1.39 b
HACRF399.1 a457 a66,389 a12.1 a3652 a1133 a1.44 a
Year (Y)************
Treatment (T)****NS********
Y × TNSNSNS*****
N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD). * Significant at the 0.05 probability level. ** Significant at the 0.01 probability level. NS: not significant.
Table
Table 2. Effects of humic acid added to controlled-release fertilizer on nitrogen accumulation and utilization of summer maize.
Table 2. Effects of humic acid added to controlled-release fertilizer on nitrogen accumulation and utilization of summer maize.
YearTreatmentsTNAA (kg·ha−1)NPFP (kg·kg−1)SNDR (%)NUE (%)
2019N0109.2 c---
HACRF258.1 a63.2 a42.3 b47.4 a
CRF239.7 b60.4 b45.6 a45.3 b
2020N091.3 c
HACRF225.6 a57.8 a40.5 b41.3 a
CRF199.8 b54.9 b45.8 a39.2 b
Year (Y)****NS**
Treatment (T)********
Y × TNSNSNSNS
N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer; TNAA: total N accumulation amount; NPFP: N partial factor productivity; SNDR: soil nitrogen dependency rate; NUE: nitrogen use efficiency. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD). ** Significant at the 0.01 probability level. NS: not significant.
Table
Table 3. Effects of humic acid added to controlled-release fertilizer on the accumulated greenhouse gas emissions, GWP and GHGI.
Table 3. Effects of humic acid added to controlled-release fertilizer on the accumulated greenhouse gas emissions, GWP and GHGI.
YearsTreatmentsTotal Cumulative Emission of N2O (kg N·ha−1)Total Cumulative Emission of CO2 (kg C·ha−1)Total Cumulative Emission of CH4 (kg C·ha−1)GWP
(kg CO2-eq·ha−1)		GHGI
(kg CO2-eq·kg−1)
2019N01.16 c21,010 c−0.82 c293 c0.047 c
HACRF8.72 b25,580 b−0.44 b2299 b0.173 b
CRF12.29 a26,213 a−0.15 a3253 a0.257 a
2020N00.67 c14,872 c−0.47 c165 c0.025 c
HACRF4.95 b20,242 b−0.16 b1308 b0.108 b
CRF6.95 a20,838 a−0.10 a1840 a0.160 a
Year (Y)**********
Treatment(T)**********
Y × T**********
N0: without N fertilizer; CRF: controlled-release fertilizer; HACRF: adding humic acid to controlled-release fertilizer; GWP: global warming potential; GHGI: greenhouse emission intensity. Different letters in each column indicate significant differences at p ˂ 0.05 (LSD). ** Significant at the 0.01 probability level. NS: not significant.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Guo, Y.; Ma, Z.; Ren, B.; Zhao, B.; Liu, P.; Zhang, J. Effects of Humic Acid Added to Controlled-Release Fertilizer on Summer Maize Yield, Nitrogen Use Efficiency and Greenhouse Gas Emission. Agriculture 2022, 12, 448. https://doi.org/10.3390/agriculture12040448

AMA Style

Guo Y, Ma Z, Ren B, Zhao B, Liu P, Zhang J. Effects of Humic Acid Added to Controlled-Release Fertilizer on Summer Maize Yield, Nitrogen Use Efficiency and Greenhouse Gas Emission. Agriculture. 2022; 12(4):448. https://doi.org/10.3390/agriculture12040448

Chicago/Turabian Style

Guo, Yanqing, Zhentao Ma, Baizhao Ren, Bin Zhao, Peng Liu, and Jiwang Zhang. 2022. "Effects of Humic Acid Added to Controlled-Release Fertilizer on Summer Maize Yield, Nitrogen Use Efficiency and Greenhouse Gas Emission" Agriculture 12, no. 4: 448. https://doi.org/10.3390/agriculture12040448

APA Style

Guo, Y., Ma, Z., Ren, B., Zhao, B., Liu, P., & Zhang, J. (2022). Effects of Humic Acid Added to Controlled-Release Fertilizer on Summer Maize Yield, Nitrogen Use Efficiency and Greenhouse Gas Emission. Agriculture, 12(4), 448. https://doi.org/10.3390/agriculture12040448

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
