Rumen Solubility of Copper, Manganese and Zinc and the Potential Link between the Source and Rumen Function: A Systematic Review

by
Antal Vigh
1,*,
Adriana Dalila Criste
1,
Nicolae Corcionivoschi
2,3,4 and
Christine Gerard
5
1
Faculty of Animal Science and Biotechnologies, University of Agricultural Sciences and Veterinary Medicine, 400372 Cluj-Napoca, Romania
2
Bacteriology Branch, Veterinary Sciences Division, Agri-Food and Biosciences Institute, Belfast BT4 3SD, UK
3
Faculty of Bioengineering of Animal Resources, University of Life Sciences King Mihai I from Timisoara, 300645 Timisoara, Romania
4
Academy of Romanian Scientists, Ilfov Street, No. 3, 050044 Bucharest, Romania
5
SIPENA, 35400 Saint-Malo, France
*
Author to whom correspondence should be addressed.
Agriculture 2023, 13(12), 2198; https://doi.org/10.3390/agriculture13122198
Submission received: 15 June 2023 / Revised: 21 November 2023 / Accepted: 23 November 2023 / Published: 25 November 2023
(This article belongs to the Section Farm Animal Production)
Browse Figure
Review Reports Versions Notes

Abstract

:
The dietary inclusion of trace minerals (TMs), such as copper (Cu), manganese (Mn) and zinc (Zn), is of importance to cover the ever-evolving requirements for growth, production and reproduction in ruminants. Various sources of TMs are commercially available, such as inorganic (ITM), organic (OTM) or hydroxy (HTM) forms; however, their bioavailability and efficiency to improve ruminant zootechnical parameters may be highly influenced by ruminal solubility and effects on the rumen environment. The objective of this review was to compile the most up-to-date information on the ruminal solubility of ITMs, OTMs and HTMs and their effects on fermentation parameters and rumen microbiota, aiming to support specialists from the animal feed industry when choosing TM products for ruminant supplementation. Some commonly used ITM sources, like sulfates, have a high ruminal solubility, while oxides are less soluble. The ruminal solubility of OTMs is mostly found to be high; however, data on these TM forms are still lacking. Regarding HTMs, ruminal solubility is reported to be low; nevertheless, results are inconsistent. Considering rumen fermentation, ITMs show a negative effect, OTMs might improve, while HTMs do not affect parameters like dry matter degradability, volatile fatty acid production, pH or microbial protein synthesis. As for rumen microbiota, ITMs do not affect microbial populations; OTMs could decrease the abundance of some specific bacteria, like fibrolytic microorganisms, while studies with HTMs are missing or inconclusive. Further research is necessary to better understand the ruminal solubility kinetics of TM sources and the different interactions with fermentation parameters and rumen microbiota to successfully apply the precision TM supplementation of ruminants, tackling deficiency occurrences.

1. Introduction

For most species, the absorption site of trace minerals (TMs) is located in the small intestine [1,2]. However, in ruminants and especially in the rumen, some interactions between microorganisms, minerals and other substances within the diet can occur resulting in reduced final mineral intestinal absorption [1]. These interactions could be influenced by factors such as solubility, hence the objective of this review was to compile an up-to-date reference on ruminal solubility of various TM sources currently used for supplementing ruminants and their effects on rumen fermentation parameters and microbial populations. The nutritional feeding systems for ruminants focus mainly on the global animal requirements [3,4], indicating dietary optimum levels of 10, 50 and 50 mg/kg DM and regulatory maximum limits of 35, 150 and 120 mg/kg DM for Cu, Mn and Zn, respectively [5,6]. These TMs are essential in animal feed, given their important physiological functions, such as participation in keratin, collagen and elastin synthesis; components or activators of enzymes; in addition to playing an important role for reproductive and immune systems [7,8,9]. In addition to the contribution to these metabolic functions, TMs can also affect the ruminal environment and rumen function, given that rumen microorganisms require minerals for their growth (microbial protein synthesis) and fermentative activity [10,11,12]. Intestinal bioavailability of the dietary TMs for ruminants is relatively low, as reported levels are at 4–5%, 1–4% and 15–30% for Cu, Mn and Zn, respectively [3,13,14], while selecting the most optimal mineral source for supplementation is quite difficult. Furthermore, ruminal microbial uptake levels are not known. Insights on the ruminal solubility, microbial uptake, and effects on rumen environment of the various existing TM sources could support specialists from the animal feed industry when choosing TM products for dietary inclusion.
For the present review, the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement was adapted for the screening of original peer reviewed studies published in scientific journals [15]. The applied search terms were “trace mineral” (and/or “copper”, “manganese”, “zinc”), “solubility”, “ruminant”, and “microbiota”. The search was conducted in March–June 2023, with an update in September–October 2023 to include recently published papers. No limitations were applied regarding geographic origin or year of publication. The online database search identified 2037 articles available in Web of Science, PubMed and Scopus. The search results were exported to RIS files and then uploaded to Covidence (Veritas Health Innovation Ltd., Melbourne Australia) for title and abstract screening and full text review. The inclusion criteria were the following: (1) livestock-related studies; (2) trace mineral solubility evaluation; (3) assessment of rumen microbial ecosystem; and (4) copper, manganese and zinc mineral studies. Non-English papers were excluded. The refinement process is described in Figure 1; a total of 35 studies were considered eligible and were included in the final review database (Supplementary Table S1).

2. Available Trace Mineral Forms for Dietary Inclusion

Trace mineral sources for supplementing ruminants are numerous and include inorganic (ITM), organic (OTM) or hydroxy (HTM) mineral forms [2,6,16,17]. The ITM salts such as carbonates, chlorides, oxides and sulfates are characterized as a specific metal (Cu, Mn or Zn) bound to a non-carbon-containing ligand [18,19,20,21,22], and they are widely available at a low cost. These sources are traditionally used for livestock supplementation [23]. The OTMs such as glycinates, amino acid complexes, amino acid chelates or different proteinates are formed through specific processes, binding the metal component (Cu, Mn or Zn) to a carbon-containing ligand [24]. The HTMs are defined as a specific metal (Cu, Mn or Zn) bound via a coordinated covalent bond with a hydroxyl ligand and are considered inorganic [14]. However, the covalent bond to an OH group instead of carbon-containing ligands makes HTMs seem like OTMs [25]. In ruminant feed, HTMs (Cu, Mn and Zn) are provided in the form of copper hydroxy chloride (Cu-Hyd) [26], manganese hydroxy chloride (Mn-Hyd) [27] and zinc hydroxy chloride (Zn-Hyd) [28]. Other TM forms and sources are studied for ruminant supplementation, including nano-minerals [29] or even different seaweeds [30,31]; however, little research is available on these last forms considering rumen solubility.

3. Trace Mineral Rumen Solubility and Effects on the Ruminal Environment

There are numerous studies addressing the overall effects of TMs in ruminants; however, still little is known about their ruminal solubility and effects on the rumen microbial populations. Ruminal solubility is to be considered when choosing a TM source for dietary inclusion, given that it was identified as one of the factors closely related to TM relative bioavailability in ruminants [2,32].
The solubility of ITMs in rumen fluid was found to be in close relation to their mineral chemical form: sulfates are considered highly soluble compared to oxides [33]. OTMs like glycinates, amino acid complexes or different proteinates have a high stability in the 6.0–7.0 pH range (similar to the one found in the rumen environment [34]), showing a minimum effect of enzymatic hydrolysis [24]. However, their solubility in rumen fluid, exposed to bacterial fermentative activity, could be significantly affected [33]. When considering the ruminal solubility of HTMs, they appear to be relatively insoluble; however, results are not equivocal for the hydroxy forms of Cu, Mn and Zn [35]. In the following, after an overview of different solubility evaluation methods, the ruminal solubility of various sources (inorganic, organic and hydroxy) of Cu, Mn and Zn are presented while also considering effects on rumen fermentation parameters and microbial population changes.

3.1. Ruminal Solubility Evaluation Methods

For an overview of TM solubility, the assessment can be performed through in vitro models with deionized water or a 0.1 N HCl solution as a solvent [36,37]. However, even though TM solubilization in deionized water or a HCl solution may be a good indicator of the overall solubility of a specific TM, the ruminal solubility of TMs may be affected by the rumen environment, and it was shown to be significantly lower when compared to solubility in deionized water [33]. Considering this, when assessing ruminal solubility of TMs via in vitro studies, for a more factual representation of the various interactions in the ruminal environment, rumen fluid-based models are to be privileged. Key aspects, like donor animals, rumen fluid processing as inoculum, incubation substrate and buffer choice for in vitro fermentation techniques, are well established for the assessment of rumen function (fermentation activity, gas production and nutrient degradation) [38]; however, for TM ruminal solubility evaluation, the techniques are not yet harmonized. One of the applied methods for the assessment of ruminal solubility of TMs following in vitro fermentations (of 24, 48 h or continuous fermentations) is the analysis of TM concentration in a centrifugation supernatant [39,40]. Based on this method, the final fermentation medium (mix of rumen fluid, buffer, substrate and various TMs) is centrifuged (12,000–18,000× g at 23 °C for 15 min) to separate the particulate matter (feed particles, protozoa, bacteria and insolubilized TM), obtaining a supernatant (containing the solubilized minerals), which is analyzed for TM concentration. Next, the ruminal solubility of a specific TM may be expressed as an absolute value (based on the whole TM quantity recovered in the supernatant) or a relative value (related to a sulfate TM, considered as 100% rumen-soluble). In recent studies [41,42], the ruminal solubility of various minerals was assessed based on a separation of the final fermentation medium (after 70 h of fermentation) by multiple centrifugations: at 100× g (5 min at 4 °C), to separate an insoluble fraction (containing feed particles, protozoa and insolubilized minerals); the obtained supernatant is then further centrifuged at 18,500× g (20 min at 4 °C) to separate a bacteria-enriched fraction and a final supernatant, containing only solubilized minerals; and the mineral concentration of each centrifugation fraction is then analyzed. Next, the ruminal solubility of TMs can be expressed as a percentage of the solubilized mineral in the final supernatant (based on the total mineral analyzed in the different centrifugation fractions).
The ruminal solubility of TMs can also be determined using in vivo models, supplementing rumen-cannulated animals (direct supplementation in the diet or a pulse dose via the cannula) [43]. In a study by Arelovich et al. [44], the ruminal fluid (100 mL) sampled from rumen-cannulated heifers (supplemented with different levels of TMs), was first filtered with a cheesecloth, acidified (addition of 2 mL of 20% sulfuric acid solution) and centrifuged (16,000× g) to obtain a supernatant (containing the solubilized minerals). The ruminal solubility of TMs was expressed in absolute values based on the TM concentration of the supernatant. In other in vivo studies [35,45], the ruminal solubility of different TM sources was assessed following a supplementation with different levels of TMs and the analysis of the mineral concentration of the rumen content. Samples of rumen fluid were separated by ultracentrifugation (28,000× g for 30 min at 4 °C) in solid pellets (containing the insolubilized minerals) and a supernatant, considered to contain the rumen-soluble minerals. The ruminal solubility of TMs was expressed as an absolute value (based on the mineral concentration of the supernatant) or a relative value (as a percentage of whole ruminal mineral, calculated based on the total amount of rumen content samples and mineral concentration of the centrifugation fractions). Other in vivo TM solubility evaluation methods include the in sacco method [46], evaluating the rumen disappearance rate of a mineral substrate from rumen-incubated nylon bags (50 µm pore size). However, the method does not allow for the assessment of truly solubilized minerals, only the disappearance from the nylon bags, hence it is not best suited for the evaluation of TM rumen solubility, especially for fine TMs.

3.2. Copper Ruminal Solubility

One of the most commonly used inorganic Cu sources for ruminant supplementation is CuSO4 [14], often used as a comparison basis for rumen solubility with other Cu sources. Table 1 summarizes the available literature data on the ruminal solubility of various Cu sources. In a study by Deters et al. [36], the solubility of CuSO4 and glycinate bound Cu (Cu-Gly) in deionized water (at 5.2 pH) was 100% and 68.9%, respectively.
In a similar study by Clarkson et al. [33], the solubility of a range of Cu sources (CuSO4, CuCl2, CuO, CuCO3, Cu-Hyd, Cu EDTA, Cu proteinate and Cu acetate) was estimated in either deionized water or rumen fluid. The results showed that solubility across all Cu sources was lower in rumen fluid than in deionized water (mean relative solubility across all Cu sources was 33% and 64% in rumen fluid and deionized water, respectively). These findings suggest that the rumen environment has a significant effect on the solubility of different TM sources.
In an in vivo study [45] assessing the ruminal solubility of two sources of Cu (as CuSO4 and Cu-Hyd, respectively), it was found that the Cu concentration of the rumen fluid supernatant was higher with CuSO4 when compared to Cu-Hyd (approximately 0.65 and 0.20 mg/L for CuSO4 and Cu-Hyd, respectively), concluding that CuSO4 has a high ruminal solubility, while Cu-Hyd has a low ruminal solubility. In a similar study by Genther and Hansen [35], at an inclusion level of 25 mg/kg DM of Cu, the ruminal solubility of CuSO4 was higher compared to Cu-Hyd (approximately 14 and 9%, respectively). These results indicate the rumen solubility of the two Cu sources well; however, the solid fraction, beside undegraded feed fractions and insoluble minerals, also contains rumen microorganisms (protozoa and bacteria), which could have assimilated Cu during the fermentation process. In an in vitro study, the solubility of CuSO4 in rumen fluid was found to be high, given that >50% of the total additional Cu was found in a final supernatant obtained after centrifugation of the final fermentation medium. Furthermore, approximately 18 to 27% of the supplemented Cu was analyzed in a bacteria-enriched fraction, indicating that Cu might be assimilated by rumen bacteria [41]. Given the rumen antagonism of Cu with other minerals (mainly sulfur and molybdenum) [33,47], highly rumen-soluble Cu sources (like CuSO4) often present a decreased bioavailability for ruminants, in relation to antagonist minerals present in the rumen content [16]. In order to limit the effect of the rumen environment on mineral additives, various methods, like lipid encapsulation or polymer coating, were developed [48]. When comparing the rumen solubility of CuSO4 and an encapsulated mixture of different Cu sources (Enc. Cu; mix of tribasic copper chloride and CuSO4 with a polysaccharide polymer coating), Wilk et al. [40] found that Enc. Cu had a lower solubility when compared to CuSO4 (rumen fluid supernatant Cu concentration was 0.38 and 0.70 mg/kg for Enc. Cu and CuSO4, respectively).

3.3. Manganese Ruminal Solubility

Given that Mn is poorly absorbed by ruminants [49,50] and that it is considered that Mn content of the basal diet might cover the rumen microbial requirements [51], little research is focused on the ruminal solubility of different Mn sources. In a study by Caldera et al. [45], the ruminal solubility of two Mn sources (MnSO4 and Mn-Hyd) was compared by administrating a pulse dose of 40 mg/kg DM of Mn to rumen-canulated steers consuming a basal diet with a Mn content of 19.2 mg/kg DM. The ruminal solubility of the two Mn sources was assessed based on the Mn concentration of the rumen fluid supernatant (considered to contain the soluble Mn) and solid fraction (containing the insoluble Mn). After only 4 h from the pulse dose administration, the mineral analysis of the two fractions showed a Mn content of approximately 0.7 mg/L and 9.0 mg/kg DM with the MnSO4 and 0.5 mg/L and 14.0 mg/kg DM with the Mn-Hyd in the supernatant and solid fraction, respectively. However, after 24 h, the Mn content of the supernatant was approximately 0.3 and 0.5 mg/L, while that of the solid fraction was approximately 14.0 and 9.0 mg/kgDM with MnSO4 and Mn-Hyd, respectively. Furthermore, the reported relative solubility after 4 h was about 20% and 10%, and after 24 h, it was about 6 and 15% for MnSO4 and Mn-Hyd, respectively. These findings indicate that both Mn sources (MnSO4 and Mn-Hyd) are not highly soluble in the rumen. In a similar study, supplementing rumen-cannulated steers with 60 mg/kg DM of Mn (as MnSO4 or Mn-Hyd), the ruminal solubility of MnSO4 showed no difference when compared to Mn-Hyd (relative solubility of approximately 65 and 66% for MnSO4 and Mn-Hyd, respectively) [35]. In an in vitro study, the ruminal solubility of two inorganic Mn sources (MnSO4 and MnO) was assessed [41]. Results showed that MnSO4 and MnO are equally soluble in the rumen fluid after 70 h of fermentation. However, when solubility was assessed at a shorter period (22 h), MnSO4 showed a higher solubility when compared to MnO. The ruminal solubility of various Mn sources is summarized in Table 2.

3.4. Zinc Ruminal Solubility

In a recent in vitro study [41], the ruminal solubility of ZnSO4 was significantly higher when compared to ZnO (32 and 25%; p < 0.05). Furthermore, of the total analyzed Zn (sum of total Zn in different fraction of the centrifuged rumen fluid), 27 to 38% and 19 to 24% of ZnSO4 and ZnO, respectively, were found in the bacteria-enriched fraction, indicating not only that Zn might be assimilated by rumen bacteria but also a higher ruminal bioavailability of ZnSO4 when compared to ZnO. In a similar study, Fellner et al. [39] analyzed the ruminal solubility of ZnO and HiZnox (a greater purity potentiated ZnO) using continuous in vitro fermentations. The results showed a lower solubility of ZnO when compared to HiZnox, based on the Zn concentration of the rumen fluid supernatant (0.4 and 0.5 mg/kg for ZnO and HiZnox, respectively). Table 3 summarizes the ruminal solubility of various Zn sources.
The ruminal solubility of some Zn sources was also assessed using in vivo models. Following a supplementation with 60 mg/kg DM of Zn (as ZnSO4 or Zn-Hyd) to rumen-canulated steers, the ruminal solubility after 24 h was 15 and 10% for ZnSO4 and Zn-Hyd, respectively [45]. In a similar study by Genther and Hansen [35], a lower ruminal solubility was reported for ZnSO4 when compared to Zn-Hyd (7 and 11%, respectively) when animals were supplemented with 120 mg/kg DM of Zn. Another study on the ruminal solubility of TMs reported a high ruminal solubility when supplementing steers with 30, 250 and 470 mg/kg DM of Zn as ZnCl2 [44]. The solubility of Zn might also be affected by clay minerals ingested with different feeds, as shown in an in vitro study by Schlattl et al. [53]: the addition of a clay mixture (90% bentonite and 10% kaolinite) reduced Zn (as nitrous Zn) solubility by 42, 49 and 52% under ruminal (pH 7.02), abomasal (pH 2.00) and duodenal (pH 3.58) conditions.

3.5. Trace Mineral Effects on Rumen Fermentation Parameters

When considering rumen fermentation, Cu was identified as a TM with complex responses. Table 4 presents a compilation of various Cu sources’ effects on rumen fermentation parameters.
In an in vivo study with rumen-cannulated steers [45], supplementing Cu at levels of 10 mg/kg DM (as CuSO4 or Cu-Hyd) did not affect apparent dry matter (DM) digestibility, while apparent neutral detergent fiber (NDF) digestibility tended (p < 0.10) to be lower with CuSO4 when compared to Cu-Hyd (37.8 and 41.2%, respectively). In a similar study [35], supplementing a high dosage of Cu (25 mg/kg DM) as CuSO4 decreased, supplementing with Cu-Hyd did not affect rumen DM disappearance when compared with a control (CON, no Cu supplementation) diet (p < 0.03; 63.5, 64.4 and 65.6% for CuSO4, Cu-Hyd and CON, respectively). In this study, the two Cu sources did not affect NDF degradation. In an in vitro study by Wilk et al. [40], it was found that Cu sources (Enc. Cu and CuSO4) did not affect DM degradability, while CuSO4 increased in vitro gas production, propionate concentration and decreased the acetate-to-propionate ratio when compared to Enc. Cu. The two Cu sources did not affect in vitro methanogenesis. In a similar study [59], lipid-encapsulated CuSO4 decreased acetate, increased butyrate molar proportion and tended to decrease the acetate-to-propionate proportion, but it did not affect nutrient (DM, organic matter, crude protein and NDF) digestibility when compared to CuSO4.
When it comes to Mn’s effect on rumen fermentation, results of in vivo studies assessing the effects of supplementing different sources of Mn to rumen-cannulated steers are various. A significant decrease in DM disappearance was shown with MnSO4, while Mn-Hyd did not affect DM disappearance (supplementation levels of 15 or 60 mg/kg DM of Mn); the two sources of Mn did not affect NDF degradability [35]. In another study on the effects of Mn supplementation (40 mg/kg DM as MnSO4 or Mn-Hyd), the DM digestibility was not affected by the treatments, while NDF digestibility tended to be lower with MnSO4 when compared to Mn-Hyd [45]. Varied results are equally reported when analyzing Mn’s effect on fermentation during in vitro studies with rumen fluid. In a study by Areolovich et al. [44], the addition of 100 mg/DM of Mn (as MnCl2) significantly increased DM degradation, without affecting volatile fatty acids’ (VFAs) concentration. In a more recent study [41], an overall negative effect of Mn (600 mg/kg DM as MnO or MnSO4) was registered: a decrease in total gas production, DM degradability and butyrate (% of total VFA) concentration. Table 5 presents the effects on rumen fermentation of some Mn sources.
Regarding Zn’s effect on rumen fermentation, results of early in vitro studies have shown that a high dosage of Zn (as ZnSO4) has a strong negative effect [61]. In more recent in vitro studies, the negative effects of Zn on rumen fermentation vary according to different sources of Zn. In a study by Fellner et al. [39], it was shown that an addition of 30 or 120 mg/kg DM of Zn as ZnO or HiZnox (a greater purity potentiated ZnO) affects the fermentation parameters differently: HiZnox reduced the apparent DM disappearance and increased the acetate-to-propionate ratio; and ZnO reduced the acetate, NH3-N and CH4 concentration, while both Zn sources increased culture pH. In another in vitro study [41], the total gas production and DM degradability were significantly reduced by ZnO, while ZnSO4 did not affect the fermentation parameters. Both inorganic Zn sources decreased the microbial protein synthesis. In a study assessing the effect of an organic source of Zn on rumen fermentation, it was found that the addition of 25 mg/kg DM of Zn as zinc proteinate (Zn-Prot) increased DM and organic matter digestibility but did not affect the acetate-to-propionate ratio nor CH4 concentration [62]. Table 6 compiles the effects on fermentation parameters of various inorganic and organic Zn sources.

3.6. Trace Mineral Effects on Rumen Microbiota

Studies addressing TMs’ effects on rumen microbial community composition are still scarce, and the reported results do not always agree. Several studies with different Zn sources show that Zn can affect the rumen bacterial community differently. As shown by Ishaq et al. [65], the Zn amino acid complex (Zn-AA) reduces rumen bacterial diversity, while ZnSO4 has no significant effect. Consistent with these results, total rumen bacterial populations decreased in lambs supplemented with 70 mg/kg DM of Zn (as Zn-AA) [63]. Furthermore, significant shifts in the relative abundance of fibrolytic bacteria populations, such as an increase in Ruminococcus albus and a decrease in Ruminococcus flavefaciens or an increase in lactic acid-producing bacteria (Streptococcus bovis), were noted, while the methanogenic Archaea abundance was not affected by Zn-AA supplementation [63]. In another study, supplementation of lactating Holstein dairy cows with increasing levels of Zn (10, 20 or 30 mg/kg DM as coated ZnSO4) significantly increased total bacteria and the main fibrolytic rumen microbial populations of Ruminococcus albus, Ruminococcus flavefaciens, Fibrobacter succinogenes and Butyrivibrio fibrisolvens [64].
Regarding Cu’s effect on rumen microbiota, supplementing a basal lactating dairy cows’ diet (Cu content of 8.51 mg/kg DM) with 7.5 mg/kg DM of inorganic Cu (as CuSO4 or coated CuSO4) significantly increased total bacteria populations and specific fibrolytic bacteria, such as Ruminococcus albus, Ruminococcus flavefaciens, Fibrobacter succinogenes and Butyrivibrio fibrisolvens, as well as some microbial enzyme activity (cellobiase, xylanase and pectinase), but it decreased the populations of Prevotella ruminicola, Ruminobacter amylophilus and α-amylase activity [60].
The effects of inorganic and organic Mn on the rumen microbial ecosystem were observed in a study with ewe lambs [66]. The animals were fed a basal diet with a Mn level of 34.3 mg/kg DM and supplemented during 16 weeks with 182.7 and 184 mg/kg DM of Mn as inorganic (MnSO4) and organic (glycinate chelate) Mn, respectively. Inorganic Mn did not show effects, while organic Mn decreased the variability (lower Shannon–Wiener diversity index) of eubacterial populations. Regarding enzymatic activity, α-amylase activity decreased with MnSO4, while carboxymethyl-cellulase activity increased with both Mn sources.
When comparing different levels of TM dietary inclusion, no noticeable alterations were observed in the α and β diversity of ruminal microbiota in beef heifers (virgin vs. pregnant) fed a control (no TM supplementation) diet (total intake of 13.7, 103.9 and 130.2 for Cu, Mn and Zn, respectively) or a high TM supplemented diet (total intake of 285.8, 953.4 and 1051.8 mg/kg DM of Cu, Mn and Zn, respectively) [67,68]. Following the supplementation of lactating yaks with inorganic TMs via slow-release rumen boluses, some variations in the ruminal bacterial communities were observed; however, the specific TM responsible for the changes was not clearly identified [69]. In a recent study with heat-stressed dairy steers [58], supplementing high levels of organic TMs (28 and 350 mg/kg DM of Cu and Zn as Cu- and Zn-glycinate, respectively), no effects were registered on enteric CH4 production or rumen methanogenic microbial populations [58].

4. Conclusions

When selecting a TM source for ruminant supplementation, ruminal solubility should be taken into consideration, as the overall bioavailability of TMs could be affected by higher rumen-soluble minerals: a higher rumen solubility of a specific TM might improve its bioavailability, but at the same time, a greater sensitivity to negative interactions (antagonism) with other minerals could be present, decreasing bioavailability. Based on this hypothesis, some observed TM deficiencies in ruminants might not be linked to dietary intakes, which may be sufficient, but to negative interactions with other minerals, a phenomenon dependent on the ruminal solubility of the TM. When comparing Cu sources, the oxide and hydroxy forms are less soluble compared to the sulfate form, while encapsulation further lowers the rumen solubility. In the case of Mn, the hydroxy form is less soluble compared to the sulfate form, but only when analyzed in a short solubilization period (<12 h). When compared after 24 h of solubilization, the hydroxy form of Mn is also quite soluble, as well as the oxide form. Regarding the Zn sources, the oxide form is less soluble compared to the sulfate, while for the hydroxy form, it is difficult to conclude, as some research shows a lower solubility while others show a higher solubility when compared to sulfate. When estimating the rumen solubility of different TM forms, the assessment method should be carefully considered. If the solubility is only estimated based on the TM concentration of a final supernatant, the part of TM solubilized and possibly assimilated by rumen bacteria might not be taken into consideration. Results considering TM effects on rumen fermentation parameters, such as DM and NDF disappearance, VFA production and microbial synthesis, are inconsistent, even when supplementation occurs with the same TM forms. These differences in effects on fermentation parameters might be influenced by the experimental design (in vitro or in vivo models), the supplemental TM dosages as well as the presence of other minerals (antagonists) in the ruminal environment. Some ITMs show a negative effect on ruminal fermentation parameters but do not affect rumen microbiota. On the other hand, OTMs might improve fermentative activity, while having negative effects on specific bacteria populations (e.g., fibrolytic bacteria). However, there are a low number of studies with OTMs and HTMs, hence drawing any conclusions remains challenging. Further studies are necessary for the assessment of rumen solubility, bioavailability and effects on rumen fermentation and microbiota of different TM sources. A better understanding of ITM, OTM and HTM solubility kinetics in the ruminal environment might help better understand and effectively address deficiencies by implementing precision feeding and TM supplementation of ruminant animals.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/agriculture13122198/s1. Table S1: Summary of studies and results assessing the rumen solubility of copper, manganese and zinc sources, and effects on rumen function.

Author Contributions

Conceptualization, A.V. and C.G.; methodology, A.V and C.G.; software, A.V.; validation, A.D.C., N.C. and C.G.; formal analysis, A.V.; investigation, A.V. and C.G.; resources, A.V.; data curation, A.V.; writing—original draft preparation, A.V.; writing—review and editing, A.V., A.D.C., N.C and C.G.; supervision, C.G.; project administration, A.V. All authors have read and agreed to the published version of the manuscript.

Funding

The publication of this paper was supported by funds from the National Research Development Projects to Finance Excellence (PFE)-14/2022-2024 granted by the Romanian Ministry of Research and Innovation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goff, J.P. Invited review: Mineral absorption mechanisms, mineral interactions that affect acid–base and antioxidant status, and diet considerations to improve mineral status. J. Dairy Sci. 2018, 101, 2763–2813. [Google Scholar] [CrossRef] [PubMed]
  2. Byrne, L.; Murphy, R.A. Relative Bioavailability of Trace Minerals in Production Animal Nutrition: A Review. Animals 2022, 12, 1981. [Google Scholar] [CrossRef] [PubMed]
  3. Noziere, P.; Sauvant, D.; Delaby, L. Inra, 2018. Alimentation des Ruminants; Editions Quae: Versailles, France, 2018; 728p. [Google Scholar]
  4. National Academies of Sciences, Engineering. Medicine Nutrient Requirements of Dairy Cattle: Eighth Revised Edition; The National Academies Press: Washington, DC, USA, 2021; ISBN 978-0-309-67777-6. [Google Scholar]
  5. Trumeau, D. Les Oligo-Éléments En Élevage Bovin. Analyse Descriptive Des Profils Métaboliques En Oligo-Éléments Établis En Laboratoire d’analyse et Liens Avec Les Aspects Cliniques. Ph.D. Thesis, ONIRIS, Nantes, France, 2014. [Google Scholar]
  6. European Commission. Directorate-General for Health and Food Safety European Union Register of Feed Additives Pursuant to Regulation (EC) No 1831/2003. Annex I, List of Additives; Publications Office of the European Union, European Union: Luxembourg, 2021. [Google Scholar]
  7. Hosnedlová, B.; Travnicek, J.; Šoch, M. Current View of the Significance of Zinc for Ruminants: A Review. Agric. Trop. Subtrop. 2007, 40, 57–64. [Google Scholar]
  8. Sloup, V.; Jankovská, I.; Nechybová, S.; Peřinková, P.; Langrová, I. Zinc in the Animal Organism: A Review. Sci. Agric. Bohem. 2017, 48, 13–21. [Google Scholar] [CrossRef]
  9. Hostetler, C.E.; Kincaid, R.L.; Mirando, M.A. The role of essential trace elements in embryonic and fetal development in livestock. Vet. J. 2003, 166, 125–139. [Google Scholar] [CrossRef] [PubMed]
  10. Meschy, F. Mineral Nutrition of Ruminants; Quea: Versailles, France, 2010. [Google Scholar]
  11. Durand, M.; Kawashima, R. Influence of Minerals in Rumen Microbial Digestion. In Digestive Physiology and Metabolism in Ruminants, Proceedings of the 5th International Symposium on Ruminant Physiology, Clermont, Ferrand, 3–7 September 1979; Ruckebusch, Y., Thivend, P., Eds.; Springer: Dordrecht, The Netherlands, 1980; pp. 375–408. ISBN 978-94-011-8067-2. [Google Scholar]
  12. Komisarczuk Bony, S.; Durand, M. Effects of Minerals on Microbial Metabolism; HAL.INRAE, 1991; Available online: https://hal.inrae.fr/hal-02848741 (accessed on 22 November 2023).
  13. Meschy, F. Alimentation minérale et vitaminique des ruminants: Actualisation des connaissances. INRAE Prod. Anim. 2007, 20, 119–128. [Google Scholar] [CrossRef]
  14. Spears, J.W. Trace Mineral Bioavailability in Ruminants. J. Nutr. 2003, 133, 1506S–1509S. [Google Scholar] [CrossRef]
  15. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. J. Clin. Epidemiol. 2021, 134, 178–189. [Google Scholar] [CrossRef]
  16. Spears, J.; Kegley, E.; Mullis, L. Bioavailability of copper from tribasic copper chloride and copper sulfate in growing cattle. Anim. Feed. Sci. Technol. 2004, 116, 1–13. [Google Scholar] [CrossRef]
  17. Grešáková, Ľ.; Tokarčíková, K.; Čobanová, K. Bioavailability of Dietary Zinc Sources and Their Effect on Mineral and Antioxidant Status in Lambs. Agriculture 2021, 11, 1093. [Google Scholar] [CrossRef]
  18. PubChem Cupric Sulfate. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/24462 (accessed on 30 April 2023).
  19. PubChem Manganese(II) Oxide. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/14940 (accessed on 26 February 2023).
  20. PubChem Manganese Sulfate Monohydrate. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/177577 (accessed on 26 February 2023).
  21. PubChem Zinc Oxide. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/14806 (accessed on 26 February 2023).
  22. PubChem Zinc Sulfate. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/24424 (accessed on 26 February 2023).
  23. Ammerman, C.B.; Goodrich, R.D. Advances in mineral nutrition in ruminants. J. Anim. Sci. 1983, 57 (Suppl. S2), 519–533. [Google Scholar] [PubMed]
  24. Byrne, L.; Hynes, M.J.; Connolly, C.D.; Murphy, R.A. Influence of the Chelation Process on the Stability of Organic Trace Mineral Supplements Used in Animal Nutrition. Animals 2021, 11, 1730. [Google Scholar] [CrossRef] [PubMed]
  25. Reddy, B.V.V.; Nayak, S.; Khare, A.; Pal, R.P.; Sharma, R.; Chourasiya, A.; Namdeo, S.; Thakur, S. Role of hydroxy trace minerals on health and production of livestock: A review. J. Livest. Sci. 2021, 12, 279–286. [Google Scholar] [CrossRef]
  26. PubChem Dicopper Chloride Trihydroxide. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/11969527 (accessed on 30 April 2023).
  27. PubChem Manganese(2+) Chloride Hydroxide (1/1/1). Available online: https://pubchem.ncbi.nlm.nih.gov/compound/71442330 (accessed on 30 April 2023).
  28. PubChem Zinc Chloride Hydroxide. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/11513739 (accessed on 30 April 2023).
  29. Abdelnour, S.A.; Alagawany, M.; Hashem, N.M.; Farag, M.R.; Alghamdi, E.S.; Hassan, F.U.; Bilal, R.M.; Elnesr, S.S.; Dawood, M.A.O.; Nagadi, S.A.; et al. Nanominerals: Fabrication Methods, Benefits and Hazards, and Their Applications in Ruminants with Special Reference to Selenium and Zinc Nanoparticles. Animals 2021, 11, 1916. [Google Scholar] [CrossRef]
  30. Rey-Crespo, F.; López-Alonso, M.; Miranda, M. The use of seaweed from the Galician coast as a mineral supplement in organic dairy cattle. Animal 2014, 8, 580–586. [Google Scholar] [CrossRef]
  31. Cabrita, A.R.; Maia, M.R.; Oliveira, H.M.; Sousa-Pinto, I.; Almeida, A.A.; Pinto, E.; Fonseca, A.J. Tracing seaweeds as mineral sources for farm-animals. J. Appl. Phycol. 2016, 28, 3135–3150. [Google Scholar] [CrossRef]
  32. Ward, J.; Spears, J. Comparison of Copper Lysine and Copper Sulfate as Copper Sources for Ruminants Using In Vitro Methods. J. Dairy Sci. 1993, 76, 2994–2998. [Google Scholar] [CrossRef]
  33. Clarkson, A.H.; Paine, S.W.; Kendall, N.R. Evaluation of the solubility of a range of copper sources and the effects of iron & sulphur on copper solubility under rumen simulated conditions. J. Trace Elements Med. Biol. 2021, 68, 126815. [Google Scholar] [CrossRef]
  34. Weimer, P.J. Manipulating ruminal fermentation: A microbial ecological perspective. J. Anim. Sci. 1998, 76, 3114–3122. [Google Scholar] [CrossRef]
  35. Genther, O.; Hansen, S. The effect of trace mineral source and concentration on ruminal digestion and mineral solubility. J. Dairy Sci. 2015, 98, 566–573. [Google Scholar] [CrossRef]
  36. Deters, E.L.; VanDerWal, A.J.; VanValin, K.R.; Hansen, S.L. Relative bioavailability of organic bis-glycinate bound copper relative to inorganic copper sulfate in beef steers fed a high antagonist growing diet. J. Anim. Sci. 2021, 99, skab11. [Google Scholar] [CrossRef]
  37. Haldar, S. Effect of Single Dose Administration of Copper as Copper Sulfate or Copper Nitrate on Metabolism of Copper in Black Bengal Bucks. Indian J. Anim. Sci. 2005, 75, 487–493. [Google Scholar]
  38. Yáñez-Ruiz, D.; Bannink, A.; Dijkstra, J.; Kebreab, E.; Morgavi, D.; O’kiely, P.; Reynolds, C.; Schwarm, A.; Shingfield, K.; Yu, Z.; et al. Design, implementation and interpretation of in vitro batch culture experiments to assess enteric methane mitigation in ruminants—A review. Anim. Feed. Sci. Technol. 2016, 216, 1–18. [Google Scholar] [CrossRef]
  39. Fellner, V.; Durosoy, S.; Kromm, V.; Spears, J. Effects of supplemental zinc on ruminal fermentation in continuous cultures. Appl. Anim. Sci. 2021, 37, 27–32. [Google Scholar] [CrossRef]
  40. Wilk, M.; Pecka-Kiełb, E.; Pastuszak, J.; Asghar, M.U.; Mól, L. Effects of Copper Sulfate and Encapsulated Copper Addition on In Vitro Rumen Fermentation and Methane Production. Agriculture 2022, 12, 1943. [Google Scholar] [CrossRef]
  41. Vigh, A.; Criste, A.; Gragnic, K.; Moquet, L.; Gerard, C. Ruminal Solubility and Bioavailability of Inorganic Trace Mineral Sources and Effects on Fermentation Activity Measured in Vitro. Agriculture 2023, 13, 879. [Google Scholar] [CrossRef]
  42. Vigh, A.; Criste, A.; Corcionivoschi, N.; Gragnic, K.; Gerard, C. Effects of Sulfur Sources on Ruminal S Bioavailability, Fermentation Activity and Microbial Populations Measured In Vitro. Bull. Univ. Agric. Sci. Vet. Med. Cluj-Napoca Anim. Sci. Biotechnol. 2023, 80, 15–26. [Google Scholar]
  43. Guimaraes, O.; Jalali, S.; Wagner, J.J.; Spears, J.W.; Engle, T.E. Trace mineral source impacts rumen trace mineral metabolism and fiber digestion in steers fed a medium-quality grass hay diet. J. Anim. Sci. 2021, 99, skab220. [Google Scholar] [CrossRef]
  44. Arelovich, H.M.; Owens, F.N.; Horn, G.W.; Vizcarra, J.A. Effects of supplemental zinc and manganese on ruminal fermentation, forage intake, and digestion by cattle fed prairie hay and urea. J. Anim. Sci. 2000, 78, 2972–2979. [Google Scholar] [CrossRef]
  45. Caldera, E.; Weigel, B.; Kucharczyk, V.N.; Sellins, K.S.; Archibeque, S.L.; Wagner, J.J.; Han, H.; Spears, J.W.; Engle, T.E. Trace mineral source influences ruminal distribution of copper and zinc and their binding strength to ruminal digesta. J. Anim. Sci. 2019, 97, 1852–1864. [Google Scholar] [CrossRef]
  46. Zhou, J.; Ren, Y.; Wen, X.; Yue, S.; Wang, Z.; Wang, L.; Peng, Q.; Hu, R.; Zou, H.; Jiang, Y.; et al. Comparison of coated and uncoated trace elements on growth performance, apparent digestibility, intestinal development and microbial diversity in growing sheep. Front. Microbiol. 2022, 13, 1080182. [Google Scholar] [CrossRef]
  47. Wysocka, D.; Sobiech, P.; Snarska, A. Copper—An essential micronutrient for calves and adult cattle. J. Elem. 1970, 24, 101–110. [Google Scholar] [CrossRef]
  48. Wang, C.; Liu, Q.; Guo, G.; Huo, W.; Ma, L.; Zhang, Y.; Pei, C.; Zhang, S.; Wang, H. Effects of rumen-protected folic acid on ruminal fermentation, microbial enzyme activity, cellulolytic bacteria and urinary excretion of purine derivatives in growing beef steers. Anim. Feed. Sci. Technol. 2016, 221, 185–194. [Google Scholar] [CrossRef]
  49. Henry, P.; Ammerman, C.; Littell, R. Relative Bioavailability of Manganese from a Manganese-Methionine Complex and Inorganic Sources for Ruminants. J. Dairy Sci. 1992, 75, 3473–3478. [Google Scholar] [CrossRef] [PubMed]
  50. Wong-Valle, J.; Henry, P.R.; Ammerman, C.B.; Rao, P.V. Estimation of the Relative Bioavailability of Manganese Sources for Sheep. J. Anim. Sci. 1989, 67, 2409–2414. [Google Scholar] [CrossRef] [PubMed]
  51. Hidiroglou, M. Manganese in ruminant nutrition. Can. J. Anim. Sci. 1979, 59, 217–236. [Google Scholar] [CrossRef]
  52. Guimaraes, O.; Wagner, J.; Spears, J.; Brandao, V.; Engle, T. Trace mineral source influences digestion, ruminal fermentation, and ruminal copper, zinc, and manganese distribution in steers fed a diet suitable for lactating dairy cows. Animal 2022, 16, 100500. [Google Scholar] [CrossRef] [PubMed]
  53. Schlattl, M.; Buffler, M.; Windisch, W. Clay Minerals Affect the Solubility of Zn and Other Bivalent Cations in the Digestive Tract of Ruminants In Vitro. Animals 2021, 11, 877. [Google Scholar] [CrossRef]
  54. Zhao, X.; Hao, L.; Xue, Y.; Degen, A.; Liu, S. Effect of Source and Level of Dietary Supplementary Copper on In Vitro Rumen Fermentation in Growing Yaks. Fermentation 2022, 8, 693. [Google Scholar] [CrossRef]
  55. La, S.; Wang, C.; Liu, Q.; Guo, G.; Huo, W.; Zhang, J.; Pei, C. Effects of copper sulphate and rumen-protected copper sulphate addition on growth performance, nutrient digestibility, rumen fermentation and hepatic gene expression in dairy bulls. J. Anim. Feed. Sci. 2020, 29, 287–296. [Google Scholar] [CrossRef]
  56. Shang, X.; Wang, C.; Zhang, G.; Liu, Q.; Guo, G.; Huo, W.; Zhang, J.; Pei, C. Effects of soybean oil and dietary copper levels on nutrient digestion, ruminal fermentation, enzyme activity, microflora and microbial protein synthesis in dairy bulls. Arch. Anim. Nutr. 2020, 74, 257–270. [Google Scholar] [CrossRef] [PubMed]
  57. Wu, Q.; La, S.; Wang, C.; Zhang, J.; Liu, Q.; Guo, G.; Huo, W.; Pei, C. Effects of coated copper sulphate and coated folic acid supplementation on growth, rumen fermentation and urinary excretion of purine derivatives in Holstein bulls. Anim. Feed. Sci. Technol. 2021, 276, 114921. [Google Scholar] [CrossRef]
  58. Son, A.-R.; Islam, M.; Kim, S.-H.; Lee, S.-S.; Lee, S.-S. Influence of dietary organic trace minerals on enteric methane emissions and rumen microbiota of heat-stressed dairy steers. J. Anim. Sci. Technol. 2023, 65, 132–148. [Google Scholar] [CrossRef] [PubMed]
  59. Arce-Cordero, J.; Monteiro, H.; Lelis, A.; Lima, L.; Restelatto, R.; Brandao, V.; Leclerc, H.; Vyas, D.; Faciola, A. Copper sulfate and sodium selenite lipid-microencapsulation modifies ruminal microbial fermentation in a dual-flow continuous-culture system. J. Dairy Sci. 2020, 103, 7068–7080. [Google Scholar] [CrossRef]
  60. Wang, C.; Han, L.; Zhang, G.W.; Du, H.S.; Wu, Z.Z.; Liu, Q.; Guo, G.; Huo, W.J.; Zhang, J.; Zhang, Y.L.; et al. Effects of copper sulphate and coated copper sulphate addition on lactation performance, nutrient digestibility, ruminal fermentation and blood metabolites in dairy cows. Br. J. Nutr. 2021, 125, 251–259. [Google Scholar] [CrossRef]
  61. Bonhomme, A.; Durand, M.; Dumay, C.; Beaumatin, P. Etude in vitro du comportement des populations microbiennes du rumen en présence de zinc sous forme de sulfate. Ann. Biol. Anim. Biochim. Biophys. 1979, 19, 937–942. [Google Scholar] [CrossRef]
  62. Nathaniel, G.; Annisa, T.; Muktiani, A.; Harjanti, D.W.; Widiyanto, W. The Effect of Zinc-Proteinate Supplementation on the In Vitro Digestibility and Ruminal Fermentation in Goat. Anim. Prod. 2021, 23, 180–186. [Google Scholar] [CrossRef]
  63. Petrič, D.; Mravčáková, D.; Kucková, K.; Kišidayová, S.; Cieslak, A.; Szumacher-Strabel, M.; Huang, H.; Kolodziejski, P.; Lukomska, A.; Slusarczyk, S.; et al. Impact of Zinc and/or Herbal Mixture on Ruminal Fermentation, Microbiota, and Histopathology in Lambs. Front. Veter. Sci. 2021, 8, 630971. [Google Scholar] [CrossRef]
  64. Wang, C.; Xu, Y.; Han, L.; Liu, Q.; Guo, G.; Huo, W.; Zhang, J.; Chen, L.; Zhang, Y.; Pei, C.; et al. Effects of zinc sulfate and coated zinc sulfate on lactation performance, nutrient digestion and rumen fermentation in Holstein dairy cows. Livest. Sci. 2021, 251, 104673. [Google Scholar] [CrossRef]
  65. Ishaq, S.L.; Page, C.M.; Yeoman, C.J.; Murphy, T.W.; Van Emon, M.L.; Stewart, W.C. Zinc AA supplementation alters yearling ram rumen bacterial communities but zinc sulfate supplementation does not. J. Anim. Sci. 2019, 97, 687–697. [Google Scholar] [CrossRef]
  66. Kišidayová, S.; Pristaš, P.; Zimovčáková, M.; Wencelová, M.B.; Homol’Ová, L.; Mihaliková, K.; Čobanová, K.; Grešáková, L.; Váradyová, Z. The effects of high dose of two manganese supplements (organic and inorganic) on the rumen microbial ecosystem. PLoS ONE 2018, 13, e0191158. [Google Scholar] [CrossRef] [PubMed]
  67. Amat, S.; Holman, D.B.; Schmidt, K.; Menezes, A.C.B.; Baumgaertner, F.; Winders, T.; Kirsch, J.D.; Liu, T.; Schwinghamer, T.D.; Sedivec, K.K.; et al. The Nasopharyngeal, Ruminal, and Vaginal Microbiota and the Core Taxa Shared across These Microbiomes in Virgin Yearling Heifers Exposed to Divergent In Utero Nutrition during Their First Trimester of Gestation and in Pregnant Beef Heifers in Response to Mineral Supplementation. Microorganisms 2021, 9, 2011. [Google Scholar] [CrossRef] [PubMed]
  68. Menezes, A.C.B.; McCarthy, K.L.; Kassetas, C.J.; Baumgaertner, F.; Kirsch, J.D.; Dorsam, S.; Neville, T.L.; Ward, A.K.; Borowicz, P.P.; Reynolds, L.P.; et al. Vitamin and mineral supplementation and rate of gain during the first trimester of gestation affect concentrations of amino acids in maternal serum and allantoic fluid of beef heifers. J. Anim. Sci. 2021, 99. [Google Scholar] [CrossRef] [PubMed]
  69. Zhao, Z.; Ma, Z.; Wang, H.; Zhang, C. Effects of trace minerals supply from rumen sustained release boluses on milk yields and components, rumen fermentation and the rumen bacteria in lactating yaks (Bos grunniens). Anim. Feed. Sci. Technol. 2022, 283, 115184. [Google Scholar] [CrossRef]
Agriculture 13 02198 g001

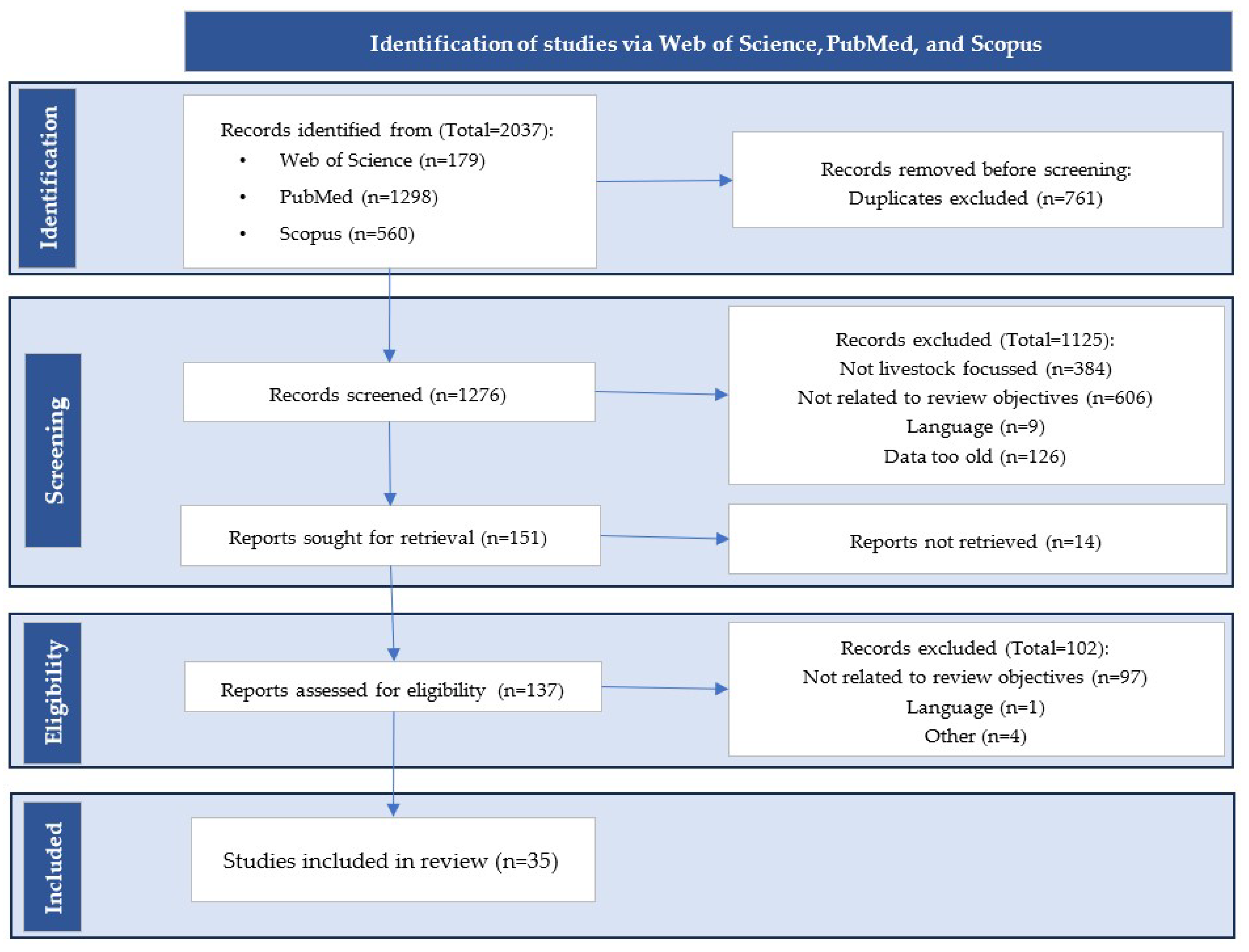

Figure 1. Study selection flow diagram showing the stages from initial search to finalization of publications included in the review.
Figure 1. Study selection flow diagram showing the stages from initial search to finalization of publications included in the review.
Agriculture 13 02198 g001
Table 1. Ruminal solubility of different sources of copper (Cu), based on all studies on Cu content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
Table 1. Ruminal solubility of different sources of copper (Cu), based on all studies on Cu content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
AnimalsExperimental ModelSupplementation TypeCu DosageCu SourceSolubilization Time/
Supplementation Period		CentrifugationRuminal Solubility *Ref.
Rumen-cannulated steersin vivoFeed inclusion5 and 25 mg/kg DMCuSO412 days28,000× g↑; ~17 and 14%[35]
Cu-Hyd↓; ~15 and 9%
Rumen-cannulated steersin vivoPulse dose via rumen cannula20 mg/kg DMCuSO44, 12 and 24 h28,000× g↑; ~68, 30 and 12% after 4, 12 and 24 h following ruminal administration[45]
Cu-Hyd↓; ~15, 20 and 15% after 4, 12 and 24 h following ruminal administration
Rumen-cannulated steersin vitroFermentation medium4, 12, 96 mg/kg DM
(with 0.1% DM of S or 2% DM of urea)		Cu-Lys24 h1200× g↑ (with urea)
↓ (with S)		[32]
CuSO4↓ (with S)
Rumen-cannulated dairy cowsin vitroFermentation medium4 mM solutionCuSO425 h2000× g↑; ~49%[33]
CuCl2↑; ~49%
CuO↓; ~9%
CuCO3↓; ~19%
Cu-Hyd↓; ~17%
Cu-EDTA↑; ~49%
Cu-Prot↑; ~49%
Cu-Acet↓; ~33%
Rumen-cannulated dry dairy cowsin vitroFermentation medium100 and 500 mg/kg DMCuSO422, 46 and 70 h100× g for big particles’ separation; 18,500× g for bacteria and supernatant separation↑; ~42, 37 and 57% after 22, 46 and 70 h following administration[41]
Close-up dairy cowsin vitroFermentation medium12 mg/kg fresh matterCuSO424 h13,000× g↑[40]
Enc. Cu↓
Cu: copper; ↑: high; ↓: low; Cu-Lys: copper lysine; CuSO4: copper sulfate; CuCl2: copper chloride; CuO: copper oxide; CuCO3: copper carbonate; Cu-Hyd: copper hydroxychloride; Cu-EDTA: copper disodium edetate; Cu-Prot: copper proteinate; Cu-Acet: copper acetate; Enc. Cu: mix of tribasic copper chloride and copper sulfate within a polysaccharide polymer coating; * Ruminal solubility: where available, values of relative solubility were given.
Table 2. Ruminal solubility of different sources of manganese (Mn), based on all studies on Mn content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
Table 2. Ruminal solubility of different sources of manganese (Mn), based on all studies on Mn content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
AnimalsExperimental ModelSupplementation TypeMn DosageMn SourceSolubilization Time/
Supplementation Period		CentrifugationRuminal Solubility *Ref.
Rumen-cannulated steersin vivoPulse dose via rumen cannula40 mg/kg DMMnSO44, 12 and 24 h28,000× g↑; ~20, 12 and 6% after 4, 12 and 24 h following ruminal administration[45]
Mn-Hyd↓; ~10, 7 and 15% after 4, 12 and 24 h following ruminal administration
Rumen-cannulated heifersin vivoFeed inclusion40 mg/kg DMMnCl216 days16,000× g↓[44]
Rumen-cannulated steersin vivoPulse dose via rumen cannula400 mg/kg DMMnSO424 h28,000× g↓ at 10 h following ruminal administration[52]
Mn-Hyd↑ at 10 h following ruminal administration
Mn-Met↓ at 10 h; ↑ at 14 h following ruminal administration
Rumen-cannulated heifersin vivoPulse dose via rumen cannula40 mg/kg DMMnSO424 h28,000× g↑ at 4 and 6 h; ↓ at 18 h following ruminal administration[43]
Mn-Hyd↓ at 4 and 6 h; ↑ at 18 h following ruminal administration
Rumen-cannulated steersin vivoFeed inclusion15 and 60 mg/kg DMMnSO412 days28,000× g↑; ~62 and 65% at 15 and 60 mg/kg DM[35]
Mn-Hyd↓; ~50 and 66%at 15 and 60 mg/kg DM
Rumen-cannulated dry dairy cowsin vitroFermentation medium600 mg/kg DMMnSO422, 46 and 70 h100× g for big particles’ separation; 18,500× g for bacteria and supernatant separation↑; ~94, 91 and 93% at 22, 46 and 70 h[41]
MnO↑; ~84, 88 and 93% at 22, 46 and 70 h
Mn: Manganese; ↑: high; ↓: low; MnSO4: manganese sulfate; Mn-Hyd: manganese hydroxychloride; MnCl2: manganese chloride; Mn-Met: manganese methionine; MnO: manganese oxide; * Ruminal solubility: where available, values of relative solubility were given.
Table 3. Ruminal solubility of different sources of zinc (Zn), based on all studies on Zn content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
Table 3. Ruminal solubility of different sources of zinc (Zn), based on all studies on Zn content analysis of a supernatant obtained after centrifugation of sampled rumen fluid (in vivo studies) or fermentation medium (in vitro studies).
AnimalsExperimental ModelSupplementation TypeZn DosageZn SourceSolubilization Time/
Supplementation Period		CentrifugationRuminal Solubility *Ref.
Rumen-cannulated steersin vivoPulse dose via rumen cannula60 mg/kg DMZnSO44, 12 and 24 h28,000× g↑; ~39, 15 and 15% after 4, 12 and 24 h following ruminal administration[45]
Zn-Hyd↓; ~10, 5 and 10% after 4, 12 and 24 h following ruminal administration
Rumen-cannulated heifersin vivoFeed inclusion30, 250 and 470 mg/kg DMZnCl216 days16,000× g↑; linear increase in Zn concentration in the rumen fluid (2.26, 7.6 and 11.6 mg/L)[44]
Rumen-cannulated steersin vivoFeed inclusion30 and 120 mg/kg DMZnSO412 days28,000× g↓; ~12 and 7%[35]
Zn-Hyd↑; ~14 and 11%
Rumen-cannulated dairy cowsin vitroFermentation
medium		240 mg/kg DMZnO24 h10,000× g; supernatant filtered (Grade 389 ashless filters) ↑; 65.3% (without clay);
↓; 16.5% (with clay)		[53]
Rumen-cannulated dry dairy cowsin vitroFermentation
medium		500 mg/kg DMZnSO422, 46 and 70 h100× g for big particles’ separation; 18,500× g for bacteria and supernatant separation↑; ~19, 17 and 32% at 22, 46 and 70 h[41]
ZnO↓; ~10, 9 and 25% at 22, 46 and 70 h
Rumen-cannulated dry dairy cowsin vitroFermentation
medium		30 and 120 mg/kg DMZnO8 days continuous culture fermentation12,000× g↓[39]
HiZox↑
Zn: Zinc; ↑: high; ↓: low; ZnSO4: zinc sulfate; Zn-Hyd: zinc hydroxychloride; ZnCl2: zinc chloride; ZnO: zinc oxide; HiZox: high-purity potentiated zinc oxide; * Ruminal solubility: where available, values of relative solubility were given.
Table 4. Effects of different sources of copper on rumen fermentation.
Table 4. Effects of different sources of copper on rumen fermentation.
Cu SourcepHDMdGPCH4VFAA:PNH3-NMPSRef.
Cu-Met+++==+++[54]
CuCl2+=====++
TBCC==+==+==
CuSO4-+ ++- [55]
RP-CuSO4-+ ++-
Cu-Lys - [32]
CuSO4 -
CuSO4=+ ++=+[56]
Coat. CuSO4=+ ++ [57]
Cu-Gly= ===+ [58]
Lip.Enc. CuSO4== - -==[59]
CuSO4== [45]
Cu-Hyd==
CuSO4=- [35]
Cu-Hyd==
CuSO4=== == =[41]
CuSO4==+==- [40]
Enc. Cu======
CuSO4-+ ++- [60]
Coat. CuSO4-+ ++-
Cu: copper; GP: gas production; VFA: volatile fatty acids; A:P: acetate-to-propionate ratio; DMd: dry matter degradability; MPS: microbial protein synthesis; +: increase; -: decrease; =: no effect; Cu-Met: copper methionine; CuCl2: copper chloride; TBCC: tribasic copper chloride; Cu-Lys: copper lysine; CuSO4: copper sulfate; RP-CuSO4: rumen-protected copper sulfate; Cu-Hyd: copper hydroxychloride; Cu-Gly: copper glycinate; Lip.Enc. CuSO4: lipid-encapsulated copper sulfate; Enc. Cu: mix of tribasic copper chloride and copper sulfate within a polysaccharide polymer coating; Coat. CuSO4: coated (with hydrogenated fat) copper sulfate.
Table 5. Effects of different sources of manganese on rumen fermentation.
Table 5. Effects of different sources of manganese on rumen fermentation.
Mn SourcepHDMdGPVFAA:PNH3-NMPSRef.
MnSO4== = [43]
Mn-Hyd== +
MnSO4== [45]
Mn-Hyd==
MnCl2=+ === [44]
MnSO4=- [35]
Mn-Hyd==
MnSO4=--== =[41]
MnO=--== =
MnSO4=- - [52]
Mn-Hyd=+ +
Mn-Met== +
Mn: manganese; GP: gas production; VFA: volatile fatty acids; A:P: acetate-to-propionate ratio; DMd: dry matter degradability; MPS: microbial protein synthesis; +: increase; -: decrease; =: no effect; MnSO4: manganese sulfate; Mn-Hyd: manganese hydroxychloride; MnCl2: manganese chloride; MnO: manganese oxide; Mn-Met: manganese methionine.
Table 6. Effects of different sources of zinc on rumen fermentation.
Table 6. Effects of different sources of zinc on rumen fermentation.
Zn SourcepHDMdGPCH4VFAA:PNH3-NMPSRef.
Zn-Gly= ===+ [58]
ZnSO4== = [43]
Zn-Hyd== +
ZnSO4== [45]
Zn-Hyd==
ZnSO4=- - [52]
Zn-Hyd=+ =
Zn-Met== =
ZnCl2=- --- [44]
ZnSO4=- [35]
Zn-Hyd==
ZnSO4==- == -[41]
ZnO=-- == -
ZnO+= -=-- [39]
HiZox+- ==+=
Zn-Prot + === [62]
Zn-AA==--= = [63]
ZnSO4=+ ++- [64]
Coat. ZnSO4=+ ++-
Zn: zinc; GP: gas production; VFA: volatile fatty acids; A:P: acetate-to-propionate ratio; DMd: dry matter degradability; MPS: microbial protein synthesis; +: increase; -: decrease; =: no effect; Zn-Gly: zinc glycinate; ZnSO4: zinc sulfate; Zn-Hyd: zinc hydroxychloride; Zn-Met: zinc methionine; ZnCl2: zinc chloride; ZnO: zinc oxide; HiZox: high-purity potentiated zinc oxide; Zn-Prot: zinc proteinate; Zn-AA: zinc amino acid complex; Coat. ZnSO4: coated (with hydrogenated fat) zinc sulfate.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vigh, A.; Criste, A.D.; Corcionivoschi, N.; Gerard, C. Rumen Solubility of Copper, Manganese and Zinc and the Potential Link between the Source and Rumen Function: A Systematic Review. Agriculture 2023, 13, 2198. https://doi.org/10.3390/agriculture13122198

AMA Style

Vigh A, Criste AD, Corcionivoschi N, Gerard C. Rumen Solubility of Copper, Manganese and Zinc and the Potential Link between the Source and Rumen Function: A Systematic Review. Agriculture. 2023; 13(12):2198. https://doi.org/10.3390/agriculture13122198

Chicago/Turabian Style

Vigh, Antal, Adriana Dalila Criste, Nicolae Corcionivoschi, and Christine Gerard. 2023. "Rumen Solubility of Copper, Manganese and Zinc and the Potential Link between the Source and Rumen Function: A Systematic Review" Agriculture 13, no. 12: 2198. https://doi.org/10.3390/agriculture13122198

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
