3. Results and Discussion
The data presented address the broad issues of agrochemical control for soil fertility protection (a), macro-element management (b), relevant soil solution interactions, and nutrition with the engagement of macro- and trace elements (c). All these approaches aim to diagnose the determining agrochemical states as a result of long-term fertilization, with the aim of opting for the positively favorable ones in the soil and for nutrition purposes, to prevent impact states, and to support the determination of soil-plant agrochemical optimization towards the sustainability of the recommended measures.
Agrochemical control and monitoring for soil protection purposes:
Mainly focused in two directions, the study of pH and organic-C (humus) changes as an effect of long-term fertilization:
- -
pH changes in long-term NP experiments:
The control and monitoring of soil reactions are indispensably and indefinitely connected to the soil fertility state. Ever since the Lawes and Henry Gilbert, in the years 1881–1896, applied amendments (CaCO
3 4 t/ha) and N fertilizers (sodium nitrate and ammonium sulfate) have been used in order to study the effect of the two nitrogen ions (ammonium and nitrate) on the soil reaction. In the 1903–1964 period, 4t CaCO
3/ha were applied periodically to maintain the soil reaction at a pH of 7.0 (Park Grass Experiment) Rothamsted [
15].
The application of mineral NP fertilizers with increasing nitrogen doses and favorable nitrogen ratios causes changes in soil reaction (pH) mainly due to the availability of NH
4 ions for ion exchange (equivalent to H
+) and nitrification (above the fixed amount without exchange), the immediate and permanent effects being protonation of the soil solution and proportional activation of adsorbed acidity (
Table 1). This phenomenon occurs due to the multiannual application of ammonium nitrate, especially unilaterally or in imbalance with phosphorus. This has also been observed in previous studies on the agrochemistry of acidic soils in our country in order to restore their fertility [
34,
35].
The data presented show that upon the lowering of pH values and the increase of acidity with increasing doses of N applied, molecular Al ions are mobilized. Molecular Al representation is thus enhanced in relation to the sum of cations (SB), with acidification at the expense of basification and base saturation. These are such levels and processes that deem lime amendments appropriate for the soil in question (typical preluvosol) under “long term” NP fertilization.
The data presented estimate the opportunity to apply effective amendments in the initial soil with a pH of 5.7–5.8 and a base saturation degree of V% at the limit of 75% amendable. However, through long-term fertilization (20 years), the soil acidifies below its initial values, with exceeding concentrations of mobile Al (over 0.3 m.e./100g soil) and a ratio of Alsch./S
B·100 > 1.0, conditions that can generate the phenomenon of phytotoxicity. Almost in accordance with N a.i. doses and upon their increase above 80–100 kg/ha, Al mobility becomes active and potentially phytotoxic. In the same sense, with the application of amendments and P
2O
5 doses in balance, the effects of Al mobilization are diminished. In this case, it was found that the application of amendments, at the level of 75–100% neutralization of hydrolytic acidity (Ah), cyclically, with 5t CaCO
3/ha every 5 years, proves effective and shows significant results depending on the newly created acidity and with (NP) complex fertilization (
Table 2).
In this long-term experiment, it can be concluded that acidification rates (−ΔpH/N kg a.i./ha) in the unamended area increase with increasing N dose and duration of fertilization and maintain their acidification tendencies under amended conditions, but such parameters decrease and are controlled by re-amendments at 5 years. In this field, recent research over a long period (1968–2022) in the area of acid soils (luvisols) of north-western Transylvania (at Livada) analyzes pH changes as a function of dose (CaCO
3) and duration of amendment, differentiated according to fertilization systems, concomitant with calcium losses. In the context of non-amendment, the most significant acidifications were obtained in unilateral fertilizations (only N), in non-fertilized fertilizations, then in NP and NPK mineral fertilizations, and lower in organic and organo-mineral fertilizations. Under the conditions of calcium amendment, acidification tendencies are maintained at low values, in the order mentioned. However, it was concluded that it is possible to sustainably maintain pH indicators at 5.8 and base saturation (V%) at 75% (the limits of amendment) if the amount of calcium is balanced at 296 kg Ca/ha/year in the case of albic luvisol, annually or cumulatively every 4–6 years, respectively, on luvic brown soil, equivalent to 173 kg Ca/ha/year. The relationship between Ca content (me/100 g soil) and pH value shows that the pH value of 5.8 (which differentiates amendable acidic soils from the rest) can be maintained sustainably by soil application of 4 m.e.Ca/100 g soil [
36,
37].
It is shown that the quantitative effect on yield and soil chemistry is higher in maize (with higher N doses), where fertilization creates higher acidifying potential.
It must also be taken into account that there is a beneficial application effect and balance with increasing doses of P from concentrated super-phosphate with CaO and 42% P2O5, both ions with ameliorating effects (Ca2+ in neutralizing mobile Al and in base saturation, and the superphosphate anion, H2PO4−, with an inactivating effect—by retro-gradation of these phytotoxic ions).
In reconstructing these situations created by multi-year NP fertilization, it is equally effective, along with amendment and fertilization, to use alternative, annual, or periodic N products that can protect the soil reaction (pH) (nitro lime, urea, UAN, or N:P balanced complexes).
In the field of soil fertility, at least two directions with relevant results can be deduced—the first is the control of soil response in relation to fertilization systems. For each year and experimental cycle, the acidification effects are confirmed due to the permanent and annual presence of ammonium nitrate in the NP fertilization system. The ammonium nitrate first causes a significant acidification of the reaction in the typical prelluvosol (with high current and adsorbed acidity). The acidification rate (−ΔpH) is proportionally dependent on the dose of N kg a.i./ha.
Superphosphate as a source of P2O5, while applying monocalcium phosphate—Ca(H2PO4)2 as an active substance, inactivates the actual acidity and partially immobilizes the adsorbed (potential) acidity due to Al ions3+. Thus, if applied to the NP formula, it partially balances the acidifying effect of ammonium nitrate.
Prevention of acidification or correction of current and adsorbed acidification is achieved in the experiment by CaCO3 (cyclic) amendment, but in the future, protective N sources (CAN, UAN, and even urea) can be promoted as N sources.
Changes in organic C and humus content in long-term experiments:
Soil organic matter (SOM), represented primarily by humus content (% C-organic-1724), plays an essential physical, chemical, and biological role in soil fertility, and modeling this component is a requirement for the sustainability of farming systems. It is a sufficiently stable component, especially in the form of finite and specific soil compositions. However, in recent decades, due to anthropogenic and natural technological pressures, the reduction of humus and organic-C content has been discussed as a priority in terms of management practices and multifunctional models capable of determining and organizing soil organic matter components and humic balance.
In long-term experiments (for more than 20 years and in our country for 55–56 years), the control and monitoring of humus content is an analytical activity aimed at elucidating the effects of long-term fertilization (NP and NPK) but also organo-mineral fertilization on the evolution of this essential soil component, a determinant of soil quality and fertility. More recent determinations in our experiments at SCDA Turda (1998–2015) have continued and concluded that the humus in the experimental chernozem (with 3.78% initial content) (1968) shows significant reductions and represents 84.9% of the initial humus content in 1985 and 84.1% in 1999, while in recent determinations it was shown to be 82.5% (2015) of the initial humus content (since 1967). Therefore, the humus content in the Turda chernozem has been reduced from 3.78% in 1968 to 3.21% in 1995, 3.18% in 1999, and 3.12% in 2015. In the same context, it is estimated that the supplementation of N doses, predominant over phosphorus, leads to an improvement of the humus content to 3.47% due to the accumulation over time of raw organic matter in the soil plant root system.
Recently, studies on the humus content for the 1961–2002 period following experiments at Livada on a luvisol with an initial humus content of 1.88% concluded that amendment can cause a decrease in the organic-C content, on average by 0.17%, regardless of the fertilization system. Only potassium (K) had a favorable influence on the carbon content. The depressive effect of amendment on carbon and humus content was explained by its stimulation of microbiological activity, which contributed to higher mineralization [
37].
The monitoring of humus content in the two soils—preluvosol (with 2.20% humus) and alluvial mollisol (with 2.60% humus)—from these experiments revealed the determining character of long-term technologies on soil maintenance but also a dependent variability of humus content in soils (
Table 3).
The data presented confirm the effect of limestone amendment (in preluvosol) in reducing carbon and humus content in all fertilization alternatives, concurrent or periodic. This effect is also exerted by conventional tillage in terms of soil tillage (exclusively for 20 years) in the case of maize, where the soil generally shows a reduction in humus content, which is greater in the case of amended soil.
As this pressure is exerted, there is a systematic reduction of the organic-C and humus content. Thus, actions and measures to shape and achieve humic balance must be primarily based on tackling this process. This can only be achieved within rational, diversified farming systems up to conservative ones, where the contribution of organic resources (from fertilizers of this kind) is a priority alongside complex technologies to control the carbon cycle with efficient sequestration stages on a long-term or even periodic basis. A simple model, included in the experimental polygon in question, shows that organic input can function as a “humiferous amendment”, decisive in ensuring the buffering capacity of soils, while organo-mineral input, with a balanced background, has a fertilizing, nutritive role.
Data analysis supports the promotion of organo-mineral and organic fertilization for efficiency in protecting soil reactions, visibly better nutrient conditions, maintenance of initial organic-C and humus content, and support of soil buffering capacity against technological (anthropogenic) and natural pressures. In general, an optimally humified soil organic matter modeling regime supports the effects of fertilizer application on productive and quality plant yields.
In the field of soil protection, the phenomenon of reduction of organic-C content and implicitly of humus has proved to be active and has negative implications. In our experiments, the effect was mainly due to limestone amendment alongside the significant contribution of conventional tillage systems, primarily in the case of wide-row plants. NP or NPK fertilization, especially in moderate doses, had no significant effect on reducing the organic-C content in 20 years, possibly also through the supply of organic matter to the root system.
The remedy considered is organic and organo-mineral fertilization, with organic-C input and complex effects—of physical, chemical, and biological nature—that can interact and shape humus evolution.
It is unreservedly concluded that the rates of change in organic-C content reduction as well as those following amelioration measures have a particular character due to the initial soil characteristics, the agricultural practices involved in the management, and the natural and modified environmental factors.
It is frequently concluded that tillage and various fertilizer and amendment treatments increase organic-C losses and increase CO
2 emissions to the atmosphere, while rotation with organic inputs of plant residues as well as organo-mineral fertilizer combinations positively modify, maintain, and increase organic-C content [
27]. As a result, the authors mentioned here recommend management decisions, including conservative organic-C sequestration works, which can result in optimal values of this indicator, even achieving a “good status” of organic-C.
On the Rothamsted and Askov experimental platforms, slow organic-C losses, regardless of fertilization treatments, are quantified at an annual average of more than 100 kg C/ha. Over the last 70 years, in rotations with 5-3-2 crops and predominantly organic treatments (FYM), the organic-C content (in t ha
−1) has evolved through annual applications from 30 t to 85 t/ha, compared to the unfertilized control, which has regressed to approx. 20 t C/ha
−1 (Johnston A.E., Poulton, P.R. 2018) [
15]. In an experiment initiated in 1894 at Askov, treatments with organic N, P, and K (FYM) doses and combinations in rotations (wheat, silage maize, barley, and clover) confirmed that positive fertilization and fertilizer management enhance SOC and soil microbial activity [
17].
Research at Sanborn Field Exp. contributes to the effect of fertilizer treatments on C-organic dynamics, including judgments on distribution across soil profiles benefiting from FYM application [
11].
In the Morrow-Illinois experiments, over a 30-year period, SOC decreased by 15–19%, and the trend for 100 years is a reduction of this indicator not only in unfertilized but also in lower limits for the variants with ameliorating fertilization-amendment measures (FYM + CaCO3 + P).
Long-term experiments in India support a positive balance of nutrition and fertilization/fertility management that improves SOC, organic biomass, and agricultural efficiency [
38].
These experiments include integrated nutrient management (complex, including Zn and S from superphosphate), amendments, and FYM. The results show increased efficiency in sequestering organic C from FYM, plant residues, and green manures with mitigation of climate change impacts.
Compared to these findings, the results obtained in our experiments maintain a minimum balance of organic C due to NP balance, with negative effects from active mineralization of humus and plant residues, but in the typical preluvosol, attention should be paid to the rotation—wheat/maize/soybean, unchanged for 20 years. In this context, organic and organo-mineral fertilization support organic-C accumulation and balance the buffering capacity (expressed as T/Ah) (
Table 4).
Agrochemical control in support of essential element management:
Yield results obtained in long-term experiments generally confirmed the usefulness of exploiting NP interaction, with yield dependence resting primarily on N doses and the specificity of P significance in soils poorly supplied with this element. The effect of potassium application was mainly linked to the conditioning of NP fertilization to multiannual application, even to the size of these doses, according to the needs of the genotypes cultivated in this soil. Therefore, the approaches to the introduction of potassium in fertilization have constantly taken into account the “versatile” character of the roles (according to Kraus, 1997) [
39] of this element and its involvement in the N:P:K balance and in the overall quality of agricultural production.
- -
Evolution of phosphorus application in the NP regime:
In the presented research, the mobile phosphorus regime in soils under multiannual fertilization with NP shows significant improvement from 4–6 ppm to 36–60 ppm. Mobile-P shows a transformation of the supply status of this element from a very poor phosphate supply to a good phosphorus supply (
Table 5;

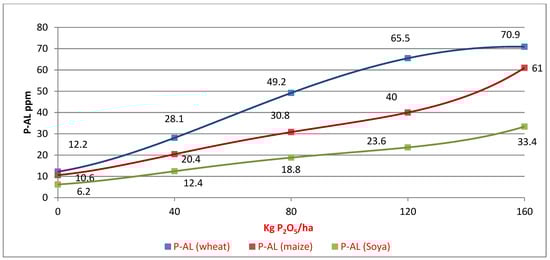

Figure 1).
These positive changes in the mobile-P (in AL) supply status of the soils under the three crops in the crop rotation system (after 20 years) are due to the incorporation and maintenance of increasing rates of superphosphate at an annual application rate. Obviously, the solubilization of superphosphate with 42% Ca (H2PO4)2 influences the change in the evolution of the monophosphate anion into non-occluded mineral phosphates (P-Al, P-Fe, and P-Ca) through the retrogradation process over time. They are maintained annually, feeding the mobile and bio-available forms of phosphates for the soil solution and plant nutrition.
The evolutionary specificity of the P applied is dependent on its application and dose, which is distinctly positive for soil enrichment in this poorly represented element. All the non-occluded forms increase in relation to the three representative elements (Al, Fe, and Ca) in the acidic soil. On the amended soil (cyclically with CaCO3), compared to the P-Al and P-Fe forms with representative increases, P-Ca reduces its percentage representation in the sum (Σ) of the non-occluded forms, which proves beyond any doubt that this form increases the share of P supply to the soil solution and implicitly to the crops. The physico-chemical logic of the process is at work here—the application of phosphorus on the amended soil has a priority effect on crop supply, nutrition and, secondarily, on the retrogradation and retention of phosphate desorption useful in the multi-annual reserve.
The modifications that provide a positively dependent support for the mobile P forms in the soil solution when in contact with plant roots also make the mobile forms of phosphates available upon crop harvest in a differentiated manner, not only in terms of retrogradation but also in terms of the species grown in previous and even current years. That is, the significant improvement in mobile P content is different under the wheat crop, which can be explained by the “long-lasting” contribution of the previous crop (soybean), with an ameliorating role in phosphorus solubilization for the following crop. In addition, the annual P consumption (“export”) (through the crops grown) is achieved (annually) in the following order: maize (140–160 kg P2O5/ha/year) > soya (80–115 kg P2O5/ha/year) > wheat (80–105 kg P2O5/ha/year). This effect of the differentiation of the mobile-P indicator (soil) over time and after crop rotation recommends differentiated fertilization systems for crops in the crop rotation system rather than unitary fertilization throughout the entire crop rotation system.
Phosphorus, with a specific chemistry, improves its performance and functions through the application of concentrated superphosphate and is efficiently productive together with nitrogen. Changes aimed at transforming a lower P supply category to a higher one are directly related to ‘phosphate retrogression’, controlled by soil pH. The P-Al, P-Fe, and P-Ca forms feed and control soil and crop P supply according to the level of solubility of these compounds, dependent on pH and the dose of P2O5 applied.
Through these processes, phosphorus applied on a long-term basis maintains the multi-year reserve and soluble mineral forms for soil solution and plant nutrition.
In established platforms with long-term experiments (Askov, Rothamsted, Morrow, Sanborn), with different NPK and FYM treatments, the different forms and fractions of phosphorus in the soil are maintained permanently and are growing. In these ameliorating alternatives, a special place is occupied by molecular-P reserves from organic fertilizer resources, from the composition of these fertilizers, or from the activity of microorganisms involved in phosphorus solubilization [
17]. In the Rothamsted approaches, the level of availability of retrograded, conventionally physico-chemically fixed forms of phosphate in soil components has been investigated on a multi-year basis, with an emphasis in these assessments on P-residue forms and their significance for subsequent phosphate applications or assessment of the possibility of their reduction [
15]. In all alternatives investigated, the optimal 1 NPK and 1½ AM rates support the regime of good mobility and availability of multiannually applied phosphorus (from superphosphate or phosphate rock). For the practical usefulness of these results, it is necessary to correctly assess, according to the soil characteristics and the varieties to be applied, the internal and external factors that can degrade the phosphorus regime and availability for plants/pH, % CaCO
3, excessive or too low N doses, and the representation of other elements—macroelements but also Zn, Cu, etc. At similar NPK mineral fertilizer input assessments and in equivalence to P from manure, even at similar phosphorus availability to plants, the higher quantitative and productivity effects are due to organic fertilization (assessed trace elements and residual N input) [
40].
Evolution of long-term potassium application in an NPK system:
The multi-annual changes in mobile-K lead to good supply conditions for this element, with higher levels in the alluvial mollisol and relevant cation exchange capacity, including the non-exchangeable forms of this cation. In the two soils, preluvosol and alluvial mollisol, the mobile forms of K increase when K2O doses are applied. Small differences are observed between the levels of concomitant NP supply, particularly in the category of newly formed reserves of non-exchangeable K, which increase concomitantly with K doses applied and with the mobile K “supply” through these reserves.
From this non-exchangeable K (higher in the alluvial mollisol), the supply of mobile forms is higher in the preluvosol (

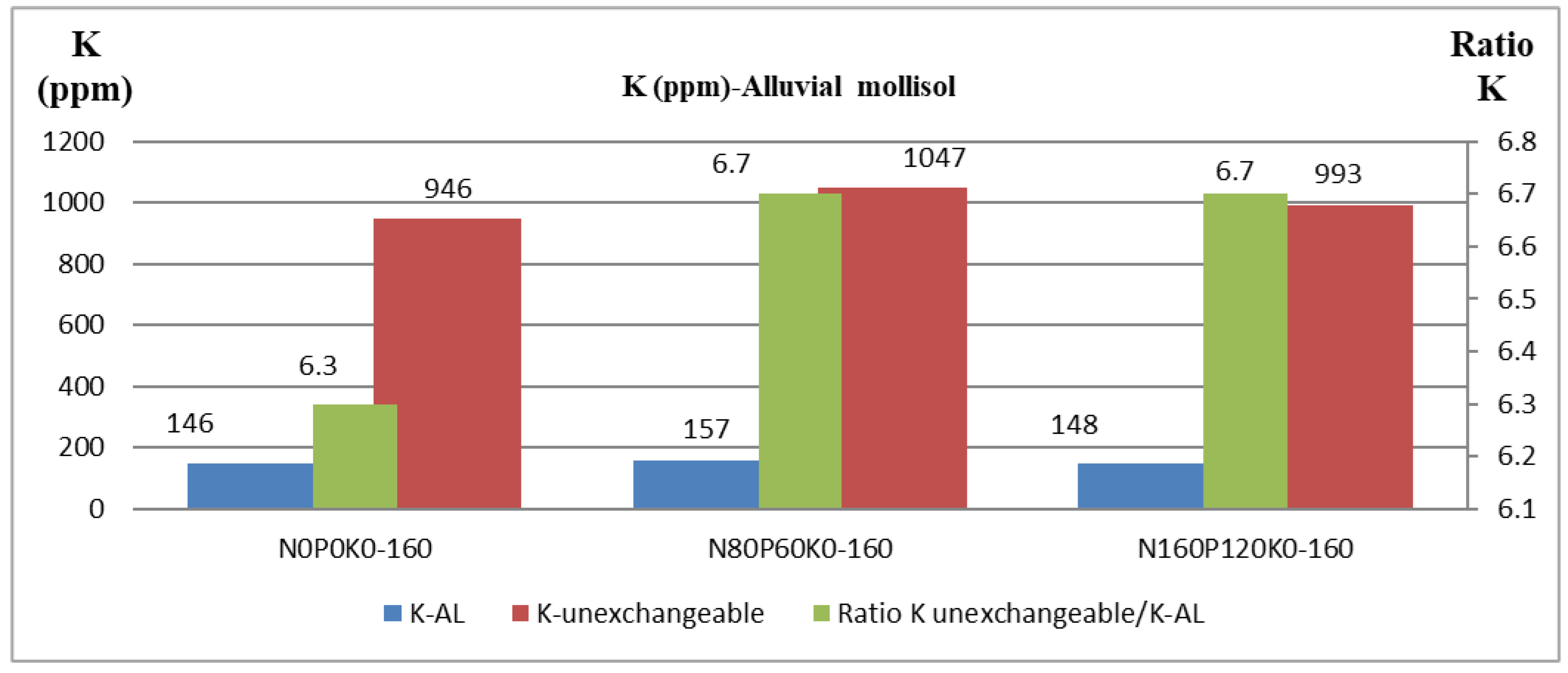

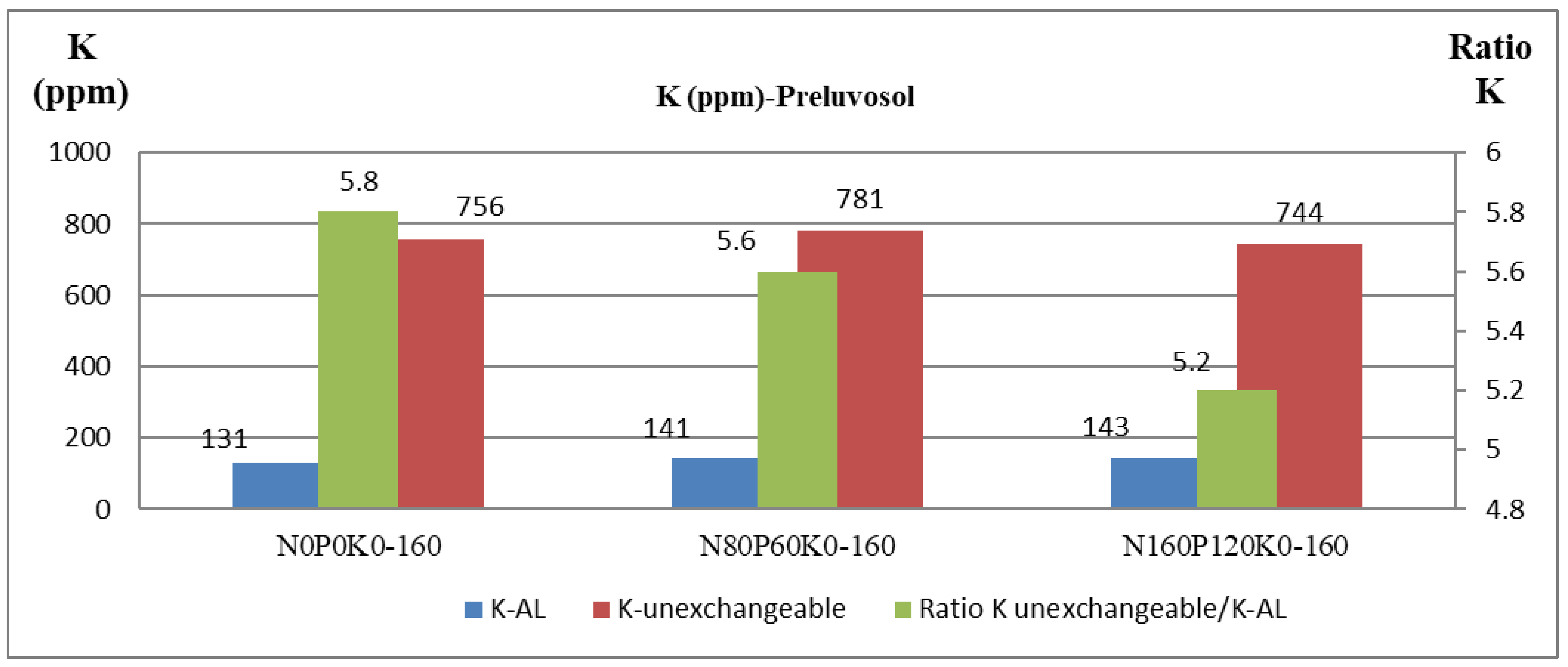

Figure 2 and
Figure 3).
This dynamic model (i.e., non-exchangeable K/mobile K) differentiates soils in terms of potassium regime and may even justify the different response of crops to potassium supply when potassium is applied on the NP background (
Table 6).
Comparing the K effect on the two soils (preluvosol and alluvial mollisol), it can be noted that the efficiency of K application is increased on the amended acidic soil, where the nutrient regime of this element is much more dependent on the dose of K applied compared to the alluvial mollisol, which has an improved potassium regime (more exchangeable K but also non-exchangeable K). This substantially improves and feeds the regime of this element in the soil-plant system and partially diminishes the effect (dose) of the application. In much the same way, on alluvial soils this time, the soybean as a legume has a specific K consumption (kg K2O/t production) of high K (following N in size) and higher than that of P, Ca, S, and Mg. This explains the effect of K application on the soybean crop, which is ensured in the NPK formula (that is why it only relies nutritively on its non-exchangeable form).
Potassium has a specific chemistry as well, linked to the adsorbent complex (humus and clay minerals) and the level of supply to soil and plants, and determined by the dynamic functionality of Knesch.↔Ksch.↔K soluble and the required plant consumption.
The dynamics of soil K forms, with an appreciation of the dependence of plant response to its application, are related to the clay content (%), especially the type of clay minerals that differentially maintain the representation and availability of potassium in or applied to the soil [
37,
41]. Fertilizer management in long-term experiments is based on NPK, or organic and organo-mineral differentiated application measures, with evaluation of the complex effects of active elements in their composition. The current K-linked application relates to K-poor soils, long-term applications of NP without K (with reduced yield, productivity, and product quality), high K-consuming genotypes, and the sustaining effects of applied or residual nitrogen [
15,
16,
38].
Appraisal of the secondary macroelement (S, Ca, and Mg) and trace element regimes in long-term fertilization:
The diversity of soils in our country, expressed by specific indicators (pH-reaction, humus and clay content and type, CaCO3 content, etc., at varying agrochemical states, determined by “long-term” interventions), causes profound changes in nutrition and fertility, starting with the soil solution and plant rhizosphere, throughout the soil-plant system, and ultimately in its yield and quality. Interaction and complementarity states have been demonstrated in various situations, such as N/P, N/K, N/Mg, N/S, Ca/Mg, Mg/K, etc. in macroelements and N/Mo, P/Zn, K/B, Cu/Zn, Zn/Mo, P/Mo, etc. in trace elements. Hence the need and usefulness for practical, complex, and integrated fertilization measures based on soil-plant agrochemical monitoring.
In the experiments presented, in the initial experimental framework, the application of mineral resources such as S + Mg was proposed and achieved (based on NPK modifications in the 1975–1985 period). In summary, the results were presented as follows (
Table 7).
The effect of S + Mg application on optimal NPK background can be assessed in relation to the reduction of humus content (concomitant with organic-S) and the interaction determined in cation chemistry (to the disadvantage of Mg). Currently, the fertilizer trade promotes NPK + S + Mg (NPK + Kiserit) assortments, which have proven effective in basic applications (on different crops).
In agrochemical approaches to long-term experiments, the analysis of trace elements (Fe, Mn, Cu, Zn, B, and Mo) in relation to agrochemical changes determined in the soil-plant system is important and topical (
Table 8 and
Table 9).
The analysis and interpretation of the content of the determined trace elements show:
- -
Ammoniation usually reduces the mobility of trace elements (i.e., cations: Fe, Mn, Cu, and Zn).
- -
The soil contains insufficient reserves of B and Mo under wheat, higher amounts of Fe, Mn, and Cu in relation to higher N doses, and higher acidification potential in maize.
- -
Fe, Mn, and Zn contents are critical and pose a risk to nutrition, especially in cereals but also in sugar beet and rape.
- -
Mo contents are consistently critical with the endangerment of the expected effect of nitrogen, partly of B.
- -
In this instance, under conditions of soil pH > 7.5, most crops are expected to be deficient in key trace elements. Indeed, the excessive accumulation of macroelements is also controlled in terms of trace elements.
Undertaking a project for the continuation of long-term experiments with a specific research program—a “post-initial experiment project”—increases the opportunity for rigorous agrochemical control based on research directions arising from up-to-date interpretations of agrochemical changes in terms of NP, NPK, and organo-mineral supply. It is of great value to reposition laboratory methods and update current interpretations and limits for efficient use of the analytical tools involved.
Long-term experimental approaches lead to the implementation of real fertility and fertilization management, which is effective in supporting sustainable and productive farming systems. In this framework, the mentioned negative effects (acidification with degasification and reduction of organics) are controlled by effective measures and models. As such, the benefits of nutrient accumulation are evaluated and used to achieve a balanced and productive yield in the soil-plant system with nutrient monitoring measures, fertilization balance, and soil protection. It is in this context that measures and methods of nutrient, macro-, and micro-nutrient integration based on specificity, complementarity of roles, and effects can be effective [
9,
11,
16,
27,
42,
43,
44].
Long-term experiments with fertilizers in Romania have been approached with a unified concept in order to serve the objectives of sustainability in farming systems and to aim for results in line with the principles of sustainable agriculture, where degradation processes must be known and especially balanced by soil regeneration processes.
The principles of sustainability concepts are frequently discussed and promoted theoretically, which is why the issues of sustainable agriculture have been a priority in a high-quality and unpolluted environment while preserving and revaluing soil resources efficiently. In order to take partial account of the problems of sustainable agriculture, long-term experiments with fertilizers must address the main problems of fertilization and plant nutrition in order to achieve quantitatively and qualitatively higher yields in a healthy, sustainable agricultural environment and with consumer protection.
The realization of these experiments in a stationary regime allowed for the probity of the results, their real applicability, and the assessment that the long-lasting results in Romania can constitute an accredited research method that studies the realization of plant production in close dependence on soil fertility. In this context, as the method is in a single and identical principal framework for multiple locations, it gives back to practice the productive value of soils, the methods of its realization, and the framework of measures that maintain or develop soil fertility.
In a unified concept, long-term experiments with fertilizers increase their value through the long duration of the experiments, which is why they can also benefit from a “long-term post-experiment program” that is equally effective in their implementation.
