Identification and Monitoring of Irrigated Areas in Arid Areas Based on Sentinel-2 Time-Series Data and a Machine Learning Algorithm
Abstract
:1. Introduction
2. Materials and Methods
2.1. Study Area Overview
2.2. Data Sources
2.2.1. Sentinel-2 Imagery

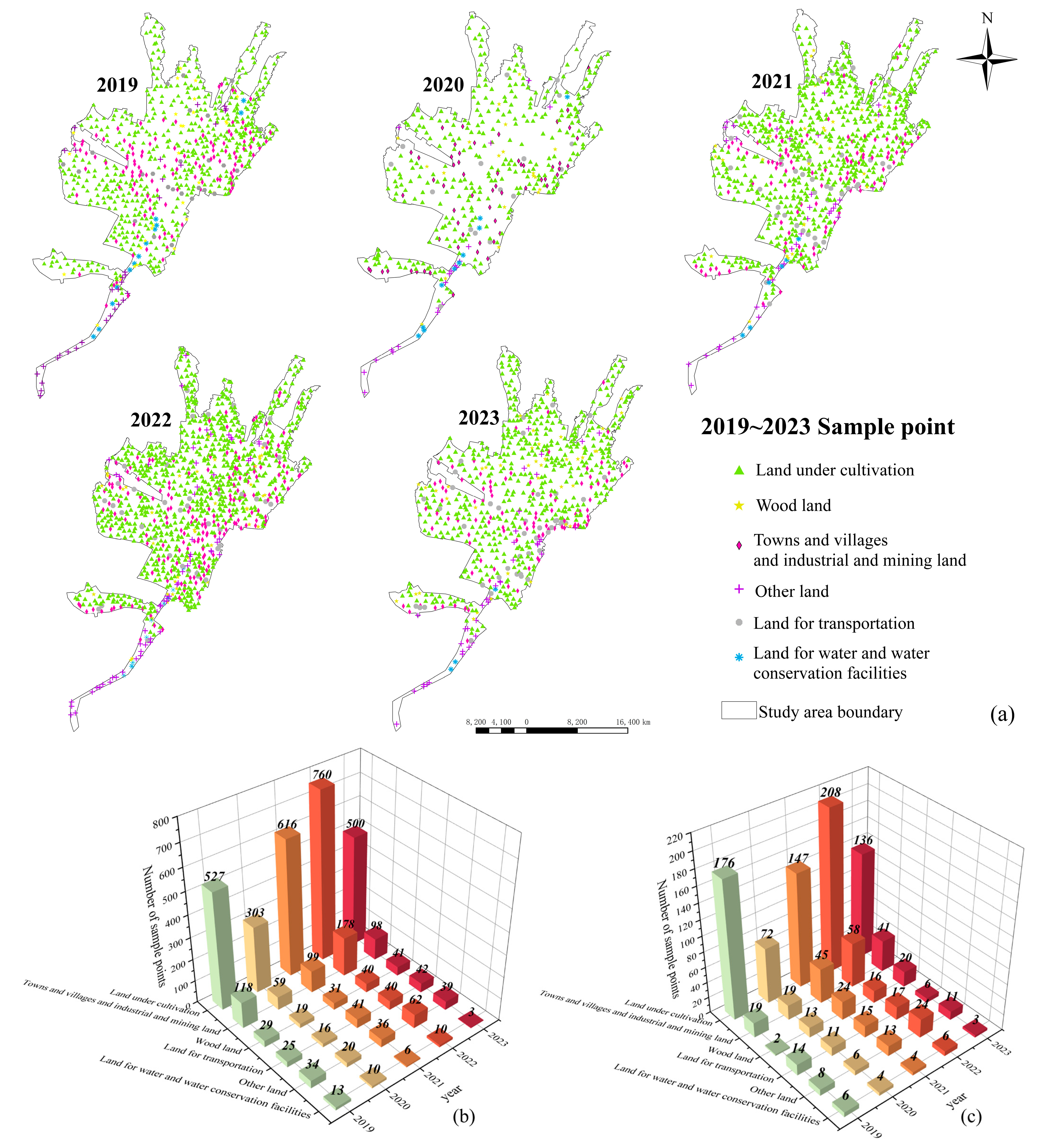

2.2.2. Sample Data
2.2.3. Land Use Classification System
2.2.4. Statistics
2.3. Software Used in This Study

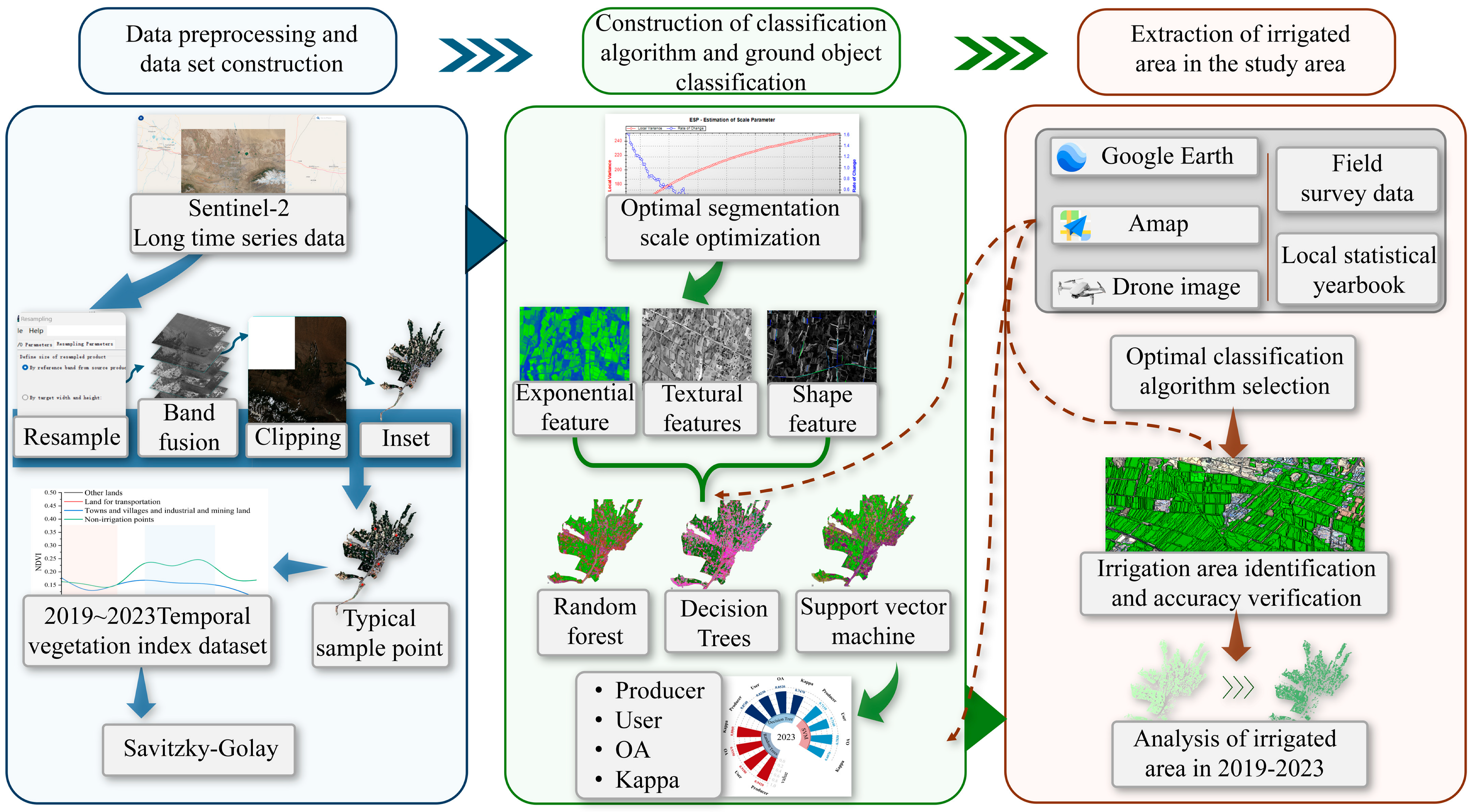

3. Research Methods
3.1. Multi-Scale and Optimal Segmentation Scale Selections
3.2. Feature Data Set Construction
3.3. Object-Oriented Classification Algorithms
3.4. Identification of Irrigation Areas in the Study Area
3.5. Classification Accuracy Evaluation
4. Results and Analysis

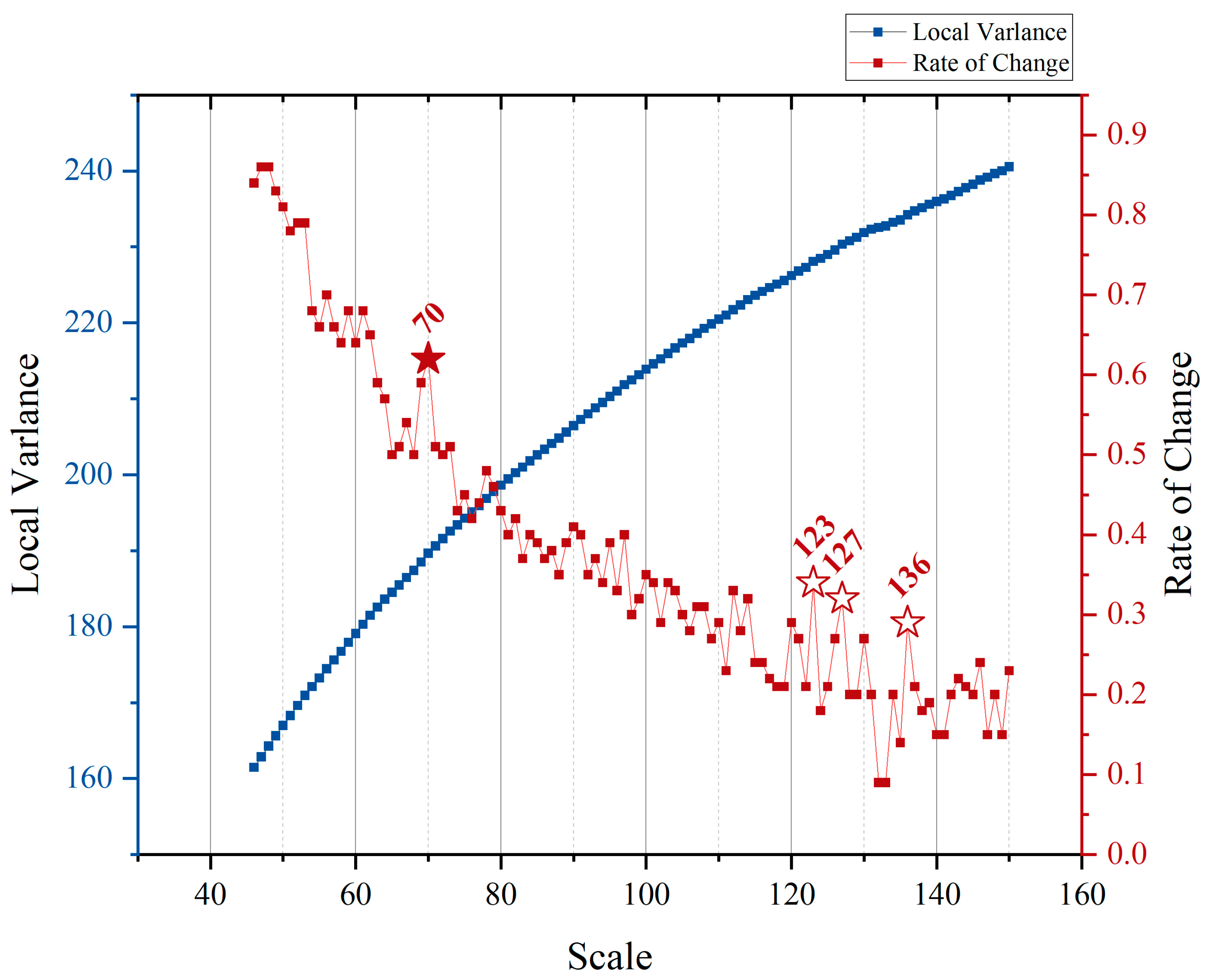

4.1. Optimal Scale Optimization Results

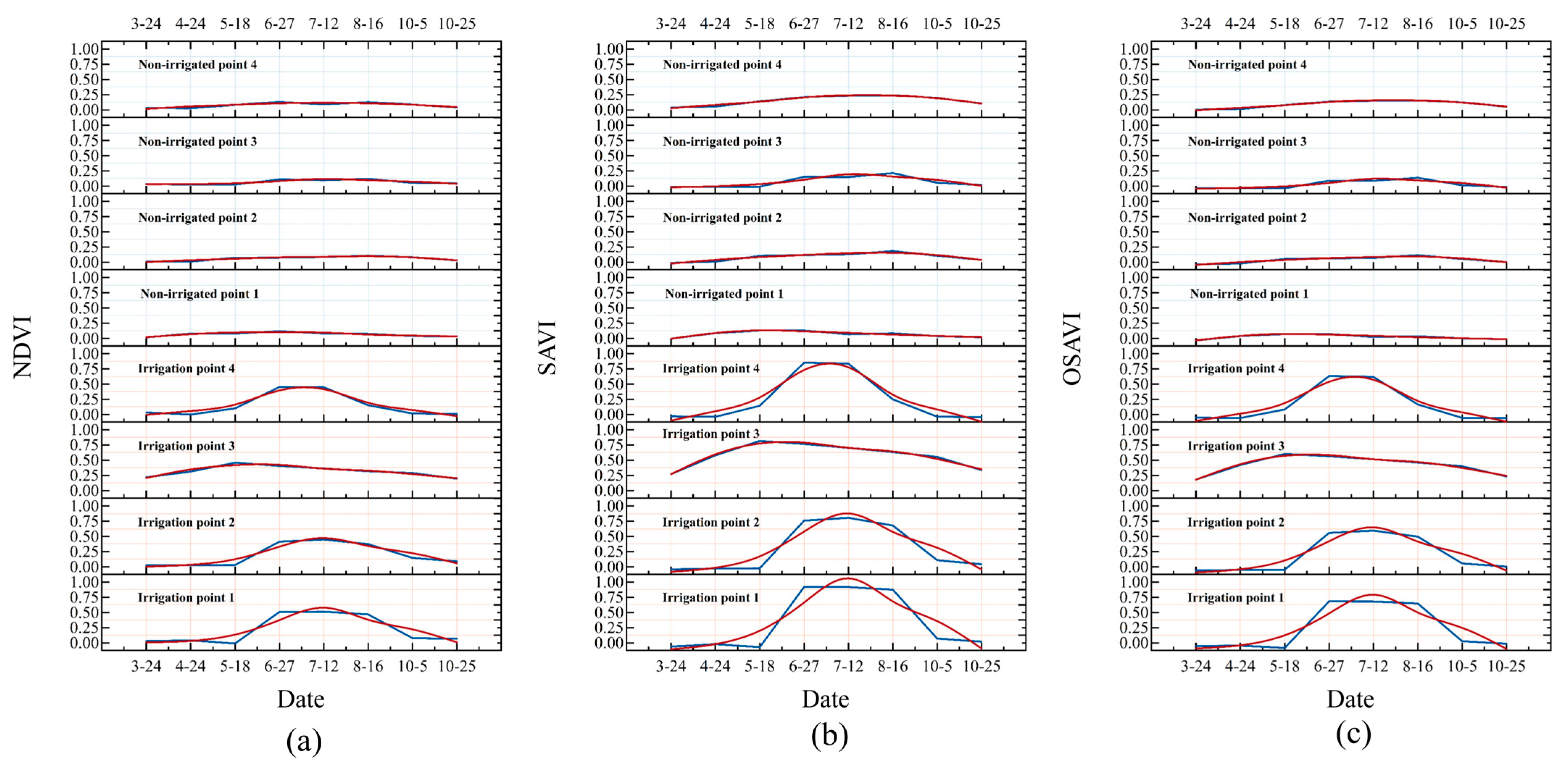

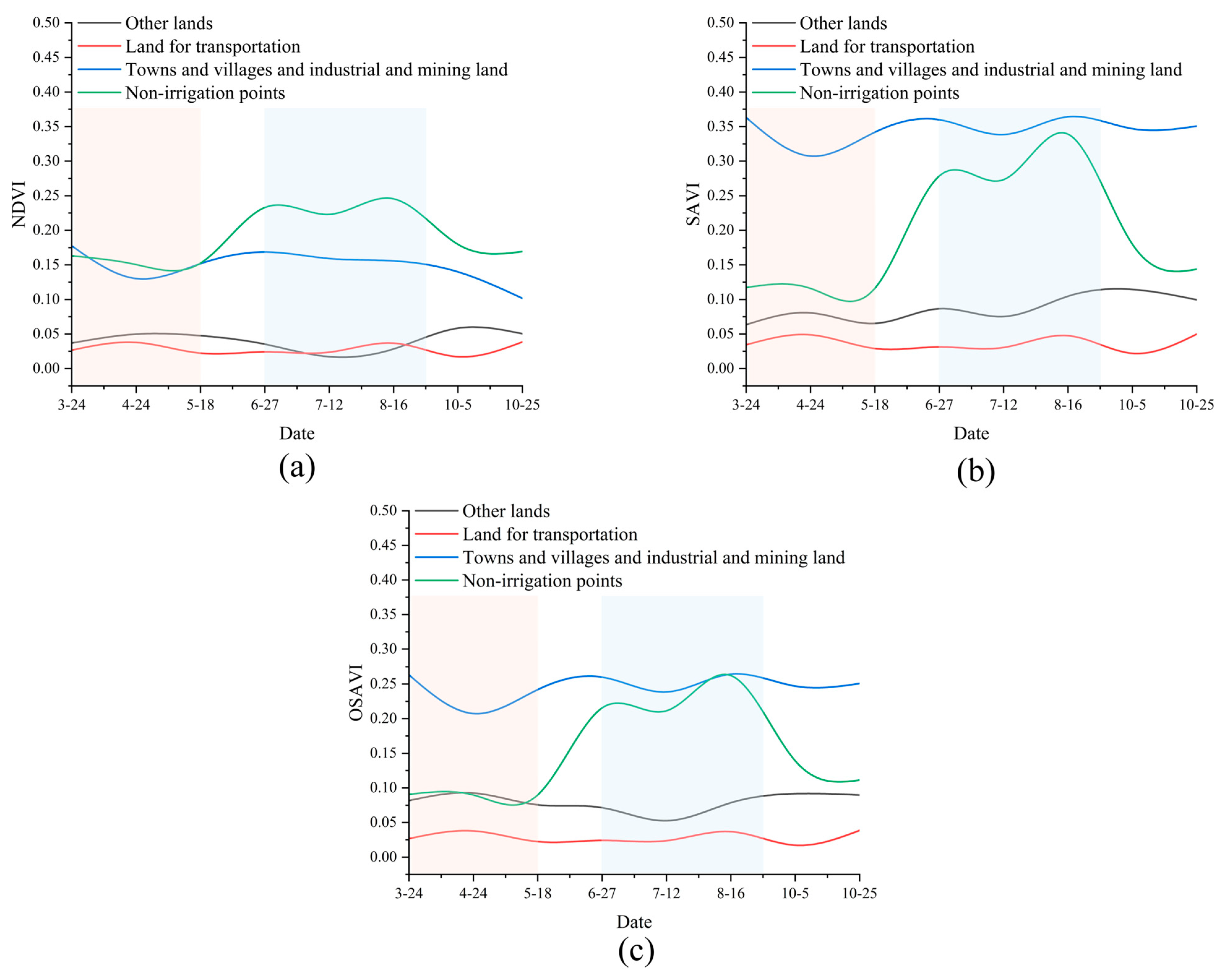

4.2. Analysis of Temporal Characteristics of Vegetation Indices

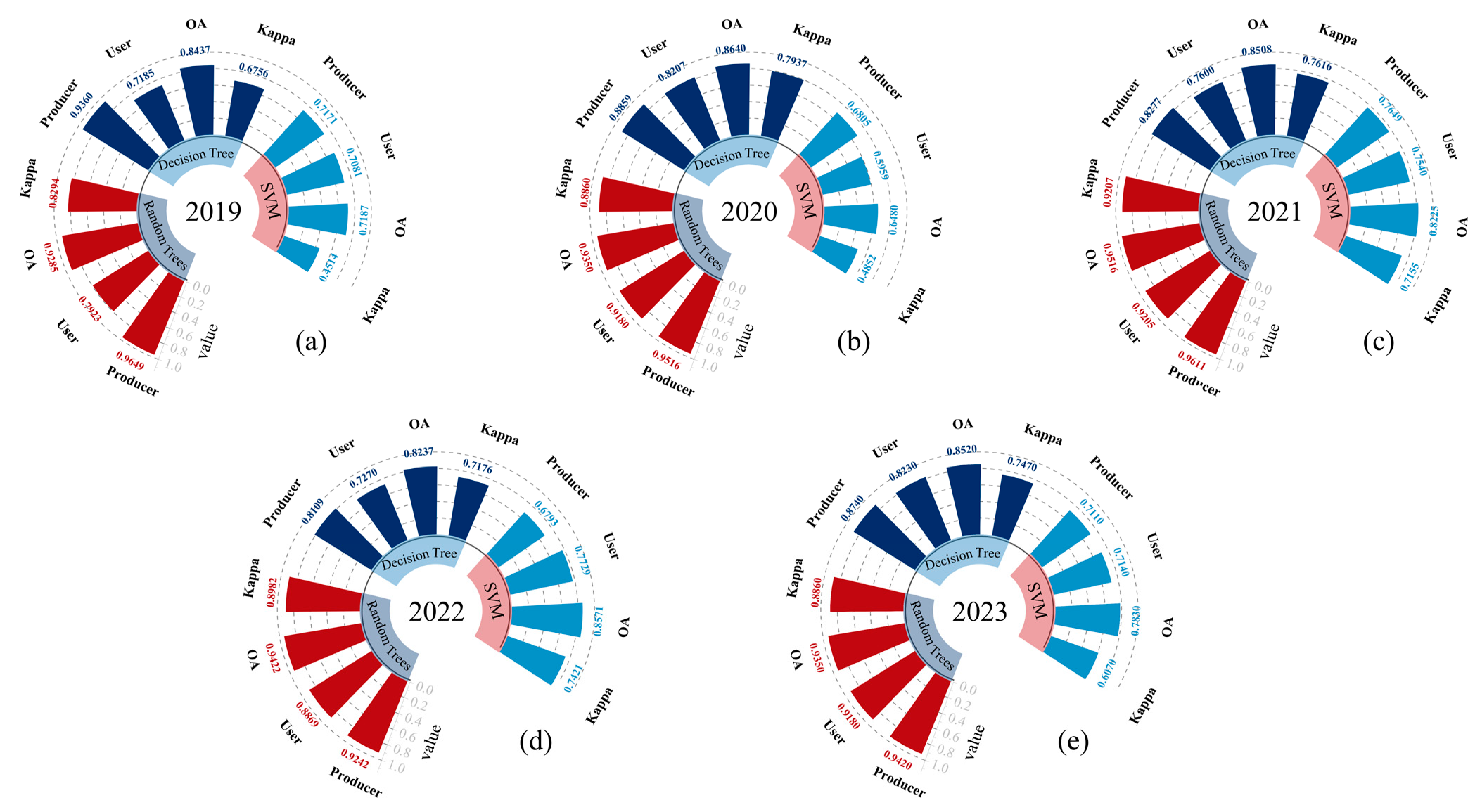

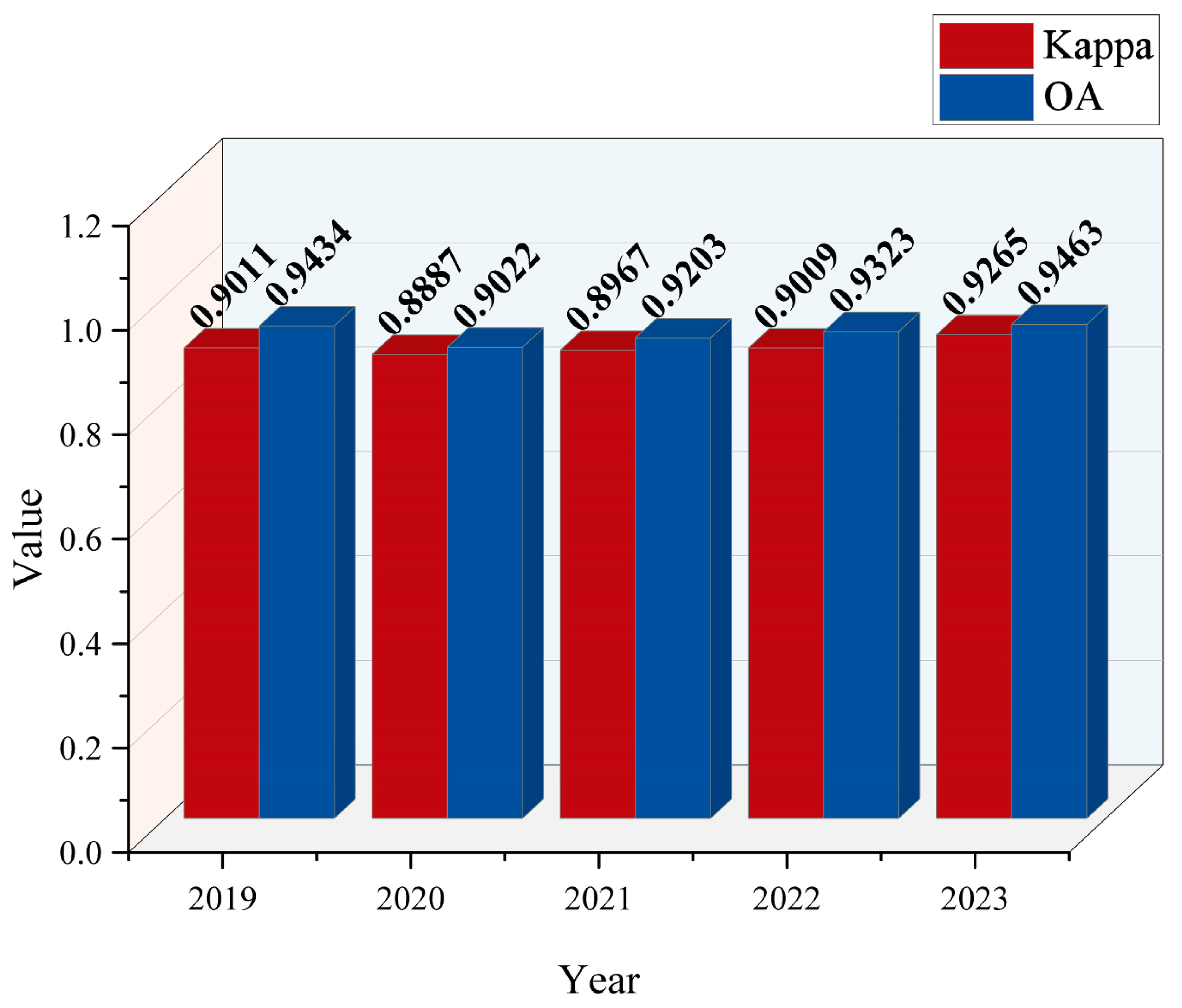

4.3. Accuracy Analysis of Land Use Classification and Optimization of the Classification Algorithm in the Study Area
4.4. Identification of Irrigation Areas and Area Changes in the Study Area
5. Discussion
5.1. Comparison and Analysis of Classification Algorithms
5.2. Analysis of the Effect of Vegetation Index on Extraction of Irrigated Area
5.3. Analysis of the Causes of Changes in Irrigation Area in the Study Area from 2019 to 2023
5.4. Uncertainty Analysis and Prospects
6. Conclusions
- (1)
- The SAVI has more advantages than the OSAVI and NDVI in the identification of agricultural wasteland and abandoned land in arid areas. Therefore, it is best to use the SAVI for the identification of irrigated areas in arid regions.
- (2)
- Compared with the CART decision tree and SVM, RF performed well in classification accuracy, processing speed, user-friendliness, and the prevention of overfitting. In this study, using RF, the overall accuracy of land use classification reached 94.22%, and the kappa coefficient reached 0.92. The overall accuracy of irrigation area identification reached 94.63%, and the kappa coefficient reached 0.92.
- (3)
- From 2019 to 2023, the total irrigated area increased by 4341 hm2, and the forest land increased by 2906 hm2. In 2022, the maximum irrigated area reached 50,686 hm2, and the forest land area reached 9306 hm2.
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Chen, F.; Zhao, H.; Roberts, D.; Van de Voorde, T.; Batelaan, O.; Fan, T.; Xu, W. Mapping center pivot irrigation systems in global arid regions using instance segmentation and analyzing their spatial relationship with freshwater resources. Remote Sens. Environ. 2023, 297, 113760. [Google Scholar] [CrossRef]
- Kang, S. National water conservation initiative for promoting water-adapted and green agriculture and highly-efficient. China Water Resour. 2019, 13, 1–6. [Google Scholar] [CrossRef]
- Deng, M.; Tao, W.; Wang, Q.; Su, L.; Ma, C.; Ning, S. Theory and Technical Guarantee System Construction of Modern Ecological Irrigation District in Northwest China. Trans. Chin. Soc. Agric. Mach. 2022, 53, 1–13. [Google Scholar] [CrossRef]
- Li, F.; Fan, J.; Guan, X.; Liu, H.; Ying, F. Status and countermeasures of agricultural water saving development in irrigation areas of Xinjiang. J. Huazhong Agric. Univ. 2024, 43, 93–98. [Google Scholar] [CrossRef]
- Zhang, W.; Shao, J. Development and Prospect of Remote Sensing Monitoring Technology for Agricultural Irrigation. Water Sav. Irrig. 2019, 4, 102–108. [Google Scholar]
- Arancibia, P.L.J.; Ticehurst, C.J.; Yu, Y.; McVicar, R.T.; Marvanek, S.P. Feasibility of monitoring floodplain on-farm water storages by integrating airborne and satellite LiDAR altimetry with optical remote sensing. Remote Sens. Environ. 2024, 302, 113992. [Google Scholar] [CrossRef]
- Xie, Y.; Lark, J.T.; Brown, F.J.; Gibbs, H.K. Mapping irrigated cropland extent across the conterminous United States at 30m resolution using a semi-automatic training approach on Google Earth Engine. ISPRS J. Photogramm. Remote Sens. 2019, 155, 136–149. [Google Scholar] [CrossRef]
- Ozdogan, M.; Yang, Y.; Allez, G.; Cervantes, C. Remote Sensing of Irrigated Agriculture: Opportunities and Challenges. Remote Sens. 2010, 2, 2274–2304. [Google Scholar] [CrossRef]
- ThenKabail, P.S.; Biradar, C.M.; Noojipady, P.; Dheeravath, V.; Li, Y.; Velpuri, M. Global irrigated area map(GIAM), derived from remote sensing, for the end of the last millennium. Int. J. Remote Sens. 2009, 30, 3679–3733. [Google Scholar] [CrossRef]
- Ambika, A.k.; Wardlow, B.; Mishra, V. Remotely sensed high resolution irrigated area mapping in India for 2000 to 2015. Sci. Data 2016, 3, 160118. [Google Scholar] [CrossRef]
- Pervez, S.M.; Brown, F.J. Mapping Irrigated Lands at 250-m Scale by Merging MODIS Data and National Agricultural Statistics. Remote Sens. 2010, 2, 2388–2412. [Google Scholar] [CrossRef]
- Liu, Y.; Wu, W.; Li, Z.; Zhou, Q. Extracting irrigated cropland spatial distribution in China based on time-series NDVI. Trans. Chin. Soc. Agric. Eng. 2017, 33, 276–284. [Google Scholar] [CrossRef]
- Wang, L.; Cai, M.; Bai, X.; Ji, S.; Jia, B.; Feng, X.; Chang, X. Estimation of Irrigation Area in Hetao Irrigation District Based on MODIS Analysis. J. Inn. Mong. Norm. Univ. (Nat. Sci. Ed.) 2015, 50, 44–52. [Google Scholar] [CrossRef]
- Ketchum, D.; Jencso, K.; Maneta, P.M.; Melton, F.; Jones, O.M.; Huntington, J. IrrMapper: A Machine Learning Approach for High Resolution Mapping of Irrigated Agriculture Across the Western U. S. Remote Sens. 2020, 12, 2328. [Google Scholar] [CrossRef]
- Simões, C.J.S.; Júnior, P.S.N. Spatial evolution of irrigated areas using remote sensing–the Medium Paraíba do Sul Valley, Southeast of Brazil. Rev. Ambiente Água 2007, 1, 72–83. [Google Scholar] [CrossRef]
- Wang, Y.; Zhou, Y.; Wang, S. Parcel-scale Irrigated Farmland Mapping using Time-series Sentinel-2 Images. Water Sav. Irrig. 2023, 11, 91–98. [Google Scholar] [CrossRef]
- Deines, M.J.; Kendall, D.A.; Hyndman, W.D. Annual Irrigation Dynamics in the U.S. Northern High Plains Derived from Landsat Satellite Data. Geophys. Res. Lett. 2017, 44, 9113–9520. [Google Scholar] [CrossRef]
- Xu, C.; Lyu, J.; Liu, Y.; Jiang, Y. Remote sensing monitoring method of cultivated land irrigation area in Baojixia Irrigation District based on GEE. J. Drain. Irrig. Mach. Eng. (JDIME) 2022, 40, 1167–1172. [Google Scholar] [CrossRef]
- Liang, B.; Liu, X.; Hao, Y.; Chu, B.; Tang, Z. Extraction of desert vegetation information based on five vegetation indices. Arid Zone Res. 2023, 40, 647–654. [Google Scholar] [CrossRef]
- Xiang, X.; Du, J.; Jacinthe, P.A.; Zhao, B.; Zhou, H.; Liu, H.; Song, K. Integration of tillage indices and textural features of Sentinel-2A multispectral images for maize residue cover estimation. Soil Tillage Res. 2022, 221, 105405. [Google Scholar] [CrossRef]
- Liu, S.; Zhu, H. Object-oriented land use classification based on ultra-high resolution images taken by unmanned aerial vehicle. Trans. Chin. Soc. Agric. Eng. 2020, 36, 87–94. [Google Scholar] [CrossRef]
- Zhao, Y.; Tian, Z.; Li, W.; Xue, Z.; Zhu, J. Study on the refined classification method of mangrove tree species based on Sentinel-2MSI images combined with object-oriented. Mar. Sci. Bull. 2023, 25, 43–62. [Google Scholar] [CrossRef]
- Drăguţ, L.; Eisank, C. Automated object-based classification of topography from SRTM data. Geomorphology 2012, 141–142, 21–33. [CrossRef]
- Wang, Y.; Jin, S.; Dardanelli, G. Vegetation Classification and Evaluation of Yancheng Coastal Wetlands Based on Random Forest Algorithm from Sentinel-2 Images. Remote Sens. 2024, 16, 1124. [Google Scholar] [CrossRef]
- Mateen, S.; Nuthammachot, N.; Techato, K. Random forest and artificial neural network-based tsunami forests classi-fication using data fusion of Sentinel-2and Airbus Vision-1 satellites: A case study of Garhi Chandan, Pakistan. Open Geosci. 2024, 16, 20220595. [Google Scholar] [CrossRef]
- Wei, P.; Ye, H.; Qiao, S.; Liu, R.; Nie, C.; Zhang, B.; Song, L.; Huang, S. Early Crop Mapping Based on Sentinel-2 Time-Series Data and the Random Forest Algorithm. Remote Sens. 2023, 15, 3212. [Google Scholar] [CrossRef]
- Xia, T.; Ji, W.; Li, W.; Zhang, C.; Wu, W. Phenology-based decision tree classification of rice-crayfish fields from sentinel-2 imagery in qianjiang, china. Int. J. Remote Sens. 2021, 42, 8124–8144. [Google Scholar] [CrossRef]
- Tariq, A.; Yan, J.; Gagnon, A.; Khan, M.R.; Mumtaz, F. Mapping of cropland, cropping patterns and crop types by combining optical remote sensing images with decision tree classifier and random forest. Geo-Spat. Inf. Sci. 2023, 26, 302–320. [Google Scholar] [CrossRef]
- Mabula, M.J.; Kisanga, D.; Pamba, S. Application of machine learning algorithms and Sentinel-2 satellite for improved bathymetry retrieval in Lake Victoria, Tanzania. Egypt. J. Remote Sens. Space Sci. 2023, 26, 619–627. [Google Scholar] [CrossRef]
- Du, B.; Zhang, J.; Wang, Z.; Mao, D.; Zhang, M.; Wu, B. Crop Mapping based on Sentinel-2A NDVI Time Series Using Object-Oriented Classification and Decision Tree Model. J. Geo-Inf. Sci. 2019, 21, 740–751. [Google Scholar] [CrossRef]
- Zhang, S.; Yang, L.; Ye, D.; Zhang, F.; Bai, Y.; Li, H.; Chen, J.; Fang, K. Extraction and dynamics of planting structure in Hetao Irrigation District of Inner Mongolia from 2000 to 2021 using deep learning. Trans. Chin. Soc. Agric. Eng. (Trans. CSAE) 2023, 39, 142–150. [Google Scholar] [CrossRef]
- Wu, X.; Hua, S.; Zhang, S.; Gu, L.; Ma, C.; Li, C. Extraction of Winter Wheat Distribution Information Based on Multi-phenological Feature Indices Derived from Sentinel-2 Data. Trans. Chin. Soc. Agric. Mach. 2023, 54, 207–216. [Google Scholar]
- Zhu, X.; Ning, X.; Wang, H.; Zhang, H. Land use classification for optimization segmentation based on high-precision land cover data. Sci. Surv. Mapp. 2021, 46, 140–149. [Google Scholar] [CrossRef]
- Fan, L.; Wang, Y.; Zhu, H.; Zhang, J. Remote Sensing for the Planting Area of Major Grain Crops in Complex Terrain Regions by Integrating Multiple Spectral Indices with Topographic Features. Chin. J. Agrometeorol. 2023, 44, 845–856. [Google Scholar] [CrossRef]
- Wang, H.; Zhang, Z.; Kang, X.; Lin, J.; Yin, C.; Ma, L.; Huang, C.; Lyu, X. Cotton planting area extraction and yield prediction based on Sentinel-2A. Trans. Chin. Soc. Agric. Eng. 2022, 38, 205–214. [Google Scholar] [CrossRef]
- Wang, D.; Jiang, Q.; Li, Y.; Guan, H.; Zhao, P.; Xi, J. Land use classification of farming areas based on time series Sen-tinel-2A/B data and random forest algorithm. Remote Sens. Land Resour. 2020, 32, 236–243. [Google Scholar] [CrossRef]
- Bai, X. Research of Remote Sensing Image Classification Based on Decision Tree Method. Master’s Thesis, Inner Mongolia Normal University, Hohhot, China, 2013. [Google Scholar] [CrossRef]
- Balata, D.; Gama, I.; Domingos, T.; Proença, V. Using Satellite NDVI Time-Series to Monitor Grazing Effects on Vegetation Productivity and Phenology in Heterogeneous Mediterranean Forests. Remote Sens. 2022, 14, 2322. [Google Scholar] [CrossRef]
- Ren, H.; Zhou, G.; Zhang, F. Using negative soil adjustment factor in soil-adjusted vegetation index(SAVI) for aboveground living biomass estimation in arid grasslands. Remote Sens. Environ. 2018, 209, 439–445. [Google Scholar] [CrossRef]
- Fern, R.R.; Foxley, E.A.; Bruno, A.; Morrison, M.L. Suitability of ndvi and osavi as estimators of green biomass and coverage in a semi-arid rangeland. Ecol. Indic. 2018, 94, 16–21. [Google Scholar] [CrossRef]
- Wang, N.; Zhou, M.; Wei, X.; Guo, Y. Extraction of vegetation cover and optimization of vegetation indices in a deser thinterland oasis. Bull. Soil Water Conserv. 2022, 42, 197–205+213. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, L.; Zhang, X.; Li, J.; Yuan, X. Inversion of Aboveground Biomass of Desert Shrub Vegetation in Junggar Basin. J. Xinjiang Agric. Univ. 2019, 42, 202–209. [Google Scholar]
- Cao, W. Measures for Forestry Protection and Development in Xinjiang Area. Agric. Sci. Technol. Equip. 2020, 2020, 22–23. [Google Scholar] [CrossRef]
- Zhang, Y.; Bian, X.; Zhang, H.; Li, N.; Gao, Q.; Zhang, B. Research on the Application Prospect of Digital Twin in Large Irrigation Area. J. Irrig. Drain. 2022, 41 (Suppl. S2), 71–76. [Google Scholar] [CrossRef]
- Xiang, J.; Xing, Y.; Wei, W.; Jiang, J.; Mo, D. Dynamic Detection of Forest Change in Hunan Province Based on Senti-nel-2Images and Deep Learning. Remote Sens. 2023, 15, 628. [Google Scholar] [CrossRef]
- Li, G.; Cui, J.; Han, W.; Zhang, H.; Huang, S.; Chen, H. Crop type mapping using time-series sentinel-2 imagery and u-net in early growth periods in the hetao irrigation district in china. Comput. Electron. Agric. 2022, 203, 107478. [Google Scholar] [CrossRef]
- Da Costa, L.B.; De Carvalho, O.L.F.; De Albuquerque, A.O.; Gomes, R.A.T.; Guimaraes, R.F.; Abilio, D.C.J.O. Deep semantic segmentation for detecting eucalyptus planted forests in the brazilian territory using sentinel-2 imagery. Geocarto Int. 2022, 37, 6538–6550. [Google Scholar] [CrossRef]
- do Nascimento Bendini, H.; Fieuzal, R.; Carrere, P.; Clenet, H.; Galvani, A.; Allies, A.; Ceschia, É. Estimating Winter Cover Crop Biomass in France Using Optical Sentinel-2 Dense Image Time Series and Machine Learning. Remote Sens. 2024, 16, 834. [Google Scholar] [CrossRef]
- Liu, P.; Ren, C.; Wang, Z.; Jia, M.; Yu, W.; Ren, H.; Xia, C. Evaluating the Potential of Sentinel-2 Time Series Imagery and Machine Learning for Tree Species Classification in a Mountainous Forest. Remote Sens. 2024, 16, 293. [Google Scholar] [CrossRef]
Serial Number | Original Date | Serial Number | Original Date | Serial Number | Original Date |
---|---|---|---|---|---|
1 | 19 April 2019 | 16 | 16 August 2020 | 31 | 5 October 2021 |
2 | 28 June 2019 | 17 | 31 August 2020 | 32 | 10 October 2021 |
3 | 28 July 2019 | 18 | 30 September 2020 | 33 | 18 April 2022 |
4 | 27 August 2019 | 19 | 5 October 2020 | 34 | 18 May 2022 |
5 | 21 September 2019 | 20 | 15 October 2020 | 35 | 22 July 2022 |
6 | 6 October 2019 | 21 | 30 October 2020 | 36 | 5 September 2022 |
7 | 16 October 2019 | 22 | 13 April 2021 | 37 | 15 November 2022 |
8 | 31 October 2019 | 23 | 23 May 2021 | 38 | 24 March 2023 |
9 | 8 April 2020 | 24 | 2 July 2021 | 39 | 28 April 2023 |
10 | 28 April 2020 | 25 | 1 August 2021 | 40 | 18 May 2023 |
11 | 8 May 2020 | 26 | 11 August 2021 | 41 | 27 June 2023 |
12 | 28 May 2020 | 27 | 31 August 2021 | 42 | 12 July 2023 |
13 | 2 June 2020 | 28 | 5 September 2021 | 43 | 16 August 2023 |
14 | 22 June 2020 | 29 | 15 September 2021 | 44 | 5 October 2023 |
15 | 17 July 2020 | 30 | 25 September 2021 | 45 | 25 October 2023 |
Typical Sample Point Name | Coordinates |
---|---|
Irrigation point 1 | 43°55′48″ N, 87°1′24″ E |
Irrigation point 2 | 43°59′37″ N, 87°7′1″ E |
Irrigation point 3 | 44°6′39″ N, 87°19′34″ E |
Irrigation point 4 | 44°10′17″ N, 87°14′50″ E |
Non-irrigation point 1 | 44°8′12″ N, 87°3′34″ E |
Non-irrigation point 2 | 44°0′30″ N, 87°11′18″ E |
Non-irrigation point 3 | 44°13′30″ N, 87°11′7″ E |
Non-irrigation point 4 | 44°0′41″ N, 87°13′8″ E |
Types | Description | Sentinal-2A Image | Amap | Google Earth |
---|---|---|---|---|
01 Land under cultivation | The overall hue and color in the remote sensing images of cultivated land usually appears in rich green, brown, and yellow tones based on different plant phenological stages; the texture and structure in images of cultivated land usually exhibit clear continuous block patterns. | |||
03 Woodlands | The overall tone and color in remote sensing images of forest land usually appears in dark green and light green tones; the texture and structure in images of cultivated land usually exhibit a clear stripped pattern. | |||
11 Land for water and water conservation facilities | Lakes and rivers usually exhibit naturally curved or locally straight shapes; reservoirs usually exhibit a more regular geometry, and dams exhibit elongated shapes that are perpendicular to the flow of a stream or river. | |||
12 Land for transportation | In remote sensing images, transportation corridors often show an obvious linear or network structure. Railways and roads appear as continuous lines with a relatively fixed width in the image. | |||
20 Towns and villages and industrial and mining land | The hue of urban land is usually relatively uniform, the scale of rural residential land is usually small, and the distribution is relatively scattered; remote sensing images of industrial and mining land usually show regular shapes and structures, such as rectangles and circles. | |||
23 Other land | Other land types typically have a relatively uniform hue, with good uniformity of spectral reflectance, and show distinct shapes and individual structures in texture and structure. |
Feature Name | Characteristic Variable | Description/Calculation Formula |
---|---|---|
Spectral Band | B1, B2, B3, B4, B5, B6, B7, B8, B8A, B9, B10, B11, B12 | Full Sentinel-2 raw band |
Shape Feature | Length/width | Pixel aspect ratio. |
Compactness | Describes the compactness of an image object. | |
Density | Describes the distribution of image objects in the pixel space. | |
Roundness | Describes how similar an image object is to an ellipse. | |
Rectangular Fit | Describes how well an image object matches rectangles of similar size and scale. | |
Texture | Homogeneity | Reflects the consistency or smooth texture in the image. A higher homogeneity index means that the texture of an image is more evenly distributed in space and the details change less. |
Dissimilarity | Used to measure the dissimilarity of textures in an image. Reflects the contrast or grayscale difference between pairs of pixels in an image. | |
Entropy | Reflects the organization structure and arrangement properties of the object surface, which is used to measure the uncertainty or confusion of the pixel gray level in an image. | |
Correlation | A statistic describing the degree of correlation of gray levels between pixels, measuring the linear correlation between the gray levels of pixels in an image, that is, the change trend of gray levels. | |
Vegetation Index | SAVI | Soil-Adjusted Vegetation Index [(B8 − B4) × (1 + L)/(B8 + B4 + L)] |
OSAVI | Optimized Soil-Adjusted Vegetation Index [(B8 − B4) × 1.16/(B8 + B4 + 0.16)] | |
NDVI | Normalized Difference Vegetation Index [(B8 − B3)/(B8 + B3)] | |
NDBI | Normalized Difference Built-Up Index [(B11 − B8)/(B11 + B8)] | |
MNDWI | Modified Normalized Difference Water Index [(B3 − B11)/(B3 + B11)] | |
Red edge index | NDVIre1 | Normalized Vegetation Red Edge1 [(B8A − B5)/(B8A + B5)] |
NDVIre2 | Normalized Vegetation Red Edge2 [(B8A − B6)/(B8A + B6)] | |
NDVIre3 | Normalized Vegetation Red Edge3 [(B8A − B7)(B8A + B7)] |

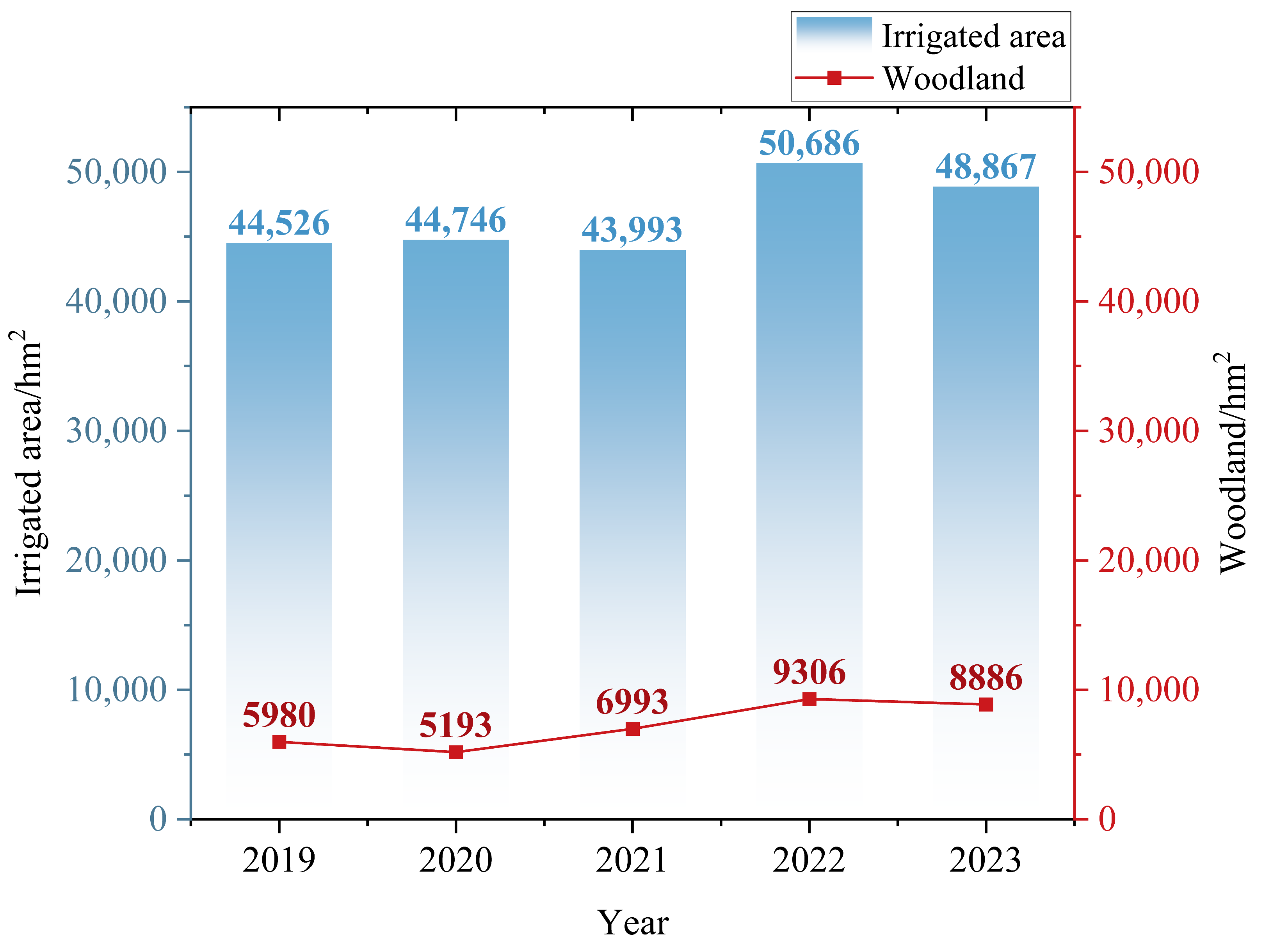

Year | Calculated Irrigated Area (hm2) | Statistics (hm2) | Difference (hm2) | Value of Error (%) |
---|---|---|---|---|
2023 | 47,900 | 48,867 | 967 | 1.97% |
2022 | 48,908 | 50,686 | 1778 | 3.5% |
2021 | 43,411 | 43,993 | 582 | 1.32% |
2020 | 42,915 | 44,746 | 1831 | 4.09% |
2019 | 44,417 | 44,526 | 109 | 0.24% |
