A Review of Perception Technologies for Berry Fruit-Picking Robots: Advantages, Disadvantages, Challenges, and Prospects
Abstract
:1. Introduction
2. Mechanism of Berry Fruit-Picking Robots

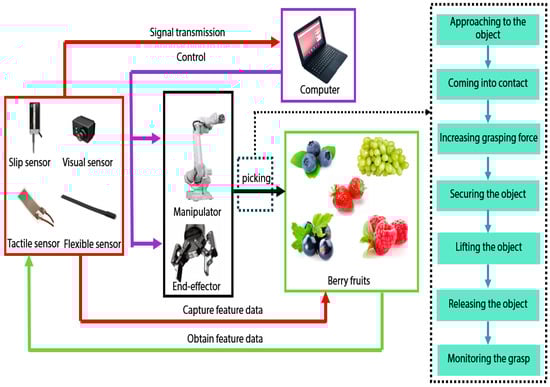

2.1. Principle
- Approaching the object: The end-effector is open, and the robot system positions the end-effector close to the object.
- Coming into contact: The end-effector is in contact with the gripping object.
- Increasing gripping force: The end-effector outputs a certain amount of gripping force to ensure the object is gripped.
- Securing the object: When the gripping force meets the object, the gripping force should be adjusted to stop increasing once it securely grips the object.
- Lifting the object: The end-effector grips the object, moving it to the desired position, combined with the robot system moving the object to the desired position.
- Release the object: The end-effector releases its grip, separating from the gripped object.
- Monitoring the grasp: the gripping process is monitored by sensors to judge the end-effector’s contact with the gripped object and the effectiveness of the grip.
2.2. Picking and Gripping
2.3. Structures

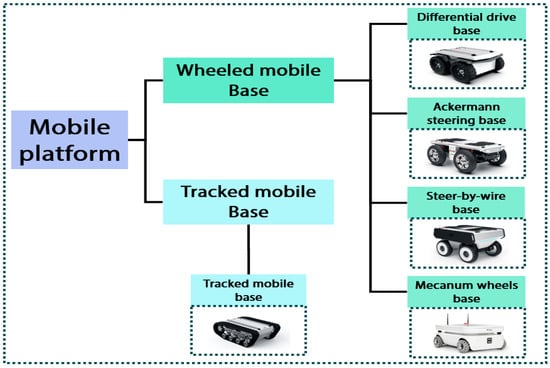

2.3.1. Mobile Platform

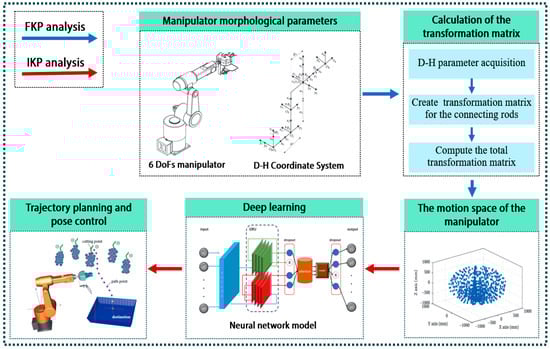

2.3.2. Manipulator

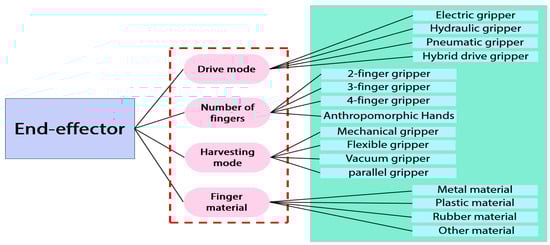

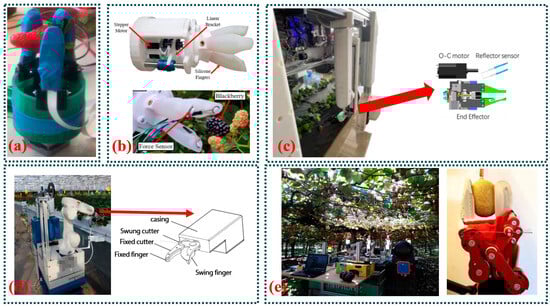

2.3.3. End-Effector
3. An Overview of Perception Technologies for Berry Fruit-Picking Robots
- Visual Perception
- Tactile Perception
- Distance Measurement
- Switching Sensors
4. Methods and Analysis

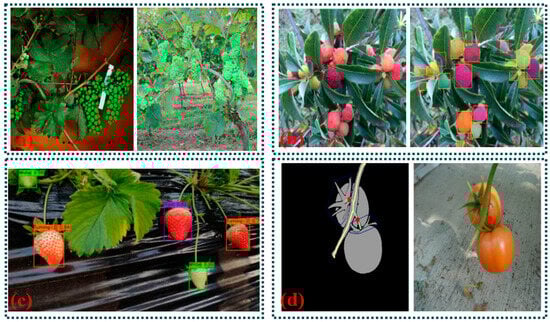

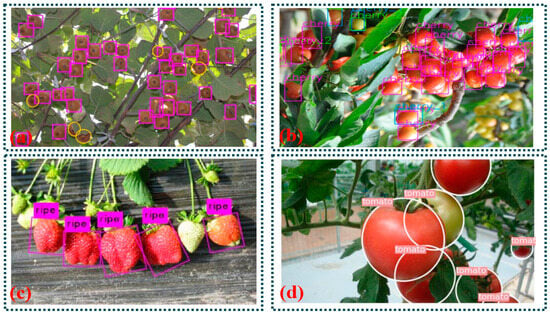

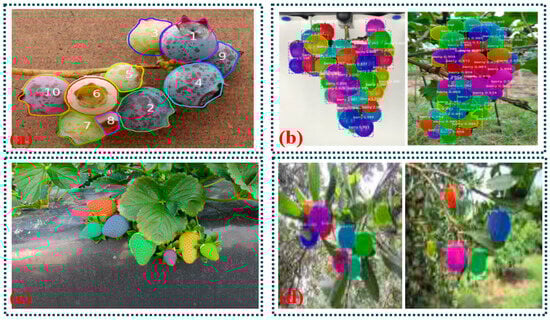

4.1. Visual Perception
4.1.1. Methods
4.1.2. Analysis

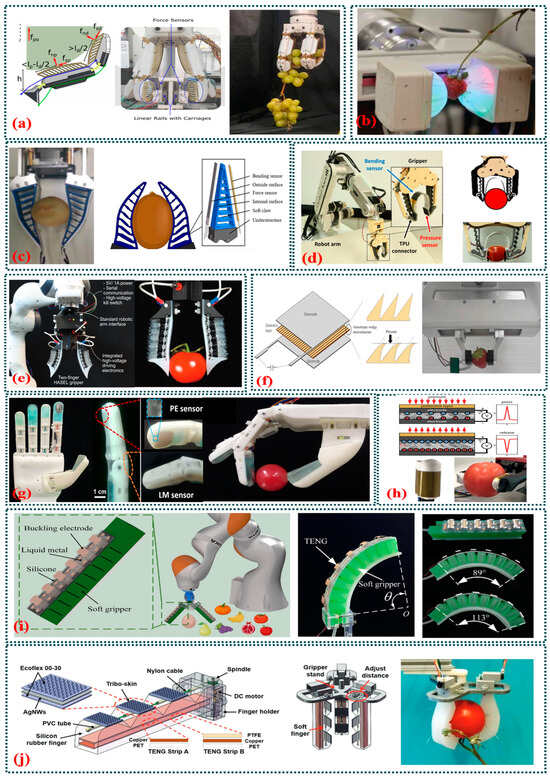

4.2. Tactile Perception
4.2.1. Methods
4.2.2. Analysis
4.3. Distance Measurement
4.3.1. Methods
4.3.2. Analysis
4.4. Switching Sensors
4.4.1. Methods
4.4.2. Analysis
5. Discussion and Prospect

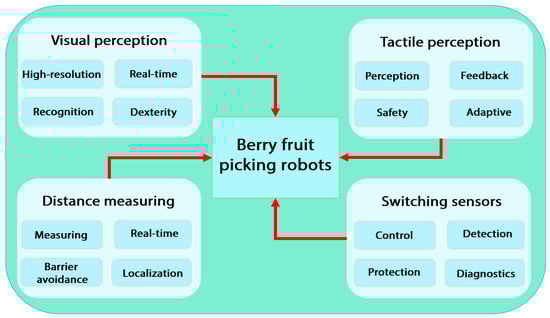

5.1. The Technical Characteristics of the Perception Technology
- Visual perception: the visual sensors exhibit high resolution and can accurately identify the fruit’s location, size, and ripeness. They facilitate real-time monitoring of fruit location and status, enabling the robot to adjust its actions accordingly. Additionally, visual perception can automatically distinguish between different types of fruits, ensuring the accuracy of the robot’s picking operations. Moreover, one of the primary challenges in practical visual perception is the accuracy of perception in different scenes and conditions [180]. It is, therefore, necessary to adapt visual perception to different light and background conditions in different environments to improve the reliability and accuracy of fruit-picking tasks.
- Tactile perception: The fruit’s shape, hardness, and surface properties enable the robot to grasp precisely. The tactile sensor delivers real-time data feedback, assisting the robot in adjusting its picking actions to enhance efficiency and quality. Additionally, the tactile sensor detects the pressure exerted by the robot upon contact with the fruit, preventing excessive force that could potentially damage it. Furthermore, the tactile sensor adapts to the varying characteristics of different fruit types and sizes, ensuring precise and reliable harvesting.
- Distance measurement: the distance measurement sensor accurately gauges the distance between the robot and the object fruit, ensuring the fruit can be grasped without damage. Additionally, the sensor monitors real-time changes in distance, enabling prompt adjustments to the robot’s movements for a stable picking process. The sensor also detects distances to obstacles, allowing the robot to avoid collisions and ensuring the safety of the robot and its environment. Furthermore, it aids the robot in accurately locating fruit, thereby enhancing the efficiency and precision of the picking process.
- Switching sensors: Firstly, they enable control of the robot’s actions based on detected state information, such as initiating or halting the movement of the manipulator and directing the robot’s movement. Secondly, they provide precise control over the robot’s motions. The switch sensors monitor the status of various robot components, including the opening and closing of the robotic manipulator and overall movement. They can also detect contact between the robot and obstacles, immediately stopping movement upon collision to prevent damage to both the robot and its surroundings. Furthermore, the switch sensors assess the operational status of various components, facilitating timely fault detection, diagnosis, and repair.
5.2. The Advanced Technical of Berry Fruit Picking
5.3. Challenges and Future Opportunities
- Accuracy: The accuracy of a robot in berry fruit picking hinges on its ability to precisely identify and locate fruits, assess their ripeness, and execute picking actions with minimal damage or errors. Reliable perception technology is essential for correctly identifying different types of fruits. However, current technology often fails to achieve this desired level of accuracy. Challenges such as visual perception errors caused by lighting conditions, occlusion, wind effects, and background interference contribute to omissions and misdetections in optical perception systems. As a result, ensuring consistent accuracy in the berry fruit-picking process remains uncertain.
- Adaptability: Adaptability in robotics refers to the ability of a robot to adjust its operations and techniques in response to varying conditions and situations. This includes accommodating different types of berries, adapting to changes in weather conditions, navigating different soil types, and handling various crop layouts. The goal is to optimize efficiency and effectiveness in harvesting. During berry picking, environmental factors like light, humidity, and temperature can affect sensor performance, impacting perception capabilities. It is essential for perception technology to be adaptable in natural environments, enabling robots to perform tasks such as obstacle avoidance, object recognition, and precise object separation. These tasks can be challenging due to the unpredictable characteristics of natural environments.
- Durability: Durability in robotics refers to a robot’s ability to withstand wear, corrosion, and physical damage in its operational environment. This includes resisting high temperatures, humidity, dust, and the vibrations and shocks encountered during berry picking. Ensuring sensors remain stable and functional over extended periods is crucial for reliable performance in challenging conditions.
- Data processing: Data processing in robotics involves the collection, analysis, and utilization of sensor data. Sensors gather extensive information during operations, such as the location, ripeness, and size of berries. Real-time processing is essential to adjust the robot’s movements promptly. The application of numerical techniques for the acquisition of sensory data may be susceptible to the influence of internal bias [184]. Additionally, data may contain noise or errors, requiring cleaning and correction. Integration of data from various sensors is vital for comprehensive analysis. Thus, data processing poses a major challenge in perceptual technology.
- Low cost: Low cost is defined as a cost-effectiveness that reduces research and development expenses, thereby making the technology affordable and accessible for farms of all sizes. The sensor is a crucial component of the perception system. However, high-quality sensors with solid performance are still expensive, and they may become faulty or damaged during use, requiring maintenance or replacement. Therefore, it is necessary to reduce the cost of sensors while ensuring their quality and performance.
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
References
