Research on a Novel Citrus Reticulata ‘Chachi’ Orientation Adjustment Mechanism (COAM) and Machine Vision Guidance Control
Abstract
:1. Introduction
2. The Working Principle and Structure Design of the COAM
2.1. Mechanical Structure Design
2.2. Electronic Control System Design
2.3. Principle of Mechanical Transmission
2.4. Kinematic Modelling
3. Open-Loop Orientation Adjustment Experiment
3.1. The Experimental Platform Setup and Machine Vision Recognition
3.2. Open-Loop Orientation Adjustment Experiment with Standard Sphere
3.2.1. End-Point Trajectory Validation
3.2.2. Open-Loop Orientation Adjustment Experiment
4. Closed-Loop Experiments with Different Algorithms
4.1. Closed-Loop Experiments Using PID Control
4.1.1. Standard Sphere Experiments (PID)
4.1.2. Citrus Reticulata ‘Chachi’ Experiments (PID)
4.2. Closed-Loop Experiments Using LQR Control

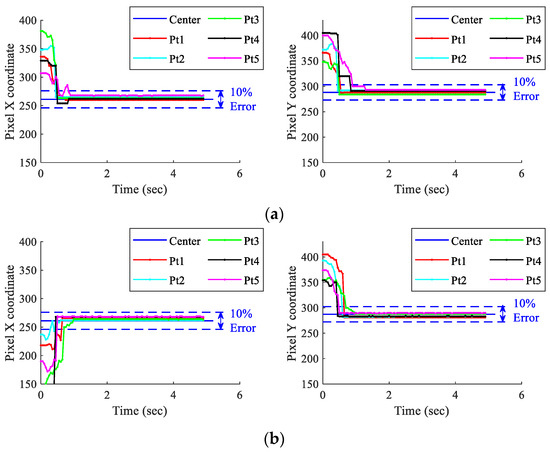

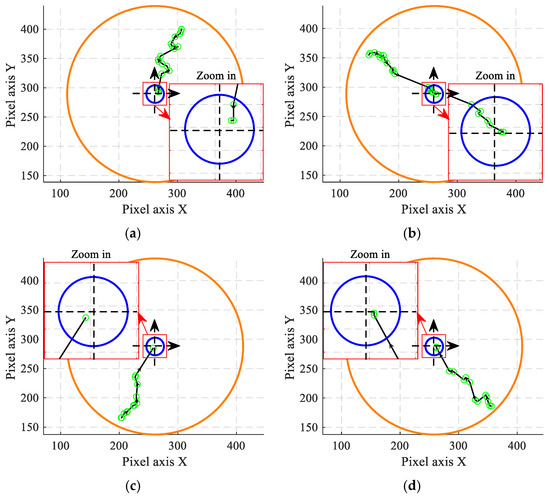

4.2.1. Standard Sphere Experiments (LQR)

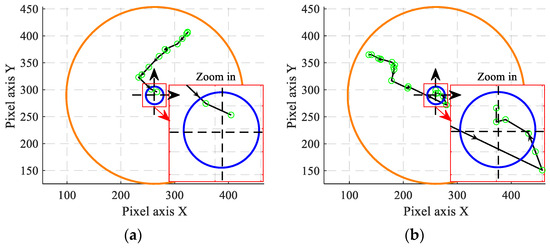

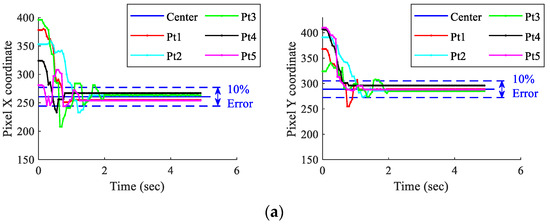

4.2.2. Citrus Reticulata ‘Chachi’ Experiments (LQR)
4.3. Results Comparison of Different Algorithms
5. Conclusions and Outlook
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
References
