1. Introduction
The open channel flow over rippled bottoms has drawn increasing attention to wave hydrodynamics recently [
1,
2,
3] because the possible unstable resonant modes might be triggered in some circumstances of ambient flow and bottom ripples. It will be applied in the research of the estuarial wave field due to the existence of continuous submarine sandbars and ambient tidal/runoff currents.
Firstly, the related studies of the resonant interaction with the existence of ambient flow and rippled bottoms originated from the early study of stationary waves for free-surface flow over rippled bottoms [
4,
5,
6,
7]. This steady-state free-surface wavy profile becomes an important part of introducing the following resonant-related work because the stationary waves are the medium for achieving the resonant interaction and energy transition from ambient flow (with rippled bottoms) to free-surface propagating (resonance-related) wave components.
Then, the theory of resonant wave-wave interaction [
8,
9,
10] was introduced to the problem of steady free-surface flow over rippled bottoms. The leading-order (triad interaction at second order) resonance became a critical issue to discuss the potential unstable resonant wave modes. If the leading-order resonance with unstable resonant modes is triggered, the wave energy transfer induced by resonance will be very intensive and the free surface wave field could be strongly affected in estuarial areas with the existence of continuous submarine sandbars and ambient currents. It was first proposed from the perspective of instability of stationary waves for steady free-surface flow over rippled bottoms [
11]. By linear instability analysis, it reveals that the stationary waves are unstable for any bottom wavenumber if the Froude number
, and for bottom wavenumber
(
as the critical value) if
.
Further, McHugh [
12] investigated the stability of stationary waves for steady free-surface flow along the channel with rippled sidewalls. During the analysis of the condition for unstable wave modes, the classification of this specific triad resonance was given.
Specifically, for the triad resonance involving free-surface waves, ambient current, and rippled bottoms, there are totally six triad resonant combinations that correspond to two free-surface resonant wave components (from four wavenumber solutions in currents [
13]) and one bottom profile steady wave component.
In detail, for the triad resonance induced by free-surface uniform flow (
) over rippled bottoms, two free-surface propagating wave components and one bottom wave component (fixed bottom) are involved. These two free-surface resonant wave components have different wavenumbers (
and
) and the same frequency (
) in general. The bottom resonant wave component is steady with zero frequency and wavenumber
for the bottom profile. Under the assumption of
and
without loss of generality, the triad resonant conditions will be satisfied as below.
The wavenumbers (
and
) and frequency (
) of the free-surface resonant wave components satisfy the dispersion relation with the uniform ambient current.
in which
. From this dispersion relation with the given free-surface wave frequency, there are four wavenumber solutions in total [
13] (
) obtained at most (as referred to in [
2] Figure 2). Then, the subscripts become
and
.
The wavenumber solutions of and always exist with positive values (), which means that the phases of and wave components are traveling along with the flow. However, the wavenumber solutions of and are negative () but do not always exist (only exist if the flow velocity is less than the critical value), which means that the phases of and wave components are traveling against the flow. For the wave energy propagation, the wave energy of , , and propagates downstream, whereas the wave energy of propagates upstream.
If all four resonant wavenumber solutions exist with a given wave frequency and flow velocity , there will be six triad resonant combinations in total: Triad resonant combinations (1): ; (2): ; (3): ; (4): ; (5): ; (6): .
On the basis of above, the temporal instability scenario for stationary waves discussed by Yih [
11] only belongs to one specific triad resonant combination (3) containing two downstream-propagating resonant wave components (
and
).
Moreover, the effects on the instability condition of surface tension were considered [
14]. It concludes that for zero surface tension, the waves from three triad resonant combinations (expressed as p waves, which correspond to triad combinations No. 1–3) are always unstable. Later, the phenomenon of upstream-propagating waves for flow over rippled bottoms was observed by flume experiments [
15,
16]. The generation mechanisms are analyzed by multiple-scale expansion perturbation from the perspective of triad resonance and validated by experiments [
2]. However, it is still of limited understanding for the temporal evolution behavior of triad resonant interactions for free-surface flow over rippled bottoms.
In this study, we focus on six triad resonant combinations induced by free-surface steady and uniform flow over rippled bottoms. The High-Order Spectral (HOS) method numerical model is established to investigate the temporal evolution characteristics of triad resonant free-surface wave components for flow over rippled bottoms. The specific objective of this study was to identify the temporal evolution behavior of all six triad resonant combinations and provide clear conclusions, which are cross-validated by numerical simulation results.
The remainder of this paper is organized as follows. The mathematical formulation of the High-Order Spectral (HOS) method for wave-current-bottom interactions is summarized in
Section 2. The results of the HOS numerical simulation for temporal evolution, as well as the comparison with perturbation theory for exact triad resonance, are presented in
Section 3. Finally,
Section 4 contains the discussions and conclusions. Furthermore, the necessary information from the previous studies on instability analyses and multiple-scale expansion perturbation solutions are reviewed in the appendixes.
2. High-Order Spectral Method (HOS) Method for Free-Surface Flow over Rippled Bottoms
The High-Order Spectral (HOS) method is applied to calculate the spatial distribution and temporal evolution of resonant waves’ amplitudes in this study. This numerical study is initialized for cross-validation between numerical and theoretical solutions of resonant interaction among free-surface waves, rippled bottoms, and ambient (steady and uniform) flow.
The HOS numerical model is based on the ideas of the Zakharov equation [
17] and mode-coupling [
18]. It was firstly developed for nonlinear wave-wave interaction [
19,
20], then, it was extended to wave-body interaction [
21], wave-bottom interaction [
22,
23,
24], and many other scenarios [
25,
26,
27]. This numerical model could solve the nonlinear initial boundary value problem up to any order. Its computational efforts will be kept near linear dependence based on orthogonal spectral expansions for the free-surface and bottom functions as well as fast Fourier transform techniques. The solutions calculated have exponential convergence with an increasing number of free-surface and bottom modes. The HOS model applied to calculate the resonant interaction for free surface waves in the presence of ambient steady uniform flow and rippled bottoms in this study are adapted based on the program developed for investigation of the Bragg resonance (wave-bottom resonant interaction without ambient current [
22,
23]).
For the mathematical formulation and algorithm of HOS with the existence of ambient flow, in the presence of ambient steady and uniform flow of velocity, the nonlinear free-surface boundary conditions in the Zakharov form [
17] are,
in which the terms
and
indicate the effect of steady and uniform ambient flow. The function
is the surface potential defined as below.
Therefore, Equations (3) and (4) are evolution equations that could be integrated by giving the initial value of surface elevation and free surface potential . The surface vertical velocity could be solved by the boundary conditions.
The bottom boundary condition of the rippled patch at
is as below,
For solving the boundary value problem, the regular perturbation expansion is applied to the velocity potential
. In this paper, if the steepness of free surface elevation and bottom undulation is assumed to be the identical small value of
, then the velocity potential is expanded as below,
in which
is the velocity potential of each order up to arbitrary order
with
.
To get the relation of velocity potential by each order, the Taylor expansion is applied to the mean free surface and mean bottom respectively.
At mean free surface
, the expressions of velocity potential by successive orders are obtained as Dirichlet boundary conditions.
At the mean rippled bottom
, the expressions of velocity potential by successive orders are obtained as Neumann boundary conditions.
Based on the periodic condition of horizontal coordinate and the Laplace governing equation in the computation domain , the perturbation potential function at each order could be decomposed into two kinds of terms which satisfy only the free-surface or bottom boundary condition separately based on the linear superposition of the Laplace operator.
Therefore, we decompose each order’s velocity potential
.
and
satisfy the homogeneous bottom boundary condition (zero Neumann condition) and homogeneous free-surface boundary condition (zero Dirichlet condition), respectively. Then, the decomposed velocity potentials
and
are expanded by the eigenfunction of the Fourier series.
in which
and
are the modal amplitudes which are solved with corresponding boundary conditions.
Thus, the vertical velocity term
on the free surface could be obtained from
Therefore, the vertical velocity term will be solved iteratively during the numerical solving process to obtain the updated value of and in HOS.
At the initialization of the simulation process, all parameters are dimensionless along with the number of total spatial points N and nonlinear order M. Then, based on the initial free surface elevation function and surface potential which are already given as the initial condition, the values of modal amplitudes and will be obtained by solving both Dirichlet and Neumann boundary value problems with the pseudo-spectral method.
During the iteration process, the modal amplitudes , and free surface elevation are substituted into the expression to obtain the vertical velocity on the free surface. Then, the value of is substituted into the evolution equation to obtain the time derivative of free surface elevation and time derivative of surface potential . Then, based on the 4th order Runge-Kutta equation, the free surface elevation and surface potential at the next time step will be obtained and utilized to calculate the value of modal amplitudes for iteration.
For calculating the temporal evolution of the resonant wave amplitude, the periodic rippled bottoms are set over a total length of the computation domain due to the periodic boundary in the HOS model. The input data for HOS simulation is this study includes the spatial points distribution and time step and evolution time information, as well as the initial free surface profile and rippled bottoms profile, which are nondimensional.
3. Numerical Simulation of Temporal Evolution for Resonant Wave Amplitude above Infinite Patch by HOS and its Comparison with the Theory
In this section, the temporal evolution of resonant wave amplitude for all six triad resonant combinations will be numerically simulated and compared with nonlinear theoretical solutions based on multiple-scale expansion perturbation analysis, which are referred to in
Appendix A and
Appendix B.
For the ripples’ configuration during the temporal evolution simulation in HOS, the harmonic rippled bottoms are fulfilled in the whole computational domain, which could capture the resonance-related wave evolution above the infinite extended rippled patch due to the periodic conditions on both sides of the computational domain in this numerical model.
For HOS configuration with a general triad combination and , the initial free-surface disturbance wave component is given in prior with amplitude . There was no other free-surface wave component that existed initially. Then, the amplitude temporal variation will be extracted from the HOS simulation results.
Correspondingly, for the theoretical solution, the corresponding initial conditions for
at
are as below,
The solution of Equation (A1) (without spatial derivative and variables) of
with its boundary conditions (15) and (16) is,
The other wave component
which is given in prior with initial amplitude
, its initial conditions at
is as below.
The solution of Equation (A2) (without spatial derivative and variables) of
with its initial conditions (18) and (19) is,
The detailed comparisons between HOS and theoretical solutions are presented below for all six triad resonant combinations. It should be noted that the total length of the computational domain in HOS is equal to the total length of rippled patch, so the bottom boundary condition is fully periodic as infinite patch during the simulation process. Moreover, due to the numerical simulation being intended to capture the triad resonant interaction as the second order, the nonlinear order
in HOS is set as two, correspondingly. The wave number and flow velocity values applied afterwards are selected from the parameter’s domain of all six triad resonance combinations (as referred to in [
2] Figure 3).
3.1. Triad Resonant Combination (1)
For the selected condition from the triad resonant combination (1) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.2586 m/s, respectively. The corresponding Froude number is 0.1884.
The resonant wave component has the wavelength = 0.9975 m and initial wave amplitude with steepness = 0.0005. The other free-surface wave component, , induced by resonant interaction, has the wavelength = 0.3160 m. The wave period of the resonant free-surface wave component is 0.7125 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 31.92 m, which is 133 integral times that of the bottom wavelength , 101 integral times that of , and 32 integral times that of .
As for the configuration of the numerical model, there are 8192 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0039 m. The time step is set as 0.0104 s. The total time steps during the whole computation process is 25,600 (total calculation time as 265.01 s).

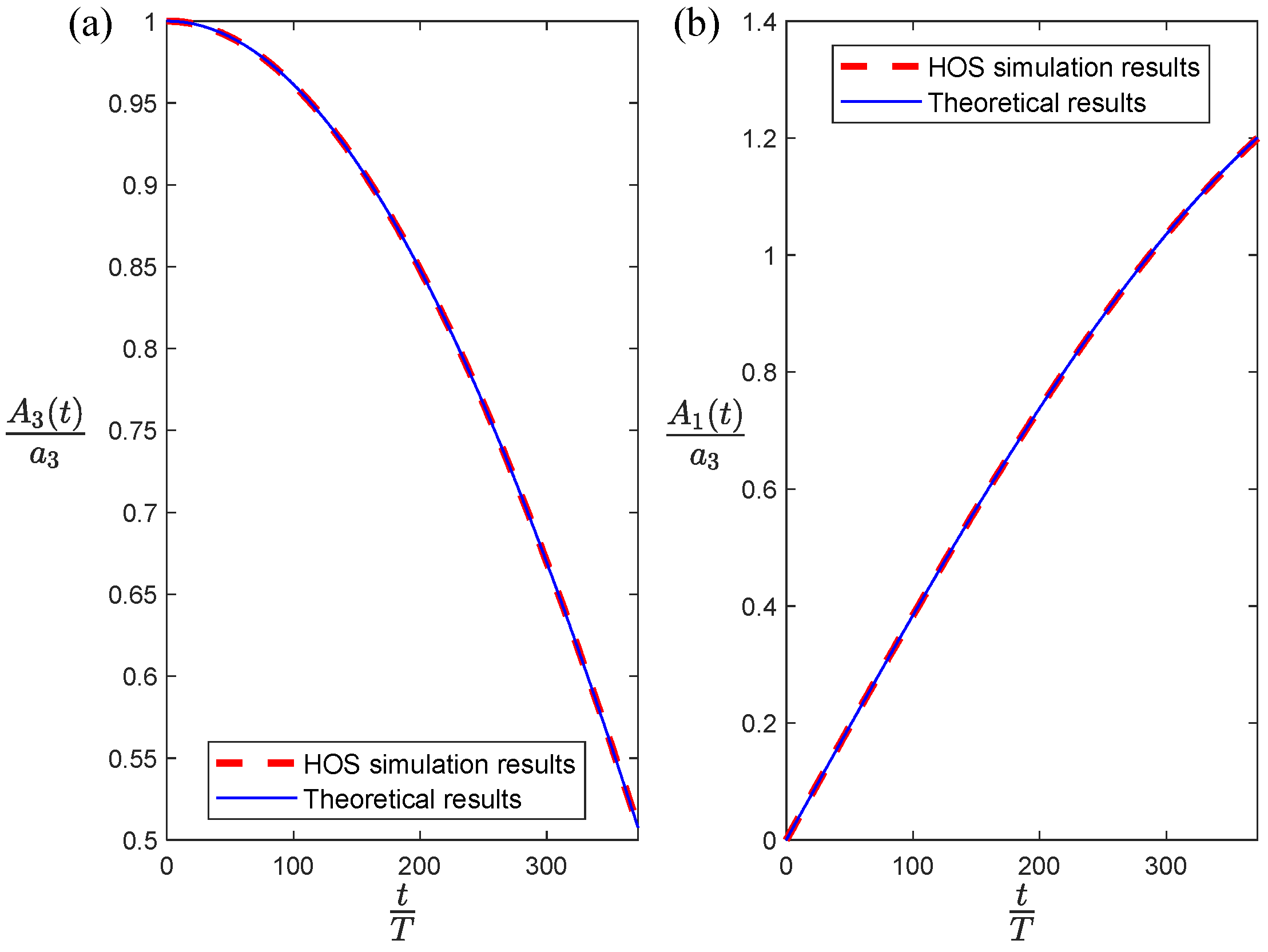

Figure 1 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and multiple-scale expansion perturbation analysis. The HOS results present the harmonic temporal variation pattern (temporally stable), which compares well with the multiple-scale expansion (nonlinear) solutions.
However, the traditional temporal instability analysis indicates that this triad resonant combination is temporally unstable (with exponential growth), which is inconsistent with the HOS simulation and multiple-scale expansion solutions.
3.2. Triad Resonant Combination (2)
For the selected condition from triad resonant combination (2) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.4754 m/s, respectively. The corresponding Froude number is 0.3464.
The resonant wave component has the wavelength = 2.9826 m and initial wave amplitude m with steepness = 0.0005. The other free-surface wave component induced by resonant interaction has the wavelength = 0.2617 m. The wave period of the resonant free-surface wave component is 1.5980 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 54.96 m, which is 229 integral times that of the bottom wavelength , 210 integral times of , and 19 integral times of .
As for the configuration of the numerical model, there are 8192 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0067 m. The time step is set as 0.0095 s. The total time steps during the whole computation process is 25,600 (total calculation time as 243.59 s).

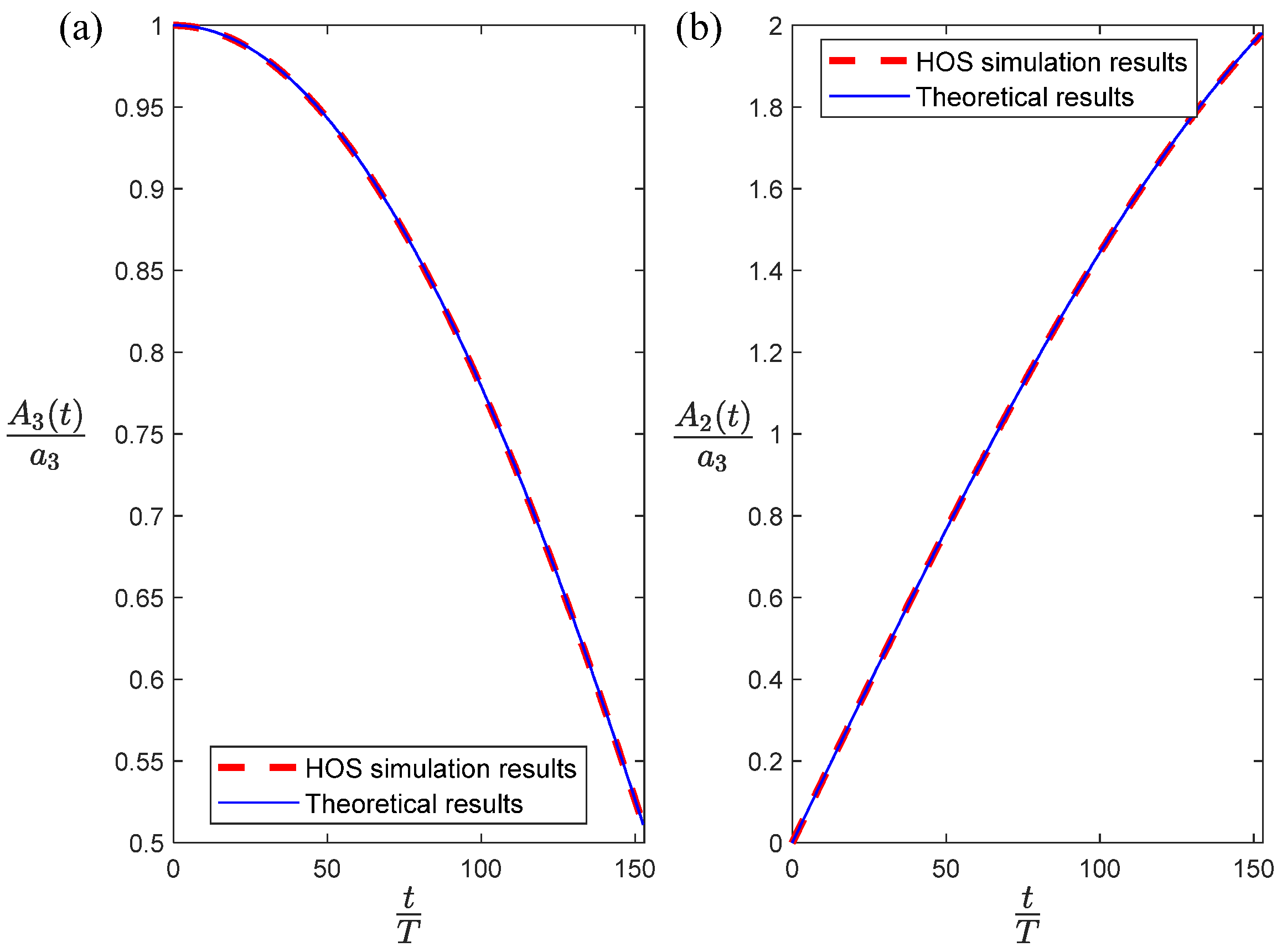

Figure 2 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and multiple-scale expansion perturbation analysis. Similar to the triad combination (1), the HOS results of triad combination (2) present the harmonic temporal variation pattern (temporally stable), which also compares well with the multiple-scale expansion (nonlinear) solutions.
On the contrary, the traditional temporal instability analysis indicates that the triad resonant combination (2) is temporally unstable (with exponential growth), which is still inconsistent with the HOS simulation and multiple-scale expansion solutions.
3.3. Triad Resonant Combination (3)
For the selected condition from triad resonant combination (3) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.9634 m/s, respectively. The corresponding Froude number is 0.7020.
The resonant wave component has the wavelength = 0.9714 m and initial wave amplitude m with steepness = 0.0005. The other free-surface wave component, , induced by resonant interaction has the wavelength = 0.1924 m. The wave period of the resonant free-surface wave component is 0.4634 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 143.76 m, which is 599 integral times that of the bottom wavelength , 148 integral times that of , and 747 integral times that of .
As for the configuration of the numerical model, there are 16384 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0088 m. The time step is set as 0.0193 s. The total time steps during the whole computation process is 5120 (total calculation time as 98.73 s).

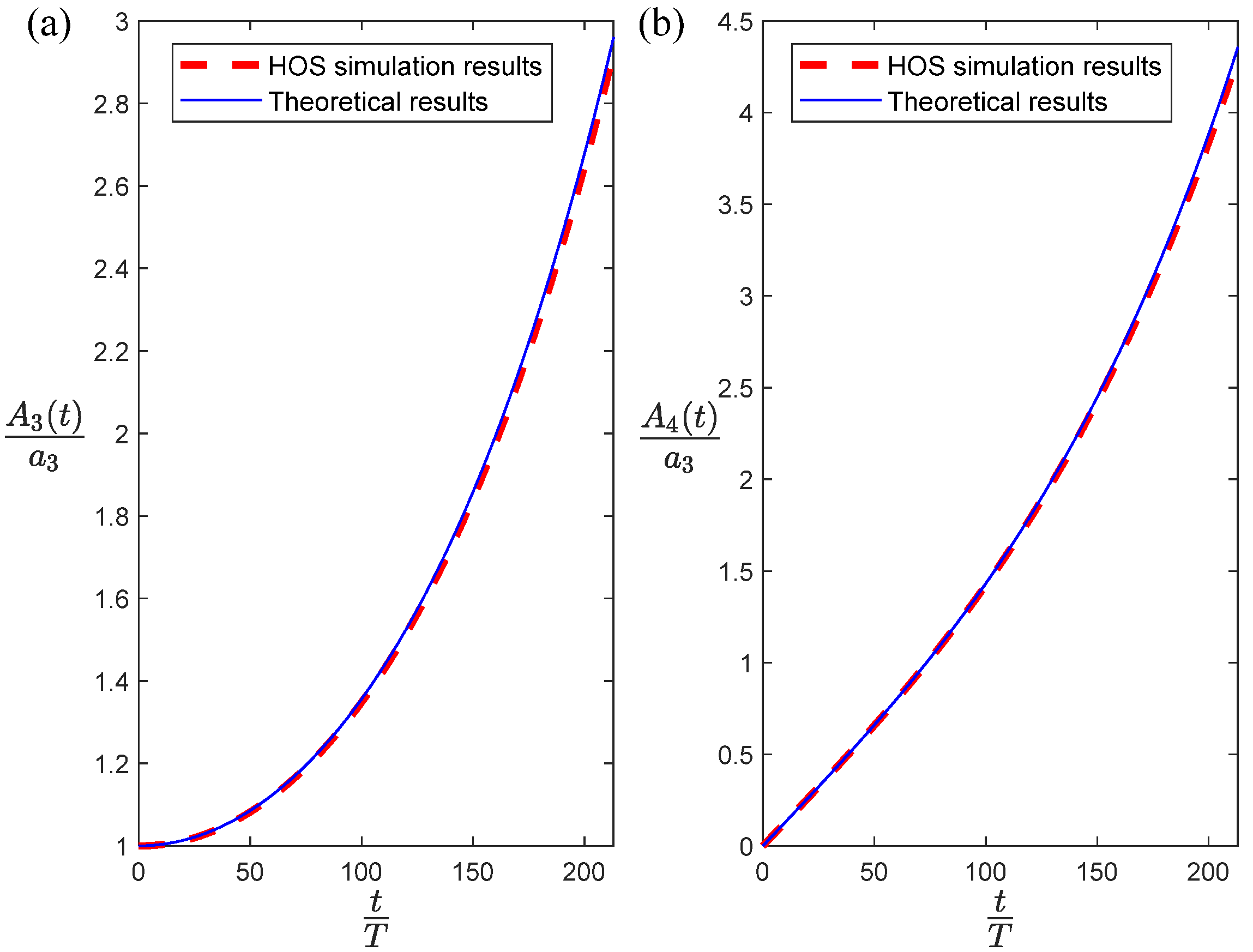

Figure 3 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and the multiple-scale expansion perturbation analysis. Different from the triad combinations (1) and (2), the HOS results of the triad combination (3) present an exponential temporal variation pattern (temporally unstable), which also compares well with the multiple-scale expansion (nonlinear) solutions.
This triad resonant combination is the situation discussed by Yih [
11]. The traditional temporal instability analysis indicates that the triad resonant combination (3) is temporally unstable (also with exponential growth), which coincides with HOS simulation and multiple-scale expansion solutions.
3.4. Triad Resonant Combination (4)
For the selected condition from triad resonant combination (4) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.8311 m/s, respectively. The corresponding Froude number is 0.6056.
The resonant wave component has the wavelength = 0.7984 m and initial wave amplitude m with steepness = 0.0005. The other free-surface wave component, , induced by resonant interaction has the wavelength = 0.3432 m. The wave period of the resonant free-surface wave component is 3.4380 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 39.12 m, which is 163 integral times that of the bottom wavelength , 49 integral times that of , and 114 integral times that of .
As for the configuration of the numerical model, there are 8192 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0048 m. The time step is set as 0.0083 s. The total time steps during the whole computation process is 25,600 (total calculation time as 212.93 s).

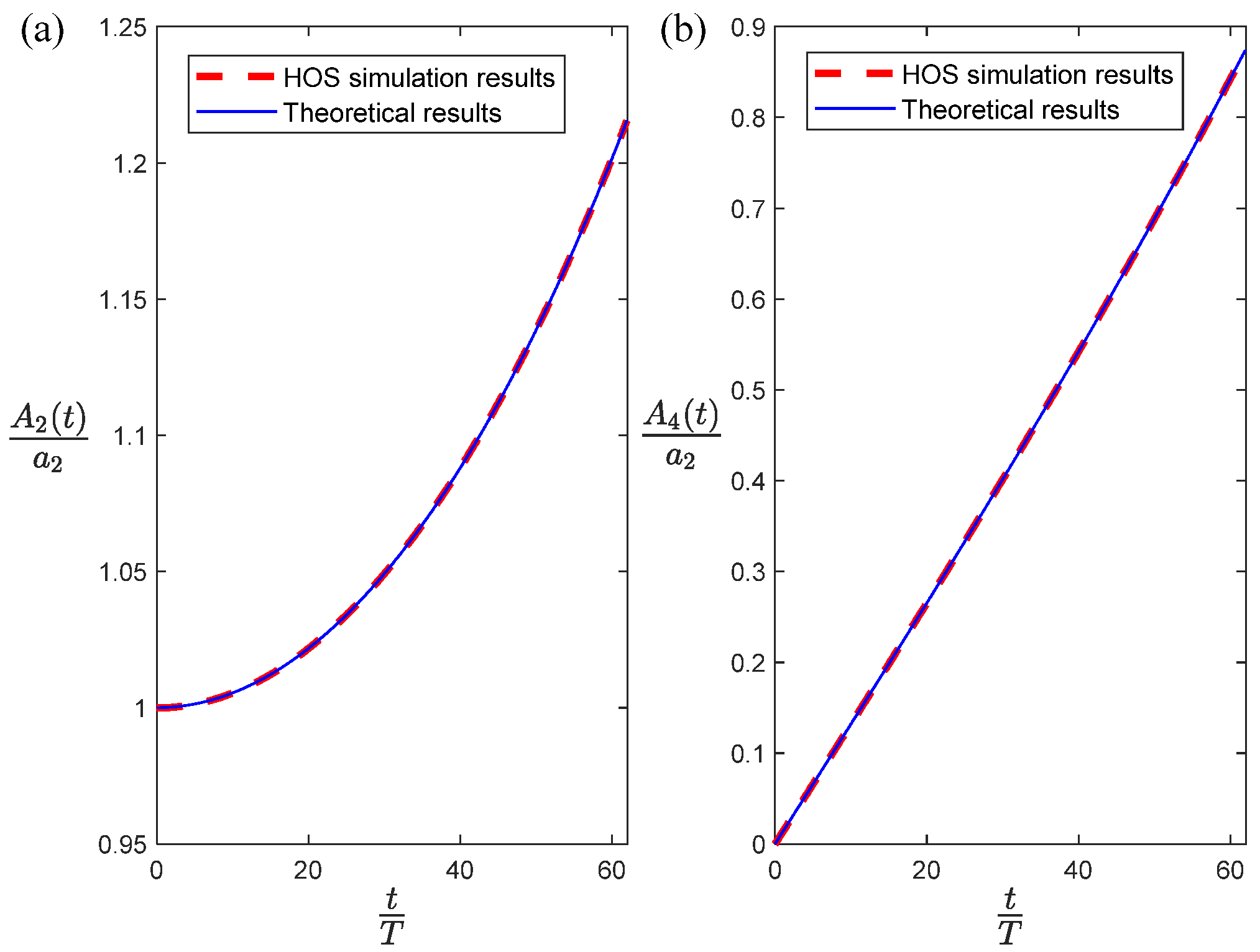

Figure 4 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and multiple-scale expansion perturbation analysis. The HOS results of triad combination (4) present the exponential temporal variation pattern (temporally unstable), which also compares well with the multiple-scale expansion (nonlinear) solutions. It should be noted that although the temporal variation pattern presents linear growth in
Figure 4b, it also presents exponential growth on the longer time scale.
The traditional temporal instability analysis indicates that the triad resonant combination (4) is temporally unstable (also with exponential growth), which coincides with the HOS simulation and multiple-scale expansion solutions.
3.5. Triad Resonant Combination (5)
For the selected condition from triad resonant combination (5) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.7695 m/s, respectively. The corresponding Froude number is 0.5607.
The resonant wave component has the wavelength = 1.3900 m and initial wave amplitude m with steepness = 0.0005. The other free-surface wave component, , induced by resonant interaction has the wavelength = 0.2901 m. The wave period of the resonant free-surface wave component is 3.0003 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 33.36 m, which is 139 integral times that of the bottom wavelength , 24 integral times that of , and 115 integral times that of .
As for the configuration of the numerical model, there are 4096 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0081 m. The time step is set as 0.0154 s. The total time steps during the whole computation process is 51,200 (total calculation time as 788.58 s).

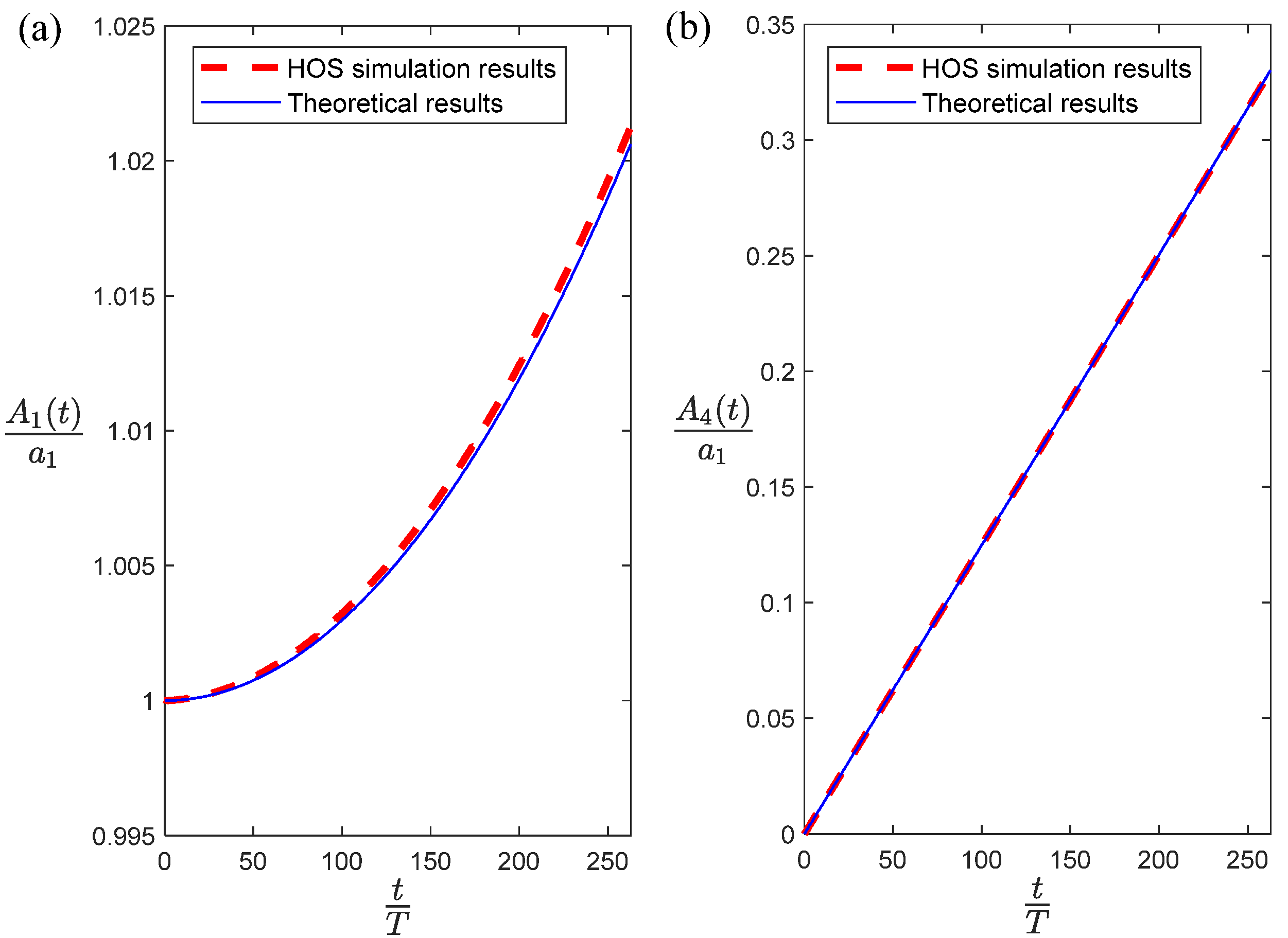

Figure 5 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and multiple-scale expansion perturbation analysis. The HOS results of triad combination (5) present the exponential temporal variation pattern (temporally unstable), which also compares well with the multiple-scale expansion (nonlinear) solutions.
On the contrary, the traditional temporal instability analysis indicates that the triad resonant combination (5) is temporally stable (with a harmonic temporal variation pattern), which is inconsistent with HOS simulation and multiple-scale expansion solutions.
3.6. Triad Resonant Combination (6)
For the selected condition from triad resonant combination (6) for temporal evolution validation, the triad resonant condition is , and the wave component is given in prior as the initial free surface disturbance wave component. The water depth and flow velocity are 0.192 m and 0.4878 m/s, respectively. The corresponding Froude number is 0.3554.
The resonant wave component has the wavelength = 0.2133 m and initial wave amplitude m with steepness = 0.0005. The other free-surface wave component, , induced by resonant interaction has the wavelength = 1.9200 m. The wave period of the resonant free-surface wave component is 2.3871 s. The bottom wavelength is 0.24 m and amplitude is 0.005 m with the corresponding bottom steepness of 0.1309.
For the satisfaction of the periodic boundary in HOS, the total length of the computation domain is set as = 145.92 m, which is 608 integral times that of the bottom wavelength , 76 integral times that of , and 684 integral times that of .
As for the configuration of the numerical model, there are 8192 () spatial points in this computational domain, and the distance between neighboring spatial sampling points is 0.0178 m. The time step is set as 0.0049 s. The total time steps during the whole computation process is 30,720 (total calculation time as 149.95 s).

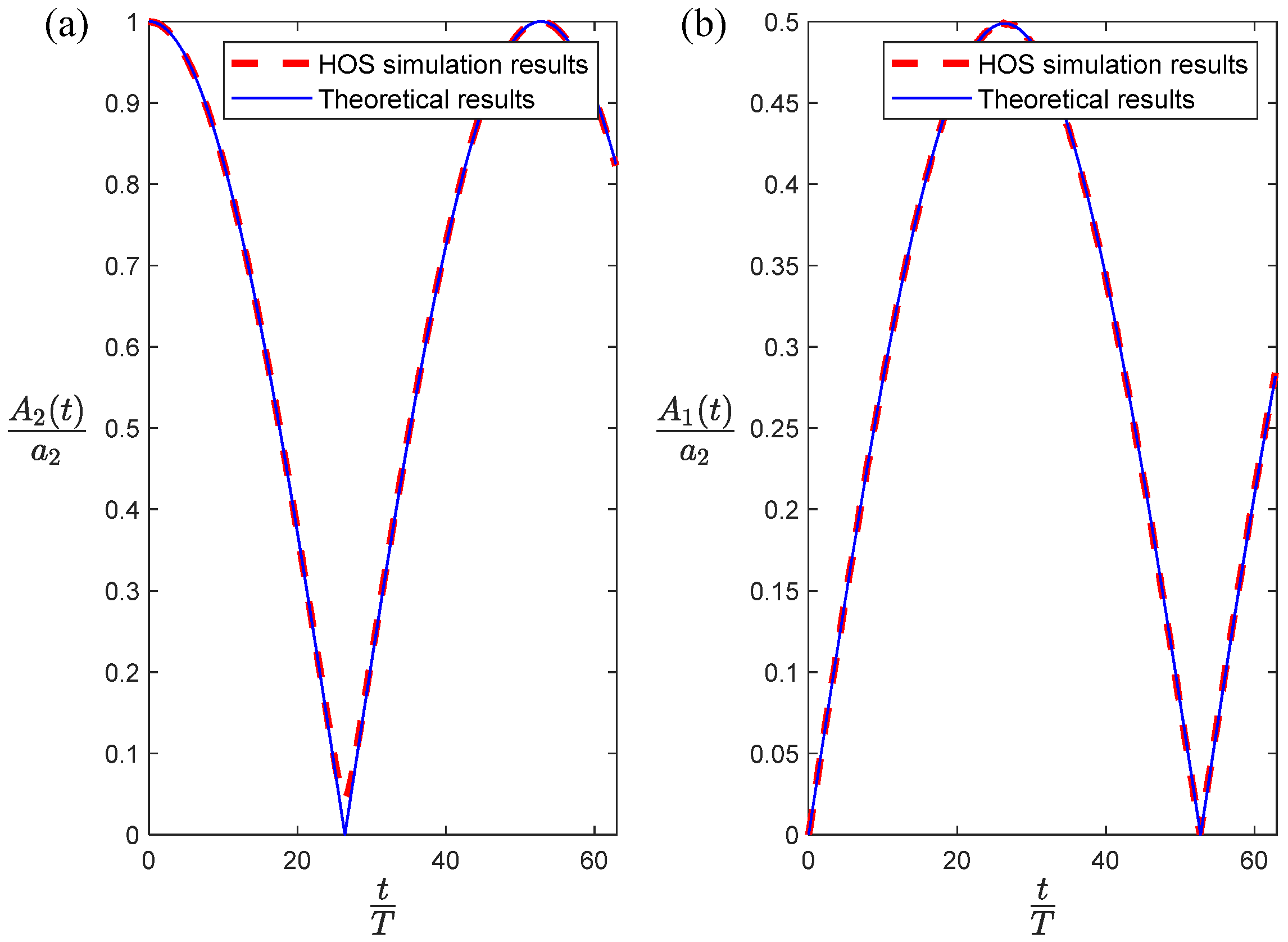

Figure 6 is the comparison of the amplitude of free-surface resonant wave components
(initially given) and
(generated by resonance) between HOS simulation and multiple-scale expansion perturbation analysis. The HOS results of triad combination (6) present the harmonic temporal variation pattern (temporally stable), which also compares well with the multiple-scale expansion (nonlinear) solutions.
The traditional temporal instability analysis indicates that the triad resonant combination (4) is temporally stable (with harmonic temporal variation pattern), which coincides with the HOS simulation and multiple-scale expansion solutions.
It should be noted that this triad resonant combination (6) corresponds to the generation of upstream-propagating waves in flume experiments. Although this triad combination is temporally stable, the intensive free surface waves could still be stimulated due to the combined condition of spatial exponential growth behavior and the critical flow condition of wave energy stagnation.
3.7. Overall Comparison between HOS Results and Theoretical Analysis
For better comparison, the resonant condition, phase and energy propagating directions, and temporal evolution behaviors (calculated by HOS simulation, multiple-scale expansion, and traditional temporal instability analysis) for all six triad resonant combinations have been summarized and organized in
Table 1.
It reveals that the HOS simulation results for temporal evolution behavior are always consistent with the theoretical analysis by multiple-scale expansion for all six triad combinations, which could be confirmed on the basis of such cross-validation. However, there are contradictions with the results with traditional temporal instability analysis for triad combinations (1), (2), and (5). If the study of triad resonance behaviors involves these three combinations, one should be cautious in the analysis of their temporal evolution behaviors.
