Article

A Comparative Study on Generation and Propagation of Nonlinear Waves in Shallow Waters

1
College of Shipbuilding Engineering, Harbin Engineering University, Harbin 150001, China
2
Civil Engineering Department, School of Science and Engineering, University of Dundee, Dundee DD1 4HN, UK
3
Ocean & Resources Engineering Department, University of Hawaii, Honolulu, HI 96822, USA
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2023, 11(5), 917; https://doi.org/10.3390/jmse11050917
Submission received: 25 March 2023 / Revised: 18 April 2023 / Accepted: 19 April 2023 / Published: 25 April 2023
(This article belongs to the Topic Advances in Environmental Hydraulics)

Abstract

:
This study is concerned with the generation and propagation of strongly nonlinear waves in shallow water. A numerical wave flume is developed where nonlinear waves of solitary and cnoidal types are generated by use of the Level I Green-Naghdi (GN) equations by a piston-type wavemaker. Waves generated by the GN theory enter the domain where the fluid motion is governed by the Navier–Stokes equations to achieve the highest accuracy for wave propagation. The computations are performed in two dimensions, and by an open source computational fluid dynamics package, namely OpenFoam. Comparisons are made between the characteristics of the waves generated in this wave tank and by use of the GN equations and the waves generated by Boussinesq equations, Laitone’s 1st and 2nd order equations, and KdV equations. We also consider a numerical wave tank where waves generated by the GN equations enter a domain in which the fluid motion is governed by the GN equations. Discussion is provided on the limitations and applicability of the GN equations in generating accurate, nonlinear, shallow-water waves. The results, including surface elevation, velocity field, and wave celerity, are compared with laboratory experiments and other theories. It is found that the nonlinear waves generated by the GN equations are highly stable and in close agreement with laboratory measurements.

1. Introduction

Solitary wave is a nonlinear wave with an isolated elevation of finite amplitude and permanent form over a flat seafloor. The presence of the solitary wave was first reported by [1], who conducted extensive experiments on the generation and propagation of the wave in 1834 and 1835, see [2]. At the time, there was a conflict between Russell’s observations and [3] prediction (shallow-water-theory) that a wave of finite amplitude cannot propagate without a change of form. This conflict was resolved independently by [4,5,6,7,8]. Boussinesq and Rayleigh showed that appropriate allowance for vertical acceleration and finite amplitude leads to an explicit solution of the solitary wave. Ref. [6]’s theory of solitary wave was accepted although the solution is only first-order accurate. Ref. [9] suggested a theoretical solution whose mathematical formulations are provided by Lee et al. (1982). As [9]’s equations are implicit, an iterative method, such as Newton–Raphson, is needed to solve the equations. An equation only admitting right-running solutions was derived by [10], named the Korteweg–de Vries (KdV) equation.
The periodic form of a solitary wave with the same height is named a cnoidal wave by [7]. A cnoidal wave is a periodic wave with isolated wave crests and flat wave troughs. A cnoidal wave without a nonlinear and asymmetrical wave profile about the still-water level (SWL) could become a sinusoidal wave. Ref. [10] obtained the solutions for cnoidal waves by means of the Jacobian elliptic cosine function  C n  contained in the wave profile formula. Following the idea of [10] about cnoidal waves, Ref. [11] established the Keulegan–Patterson theory for cnoidal waves. Ref. [12] proved the existence of cnoidal waves with a complex potential function. By then, the equations were complicated to be used in practical application for the incompleteness of second-order solutions. Based on the work of [13,14] a second-order approximation to the cnoidal wave theory was developed by using the expansion method, and [15] added a nonzero term to the equations.
Ref. [16] developed the Green–Naghdi (GN) equations for shallow-water wave motions based on the directed fluid sheet theory. The GN theory satisfies exactly the nonlinear boundary conditions and conservation of mass, postulates the integrated form of the conservation of momentum, and does not require the irrotationality of the flow. This set of equations contains solutions for solitary wave (see [17]) and cnoidal wave (see [18]). The GN equations are used successfully for a wide range of problems involving water wave dynamics; for example, nonlinear wave scattering by submerged objects ([19]), and diffraction and refraction of solitary and cnoidal waves ([20]).
Although there are several equations that can be used to describe the solitary and cnoidal waves, it is difficult to solve the equations analytically due to the nonlinear nature of these waves, especially the implicit part of solutions of the cnoidal wave, see [18]. Thanks to the increase in computational power, the computational fluid dynamics (CFD) approach is used in the study of solitary and cnoidal waves. The waves are generated by use of different equations, see, e.g., Refs. [21,22] for the use of the KdV equations to generate solitary waves, Ref. [23] for the use of the GN equations to generate solitary waves, and propagate in the domain governed by the Navier–Stokes (NS) equations, Ref. [24] for the use of cnoidal waves by use of the GN equations, and [25] for the use of the Boussinesq equations to generate solitary waves. It is desirable to generate accurate nonlinear waves when studying wave dynamics in coastal zones, for example for wave propagation over an uneven seafloor, or in wave-structure interaction problems. While various theories are used to generate nonlinear waves of solitary and cnoidal types in computational wave tanks, there has not been any systematic investigation about the accuracy and stability of the waves when compared to each other. It is desirable to find out how the solitary wave and cnoidal wave generated based on the existing equations propagate in the computational fluid dynamics-based numerical wave tanks.
In this study, we create a numerical tank to investigate the accuracy and stability of solitary and cnoidal waves of different theories. We develop numerical wave makers capable of generating solitary and cnoidal waves of different theories. Waves are generated by a piston-type wave maker and enter a domain of constant water depth, where the flow is governed by the NS equations. We then investigate the characteristic of the solitary and cnoidal waves of different theories within the domain, and compare the results with available laboratory measurements. To further assess the performance of the GN equations, we also create a numerical wave tank based entirely on the GN equations, i.e., the waves generated by the GN theory enter a domain where the flow is governed by the GN equations. The results are then compared with the laboratory measurements, and with the results of the case of the NS domain.
In this paper, we first present the theories used for wave generation and propagation, followed by the introduction of the set-up of the numerical tank. Steady-state results are given first and unsteady results of solitary waves and cnoidal waves are presented and discussed thereafter. The conclusions then follow.

2. The Theories and Numerical Set Up

We create a numerical tank, in which solitary and cnoidal waves generated by different theories are investigated. The governing equations of the domain and the wave theories used are described in this section.
We adopt a right-handed two-dimensional (2D) Cartesian coordinate system, with  x 1  pointing to the right, and  x 2  pointing vertically opposite to the direction of the gravitational acceleration such that  x 2 = 0  is the SWL. Indicial notation and Einstein’s summation convention are used. Subscripts after the comma indicate differentiation. The equations are given in dimensionless forms using density of water,  ρ , gravitational acceleration, g, and water depth, h, as a dimensionally independent set. Hence, the dimensionless form of time is  t = t × g / h , surface elevation is  η = η / h , velocity is  u = u / g h  and pressure is  p = p / ρ g h . For simplicity, we drop primes from all dimensionless variables in the rest of this work unless otherwise indicated.

2.1. The Navier−Stokes Equations

For a homogeneous, Newtonian and incompressible fluid, the 2D NS equations are given by the following conservation of mass and momentum equations:
u i , i = 0 , i = 1 , 2
u j , t + ( u i u j ) , i = 1 F r 2 g j p , j + 1 R e u j , i i , i , j = 1 , 2
where  u = u i e i  is the velocity vector, and  e i  is the unit normal vector in the i-th direction,  F r = U g l  is the Froude number, with U and l as the characteristic velocity and length, respectively,  R e = U l ν  is the Reynolds number,  ν  is kinematic viscosity,  g = ( 0 , 1 )  is the gravitational acceleration vector, and p is the pressure.
A computational tank is created, in which waves are generated by the use of different wave theories and propagate over a flat tank floor. A schematic of the tank is shown in Figure 1. The tank is separated by dash lines into three parts, namely the wave generation zone, the computational domain and the wave absorption zone. Within the computational domain, the governing equations are solved for both water and air above. The volume of fluid method, originally introduced by [26], is used to determine the free surface between air and water.
The Finite Volume approach is used to discretize the equations. The boundary conditions used in this study are the same as that of [27]. The details of these boundary conditions can be found in, e.g., [28,29].

2.2. The Green–Naghdi Equations

Considering the theory of directed fluid sheets of an incompressible fluid and from the laws of conservation of mass and linear momentum, [30] derived a set of equations, the Green–Naghdi (GN) equations, describing the nonlinear motion of inviscid fluids. The dimensionless GN equations read as
η , t + [ ( 1 + η α ) u 1 ] , 1 = α , t ,
u ˙ 1 + η , 1 + p ^ , 1 = 1 6 [ 2 η + α ] , 1 α ¨ + [ 4 η α ] , 1 η ¨ + ( 1 + η α ) [ α ¨ + 2 η ¨ ] , 1 ,
u 2 = α ˙ + x 2 + 1 α η + 1 α ( η ˙ α ˙ ) ,
p ¯ = 1 2 ( 1 + η α ) ( α ¨ + η ¨ + 2 ) + p ^ ,
where  η  is the free surface elevation measured from the SWL,  α ( x 1 , t )  describes the bottom surface of the fluid sheet measured from a fixed reference point,  p ¯ ( x 1 , t )  is the pressure on  α , and  p ^ ( x 1 , t )  is the pressure on top of the fluid sheet. The superposed dot denotes the material time derivative, and double dot is the second material derivative.
The pressure distribution in shallow water, p, is given as ([31,32]),
p ( x 1 , x 2 , t ) = 1 2 ( 1 + η x 2 ) ( α ¨ + η ¨ + 2 ) + p ^ .
In the cases studied here, the bottom surface is flat and stationary, hence  α = 0  and  α ¨ = 0 , and we assume  p ^ = 0 , i.e., pressure is atmospheric on the top surface. Hence, Equations (5) and (7) can be written as,
u 2 ( x 1 , x 2 , t ) = x 2 + 1 η + 1 η ˙ ,
and
p ( x 1 , x 2 , t ) = 1 2 ( 1 + η x 2 ) ( η ¨ + 2 ) .
The above solution belongs to the Level I GN equations, in which the vertical velocity varies linearly along the water column and horizontal velocity is invariant in the vertical direction. The Level I GN equations, hence, are best applicable to the propagation of long waves in shallow water. High level GN equations can be obtained by considering higher order functions for the distribution of the velocities in the vertical direction, see, e.g., [33,34].

2.3. Solitary Wave Solution

The solitary wave surface elevation of the Level I GN equations is given by [16] as
η ( x 1 , t ) = A s e c h 2 ( ϵ x C 1 ) ,
where A is the amplitude of the solitary wave,  x C 1 = ( x 1 C t ) ϵ = 3 A 4 ( A + 1 ) , and C is the wave speed, which is
C = ( A + 1 ) .
The horizontal particle velocity is given by
u 1 ( x 1 , t ) = C η 1 + η .
Equations (8)–(10) can be used to obtain analytical solutions for the solitary wave velocity and pressure fields.  η ˙  is given by
η ˙ = η , t + u 1 η , 1 + u 2 η , 2 .
The first part of the right-hand side of Equation (13) is obtained as
η , t = [ A s e c h 2 ( ϵ x C 1 ) ] , t = 2 A ϵ C c o s h 2 ( ϵ x C 1 ) t a n h ( ϵ x C 1 ) ,
The second part of the right-hand side of Equation (13) is given as
u 1 η , 1 = u 1 [ A s e c h 2 ( ϵ x C 1 ) ] , 1 = 2 u 1 A ϵ c o s h 2 ( ϵ x C 1 ) t a n h ( ϵ x C 1 ) .
As  η ( x 1 , t )  is a function of  x 1  and t, but not  x 2 , the third part on the right-hand side of Equation (13) is given as
u 2 η , 2 = u 2 [ A s e c h 2 ( ϵ x C 1 ) ] , 2 = 0 .
Substituting Equations (14)–(16) into Equation (13) gives
η ˙ = 2 A ϵ ( C u 1 ) s e c h 2 ( ϵ x C 1 ) t a n h ( ϵ x C 1 ) ,
and, substituting Equation (17) into Equation (8) gives
u 2 ( x 1 , x 2 , t ) = 2 x 2 + 1 η + 1 ϵ η t a n h ( ϵ x C 1 ) ( C u 1 ) .
Next, we obtain  η ¨ , given as
η ¨ = η ˙ , t + u 1 η ˙ , 1 + u 2 η ˙ , 2 .
For the first part of the right-hand side of Equation (19), we can write
η ˙ , t = 2 A ϵ 2 ( C u 1 ) C ( 3 s e c h 2 ( ϵ x C 1 ) t a n h 2 ( ϵ x C 1 ) 1 ) .
For the second part of the right-hand side of Equation (19)
u 1 η ˙ , 1 = 2 A ϵ 2 ( C u 1 ) u 1 ( 3 s e c h 2 ( ϵ x C 1 ) t a n h 2 ( ϵ x C 1 ) 1 ) .
As in the derivation of Equation (16),  η ( x 1 , t )  is a function of  x 1  and t, but not  x 2 ; therefore, the third part of the right-side of Equation (19) can be written as
u 2 η ˙ , 2 = 0 .
Hence, substituting Equations (20)–(22) into Equation (19) gives
η ¨ = 2 A ϵ 2 ( C u 1 ) 2 ( 3 s e c h 2 ( ϵ x C 1 ) t a n h 2 ( ϵ x C 1 ) 1 ) ,
Substituting Equation (23) into Equation (7) gives
p ( x 1 , x 2 , t ) = ( η x 2 ) ( 2 A ϵ 2 ( C u 1 ) 2 ( 3 s e c h 2 ( ϵ x C 1 ) t a n h 2 ( ϵ x C 1 ) 1 ) + 1 ) .
Equations (10), (12), (18) and (24) provide the surface elevation, horizontal and vertical velocities and the pressure under a steady-state solitary wave solution of the GN equations.
There are several solutions of a solitary wave provided by, e.g., Boussinesq (1872), [14] and KdV equations given by [10]. The analytical solutions (used in this study) and the GN solution derived above are listed in Table 1.

2.4. Cnoidal Wave Solution

Similar to the solitary wave, there are several solutions for the cnoidal wave, such as through the Boussinesq equations, KP equations and KdV equation. The cnoidal waves generated according to the GN equations, KP equations, and KdV equation are discussed in this study.

2.4.1. The Green-Naghdi Equations

The cnoidal wave solution of the GN equations provided by [18] gives the water surface elevation, the wave phase speed, C, and the water particle velocity as
C 2 = ( 1 + η 1 ) ( 1 + η 2 ) ( 1 + η 3 ) ,
where  η 1 = H k 2 ( 1 E K ) η 2 = H k 2 ( 1 k 2 E K ) , and  η 3 = H k 2 E K  are three wave parameters,
η = η 2 + H C n 2 = H k 2 ( 1 k 2 E K ) + H C n 2 ,
u 1 = η 1 + η C ,
u 2 = 1 + x 2 ( 1 + η ) η x 1 C ,
where H is the wave height of the cnoidal wave, K is the complete elliptic integral of the first kind, E is the complete elliptic integral of the second kind,  C n  is the Jacobian elliptic function and k is the modulus of the respective elliptic integral function. For details, see [18].

2.4.2. The Keulegan and Patterson Equations

The solution of cnoidal wave derived by [11] share Equations (25) and (26) for C and  η  with the solution of the GN theory. The equations for  u 1  and  u 2  are:
u 1 = ( η 1 4 η 2 + ( 1 3 1 2 ( 1 + x 2 ) 2 ) 2 η x 1 2 ) C ,
u 2 = ( 1 + x 2 ) ( ( 1 1 2 η ) η x 1 + 1 3 ( 1 + 1 2 ( 1 + x 2 ) 2 ) 3 η x 1 3 ) C .

2.4.3. The Korteweg-de Vries Equations

The KdV solution of the cnoidal wave is given by [35]:
C 2 = 1 + 1 k ( 2 k 3 E K ) ,
η = H k ( 1 k E K ) + H C n 2 ,
u 1 = ( η η 2 + 1 2 ( 1 3 ( 1 + x 2 ) 2 ) 2 η x 1 2 ) C ,
u 2 = ( 1 + x 2 ) ( ( 1 2 η ) η x 1 + 1 6 ( 1 ( 1 + x 2 ) 2 ) 3 η x 1 3 ) C .

2.5. The Numerical Tank

A numerical tank is created in this study, in which solitary and cnoidal waves of different theories can be generated. Inside the domain, the fluid is governed by the NS equations. The computational domain of the numerical tank used in this study is  11.84 m  long and  0.21 m  deep, as shown in Figure 1. The wave generation and absorption zones in this study are shown in Figure 1, follow the same principle as those given by [36], within the open source computational fluid dynamics package, OpenFOAM. Waves are generated in a zone on the left of the tank. On the right-hand side of the domain, a relaxation zone is used to minimize the wave reflection back into the domain. The generation zone is set from  x 1 = 2 m  to  x 1 = 0  and the relaxation zone is located at  x 1 = 7.84 m  to  x 1 = 9.84 m . There are two wave gauges, GI located at the first node outside of the relaxation zone at  x 1 = 0 , and GII located at  x 1 2.62 m  from the end of the relaxation zone. Two pressure sensors, SI and SII, are placed on the tank bottom, at  x 2 = 1 , and two velocimeters, VI and VII, are placed at  x 2 = 0.3 . The horizontal location of the gauges are shown in Figure 1.
For the NS computations, two Intel Xeon E5-2697A v4 processors (16 cores, 40 M Cache, 3.00 GHz) are used. The maximum Courant Number is 0.25 and average Courant Number is  0.0086 . All the cases are performed in 2D. The mesh sizes are  Δ x 1 / h = 0.067  and  Δ x 2 / h = 0.167 , following the grid convergence study of [27].
We also use a tank that utilizes the GN equations both at the wavemaker and inside the domain, see [37] for details of the theoretical tank of the GN equations. See [38,39,40,41] for some studies on nonlinear wave dynamics and wave-structure interaction utilizing GN numerical tanks. For internal wave solutions of the GN equations, see, e.g., [42].

3. Results and Discussion

The results, including the surface elevations, velocities and pressure fields of solitary and cnoidal waves of different theories, are presented in this section. The results are compared with laboratory measurements where available and also with the results of the GN equations, (GN-GN, where both the wave maker and the domain are governed by the GN theory). The steady-state results generated by different theories are discussed first, followed by the unsteady results obtained from the computational tank. All results are given in a dimensionless form using  ρ , g and h as a dimensionally independent set.

3.1. Steady-State Solution

The surface elevation of solitary waves generated by the five equations listed in Table 1 are presented first, followed by discussion on the surface elevations, horizontal velocities, and vertical velocities of cnoidal waves generated by the GN equations, the KP equations and the KdV equations.

3.1.1. Solitary Wave

The profiles of solitary waves with  A = 0.4  generated by the Boussinesq equations, Laitone’s 1st equations, Laitone’s 2nd equations, the GN equations, and the KdV equations are shown in Figure 2.
In Figure 2, the surface elevation of the Boussinesq equations and Laitone’s 1st equations are covered by that of the KdV equations, as they share the same equation for  η . The GN solution is wider, and that of Laitone’s 2st theory is the widest.
In these cases, the theoretical wave speeds of the Boussinesq equations ( C = 1.1832 ), the KdV equations ( C = 1.1832 ), and the GN equations ( C = 1.1832 ) are the same, followed by that of Laitone’s 1st equations ( C = 1.2000 ) is the fastest, and that of Laitone’s 2nd equations ( C = 1.1760 ) is the slowest.

3.1.2. Cnoidal Wave

The theoretical cnoidal wave surface elevation and velocity field, for  λ = 29.5  and  H = 0.156 , 0.311 , generated by the GN equations and the KP equations are shown in Figure 3, Figure 4 and Figure 5, where  λ  is the wave length.

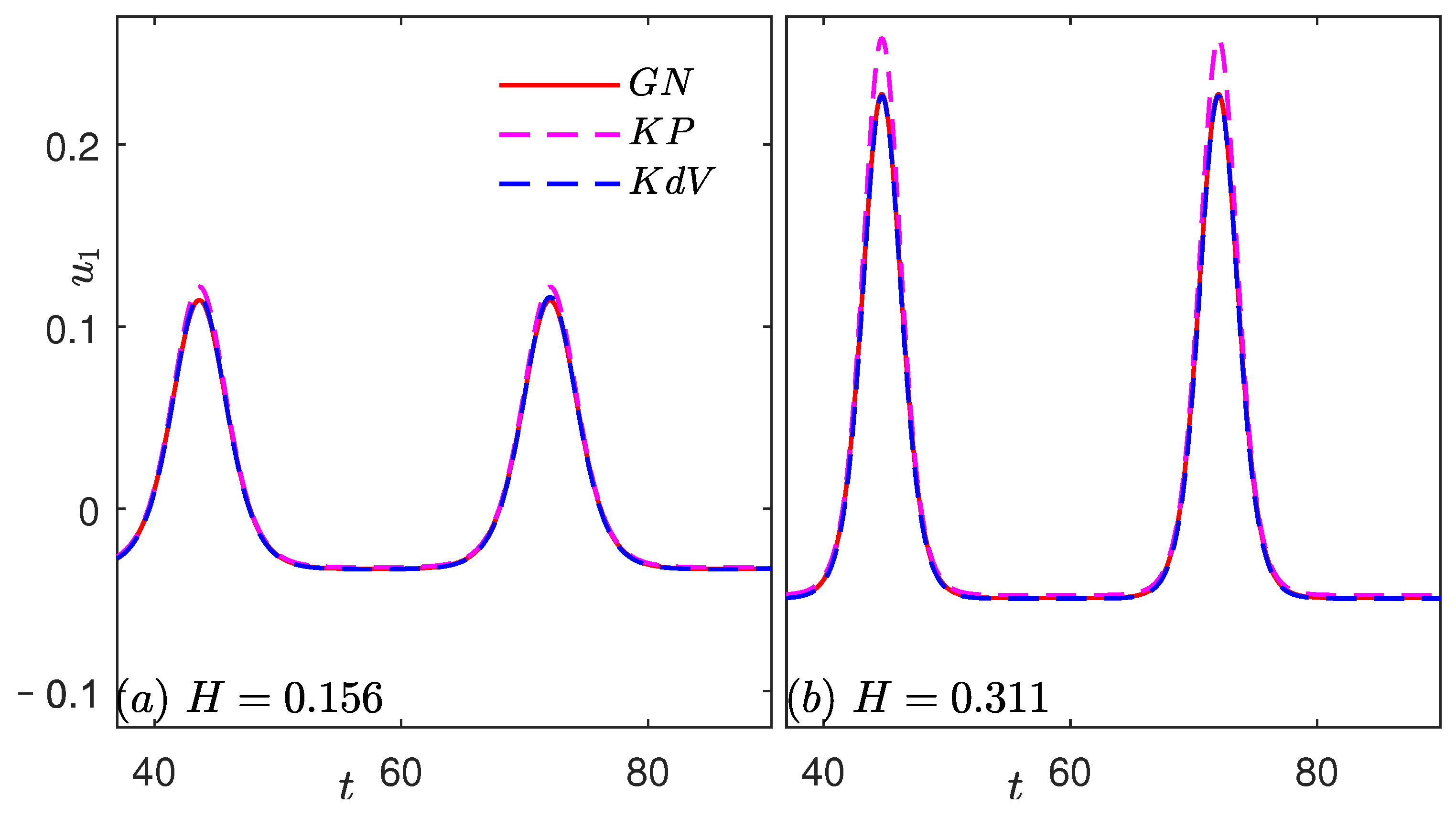

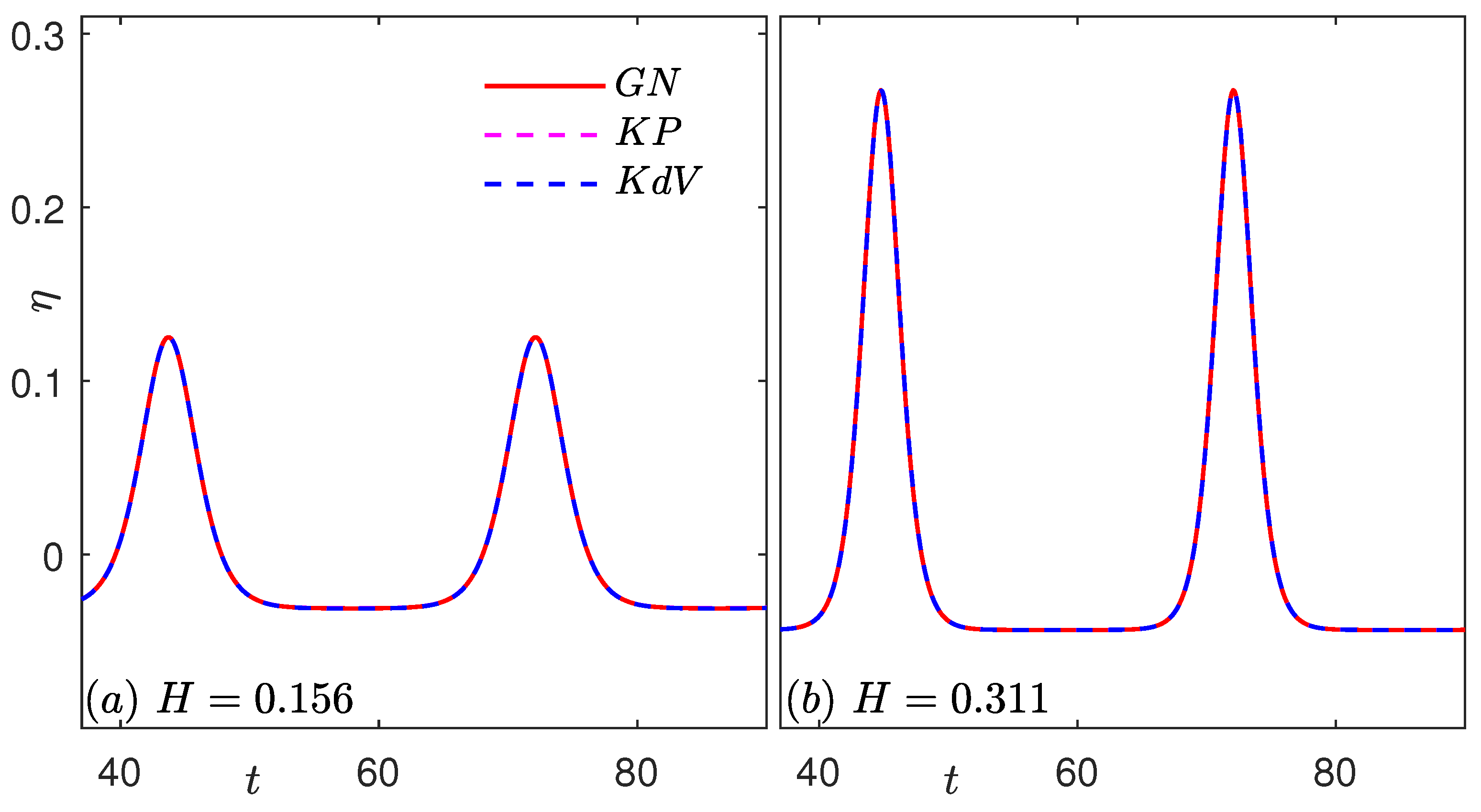

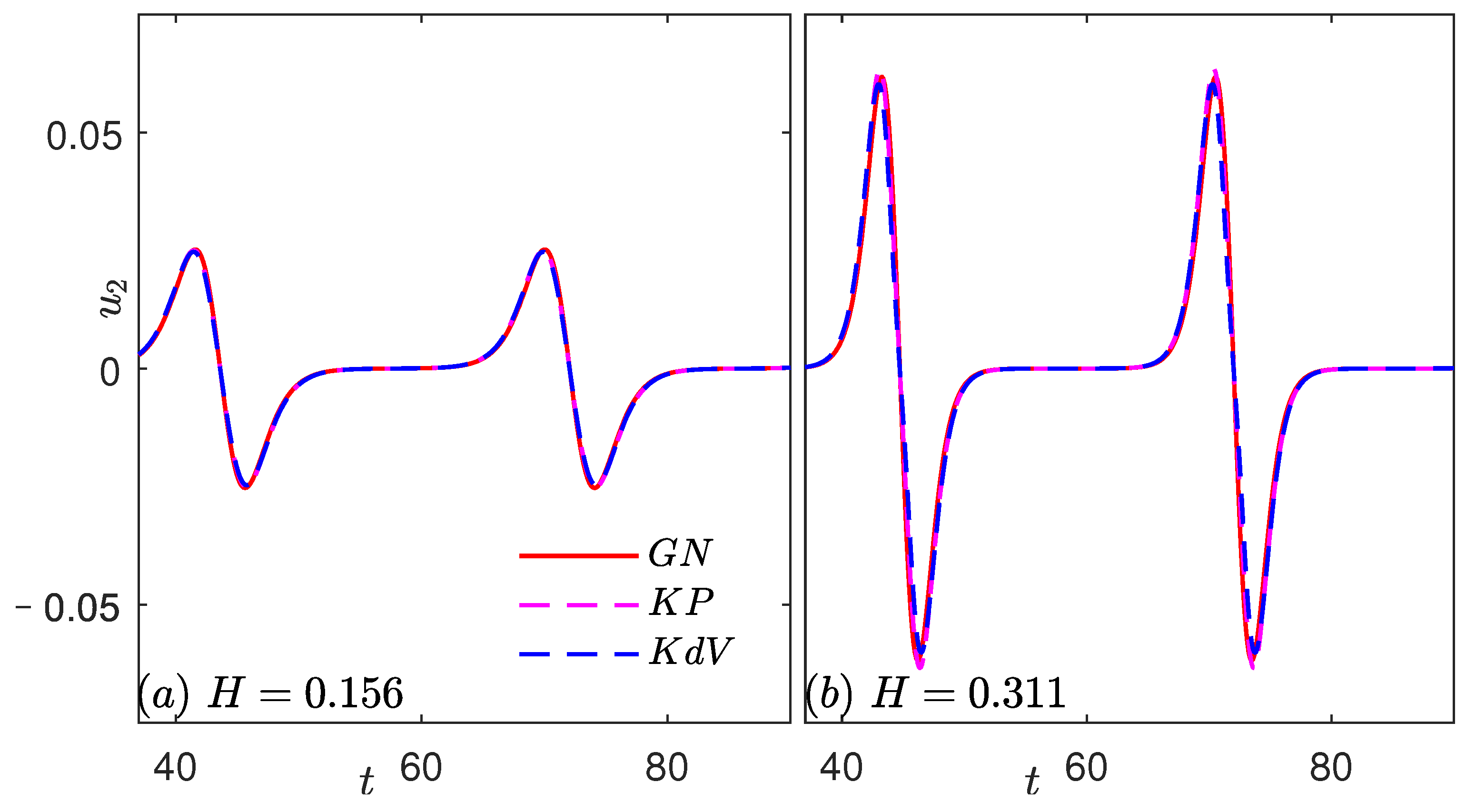

Figure 3, Figure 4 and Figure 5 show that the results of the three equations are almost on top of each other, except there are small differences between the peak of the results. The peak of the surface elevation, horizontal and vertical velocities of the three equations are listed in Table 2 and Table 3, together with the ratio,  R = θ M θ G N θ G N × 100 % , where  θ  is an arbitrary variable ( η u 1  or  u 2 ), and M refers to different models.
Shown in Figure 3, the peak values of the surface elevation of the three theories are the same, except that of the KdV equations with  H = 0.311 , which is  0.04 %  less than that of the other two equations. The same results are found for the vertical velocity, where the peak values are almost the same. The peak value of the horizontal velocity of the KP theory is significantly larger, where R is  6.46 %  and  13.51 %  for the two cases, than that of the other two theories.

4. Unsteady Results

In this section, the propagation of solitary and cnoidal waves generated by a wave maker (using different theories) over a flat seafloor is studied. The wave maker is placed at  x 1 = 0 . In all cases, waves are generated by wave makers using different theories, and enter the domain governed by the NS equations. We also consider waves generated by the GN theory, entering a domain also governed by the GN equations. These combinations are listed in Table 4. The results for solitary waves are shown first, followed by the cnoidal wave results.

4.1. Solitary Wave

Ref. [21] conducted laboratory experiments on the generation of solitary waves. They report the surface elevations of four cases with the same water depth  h = 0.114 m . In all the cases presented in this subsection for cnoidal waves, water depth is fixed at  h = 0.114 m . These four cases are listed in Table 5. Waves are measured in the wave flume in the absence of any obstruction by GII, located at  x 1 = 2.62 m . These laboratory measurements are used for comparison here.

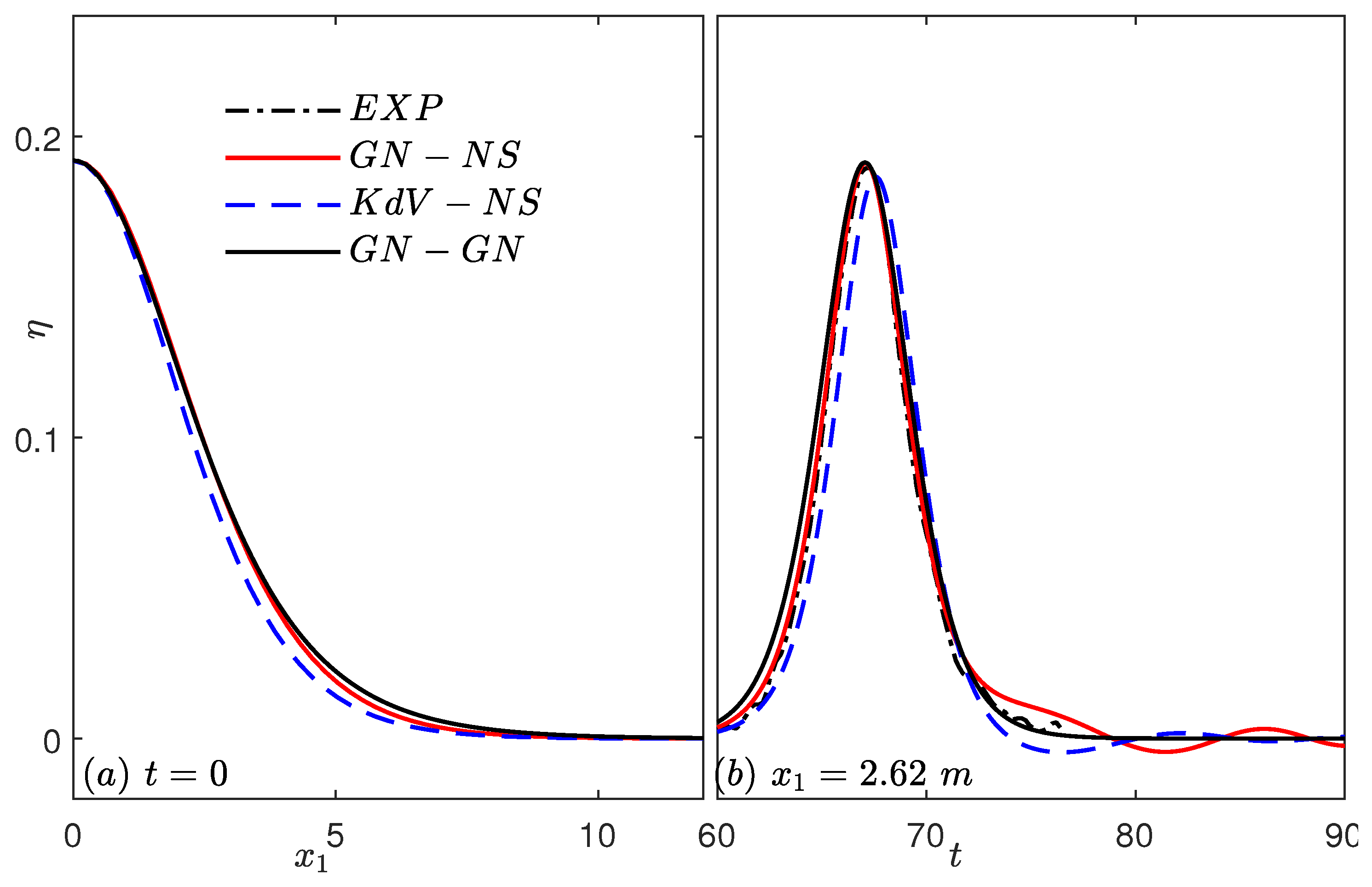

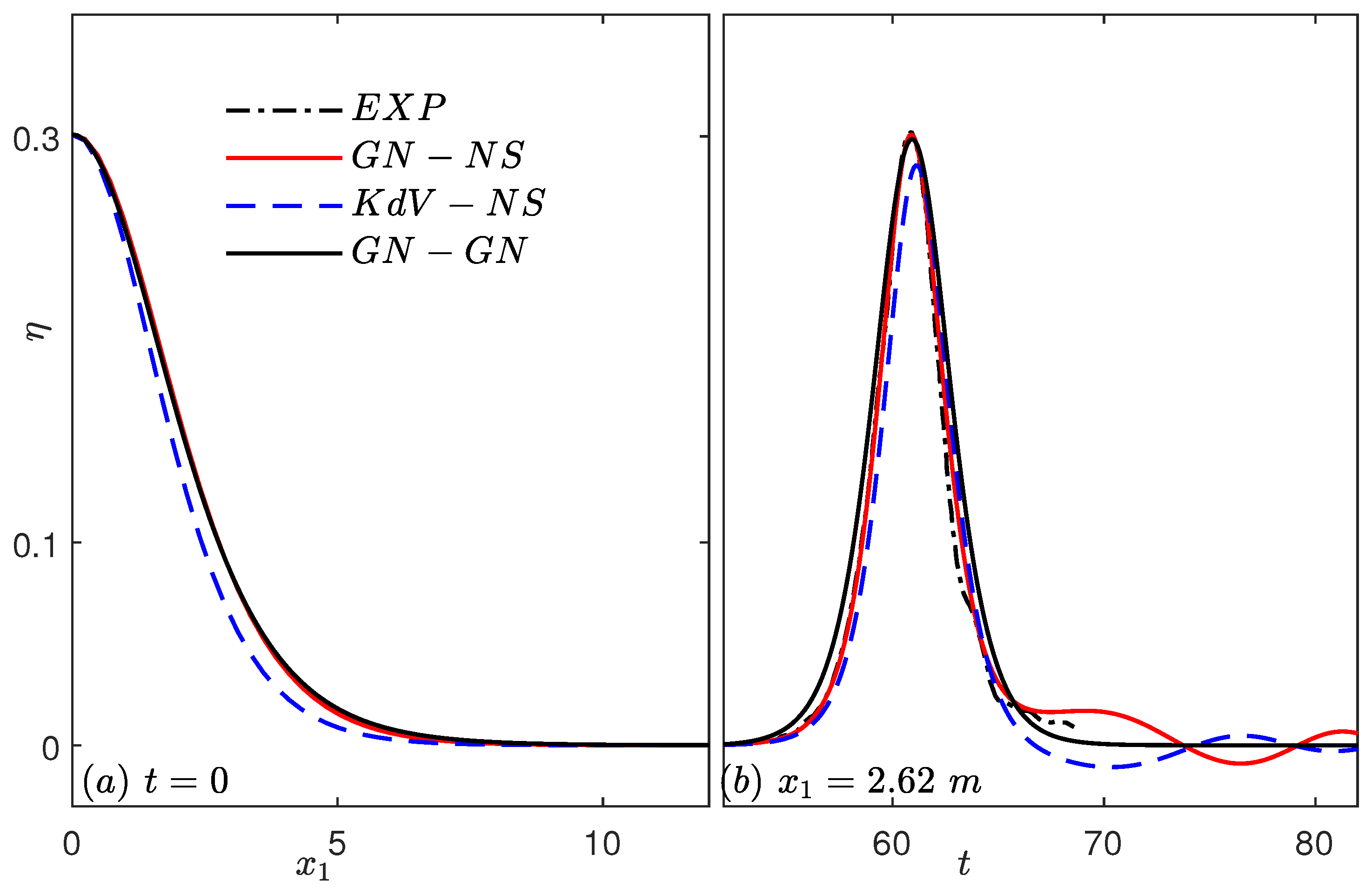

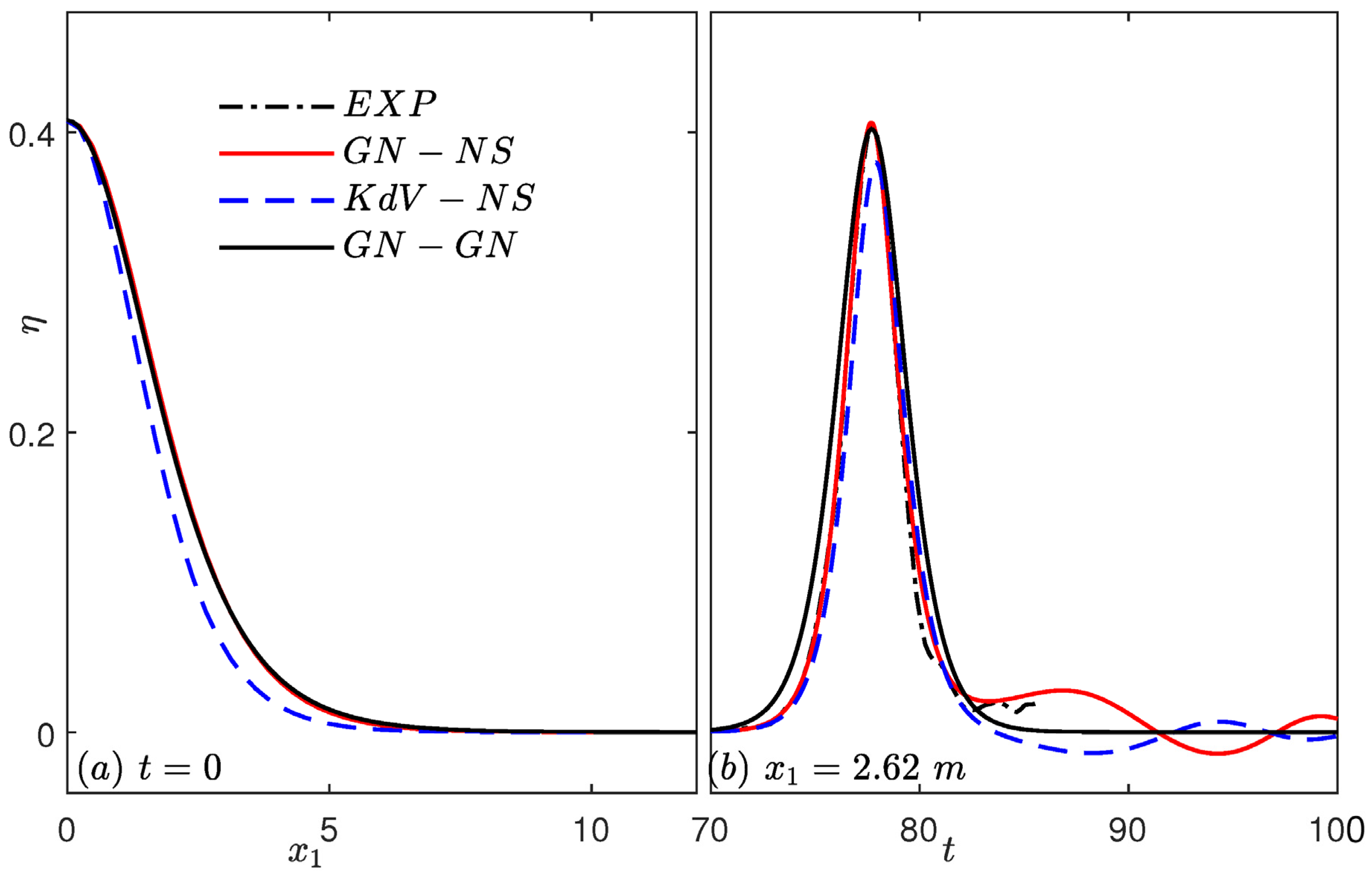

Snapshots at  t = 0  and surface elevations gathered by the GII of solitary waves are compared between GN-NS, KdV-NS, GN-GN, and laboratory experiments of [21], and are shown in Figure 6, Figure 7, Figure 8 and Figure 9.
At  t = 0 , the surface elevations of GN-NS and GN-GN are almost identical (as expected), and the KdV-NS solitary wave is slimmer, see sub-figure (a) of Figure 6, Figure 7, Figure 8 and Figure 9.
Table 6 shows the comparisons between the steady-state propagation speeds of solitary waves calculated by the equations listed in the table and unsteady ones measured from Figure 8 ( A = 0.4 ). The wave speeds calculated by Laitone’s 1st theory are the fastest, followed by those of the Boussinesq theory and the GN analytical solution, whose wave speeds are equal to each other. After these are the GN-GN, GN-NS and Laitone’s 2nd theory. When compared to the other models, the KdV-NS predicts the slowest wave propagation.
For the surface elevations recorded at  x 1  = 2.62 m, the peak value of the GN-GN and the GN-NS drops slightly from the initial amplitude and are in good agreement with the laboratory experimental data of [21], while that of the KdV-NS drops more remarkably and is smaller than the laboratory measurements, particularly where the wave amplitude is larger, shown in sub-figures (b) of Figure 6, Figure 7, Figure 8 and Figure 9. It shows the solitary wave generated by the GN equations are more stable than that of the KdV equations, especially in the cases of larger wave amplitudes.

4.2. Cnoidal Wave

Ref. [43] conducted laboratory experiments on the generation of cnoidal waves in a tank with a flat floor. They report the surface elevations of cnoidal waves at water depth  h = 0.071 m . In all the cases presented in this subsection for cnoidal waves, the water depth is fixed at  h = 0.071 m . Details of two cases are listed in Table 7 used here for comparison. Waves are measured in the wave flume in the absence of any obstruction by only one gauge located at  2.62 m  in the laboratory experiments.
The surface elevations recorded by the two wave gauges are presented in Figure 10. The results at  x 1 = 2.62 m  are compared between the experimental data of [43], and the numerical results of GN-NS, KP-NS, KdV-NS and GN-GN, in Figure 10.

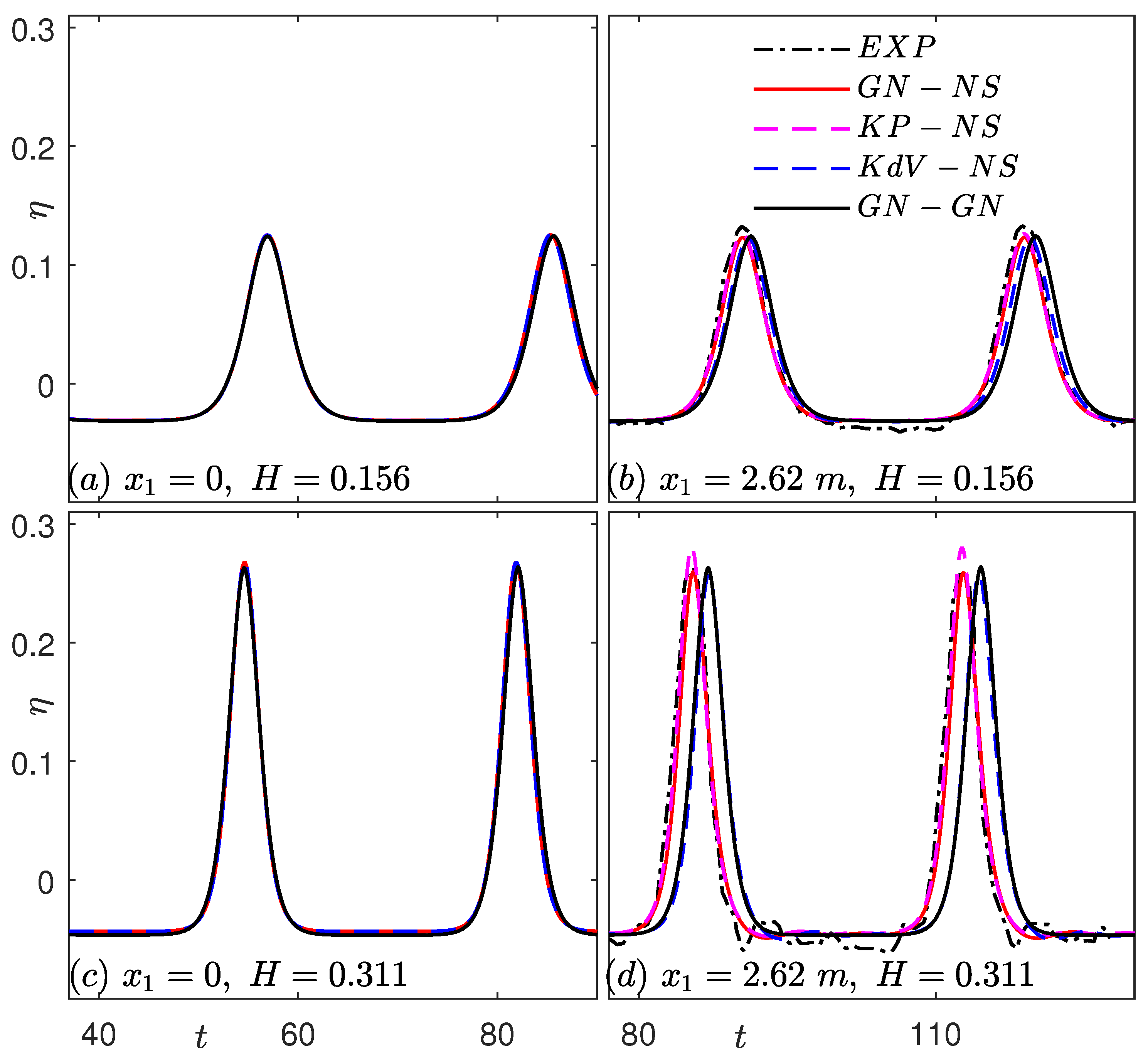

Figure 10 shows that the results of the GN-GN model is the closest to the laboratory measurements. The wave speed of KP-NS is the fastest, followed by GN-NS, GN-GN, and KdV-NS.
The surface elevation differences between the experimental data and numerical results are presented in Table 8. In the table,  R = ( P M P 1 ) × 100 % , where  P  is the peak of the surface elevation in experiments and  P M  is that of the equations. The average percentage difference ratios of the peak of the surface elevation of GN-NS ( 3.99 % ) and KdV-NS ( 4.36 % ) are close to each other, while that of KP-NS ( 5.71 % ) is the largest, and that of GN-GN ( 3.03 % ) is the smallest.
Comparisons of pressures, horizontal and vertical velocities of the GN-NS, KP-NS, KdV-NS, and GN-GN models, recorded at pressure sensors, SI and SII, velocimeters, VI and VII, under GI and GII, respectively, of the two cases are presented in Figure 11, Figure 12 and Figure 13, respectively. In the absence of laboratory measurements of the pressure and velocity, and given that the surface elevations of the GN-GN is the closest to the laboratory experimental data, the GN-GN model is used as a benchmark and differences between the results of the models,  R = θ θ G N G N θ G N G N , are presented in Table 9, Table 10 and Table 11.

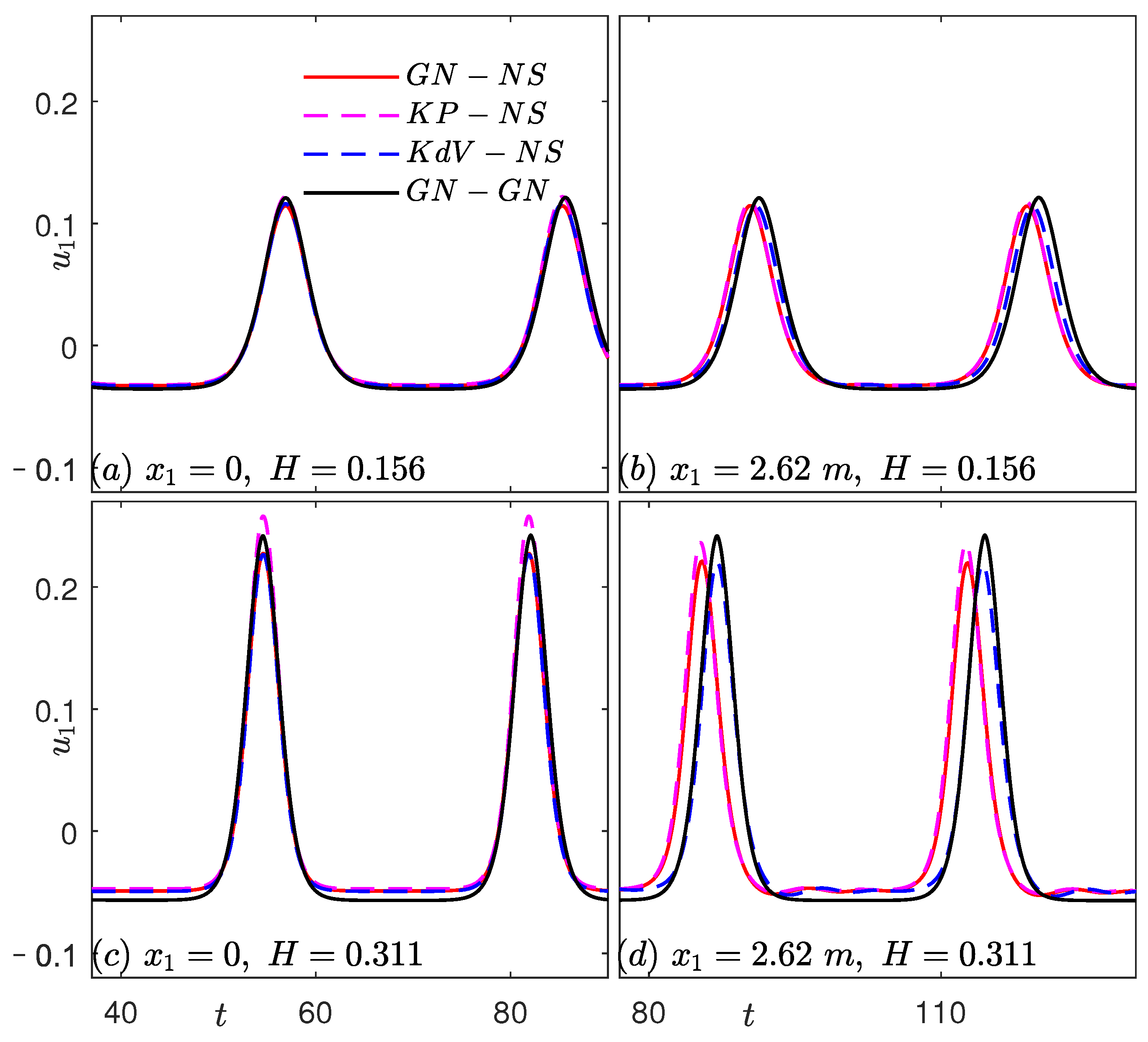

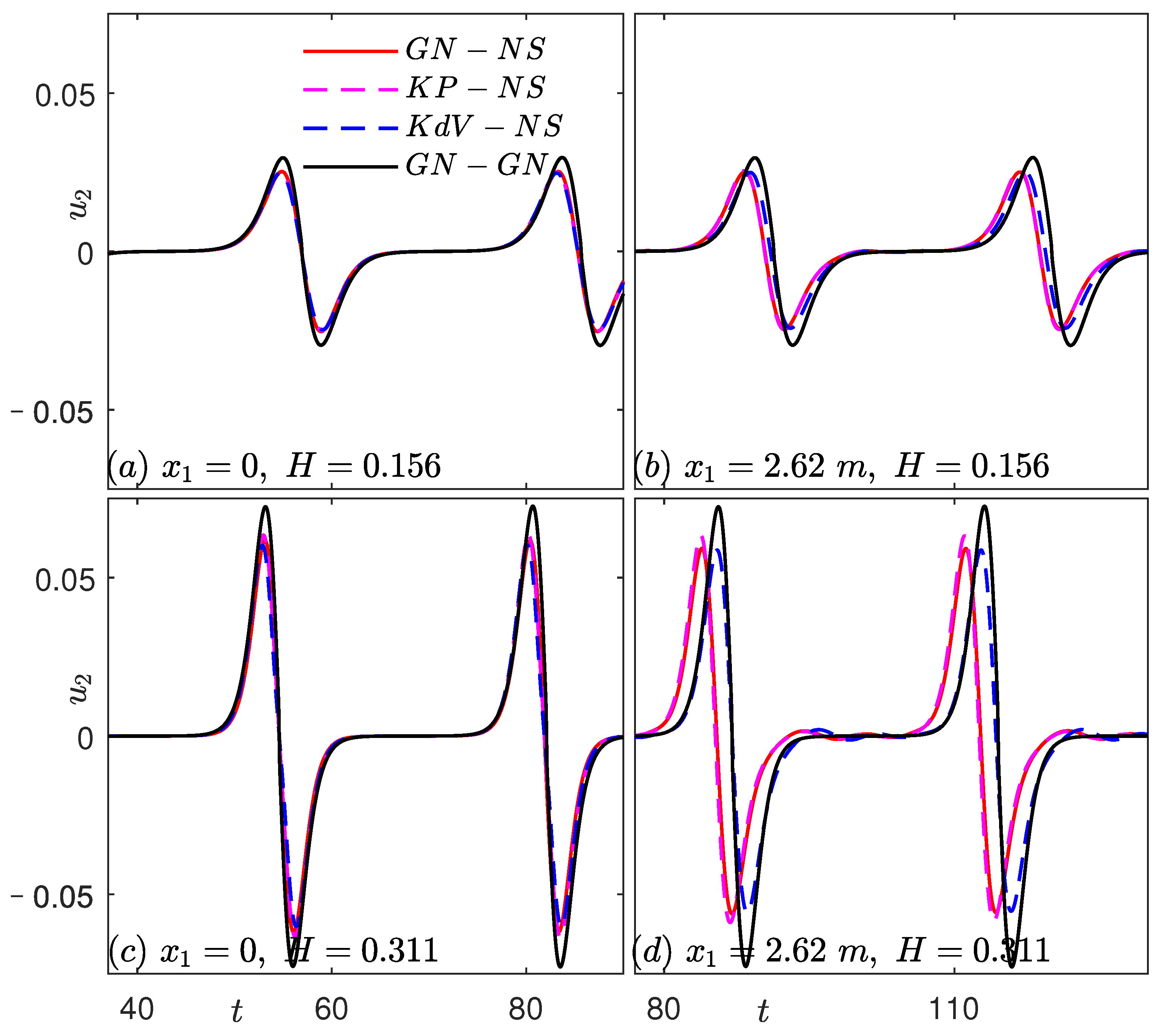

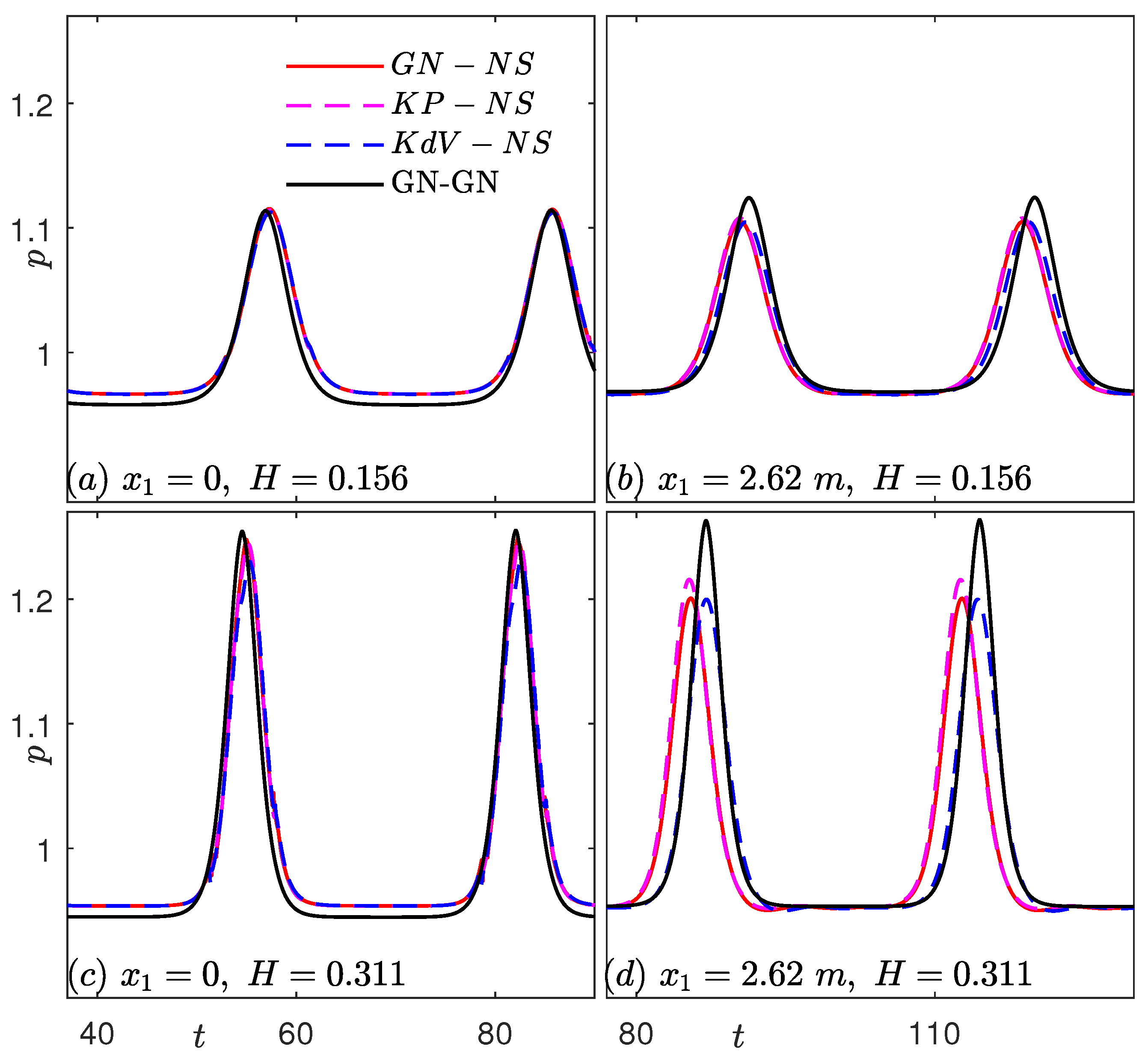

Figure 11, Figure 12 and Figure 13 and Table 9, Table 10 and Table 11 show that p u 1 u 2  of KP-NS are closer to that of GN-GN, while that of the GN-NS and KdV-NS are close to each other and slightly smaller than that of KP-NS.
We recall that in the Level I GN equations, we assume linear distributions of the vertical velocity. It is interesting to compare the results of GN-GN model with that of GN-NS and KP-NS to find out how close the assumption is to the computational results. Distribution of the horizontal and vertical velocity along the vertical direction at  x 1 = 0  and  x 1 = 2.62 m  of the two cases are shown in Figure 14, Figure 15, Figure 16 and Figure 17.

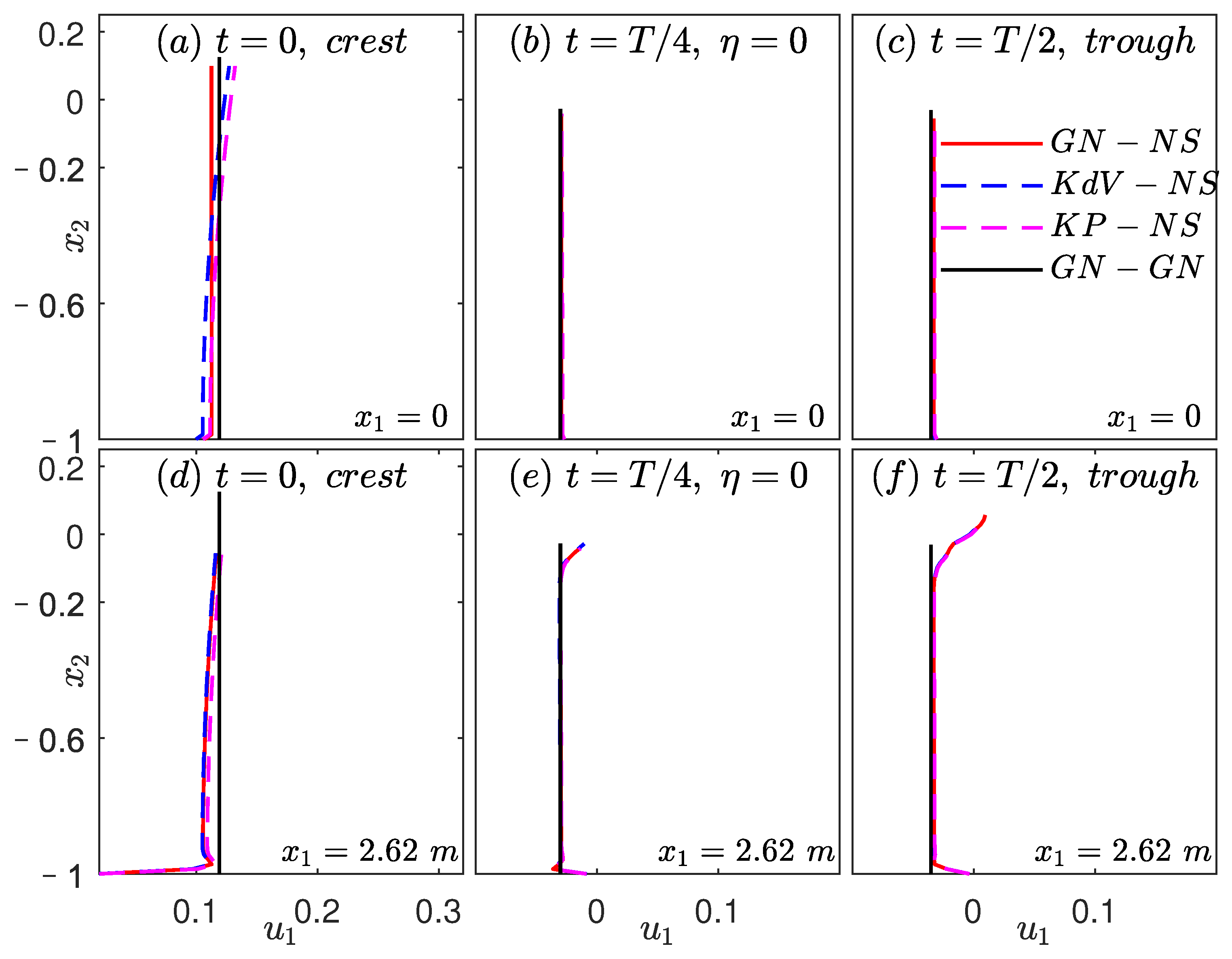

For horizontal velocity distribution of cnoidal wave, GN-GN shows constant velocity along the vertical direction and this agrees with Equation (27). Although the horizontal velocity of GN-NS is constant at  x 1 = 0 , which is the same as GN-GN, the velocity becomes closer to that of KP-NS and KdV-NS as the wave propagates in the NS domain (at  x 1 = 2.62 m ). At  x 2 = 2.62 m , the horizontal velocity of the cnoidal wave propagating in the NS domain shows a slight difference with that of GN-GN near the tank bottom and free surface. This is due to the effect of viscosity and the atmospheric boundary effects. Away from these boundaries, the horizontal velocities of the GN-NS, KP-NS and KdV-NS are constant and very close to that of the GN-GN model.

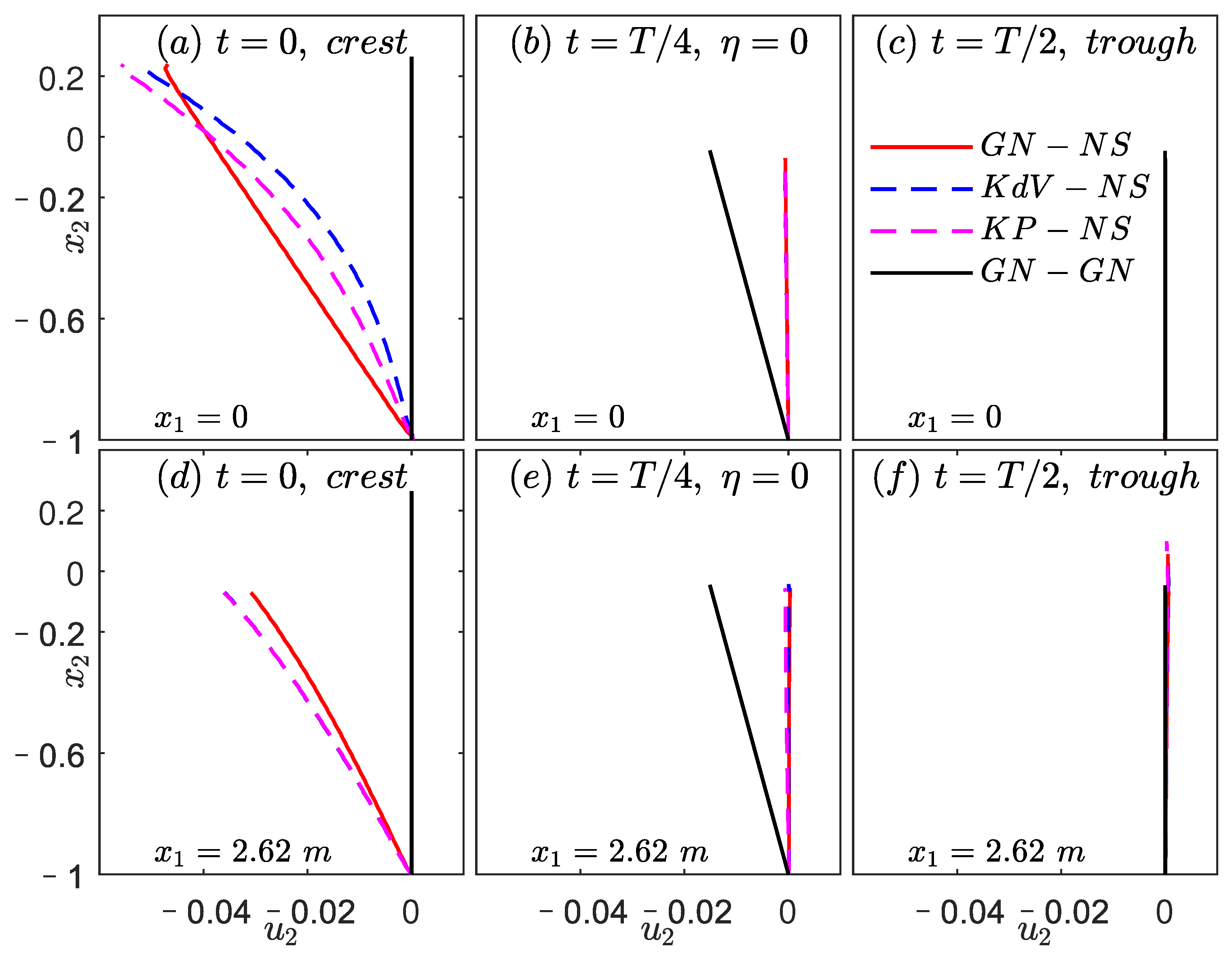

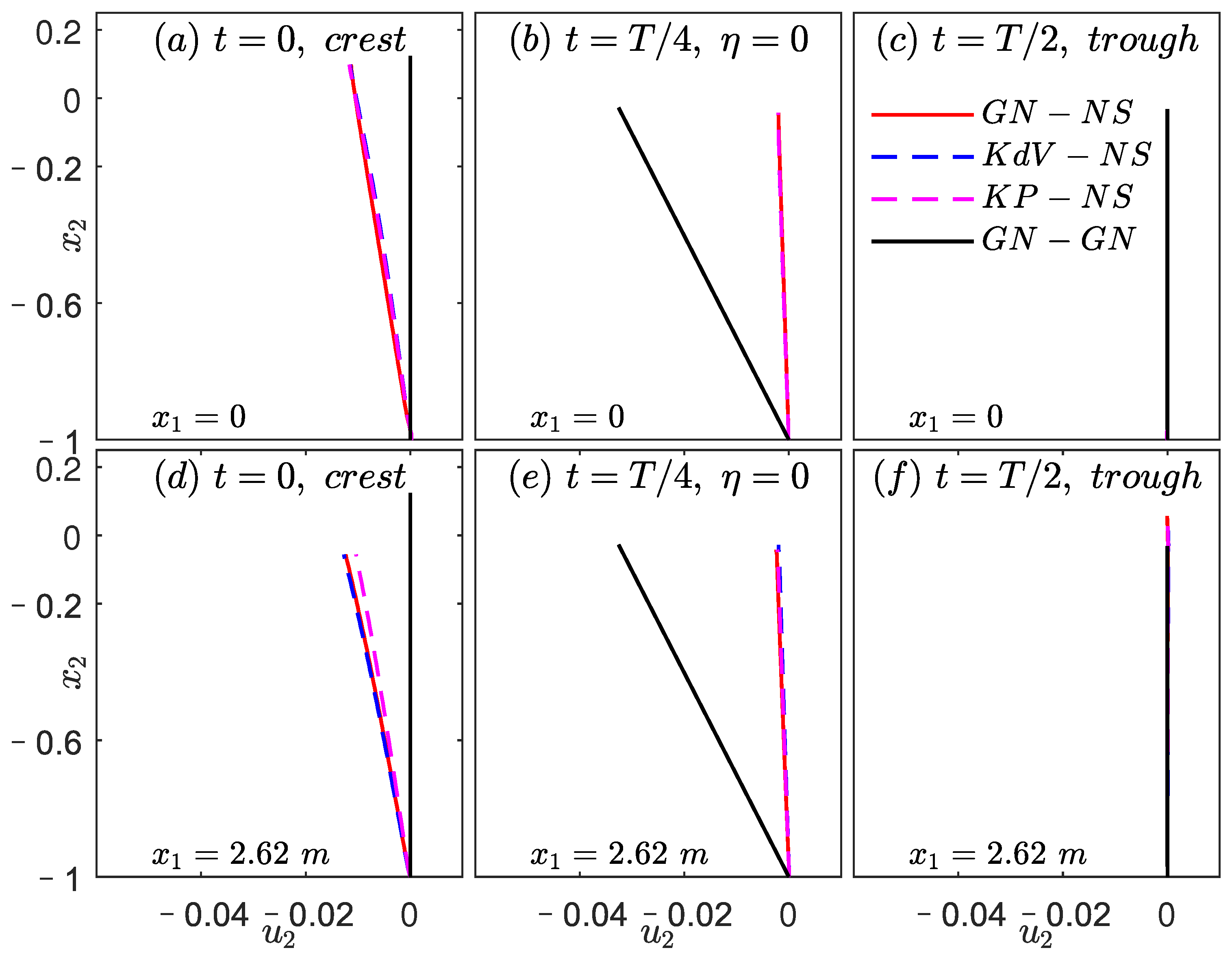

For vertical velocity distribution of cnoidal wave, that of GN-GN, GN-NS, KP-NS, and KdV-NS are almost linear along the vertical direction (agree with Equation (28) for the GN-GN model). Nonlinear distributions are found at  t = 0 , where the distributions under the crest is observed, see sub-figs (a) and (d) of Figure 16 and Figure 17.

5. Concluding Remarks

The surface elevation, pressure and velocities of solitary and cnoidal waves generated by different theories are investigated. The stability and accuracy of the waves generated by different theories, propagating in a domain governed by the NS equations, are assessed. We have also considered waves generated by the GN equations, entering the domain of the GN equations.
For a steady-state solitary wave, the surface elevation of the wave generated by Laitone’s 2nd is close to that of the GN equations, while those of the Boussinesq equations and Laitone’s 1st are close to each other and slimmer than the previous two equations. The wave speed of Laitone’s 1st equation is the largest, followed by the Boussinesq equations and the GN equations, and that of Laitone’s 2nd is the slowest. Although the GN equations and the KdV equations share the same expression of wave speed for solitary waves, the speed of the wave in the GN-NS model is faster and closer to the theoretical values than that of KdV-NS, while that of GN-GN shows close agreement with the GN-NS model.
For the cnoidal wave, the surface elevation of the GN-GN model is closer to the experimental data, followed by KP-NS, GN-NS, and KdV-NS. Similar results are found for pressure, horizontal and vertical velocities. The wave speed of KP-NS is the fastest, GN-NS is the second, GN-GN is the third, and KdV-NS is the last. The main difference in the horizontal and vertical velocity distribution between GN-NS, KdV-NS, KP-NS, and GN-GN is found under the crest of the cnoidal wave, while the distributions are all the same when observed under the trough.
Overall, it is concluded that nonlinear waves generated by the GN equation are stable and show the least difference when compared with the laboratory measurements.

Author Contributions

Conceptualization, M.H. and R.C.E.; Methodology, M.H. and R.C.E.; Software, J.L., M.H. and R.C.E.; Validation, J.L. and M.H.; Formal analysis, J.L.; Investigation, J.L. and M.H.; Resources, M.H.; Writing—original draft, J.L.; Writing—review & editing, M.H. and R.C.E.; Visualization, J.L.; Supervision, M.H. and R.C.E.; Project administration, M.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data that support the findings of this study are available within the article.

Conflicts of Interest

The authors declare no conflict of interest.
