A Deep Learning Approach to Estimate Halimeda incrassata Invasive Stage in the Mediterranean Sea

Abstract

Invasive algae, such as Halimeda incrassata, alter marine biodiversity in the Mediterranean Sea. Monitoring these changes over time is crucial for assessing the health of coastal environments and preserving local species. However, this monitoring process is resource-intensive, requiring taxonomic experts and significant amounts of time. Recently, deep learning approaches have attempted to automate the detection of certain seagrass species like Posidonia oceanica and Halophila ovalis from two different strategies: seagrass coverage estimation and detection. This work presents a novel approach to detect Halimeda incrassata and estimate its coverage, independently of the invasion stage of the algae. Two merging methods based on the combination of the outputs of an object detection network (YOLOv5) and a semantic segmentation network (U-net) are developed. The system achieves an F1-scoreof 84.2% and a Coverage Error of 5.9%, demonstrating its capability to accurately detect Halimeda incrassata and estimate its coverage independently of the invasion stage.

1. Introduction

The introduction of invasive species due to human activity in new ecosystems represents a threat to the preservation of native species. In fact, invasive species are the second leading cause of species extinction, endangering biodiversity conservation [1]. Monitoring changes in marine ecosystems is crucial for the conservation and preservation of their biodiversity, especially in the context of an increasing anthropogenic impact on the environment [2,3].

The Mediterranean Sea is undergoing an alteration process of its marine biodiversity, as many invasive species have appeared during the last years [4]. One of these invasive species is Halimeda incrassata (from now on referred to as H.i), which is a calcareous rhizophytic species of green macroalgae in the family Halimedaceae, native to the tropical western Atlantic and Indo-Pacific Oceans [5,6].

H.i was first detected on the coast of Palma (Spain) in 2011 and has been rapidly spreading on the south coast of Mallorca and the coasts of Cabrera [7]. H.i is already changing the structural characteristics of invaded habitats; thus, effects on the native ecosystems can be expected [8]. Quantifying the extension of areas invaded by H.i and its temporal evolution is key to assessing its effects on local species and evaluating the efficiency of new eradication protocols.

In this context, new technologies that automate the process of H.i detection and coverage estimation can speed up data processing and significantly reduce the need for human labelling. Nonetheless, estimating the coverage of H.i presents several challenges:

• Recursive Shape: H.i grows in a recursive shape, making it challenging to delimit individual shoots.
• Varied Distributions: Different stages of invasion may present varying distributions of H.i, requiring different approaches for accurate detection. Specifically, two different scenarios can be distinguished depending on the type of H.i distribution they present.

  (a)

  Dense Scenario: Comprises locations where the invasion process of the algae is at a late stage, and therefore, the H.i completely covers the studied area.

  (b)

  Sparse Scenario: Comprises locations where the invasion process is in its initial phase, leading to the presence of H.i in the form of scattered individuals on the seabed.

  It is important to note that these scenarios represent the extreme cases, and H.i coverage can be found at any stage of invasion in between the extreme cases.

An important aspect to take into account when automating a task lies in the ability of the system to adapt to the environment and the information it gathers, requiring the concurrent generation of real-time information for effective adaptation. For H.i monitoring, being able to generate real-time information on its presence would allow performing dynamic path planning strategies to adapt and optimize a vehicle trajectory during missions, in terms of duration, quality, and quantity of the gathered data.

The aim of this work is to design a system for automating the H.i coverage estimation process using deep learning. First, two scenario-based solutions are presented: one for the dense scenario, based on semantic segmentation (SS); and another for the sparse scenario, based on object detection (OD). Next, two merging methods are presented to combine the scenario-based estimations into a generic, scenario-independent solution capable of calculating H.i coverage independently of the invasive process stage. Additionally, the entire H.i coverage estimation system is implemented on an Autonomous Underwater Vehicle (AUV) and adapted to be executed online.

The remainder of this document is structured as follows. Section 2 reviews the related work on seagrass detection and coverage estimation and highlights the main contributions. Section 3 describes the adopted methodology and materials, including the neural network architectures used, its training details, and the proposed merging methods. Section 4 presents the experimental results. Section 5 explains the system implementation on an AUV. Finally, Section 6 summarizes the main conclusions and presents possible future research lines.

2. Related Work and Contributions

2.1. State of the Art

Seagrass and seaweed are crucial in marine ecosystems, and monitoring their status is essential for assessing environmental conditions. The detection and mapping of underwater vegetation have been subjects of research since the 1980s. Initially, this monitoring heavily relied on in situ observation and sampling by experts, while later advances in both sensing and processing techniques have facilitated the development of a more automated and accurate monitoring pipeline [9]. In this transition process towards automation, methods can be classified according to two different domains: data acquisition method and data processing methods.

In the domain of data acquisition, three general types of data can be distinguished: acoustic images, hyper or multi-spectral satellite images, and RGB images. Although some research has been conducted in the field of acoustic seagrass monitoring [10,11,12], its prevalence is overshadowed by detection methods involving hyperspectral or RGB images, primarily due to the high cost associated with its requisite sensors. Moreover, while successful in detecting meadow-like seagrass, acoustic monitoring faces challenges in distinguishing between seagrass types and exhibits a dependency on depth ranges. Some advantages of this type of data include being easier to label or that are not significantly affected by turbidity or light conditions.

Regarding hyper-spectral images, their convenience and potential have positioned them as a particularly interesting approach, as they provide the means to study extensive regions with minimal data gathering cost. Numerous approaches have been explored in recent years, especially in the context of seagrass and macroalgae monitoring [13,14,15]. However, employing these kinds of data to monitor smaller and isolated species remains challenging, as small seaweed species like H.i are not discernible in satellite images. Consequently, underwater RGB images continue to be one of the most popular techniques for these tasks, despite the higher cost associated with the data acquisition process compared to satellite imagery. In this study, underwater RGB images will be employed, as they prove to be the most suitable for the application, given that the primary objective is to detect H.i, which is only observable from underwater images.

In the domain of data processing, traditionally, seaweed population estimation and monitoring has relied on the laborious analysis of the extensive imagery of biologists, becoming a very time-consuming task. However, the emergence of new deep learning-based techniques is enabling the automation of these processes, significantly reducing the analysis times and increasing the temporal and spatial scope of data collection experiments [16].

Many approaches for automatically detecting or estimating seaweed and seagrass have been developed. Some studies have utilized traditional vision techniques, such as Bonin et al. [17], where Gabor features along a Support Vector Machine are used for classifying Posidonia oceanica (P.o).

Recently, with the emergence of deep learning as the state-of-the-art for detection and classification problems, deep learning-based techniques have also been introduced in seagrass detection. Following this, two types of approaches can be distinguished.

The first approach is based on using SS networks to generate coverage maps of different species of algae that form meadows. One of the most studied seagrasses in this context is P.o. In 2018, Martin-Abdal et al. [18] used a CNN (VGG16-FCN8) that achieved an accuracy of 96.8% in P.o coverage estimation. Similarly, in 2019, Weidman et al. [19] found that the DeepLabv3Plus Network achieved a mean Intersection over Union of 87.8% on seagrass segmentation.

On the other hand, when the objective is to detect and locate individual instances of seagrass, many studies utilize state-of-the-art OD networks such as YOLO, EfficientDet, or Faster R-CNN [20,21,22]. Recently, Ranolo et al. [23] used YOLOv3 to detect seaweed, achieving an accuracy of 73.0%. Noman et al. [21] presented a YOLOv5-based one-stage detector and an EfficientDetD7–based two-stage detector to detect Halophila ovalis, improving the state of the art results for this algae.

In the specific case of H.i, some preliminary work has attempted to use differentiated approaches for sparse and dense cover scenarios [24] without providing a scenario-independent solution. Based on the current information, all previous research has focused either on estimating the coverage of seaweed meadows or detecting individual instances of algae. However, to the best of our knowledge, no prior work has attempted to address a mixed scenario where a seaweed species can exhibit vastly different distributions depending on the stage of its invasion, as is the case with H.i.

This work proposes a novel system to combine OD and SS techniques and provide an improved H.i coverage estimation, adaptable to dense and sparse scenarios, or a combination of both.

2.2. Main Contributions

The main contributions of this work are composed of:

• Generation of a dataset containing H.i images covering different stages of the invasion process.
• Training and testing of an OD network and an SS network to estimate the coverage of H.i in specific stages of invasion.
• Development of two merging methods to combine OD and SS estimations.
• Implementation of the system on an AUV, performing an online execution.
• Creation of a publicly available repository [25] where data, the code, and trained models are provided to the scientific community.

3. Materials and Methods

This section explains the data acquisition, labelling, and organization; presents the scenario-based solutions, indicating the used networks, their training, and hyperparameter study; and describes the proposed merging methods.

3.1. Data

This subsection explains the acquisition, labelling, and management of the data used to train and test the deep neural networks.

3.1.1. Acquisition

To collect the data needed to build the dataset, several dives were conducted at diverse locations of Mallorca and Cabrera between 2020 and 2023 (shown in Figure 1), using three different cameras: a GoPro HERO (GoPro, Inc., San Mateo, CA, USA), an Olympus Tough TG-6 (Olympus Corporation, Tokyo, Japan) and a NIKON COOLPIX S33(Nikon Corporation, Tokyo, Japan). RGB images were gathered at different invasion stages, containing H.i from both dense and sparse scenarios; and under different conditions such as altitude, camera angle, and seabed type. Additionally, some images were obtained from the public repository of the Observadores del mar community [26]. The complete dataset comprises 881 images featuring H.i across a wide spectrum of scenarios. Figure 2 presents some data examples.

3.1.2. Ground Truth Labelling

The ground truth generation of images from the dense and sparse scenarios used different labelling methods. On the one hand, images from the dense scenario were labelled using GIMP [27] to create label maps, marking the areas containing H.i in white and the background areas in black. On the other hand, images from the sparse scenario were labelled using LabelImg [28], marking each H.i instance with a bounding box. Figure 3 shows an example of both types of images with their corresponding ground truths.

It is worth noting that, despite the image division, the labelling process presented some difficulties regarding the inherent distribution of H.i. In some cases, the delimitation of individual H.i plants was unclear due to its recursive shape or the fact that it often grows in small plant groups. There were also images in which the invasion stage was in between the two defined scenarios.

3.1.3. Dataset Management

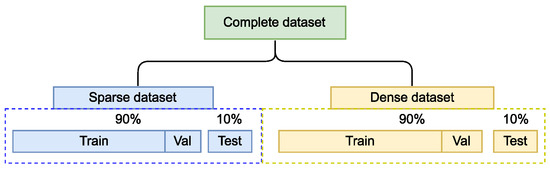

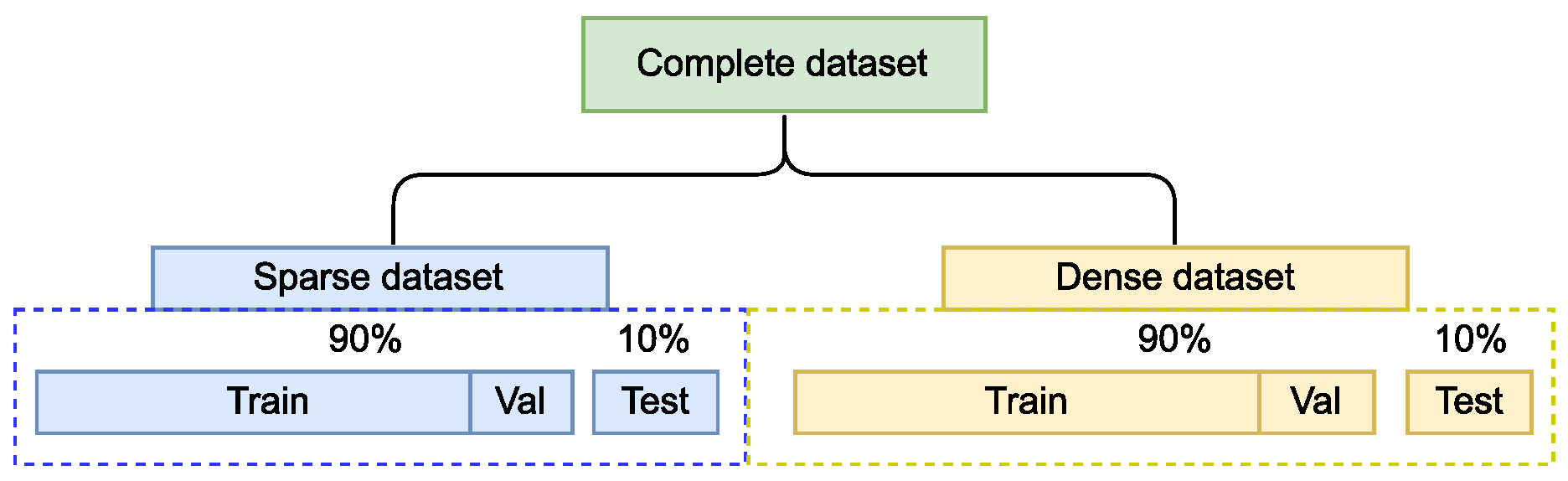

The complete dataset is divided into two sets: one containing the images from the dense scenario (dense dataset) and another containing the images from the sparse scenario (sparse dataset).

For the dense dataset, 452 images were selected from the complete dataset. The dense dataset was split into a train-validation partition composed of 383 images (85% of the data) and a test partition composed of 68 images (15% of the data).

For the sparse dataset, 433 images were selected from the complete dataset. The sparse dataset was split into a train-validation partition composed of 368 images (85% of the data) and a test partition composed of 65 images (15% of the data). Figure 4 illustrates this distribution.

3.2. Halimeda Coverage Estimation Modules

As previously stated, two different scenarios regarding H.i distribution (dense and sparse) are distinguished. In this section, two scenario-based modules specifically designed to meet the requirements of each scenario are presented, detailing the used neural networks, their training, and hyperparameter selection.

3.2.1. Semantic Segmentation Module

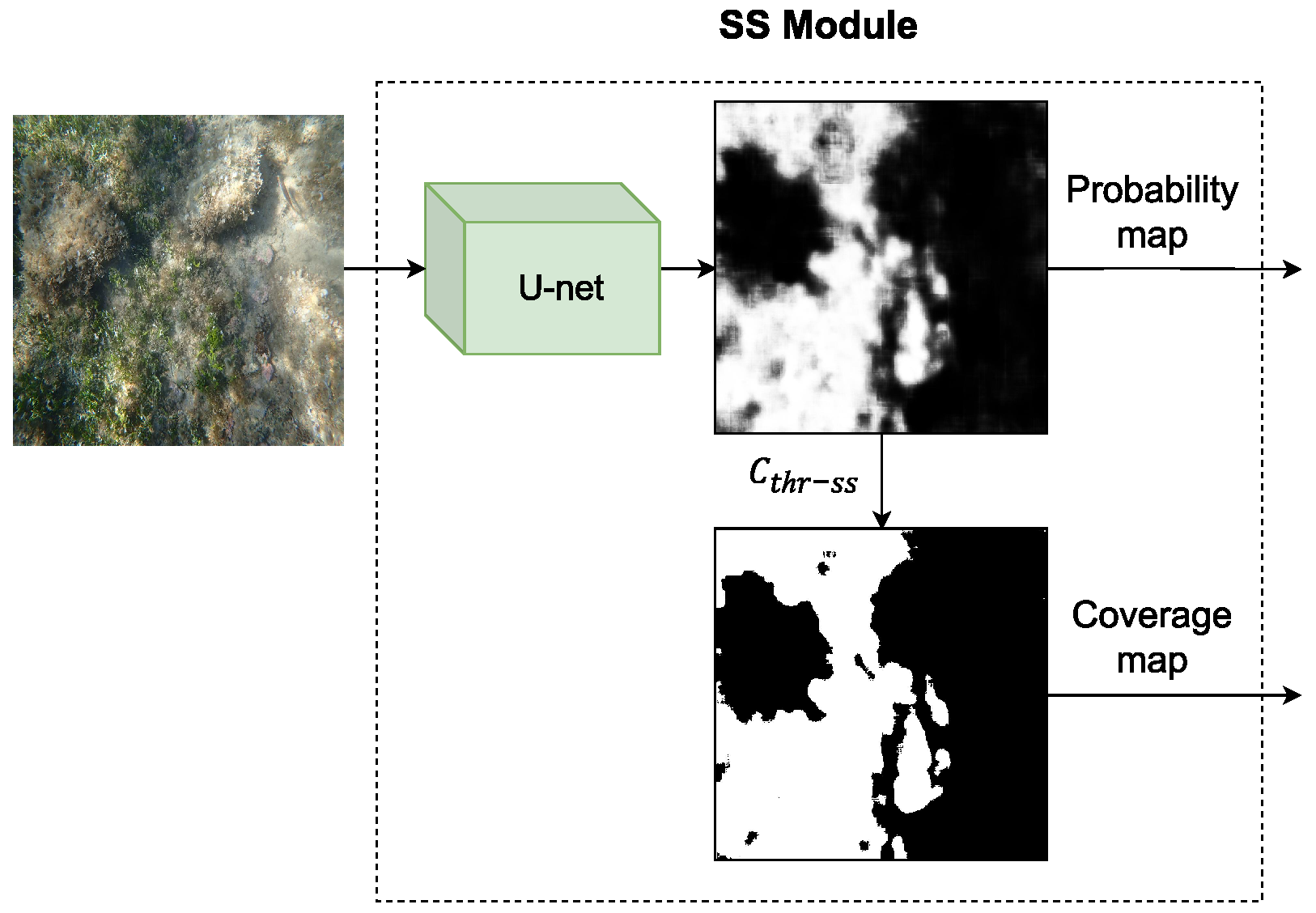

This module tackles H.i detection in the dense scenario. It uses an SS network to perform a pixel-wise segmentation, indicating whether each pixel of an image belongs to an H.i covered region or not. SS networks excel at accurately detecting and delineating irregular regions within an image, as is the case for H.i in the dense scenario case.

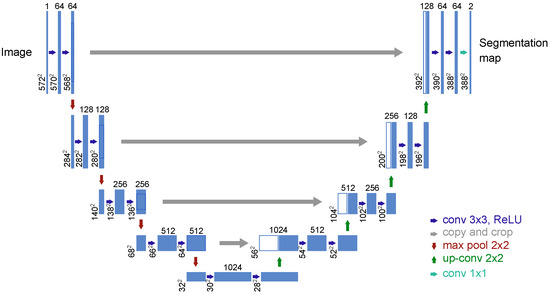

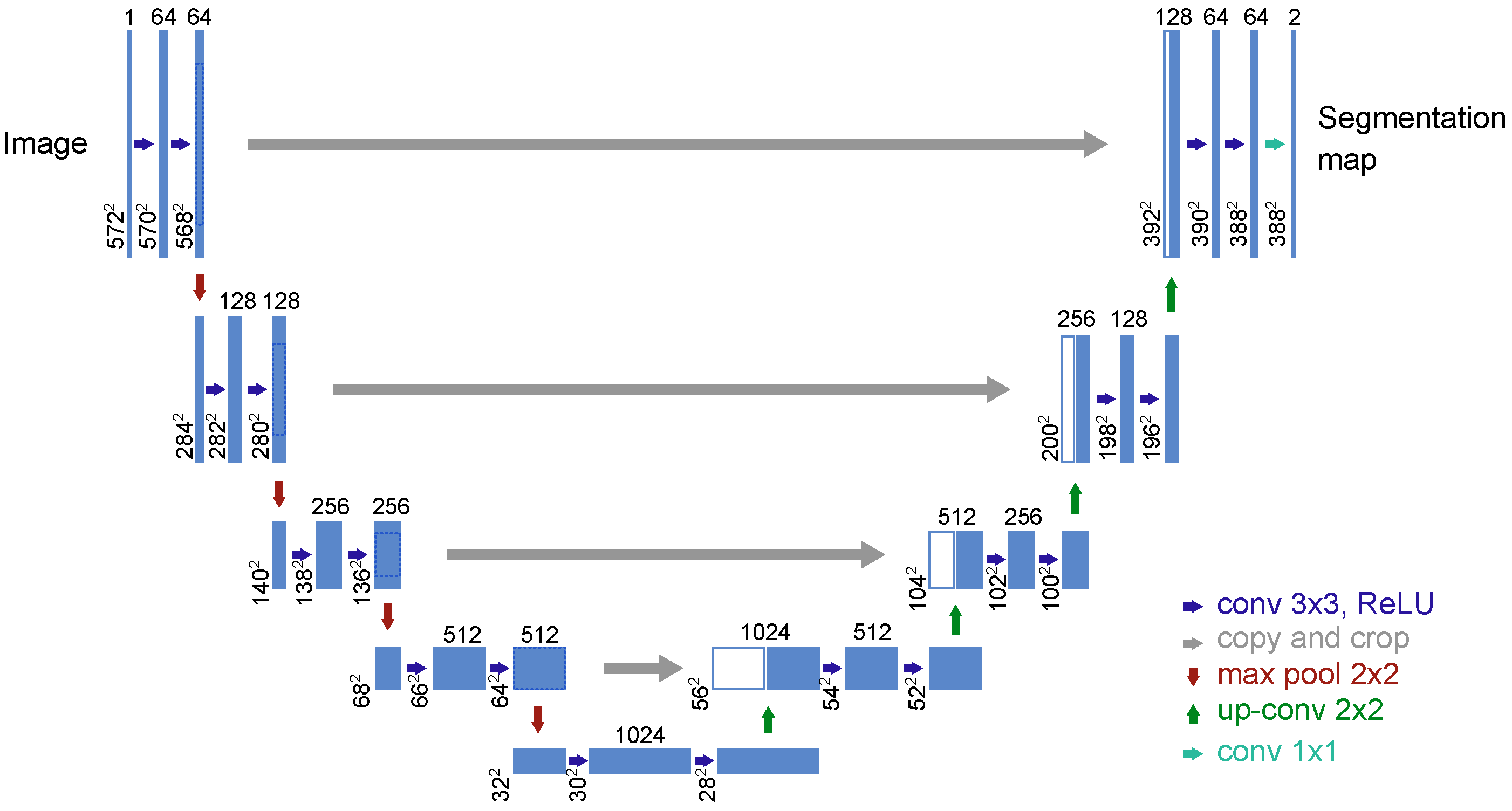

For this module, the U-net SS network has been selected. Its architecture comprises a contracting path to capture context and a symmetric expanding path that enables precise localization [29]. This network has demonstrated an outstanding performance in segmentation applications and is particularly well-suited for small datasets. Although its original purpose was a biomedical image segmentation, its use has extended to other generic segmentation tasks, becoming one of the most popular networks for this purpose [30]. Moreover, it has already been used for seaweed SS from satellite images, achieving good results [31]. Figure 5 shows the network architecture.

The network was trained on the dense dataset, using early stopping to prevent overfitting, a batch size of 3, the Adam optimizer, and a binary cross-entropy loss function. To optimize the network performance, a hyperparameter study was conducted. The considered hyperparameters were:

• Learning rate: controls the pace at which the network learns by modifying its training step.
• Data augmentation: consists of applying transformations to the input data (e.g., rotations, translations, or crops) to increase the variety of the data and reduce overfitting.

Table 1. Combination of hyperparameters tested for the SS module. The network was trained for each learning rate with and without using data augmentation. The learning rate values were selected by altering the default U-net learning rate, 0.001, by a scale of 3.

Data Augmentation	Learning Rate
	0.009
	0.003
Yes	0.001
	0.00033
	0.00011
	0.009
	0.003
No	0.001
	0.00033
	0.00011

lists the tested hyperparameter combinations. The network was trained for each learning rate value, both with and without using data augmentation. The data augmentation techniques applied included rotations, flips, horizontal and vertical shifts, and shear and zoom transformations. These techniques were applied to the original images with a certain probability. The learning rate values were selected by altering the default learning rate value for the U-net, 0.001, by a scale of 3.

The network outputs a probability map, where each pixel has a value between 0 and 255, representing the likelihood of H.i being found in that position of the original image. This probability map is binarized by establishing a probability threshold, $C_{thr-ss}$. The areas with a predicted probability higher than $C_{thr-ss}$ are marked in white (H.i), while the rest are marked in black (background), resulting in the H.i coverage map. The $C_{thr-ss}$ value that provided better performance was selected. The probability and coverage maps conform to the outputs of the SS module, depicted in Figure 6.

3.2.2. Object Detection Module

This module tackles H.i detection on the sparse scenario. The module is based on an OD network to detect H.i instances. OD networks perform better when the target classes are isolated, as is the case for the H.i in the sparse scenario case.

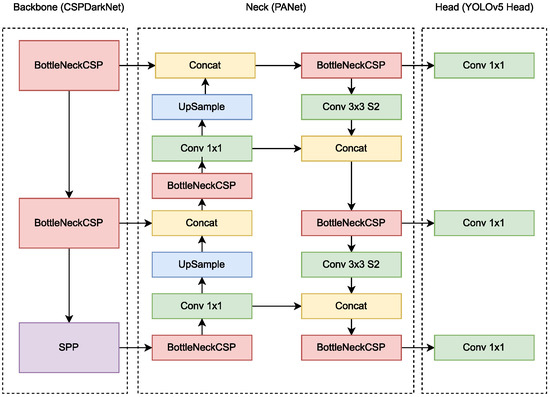

For this module, the YOLOv5 has been selected. YOLOv5 is an open-source, state-of-the-art deep learning model widely used for OD. Originally introduced by Redmon et al. in 2016 [32], YOLO revolutionized OD as a single-shot object detector, outperforming other networks like FASTER-RCNN [33] in terms of speed, gaining significant popularity in the field. Over time, numerous improvements to the original network have been proposed, resulting in the development of new YOLO versions such as YOLOv3, YOLOv4, YOLOv5, YOLOv6, YOLOv7 and YOLOv8 [34,35,36,37,38,39]. Yolov5 was selected for this work due to its widespread adoption and demonstrated success in previous underwater applications.

YOLOv5 is a family of models that offer scalability and computational efficiency and have obtained promising results in other underwater tasks [40]. The XL model (YOLOv5x) was selected due to its superior performance on State-Of-The-Art benchmarks and its suitability for detecting small objects [36]. Figure 7 shows The YOLOv5 architecture.

The network was trained on the sparse dataset, using early stopping to prevent overfitting, a batch size of 8, a stochastic gradient descent (SGD) optimizer, and transfer learning with pre-trained weights from the COCO dataset.

To select the network hyperparameters, the same procedure described in Section 3.2.2 was followed, testing diverse learning rates, data augmentation combinations and selecting the best-performing ones. The tested hyperparameter combinations are listed in

Table 2. Combinations of hyperparameters tested for the OD module. The network was trained for each learning rate with and without using data augmentation. The learning rate values were selected by altering the default Yolov5 learning rate, 0.01, by a scale of 3.

Data Augmentation	Learning Rate
	0.03
	0.01
Yes	0.0033
	0.0011
	0.00037
	0.03
	0.01
No	0.0033
	0.0011
	0.00037

.

The network was trained for every learning rate value, both with and without using data augmentation. The learning rate values were selected by modifying the Yolov5 default learning rate, 0.01, by a scale of 3. The employed data augmentation techniques included adjustments in hue, saturation, and value, image translations, scaling, horizontal flips, mosaics, mixup of images, and copy-paste augmentation.

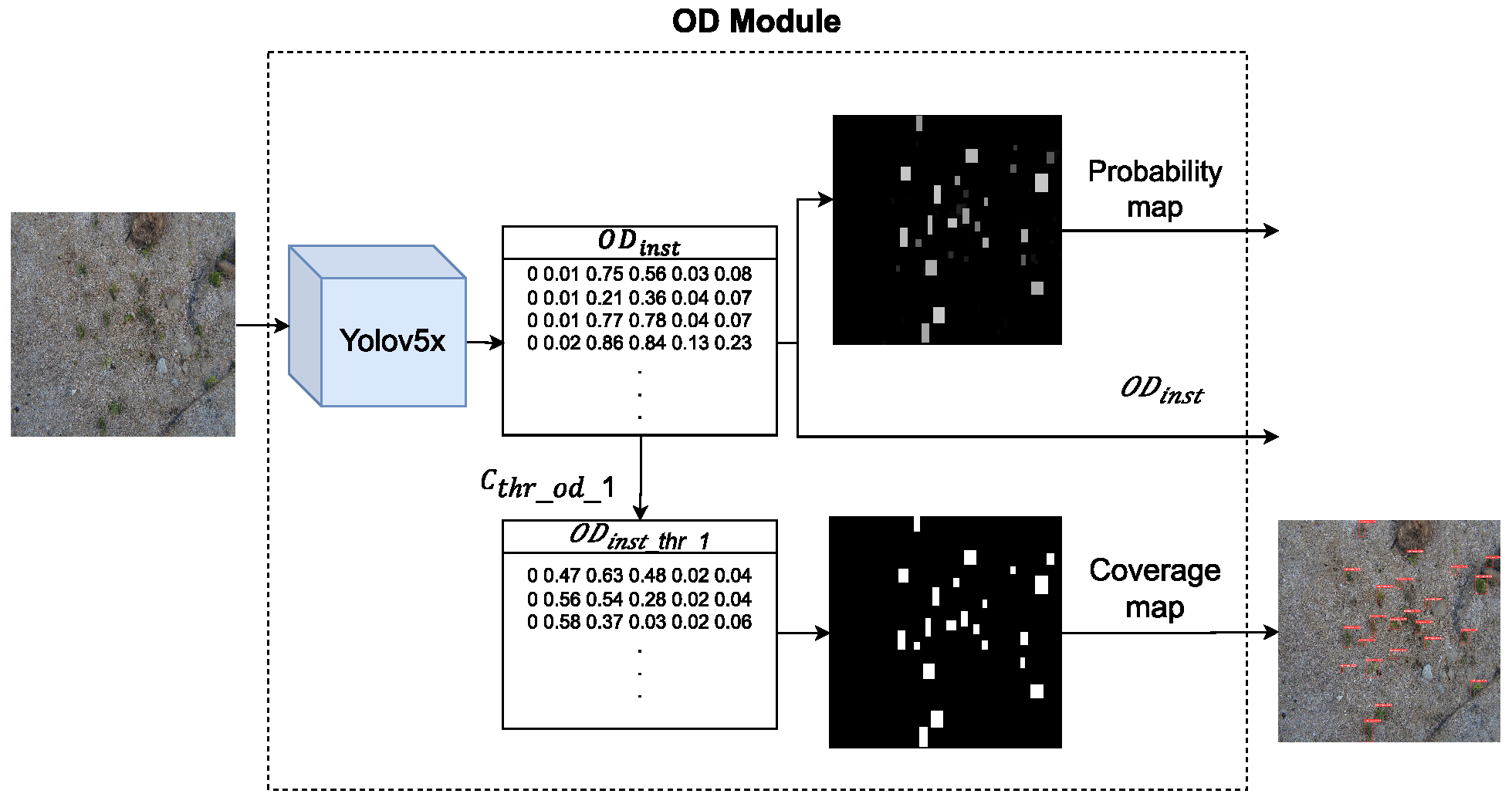

The network outputs an array of H.i instances, denoted as $O{D}_{inst}$, representing instances of detected H.i plants. Each instance in this array contains bounding box coordinates along with its associated class label and confidence score. However, as the final goal is to estimate coverages, the instances are converted into coverage maps of H.i. To do so, a second instance array ($O{D}_{inst\_thr\_1}$) is generated by applying a confidence threshold ($C_{thr\_od\_1}$) to the initial $O{D}_{inst}$ array, filtering out instances with lower confidence scores. Then, the $O{D}_{inst\_thr\_1}$ array is converted into a coverage map by marking the pixels within the predicted bounding boxes in white (255) and the rest in black (0). The $C_{thr\_od\_1}$ value that provided a better performance was selected.

Additionally, a probability map is generated by marking the pixels within the predicted bounding boxes in the $O{D}_{inst}$ array with a grey-scale value between 0 and 255, corresponding to their instance confidence percentage. The $O{D}_{inst}$ array, the coverage map, and the probability map conform the outputs of the OD module, depicted in Figure 8.

3.3. Merging Methods

As previously mentioned, the SS and OD modules are specifically designed for the dense and sparse scenarios, respectively. However, the ultimate goal of this work is to obtain a system capable of estimating the H.i coverage, independently of its distribution. Thus, it is necessary to design a method to merge both modules. This section presents the development of two different merging methods.

3.3.1. Weighted Merging

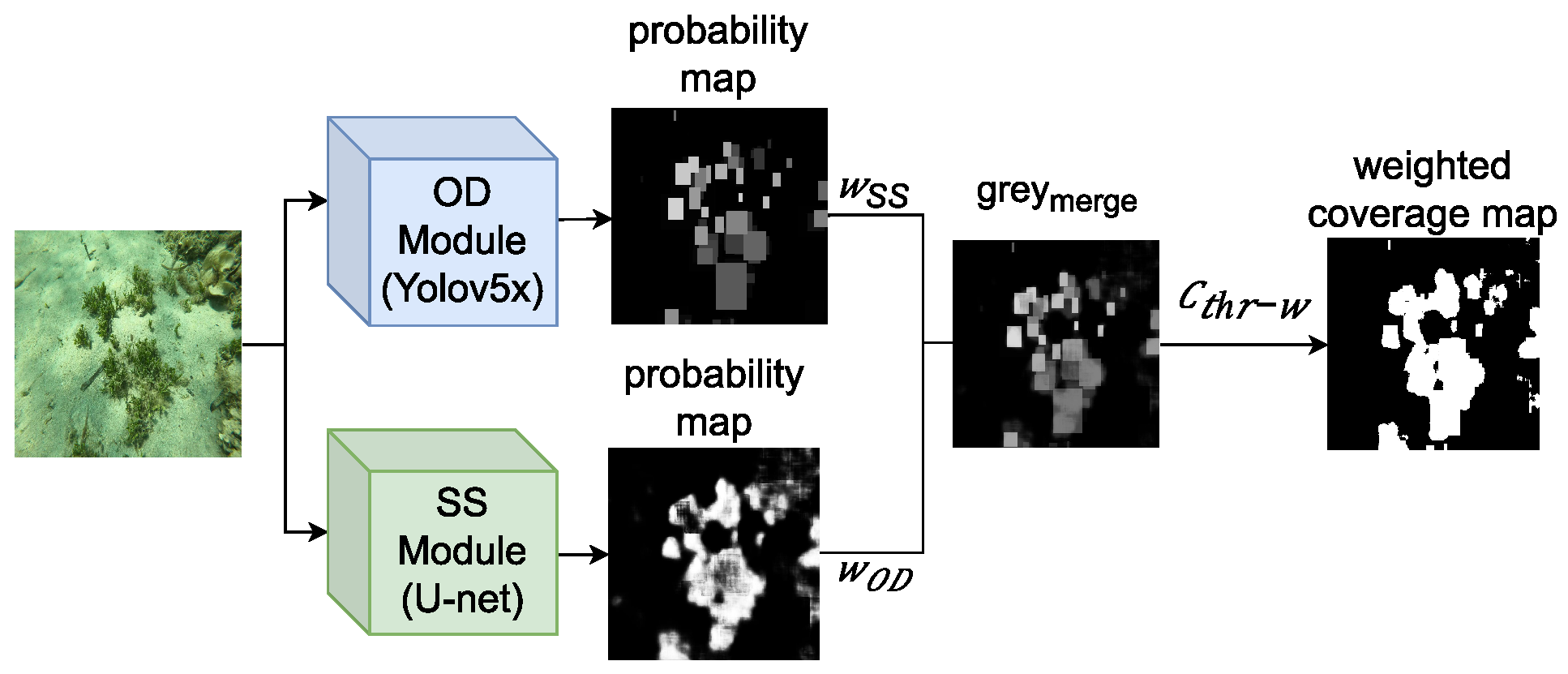

This merging pipeline combines the probability maps outputted by the SS and OD modules by weighting them, and generating a new probability map, $gre{y}_{merge}$. $w_{SS}$ and $w_{OD}$ represent the weights applied to the SS and OD modules, while $gre{y}_{SS}$ and $gre{y}_{OD}$ correspond to the grey values of the SS and OD probability maps, respectively. The weight values $w_{SS}$ and $w_{OD}$ range from 0 to 1 and satisfy the relationship $w_{OD}=1-w_{SS}$. This operation is described in Equation (1).

$$gre{y}_{merge}=w_{SS}\times gre{y}_{SS}+w_{OD}\times gre{y}_{OD}$$

(1)

Then, a threshold ($C_{thr-w}$) is applied to $gre{y}_{merge}$ to binarize it and obtain the weighted coverage map. The pixels in $gre{y}_{merge}$ with a value higher than $C_{thr-w}$ are set to 1 and therefore considered as H.i, and the rest are set to 0 and considered as the background. Figure 9 offers a visual representation of the weighted merging pipeline.

The values for $w_{SS}$ and $w_{OD}$ were determined through a sweeping process, where $w_{SS}$ was varied between 0 and 1 in steps of 0.05. Each combination of weights was evaluated at its corresponding best $C_{thr-w}$ over the SS and OD validation sets. To find the best $C_{thr-w}$ for a given weight combination, another sweeping process was conducted over the threshold value ranging from 0 to 100 in steps of 1, evaluating the performance at each step. For this application, the $w_{SS}$, $w_{OD}$, and threshold $C_{thr-w}$ values that provided better results were $w_{SS}$ = 0.15, $w_{OD}$ = 0.85 and $C_{thr-w}$ = 25.

3.3.2. AUC Merging

This merging pipeline combines the information outputted by the SS and OD modules to exploit the strengths of each one. The main idea is to use the SS module to propose H.i covered regions and the OD module to validate or discard them and detect isolated shoots.

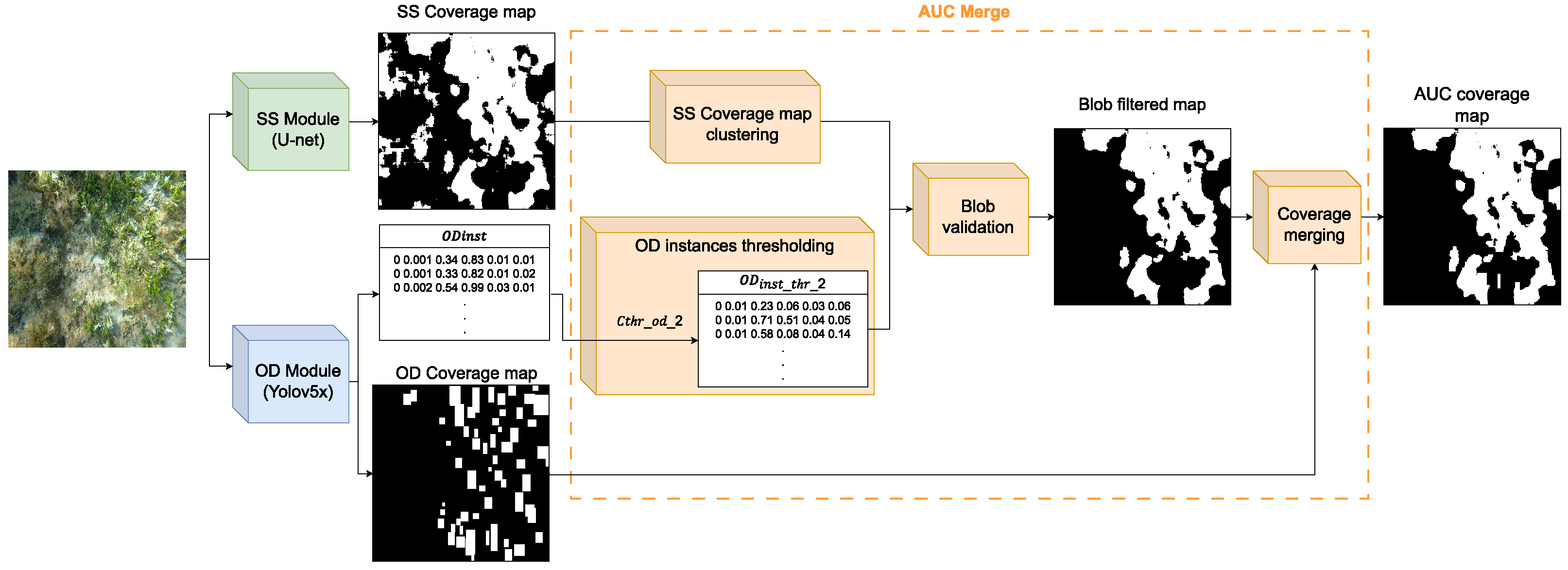

The AUC merging pipeline, depicted in Figure 10, consists of the following parts:

–

SS coverage map clustering.

–

OD instances thresholding.

–

Blob validation.

–

Coverage Merging.

SS Coverage Map Clustering

The first step of the AUC merging pipeline is to cluster the SS coverage map pixel-wise segmentation into blobs of connected pixels. To do so, an opening morphological operation is applied to the coverage map, removing weak connections. Afterwards, the blobs are generated using a 4-connectivity connected-component algorithm. Finally, all blobs conformed by fewer pixels than a determined pixel threshold ($p_{thr}$) are deleted (for this work, $p_{thr}=200$). Figure 11 showcases an example of SS coverage map clustering.

OD Instance Thresholding

The $O{D}_{inst}$ array is used as complementary information to accept or discard the resulting blobs from the previous step. Similar to the process described in Section 3.2.2, a confidence threshold $C_{thr\_od\_2}$ is applied to filter the predictions in the $O{D}_{inst}$ array. This process generates a new array, $O{D}_{inst\_thr\_2}$, containing the instances for the blob validation process.

The reason for using an alternative threshold, $C_{thr\_od\_2}$, rather than $C_{thr\_od\_1}$, is motivated by its distinct purpose. While $C_{thr\_od\_1}$ primarily filters the output of the OD module, $C_{thr\_od\_2}$ determines which OD instances can be used as complementary information for validating blobs in the AUC merge. This difference justifies the choice of a more permissive threshold for $C_{thr\_od\_2}$, enabling the inclusion of instances with lower confidence levels and enriching the input data, and ultimately enhancing system performance.

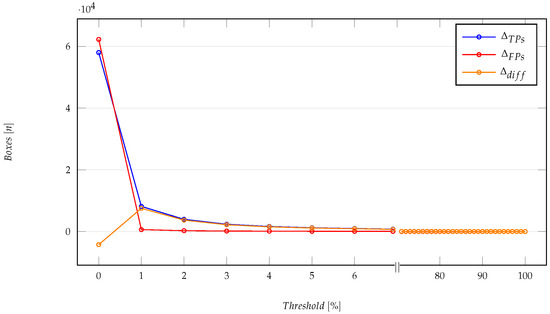

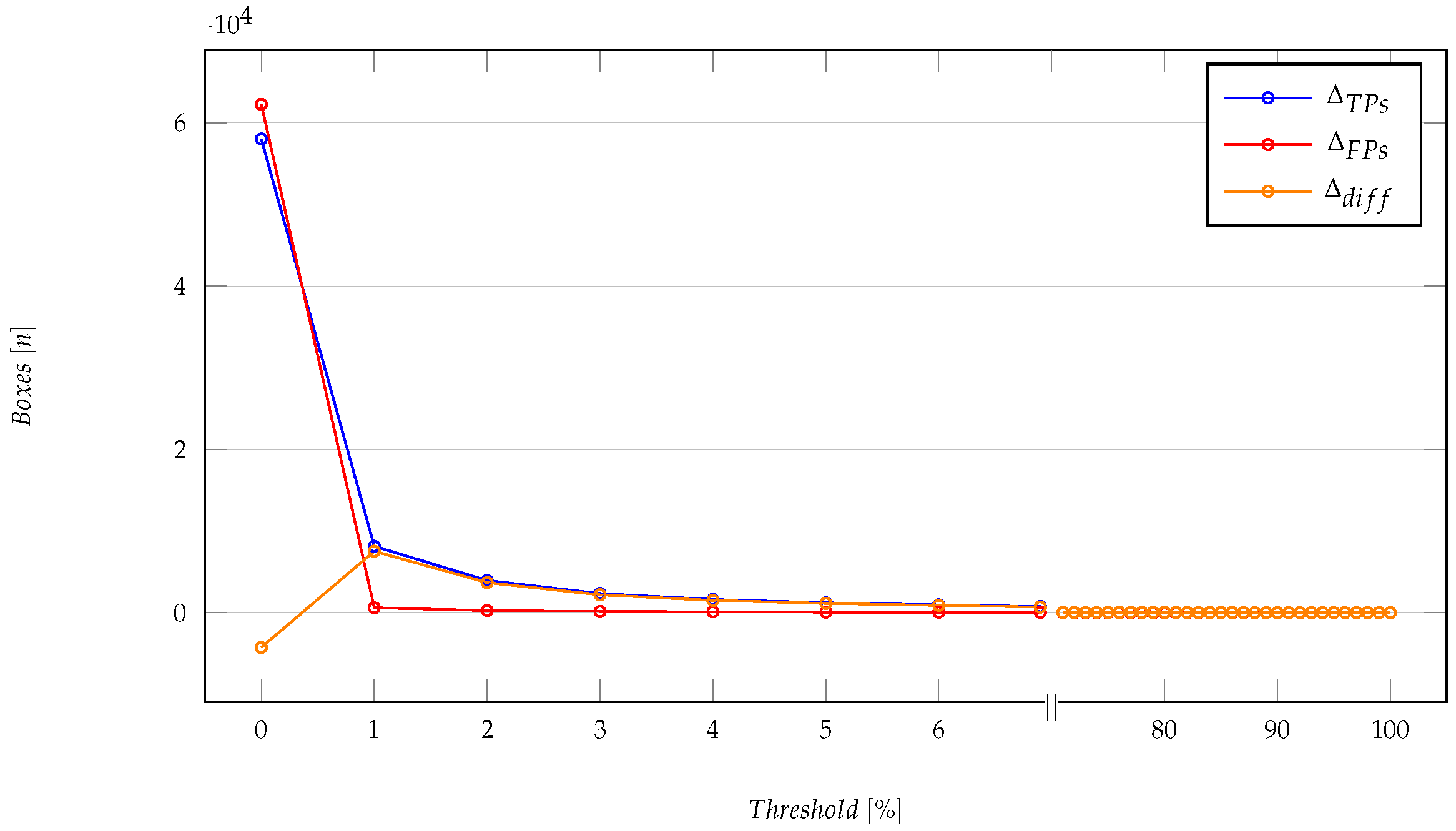

In order to determine the value of $C_{th{r}_o{d}_2}$, a study is conducted utilizing images from the validation partitions of both the dense and sparse datasets. The images of these sets are forwarded into the OD module, obtaining their $O{D}_{inst}$ instance arrays. Then, a sweeping process over the $C_{thr\_od\_2}$ value, ranging from 0 to 100% in steps of 1%, is performed. For each step, instances with a confidence level lower than the current $C_{thr\_od\_2}$ value are deleted. The remaining instances are classified as True Positives (TPs) if they overlap with a region marked as H.i in their corresponding ground truths; otherwise, they are classified as False Positives (FPs). Finally, the confidence threshold, $C_{thr\_od\_2}$, is determined as the value that maximizes the difference, ${\Delta }_{diff}$, between the rates of change of TPs (${\Delta }_{TP}$) and FPs (${\Delta }_{FP}$), expressed in Equation (2). Figure 12 indicates that this maximum occurs at $C_{thr\_od\_2}=1\%$; therefore, the value of $C_{thr\_od\_2}$ is set to 1%.

$${\Delta }_{diff}={\Delta }_{TP}-{\Delta }_{FP}.$$

(2)

Observing how TPs and FPs change over different confidence thresholds via their rate of change offers a clearer view of their behaviour. This is more practical than simply looking at their absolute numbers, as it provides a sharper perspective on the direction and continuity of changes, facilitating the identification of meaningful trends and the selection of an appropriate threshold.

Blob Validation

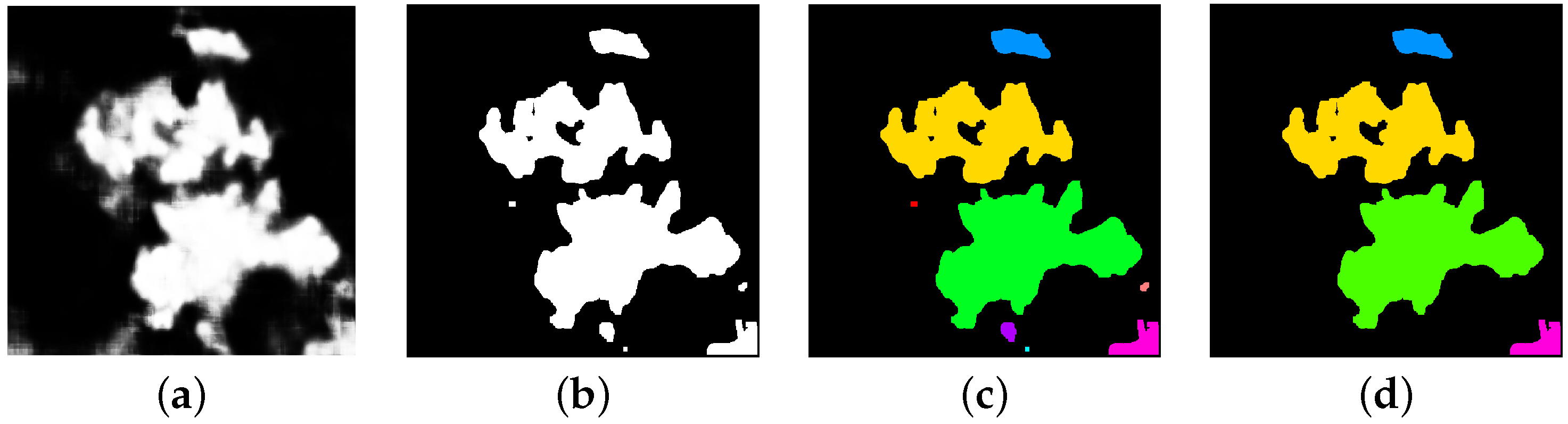

Once the blobs are obtained from the SS coverage map clustering process, and the $O{D}_{inst}$ has been thresholded into $O{D}_{inst\_thr\_2}$ by applying the threshold $C_{thr\_od\_2}$, a blob validation process is carried out to determine which blobs should be accepted and which should not.

To do so, two custom metrics are calculated for each blob. The first of these metrics is the Area Under the Curve (AUC), which quantifies the area beneath the coverage-confidence curve of a blob. This curve is constructed by sweeping through a range of confidence thresholds from 0% to 100% and calculating the blob coverage value at each step. This coverage value for each step is calculated as the percentage of its pixels covered by the instances in the $O{D}_{inst\_thr\_2}$ with a confidence value higher than the threshold of the current step.

The second metric, denoted as $N_{inst}$, is defined as the number of OD instances in $O{D}_{inst\_thr\_2}$ that intersect with the blob. For a clearer understanding of these metrics, refer to Figure 13, which illustrates how AUC and $N_{inst}$ are determined for a specific blob.

In the following algorithm step, the previously mentioned metrics are used to categorize the blobs into ten groups based on their AUC values, distributed in ranges of 10% intervals. Each group is associated with a specific threshold value, denoted as $N_{thr}$. If the $N_{inst}$ value of a blob is higher than its corresponding AUC group $N_{thr}$, it is validated; otherwise, it is discarded. Finally, the blob-filtered map is created by preserving only the validated blobs and considering the discarded blobs as a background region. The values of $N_{thr}$ for each AUC range used for this work are listed in

Table 3. $N_{thr}$ values to validate blobs for each AUC range.

AUC (%)	0–10	10–20	20–30	30–40	40–50	50–60	60–70	70–80	80–90	90–100
$N_{thr}$$(n)$	80	15	1	1	1	1	1	1	1	1

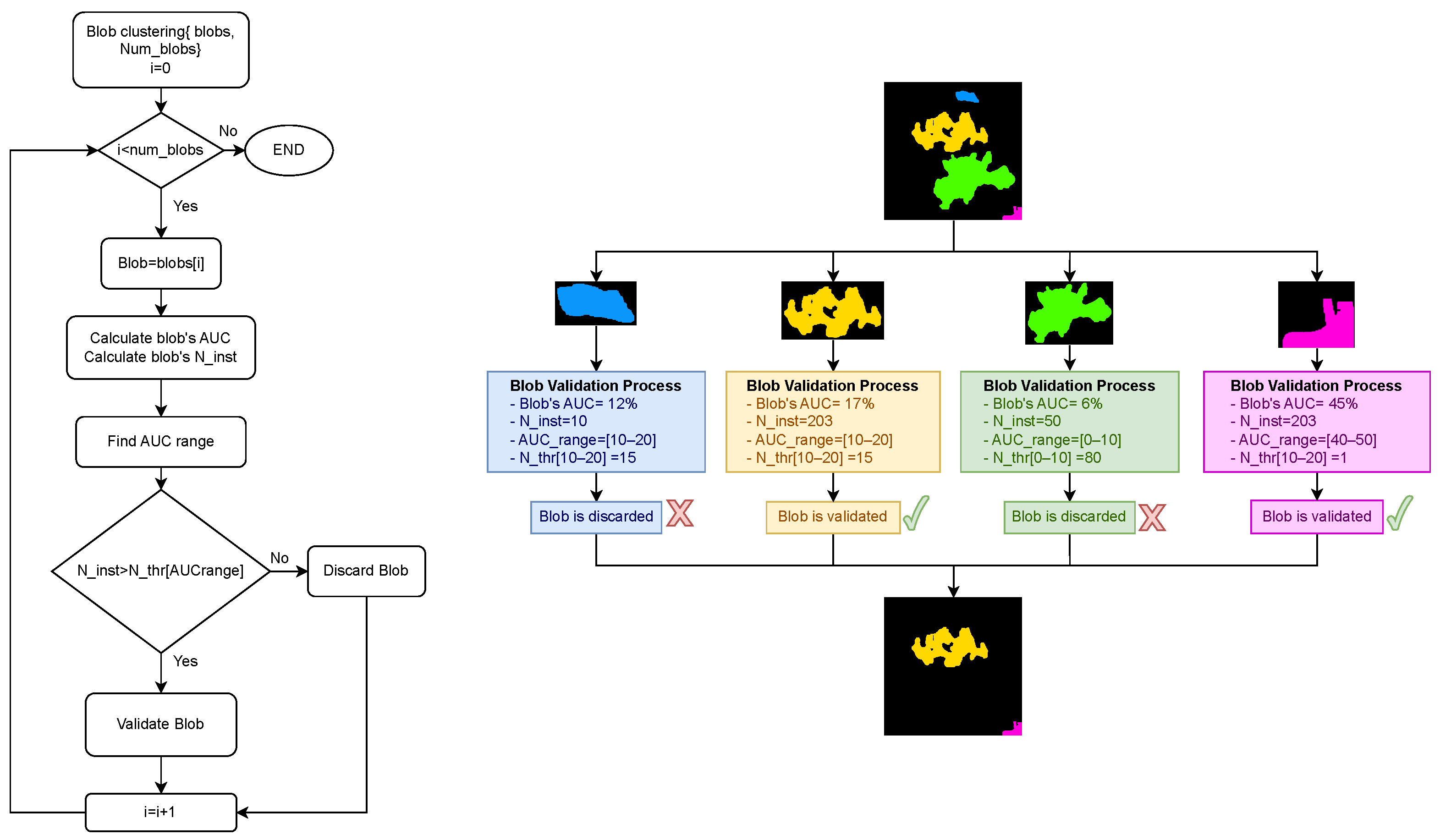

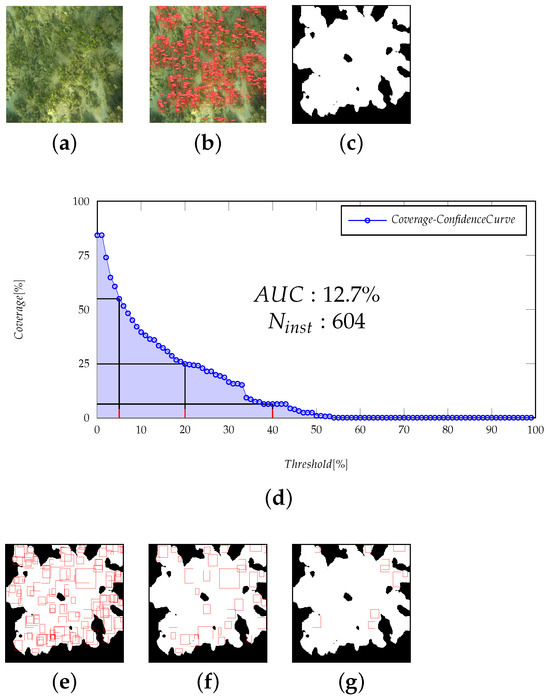

. The blob validation process, along with an application example, are presented in Figure 14.

To find the best $N_{thr}$ threshold for each AUC range, a study is conducted using the validation partitions of both the dense and sparse datasets. To do so, the images from these partitions are forwarded into the SS and OD modules, obtaining their SS coverage maps and $O{D}_{inst\_thr\_2}$ arrays. These coverage maps are then processed using the previously described clustering algorithm, obtaining their blobs of connected pixels. These blobs are then labelled as True Blobs (TB) if more than 50% of their area is marked as H.i in their corresponding ground truth label maps; otherwise, they are labelled as False Blobs (FB).

Afterwards, the AUC and $N_{inst}$ metrics are calculated for all blobs, and the blobs are split into 10% ranges based on their AUC values. For each AUC range, a sweep of the $N_{thr}$ from 0 to 300 is conducted. For each step, blobs are accepted or discarded based on whether their $N_{inst}$ is higher than the step $N_{thr}$ or not. If a blob labelled as TB is accepted, it is considered a TP; otherwise, an FN. Similarly, if a blob labelled as FB is accepted, it is considered an FP; otherwise, a TN. An F1-score is calculated using this classification. Finally, the $N_{thr}$ value that maximizes the F1-score for each AUC range is selected.

The rationale behind creating these distinct $N_{thr}$ thresholds lies in the observation that blobs with a high AUC value are primarily covered by instances with high confidence, increasing the likelihood that they represent correct blobs. Therefore, such blobs require a lower $N_{thr}$ value to be validated. Conversely, blobs with a low AUC value are characterized by sparse coverage with instances of lower confidence, making them less likely to be correct blobs. Hence, these blobs require a higher $N_{thr}$ value for validation.

Coverage Merging

The final step of the AUC merging algorithm is the coverage merging that results in the final outputted coverage map. Once the blob validation is computed, the validated blobs are marked as H.i, and the discarded ones are marked as the background, generating the blob-filtered map. This map is merged with the OD coverage map by applying an OR function. If a pixel is classified as H.i in any of the mentioned maps, it is marked as H.i in the final coverage map too; otherwise, it is considered as the background. This combined coverage map is the output of the AUC merging.

3.4. Validation and Evaluation Metrics

To assess the robustness of the network hyperparameter selection process for the SS and OD modules, a five k-fold cross-validation is performed. To do this, the training and validation data of the dense and the sparse datasets are divided into five folds. Next, five training runs for each hyperparameter combination are conducted, each one using a different fold as validation data and the remaining four folds as training data. Following this process, the hyperparameter combination that achieved the best average result is selected.

To evaluate the performance of the SS and OD modules, and the merging methods, the coverage map output is compared at a pixel level against the ground truth label maps. To do so, the OD ground truths are converted into semantic label maps by marking the pixels within the ground truths bounding boxes in white (255) and the rest in black (0).

From this, the number of TP, TN, FP, and FN pixels is obtained. Finally, the Precision, Recall, and F1-score metrics are calculated following Equations (3), (4) and (5), respectively.

$$Precision=\frac{TP}{TP+FP},$$

(3)

$$Recall=\frac{TP}{TP+FN},$$

(4)

$$F1-score=2\times \frac{Precision\ast Recall}{Precision+Recall}.$$

(5)

This pixel-wise comparison is not the usual evaluation procedure for OD models. However, for the H.i particular case and the final goal of this work, a pixel-wise evaluation is more appropriate for several reasons.

Firstly, H.i has a recursive shape, making it difficult to define the boundaries of each shoot. This means that the OD module may detect complete individuals and isolated twigs or sets of twigs belonging to different plants. Thus, for any of these cases, the predicted bounding boxes and the ground truth bounding boxes may differ, and, using the standard IoU evaluation, they would be misclassified as false positives when H.i is present. Moreover, considering that the ultimate goal of this work is to obtain a coverage estimation, it is not necessary to determine the precise boundaries of each individual shoot, so it is desirable to regard these detections as true positives.

Secondly, OD models usually implement a non-maximum suppression to filter similar predicted instances according to an overlapping percentage and score criteria. However, for this application, eliminating overlapping detections is unnecessary, as it could lead to missing H.i shoots or parts of individual plants. Additionally, having repeated instances would not be detrimental to the system. Thus, non-maximum suppression is not integrated into this system.

Apart from the F1-score, a Coverage Error metric is computed, measuring the difference between the estimated H.i coverage and the ground truth coverage, and obtained as:

$$CoverageError=\frac{1}{n}\sum _{i=1}^n\left|coverag{e}_i^{pred}-coverag{e}_i^{gt}\right|,$$

(6)

where n denotes each image and $coverage$ is the percentage of pixels covered by H.i.

4. Experimental Results and Discussion

This section presents the results obtained for each developed solution. First, the results of the OD and SS modules over their respective test sets and the combination of both (hereafter referred to as the complete dataset test set) are discussed. Then, the results for each merging method over the complete dataset test set are reported.

4.1. Semantic Segmentation Results

Table 4. Results of the hyperparameter study for the SS module. The table represents, for each combination of hyperparameters, the mean F1-score, obtained as a result of the five k-fold cross-validation.

Data Augmentation	Learning Rate	F1-Score
	0.009	73.8%
	0.003	76.4%
No	0.001	84.7%
	0.00033	87.8%
	0.00011	85.2%
	0.009	73.1%
	0.003	73.7%
Yes	0.001	81.8%
	0.00033	85.9%
	0.00011	84.5%

presents the average F1-score obtained for each hyperparameter combination when performing the five k-fold cross-validation over the SS dataset test set.

As can be observed, the best result is achieved when using a learning rate of 0.00033 and not applying data augmentation, reaching a mean validation F1-score of 87.8% and a standard variation of 0.19% between the five folds.

The best k-fold model, which obtained a F1-score of 89.9% over the SS dataset test set, was then tested over the complete dataset test set. It experienced a reduction of its performance, obtaining an F1-score of 78.8%, proving that the accuracy of the model decreases when it is evaluated with data from both scenarios. The model obtained a total Coverage Error of 10.0% for the complete dataset test set.

4.2. Object Detection Results

Table 5. Results of the hyperparameter study for the OD module. The table represents, for each combination of hyperparameters, the mean F1-score, obtained as a result of the five k-fold cross-validation.

Data Augmentation	Learning Rate	F1-Score
	0.03	69.3%
	0.01	72.9%
No	0.0033	68.2%
	0.0011	67.8%
	0.00037	66.8%
	0.03	76.7%
	0.01	76.7%
Yes	0.0033	77.4%
	0.0011	77.4%
	0.00037	76.7%

presents the average F1-score obtained for each hyperparameter combination when performing the five k-fold cross-validation over the OD dataset test set.

The best result is achieved when using a learning rate of 0.0033 and applying data augmentation, reaching a mean validation F1-score of 77.4%. and a standard variation of 2% between the five folds.

The best k-fold model, which obtained an F1-score of 75.2% over the OD dataset test set, was then tested over the complete dataset test set, obtaining an F1-score of 35.0%. This significant decrease in performance was not unexpected; it was caused by the difficulties the OD module presented when evaluating images from the dense scenario. A Coverage Error of 19.9% was obtained when estimating the total coverage for the complete dataset test set.

4.3. Merging Method Results

As observed in the previous sections, the performance of both scenario-based modules decreased when tested against the complete dataset test set. Here, the results of applying the different merging methods to combine the best qualities of each module are studied.

For the weighted merging method, a sweep was performed over the weights assigned to the SS and the OD modules. The best results were obtained with $w_{SS}$ = 0.15 and $w_{OD}$ = 0.85.

Table 6. Comparison results of SS and OD modules and merging methods over the complete dataset test set.

Approach	F1-Score	Coverage Error
SS Module	78.8%	10.0%
OD Module	35.0%	19.9%
Weighted Merging	79.7%	8.8%
AUC Merging	84.2%	5.9%

presents the results of both SS and OD modules, along with each merging method, over the complete dataset test set.

Both merging methods significantly improve the results of the individual modules. The AUC Merging achieved the highest F1-score at 84.2% and the lowest Coverage Error at 5.9%.

5. Autonomous Underwater Vehicle Online Implementation

The objectives of this work include implementing the H.i coverage estimation system on an AUV and validating its capability for online execution. This section describes the AUV characteristics, the online implementation, and its validation.

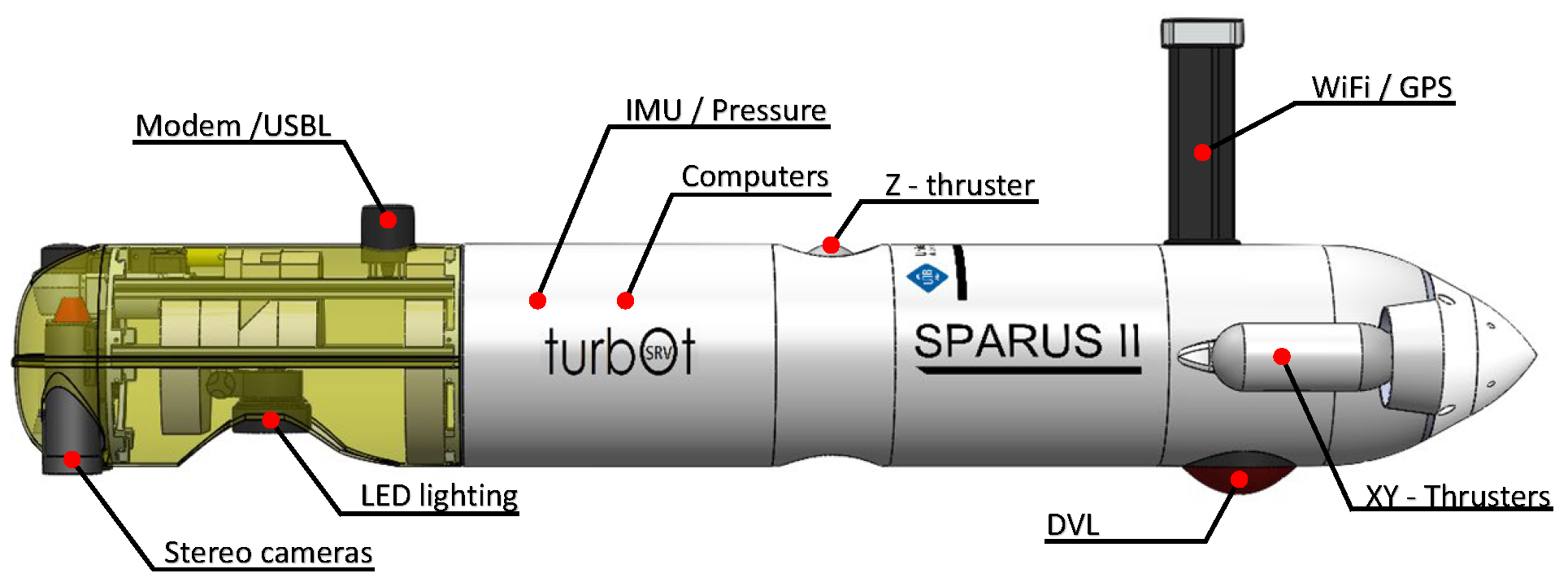

The AUV used is a SPARUS II model unit [42] (Figure 15), equipped with a pair of Manta G283 cameras (Allied Vision, Stadtroda, Germany) facing downwards and a computer to run the image acquisition and execute the H.i coverage estimation system (Intel i7 processor at 2.5 GHz, Intel Iris Graphics 6100, and 16 GB of RAM).

The system was implemented using the Robot Operating System (ROS) middleware [43]. This framework is a standard in robotics due to its versatility and powerful collection of tools and libraries that simplify creating and implementing new code and functionalities. First, the images published by the camera are grabbed, rectified, fed into the system, and processed by the OD and SS modules and the merging methods. Finally, the obtained coverage maps are published back into ROS to be accessed by other robots, sensors, or actuators.

AUVs tend to have limited computational resources due to the constraints that underwater environments present (limited space, power supply, and heat dissipation). Thus, an essential key aspect of an online implementation is system efficiency. Following this premise, a series of considerations were made over the different elements of the system. For the SS module, no considerations were taken. For the OD module, given that YOLOv5 is a scalable model, the feasibility of the implementation was studied using diverse model sizes. Finally, the weighted merging pipeline was selected, as its execution time is negligible, unlike the AUC merging, whose execution time depends on the number of detected blobs and instances and takes up to thirty seconds.

When evaluating the feasibility of executing the system online, the most crucial aspect is ensuring that there is overlap between outputted coverage maps, ensuring full coverage of an inspected area. This overlap is obtained using the following equations:

$$overlap=(h_{FP}-d_{KF})·h_{FP}^{-1},$$

(7)

$$d_{KF}=v·rat{e}^{-1},$$

(8)

$$h_{FP}=(a·h_{image})·f^{-1},$$

(9)

where v denotes the AUV velocity, $rate$ denotes the coverage map output frame rate, a denotes the navigation altitude, f denotes the camera focal length and $h_{image}$ denotes the image height pixels.

A performance study for each YOLOv5 model size was conducted, studying their corresponding inference times when executed on board the AUV.

Table 7. YOLOv5 model size inference times. The table represents the inference time in the AUV onboard computer for each Yolov5 size. The total time is the sum of the OD module inference time and the SS module inference time.

Module	Inference Time(s)
SS	1.13
OD	XL	large	medium	small	nano
	1.63	0.93	0.45	0.2	0.09
Total	2.75	2.05	1.60	1.34	1.23

presents the OD module and total weighted merging inference times for each model.

As expected, smaller YOLOv5 models have much lower inference times. Since computational power is a scarce resource in underwater systems, and aiming at achieving the lowest impact on its workload, the YOLOv5 nano (YOLOv5n) is selected for the online implementation, achieving a frame rate for the coverage map output of 0.81 $fps$.

The weighted merging, using the Yolov5n as its OD module, was tested over the complete dataset test set, achieving an F1-score score of 77.8%, which is slightly lower than the obtained using the Yolov5x model. This marginal loss in performance shows that the SS module compensates for the possible loss in performance caused by the reduction in the model size and that the nano model is good enough to be selected for the on-board OD module.

6. Conclusions and Future Work

This paper presents a novel pipeline for the automatic estimation of H.i coverage. First, two scenario-based solutions are presented, one for densely covered scenarios, based on SS using U-net; and another for sparsely covered scenarios, based on OD using YOLOv5x. The modules achieved an F1-score of 87.8% and 77.4% on their corresponding scenarios, respectively.

Although the scenario-based solutions presented a relatively good performance when evaluating images from their corresponding scenario, both modules experienced a loss in performance when estimating H.i coverage over the complete dataset test set. To address this limitation, this work proposed two novel merging methods to generalize the H.i coverage estimation and make it adaptable to any invasion stage: the weighted and AUC merging methods outperformed the scenario-based solutions, obtaining an F1-score of 79.7% and 84.2% over the complete dataset test set and a Coverage Error of 8.8% and 5.9%, respectively.

Also, the system was integrated into ROS and deployed on an AUV. Finally, the system was adapted to run online by selecting a lighter yolov5 model and merging method. The system maintained good H.i estimation results and achieved an execution time that was sufficiently low to ensure a full area coverage for inspection tasks.

Further work will focus on expanding the dataset by using generative methods to fine-tune the models with a larger dataset. Additionally, the models could be adapted to recognize dead H.i and other seaweed species to provide more complete information.
