1. Introduction
Extreme marine phenomena impact human life, impede coastal city development, and threaten human well-being [
1]. Hurricanes, in particular, are extremely dangerous marine weather phenomena that endanger the security and welfare of people living in coastal cities [
2]. The passage of hurricanes entails intense winds and rainfall. Simultaneously, the enormous waves generated by hurricanes can cause ships to capsize, damage sea platforms, and result in significant disasters for sea transportation, construction, and fisheries. Accurate wave prediction can mitigate specific disasters and decrease economic losses in marine transportation, offshore oil and gas exploration, marine scientific research, water operations, and military activities [
3]. Hence, precise analysis and forecasting of ocean waves can furnish essential marine meteorological reference parameters for the normal progression of maritime activities and prevent the detrimental impacts of extreme marine meteorological events on human production and life [
4].
The marine meteorological environment is highly intricate, characterized by a combination of numerous waves originating from various directions, each with different amplitudes and periods [
5]. A single wave is often not indicative. As a result, significant wave height (SWH) is used as the main ocean wave measurement metric [
6]. Hence, the analysis of waves can be simplified to focus on SWH. Recognizing the significance and practical value of SWH prediction, methods for predicting SWH have evolved over the past few decades. The third-generation wave model is currently the most widely used numerical model for wave prediction. In 1988, the Wave Model (WAM) was first proposed by the cited group for operational use [
7]. Subsequently, in 1999, Booij and Holthuijsen developed the Simulating Waves Nearshore (SWAN) model for near-coastal applications [
8]. Tolman later introduced the WAVEWATCH III model in 2002, building upon the WAM model [
9]. While the third-generation wave model offers a more precise depiction of waves compared to its predecessors, its use still involves numerous empirical parameters, leading to limitations in the accuracy of wave simulation [
10].
The recent surge in machine learning has significantly contributed to the rapid development of various fields [
11,
12]. With their benefits of strong nonlinear learning capabilities, low computing cost, and quick calculation speed, SWH prediction methods based on machine learning have garnered significant attention from researchers in recent years [
13,
14]. Deep learning methods require only the identification of factors related to the desired physical quantities. Mahjoobi employed a classical machine learning algorithm, decision trees, to predict SWH. Five years of historical data were used to train and test the model [
15]. Etemad-Shahidi utilized M5’ model trees for predicting SWH in Lake Superior [
16]. Due to its comprehensive mathematical foundation, Support Vector Regression (SVR) was employed by Mahjoobi [
17], Cornejo-Bueno [
18], Berbić [
19], and others to acquire short- and medium-term predictions of SWH. SVR demonstrates faster speed and superior accuracy in low-feature-dimensional scenarios. However, in cases of large input dimensions, the training time of SVR significantly increases.
In recent years, deep learning has experienced rapid growth as a crucial branch of machine learning [
20]. By combining the best features of each technique, the hybrid approach improves a model’s resilience and predictive ability [
21]. In particular, Long Short-Term Memory (LSTM) networks, enhanced versions of RNNs, exhibit robust capabilities in regard to processing time series data. Minuzzi and Farina [
22] employed LSTM networks for forecasting SWH at seven distinct locations along the Brazilian coast. These networks were trained using buoy data and the ERA5 dataset, and SWH was predicted with an accuracy of nearly 87% when compared to the actual buoy data. Zhang [
23] employed a spatio-temporal deep learning method to refine the SWH grid-point forecasts generated by the European Center for Medium-Range Weather Forecasts Integrated Forecast System global model (ECMWF-IFS). For real-time, rolling revisions of the 0 to 240 h SWH forecasts from ECMWF-IFS, this technique involves the use of a deep neural network with trajectory-gated recurrent cells. In comparison to the initial ECMWF SWH projections, the spring correction proved to be the most successful, with a mean absolute error reduction of 12.972–46.237%. Ikram and Cao [
24] investigated the performance of a unique hybrid neuro-fuzzy model for the short-term (one hour to one day) prediction of SWH. This model combines the Adaptive-Network-based Fuzzy Inference System (ANFIS) method with the Marine Predator Algorithm (MPA), improving the accuracy of ANFIS-PSO and ANFIS-GA by 8.30% and 11.20%, respectively, in terms of root mean square errors during the prediction of a 1 h lead time in the test period. Peng and Li [
25] proposed CBA-Net, a deep neural network model, for the prediction of regional SWH. This model integrates the attention mechanism, and training involved the use of wind and wave height data from the ERA5 dataset covering the South China Sea waters during 2011–2018 as input features. The results showed that SWH cannot be accurately predicted by using a convolutional neural network alone; the addition of the Bi-LSTM layer and the attention mechanism significantly improve the prediction of SWH. Luo and Xu [
26] proposed a Bi-LSTM-with-attention-mechanism model. They also looked into the influencing factors, such as the input–output ratio and the combination of input features. Pang and Dong [
27] incorporated recursive quantitative analysis (RQA) and the improved complete integrated empirical modal decomposition of adaptive noise (ICEEMDAN) into a deterministic and stochastic component decomposition (DSD) method. The results showed that wind data had a favorable effect on long-term forecasts and that the DSD methodology improved forecast accuracy. This hybrid model combines all three machine learning models with the DSD method for forecasting SWH. The unique nested artificial neural networks were proposed by Amin Mahdavi-Meymand, and Wojciech Sulisz [
28] and used to predict SWH at 20 North Sea locations. According to the findings, the nonlinear machine learning model that was developed outperformed the linear regression technique in terms of prediction accuracy by about 18.39%. The nested artificial neural network can increase the accuracy of the traditional model by up to 34%, according to statistical measures. Shi and Su [
29] put forth a Transformer model based on the attention process. In order to achieve continuous time series prediction, the Transformer model is designed to be able to capture contextual data and sequence relationships.
Due to the potent nonlinear modeling capabilities of deep learning models, researchers have proposed numerous strategies for capturing intricate temporal variations in real-world time series for predicting SWH [
30]. One approach essentially involves the utilization of RNNs to model continuous time points based on Markov assumptions [
31]. Nevertheless, these methods frequently encounter challenges in capturing long-term correlations, and their effectiveness is impeded by the sequential computing paradigm. An alternative category of methods utilizes Temporal Convolutional Networks (TCNs) focused on the time dimension to extract change information [
32]. However, owing to the localized nature of the one-dimensional convolutional kernel, they are constrained to modeling changes between adjacent time points, resulting in limitations in addressing long-term dependence. Transformers with attention processes have been employed extensively in sequence modeling recently [
33]. To capture pairwise temporal connections between time points, many Transformer-based models used in time series analysis use the attention mechanism or one of its variations. However, because temporal dependencies can be extensively obscured by complicated temporal patterns, it is challenging for the attention mechanism to discern reliable connections directly from scattered time points [
34].
In order to overcome the limitations of the existing models, in April 2023, a new model named TimesNet [
35] was introduced, showcasing cutting-edge performance across multiple tasks in time series analysis and emerging as the leader in five key areas: long-term forecasting, short-term forecasting, missing-value filling, anomaly detection, and classification. Researchers have investigated complex temporal shifts in variations within periods (intra-period) and variations between periods (inter-period). With the use of Fast Fourier Transform (FFT)-based periodicity extraction, they used multi-period alignment to convert one-dimensional time series into two-dimensional tensors. The drawbacks of representing one-dimensional time series can be overcome using this trans-formative method.
Although the TimesNet model has demonstrated excellent prediction accuracy for numerous datasets, it is challenging to optimally fit the TimesNet model alone since the sources of waves are tied to a variety of factors and the SWH data fluctuate greatly. This study proposes an empirical mode decomposition (EMD) method that decomposes the complete set of empirical modes, combining the adaptive noise and TimesNet and eventually yielding good prediction accuracy. The EMD method is based on the Hilbert–Huang transform [
36], which is able to reduce the limitations of nonlinear problems in SWH forecasting and is highly adaptable. The EMD method decomposes any input data into a series of intrinsic modal functions and their residual terms, which improves the processing efficiency of time series data. Based on this, this paper adopts an EMD-TimesNet neural network model based on the empirical modal decomposition method, i.e., EMD decomposition is used as a preprocessing tool for nonlinear data, and the decomposed data are forecasted. In previous studies, many researchers used a single buoy for prediction without considering the influence of terrain and water depth factors on the accuracy of prediction models. In this study, the latest research results from the deep learning community were used to improve prediction accuracy, and the SWH prediction performance of EMD-TimesNet under different terrain and water depth conditions was evaluated, yielding good results.
The rest of this paper is organized as follows:
Section 2 describes the data and methodologies used in this investigation.
Section 3 discusses the experimental data on each model’s performance. Finally,
Section 4 presents the conclusions.
4. Results and Discussion
In this study, three prediction ranges, 1 h, 3 h, and 6 h, were set. The input/output ratios were configured as 9:1, 9:3, and 9:6, meaning that we utilized data spanning 9 h to forecast the subsequent 1 h, 3 h, and 6 h of SWH data, respectively. The evaluation metrics MAE, MAPE, RMSE, and CC are used in this section to evaluate various elements of the prediction outcomes. In order to represent the overall prediction level of each model, the forecasts were averaged after being repeated five times in every delivery cycle at each site, taking into account the stochastic nature of deep learning predictions.
4.1. Overall Forecast Assessment
4.1.1. Overall Predictive Assessment of Buoy 41010
The specific values of MAE, MAPE, RMSE, and CC for buoy 41010 are shown in
Table 4. Additionally, as shown in

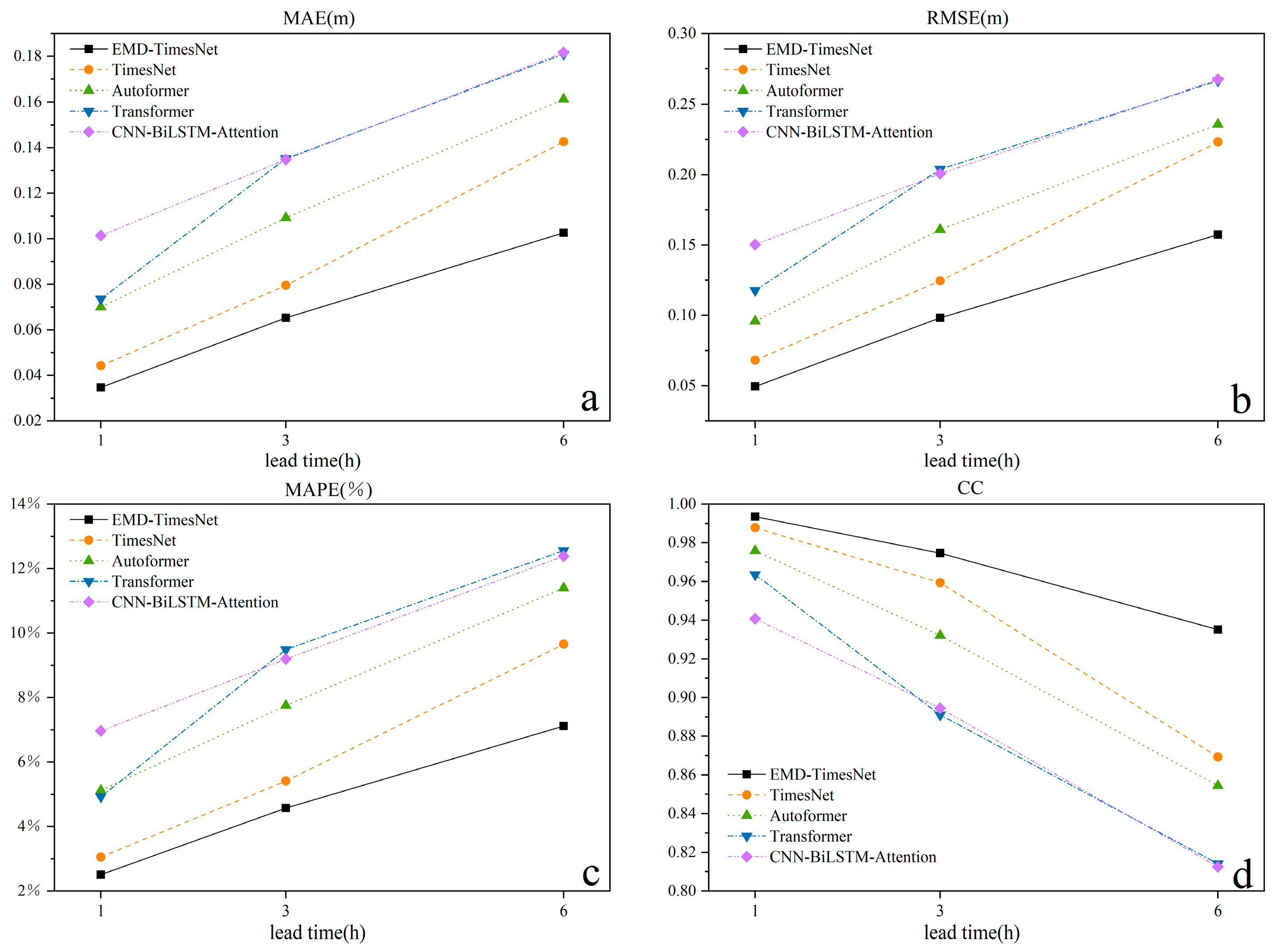

Figure 6, each of the distinct prediction metrics is displayed as a line graph to better illustrate the comparison of the various models’ prediction levels.
As illustrated in
Figure 6, the ranked order of performance for each model is as follows: EMD-TimesNet > TimesNet > Autoformer > Transformer ≈ CNN-BiLSTM-Attention. Based on the specific values, when the prediction time is 1 h, the accuracy of each model is very good; the accuracy of CNN-BiLSTM-attention is the worst, but the CC value can still reach 0.9408, showing a good correlation. In terms of accuracy, EMD-TimesNet performs the best: all of its evaluation index values are the best among the five models, with an MAE of 0.0348 m, an RMSE of 0.0494 m, an MAPE of 2.51%, and a CC value of 0.9936, showing very strong correlation and excellent prediction performance. For 1 h prediction, the MAE of EMD-TimeNet is 0.0348 m, which is 21.26%, 50.36%, 52.72%, and 65.68% lower than that of TimesNet, Autoformer, Transformer, and CNN-BiLSTM-Attention, respectively; EMD-TimeNet’s RMSE is 0.0494 m, which is 27.46%, 48.54%, 58.10%, and 67.15% lower than that of TimesNet, Autoformer, Transformer, and CNN-BiLSTM-Attention, respectively; and the CC value of EMD-TimeNet is 0.9936, which is lower than that of TimesNet, Autoformer, Transformer, and CNN-BiLSTM-Attention by 0.59%, 1.81%, 3.11%, and 5.61%, respectively. When the prediction time is 3 h, EMD-TimesNet’s performance is still the best: all of its evaluation index values are the best among the five models; its MAE is 0.0653 m, its RMSE is 0.0982 m, its MAPE reached 4.58%, and its CC value is 0.9747. The accuracies of Transformer and CNN-BiLSTM-Attention are similar; that is, the accuracy of the prediction of SWH by these two models is roughly comparable. When the prediction time is 6 h, EMD-TimesNet still provides the best performance: all of its e evaluation indices are better than those of the other four models, with an MAE of 0.1026 m, an RMSE of 0.1573 m, an MAPE reaching 7.12%, and a CC value of 0.9352. The accuracies of Transformer and CNN-BiLSTM-Attention are similar; specifically, their prediction accuracies for SWH are about the same.
4.1.2. Overall Predictive Assessment of Buoy 41025
The specific MAE, MAPE, RMSE, and CC values for buoy 41025 are shown in
Table 5, and corresponding line graphs are shown in
Figure 7.
Based on
Figure 7, the ranked order of performance for each model is as follows: EMD-TimesNet ≈ TimesNet > Autoformer > Transformer > CNN-BiLSTM-Attention. When the prediction time is 1 h, the accuracy of EMD-TimesNet is superior to that of TimesNet in terms of RMSE and CC values, but based on the MAE and MAPE values, the accuracy of TimesNet is better than that of EMD-TimesNet; the difference in the accuracy of these two models is very small, so the prediction performance of EMD-TimesNet and TimesNet for SWH is roughly equivalent. They all perform better than the other three models. The performance of the Transformer algorithm is superior to that of CNN-BiLSTM-Attention. When the prediction time is 3 h, according to the values of RMSE and CC, the accuracy of EMD-TimesNet is also better than that of TimesNet, but based on the values of MAE and MAPE, the accuracy of TimesNet is better than that of EMD-TimesNet; however, the difference in the accuracy of these two models is very small, so the prediction performance of EMD-TimesNet and TimesNet for SWH is roughly equivalent. They perform better than the other three models. Notably, when the prediction time is set to 6 h, the accuracy of EMD-TimesNet surpasses that of TimesNet, as evident from the RMSE and CC values. However, when considering MAE and MAPE values, TimesNet exhibits superior accuracy compared to EMD-TimesNet. It is worth noting that the difference in accuracy between these two models is marginal. Consequently, the predictive performance of EMD-TimesNet and TimesNet for SWH is roughly equivalent. Moreover, both EMD-TimesNet and TimesNet outperform the remaining three models.
4.1.3. Overall Predictive Assessment of Buoy 41044
Table 6 displays the precise values of MAE, MAPE, RMSE, and CC for buoy 41044. The line graph is depicted in

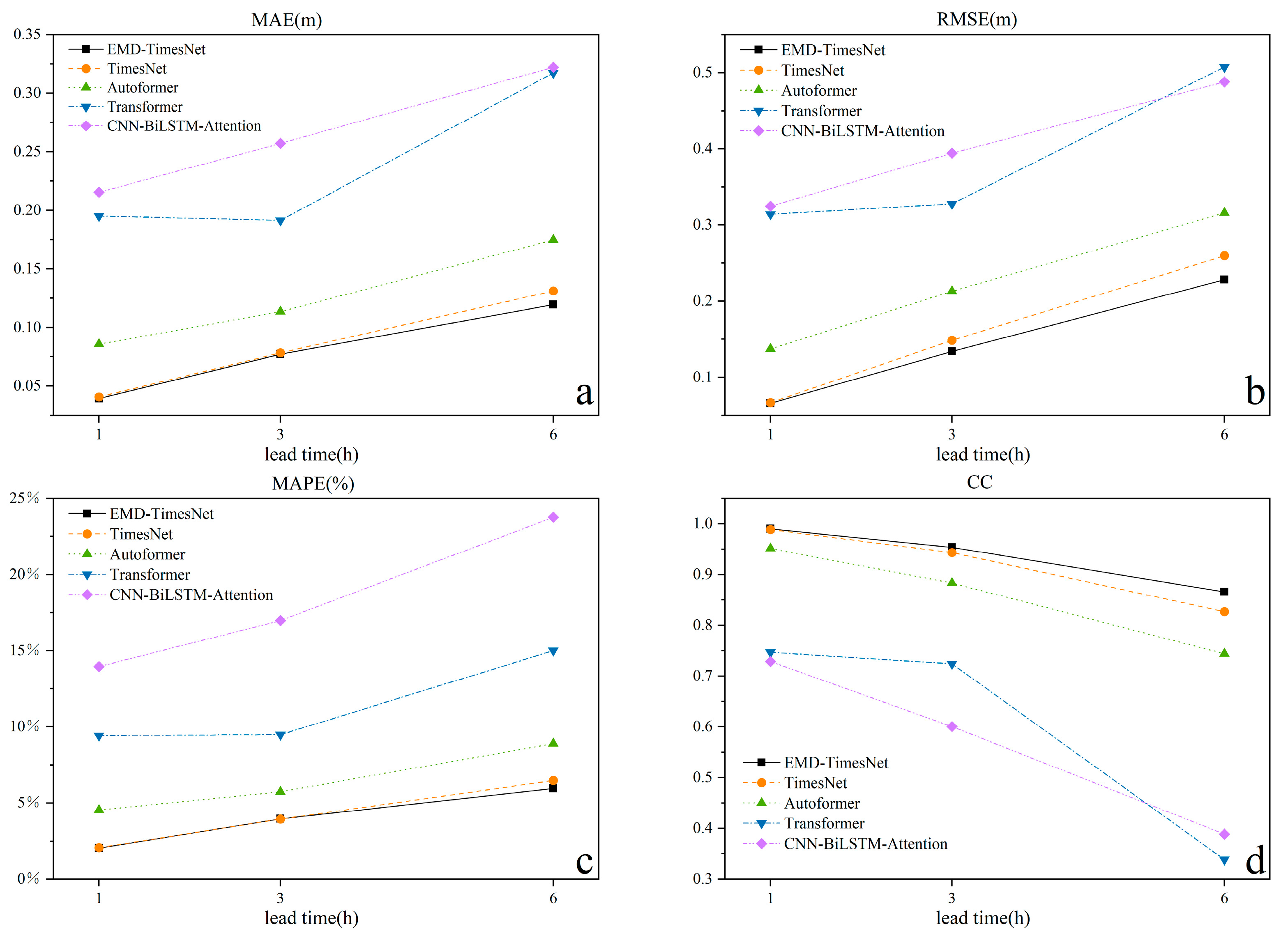

Figure 8.
Based on
Figure 8, the ranked order of performance for each model is as follows: EMD-TimesNet > TimesNet > Autoformer > Transformer > CNN-BiLSTM-Attention. When the prediction time is 1 h, all the accuracy rating metrics of EMD-TimesNet and TimesNet are very close, the prediction performance of EMD-TimesNet and TimesNet for SWH is roughly comparable, and EMD-TimesNet performs a little bit better than TimesNet, and when compared with the other models, they all perform better. The following order applies for the other three models: Autoformer > Transformer > CNN-BiLSTM-Attention. When the prediction time is 3 h, EMD-TimesNet performs the best, yielding the best values among the five models for each evaluation metric. When the prediction time is 6 h, EMD-TimesNet still performs the best, with all its evaluation metrics being the best among the five models. However, for buoy 41044, based on
Figure 8b,d, upon scrutinizing the specific values at buoy 41044, it can be observed that when the prediction time was set to 6 h, the CC values for CNN-BiLSTM-Attention and Transformer diminished to 0.3387 and 0.3885, respectively. This decline in correlation signifies a substantial reduction, reaching a notably low level. Additionally, the RMSE values increased to 0.5075 m and 0.4880 m, indicating an increase in prediction errors to a relatively high level. In light of these observations, the prediction performance of both CNN-BiLSTM-Attention and the Transformer algorithm can be characterized as suboptimal during this specific prediction period.
4.2. Predictive Performance of Models for Different Sea States
Waves are affected by a variety of factors, which are not only related to the input characteristics of the model but also bottom topography, water depth, etc. In this subsection, the effect of different monitoring stations on model accuracy is explored. Initial scrutiny involves a comprehensive analysis of the data derived from three buoys. The results are visually represented through box-and-line plots, as illustrated in

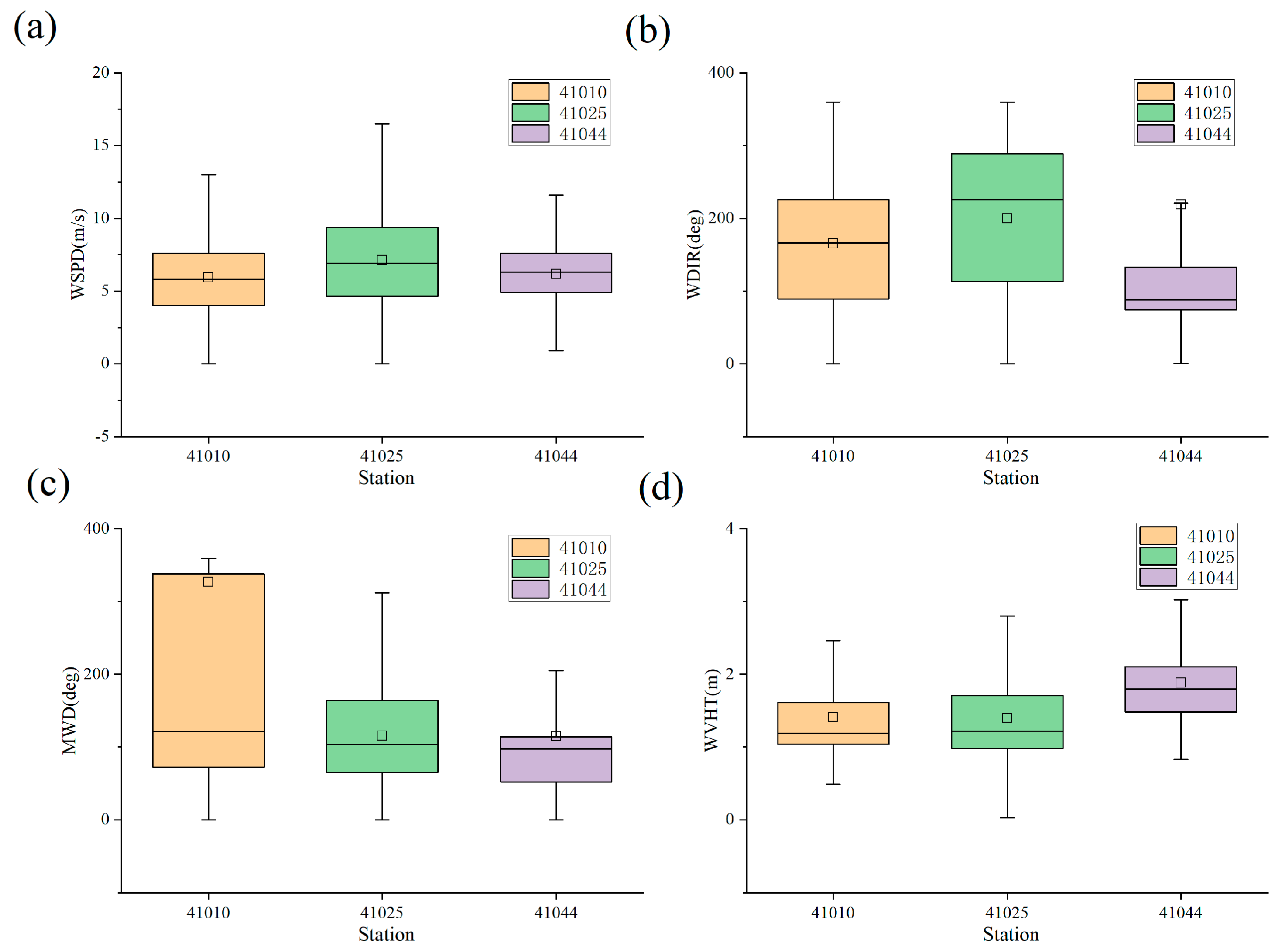

Figure 9.
In the box plot representation in
Figure 9, the two small horizontal lines at the top and bottom of each box signify the maximum and minimum values, respectively. The width of the central box reflects the degree of data dispersion, with the horizontal line inside indicating the median and the small square denoting the mean. Upon examining
Figure 9a, it becomes apparent that the wind conditions across the stations are closely aligned, with 41025 exhibiting the most variable winds. Regarding wind direction, as illustrated in
Figure 9b, while other stations show more frequent shifts in wave direction, station 41044 maintains a rather steady wave direction. While station 41010 experiences more significant changes in wave direction, stations 41025 and 41044 exhibit a generally consistent wave direction, as shown in
Figure 9c. Lastly,
Figure 9d underscores that stations 41010 and 41025 exhibit lower and more stable wave heights, whereas station 41044 demonstrates higher and less stable wave heights.
The data analysis indicates significant differences among these stations, primarily attributed to variations in wave height. Stations 41010 and 41025 display smoother wave conditions, whereas station 41044 exhibits steeper waves. Additionally, station 41010 experiences frequent changes in wave direction, contributing to the overall differentiation observed among these monitoring stations.
Next, each model’s prediction performance for various sites at the same prediction time was examined. To gauge accuracy, CC and RMSE were chosen.

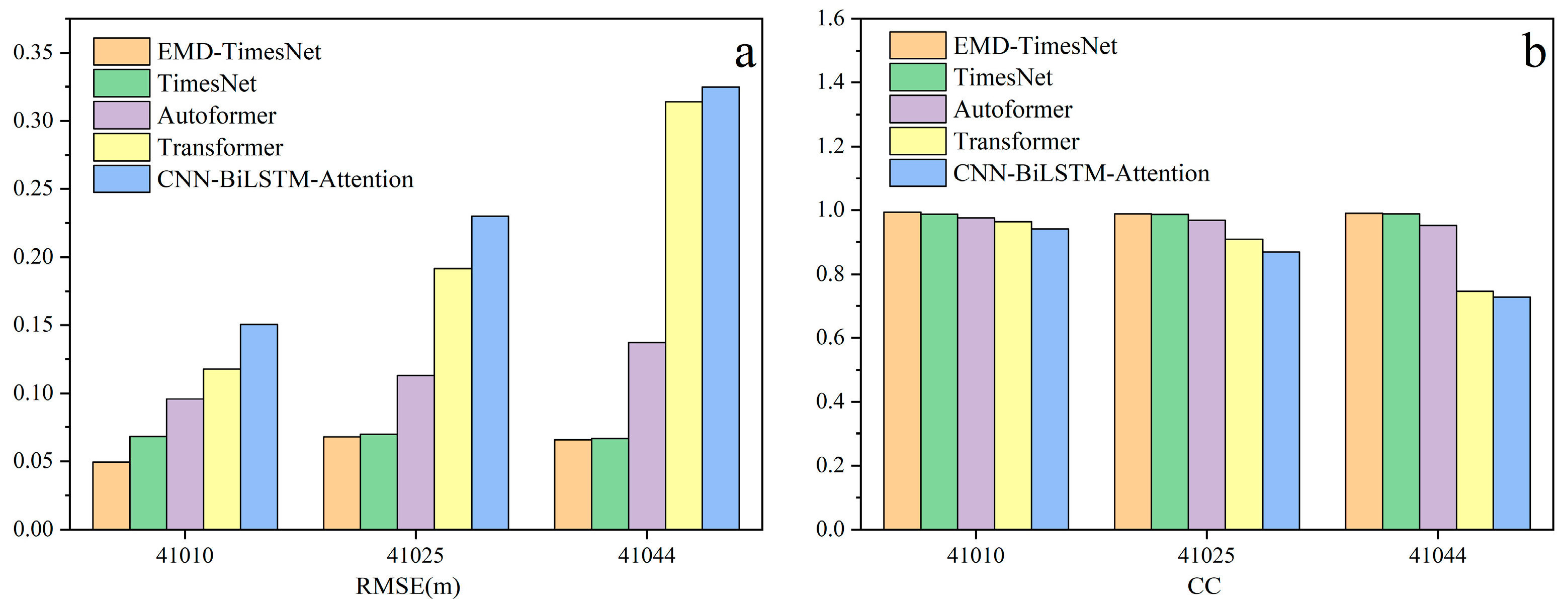

Figure 10 provides a visual representation of the models’ accuracy at a prediction time of 1 h.
As depicted in
Figure 10a, for different sites, the RMSE values of EMD-TimesNet basically remain in a relatively stable range when predicting 1 h SWH and are the lowest among the five models. TimesNet maintains a relatively stable range as well but with higher RMSE values compared to EMD-TimesNet. In contrast, Autoformer, Transformer, and CNN-BiLSTM-Attention display notable disparities in prediction performance at different sites for the same prediction time, and they could not make accurate predictions for different sites.
As shown in
Figure 10b, in the context of predicting SWH at 1 h intervals, the CC values for EMD-TimesNet consistently reside within a stable range, surpassing those of the other models. While TimesNet and Autoformer also maintain relatively stable ranges, their CC values are lower than the same value for EMD-TimesNet. Transformer and CNN-BiLSTM-Attention, on the other hand, exhibit significant variability in CC values when predicting SWH at different sites for the same time interval, indicating a limited capacity to adapt to site-specific changes.
Illustrated in
Figure 11a, when predicting SWH at 3 h intervals across different sites, the RMSE for EMD-TimesNet increases compared to the 1 h prediction but remains within a relatively stable range, securing EMD-TimesNet’s position as the model with the lowest error among the five. TimesNet also sustains a relatively stable range, albeit with higher RMSE values compared to those of EMD-TimesNet. Conversely, Autoformer, Transformer, and CNN-BiLSTM-Attention exhibit substantial variations in prediction performance at different sites for the same 3 h prediction time, precluding accurate predictions.
Based on
Figure 11b, the CC values for EMD-TimesNet maintain a relatively stable range when predicting SWH at 3 h intervals, remaining the highest among the five models. While TimesNet and Autoformer also sustain relatively stable ranges, their CC values are lower than the same value for EMD-TimesNet. Transformer and CNN-BiLSTM-Attention display considerable discrepancies in CC values for the same 3 h prediction time across different sites, indicating a limited capacity to adapt to site-specific changes.
In
Figure 12a, when predicting SWH at 6 h intervals across different sites, EMD-TimesNet continues to exhibit RMSE values within a relatively low range, maintaining the lowest error among the five models. TimesNet also maintains a relatively stable range yet with higher RMSE values compared to EMD-TimesNet. Conversely, Autoformer, Transformer, and CNN-BiLSTM-Attention display increased RMSE values compared to the 1 h and 3 h predictions. Notably, the RMSE values for Transformer and CNN-BiLSTM-Attention rose significantly, reaching a high level, indicative of a substantial decrease in prediction accuracy.
Based on
Figure 12b, when forecasting SWH at 6 h intervals, EMD-TimesNet maintains a relatively high range of CC values, ranking as the highest among the five models. TimesNet and Autoformer also sustain a relatively stable range but with CC values lower than the CC of EMD-TimesNet. Conversely, Transformer and CNN-BiLSTM-Attention exhibit a pronounced drop in CC values, signaling poor model performance at this extended prediction time.
4.3. Discussion
Overall, EMD-TimesNet outperformed the other five models in terms of SWH prediction performance at all three buoys. This model’s prediction performance decreased as prediction time increased, but even at 6 h, EMD-TimesNet continued to maintain a reasonably good level of prediction performance. At buoy 41010, EMD-TimesNet still maintained a strong correlation, with an RMSE value of 0.1573 m, an MAE value of 0.1026 m, and a CC value of 0.9352. At buoy 41025, EMD-TimesNet had an RMSE value of 0.2279 m, an MAE value of 0.1502 m, and a CC of 0.8719, also boasting good performance. At buoy 41044, EMD-TimesNet’s RMSE value was 0.2285 m, its MAE value was 0.1195 m, and its CC reached 0.8659, showing that it still maintained high levels.
Upon comparing EMD-TimesNet and TimesNet, when the EMD module is added, the predictive performance of the models is similar at buoy 41025. At buoy 41010, the prediction performance of EMD-TimesNet compared to TimesNet was improved by 37.85% and 0.59% for RMSE and CC values, respectively, when the prediction time was 1 h; by 26.88% and 1.61% for RMSE and CC values, respectively, when the prediction time was 3 h; and by 41.96% and 1.61% for RMSE and CC values, respectively, when the prediction time was 6 h. were improved by 41.96%, 7.58%, respectively. At buoy 41044, regarding prediction performance, EMD-TimesNet also outperforms TimesNet across the board. Upon combining the results obtained for the three buoys, as expected, the overall performance of the models decreases with the increase in prediction time, but EMD-TimesNet still maintains high performance in long-term prediction. EMD-TimesNet maintains high accuracy and outperforms the other models. For the three buoys at different water depths and topographic conditions, EMD-TimesNet shows adaptability to various conditions; i.e., its performance is optimal at each buoy.
Based on these findings, it is of great practical importance to combine EMD with TimesNet. EMD contributes by offering additional information for the learning process, and, concurrently, the proven efficacy of TimesNet in time-series prediction tasks further underscores its utility. The experimental results affirm a consistent enhancement in overall assessment metrics and SWH prediction across various sea states for the EMD-TimesNet model, outperforming alternative models. Therefore, combining these two mechanisms is a proven-successful and promising approach.
5. Conclusions
This paper introduces a novel approach utilizing EMD modal decomposition for the prediction of SWH in the Atlantic Ocean. Given the inherent instability of wave data time series, the EMD modal decomposition method demonstrates advantages in handling non-smooth and realistic signals. By using EMD, the proposed EMD-TimesNet neural network breaks down input data into discrete IMF signals. Data from January 2019 to December 2020 were used to train the model, and for the purpose of forecasting SWH at 1 h, 3 h, and 6 h intervals, the 2021 dataset was used as an independent experimental sample. The EMD-TimesNet model was juxtaposed with existing models, including TimesNet, Autoformer, Transformer, and CNN-BiLSTM-Attention. To assess prediction performance, four error assessment metrics were employed, providing a comprehensive evaluation of these five time-series prediction models.
The experimental findings reveal that EMD-TimesNet demonstrates accurate predictions for 1 h, 3 h, and 6 h SWH. Acknowledging the diverse factors influencing waves, including water depth and seabed topography, experiments simulating different sea states were conducted at onshore and offshore buoy sites, and comparative tests were performed. The TimesNet model uses convolution operations to extract temporal features from a one-dimensional time series and converts them into a two-dimensional representation. By using this method, the receptive field can be successfully expanded, and TimesNet is able to collect both intra- and inter-periodic information with accuracy. Because of this feature, it is especially suitable for SWH prediction, in which it improves predictive capabilities. The ability to capture time series features while maintaining signal non-stationary frequencies is greatly enhanced by the EMD decomposition method. In comparison with other exemplary forecasting models, the use of the EMD-TimesNet model for SWH forecasting surpasses TimesNet in terms of overall evaluation metrics and prediction under various sea states. Notably, it outperforms Autoformer, Transformer, and CNN-BiLSTM-Attention models as well.
While this paper makes a contribution, it is important to acknowledge certain limitations that require further refinement, prompting ongoing work. One notable limitation is the relatively large prediction error for SWH under extreme climate conditions. To improve prediction accuracy in extreme climate scenarios, future efforts will use other data models, like numerical predictions and satellite data. Further experiments are also needed to systematically explore the effects of different input combinations and different input/output ratios on model accuracy. These refinements are intended to bolster the robustness and effectiveness of our approach in addressing diverse environmental conditions.
