3.2. Mathematical Model of the AHP

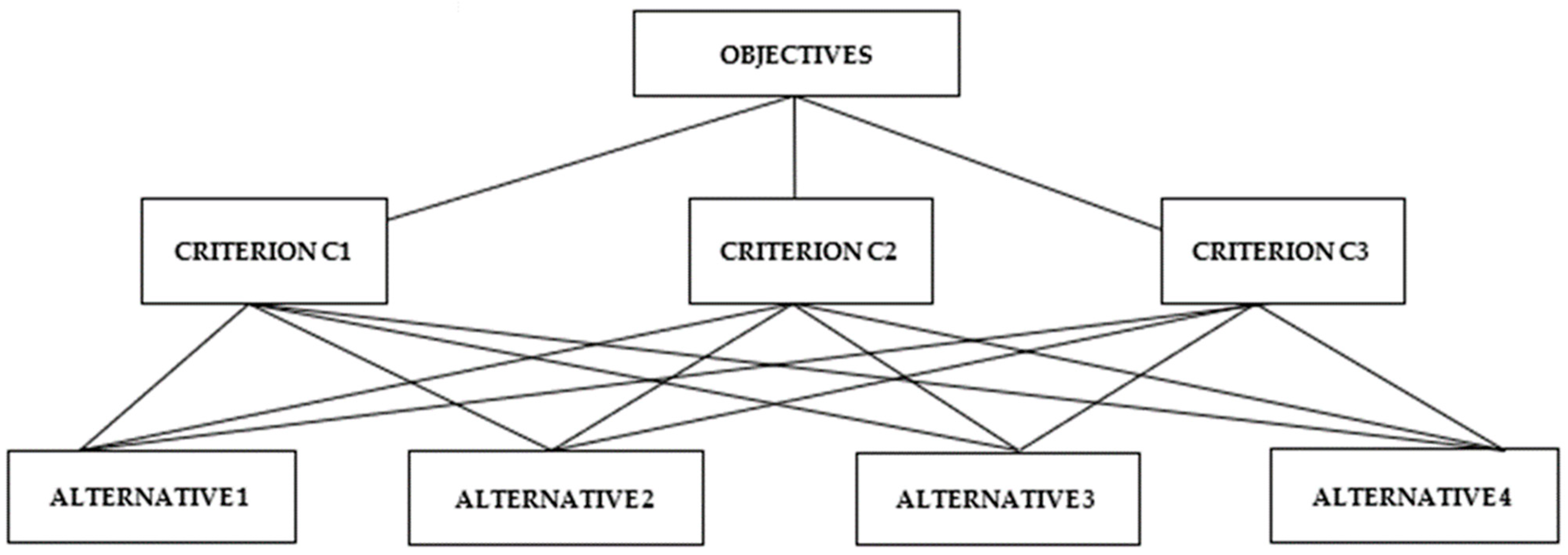

The analytical hierarchy process uses a mathematical model for ranking and decision-making in multi-criteria situations [
28]. In a hierarchical model, the set alternatives are
A1,
A2, …,
An, ranked for the set criteria
C1,
C2, …,
Cn, while the zero level is the set aim. The criteria and alternatives are compared based on different
Fi factors, and weights that are w
i or w
j scores, assigned to each criterion and alternative, represent the decision maker’s subjective estimate. Given the obtained results, a matrix
F = [fij] is formed in order to compare criteria and alternatives based on weights (scores). Each element of the matrix,
F = [fij], is calculated using the formula [
29]:
where w
i is the weight or score of criterion
Ci and w
j is the weight or score of the corresponding criterion
Cj. This type of matrix is a positive reciprocal matrix, which must satisfy reciprocal values, as presented in the formula below [
28]:
whereby element
fij must be inversely proportional to
fji, which means that
fji must be larger than 0. The resulting matrix has the property of consistency when the following conditions are met [
29]:
To confirm that the
F matrix is consistent, its eigenvalue for a certain eigenproblem must have the value:
where it is concluded that:
whereby is
λmax the highest eigenvalue of the matrix
F equal to the number of criteria and/or alternatives [
29]. The next step includes the normalization of the weight vector w by dividing the corresponding element w with the total sum of weight factors according to the formula:
Then, consistency index (CI) is calculated according to the following formula [
1]:
whereby
λmax is the largest eigenvalue of the matrix
F, while
n represents the number of elements (alternatives or criteria). Consistency Ratio as the final step is defined as:
whereby the previously obtained CI is divided by random index (RI). Random index RI is applied only if n ≥ 3, which can be seen in
Table 2 [
1]. When CR is less or equal to 0.10, comparison is considered acceptable. If CR is different from the stated number, the comparisons must be repeated to resolve the inconsistency of estimates [
27].
According to [
30], decision-makers who work with the AHP method have the advantage that this method has the feature of recognizing the inconsistency of decision-makers when comparing the elements of the AHP structure.
3.3. Alternatives and Criteria for Selecting the Optimal Equipment for Navigation Safety Surveillance in the Republic of Croatia
Equipment for monitoring navigation safety in the Republic of Croatia included in the research is the motor vessel M/V Pojišan, the helicopter Mil Mi-8 MTV-1, the drone Schiebel Camcopter S-100, and the plane Canadair CL-415.
The criteria that influence the decision-making on the choice of optimal equipment in navigation safety surveillance operations in this research are readiness, response time, reliability in different weather conditions, working range, directness of intervention, cost, maintenance, and impact on the environment. The process of defining individual criteria, i.e., the level of their influence (importance) concerning the investigated alternatives (equipment) in navigation safety surveillance operations, is the result of recent findings and consultations with stakeholders directly involved in the subject area. All the mentioned criteria for fulfilling the axiom of homogeneity are mutually comparable, and the comparisons between the elements are consistent.
To select the optimal equipment for undertaking interventions within navigation safety and data processing using the AHP method,
Table 3 shows the relevant criteria with the associated valorization of the level of influence of individual criteria.
All the defined criteria represent a certain set of standards, that is, conditions according to which the quality of service of each individual type of navigation safety surveillance equipment used in the Republic of Croatia is valued. The defined criteria serve as reference points or benchmarks for making decisions or scores. These guidelines were adopted in cooperation with an expert group.
The criterion of readiness refers to the degree of preparedness of the considered equipment for activities of navigation safety surveillance, the assessment of the availability of the required resources (primarily human and technical), skills, and knowledge, as well as the evaluation of planning and organization. For example, the criterion of readiness for the helicopter Mil MI-8 MTV 1 covers numerous prerequisites that must be examined and guaranteed in order for the helicopter to be ready for intervention. Criteria fulfillment contributes to crew and aircraft safety. The key readiness criteria for a helicopter are technical soundness, trained crew that includes the pilot and other cabin crew, weather conditions that must be acceptable in accordance with the operational limitations of the helicopter, etc. Given the 24-h duty of the team trained and qualified for working with a helicopter and its very quick response to a required action, the criterion of readiness for the helicopter Mil MI-8 MTV 1 is assessed as a high-importance criterion. The same arguments can be applied to planes, that is, drone preparedness. On the other hand, exclusively due to the dislocation of SAR ship crew, i.e., a lower level of vigilance and the absence of an immediate reaction in activating the intervention, the level of importance of the SAR ship’s readiness criterion is assessed as moderate.
The criterion of response time refers to the speed of a given means in the realization of required operations at sea within navigation safety surveillance. The relevant criterion refers to the time interval from a specific event or situation until the response. Due to certain endogenous, e.g., human factors, and exogenous reasons, e.g., meteorological conditions, which significantly affect the response time of the drone, the importance of this criterion for the drone is set at a moderate level.
The criterion of reliability in different weather conditions refers to the ability of the equipment in consistent and efficient operations in diverse weather conditions. This criterion includes resilience to extreme temperatures, moisture, snow and ice, storms and strong wind, reduced visibility, and corrosion. A moderate level of importance of the mentioned criterion was assigned for the use of almost all types of tested equipment, which achieve significant operational performance in adverse weather conditions but are nevertheless limited by strong winds and reduced direct visibility in operations at sea. It excludes the use of drones, so the reliability degree was assessed as low, primarily due to technical, technological, working, and operative limitations. Proper selection of equipment, taking into account weather conditions, can determine the final success of the search and rescue operation and minimize any type of risk.
The criterion of the operational range of the navigation safety surveillance equipment, especially the search and rescue operation, refers to the distance or area that the stated equipment can cover with its efficient operation. This criterion’s accuracy and range depend on the specificity of the equipment that is being assessed. When it comes to drones, operational range means the maximum distance at which the drone can operate while fulfilling all of its functions without interruptions; therefore, when compared to the rest of the equipment, the importance level was marked as moderate. It also includes the maximum permitted distance between a drone and the operator, that is, the control station. Helicopters and planes are capable of considerable operational distance; however, their flight autonomy is often less than that of drones. Regardless of the above, and taking into account the coverage of a larger surveillance area and the speed of intervention, the criterion of importance for the highlighted equipment was evaluated as high. Ships have a large operational range at sea, and in this case, M/B Pojišan achieves navigation autonomy of 250 NM [
31].
The criterion of direct intervention refers to a situation in which a decision is being made or a measure is taken directly and without mediation in order to resolve a specific situation or problem. This kind of intervention requires a quick and immediate reaction to achieve the desired result, in this case, the quickest and most efficient results possible regarding operations of navigation safety surveillance. Taking into account the above assumptions, the level of importance of the considered criterion was determined as high when using the ship in interventions at sea or moderate for the use of other equipment, i.e., drones, planes, and helicopters. The use of the ship enables direct intervention in emergencies, inspection, and other operations within navigation safety surveillance.
The criterion of cost represents an important factor used to evaluate the cost-effectiveness, competitiveness, or accessibility of equipment for various types of actions in monitoring the safety of navigation. This criterion covers all financial elements and resources needed for the realization of planned or sudden interventions. Cost can be expressed in different units such as money, working hours, or through other relevant measures. Cost analysis enables decision-makers to better understand the financial implications of the alternatives and direct resources towards the best options or strategies. The cost is often, even in this case, compared to other criteria in order to make relevant decisions. Considering the nature and complexity of the individual tested equipment, i.e., their operational implications, the level of importance of the cost for the use of drones is low, moderate when choosing a ship, and high for navigation safety monitoring operations using aircraft and helicopters.
The maintenance criterion refers to procedures and resources necessary for regular service and support for correct operation, efficiency, and durability of the equipment. This criterion has a key role in assessing long-term reliability and cost-effectiveness of the equipment because maintenance can have a significant effect on total operational costs and functionality. Drones usually require less maintenance compared to other options, as do ships, while the cost of maintaining aircraft (planes and helicopters) is determined to be high.
The criterion of environmental impact is extremely important due to maintaining a balance between operational needs and nature and environmental protection. This criterion assesses how the use of the equipment affects land, air, and water, as well as the whole ecosystem. When analyzing the aforementioned aircraft in the service of navigation safety surveillance, the most common and important is the assessment of harmful gas emissions and their potential impact on air quality and the environment. In drones, this aspect refers only to drones with internal combustion engines. An important factor is noise and its impact on the environment and society as a whole, especially with planes and helicopters. The impact of wastewater and potentially harmful liquid substances discharged by ships into the sea, as well as the impact of anti-fouling coatings and emissions, are assessed for vessels engaged in interventions at sea.
The choice of the optimum is complicated because it depends not only on the chosen criterion but also on the scenario investigated, the research design, and the weighting of the criteria [
32]. The AHP hierarchy also depends on the wishes and needs of those involved in the decision-making process and their knowledge and judgments [
33]. The criteria differ depending on the priorities of the decision-makers. For the weighting of the technical criteria, the so-called subjective ranking method is used, which depends mainly on the requirements of the decision-makers. Economic and ecological criteria are weighted according to the equal weighting method, according to which the influence of the decision-makers on the criteria is minimal [
34]. In general, in the AHP method, decision-making depends on the subjective assessment of experts [
35], and a successful analysis results from the proper development of the criteria hierarchy and the comparison of pairs of criteria, sub-criteria, alternatives, and priorities [
36]. Therefore, the different priorities within the criteria, the selection of the criteria included, and their different weighting depend largely on the purpose of the decision and the specific conditions in each individual case [
37]. The decision-making process is never completely devoid of subjectivity, regardless of the method used. However, within the AHP method, some indicators indicate the degree of subjectivity in research. Decision-making cannot be general but depends on the specific problem [
28], and this requires an in-depth understanding of the actual factors [
38]. Good decisions also depend on conditions in the future, so it is good to include a time component in the decision-making process [
39]. The choice of the optimal decision depends on many parameters and criteria that have relative importance [
40].
To select the optimal equipment for the needs of monitoring the safety of navigation in the Adriatic Sea, the methodological conditions for weighting the criteria are applied in accordance with the requirements and priorities of the specific environment. With an area of 31,479 km
2 and numerous islands that reduce the sea distance between the coast and the state border, the coastal sea of the Republic of Croatia does not represent a limitation in the categories of operational range and response time. It is a closed sea where no extreme meteorological conditions are to be expected, but for the same reason, there is an increased ecological sensitivity. With a GDP of 73% of the European Union average in 2022 [
41], the Republic of Croatia is still materially limited in the procurement and maintenance of maritime safety surveillance equipment, but even under these conditions, full operational readiness and directness in maritime safety surveillance and search and rescue operations are required. The Republic of Croatia is traditionally a maritime country with extensive maritime experience, and maritime safety surveillance has so far been carried out mainly by SAR vessels.

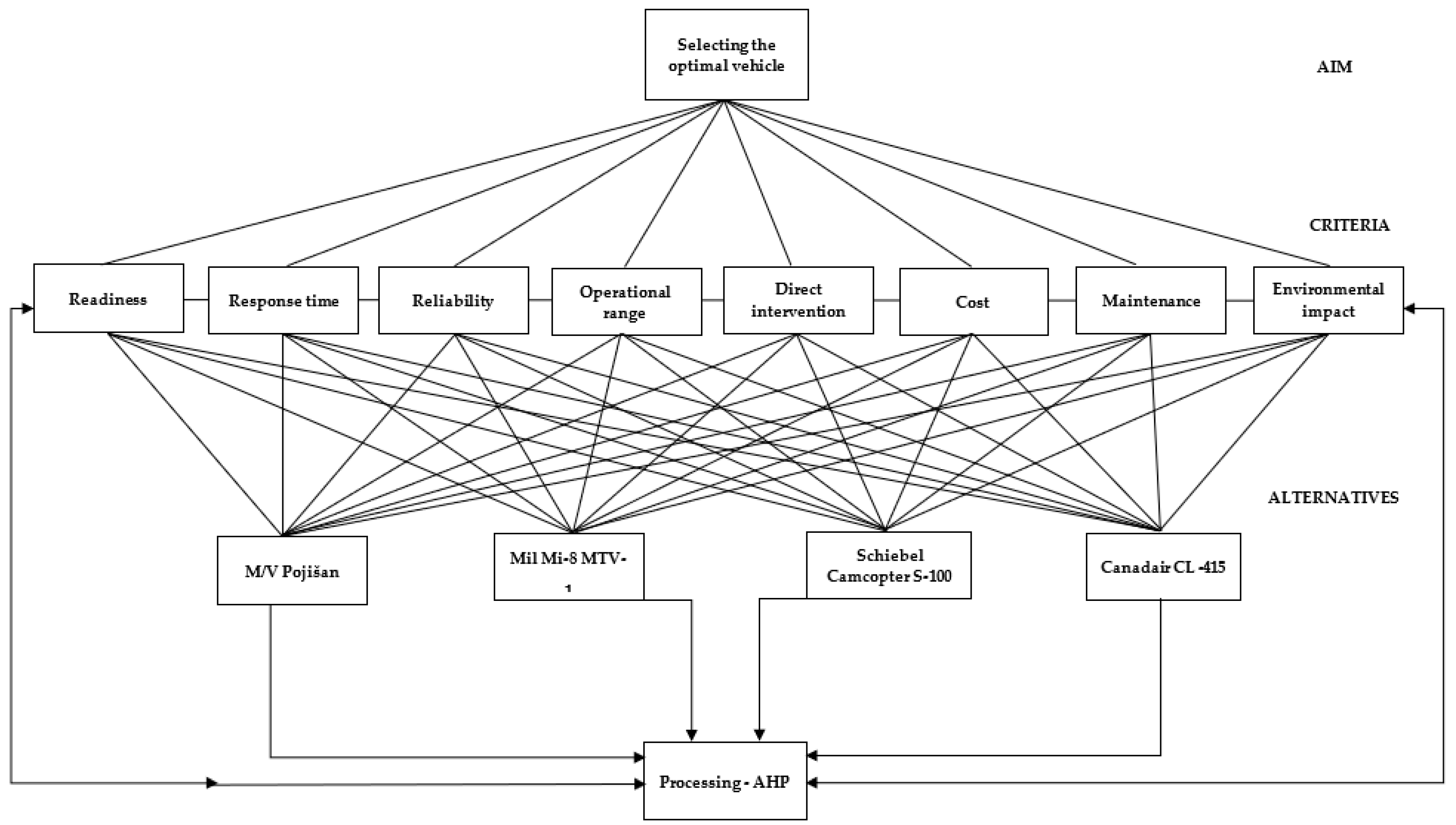

Based on all the assumptions defined in the methodological section, which primarily arise from the need for the AHP method and the selected research problem, a flowchart of the subject research was created. The elements of this hierarchical structure can be divided into objectives, defined criteria, and examined alternatives (
Figure 2).
The process of data gathering to carry out this research was based on the development and dissemination of the questionnaire. The survey questionnaire consisted of two parts: comparison and valorization of pairs of basic criteria to determine their importance and mutual comparison of pairs of alternatives according to each of the criteria. Based on the assessment of the relative importance of the criteria according to the corresponding level of the hierarchical structure of the problem, the local weights of the criteria and the priorities of the alternatives are calculated. The calculation of the total priorities of alternatives is based on the weighting of local priorities with the weights of all nodes and their total sum [
42].
The questionnaire was forwarded to a previously defined expert group, which included stakeholders who are directly and indirectly involved in different aspects of navigation safety surveillance. The expert group is composed of representatives of the Ministry of the Sea, Transport and Infrastructure (Navigation Safety Administration), the National Center for Coordination of Search and Rescue (MRCC), the National Center for Monitoring and Management of Maritime Traffic (VTS Croatia), port authorities, harbor masters, representatives of the academic community, and other stakeholders. The questionnaire was completed by 15 out of a total of 35 stakeholders, accounting for 43% of realization success. Therefore, the sample can be characterized as representative. It is important to point out that in the process of synthesizing the judgments of different stakeholders, during the valorization of criteria and alternatives, the arithmetic mean technique was applied, especially in the phase of synthesizing the comparison of pairs, and according to the propositions established in [
43]. For the needs of carrying out the empirical part of the research, the AHP Excel tool was used to calculate the total weight of the criteria and the total priorities of alternatives according to [
44].
