A Method for Recognition and Coordinate Reference of Autonomous Underwater Vehicles to Inspected Objects of Industrial Subsea Structures Using Stereo Images

Abstract

To date, the development of unmanned technologies using autonomous underwater vehicles (AUVs) has become an urgent demand for solving the problem of inspecting industrial subsea structures. A key issue here is the precise localization of AUVs relative to underwater objects. However, the impossibility of using GPS and the presence of various interferences associated with the dynamics of the underwater environment do not allow high-precision navigation based solely on a standard suite of AUV navigation tools (sonars, etc.). An alternative technology involves the processing of optical images that, at short distances, can provide higher accuracy of AUV navigation compared to the technology of acoustic measurement processing. Although there have been results in this direction, further development of methods for extracting spatial information about objects from images recorded by a camera is necessary in the task of calculating the exact mutual position of the AUV and the object. In this study, in the context of the problem of subsea production system inspection, we propose a technology to recognize underwater objects and provide coordinate references to the AUV based on stereo-image processing. Its distinctive features are the use of a non-standard technique to generate a geometric model of an object from its views (foreshortening) taken from positions of a pre-made overview trajectory, the use of various characteristic geometric elements when recognizing objects, and the original algorithms for comparing visual data of the inspection trajectory with an a priori model of the object. The results of experiments on virtual scenes and with real data showed the effectiveness of the proposed technology.

1. Introduction

The issue of inspection of underwater infrastructures (such as gas and oil pipelines, underwater mining systems, etc.) using autonomous underwater vehicles (AUV) [1,2,3,4,5], as an alternative to the previously deployed technology based on remotely operated underwater vehicles and divers’ operations, has become particularly relevant recently. Accurate positioning of AUVs relative to such objects is a key problem of inspection.

However, the challenges in providing accurate AUV navigation in the underwater environment (the impossibility of using GPS, lack of terrain maps, insufficient accuracy of acoustic sensing, and limitations of optical sensing) prevent more extensive use of AUVs for solving inspection problems. Therefore, various tools and technologies are applied to improve navigation accuracy, depending on the tasks set for the AUV mission, characteristics of scenes, and availability of primary data. Traditional equipment includes sonar navigation systems, Doppler lags, navigation and piloting sensors, and Inertial Measurement Units (IMUs).

When solving problems of underwater object inspection, integrated navigation technologies for AUVs usually use sensors such as sonar, laser, and acoustic modems. A detailed description of the technologies with an example of applications for solving the problem of harbor inspection can be found in [6,7,8]. However, the data obtained are not always sufficient to ensure solutions to the problems of recognizing inspected objects and accurately localizing AUVs in relation to them. An alternative to the above-mentioned navigation equipment is technologies based on processing optical images taken with mono and stereo cameras. These methods can potentially provide higher accuracy of AUV navigation compared to the processing of acoustic measurements in local scenes at short distances to objects. Several groups of applications can be considered here.

A number of works are devoted to algorithms based on stereo visual odometry, which are used by AUVs for navigation. For example, in [9], it is shown that stereo vision-based odometry can be used by AUVs that navigate close to the seabed for velocity and incremental pose estimation in small areas. The article describes the integration of two different stereo visual odometry algorithms into an AUV and experiments carried out in laboratory and harbor conditions comparing vision-based pose estimates with ground truth. Since the inertial navigation system of an AUV suffers from drift, observing fixed objects in an inertial reference system can enhance the localization performance. For example, in [10], a method for localizing AUVs using visual measurements of underwater structures and artificial landmarks was described.

In a number of studies, e.g., in [11,12], methods to track the desired trajectory using visual measurements of points features and adaptive control, including neural networks, were considered.

To solve a typical problem of sending an AUV home to the dock station, it is advisable to apply a vision guidance method, such as in [13].

In [14], a method for monocular visual odometry with optical flow tracking was proposed, which, according to the authors, is more suitable for underwater imaging than the classic approaches based on descriptors.

The issue of determination of a vehicle’s position relative to the objects being inspected is based on solving the problem of object recognition. Since primarily industrial subsea structures are considered here, it is advisable to take into account the geometric specifics of artificial objects (the evident presence of standard geometric elements in their shape).

A previous paper [15] addressed the problem of object recognition from colorless 3D point clouds in underwater environments. It compared the performances of the state-of-the-art methods for underwater object recognition (global descriptors). The studied methods were designed to assist AUVs in performing autonomous interventions in underwater Inspection, Maintenance, and Repair (IMR) applications. In that paper, a number of methods based on the analysis of surface characteristics of the object were considered [16,17,18,19].

In [20], the authors developed their previous study by proposing a 3D object recognition method for non-colored point clouds using point features. The method was designed for the application of scenarios such as the IMR of industrial subsea structures composed of pipes and connecting objects (such as valves, elbows, and R-Tee connectors). The recognition algorithm uses a database of partial views of the objects, stored as point clouds, which are available a priori.

When developing inspection technologies, preliminary information about the objects can be taken into account such as digital maps of the area [21] or the availability of coordinate measurements of characteristic point features of the objects in the external coordinate system (CS) [22].

Another paper [23] presented a brief review of the latest advancements in navigation and control technologies for AUVs. It discussed the challenges and solutions in AUV navigation, including the integration of various sensors and algorithms to ensure accurate and reliable operations in complex underwater environments.

As can be seen from the brief overview above, different methods are required to solve inspection tasks using AUVs depending on the sensor suite used, the underwater conditions, and the mission objectives. In particular, it is necessary to further develop methods for extracting spatial information about objects from images recorded by a camera (taking into account the dynamics of the underwater environment) to solve problems of object recognition and precise coordinate referencing of an AUV to objects.

In this article, we propose a new approach to addressing the problem of underwater object recognition and coordinate referencing of AUVs to them within the framework of the inspection of a subsea production system (SPS). The approach is based on the non-standard automated technique for forming a geometric model of the object based on images of an overview trajectory, the use of different types of characteristic geometric elements in object recognition, and the application of original algorithms for matching the obtained visual data with an a priori model of the object.

The article is structured as follows. The introduction provides a review of available information as regards the issues addressed in the article. Section 2 briefly considers the proposed approach to solving the problem of coordinate reference of the AUV to the SPS. Section 3.1 describes a technique to form a model of SPS objects on the basis of views of the overview trajectory. Section 3.2 describes algorithms for recognizing the characteristic geometric elements in a stereo pair of frames at the position of the AUV’s working trajectory that provide identification of the SPS object and calculation of the AUV’s movement in the coordinate space of the object. Section 4 presents the results of experiments with synthetic and actual data. Section 5 is devoted to the discussion of the results of the work.

2. Problem Statement and General Approach

The problem of regular IMR of various underwater engineering facilities, including the subsea production system (SPS), requires precise coordinate references of the AUV to underwater artificial objects during inspection missions. Referencing the AUV to the object’s coordinate system (CS) is necessary for planning the AUV’s trajectory and performing operations (photography of critical structural components, possible landing, and repair) directly in the coordinate space of the objects under inspection. It is assumed that the AUV, along with the standard suite of navigation sensors, is equipped with an optical stereo camera directed strictly down relative to the AUV longitudinal axis. In the context of this issue, the problem of calculating the exact coordinate reference of the AUV to the CS of a subsea artificial object is solved using video information. Structurally, the SPS is defined as a set of functionally integrated objects distributed over a limited area of the seabed and coordinated in the CS of the SPS. When the AUV is moving along the specified trajectory in the area of the SPS location, regular attempts are made to identify the SPS objects by processing the stereo video stream from a camera. Recognition of the object under inspection is performed by comparing the geometric information derived from stereo images to the a priori-specified 3D model of the object. Hereinafter, the term “object model” means a visual model, i.e., a set of spatial elements of the object visible through the camera. The visual model may not match the functional model of a large object that describes this object at the level of its certain functional units. Nevertheless, the visual model elements may have attributes indicating that they belong to certain functional units of the object, if necessary for inspection purposes. The model is built with the involvement of the operator. Unlike the traditional technique, where the model is formed based on in situ measurements or documentary information describing the object, the proposed technique uses images of a few views of the pre-made overview trajectory of the AUV and 3D information obtained on their basis. The overview trajectory is set in such a way that the camera could capture images of all objects (or parts of the object, if it does not completely fit into the camera’s field of view due to its large size) of the distributed SPS. Then, we define the SPS model as a combination of models of all objects composing the SPS. Also, we define the model of a certain object as a combination of models of all of the used object’s views from the overview trajectory. The model of a certain view is a set of 3D geometric elements of the object (visible from this aspect) that characterize the spatial structure of its visible part. Stereo pairs of frames of the views that were used to build the object model are linked to it. The characteristic 3D point features of the object and rectilinear segments and macro-elements composed of segments characterizing the shape of the object are considered geometric elements of the model. According to the technique, the operator, based on a visual analysis of the overview trajectory images used and the calculated 3D data, forms characteristic elements (CEs) for each view. CEs are coordinated both in the CS linked to a specific view and in the object’s intrinsic CS built by the operator. For each view of the overview trajectory used, a coordinate transformation matrix is calculated, linking the CS of this view to the object’s intrinsic CS. The matrix is formed by the well-known technique of specifying the unit vectors of the object’s CS in the view’s CS. One of the objects’ CSs is fixed as a CS of the SPS. Accordingly, a coordinate transformation matrix is formed for each object, linking the object’s CS with the CS of the SPS.

The use of several views of the object and CEs of different types increases the reliability of identification of certain objects and the accuracy of AUV navigation relative to the underwater object.

The object identification and coordinate referencing of the AUV to the object’s intrinsic CS is generally performed by a sequential three-stage computational scheme.

First stage. Direct recognition of 3D point features of the object is made from a stereo pair of frames taken by the AUV camera at the analyzed position of the working (inspection) trajectory. This is achieved using the algorithm for matching the set of point features in the stereo pair of frames of the working trajectory with the set of point features in the stereo pair of the model for each view of the overview trajectory used (see the description of the algorithm in Section 3.2.1). The result of the matching algorithm is two matched sets of 3D points, of which one is determined in the model’s CS and the other in the camera’s CS at the position of the working trajectory (in the AUV’s CS). The matrix for coordinate transformation between the AUV’s CS and the CS of the object model is calculated using these two matched 3D sets. The resulting coordinate transformation matrix can be considered an acceptable solution to the problem of AUV referencing to the object or be used as an initial approximation when obtaining a more reliable and accurate solution at the second and third stages, taking into account all types of CEs.

Second stage. Rectilinear segments and macro-elements are recognized using the coordinate transformation matrix obtained in the first stage. Note that this approach does not involve the vectorized shapes of source images (which require significant computational costs); however, correlation estimates are used when comparing the segment line images in the model and the working stereo pair of frames. The recognition of elements in addition to points increases the reliability of object identification and the accuracy of coordinates in reference to them.

Third stage. An updated matrix of coordinate transformation from the CS of the AUV’s working trajectory position to the object’s CS is calculated with the point data for all views and CE types taken into account.

3. Proposed Methods

It is advisable to plan and perform the AUV inspection trajectory in the coordinate space of a subsea production system (SPS) or a separate object inspected. Therefore, when the AUV is moving along the working trajectory, SPS objects are searched/detected using the methods and algorithms based on the comparison of the geometric information derived from recorded stereo frames to the object models. Thus, the problems of detection of 2D characteristic elements in images, 3D reconstruction of CEs, and matching of spatial CEs with the object model are solved sequentially. Models of SPS objects are formed by an automated technique based on photographs of the overview trajectory using several views (aspects). Three types of CEs are considered spatial elements of an object model: point features, rectilinear segments, and, possibly, macro-elements built on a combination of segment lines. In this study, geometric elements of a “corner” type are considered macro-elements. Eventually, the problem of calculating the AUV’s movement in the CS of a subsea object is solved.

Below, the following designations are used:

M_2D_POINT_V^kV^k_LR and M_2D_ POINT_V^kV^k_RL are matched sets of points in the left and right frames of the “model” stereo pair of the kth view (recall that the model is considered a set of several views of the AUV’s overview trajectory). Here, the symbol “M” means that the set belongs to the model, and the symbol “S” will be used in the identifiers of sets belonging to the frames of the “working” stereo pair. V^k indicates that the kth view of the overview trajectory is used. The LR mnemonics means that the set in the left frame of the stereo pair is matched to the set in the right frame of the stereo pair. The RL mnemonics are used in a similar way. The designation V^kV^k below means that the matching refers to the stereo pair of frames of the kth view. Similarly, the mnemonics of the WW designation mean that the sets belonging to the frames of a “working” stereo-pair are matched. The designation V^kW means that the set in the frames of the working stereo pair is matched with the set of the model of the kth view (the kth view of the overview trajectory). Accordingly, the designation WV^k means that the set of the model of the kth view is matched with the set in the frames of the working stereo pair. The sets belonging to the object model are formed using an automated technique with the involvement of the operator. The abbreviations used in the following presentation are given in Abbreviations.

3.1. Forming the Model Object

Geometric models of SPS objects are formed at a preliminary stage, prior to launching inspection missions. These are used to visually recognize SPS objects and provide coordinate referencing of the AUV to them during each of the subsequent inspection missions. The model is usually formed using direct measurements of characteristics of the object/SPS with the involvement of documentary information and/or software tools. Point features are often used as characteristic features determining the spatial geometric structure: points generated and matched in the stereo pair of frames using the SURF detector or corner points [24] presumably recognized using the Harris Corner Detector on the basis of images taken by the AUV camera during inspection. The advantage of this technique for object identification is its versatility: it does not require the shape of the surface to be taken into account. However, using point features only (when matched with the model) may not be enough to reliably identify the object because (a) point features do not fully reflect the spatial geometric structure of the object and (b) the possibly small number of matched points (since photography from the overview trajectory and the working one is conducted under different conditions, i.e., at different altitudes, at different angles, and in different illuminations) may reduce the accuracy of referencing the AUV to the object. To increase the reliability of object identification and the accuracy of AUV’s coordinate reference to the object, it is suggested, first, to use CEs of the “point” type from all views used, and then to use segment lines and macro-elements based on them, along with points, as characteristic features of the object. For example, elements such as the “corner” type (a vertex with adjacent sides and segment lines) are more reliably recognized. In particular, corners remain unchanged under varying illumination and external effects on the object (corrosion, algae fouling, etc.). Second, an automated method for forming an object model is proposed, aimed at improving the efficiency of object recognition when AUV performs a working mission. On the one hand, the method excludes preliminary direct in situ measurements, and, on the other hand, it contributes to a higher degree of object recognition at the stage of inspection. The essence of the automated technique is to involve the operator in constructing an object model based on processing the results of video records from the pre-made overview trajectory of the AUV. The operator can clearly indicate the CEs forming the object model, which, presumably, will be well recognized by the AUV moving along the inspection trajectory. When indicating CEs, the operator uses source images and auxiliary software and algorithmic tools in an interactive mode (the SURF detector, the ray triangulation method, the visual navigation method (VNM) [23], 3D visualization, and necessary interactive service). The overview trajectory is planned in such a way that the set of its used views provides a good overview of all the SPS objects to be inspected. The operator forms the object’s intrinsic CS in which the spatial model of the object should be described, which is necessary for accurately setting the trajectory of the inspection mission at the planning stage. For each used view of the object, a matrix is calculated linking the CS of this view with the object’s CS. By means of these matrices, the coordinates of all the CEs of all the views used are transformed into the object’s CS and stored in the respective sets representing the complete 3D model of the object (with all the used views taken into account). Also, for each SPS object, the matrix to link the CS of this object with the CS of SPS is calculated, for which the CS of one of the objects is used.

The main steps of the method for object model formation are shown in Figure 1.

1.

The operator selects one or more of the most informative object’s views from the sequence of photographs of the overview trajectory (with respective stereo pairs of frames), which together can potentially provide recognition of the object for any position of the working (inspection) trajectory when the AUV is positioned above the object.

2.

The operator fixes a rectangular area of the object’s location in the seabed plane (using the VNM, which provides the calculation of points’ coordinates in the external CS with some accuracy). This allows for a rough object search at the recognition stage (while the AUV is moving along the working trajectory) before activation of the object recognition algorithm based on the processing of images taken with the camera.

3.

The operator creates a 3D model of the object that combines the 3D models of several used views of the overview trajectory. The spatial geometric elements making up the model are formed by processing the original stereo pairs of frames of the views used. The processing includes the application of algorithmic procedures with the explicit involvement of the operator in the process of CE formation. The types of elements used, as noted above, are as follows: points, rectilinear segments, and macro-elements based on segment lines (such as “corner” type or others).

For each selected kth view of the AUV’s overview trajectory:

3.1.

The point features in the left and right frames of the stereo-pair are matched using the SURF detector. The points belonging to the object, specified by the operator, are filtered and selected. Manual generation of additional points is possible. It is also possible to include terrain points near the object since the scene is static. By matching the sets of points M_2D_POINT_V^kV^k_LR and M_2D_POINT_ V^kV^k_RL, a set of 3D points M_3D_POINT_ V^kV^k_CS^view_k, visible through the camera for this view, is constructed using the ray triangulation method. The points are coordinated in the CS^view_k of this view of the overview trajectory.

3.2.

The operator generates a set of 3D edge lines visible through the camera in CS^view_k of this view using the original frames of the stereo pair. Each spatial segment line is described by two 3D endpoints belonging to it with pointers at 2D images of these points in the 2D sets indicated above. The problem of 3D reconstruction of the matched 2D images of segment lines in the model stereo-pair of frames is solved in a traditional way: by matching the endpoints in the stereo-pair of frames with the calculation of correlation estimates when scanning epipolar lines and then calculating the 3D coordinates of the segment endpoints in CS^view_k by the ray triangulation method. The endpoints can also be matched by the operator clearly indicating the matched images. The formed segments are coordinated in CS^view_k and stored in the set M_3D_LINE_ V^kV^k_CS^view_k.

3.3.

Formation of “corner” type CEs based on the set of spatial segments obtained for this view. The formed “corners” CEs are coordinated in the CS^view_k and stored in the set M_3D_CORNER_ V^kV^k_CS^view_k.

4.

To obtain a model description independent of the AUV’s CS, the operator explicitly determines the object’s intrinsic CS. Such a CS is determined on the basis of the segment line indicated by the operator (let it be referred to as the base segment line) in such a way that the Z’-axis is oriented in the direction of the Z-axis of the external CS (see Figure 2). This can be achieved using the data received by the standard navigation system of the AUV. For each used kth view of the object, a coordinate transformation matrix is calculated that links the object’s CS with the CS of the camera of this view of the overview trajectory (which is performed in a standard way by setting the unit vectors of one CS in the other CS). If the camera does not see the selected base segment line in one of the views, then the VNM method is applied, which provides a matrix for coordinate transformation from the CS of one trajectory position into the CS of the other position (i.e., the coordinates of the base segment line are calculated in the CS of the considered view implicitly, without matching in the stereo pair of frames). Afterward, the object’s intrinsic CS is built, the same as for other views, on the base segment line, and the matrix of the link between the CS of this view and the object’s CS is calculated. Thus, a single CS of the object is built using the same spatial base segment line in all the views used. For each kth view, its own matrix $H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ of transformation into this object’s CS is calculated (where n is the object’s sequential number).

5.

The coordinates of all three CE types of the used kth view are transformed using the calculated matrix into the object’s intrinsic CS built. The obtained coordinate representations are stored, respectively, in the sets M_3D_POINT_V^k_CS^object_n, M_3D_LINE_V^k_CS^object_n, and M_3D_CORNER_V^k_CS^object_n specified in CS^object_n. Simultaneously, these coordinate representations are recorded to the respective accumulated sets representing the object’s complete 3D model in CS^object_n with all processed views taken into account: M_3D_POINT_CS^object_n, M_3D_LINE_CS^object_n, and M_3D_CORNER_CS^object_n. Note that if CE is present in several views, then in the complete model it is represented by averaged coordinates.

6.

The operator explicitly determines the CS of the SPS. As such a CS, the CS of one of the objects is used. The intrinsic CSs of all objects are coordinated in the CS of the SPS.

Thus, the object model is formed in two representations:

6.1.

As a set of 3D models of several objects’ views, where the model of a view is a combination of three CE sets (points, lines, and corners) specified in the CS of this view (CS^view_k). The matrix $H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ for coordinate transformation from this view’s CS into the objects’ intrinsic CS (CS^object_n) is calculated for each view.

6.2.

As a combination of sets of three CE types (points, lines, and corners) specified in the object’s intrinsic CS (CS^object_n), which represents the spatial structure of the object. Here, the set of each type is formed by summing the CEs from several views used. Note that a face plane is linked to each edge line, which belongs to it. The normal plane and its position relative to the segment line (the face on the right or left) are indicated. This information is necessary at the object recognition stage for th ecorrect calculation of the correlation estimate when matching the images of the segment line (two of its points) in the frames of the model’s stereo-pair and the stereo pair of the working (inspection) trajectory (the rectangular area adjacent to the edge used to calculate the correlation coefficient is specified only on this plane).

Note an important positive feature of the approach proposed: the initial object model, formed by the method with the use of a single overview trajectory, can be extended with subsequent regular inspections of the AUV. In particular, the obtained views of each subsequent inspection trajectory can be used to process the following new inspection trajectory in the same way as the views of the initial overview trajectory in the above-considered method. This provides, as regular missions are launched, a greater total number of recognized points by increasing the number of views and, eventually, a higher accuracy of the coordinate reference of the AUV to the object.

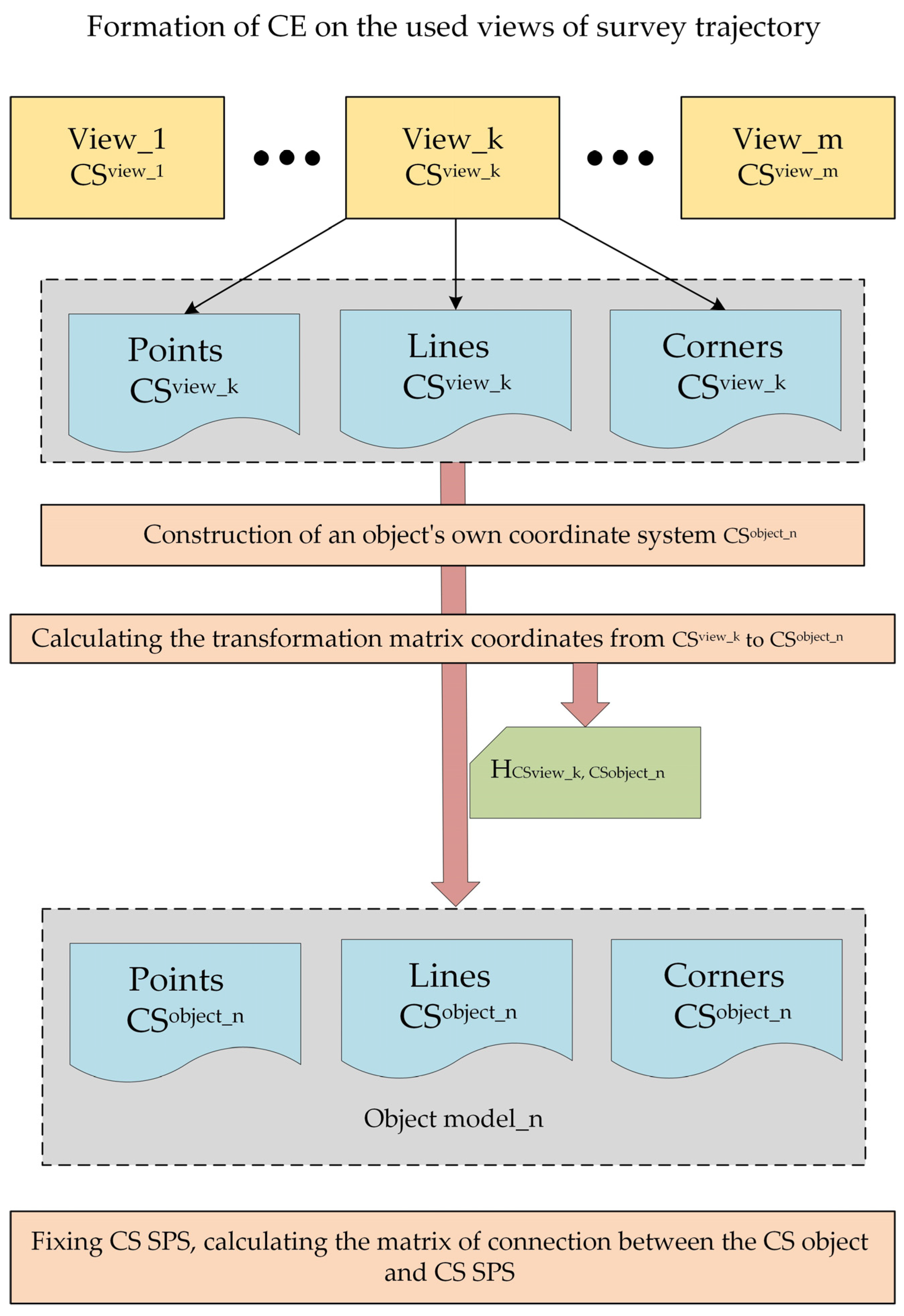

Figure 1. Forming an object model based on overview trajectory images.

Figure 1. Forming an object model based on overview trajectory images.

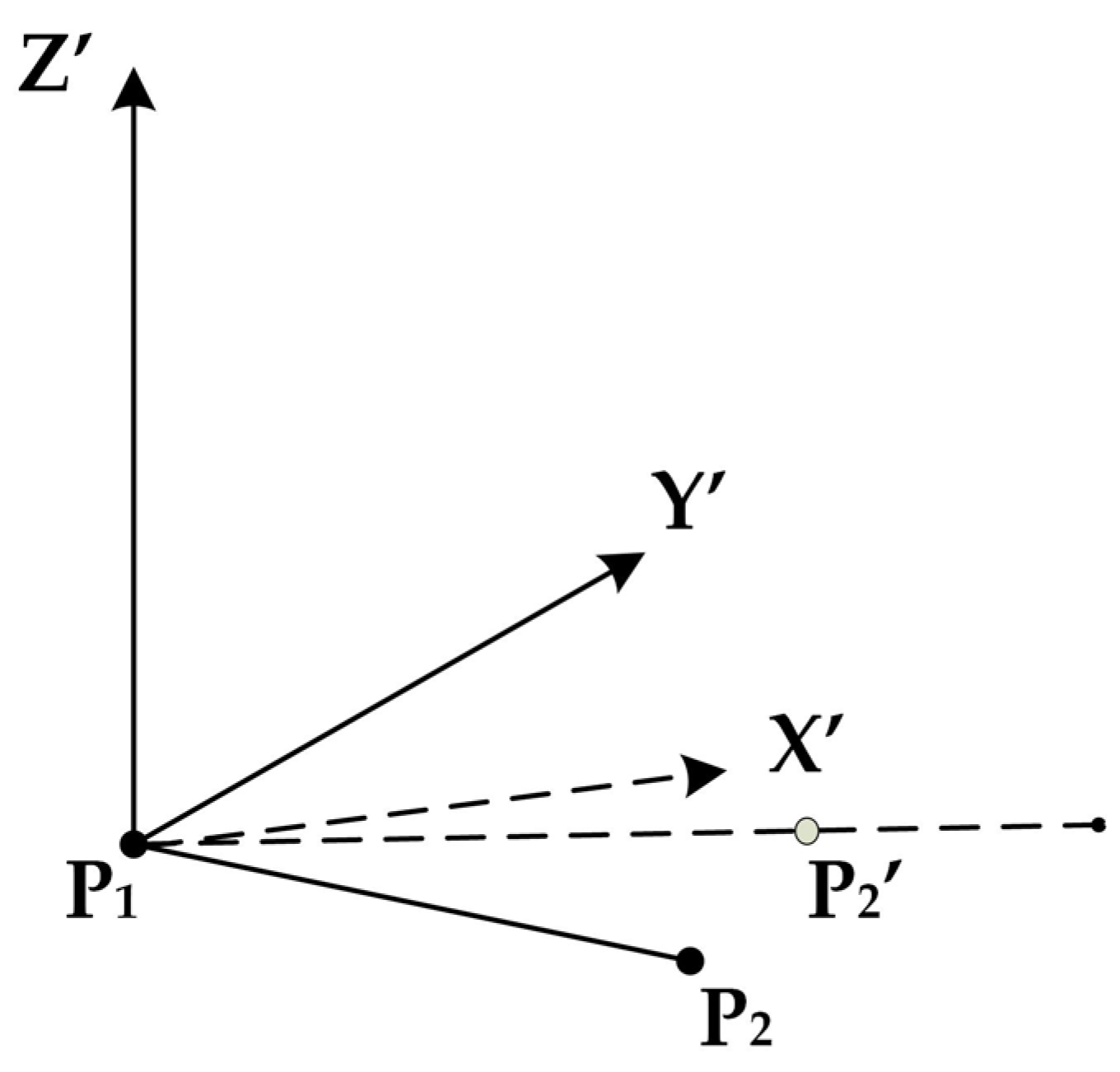

Figure 2. Building of the object’s own CS (X’Y’Z’) based on the base segment line [P1, P2], specified in the camera’s CS. Segment [P1, P2] is set in the camera’s CS; point P1 is the origin of the CS being built; the direction of the Z’-axis coincides with the direction of the Z-axis of the external CS; [P1, P2′] is the projection of the segment [P1, P2] onto the plane perpendicular to the Z’-axis; the X’-axis is determined by the direction [P1, P2′]; the Y’-axis is completed by the right CS rule.

Figure 2. Building of the object’s own CS (X’Y’Z’) based on the base segment line [P1, P2], specified in the camera’s CS. Segment [P1, P2] is set in the camera’s CS; point P1 is the origin of the CS being built; the direction of the Z’-axis coincides with the direction of the Z-axis of the external CS; [P1, P2′] is the projection of the segment [P1, P2] onto the plane perpendicular to the Z’-axis; the X’-axis is determined by the direction [P1, P2′]; the Y’-axis is completed by the right CS rule.

3.2. Recognition of SPS Objects

The recognition of SPS objects with referencing of the AUV to the object’s CS is required for planning and performing the AUV’s trajectory directly in the CS of the object under inspection. The problem of the coordinate reference of the AUV to the object is solved by comparing the visual data obtained at the position of the AUV’s inspection trajectory with the object model. A three-stage computational scheme is implemented using several views (aspects) of the object that represent an object model (Figure 3). The choice of views for comparison is based on the criterion of proximity of the AUV’s position in the external CS of the analyzed position of the AUV’s working trajectory and the position of the overview trajectory of the selected view.

At the first stage, the desired object is recognized for each selected kth view by matching the point features in the working and model stereo pairs (see the description of the algorithm in Section 3.2.1). With successful recognition (a threshold criterion is used), the result is (a) a set of points S_3D_POINT_V^k_CS^work matched to the set M_3D_POINT_V^k_CS^view_k (belonging to the model of k-th view) and (b) the calculated matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$ for coordinate transformation from the CS of the inspection trajectory position into the CS of the model of the object’s k-th view used.

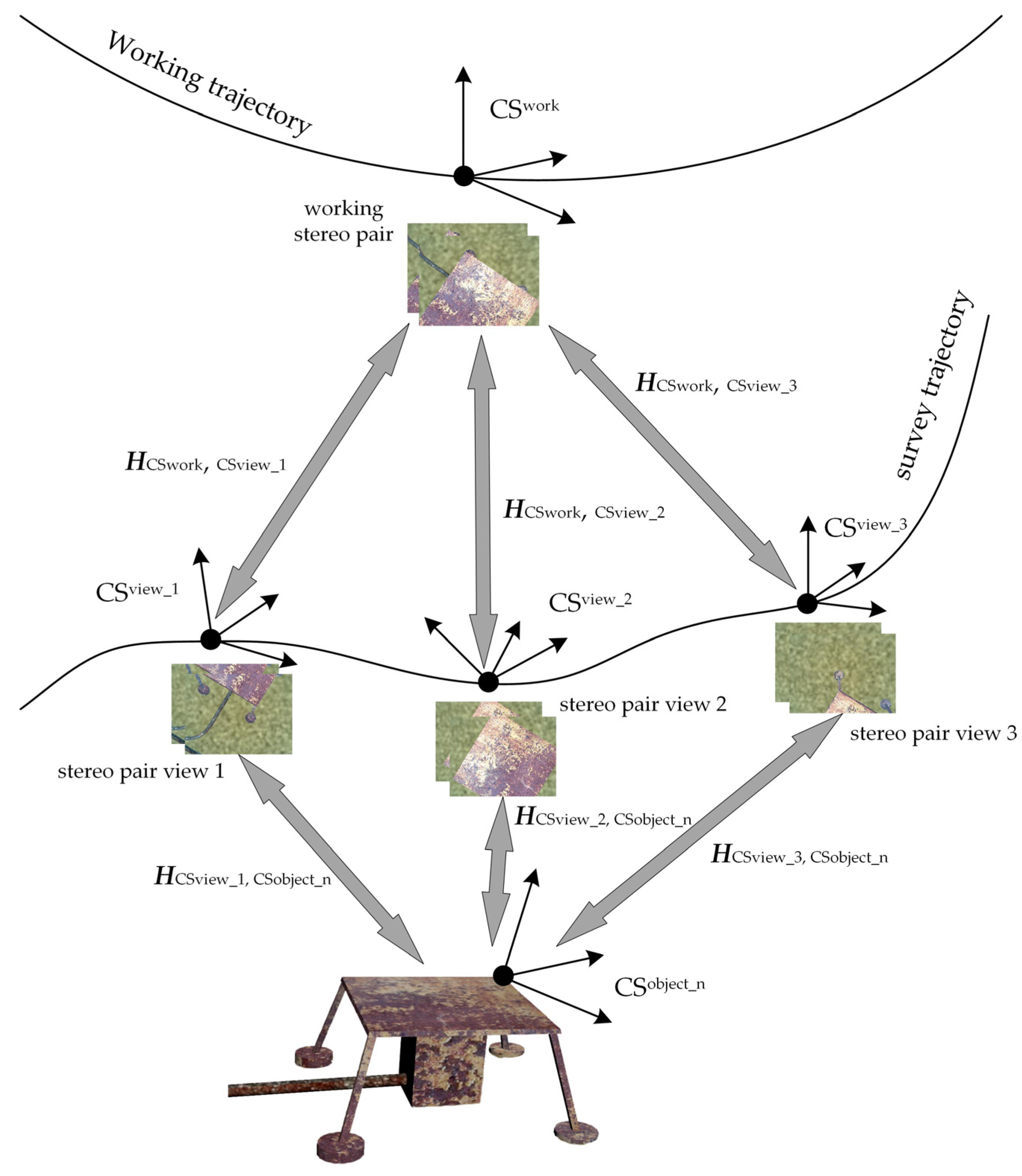

Since for each view, there is a matrix H_{CSview_k, CSobject_n} for coordinate transformations from the CS of this view into the CS of the n-th object (obtained by forming a model of the k-th view), the transformation from CS^work into CS^object_n can be obtained by sequentially performing the two above-indicated transformations. Each resulting transformation (the number of which is equal to the number of views used) can be considered an acceptable solution to the problem set. The resulting matrix can also be used as an initial approximation in the optimization method when calculating the refined matrix for coordinate transformation from CS^work to CS^object_n, with point data for all views and all CE types taken into account (at the third stage). The obtained set of recognized “points” S_3D_POINT_V^kW_CS^work is entered into the set S_3D_ POINT_CS^object_n accumulated from all the views, which is coordinated in CS^object_n (the available matrix H_{CSview_k, CSobject_n} is used). The number of matched points is input in

Table 1. Results of CEs (points, lines, and corners) recognition for all views.

	S_3D_POINT_CSwork (Number of Points Matched to Model/Number of Points in Model)	S_3D_LINE_CSwork (Number of Lines Matched to Model/Number of Lines in Model)	S_3D_CORNER_CSwork (Number of Corners Matched to Model/Number of Corners in Model)
View 1 in CS1	np_1/mp	n1_1/mL	nc1/mc
…	…	…	…
View k in CSk	np_k/mp	nlk/mL	nck/mc
…	…	…	…
View last in CSlast	np_last/mp	nllast/mL	nclast/mc

. Table 1 records the relative number of recognized CEs (points, lines, and corners) in the images of the stereo pair (obtained at the position of the inspection trajectory) when compared with the model for each view k.

At the second stage, “lines” and “corners” in the working stereo pair, matched to the elements of the k-th view model, are recognized (using the resulting transformation H _CSwork, _{CSview_k}) (see Section 3.2.2). The result is the sets S_3D_LINE_V^kW_CS^work and S_3D_CORNER_V^kW_CS^work. These sets are entered into the respective sets S_3D_LINE_CS^object_n and S_CORNER_CS^object_n, coordinated in CS^object_n (the available matrix $H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ is used). The matching results are input in Table 1. Thus, these sets, along with the set of points S_3D_ POINT_CS^object_n, are a full combination of recognized 3D CEs of all types of the object from all views in the object’s intrinsic CS. The visualization of them can provide a visual representation of how fully and reliably the analyzed object was recognized.

In the third stage, the refined matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ is calculated. Refinement (increase in the accuracy of AUV coordination in the object’s CS) is carried out by taking into account the recognized “points” in all the views used, and also by taking into account the points belonging to the recognized “lines” and “corners”. Three approaches to calculating the coordinate reference of the AUV to the SPS object are considered:

1. The reference is, as mentioned above, based on the matrix for coordinate transformation from CS^work to CS^object_n, which is calculated using a model of the k-th view as a sequential execution of two available transformations:

$$H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}=H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}\cdot H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$$

(1)

In this case, we obtain k matrices (according to the number of object’s views used). For each variant, the error of calculation accuracy is estimated on the basis of a test set of matched points.

2. The matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ for coordinate transformation from CS^work to CS^object_n is calculated on the basis of a combined set of matched points (for all views of the object). A standard method to minimize the target function is used, based on the estimate of the total discrepancy between the recognized points of the set S_3D_POINT_V^kW_CS^work (in the working stereo pair of frames) and the points of the set M_3D_POINT_V^k_CS^view_k matched to them (a model of the kth view of the object). The total discrepancy is calculated in the coordinate space CS^object_n. Two variants of obtaining a combined point set are compared: (a) with only CE of the “point” type taken into account in all the views used and (b) with more points belonging to the recognized CEs of the “lines” and “corners” types added to the “point” type CE in each view.

To write the target function in a compact form, we introduce intermediate designations. We designate the set M_3D_POINT_V^k_CS^view_k as MP^k (mp^k₁, … mp^k _{np_k}) and designate the set S_3D_POINT_V^kW_CS^wok matched to the former set as SP^k (sp^k₁, … sp^k _{np_k}). Then the problem of minimizing the target function in variant (a) is formulated as follows:

$$\begin{gathered} \min {\displaystyle {\sum }_1^k{\displaystyle {\sum }_{i=1}^{np\_k}R{1}_i^k}}, \mathrm{where} \\ R{1}_i^k=‖m{p}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}-s{p}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{work}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}‖ \end{gathered}$$

(2)

where the matrix $H_{{\mathrm{CS}}^{view\_k}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ is used, which was compiled at the stage of formation of the k-th view model.

Variant (b) additionally takes into account, as mentioned above, the points belonging to the “lines” and “corners” CEs (these points determine the coordinate position of the CE). Similarly, we simplify the writing by introducing intermediate designations. We designate the set of points M_3D_LINE_V^k_CS^view_k belonging to the “lines” type CEs of the k-th view model as $M{L}^k\left(m{l}_1^k,\dots ,m{l}_{nl\_k}^k\right)$, and designate the set of recognized lines S_3D_LINE_V^kW_CS^work matched to the former set as $S{L}^k\left(s{l}_1^k,\dots ,s{l}_{nl\_k}^k\right)$. Here, the elements ml^ki and sl^k_i denote the start and end points of i-th segment line.

Then the points of the i-th “line” taken into account in the target function can be written as follows:

$$R{2}_i^k=‖m{l}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}-s{l}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{work}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}‖$$

(3)

Similarly, we introduce simplifying designations for points belonging to the CEs of the “corners” type. We designate the set of points M_3D_CORNER_V^k_CS^view_k belonging to the “corners” CEs of the kth view model as $M{C}^k\left(m{c}_1^k,\dots ,m{c}_{nc\_k}^k\right)$, and designate the set of recognized corners S_3D_CORNER_V^kW_CS^work matched to the former set as $S{C}^k\left(s{c}_1^k,\dots ,s{c}_{nl\_k}^k\right)$.

Accordingly, the points of the i-th “corner” taken into account in the target function can be written as follows:

$$R{3}_i^k=‖m{c}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}-s{c}_i^k\cdot H_{{\mathrm{CS}}^{\mathrm{work}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}‖$$

(4)

Then the problem of minimizing the target function in variant (b) is formulated as follows:

$$\min {\displaystyle {\sum }_1^k\left({\displaystyle {\sum }_{i=1}^{np\_k}R{1}_i^k+{\displaystyle {\sum }_{i=1}^{nl\_k}R{2}_i^k+}{\displaystyle {\sum }_{i=1}^{nc\_k}R{3}_i^k}}\right)}$$

(5)

3. In this approach, unlike the previous ones, the AUV’s position in CS^object_n is calculated without calculating the single-coordinate transformation matrix for all views. For each variant of $H_{{\mathrm{CS}}^{work}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ (see approach 1), coordinates of the AUV are calculated (uniform coordinates of the AUV in CS^work—(0, 0, 0, 1)) in CS^object_n, i.e.,

$$P_{{\mathrm{AUV}}^{\mathrm{object}\_\mathrm{n}}}=\left(0,0,0,1\right)\cdot H_{{\mathrm{CS}}^{\mathrm{work}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$$

(6)

Thus, we have k variants of coordinate values for AUV in CS^object_n. As a solution is sought, we consider an averaged value of the coordinates. When averaging, the degree of confidence in each variant is taken into account in the form of weight coefficient α_k, where α_k is proportional to np_k (number of points matched).

Upon processing all views and inputting the results in Table 1, a decision is made on the reliability of the object identification according to the criteria set up previously.

The AUV’s movement in the coordinate space of the object is calculated using the obtained matrix of reference to the object’s CS.

3.2.1. Object Recognition by Point Features (Stage 1)

We consider the algorithm for matching the point features in stereo pairs of frames of the AUV’s working trajectory position and a model of a certain object’s view from the overview trajectory. As noted above, at the stage of object model formation:

(a)

The object’s intrinsic CS was built, for which the direction of the Z-axis of the external CS was used as the Z-axis direction.

(b)

A set of 3D points M_3D_ V^kV^k_CS^view_k was obtained in the coordinate system CS^view_k from the matched 2D sets (see Section 3.1). The matrix $H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ for coordinate transformation from CS^view_k to CS^object_n was calculated. Here, object_n is the identifier of nth object.

Then, the action of the Algorithm for object recognition on the basis of points and coordinate reference of the AUV to the object’s CS is described by performing the following sequence of steps (Figure 4).

• Selection of the k-th view in the model object for which the object’s field of visibility best fits the potential object’s field of visibility for the AUV’s camera at the considered position of the inspection trajectory.
• Generation and matching, using the SURF detector, of special points in the left frames of the model and working stereo pairs. The result of successful matching is the set M_2D_POINT_WV^k_LL in the image im_L_object_iew^k and the set S_2D_V^kW_LL in the image im_L_object_work.
• If the matching in the previous step is successful, then the special points in the frames of the working stereo pair are matched using the SURF detector. The result is the set S_2D_POINT_WW_LR in the image im_L_object_work and the set S_2D_POINT_WW_RL in the image im_R_object_work.
• The set of 3D points S_3D_POINT_WW_CS^work is built in the coordinate system CS^work from the 2D sets matched in the previous step.
• The selection of a subset of points, also matched in the left frames of the “model” and “working” stereo pair, from the set of points matched in the frames of the “model” stereo pair (a model of this view): subM_2D_POINT_V^k = M_2D_POINT_V^kV^k_LR $\cap$ M_2D_POINT_ WV^k _LL (if there are fewer than three points, then we assume that the camera “does not see” the object). This operation is necessary to subsequently form a 3D representation of that subset of points, from the model of this object’s view, for which matching with the recognized points of the object was obtained in the CS of the working trajectory position.
• The selection, from the set of points matched in the frames of the working stereo pair, of a subset of points that was also matched with the respective subset of the model of this object’s view (subM_2D_POINT_V^k):

  subS_2D_point_W = S_2D_point_WW_LR ∩ S_2D_ point_ V^kW _LL.
• The formation of the subset M_3D_POINT_V^k_CS^view_k (belonging to the set M_3D_POINT_V^k V^k_CS^view_k) corresponding to the subset subM_2D_POINT_V^k.
• Building of the subset S_3D_POINT_V^kW_CS^work belonging to the set S_3D_POINT_WW_CS^work using the 2D subset subS_2D_point_W obtained in paragraph 6.
• Since the subsets M_3D_POINT_V^k_CS^view_k and S_3D_POINT_W_CS^work were matched by performing the above operations, the matrix for coordinate transformation between the above-indicated CSs ($H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$) is calculated from the set of these points. A standard method is used: minimizing the sum of discrepancies by the least squares method.
• The matrix for coordinate transformation from CS^AUV_work into CS^object_n is calculated and provides the direct calculation of AUV’s movement in the coordinate space of the object: $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}=H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}\cdot H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$.
• To calculate the AUV’s movement in the coordinate space of the SPS, a matrix for coordinate transformation from CS^object_n to CS^SPS is calculated using the matrix $H_{{\mathrm{CS}}^{object\_n}{,\mathrm{CS}}^{\mathrm{SPS}}}$.

Figure 4. Object recognition on the basis of point features by comparing the left frames of the model and working stereo pairs. Dashed lines refer to the names of point sets. The solid one-way arrow links the original 2D set of points to the resulting 3D set. The solid two-way arrow links two matching sets.

Figure 4. Object recognition on the basis of point features by comparing the left frames of the model and working stereo pairs. Dashed lines refer to the names of point sets. The solid one-way arrow links the original 2D set of points to the resulting 3D set. The solid two-way arrow links two matching sets.

3.2.2. Recognition and Calculation of 3D Coordinates of “Segment Line” and “Corner” Type CEs (Stage 2)

The coordinate transformation matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$ obtained at the first stage, linking the coordinate system CS^work with the coordinate system of the k-th view of the overview trajectory CS^view_k (k-th view model), substantially simplifies the solution of the problem of recognizing the “segment line” type CEs in the images of the inspection trajectory since it does not require the direct selection of segment lines in vectorized images.

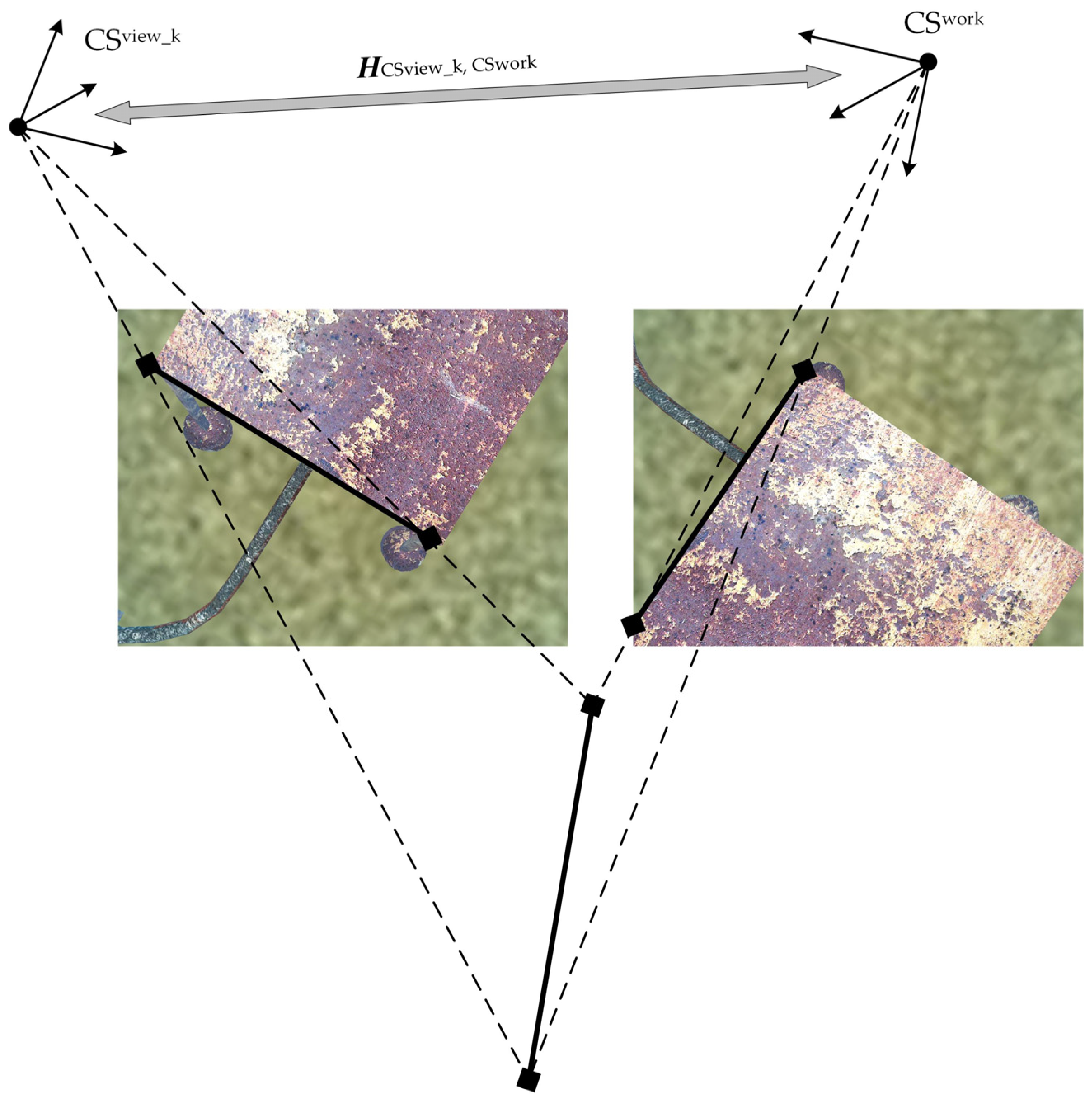

When recognizing segment lines belonging to the object in the input video stream of the inspection trajectory, two related problems are solved sequentially:

(1) Matching the segment images in the left (right) frame of the model stereo pair (of the k-th view) and the left (right) frame of the stereo pair of the inspection trajectory’s position; (2) 3D reconstruction of the matched 2D segment images in the working stereo pair of frames.

The first problem is solved by the below-described algorithm for matching segments, which uses (a) the coordinate transformation matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$, calculated from the points at the first stage, linking CS^work and CS^view_k; and (b) a set of 3D segments M_3D_LINE_V^kV^k_CS^view_k (the k-th view model). Each segment is defined by two spatial end points (in CS^view_k), and for each end point, there are pointers at its 2D images in the stereo pair of frames. The advantage of this technique for defining a segment is that, as mentioned above, no image vectorization is required to match the segment line image in the model with the segment line image selected in the working stereo pair of frames. In other words, the 3D problem of segment line matching is reduced to the 2D problem of matching the segment end points with the calculation of correlation estimates (Figure 5). It should be taken into account that the segment line is an edge of the object’s face. Thus, when calculating the correlation of the images of the end points compared between the images, one uses the rectangular arrays of pixels on the side from the segment line where the object is located (this information is saved while forming the model). Eventually, the proposed matching technique without using the vectorized form of images substantially reduces computational costs.

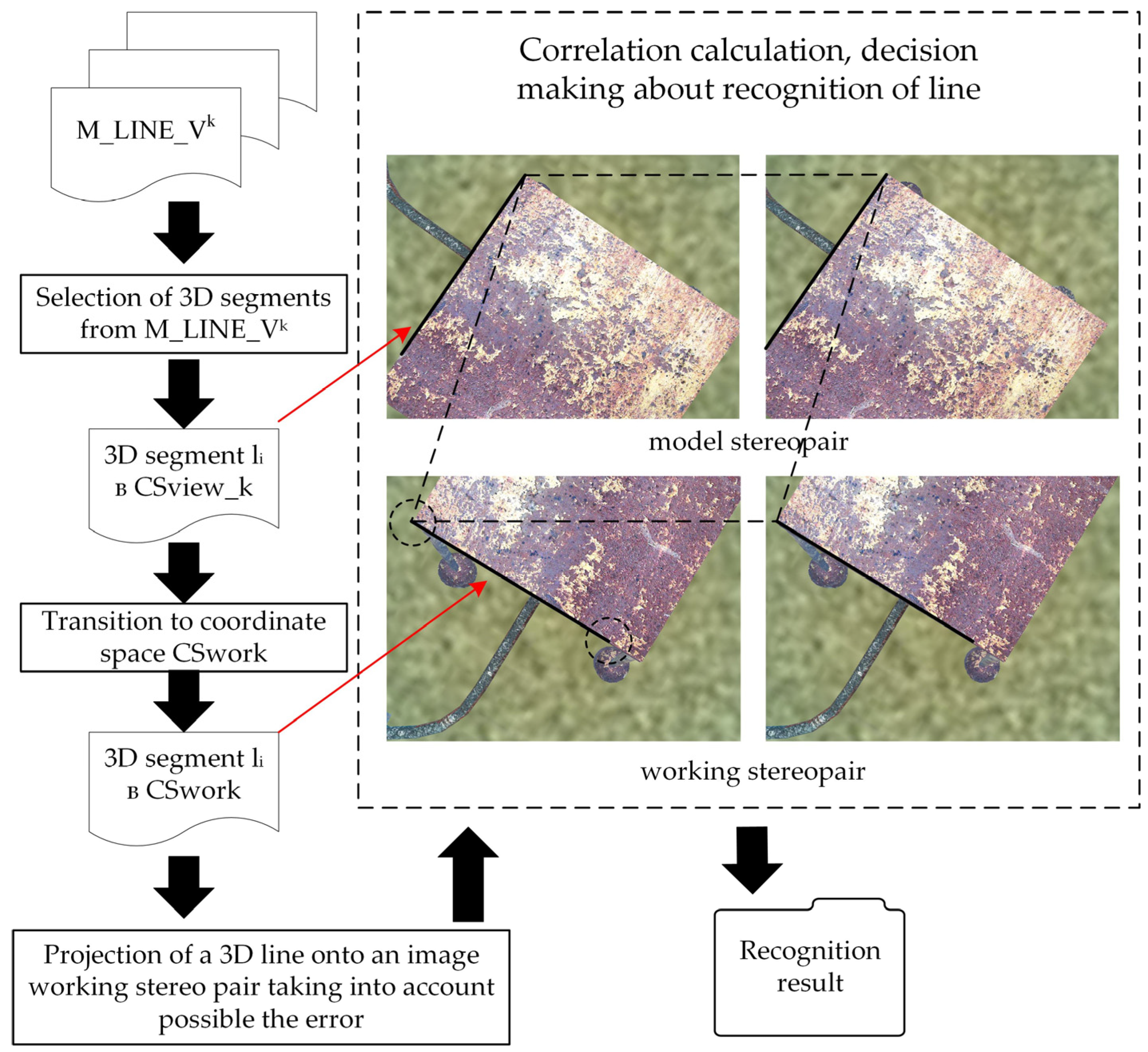

Algorithm for recognizing and calculating 3D coordinates of “line” type CEs. Segment lines are sequentially selected from the 3D set M_3D_LINE_V^kV^k_CS^view_k; for each segment line, its 2D image is recognized in the stereo pair of frames (im_L_object_work, im_R_object_work) of the analyzed position of the working (inspection) trajectory. Thus, for each segment line l_i (defined by the end points p1_i and p2_i) (Figure 5):

• Pointers at 2D images of its two points in the stereo pair of frames of the model are extracted.
• The segment line is placed in the coordinate space CS^work using a matrix ${\left(H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}\right)}^{-1}$ (calculated in step 1) and is projected onto the stereo pair of frames of the working trajectory. The expression “segment line is projected” means the projection of the segment’s end points.
• The coefficient of correlation between the compared images of the point in the model’s stereo pair and the working stereo pair of frames is calculated for each end point (Figure 6). When comparing the end points of the segment lines, the orientation of the vehicle by the compass of both the model and the working trajectory is used to provide the same orientation of the surrounding terrain compared.
• In the case of incomplete matching of the images, an attempt is made to find a match within a small radius, assuming that the projection (step 2) was performed with some error (step 3).

A decision is made about the match or non-match of the images.

The second problem, 3D reconstruction of the matched 2D images of segment lines in the working stereo pair of frames, is solved in a traditional way: by matching the end points in the stereo pair of frames using epipolar constraints, then using the ray triangulation method to calculate the 3D coordinates of the segment line’s end points in CS^work.

The result of the recognition of all segment lines is the set S_3D_LINE_W_CS^work_match matched to M_3D_LINE_V^k_CS^view_k_match. This result is input in the Table of Recognition Results, and the set is entered in S_3D_ LINE_CS^object_n.

Recognition and calculation of 3D coordinates of “corner” type CEs. CEs of the “corner” type are selected from the obtained set of “lines”. The selection algorithm is quite simple since a “corner” CE is constructed from two segment lines lying in the same plane in space. By indicating whether the segment line belongs to a specific “corner”, ambiguity is eliminated in case of similar geometries of corners.

The result of th erecognition of all corners (the number of corners in the set S_3D_CORNER_W_CS^work_match matched to M_3D_CORNER_V^k_CS^view_k_match, with pointers at these sets) is stored in the Table of Recognition Results, and the set is entered in S_3D_ CORNER_CS^object_n.

Object identification. Upon identifying the inspection trajectory of all three types of CEs at this position, corresponding to the object model, the data of the Table of Recognition Results are analyzed, and an algorithmic decision is made about the identification of the object.

Calculation of the refined coordinate transformation matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ is carried out by the standard technique with minimization of the total coordinate deviation when matching all points used. In this case, the matrix is calculated using all points belonging to CEs in the sets S_3D_ POINT_CS^object_n, S_3D_LINE_CS^object_n, and S_CORNER_CS^object_n since these points have a coordinate representation both in CS^work and in CS^object_n. As a result, the matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ (4 × 4) is calculated, which links the CS of the AUV’s camera and the object’s CS. Then, the AUV’s coordinates at each position of the trajectory are recalculated from the CS of the AUV or its camera to the object’s CS using this matrix $P^{{\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}=P\left(0,0,0,1\right)\cdot H_{\mathrm{AUV},\mathrm{object}\_\mathrm{n}}$, where $P\left(0,0,0,1\right)$ are the uniform AUV coordinates in the CS of the AUV’s camera at this trajectory position(Figure 7). It should be noted that the CS of each position of the AUV’s trajectory is linked to the CS of the initial trajectory position using the author’s method for visual navigation [24].

The calculation of the AUV’s movement in the object’s coordinate space is performed using the matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ for transformation from CS^work into CS^object_n. As shown above, it is calculated as follows:

$$H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}=H_{{\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}\cdot H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$$

4. Experiments

We set up a series of experiments with a virtual scene and actual data used in order to evaluate the efficiency of the proposed method for coordinate referencing of AUV to SPS objects.

Model scene. To obtain a comparative estimate of the accuracy of the coordinate referencing of the AUV to the object on the basis of one view and several views of the object, we conducted a series of experiments using a virtual scene generated by a modeling system [25]. The AUV’s altitude above the seabed varied from 6.4 to 7.1 m. The altitude above the well cover was 3.6 m; the frame rate was 10 fps; and the resolution of images was 1200 × 900 pixels. The AUV’s coordinates were calculated at the trajectory positions every 10 frames of photography. The coordinate referencing was carried out by our method on the basis of the calculated matrix for coordinate transformation $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ (see Section 3).

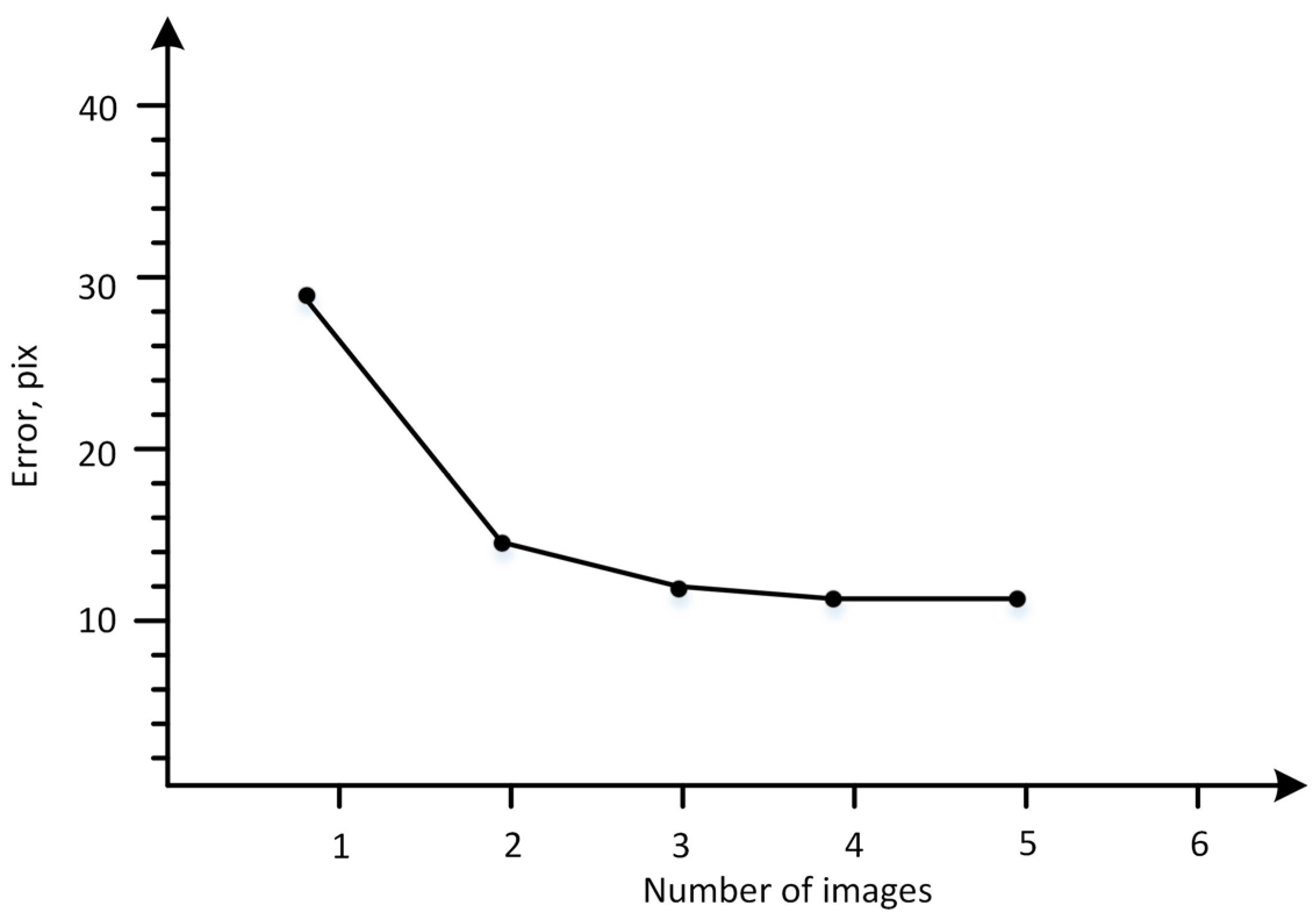

The results of one of the series of experiments are shown in Figure 8. With the use of a single view of the overview trajectory (view 1, with 26 matched points), the accuracy of the AUV coordinate reference to the object was 32 mm. After points of views 2 and 3 were added and duplicates removed, the number of matched points grew to 76, and the accuracy, accordingly, increased to 2.8 mm. Additionally, we set up three more similar experiments, but with three other views in each (having smaller general fields of visibility of the object by the AUV’s camera at the considered position of the inspection trajectory). The resulting accuracies proved to be, as expected, slightly lower at 3.4, 4.2, and 12.3 mm, but still higher than those with the use of one view.

Thus, the use of several views of the overview trajectory to calculate the matrix $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{object}\_\mathrm{n}}}$ in these experiments increased the accuracy of the coordinate reference of the AUV to the object 3–11-fold. The reference accuracy was also confirmed by the high value of the calculated coefficient of correlation (up to 94%) of end points when segment lines were re-projected.

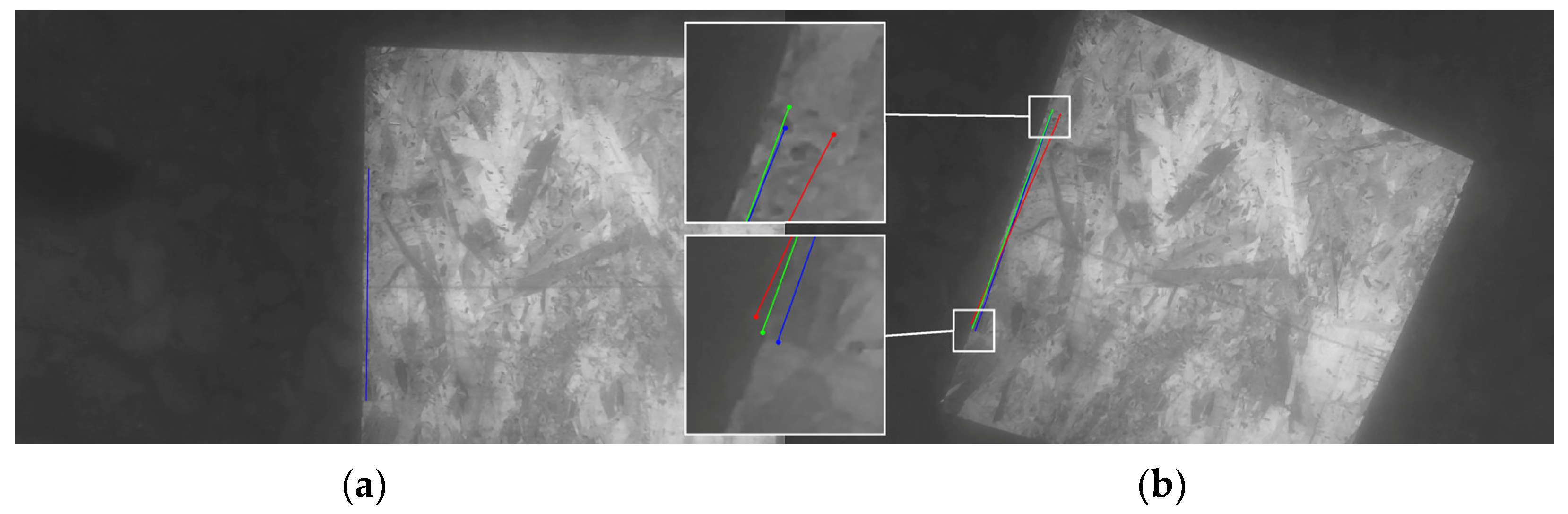

Actual data. The experiment was conducted in conditions close to an actual underwater mission: a submerged mockup of the object was installed on the seabed at a depth of 1.5 m; photographs were taken with a camera (Karmin2 (Nerian’s 3D Stereo Camera, 25 cm) Allied Vision Technologies GmbH, Stuttgart, Germany) housed in a sealed box and connected to a laptop aboard a boat. Photography (obtaining different views according to the above method) was carried out by an operator (diver).

The technique for evaluating the accuracy of the proposed method in this experiment was based on indirect estimates (unlike the virtual scene, where, when calculating the error, the value set in the model was considered as a true value of the parameter being estimated). The accuracy error of the method was estimated in two ways: (a) the operator measured the distance between a pair of characteristic points on the object before submerging the object mockup into the seabed (the distance calculated by our method was then compared to this value, which provided the accuracy error of the method evaluated); (b) the operator explicitly indicated the images of the selected pair of object points in the views of the overview trajectory and in the view of the working trajectory, the line calculated by our method between two 3D points of the object was projected onto the photograph of the working trajectory’s view, and then the error was calculated as the difference between the calculated projection of the line in the photograph and the line built by the operator (in pixels). Figure 9 shows the results of the accuracy assessment obtained according to the first technique. Using one view (246 matched points), the accuracy error in 3D space was 1.7% of the segment line length, and when using three projections (the number of compared points increased to 473), the error of the method decreased to 1.3%.

The calculation of the error using the second technique yielded the following results: when using one view, the error in reprojecting the end points of the segment lines onto the image was 28 pixels; and when using three types, the reprojection error decreased to 13 px (Figure 10).

Thus, we confirmed the conclusion drawn in the case of the virtual scene about the increase in the accuracy of coordinate referencing of the AUV to an underwater object by using several views of the overview trajectory.

A separate experiment was also performed to obtain a comparative assessment of the efficiency of our algorithm for calculating the $H_{{\mathrm{CS}}^{\mathrm{work}}{,\mathrm{CS}}^{\mathrm{view}\_\mathrm{k}}}$ transformation matrix based on matching points of the one view (described in Section 3.2.1). The comparison was performed with the ICP algorithm from the Open3D library. The accuracy and speed of the programs were assessed under the same conditions. The results are shown in

Table 2. Comparative efficiency of algorithms.

	Image Size	Number of Matched Points/Number of Points in 3D Cloud	Our Algorithm, Time (s)	Our Algorithm, Error	ICP Algorithm, Time (s)	ICP Algorithm, Error
Model scene	1200 × 900	26/252	0.1	32 mm	0.14	41 mm
Real scene	1600 × 1200	246/584	0.15	28 px	0.21	52 px

. It was also found that, unlike our algorithm, the ICP algorithm performs poorly (or does not work at all) with a small number of points.

5. Discussion

In this work, in the context of solving the problem of inspection of industrial subsea structures, a method for recognition and high-precision coordinate reference of AUVs to SPS objects is proposed and implemented. Accurate coordinate reference should provide the ability to plan the AUV inspection trajectory in the coordinate space of the SPS object to perform Maintenance and Repair operations in real time. The distinctive features of the method that realize its effectiveness are as follows:

-

A model of an underwater object is formed on the basis of views (foreshortening) of a previously completed survey trajectory using an automated technique with the participation of an operator. The technique does not require much labor since it excludes preliminary direct in situ measurements and the use of documentation.

-

The use of several views of the survey trajectory contributes to a higher degree of object recognition at the inspection stage and, as experiments on synthetic and real data have shown, several-fold increases the accuracy of the coordinate reference of the APR to the object.

-

The use of several types of geometric elements when comparing data obtained at the position of the inspection trajectory with the object model increases the reliability of object recognition, despite the noisiness of the images, and also increases the accuracy of the coordinate reference due to the use of an expanded set of points when calculating the coordinate transformation matrix.

-

Original and computationally low-cost algorithms for recognition and matching with the model of the characteristic geometric elements used (point features, segments, and angles) have been developed.

Comparison with other methods. An example of an approach to solving the problem of inspection of underwater structures, based on the integrated use of sensors of various types, with an emphasis on processing sonar images, is described in [6]. For obstacle and inspection target detection, a scanning sonar is used. A pan–tilt-enabled sensor head with a camera, laser measurement, and a Multi Beam Echo Sounder is used to inspect the detected objects. Here, the problem of AUV movement relative to inspected objects is solved in a different way and without the use of optical images. Namely, the sonar images are automatically processed with edge detection and line extraction algorithms to obtain a simplified environment description, which is used by the guidance methods. The inspection sensors also provide the vehicle guidance system (VGS) with distance values to the inspection object. A laser gyroscope is used for navigation and positioning supported by a Doppler velocity log and a pressure sensor. Additionally, a scanning sonar provides data for collision avoidance. This sonar is mainly used for the reactive vehicle control by the VGS and the detection of the inspection objects.

In terms of comparison with our approach, previous work [20] in which the problem of recognizing underwater objects was solved is also of interest. The method proposed by the authors aims to recognize objects of a specific type (pipes and connecting elements), using an a priori accessible database of partial views of objects stored in the form of 3D point clouds. The methods are tested using an experimental dataset containing laser scans and AUV navigation data.

Other authors [26] presented the integration of a stereo-vision Graph-SLAM system in the navigation and control architecture of the autonomous underwater vehicle (AUV) SPARUS II. Experiments were conducted with a virtual model of the SPARUS II in a simulated marine environment, all in the context of the UWSIM simulator. The vehicle navigated at a constant altitude of 2.5 m. The average error on a 180 m long trajectory was 0.64 m for Odometry and 0.15 m for SLAM.

In another study [27], different navigation technologies were considered from the point of view of their efficiency and limitations, including assessments of optical technologies. One of the test results demonstrated that the average localization error is approximately 5 cm and the average relative location error is approximately 2% in the range of 3.6 m. In principle, these values are consistent with the results obtained in our experiments with virtual data (3.2 cm for one view and 2.8 cm for three views) and real data (1.7% for one view and 1.3% for three views).

An interesting experiment on the use of stereo vision to eliminate the integrated error of AUV navigation (generated by the use of INS) was conducted in [28]. The experiment consisted of AUV navigation and returning to the docking station. Using the stereo-vision system, an error of about 100 mm was eliminated.

Another study [29] proposed a robust real-time AUV self-localization method based on a stereo camera and an inertial sensor, which merged point and diagonal features, as well as inertial measurements to overcome the challenges of poor visibility. The method also included an underwater loop detection algorithm based on the combination of points and diagonal segments, which can extract effective binary descriptors in low-texture underwater scenarios. Testing the method in a real underwater environment using a sensor suite yielded the following accuracy results:

• Error for Stereo + IMU With Loop—39 cm; Error for Stereo + IMU Without Loop—66 cm

The differences between our approach and the above research are that (a) in our approach, the main emphasis is on solving the problem of coordinate reference of an AUV to an object using optical images, not limited to the problem of object recognition; (b) recognition is based on simple geometric elements characteristic of man-made objects (points, segments, and angles) while providing some universality in relation to types of objects, and without requiring significant computational costs; and (c) the use of several views of underwater objects during recognition allows us to increase accuracy of AUV positioning relative to the object.

6. Conclusions

This article presents a new approach to the accurate coordinate referencing of AUVs to SPS objects, based solely on stereo-image processing. It differs from other similar approaches in its use of a pre-made overview trajectory of the AUV to form models of SPS objects, its use of different types of geometric elements that increase the degree of object recognition, and its use of original algorithms to match the obtained visual data with an a priori model of the object. The results of experiments on virtual scenes and with real data showed the effectiveness of the proposed technology.

Future work. We plan to (a) extend experiments with the proposed method as part of the on-board AUV software to analyze the effectiveness of its use in different underwater conditions and (b) compare the effectiveness of the algorithmic approach (using our method as an example) to solve the problem of identifying underwater objects and the approach based on the use of neural networks.
