1. Introduction
The search for underwater high-speed cruising reveals certain high-thrust marine propulsion concepts which are parallel in principle to their aeronautical counterparts [
1]. Rocket engines can propel high-speed underwater vehicles just like aeronautical vehicles. Independent of speed and ambience medium, rocket engines provide very high thrust and do not need air for their operation, hence, they can suite underwater vehicles. However, their specific fuel (propellant) consumption is very high and, thus, they enable only a limited range. Therefore, propulsion principles utilizing the surrounding water as a working fluid as well as a chemical reactant (usually oxidizer), have been considered [
2,
3,
4,
5,
6,
7,
8]. One of the interesting concepts for propelling high-speed underwater vehicles is the solid propellant water-breathing ramjet [
4,
5,
6,
7,
8]. It is a powerful propulsion means, independent of atmospheric air, hence, it can operate fully and deeply underwater.
The basic principle of the marine water-breathing ramjet is to utilize the high dynamic (ram) pressure, resulting from the high-speed motion, in order to ingest water into the combustion chamber of the motor, thus increasing the thrust and energetic performance of the propulsor. This work focuses on theoretical prediction of the performance of a water-breathing underwater solid propellant ramjet motor.

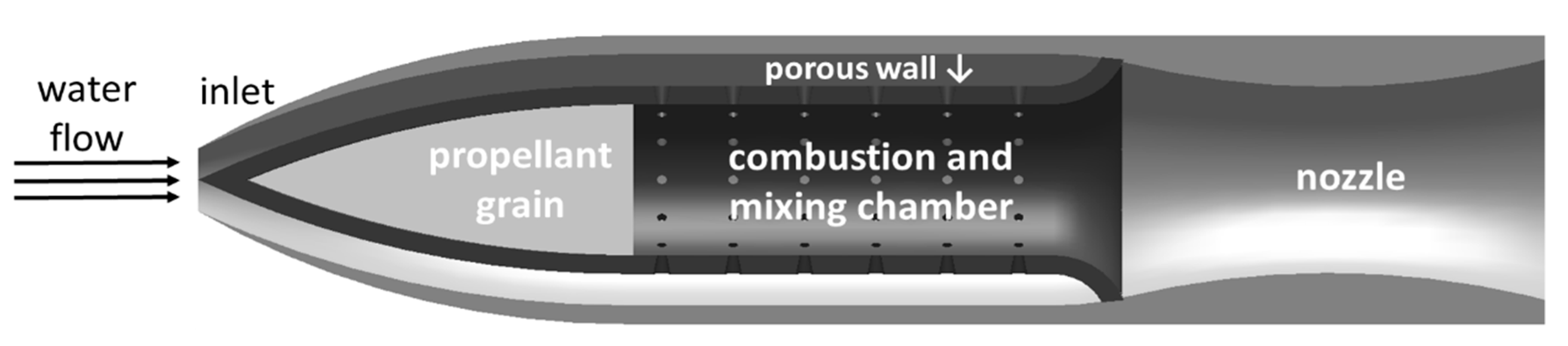

The design of an underwater solid propellant water-breathing ramjet is similar to the design of an aeronautical ducted rocket. Water enters the motor through an inlet located in the front of the vehicle and is sprayed through a porous wall into the combustion chamber. Due to the high temperature in the combustion chamber, the incoming water boils and then mixes with the combustion products, forming a high-speed exhaust jet that provides the thrust necessary to propel the vehicle. A conceptual illustration of a solid propellant water-breathing ramjet is presented in
Figure 1.
Similarly to solid rocket motors (SRMs), the solid propellant grain can provide high thrust without the addition of water, as well. Nevertheless, the mere addition of water, entering through an inlet due to the vehicle motion, and its further conversion into steam because of the high heat release of the burning solid propellant, increases the thrust and the specific impulse, even with no chemical interaction. Greater performance improvement can be obtained when employing water-reactive propellant compositions, which utilize the incoming water as an oxidizer to increase heat release in addition to using it as a source for steam which increases the mass flow rate of the exhaust jet. Certain metals are known to react very exothermically with water and may be considered for inclusion as water reactive ingredients in propellants. Typically, the reaction of metals with water generates hydrogen besides metal oxides.
Table 1 presents theoretical physical and thermochemical properties of selected metals. While the gravimetric heat of reaction is related to the mass of fuel (propellant) carried on board, the volumetric heat of reaction reflects the energy per unit volume and is mainly significant in volume-limited systems.
It is apparent from
Table 1 that beryllium reacts extremely exothermically with water both in terms of weight and volume, yet, beryllium and its products are notoriously toxic and therefore are ruled out. Second to beryllium is boron, which demonstrates a promising theoretical heat and gas (i.e., hydrogen) release. In practice, it is hard to obtain high combustion efficiency of boron (though Rosenband et al. [
10] have demonstrated combustion of boron in steam), and in addition boron is a relatively expensive ingredient. Hence, for practical applications, aluminum is commonly considered. Aluminum reacts with water to form aluminum oxide (alumina) or aluminum hydroxide, and hydrogen, while releasing a significant amount of heat, as presented in Equation (2). However, aluminum does not combust readily as a thin layer of aluminum oxide naturally forms on the exposed surfaces of the aluminum particles and passivates the metal substrate to inhibit oxidation progression. Different approaches for overcoming the alumina coating problem are discussed extensively in the literature [
11,
12,
13,
14]. Zirconium has high volumetric heat of reaction, yet lower than that of aluminum. In addition, its other energetic parameter, gravimetric heat of reaction, is substantially inferior to that of more regularly used metals such as aluminum and magnesium. Relatively to aluminum, magnesium has a lower energy density, but the magnesium-water reaction is easier to initiate. Therefore, some researchers suggested using magnesium [
4,
5,
7,
8] or using an aluminum-magnesium mixture [
6]. The high-temperature stoichiometric reactions of boron, aluminum, and magnesium with water are presented here:
One may note that lithium has a very high gravimetric heat of reaction in addition of its high reactivity with water. However, besides the difficulty in handling lithium, it has been considered for application only as a liquid fuel in its molten phase and not as solid fuel [
15].
The chamber pressure in the marine water-breathing ramjet is dictated by the cruise speed, and its maximum value at a given speed is equal to the stagnation pressure of the incoming water flow:
where,
= stagnation pressure;
= ambient pressure;
= water density;
= cruise velocity.

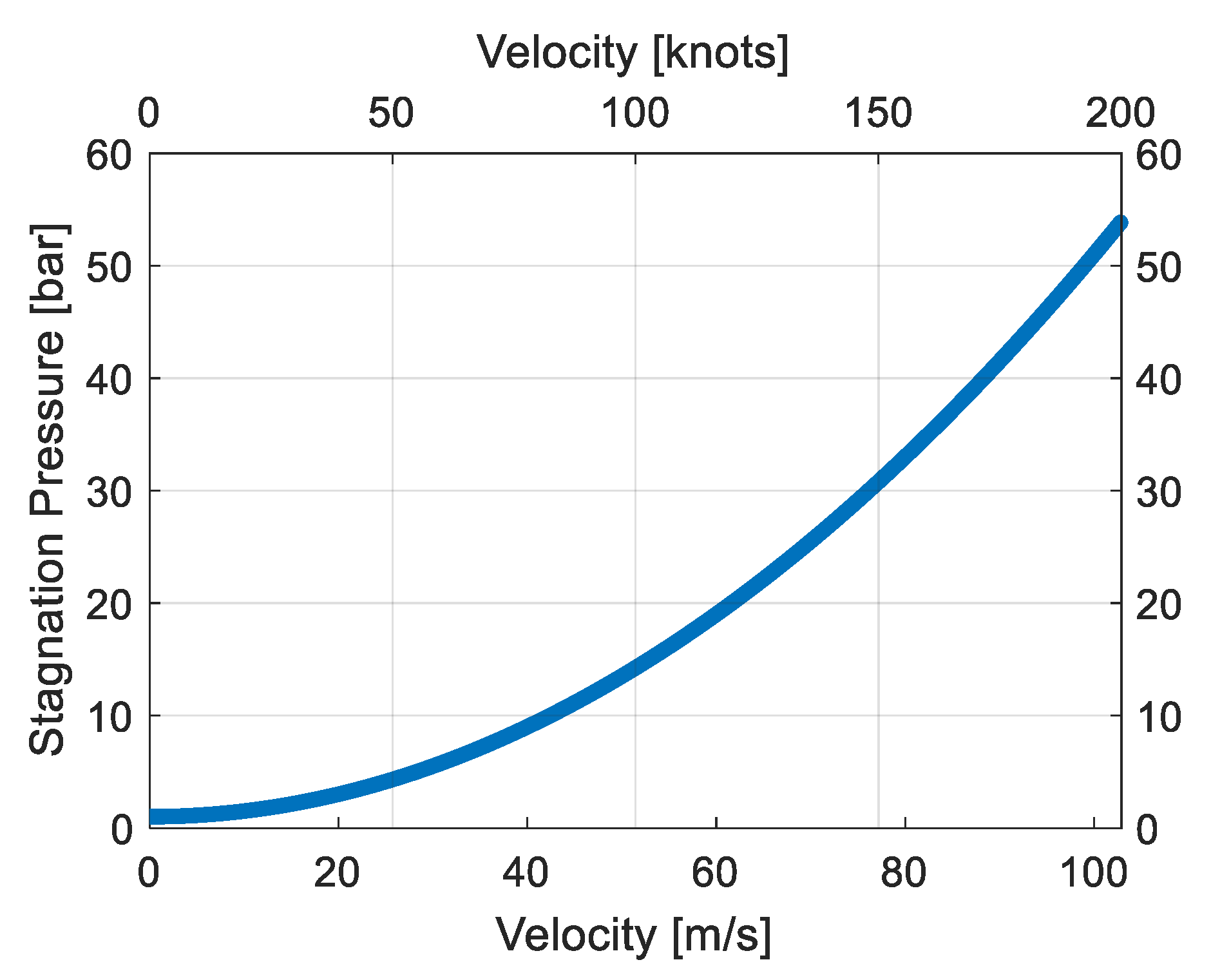

The stagnation pressure increases with the cruise speed (as shown in
Figure 2); the increased chamber pressure at higher velocities enable enhanced conversion of thermal energy to kinetic energy in the exhaust nozzle, increasing the energetic performance of the motor.
2. Theoretical Model
2.1. Governing Equations and Evaluating Performance
In order to evaluate the performance of a marine solid propellant water-breathing ramjet, the governing equations are presented. The general thrust equation of a jet engine is:
where,
= thrust;
= exhaust mass flow rate;
= exhaust jet velocity;
= incoming water mass flow rate;
= exhaust jet static pressure.
The specific impulse (
) of a propulsion system is an important index defined as the thrust divided by the weight flow rate of propellant consumed in order to produce the thrust, (as shown in Equation (6)). The density specific impulse (
) of a propulsion system is defined as the specific impulse multiplied by the density of the propellant. For volume-limited vehicles (such as many underwater marine vehicles), the density specific impulse may be of more significant since it represents the thrust produced per volume flow rate of propellant. Thus, the specific impulse and density specific impulse can be used to compare and grade the performance of different propulsion methods. Assuming the nozzle is adapted so that the exhaust pressure is equal to ambient pressure (i.e., optimal expansion ratio for maximal thrust), the specific impulse of a marine ramjet can be calculated as following:
where,
= specific impulse;
= propellant mass flow rate; and
= universal gravity constant.
The exit (jet) flow rate is equal to the sum of the propellant combustion products and water flow rates, thus:
Assuming that the combustion chamber pressure is equal to its maximal theoretical value (i.e., the stagnation pressure) and that the ambient pressure is 1 bar (i.e., cruising at sea level), the specific impulse of a marine solid propellant water-breathing ramjet was calculated. The calculations were done according to Equation (9) with the aid of the Computer Program for Calculation of Complex Chemical Equilibrium Compositions and Applications (CEA) [
16], which yields the equilibrium flow conditions and jet performance (adapted nozzle). The specific impulse and combustion chamber temperature were calculated for different propellant compositions and with different water/propellant mass ratios.

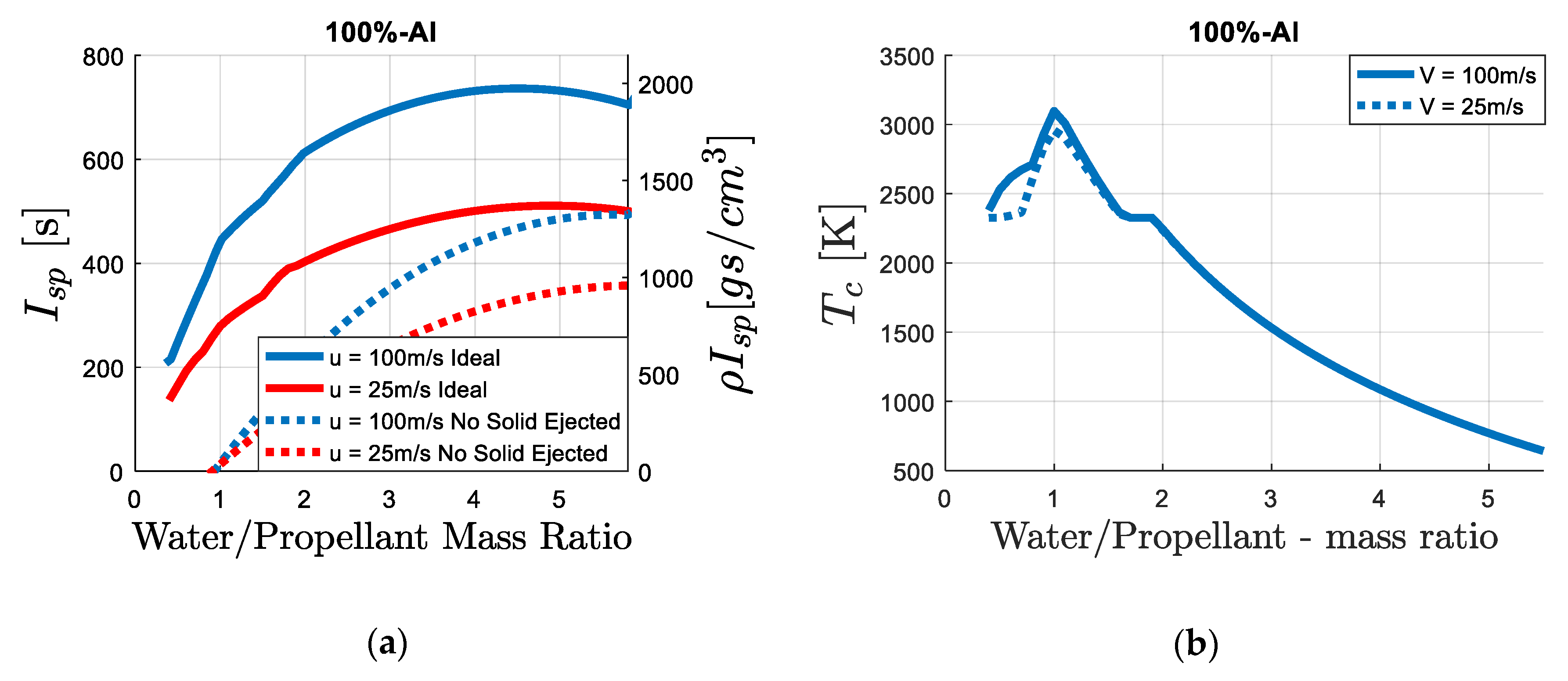

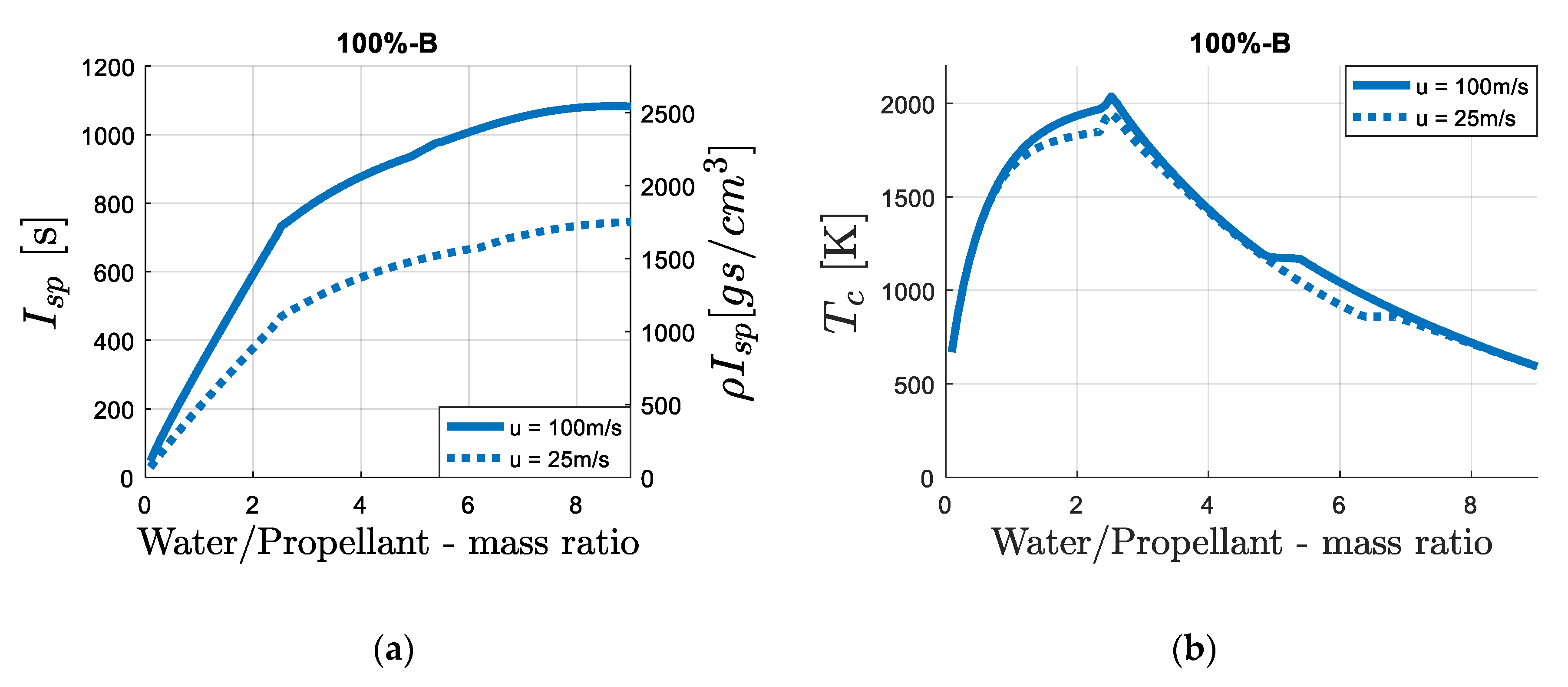

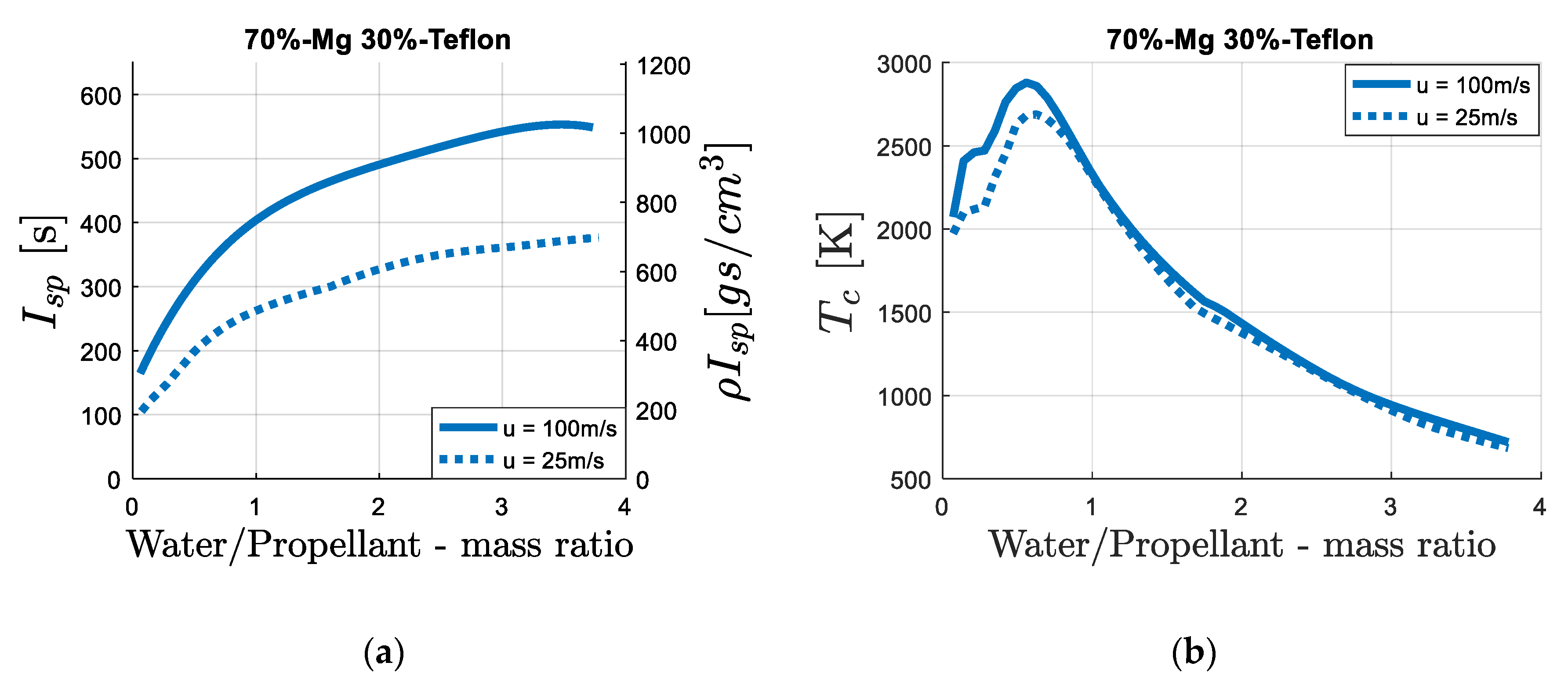

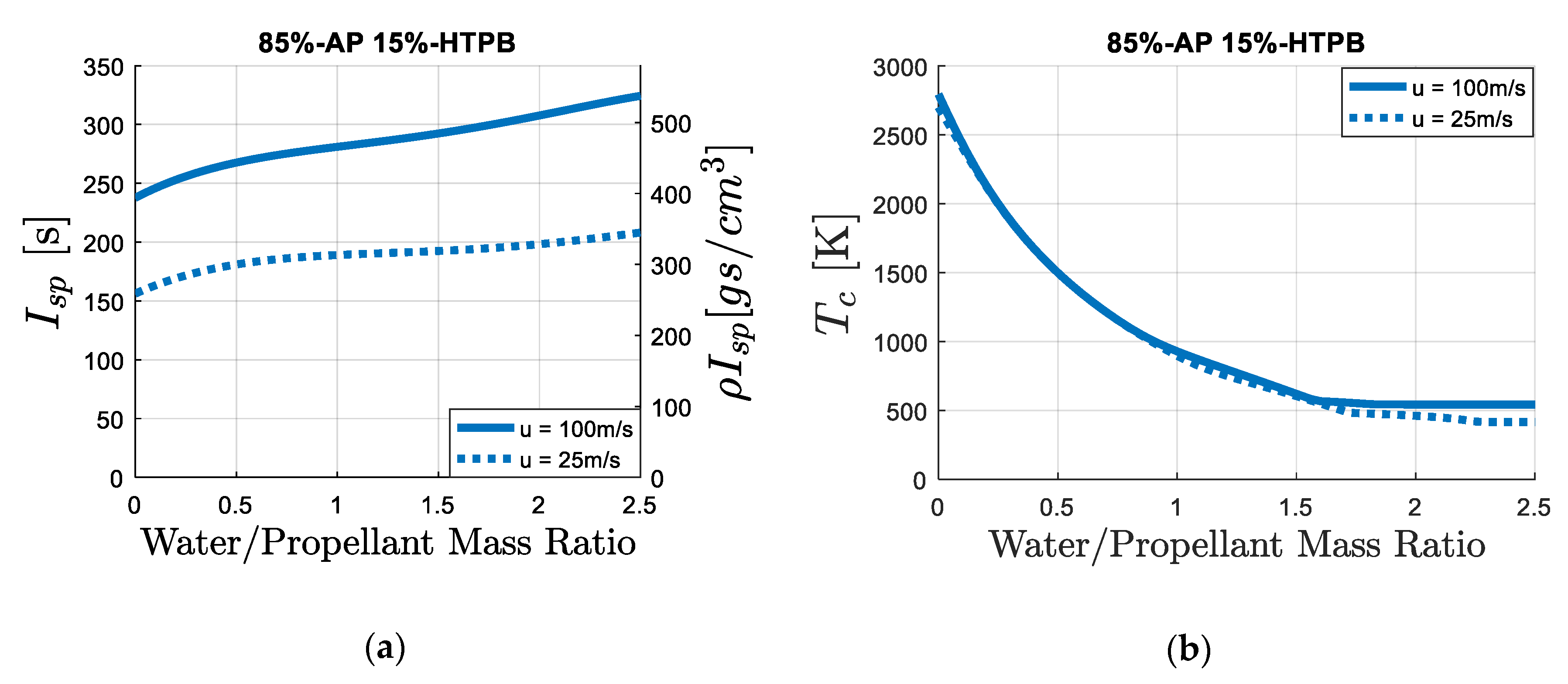

In this work, a number of propellant compositions were examined. The first composition was a common solid propellant formulation of 85% ammonium perchlorate (AP) and 15% hydroxyl terminated polybutadiene (HTPB), for which the water ingested into the motor undergoes only a phase change into steam with no chemical interaction with the burning propellant. In addition to the non-hydro-reactive AP-HTPB composition, this work deals with certain water-reactive fuels and compositions, representing the potential range of propellants and hydro-reactive propellant ingredients suitable for propelling a marine water-breathing ramjet. One hydro-reactive fuel is pure aluminum, presenting the maximum theoretical performance of aluminized propellants, since it reacts solely with the incoming water with no oxidizer stored onboard. Additional elements examined as potential fuels or propellant ingredients, were boron because of its high heat of reaction (although its practical application may be questionable), and magnesium due to its better reactivity relatively to aluminum and boron. At last, a more practical solid propellant composition, i.e., 70% Mg and 30% polytetrafluoroethylene (PTFE, Teflon), was examined. The small amount of PTFE oxidizer enables initial combustion to take place without the addition of water, but being a fuel-rich propellant, the excessive fuel can react with incoming water.
2.2. Thrust Coefficient and Influence of Cruise Depth and Velocity on Performance
In addition to examining the specific impulse obtained by different propellant compositions at different water to propellant mass ratios, the thrust coefficient and the influence of cruise depth and velocity on performance have been studied. It should be mentioned, that in contrast to the specific impulse which highly depends on the propellant composition and water/propellant ratio, the thrust, and therefore the thrust coefficient, weakly depends on these parameters. Thus, it was chosen in this work to present only the thrust coefficient of the more practical fuel-rich hydro-reactive propellant composition containing 70% Mg and 30% PTFE, with a constant water/propellant ratio of 3.5 (where maximal specific impulse is achieved). Yet, similar results and trends of the thrust coefficient have been observed with other compositions and at different water to propellant ratios.
Assuming the marine water-breathing ramjet is used to propel a cylindrical torpedo-shaped vehicle, the cross-section area of the body may be used as the reference area in computing the thrust and drag coefficients (Equations (10) and (11)). In addition, it was assumed that the nozzle throat diameter is 50% of the body’s external diameter.
where,
= thrust coefficient;
= reference area.
It should be mentioned that for a cylindrical torpedo-shaped vehicle with a length to diameter ratio of 15, the drag coefficient is presumed to be smaller than 0.25 at all cruise velocities [
17] and may be significantly smaller in a supercavitating vehicle cruising at a high velocity [
18]. In order for the vehicle to overcome the drag force, the thrust coefficient has to be equal or larger than the drag coefficient, which is related to the same reference area:
where,
= drag coefficient;
= drag force.
Assuming isentropic supersonic flow in the divergent section of the nozzle, the data obtained from the thermochemical code, mentioned above, enable to calculate the exit velocity and pressure as presented in Sutton and Biblatz [
19], and thus the thrust (Equation (5)).

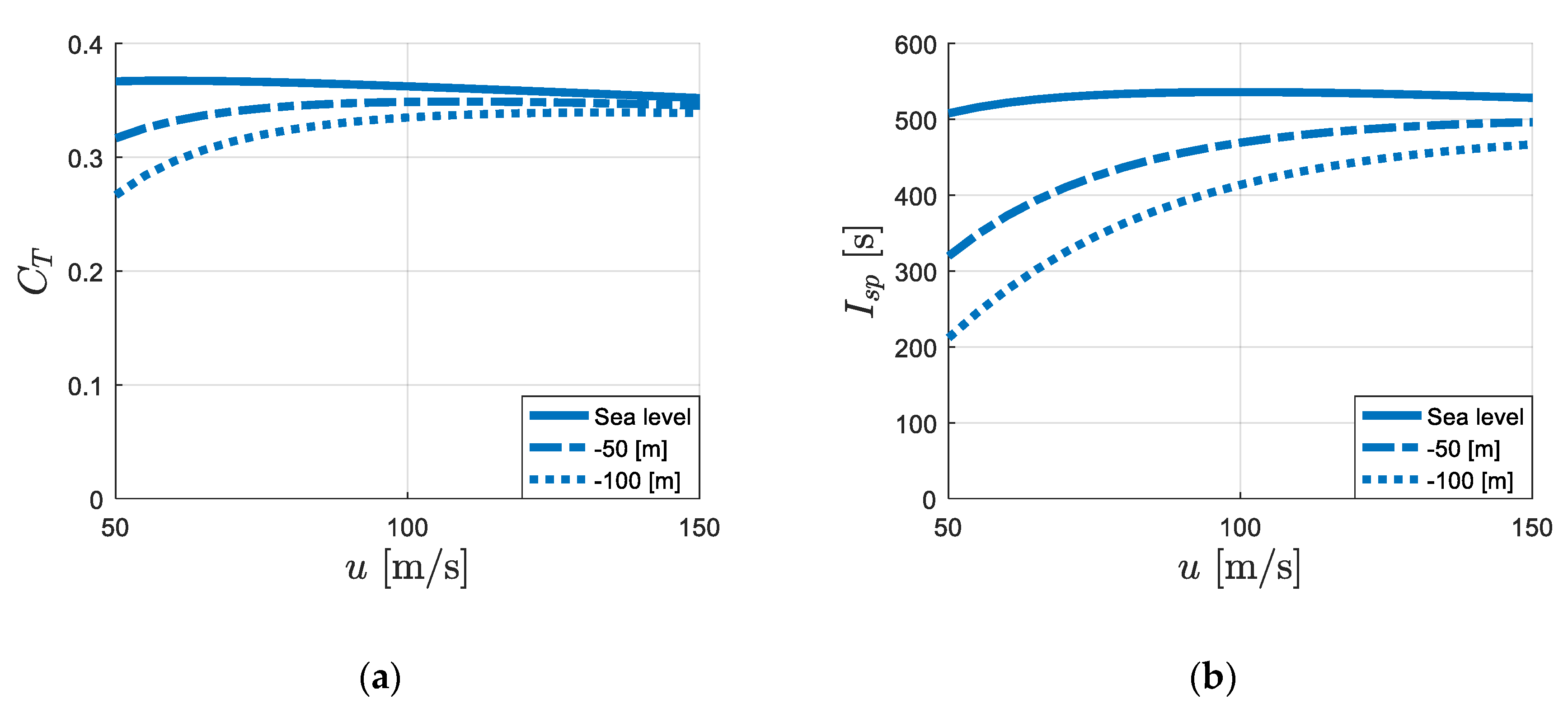

The expansion ratio is defined as the ratio between the nozzle’s exit and throat cross-section areas. The results presented in this study refer to a ramjet with an expansion ratio of two cruising at a velocity in the range of 50 to 150 m/s at a depth of 0 to 100 m below sea level. Atmospheric pressure (1 bar) is assumed at sea level and a pressure increase by 1 bar every 10 m below sea level.
4. Conclusions
The concept of a water-breathing ramjet for underwater propulsion has been evaluated theoretically based on thermochemical calculations and available practical propellants and energetic components. It is revealed that theoretically, even without chemical interaction, a solid propellant ramjet motor augmented by water entering from the surroundings through an inlet, can deliver specific impulse higher by 30% than a standard solid rocket. By introducing a fuel-rich propellant containing large amounts of a water-reactive metal such as magnesium, aluminum, or boron, the specific impulse may be doubled or more. At cruise speeds as low as 25 m/s, the performance of a water-breathing ramjet with a non-water-reactive propellant is inferior to that of a standard rocket, however, when the propellant is enriched with water-reactive ingredients, improvement in performance can be achieved even at relatively low velocities. In all cases, the specific impulse increases significantly with speed because of the increase in chamber pressure. At sea level, the thrust coefficient is almost constant at velocities between 50–150 m/s, whereas at greater depths there is a decrease in both the thrust coefficient and the specific impulse. Yet, at high velocities the thrust coefficient decreases mildly with depth, thus, the marine solid propellant water-breathing ramjet is a powerful propulsion method suitable for propelling high‑speed underwater vehicles at a wide range of depths.
