1. Introduction
File sharing is an activity where the file owner distributes his or her information to other people or allows verified users to access the current information stored digitally, for example, multimedia files (audio, video, and pictures), computer software, electronic documents, or other electronic formats. In the past, the usual way to store, distribute, and transmit files involved both manual and digital methods. The manual file sharing method was done via removable tangible media such as compact discs (CDs), digital video discs (DVDs), flash drives, or removable hard drives. On the contrary, the digital transfer method is done by computer networks. The file owner stores file in a file server and grants privileged access to authorized users. The authorized user is able to access and downloads the files stored on the file server via the computer network. However, conventional file sharing methods have security and limited storage space issues.
One reasonable solution is cloud storage service renting. Cloud storage service contributes sufficient space and security with affordable service charge. The cloud storage services provide online space where data is stored in non-physical storage hosted by third parties. Usually, the actual data centers cross different geographical areas. Users can access the storage service from anywhere and anytime through their internet-capable devices. The cloud usage concept is pay per use [
1,
2]. The user does not demand to settle for unused service. Compare using cloud storage with buying a large storage media or server; there is unused storage space remain in the file server, which is an unworthy investment.
Although single cloud storage sounds like a reasonable solution for data sharing, there are single cloud limitation issues [
3]. The first limitation is storage capacity. Many cloud storage services grant free storage capacity, which is inadequate for large file usage, and the charge for paid subscriptions that offer higher storage capacity is costly. The second limitation is low performance. The data transfer rate of cloud storage is slower than a local storage device. The available cloud bandwidth is divided among users at the same moment. Consequently, cloud storage providers have to limit bandwidth usage to preserve service quality. The third limitation is vendor lock-in. When users rely on a single cloud provider, it causes a significant risk for users themselves. If the provider abruptly ends its business or service, users may lose their stored data forever. The final limitation is security breaches. Cloud storage providers exclusively manage and maintain the encryption keys by themselves. Consequently, data stored in the providers would be in jeopardy if the provider’s key is endangered. Users are unable to understand providers’ security methods or policies.
In order to overcome single cloud storage limitations, a multi-cloud storage application is an exciting idea [
4]. A multi-cloud aggregates various cloud services to form a single application or system. In this case, the multi-cloud storage aggregates multiple storage services from various cloud providers to act as a single storage service. Users can access this system via a developed software interface rather than the default interface or channel provided by cloud storage providers. The main advantages of multi-cloud storage usage are more performance and higher security than single-cloud storage. Users can connect to multi-cloud services at the same time in order to gain more bandwidth. A single-cloud connection is limited and shared due to the bandwidth management policy of a cloud provider itself. Cloud provider has to control bandwidth usage in order to preserve the quality of service.
For security purposes, saving a sensitive file on single-cloud storage puts the file in jeopardy. File owners may lose his or her file for any reason, which causes the cloud storage to go offline or out of service, for example, disasters, internal, or external electronic attacks. On the contrary, the file owner slices the file into fragments and deploy them to multiple clouds. If some cloud provides are out of services, the file owner loses some fragments, but not the whole file.
The multi-cloud application requires appropriate middleware to control and orchestrate various services in order to make the application work smoothly. Many data slicing and cryptography methods [
4,
5] have been proposed. Some architectures put much burden on middleware, including file slicing, uploading, and downloading, which affect the quality of service when the number of users increases. Another main problem is unauthorized insider data access. The insiders are staff or managers who have the same authority as system administrators. If they are malicious, then they can access and manipulate the user’s data.
This paper proposes a lightweight file sharing framework to relieve the burden of middleware and still preserve reliability and security. Dew computing can be a middleware for control work-flow of a multi-cloud file sharing scheme [
6]. It fills the gap that cloud computing creates. The gap is created when cloud services are discontinued while the internet is down. Dew computing provides temporary service to manage and allow the user to continue his or her usage. In order to ensure security, sensitive files are divided and encrypted before deploying to multi-cloud storage. The encryption key is encrypted by the fuzzy identity-based technique. The secret key of each user is generated from his or her biometric identity, which ensures that the encryption key is not falling into the wrong hands.
The contributions of this paper are as follows:
We introduce dew computing for significant data sharing. The multi-cloud application requires a middleware to cooperate with each cloud service. A dew server can act as a middleware in this scheme. The dew server controls access control from users and monitors the availability of each file fragments (
Section 4.2).
We encrypt data as necessary, which would save processing costs and time. All data fragments are not encrypted. It depends on the data owner’s choice as to whether data is encrypted or not. Only sensitive fragments with standard encryption are encrypted. Additionally, we apply the fuzzy identity-based encryption as a security mechanism for sharing encryption keys among authorize users in the group. This method guarantees that even the attacker retrieves the risk items or data fragments. He or she cannot perform the decryption process efficiently (
Section 4.3.2).
We analyze the security in two scenarios: when the attacker knows the storage path of the file fragments and when the attacker does not know the storage path. The probability shows that, in both cases, our scheme has less opportunity for the attacker to retrieve all fragments on storage clouds (
Section 5).
The following part of the paper is organized as follows.
Section 2 presents previous studies of cloud security and multi-cloud storage approach. In

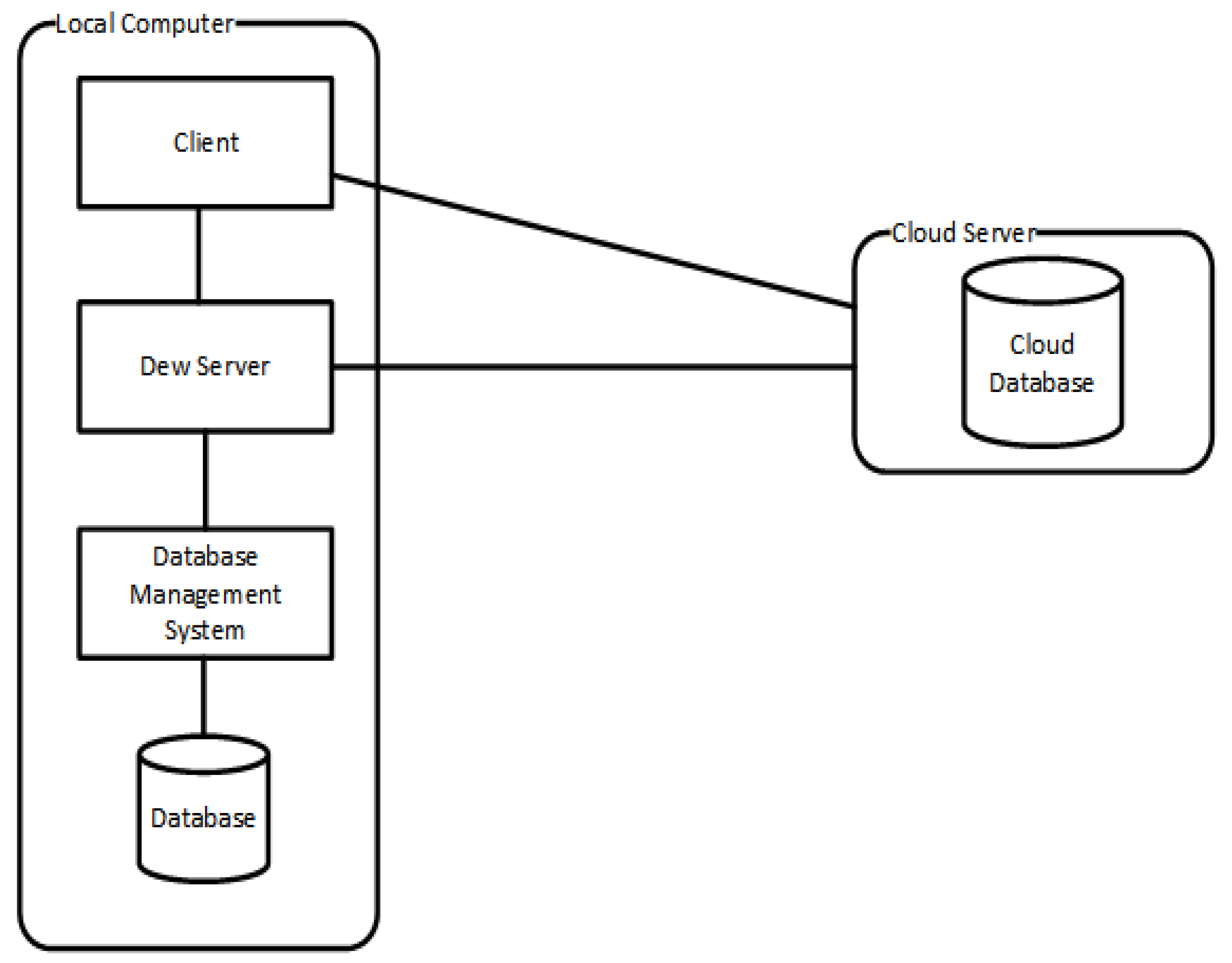

Section 3, we introduce the related background of dew computing and security mechanism. In
Section 4, we provide detail and explain our approach. In
Section 5, we analyze the proposed scheme in terms of security and performance. In
Section 6, the evaluation is presented in many scenarios.
Section 7 concludes the proposed scheme.
5. Analysis
This section analyzes the character of the proposed architecture in two aspects: security and performance analysis.
5.1. Security Analysis
In our architecture, the data file is categorized into two types: insensitive and sensitive. As we discussed earlier, the insensitive file contains no valuable content. They can be leaked or revealed to unauthorized users or attackers with no effect on or harm to, the identity of the owner himself.
The file fragments of the insensitive type can be stored freely in multi-cloud storage. It contains the content of the file, such as text, a database, pictures, voice, or video. On the other hand, the sensitive fragments contain essential content. If they are leaked or revealed to unauthorized users, they will harm the data owner. Therefore, the sensitive file type is stored with protection by encryption.
Comparing this scheme with single cloud storage, if an insider attack occurs in the CSPs, the attacker will retrieve the whole data file at one attack. In contrast, if there is an insider attack of a CSP in our scheme, the attacker will retrieve only a part of the data file, which is useless for the attacker that holds only one or some pieces of the data file. The attacker has to attack each cloud storage provider in order to retrieve the complete data file.
The secret key and metadata retain the storage index information for each fragment, file structure, file header, and decryption method. It is similar to a treasure map guide user to all data parts. Additionally, these are the most crucial part of the original file reconstruction. The user must have this part from the data owner, along with file fragments, form each cloud storage in order to reconstruct the original data file.
As the owner, he or she holds the storage path (contained in the metadata) confidentially. The data owner may store this part locally on his or her machine or another machine on his or her behalf. Even the attacker retrieves some data parts, he or she cannot reconstruct or interpret the original data file without the secret key and metadata. The data owner will send them to the authorized user who requests to access his or her file fragments on multiple cloud storage.
We define a big data file as F. The F is split into N fragments {, , …, }. In this research, each fragment has only one copy. The reason behind this idea is to save storage space, i.e. save the cost of service usage. Each copy is hosted on each cloud storage provider. The cloud storage servers store file fragments with encryption for sensitive file fragments and without encryption for insensitive file fragments, represented by . The attacker needs to break into n servers, each storing a fragment of file to comprise the whole file.

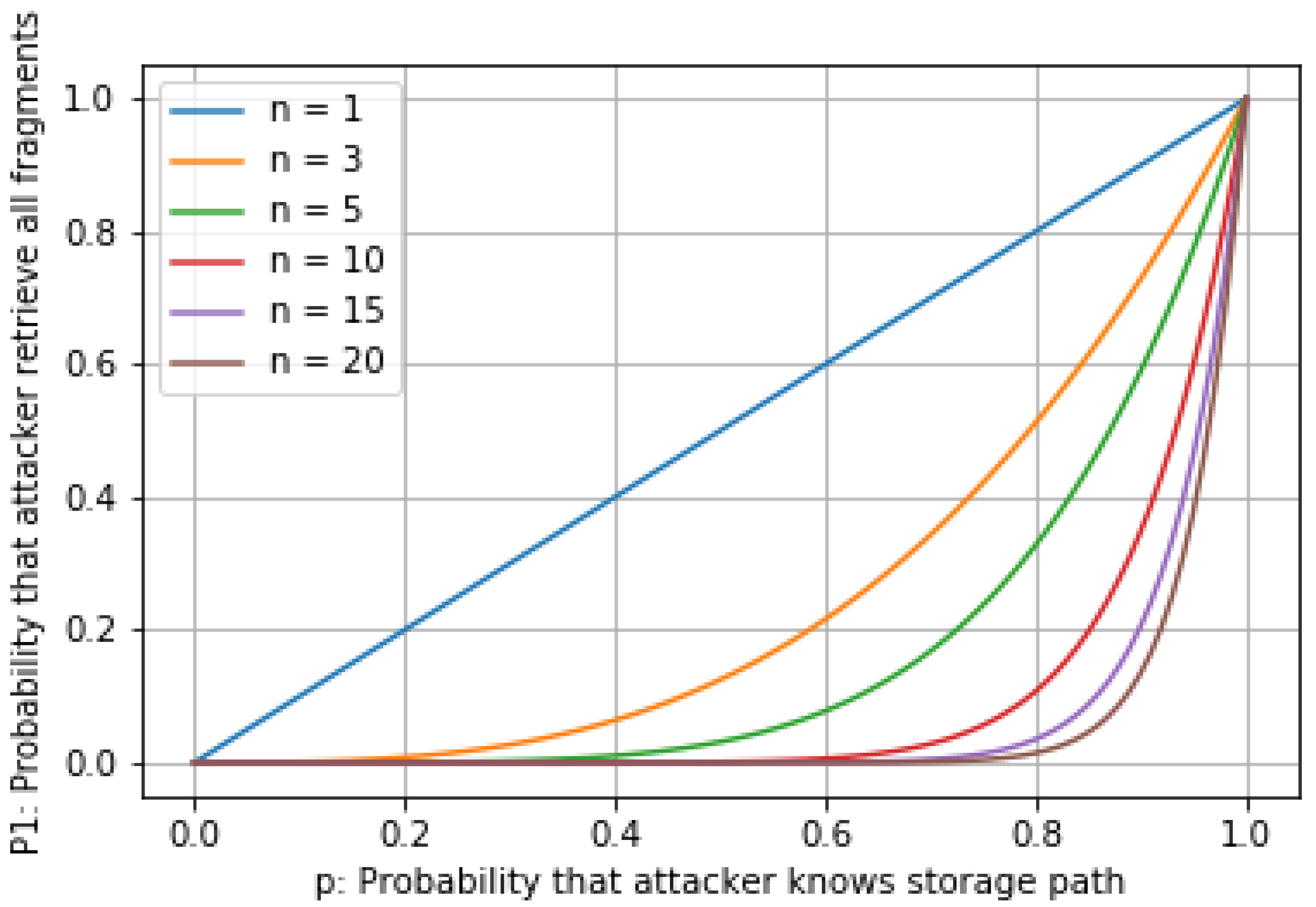

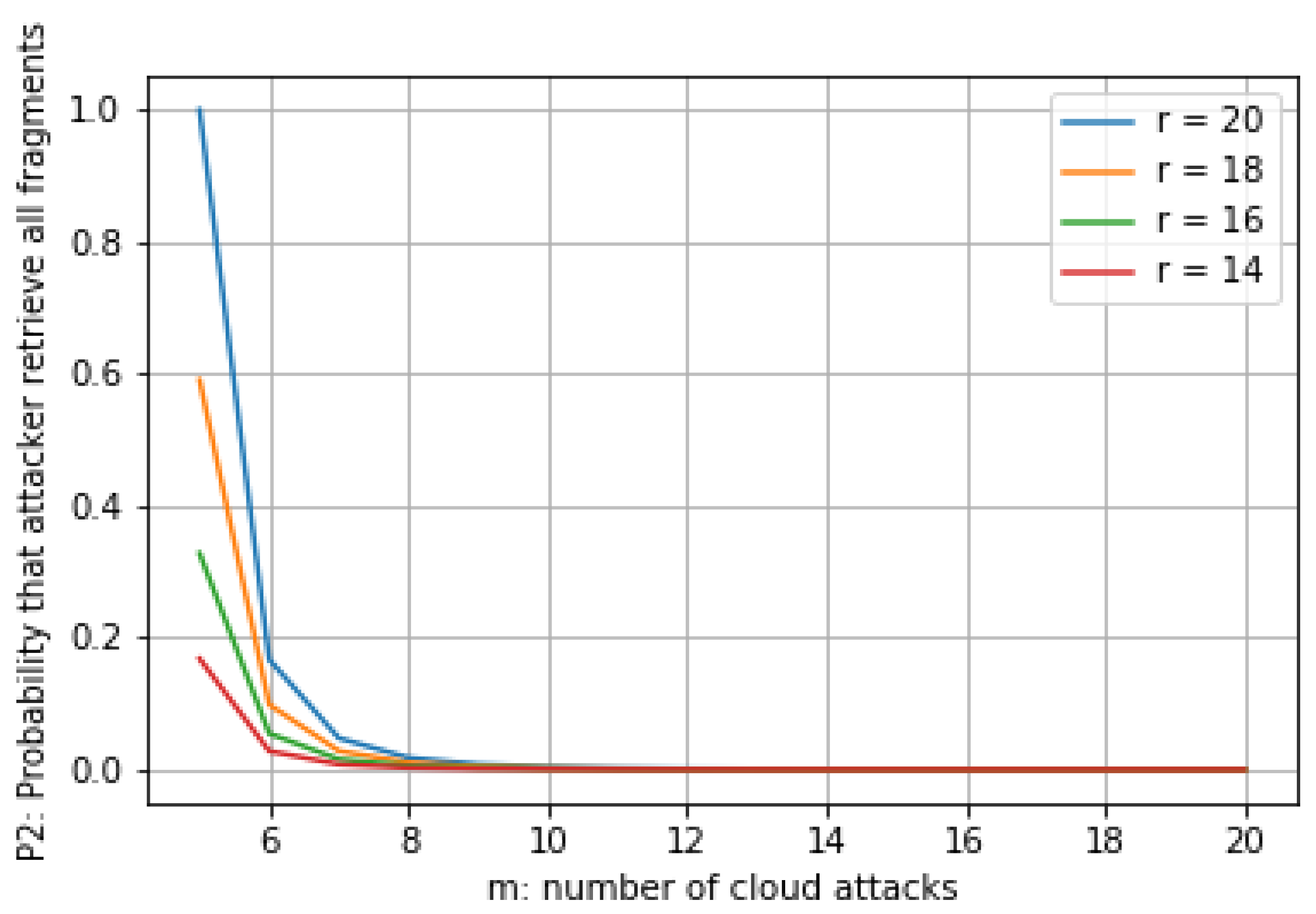

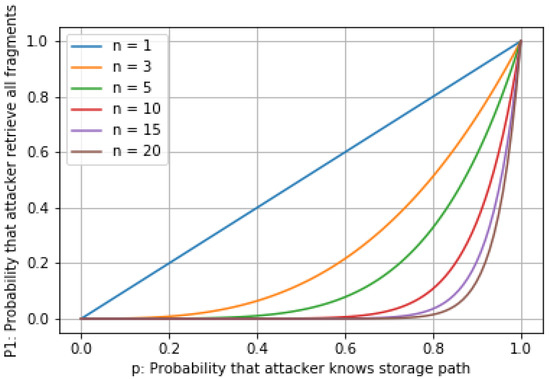

We consider the security of our scheme in two scenarios. The first scenario is where the attacker a knows the storage path of all fragments. The second scenario is where the attacker a does not know the storage path of the fragments. In both scenarios, the attacker has different ways to retrieve file fragments.
5.2. Performance Analysis
The proposed architecture is a hybrid between client/server architecture and peer-to-peer architecture. Authorized users download file fragments from CSPs. In this section, each CSP acts like a seeder. We use the term “seeder” to represent CSP, and each user client acts like a leecher in a peer-to-peer architecture. We use the term “leechers” for user clients. However, there are different characteristics between our architecture and peer-to-peer architecture. First, seeders in the proposed work make no data transfer contribution among seeders. Each seeder only uploads its stored fragment to user clients. Second, leechers or user clients perform only downloading functions and do not transfer data among leechers.
To formalize the performance analysis, we define the relevant components. There are two sets of components for file distribution: seeders and leechers. We define a set of seeders as S and a set of leechers as L. Each seeder has a file fragment of size , since the file is equally divided into N pieces. Each leecher in L requires each of the fragments stored in the corresponding seeders. In the first stage, all of the leechers have no portion of the file fragments. As time passes, a leecher can obtain fragments of the file from any of the seeders. A leecher is permitted to leave after obtaining the entire file.
Let I = S∪L be the set of all elements in the system. Each element (seeder or leecher) i has an upload capacity , and each leecher has a download capacity . An element i can transmit bits of data at a maximum rate of and download bits of data at a maximum rate of . In real life today, the upload capacity or bandwidth is always less than the download capacity, which is . Nonetheless, we assume arbitrary upload and download capacities in our analysis.

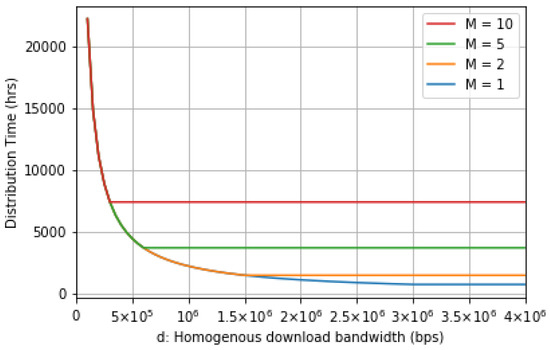

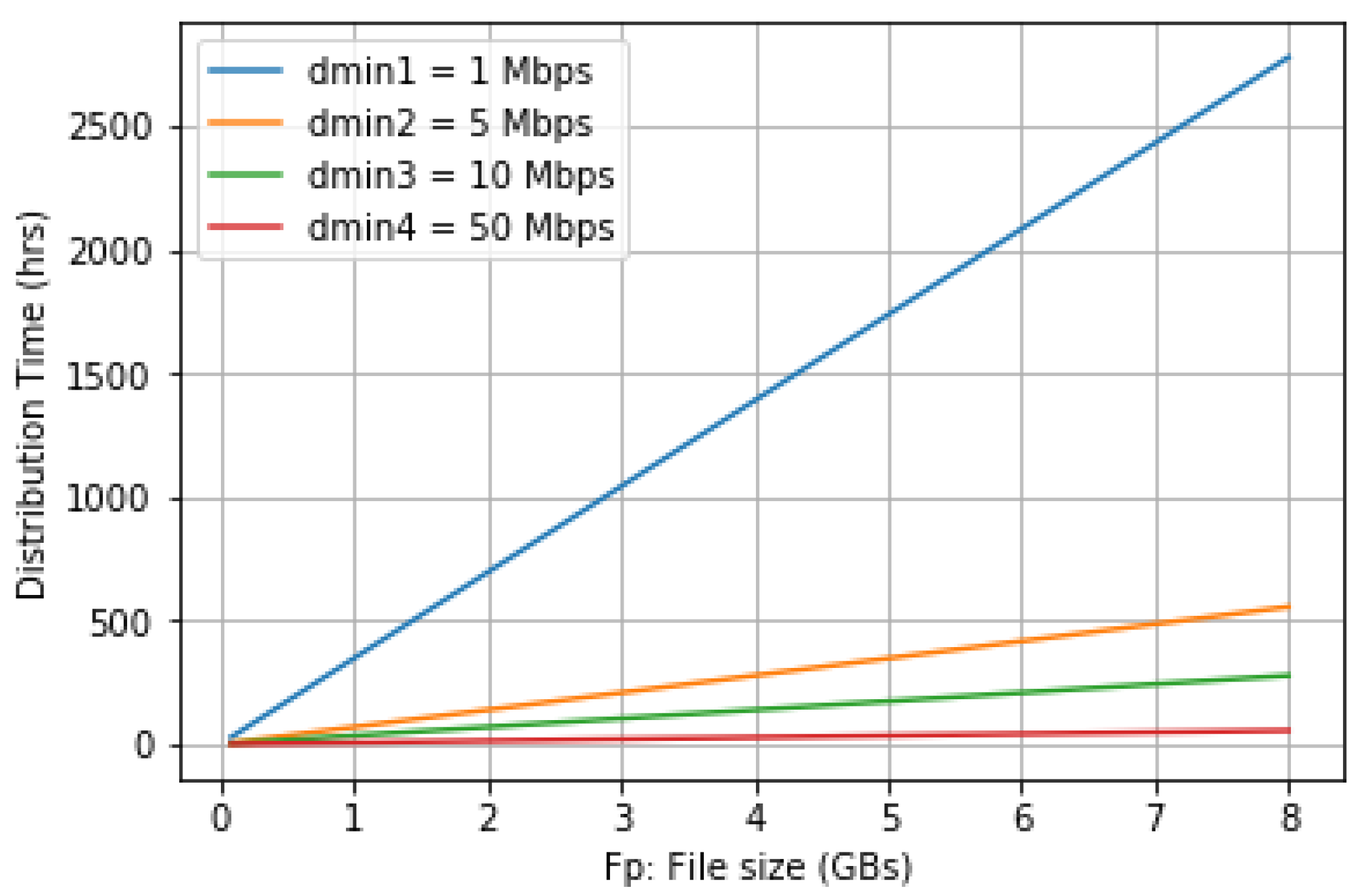

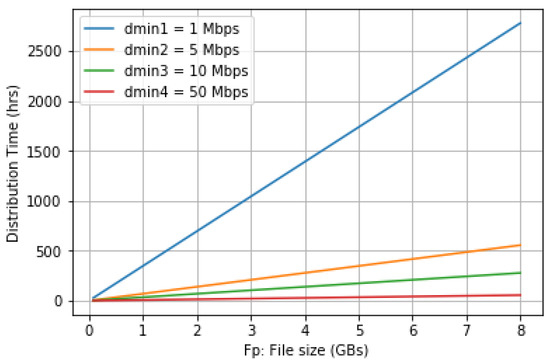

This section discusses the performance of the proposed architecture. In order to measure the performance, we measure it by a minimum distribution time. We have modified the relevant definitions in [
36] to match our proposed architecture. The modified definitions neglect the data transfer contribution to the set of nodes. This means there is no data transfer from seeders to seeders or from leechers to leechers. The data transfer occurs only from seeders to leechers.
The distribution time is the time that all leechers take to retrieve the entire file. The rate profile is the rate at which leecher
i∈
L downloads ’fresh’ content from seeders at time
t. [
34] defines the rate profile as
, which
,
i∈
L. Therefore, the minimum distribution time,
, is the minimization of the distribution time achievable over all rate profiles.
As in [
36,
37], we define the assumptions.
The bandwidth bottlenecks are not in the internet heart. They are only at the access end of the Internet, which is uploading and downloading points.
Both sets of seeders and leechers participate in file transferring until they completely retrieve all file fragments. There is no extra join or leaving companions between the process.
Seeders have a constant upload capacity. In addition, leechers have a constant download capacity.
At the first step, all seeders save all file fragments, while the leechers contain none of them.
Leechers focus only on downloading interested file fragments during the file transfer. Leechers do not cooperate in downloading other irrelevant files.
We set the notation:
the set of seeders is ;
the set of leeachers is ;
the number of seeder ;
the number of leecher ;
for the set of seeder set S, is the aggregate upload capacity, where ;
for the set of leecher L, is the minimum download capacity, where
for subset , is the minimum distribution time of leechers in subset
In order to determine
for our proposed architecture, we have to consider some details. First, the leecher with the slowest download speed is not able to retrieve the file fragments faster than
. Second, the set of seeders cannot distribute current data at a rate faster than
, and a leecher cannot receive the file fragment at a speed faster than
. However, a set of seeders has to transfer the total amount of data equal to
to
M leechers, implying
. Thus, we achieve the lower bound for our file fragment distribution:
Theorem 1. The minimum distribution time for the general heterogenous file distribution system is Proof of Theorem 1. This proof considers two cases:
We use the rate profile as defined earlier. For each instance, we create a rate profile with the following details. Each leecher
i receives the file fragments from a set of seeders at a speed less than its download capacity

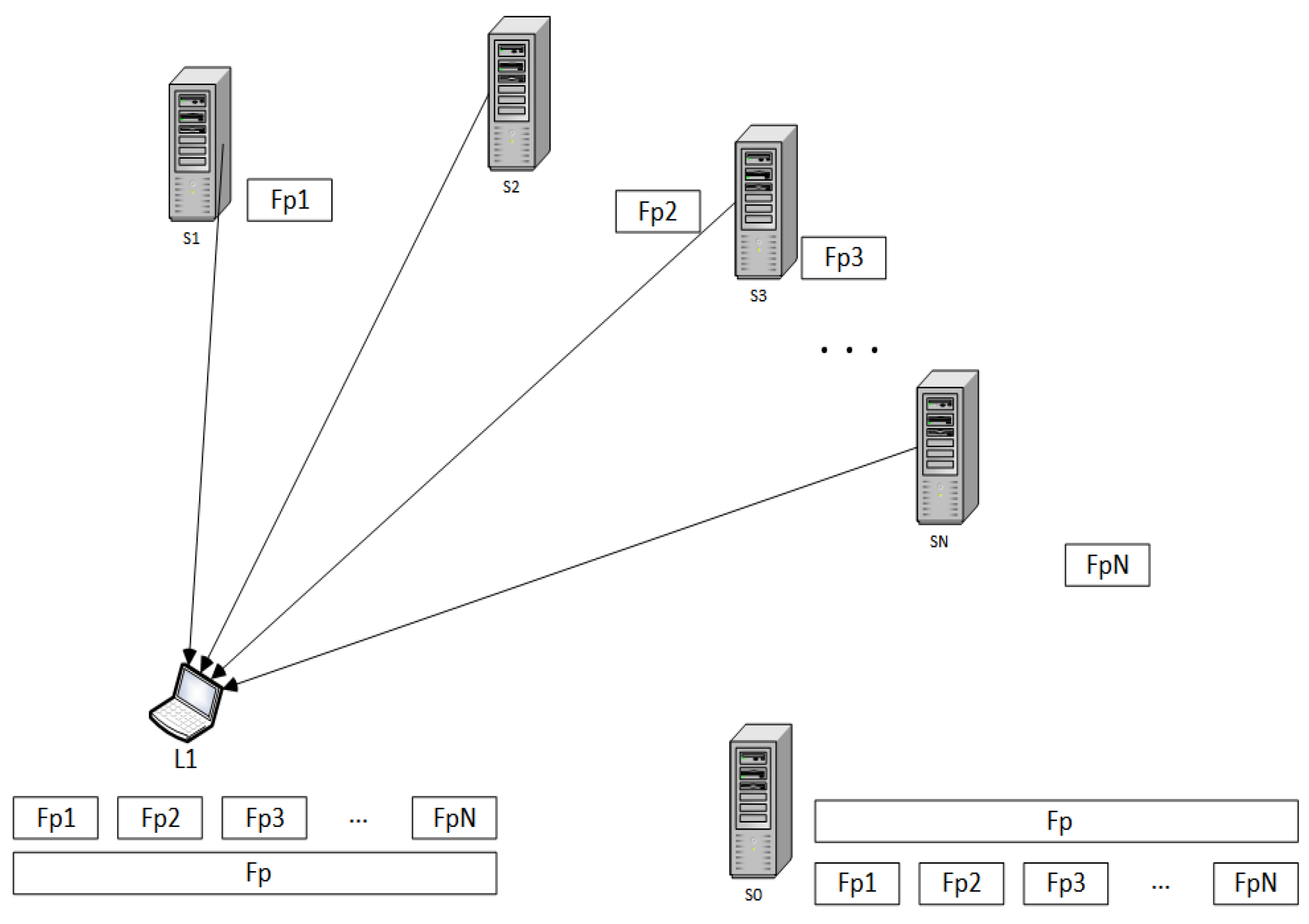

, as shown in
Figure 5. L1 is the user’s device that parallels connections to CSPs
to download each of the file fragments
.
is the data owner’s device that keeps the original file.
The first case is a situation when the download rate of the slowest leecher is less than the aggregate seeder upload bandwidth,
. A set of seeders sends a different file fragments to each of the leechers
i at the following rate:
where
is the upload bandwidth of the set of seeders to leecher
i. In addition, the above rate profile can be supported by the seeds because
However, it is clear that
. Thus, a leecher
will be downloading fresh content from a set of seeders at a rate equal to the slowest download leecher
.
The download speed can be preserved at each leecher for all time
t. The corresponding distribution time for this rate profile is
. Each leecher in a set of leechers can finish downloading file fragments before the slowest leecher can. That means the minimum distribution time is equal to the time that the slowest leecher needs to download all file fragments from the set of seeders. According to the inequality in Equation (
6), this will imply that the minimum distribution time for Case 1 is
.
In this case, the download rate of the slowest leecher is faster than the aggregate upload bandwidth of the seeders. The set of seeders sends the file fragments to each of the leechers for total
bits. Additionally, the rate profile can be supported by the seeds because
Nevertheless, it is obvious that
. Hence, a leecher
will be downloading brand new content from a set of seeders at a partitioned rate of aggregation upload bandwidth of seeders,
. Since the other leechers are identical in downloading file fragments from the related set of seeders, the upload bandwidth is not assigned to one specific leecher. It is shared among them.
The download speed can be maintained at each leecher for time
t until all leechers obtain all file fragments. The corresponding distribution time for this rate profile is
. According to the inequality in Equation (
5), this will presume that the minimum distribution time for Case 2 is
.
For simplicity of analysis, we assume that all leechers finish the file fragments downloading at the same time. □
