Article

A Hybrid Approach to Improve the Video Anomaly Detection Performance of Pixel- and Frame-Based Techniques Using Machine Learning Algorithms

1
Department of Computer Engineering, Istanbul Aydin University, Istanbul 34295, Turkey
2
Department of Computer Engineering, Sivas University of Science and Technology, Sivas 58000, Turkey
*
Author to whom correspondence should be addressed.
Computation 2024, 12(2), 19; https://doi.org/10.3390/computation12020019
Submission received: 11 December 2023 / Revised: 16 January 2024 / Accepted: 20 January 2024 / Published: 24 January 2024
(This article belongs to the Section Computational Engineering)

Abstract

:
With the rapid development in technology in recent years, the use of cameras and the production of video and image data have similarly increased. Therefore, there is a great need to develop and improve video surveillance techniques to their maximum extent, particularly in terms of their speed, performance, and resource utilization. It is challenging to accurately detect anomalies and increase the performance by minimizing false positives, especially in crowded and dynamic areas. Therefore, this study proposes a hybrid video anomaly detection model combining multiple machine learning algorithms with pixel-based video anomaly detection (PBVAD) and frame-based video anomaly detection (FBVAD) models. In the PBVAD model, the motion influence map (MIM) algorithm based on spatio–temporal (ST) factors is used, while in the FBVAD model, the k-nearest neighbors (kNN) and support vector machine (SVM) machine learning algorithms are used in a hybrid manner. An important result of our study is the high-performance anomaly detection achieved using the proposed hybrid algorithms on the UCF-Crime data set, which contains 128 h of original real-world video data and has not been extensively studied before. The AUC performance metrics obtained using our FBVAD-kNN algorithm in experiments were averaged to 98.0%. Meanwhile, the success rates obtained using our PBVAD-MIM algorithm in the experiments were averaged to 80.7%. Our study contributes significantly to the prevention of possible harm by detecting anomalies in video data in a near real-time manner.

1. Introduction

As a result of the development and widespread use of technology, the rate of production of video and image data has increased rapidly, and the areas of use for cameras, videos, and images are becoming more diverse and widespread every day. The need for image processing in many different fields, such as safety, security, military, intelligence, medicine, road traffic management, urban and public administration, digital agriculture, industrial production, quality control, media, and so on, is constantly growing. Meanwhile, in the near future, with the widespread use of devices that produce and process images instantly (e.g., autonomous land, air, and sea vehicles), the criticality of image processing systems and the need for real-time image and video processing are expected to increase to high levels. Therefore, it is of great importance to develop image-processing techniques and optimize them to the maximum extent, particularly in terms of their speed, performance, and resource utilization [1].
Nevertheless, manual methods based on the human eye are still actively used in many areas of video and image processing and analysis. It is widely known that manual video and image analysis with the human eye takes too long, increases the probability of missing critical images, and entails high workforce and financial costs. On the other hand, considering the rapidly increasing number and duration of videos, it is understood that relying on manual analysis methods using the human eye will become more and more difficult, and will ultimately be unable to meet the associated demands [2].
The main objective of this study is video anomaly detection. It is not always possible to watch video recordings from beginning to end when seeking to detect unusual (i.e., anomalous) situations, especially when considering long-duration videos. Therefore, it is of great importance to classify video frames by analyzing them with machine learning techniques. After the analysis and classification of video frames, the aim is to automatically detect anomalous frames in a near real-time manner [3], allowing the operator (or another concerned party) to take action by focusing on these images. In this way, the possibility of overlooking unusual situations can be minimized, anomalous situations will be detected in near real time, and their possible harmful effects may be prevented. As such, significant contributions can be made to human health and public safety. At the same time, this study aims to provide many indirect contributions, such as those related to environmental protection and the efficient use of time, facilities, and resources.
Our study proposes a hybrid video anomaly detection model combining multiple machine learning algorithms with pixel-based video anomaly detection (PBVAD) and frame-based video anomaly detection (FBVAD) models. In the PBVAD model, the motion influence map (MIM) algorithm based on spatial–temporal (ST) elements [4] is used, while in the FBVAD model, the k-nearest neighbors (kNN) and support vector machine (SVM) machine learning algorithms are used in a hybrid manner. First, video frames are analyzed with machine learning techniques. Then, focusing on the obtained data, the anomalous images are detected again with machine learning techniques. After this, the classification of the detected anomalies is performed.
UCSD Ped1 [5] and UCSD Ped2 [6] are the most commonly used data sets in relevant studies, and the anomaly detection success rates yielded in recent studies based on these data sets have reached 97% and above (UCSD Ped1 [7], UCSD Ped2 [8]). Meanwhile, the average success rates using other data sets are lower. In particular, it has been observed that the success rates in studies conducted on the UCF-Crime data set were lower than those conducted on other data sets [9,10]. Therefore, in our study, we focus in particular on the UCF-Crime data set.
In the implementation and testing phases of our work, we focused on video anomaly detection in relation to important incidents that are closely related to societal and public safety, such as abuse, assault, burglary, fighting, explosions, and road accidents, as contained in the UCF-Crime data set.
For our study, a comprehensive literature review was first conducted. Within the scope of the literature review, the data sets, feature extraction techniques, developed models, algorithms, development environments, analysis results, and success rates reported in previous studies are examined in detail. Then, the used methodology and technical methods are presented. The subsequent part of the study describes the developed application and our test procedures, while the final section provides an evaluation of the findings and test results obtained in our study.
In this study, the methodologies, algorithms, models, and anomaly detection techniques used in various video anomaly detection studies are analyzed, and their performances are evaluated comparatively.

2. Literature Review

We conducted a literature review focused on the most recent studies published after 2018, in relation to our research area.
One of our primary findings is that image analysis studies have been carried out in various areas of interest on a subject-by-subject basis but have not been conducted to offer references for many general fields [11,12,13]. Some studies have emphasized the need for real-time image processing [14]. However, the number of studies comparing multiple machine learning techniques is limited [14].
During the literature review process, it was observed that studies on video anomaly detection—which is our area of interest—have increased in number, especially in recent years [15].

2.1. Using Methods and Algorithm Types

When the video anomaly detection studies were examined methodologically, we observed that different methodologies were used in each, including spatio–temporal I3D AE, temporal segment C3D, convolutional LSTM, deep learning (CNN/RNN), U-Net, two U-Net blocks, LSTM network, bidirectional LSTM prediction (BD-LSTM), dual discriminator GAN, and multi-timescale [15] methods. For example, Gianchandani et al. have used the spatio–temporal I3D AE anomaly detection method [16], Sultani et al. have used the temporal segment C3D anomaly detection method [9], Ullah et al. have used the bidirectional LSTM anomaly detection method [17], and Wu et al. have used deep learning (CNN/RNN) algorithm-based anomaly detection methods [18].
By examining the techniques used in the literature, it can be observed that anomaly detection techniques such as sparse coding [6,19,20], weakly supervised learning [21,22], spatio–temporal [4,23], normality learning-based [24,25,26,27], Gaussian mixture [28,29,30], graph-based [31,32], autoencoder technique [33,34,35], unsupervised anomaly detection [36,37], self-supervised learning [38,39,40,41] and probabilistic [42,43] models have been used.
In addition to the algorithms and learning methods used, it has been observed that whether or not a feature extraction technique is used for frame- or pixel-based analysis may also affect the success of anomaly detection [10].
Georgescu et al. [39] have studied anomaly detection in videos through self-supervised and multi-task learning using the 3D CNN and YOLOv3 algorithms with the MS COCO and ResNet-50 methodology. In particular, they approached anomalous event detection in videos through self-supervised and multi-task learning at the object level. They first utilized a pretrained detector to detect objects, then trained a 3D convolutional neural network to produce discriminative anomaly-specific information by jointly learning multiple proxy tasks: three self-supervised and one based on knowledge distillation. In their experimental results, they stated that their lightweight architecture outperformed state-of-the-art methods when applied to three benchmark data sets: Avenue, ShanghaiTech, and UCSD Ped2 [39].
Hao et al. [44] have studied effective crowd anomaly detection through spatio–temporal texture analyses using Gabor-filtered textures and SVM algorithms and described two major breakthroughs. First, their developed spatio–temporal texture extraction algorithm was able to effectively extract textures from videos with an abundance of crowd motion details, which was achieved by adopting Gabor-filtered textures with the highest information entropy values. Second, they devised a novel scheme for defining crowd motion patterns (signatures), in order to identify abnormal behaviors in the crowd, by employing an enhanced gray level co-occurrence matrix model. In their experiments, various classic classifiers were utilized to benchmark the performance of the proposed method [44].
Lee V.T. et al. [45] have studied attention-based residual auto-encoders for video anomaly detection using deep (3D) CNN and ConvLSTM algorithms. They proposed a system that adopts a spatial branch and temporal branch in a unified network, allowing for the effective exploitation of both spatial and temporal information. Their experimental results revealed AUC performance rates of 97.4% for UCSD Ped2, 86.7% for CUHK Avenue, and 73.6% for ShanghaiTech [45].
In some studies, anomaly detection in crowded scenes has been undertaken using convolutional neural network (CNN)-based algorithms. For example, Ravanbakhsh et al. [46] have published the study “plug-and-play CNN for crowd motion analysis: an application in abnormal event detection,” in which they sought to measure local abnormalities by combining the semantic information inherited from existing CNN models with low-level optical flow [46]. Sabokrou et al. [47] have studied deep and fast anomaly detection in crowded scenes using fully convolutional neural networks (FCNs) and temporal data; here, a pre-trained supervised FCN was transferred to an unsupervised FCN, ensuring the detection of (global) anomalies in scenes [47]. As another example, Smeureanu et al. [48] have studied the application of real-time deep learning methods for abandoned luggage detection video recognition, based on a cascade of convolutional neural networks (CNNs) [48].

2.2. Using Data set Types

In the video analysis and anomaly detection studies outlined in the literature, we found that the UCSD Ped1 [5], UCSD Ped2 [49], subway entrance–exit [43], UMN [50], Avenue [51], UCF-Crime [9], ShanghaiTech [52], and XD-Violence [53] data sets were commonly used.
Sultani et al. [9] have studied human behavior and the automatic detection of abnormal events by creating a 128 h data set (UCF-Crime) containing original video recordings of the real world [9]. They sought to identify anomalies using a deep multiple-instance ranking framework by leveraging weakly labeled training videos, where the training labels (i.e., anomalous or normal) were set at the video level, instead of the clip level. In their approach, they considered normal and anomalous videos as bags and video segments as instances in multiple-instance learning (MIL), facilitating the automatic learning of a deep anomaly ranking model that predicted high anomaly scores for anomalous video segments [9].
Xia et al. [54] have studied video abnormal event detection using SVM, deep neural network (DNN), CNN, generative adversarial network (GAN), and one-class neural network (ONN) algorithms. In their experimental results, they achieved AUC rates of 94.9% on the PED1 data set and 94.5% on the PED2 data set [54].
In some studies, method- and data set-based performance comparisons in relation to anomaly event detection have been addressed, and the success rates of the methods used typically differ depending on the data set [53,55].

2.3. Sample Video Anomaly Detection Techniques and Application Types

Anomaly detection in video frames can be used in many different sectors. For example, studies on anomaly detection in crowded areas have recently been carried out [56].
Some of the studies focused on event-based anomaly detection are also examined here, and by evaluating their result graphs, it was observed that these studies detected issues such as fighting, abuse, and shootings with a higher success rate, especially in the context of social events, while their success rates were lower in relation to detecting events such as explosions and road accidents [10]. It remains to be investigated whether the inclusion of human behavior-based learning data in the data sets used is also effective.
Liu et al. [3] have developed an expert real-time system for anomaly detection in aerators based on computer vision technology and existing surveillance cameras. They proposed a novel algorithm called the “Reference Frame Kanade–Lucas–Tomasi (RF-KLT)” algorithm for motion feature extraction in fixed regions. The proposed expert system performed real-time, robust, and cost-free anomaly detection in aerators using both the actual video data set and an augmented video data set [3].
In some studies, spatio–temporal-based algorithms have been used as a reference. Bertini et al. [57] have proposed an approach for anomaly detection and localization in video surveillance applications based on spatio–temporal features, through capturing a scene’s dynamic statistics together with its appearance [57]. In another example, Jiang et al. [58] have studied anomalous video event detection using the spatio–temporal context, and proposed a context-aware method to detect anomalies in which three different spatio–temporal context levels are considered. In their experiments on real traffic videos, they identified video anomalies that are hazardous or illegal according to relevant traffic regulations [58]. As another example, Li N. et al. [59] have conducted spatio–temporal context analyses within videos for anomalous event detection and localization. Their approach employs an unsupervised statistical learning framework based on the analysis of spatio–temporal video volume configurations within video cubes, which learns global activity patterns and local salient behavior patterns through clustering and sparse coding, respectively [59]. In the last example, Li W. et al. [30] have proposed a method for the detection and localization of anomalous behaviors in crowded scenes and developed a joint detector of temporal and spatial anomalies [5].
Wang et al. [60] have studied real-time and accurate object detection using an approach that compresses videos through long short-term feature aggregation. They proposed a novel short-term feature aggregation method to propagate the rich information present in key frame features to non-key frame features in a rapid manner. Their experiments on a large-scale ImageNet VID benchmark achieved a 77.2% mAP (which is on par with state-of-the-art accuracy) at a speed of 30 FPS using a Titan X GPU [60].
In some studies, GAN algorithms have been used as a reference. As an example, Jiang et al. [61] have proposed a background-agnostic framework that learns from training videos containing only normal events. Their framework is composed of an object detector, a set of appearance and motion auto-encoders, and a set of classifiers [61]. In another example, Ravanbakhsh et al. [62] have used generative adversarial networks (GANs), which were trained using normal frames and the corresponding optical flow images, in order to develop an internal representation of a scene’s normality [62].
Zaheer et al. [63] have studied clustering-assisted weakly supervised learning with normalcy suppression for anomalous event detection using the UCF-Crime and ShanghaiTech data sets. They proposed a weakly supervised anomaly detection method that offers three-stage contributions. In their experimental results, they achieved an 83.03% and 89.67% frame-level AUC on the UCF-Crime and ShanghaiTech data sets, respectively [63].
In other studies, research has been conducted on improving video anomaly detection algorithms. Sikdar et al. [64] have developed an adaptive training-less framework for anomaly detection in crowd scenes. Their proposed solution comprises a pipeline consisting of three major components: namely, an adaptive 3D-DCT model for multiobject detection-based association, local motion descriptor generation through an improved-saliency guided optical flow, and anomaly detection based on the Earth mover’s distance (EMD) [64]. Tudor I. et al. [65], in an attempt to unmask the abnormal events in videos, have proposed a novel framework for abnormal event detection in videos that requires no training sequences [65]. Xu D. et al. [66] have attempted to detect anomalous events in videos by learning deep representations of appearance and motion, and proposed Appearance and Motion DeepNet (AMDN), a novel approach based on deep neural networks that is intended to automatically learn feature representations. In addition, based on the learned features, multiple one-class SVM models were used to predict the anomaly scores of each input. Finally, a novel late fusion strategy was proposed to combine the computed scores and detect abnormal events [66].
Sarikan et al. [67] have studied the detection of anomalies in vehicle traffic using image processing and machine learning algorithms. In another study, performance comparisons of anomaly event detection at the energy consumption level have been discussed, and the results were evaluated [68].
Kiranyaz et al. [69] have studied real-time phonocardiogram (PCG) anomaly detection. They deliberately focused on the anomaly detection problem, assuming a reasonably high signal-to-noise ratio (SNR) in the records. By using 1D convolutional neural networks trained with a novel data purification approach, they aimed to achieve the highest detection performance and real-time processing ability with a significantly lower delay and computational complexity. In their experimental findings, they stated that further improvements will require a personalized (i.e., patient-specific) approach to avoid the major drawbacks of a global phonocardiogram (PCG) classification approach [69].
A recent study has used quantum technologies and hybrid machine learning algorithms to analyze video frames in the healthcare domain [70]. In comparing the use of the hybrid quantum CNN (HQCNN) algorithm with the classical CNN machine learning algorithm, it was found that the HQCNN technique performed better in analyzing and diagnosing medical images [70].
Other than these, different methods have been used for human activity recognition [71,72], video object detection [73,74,75], video motion anomaly detection [76,77,78,79], online anomaly detection [80,81], video anomaly detection by injecting temporal information in feature extraction [82], anomaly detection method with deep support vector data description (DSVDD) using deep learning algorithm [83], video anomaly detection method with a main-auxiliary aggregation strategy (MAAS) [84], and the analysis of anomalies with feature embeddings of pre-trained CNNs with the use of novel cross-domain generalization measures [85] in various studies.

3. Methodology

In this section, the architecture, algorithms, and methodologies used for the development of our proposed model are discussed.

3.1. Modeling and Algorithm Selection

Anomaly detection in crowded areas is a very challenging task. In particular, minimizing false positives and achieving a high detection performance is challenging. For this reason, we propose a hybrid anomaly detection model by combining multiple algorithms and techniques.
Regarding the choice of algorithm in the proposed model, both supervised and unsupervised learning algorithms are selected, thus enabling a hybrid approach. In anomaly detection studies in particular, the success rates of unsupervised learning algorithms are very high when applied for the detection of unusual situations and events that have not been previously defined. However, when seeking to prevent or minimize false positives, supervised learning algorithms provide significant advantages. The support vector machine (SVM) and k-nearest neighbors (kNN) algorithms were found to be preferred as supervised learning algorithms in the reference literature. In addition, the motion influence map (MIM) algorithm, which is successful in detecting human behavior and is based on spatio–temporal (ST) features, is also used effectively in our study [86].
The most important phase of video analysis and anomaly detection is the feature extraction process, which is also the longest part of the whole process. After the feature extraction, video frames are sent through both the supervised and unsupervised algorithm processes separately and are analyzed simultaneously. After this analysis, anomaly detection is performed, and a scoring (rating) and labeling process is performed on the detected anomalies. Video frames that are detected as common anomalies in both processes are labeled as high-grade anomalies.

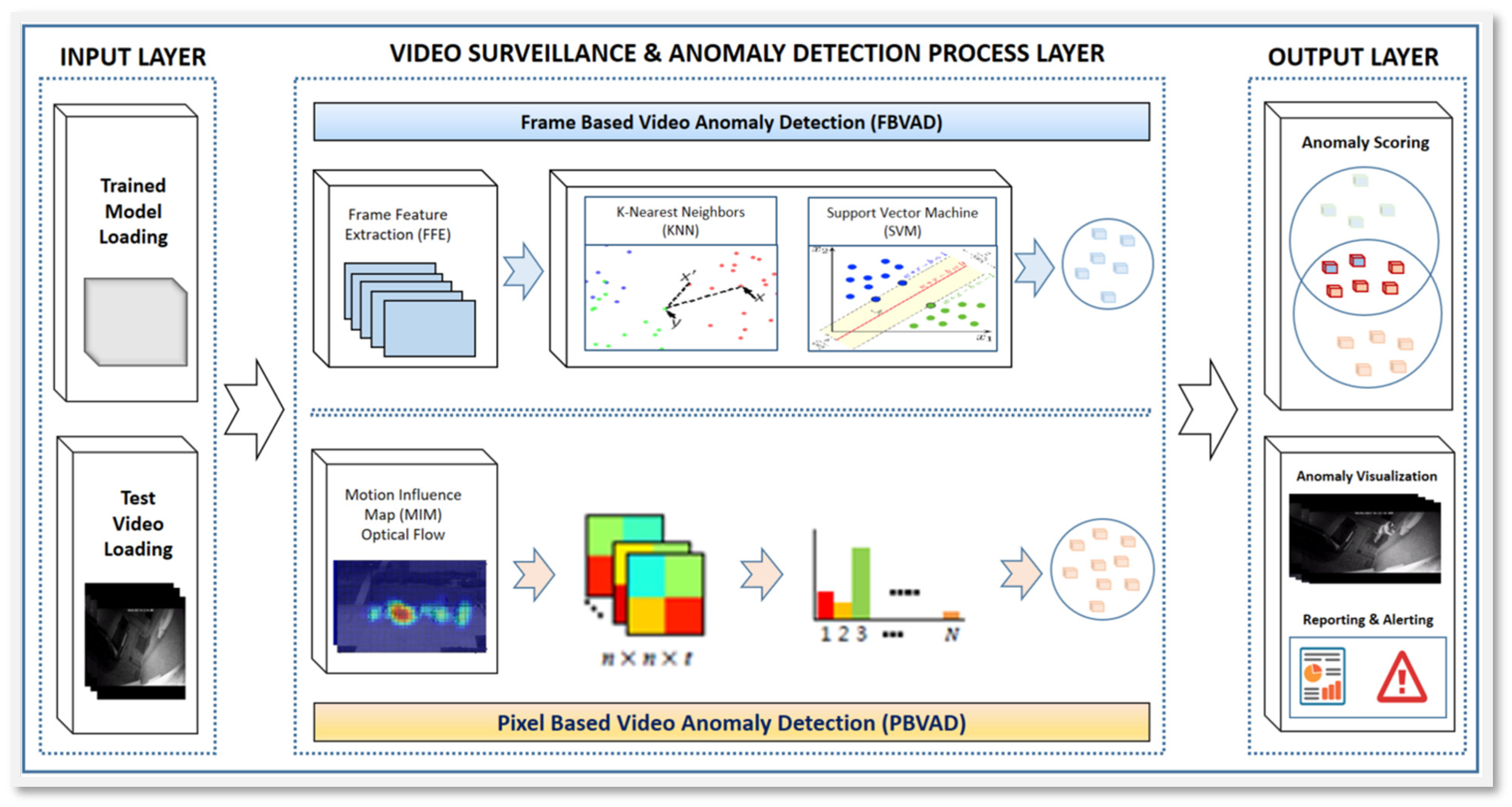

An architectural diagram of our model is shown in Figure 1. The structure and components of our proposed model are described in the subsequent sections.

3.2. Model Architecture Diagram

The architecture of the proposed model basically consists of three layers. The layers of this architecture are as follows (see Figure 1 for an architectural diagram of the model):
(a)
Input layer;
(b)
Video surveillance and anomaly detection process layer;
(c)
Output layer.
We briefly summarize the layers and components of the architectural diagram in the following subsections:

3.2.1. Input Layer

This layer contains the components to be entered into the analysis process and consists of “Trained Model Data” and “Test Video Data” components. Operations are initiated in this layer.

3.2.2. Video Surveillance and Anomaly Detection Process Layer

This layer is where the main components of the analysis process are located, in which anomaly detection is performed. It consists of two main components:
-
Anomaly detection with frame-based (kNN, SVM) algorithms;
-
Anomaly detection with pixel-based (motion influence map; MIM) algorithms.

3.2.3. Output Layer

This is the layer in which the anomalous data and images detected as a result of the analysis process are displayed. This layer is interactive and comprises anomaly visualization and anomaly reporting and alert components.

3.3. Frame-Based Video Anomaly Detection (FBVAD) Method

For frame-based anomaly detection based on video frames, machine learning algorithms including k-nearest neighbors (kNN) and support vector machine (SVM) are used. These algorithms are briefly described in the following subsections:

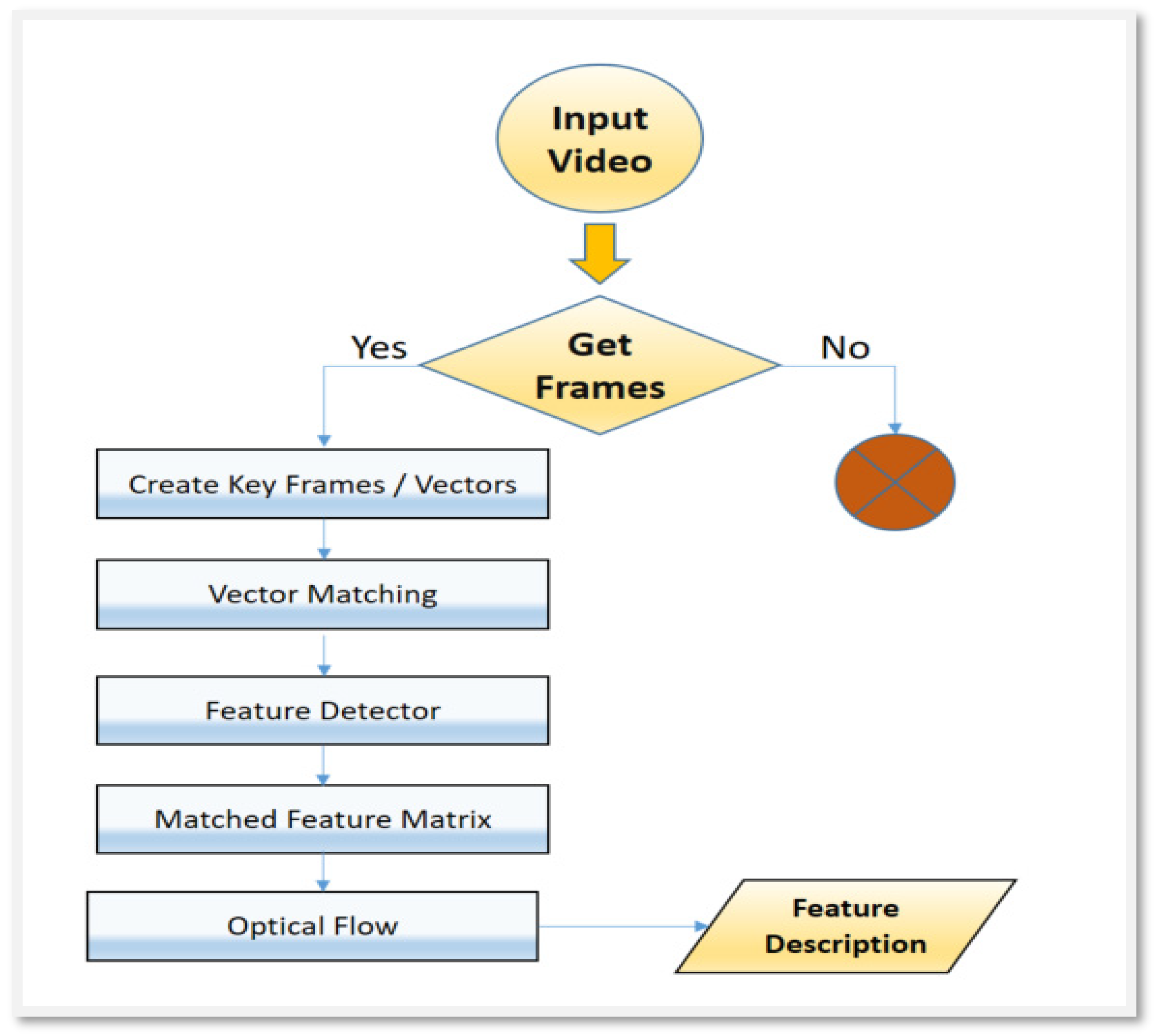

3.3.1. Frame-Based Feature Extraction

Feature extraction is one of the most important aspects of video analysis and anomaly detection, directly affecting the accuracy of the result. The feature extraction process, as shown in Figure 2, consists of the following steps:
(i)
Obtaining Frames
In the feature extraction process, when the test video data are loaded, they are first checked for validity, and it is ascertained whether the frames can be opened. If the frames cannot be opened, the process is terminated with a warning message. If the frames can be opened, the content extraction process steps are commenced and progress one by one for each frame in a loop, passing from the first to last frame of the video data. New and existing frames are compared.
(ii)
Creating Key Frames/Vectors
In this phase of the feature extraction process, key vectors in the frame image are detected, and the descriptors in the key vector position image are calculated.
(iii)
Matching Vectors
In this phase of the feature extraction process, matches are made between the vectors in the frame image and the key vectors.
(iv)
Detecting Features
In this phase of the feature extraction process, the features in the frame are detected.
(v)
Feature Matching Matrix
In this phase of the feature extraction process, the detected features and vectors are located by matching them in relation to the key frames/vectors. The kNN algorithm is used in this process, for which the value of k is set to 2. Additionally, the uniqueness threshold is set to 0.80.
(vi)
Optical Flow
In this phase of feature extraction, the optical flow is calculated for a sparse feature set using the iterative Lucas–Kanade method. The “minEigThreshold” value is set to 0.0001 in the procedure.
(vii)
Feature Description
In this phase of the feature extraction process, all the results are returned as part of array sets of processed data to the main processing point, from which the process began.

3.3.2. Video Anomaly Detection with k-Nearest Neighbors (kNN) Algorithm

The k-nearest neighbors (kNN) model is used to classify, train, and save the data. The training process takes the training and test data and their labels as parameters. The value of the k value is set to 5 for training. Anomaly detection, classification, and scoring are performed using frame-based feature extraction values.
The Algorithm 1 k-nearest neighbors (kNN) is defined below.
Algorithm 1 k-Nearest Neighbors (kNN)
1. k * = B n   4 d + 4
2. w * n i = 1 k *   1 + 1 2 d 2 k * 2 d   i 1 + 2 / d i 1 1 + 2 / d
3. f o r   i = 1,2 , k *   a n d
4. w * n i = 0
5. f o r   i = k * + 1 ,   . . . , n

3.3.3. Video Anomaly Detection with Support Vector Machine (SVM) Algorithm

The data are classified using the support vector machine (SVM) classifier, and the model is saved. The training process takes the training and test data and their labels as parameters. Anomaly detection, classification, and scoring are performed using frame-based feature extraction values.

3.4. Pixel-Based Video Anomaly Detection (PBVAD) Method

The motion influence map (MIM) algorithm is used for pixel-based anomaly detection in video frames. The general architectural framework of the motion influence map (MIM) algorithm is described below.

3.4.1. Motion Influence Map (MIM) Algorithm

The motion influence map (MIM) algorithm basically consists of four steps, which are listed below:
(i)
Optical flow;
(ii)
Calculation of the effect of movement between blocks;
(iii)
Calculation of impact weights between both blocks;
(iv)
Calculation of motion ray (direction) weights for each block.

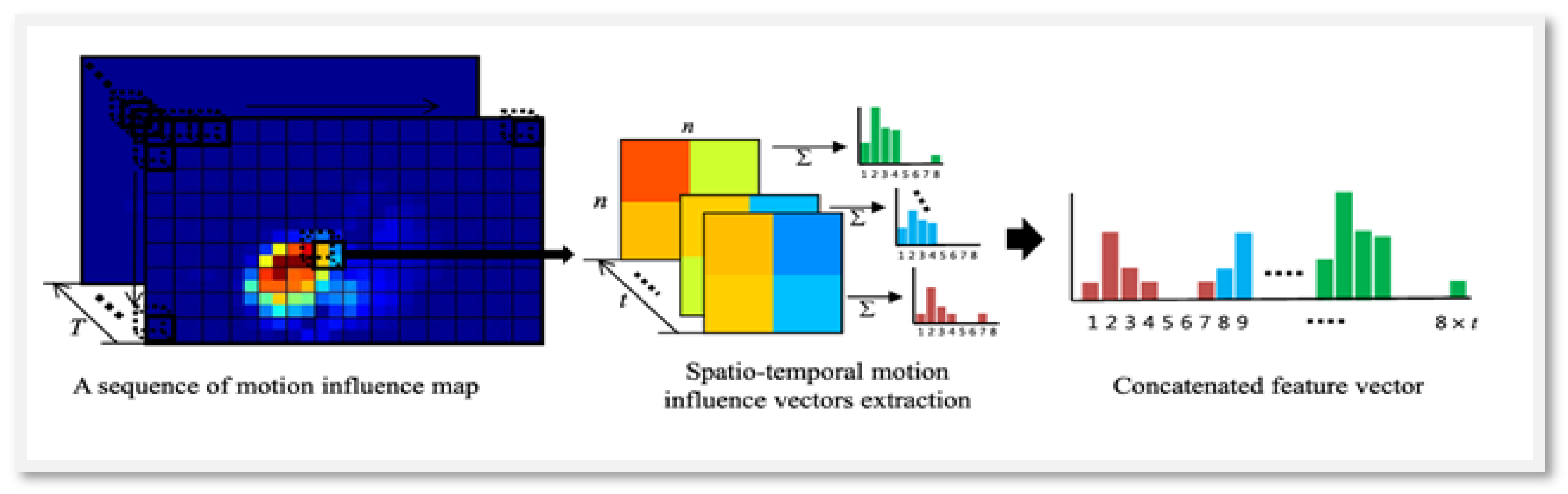

A diagram of pixel-based feature extraction using the motion influence map (MIM) algorithm is shown in Figure 3 below [86].
The Algorithm 2 motion influence map (MIM) is defined below.
Algorithm 2 Motion Influence Map (MIM)
I N P U T : M V           m o t i o n   v e c t o r   s e t ,     B S           b l o c k   s i z e   x   y ,     C B           a   c e n t r i   o f   b l o c k s
O U T P U T :   M I P         m o t i o n   i n f l u e n c e   m a p
f o r   i   B S x   d o
   f o r   j   B S y   d o
   b i = 1 j   j O F i j
     T d = b i × B S
     O F k = M V i j 1
     + T A F i = O F k + π 2
     T A F i = O F k π 2
     f o r   p   B S x   d o
     f o r   q   B S y   d o
        C a l c u l a t e   t h e   E u c l i d e a n   D i s t a n c e   E D i , j , p , q   b e t w e e n     C B i , j , p , q
       i f   E i , j , p , q < T d   t h e n
         C a l c u l a t e   t h e   A n g l e     A i j     b e t w e e n     b i   a n d   b j
         i f     + T A F i <   A i j < T A F i     t h e n
            M I P p q   (   b i ) = M I P p q   (   b i + exp E D i , j , p , q M V i j 0 )
         e n d   i f
      e n d   i f
     e n d   f o r / / ( q )
     e n d   f o r / / ( p )
e n d   f o r / / ( j )
e n d   f o r / / ( i )

3.4.2. Pixel-Based Video Anomaly Detection with Motion Influence Map (MIM) Algorithm

The motion influence map (MIM) algorithm is used for pixel-based anomaly detection in video frames. The general architectural framework of the motion influence map (MIM) algorithm is depicted in Figure 4 below.

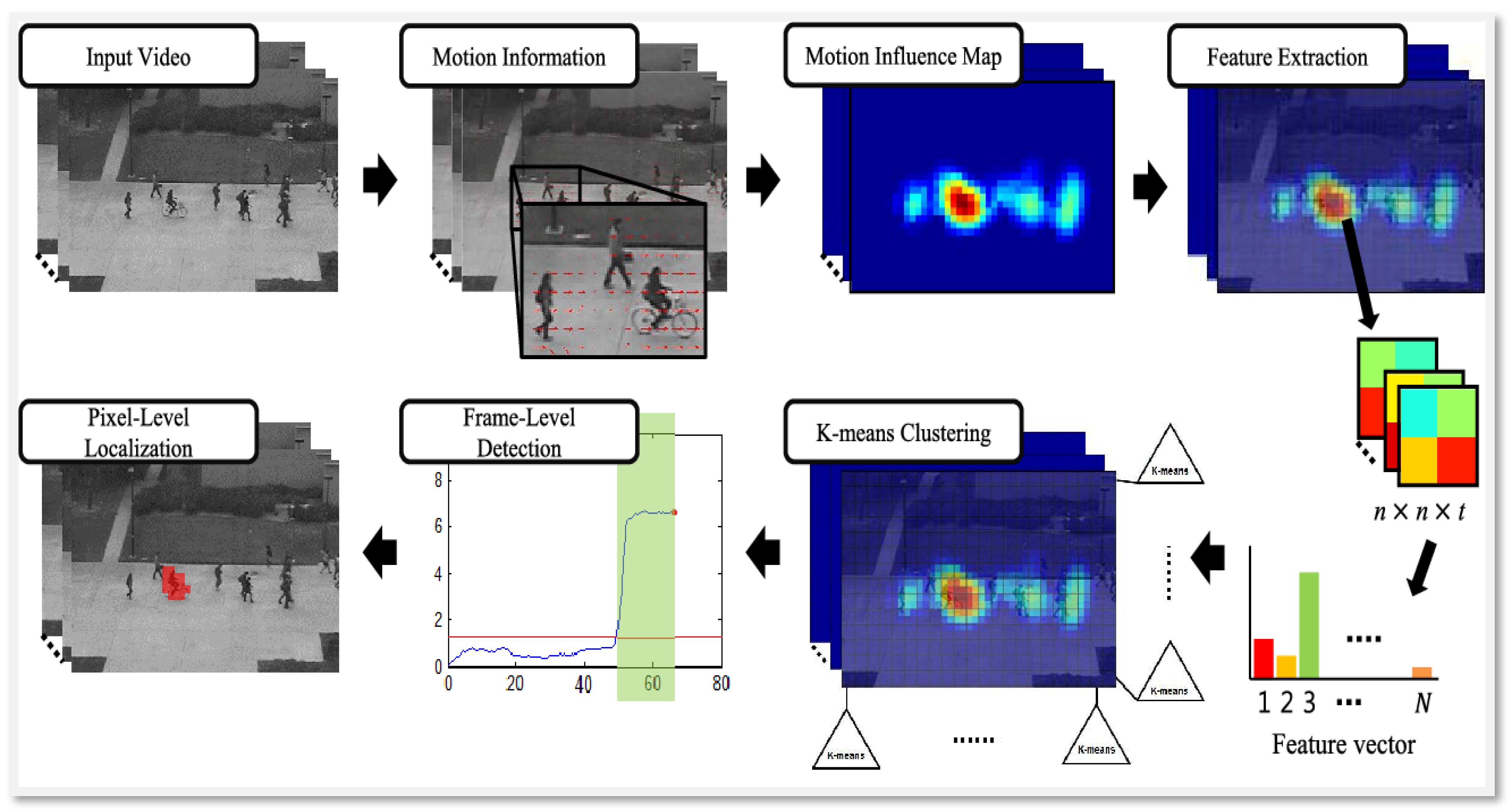

Motion information is computed at the pixel and cluster levels by inputting a sequence of video frames. The kinetic energy of each block is then calculated to structure the motion influence map. After creating a motion influence map of the frame (scene), we can identify the set containing an event suspected of having a characteristic motion vector. This event is tracked through several consecutive scenes, such that we can extract the feature bundle for each adjacent block through a megablock containing a certain number of scenes. Thus, each frame will be divided into a group of megablocks, each containing the motion influence information. Finally, by summing up the vectors of motion influence in each frame separately, we extract the temporal and spatial properties of several megablocks. In order to not classify normal events as suspicious, anomalous events are separated. To identify the centers of normal events in the image frames, the k-means algorithm is first applied. Then, the Euclidean distance law is applied to the monitored image frame and the centers of other image frames to detect the anomalous event. If the event exceeds a certain threshold, it is recognized as an anomalous event scene.

4. Experiments and Results

This section discusses the implementation and test results in detail. In addition, the data sets used for the implementation of the proposed application, evaluation criteria, test results, and detected anomalies are assessed.

4.1. General Information on Implementation and Test Environment

The test application was developed in Windows Visual Studio using the C# programming language. A C#-compatible version of the OpenCV library was used for the video analysis and computer vision processing. In addition, the Python programming language was used for some of the development and testing steps. For the test environment, we used a computer with Windows 10 64-bit operating system, i7 and 4 dual-core CPUs, an 8-core 2.8 GHz Intel processor, and 32 GB RAM.

4.2. Data Set Selection and Implementation

Most recent studies on common data sets, such as UCSD Ped1 [87] and UCSD Ped2 [8], have yielded success rates of 97.1% and above. However, as the success rates reported in studies utilizing the UCF-Crime [9] data set are generally lower than those for other data sets [10], the UCF-Crime data set was preferentially used in our research and testing process.
The UCF-Crime data set is a large-scale anomaly detection data set containing 1900 unprocessed videos captured by road, street, and indoor surveillance cameras in the real world, with a total duration of 128 h [9]. Unlike the static backgrounds in the ShanghaiTech data set, UCF-Crime features complex and diverse backgrounds. The training and test sets contain the same numbers of normal and abnormal videos. The data set covers 13 different anomaly classes through 1610 training videos with video-level labels and 290 test videos with frame-level labels.
In the implementation process, the algorithms to be used were first determined. Necessary installations and configurations were developed for the algorithms in the development environment. The data sets were then made available in the test environment, and experimental studies were carried out.
The reference data for the UCF-Crime data set used in our test study are presented (by category) in Table 1 below.

4.3. Test Results and Anomaly Detection Evaluation

As mentioned above, the UCF-Crime data set was taken as a reference in our study, and anomaly detection tests were carried out on subdata sets concerning the categories of abuse, assault, burglary, explosion, fighting, and road accidents. In our study, image clarity was the main issue directly affecting the anomaly detection success rates of the algorithms, and the anomaly detection performance was quite low when using camera data with unclear, low quality images. On the other hand, the distance and proximity of the camera to the crime scene were found to be the main factors that directly affected the performance of the anomaly detection algorithms.
The performance results on the UCF-Crime data set, regarding pixel-based video anomaly detection (PBVAD) using the MIM algorithm and frame-based video anomaly detection (FBVAD) using the kNN and SVM algorithms, are shown in Table 2 and Figure 5 below. In the table and graph, the AUC results for each algorithm are shown separately, based on the considered categories.

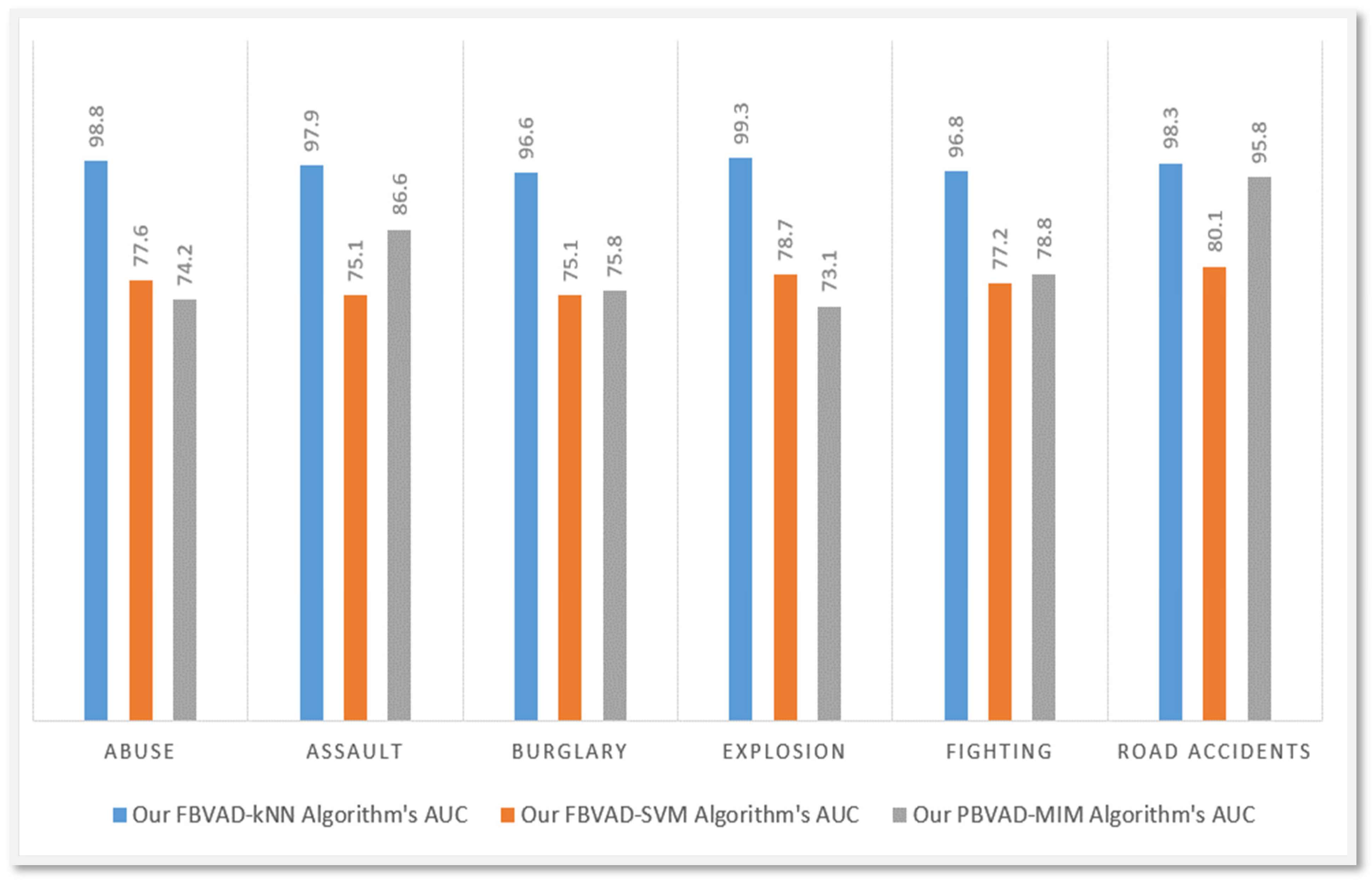

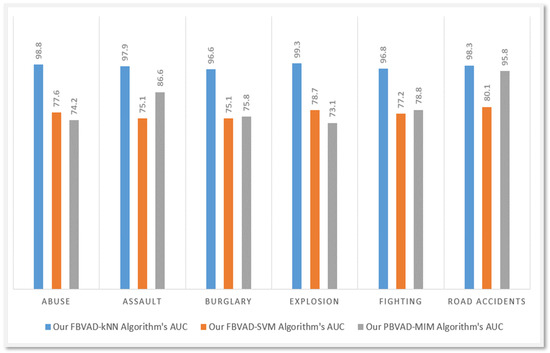

The AUC performance and score results on the UCF-Crime data set for pixel-based video anomaly detection (PBVAD) using the MIM algorithm and frame-based video anomaly detection (FBVAD) using the kNN and SVM algorithms are shown in Table 3, Table 4 and Table 5 below, which list the AUC, precision, sensitivity, and F-Score values for each of the categories in the UCF-Crime data set.
The AUC performance and score results for FBVAD using the SVM algorithm, based on the UCF-Crime data set, are shown in Table 4 below.
The AUC performance and score results for PBVAD using the MIM algorithm, based on the UCF-Crime data set, are shown in Table 5 below.
The confusion matrix reference and prediction values for pixel-based video anomaly detection (PBVAD) using the MIM algorithm and frame-based video anomaly detection (FBVAD) using the kNN and SVM algorithms, based on the UCF-Crime data set, are shown in Table 6, Table 7 and Table 8 below. The tables report the number of samples, actual positives, actual negatives, true positives, true negatives, and false negatives for each of the categories in the UCF-Crime data set.
The confusion matrix reference and prediction values for FBVAD using the SVM algorithm, based on the UCF-Crime data set, are shown in Table 7 below.
The confusion matrix reference and prediction values for PBVAD using the MIM algorithm, based on the UCF-Crime data set, are shown in Table 8 below.
The feature extraction and anomaly detection durations recorded in our tests for each algorithm are shown in Table 9.
Examples of normal and anomalous video frames based on the UCF-Crime data set derived from our tests are shown in Table 10 below.

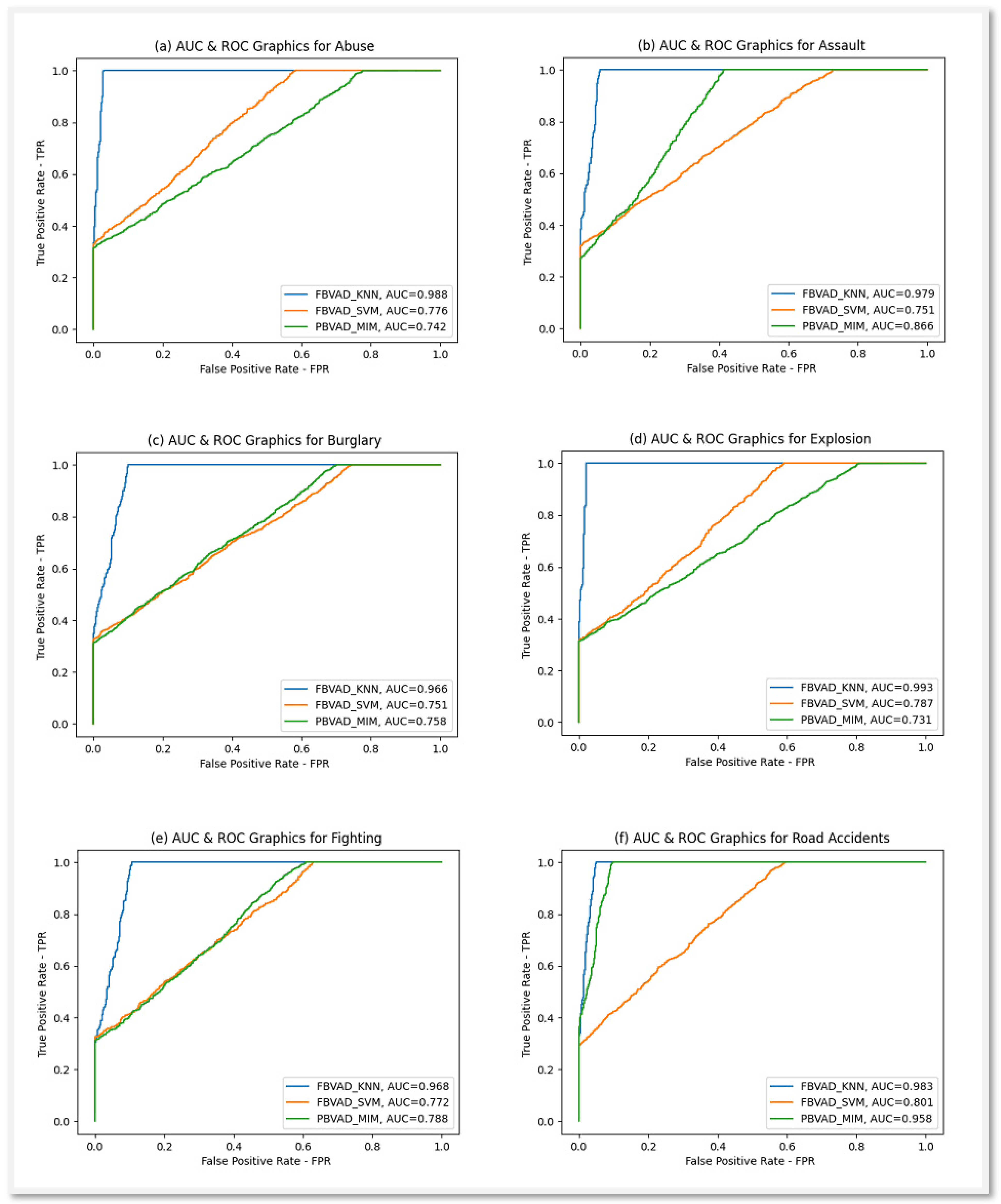

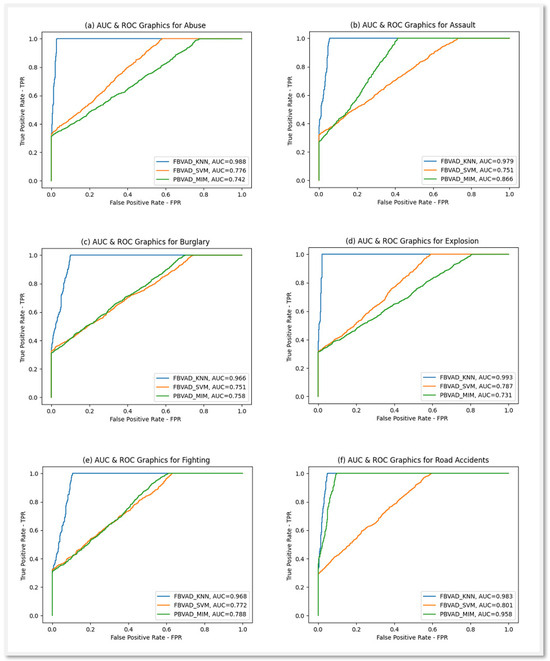

The AUC–ROC graphs obtained from our tests on the abuse, assault, burglary, explosion, fighting, and road accident subdata sets of the UCF-Crime data set are shown in Figure 6 below.

4.4. Comparison of the Results

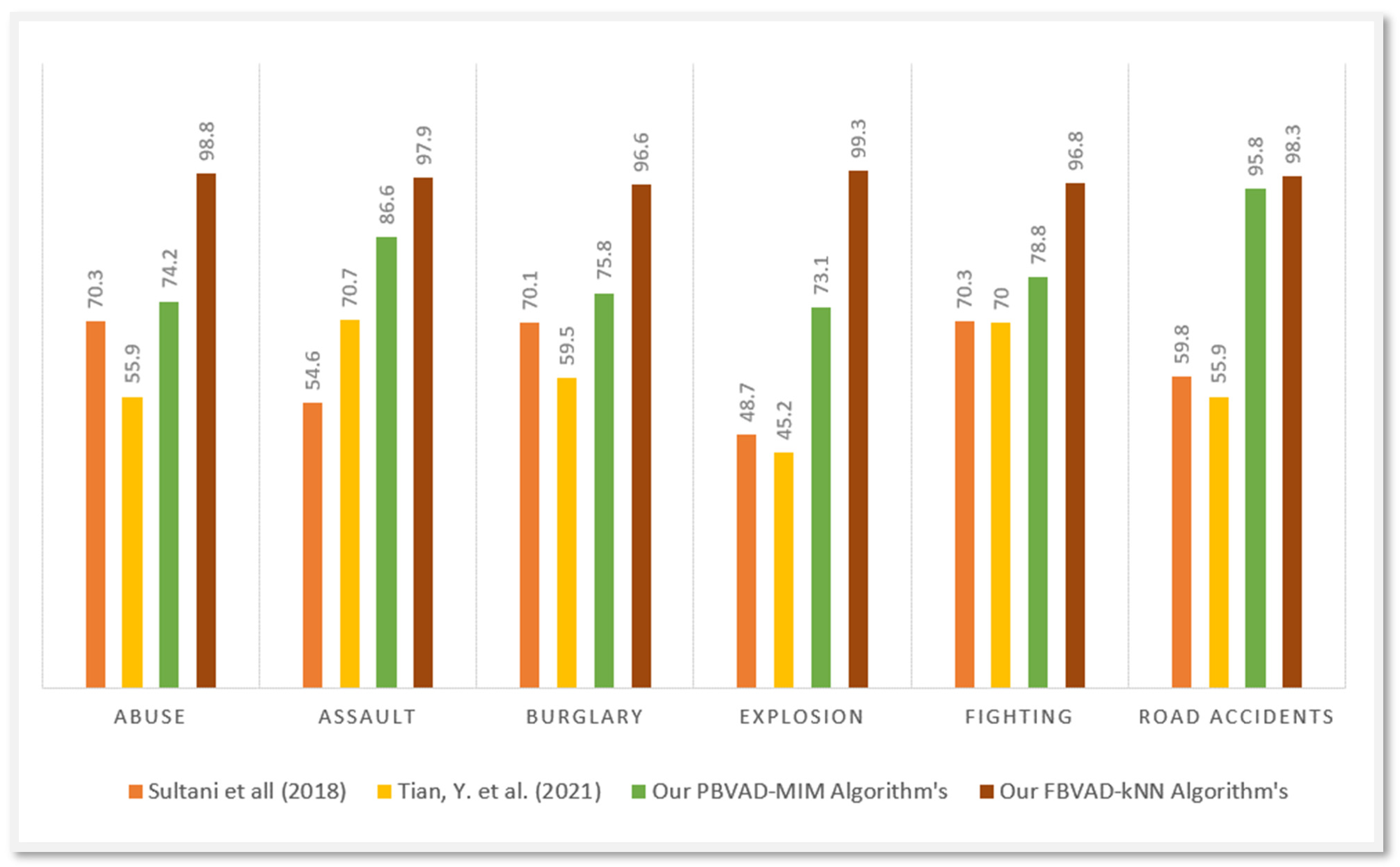

The video anomaly detection performance based on the UCF-Crime data set used in our study was also compared with that in other studies, and the results are shown in Table 11 and Figure 7. Compared to two of the previous studies [9,10], our study achieved better results in all categories.

4.5. Discussion

In this study, when using frame-based algorithms, the anomaly detection rates for the different categories were similar; however, when using the pixel-based algorithm, large differences were observed between the categories. In pixel-based anomaly detection, the performance rates were better when using video frames with large differences between the pixels (e.g., those in the assault, fighting, and road accident categories) than in video frames with small differences between the pixels (e.g., those in the abuse, burglary, and explosion categories). Through a careful examination of the result tables (Table 2 and Table 11) and graphs (Figure 5 and Figure 7), the category-based differences in the performance rates and the similarities between frame- and pixel-based algorithms can be more clearly understood.
The video anomaly detection performance based on the UCF-Crime data set used in our study was also compared with that of the previous studies [9,10]; our study achieved better results in all categories as shown in Table 11 and Figure 7. In particular, our frame-based video anomaly detection (FBVAD) results derived using the kNN algorithm were much better than the results derived using the PBVAD-MIM algorithm, as well as the results of the other studies [9,10].
On the other hand, the accuracy of our results for pixel-based video anomaly detection (PBVAD), derived using the MIM algorithm and applied to the road accident, assault and explosion categories, was higher than that in the other mentioned studies. Furthermore, although the accuracy of our results for PBVAD using the MIM algorithm were better than those of other studies for the assault, burglary, explosion, and fighting categories, the results were similar.

5. Conclusions

For this study, the data sets, feature extraction techniques, developed models, algorithms, development environments, analysis results, and accuracy rates reported in studies on similar topics were examined in detail. Subsequently, we proposed a hybrid video anomaly detection model combining multiple machine learning algorithms with pixel-based video anomaly detection (PBVAD) and frame-based video anomaly detection (FBVAD) models. For the PBVAD model, the motion influence map (MIM) algorithm based on spatio–temporal (ST) features was used, while in the FBVAD model, the k-nearest neighbors (kNN) and support vector machine (SVM) machine learning algorithms were used in a hybrid manner. On the considered UCF-Crime data set, the AUC scores derived using our FBVAD-kNN algorithm were as follows: abuse, 98.8%; assault, 97.9%; burglary, 96.6%; explosion, 99.3%; fighting, 96.8%; and road accidents, 98.3%. Furthermore, the success rates when using our PBVAD-MIM algorithm were as follows: abuse, 74.2%; assault, 86.6%; burglary, 75.8%; explosion, 73.1%; fighting, 78.8%; and road accidents, 95.8%.
It was observed that the success rates reported in previous studies based on the UCF-Crime data set using the multiple instance learning (MIL) and robust temporal feature magnitude learning (RTFM) techniques were lower than those in our study. However, our frame-based video anomaly detection (FBVAD) results derived using the kNN algorithm were much better than the results derived using the PBVAD-MIM algorithm.
Based on the results of our study, it was observed that anomalous video frames of events such as abuse, assault, burglary, fighting, explosions, and road accidents can be automatically detected in near real time. Thus, the use of the proposed model can make it easier for security guards, operators, or other concerned parties to detect issues faster and take action when using such videos. By detecting anomalous situations in near real time, possible harm can be completely prevented or minimized, providing significant benefits for human health and public safety. At the same time, this study offers many indirect contributions, such as environmental protection and the efficient use of time, facilities, and resources. Another contribution of our study is that its findings can serve as a reference for developing alarm and warning systems based on the detection of anomalous situations in real time, which can serve to increase city and public safety. In the same manner, alarm systems can be developed regarding contexts such as work accidents, burglary, and arson.
Further studies on certain topics may be useful. First, in addition to assessing the performances yielded in similar studies, research should focus on shortening the processing times and reducing energy consumption. Second, new algorithms and techniques which allow for video anomaly detection to be performed more efficiently on less powerful hardware should be developed.

Author Contributions

Conceptualization, H.T.; methodology, H.T.; validation, H.T. and M.Z.; formal analysis, H.T.; investigation, H.T.; writing—original draft preparation, H.T.; writing—review and editing, H.T., A.G.; visualization, H.T.; supervision, A.G.; project administration, H.T., A.G., M.Z. and Z.A. All authors have read and agreed to the published version of the manuscript.

Funding

The author received no financial support for the research, authorship, and/or publication of this article.

Data Availability Statement

The UCF-Crime data set is available in the public domain through the following link: https://www.crcv.ucf.edu/projects/real-world/ (accessed on 1 October 2023).

Conflicts of Interest

The author certifies that she has no conflicts of interest in the subject matter or materials discussed in this manuscript. The author certifies that the article is her original work. The article has not received prior publication and is not under consideration for publication elsewhere.

References

  1. Xu, Z.; Zeng, X.; Ji, G.; Sheng, B. Improved Anomaly Detection in Surveillance Videos with Multiple Probabilistic Models Inference. Intell. Autom. Soft Comput. 2022, 31, 1703–1717. [Google Scholar] [CrossRef]
  2. Yadav, R.K.; Kumar, R. A Survey on Video Anomaly Detection. In Proceedings of the 2022 IEEE Delhi Section Conference (DELCON), New Delhi, India, 11–13 February 2022; pp. 1–5. [Google Scholar] [CrossRef]
  3. Liu, Y.; Yu, H.; Gong, C.; Chen, Y. A real time expert system for anomaly detection of aerators based on computer vision and surveillance cameras. J. Vis. Commun. Image Represent. 2020, 68, 102767, ISSN 1047-3203. [Google Scholar] [CrossRef]
  4. Liu, Y.; Liu, J.; Zhu, X.; Wei, D.; Huang, X.; Song, L. Learning Task-Specific Representation for Video Anomaly Detection with Spatial-Temporal Attention. In Proceedings of the ICASSP 2022–2022 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Singapore, 23–27 May 2022; pp. 2190–2194. [Google Scholar]
  5. Li, W.; Mahadevan, V.; Vasconcelos, N. Anomaly detection and localization in crowded scenes. IEEE Trans. Pattern Anal. Mach. Intell. 2013, 36, 18–32. [Google Scholar]
  6. Luo, W.; Liu, W.; Lian, D.; Tang, J.; Duan, L.; Peng, X.; Gao, S. Video Anomaly Detection with Sparse Coding Inspired Deep Neural Networks. IEEE Trans. Pattern Anal. Mach. Intell. 2019, 43, 1070–1084. [Google Scholar] [CrossRef]
  7. Hou, J.; Wu, X.; Chen, J.; Luo, J.; Jia, Y. Unsupervised Deep Learning of Mid-Level Video Representation for Action Recogni-tion. Proc. AAAI Conf. Artif. Intell. 2018, 32. [Google Scholar] [CrossRef]
  8. Qiang, Y.; Fei, S.; Jiao, Y. Anomaly Detection Based on Latent Feature Training in Surveillance Scenarios. IEEE Access 2021, 9, 68108–68117. [Google Scholar] [CrossRef]
  9. Sultani, W.; Chen, C.; Shah, M. Real-World Anomaly Detection in Surveillance Videos. In Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 6479–6488. [Google Scholar]
  10. Tian, Y.; Pang, G.; Chen, Y.; Singh, R.; Verjans, J.W.; Carneiro, G. Weakly-supervised Video Anomaly Detection with Robust Temporal Feature Magnitude Learning. In Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision (ICCV), Montreal, QC, Canada, 10–17 October 2021; pp. 4955–4966. [Google Scholar] [CrossRef]
  11. Altamimi, A.B.; Ullah, H. Panic Detection in Crowded Scenes. Eng. Technol. Appl. Sci. Res. 2020, 10, 5412–5418. [Google Scholar] [CrossRef]
  12. e Souza, M.R.; Maia, H.d.A.; Vieira, M.B.; Pedrini, H. Survey on visual rhythms: A spatio-temporal representation for video sequences. Neurocomputing 2020, 402, 409–422. [Google Scholar] [CrossRef]
  13. Tokmakov, P.; Alahari, K.; Schmid, C. Learning Video Object Segmentation with Visual Memory. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 22–29 October 2017; pp. 4481–4490. [Google Scholar]
  14. Shao, L.; Cai, Z.; Liu, L.; Lu, K. Performance evaluation of deep feature learning for RGB-D image/video classification. Inf. Sci. 2017, 385–386, 266–283. [Google Scholar] [CrossRef]
  15. Mu, H.; Sun, R.; Yuan, G.; Wang, Y. Abnormal Human Behavior Detection in Videos: A Review. Inf. Technol. Control. 2021, 50, 522–545. [Google Scholar] [CrossRef]
  16. Gianchandani, U.; Tirupattur, P.; Shah, M. Weakly-Supervised Spatiotemporal Anomaly Detection; University of Central Florida Center for Research in Computer Vision REU: Orlando, FL, USA, 2019. [Google Scholar]
  17. Ullah, W.; Ullah, A.; Haq, I.U.; Muhammad, K.; Sajjad, M.; Baik, S.W. CNN features with bi-directional LSTM for real-time anomaly detection in surveillance networks. Multimedia Tools Appl. 2020, 80, 16979–16995. [Google Scholar] [CrossRef]
  18. Wu, C.; Shao, S.; Tunc, C.; Hariri, S. Video Anomaly Detection using Pre-Trained Deep Convolutional Neural Nets and Context Mining. In Proceedings of the 2020 IEEE/ACS 17th International Conference on Computer Systems and Applica-tions (AICCSA), Antalya, Turkey, 2–5 November 2020; pp. 1–8. [Google Scholar] [CrossRef]
  19. Luo, W.; Liu, W.; Gao, S. A Revisit of Sparse Coding Based Anomaly Detection in Stacked RNN Framework. In Proceedings of the 2017 IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 22–29 October 2017; pp. 341–349. [Google Scholar] [CrossRef]
  20. Xu, K.; Jiang, X.; Sun, T. Anomaly Detection Based on Stacked Sparse Coding with Intraframe Classification Strategy. IEEE Trans. Multimed. 2018, 20, 1062–1074. [Google Scholar] [CrossRef]
  21. Yu, S.; Wang, C.; Mao, Q.; Li, Y.; Wu, J. Cross-Epoch Learning for Weakly Supervised Anomaly Detection in Surveillance Videos. IEEE Signal Process. Lett. 2021, 28, 2137–2141. [Google Scholar] [CrossRef]
  22. Zhang, D.; Huang, C.; Liu, C.; Xu, Y. Weakly Supervised Video Anomaly Detection via Transformer-Enabled Temporal Re-lation Learning. IEEE Signal Process. Lett. 2022, 29, 1197–1201. [Google Scholar] [CrossRef]
  23. Park, C.; Cho, M.; Lee, M.; Lee, S. FastAno: Fast Anomaly Detection via Spatio-temporal Patch Transformation. In Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV), Waikoloa, HI, USA, 3–8 January 2022; pp. 2249–2259. [Google Scholar] [CrossRef]
  24. Morais, R.; Le, V.; Tran, T.; Saha, B.; Mansour, M.; Venkatesh, S. Learning Regularity in Skeleton Trajectories for Anomaly Detection in Videos. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Long Beach, CA, USA, 15–20 June 2019; pp. 11988–11996. [Google Scholar] [CrossRef]
  25. Nayak, R.; Pati, U.C.; Das, S.K. A comprehensive review on deep learning-based methods for video anomaly detection. Image Vis. Comput. 2020, 106, 104078. [Google Scholar] [CrossRef]
  26. Park, H.; Noh, J.; Ham, B. Learning Memory-Guided Normality for Anomaly Detection. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 13–19 June 2020; pp. 14360–14369. [Google Scholar] [CrossRef]
  27. Ramachandra, B.; Jones, M.; Vatsavai, R. Learning a distance function with a Siamese network to localize anomalies in vid-eos. In Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV), Snowmass, CO, USA, 1–5 March 2020; pp. 2598–2607. [Google Scholar]
  28. Cheng, K.W.; Chen, Y.T.; Fang, W.H. Video anomaly detection and localization using hierarchical feature representation and Gaussian process regression. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7–12 June 2015; pp. 2909–2917. [Google Scholar] [CrossRef]
  29. Erdinç, A. Anomaly Detection with Sparse Unmixing And Gaussian Mixture Modeling of Hyperspectral Images. Master’s Thesis, Bilkent University, The Graduate School of Engineering and Science, Computer Engineering, Ankara, Turkey, 2015. [Google Scholar]
  30. Fan, Y.; Wen, G.; Li, D.; Qiu, S.; Levine, M.D.; Xiao, F. Video anomaly detection and localization via Gaussian Mixture Fully Convolutional Variational Autoencoder. Comput. Vis. Image Underst. 2020, 195, 102920, ISSN 1077-3142. [Google Scholar] [CrossRef]
  31. Calderara, S.; Heinemann, U.; Prati, A.; Cucchiara, R.; Tishby, N. Detecting anomalies in people’s trajectories using spectral graph analysis. Comput. Vis. Image Underst. 2011, 115, 1099–1111, ISSN 1077-3142. [Google Scholar] [CrossRef]
  32. Markovitz, A.; Sharir, G.; Friedman, I.; Zelnik-Manor, L.; Avidan, S. Graph Embedded Pose Clustering for Anomaly Detection. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 13–19 June 2020; pp. 10536–10544. [Google Scholar] [CrossRef]
  33. Chang, Y.; Tu, Z.; Xie, W.; Yuan, J. Clustering driven deep autoencoder for video anomaly detection. In European Conference on Computer Vision; Springer: Cham, Switzerland, 2020; pp. 329–345. [Google Scholar] [CrossRef]
  34. Wang, Y.; Dai, B.; Hua, G.; Aston, J.; Wipf, D. Recurrent Variational Autoencoders for Learning Nonlinear Generative Mod-els in the Presence of Outliers. IEEE J. Sel. Top. Signal Process. 2018, 12, 1615–1627. [Google Scholar] [CrossRef]
  35. Zerrouki, Y.; Harrou, F.; Zerrouki, N.; Dairi, A.; Sun, Y. Desertification Detection Using an Improved Variational Autoen-coder-Based Approach Through ETM-Landsat Satellite Data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2020, 14, 202–213. [Google Scholar] [CrossRef]
  36. Gong, D.; Liu, L.; Le, V.; Saha, B.; Mansour, M.R.; Venkatesh, S.; Hengel, A.V.D. Memorizing Normality to Detect Anomaly: Memory-Augmented Deep Autoencoder for Unsupervised Anomaly Detection. In Proceedings of the 2019 IEEE/CVF Inter-national Conference on Computer Vision (ICCV), Seoul, Republic of Korea, 27 October–2 November 2019; pp. 1705–1714. [Google Scholar]
  37. Wang, X.; Che, Z.; Jiang, B.; Xiao, N.; Yang, K.; Tang, J.; Ye, J.; Wang, J.; Qi, Q. Robust Unsupervised Video Anomaly Detec-tion by Multipath Frame Prediction. IEEE Trans. Neural Networks Learn. Syst. 2021, 33, 2301–2312. [Google Scholar] [CrossRef]
  38. Feng, J.C.; Hong, F.T.; Zheng, W.S. MIST: Multiple Instance Self-Training Framework for Video Anomaly Detection. In Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Nashville, TN, USA, 20–25 June 2021; pp. 14004–14013. [Google Scholar] [CrossRef]
  39. Georgescu, M.I.; Barbalau, A.; Ionescu, R.T.; Khan, F.S.; Popescu, M.; Shah, M. Anomaly detection in video via self-supervised and multi-task learning. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Nashville, TN, USA, 20–25 June 2021; pp. 12742–12752. [Google Scholar] [CrossRef]
  40. Huang, C.; Wen, J.; Xu, Y.; Jiang, Q.; Yang, J.; Wang, Y.; Zhang, D. Self-Supervised Attentive Generative Adversarial Net-works for Video Anomaly Detection. IEEE Trans. Neural Networks Learn. Syst. 2022, 34, 9389–9403. [Google Scholar] [CrossRef] [PubMed]
  41. Zaheer, M.Z.; Mahmood, A.; Shin, H.; Lee, S.-I. A Self-Reasoning Framework for Anomaly Detection Using Video-Level Labels. IEEE Signal Process. Lett. 2020, 27, 1705–1709. [Google Scholar] [CrossRef]
  42. Muhr, D.; Affenzeller, M.; Küng, J. A Probabilistic Transformation of Distance-Based Outliers. Mach. Learn. Knowl. Extr. 2023, 5, 782–802. [Google Scholar] [CrossRef]
  43. Adam, A.; Rivlin, E.; Shimshoni, I.; Reinitz, D. Robust Real-Time Unusual Event Detection using Multiple Fixed-Location Monitors. IEEE Trans. Pattern Anal. Mach. Intell. 2008, 30, 555–560. [Google Scholar] [CrossRef] [PubMed]
  44. Hao, Y.; Xu, Z.-J.; Liu, Y.; Wang, J.; Fan, J.-L. Effective Crowd Anomaly Detection Through Spatio-temporal Texture Analy-sis. Int. J. Autom. Comput. 2018, 16, 27–39. [Google Scholar] [CrossRef]
  45. Le, V.-T.; Kim, Y.-G. Attention-based residual autoencoder for video anomaly detection. Appl. Intell. 2022, 53, 3240–3254. [Google Scholar] [CrossRef]
  46. Ravanbakhsh, M.; Nabi, M.; Mousavi, H.; Sangineto, E.; Sebe, N. Plug-and-Play CNN for Crowd Motion Analysis: An Ap-plication in Abnormal Event Detection. In Proceedings of the 2018 IEEE Winter Conference on Applications of Computer Vision (WACV), Lake Tahoe, NV, USA, 12–15 March 2018; pp. 1689–1698. [Google Scholar] [CrossRef]
  47. Sabokrou, M.; Fayyaz, M.; Fathy, M.; Moayed, Z.; Klette, R. Deep-anomaly: Fully convolutional neural network for fast anomaly detection in crowded scenes. Comput. Vis. Image Underst. 2018, 172, 88–97, ISSN 1077-3142. [Google Scholar] [CrossRef]
  48. Smeureanu, S.; Ionescu, R.T. Real-Time Deep Learning Method for Abandoned Luggage Detection in Video. In Proceedings of the 2018 26th European Signal Processing Conference (EUSIPCO), Rome, Italy, 3–7 September 2018; pp. 1775–1779. [Google Scholar] [CrossRef]
  49. Xu, D.; Song, R.; Wu, X.; Li, N.; Feng, W.; Qian, H. Video anomaly detection based on a hierarchical activity discovery with-in spatio-temporal contexts. Neurocomputing 2014, 143, 144–152. [Google Scholar] [CrossRef]
  50. Mehran, R.; Oyama, A.; Shah, M. Abnormal Crowd Behavior Detection using Social Force Model. In Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition, Miami, FL, USA, 20–25 June 2009; pp. 935–942. [Google Scholar] [CrossRef]
  51. Lu, C.; Shi, J.; Jia, J. Abnormal Event Detection at 150 FPS in MATLAB. In Proceedings of the 2013 IEEE International Con-ference on Computer Vision, Sydney, NSW, Australia, 1–8 December 2013; pp. 2720–2727. [Google Scholar]
  52. Liu, W.; Luo, W.; Lian, D.; Gao, S. Future Frame Prediction for Anomaly Detection-A New Baseline. In Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–23 June 2018; pp. 6536–6545. [Google Scholar]
  53. Wu, P.; Liu, J.; Shi, Y.; Sun, Y.; Shao, F.; Wu, Z.; Yang, Z. Not only look, but also listen: Learning multimodal violence detec-tion under weak supervision. In Proceedings of the Computer Vision–ECCV 2020: 16th European Conference, Glasgow, UK, 23–28 August 2020; Springer International Publishing: Cham, Switzerland; pp. 322–339, Part XXX 16. [Google Scholar]
  54. Xia, X.; Gao, Y. Video Abnormal Event Detection Based on One-Class Neural Network. Comput. Intell. Neurosci. 2021, 2021, 1955116. [Google Scholar] [CrossRef]
  55. Amin, S.U.; Ullah, M.; Sajjad, M.; Cheikh, F.A.; Hijji, M.; Hijji, A.; Muhammad, K. EADN: An Efficient Deep Learning Model for Anomaly Detection in Videos. Mathematics 2022, 10, 1555. [Google Scholar] [CrossRef]
  56. Öngün, C. Anomaly Detection for Video Surveillance in Crowded Environments. Master’s Thesis, Middle East Technical University, Electrical and Electronics Engineering, Ankara, Turkey, 2014. [Google Scholar]
  57. Bertini, M.; Del Bimbo, A.; Seidenari, L. Multi-scale and real-time non-parametric approach for anomaly detection and lo-calization. Comput. Vis. Image Underst. 2011, 116, 320–329, ISSN 1077-3142. [Google Scholar] [CrossRef]
  58. Jiang, F.; Yuan, J.; Tsaftaris, S.A.; Katsaggelos, A.K. Anomalous video event detection using spatiotemporal context. Comput. Vis. Image Underst. 2011, 115, 323–333, ISSN 1077-3142. [Google Scholar] [CrossRef]
  59. Li, N.; Wu, X.; Xu, D.; Guo, H.; Feng, W. Spatio-temporal context analysis within video volumes for anomalous-event detec-tion and localization. Neurocomputing 2015, 155, 309–319. [Google Scholar] [CrossRef]
  60. Wang, X.; Huang, Z.; Liao, B.; Huang, L.; Gong, Y.; Huang, C. Real-time and accurate object detection in compressed video by long short-term feature aggregation. Comput. Vis. Image Underst. 2021, 206, 103188, ISSN 1077-3142. [Google Scholar] [CrossRef]
  61. Georgescu, M.I.; Ionescu, R.; Khan, F.S.; Popescu, M.; Shah, M. A Background-Agnostic Framework with Adversarial Train-ing for Abnormal Event Detection in Video. IEEE Trans. Pattern Anal. Mach. Intell. 2022, 44, 4505–4523. [Google Scholar] [CrossRef]
  62. Ravanbakhsh, M.; Nabi, M.; Sangineto, E.; Marcenaro, L.; Regazzoni, C.S.; Sebe, N. Abnormal event detection in videos us-ing generative adversarial nets. In Proceedings of the 2017 IEEE International Conference on Image Processing (ICIP), Beijing, China, 17–20 September 2017; pp. 1577–1581. [Google Scholar] [CrossRef]
  63. Zaheer, M.Z.; Mahmood, A.; Astrid, M.; Lee, S.I. Claws: Clustering assisted weakly supervised learning with normalcy sup-pression for anomalous event detection. In Proceedings of the European Conference on Computer Vision, online, 23–28 August 2020; Springer: Cham, Switzerland, 2020; pp. 358–376. [Google Scholar]
  64. Sikdar, A.; Chowdhury, A.S. An adaptive training-less framework for anomaly detection in crowd scenes. Neurocomputing 2020, 415, 317–331. [Google Scholar] [CrossRef]
  65. Tudor Ionescu, R.; Smeureanu, S.; Alexe, B.; Popescu, M. Unmasking the abnormal events in video. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2895–2903. [Google Scholar] [CrossRef]
  66. Xu, D.; Yan, Y.; Ricci, E.; Sebe, N. Detecting anomalous events in videos by learning deep representations of appearance and motion. Comput. Vis. Image Underst. 2017, 156, 117–127. [Google Scholar] [CrossRef]
  67. Sarikan, S.S.; Ozbayoglu, A.M. Anomaly Detection in Vehicle Traffic with Image Processing and Machine Learning. Procedia Comput. Sci. 2018, 140, 64–69. [Google Scholar] [CrossRef]
  68. Khan, M.U.K.; Park, H.-S.; Kyung, C.-M. Rejecting Motion Outliers for Efficient Crowd Anomaly Detection. IEEE Trans. Inf. Forensics Secur. 2018, 14, 541–556. [Google Scholar] [CrossRef]
  69. Kiranyaz, S.; Zabihi, M.; Rad, A.B.; Ince, T.; Hamila, R.; Gabbouj, M. Real-time phonocardiogram anomaly detection by adaptive 1D Convolutional Neural Networks. Neurocomputing 2020, 411, 291–301. [Google Scholar] [CrossRef]
  70. Ajlouni, N.; Özyavaş, A.; Takaoğlu, M.; Takaoğlu, F.; Ajlouni, F. Medical image diagnosis based on adaptive Hybrid Quan-tum CNN. BMC Med. Imaging 2023, 23, 126. [Google Scholar] [CrossRef] [PubMed]
  71. Duong, H.-T.; Le, V.-T.; Hoang, V.T. Deep Learning-Based Anomaly Detection in Video Surveillance: A Survey. Sensors 2023, 23, 5024. [Google Scholar] [CrossRef] [PubMed]
  72. Mehta, R.; Sharifzadeh, S.; Palade, V.; Tan, B.; Daneshkhah, A.; Karayaneva, Y. Deep Learning Techniques for Radar-Based Continuous Human Activity Recognition. Mach. Learn. Knowl. Extr. 2023, 5, 1493–1518. [Google Scholar] [CrossRef]
  73. Ionescu, R.T.; Khan, F.S.; Georgescu, M.I.; Shao, L. Object-Centric Auto-Encoders and Dummy Anomalies for Abnormal Event Detection in Video. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Long Beach, CA, USA, 15–20 June 2019; pp. 7834–7843. [Google Scholar] [CrossRef]
  74. Perazzi, F.; Khoreva, A.; Benenson, R.; Schiele, B.; Sorkine-Hornung, A. Learning Video Object Segmentation from Static Images. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017; pp. 2663–2672. [Google Scholar]
  75. Yang, C.L.; Wu, T.H.; Lai, S.H. Moving-object-aware anomaly detection in surveillance videos. In Proceedings of the 2021 17th IEEE International Conference on Advanced Video and Signal Based Surveillance (AVSS), Washington, DC, USA, 16–19 November 2021; pp. 1–8. [Google Scholar] [CrossRef]
  76. Liu, T.; Zhang, C.; Wang, L. Integrated Multiscale Appearance Features and Motion Information Prediction Network for Anomaly Detection. Comput. Intell. Neurosci. 2021, 2021, 6789956. [Google Scholar] [CrossRef]
  77. Nguyen, T.N.; Meunier, J. Anomaly Detection in Video Sequence with Appearance-Motion Correspondence. In Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision (ICCV), Seoul, Republic of Korea, 27 October–2 November 2019; pp. 1273–1283. [Google Scholar] [CrossRef]
  78. Zhang, X.; Yang, S.; Zhang, J.; Zhang, W. Video anomaly detection and localization using motion-field shape description and homogeneity testing. Pattern Recognit. 2020, 105, 107394, ISSN 0031-3203. [Google Scholar] [CrossRef]
  79. Zhu, Y.; Newsam, S. Motion-aware feature for improved video anomaly detection. arXiv 2019, arXiv:1907.10211. [Google Scholar]
  80. Rehman, A.U.; Tariq, S.; Farooq, H.; Jaleel, A.; Wasif, S.M. Anomaly Detection with Particle Filtering for Online Video Sur-veillance. IEEE Access 2021, 9, 19457–19468. [Google Scholar] [CrossRef]
  81. Leyva, R.; Sanchez, V.; Li, C.-T. Video Anomaly Detection with Compact Feature Sets for Online Performance. IEEE Trans. Image Process. 2017, 26, 3463–3478. [Google Scholar] [CrossRef]
  82. Thakare, K.V.; Sharma, N.; Dogra, D.P.; Choi, H.; Kim, I.-J. A multi-stream deep neural network with late fuzzy fusion for real-world anomaly detection. Expert Syst. Appl. 2022, 201, 117030. [Google Scholar] [CrossRef]
  83. Wang, B.; Yang, C.; Chen, Y. Detection Anomaly in Video Based on Deep Support Vector Data Description. Comput. Intell. Neurosci. 2022, 2022, 5362093. [Google Scholar] [CrossRef]
  84. Wang, Z.; Zhang, Y.; Wang, G.; Xie, P. Main-Auxiliary Aggregation Strategy for Video Anomaly Detection. IEEE Signal Process. Lett. 2021, 28, 1794–1798. [Google Scholar] [CrossRef]
  85. Santos, F.P.; Ribeiro, L.S.; Ponti, M.A. Generalization of feature embeddings transferred from different video anomaly detection domains. J. Vis. Commun. Image Represent. 2019, 60, 407–416. [Google Scholar] [CrossRef]
  86. Ganokratanaa, T.; Aramvith, S.; Sebe, N. Unsupervised Anomaly Detection and Localization Based on Deep Spati-otemporal Translation Network. IEEE Access 2020, 8, 50312–50329. [Google Scholar] [CrossRef]
  87. Lee, D.-G.; Suk, H.-I.; Park, S.-K.; Lee, S.-W. Motion Influence Map for Unusual Human Activity Detection and Localization in Crowded Scenes. IEEE Trans. Circuits Syst. Video Technol. 2015, 25, 1612–1623. [Google Scholar] [CrossRef]
Figure 1. Architectural diagram of proposed anomaly detection model using hybrid machine learning algorithms.
Figure 1. Architectural diagram of proposed anomaly detection model using hybrid machine learning algorithms.
Computation 12 00019 g001
Figure 2. Frame-based video feature extraction phases.
Figure 2. Frame-based video feature extraction phases.
Computation 12 00019 g002
Figure 3. Motion influence map pixel-based feature extraction diagram [27].
Figure 3. Motion influence map pixel-based feature extraction diagram [27].
Computation 12 00019 g003
Figure 4. Anomaly detection diagram using the motion influence map (MIM) [86].
Figure 4. Anomaly detection diagram using the motion influence map (MIM) [86].
Computation 12 00019 g004
Figure 5. Frame-based (FBVAD) and pixel-based (PBVAD) video anomaly detection AUC rates on the UCF-Crime data set.
Figure 5. Frame-based (FBVAD) and pixel-based (PBVAD) video anomaly detection AUC rates on the UCF-Crime data set.
Computation 12 00019 g005
Figure 6. AUC–ROC graphs for anomaly detection in the UCF-Crime data set. The AUC–ROC graphs were derived from separate studies on the subdata sets for the following categories: (a) abuse; (b) assault; (c) burglary; (d) explosion; (e) fighting; and (f) road accident.
Figure 6. AUC–ROC graphs for anomaly detection in the UCF-Crime data set. The AUC–ROC graphs were derived from separate studies on the subdata sets for the following categories: (a) abuse; (b) assault; (c) burglary; (d) explosion; (e) fighting; and (f) road accident.
Computation 12 00019 g006
Figure 7. Comparison of the accuracy results obtained in our video anomaly detection study with those of others on the UCF-Crime data set [9,10].
Figure 7. Comparison of the accuracy results obtained in our video anomaly detection study with those of others on the UCF-Crime data set [9,10].
Computation 12 00019 g007
Table 1. Reference information for UCF-Crime data set used in our study.
Table 1. Reference information for UCF-Crime data set used in our study.
Data Set FileFrameVideo Length
AbuseAbuse002_x264.mp4 86500:28 s
AssaultAssault002_x264.mp4252301:24 s
BurglaryBurglary012_x264.mp4 169800:56 s
ExplosionExplosion045_x264.mp4 75700:25 s
FightingFighting006_x264.mp4 94400:31 s
Road accidentsRoad Accidents002_x264.mp4 34700:11 s
Table 2. Video anomaly detection AUC rate results for the tested algorithms.
Table 2. Video anomaly detection AUC rate results for the tested algorithms.
Data SetFBVAD-kNN
AUC (%)
FBVAD-SVM
AUC (%)
PBVAD-MIM
AUC (%)
Abuse98.8077.6074.20
Assault97.9075.1386.60
Burglary96.6075.1175.80
Explosion99.3078.7073.10
Fighting96.8077.2078.80
Road accidents98.3080.1095.80
Table 3. Video anomaly detection AUC rate and results for FBVAD-kNN algorithm.
Table 3. Video anomaly detection AUC rate and results for FBVAD-kNN algorithm.
Data SetAUCPrecisionSensitivityF-Score
Abuse98.800.9980.97620.974
Assault97.900.9960.95690.955
Burglary96.600.9930.93250.928
Explosion99.300.9990.98750.984
Fighting96.800.9940.93720.925
Road accidents98.300.9980.95650.955
Table 4. Video anomaly detection AUC rate and results for FBVAD-SVM algorithm.
Table 4. Video anomaly detection AUC rate and results for FBVAD-SVM algorithm.
Data SetAUCPrecisionSensitivityF Score
Abuse77.600.9980.77570.874
Assault75.130.9920.75150.857
Burglary75.110.9920.75200.858
Explosion78.700.9950.78730.881
Fighting77.200.9940.77220.871
Road accidents80.100.9960.80120.890
Table 5. Video anomaly detection AUC rate and results for PBVAD-MIM algorithm.
Table 5. Video anomaly detection AUC rate and results for PBVAD-MIM algorithm.
Data SetAUCPrecisionSensitivityF Score
Abuse74.200.4840.74190.652
Assault86.600.7310.86570.845
Burglary75.800.5160.75810.681
Explosion73.100.4620.73080.632
Fighting78.800.5760.78790.731
Road accidents95.800.9170.95830.957
Table 6. Video anomaly detection confusion matrix reference for FBVAD-kNN algorithm.
Table 6. Video anomaly detection confusion matrix reference for FBVAD-kNN algorithm.
Data SetSamplesActual
Positives
Actual
Negatives
True
Positives
True
Negatives
False
Negatives
Abuse86519467118467110
Assault25236271896573189654
Burglary16984221276365127657
Explosion7571615961565965
Fighting94421572918572930
Road accidents34769278632786
Table 7. Video anomaly detection confusion matrix reference for FBVAD-SVM algorithm.
Table 7. Video anomaly detection confusion matrix reference for FBVAD-SVM algorithm.
Data SetSamplesActual
Positives
Actual
Negatives
True
Positives
False
Negatives
Abuse8658650671194
Assault2523252301896627
Burglary1698169801276422
Explosion7577570596161
Fighting9449440729215
Road accidents347347027869
Table 8. Video anomaly detection confusion matrix reference for PBVAD-MIM algorithm.
Table 8. Video anomaly detection confusion matrix reference for PBVAD-MIM algorithm.
Data SetSamplesActual
Positives
Actual
Negatives
True
Positives
True
Negatives
False
Negatives
Abuse865318341583416
Assault252367245649245618
Burglary169831166716166715
Explosion757267311273114
Fighting944339111991114
Road accidents34712335113351
Table 9. Feature extraction and anomaly detection durations for tested algorithms.
Table 9. Feature extraction and anomaly detection durations for tested algorithms.
Data SetFrame
Count
Video
Length
(min:s)
FBVAD
-kNN
(min:s)
FBVAD
-SVM
(min:s)
PBVAD
-MIM
(min:s)
Abuse86500:2800:4000:4000:40
Assault252301:2402:1202:1202:12
Burglary169800:5601:0501:0500:43
Explosion75700:2500:3600:3600:29
Fighting94400:3100:4400:4400:43
Road accidents34700:1100:1300:1300:17
Table 10. Anomalous and normal examples from video frames used in the test study.
Table 10. Anomalous and normal examples from video frames used in the test study.
Data Set Normality FrameAnomaly Frame-IAnomaly Frame-II
Sample-1: Burglary018Normality
Frame No.: 16–130
Anomaly/Burglary
Frame No.: 232
Anomaly/Burglary
Frame No.: 510
Computation 12 00019 i001Computation 12 00019 i002Computation 12 00019 i003
Sample-2: Abuse002Normality
Frame No.: 1–150
Anomaly/Abuse
Frame No.: 420
Anomaly/Abuse
Frame No.: 630
Computation 12 00019 i004Computation 12 00019 i005Computation 12 00019 i006
Sample-3: Assault025Normality
Frame No.: 1–220
Anomaly/Assault
Frame No.: 450
Anomaly/Assault
Frame No.: 1770
Computation 12 00019 i007Computation 12 00019 i008Computation 12 00019 i009
Sample-4: Road Accidents002Normality
Frame No.: 1–220
Anomaly/Road Accident
Frame No.: 270
Anomaly/Road Accident
Frame No.: 330
Computation 12 00019 i010Computation 12 00019 i011Computation 12 00019 i012
Table 11. Comparative accuracy rates for video anomaly detection on UCF-Crime data set.
Table 11. Comparative accuracy rates for video anomaly detection on UCF-Crime data set.
Data SetSultani [9]Tian [10]PBVAD-
MIM (Ours)
FBVAD-
kNN (Ours)
Abuse70.355.974.298.80
Assault54.670.786.697.90
Burglary70.159.575.896.60
Explosion48.745.273.199.30
Fighting70.37078.896.80
Road accidents59.855.995.898.30
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tutar, H.; Güneş, A.; Zontul, M.; Aslan, Z. A Hybrid Approach to Improve the Video Anomaly Detection Performance of Pixel- and Frame-Based Techniques Using Machine Learning Algorithms. Computation 2024, 12, 19. https://doi.org/10.3390/computation12020019

AMA Style

Tutar H, Güneş A, Zontul M, Aslan Z. A Hybrid Approach to Improve the Video Anomaly Detection Performance of Pixel- and Frame-Based Techniques Using Machine Learning Algorithms. Computation. 2024; 12(2):19. https://doi.org/10.3390/computation12020019

Chicago/Turabian Style

Tutar, Hayati, Ali Güneş, Metin Zontul, and Zafer Aslan. 2024. "A Hybrid Approach to Improve the Video Anomaly Detection Performance of Pixel- and Frame-Based Techniques Using Machine Learning Algorithms" Computation 12, no. 2: 19. https://doi.org/10.3390/computation12020019

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
