TiO₂ Nanoparticles Dispersion in Block-Copolymer Aqueous Solutions: Nanoarchitectonics for Self-Assembly and Aggregation

Abstract

Achieving homogenous dispersion of nanoparticles inside a polymeric matrix is a great challenge for numerous applications. In the present study, we aim at understanding the role of different factors on the dispersion properties of TiO₂ in pluronic F-127 mixtures. The mixtures were prepared with different pH and guest/host ratios and investigated by UV-Vis spectroscopy, dynamic light scattering, infrared spectroscopy and electrical conductivity. Depending on the preparation conditions, different amounts of TiO₂ were loaded within the copolymer as quantitatively determined by UV-Vis spectroscopy. The different content of nanoparticles has direct implications on the gelation and micellization of pluronic analyzed by dynamic light scattering. The information derived on the self-assembly behavior was interpreted in relation to the infrared and conductivity measurements results. Together, these results shed light on the most favorable conditions for improving the nanoparticle dispersion inside the copolymer matrix and suggest a possible strategy to design functional nanoparticle-polymer systems.

1. Introduction

Nanoparticles exhibit unique properties that make them suitable for multifunctional applications. For most of them, effectively dispersing nanoparticles in solution is often necessary but not always easily achievable, and it requires a correct processing strategy. In some cases, the incorporation of nanoparticles within a polymer host became a winning strategy for homogeneous dispersions whose properties are a unique combination of the guest and the host. Tailoring these properties is a great challenge in designing materials with advanced performances.

Among transition metal oxide-based nanoparticles, titanium dioxide nanoparticles are the most extensively used in many different fields as gas sensors [1,2,3,4,5], solar cells [6], photocatalysts [7,8,9,10], and additives in food and cosmetics [11,12,13]. Moreover, thanks to their high biocompatibility and low toxicity, they have been extensively used in nanomedicine and nanobiotechnology for drug delivery, tissue engineering and others [14,15,16,17,18,19].

Whatever their field of application, the dispersion and stability of TiO₂ nanoparticles in aqueous or in a more complex medium play a key role in improving the efficiency and performance of the systems. It is widely reported that the dispersion of nanoparticles in aqueous systems generally modifies the physicochemical properties, e.g., agglomeration state and surface charge variation [20]. Therefore characterizing the state of titania nanoparticles is of great significance, as they greatly affect many functionalities such as the photocatalytic activity [21,22], the toxicity [23], the particle electronic structure, surface defect density and the surface sorption sites [24].

Thus far, many studies have been performed to investigate the stability of TiO₂ nanofluids with different concentrations and under various pH and ionic strength conditions [20,25,26,27,28,29,30]. The final objective of such research works is to define the best conditions for optimal performance of TiO₂-based composites, whatever the field of application. In particular, there is a strong applicative interest in realizing well-ordered porous titania thin films. They have several advantages, such as a huge surface area and higher stability that significantly affect the efficiency of the electronic properties. Among various possible methods, the employment of structure-directing agents, including phosphates, ionic and nonionic surfactants, amines, and block copolymers [31,32,33,34,35,36,37,38,39,40,41,42], was very promising.

From these studies, it emerged that the structural and morphological properties of surfactant-based TiO₂ systems greatly depend on the method of synthesis, the type and concentration of surfactant used, and the thermal treatment temperature other than the type and pH of copolymer solvent. Regardless of the procedure of synthesis used, as a final step, a high-temperature thermal treatment was performed, which enabled efficient removal of the copolymer template. Only after removal, the physical-chemical properties of the TiO₂ films were investigated.

Unlike these studies, in the present work, our object of interest is the copolymer-TiO₂ water dispersion as a whole. TiO₂ nanoparticles were dispersed in pluronic F127/water suspensions at different copolymer concentrations and pH.

Pluronic F127 is a nonionic triblock copolymer consisting of hydrophilic poly (ethylene oxide) and hydrophobic poly (propylene oxide) blocks (PEO–PPO–PEO) with a PEO/PPO ratio of 2:1. Above a critical micelle concentration, the block copolymers assemble into spherical micelles thanks to the difference in hydrophobicity between PEO and PPO blocks. Reversible gelation can occur only above some concentration and temperature [43,44,45,46,47,48,49,50,51].

The choice of pluronic F127 stems from its thermosensitivity and capability to solubilize and stabilize drugs inside the micelle core. This system is thus particularly interesting given the possible applications in many fields. In particular, it is one of the most widely used triblock copolymers in pharmaceutical formulations because of the good water solubility through the high content of EO, the low toxicity in the body and the ability to encapsulate any hydrophobic agents [52,53,54,55,56,57,58,59]. However, it is well known that the addition of co-solvents or solutes to pluronic water solutions can influence its properties, inducing phase changes [60,61,62,63,64,65,66,67,68].

In the present study, we are interested in analyzing how the dispersion or aggregation of titania nanoparticles inside pluronic F127 can influence the structural arrangements and, consequently, the systems’ dynamics. As it is well known, when nanoparticles are dispersed in solution, they undergo phenomena of agglomeration or aggregation, the difference being in the strength of interaction. Agglomerates are weakly bound collections of nanoparticles, whereas aggregates are tightly bound collections difficult to break up by mechanical forces. The classical Derjaguin–Landau–Verwey–Overbeek (DLVO) theory predicts the overall force between particles by combining Van der Waals attractive forces and repulsive forces arising from the electrical double layer (EDL) around the particles [69,70]. Other non-DLVO forces can influence nanoparticle dispersion, such as hydration, hydrophobic, steric, electronic, and electrostatic forces [69,70]. Among these, steric effects should be included in the case of nonionic polymer coatings; these are generally repulsive interactions, but if the polymer chains can form bridges between particles, that can cause aggregation. For all these reasons, it is clear that the dispersion properties are strongly dependent on parameters such as pH and ionic strength as they directly affect the zeta potential of the solution and the double layer thickness.

Starting from these considerations, we have chosen to prepare the dispersions at pH values far from the isoelectric point (IEP) of the TiO₂ suspension, approximately 6.2 [29]. In such a way, the presence of particle surface charge should enhance the electrostatic repulsion between metallic nanoparticles disfavoring, or suppressing, agglomeration. For the same reason, we decided to prepare the samples at a low ionic strength since, according to previous studies, the high ionic strength of the solution compresses the electrical double layer [20,29]. In preparing the pluronic-nanoparticles dispersions, another important factor to be considered is the copolymer concentration since, depending on temperature, it affects the phase behavior of the copolymer [43,44,45,46,47,48,49,50]. In the present case, the prepared base-pluronic solutions have weight fractions of 14% and 20 wt%; in the temperature range between 20 °C and 30 °C, the lowest concentration is always in a sol state, whereas the highest one move from a sol state to a gel-like state [50,51].

All these aspects were taken into consideration while we conducted our research with the final aim to define the best experimental conditions for optimal dispersion of TiO₂ in pluronic F-127 mixtures. The samples, prepared under different experimental conditions, were investigated using UV-Vis spectroscopy, attenuated Fourier transform infrared spectroscopy (FTIR-ATR), dynamic light scattering (DLS) and electrical conductivity. The obtained results give valuable information on the dispersion state of nanoparticles; this knowledge is potentially useful for developing and optimizing copolymer-based nanosystems.

2. Materials and Methods

2.1. Materials

TiO₂ nanoparticles dry powder anatase phase (average size 4–8 nm) were purchased from PlasmaChem GmbH (Berlin, Germany). The powder is free of organic stabilizer. Pluronic (F127, 12.600 Da) was obtained from Sigma-Aldrich (Dorset, UK). Hydrogen chloride (HCl), sodium hydroxide (NaOH), sodium chloride (NaCl) and deionized water were purchased from Sigma-Aldrich. All the chemicals are of analytical grade.

2.2. Sample Preparation

TiO₂ dry powder was suspended in 10 ml of solution at a 10.0 mg/mL concentration. The solutions had pre-adjusted pH values of 4 and 10 and an ionic strength equal to 0.001 M. The dispersions were magnetically stirred for 24 h and then sonicated for 15 min using a bath sonicator. After that, the suspensions were centrifuged for 30 min and 5 ml of each supernatant was sampled and analyzed by DLS. The size distribution calculated by using a CONTIN algorithm evidenced the presence of a bimodal distribution centered at 36 and 280 nm for the dispersion at pH 10 and 50 and 320 nm for the suspension at pH 4, respectively (data not shown). To remove the large agglomerates, the supernatants were then filtered and analyzed by UV-Vis spectroscopy to determine the effective TiO₂ concentration. Absorption measurements were repeated in time for 24 h without observing any significant variation, thereby excluding any change in the dispersion state of TiO₂ in this time range.

Stock solutions of Pluronic F-127 at weight fractions of 14 wt% and 20 wt% were prepared, and aliquots of the TiO₂ dispersions at the two pH values were then added. Attention was paid to adding the same TiO₂ nanoparticle concentration in the final suspension (0.1 wt% corresponding to 1 mg/mL).

Table 1. Samples labels with the corresponding initial composition and pH values. In the last column, the amount of TiO₂ loaded into the samples as determined by UV-Vis measurements is reported.

Sample	Pluronic wt%	TiO2 wt%	pH	TiO2 (Mean Value) mg/mL
PAT-pH4	14	0.1	4	0.83 (0.083 wt%)
PAT-pH10	14	0.1	10	0.69 (0.069 wt%)
PBT-pH4	20	0.1	4	0.60 (0.060 wt%)
PBT-pH10	20	0.1	10	0.40 (0.040 wt%)

reports the sample labels as a function of the concentration of pluronic, TiO₂ and pH conditions. The dispersions were gently stirred at 4 °C for 24 h and left overnight in the refrigerator until a clear solution was obtained. No sol-gel transition was observed for these systems up to 40 °C, as evidenced by the tube inversion method. The dispersions were stirred again and centrifuged; then, the supernatants were removed and transferred to fresh cuvettes for further analysis. No pH change from the stock TiO₂ solutions was observed in the final dispersions. For comparison, two plain pluronic solutions with 14 wt% (PA) and 20 wt% (PB) concentrations were prepared.

2.3. UV-Vis Spectroscopy

The UV-Vis measurements were made using a small-volume (100 μL) absorbance cuvette (Hellma 105.201-QS) and a UV-1700 Shimadzu spectrophotometer in the 280–700 nm range. All measurements were carried out at room temperature and replicated three times.

To quantitatively determine the concentration of TiO₂ loaded in our samples, a calibration plot was first made by recording the UV-Vis spectra for five TiO₂ water solutions of known concentration under the same pH and IS conditions. The intensity of the absorption peak at 330 nm was used to quantify TiO₂. The linearity of the calibration curve was evaluated by linear regression analysis evidencing a high value of fitting degree (R² > 0.999) (see the inset of Figure 1).

2.4. DLS Measurements

A laboratory-built goniometer equipped with single-mode fiber optics, two APD detectors, and a multi-τ digital time correlator (LS Instrument AG) ALV single-photon detector was used to perform DLS measurements. A He–Ne laser operating at 632.8 nm in linearly polarized single-frequency mode was used as an excitation source. The instrument is equipped with a thermostated recirculating bath which allows us to maintain the temperature with an accuracy of 0.1 °C. All measurements were performed at an angle of 90° to the incident beam at a temperature of 20 °C and 30 °C. Each sample was loaded in a square low-volume cuvette and thermalized at each temperature for 30 min before measuring. The repeatability of all measurements was verified with more than five measurements. From the DLS experiment, we obtained the normalized intensity auto-correlation function (ICF), g² (q,t); details on the theoretical background of this technique are reported elsewhere [68,71,72,73]. Decay times are estimated from the ICFs according to a fit model reported in the results and discussion section. The CONTIN algorithm was also applied to obtain the size distribution for the TiO₂ solutions.

2.5. FTIR-ATR Spectroscopy

FTIR-ATR spectra covering the range 400–4000 cm⁻¹ were recorded on a Bruker Vertex 80V FTIR spectrometer equipped with a Bruker Platinum ATR accessory with a single reflection diamond crystal. A background scan was recorded prior to the measurement and subtracted from the sample spectra. All spectra are the average of three independent measurements with 128 scans each, at a resolution of 2 cm⁻¹. The ATR correction to each spectrum was applied using the OPUS software (Bruker optics). The spectra were normalized to the same area and compared to each other.

2.6. Electrical Conductivity

The electrical conductivity values were obtained from electrical resistance measurements performed with an HP 4284a LCR meter. The instrument has been calibrated using measurements on liquids of known conductivity, and it has been ascertained that consistent measurements could be obtained in the 5 kHz–200 kHz frequency range. Measurements were performed by transferring, using a pipette, a small volume of the samples in ABS containers with a holding volume of 4.5 × 4.5 × 3 mm³ to limit the waste of material. The electrodes immersed in the samples were two small gold connectors 3.18 mm long and with a diameter of 0.5 mm, at a distance of 2.54 mm from each other. The conductivity values were obtained by comparing the resistance curves obtained for the samples with the calibration ones.

3. Results and Discussion

3.1. UV-Vis Spectroscopy

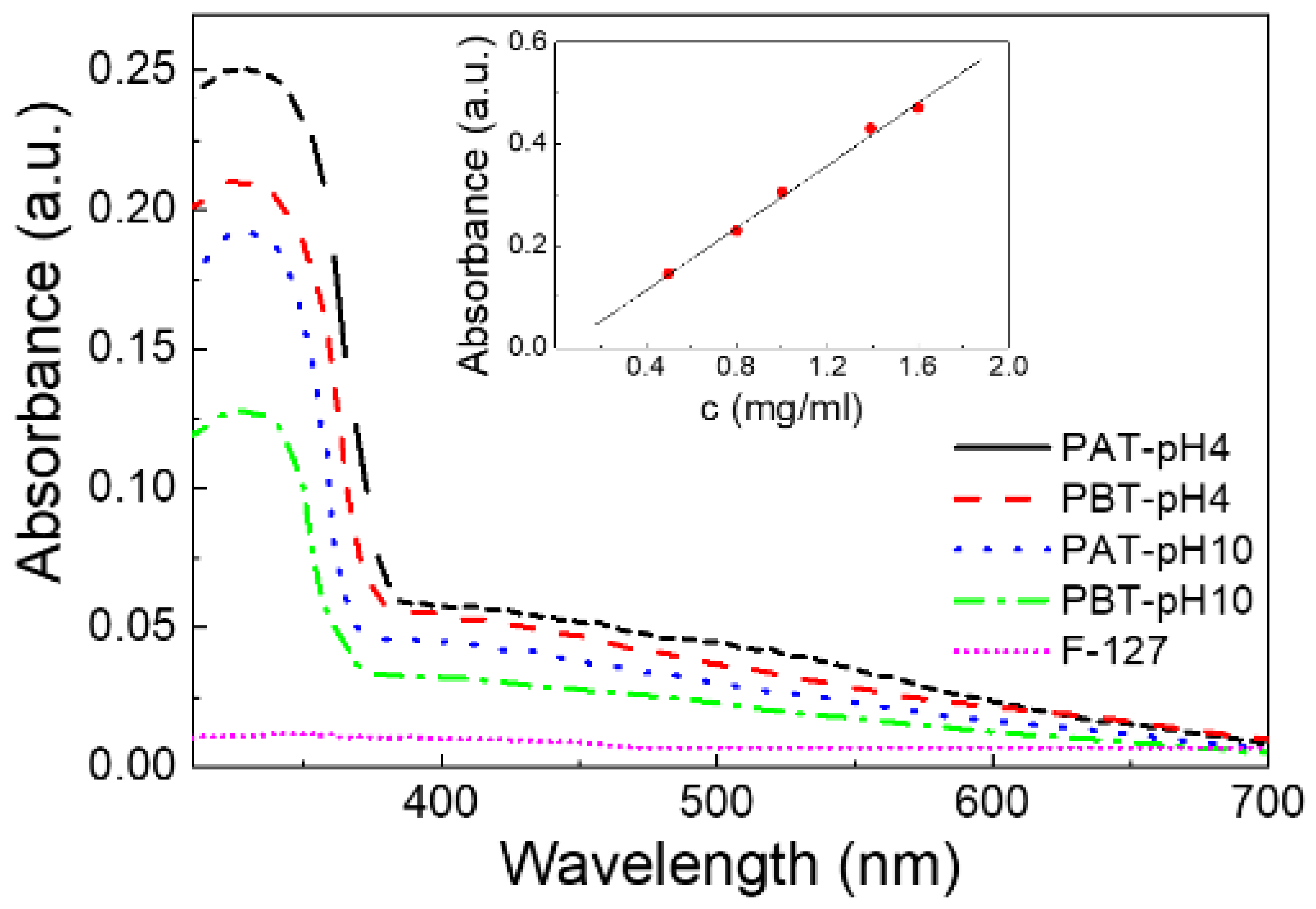

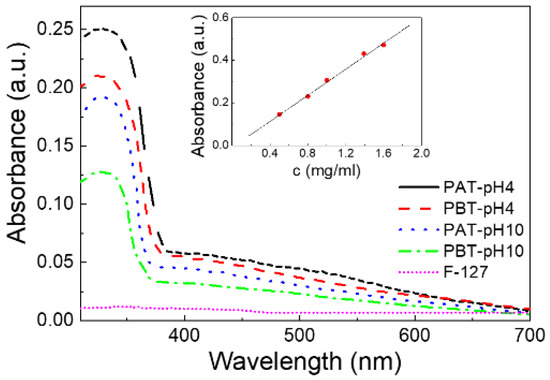

The UV-Vis spectra were first analyzed for the quantitative assessment of TiO₂ loaded into the pluronic-based dispersions. Figure 1 shows the results of the absorbance measurements for all the pluronic/TiO₂ dispersions investigated and, as a reference, for a pluronic water solution (PA sample). For this latter sample, the absorbance spectrum does not reveal any significant absorption in the entire wavelength region investigated: the peak at λ = 330 nm, observed for all the pluronic/TiO₂ samples, can be attributed exclusively to titanium dioxide. The observed changes in the intensity of this absorption peak suggest the presence of a higher loading of TiO₂ nanoparticles in the suspensions under acidic conditions rather than in basic and, for the same pH, for the dispersions with the lowest pluronic concentration.

Based on the calibration plot, see the inset of Figure 1, the effective concentration of TiO₂ in the pluronic-based dispersions was estimated; the obtained results are reported in the last column of Table 1.

3.2. FTIR-ATR Measurements

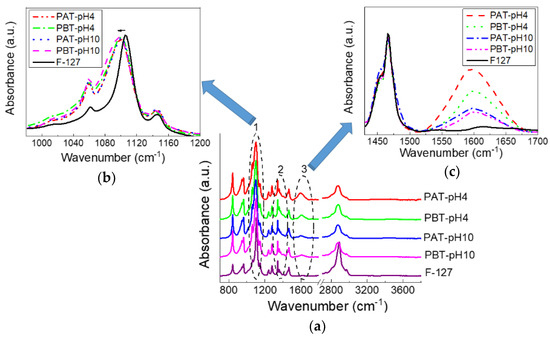

The effect of a different loading of TiO₂ inside the investigated samples was also examined by FTIR-ATR spectroscopy. Measurements were performed on samples purged under dry nitrogen and left for equilibration for half an hour; nevertheless, as we will see, a certain amount of water is, in any case, retained within the samples. In Figure 2, the FTIR-ATR spectra of the TiO₂-pluronic samples are shown and compared with the spectrum of pluronic F127. At a first glance, all the spectra appear very similar suggesting that the overall conformation of the copolymer does not change much. This is quite reasonable considering the very low quantity of TiO₂ loaded into the samples. However, a more detailed inspection of the spectra revealed some changes that involve three specific bands (highlighted by numbered circles in the figure): the C–O–C stretching band (1050–1150 cm⁻¹), labeled as 1, the CH₃ symmetric deformation band (1370–1385 cm⁻¹), labeled as 2 (both characteristic for pluronic) and the band around 1600 cm⁻¹ (labeled as 3) characteristic for the bending mode of water Ti-OH. A magnified view for bands 1 and 3 are also shown in Figure 2. For all the samples, the C–O–C stretching mode observed for the anhydrous pluronic at 1106 cm⁻¹ widens and shifts to a lower frequency, thereby suggesting the formation of more hydrogen bonds involving TiO₂ and the oxygen atoms of the PEO chains. No significant change in peak frequency or bandwidth can be noticed among the pluronic-TiO₂ samples for the same peak. On the contrary, clear changes can be seen for the bending mode at 1600 cm⁻¹, whose intensity variation indicates the presence of different content of molecular water adsorbed on the TiO₂ surface. This amount decreases following the TiO₂ concentration as determined by UV-Vis absorption. It is also interesting to observe that, as noted in previous works [74,75], the intensity of the bending mode is significantly much higher than that of the OH stretching. This observation was attributed to an increased dipole moment due to interactions with the surface [74,75].

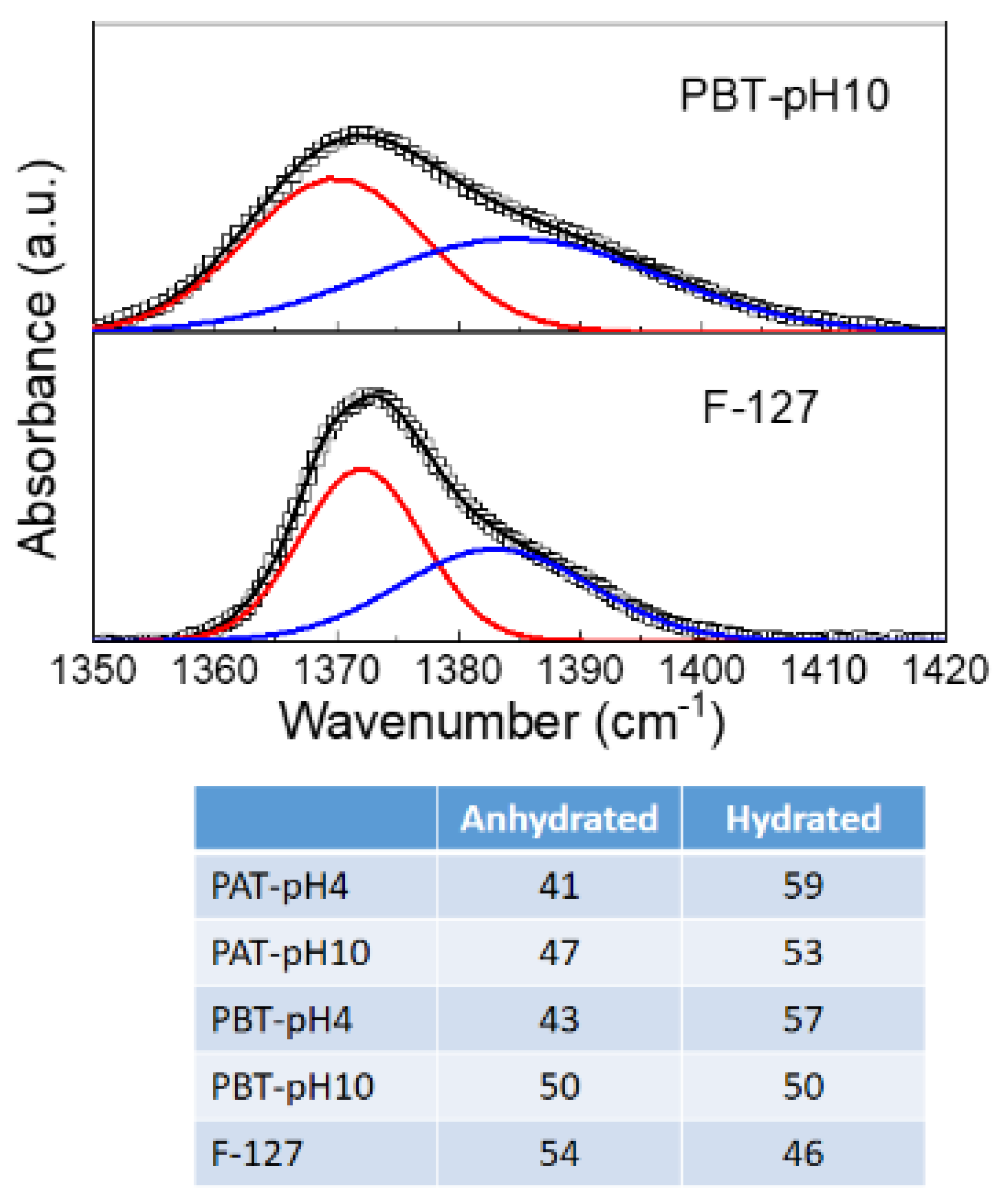

The CH₃ symmetric band deserves a more detailed description. According to previous studies [67,76,77], this mode was analyzed using a Gaussian deconvolution method to separate the two components associated with anhydrous and hydrated methyl groups. For example, in Figure 2, the FTIR-ATR spectra for the dried PBT-pH10 and Pluronic F127 in the range from 1350 to 1420 cm⁻¹ are shown with the corresponding best curving-fitting results. For clarity, all the other Gaussian components used to fit the spectral profiles in this region were subtracted. As one can see, in the presence of TiO_2, the symmetric deformation band broadens, indicating a higher structural disorder as just deduced from the C–O–C stretching mode. Besides this difference in the bandwidth, strong similarities are found among all the samples in the peak frequency for the two components that result centered at 1371 cm⁻¹ (anhydrated component) and 1383 cm⁻¹ (hydrated component). The integrated peak areas of these two vibrational modes were calculated from the fit parameters by normalizing the total area to 1. The percentage areas are reported in the table at the bottom of Figure 3. As reported in literature, the proportion of the anhydrous component increases with the dehydration of the micellar core. Thus it is strictly related to pluronic aggregation and micelle formation. As one can see, this hydrophobic effect weakens as the TiO₂ content in the sample increases; in particular, for the PBT-pH10 sample, the micellization process is less disturbed by the presence of the nanoparticles; in the following, we will see that DLS evidence support this result.

3.3. DLS Measurements

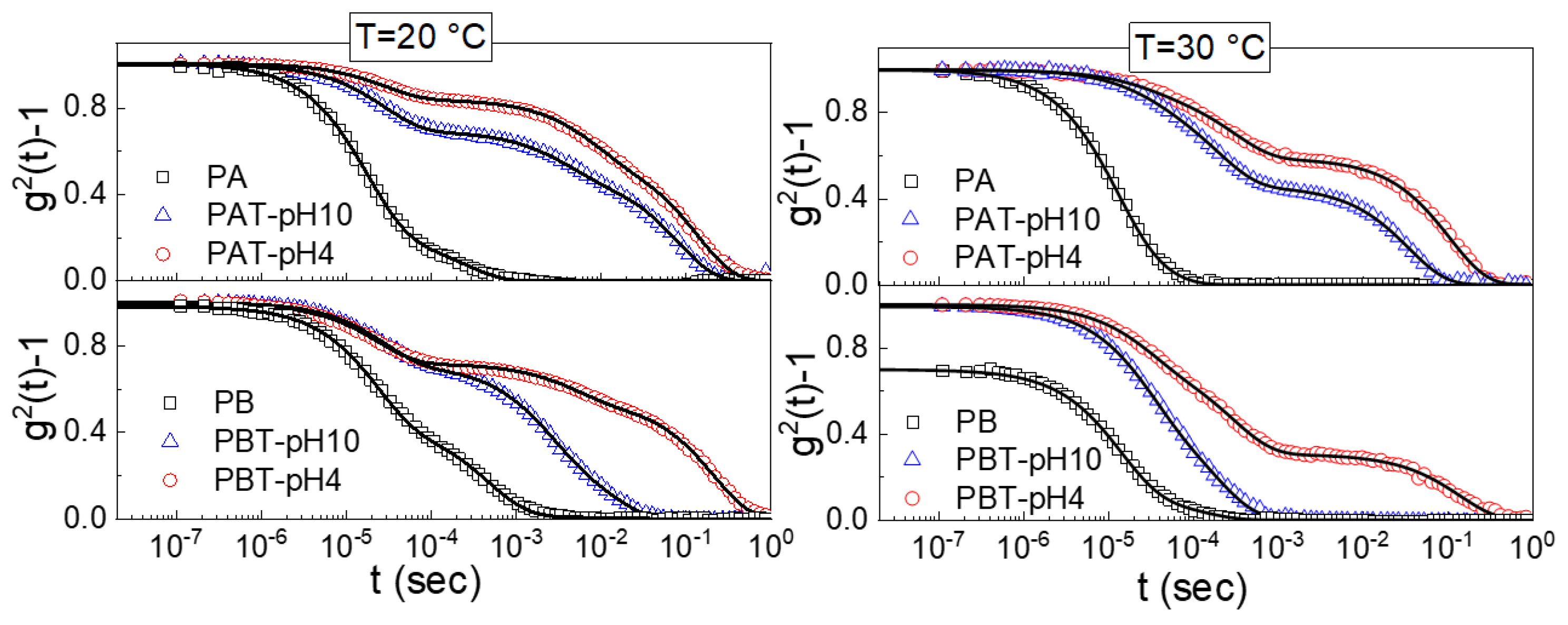

Dynamic light scattering was performed to determine the different states of aggregation of titania-copolymer water dispersions. We analyzed the normalized autocorrelation functions (ICF) for all the prepared pluronic-TiO₂ samples shown in Figure 4 for two different temperatures, 20 °C and 30 °C. The ICFs for the plane pluronic samples PA and PB are also shown for comparison.

Two main findings are immediately evident from this figure; the first is the presence of a drastic drop in the g² (0) for the PB pluronic solution at T = 30 °C. This decrease is a clear signature of a reduced mobility due to a transition from a sol to a gel state [50,51,68]. The absence of a similar drop for the other TiO₂-pluronic suspensions suggests that the presence of the nanoparticles disturbs the gel formation, in agreement with what was observed by the inversion tube method.

The other characteristic that emerges is the quite complex profile of the normalized ICFs that can be accounted for by including multiple exponential-like terms. More precisely, as observed in previous studies [68], the ICFs for the pluronic aqueous solutions are described as a linear combination of an exponential function with a time scale τ₁ and a stretched exponential function with a time scale τ₂. For all the TiO₂-pluronic samples, an additional long time stretched exponential with a time scale τ₃ was required for a satisfactory fit. In the most general case, we used the following fitting function

$$g^{\left(2\right)}\left(q,t\right)-1={\sigma }_1^2\left\{A_{1}exp\left[-\left(t/{\tau }_1\right)\right]+A_{2}exp{\left[-\left(t/{\tau }_2\right)\right]}^{{\beta }_2}+A_{3}exp{\left[-\left(t/{\tau }_3\right)\right]}^{{\beta }_3}\right\}$$

(1)

where σ²₁ is the initial amplitude of the ICFs, A measures the strength of the mode and β is the stretching exponent. As reported elsewhere [43,68], from the relaxation times.

A correlation length ξ of the network can be estimated through the Stokes-Einstein relation, $\xi =kT/6\pi \eta q^2\tau$, where k is the Boltzmann constant, η the solvent viscosity and q² the scattering vector.

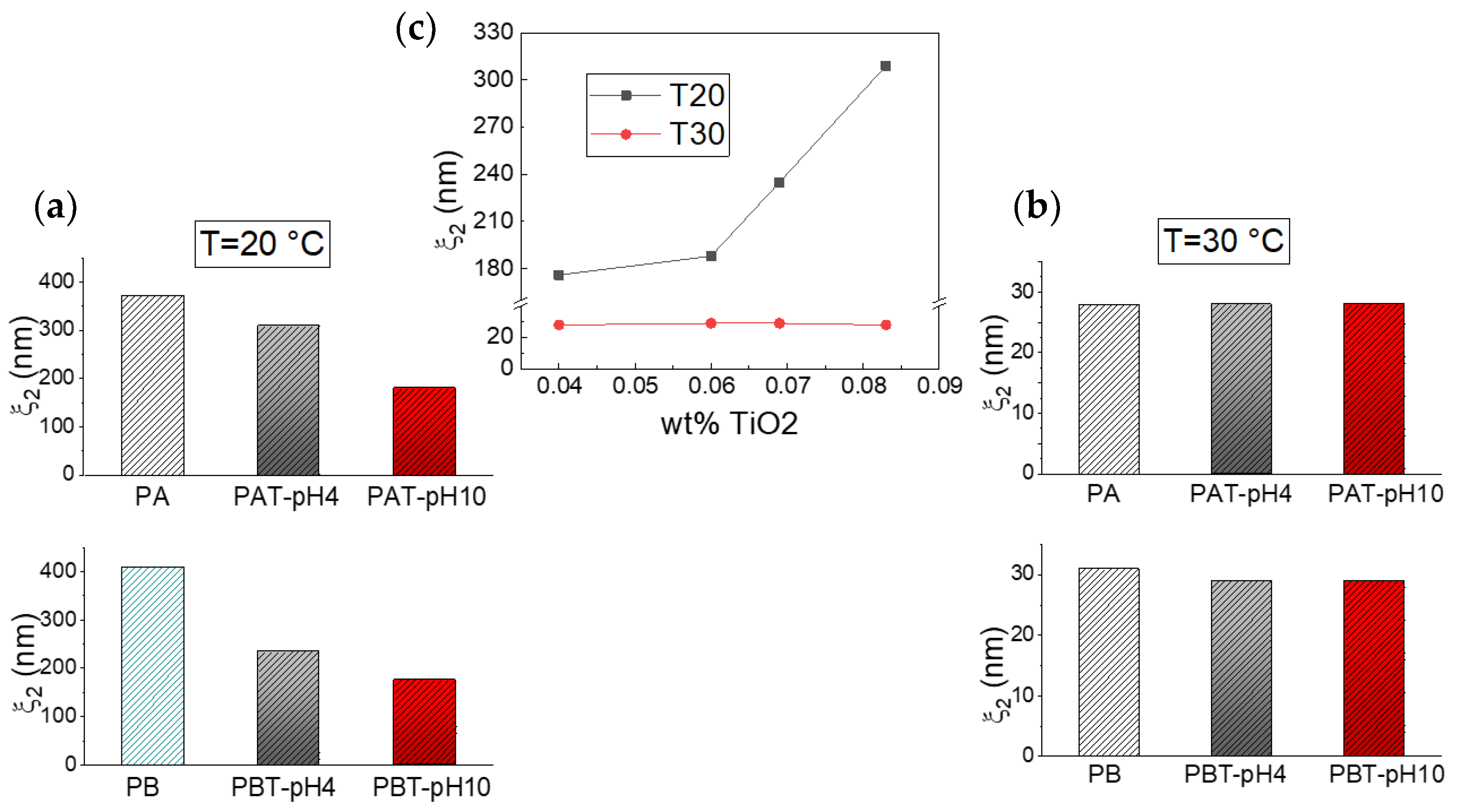

According to the fit results, it was found that regardless of the pluronic concentration, temperature or pH, a fast relaxation occurs for all the samples on the time scale of 2.5·10⁻⁵–3.0·10⁻⁵ s. This fast decay seems to be a common characteristic of other pluronic-based nanoparticle systems. It has been ascribed to freely diffusing pluronic unimers with a radius of nearly 2 nm [43,44,45,46,47,48,49,50,51,68]. What profoundly differentiates the pluronic water systems from the pluronic-TiO₂ ones is the population of unimers which is drastically reduced in the presence of TiO₂.

Following the fast decay is a slower relaxation that we can observe on a time scale of ~2·10⁻³–5·10⁻³ s at a temperature of 20 °C and ~2·10⁻⁴–4·10⁻⁴ s at 30 °C. For pluronic solutions, this decay originates from the process of micellization, which implies, at low temperatures, an initial formation of large aggregates that, at higher temperatures, change into free micelles [43,68]. In the same time domain, a relaxation was also observed for all the pluronic-TiO₂ samples at both temperatures, even if the presence of the TiO₂ seems to determine a general slowing down for this dynamics. To better assess the influence of the nanoparticles on the assembly geometry, we analyzed the behavior of the correlation lengths ξ₂, reported as histograms in Figure 5 (plots a and b) for two different temperatures.

As cited above, the obtained data reproduce our previous findings for the pluronic solutions. Independently of pluronic concentration, this result confirms the formation of large aggregates at low T that decrease in size upon increasing temperature up to the typical size of micelles, 20–30 nm [68]. The same temperature trend in the size evolution can also be recognized for the pluronic-TiO₂ samples but with some differences. It is evident that the presence of TiO₂ hinders the formation of the large aggregates observed at the lowest temperature. More precisely, it is possible to state that this effect is more pronounced for those samples with the lowest TiO₂ concentration. This is evident from Figure 5, plot c, where the same ξ₂ data are reported as a function of the “real” TiO₂ concentration, as determined by absorption spectroscopy. This suggests that the lower the TiO₂ content, the better the metallic nanoparticles’ capability of being dispersed inside the network of PEO chains, hindering the formation of the large polymeric clusters.

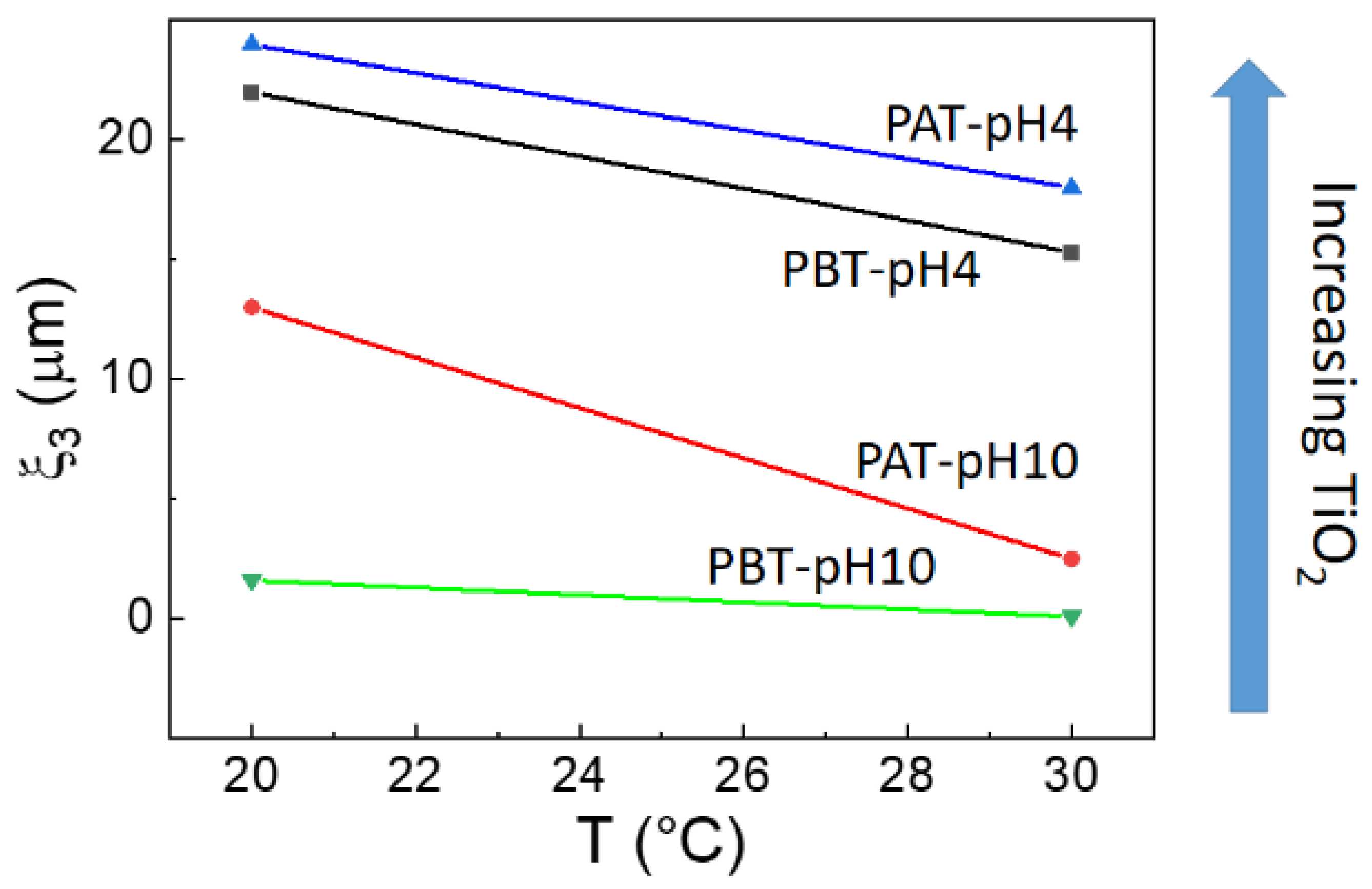

This directly implies the slowest dynamic is occurring in the time range between 10⁻³ and 3·10⁻¹ s. In fact, in this case, the corresponding correlation lengths ξ₃, reported in Figure 6, evidence the presence of large micrometric aggregates that decrease in size with both increasing temperature and decreasing TiO₂ content.

The last comment concerns the weight fractions for the intermediate and the slowest dynamics. From the evaluated fit parameters A₂ and A₃, it emerged that the presence of TiO₂ determines a generally strong decrease in the percentage of micelles for all samples except for the PBT-pH10 one. This is the only one for which the percentage of micelles is comparable to the counterpart PB sample, thus confirming the infrared evidence. Moreover, for the same PBT-pH10 sample, the population of the micrometric aggregates, A₃, is extremely low.

At this point, it remains to be clarified the nature of the micrometric aggregates. As stated in the introduction, at the pH values of this study, electrostatic repulsive interactions between titania nanoparticles are predominant. Consequently, the agglomeration of the nanoparticles due to a thickness reduction of the double layer should be unlikely. Anyway, electrical conductivity measurements helped us shed some light on this point.

3.4. Electrical Conductivity

Thus far, many measurements of the electrical properties for water-based titania nanofluids or titania-polymer systems have been carried out [78,79,80], but not for dispersions of TiO₂ inside a micellar matrix. Here, the interest in conductivity measurements arises from the possibility they offer to draw information on the nature of the micro-aggregates observed by DLS.

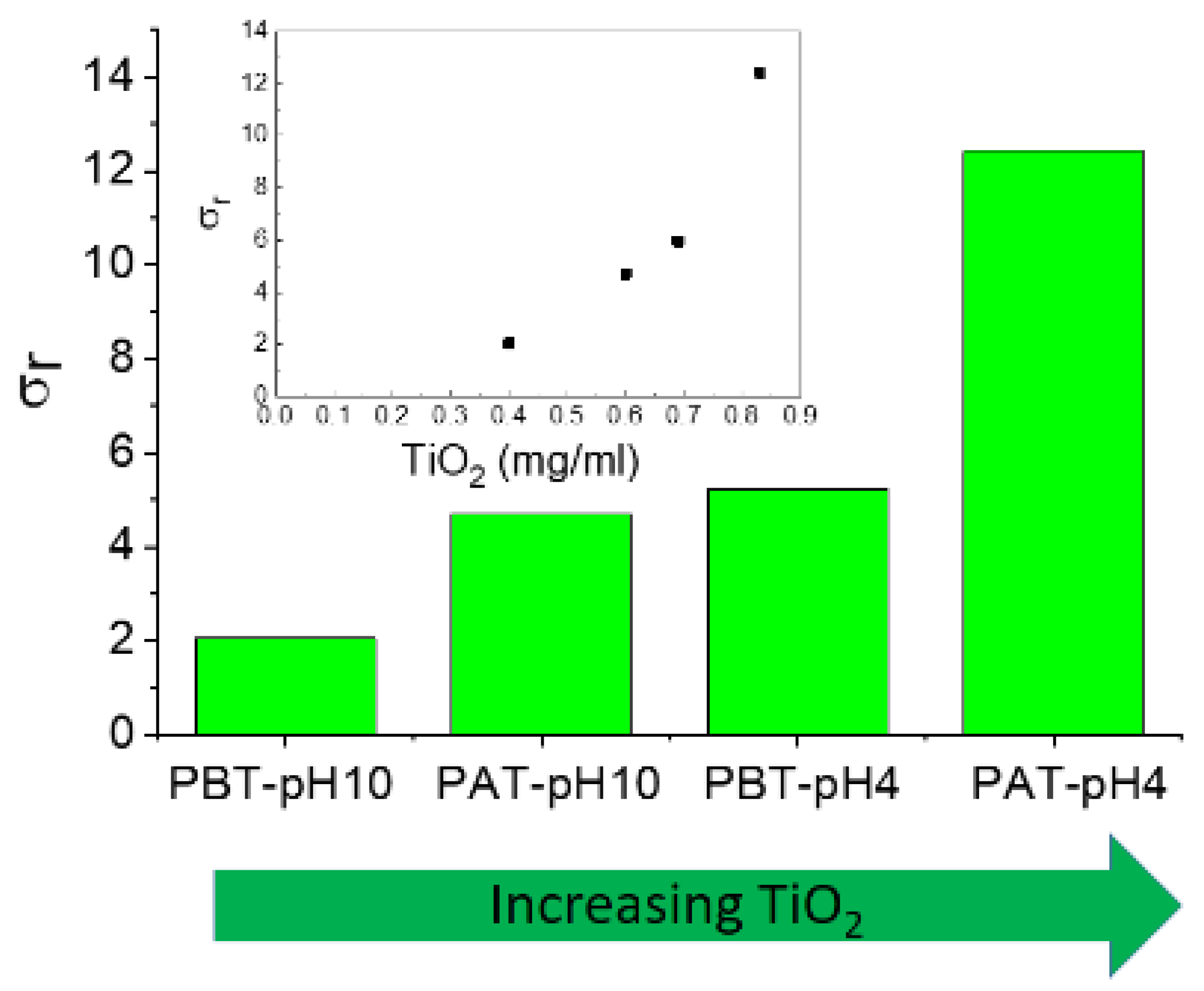

The experimental data for the electrical conductivity of pluronic-TiO₂ nanofluids are summarized in Figure 7, where we reported the relative electrical conductivity, σ_r, defined as the ratio between the electrical conductivities of pluronic-TiO₂ dispersions, σ_n, and that of the base fluid, σ_f, (pluronic solutions under the same conditions) σ_r = σ_n/σ_f.

As expected, the addition of TiO₂ to pluronic solutions increases the electrical conductivity of the systems. In principle, an increase in charge carriers determines an increase in effective electrical conductivity. Anyway, an increase in conducting nanoparticles could induce an increase in inter-particle collisions and consequently an enhancement of the probability of aggregation of the nanoparticles. This could determine a reduction in the effective number of charge carriers with a consequent deterioration of the effective charge transport. Even if the establishment of short conducting paths through aggregate-to-aggregate contact were assumed, the low intrinsic conductivity of TiO₂ would exclude the possibility. In conclusion, the behavior of the electrical conductivity observed for our samples suggests that the presence of titania aggregates inside the polymeric matrix is unlikely.

4. Conclusions

The present paper investigated the properties of Pluronic F127 mixtures in the presence of TiO₂ nanoparticles experimentally. Thus far, different copolymers have been used as a template for the formation of TiO₂ mesostructures. Still, no study has examined the impact of the metallic nanoparticles on the self-assembly and aggregation behavior of the copolymer.

We have first analyzed the influence of pH and copolymer/nanoparticle ratio on the loading capacity of the copolymer. UV-Vis spectroscopy revealed that the maximum loading occurs at the lowest pluronic concentration under acidic conditions. Both FTIR-ATR and DLS analyses suggested that the different content of TiO₂ inside the samples affects the micellization and aggregation of pluronic differently. In particular, it was observed that at the lowest TiO₂ content, the formation of both nano and micrometric aggregates is less favored. Finally, general considerations on the nature of the electrostatic interactions at the pH values investigated together with the observed behavior of the electrical data allowed us to exclude the presence of single-species agglomerates.

Therefore, we can hypothesize that the presence of the metallic nanoparticles favors the formation of an expanded network of micelles within which TiO₂ is more or less homogeneously dispersed depending on its content. The fact that the optimal dispersion is obtained for the sample with the higher pluronic/TiO₂ ratio corroborates the idea of TiO₂ nanoparticles entrapped in a dense pluronic network. In future works, we plan to study the effects of TiO₂ on different copolymers to develop the most appropriate strategy to design functional nanoparticle-copolymer systems.
