Catalytic Performance of Palladium Supported on Sheaf-Like Ceria in the Lean Methane Combustion

by
Shuna Li
1,*,
Yagang Zhang
2,
Jing Shi
3,*,
Gang Zhu
1,
Yanxiang Xie
1,
Zhikai Li
4,
Ruiyi Wang
4 and
Huaqing Zhu
4,*
1
Xi’an Key Laboratory on Intelligent Additive Manufacturing Technologies, The Key Laboratory for Surface Engineering and Remanufacturing in Shaanxi Province, School of Chemical Engineering, Xi’an University, Xi’an 710065, China
2
Department of Chemistry and Chemical Engineering, Xi’an University of Science and Technology, Xi’an 710054, China
3
Department of Mechanical and Materials Engineering, University of Cincinnati, Cincinnati, OH 45221, USA
4
State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, P.O. Box 165, Taiyuan 030001, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(1), 31; https://doi.org/10.3390/nano10010031
Submission received: 28 November 2019 / Revised: 9 December 2019 / Accepted: 17 December 2019 / Published: 21 December 2019
(This article belongs to the Special Issue Nanomaterials for Catalysis and Pollution Abatement)
Browse Figures
Versions Notes

Abstract

:
Sheaf-like CeO2 (CeO2-S) in microscale was prepared by the hydrothermal method, and then etched with KOH aiming to obtain an imperfect fluorite structure (CeO2-SK) with high content of oxygen vacancies and oxygen mobility. With CeO2-S and CeO2-SK as supports respectively, a modified colloidal deposition method was employed to obtain Pd/CeO2 catalysts for being used in lean methane combustion. According to the inductively coupled plasma (ICP), N2 physisorption and scanning electron microscopy (SEM) results, the Pd supported catalysts are very similar in their Pd loading, surface area and morphologies. SEM and transmission electron microscopy (TEM) results revealed various nanorods exposed CeO2 (110) and (100) facets on Pd/CeO2-SK surface after KOH etching. Raman spectra and H2-temperature programmed reduction (H2-TPR) results indicated that Pd/CeO2-SK catalyst has a much higher content of catalytic active PdO species than Pd/CeO2-S catalyst. It was also found that the catalytic performance of Pd/CeO2 in lean methane combustion depends greatly upon the exposing crystal planes and oxygen vacancies content of sheaf-like CeO2, and Pd/CeO2-SK exhibits higher activity than Pd/CeO2-S. The larger amount of CeO2 (110) and (100) planes on Pd/CeO2-SK surface can enhance the formation of oxygen vacancies, active Pd species and migration of lattice oxygen, which all evidently improve the redox ability and catalytic activity of the Pd/CeO2-SK catalysts in lean methane combustion.

1. Introduction

Currently, a great amount of coal mine methane needs to be utilized owing to the huge annual output of coal in the world [1,2]. The high concentration methane can be recovered into chemical feedstock; however, sometimes low concentration methane is discharged directly into the atmosphere without any treatment, which not only causes energy waste, but also brings serious environmental problems due to the global warming potential of CH4 is about 21–26 times higher compared with CO2 [3,4,5]. Catalytic combustion of methane is viewed as an effective measure to treat lean methane due to its high combustion efficiency and low emission of toxic products, such as CO and NOx [6,7]. It is well known that the inertia of methane makes it difficult to oxidize at low temperatures. Thus, the design and preparation of catalysts with high activity in lean CH4 combustion at low temperatures still face great challenge.
Among the various catalysts, Pd supported catalysts are considered as one of the most promising candidates for methane combustion and activation owing to their extraordinarily high catalytic performance at low temperatures [7,8,9,10,11]. Furthermore, literature research has revealed that the rate limited step in methane combustion is the initial scission of the C–H bond [12], and palladium has the ability to split C–H bond [13]. According to Farrauto et al. the catalytic performance of palladium catalyst depends, to a great extent, on the nature of the support and the palladium-support interactions [14]. Thus, various oxide materials have been selected as carriers to prepare palladium supported catalysts for lean methane combustion.
Recently, ceria has attracted considerable attentions owing to its high oxygen storage capacity and remarkable redox properties [15,16,17,18], which permits effective oxygen adsorption and activation for CH4 oxidation. Hence, many Pd/CeO2 catalysts with exceptionally high activities for CH4 combustion at low temperatures have been synthesized and investigated in that the synergistic interaction between palladium and CeO2 may result in higher catalytic performance of Pd species [19,20,21]. Meanwhile, several reports have shown that the CeO2 morphology also has great influence on the catalytic activity of palladium loaded catalysts. This may be due to the fact that different shapes of ceria supports usually expose distinct ceria facets, which ultimately affects the palladium–CeO2 interaction. Tan et al. [22] found that Pd loaded on {110}-faced CeO2 nanocubes exhibited much higher activity in formaldehyde oxidation compared with Pd loaded on {111}-faced CeO2 nanooctahedrals and CeO2 nanorods exposed {100} and {110} planes. Lei et al. [23] indicated that Pd supported on octahedral CeO2 were much more active than those supported on rod and cube CeO2 in lean CH4 combustion owing to the synergistic effects between palladium species and (111) planes of octahedral CeO2 exposing. On the contrary, Guo et al. [9] believed that the larger activity of Pd/CeO2-microspheres in lean CH4 combustion was related to the exposed active (110) and (100) planes and its short porous channel. Up to now, various Pd/CeO2 catalysts with different shapes have been synthesized [9,22,23,24,25]; however, as far as we know, the preparation of ceria with sheaf-like morphologies in microscale and the shape effects of microscale ceria carrier on the catalytic activity of Pd/CeO2 catalyst in lean CH4 combustion have been rarely reported.
Therefore, in this work, sheaf-like CeO2 (CeO2-S) in microscale was synthesized by using the hydrothermal method. The as-made sheaf-like CeO2 was further etched with KOH to obtain an imperfect fluorite structure (CeO2-SK) with high content of oxygen vacancies as well as oxygen mobility, which can improve the activity of supported Pd catalysts in lean CH4 combustion at low temperatures. With CeO2-S and CeO2-SK as support respectively, Pd/CeO2 catalysts were synthesized by a modified colloidal deposition method as described previously with the aim to obtain a deep insight into the effect of the CeO2 support structure on the performance of Pd/CeO2 catalysts in lean CH4 combustion [16,26,27]. The relationship between the crystal planes exposing and oxygen vacancies content of sheaf-like CeO2 and the catalytic activity of Pd/CeO2 catalyst in lean CH4 combustion was investigated by the means of X-ray powder diffraction (XRD), N2 physisorption, SEM, TEM, H2-temperature programmed reduction (H2-TPR), Raman spectroscopy and X-ray photoelectron spectroscopy (XPS). This work provides a new thought to the design and preparation of novel and efficient catalysts in catalytic combustion of lean methane. Moreover, the obtained catalyst can also be applied to the catalytic oxidation of other volatile organic compounds such as CO, formaldehyde and benzene. The other advantages of this study are that the preparation process of CeO2 is simple and easy for mass production—the obtained Pd/CeO2-SK catalyst can completely oxidize lean methane (1%) at 375 °C when Pd loading is only 1%. All of these are conducive to improving the economic benefits of its practical application.

2. Materials and Methods

2.1. Materials

The Ce(NO3)3·6H2O, polyvinyl pyrrolidone, urea, absolute ethanol, KOH, polyvinyl alcohol (PVA), and H2PdCl4 were supplied by Sinopharm Chemical Reagent Co.(Shanghai, China ), Ltd. All of the chemicals were used as received, and employed without further purification.

2.2. Preparation of Catalysts

As aforementioned, the hydrothermal method was employed to obtain the sheaf-like CeO2. In a typical preparation process, 10.0 mmol Ce(NO3)3·6H2O, 10 g polyvinyl pyrrolidone and 0.3 mol urea were dissolved in a mixture, which contains 50 mL of deionized water and 50 mL of absolute ethanol. This mixed solution was stirred for 0.5 h, and then put into an autoclave for 24 h at the temperature of 120 °C. After cooling, the precipitates were collected by filtration, and washed by deionized water and absolute ethanol more than once. Finally, the obtained precipitates were calcined for 4 h at the temperature of 500 °C after they were dried at 80 °C in air overnight. The obtained product was labeled as CeO2-S.
Then, 1.5 g dried CeO2-S prepared under the above conditions was added in 100 mL water. By adding KOH, the mixed solution had a final KOH mole concentration of about 4 mol/L and then the mixed solution was stirred for 40 min. Thereafter, the mixed solution was transferred into the autoclave, and then placed into a drying oven for 24 h at the temperature of 120 °C. Similarly, after cooling, the product was collected by filtration, washed by deionized water several times, dried at 80 °C in air overnight, and calcined at 500 °C for 4 h. The obtained product was marked as CeO2-SK.
Sheaf-like CeO2 supporting Pd catalysts were synthesized by a modified colloidal deposition method. Firstly, polyvinyl alcohol (PVA) was injected into 100 mg/L H2PdCl4 solution and sufficiently dissolved. Secondly, a certain amount of NaBH4 aqueous solution was added rapidly to obtain the colloidal palladium solution. Then, CeO2 powder was added into the above colloidal palladium solution and stirred for 24 h to achieve a designated content of 1 wt.% Pd on the CeO2 support. Finally, the obtained solid materials, viz., the Pd/CeO2-S and Pd/CeO2-SK, were collected by going through the identical procedure of filtration, washing, drying and calcination as compared with CeO2-S and CeO2-SK. According to a previous report, the presence of chlorides can affect the redox behavior of cerium oxide [28]. Therefore, in order to reduce the chlorides in the Pd/CeO2 catalysts, the washing times of the two Pd/CeO2 catalysts were kept the same during the washing process, and both of them were washed until the filtrate had no white precipitate after AgNO3 detection.

2.3. Catalytic Activity Measurements

The activity test for methane combustion over the catalysts was carried out in a quartz tube flow microreactor whose internal diameter is 6 mm. For each test, 200 mg of 40–60 mesh fresh catalyst was placed in the microreactor between two quartz glass wool layers. The reaction gas contained 1% CH4, 19% O2 and balanced Ar; and had a total flow rate of 100 mL/min, equivalent to a weight hourly space velocity (WHSV) of 30,000 mL/g∙h. The outlet gaseous mixture was analyzed online using a gas chromatograph (GC-2010, Shimadzu, Japan) to determine the component concentrations. The whole test process took about 2.5 h.

2.4. Catalyst Characterization

The catalysts surface area was analyzed by a TriStar 3000 Gas Absorption Analyzer (Micromeritics Instrument Co., Atlanta, GA, USA) and N2 physisorption at −195.8 °C. The samples were degassed at 200 °C and 6.7 Pa for 2 h prior to the measurement. The Pd content in the catalysts was determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES; PerkinElmer Co., Waltham, MA, USA). X-ray powder diffraction (XRD) patterns of the catalysts were detected by an X-ray diffraction system (Bruker Corporation, Billerica, MA, USA) using Cu Kα radiation (154.06 pm, 40 kV and 40 mA). The diffraction spectra were collected over the 2θ range of 5–85° at a scanning rate of 4°/min.
The morphologies of the catalysts were analyzed at an operating voltage of 200 kV by a JSM-7001F scanning electron microscopy (SEM; JEOL Company, Tokyo, Japan). Meanwhile, characterization was also carried out by using both transmission electron microscopy (TEM; JEM-2010, JEOL Company, Tokyo, Japan) and high-resolution transmission electron microscopy (HRTEM; JEM-2010, JEOL Company, Tokyo, Japan) operating at 200 kV. To prepare the specimen for HRTEM, the catalyst sample was crushed to a fine powder and then a holey carbon film copper grid was dipped into the crushed powder.
Meanwhile, a Micromeritics AutoChem II 2920 Chemisorption Analyzer (Micromeritics Instrument Co., Atlanta, GA, USA) with a TCD detector was adopted for H2-temperature programmed reduction (H2-TPR). Typically, approximately 50 mg catalysts were reduced under a 10 vol % H2-Ar mixture. Before the H2-TPR analysis, the catalysts were treated under an air flow at 500 °C for 30 min, followed by purging with pure N2 at the same temperature for 30 min and then cooled down to 0 °C. After that, the reduction process took place in the temperature range of 0–900 °C.
In addition, Raman spectra were obtained using a Horiva Jobin Yvon LabRam HR800 Dual Microscope with a 514 nm Ar ion laser under ambient temperature. The X-ray photoelectron spectroscopy (XPS) analysis of the catalysts was performed on a spectrometer (ULVAC PHI-5800, Chanhassen, MN, USA) with the X-ray source of Al Kα. The standard binding energy of C 1s = 284.6 eV was used as the reference to shift the binding energies of the samples.

3. Results

3.1. XRD Results and Textural Properties

The XRD patterns of sheaf-like CeO2 supports and the Pd loaded catalysts are shown in Figure 1. Typical diffraction lines of ceria fluorite structure (JCPDS 34-0349) are observed for all of the samples. However, no distinct diffraction line for Pd species is detected in Figure 1, indicating that palladium species are finely dispersed on CeO2 surface and its size might be small.
Table 1 summarizes the Brunauer–Emmett–Teller surface area, average pore volume and pore size of sheaf-like CeO2 supports as well as the corresponding supported Pd catalysts. It showed that the surface area of CeO2-S support (66.5 m2/g) was very similar to that of CeO2-SK support (70.6 m2/g). After the deposition of Pd component, the surface areas of the obtained Pd catalysts remained almost unchanged as compare with that of the corresponding carriers. Meanwhile, as shown in Table 1, the Pd contents in both of the two Pd-containing catalysts were close to the designated value (1 wt.%).

3.2. SEM Results

SEM images of sheaf-like CeO2 supports as well as the Pd loaded catalysts are displayed in Figure 2. Clearly, the Pd loaded catalysts maintained the original morphology of those CeO2 carriers. The obtained CeO2-S support (Figure 2a) resembled a wheat bundle composed of many filamentous crystals, which was bandaged in its middle and fanning-out at both ends. Similar structures have been observed for CuO and Bi2S3 in the literature [29,30]. The average diameter of the individual nano-filament was about 10 nm and the bundles length was about 6–8 µm. Moreover, a smooth surface of the sheaves particles could be observed. However, after KOH etching, the surface of CeO2-SK bundled particles become rough due to the formation of a large number of nanorods (Figure 2c,d).

3.3. TEM and HRTEM Results

Figure 3 presents the TEM and HRTEM images of supported Pd catalysts. It can be seen from Figure 3a,c that both Pd supported catalysts show a sheaf-like structure, and an abundance of nanorods were observed on the Pd/CeO2-SK surface; which was in accordance with the above SEM images. Moreover, as shown in Figure 3b, the complete structure of Pd/CeO2-S was too big, and therefore the HRTEM images were observed for the typical edge part of Pd/CeO2-S. The lattice plane spacing calculated from the HRTEM images was about 0.19 and 0.28 nm, which could be indexed as the (110) and (100) planes of CeO2, respectively. In the Pd/CeO2-SK HRTEM image (Figure 3d), the lattice fringes were clear and their spacing values were 0.19 and 0.28 nm, respectively; which were also attributed to (110) and (100) planes of CeO2. Although both Pd/CeO2-S and Pd/CeO2-SK catalysts exposed mainly the (110) and (100) crystal faces of CeO2, Pd/CeO2-SK had a larger amount of nanorods on its surface after KOH etching, and finally Pd/CeO2-SK owned more content of (110) and (100) CeO2 planes than Pd/CeO2-S. In addition, because the diffraction contrast of Pd and CeO2 was similar, no Pd particles were observed on both of the two Pd-containing catalysts [19].

3.4. H2-TPR Results

The H2-TPR profiles of sheaf-like CeO2 supports and the Pd loaded catalysts are shown in Figure 4; the results of a quantitative analysis of the H2-TPR profiles are listed in Table 2. Obviously, the H2-TPR profiles of the two sheaf-like CeO2 supports are similar to each other. It can be seen that two main reduction peaks existed at 0–900 °C, and the peaks were believed to be related to the reduction of surface oxygen of CeO2 (at about 460 °C with a H2 uptake of 1170 μmol/g for CeO2-S and 985 μmol/g for CeO2-SK) and bulk CeO2 (at about 840 °C), respectively [16,31,32].
After loading the Pd component, the redox ability of CeO2 is changed. The CeO2 surface oxygen redox reduction peaks centered at 460 °C shift to 450 °C for both of Pd-containing catalysts, implying the promoted reducibility for Pd catalysts. Moreover, a new peak appears at around 210 °C for the Pd/CeO2-SK catalyst. It can be assigned to the reduction of PdO although its reduction temperature is higher compared with pure PdO [23]. As reported by Fu et al., this phenomenon could be mainly owing to the interaction between CeO2 and PdO [33]. Noticeably, the PdO species reduction peak is not observed in Pd/CeO2-S, indicating that Pd/CeO2-SK owns a much higher fraction of PdO species than that of Pd/CeO2-S.
SEM and TEM results show that both Pd/CeO2-S and Pd/CeO2-SK catalysts exhibit sheaf-like morphologies, but Pd/CeO2-SK possesses more nanorods enclosed mainly by CeO2 (100) and (110) facets. Previous studies reveal that the migration of lattice oxygen from bulk to surface on the (110) and (100) facet-dominated catalyst is much easier compared with that on the (111) facet-dominated one [16,34]. Therefore, the difference in their redox ability may be attributed to the exposure of larger amount of CeO2 (110) and (100) planes on Pd/CeO2-SK surface compared with Pd/CeO2-S.

3.5. Raman Spectroscopy

The Raman spectra of sheaf-like CeO2 supports and the Pd loaded catalysts are shown in Figure 5. For ease of observation, the Pd/CeO2-SK data is enlarged four times. For CeO2 supports, the main bonds at 460 cm−1 correspond to the F2g Raman active mode of CeO2 fluorite structure [19,35,36,37]; the weak bands at about 597 cm−1 are assigned to the defect induced mode (D-mode), which should be associated with the existence of oxygen vacancies caused by Ce3+ ions in the CeO2 lattice [19,22,38]; the bands at 257 cm−1 are ascribed to the second order transverse acoustic mode (2TA-mode) [19].
After incorporating Pd component, the F2g band of Pd catalysts is broader and slightly weaker compared with CeO2 supports, which is a sign of enhanced Pd–support interaction. Meanwhile, the surroundings environment of CeO2 surface is possibly changed by the introduction of Pd through an epitaxial contact between Pd and CeO2 supports. In addition, the observed widening and weakening of the F2g band for the Pd-containing catalysts may be related to their lower crystallite size or the larger content of oxygen vacancies in ceria [39]. However, the Pd/CeO2 catalyst and the corresponding CeO2 support have a similar particle size as seen from the SEM images. Thus, the above changes of the CeO2 F2g band in Pd-containing catalysts can be related to the larger fraction of oxygen vacancies on CeO2 surface. Noticeably, the Pd/CeO2-SK catalyst exhibited slightly intenser D-mode peak than Pd/CeO2-S, indicating that the former has a higher proportion of oxygen vacancies. Another obvious difference between the Raman spectra of supported Pd catalysts and the parent CeO2 carriers is a typical PdO band appeared at about 650 cm−1 on Pd catalysts, which can be ascribed to the B1g mode of square planar [PdO4] subunits in PdO [19,40,41]. However, the intensity of this PdO band decreased greatly for Pd/CeO2-S catalyst, reflecting the lower content of PdO species on Pd/CeO2-S; which agreed well with the H2-TPR results. Furthermore, early studies showed that the reaction mechanism of CH4 combustion reaction over Pd-based catalysts usually follows the Mars–van Krevelen mechanism [42,43,44]. During the reaction, the decomposition and reformation of PdO species has been observed (PdO→Pd→PdO) [14]; that is, CH4 firstly reacts with O bounded with Pd to create CO2/H2O and oxygen vacancies, the generated oxygen vacancies are then supplemented by the gaseous oxygen or the bulk lattice oxygen. Obviously, the Pd oxides in Pd/CeO2 catalysts are very important for the lean CH4 combustion reaction. Misch et al. and Gholami et al. also discovered that PdO exhibits higher activity than that of metallic Pd in CH4 oxidation process [45,46]. Therefore, the higher content of PdO species on Pd/CeO2-SK may also imply higher activity compared with Pd/CeO2-S.
As reported in the literature, the degree of oxygen vacancies on CeO2 is related to the ratio of peak areas of D-mode to F2g [22,39]. In this way, a higher D/F2g ratio means a larger content of oxygen vacancies. The D/F2g ratio of sheaf-like CeO2 carriers as well as the Pd loaded catalysts is presented in Table 3. It shows that the D/F2g ratio of CeO2-SK support (0.104) and Pd/CeO2-SK catalyst (0.136) is much larger than that of CeO2-S (0.068) and Pd/CeO2-S (0.093), which reveals that the former samples own more amounts of oxygen vacancies. As mentioned above, after KOH etching, numerous nanorods are formed on the CeO2-SK surface, and these nanorods enclosed by CeO2 (100) and (110) facets. Sayle et al. demonstrated that the formation energy of oxygen vacancies on ceria planes is ranked in the descending order of (111), (100) and (110) [47], indicating that the anion vacancies are more easily formed on CeO2 (110) and (100) planes. As a result, the CeO2-SK support and Pd/CeO2-SK catalyst exhibit higher D/F2g ratio, and a larger amount of oxygen vacancies are created on their surface.

3.6. XPS Results

The oxidation states and surface composition of the elements present in the as-made catalysts were analyzed by the XPS measurements. Figure 6 illustrates the Pd 3d XPS profiles of the two Pd loaded catalysts. Clearly, two Pd 3d5/2 peaks at 336.2, 337.4 eV and two Pd 3d3/2 peaks at 341.2 and 342.4 eV are observed for the Pd/CeO2-S catalyst, respectively. The peaks located at 336.2 and 341.2 eV can be attributed to the metallic Pd, and the peaks centered at 337.4 and 342.4 eV are related to the Pd oxides [22,48]. As for Pd/CeO2-SK catalyst, the Pd 3d5/2 peaks and 3d3/2 peaks shift to slightly lower binding energy. As shown in Table 3, approximately 50.0% of Pd species existed on the surface of Pd/CeO2-S in the form of metallic Pd; whereas, this value decreased to 45.8% for Pd/CeO2-SK. The results revealed that the concentration of PdO species on Pd/CeO2-SK surface was higher than that on Pd/CeO2-S, which was consistent with the surface content of PdO observed from the Raman analysis.
The Ce 3d XPS spectra of sheaf-like CeO2 supports and the Pd loaded catalysts are presented in Figure 7. It can be seen that the XPS spectra of CeO2 carriers and the Pd loaded catalysts exhibited ten peaks. The peaks labeled U and V belong to the spin-orbit components of Ce 3d3/2 and Ce 3d5/2, respectively [49,50]. In addition, the peaks marked by U, V, U’’, V’’, U’’’ and V’’’ are of Ce4+, while those denoted by U0, U’, V0 and V’ are Ce3+ characteristic peaks [51,52]. This reveals that two types of cerium oxides are present on the surface of all the samples, i.e., Ce4+ and Ce3+. It is generally believed that the surface Ce3+ results from the surface defects and surface oxygen vacancies, which have a positive impact on the lean methane combustion. Thus, the calculation of Ce3+ content is necessary for estimating the surface oxygen vacancies content. The area ratio [S1/(S1 + S2)] of the Ce3+ peaks area (S1) to the total area (S1 + S2, Ce4+ peaks area labels S2) of Ce 3d peaks is used to detect the surface Ce3+ content. Thus, a higher S1/(S1 + S2) ratio reflects a larger Ce3+ concentration. The calculated results are listed in Table 3. Clearly, CeO2-SK support (19.3) and Pd/CeO2-SK catalyst (21.0) exhibited higher Ce3+ content than those in CeO2-S (16.5) and Pd/CeO2-S (17.4), further confirming that more oxygen vacancies existed on the CeO2-SK support and Pd/CeO2-SK catalyst, coinciding with the Raman spectra results. Moreover, the loading of Pd also enhanced the Ce3+ concentration in the obtained Pd-containing catalysts. This phenomenon implies that the valence of elements of the CeO2 surface was changed owing to the interaction between Pd and CeO2.
Figure 8 presents the O 1s XPS spectra of sheaf-like CeO2 supports and the Pd loaded catalysts. As seen from Figure 8, all of the samples have two typical peaks with different energies. The peak at 529.3–529.7 eV stands for the lattice oxygen species (Olatt), while the other one at about 531.9–532.5 eV is related to the surface adsorbed oxygen (Oads) [49], which is usually considered active for oxidation reactions. As such, the ratio between the two kinds of oxygen species (Oads/Olatt) was quantified based on the area of Olatt and Oads (Table 2). The Oads/Olatt ratio was 0.55 for CeO2-S, whereas it dramatically increased to 0.97 for CeO2-SK; implying a greater tendency to form adsorbed oxygen species on the CeO2-SK surface. According to the above characterization results, after KOH etching, a large number of nanorods enclosed mainly by CeO2 (110) and (100) planes were produced on the CeO2-SK surface, which then promoted the creation of oxygen vacancies. These oxygen vacancies were easy to absorb oxygen to form active adsorbed oxygen species, and ultimately enhance the redox ability and catalytic performance of the obtained catalysts. In addition, it also could be seen from Table 3 that the addition of Pd caused a slight decrease of Oads/Olatt ratio, though Pd/CeO2-SK exhibit higher Oads/Olatt ratio than Pd/CeO2-S. This might be due to the fact that a few chemisorbed oxygen sites are occupied by Pd components.

3.7. CH4 Combustion Catalytic Activity

The catalytic activities of the sheaf-like CeO2 supports and the corresponding supported Pd catalysts in lean methane combustion are shown in Figure 9. In these tests, only CO2 and H2O as products were detected, indicating the good selectivity of the obtained catalysts in the complete oxidation of CH4.
It can be seen from Figure 9, CeO2-S and CeO2-SK supports show poor activity in lean methane combustion and the CH4 conversion values at 500 °C are only 71.9% and 79.9%, respectively. After deposition Pd component, the CH4 conversion of the Pd-containing catalysts was increased significantly, suggesting the important role of Pd in lean methane combustion. Moreover, it also shows that the activity of the as prepared Pd catalysts depended largely on the structural feature of CeO2 supports such as its exposing crystal face; the Pd/CeO2-SK catalyst shows a high activity, superior to the Pd/CeO2-S catalyst. Over the Pd/CeO2-SK catalyst, CH4 conversion reached 91% at 350 °C and 100% at 375 °C, while the full conversion of CH4 was achieved at 425 °C for Pd/CeO2-S catalyst.
Long-term tests were also performed for CH4 catalytic combustion over the Pd/CeO2-S and Pd/CeO2-SK catalysts at 375 °C, as shown in Figure 10. Clearly, the Pd/CeO2-S catalyst displays a CH4 conversion about 90% and that of the Pd/CeO2-SK catalyst is approximately 100% during the 120 min test process. Both of the two Pd-containing catalysts show good thermal stability. Moreover, as shown in Figures S1 and S2 in the Supplementary Information, there are no structural changes for the Pd/CeO2-S and Pd/CeO2-SK catalysts after the long-term tests, in comparison with the fresh ones.
The above characterization results can explain the outstandingly activity of Pd/CeO2-SK catalyst in the lean methane combustion. According to the ICP, N2 physisorption and SEM results, the Pd supported catalysts were very similar in their Pd loading, surface area and morphologies. SEM and TEM results show that Pd/CeO2-SK surface had numerous nanorods enclosed by CeO2 (100) and (110) facets after KOH etching, which is beneficial to the formation of oxygen vacancies. These oxygen vacancies help absorb oxygen to form active adsorbed oxygen species and ultimately improve the reduction ability and catalytic performance of Pd/CeO2-SK. Moreover, as seen from the H2-TPR and Raman spectra results, the Pd/CeO2-SK catalyst possessed higher content of catalytic active PdO species than that of Pd/CeO2-S. As a result, the excellent performance of Pd/CeO2-SK in lean methane combustion was expected.

4. Conclusions

Sheaf-like CeO2 in microscale was prepared by the hydrothermal method. The as-made sheaf-like CeO2 was then further etched with KOH for obtaining an imperfect fluorite structure with higher content of oxygen vacancies as well as improved oxygen mobility. With the as-made and etched sheaf-like CeO2 as supports respectively, two Pd/CeO2 catalysts were obtained for lean methane combustion by a modified colloidal deposition method.
After KOH etching, CeO2-SK surface shows numerous nanorods enclosed by CeO2 (100) and (110) facets and Pd/CeO2-SK exhibited much higher activity compares with Pd/CeO2-S; over the Pd/CeO2-SK catalyst, CH4 conversion reached 100% at 375 °C, while the full conversion of CH4 was achieved at 425 °C for Pd/CeO2-S catalyst. The larger proportion of CeO2 (100) and (110) planes in Pd/CeO2-SK enhance the creation of oxygen vacancies and oxygen migration, which had a positive impact on the activity of lean methane combustion. Moreover, Pd/CeO2-SK catalyst had higher content of catalytic active PdO species compares with Pd/CeO2-S catalyst due to the interaction between the CeO2 (100) and (110) planes and palladium species. All these contribute to the excellent activity of Pd/CeO2-SK in lean methane combustion.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/1/31/s1: Figure S1: XRD patterns of the Pd/CeO2-S and Pd/CeO2-SK catalysts before and after the long-term test in lean methane combustion; Figure S2: SEM images of the Pd/CeO2-S and Pd/CeO2-SK catalysts after the long-term test in lean methane combustion.

Author Contributions

Conceptualization, S.L. and H.Z.; Data curation, Y.Z. and Z.L.; Investigation, S.L. and G.Z.; Methodology, R.W. and Y.X.; Project administration, H.Z.; Validation, J.S.; Writing—original draft, S.L. and J.S.; Writing—review and editing, S.L. and J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (51704240, 21703276, 51602253), the Special Natural Science Foundation of Science and Technology Bureau of Xi’an City (2017CGWL24, 2019KJWL09), and Tianyuan Open Fund of the Key Laboratory for Surface Engineering and Remanufacturing in Shaanxi Province (tywl2019-08, tywl2019-15).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, F.X.; Sang, Y.Y.; Ma, H.W.; Li, Z.P.; Gao, Z.M. Nickel oxide as an effective catalyst for catalytic combustion of methane. J. Nat. Gas Sci. Eng. 2017, 41, 1–6. [Google Scholar] [CrossRef]
  2. Zhou, F.B.; Xia, T.Q.; Wang, X.X.; Zhang, Y.F.; Sun, Y.N.; Liu, J.S. Recent developments of coal mine methane extraction and utilization in China: A review. J. Nat. Gas Sci. Eng. 2016, 31, 437–458. [Google Scholar] [CrossRef]
  3. Guo, T.; Du, J.; Wu, J.; Wang, S.; Li, J. Structure and kinetic investigations of surfacestepped CeO2-supported Pd catalysts for low-concentration methane oxidation. Chem. Eng. J. 2016, 306, 745–753. [Google Scholar] [CrossRef]
  4. Zhang, H.; Li, P.; Hui, N.; Liang, J.; Ding, Y.; Liu, T. The microstructure and methane catalytic combustion of ceria composite materials modified with tourmaline particles. J. Alloys Compd. 2017, 712, 567–572. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Qin, Z.; Wang, G.; Zhu, H.; Dong, M.; Li, S.; Wu, Z.; Li, Z.; Wu, Z.; Zhang, J.; et al. Catalytic performance of MnOx-NiO composite oxide in lean methane combustion at low temperature. Appl. Catal. B Environ. 2013, 129, 172–181. [Google Scholar] [CrossRef]
  6. Ercolino, G.; Stelmachowski, P.; Kotarba, A.; Specchia, S. Reactivity of mixed iron-cobalt spinels in the lean methane combustion. Top. Catal. 2017, 60, 1370–1379. [Google Scholar] [CrossRef]
  7. Wang, B.; Qin, Z.; Wang, G.; Wu, Z.; Fan, W.; Zhu, H.; Li, S.; Zhang, Y.; Li, Z.; Wang, J. Catalytic combustion of lean methane at low temperature over palladium on a CoOx-SiO2 composite support. Catal. Lett. 2017, 143, 411–417. [Google Scholar] [CrossRef]
  8. Ercolino, G.; Karimi, S.; Stelmachowski, P.; Specchia, S. Catalytic combustion of residual methane on alumina monoliths and open cell foams coated with Pd/Co3O4. Chem. Eng. J. 2017, 326, 339–349. [Google Scholar] [CrossRef]
  9. Guo, T.; Du, J.; Li, J. The effects of ceria morphology on the properties of Pd/ceria catalyst for catalytic oxidation of low-concentration methane. J. Mater. Sci. 2016, 51, 10917–10925. [Google Scholar] [CrossRef]
  10. Schwartz, W.R.; Pfefferle, L.D. Combustion of methane over palladium-based catalysts: support interactions. J. Phys. Chem. C 2012, 116, 8571–8578. [Google Scholar] [CrossRef]
  11. Fujimoto, K.; Ribeiro, F.H.; Avalos-Borja, M.; Iglesia, E. Structure and reactivity of PdOx/ZrO2 catalysts for methane oxidation at low temperatures. J. Catal. 1998, 179, 431–442. [Google Scholar] [CrossRef] [Green Version]
  12. Xin, Y.; Lieb, S.; Wang, H.; Law, C.K. Kinetics of catalytic oxidation of methane over palladium oxide by wire microcalorimetry. J. Phys. Chem. C 2013, 117, 19499–19507. [Google Scholar] [CrossRef]
  13. Chenakin, S.P.; Melaet, G.; Szukiewicz, R.; Kruse, N. XPS study of the surface chemical state of a Pd/(SiO2+TiO2) catalyst after methane oxidation and SO2 treatment. J. Catal. 2014, 312, 1–11. [Google Scholar] [CrossRef]
  14. Farrauto, R.J.; Lampert, J.K.; Hobson, M.C.; Waterman, E.M. Thermal decomposition and reformation of PdO catalysts; support effects. Appl. Catal. B Environ. 1995, 6, 263–270. [Google Scholar] [CrossRef]
  15. Zhang, R.; Lu, K.; Zong, L.; Tong, S.; Wang, X.; Feng, G. Gold supported on ceria nanotubes for CO oxidation. Appl. Surf. Sci. 2017, 416, 183–190. [Google Scholar] [CrossRef]
  16. Li, S.; Zhu, H.; Qin, Z.; Wang, G.; Zhang, Y.; Wu, Z.; Li, Z.; Chen, G.; Wu, Z.; Zheng, L.; et al. Morphologic effects of nano CeO2-TiO2 on the performance of Au/CeO2-TiO2 catalysts in low-temperature CO oxidation. Appl. Catal. B Environ. 2014, 144, 498–506. [Google Scholar] [CrossRef]
  17. Sudarsanam, P.; Mallesham, B.; Reddy, P.S.; Großmann, D.; Grünert, W.; Reddy, B.M. Nano-Au/CeO2 catalysts for CO oxidation: Influence of dopants (Fe, Laand Zr) on the physicochemical properties and catalytic activity. Appl. Catal. B Environ. 2014, 144, 900–908. [Google Scholar] [CrossRef]
  18. Cordatos, H.; Bunluesin, T.; Stubenrauch, J.; Vohs, J.M.; Gorte, R.J. Effect of ceria structure on oxygen migration for Rh/ceria catalysts. J. Phys. Chem. 1996, 100, 785–789. [Google Scholar] [CrossRef]
  19. Ma, J.; Lou, Y.; Cai, Y.; Zhao, Z.; Wang, L.; Zhan, W.; Guo, Y.L.; Guo, Y. The relationship between the chemical state of Pd species and the catalytic activity for methane combustion on Pd/CeO2. Catal. Sci. Technol. 2018, 8, 2567–2577. [Google Scholar] [CrossRef]
  20. Dai, Q.; Bai, S.; Lou, Y.; Wang, X.; Guo, Y.; Lu, G. Sandwich-like PdO/CeO2 nanosheet@HZSM-5 membrane hybrid composite for methane combustion: Self-redispersion, sintering-resistance and oxygen, water-tolerance. Nanoscale 2016, 8, 9621–9628. [Google Scholar] [CrossRef]
  21. Mayernick, A.D.; Janik, M.J. Methane oxidation on Pd-Ceria: A DFT study of the mechanism over PdxCe1-xO2, Pd, and PdO. J. Catal. 2011, 278, 16–25. [Google Scholar] [CrossRef]
  22. Tan, H.; Wang, J.; Yu, S.; Zhou, K. Support morphology-dependent catalytic activity of Pd/CeO2 for formaldehyde oxidation. Environ. Sci. Technol. 2015, 49, 8675–8682. [Google Scholar] [CrossRef] [PubMed]
  23. Lei, Y.; Li, W.; Liu, Q.; Lin, Q.; Zheng, X.; Huang, Q.; Guan, S.; Wang, X.; Wang, C.; Li, F. Typical crystal face effects of different morphology ceria on the activity of Pd/CeO2 catalysts for lean methane combustion. Fuel 2018, 233, 10–20. [Google Scholar] [CrossRef]
  24. Guo, H.; He, Y.; Wang, Y.; Liu, L.; Yang, X.; Wang, S.; Huang, Z.; Wei, Q. Morphology-controlled synthesis of cage-bell Pd@CeO2 structured nanoparticle aggregates as catalysts for the low-temperature oxidation of CO. J. Mater. Chem. A 2013, 1, 7494–7499. [Google Scholar] [CrossRef]
  25. Guo, T.Y.; Du, J.P.; Wu, J.T.; Li, J.P. Palladium catalyst supported on stair-like microstructural CeO2 provides enhanced activity and stability for low-concentration methane oxidation. Appl. Cata. A General. 2016, 524, 237–242. [Google Scholar] [CrossRef]
  26. Comotti, M.; Li, W.C.; Spliethoff, B.; Schüth, F. Support effect in high activity gold catalysts for CO oxidation. J. Am. Chem. Soc. 2006, 128, 917–924. [Google Scholar] [CrossRef]
  27. Wang, G.; Li, W.; Jia, K.; Spliethoff, B.; Schüth, F.; Lu, A. Shape and size controlled α-Fe2O3 nanoparticles as supports for gold-catalysts: Synthesis and influence of support shape and size on catalytic performance. Appl. Catal. B Environ. 2009, 364, 42–47. [Google Scholar] [CrossRef]
  28. Bernal, S.; Calvino, J.J.; Cifredo, G.A.; Gatica, J.M.; Pérez Omil, J.A.; Laachir, A.; Perrichon, V. Influence of the nature of the metal precursor salt on the redox behaviour of ceria in Rh/CeO2 catalysts. Surf. Sci. Catal. 1995, 96, 419–429. [Google Scholar] [CrossRef]
  29. Zhang, M.; Xu, X.D.; Zhang, M.L. Hydrothermal synthesis of sheaf-like CuO via ionic liquids. Mater. Lett. 2008, 62, 385–388. [Google Scholar] [CrossRef]
  30. Tang, J.; Paul Alivisatos, A. Crystal splitting in the growth of Bi2S3. Nano Lett. 2006, 6, 2701–2706. [Google Scholar] [CrossRef] [Green Version]
  31. Zhu, H.; Qin, Z.; Shan, W.; Shen, W.; Wang, J. Pd/CeO2-TiO2 catalyst for CO oxidation at low temperature: a TPR study with H2 and CO as reducing agents. J. Catal. 2004, 225, 267–277. [Google Scholar] [CrossRef]
  32. Hu, F.; Chen, J.; Peng, Y.; Song, H.; Li, K.; Li, J. Novel nanowire self-assembled hierarchical CeO2 microspheres for low temperature toluene catalytic combustion. Chem. Eng. J. 2018, 331, 425–434. [Google Scholar] [CrossRef]
  33. Fu, Q.; Wagner, T. Interaction of nanostructured metal overlayers with oxide surfaces. Surf. Sci. Rep. 2007, 62, 431–498. [Google Scholar] [CrossRef]
  34. Mai, H.X.; Sun, L.D.; Zhang, Y.W.; Si, R.; Feng, W.; Zhang, H.P.; Liu, H.C.; Yan, C.H. Shape-selective synthesis and oxygen storage behavior of ceria nanopolyhedra, nanorods, and nanocubes. J. Phys. Chem. B 2005, 109, 24380–24385. [Google Scholar] [CrossRef] [PubMed]
  35. Li, S.; Zhang, Y.; Li, X.; Yang, X.; Li, Z.; Wang, R.; Zhu, H. Preferential oxidation of CO in H2-rich stream over Au/CeO2-NiO catalysts: effect of the preparation method. Catal. Lett. 2018, 148, 328–340. [Google Scholar] [CrossRef]
  36. Francisco, M.S.P.; Mastelaro, V.; Nascente, P.A.P.; Florentino, A. Activity and characterization by XPS, HR-TEM, Raman spectroscopy, and bet surface area of CuO/CeO2-TiO2 catalysts. J. Phys. Chem. B 2001, 105, 10515–10522. [Google Scholar] [CrossRef]
  37. Peng, C.; Lia, H.; Liaw, B.; Chen, Y. Removal of CO in excess hydrogen over CuO/Ce1−xMnxO2 catalysts. Chem. Eng. J. 2011, 172, 452–458. [Google Scholar] [CrossRef]
  38. Reddy, B.M.; Khan, A.; Yamada, Y.; Kobayashi, T.; Loridant, S.; Volta, J. Structural characterization of CeO2-MO2 (M = Si4+, Ti4+ and Zr4+) mixed oxides by Raman spectroscopy, X-ray photoelectron spectroscopy, and other techniques. J. Phys. Chem. B 2003, 107, 11475–11484. [Google Scholar] [CrossRef]
  39. Hernández, W.Y.; Centeno, M.A.; Romero-Sarria, F.; Odriozola, J.A. Synthesis and characterization of Ce1-xEuxO2-x/2 mixed oxides and their catalytic activities for CO oxidation. J. Phys. Chem. C 2009, 113, 5629–5635. [Google Scholar] [CrossRef]
  40. Demoulin, O.; Navez, M.; Gaigneaux, E.M.; Ruiz, P.; Mamede, A.S.; Granger, P.; Payen, E. Operando resonance Raman spectroscopic characterisation of the oxidation state of palladium in Pd/γ-Al2O3 catalysts during the combustion of methane. Phys. Chem. Chem. Phys. 2003, 5, 4394–4401. [Google Scholar] [CrossRef]
  41. McBride, J.R.; Hass, K.C.; Weber, W.H. Resonance-Raman and lattice-dynamics studies of single-crystal PdO. Phys. Rev. B 1991, 44, 5016–5028. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, Z.; Deng, J.; Liu, Y.; Xie, S.; Jiang, Y.; Zhao, X.; Yang, J.; Arandiyan, H.; Guo, G.; Dai, H. Three-dimensionally ordered mesoporous Co3O4-supported Au-Pd alloy nanoparticles: High-performance catalysts for methane combustion. J. Catal. 2015, 332, 13–24. [Google Scholar] [CrossRef]
  43. Lou, Y.; Ma, J.; Hu, W.; Dai, Q.; Wang, L.; Zhan, W.; Guo, Y.; Cao, X.M.; Guo, Y.; Hu, P.; et al. Low-temperature methane combustion over Pd/H-ZSM-5: active Pd sites with specific electronic properties modulated by acidic sites of H-ZSM-5. ACS Catal. 2016, 6, 8127–8139. [Google Scholar] [CrossRef]
  44. Specchia, S.; Conti, F.; Specchia, V. Kinetic studies on Pd/CexZr1-xO2 Catalyst for methane combustion. Ind. Eng. Chem. Res. 2010, 49, 11101–11111. [Google Scholar] [CrossRef]
  45. Misch, L.M.; Kurzman, J.A.; Derk, A.R.; Kim, Y.; Seshadri, R.; Metiu, H.; McFarland, E.W.; Stucky, G.D. C-H bond activation by Pd-substituted CeO2: substituted ions versus reduced species. Chem. Mater. 2011, 23, 5432–5439. [Google Scholar] [CrossRef]
  46. Gholami, R.; Smith, K.J. Activity of PdO/SiO2 catalysts for CH4 oxidation following thermal treatments. Appl. Catal. B Environ. 2015, 168, 156–163. [Google Scholar] [CrossRef]
  47. Sayle, T.X.T.; Parker, S.C.; Sayle, D.C. Oxidising CO to CO2 using ceria nanoparticles. Phys. Chem. Chem. Phys. 2005, 7, 2936–2941. [Google Scholar] [CrossRef]
  48. Qian, K.; Huang, W.X. Au–Pd alloying-promoted thermal decomposition of PdO supported on SiO2 and its effect on the catalytic performance in CO oxidation. Catal. Today 2011, 164, 320–324. [Google Scholar] [CrossRef]
  49. Yang, S.; Zhou, F.; Liu, Y.; Zhang, L.; Chen, Y.; Wang, H.; Tian, Y.; Zhang, C.; Liu, D. Morphology effect of ceria on the performance of CuO/CeO2 catalysts for hydrogen production by methanol steam reforming. Int. J. Hydrogen Energy 2019, 44, 7252–7261. [Google Scholar] [CrossRef]
  50. Scirè, S.; Crisafulli, C.; Riccobene, P.M.; Patanè, G.; Pistone, A. Selective oxidation of CO in H2-rich stream over Au/CeO2 and Cu/CeO2 catalysts: An insight on the effect of preparation method and catalyst pretreatment. Appl. Catal. A Gen. 2012, 417, 66–75. [Google Scholar] [CrossRef]
  51. Wang, B.; Chi, C.; Xu, M.; Wang, C.; Meng, D. Plasma-catalytic removal of toluene over CeO2-MnOx catalysts in an atmosphere dielectric barrier discharge. Chem. Eng. J. 2017, 322, 679–692. [Google Scholar] [CrossRef]
  52. Bêche, E.; Charvin, P.; Perarnau, D.; Abanades, S.; Flamant, G. Ce 3d XPS investigation of cerium oxides and mixed cerium oxide (CexTiyOz). Surf. Interface Anal. 2008, 40, 264–267. [Google Scholar] [CrossRef]
Nanomaterials 10 00031 g001 550

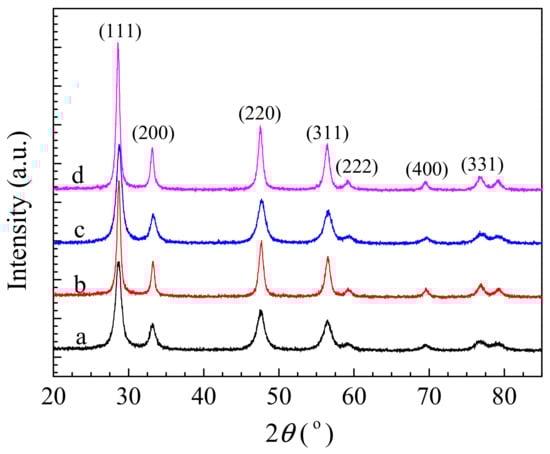

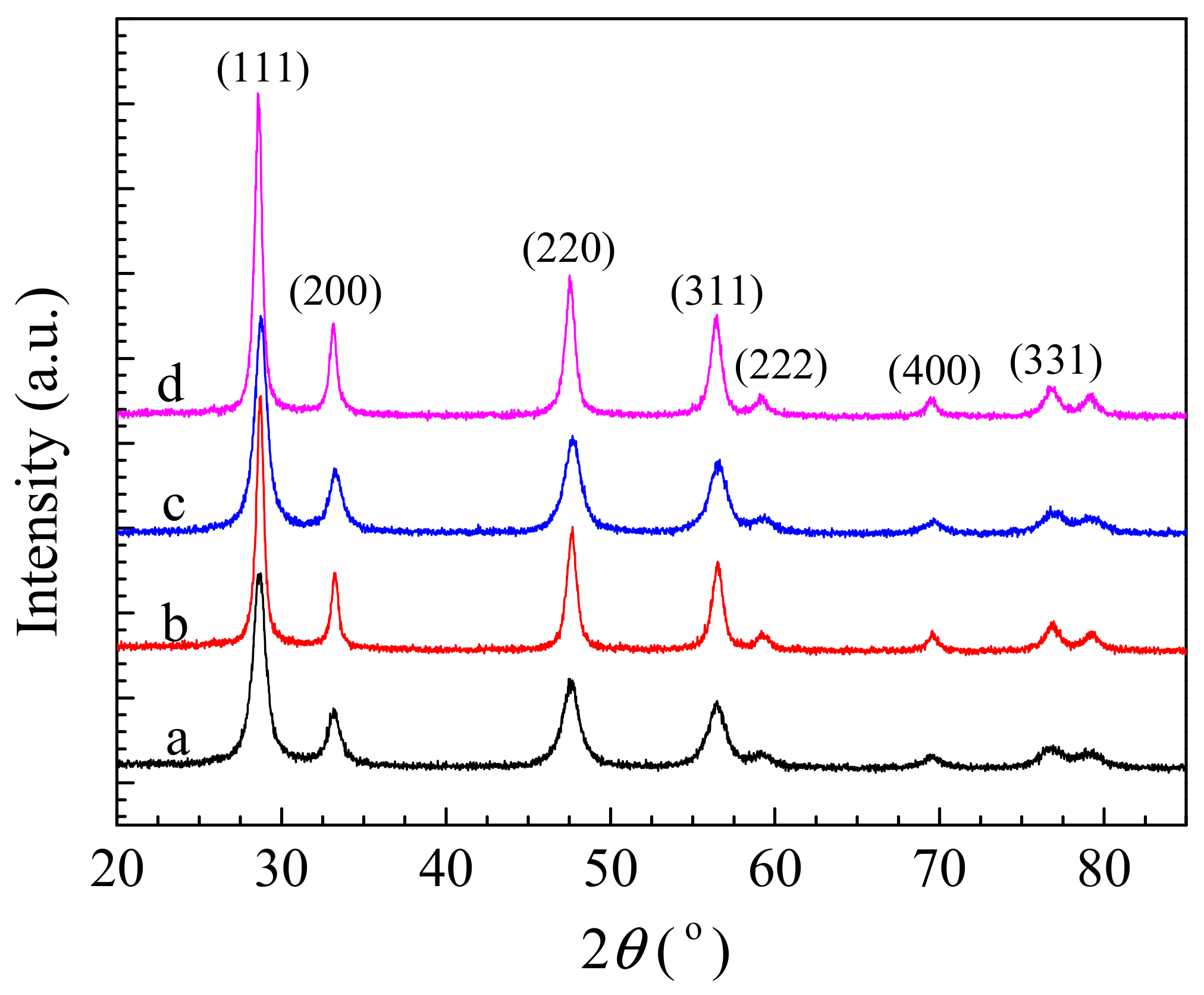

Figure 1. X-ray powder diffraction (XRD) patterns of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Figure 1. X-ray powder diffraction (XRD) patterns of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Nanomaterials 10 00031 g001
Nanomaterials 10 00031 g002 550
Figure 2. Scanning electron microscopy (SEM) images of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK (the inset is a magnified SEM image).
Figure 2. Scanning electron microscopy (SEM) images of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK (the inset is a magnified SEM image).
Nanomaterials 10 00031 g002
Nanomaterials 10 00031 g003 550
Figure 3. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images of (a,b) Pd/CeO2-S and (c,d) Pd/CeO2-SK.
Figure 3. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images of (a,b) Pd/CeO2-S and (c,d) Pd/CeO2-SK.
Nanomaterials 10 00031 g003
Nanomaterials 10 00031 g004 550

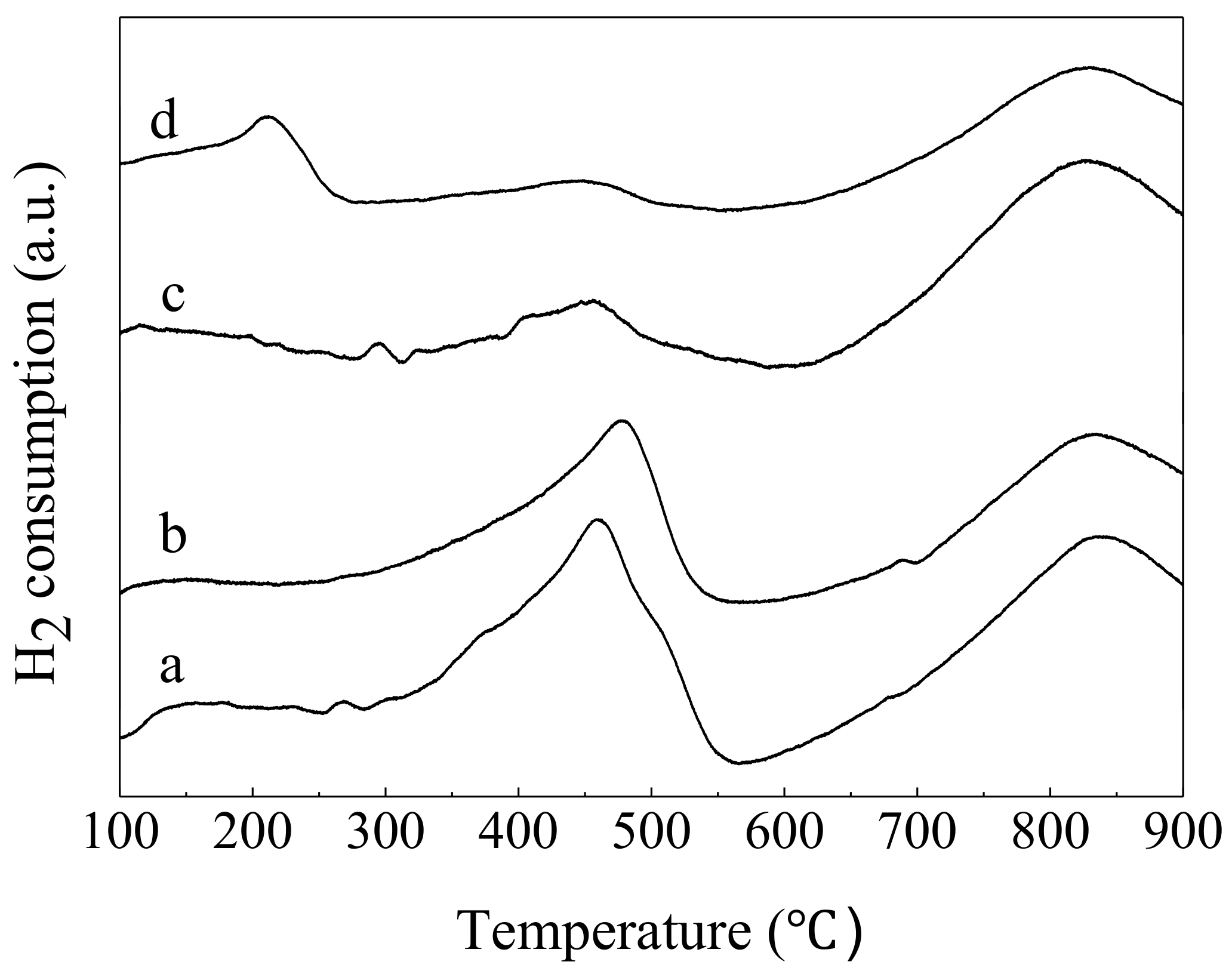

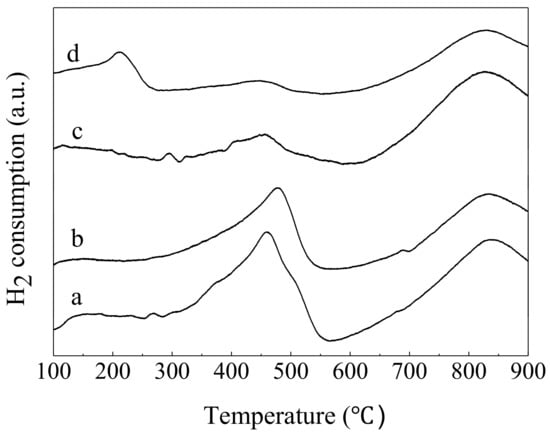

Figure 4. H2-temperature programmed reduction (H2-TPR) profiles of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Figure 4. H2-temperature programmed reduction (H2-TPR) profiles of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Nanomaterials 10 00031 g004
Nanomaterials 10 00031 g005 550

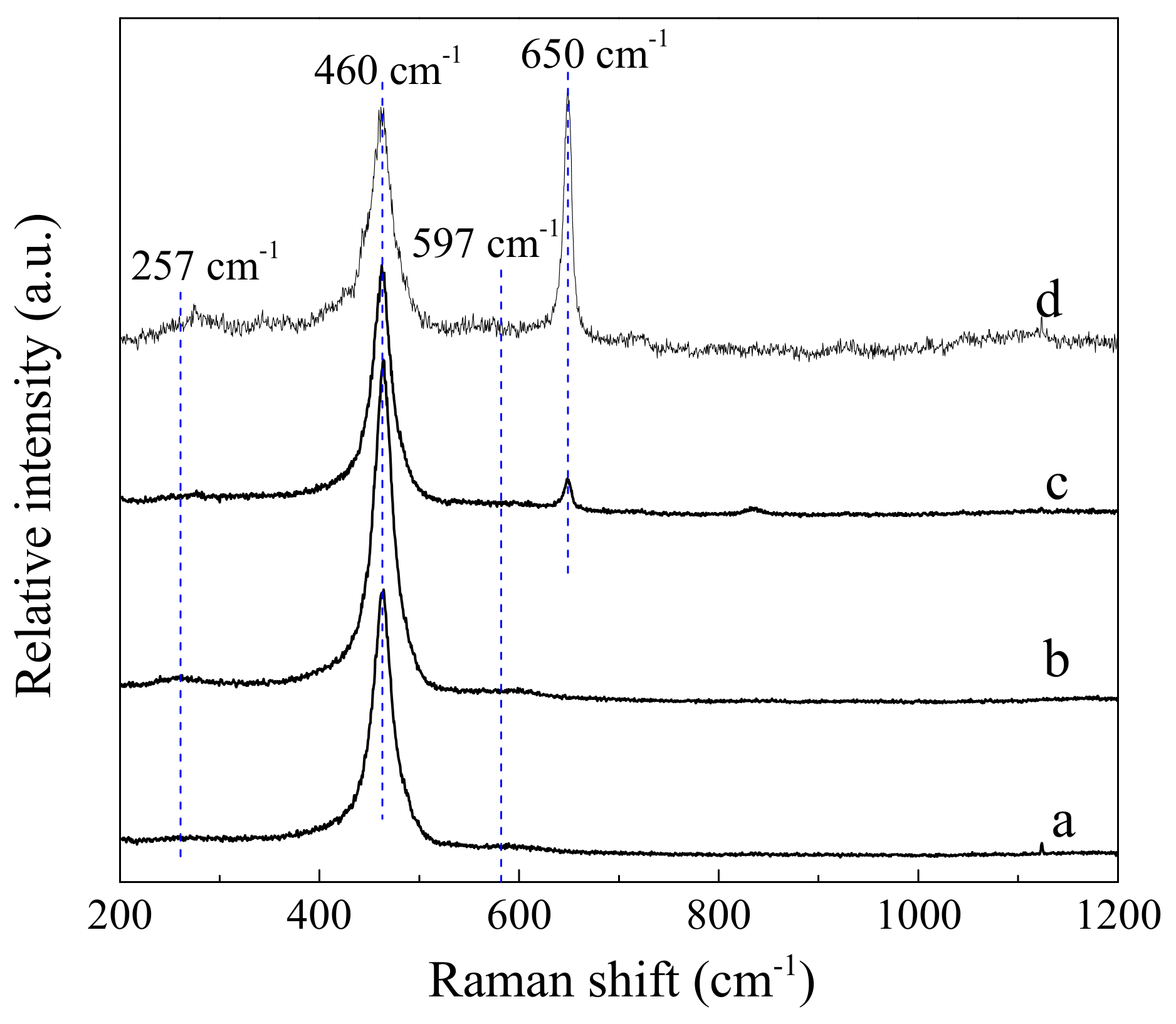

Figure 5. Raman spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK (its data is enlarged four times).
Figure 5. Raman spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK (its data is enlarged four times).
Nanomaterials 10 00031 g005
Nanomaterials 10 00031 g006 550

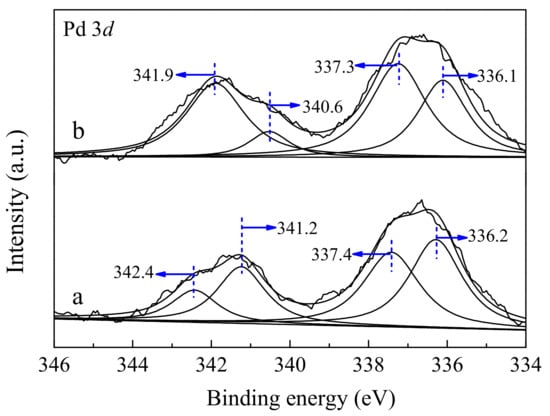

Figure 6. Pd 3d XPS spectra of (a) Pd/CeO2-S and (b) Pd/CeO2-SK.
Figure 6. Pd 3d XPS spectra of (a) Pd/CeO2-S and (b) Pd/CeO2-SK.
Nanomaterials 10 00031 g006
Nanomaterials 10 00031 g007 550

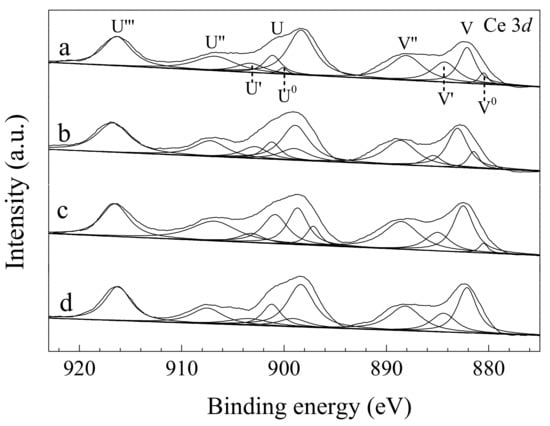

Figure 7. Ce 3d XPS spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Figure 7. Ce 3d XPS spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Nanomaterials 10 00031 g007
Nanomaterials 10 00031 g008 550

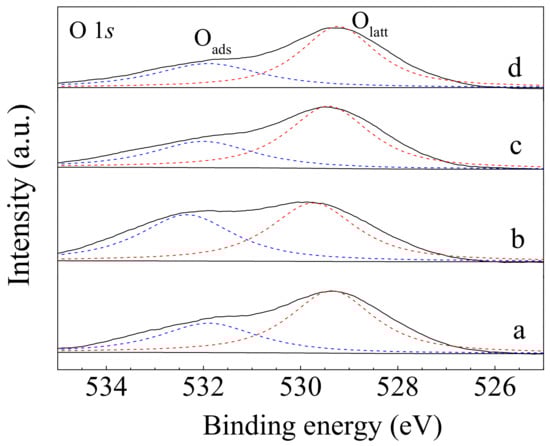

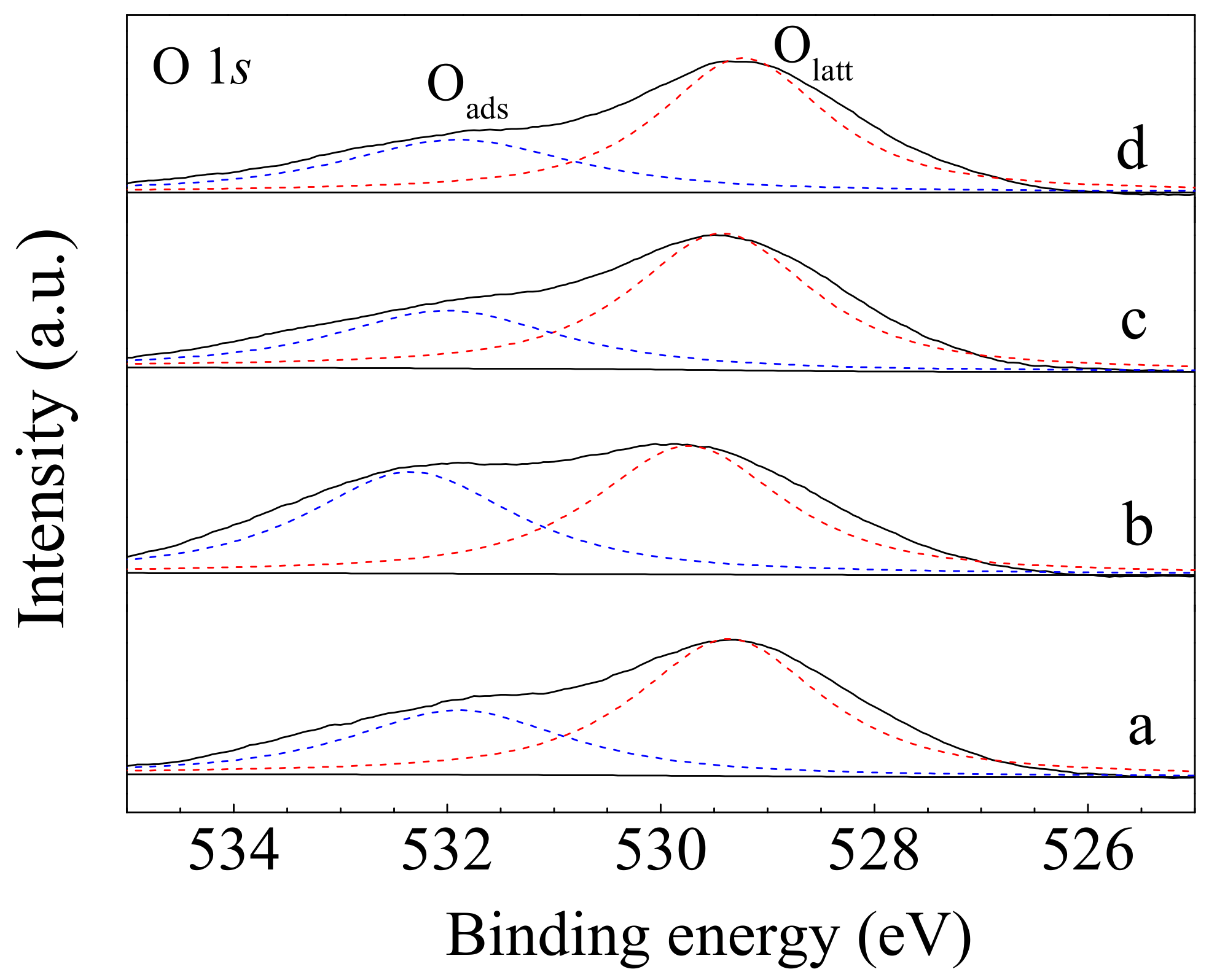

Figure 8. O 1s XPS spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Figure 8. O 1s XPS spectra of (a) CeO2-S, (b) CeO2-SK, (c) Pd/CeO2-S and (d) Pd/CeO2-SK.
Nanomaterials 10 00031 g008
Nanomaterials 10 00031 g009 550

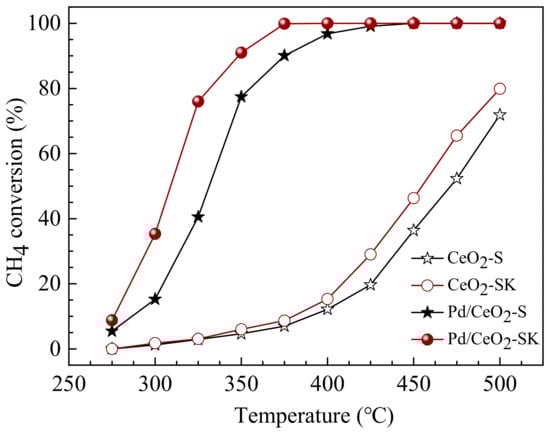

Figure 9. Methane conversion for the catalytic combustion over sheaf-like CeO2 supports and the corresponding supported Pd catalysts.
Figure 9. Methane conversion for the catalytic combustion over sheaf-like CeO2 supports and the corresponding supported Pd catalysts.
Nanomaterials 10 00031 g009
Nanomaterials 10 00031 g010 550

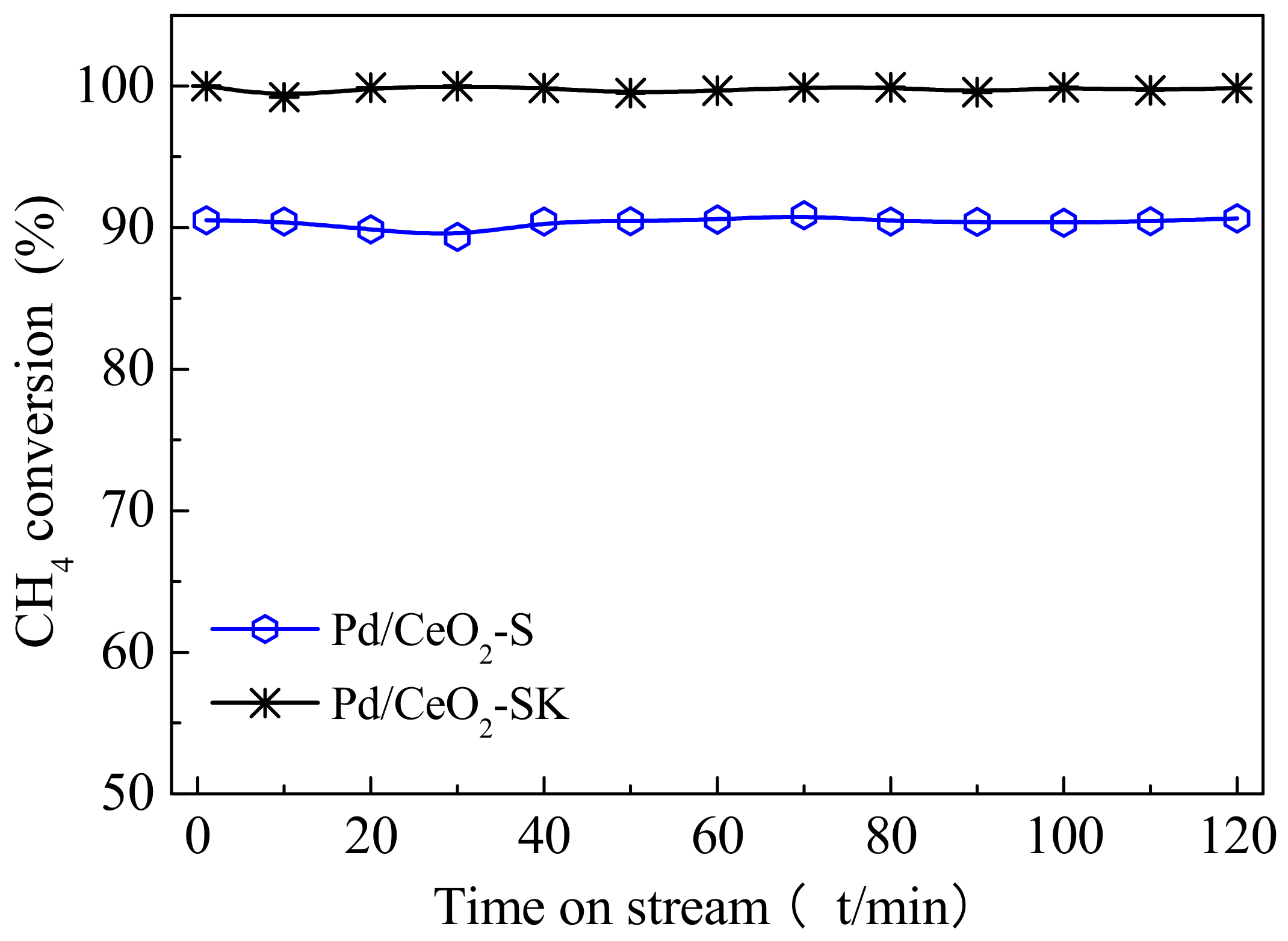

Figure 10. Long-term stability test for CH4 catalytic combustion over Pd/CeO2-S and Pd/CeO2-SK catalysts at 375 °C.
Figure 10. Long-term stability test for CH4 catalytic combustion over Pd/CeO2-S and Pd/CeO2-SK catalysts at 375 °C.
Nanomaterials 10 00031 g010
Table
Table 1. Textural properties and Pd loading of sheaf-like CeO2 supports and the Pd loaded catalysts.
Table 1. Textural properties and Pd loading of sheaf-like CeO2 supports and the Pd loaded catalysts.
SamplesPd Loading (wt.%)SBET (m2/g)Average Pore Size (nm)Pore Volume (cm3/g)
CeO2-S-66.54.20.0626
CeO2-SK-70.65.00.0654
Pd/CeO2-S0.9465.64.10.0602
Pd/CeO2-SK0.9368.74.60.0636
Table
Table 2. Quantitative analysis of the H2-TPR profiles of sheaf-like CeO2 supports and the Pd loaded catalysts.
Table 2. Quantitative analysis of the H2-TPR profiles of sheaf-like CeO2 supports and the Pd loaded catalysts.
SamplesPeak Position (°C)H2 Uptake (μmol/g)Theoretical H2 Uptake (µmol/g) a
CeO2-S46011702904
CeO2-SK4669852904
Pd/CeO2-S4504482954
Pd/CeO2-SK210; 450110; 3322954
a Theoretical H2 uptake was determined as the quantity of H2 required for the reduction of Pd catalysts and corresponding CeO2 supports by assuming that CeO2 and PdO are stoichiometrically reduced to Ce2O3 and Pd, respectively.
Table
Table 3. Raman spectra and X-ray photoelectron spectroscopy (XPS) results of sheaf-like CeO2 supports and the Pd loaded catalysts.
Table 3. Raman spectra and X-ray photoelectron spectroscopy (XPS) results of sheaf-like CeO2 supports and the Pd loaded catalysts.
SamplesD/F2gPd0 Content (%)Ce3+ Content (%)Oads/Olatt Ratio
CeO2-S0.068-16.50.55
CeO2-SK0.104-19.30.97
Pd/CeO2-S0.09350.017.40.48
Pd/CeO2-SK0.13645.821.00.63

Share and Cite

MDPI and ACS Style

Li, S.; Zhang, Y.; Shi, J.; Zhu, G.; Xie, Y.; Li, Z.; Wang, R.; Zhu, H. Catalytic Performance of Palladium Supported on Sheaf-Like Ceria in the Lean Methane Combustion. Nanomaterials 2020, 10, 31. https://doi.org/10.3390/nano10010031

AMA Style

Li S, Zhang Y, Shi J, Zhu G, Xie Y, Li Z, Wang R, Zhu H. Catalytic Performance of Palladium Supported on Sheaf-Like Ceria in the Lean Methane Combustion. Nanomaterials. 2020; 10(1):31. https://doi.org/10.3390/nano10010031

Chicago/Turabian Style

Li, Shuna, Yagang Zhang, Jing Shi, Gang Zhu, Yanxiang Xie, Zhikai Li, Ruiyi Wang, and Huaqing Zhu. 2020. "Catalytic Performance of Palladium Supported on Sheaf-Like Ceria in the Lean Methane Combustion" Nanomaterials 10, no. 1: 31. https://doi.org/10.3390/nano10010031

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
