Synthesis of Diatomite-Based Mesoporous Wool-Ball-Like Microspheres and Their Application for Toluene Total Oxidation Reaction

by
Quoc-Chon Le
1,
Chinh Chien Nguyen
2,
Thi Thanh Nhi Le
2,
Thierry Lefèvre
3,
Minh Tuan Nguyen Dinh
4,*,
Sung Hyun Hong
5,
Soo Young Kim
5,* and
Quyet Van Le
2,*
1
Natural Sciences Department, Duy Tan University, Danang 550000, Vietnam
2
Institute of Research and Development, Duy Tan University, Danang 550000, Vietnam
3
Département de chimie, Proteo, Cerma, CQMF, Université Laval, Québec, QC G1V 0A6, Canada
4
Faculty of Chemical Engineering, University of Science and Technology, The University of Da Nang, 54 Nguyen Luong Bang, Da Nang 550000, Vietnam
5
Department of Materials Science and Engineering, Korea University, 145 Anam-ro, Seongbuk-gu, Seoul 02841, Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(2), 339; https://doi.org/10.3390/nano10020339
Submission received: 22 January 2020 / Revised: 9 February 2020 / Accepted: 11 February 2020 / Published: 17 February 2020
(This article belongs to the Special Issue Nanomaterials for Catalysis and Pollution Abatement)
Browse Figures
Versions Notes

Abstract

:
Diatomite (DE) has attracted considerable attention owing to its abundance, low cost, and potential for a wide variety of applications. This work reports the development of mesoporous wool-ball-like (WBL) microspheres from natural DE through a simple hydrothermal treatment. We discovered that the presence of cetyltrimethylammonium bromide is a prerequisite for generating monodispersed WBL microspheres. The mechanism for the transformation of pristine DE into mesoporous microspheres through dissolution–recrystallization was clearly investigated. Interestingly, the microspheres exhibited a specific surface area 25–60 times larger than that of the pristine DE. The application of WBL microsphere DE as an effective support for metallic catalysts in the toluene total oxidation reaction was demonstrated.

Graphical Abstract

1. Introduction

Diatomite (DE) is a deposit of various diatomaceous algae, whose size ranges from one to a few micrometers [1]. This material is diverse in shape, highly macroporous, and thermally stable, with a low thermal resistance [2]. Silica is the principal component of DE, constituting approximately 80% to 90% of DE by weight [3]. DE is inexpensive and abundant and has been widely used as a filter aid for pest control, an anticaking agent in grain storage, an absorbent in water treatment [4], a component in construction and insulating materials, a mild abrasive (in toothpaste, facial scrubs, and metal polish), and a catalyst support [5]. New applications have recently been considered, such as a template for thermal energy storage [6], as well as drug delivery [7]. Additionally, DE has been used as a precursor to synthesize new functional materials, i.e., DE-based materials (DBMs) [8,9,10].
The use of DE remains limited for some applications because of its low surface area (1–40 m2/g) and low mesoporosity (<0.06 cm3/g). To extend the applications of DE, particularly in catalyst support and contaminant absorption, it is essential to make DE more porous, e.g., via diatom zeolitization [11] or by designing DE–carbon hybrid materials [12]. A surfactant-assisted hydrothermal method is commonly used to achieve this goal [13,14,15]. The morphology and porosity of the final material can be controlled by varying the type and concentration of surfactant and by controlling the organization of the final assembly. Among the various surfactants, cetyltrimethylammonium bromide (CTAB) has been most widely employed [13,16,17,18].
It is well known that surfactants can exist as micelles, lamellar structures, clusters, or free molecules and that these organizations can be tuned by changing the concentration [19,20,21], chemical composition, and temperature [22,23]. Such structural assemblies of the surfactant determine the morphology and porosity of the end materials [24,25,26]. The hydrothermal treatment of DE generates materials that are more porous than the initial ones [9,10]. Although the effects of the surfactants on the material morphology during hydrothermal treatment have been studied, several aspects remain unclear, e.g., (1) DE transformation into other materials during the hydrothermal process and (2) the effects of the surfactant on this transformation.
In this study, we first used a surfactant-assisted hydrothermal method to synthesize mesoporous wool-ball-like (WBL) microspheres with a large specific surface area from DE. Then, we investigated DE transformation into WBL microspheres in the presence of NaOH and surfactants. Finally, the microspheres were tested as a support for metallic catalysts in the total oxidation reaction of toluene, which is a volatile organic compound that is dangerous to human health.

2. Experimental Details

2.1. Materials

DE fine powder was purchased on the market in Vietnam (VMCGroup, Da Nang, Viet Nam). Sodium hydroxide (NaOH) powder, silver nitrate (AgNO3), sodium borohydride (NaBH4), manganese (II) nitrate hexahydrate (Mn(NO3)2·6H2O), sodium dodecylbenzenesulfonate (SDBS), and CTAB were purchased from Sigma Aldrich (St. Louis, MO, USA) and were analytical-grade.

2.2. Methods

2.2.1. Purification of Diatomite

Commercial DE may contain inorganic impurities. Thus, the DE was purified using Goren’s method [27]. In a typical procedure, 20 g of original DE powder was soaked in 5 M HCl, stirred for 6 h at room temperature, filtered with a vacuum system, and rinsed intensively with double-distilled H2O until a neutral pH was reached. Then, the powder was dried at 110 °C for 12 h and calcined at 550 °C for 6 h. The purified DE was cooled to room temperature, crushed, ground with a mortar and pestle, and stored until investigation.

2.2.2. Hydrothermal Treatment of DE

In a typical synthesis process, 5 g of purified DE was dispersed in 50 mL of a 10 M NaOH aqueous solution. The suspension was stirred for 2 h at room temperature. Then, 1 g of CTAB was added to distilled H2O, followed by sonication for 15 min, and the mixture was poured into the DE suspension. The resulting suspension (DE + NaOH + CTAB in H2O) was poured into a Teflon-lined autoclave, which was tightly sealed and kept in an oven at 160 °C for different time periods (2–8 h). Then, the reaction mixture was left to cool to room temperature. The liquid portion was subsequently decanted, whereas the solid was mixed with distilled water and filtered with a vacuum pump system. During the filtration, the powder was rinsed thoroughly with distilled H2O. The solid part was dried in an oven at 60 °C for 24 h and calcined at 550 °C for 6 h. Finally, the powder was transferred to a glass bottle for characterization. To examine the effect of the surfactant on the formation of DBMs, similar syntheses were conducted with various amounts of surfactant (CTAB, SDBS).

2.2.3. Preparation of Catalyst/DBM Samples

DBM was used as a support to deposit silver and manganese oxide.

Ag/DBM Preparation

In a typical procedure, 200 mg of DBM was dispersed in an AgNO3 solution so that the weight ratio of Ag to DBM was 5 wt. %. The mixture was stirred for 1 h. Then, an NaBH4 solution was added so that the molar ratio of NaBH4 to AgNO3 was 2:1. The reaction was stopped after 30 min. The solid was recovered through vacuum filtration, washed intensively with distilled H2O, and dried at 60 °C for 12 h. The Ag/DBM catalyst was annealed at 400 °C for 4 h under air conditions with a ramp rate of 1 °C/min.

Mn/DBM Preparation

In a typical procedure, 200 mg of DBM was dispersed in an Mn(NO3)2·6H2O solution so that the weight percentage of Mn to DBM was 10 wt. %. The mixture was stirred for 1 h. Then, the solution was slowly heated to 70 °C in an oil bath and stirred continuously for 12 h. The obtained solid was dried at 110 °C for 12 h. Finally, the dried powder was calcined at 400 °C for 4 h under air conditions with a ramp rate of 1 °C/min.

2.2.4. Material Characterization

The chemical compositions of the original DE and DBM were measured using an X-ray fluorescence spectrometer (Lab Center XRF-1800, Shimadzu, Da Nang, Viet Nam). The morphology and microstructure of all samples were characterized via secondary electron microscopy (Scanning Electron Microscope, JSM-6010 Plus/LV, JEOL, Da Nang, Viet Nam). The phase and crystallinity of the powders were investigated via X-ray diffraction (XRD) analysis (SmartLab, Rigaku, Da Nang, Viet Nam) using a diffractometer with CuKα radiation (λ = 1.54178 Å) at 40 kV and 40 mA and with 2θ scanning from 5° to 70°. The specific surface area and pore volume of the powders were determined via N2 adsorption–desorption analysis using an ASAP 2020 (Micromeritics, Da Nang, Viet Nam) apparatus. Prior to the analysis, the samples were degassed at 150 °C for 4 h under vacuum conditions. The specific surface area was calculated by BET (Brunauer-Emmett-Teller) equation in the range of relative pressure (P/Po) from 0.05 to 0.35. The pore volume and pore size distribution was calculated by using Barrett-Joyner-Halenda (BJH) method from the desorption isotherm data.

2.2.5. Catalytic Activity Test

The as-prepared DBM (synthesized via hydrothermal for 8 h) was used as a support to deposit silver and manganese oxide. Catalyst/DBM was subjected to a catalytic test for the toluene total oxidation reaction. A fixed-bed stainless-steel tubular reactor (BTRS reactor, Parker Autoclave Engineers) was used under the atmospheric pressure. The temperature of the reactor was continuously monitored by two thermocouples placed inside and outside the reactor. A saturated mixture of gas containing toluene vapor was generated by bubbling 10 mL/min of a N2 gas stream through a toluene saturator at 5 °C. This toluene-containing N2 stream was mixed homogeneously with a clean dry airflow. The total flow rate of the feed (air + N2 + toluene) was 105 mL/min, and the concentration of toluene in the airstream was 400 ppm. One-hundred milligrams of the catalyst/DBM was filled into the stainless-steel tube with a gas hourly space velocity (GHSV) of 40000 h−1. Prior to the tests, the catalysts were pretreated in an airflow of 10 mL/min at 250 °C for 2 h. The reaction was first conducted at 30 °C for 1 h to stabilize the system. Then, the temperature was increased gradually, with a ramp rate of 1 °C/min, from room temperature to 400 °C. The reaction products were analyzed online using a gas chromatography system (Agilent 7890B) equipped with FID and TCD detectors. The principal products of the catalytic oxidation of toluene over the Mn/DBM and Ag/DBM catalysts were carbon dioxide and water. No other product was observed. The carbon balance was nearly 100 ± 5%. The toluene conversion to CO2 (η) was calculated using the following formula:
η = [ C O 2 ] o u t 7 × [ t o l u e n e ] i n × 100 ,
where [toluene]in and [CO2]out represent the concentrations of toluene in the inlet gas stream and CO2 in the outlet gas stream, respectively.

3. Results and Discussion

3.1. Structure and Formation Mechanism of DE WBL Microspheres

The morphologies of raw DE and pre-hydrothermal treatment samples are shown in Figure 1. The raw DE exhibits the common morphologies of diatoms (Figure 1a) [2]. Among the various shapes, the rod-like and disk-like shapes were the most abundant. The disk-shaped constituents contained many sub-micron holes, which is a recognized characteristic of diatoms. The size of the diatomic constituents was not homogeneous, varying from a few micrometers to >10 µm. The original shape of the DE was modified after stirring for 2 h in a 10 M NaOH solution at room temperature (Figure 1b). DE particles were partially deformed, merged with each other, and formed a bulky block. This phenomenon resulted from the dissolution of DE in the NaOH solution.
After the hydrothermal treatment, the original shape of the DE had completely disappeared, and new morphologies had emerged (Figure 2). After 2 h of treatment, a sheet-like mesophase had appeared. After 8 h of treatment, the mesophase had gradually transformed into WBL microspheres, with diameters ranging from 7 to 10 µm. It appears that these spheres were formed by the aggregation of rod-like fibers. Interestingly, nearly monodispersed spheres were obtained, which has been the main objective of many studies [28]. The SEM images illustrate the gradual disappearance of the mesophase. After 8 h, only a small amount of residual mesophase was observed in the vicinity of the microsphere surface.
The main chemical components of the raw DE and DBM synthesized after hydrothermal treatment for 8 h are presented in Table 1. The data agree with the literature [29,30], indicating that Si was the dominant element. Other elements were also present, in small quantities. After the hydrothermal treatment, the proportion of components had changed. The amount of Si had significantly decreased, while the amounts of Fe, Ca, and Al had increased. The Na content in DBM was 4.17 wt. %, which resulted from the incorporation of Na from the solution into the precipitate.
XRD patterns of the raw DE and DBM samples are presented in Figure 3. For the raw DE, the main signals were from quartz (JCPDS card no. 033-1161), low-cristobalite (JCPDS card no. 076-0941), and albite (NaAlSiO3O8, JCPDS card no. 089-6426) [31]. The XRD patterns of DBM exhibit many diffraction peaks, indicating the evolution and complexity of the crystalline phases. The significant reduction of the peak intensity of low-cristobalite after 2 h may have been due to the dissolution of SiO2 in the strong basic medium. Concurrently, the peak intensity of quartz and albite increased significantly. New crystalline elements were identified, such as silicon dioxide (coesite HP, SiO2, JCPDS-083-1832), low-sodalite (Na8(Al6Si6O24), JCPDS-071-5356), aegirine (Na0.9Ca0.1)Fe(Si2O6), JCPDS-076-2562), and analcime-C (Na(Si2Al)O6·H2O, JCPDS-041-1478). Among these crystal elements, three were made up of Na, Ca, Fe, and Al ions incorporated into the crystalline structure. The Na mainly originated from the NaOH used in the hydrothermal treatment, and the Al, Fe, and Ca were from the original DE source. When the hydrothermal treatment time increased to 6 h, the DBMs evolved, with the appearance of cancrinite (Na7.6Ca0.4Al6Si6O24(CO3)(H2O), JPCDS-073-0540) peaks at 2θ = 21.3°, 27.6°, and 32.5°, and increases in the intensities of the low-sodalite peaks at 31.7° and 34.7°.
After 8 h of treatment, the silicate species were rearranged and new mineral crystals were generated. During this process, Na+, Ca2+, Fe2+, and Al3+ ions were inserted into the new structures. The insertion may have been due to the binding between positive metal ions and negative silicate species in the solution. Similar incorporation phenomena have been previously reported [31,32].

3.1.1. Formation Mechanism of WBL Microspheres

The hydrothermal treatment modified the original morphology of DE and formed new structures [17]. The microspheres appeared after 3–4 h of treatment and comprised many fibers with dimensions of 0.25 × 15 µm2 (Figure 4). The fibers appeared to develop from the mesophase clusters in two ways: (1) simultaneous crystallization in the form of sub-micron fibers and (2) branching, i.e., one fiber grown from another. Together, the fibers ultimately formed a WBL microsphere.
To explain the formation mechanisms of crystalline materials under hydrothermal treatment, two popular mechanisms have been proposed: dissolution–recrystallization and pseudomorphic transformation [28,33]. The latter process occurs when the initial shape of the material is conserved while new structures are created layer-by-layer. This phenomenon was not observed in the present study. Thus, the formation of microspheres was considered to follow a dissolution–recrystallization process [34,35].
Upon hydrothermal treatment, the dissolution of DE led to a high concentration of Si-based species, which aggregated and formed new solid states. The formation mechanism involves the following steps, as shown in Figure 5.
  • DE dissolves under the attack of hydroxide ions.
  • When the concentration of silicate species reaches supersaturation under the hydrothermal condition, mesophase structures (sheet-like) of silicates are formed and coalesced into clusters.
  • Crystallization begins at high temperature and pressure under hydrothermal conditions. With the preferential binding of CTA+, these mesophases favorably crystallize into microfibers. Then, these fibers curve to minimize the free energy and eventually form a WBL microsphere.
Additional evidence supporting the dissolution and regrowth mechanism is the presence of microspheres that were crystalline in the interior while the boundary was not completely crystallized (Figure 5(4) and Figure 6a). This phenomenon can be explained by the following steps, which are similar to those presented previously. First, the sheet-like mesophase coalesced and formed spherical clusters. Then, crystallization began inside the clusters. As fibers elongated, they curved and formed WBL microspheres. The dissolution–recrystallization mechanism appears to be reasonably established in the present conditions. DE, which is mainly composed of amorphous SiO2, is easily attacked by hydroxide ions, which originate primarily from NaOH and partly from H2O dissociation [36]. The surface of the DE first dissolved; then, the entire particles gradually dissolved into the solution. The dissolution of amorphous SiO2 in highly alkaline NaOH involves two steps [37,38]: the surface SiO2 dissolves in H2O and then forms Si-OH according to the following reaction:
Si–O–Si + H2O → 2Si–OH.
Then, deprotonation occurs in NaOH:
Si–O–Si + H2O + 2OH− → 2Si-O− + 2H2O.
The dissolution of silica is endothermic. Thus, a higher temperature leads to a higher dissolution rate [38]. Additionally, the dissolution rate is proportional to the density of Si–O− on the surface of SiO2 structures [37]. Therefore, with a higher concentration of NaOH, the dissolution proceeds more rapidly. Finally, the solution of amorphous SiO2 should contain different types of species, such as orthosilicic acid, pyrosilicic acid, metasilicic acid, disilicic acid, and other polymeric species [39]. Through this mechanism, DE dissolved and formed different silicate species [40]. The monomer species dominated at the beginning of the dissolution process, and then dimers and polymeric species were gradually formed. The latter species condensed and precipitated, generating clusters and eventually particles (amorphous and crystalline).
As CTAB was part of the reaction mixture, it also had important effects on the crystallization and morphology of the DBM. The CTAB molecules dissociated into CTA+ ions and were adsorbed on the surface of growing crystals, promoting the crystal growth in a preferential direction. This preferential adsorption phenomenon has been previously observed during the formation of ZnO nanorods [41] and PbWO4 crystal synthesis [42]. The detailed role of CTAB in DBM formation is discussed below.

3.1.2. Effects of Cetyltrimethylammonium Bromide on DE-Based Materials Formation

To understand the formation of WBL microspheres, it is necessary to understand the interaction between CTAB and silicate species in the reaction mixture. Until now, no report has discussed this interaction under similar experimental conditions. In this study, the hydrothermal treatment was conducted at 160 °C for several hours with 10 M NaOH. CTAB was used at 10−2 M to ensure the presence of micelles in the aqueous solution [43]. The hydrothermal conditions may have affected the assembly nature of CTAB in the reaction mixture. CTAB may have been present as an organized structure or as free molecules. Kreske reported that surfactants remained intact after hydrothermal treatment at 210 °C for up to 48 h [13]. In agreement with Kreskes’s report, we observed that during the filtration step to recover solid DBM, the filtrate contained foams, indicating the presence of intact CTAB molecules after the hydrothermal treatment. If CTAB existed as hexagonal arrays, the DBM would have ordered hexagonal pores, as reported by Kreske [13]. The hexagonal pore structure should create DBM with a large specific surface area. Hexagonal structures only exist at a high concentration of CTAB, which was not the case under the present conditions. Additionally, auto-assembled structures of CTAB are only formed at high concentrations [44,45]. Monnier reported that the concentration of CTAB must be 25–70 wt. % to favor the formation of hexagonal structures in an aqueous solution [17]. Similarly, the lamellar phase of CTAB only exists at very high concentrations, i.e., ≥70 wt. %. Thus, it is logical to suggest that under the present conditions, the CTAB existed as free, positively charged ions (CTA+).
DE is mainly composed of SiO2, which easily dissolves in a strong alkaline solution. The dissolution generates various negatively charged silicate species, including monomeric (Si(OH)2O22−, Si(OH3)O), dimeric (Si2O76−), trimeric (Si3O72−), and tetrameric species [45]. These species condense and form polymeric rings and multidentate polyanionic clusters [46]. The pKa of monosilicic acid is approximately 9.5 [45]; thus, silicate species are likely deprotonated and negatively charged in a strongly alkaline solution. In particular, polymeric silicate species can function as multidentate binding substrates for CTA+ ions. CTAB is a cationic surfactant that can bind to negatively charged silicate species in solution or at the surface of crystals by binding to SiO− [47]. The binding occurs through electrostatic interactions and should be geometrically preferential to control the growth direction of the crystal. CTA+ ions horizontally bind to the multivalent negatively charged polyanions formed by the silicate species [17], facilitating growth along the fiber and restricting growth in the wider direction. This binding mode of CTA+ has been reported for the synthesis of Au nanorods [48] and hydroxyapatite [49].
Additionally, the tetrahedral geometry of the silicate species unit promotes the interaction with CTA+ ions owing to geometric matching [50]. Yan et al. suggested that the binding of CTA+ ions to phosphate moieties is facilitated by geometric matching [51]. A similar concept is commonly used in drug-receptor theory. Thus, CTA+ ions favorably bound to silicate species via stereochemistry and electrostatic interactions. These bindings occurred during the precipitation process and generated microfibers. When these fibers became long enough, they curved and eventually formed WBL spheres. The formation of spheres with a WBL morphology is not commonly reported in the literature. Recently, Xiuxiu reported the formation of WBL Au nanoparticles [52]. However, templating compounds were not used, and the formation mechanism involved aurophilic interactions among AuI complexes. In contrast, in the present study, CTAB molecules played a crucial role in forming WBL microspheres.

3.1.3. Effects of CTAB Concentration on Morphology and Crystal Structure

SEM images of DBM synthesized in the absence and presence of CTAB are shown in Figure 7. Without CTAB (top row), the DBM was well crystallized into a rectangular crystal of approximately 5 µm. In contrast, the presence of CTAB elongated the crystals, leading to the formation of fibers that folded and formed wool-ball like microspheres. When the CTAB concentration increased, less mesophase was present in the proximity of the microsphere surface (bottom row in Figure 7). The moderate concentration of CTAB indicates that a large amount of mesophase clusters were adsorbed on the fibers. Thus, a sufficient amount of surfactant was needed to form WBL microspheres and accelerate the crystallization. As mentioned previously, the CTAB directed the growth of the fibers. Surprisingly, the quantity of CTAB did not affect the crystal structure of the DBM, as shown in Figure S1. It is considered that the quantity of CTAB was not high enough to generate an obvious difference.

3.1.4. Effect of Surfactant Type (Cationic Versus Anionic)

To evaluate the effects of a surfactant charge on the formation of microspheres, SDBS was used. SBDS is negatively charged, whereas CTAB is positively charged. As indicated by the SEM images in Figure 8, the CTAB was more effective than the SDBS for controlling the shapes of the elongated fibers and the wool-ball like microspheres. In the presence of CTAB, the microspheres were formed with neater fibers. In the case of SDBS, there were more mesophase clusters surrounding the fibers, while rectangular crystals were still observed. The reduced amount of the mesophase indicates that the binding of CTAB on silicate species was more effective than the binding of SBDS for controlling the morphology and facilitating the crystallization.
This is understandable considering that the interactions between CTA+ and silicate species are stronger than those between SDBS and silicate species. Owing to its negative charge, SDBS does not bind to silicate via electrostatic forces. Instead, SDBS probably interacts weakly with silicate through van der Waals interactions and H bonds. H-bonds may form between silanol groups of silicate and the headgroup of SDBS. The combination of these interactions keeps SDBS on the surface of silicate species and directs the growth of the crystal fibers. A similar effect of SDBS on the crystal size has been observed in PbWO4 synthesis [42].
However, the charge of the surfactants used in this study did not have any observable effect on the crystal structure (Figure S2, supplementary). It appears that the crystal structure was determined by the reaction conditions rather than by the presence of surfactants.

3.1.5. Textural Properties

The hydrothermal treatment not only modified the crystal structure and morphology of the DBM but also its textural properties. Table 2 presents the specific surface area and total pore volume of the samples. The N2 adsorption measurements indicated that the hydrothermal treatment significantly changed the porosity of the original DE, making it more porous. The specific surface area of the DE was very small (3 m2/g), and the total pore volume was almost 0 cm3/g, whereas those of the DBM were significantly larger. In particular, the specific surface area of the DBM was 25–60 times larger than that of the DE, depending on the treatment duration. Interestingly, the DBM after 2 h had the largest specific surface area (185 m2/g) and total pore volume (0.32 cm3/g). When the treatment time increased to 8 h, the surface area and pore volume decreased to 84 m2/g and 0.18 cm3/g, respectively. This reduction may have been due to crystallization.

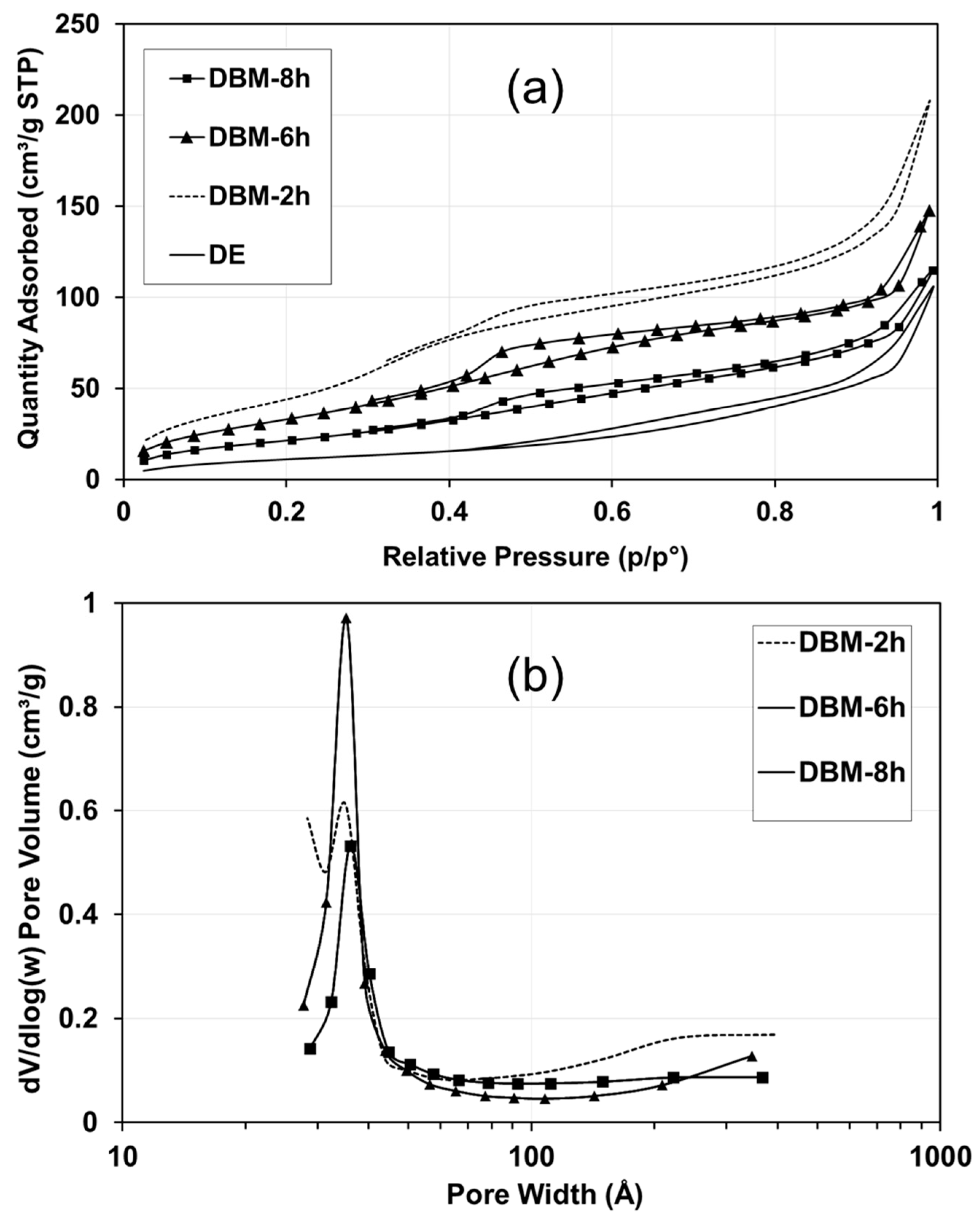

Figure 9a shows the N2 adsorption–desorption isotherms of the DE and DBM. The isotherms of all the DBMs exhibited hysteresis loops. According to the Brunauer classification [53], the loops are due to the type IV isotherm with H4-type hysteresis. Figure 9b shows the pore volume with respect to the pore size. The DBM after hydrothermal treatment for 2, 6, and 8 h was mainly characterized by mesopore diameters centered at 3.5–4.5 nm. Thus, the mesoporous properties of the DBMs appear to be suitable for application as a catalyst support for the gas-phase heterogeneous reaction.

3.2. DE WBL Microspheres as Support for Metallic Catalyst

3.2.1. Crystalline Phase of Ag/DBM and Mn/DBM Catalysts

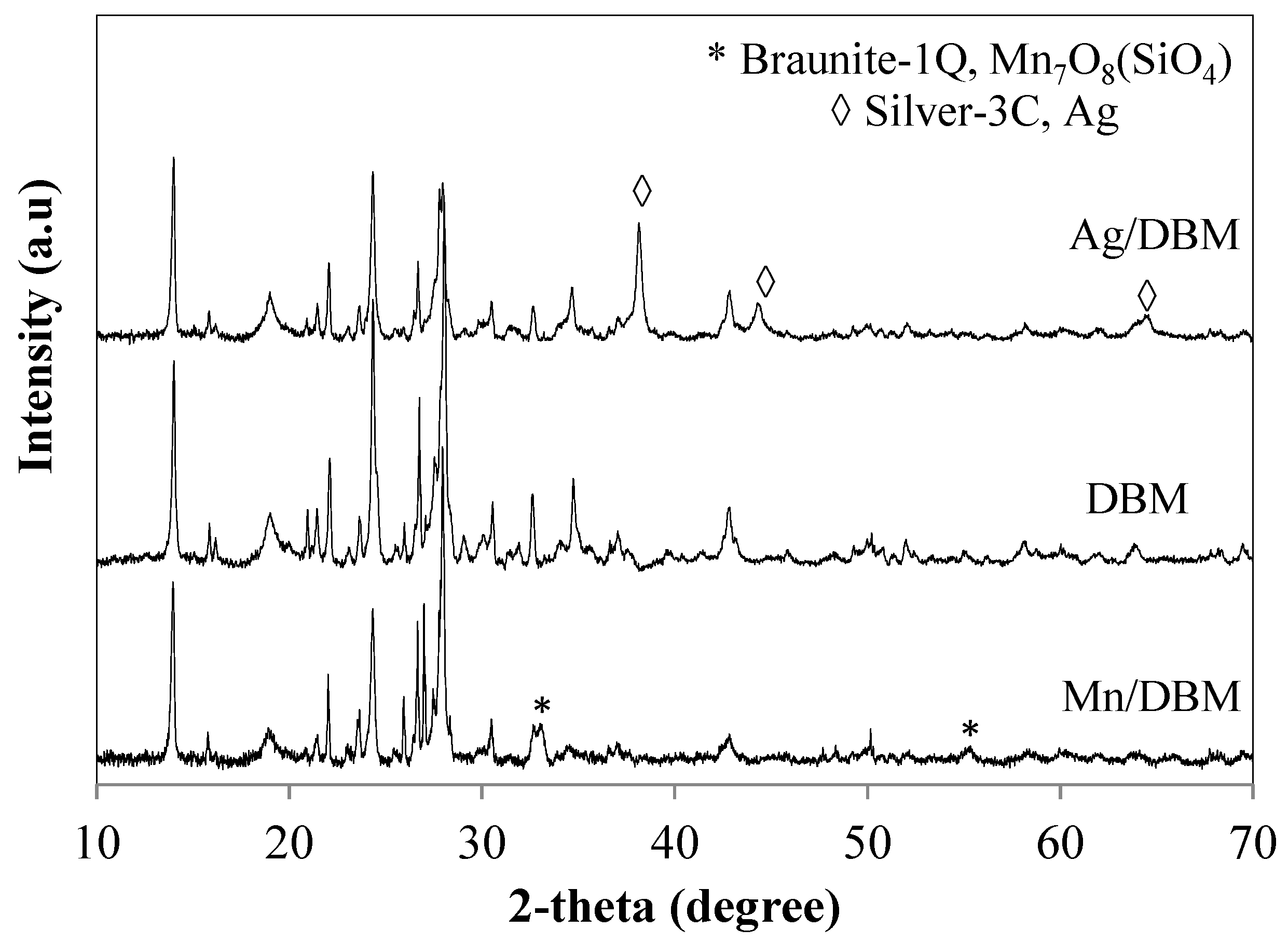

After deposing manganese on DBM, the crystalline phase of manganese hexamanganese (III) octaoxide silicate (braunite-1Q, Mn7O8(SiO4) jcpds no 089-5664) was identified at 2θ of 33° and 55° (Figure 10). The diffraction peak of SiO2 coesite HP at 29° disappeared. The formation of braunite may have resulted from the interaction between manganese oxide and SiO2 during the calcination process at 400 °C. For the Ag/DBM catalyst, metallic Ag was detected at 2θ = 38.1°, 44.3°, and 64.4°.

3.2.2. Catalytic Performance of Ag/DBM and Mn/DBM Catalysts

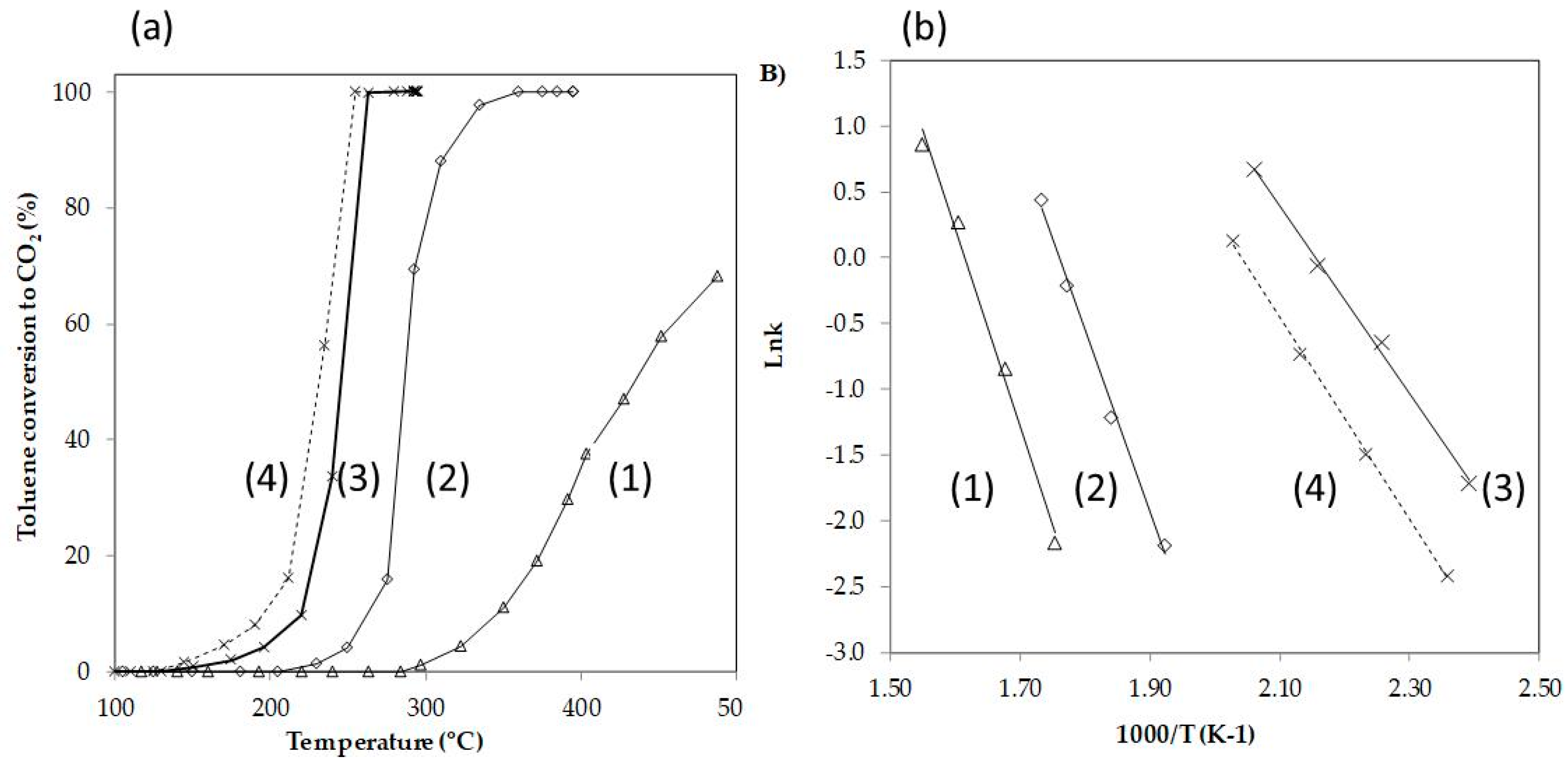

The efficiencies of Ag/DBM, Mn/DBM, and DBM to catalyze the combustion of toluene are presented in Figure 11. As shown, the DBM was slightly active at a high temperature of 300 °C. The toluene conversion into CO2 barely reached 70% at a high temperature of 500 °C. Additionally, the results indicated that the Ag/DBM and Mn/DBM catalysts were both active at lower temperatures. The toluene was completely converted into CO2 at 280 °C for Mn/DBM and at 350 °C for Ag/DBM. Accordingly, the Mn/DBM catalyst exhibited high activity for the total oxidation of toluene. For lower toluene inlet concentration, the complete oxidation temperature could reduce to 255 °C. Table 3 presents the catalytic performance of the Ag/DBM and Mn/DBM catalysts for the oxidation of toluene. They are compared with previously reported catalysts. The data indicate that the DBM alone was not very active in the toluene oxidation reaction and that Mn/DBM and Ag/DBM were significantly more active. The T90 values in Table 3 (referring to the temperature at which the toluene conversion was 90%) varied by approximately 200–300 °C depending on the catalysts, toluene concentration (ranging from 200 to 1000 ppm), and space velocity (ranging from 20,000 to 80,000 h-1). The T90 value obtained in this study indicates that the Mn/DBM catalyst is highly active compared with other catalytic systems. For further comparison of the catalytic activity of the catalysts, the values of energy activation (Ea) of the catalysts were determined by Arrhenius equation according to the previous report [54,55,56], supposing that the toluene oxidation followed the first-order reaction toward toluene concentration and zero-order toward oxygen concentration because of the high molar ratio of oxygen to toluene (>400 times). The linear plots were obtained for all the catalysts (Figure 11B). The Ea values of the DBM, Ag/DBM, and Mn/DBM catalyst were 125, 115, and 66 KJ/mol, respectively. Here, the best Mn/DBM catalyst for toluene oxidation shows the lowest Ea value. Thus, the results suggest that DBM can be used as an efficient catalyst support. However, a detailed investigation of the characteristics of the DBM is essential before any definite conclusion can be drawn. Some properties should be considered, including the rehydration during catalyst applications (because H2O is generated inside the reactor), as well as the chemical and thermal stability of the supports.

4. Conclusions

For the first time, the synthesis of WBL microspheres via a hydrothermal method was demonstrated. The transformation of DE during a hydrothermal treatment process was systematically investigated. First, the DE was dissolved to form a mesophase and clusters. Under the effects of the temperature, pressure, and surfactant, the mesophase clusters crystallized into WBL microspheres. These microspheres comprised an assembly of fibers. The presence of the surfactant was a prerequisite for generating WBL microspheres. The cationic surfactant facilitated crystallization, whereas an anionic surfactant was less effective. Without a surfactant, microspheres were only generated from clusters of rectangular crystals, not from fiber crystals. Such WBL spheres have a significantly larger specific surface area than the original DE; thus, they can be used as effective metallic catalyst supports for the total oxidation reaction of toluene.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/2/339/s1, Figure S1: XRD Diffractograms of diatomite-based material after a hydrothermal treatment of 8 h in the presence of different amounts of CTAB 0 wt. %, 3 wt. %, and 10 wt. %., Figure S2: XRD Diffractogram of diatomite-based material after a hydrothermal treatment of 8 h at 160 °C in the presence of CTAB or SDBS.

Author Contributions

Conceptualization, formal analysis, investigation, writing—original draft preparation, writing—review and editing, Q.-C.L.; investigation writing—original draft preparation, writing—review and editing C.C.N, T.L.; Investigation, T.T.N.L., S.H.H.; Conceptualization, formal analysis, investigation, writing—original draft preparation, writing—review and editing, project administration, funding acquisition, D.M.T.N.; editing and funding acquisition, S.Y.K.; writing—review and editing, Q.V.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Vietnam National Foundation for Science and Technology Development (NAFOSTED) under grant number 104.05-2016.34. This research was also partly supported by the Bio & Medical Technology Development Program (2018M3A9H1023141) of the National Research Foundation of Korea (NRF) funded by the Korean government and by a Korea Agency for Infrastructure Technology Advancement grant (17IFIP-B133622-01) funded by the Ministry of Land, Infrastructure and Transport.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sandhage, K.H.; Dickerson, M.B.; Huseman, P.M.; Caranna, M.A.; Clifton, J.D.; Bull, T.A.; Heibel, T.J.; Overton, W.R.; Schoenwaelder, M.E.A. Novel, bioclastic route to self-assembled, 3D, chemically tailored meso/nanostructures: Shape-preserving reactive conversion of biosilica (Diatom) microshells. Adv. Mater. 2002, 14, 429–433. [Google Scholar] [CrossRef]
  2. Losic, D.; Mitchell, J.G.; Voelcker, N.H. Diatomaceous lessons in nanotechnology and advanced materials. Adv. Mater. 2009, 21, 2947–2958. [Google Scholar] [CrossRef]
  3. Li, Y.; Sun, H.; Feng, R.; Wang, Y.; Subhan, F.; Yan, Z.; Zhang, Z.; Liu, Z. Synthesis of ZSM-5 zeolite from diatomite for fluid catalytic cracking (FCC) application. Appl. Petrochem. Res. 2015, 5, 347–353. [Google Scholar] [CrossRef] [Green Version]
  4. Xia, P.; Wang, X.; Wang, X.; Zhang, J.; Wang, H.; Song, J.; Ma, R.; Wang, J.; Zhao, J. Synthesis and characterization of MgO modified diatomite for phosphorus recovery in eutrophic water. J. Chem. Eng. Data 2017, 62, 226–235. [Google Scholar] [CrossRef]
  5. Liu, P.; He, H.; Wei, G.; Liu, D.; Liang, X.; Chen, T.; Zhu, J.; Zhu, R. An efficient catalyst of manganese supported on diatomite for toluene oxidation: Manganese species, catalytic performance, and structure-activity relationship. Microporous Mesoporous Mater. 2017, 239, 101–110. [Google Scholar] [CrossRef]
  6. Qian, T.; Li, J.; Deng, Y. Pore structure modified diatomite-supported PEG composites for thermal energy storage. Sci. Rep. 2016, 6, 32392. [Google Scholar] [CrossRef]
  7. Ruggiero, I.; Terracciano, M.; Martucci, N.M.; De Stefano, L.; Migliaccio, N.; Tatè, R.; Rendina, I.; Arcari, P.; Lamberti, A.; Rea, I. Diatomite silica nanoparticles for drug delivery. Nanoscale Res. Lett. 2014, 9, 329. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, Y.; Tang, Y.; Dong, A.; Wang, X.; Ren, N.; Gao, Z. Zeolitization of diatomite to prepare hierarchical porous zeolite materials through a vapor-phase transport process. J. Mater. Chem. 2002, 12, 1812–1818. [Google Scholar] [CrossRef]
  9. Sanhueza, V.; Kelm, U.; Cid, R.; López-Escobar, L. Synthesis of ZSM-5 from diatomite: a case of zeolite synthesis from a natural material. J. Chem. Technol. Biotechnol. 2004, 79, 686–690. [Google Scholar] [CrossRef]
  10. Sanhueza, V.; Kelm, U.; Cid, R. Synthesis of mordenite from diatomite: a case of zeolite synthesis from natural material. J. Chem. Technol. Biotechnol. 2003, 78, 485–488. [Google Scholar] [CrossRef]
  11. Yao, G.; Lei, J.; Zhang, X.; Sun, Z.; Zheng, S.; Komarneni, S. Mechanism of zeolite X crystallization from diatomite. Mater. Res. Bull. 2018, 107, 132–138. [Google Scholar] [CrossRef]
  12. Hadjar, H.; Hamdi, B.; Jaber, M.; Brendlé, J.; Kessaïssia, Z.; Balard, H.; Donnet, J.B. Elaboration and characterisation of new mesoporous materials from diatomite and charcoal. Microporous Mesoporous Mater. 2008, 107, 219–226. [Google Scholar] [CrossRef]
  13. Kresge, C.T.; Leonowicz, M.E.; Roth, W.J.; Vartuli, J.C.; Beck, J.S. Ordered mesoporous molecular sieves synthesized by a liquid-crystal template mechanism. Nature 1992, 359, 710–712. [Google Scholar] [CrossRef]
  14. Beck, J.S.; Vartuli, J.C.; Kennedy, G.J.; Kresge, C.T.; Roth, W.J.; Schramm, S.E. Molecular or supramolecular templating: Defining the role of surfactant chemistry in the formation of microporous and mesoporous molecular sieves. Chem. Mater. 1994, 6, 1816–1821. [Google Scholar] [CrossRef]
  15. Sachse, A.; García-Martínez, J. Surfactant-templating of zeolites: From design to application. Chem. Mater. 2017, 29, 3827–3853. [Google Scholar] [CrossRef]
  16. Wang, Y.; Zhang, S.; Wei, K.; Zhao, N.; Chen, J.; Wang, X. Hydrothermal synthesis of hydroxyapatite nanopowders using cationic surfactant as a template. Mater. Lett. 2006, 60, 1484–1487. [Google Scholar] [CrossRef]
  17. Monnier, A.; Schüth, F.; Huo, Q.; Kumar, D.; Margolese, D.; Maxwell, R.S.; Stucky, G.D.; Krishnamurty, M.; Petroff, P.; Firouzi, A.; et al. Cooperative formation of inorganic-organic interfaces in the synthesis of silicate mesostructures. Science 1993, 261, 1299–1303. [Google Scholar] [CrossRef]
  18. Kumari, L.; Li, W.; Kulkarni, S.; Wu, K.; Chen, W.; Wang, C.; Vannoy, C.H.; Leblanc, R.M. Effect of surfactants on the structure and morphology of magnesium borate hydroxide nanowhiskers synthesized by hydrothermal route. Nanoscale Res. Lett. 2009, 5, 149. [Google Scholar] [CrossRef] [Green Version]
  19. Lin, K.; Chang, J.; Cheng, R.; Ruan, M. Hydrothermal microemulsion synthesis of stoichiometric single crystal hydroxyapatite nanorods with mono-dispersion and narrow-size distribution. Mater. Lett. 2007, 61, 1683–1687. [Google Scholar] [CrossRef]
  20. Cui, X.; Mao, S.; Liu, M.; Yuan, H.; Du, Y. Mechanism of surfactant micelle formation. Langmuir 2008, 24, 10771–10775. [Google Scholar] [CrossRef]
  21. Liu, Y.; Tourbin, M.; Lachaize, S.; Guiraud, P. Silica nanoparticles separation from water: Aggregation by cetyltrimethylammonium bromide (CTAB). Chemosphere 2013, 92, 681–687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Coppola, L.; Gianferri, R.; Nicotera, I.; Oliviero, C.; Antonio Ranieri, G. Structural changes in CTAB/H2O mixtures using a rheological approach. Phys. Chem. Chem. Phys. 2004, 6, 2364–2372. [Google Scholar] [CrossRef]
  23. Krishnaswamy, R.; Ghosh, S.K.; Lakshmanan, S.; Raghunathan, V.A.; Sood, A.K. Phase behavior of concentrated aqueous solutions of cetyltrimethylammonium bromide (CTAB) and sodium hydroxy naphthoate (SHN). Langmuir 2005, 21, 10439–10443. [Google Scholar] [CrossRef]
  24. Zhao, D.; Yang, P.; Margolese, D.I.; Stucky, G.D. Synthesis of continuous mesoporous silica thin films with three-dimensional accessible pore structures. Chem. Commun. 1998, 22, 2499–2500. [Google Scholar] [CrossRef]
  25. Zhao, D.; Huo, Q.; Feng, J.; Chmelka, B.F.; Stucky, G.D. Nonionic triblock and star diblock copolymer and oligomeric surfactant syntheses of highly ordered, hydrothermally stable, mesoporous silica structures. J. Am. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  26. Corma, A. From microporous to mesoporous molecular sieve materials and their use in catalysis. Chem. Rev. 1997, 97, 2373–2420. [Google Scholar] [CrossRef]
  27. Goren, R.; Baykara, T.; Marsoglu, M. A study on the purification of diatomite in hydrochloric acid. Scand. J. Metall. 2002, 31, 115–119. [Google Scholar] [CrossRef]
  28. Martin, T.; Galarneau, A.; Di Renzo, F.; Fajula, F.; Plee, D. Morphological control of MCM-41 by pseudomorphic synthesis. Angew. Chem. Int. Ed. 2002, 41, 2590–2592. [Google Scholar] [CrossRef]
  29. Garcia, G.; Cardenas, E.; Cabrera, S.; Hedlund, J.; Mouzon, J. Synthesis of zeolite Y from diatomite as silica source. Microporous Mesoporous Mater. 2016, 219, 29–37. [Google Scholar] [CrossRef]
  30. Sanhueza, V.; López-Escobar, L.; Kelm, U.; Cid, R. Synthesis of a mesoporous material from two natural sources. J. Chem. Technol. Biotechnol. 2006, 81, 614–617. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Jing, Z.; Kameda, T.; Yoshioka, T. Hydrothermal synthesis of hardened diatomite-based adsorbents with analcime formation for methylene blue adsorption. RSC Adv. 2016, 6, 26765–26774. [Google Scholar] [CrossRef]
  32. Janicke, M.T.; Landry, C.C.; Christiansen, S.C.; Kumar, D.; Stucky, G.D.; Chmelka, B.F. Aluminum incorporation and interfacial structures in MCM-41 mesoporous molecular sieves. J. Am. Chem. Soc. 1998, 120, 6940–6951. [Google Scholar] [CrossRef]
  33. Einicke, W.-D.; Enke, D.; Dvoyashkin, M.; Valiullin, R.; Gläser, R. The mechanism of pseudomorphic transformation of spherical silica gel into MCM-41 studied by PFG NMR diffusometry. Materials 2013, 6, 3688–3709. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, Q.; Hui, J.; Wang, P.; Xu, B.; Zhuang, J.; Wang, X. Hydrothermal synthesis of mesoporous silica spheres: effect of the cooling process. Nanoscale 2012, 4, 7114–7120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Cho, K.; Na, K.; Kim, J.; Terasaki, O.; Ryoo, R. Zeolite synthesis using hierarchical structure-directing surfactants: Retaining porous structure of initial synthesis gel and precursors. Chem. Mater. 2012, 24, 2733–2738. [Google Scholar] [CrossRef]
  36. Du, G.; LÜ, G.; He, X. Apparent dissolution kinetics of diatomite in alkaline solution. Chin. J. Chem. Eng. 2013, 21, 736–741. [Google Scholar] [CrossRef]
  37. Niibori, Y.; Kunita, M.; Tochiyama, O.; Chida, T. Dissolution rates of amorphous silica in highly alkaline solution. J. Nucl. Sci. Technol. 2000, 37, 349–357. [Google Scholar] [CrossRef]
  38. Tamada, O.; Gibbs, G.V.; Boisen, M.B., Jr.; Rimstidt, J.D. Silica dissolution catalyzed by NaOH: Reaction kinetics and energy barriers simulated by quantum mechanical strategies. J. Mineral. Petrol. Sci. 2012, 107, 87–98. [Google Scholar] [CrossRef] [Green Version]
  39. Belton, D.J.; Deschaume, O.; Perry, C.C. An overview of the fundamentals of the chemistry of silica with relevance to biosilicification and technological advances. FEBS J. 2012, 279, 1710–1720. [Google Scholar] [CrossRef]
  40. Byrappa, K.; Yoshimura, M. 5 - Hydrothermal growth of some selected crystals. In Handbook of Hydrothermal Technology; Byrappa, K., Yoshimura, M., Eds.; William Andrew Publishing: Norwich, NY, USA, 2001. [Google Scholar]
  41. Sun, X.M.; Chen, X.; Deng, Z.X.; Li, Y.D. A CTAB-assisted hydrothermal orientation growth of ZnO nanorods. Mater. Chem. Phys. 2003, 78, 99–104. [Google Scholar] [CrossRef]
  42. Lei, F.; Yan, B.; Chen, H.-H.; Zhang, Q.; Zhao, J.-T. Surfactant-assisted hydrothermal synthesis, physical characterization, and photoluminescence of PbWO4. Cryst. Growth Des. 2009, 9, 3730–3736. [Google Scholar] [CrossRef]
  43. Wang, Y.; Liu, L.; Xu, L.; Meng, C.; Zhu, W. Ag/TiO2 nanofiber heterostructures: Highly enhanced photocatalysts under visible light. J. Appl. Phys. 2013, 113, 174311. [Google Scholar] [CrossRef]
  44. Attard, G.S.; Glyde, J.C.; Göltner, C.G. Liquid-crystalline phases as templates for the synthesis of mesoporous silica. Nature 1995, 378, 366–368. [Google Scholar] [CrossRef]
  45. Chen, X.; Huang, L.; Li, Q. Hydrothermal transformation and characterization of porous silica templated by surfactants. J. Phys. Chem. B 1997, 101, 8460–8467. [Google Scholar] [CrossRef]
  46. Alvarez, R.; Sparks, D.L. Polymerization of silicate anions in solutions at low concentrations. Nature 1985, 318, 649–651. [Google Scholar] [CrossRef]
  47. Walker, S.A.; Zasadzinski, J.A. Self-Assembly of Silicate/Surfactant Mesophases. MRS Proceedings 1994, 371, 93. [Google Scholar] [CrossRef]
  48. Park, K.; Drummy, L.F.; Wadams, R.C.; Koerner, H.; Nepal, D.; Fabris, L.; Vaia, R.A. Growth mechanism of gold nanorods. Chem. Mater. 2013, 25, 555–563. [Google Scholar] [CrossRef]
  49. Bricha, M.; Belmamouni, Y.; Essassi, E.M.; Ferreira, J.M.F.; Mabrouk, K.E. Surfactant-assisted hydrothermal synthesis of hydroxyapatite nanopowders. J. Nanosci. Nanotechnol. 2012, 12, 8042–8049. [Google Scholar] [CrossRef]
  50. Mann, S.; Archibald, D.D.; Didymus, J.M.; Douglas, T.; Heywood, B.R.; Meldrum, F.C.; Reeves, N.J. Crystallization at inorganic-organic interfaces: Biominerals and biomimetic synthesis. Science 1993, 261, 1286–1292. [Google Scholar] [CrossRef] [Green Version]
  51. Chen, Y.; Liu, L. Modern methods for delivery of drugs across the blood–brain barrier. Adv. Drug Del. Rev. 2012, 64, 640–665. [Google Scholar] [CrossRef]
  52. Yin, X.; Teradal, N.L.; Morag, A.; Jelinek, R. Catalytic Au wool-ball-shaped nanostructures. ChemCatChem 2017, 9, 2473–2479. [Google Scholar] [CrossRef]
  53. Mo, S.; Zhang, Q.; Li, J.; Sun, Y.; Ren, Q.; Zou, S.; Zhang, Q.; Lu, J.; Fu, M.; Mo, D.; et al. Highly efficient mesoporous MnO2 catalysts for the total toluene oxidation: Oxygen-Vacancy defect engineering and involved intermediates using in situ DRIFTS. Appl. Catal., B 2020, 264, 118464. [Google Scholar] [CrossRef]
  54. Shi, F.; Wang, F.; Dai, H.; Dai, J.; Deng, J.; Liu, Y.; Bai, G.; Ji, K.; Au, C.T. Rod-, flower-, and dumbbell-like MnO2: Highly active catalysts for the combustion of toluene. Appl. Catal., A 2012, 433-434, 206–213. [Google Scholar] [CrossRef]
  55. Miranda, B.; Díaz, E.; Ordóñez, S.; Vega, A.; Díez, F.V. Oxidation of trichloroethene over metal oxide catalysts: Kinetic studies and correlation with adsorption properties. Chemosphere 2007, 66, 1706–1715. [Google Scholar] [CrossRef]
  56. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J.; Siemieniewska, T. Reporting physisorption data for gas/solid systems. In Handbook of Heterogeneous Catalysis; Wiley-VCH: Weinheim, Germany, 2008; pp. 1217–1230. [Google Scholar]
  57. Saqer, S.M.; Kondarides, D.I.; Verykios, X.E. Catalytic oxidation of toluene over binary mixtures of copper, manganese and cerium oxides supported on γ-Al2O3. Appl. Catal. B 2011, 103, 275–286. [Google Scholar] [CrossRef]
  58. Kim, S.C.; Shim, W.G. Catalytic combustion of VOCs over a series of manganese oxide catalysts. Appl. Catal. B 2010, 98, 180–185. [Google Scholar] [CrossRef]
  59. Qu, Z.; Bu, Y.; Qin, Y.; Wang, Y.; Fu, Q. The effects of alkali metal on structure of manganese oxide supported on SBA-15 for application in the toluene catalytic oxidation. Chem. Eng. J. 2012, 209, 163–169. [Google Scholar] [CrossRef]
Nanomaterials 10 00339 g001 550
Figure 1. SEM images of (a) raw diatomite (DE) and (b) DE immediately before the hydrothermal treatment.
Figure 1. SEM images of (a) raw diatomite (DE) and (b) DE immediately before the hydrothermal treatment.
Nanomaterials 10 00339 g001
Nanomaterials 10 00339 g002 550
Figure 2. SEM images of diatomite-based material (DBM) after hydrothermal treatment for 2, 4, 6, and 8 h.
Figure 2. SEM images of diatomite-based material (DBM) after hydrothermal treatment for 2, 4, 6, and 8 h.
Nanomaterials 10 00339 g002
Nanomaterials 10 00339 g003 550

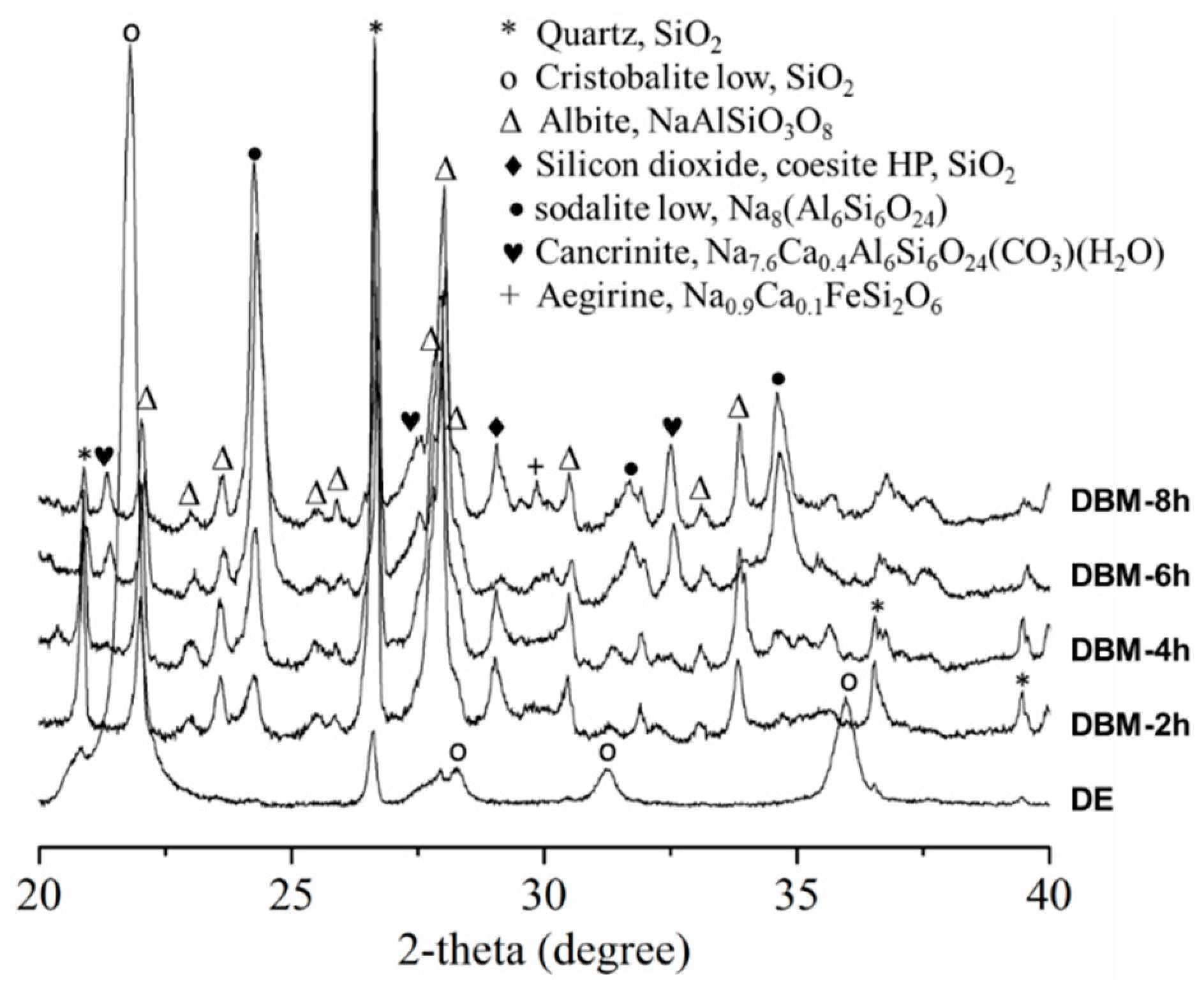

Figure 3. X-ray diffraction (XRD) diffractograms of DE and DBM after hydrothermal treatment for 2, 4, 6, and 8 h.
Figure 3. X-ray diffraction (XRD) diffractograms of DE and DBM after hydrothermal treatment for 2, 4, 6, and 8 h.
Nanomaterials 10 00339 g003
Nanomaterials 10 00339 g004 550
Figure 4. DBM obtained after hydrothermal treatment for various durations. The white arrows indicate the positions where the fibers branched.
Figure 4. DBM obtained after hydrothermal treatment for various durations. The white arrows indicate the positions where the fibers branched.
Nanomaterials 10 00339 g004
Nanomaterials 10 00339 g005 550
Figure 5. Formation of WBL microspheres from raw DE (1), mesophase (2), mesophase cluster (3), beginning of crystallization (4), fiber formation (5), and the WBL microsphere (6). The yellow circle shows a microsphere with a crystalline interior and a mesophase at the boundary.
Figure 5. Formation of WBL microspheres from raw DE (1), mesophase (2), mesophase cluster (3), beginning of crystallization (4), fiber formation (5), and the WBL microsphere (6). The yellow circle shows a microsphere with a crystalline interior and a mesophase at the boundary.
Nanomaterials 10 00339 g005
Nanomaterials 10 00339 g006 550
Figure 6. SEM images of DBM after hydrothermal treatment of DE for 4 h. (a) Microsphere growth from a cluster (dotted red circle); (b) mesophase on the surfaces of the microspheres.
Figure 6. SEM images of DBM after hydrothermal treatment of DE for 4 h. (a) Microsphere growth from a cluster (dotted red circle); (b) mesophase on the surfaces of the microspheres.
Nanomaterials 10 00339 g006
Nanomaterials 10 00339 g007 550
Figure 7. SEM images of hydrothermally treated DE: no CTAB (top row); 3 wt. % CTAB (middle row); 10 wt. % CTAB (bottom row).
Figure 7. SEM images of hydrothermally treated DE: no CTAB (top row); 3 wt. % CTAB (middle row); 10 wt. % CTAB (bottom row).
Nanomaterials 10 00339 g007
Nanomaterials 10 00339 g008 550
Figure 8. SEM images of DBM after hydrothermal treatment in the presence of 10 wt. % CTAB (top row) and 10 wt. % SDBS (bottom row).
Figure 8. SEM images of DBM after hydrothermal treatment in the presence of 10 wt. % CTAB (top row) and 10 wt. % SDBS (bottom row).
Nanomaterials 10 00339 g008
Nanomaterials 10 00339 g009 550
Figure 9. Porosity of DE and DBM after hydrothermal treatment for 2, 6, and 8 h: (a) N2 adsorption–desorption isotherms and (b) pore volume with respect to the pore width calculated according to BJH method using the data from the desorption branch.
Figure 9. Porosity of DE and DBM after hydrothermal treatment for 2, 6, and 8 h: (a) N2 adsorption–desorption isotherms and (b) pore volume with respect to the pore width calculated according to BJH method using the data from the desorption branch.
Nanomaterials 10 00339 g009
Nanomaterials 10 00339 g010 550
Figure 10. Diffractograms of DBM, Ag/DBM, and Mn/DBM catalysts.
Figure 10. Diffractograms of DBM, Ag/DBM, and Mn/DBM catalysts.
Nanomaterials 10 00339 g010
Nanomaterials 10 00339 g011 550
Figure 11. (a) Catalytic performance and (b) Arrhenius plots of the DBM-based catalysts ((1) DBM[toluene]in = 400 ppm, (2) Ag/DBM[toluene]in = 400 ppm, (3) Mn/DBM [toluene]in = 400 ppm, and (4) Mn/DBM [toluene]in = 130 ppm).
Figure 11. (a) Catalytic performance and (b) Arrhenius plots of the DBM-based catalysts ((1) DBM[toluene]in = 400 ppm, (2) Ag/DBM[toluene]in = 400 ppm, (3) Mn/DBM [toluene]in = 400 ppm, and (4) Mn/DBM [toluene]in = 130 ppm).
Nanomaterials 10 00339 g011
Table
Table 1. Principal components (in weight percentage) of raw diatomite (DE) and DE-based materials (DBM) obtained after hydrothermal treatment for 8 h after annealing at 550 °C (HT-8h).
Table 1. Principal components (in weight percentage) of raw diatomite (DE) and DE-based materials (DBM) obtained after hydrothermal treatment for 8 h after annealing at 550 °C (HT-8h).
ComponentsDE Raw (%)DBM (HT-8h) (%)
Si87.5047.51
Fe4.9419.73
Ca1.989.80
Al2.3011.66
K2.713.81
P0.542.38
Ti-0.90
Na-4.17
Table
Table 2. Specific surface area and total pore volume of the DE and DBM.
Table 2. Specific surface area and total pore volume of the DE and DBM.
SampleSpecific Surface Area (m2/g)Total Pore Volume (cm3/g)
DE3.10.001
DBM-2h185.10.32
DBM-6h133.50.23
DBM-8h84.00.18
Table
Table 3. Catalytic performance of different catalysts for the oxidation of toluene.
Table 3. Catalytic performance of different catalysts for the oxidation of toluene.
CatalystSpecific Surface Area (m2/g)Toluene Concentration (ppm)GHSV 1T90 2 (°C)Ref.
Mn/DBM
Ag/DBM		75
64		160
400
400		40,000 h−1
(or 60,000 cm3⋅g−1⋅h−1)		250
260
315		This study
Mn/DE33100030,000 cm3⋅g−1⋅h−1279[5]
MnOx/Al2O3
CuO–MnOx/Al2O3
CeO2–MnOx/Al2O3		53
50
79		1000200,000 cm3⋅g−1⋅h−1>300
270		[49]
Mn3O4
Mn2O3
MnO2
0.5 wt. % K/Mn3O4		18
7
3
16		100015,000 cm3⋅g−1⋅h−1270
280
340
250		[50]
KMn/SBA-15 500–6001600-300[51]
5% MnOx/TiO2
MnCuOx/TiO2		505005000 h−1230[57]
15 wt. % Cu/Al2O3
5 wt. % Cu/Al2O3		182
203		1000
160		4800 cm3⋅g−1⋅h−1290
260		[58]
FeMn oxide
MnOx		178
14		50050,000 h−1197
253		[59]
1 GHSV: gas hourly space velocity; 2 T90: temperature at which 90% of toluene was converted.

Share and Cite

MDPI and ACS Style

Le, Q.-C.; Nguyen, C.C.; Le, T.T.N.; Lefèvre, T.; Dinh, M.T.N.; Hong, S.H.; Kim, S.Y.; Le, Q.V. Synthesis of Diatomite-Based Mesoporous Wool-Ball-Like Microspheres and Their Application for Toluene Total Oxidation Reaction. Nanomaterials 2020, 10, 339. https://doi.org/10.3390/nano10020339

AMA Style

Le Q-C, Nguyen CC, Le TTN, Lefèvre T, Dinh MTN, Hong SH, Kim SY, Le QV. Synthesis of Diatomite-Based Mesoporous Wool-Ball-Like Microspheres and Their Application for Toluene Total Oxidation Reaction. Nanomaterials. 2020; 10(2):339. https://doi.org/10.3390/nano10020339

Chicago/Turabian Style

Le, Quoc-Chon, Chinh Chien Nguyen, Thi Thanh Nhi Le, Thierry Lefèvre, Minh Tuan Nguyen Dinh, Sung Hyun Hong, Soo Young Kim, and Quyet Van Le. 2020. "Synthesis of Diatomite-Based Mesoporous Wool-Ball-Like Microspheres and Their Application for Toluene Total Oxidation Reaction" Nanomaterials 10, no. 2: 339. https://doi.org/10.3390/nano10020339

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
