Direct Preparation of Cellulose Nanofibers from Bamboo by Nitric Acid and Hydrogen Peroxide Enables Fibrillation via a Cooperative Mechanism

by
Jinlong Wang
1,2,
Xusheng Li
1,2,*,
Jianxiao Song
1,2,
Kunze Wu
1,2,
Yichun Xue
1,2,
Yiting Wu
1,2 and
Shuangfei Wang
1,2
1
Department of Light Industrial and Food Engineering, Guangxi University, Nanning 530004, China
2
Guangxi Key Laboratory of Clean Pulp & Papermaking and Pollution Control, Nanning 530004, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(5), 943; https://doi.org/10.3390/nano10050943
Submission received: 18 April 2020 / Revised: 10 May 2020 / Accepted: 13 May 2020 / Published: 15 May 2020
Browse Figures
Versions Notes

Abstract

:
Separating the fibers, deconstructing both the interlamellar structures and the intermicrofibrils structures in the cell wall, and cleaving the amorphous regions of cellulose (all reached in one bath chemical-assisted treatment), then extracting cellulose nanofibers (CNFs) from biomass, is both challenging and imperative. A simple, cost-effective and green strategy for extracting CNFs from bamboo using nitric acid and hydrogen peroxide (NCHP), to enable fibrillation via a cooperative mechanism, is demonstrated herein. NCHP-CNFs 13.1 ± 2.0 nm wide, with a high aspect ratio, 74% crystallinity, excellent UV resistance and high thermal stability, were successfully extracted by treatment in HNO3 aqueous solution, at a concentration of 3.2 mol/L, and treatment with 60.00 mmol/g H2O2 at 50 °C for 48 h. The yields of NCHP-CNFs reached 73% and 99% based on biomass and cellulose, respectively, due to the high delignification selectivity of OH+ and the mild aqueous conditions during the NCHP treatment. These NCHP-CNFs with excellent UV resistance can potentially be applied in the field of UV-resistant coatings, to replace organic and inorganic materials.

Graphical Abstract

1. Introduction

Cellulose nanofibers (CNFs) have excellent properties, such as extremely large specific surface areas, high Young’s moduli, high specific strengths, low densities, and low thermal expansion coefficients, and thus the research and development of CNFs has been driven by both industry and academia [1]. Potential applications of CNFs include water purification [2,3], nanopaper [4], aerogels [5], gas barrier films [6], pharmaceuticals [7,8], and other high-performance and high-tech nanomaterials.
Cellulose is a natural linear macromolecule consisting of 300–15,000 D-glucose units, linked through β-1,4-glycoside bonds [9]. Due to their molecular weight and the intercellulose hydrogen bonds (three hydroxyl groups per glucose unit), cellulose chains easily aggregate into bundles. Generally, 30–40 cellulose chains are aggregated into completely separate primary microfibrils 3–4 nm wide with crystalline and amorphous regions. The microfibrils 10–20 nm wide are composed of a few to dozens of primary microfibrils. The microfibers are embedded in a matrix consisting of lignin and hemicellulose, and the cell walls are assembled by unique hierarchical structures through intermicrofibrils hydrogen bonds and cohesion to form firm structures in biomass [10]. CNFs are usually extracted from biomass by chemical-assisted mechanical treatment processes. Repeated mechanical treatments, such as homogenization, sonication and microfluidization, are often required to cleave interfibrillar hydrogen bonds to enable fibrillation, and these processes consume a large amount of energy making them prohibitively expensive for commercial applications [9].
Various chemical-assisted methods involving various plant materials have been extensively studied at the bench scale. The consensus on effective strategies for reducing the cost of CNF production focuses on the following. (1) Chemical-assisted treatments including acid hydrolysis with H2SO4 and cellulase pretreatment. These methods enable fibrillation by cleaving the cellulose chains in the amorphous regions. However, the yields based on cellulose of acid hydrolysis with H2SO4 are low at only 25–35% [11], and the operating conditions for cellulase pretreatment are harsh [12]. (2) Introducing charged functional groups on the surface of the fibers to form a strong electrostatic repulsion between microfibrils in water, which can reduce the energy needed for mechanical treatment. Traditionally significant and representative methods for introducing charged groups onto fibers are TEMPO oxidation [13,14], periodate-chlorite oxidation [15,16], carboxymethylation [17], and quaternization [18]. These methods are only effective for cellulose raw materials, so various pretreatment procedures are required to extract cellulose fibers from biomass. To remove lignin, hemicellulose, and other components from biomass, typical pretreatment procedures, such as solvent treatment, alkali pretreatment, and bleaching, have been reported. However, typical methods for converting biomass into CNFs comprise multistep chemical-assisted treatments requiring multiple reagents and repeated mechanical processes that sometimes require substantial amounts of water, electrical energy, and expensive or uncommon chemicals (such as 2,2,6,6-tetramethylpiperidine-1-oxyl radical) [19].
Hydrogen peroxide (H2O2) is a green and economic oxidant, which has also been applied in various fields [20]. In recent years, H2O2 has appeared as a chemical additive in the field of CNF preparation. H2O2 in combination with ferrous sulfate (FeSO4) to produce CNFs from cellulose fibers has been demonstrated by Li et al. [21] Wen et al. have reported that the ultraviolet light and H2O2 enhanced ozone (O3) treatment capacity to produce CNFs from cellulose fibers [22]. Importantly, the oxidation effectiveness of HNO3 could be enhanced by the addition of H2O2, due to the fact that hydrogen peroxide can oxidize HNO2 to HNO3 [23].
In this work, a simple method to extract CNFs from bamboo in one bath with nitric acid and hydrogen peroxide (NCHP) under mild aqueous conditions was demonstrated. The NCHP process can effectively separate the fibers from bamboo and progressively deconstruct the interlamellar layers and the intermicrofibrils in the cell wall by removing the lignin and hemicellulose. During the NCHP treatment, the fiber width decreased from 450 μm to 10 μm, and the crystallinity of cellulose increased from 54% to 74%. The homogenization process proceeded smoothly without clogging. The NCHP-CNFs extracted from bamboo by the NCHP process are 13.1 ± 2.0 nm wide with high aspect ratios, 74% crystallinity, and high thermal stability, as well as the excellent ability of the obtained NCHP-CNFs to absorb the UV spectrum. Due to the high delignification selectivity of OH+ and the mild aqueous conditions during the NCHP treatment, the yields of NCHP-CNFs can reach 73% and 99%, based on biomass and cellulose, respectively. The NCHP process is conducted in one bath with common chemicals instead of a multistep, multichemical processes, greatly simplifying the preparation steps and reducing the consumption of chemicals, energy, and water. The residual liquid from the NCHP process could be effectively neutralized with base to produce nitrate fertilizers [19]. The available raw materials for NCHP-CNFs include a vast amount of waste biomass, such as shrubs and agricultural wastes, which may lead to lower costs. Thus, the NCHP process is a simple, cost-effective and green pathway to extract CNFs from biomass. The applicability of NCHP-CNFs is based on their excellent UV resistance, making them suitable for UV-resistant coatings to replace organic and inorganic materials.

2. Materials and Methods

2.1. Chemicals and Raw Materials

A three-year-old bamboo plant (Bambusa chungii) provided by the planting base of Guangxi Zhuang Autonomous Region Forestry Science Research Institute was used as the raw material (cellulose, lignin, and hemicellulose contents: 48.05%, 22.09%, and 28.88%, respectively). The bamboo was crushed to pass through 40–60 mesh, and the material was air-dried and then stored in a sealed bag. The chemicals used in the experiment, i.e., nitric acid (HNO3, 65 wt. %) and hydrogen peroxide (H2O2, 30 wt. %), were all analytically pure reagents purchased from Nanning Blue Sky Experimental Equipment Co., Ltd. (Naning, China)

2.2. Preparation of the Cellulose Nanofibers

To prepare the NCHP-CNFs, 5 g of powdered bamboo and a 60 mmol/g dosage of H2O2 base on bamboo mass were added to 200 mL of 3.2 mol/L or 9.6 mol/L HNO3 with magnetic stirring. The reaction was carried out at 50 °C (35 or 65 °C) for 48 h or 72 h and was terminated by adding deionized water (five times the volume of the reaction). To obtain the cellulose fibers, the reaction solution was washed with deionized water under suction, until the filtrate was neutral. The resulting cellulose fibers were then diluted to 0.8% and homogenized using a high-pressure homogenization chamber with a pore diameter of 87 μm and a homogenization pressure of 1500 bar. This operation was repeated 5 times to obtain the NCHP-CNF sample.

2.3. Characterization

The chemical compositions of the bamboo powder and NCHP fibers were determined according to the method described by the Technical Association of the Pulp & Paper Industry Inc. (Atlanta, GA, USA) The cellulose content was measured using TAPPI standard T203 OS-74, and the lignin content was measured using TAPPI standard T222 OS-83.
FTIR (Fourier-transform infrared spectroscopy) spectra were recorded using an FTIR spectrometer (TENSOR II, Brook Technology, Ettlingen, Germany) over a wavenumber range from 4000 to 400 cm−1, with a resolution of 4 cm−1.
SEM (scanning electron microscopy) was conducted using an SU8220 instrument (Hitachi, Tokyo, Japan), and the sample was sputter-coated with gold before observation.
TEM (transmission electron microscopy) was performed on a JEM-1200EX instrument (JEOL, Tokyo, Japan), at an acceleration voltage of 200 kV. The NCHP-CNFs solution was diluted to a concentration of 0.008% and 1 μL of the solution was dropped on a copper mesh to be naturally dried. Then, phosphotungstic acid was added dropwise for 20 min, and the excess dye was removed by filter paper. The diameter of the NCHP-CNFs was measured at least 100 times in the TEM image using Nano Measurer software (Version 1.2.5, San Francisco, CA, USA).
The lyophilized sample needs to be milled into powder using an agate mortar. The crystallinities of the raw materials and samples were analyzed using a benchtop XRD (X-ray diffractometer) (MINFLEX 600, Tokyo, Japan). The untreated powdered bamboo was evaluated by powder X-ray diffraction, while the NCHP fibers were evaluated as films. The crystallinity index (CrI) for each sample was calculated from the XRD patterns, according to the conventional method [24,25].
The lyophilized sample needs to be milled into powder using an agate mortar. 10 mg powder was added to the pan for TGA. TGA (thermogravimetric analysis) was carried out at a heating rate of 10 °C min−1 under a nitrogen atmosphere in a synchronous thermal analyzer (NETZSCH STA 449F5, Selb, Germany), over a temperature range of 30–600 °C. The sample was dried at 105 °C for 3 h to remove moisture before the test.

3. Results and Discussion

3.1. Proposed Mechanism of Pretreatment

A schematic diagram of the CNFs extracted from bamboo by the NCHP treatment is shown in Figure 1.
HNO3 is a strongly oxidizing inorganic acid and tends to ionize, releasing H+, in aqueous solutions. Due to the structural asymmetry of HNO3, the N–O bond is weak, and it can be readily cleaved to release atomic oxygen [O], by the anti-polarization of H+ [26]. Atomic oxygen [O] combines with H+ to form OH+. OH+ can react as an electrophile. Due to the decomposition of HNO3, the HNO2, NO2 and NO were generated, and the decomposition process could be accelerated by temperature, which changed the solution to yellow and released brown NO2 gas [27]. Here, no brown gas (NO2) was observed in the NCHP treatment (Figure S1), but it was in HNO3 and NaNO2 treatment [19]. This indicates that the H2O2 inhibits the formation of NO2. This may be explained as being because H2O2 acts as the active oxidant and it can oxidize HNO2 to HNO3 [28,29]. HNO3, as an active oxidant, was reduced to HNO2 during the NCHP treatment, while H2O2 regenerated HNO3 from HNO2 and it was consumed as the reaction continued. A diagram of the proposed delignification mechanism for NCHP treating is shown in Figure 2.
The lignin macromolecules, which have a high content of electron-rich functional groups, including olefins, carbonyls, and aromatic ring structures, were attacked by OH+. These electrophilic reactions caused the lignin to fragment into small molecules that dissolved from biomass, allowing the lignin to be removed from the biomass [30]. The ether bonds of hemicellulose are easy to break and lead to hemicellulose degradation under acidic conditions [31]. Amorphous cellulose was degraded by acid hydrolysis and oxidative fracture in the NCHP solution. Cellulose is generally stable in the NCHP solution, due to the protection of the crystalline cellulose regions and the mild aqueous conditions. The exact mechanism of preparing the NCHP-CNFs from biomass was investigated further.

3.2. Chemical Composition Analysis

Several variables, including temperature, time, H2O2 dosage and HNO3 concentration, were investigated by the analysis of the yields, the contents and retention ratios of cellulose, and the contents and removal ratios of lignin and hemicellulose. The experimental data are presented in Table 1.
As seen from Table 1, the removal ratios of lignin in the HNO3 aqueous solutions at concentrations of 3.2 and 9.6 mol/L were 74.14% (S.N.2) and 99.01% (S.N.1), respectively. As the time of NCHP treatment was prolonged, the lignin removal ratios increased from 74.14% for 48 h (S.N.2) to 85.45% for 72 h (S.N.3). As the temperature of treatment was increased, the ratios of lignin removal increased from 65.48% at 35 °C (S.N.6) to 74.14% at 50 °C (S.N.2) and then to 84.43% at 65 °C (S.N.5). The percentages of lignin removal were 74.14% (S.N.2) and 78.8% (S.N.4) by NCHP treatment with 60 and 90 mmol/g H2O2, respectively. This phenomenon indicates that the HNO3 concentration, the time, the temperature and H2O2 promote lignin removal. The hemicellulose removal percentages under all but the 35 °C conditions were in the range of 73.99–86.4%. The experimental results show that lignin and hemicellulose could be effectively removed from bamboo by NCHP treatment.
As seen from Table 1, the cellulose retention ratios were 96.96% (S.N.2) and 39.56% (S.N.1) when the HNO3 concentrations were 3.2 and 9.6 mol/L, respectively. As the time of NCHP treatment was prolonged, the cellulose retention ratios decreased from 96.96% for 48 h (S.N.2) to 91.62% for 72 h (S.N.3). As the temperature of treatment was increased, the ratios of cellulose retention decreased from 99.85% at 35 °C (S.N.6) to 96.96% at 50 °C (S.N.2) and then to 87.11% at 65 °C (S.N.5). The percentages of cellulose retention were 96.96% (S.N.2) and 95.45% (S.N.4) by NCHP treatment with 60 and 90 mmol/g H2O2, respectively. These results indicate that increasing the HNO3 concentration, temperature, time and H2O2 dosage all accelerate the degradation of cellulose. The experimental results showed that the NCHP process has a high cellulose retention ratio.
It can be seen from S.N.6 that the yield of fibers can reach 73.44%, which was attributed to the retentions of cellulose (99.85%), hemicellulose (65.41%) and lignin (34.52%), under mild aqueous conditions. Considering the chemical consumption, the removal of hemicellulose and lignin, the cellulose retention, etc., NCHP-CNFs were prepared by treatment with aqueous HNO3, at a concentration of 3.2 mol/L and a dosage of 60.00 mmol/g H2O2 at 50 ℃ for 48 h.

3.3. Fiber Morphological Characterization

The morphologies of the bamboo powder and fibers after NCHP pretreatment at 50 °C for 12, 24, and 48 h observed by SEM were compared, as shown in Figure 3. Bamboo powder with a particle size of approximately 450 μm was selected by 40–60 mesh, and it had a compact surface structure, as shown in Figure 3a. It can be seen from Figure 3b that a large portion of the fibers that had been separated were approximately 10 μm wide after NCHP treatment for 12 h; the fiber bundles that had not yet been fully separated were less than 50 μm and had become loose. This was attributed to the lignin and hemicellulose in the intercellular layer being removed during the NCHP treatment. It can be seen from Figure 3c that the fibers had been completely separated; some of the fibers had atrophied (highlighted in blue), and the lamellar fibers detached from the cell wall (highlighted in red) had been obtained, but the overall morphology of the fibers remained intact. This indicated that the structures of the interlamellar and intermicrofibrils in the cell wall had been progressively destroyed, and this was attributed to the removal of lignin and hemicellulose, which had penetrated deep into the cell wall. Figure 3d shows that more lamellar fibers were present (highlighted in red) and fiber kinks and deformities (highlighted in blue) were observed after NCHP treatment for 48 h. This indicated that the hierarchical structure of the cell wall was further degraded, and the structure of the microfibers had been partially destroyed, due to the amorphous regions of the cellulose chains breaking. The reduction of the microfibril size and the cleavage of the cellulose chains in the amorphous regions were conducive to subsequent nanofibril formation by high-pressure homogenization. In fact, the homogenization process proceeded smoothly without clogging.
The energy consumption of CNF extraction from biomass by the NCHP and TEMPO processes at the bench scale was measured as shown in Figure S2. Figure S2 shows that the energy required to produce CNFs by NCHP (0.69 kWh/g) was far lower than that of the TEMPO process (14.49 kWh/g) at the bench scale [19]. This was attributed to the fact that the NCHP method used one bath and common chemicals while the TEMPO process requires multiple steps and multiple uncommon chemicals, resulting in a higher consumption of both chemicals and energy. Furthermore, the wastewater could be utilized as a nitrogen fertilizer following neutralization with a base [19]. The available raw materials for NCHP-CNFs include a variety of waste biomass resources, such as shrubs and agricultural wastes, which may lead to lower costs.

3.4. Chemical and Morphological Characterization

The morphology of the NCHP fibers after high-pressure homogenization observed by TEM and their diameters as measured by Nano Measurer software are shown in Figure 4. It can be seen from Figure 4 that the NCHP-CNFs exhibited high aspect ratios, a certain amount of flocculation, superposition, and a network structure due to the fibrillation process, and the free hydroxyl groups on the surfaces promoted the aggregation of the NCHP-CNFs [32,33]. The NCHP-CNFs were similar to TEMPO-CNFs, with respect to their high aspect ratios, flocculation, superposition, and network structure [13]. Figure 4 shows that the fibers had cross section diameter of 13.1 ± 2.0 nm. This indicates that the NCHP-CNFs were prepared successfully.
The FTIR spectra of the bamboo powder and the NCHP-CNFs were compared, as shown in Figure 5. Figure 5 shows that the characteristic absorption peaks of cellulose at 3377 cm−1 (OH stretching), 1642 cm−1 (OH bending) and 2899 cm−1 (C–H stretching) were significantly strengthened from the bamboo powder to the NCHP-CNFs, due to the increase in the cellulose content. This indicates that the chemical structure of cellulose remains unchanged during NCHP treatment [34]. It can be seen from Figure 5 that the characteristic absorption peaks of lignin at 1509 cm−1 (basic structural framework of aromatic rings), 1462 cm−1 (C–H deformation), and 1253 cm−1 (aryl C–O stretching) were still observed [35], but their intensities were lower, due to the decrease in the lignin content (from 22% to 10%, Table 1). This indicates that the basic structural framework of the lignin matrix still existed after NCHP treatment. As shown in Figure 5, the characteristic absorption peak at 1737 cm−1 (C=O stretches for the acetyl and sugar ester groups in hemicellulose, the ferulic acid, and the ester carboxyl group) was present in the spectrum of bamboo, but was not present in the spectrum of NCHP-CNFs [36,37]. This can be explained by the fact that hemicellulose, lignin, and a few other components containing C=O groups were dissolved during NCHP treatment.
The crystallinity and crystal structure of cellulose usually change during chemical pretreatment and mechanical processing [38,39]. The CrIs calculated by the Segal equation and the XRD patterns of NCHP fibers and bamboo powder are compared in Figure 6. The diffraction peaks at 16° (101), 22° (002), and 34° (004) for cellulose I were significantly strengthened after NCHP treatment, as shown in Figure 6. This indicates that the crystal structure of the fibers was unchanged by NCHP treatment [24]. As seen from Figure 6, the CrIs of the bamboo powder and NCHP-CNFs were 54.33% and 74.37%, respectively. This indicates that the proportion of amorphous to crystalline regions in the cellulose was reduced during NCHP treatment. This was attributed to the fact that amorphous lignin and hemicellulose, as well as the amorphous regions of cellulose, were removed during NCHP treatment [40]. A high crystallinity corresponds to the improved strength and thermal stability of the cellulose nanofibers [41,42].
To investigate the thermal stability of the NCHP-CNFs obtained in this study, a thermogravimetric analysis was performed. The TGA record and derivative curve of the bamboo powder fiber and NCHP-CNF are shown in Figure 7. At 100 °C on the TG curve, the slight weight loss of the powdered bamboo fiber is attributed to the evaporation of moisture in the sample [43]. The TG curve shows that the decomposition of bamboo powder was earlier than NCHP-CNFs, and the residual material of bamboo powder was higher than NCHP-CNFs over 600 °C. The two phenomena are attributed to pyrolysis of hemicellulose and high lignin content, respectively [44]. The differential TG curve more accurately shows the difference in pyrolysis between the powdered bamboo fibers and NCHP-CNFs. Due to the pyrolysis of hemicellulose, the powdered bamboo fibers have distinct low temperature shoulders, which correspond to the mass loss on the TG curve at low temperatures. The results show that lignin and hemicellulose could be effectively removed from bamboo by NCHP treatment. The main peaks of the bamboo powder and NCHP-CNFs are 342 °C and 357 °C, respectively, representing the pyrolysis of cellulose. In general, the thermal stability of cellulose will decrease with the decrease of the size of cellulose particles. The good thermal stability of the NCHP-CNFs is attributed to the high crystallinity and the presence of lignin [19,45,46]. The good thermal stability of the NCHP-CNFs make them more broadly applicable [46].
In addition, the UV transmittance of NCHP-CNF paper was 0%, as shown in Figure S3. This was attributed to the fact that the lignin remaining in the CNFs is rich in conjugated systems, enabling excellent UV resistance [46,47]. This result suggests that the NCHP-CNFs will be applicable in the field of UV-resistant coatings, to replace organic and inorganic materials.

4. Conclusions

Separating the fibers, deconstructing both the interlamellar structures and the intermicrofibrils structures in the cell wall, and cleaving the amorphous regions of cellulose (all reached in one bath chemical-assisted treatment), then extracting cellulose nanofibers (CNFs) from biomass, is both challenging and imperative. In this work, the effects of several variables, including temperature, time, H2O2 dosage and HNO3 concentration, were investigated by analyzing changes in the chemical composition of the obtained fibers. SEM, TEM, XRD, FTIR and TGA were used to characterize the NCHP-CNFs. The results are as follows. The practicality of the NCHP process for extracting CNFs directly from bamboo in one bath was demonstrated. CNFs 13.1 ± 2.0 nm wide, with a high aspect ratio, 74% crystallinity, and high thermal stability were successfully obtained via treatment with 3.2 mol/L aqueous HNO3 and 60.00 mmol/g H2O2 at 50 °C for 48 h. The yields of NCHP-CNFs can reach 73% and 99% based on biomass and cellulose, respectively. The NCHP process greatly simplified the preparation of CNFs. The application potential of the NCHP-CNFs is based on their excellent ability of UV resistance, which makes them suitable replacements for organic and inorganic materials in the field of UV-resistant coatings.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/5/943/s1, Figure S1: Bamboo powder reaction process solution, Figure S2: Process flowchart for estimating the energy consumption and chemical consumption of preparing NCHP-CNFs based on the nitric acid-hydrogen peroxide method according to laboratory conditions, Figure S3: UV-Vis transmittance of the NCHP-CNFs.

Author Contributions

X.L. and S.W. conceived and designed the experiments; J.S. and K.W. performed the experiments; J.W. analyzed the data and wrote the original paper; Y.X. and Y.W. edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This project was sponsored by research funds from the Guangxi Key Laboratory of Clean Pulp & Papermaking and Pollution Control (ZR201605), and Guangxi Natural Science Foundation (2017GXNSFAA198220 and 2018GXNSFAA294074). The authors are grateful for the financial support from the Guangxi Key Laboratory of Clean Pulp & Papermaking and Pollution Control and the Guangxi Natural Fund.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Klemm, D.; Heublein, B.; Fink, H.P.; Bohn, A. Cellulose: Fascinating biopolymer and sustainable raw material. Angew. Chem. Int. Ed. 2005, 44, 3358–3393. [Google Scholar] [CrossRef] [PubMed]
  2. Mautner, A.; Kobkeatthawin, T.; Mayer, F.; Plessl, C.; Gorgieva, S.; Kokol, V.; Bismarck, A. Rapid Water Softening with TEMPO-Oxidized/Phosphorylated Nanopapers. Nanomaterials 2019, 9, 136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Sharma, P.R.; Chattopadhyay, A.; Sharma, S.K.; Geng, L.; Amiralian, N.; Martin, D.; Hsiao, B.S. Nanocellulose from spinifex as an effective adsorbent to remove cadmium (II) from water. ACS Sustain. Chem. Eng. 2018, 6, 3279–3290. [Google Scholar] [CrossRef]
  4. de Carvalho, D.M.; Moser, C.; Lindstrom, M.E.; Sevastyanova, O. Impact of the chemical composition of cellulosic materials on the nanofibrillation process and nanopaper properties. Ind. Crops Prod. 2019, 127, 203–211. [Google Scholar] [CrossRef]
  5. Sakai, K.; Kobayashi, Y.; Saito, T.; Isogai, A. Partitioned airs at microscale and nanoscale: Thermal diffusivity in ultrahigh porosity solids of nanocellulose. Sci. Rep. UK 2016, 6. [Google Scholar] [CrossRef]
  6. Fukuzumi, H.; Saito, T.; Wata, T.; Kumamoto, Y.; Isogai, A. Transparent and High Gas Barrier Films of Cellulose Nanofibers Prepared by TEMPO-Mediated Oxidation. Biomacromolecules 2009, 10, 162–165. [Google Scholar] [CrossRef]
  7. Jeschke, M.G.; Sandmann, G.; Schubert, T.; Klein, D. Effect of oxidized regenerated cellulose/collagen matrix on dermal and epidermal healing and growth factors in an acute wound. Wound Repair. Regen 2005, 13, 324–331. [Google Scholar] [CrossRef]
  8. Bacakova, L.; Pajorova, J.; Bacakova, M.; Skogberg, A.; Kallio, P.; Kolarova, K.; Svorcik, V. Versatile application of nanocellulose: From industry to skin tissue engineering and wound healing. Nanomaterials 2019, 9, 164. [Google Scholar] [CrossRef] [Green Version]
  9. Isogai, A.; Saito, T.; Fukuzumi, H. TEMPO-oxidized cellulose nanofibers. Nanoscale 2011, 3, 71–85. [Google Scholar] [CrossRef]
  10. Moon, R.J.; Martini, A.; Nairn, J.; Simonsen, J.; Youngblood, J. Cellulose nanomaterials review: Structure, properties and nanocomposites. Chem. Soc. Rev. 2011, 40, 3941–3940. [Google Scholar] [CrossRef]
  11. Xu, Q.; Gao, Y.; Qin, M.; Wu, K.; Fu, Y.; Zhao, J. Nanocrystalline cellulose from aspen kraft pulp and its application in deinked pulp. Int. J. Boil. Macromol. 2013, 60, 241–247. [Google Scholar] [CrossRef] [PubMed]
  12. Filson, P.B.; Dawson-Andoh, B.E.; Schwegler-Berry, D. Enzymatic-mediated production of cellulose nanocrystals from recycled pulp. Green Chem. 2009, 11, 1808–1814. [Google Scholar] [CrossRef]
  13. Saito, T.; Kimura, S.; Nishiyama, Y.; Isogai, A.J.B. Cellulose nanofibers prepared by TEMPO-mediated oxidation of native cellulose. Biomacromolecules 2007, 8, 2485–2491. [Google Scholar] [CrossRef] [PubMed]
  14. Saito, T.; Isogai, A. TEMPO-mediated oxidation of native cellulose. The effect of oxidation conditions on chemical and crystal structures of the water-insoluble fractions. Biomacromolecules 2004, 5, 1983–1989. [Google Scholar] [CrossRef]
  15. Liimatainen, H.; Visanko, M.; Sirvio, J.A.; Hormi, O.E.O.; Niinimaki, J. Enhancement of the Nanofibrillation of Wood Cellulose through Sequential Periodate-Chlorite Oxidation. Biomacromolecules 2012, 13, 1592–1597. [Google Scholar] [CrossRef]
  16. Larsson, P.A.; Berglund, L.A.; Wagberg, L. Highly ductile fibres and sheets by core-shell structuring of the cellulose nanofibrils. Cellulose 2014, 21, 323–333. [Google Scholar] [CrossRef]
  17. Wagberg, L.; Decher, G.; Norgren, M.; Lindstrom, T.; Ankerfors, M.; Axnas, K. The build-up of polyelectrolyte multilayers of microfibrillated cellulose and cationic polyelectrolytes. Langmuir 2008, 24, 784–795. [Google Scholar] [CrossRef]
  18. Abbott, A.P.; Bell, T.J.; Handa, S.; Stoddart, B. Cationic functionalisation of cellulose using a choline based ionic liquid analogue. Green Chem. 2006, 8, 784–786. [Google Scholar] [CrossRef] [Green Version]
  19. Sharma, P.R.; Joshi, R.; Sharma, S.K.; Hsiao, B.S. A Simple Approach to Prepare Carboxycellulose Nanofibers from Untreated Biomass. Biomacromolecules 2017, 18, 2333–2342. [Google Scholar] [CrossRef]
  20. Brooks, R.E.; Moore, S.B. Alkaline hydrogen peroxide bleaching of cellulose. Cellulose 2000, 7, 263–286. [Google Scholar] [CrossRef]
  21. Li, Q.; Wang, A.; Long, K.; He, Z.; Cha, R. Modified fenton oxidation of cellulose fibers for cellulose nanofibrils preparation. ACS Sustain. Chem. Eng. 2018, 7, 1129–1136. [Google Scholar] [CrossRef]
  22. Wen, Y.; Yuan, Z.; Qu, J.; Wang, C.; Wang, A. Evaluation of Ultraviolet Light and Hydrogen Peroxide Enhanced Ozone Oxidation Treatment for the Production of Cellulose Nanofibrils. ACS Sustain. Chem. Eng. 2020, 8, 2688–2697. [Google Scholar] [CrossRef]
  23. Anbar, M.; Taube, H. Interaction of nitrous acid with hydrogen peroxide and with water. J. Am. Chem. Soc. 1954, 76, 6243–6247. [Google Scholar] [CrossRef]
  24. Segal, L.; Creely, J.; Martin, A.; Conrad, C.A.M., Jr. An empirical method for estimating the degree of crystallinity of native cellulose using the X-ray diffractometer. Text. Res. J. 1959, 29, 786–794. [Google Scholar] [CrossRef]
  25. Alexander, L.J.J.O.M.S. X-ray diffraction methods in polymer science. J. Mater. Sci. 1971, 6, 93–93. [Google Scholar] [CrossRef]
  26. Cotton, F.A.; Wilkinson, G.; Murillo, C.A.; Bochmann, M.; Grimes, R. Advanced Inorganic Chemistry; Wiley: Hoboken, NJ, USA, 1988; Volume 5. [Google Scholar]
  27. McKenzie, H.; MacDonald-Taylor, J.; McLachlan, F.; Orr, R.; Woodhead, D. Modelling of nitric and nitrous acid chemistry for solvent extraction purposes. Procedia Chem. 2016, 21, 481–486. [Google Scholar] [CrossRef]
  28. Halfpenny, E.; Robinson, P. 168. Pernitrous acid. The reaction between hydrogen peroxide and nitrous acid, and the properties of an intermediate product. J. Chem. Soc. 1952, 928–938. [Google Scholar] [CrossRef]
  29. Bhattacharyya, P.; Veeraraghavan, R. Reaction between nitrous acid and hydrogen peroxide in perchloric acid medium. Int. J. Chem. Kinet. 1977, 9, 629–640. [Google Scholar] [CrossRef]
  30. Zhang, X.; Tu, M.; Paice, M.G. Routes to potential bioproducts from lignocellulosic biomass lignin and hemicelluloses. BioEnergy Res. 2011, 4, 246–257. [Google Scholar] [CrossRef]
  31. Sluiter, A.; Hames, B.; Ruiz, R.; Scarlata, C.; Sluiter, J.; Templeton, D.; Crocker, D. Determination of structural carbohydrates and lignin in biomass. Lab. Anal. Proced. 2008, 1617, 1–16. [Google Scholar]
  32. Beltramino, F.; Roncero, M.B.; Vidal, T.; Torres, A.L.; Valls, C. Increasing yield of nanocrystalline cellulose preparation process by a cellulase pretreatment. Bioresour. Technol. 2015, 192, 574–581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Gu, J.; Catchmark, J.M.; Kaiser, E.Q.; Archibald, D.D. Quantification of cellulose nanowhiskers sulfate esterification levels. Carbohydr. Polym. 2013, 92, 1809–1816. [Google Scholar] [CrossRef] [PubMed]
  34. Deepa, B.; Abraham, E.; Cordeiro, N.; Mozetic, M.; Mathew, A.P.; Oksman, K.; Faria, M.; Thomas, S.; Pothan, L.A. Utilization of various lignocellulosic biomass for the production of nanocellulose: A comparative study. Cellulose 2015, 22, 1075–1090. [Google Scholar] [CrossRef]
  35. Le Troedec, M.; Sedan, D.; Peyratout, C.; Bonnet, J.P.; Smith, A.; Guinebretiere, R.; Gloaguen, V.; Krausz, P. Influence of various chemical treatments on the composition and structure of hemp fibres. Compos. Part Appl. S 2008, 39, 514–522. [Google Scholar] [CrossRef]
  36. Sun, R.; Sun, X.F.; Liu, G.Q.; Fowler, P.; Tomkinson, J. Structural and physicochemical characterization of hemicelluloses isolated by alkaline peroxide from barley straw. Polym. Int. 2002, 51, 117–124. [Google Scholar] [CrossRef]
  37. Sun, X.F.; Xu, F.; Sun, R.C.; Fowler, P.; Baird, M.S. Characteristics of degraded cellulose obtained from steam-exploded wheat straw. Carbohydr. Res. 2005, 340, 97–106. [Google Scholar] [CrossRef]
  38. Wang, Q.Q.; Zhu, J.Y.; Gleisner, R.; Kuster, T.A.; Baxa, U.; McNeil, S.E. Morphological development of cellulose fibrils of a bleached eucalyptus pulp by mechanical fibrillation. Cellulose 2012, 19, 1631–1643. [Google Scholar] [CrossRef]
  39. Clark, G.L.; Terford, H.C. Quantitative X-ray determination of amorphous phase in wood pulps as related to physical and chemical properties. Anal. Chem. 1955, 27, 888–895. [Google Scholar] [CrossRef]
  40. Li, R.J.; Fei, J.M.; Cai, Y.R.; Li, Y.F.; Feng, J.Q.; Yao, J.M. Cellulose whiskers extracted from mulberry: A novel biomass production. Carbohydr. Polym. 2009, 76, 94–99. [Google Scholar] [CrossRef]
  41. Abe, K.; Yano, H. Comparison of the characteristics of cellulose microfibril aggregates of wood, rice straw and potato tuber. Cellulose 2009, 16, 1017–1023. [Google Scholar] [CrossRef]
  42. Zhao, Y.D.; Moser, C.; Lindstrom, M.E.; Henriksson, G.; Li, J.B. Cellulose Nanofibers from Softwood, Hardwood, and Tunicate: Preparation-Structure-Film Performance Interrelation. ACS Appl. Mater. Inter. 2017, 9, 13508–13519. [Google Scholar] [CrossRef] [PubMed]
  43. Kargarzadeh, H.; Ahmad, I.; Abdullah, I.; Dufresne, A.; Zainudin, S.Y.; Sheltami, R.M. Effects of hydrolysis conditions on the morphology, crystallinity, and thermal stability of cellulose nanocrystals extracted from kenaf bast fibers. Cellulose 2012, 19, 855–866. [Google Scholar] [CrossRef]
  44. Yang, H.P.; Yan, R.; Chen, H.P.; Lee, D.H.; Zheng, C.G. Characteristics of hemicellulose, cellulose and lignin pyrolysis. Fuel 2007, 86, 1781–1788. [Google Scholar] [CrossRef]
  45. Gardner, D.J.; Oporto, G.S.; Mills, R.; Azizi Samir , M.A.S. Adhesion and surface issues in cellulose and nanocellulose. J. Adhes. Sci. Technol. 2008, 22, 545–567. [Google Scholar] [CrossRef] [Green Version]
  46. Jiang, Y.; Liu, X.Y.; Yang, Q.; Song, X.P.; Qin, C.R.; Wang, S.F.; Li, K.C. Effects of residual lignin on composition, structure and properties of mechanically defibrillated cellulose fibrils and films. Cellulose 2019, 26, 1577–1593. [Google Scholar] [CrossRef]
  47. Müller, U.; Rätzsch, M.; Schwanninger, M.; Steiner, M.; Zöbl, H. Yellowing and IR-changes of spruce wood as result of UV-irradiation. J. Photochem. Photobiol. B: Boil. 2003, 69, 97–105. [Google Scholar] [CrossRef]
Nanomaterials 10 00943 g001 550

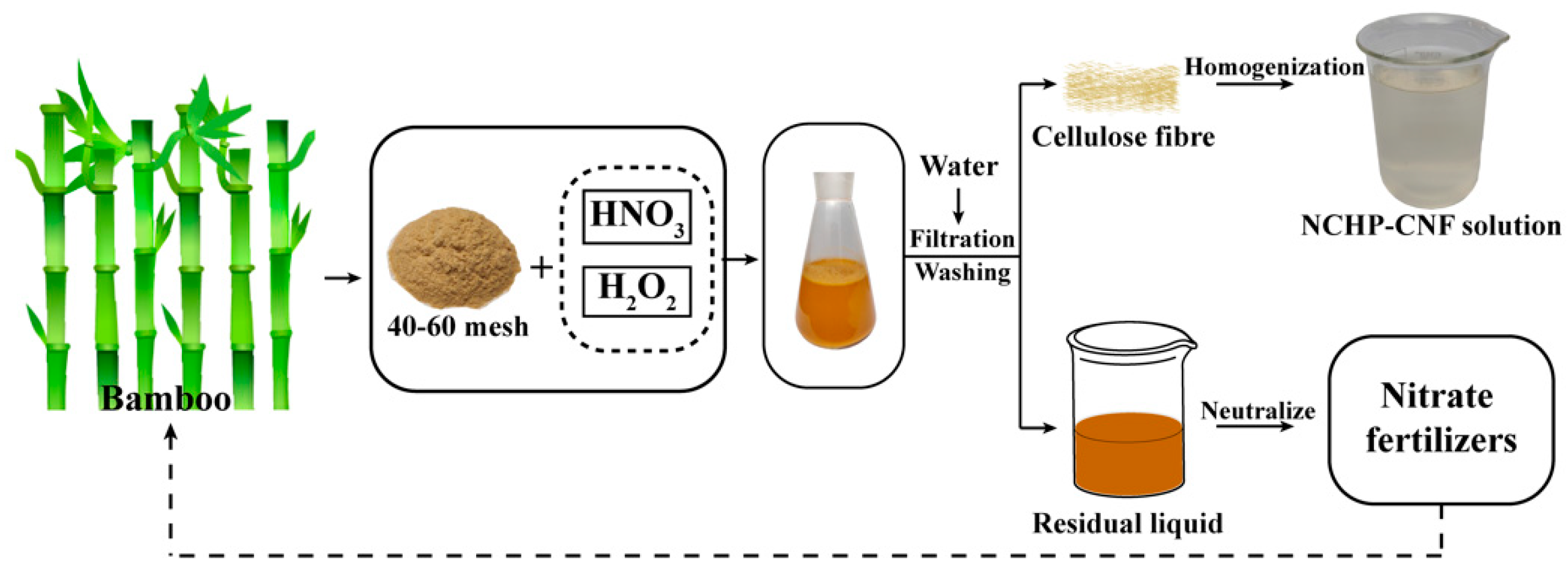

Figure 1. Schematic diagram of the extraction of cellulose nanofibers (CNF) from bamboo, by nitric acid and hydrogen peroxide (NCHP) treatment.
Figure 1. Schematic diagram of the extraction of cellulose nanofibers (CNF) from bamboo, by nitric acid and hydrogen peroxide (NCHP) treatment.
Nanomaterials 10 00943 g001
Nanomaterials 10 00943 g002 550

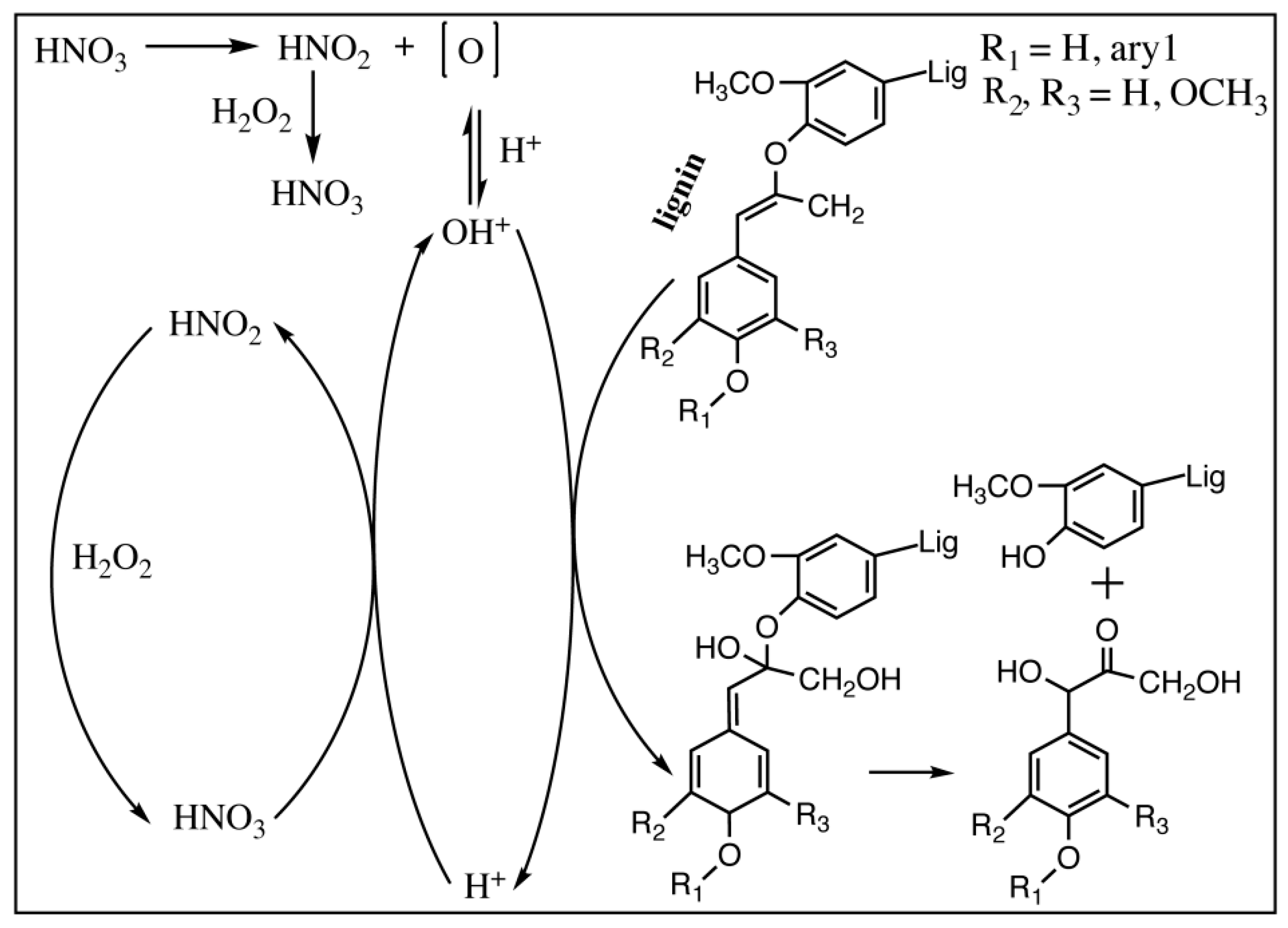

Figure 2. Proposed mechanism of pretreatment.
Figure 2. Proposed mechanism of pretreatment.
Nanomaterials 10 00943 g002
Nanomaterials 10 00943 g003 550

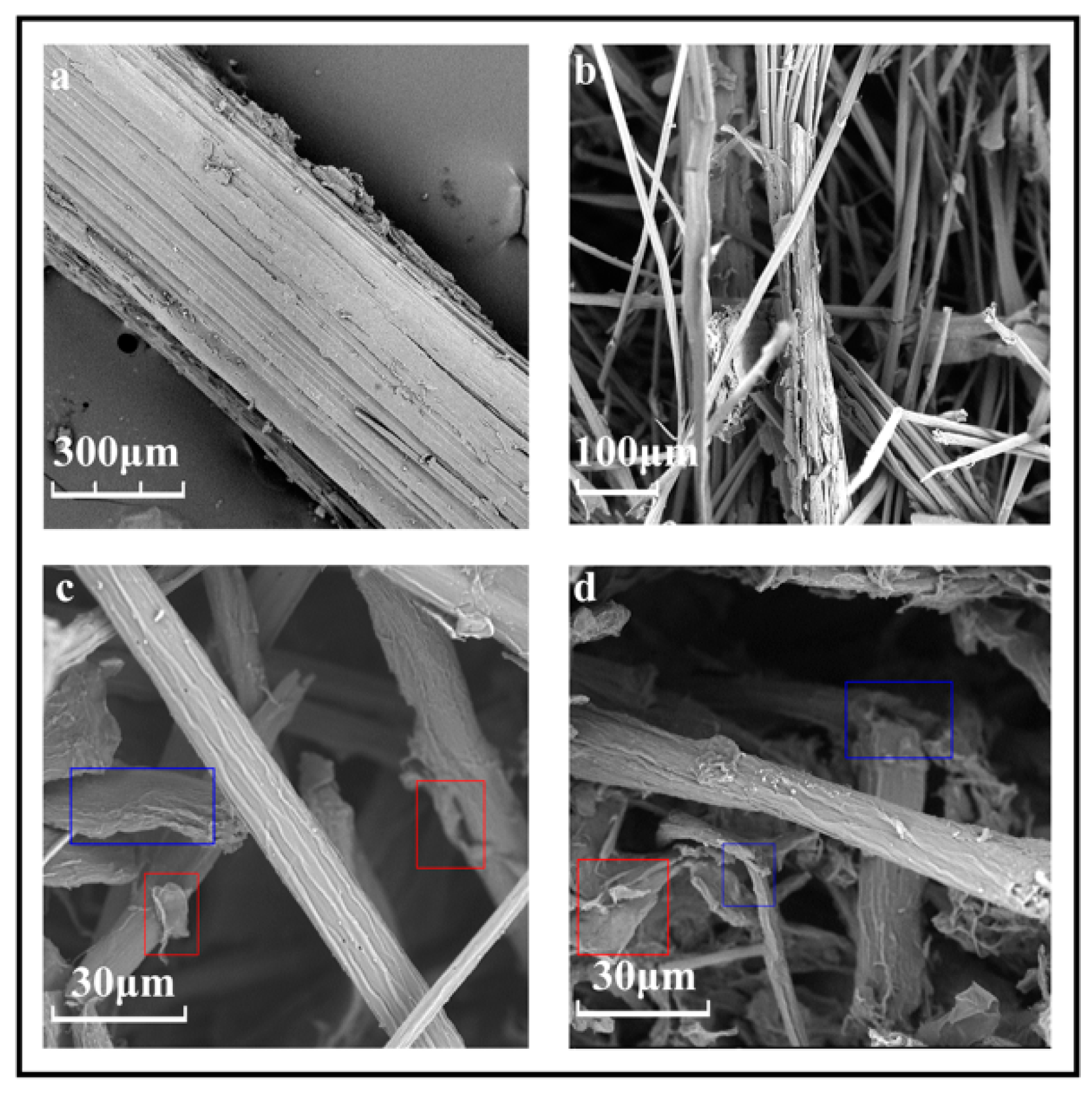

Figure 3. SEM image of the morphology of the fibers after NCHP treatment for different times: (a) bamboo powder; (b) 12 h; (c) 24 h; and (d) 48 h.
Figure 3. SEM image of the morphology of the fibers after NCHP treatment for different times: (a) bamboo powder; (b) 12 h; (c) 24 h; and (d) 48 h.
Nanomaterials 10 00943 g003
Nanomaterials 10 00943 g004 550

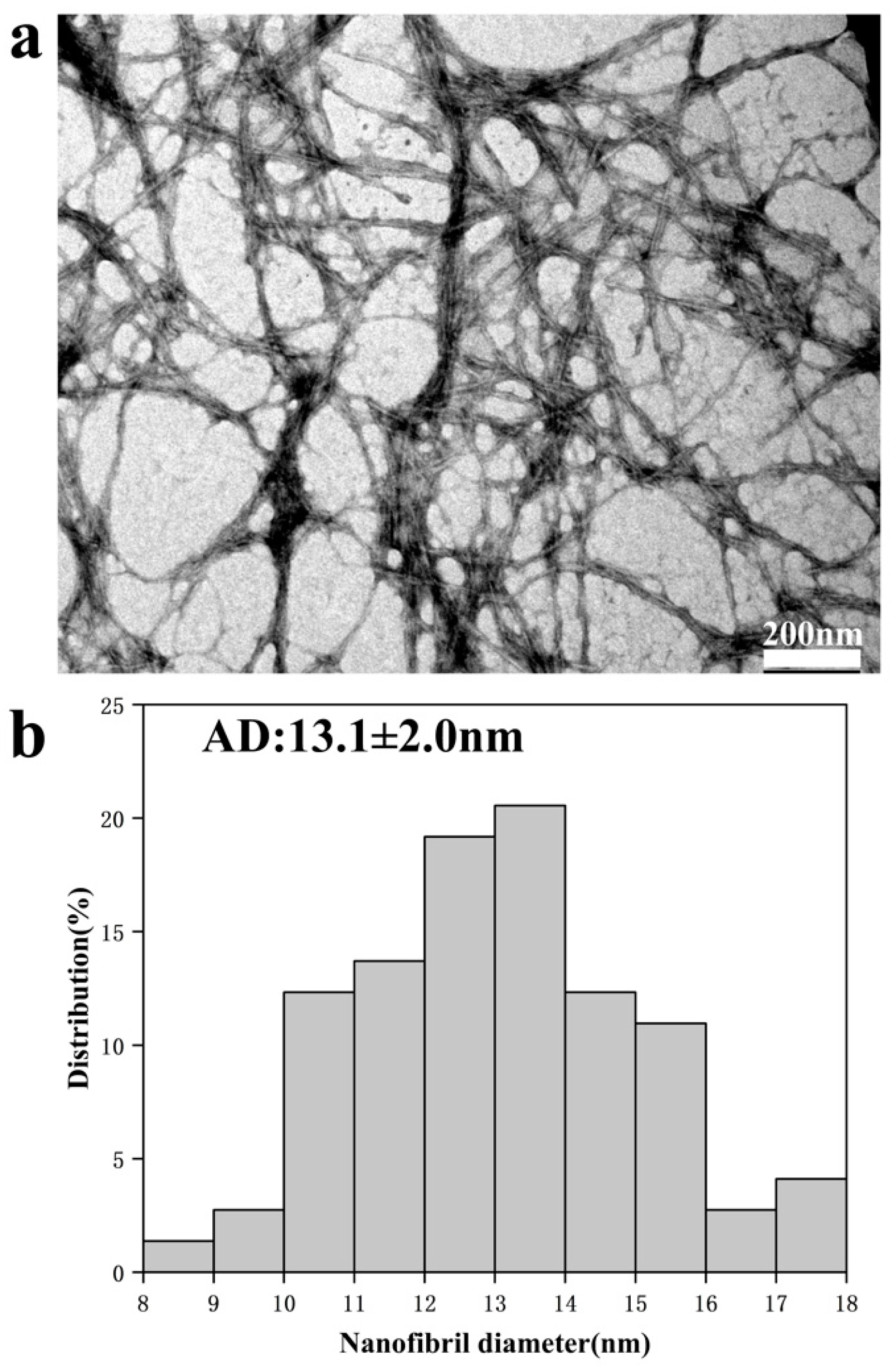

Figure 4. (a) TEM image of the NCHP-CNFs; (b) diameter distribution of the NCHP-CNFs.
Figure 4. (a) TEM image of the NCHP-CNFs; (b) diameter distribution of the NCHP-CNFs.
Nanomaterials 10 00943 g004
Nanomaterials 10 00943 g005 550

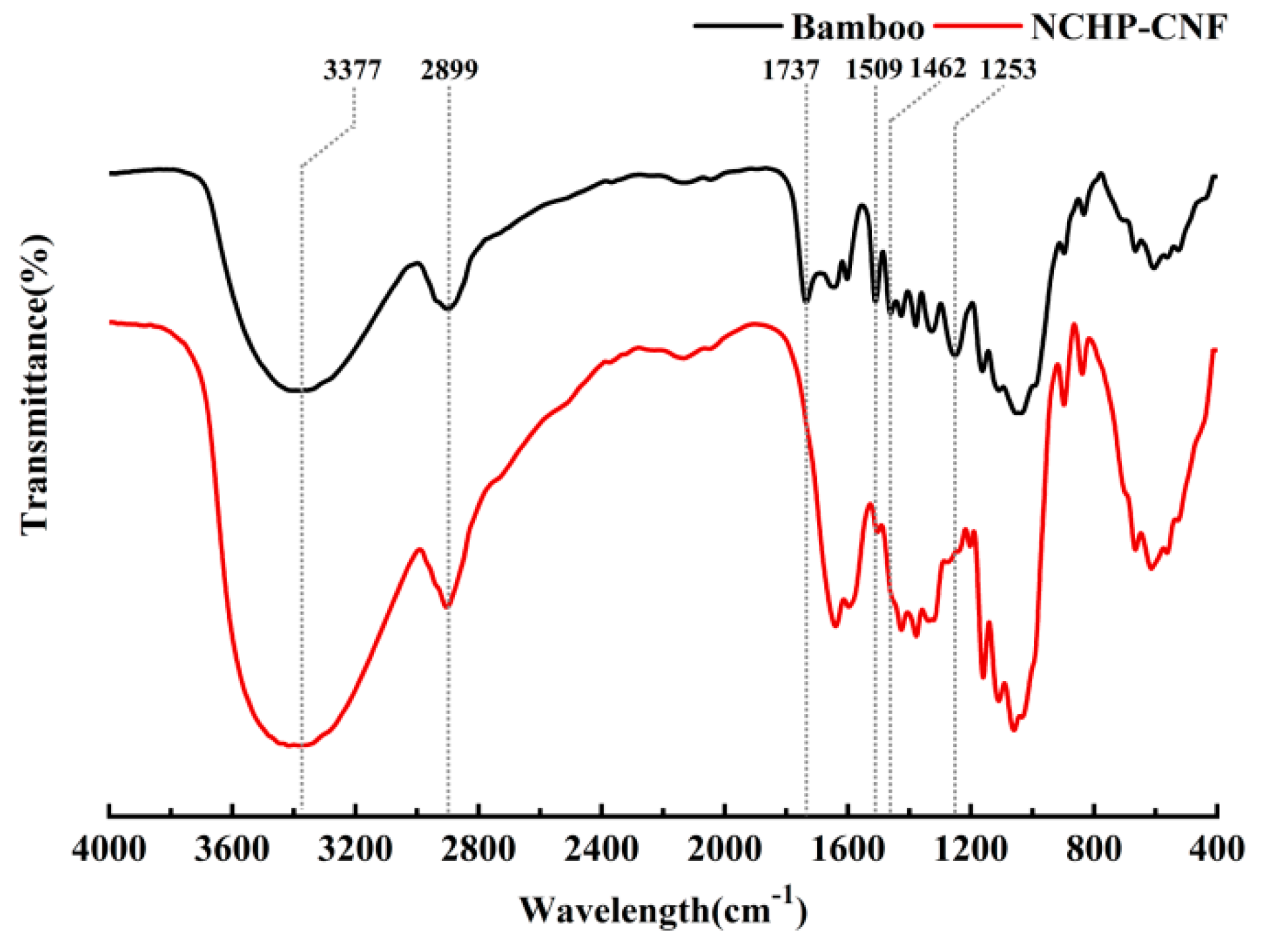

Figure 5. FTIR spectra of the untreated bamboo powder fiber and the NCHP-CNFs.
Figure 5. FTIR spectra of the untreated bamboo powder fiber and the NCHP-CNFs.
Nanomaterials 10 00943 g005
Nanomaterials 10 00943 g006 550

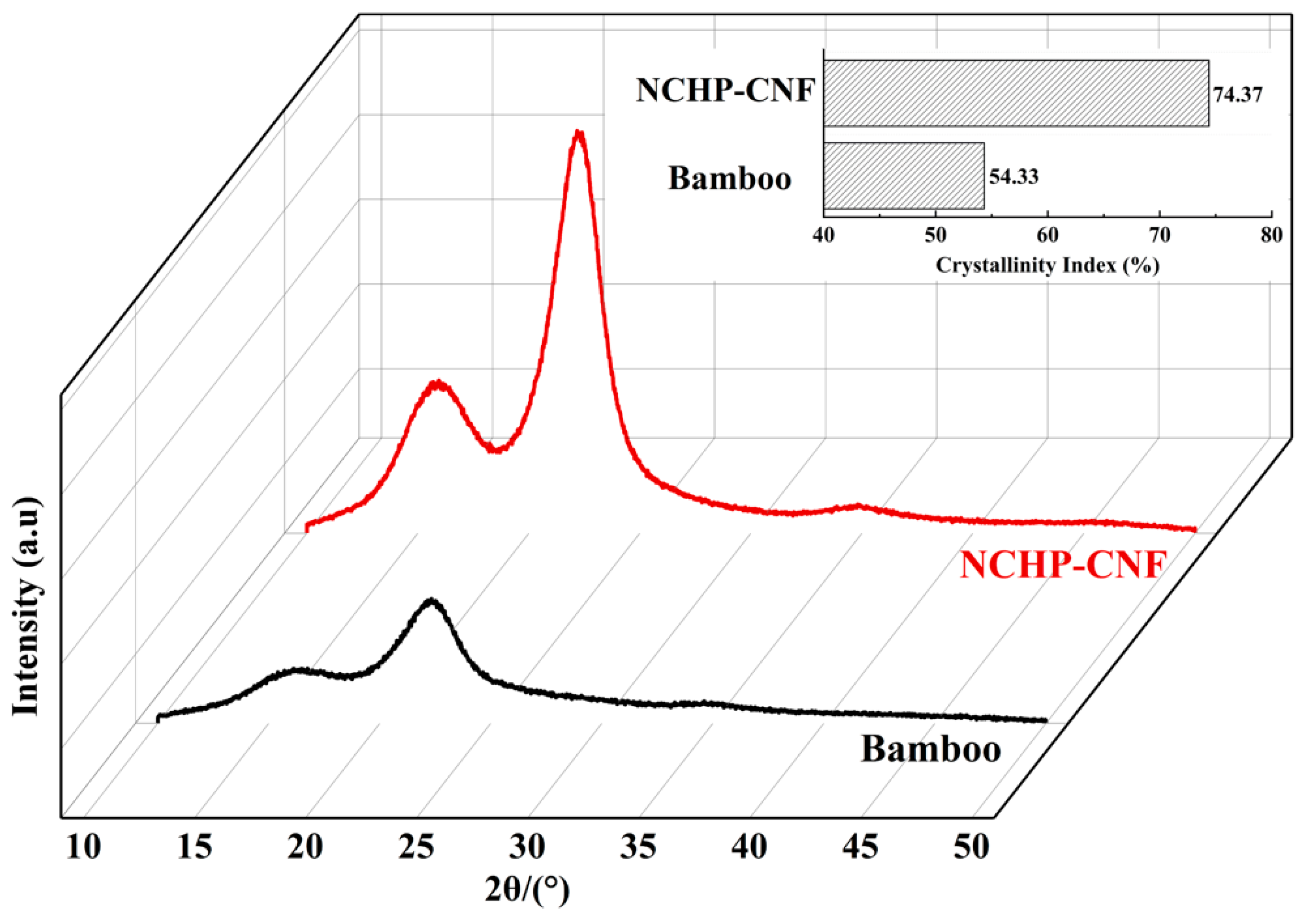

Figure 6. XRD patterns of the bamboo powder fiber and the NCHP-CNFs.
Figure 6. XRD patterns of the bamboo powder fiber and the NCHP-CNFs.
Nanomaterials 10 00943 g006
Nanomaterials 10 00943 g007 550

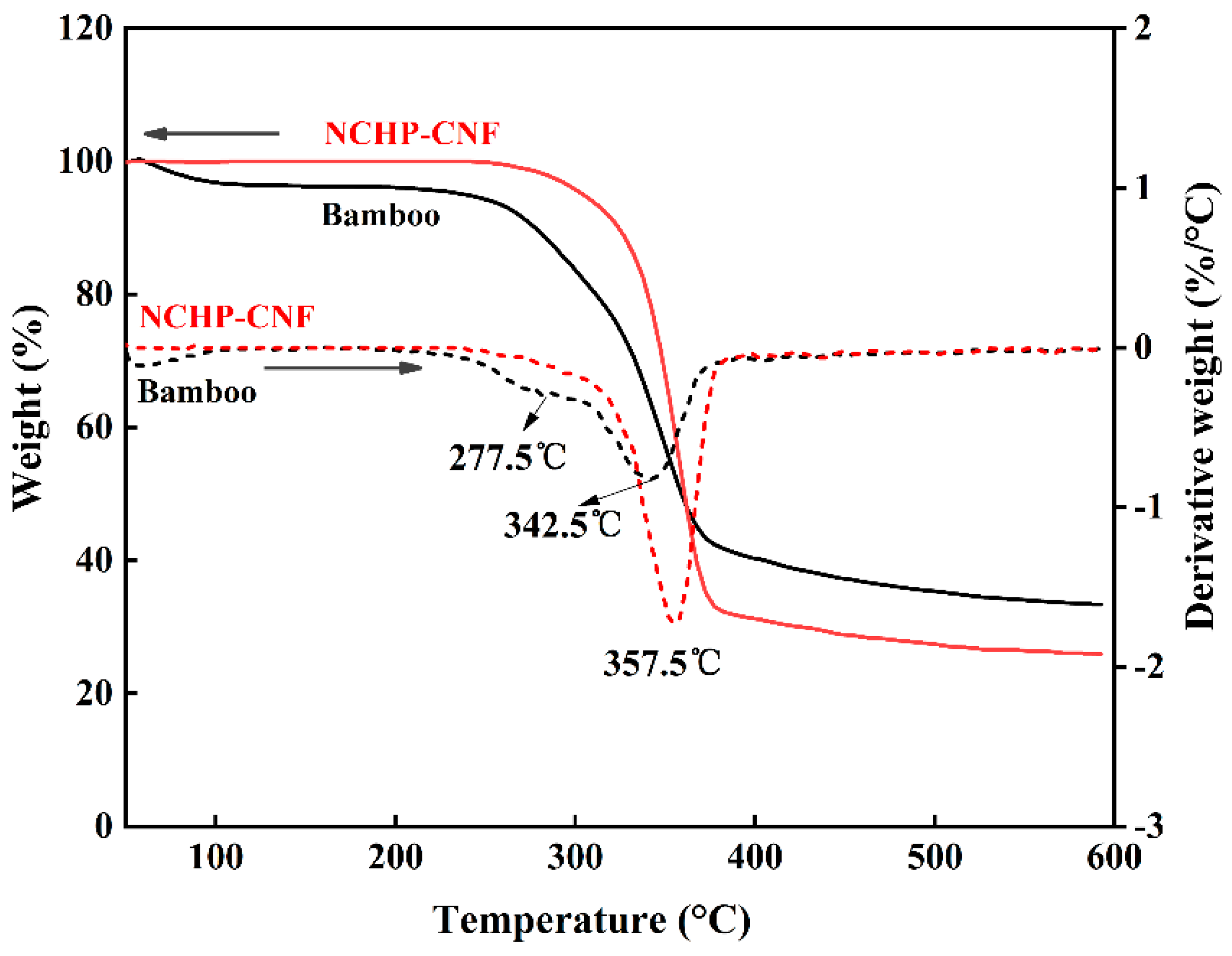

Figure 7. TGA curve and derivative curve of the bamboo powder fiber and the NCHP-CNFs.
