Article

Enhanced UV Photoresponsivity of ZnO Nanorods Decorated with Ag2S/ZnS Nanoparticles by Successive Ionic Layer Adsorption and Reaction Method

by
Yimin Jin
,
Shujie Jiao
*,
Dongbo Wang
*,
Shiyong Gao
and
Jinzhong Wang
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(2), 461; https://doi.org/10.3390/nano11020461
Submission received: 30 December 2020 / Revised: 8 February 2021 / Accepted: 8 February 2021 / Published: 11 February 2021
(This article belongs to the Special Issue ZnO Nanowires: Growth, Properties, and Energy Applications)
Browse Figures
Versions Notes

Abstract

:
Recently, different kinds of energy band structures have been utilized to improve the photoelectric properties of zinc oxide (ZnO). In this work, ZnO nanorods were prepared by the hydrothermal method and then decorated with silver sulfide (Ag2S)/zinc sulfide (ZnS) via two-step successive ionic layer adsorption and reaction method. The photoelectric properties of nanocomposites are investigated. The results show that ZnO decorated with Ag2S/ZnS can improve the photocurrent of photodetectors from 0.34 to 0.56 A at bias of 9 V. With the immersion time increasing from 15 to 60 minutes, the photocurrent of photodetectors increases by 0.22 A. The holes in the valence band of ZnO can be transferred to the valence band of ZnS and Ag2S, which promotes the separation and suppresses the recombination of hole-electron pairs generated in ZnO. Moreover, electrons excited by ultraviolet (UV) light in Ag2S can also be injected into the conduction band of ZnO, which causes the photocurrent to increase more than the ZnO photodetector.

1. Introduction

Recently, increasing demand for clean energy, portable electronics, space and astronomical research, optical communications, and fire monitoring has caused UV photodetectors to be the subject of considerable attention due to their good flexibility, low-cost fabrication, and high sensitivity [1,2,3,4,5,6]. Many wide-bandgap semiconductors associated with this type of photodetectors have been explored [5,7,8,9,10,11,12]. Among wide-bandgap materials, zinc oxide has become a good candidate for UV photodetection due to its wide bandgap (3.37 eV), high exciton binding energy (60 meV), high chemical and thermal stability, low cost, and strong emission at room temperature [13,14,15,16]. To improve the properties of ZnO, incorporating noble metal nanostructures, compounding with carbon nanomaterials, and decorating with semiconductor quantum dots are effective approaches [4,17,18,19]. With decoration of semiconductors with different band structures, holes or electrons can be transferred from ZnO, which promotes separation and suppresses the recombination of hole-electron pairs generated in ZnO [20,21,22,23]. Ag2S as a direct, narrow bandgap (1.1 eV) semiconductor with optical absorption similar to silicon has attracted much attention as a promising candidate for photocatalysis and photoconduction [24,25,26]. Studies also proved that after accompanying Ag2S with ZnO, type-Ⅱ heterojunctions are formed. Due to the different valence bands of Ag2S and ZnO, the holes in the valence band of ZnO can be transferred to the valence band of Ag2S. This process can promote separation and suppress the recombination of hole-electron pairs generated in ZnO, leading to the improved optoelectrical properties of ZnO [27,28,29,30]. Recently, Li and colleagues prepared Ag2S-coupled ZnO microspheres with 1.68 μA/cm2 at 0.2 V under visible light [31]. Chen and colleagues prepared a Ag2S/ZnO core-shell nanoheterojunction with high photosensitivity in the wide spectral range from 400 to 1100 nm and a response time as short as 5 ms [32].
In this work, ZnO nanorods are prepared with the hydrothermal method. Then, ZnS and Ag2S are deposited via successive ionic layer adsorption and reaction method on the surface of ZnO nanorods. ZnS is an n-type [33,34,35] material, and Ag2S is a p-type [36,37,38,39] material. The nanocomposites demonstrate potential application in the fields of photodetection, photocatalysis, and solar cells [31,40,41,42]. In this work, the optoelectrical properties of nanocomposites are investigated.

2. Materials and Methods

The ZnO nanomaterials in this paper were prepared by the hydrothermal method on glass substrates with a conductive thin film of indium-doped tin oxides (ITO) on one side. The size of substrates was 1 × 1 cm. Before preparation, the substrates were cleaned with ultrasound successively in acetone, ethanol, and deionized water for 30 min. To prepare ZnO seed layers on ITO substrates by the sol-gel dip-coating method, the substrates were immersed in precursor solution for 15 min, and then, the samples were dried for 15 min. This process was repeated six times. Finally, an annealing treatment was performed in air at 150 °C for 30 min. Then ZnO nanorod arrays were formed on the substrates in a solution consisting of 0.03 M zinc acetate dehydrate (Zn(AC)2·2H2O) and 0.03 M hexamethylenetetramine (HMT) at 90 °C for 4 h.
S2− was incorporated into ZnO to form ZnS by immersing ZnO samples in aqueous solution containing 0.02 M Na2S for 5 min, 15 min, 30 min, 45 min, and 60 min, respectively and rinsing with pure ethanol. The ZnO nanorod arrays were decorated with Ag2S quantum dots (QDs) through the facile successive ionic layer adsorption and reaction (SILAR) method. ZnO samples were successively immersed in two different aqueous solutions, one containing 0.02 M Na2S and the other one containing 0.02 M AgNO3 aqueous solution for 30 min and different time, respectively. During immersion, the solution should be stirred. After immersion, the samples were rinsed with pure ethanol to remove excess precursors and blown dry at room temperature. Then, the Ag2S-modified samples were fabricated as metal-semiconductor-metal (MSM) photodetectors with indium (In) electrode. Electrodes were exploited to form ohmic contact between them and the nanocomposites. One electrode was prepared on the ZnO seed layer and the other one was prepared on the top of nanorod arrays.
Surface morphologies of the nanocomposites were characterized using scanning electron microscopy (SEM, HITACH SU70, Tokyo, Japan). Finer details of the nanocomposites were characterized using transmission electron microscopy (TEM, FEI, Hillsboro, OR, USA) and high-resolution transmission electron microscopy (HRTEM, FEI, Hillsboro, OR, USA). The composition and bond band properties of the samples were measured by X-ray photoelectric spectroscopy (XPS, ESCALAB 250Xi, Thermo Fisher, Waltham, MA, USA). Ultraviolet–visible spectroscopy (Shimadzu UV1700-visible spectrophotometer) was utilized to characterize the optical properties. I–V characterization of the as-synthesized devices was measured by an electrochemical workstation (CHI660e, Chenhua instruments Ins., Shanghai, China) with a three-electrode system under UV led (λ = 365 nm). The photoresponsivity spectrum of the devices was obtained by measuring the photocurrent (calibrated with a standard Si photodiode) under the illumination of a UV-enhanced Xe lamp spectrum from 300 to 600 nm using a scanning monochromator (DSR600, Zolix, Beijing, China).

3. Results and Discussion

The morphologies of ZnO and ZnS/ZnO heterojunctions array prepared by immersing ZnO samples in Na2S solution for 5, 15, 30, 45, and 60 min, respectively, are shown in Figure 1a–f. The hexagonal nanorods are not uniform, and the dominant diameter of the nanorods is about 260 nm. The XRD spectrum of the as-synthesized samples is shown in the inset of Figure 1a. Typical peaks belong to the wurtzite hexagonal phase of ZnO (JCPDS 36-1451), as presented in Figure 1a. When ZnO nanorods are immersed in Na2S solution, as shown in Figure 1b–f, the solution provides sulfide ions to react with zinc ions dissolved from the ZnO nanorods in order to form ZnS. During this process, the concentration of sulfide ions can be adjusted to influence the formation of ZnS. However, if the concentration is too large, many defects can be formed on the nanocomposites, leading to decreased efficiency. The formation of a ZnS shell can be determined by XPS spectra in Figure 2. The XPS wide-survey spectrum of the sample with an immersion time of 30 min is shown in Figure 2a. The characteristic peaks in the XPS spectrum can be assigned as Zn, S, C, or O, respectively. The ratio of S/Zn is about 0.16. No other impurity peaks can be found, showing that the obtained sample is of high purity. For ZnS/ZnO in Figure 2b, the S peak located at 162 eV corresponds to S 2p from ZnS. The above XPS analysis demonstrates the process of the formation of ZnS after immersion. Therefore, ZnO nanorods were covered by the ZnS shell through immersion.
Based on the ZnS/ZnO nanocomposites, the ZnS/ZnO samples with the immersion time of 30 min in Na2S solution were then immersed in 0.02 M AgNO3 aqueous solution for 15, 30, 45, and 60 min, respectively, which allows for the Ag2S/ZnS/ZnO nanocomposites to be obtained. The morphologies of the as-synthetized Ag2S/ZnS/ZnO nanorod arrays are shown in Figure 3a–d. It can be seen that after immersion, the nanorods were covered with spherical nanoparticles at the short immersion time. Because of the difference between the solubility product constant (Ksp) of ZnS (2.93 × 10−25) and Ksp of Ag2S (6.69 × 10−50) [43], the cation exchange process occurs where zinc ions are replaced by silver ions, leading to the formation of Ag2S, which indicates that the spherical nanoparticles are Ag2S. With the increasing immersion time, the nanorods demonstrate a complete shape change from hexagon to ellipse. These results suggest that Ag2S was successfully deposited onto the surface of the nanorods.
In order to confirm the formation of Ag2S/ZnS/ZnO composites, TEM and HRTEM measurements were performed on the nanocomposite with the immersion time of 60 min, as illustrated in Figure 4. A large number of quantum dots evenly deposited onto the nanorod surface is shown in Figure 4a,b, which show that densely distributed QDs are formed on the surface of nanorods, and the diameter of the quantum dots is about 10–15 nm. Figure 4c shows the HRTEM image of the quantum dots deposited on the nanorod surface. It can be observed that the quantum dots have a spherical shape with a diameter of about 10 nm. The obvious lattice arrangement can be found in the quantum dots, and the d-spacing estimated to be 0.253 nm is indexed to the (−103) orientation of Ag2S crystalline.
To further investigate the structures of Ag2S/ZnS/ZnO nanocomposites, XPS measurements were measured. Figure 5a shows the Ag 3d region of the XPS spectra. The peak position of Ag 3d5/2 is located at about 368 eV. This value is in good agreement with the reported values for Ag2S. Then, the peak area of Ag elements with different immersion time was calculated, as shown in Figure 5b. It is obvious that the Ag concentration increases with the increasing immersion time. Meanwhile, according to the XPS spectrum, the Ag/Zn ratio increasing from 0.08 to 0.22 indicates the same results. This result is consistent with the SEM images shown in Figure 3. Figure 5c shows the S 2p region of the XPS spectrum with the immersion time of 60 min. The black line represents the experimental data, and the red dots correspond to the fitted curve. Four labelled fitting Gaussian peaks were used to fit the experimental data. The binding energy of the S 2p3/2 peak located at 161.5 eV is in accordance with the binding energy of ZnS. The lowest energy peak of S 2p3/2 is located at 160.93 eV, which corresponds to Ag2S [44,45,46,47]. These results illustrate that Ag2S/ZnS/ZnO nanocomposites were formed after immersion.
To investigate the optical properties of Ag2S/ZnS/ZnO nanocomposites, UV-vis absorption spectra from 350 to 600 nm were examined. For comparison, the spectrum of pure ZnO nanorods was also measured, indicated by the black line. Figure 6 shows the UV-vis absorption spectra of Ag2S/ZnS/ZnO nanocomposites with various immersion time, revealing that the absorption edge of ZnO is extended to the visible region by decoration with Ag2S because of its narrow bandgap of ~1.1 eV. When visible light is observable on the nanocomposites, hole-electron pairs are generated in Ag2S, leading to the absorption in visible light. With the increasing immersion time, more amounts of Ag2S are deposited, thereby causing the increase in absorption in the visible light region.
A photodetector was fabricated with In electrodes to investigate the optoelectrical properties of Ag2S/ZnS/ZnO nanocomposites. The I-V characteristics of photodetectors with various immersion time under 365 nm UV LED are shown in Figure 7a–d. It can be observed that photodetectors have a photoresponse under UV illumination. The reverse current is high and of the same order of magnitude as the direct current, demonstrating that photoconductive photodetectors were fabricated. At the same voltage, the photocurrent of photodetectors with various immersion time changes from 0.34 to 0.56 A under UV illumination. Meanwhile, the dark current of the photodetectors, which can be ascribed to oxygen vacancy in ZnO, is 0.22, 0.20, 0.21, and 0.22 A, respectively. Thus, the on–off ratio of the photodetectors at a bias of 9 V is 1.53, 1.77, 1.94, and 2.47, respectively. Figure 7e shows the photocurrent of photodetectors with various immersion time under 9 V bias. It is observed that the photocurrent increases with the increase in immersion time. This phenomenon can be attributed to the replacement of ZnS by Ag2S. The photoresponsivity of the photodetector with the immersion of 60 min is shown in Figure 7f. It can be observed that the photoresponsivity increases for the Ag2S/ZnS/ZnO nanocomposites when compared with pure ZnO photodetectors not only in UV regions but also in the visible wavelength region. In addition, the UV-to-visible rejection ratio was improved from 1.48 to 1.82.
In order to explain the mechanism of photoresponse of Ag2S/ZnS/ZnO nanocomposites, the energy band schematic diagrams of different nanocomposites are shown in Figure 8. Considering the fact that not all amounts of ZnS are replaced by Ag2S, there are two types of energy bands in nanocomposites [48,49]. Figure 8a shows the energy band schematic diagrams of ZnS/ZnO. Under the illumination of 365 nm UV light, electrons are excited from the valence band to the conduction band of ZnO, resulting in an increase in the photocurrent. Because of the different valence bands of ZnS and ZnO, the holes in the valence band of ZnO can be transferred to the valence band of ZnS. This process can promote the separation of photogenerated hole-electron pairs and suppress their recombination in ZnO. Meanwhile, because the photon energy of UV light is smaller than the bandgap of ZnS, no electrons are excited to the conduction band in ZnS. Figure 8b shows the energy band schematic diagrams of Ag2S/ZnS/ZnO nanocomposites. It can be seen that the cascade structure represents the stepwise positions of band edges via the redistribution of ZnS and Ag2S in order to align Fermi levels. This structure is suitable for the injection of photogenerated electrons from Ag2S to ZnO and the transfer of holes from ZnO to Ag2S, and it is advantageous for the separation and transmission of hole-electron pairs. Generally, this structure can further increase the photocurrent compared with the ZnS/ZnO structure because of the injection of electrons. With the increasing immersion time, the first type is gradually replaced by the second type, which further increases the photocurrent. These results are consistent with the I–V characteristics of Ag2S/ZnO/ZnO nanocomposites with different immersion time.

4. Conclusions

In summary, Ag2S/ZnS/ZnO nanocomposites were prepared on ITO substrates via two-step facile successive ionic layer adsorption and reaction method with different immersion time. SEM and TEM images illustrate that the ZnS and Ag2S were evenly deposited on ZnO nanorods. The optical properties of Ag2S/ZnS/ZnO nanocomposites were investigated by UV-vis absorption spectra, which show that the absorption of Ag2S/ZnS/ZnO nanocomposites was extended to the visible light region due to the narrow bandgap of Ag2S. Then MSM photodetectors were fabricated. The influence of ZnS and Ag2S on the photocurrent of the photodetectors was investigated. The photocurrent increased with the increasing immersion time of AgNO3 solutions due to the increasing electrons injected from Ag2S into ZnO. The energy band schematic diagrams were used to explain the photoresponse of the photodetectors. The transfer of holes and the injection of electrons can both enhance the photoresponse compared with pure ZnO. Compared to other similar systems, the nanocomposites improved the photocurrent under UV illumination and demonstrate potential applications in other fields [50,51,52].

Author Contributions

Conceptualization, S.J. and D.W.; methodology, D.W.; software, Y.J.; validation, Y.J., S.J. and J.W.; formal analysis, Y.J. and S.J.; investigation, Y.J.; resources, S.G.; data curation, S.J.; writing—original draft preparation, Y.J.; writing—review and editing, S.J.; visualization, D.W.; supervision, S.G.; project administration, J.W.; funding acquisition, S.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Key Research and Development Program of China (Grant No. 2019YFA0705201) and the National Natural Science Foundation of China (Grant No. 61774051 and 61574051).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gedamu, D.; Paulowicz, I.; Kaps, S.; Lupan, O.; Wille, S.; Haidarschin, G.; Mishra, Y.K.; Adelung, R. Rapid fabrication technique for interpenetrated ZnO nanotetrapod networks for fast UV sensors. Adv. Mater. 2014, 26, 1541–1550. [Google Scholar] [CrossRef]
  2. Guo, D.; Wu, Z.; Li, P.; An, Y.; Liu, H.; Guo, X.; Yan, H.; Wang, G.; Sun, C.; Li, L.; et al. Fabrication of β-Ga2O3 thin films and solar-blind photodetectors by laser MBE technology. Opt. Mater. Express 2014, 4, 1067–1076. [Google Scholar] [CrossRef]
  3. Li, X.; Rui, M.; Song, J.; Shen, Z.; Zeng, H. Carbon and graphene quantum dots for optoelectronic and energy devices: A review. Adv. Funct. Mater. 2015, 25, 4929–4947. [Google Scholar] [CrossRef]
  4. Ning, Y.; Zhang, Z.; Teng, F.; Fang, X. Novel transparent and self-powered UV photodetector based on crossed ZnO nanofiber array homojunction. Small 2018, 14, e1703754. [Google Scholar] [CrossRef]
  5. Lu, H.; Dong, H.; Jiao, S.; Nie, Y.; Wang, X.; Wang, D.; Gao, S.; Wang, J.; Su, S. The influence of annealing temperature on structure, morphology and optical properties of (InxGa1-x)2O3 films. ECS J. Solid State Sci. Technol. 2019, 8, Q3171–Q3175. [Google Scholar] [CrossRef]
  6. Lu, H.; Jiao, S.; Nie, Y.; Liu, S.; Gao, S.; Wang, D.; Wang, J.; Li, L.; Wang, X. Defect photoluminescence and structure properties of undoping (InxGa1-x)2O3 films and their dependence on sputtering pressure. J. Alloys Compd. 2020, 823, 153903. [Google Scholar] [CrossRef]
  7. Fang, X.; Bando, Y.; Gautam, U.K.; Zhai, T.; Zeng, H.; Xu, X.; Liao, M.; Golberg, D. ZnO and ZnS Nanostructures: Ultraviolet-light emitters, lasers, and sensors. Crit. Rev. Solid State Mater. Sci. 2009, 34, 190–223. [Google Scholar] [CrossRef]
  8. Kong, W.Y.; Wu, G.A.; Wang, K.Y.; Zhang, T.F.; Zou, Y.F.; Wang, D.D.; Luo, L.B. Graphene-beta-Ga2O3 heterojunction for highly sensitive deep UV photodetector application. Adv. Mater. 2016, 28, 10725–10731. [Google Scholar] [CrossRef] [PubMed]
  9. Nie, Y.; Jiao, S.; Meng, F.; Lu, H.; Wang, D.; Li, L.; Gao, S.; Wang, J.; Wang, X. Growth and properties analysis of AlxGa2-xO3 thin film by radio frequency magnetron sputtering using Al/Ga2O3 target. J. Alloys Compd. 2019, 798, 568–575. [Google Scholar] [CrossRef]
  10. Lopez-Sanchez, O.; Lembke, D.; Kayci, M.; Radenovic, A.; Kis, A. Ultrasensitive photodetectors based on monolayer MoS2. Nat. Nanotechnol. 2013, 8, 497–501. [Google Scholar] [CrossRef]
  11. Mastro, M.A.; Kuramata, A.; Calkins, J.; Kim, J.; Ren, F.; Pearton, S.J. Perspective—Opportunities and future directions for Ga2O3. ECS J. Solid State Sci. Technol. 2017, 6, P356–P359. [Google Scholar] [CrossRef]
  12. Sang, L.; Liao, M.; Sumiya, M. A comprehensive review of semiconductor ultraviolet photodetectors: From thin film to one-dimensional nanostructures. Sensors 2013, 13, 10482–10518. [Google Scholar] [CrossRef]
  13. Gogurla, N.; Sinha, A.K.; Santra, S.; Manna, S.; Ray, S.K. Multifunctional Au-ZnO plasmonic nanostructures for enhanced UV photodetector and room temperature NO sensing devices. Sci. Rep. 2014, 4, 6483. [Google Scholar] [CrossRef] [Green Version]
  14. Guo, F.; Yang, B.; Yuan, Y.; Xiao, Z.; Dong, Q.; Bi, Y.; Huang, J. A nanocomposite ultraviolet photodetector based on interfacial trap-controlled charge injection. Nat. Nanotechnol. 2012, 7, 798–802. [Google Scholar] [CrossRef] [PubMed]
  15. Hu, L.; Yan, J.; Liao, M.; Xiang, H.; Gong, X.; Zhang, L.; Fang, X. An optimized ultraviolet-A light photodetector with wide-range photoresponse based on ZnS/ZnO biaxial nanobelt. Adv. Mater. 2012, 24, 2305–2309. [Google Scholar] [CrossRef]
  16. Jeong, I.S.; Kim, J.H.; Im, S. Ultraviolet-enhanced photodiode employing n-ZnO/p-Si structure. Appl. Phys. Lett. 2003, 83, 2946–2948. [Google Scholar] [CrossRef]
  17. Peng, L.; Hu, L.; Fang, X. Energy harvesting for nanostructured self-powered photodetectors. Adv. Funct. Mater. 2014, 24, 2591–2610. [Google Scholar] [CrossRef]
  18. Rai, S.C.; Wang, K.; Ding, Y.; Marmon, J.K.; Bhatt, M.; Zhang, Y.; Zhou, W.; Wang, Z.L. Piezo-phototronic effect enhanced UV/visible photodetector based on fully wide band gap type-II ZnO/ZnS core/shell nanowire array. ACS Nano 2015, 9, 6419–6427. [Google Scholar] [CrossRef]
  19. Víctor-Román, S.; García-Bordejé, E.; Hernández-Ferrer, J.; González-Domínguez, J.M.; Ansón-Casaos, A.; Silva, A.M.T.; Maser, W.K.; Benito, A.M. Controlling the surface chemistry of graphene oxide: Key towards efficient ZnO-GO photocatalysts. Catal. Today 2020, 357, 350–360. [Google Scholar] [CrossRef]
  20. Tian, W.; Zhang, C.; Zhai, T.; Li, S.L.; Wang, X.; Liu, J.; Jie, X.; Liu, D.; Liao, M.; Koide, Y.; et al. Flexible ultraviolet photodetectors with broad photoresponse based on branched ZnS-ZnO heterostructure nanofilms. Adv. Mater. 2014, 26, 3088–3093. [Google Scholar] [CrossRef]
  21. Zhang, Q.; Jie, J.; Diao, S.; Shao, Z.; Zhang, Q.; Wang, L.; Deng, W.; Hu, W.; Xia, H.; Yuan, X.; et al. Solution-processed graphene quantum dot deep-UV photodetectors. ACS Nano 2015, 9, 1561–1570. [Google Scholar] [CrossRef] [PubMed]
  22. Zhao, B.; Wang, F.; Chen, H.; Wang, Y.; Jiang, M.; Fang, X.; Zhao, D. Solar-blind avalanche photodetector based on single ZnO-Ga(2)O(3) core-shell microwire. Nano Lett. 2015, 15, 3988–3993. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, J.; Gu, Y.; Hu, Y.; Mai, W.; Yeh, P.H.; Bao, G.; Sood, A.K.; Polla, D.L.; Wang, Z.L. Gigantic enhancement in response and reset time of ZnO UV nanosensor by utilizing Schottky contact and surface functionalization. Appl. Phys. Lett. 2009, 94, 191103. [Google Scholar] [CrossRef] [Green Version]
  24. Hsu, M.-H.; Chang, C.-J.; Weng, H.-T. Efficient H2 production using Ag2S-coupled ZnO@ZnS core-shell nanorods decorated metal wire mesh as an immobilized hierarchical photocatalyst. ACS Sustain. Chem. Eng. 2016, 4, 1381–1391. [Google Scholar] [CrossRef]
  25. Khanchandani, S.; Srivastava, P.K.; Kumar, S.; Ghosh, S.; Ganguli, A.K. Band gap engineering of ZnO using core/shell morphology with environmentally benign Ag2S sensitizer for efficient light harvesting and enhanced visible-light photocatalysis. Inorg. Chem. 2014, 53, 8902–8912. [Google Scholar] [CrossRef]
  26. Liu, S.; Wang, X.; Zhao, W.; Wang, K.; Sang, H.; He, Z. Synthesis, characterization and enhanced photocatalytic performance of Ag2S-coupled ZnO/ZnS core/shell nanorods. J. Alloys Compd. 2013, 568, 84–91. [Google Scholar] [CrossRef]
  27. Shuai, X.M.; Shen, W.Z. A facile chemical conversion synthesis of ZnO/ZnS core/shell nanorods and diverse metal sulfide nanotubes. J. Phys. Chem. C 2011, 115, 6415–6422. [Google Scholar] [CrossRef]
  28. Subash, B.; Krishnakumar, B.; Pandiyan, V.; Swaminathan, M.; Shanthi, M. An efficient nanostructured Ag2S–ZnO for degradation of acid black 1 dye under day light illumination. Sep. Purif. Technol. 2012, 96, 204–213. [Google Scholar] [CrossRef]
  29. Wang, P.; Menzies, N.W.; Lombi, E.; Sekine, R.; Blamey, F.P.; Hernandez-Soriano, M.C.; Cheng, M.; Kappen, P.; Peijnenburg, W.J.; Tang, C.; et al. Silver sulfide nanoparticles (Ag2S-NPs) are taken up by plants and are phytotoxic. Nanotoxicology 2015, 9, 1041–1049. [Google Scholar] [CrossRef] [Green Version]
  30. Zhai, T.; Li, L.; Wang, X.; Fang, X.; Bando, Y.; Golberg, D. Recent developments in one-dimensional inorganic nanostructures for photodetectors. Adv. Funct. Mater. 2010, 20, 4233–4248. [Google Scholar] [CrossRef]
  31. Li, D.; Wu, W.; Zhao, Y.; Qiao, R. Type-II heterojunction constructed by Ag2S-coupled ZnO microspheres with visible light-responsive antibacterial activity. Mater. Lett. 2020, 271. [Google Scholar] [CrossRef]
  32. Chen, D.; Wei, L.; Wang, D.; Chen, Y.; Tian, Y.; Yan, S.; Mei, L.; Jiao, J. Ag2S/ZnO core-shell nanoheterojunction for a self-powered solid-state photodetector with wide spectral response. J. Alloys Compd. 2018, 735, 2491–2496. [Google Scholar] [CrossRef]
  33. Bengas, R.; Lahmar, H.; Redha, K.M.; Mentar, L.; Azizi, A.; Schmerber, G.; Dinia, A. Electrochemical synthesis of n-type ZnS layers on p-Cu2O/n-ZnO heterojunctions with different deposition temperatures. RSC Adv. 2019, 9, 29056–29069. [Google Scholar] [CrossRef] [Green Version]
  34. Sui, M.-r.; Gu, X.-q.; Shi, M.-l.; Wang, Y.; Liu, L.-l. Improved photoelectrochemical performance by forming a ZnO/ZnS core/shell nanorod array. Optoelectron. Lett. 2019, 15, 241–244. [Google Scholar] [CrossRef]
  35. Wei, C.; Gu, X.; Li, K.; Song, J.; Zhao, Y.; Qiang, Y. Enhanced photoelectrochemical activities of ZnO nanorod arrays after a modification of ZnS or ZnIn2S4. J. Electron. Mater. 2019, 48, 7345–7351. [Google Scholar] [CrossRef]
  36. Bose, R.; Manna, G.; Jana, S.; Pradhan, N. Ag2S-AgInS2: P-n junction heteronanostructures with quasi type-II band alignment. Chem. Commun. 2014, 50, 3074–3077. [Google Scholar] [CrossRef] [PubMed]
  37. Du, C.; Tian, J.; Liu, X. Effect of intrinsic vacancy defects on the electronic properties of monoclinic Ag2S. Mater. Chem. Phys. 2020, 249, 122961. [Google Scholar] [CrossRef]
  38. Shen, X.; Yang, J.; Zheng, T.; Wang, Q.; Zhuang, H.; Zheng, R.; Shan, S.; Li, S. Plasmonic p-n heterojunction of Ag/Ag2S/Ag2MoO4 with enhanced Vis-NIR photocatalytic activity for purifying wastewater. Sep. Purif. Technol. 2020, 251, 117347. [Google Scholar] [CrossRef]
  39. Yang, J.; Miao, H.; Li, W.; Li, H.; Zhu, Y. Designed synthesis of a p-Ag2S/n-PDI self-assembled supramolecular heterojunction for enhanced full-spectrum photocatalytic activity. J. Mater. Chem. A 2019, 7, 6482–6490. [Google Scholar] [CrossRef]
  40. Al-Zahrani, A.A.; Zainal, Z.; Talib, Z.A.; Lim, H.N.; Holi, A.M.; Bahrudin, N.N. Enhanced photoelectrochemical performance of Bi2S3/Ag2S/ZnO novel ternary heterostructure nanorods. Arab. J. Chem. 2020, 13, 9166–9178. [Google Scholar] [CrossRef]
  41. Lan, J.; Gao, M.; Haw, C.; Khan, I.; Zhao, J.; Wang, Z.; Guo, S.; Huang, S.; Li, S.; Kang, J. Layer-by-layer assembly of Ag2S quantum dots-sensitized ZnO/SnO2 core-shell nanowire arrays for enhanced photocatalytic activity. Phys. Lett. A 2020, 384, 126708. [Google Scholar] [CrossRef]
  42. Solís-Cortés, D.; Navarrete-Astorga, E.; Schrebler, R.; Peinado-Pérez, J.J.; Martín, F.; Ramos-Barrado, J.R.; Dalchiele, E.A. A solid-state integrated photo-supercapacitor based on ZnO nanorod arrays decorated with Ag2S quantum dots as the photoanode and a PEDOT charge storage counter-electrode. RSC Adv. 2020, 10, 5712–5721. [Google Scholar] [CrossRef] [Green Version]
  43. Babeer, A.M.; Aamir, L. Zinc oxide/silver sulfide (ZnO/Ag2S) core-shell type composite for wide range absorption of visible spectra: Synthesis and characterization. Nano Hybrids Compos. 2019, 25, 84–89. [Google Scholar] [CrossRef]
  44. Chava, R.K.; Kang, M. Ag2S quantum dot sensitized zinc oxide photoanodes for environment friendly photovoltaic devices. Mater. Lett. 2017, 199, 188–191. [Google Scholar] [CrossRef]
  45. Feng, Y.; Wang, Y.; Li, M.; Lv, S.; Li, W.; Li, Z. Novel visible light induced Ag2S/g-C3N4/ZnO nanoarrays heterojunction for efficient photocatalytic performance. Appl. Surf. Sci. 2018, 462, 896–903. [Google Scholar] [CrossRef]
  46. Huang, J.; Yang, C.; Song, Q.; Liu, D.; Li, L. Photocatalytic performance of Ag2S/ZnO/ZnS nanocomposites with high visible light response prepared via microwave-assisted hydrothermal two-step method. Water Sci. Technol. 2018, 78, 1802–1811. [Google Scholar] [CrossRef]
  47. Anjum, M.; Kumar, R.; Barakat, M.A. Visible light driven photocatalytic degradation of organic pollutants in wastewater and real sludge using ZnO-ZnS/Ag2O-Ag2S nanocomposite. J. Taiwan Inst. Chem. Eng. 2017, 77, 227–235. [Google Scholar] [CrossRef]
  48. Holi, A.M.; Zainal, Z.; Ayal, A.K.; Chang, S.-K.; Lim, H.N.; Talib, Z.A.; Yap, C.-C. Ag2S/ZnO Nanorods composite photoelectrode prepared by hydrothermal method: Influence of growth temperature. Optik 2019, 184, 473–479. [Google Scholar] [CrossRef]
  49. Han, J.; Liu, Z.; Yadian, B.; Huang, Y.; Guo, K.; Liu, Z.; Wang, B.; Li, Y.; Cui, T. Synthesis of metal sulfide sensitized zinc oxide-based core/shell/shell nanorods and their photoelectrochemical properties. J. Power Sources 2014, 268, 388–396. [Google Scholar] [CrossRef]
  50. Zhou, H.; Gui, P.; Yang, L.; Ye, C.; Xue, M.; Mei, J.; Song, Z.; Wang, H. High performance, self-powered ultraviolet photodetector based on a ZnO nanoarrays/GaN structure with a CdS insert layer. New J. Chem. 2017, 41, 4901–4907. [Google Scholar] [CrossRef]
  51. Huang, G.; Zhang, P.; Bai, Z. Self-powered UV-visible photodetectors based on ZnO/graphene/CdS/electrolyte heterojunctions. J. Alloys Compd. 2019, 776, 346–352. [Google Scholar] [CrossRef]
  52. Holi, A.M.; Al-Zahrani, A.A.; Najm, A.S.; Chelvanathan, P.; Amin, N. PbS/CdS/ZnO nanowire arrays: Synthesis, structural, optical, electrical, and photoelectrochemical properties. Chem. Phys. Lett. 2020, 750, 137486. [Google Scholar] [CrossRef]
Nanomaterials 11 00461 g001 550

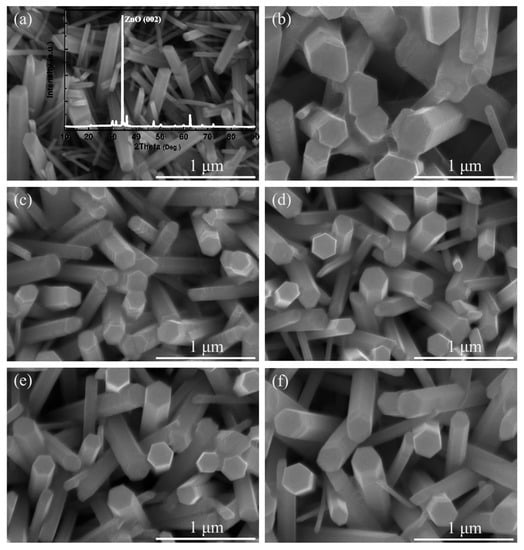

Figure 1. (a)–(f) SEM images of ZnO and ZnS/ZnO nanocomposites with different immersion time of 5, 15, 30, 45, and 60 min, respectively.
Figure 1. (a)–(f) SEM images of ZnO and ZnS/ZnO nanocomposites with different immersion time of 5, 15, 30, 45, and 60 min, respectively.
Nanomaterials 11 00461 g001
Nanomaterials 11 00461 g002 550

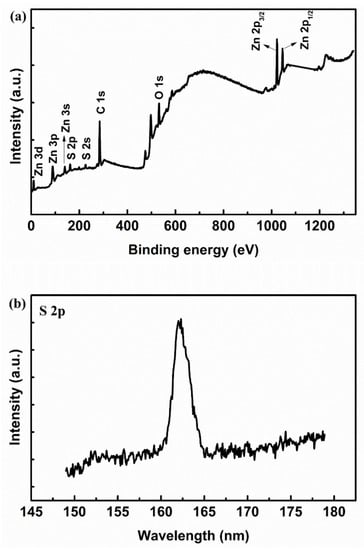

Figure 2. (a) XPS wide-survey spectrum; (b) S peak of ZnS/ZnO nanocomposites with the immersion time of 30 min.
Figure 2. (a) XPS wide-survey spectrum; (b) S peak of ZnS/ZnO nanocomposites with the immersion time of 30 min.
Nanomaterials 11 00461 g002
Nanomaterials 11 00461 g003 550

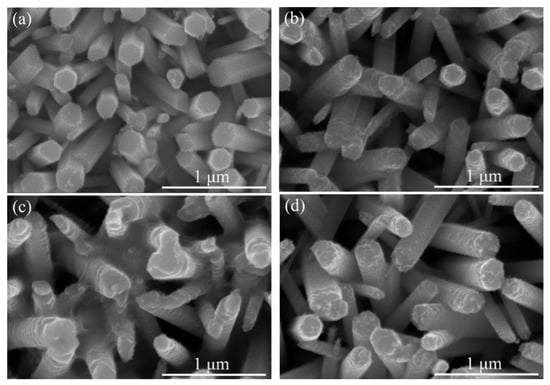

Figure 3. (a)–(d) SEM images of Ag2S/ZnO nanocomposites with different immersion time of 15, 30, 45, and 60 min, respectively.
Figure 3. (a)–(d) SEM images of Ag2S/ZnO nanocomposites with different immersion time of 15, 30, 45, and 60 min, respectively.
Nanomaterials 11 00461 g003
Nanomaterials 11 00461 g004 550

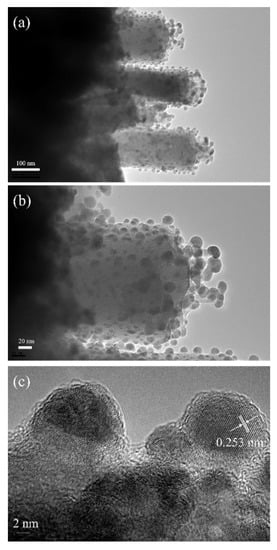

Figure 4. (a) and (b) TEM images of Ag2S/ZnS/ZnO nanocomposites with an immersion time of 60 min; (c) HRTEM image of nanoparticles.
Figure 4. (a) and (b) TEM images of Ag2S/ZnS/ZnO nanocomposites with an immersion time of 60 min; (c) HRTEM image of nanoparticles.
Nanomaterials 11 00461 g004
Nanomaterials 11 00461 g005 550

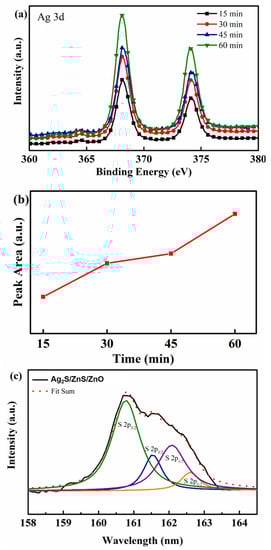

Figure 5. (a) XPS spectra of Ag 3d for Ag2S/ZnS/ZnO nanocomposites with various immersion time; (b) peak area of Ag 3d5/2 with different immersion time; (c) XPS spectra of S 2p for Ag2S/ZnS/ZnO nanocomposites with the immersion time of 60 min.
Figure 5. (a) XPS spectra of Ag 3d for Ag2S/ZnS/ZnO nanocomposites with various immersion time; (b) peak area of Ag 3d5/2 with different immersion time; (c) XPS spectra of S 2p for Ag2S/ZnS/ZnO nanocomposites with the immersion time of 60 min.
Nanomaterials 11 00461 g005
Nanomaterials 11 00461 g006 550

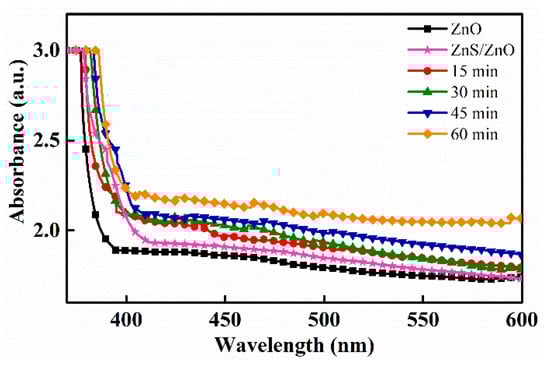

Figure 6. Absorption spectra of Ag2S/ZnS/ZnO nanocomposites with various immersion time.
Figure 6. Absorption spectra of Ag2S/ZnS/ZnO nanocomposites with various immersion time.
Nanomaterials 11 00461 g006
Nanomaterials 11 00461 g007 550

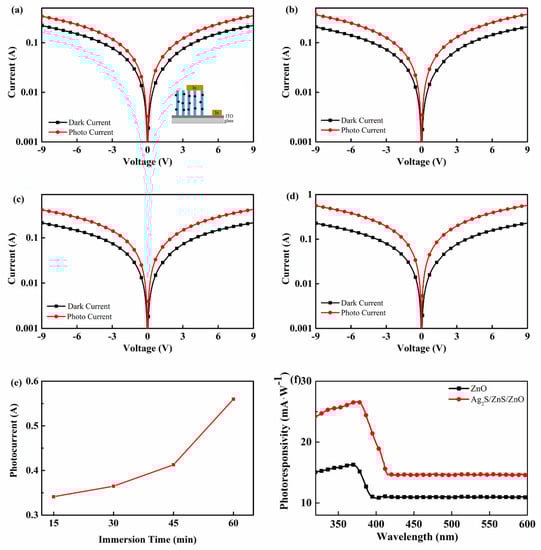

Figure 7. (a)–(d) I-V characteristics of photodetectors with various immersion time ((a) 15 min, (b) 30 min, (c) 45 min, and (d) 60 min) under UV light; the figure inset (a) is a schematic diagram of the photodetector; (e) photocurrent of photodetectors with various immersion time under 9 V bias; (f) photoresponsivity of the photodetector with the immersion time of 60 min.
Figure 7. (a)–(d) I-V characteristics of photodetectors with various immersion time ((a) 15 min, (b) 30 min, (c) 45 min, and (d) 60 min) under UV light; the figure inset (a) is a schematic diagram of the photodetector; (e) photocurrent of photodetectors with various immersion time under 9 V bias; (f) photoresponsivity of the photodetector with the immersion time of 60 min.
Nanomaterials 11 00461 g007
Nanomaterials 11 00461 g008 550

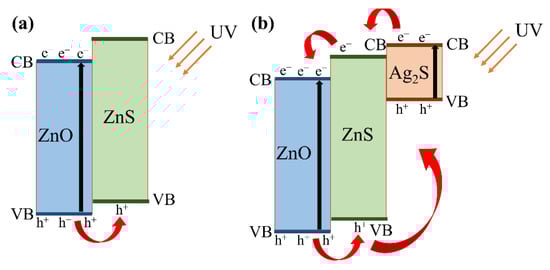

Figure 8. Energy band schematic diagrams of different nanocomposites: (a) ZnS/ZnO; (b) Ag2S/ZnS/ZnO.
