Article

Artificial Cathode-Electrolyte Interphase towards High-Performance Lithium-Ion Batteries: A Case Study of β-AgVO3

by
Liang Liu
1,*,
Wei Dai
1,
Hongzheng Zhu
2,
Yanguang Gu
1,
Kangkang Wang
1,
Chao Li
1,
Chaofeng Pan
1,
Min Zhou
3 and
Jian Liu
2,*
1
Automotive Engineering Research Institute, Jiangsu University, Zhenjiang 212013, China
2
School of Engineering, Faculty of Applied Science, University of British Columbia, Kelowna, BC V1V 1V7, Canada
3
Hefei National Laboratory for Physical Sciences at the Microscale, School of Chemistry and Materials Science, University of Science and Technology of China, Hefei 230026, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(3), 569; https://doi.org/10.3390/nano11030569
Submission received: 14 December 2020 / Revised: 18 February 2021 / Accepted: 20 February 2021 / Published: 25 February 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
Silver vanadates (SVOs) have been widely investigated as cathode materials for high-performance lithium-ion batteries (LIBs). However, similar to most vanadium-based materials, SVOs suffer from structural collapse/amorphization and vanadium dissolution from the electrode into the electrolyte during the Li insertion and extraction process, causing poor electrochemical performance in LIBs. We employ ultrathin Al2O3 coatings to modify β-AgVO3 (as a typical example of SVOs) by an atomic layer deposition (ALD) technique. The galvanostatic charge-discharge test reveals that ALD Al2O3 coatings with different thicknesses greatly affected the cycling performance. Especially, the β-AgVO3 electrode with ~10 nm Al2O3 coating (100 ALD cycles) exhibits a high specific capacity of 271 mAh g−1, and capacity retention is 31%, much higher than the uncoated one of 10% after 100 cycles. The Coulombic efficiency is improved from 89.8% for the pristine β-AgVO3 to 98.2% for Al2O3-coated one. Postcycling analysis by cyclic voltammetry (CV), cyclic voltammetry (EIS), and scanning electron microscopy (SEM) disclose that 10-nm Al2O3 coating greatly reduces cathode-electrolyte interphase (CEI) resistance and the charge transfer resistance in the β-AgVO3 electrode. Al2O3 coating by the ALD method is a promising technique to construct artificial CEI and stabilize the structure of SVOs, providing new insights for vanadium-based electrodes and their energy storage devices.

1. Introduction

Currently, lithium-ion batteries (LIBs) are known as the most suitable energy storage devices for application in vehicle-carried electronic devices and portable electronics due to their high energy density, excellent sustainability, high voltage, and long lifespan [1,2]. Since the cathode plays a significant role in current LIBs, its properties significantly affect the electrochemical performance of the whole system [3]. Silver vanadates (SVOs) have been extensively investigated because of their ingenious properties and potential application for photocatalysts [4,5,6], magnetic and electronic materials [7,8], antibacterial materials [9], and surface-enhanced Raman scattering substrates [10]. SVOs possess various oxidation states and phases, such as AgVO3, Ag2V4O11, Ag3VO4, Ag4V2O7, etc., making it possible to achieve high energy density. In 1978, SVOs were first used as cathode materials in primary lithium batteries, and AgxV2O5 with a range of x values (x is the composition parameter from 0.1~0.7) was demonstrated [11]. Currently, SVOs are among the most popular cathode materials for implantable medical devices, notably the implantable cardioverter defibrillators (ICDs) widely used to protect cardiovascular patients effectively [12].
Nanostructured SVOs with different morphologies (such as nanorods, nanowires, nanorings, etc.) have synthesized and showed varying properties and electrochemical performance [13,14,15]. In particular, significant efforts have been devoted to developing β-AgVO3 nanomaterials due to their stable layered structure, high Ag/V ratio, and superior ionic properties [16]. Chen et al. used a facile and straightforward low-temperature hydrothermal method to synthesize different one-dimensional β-AgVO3 nano/microstructures. The capacity for the as-synthesized β-AgVO3 electrode was 272.7 mAh g−1 at 0.01 mA in primary lithium batteries [13]. Liang et al. successfully prepared β-AgVO3 nanorods by a soft chemistry route, followed by a calcination process. The nanorods fabricated at 400 °C delivered an initial specific discharge capacity of 186 mAh g−1 at a current density of 100 mA g−1 as a cathode in primary lithium batteries [17]. Furthermore, β-AgVO3 has also been developed as the electrode for rechargeable LIBs. For example, Li et al. successfully synthesized multiscale silver vanadates particles by using a simple sol-gel method with organic acids as reductants and annealing at temperatures higher than 450 °C [18]. The β-AgVO3 particles as the cathode for rechargeable LIBs exhibited a high initial capacity of 243 mAh g−1, and 41% of the initial capacity was retained after 100 cycles.
However, as the cathode for rechargeable LIBs, SVOs suffer from considerable capacity loss and low Coulombic efficiency (CE) during the repeated charge-discharge process. This intrinsic hurdle of SVOs is mainly caused by two reasons: (1) the collapse of its layered structures and the amorphization of the electrode surface [19,20], and (2) partial dissolution of vanadium into the electrolyte upon the repeated Li-ion intercalation and deintercalation process [21,22,23]. The surface coating has been proven as an effective approach to alleviating the above side reactions occurring at the electrode-electrolyte interface [3,24]. Atomic layer deposition (ALD) is an advanced surface coating technique for fabricating high-quality thin films using unique self-limiting surface reactions [25]. ALD has been successfully used to coat metal oxides with precisely controlled thicknesses on the electrode to overcome the interfacial instability issues in LIBs [26]. Furthermore, direct ALD coating on the electrode, rather than active material powders, might be advantageous by knitting the active materials to the conductive agent [27] and mitigating the cracking of the electrode [28,29]. However, no attempt has been made regarding modifying the surface instability of β-AgVO3 nano/microstructures and the electrochemical investigation.
In this work, a facile hydrothermal method was first presented to synthesis β-AgVO3 nanowires. Then, thin Al2O3 ALD coatings of about 1 to 10 nm were explored as stable artificial cathode-electrolyte interphase (CEI) on the SVO electrodes. The galvanostatic charge-discharge test revealed that the SVO electrodes with Al2O3 coatings exhibited higher specific capacities and better cycling stability than the pristine SVO. The CE of SVO electrodes was also significantly improved by using ALD Al2O3 coatings. The underlying mechanism was explored by cyclic voltammetry (CV), cyclic voltammetry (EIS), and scanning electron microscopy (SEM), and the main reason for the improved electrochemical performance of β-AgVO3 was attributed to the artificial CEI with improved ion transport properties. The Al2O3 coatings could effectively inhibit the side reaction between the electrode and electrolyte by suppressing the collapse of its layered structure and alleviate vanadium dissolution into the electrolyte.

2. Materials and Methods

2.1. Synthesis of SVO Nanowires

All chemicals were of analytical grade and used as received (Sinopharm Chemical Reagent Co.,Ltd. Shanghai, China). First, NH4VO3 with an amount of 0.117 g (1 mmol) was dissolved into 30 mL of deionized water at 80 °C, and AgNO3 with the same equal molar was dissolved in 10 mL of deionized water. Then the NH4VO3 solution was added slowly to the AgNO3 solution under magnetic stirring, with orange precipitate observed. After the solution was stirred for 15 min, the mixture was transferred into a 50 mL Teflon-lined autoclave, which was sealed and maintained at 200 °C for 18 h before naturally cooling to room temperature (RT) after the reaction. The precipitate was collected and washed three times with distilled water and absolute ethanol, respectively. Finally, the collected powders were dried in a vacuum oven at 60 °C for 6 h.

2.2. Al2O3 ALD Coating on SVO Electrode

The SVO electrodes were fabricated by mixing the as-prepared SVO nanowires, acetylene black, and polyvinylidene fluoride (PVDF) binder in a weight ratio of 75:15:10 in N-methylpyrrolidinone (NMP) solvent. The prepared SVO electrode was employed as the substrates for the deposition of Al2O3 thin film. The deposition of Al2O3 was performed at 150 °C by sequentially introducing trimethylaluminum (TMA) and H2O as precursors into a commercial ALD reactor (GEMStar™ XT Atomic Layer Deposition System). Nitrogen was used as the carrier gas with a flow rate of 20 sccm, and the ALD reactor was sustained at a base pressure of typically 200 millitorrs. The ALD procedure was set as follows: (1) a 21 mSec supply of TMA; (2) a 5 s extended exposure of TMA to SVO electrode; (3) a 20 s purge of oversupplied TMA and any byproducts; (4) a 21 mSec supply of H2O vapor; (5) a 5 s extended exposure of H2O to SVO; (6) a 20 s purge of oversupplied H2O and any by-products. The thickness of Al2O3 coating on SVO was controlled by varying ALD cycle number. The deposition rate was about 1 Å per cycle. The Al2O3 coating was conducted with various ALD cycles of 0, 10, 50, and 100 on SVO, referred to as SVO-0, SVO-10, SVO-50, SVO-100, respectively, from now on.

2.3. Sample Characterization

The morphology and crystalline structure of the above all samples were characterized by X-ray powder diffraction (XRD) with Rigaku D/max rA X-ray diffractometer (Rigaku Corporation, Tokyo, Japan). The 2θ scan range was from 10° to 80° at a scan rate of 7° per minute. The field emission scanning electron microscopy (SEM) images were taken on an FEI Sirion-200 SEM (FEI Company, Houston, TX, USA). The energy dispersive X-ray spectra (EDS) were recorded by JEOL-7001F SEM/EDS microscope (Jeol Ltd., Tokyo, Japan). The transmission electron microscopy (TEM) images were performed with a Hitachi Model H-800 instrument (Hitachi, Ltd., Tokyo, Japan). High-resolution transmission electron microscopy (HRTEM) images and selected-area electron diffraction (SAED) patterns were carried out on a JEOL-2010 TEM (Jeol Ltd., Tokyo, Japan).

2.4. Electrochemical Measurement

The electrochemical characterization was carried out in CR2032 coin-type half cells, assembled in an argon-filled glovebox. The AgVO3 electrodes with and without Al2O3 coating ALD were used as the cathode, lithium metal as the anode, and 1 M LiPF6 in volume ratio of 1:1:1 ethylene carbonate/dimethyl carbonate/ethylene methyl carbonate as the electrolyte. Galvanostatic discharge-charge cycling tests were carried out at room temperature using the LANDCT2001A (Wuhan Jinnuo, China). The cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) measurements were conducted using the Zahner Zennium E electrochemical workstation (Zahner Scientific Instruments, Kronach, Germany) over the frequency range of 0.01 Hz–100,000 Hz with an amplitude of 5 mV.

3. Results and Discussion

The crystal structure of the as-prepared sample is determined by XRD, as shown in Figure 1a. All the characteristic peaks agree with monoclinic β-AgVO3 (JCPDS card No. 86-1154). It should be noted that the strongest diffraction peak for β-AgVO3 is (−601), different from (311) for standard monoclinic β-AgVO3, suggesting anisotropic growth of the β-AgVO3 nanowires with preferred orientation [30]. There is no other peak detected in the XRD analysis, indicating the high purity of the sample. Figure 1b shows the SEM morphology of the as-obtained β-AgVO3 nanowires. It can be seen that all the synthesized β-AgVO3 is composed of nanowires with lengths from 2 to 20 μm. Some of the nanowires adhere to each other into bundles. The morphology and microstructure of the β-AgVO3 are further characterized by TEM, and the results are presented in Figure 1c. It can be seen that the width of a single nanowire is about 40–100 nm. The HRTEM image (inset in Figure 1c) reveals that the interplanar distance is 0.20 nm for both nanowire and protuberant nanoparticle and matches with the d(−204) of monoclinic β-AgVO3. The selected area electron diffraction (SAED) pattern of an individual nanowire (inset in Figure 1c) shows the concentric diffraction rings of the (–202), (–112), and (110) planes. The above results suggest the successful synthesis of monoclinic β-AgVO3 nanowires by the facile hydrothermal method. The SEM image of the Al2O3 coating fabricated by ALD on the β-AgVO3 electrode is shown in Figure 1d. The thickness of the Al2O3 coating on the β-AgVO3 electrode was controlled by the number of ALD cycles. The deposition rate is about 1 Å per cycle [24]. The Al2O3 coating deposited with 100 ALD cycles is approximately 10 nm. The composition is further confirmed by elemental mapping of the Al2O3-coated β-AgVO3 electrode (Figure 1d).
The electrochemical performance of the β-AgVO3 electrode with and without Al2O3 coatings are evaluated in a voltage window of 1.5–3.5 V, and the results are shown in Figure 2. Figure 2a compares the charge-discharge profiles of the β-AgVO3 electrode without coating and with 100-ALD cycle Al2O3 coating (SVO-0 and SVO-100) at a current density of 50 mA g−1. As seen, there are two distinct plateaus at approximately 3.0 V and 2.3 V in the first discharge curve for SVO-0, corresponding to the reduction of Ag+ to Ag0, V5+ to V4+ and V4+ to V3+ [18]. Compared to the SVO-0, the SVO-100 shows a shorter discharge plateau for the first cycle, especially at 3.0 V (Figure 2b), suggesting that the Al2O3 surface coating layer could decrease the consumption of lithium ions and decomposition of electrolytes for CEI formation [31]. The sloped curve of SVO-0 becomes straight in the third cycle, while the 50th and 100th have no plateaus at all, suggesting that the structure of SVO-0 has been completely destroyed during the charging-discharging process. However, the sloping curves of SVO-100 in the 3rd, 50th, and 100th cycle remains a small plateau. The cycling performance of the β-AgVO3 electrode with Al2O3 coatings highly depends on the coating thickness of Al2O3, as illustrated in Figure 2c. SVO-0, SVO-10, SVO-50, SVO-100 exhibit high initial discharge capacities of 295, 265, 242, 271 mAh g−1, respectively. All the Al2O3-coated samples show lower discharge capacities in the first cycle than the uncoated SVO-0, revealing that the inert Al2O3 coating as artificial CEI films consuming fewer lithium ions for CEI formation than the uncoated SVO-0. The capacity retention after 100 cycles is 10%, 12%, 30%, and 31% for SVO-0, SVO-10, SVO-50, and SVO-100, respectively. The optimal Al2O3 coating thickness is ~10 nm performed using 100 ALD cycles (SVO-100). Usually, vanadium-based materials suffer from the collapse of their layered structures and the dissolution of vanadium into the electrolyte [21,22], resulting in considerable capacity loss and low CE upon repeated Li-ion intercalation and de-intercalation process. The CE of all the samples is also compared in Figure 2c. The CE in the first cycle is determined to be 62.3%, 72.1%, 80.3%, and 83.8% for SVO-0, SVO-10, SVO-50, and SVO-100, respectively. The CE stabilizes after 10 cycles, and the average CE is below 90% for SVO-0 and SVO-10 and above 98.2% for SVO-50 and SVO-100. The improved CE might be ascribed to the fact that the artificial CEI of Al2O3 coatings could serve as a physical barrier between β-AgVO3 and the electrolyte, alleviating the decomposition of electrolytes and the dissolution of vanadium into the electrolyte. Al2O3 coating on SVO-100 suppresses the structural degradation and the dissolution of the active materials through artificial CEI and much less side reaction. Figure 2d presents the rate capabilities of all the samples at various current densities ranging from 50 to 800 mA g−1. The rate capability of SVO-0 is better than that of SVO-10 and SVO-50, revealing that Al2O3 coating with less than 50 ALD cycles affects the rate capability. It is striking to note that SVO-100 exhibits the best rate performance among all the samples. For example, the high discharge capacity is determined to be about 299, 179, 150, 115, and 66 mAh g−1 for SVO-100, and 317, 119, 81, 66, and 53 mAh g−1 for SVO-0, at a current density of 50, 100, 200, 400, and 800 mA g−1, respectively. The morphology of the β-AgVO3 electrodes after cycling is shown in Figure S1. The SVO-100 (Figure S1d) exhibits a continuous and smooth surface, indicating a stable electrode structure with Al2O3 coating over repeated cycling. The improvement could be due to Al2O3 coating on β-AgVO3 not only maintains Li-ion pathways between active materials and the electrolyte but also improves the adhesion of electrode materials to the current collector [27,32]. The energy-dispersive X-ray (EDX) analyses in Figure S2 shows peaks of Ag, V (here Al were originated from the Al2O3 coating or Al foil) from (a) SVO-0, (b) SVO-100 electrodes after 100 charge-discharge cycles. The atomic ratio of Ag and V is about 4.5: 1 for SVO-0, while 1.5:1 for SVO-100 electrodes. This higher percentage of V in SVO-100 means that the Al2O3 coating efficiently prevent the catastrophic dissolution of V into the electrolyte.
To further evaluate the electrochemical reversibility, the CV curves of all the samples in the first two cycles are compared in Figure 3. It can be observed in the first cycle, all the SVO samples show three strong cathodic peaks at around 3.06, 2.38, and 1.86 V, and three anode peaks at about 3.43, 2.66, and 2.12 V, corresponding to the multistep electrochemical lithium-ion intercalation-deintercalation processes [33]. According to the previous reports [18,33,34], the cathodic peak at 3.06 V is assigned to the reduction of Ag+ to Ag0. The peak at 2.38 V corresponds to the reduction of V5+ to V4+ and the partial reduction of V4+ to V3+. The peak at 1.86 V is attributed to the further reduction of V4+ to V3+ and Ag+ to Ag0. However, SVO-100 shows a new pair of a cathodic peak at 2.72 V and an anode peak at 3.06 V, similar to the Ag2V4O11 nanowires [13]. We speculated that the Al2O3 coatings might trigger a new phase transformation from β-AgVO3 to Ag2V4O11 during the redox reaction. In the second cycle, SVO-0, SVO-10, SVO-50, and SVO-100 shows a similar reduction and oxidation peaks as in the first cycle. But the redox current of SVO-100 becomes more extensive, and the new redox peaks of 3.06 V and 2.72 V become the dominant peaks in Figure 3b. The tendency intensified in the third cycle, as shown in Figure S3.
The potential differences between each redox process vary with the increase of Al2O3 coating layers on the electrodes, resulting in different voltage hysteresis (ΔV) between the anodic and cathodic peaks. The exact values are summarized in Table 1. It can be found that SVO electrodes coated with Al2O3 show higher voltage hysteresis than SVO-0 in each CV cycle. With increasing ALD cycles, the SVO cathodes exhibit higher average voltage hysteresis. It might stem from the hindrance of the Li+ transport across the interface between SVO and the electrolyte by the Al2O3 coating in the first cycle. In the second and third cycles, the average voltage hysteresis becomes smaller, indicating the decreased polarization and increased electrochemical kinetics benefiting from CEI formation. It can be found that the thick Al2O3 coating on SVO-100 may cause the phase transformation that occurred upon cycling, which shows decreased polarization during the following electrochemical process.
Electrochemical impedance spectroscopy (EIS) measurements were performed on the SVO electrodes to find out the reasons for the performance difference. Figure 4a–d shows that all the impedance spectra of these electrodes have a semicircle in the high-frequency region and a straight line in the low-frequency region. The semicircle can be associated with the passivating film formed on the material and the charge transfer process, while the straight line is related to the lithium-ion diffusion in the electrode material [35]. The equivalent circuit model (inset in Figure 4b) is used to fit the impedance spectra of the electrodes. Table S1 shows the values of resistance calculated from fitting the impedance graphs. In this circuit, Rs represents the solution resistance, RCEI stands for the CEI resistance, and Rct represents the charge transfer resistance; CPE1, CPE2, and W are CEI capacitance, double-layer capacitance, and the Warburg impedance, respectively [36,37,38,39]. The values of Rs, RCEI, and Rct are obtained from the simulation. Figure 4e shows that the ALD Al2O3 coating has little influence on the solution resistance (Rs) of all the samples, and most of Rs is below 10 Ω. For RCEI in Figure 4f, the fresh cell for SVO-0, SVO-10, SVO-50, SVO-100 has value of 73.39, 40.91, 36.91 and 63.42 Ω respectively, implying that the Al2O3 coating can reduce the CEI resistance of the electrode surface and improve the ion transmission. At the same time, it also shows that too thick Al2O3 coating is not conducive to the transfer of ions on the electrode surface. However, after 50 battery cycles, the RCEI values drop to 21.67, 29.69, 33.01, and 13.06 Ω for SVO-0, SVO-10, SVO-50, and SVO-100, respectively, implying that the inert Al2O3 coating greatly increases the CEI resistance with the thickest Al2O3 coating and makes the battery more conducive to long cycles. Similar trends are observed for Rct in Figure 4g. The SVO-0, SVO-10, SVO-50, SVO-100 for 0 cycle has the largest value. There is a large drop in Rct between cycles 0 to 10, which is perhaps due to the phase transition observed in the precycle electrode [30]. Comparatively, Rct are increased from the 10th to 20th cycles for all samples. After 50 battery cycles, the Rct values drop to 53.51, 109, 161.7, and 12.65 Ω for SVO-0, SVO-10, SVO-50, and SVO-100, respectively. RCEI and Rct of other samples SVO-10 and SVO-50 do not show the strong trends as the SVO-100. It might be due to that thinner Al2O3 coatings did not yield enough creation of Li-ion conductive Li-Al-O on the surface of the electrode [28]. The Bode plots for the fresh cell of the SVO electrodes are also shown in Figure S4, where |Z| is impedance modulus, and θ is phase angle. SVO-100 shows the lowest impedance Bode plots after discharging process. The phase-angle Bode plots of SVO-100 shows, while the other samples shows at least two peaks, indicating that multi capacitive features with side reaction about dissolution of V (Vanadium) into the electrolyte [40,41].

4. Conclusions

In summary, we have successfully prepared β-AgVO3 nanowires by a facile hydrothermal method. Al2O3 coating was conducted directly on the prepared β-AgVO3 cathode by using different ALD cycles to construct artificial CEI and improve the electrochemical performance for LIBs. The optimal Al2O3 coating was 10 nm (100 ALD cycles). The Al2O3 coating significantly promoted the durability and CE in the galvanostatic charge–discharge test by suppressing the collapse of its layered structures and the dissolution of vanadium into the electrolyte. The phase transformation during the redox reaction affected by the thickness of Al2O3 coatings is also revealed by the CV test. Simultaneously, the CEI resistance and the charge transfer resistance were greatly reduced, resulting in decreased polarization and increased electrochemical kinetics. The protective Al2O3 ALD coating is a promising method to protect SVO material and other vanadium-based electrode materials for the stable operation of rechargeable LIBs to extend the service life for implantable medical devices.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/3/569/s1, Figure S1: SEM images for different ALD coating layers: (a) SVO-0, (b) SVO-10, (c) SVO-50, (d) SVO-100 after 100 charge–discharge cycles at a current density of 50 mA g−1; Figure S2: EDX spectrum taken from the (a) SVO-0, (b) SVO-100 after 100 charge-discharge cycles; Figure S3: CV curves of (a) SVO-0, (b) SVO-10, (c) SVO-50, (d) SVO-100 at a scanning rate of 0.2 mV s−1 in the third cycle; Figure S4: Bode plots for SVO-0, SVO-10, SVO-50, SVO-100 after (a) 0 (b) 10, (c) 20, (d) 50 battery cycles; Table S1: Values of resistance calculated from fitting the impedance graphs.

Author Contributions

Methodology, W.D., H.Z., Y.G., K.W. and C.L.; formal analysis, L.L., Y.G., H.Z. and C.P.; writing original draft preparation, L.L. and K.W.; writing review and editing, L.L., M.Z. and J.L.; supervision J.L.; funding acquisition, L.L. and J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NSFC (51402129), China Postdoctoral Science Foundation, (2016M601731), China Scholarship Council (201708320164), and International Postdoctoral Exchange Fellowship Program (20190078). Liu’s work at UBC was supported by Nature Sciences and Engineering Research Council of Canada (NSERC), Canada Foundation for Innovation (CFI), BC Knowledge Development Fund (BCKDF), and the University of British Columbia (UBC).

Data Availability Statement

The data is available on reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ding, Y.; Cano, Z.P.; Yu, A.; Lu, J.; Chen, Z. Automotive Li-Ion Batteries: Current Status and Future Perspectives. Electrochem. Energy Rev. 2019, 2, 1–28. [Google Scholar] [CrossRef]
  2. Tang, H.; Peng, Z.; Wu, L.; Xiong, F.; Pei, C.; An, Q.; Mai, L. Vanadium-Based Cathode Materials for Rechargeable Multivalent Batteries: Challenges and Opportunities. Electrochem. Energy Rev. 2018, 1, 169–199. [Google Scholar] [CrossRef]
  3. Guan, P.; Zhou, L.; Yu, Z.; Sun, Y.; Liu, Y.; Wu, F.; Jiang, Y.; Chu, D. Recent Progress of Surface Coating on Cathode Materials for High-Performance Lithium-Ion Batteries. J. Energy Chem. 2020, 43, 220–235. [Google Scholar] [CrossRef] [Green Version]
  4. Ran, R.; Meng, X.; Zhang, Z. Facile Preparation of Novel Graphene Oxide-Modified Ag2O/Ag3VO4/AgVO3 Composites with High Photocatalytic Activities under Visible Light Irradiation. Appl. Catal. B 2016, 196, 1–15. [Google Scholar] [CrossRef]
  5. Zhao, W.; Guo, Y.; Wang, S.; He, H.; Sun, C.; Yang, S. A Novel Ternary Plasmonic Photocatalyst: Ultrathin G-C3N4 Nanosheet Hybrided by Ag/AgVO3 Nanoribbons with Enhanced Visible-Light Photocatalytic Performance. Appl. Catal. B 2015, 165, 335–343. [Google Scholar] [CrossRef]
  6. Zhang, S.W.; Li, J.X.; Wang, X.K.; Huang, Y.S.; Zeng, M.Y.; Xu, J.Z. Rationally Designed 1D Ag@AgVO3 Nanowire/Graphene/Protonated G-C3N4 Nanosheet Heterojunctions for Enhanced Photocatalysis Via Electrostatic Self-Assembly and Photochemical Reduction Methods. J. Mater. Chem. A 2015, 3, 10119–10126. [Google Scholar] [CrossRef]
  7. Bao, S.J.; Bao, Q.L.; Li, C.M.; Chen, T.P.; Sun, C.Q.; Dong, Z.L.; Gan, Y.; Zhang, J. Synthesis and Electrical Transport of Novel Channel-Structured Beta-AgVO3. Small 2007, 3, 1174–1177. [Google Scholar] [CrossRef] [PubMed]
  8. Wu, C.Z.; Zhu, H.O.; Dai, J.; Yan, W.S.; Yang, J.L.; Tian, Y.C.; Wei, S.Q.; Xie, Y. Room-Temperature Ferromagnetic Silver Vanadium Oxide (Ag1.2V3O8): A Magnetic Semiconductor Nanoring Structure. Adv. Funct. Mater. 2010, 20, 3666–3672. [Google Scholar] [CrossRef]
  9. Singh, A.; Dutta, D.P.; Ballal, A.; Tyagi, A.K.; Fulekar, M.H. Visible Light Driven Photocatalysis and Antibacterial Activity of AgVO3 and Ag/AgVO3 Nanowires. Mater. Res. Bull. 2014, 51, 447–454. [Google Scholar] [CrossRef]
  10. Shao, M.W.; Lu, L.; Wang, H.; Wang, S.; Zhang, M.L.; Ma, D.D.; Lee, S.T. An Ultrasensitive Method: Surface-Enhanced Raman Scattering of Ag Nanoparticles from Beta-Silver Vanadate and Copper. Chem. Commun. 2008, 28, 2310–2312. [Google Scholar] [CrossRef]
  11. Scholtens, B.B.; Polder, R.; Broers, G.H.J. Some Thermodynamic, Electrical and Electrochemical Properties of Silver Vanadium Bronzes. Electrochim. Acta 1978, 23, 483–488. [Google Scholar] [CrossRef]
  12. Cheng, F.; Chen, J. Transition Metal Vanadium Oxides and Vanadate Materials for Lithium Batteries. J. Mater. Chem. 2011, 21, 9841. [Google Scholar] [CrossRef]
  13. Zhang, S.; Li, W.; Li, C.; Chen, J. Synthesis, Characterization, and Electrochemical Properties of Ag2V4O11 and AgVO3 1-D Nano/Microstructures. J. Phys. Chem. B 2006, 110, 24855–24863. [Google Scholar] [CrossRef] [PubMed]
  14. Shen, G.; Chen, D. Self-Coiling of Ag2V4O11 Nanobelts into Perfect Nanorings and Microloops. J. Am. Chem. Soc. 2006, 128, 11762–11763. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, S.; Wang, W.; Zhou, L.; Zhang, L. Silver Vanadium Oxides Nanobelts and Their Chemical Reduction to Silver Nanobelts. J. Cryst. Growth 2006, 293, 404–408. [Google Scholar] [CrossRef]
  16. Feng, M.; Luo, L.B.; Nie, B.; Yu, S.H. P-Type Beta-Silver Vanadate Nanoribbons for Nanoelectronic Devices with Tunable Electrical Properties. Adv. Funct. Mater. 2013, 23, 5116–5122. [Google Scholar] [CrossRef]
  17. Liang, S.; Zhou, J.; Pan, A.; Li, Y.; Chen, T.; Tian, Z.; Ding, H. Facile Synthesis of β-AgVO3 Nanorods as Cathode for Primary Lithium Batteries. Mater. Lett. 2012, 74, 176–179. [Google Scholar] [CrossRef]
  18. Li, H.; Li, H.; Wu, S.; Liao, C.; Zhou, Z.; Liu, X.; Djurišić, A.B.; Xie, M.; Tang, C.; Shih, K. Facile Synthesis, Characterization, and Electrochemical Performance of Multi-Scale AgVO3 Particles. J. Alloys Compd. 2016, 674, 56–62. [Google Scholar] [CrossRef]
  19. Kim, T.; Shin, J.; You, T.-S.; Lee, H.; Kim, J. Thermally Controlled V2O5 Nanoparticles as Cathode Materials for Lithium-Ion Batteries with Enhanced Rate Capability. Electrochim. Acta 2015, 164, 227–234. [Google Scholar] [CrossRef]
  20. Xu, Y.; Han, X.; Zheng, L.; Yan, W.; Xie, Y. Pillar Effect on Cyclability Enhancement for Aqueous Lithium Ion Batteries: A New Material of β-Vanadium Bronze M0.33V2O5 (M = Ag, Na) Nanowires. J. Mater. Chem. 2011, 21, 14466. [Google Scholar] [CrossRef]
  21. Song, Y.; Liu, T.-Y.; Yao, B.; Kou, T.-Y.; Feng, D.-Y.; Liu, X.-X.; Li, Y. Amorphous Mixed-Valence Vanadium Oxide/Exfoliated Carbon Cloth Structure Shows a Record High Cycling Stability. Small 2017, 13, 1700067. [Google Scholar] [CrossRef]
  22. Yu, M.; Zeng, Y.; Han, Y.; Cheng, X.; Zhao, W.; Liang, C.; Tong, Y.; Tang, H.; Lu, X. Valence-Optimized Vanadium Oxide Supercapacitor Electrodes Exhibit Ultrahigh Capacitance and Super-Long Cyclic Durability of 100000 Cycles. Adv. Funct. Mater. 2015, 25, 3534–3540. [Google Scholar] [CrossRef]
  23. Sudant, G.; Baudrin, E.; Dunn, B.; Tarascon, J.-M. Synthesis and Electrochemical Properties of Vanadium Oxide Aerogels Prepared by a Freeze-Drying Process. J. Electrochem. Soc. 2004, 151, A666. [Google Scholar] [CrossRef]
  24. Chen, H.; Liu, Q.-Y.; Jing, M.-X.; Chen, F.; Yuan, W.-Y.; Ju, B.-W.; Tu, F.-Y.; Shen, X.-Q.; Qin, S.-B. Improved Interface Stability and Room-Temperature Performance of Solid-State Lithium Batteries by Integrating Cathode/Electrolyte and Graphite Coating. ACS Appl. Mater. Interfaces 2020, 12, 15120–15127. [Google Scholar] [CrossRef] [PubMed]
  25. Miikkulainen, V.; Leskelä, M.; Ritala, M.; Puurunen, R.L. Crystallinity of Inorganic Films Grown by Atomic Layer Deposition: Overview and General Trends. J. Appl. Phys. 2013, 113, 021301. [Google Scholar] [CrossRef]
  26. George, S.M. Atomic Layer Deposition: An Overview. Chem. Rev. 2010, 110, 111–131. [Google Scholar] [CrossRef] [PubMed]
  27. Riley, L.A.; Cavanagh, A.S.; George, S.M.; Lee, S.-H.; Dillon, A.C. Improved Mechanical Integrity of ALD-Coated Composite Electrodes for Li-Ion Batteries. Electrochem. Solid-State Lett. 2011, 14, A29. [Google Scholar] [CrossRef] [Green Version]
  28. Xiao, X.; Lu, P.; Ahn, D. Ultrathin Multifunctional Oxide Coatings for Lithium Ion Batteries. Adv. Mater. 2011, 23, 3911–3915. [Google Scholar] [CrossRef]
  29. He, Y.; Yu, X.; Wang, Y.; Li, H.; Huang, X. Alumina-Coated Patterned Amorphous Silicon as the Anode for a Lithium-Ion Battery with High Coulombic Efficiency. Adv. Mater. 2011, 23, 4938–4941. [Google Scholar] [CrossRef] [PubMed]
  30. Han, C.H.; Pi, Y.; An, Q.; Mai, L.; Xie, J.; Xu, X.; Xu, L.; Zhao, Y.; Niu, C.; Khan, A.M.; et al. Substrate-Assisted Self-Organization of Radial Beta-AgVO3 Nanowire Clusters for High Rate Rechargeable Lithium Batteries. Nano Lett. 2012, 12, 4668–4673. [Google Scholar] [CrossRef] [PubMed]
  31. Feng, T.; Xu, Y.; Zhang, Z.; Du, X.; Sun, X.; Xiong, L.; Rodriguez, R.; Holze, R. Low-Cost Al2O3 Coating Layer as a Preformed Sei on Natural Graphite Powder to Improve Coulombic Efficiency and High-Rate Cycling Stability of Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2016, 8, 6512–6519. [Google Scholar] [CrossRef] [PubMed]
  32. Kwon, O.K.; Kwon, S.H.; Park, H.S.; Kang, S.W. Peald of a Ruthenium Adhesion Layer for Copper Interconnects. J. Electrochem. Soc. 2004, 151, C753–C756. [Google Scholar] [CrossRef]
  33. Liang, L.; Liu, H.; Yang, W. Synthesis and Characterization of Self-Bridged Silver Vanadium Oxide/Cnts Composite and Its Enhanced Lithium Storage Performance. Nanoscale 2013, 5, 1026–1033. [Google Scholar] [CrossRef]
  34. Liang, L.; Xu, Y.; Lei, Y.; Liu, H. 1-Dimensional AgVO3 Nanowires Hybrid with 2-Dimensional Graphene Nanosheets to Create 3-Dimensional Composite Aerogels and Their Improved Electrochemical Properties. Nanoscale 2014, 6, 3536–3539. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, J.; Wang, X.; Yuan, N.; Hu, B.; Ding, J.; Ge, S. Graphite-Based Lithium Ion Battery with Ultrafast Charging and Discharging and Excellent Low Temperature Performance. J. Power Sources 2019, 430, 74–79. [Google Scholar] [CrossRef]
  36. Tang, D.; Ben, L.; Sun, Y.; Chen, B.; Yang, Z.; Gu, L.; Huang, X. Electrochemical Behavior and Surface Structural Change of LiMn2O4 charged to 5.1 V. J. Mater. Chem. A 2014, 2, 14519–14527. [Google Scholar] [CrossRef]
  37. Patel, R.L.; Xie, H.; Park, J.; Asl, H.Y.; Choudhury, A.; Liang, X. Significant Capacity and Cycle-Life Improvement of Lithium-Ion Batteries through Ultrathin Conductive Film Stabilized Cathode Particles. Adv. Mater. Interfaces 2015, 2, 1500046. [Google Scholar] [CrossRef]
  38. Lu, J.; Zhan, C.; Wu, T.; Wen, J.; Lei, Y.; Kropf, A.; Wu, H.; Miller, D.; Elam, J.; Sun, Y.; et al. Effectively Suppressing Dissolution of Manganese from Spinel Lithium Manganate Via a Nanoscale Surface-Doping Approach. Nat. Commun. 2014, 5, 5693. [Google Scholar] [CrossRef] [Green Version]
  39. Kim, W.-K.; Han, D.-W.; Ryu, W.-H.; Lim, S.-J.; Kwon, H.-S. Al2O3 Coating on LiMn2O4 by Electrostatic Attraction Forces and Its Effects on the High Temperature Cyclic Performance. Electrochim. Acta 2012, 71, 17–21. [Google Scholar] [CrossRef]
  40. Xu, Y.; Wang, S.; Peng, H.; Yang, Z.; Martin, D.J.; Bund, A.; Nanjundan, A.K.; Yamauchi, Y. Electrochemical Characteristics of Cobaltosic Oxide in Organic Electrolyte According to Bode Plots: Double-Layer Capacitance and Pseudocapacitance. ChemElectroChem 2019, 6, 2456–2463. [Google Scholar] [CrossRef] [Green Version]
  41. Taylor, S.R.; Gileadi, E. Physical Interpretation of the Warburg Impedance. Corrosion 1995, 51, 664–671. [Google Scholar] [CrossRef]
Nanomaterials 11 00569 g001 550

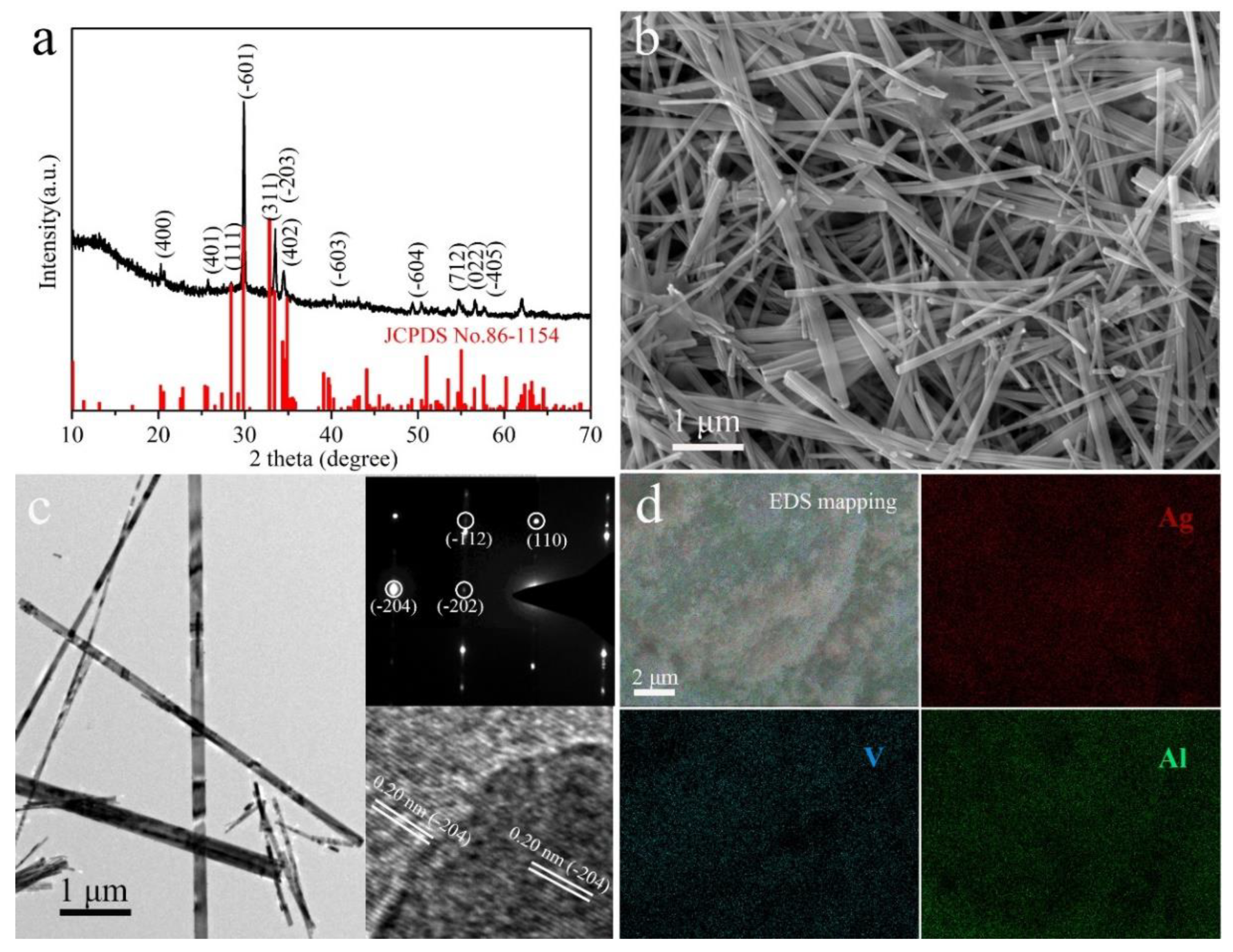

Figure 1. (a) XRD pattern, (b) SEM image, and (c) TEM images of AgVO3 nanowires (inset images correspond to the HRTEM image and SAED patterns); (d) EDS mappings of the AgVO3 electrode of SVO-100.
Figure 1. (a) XRD pattern, (b) SEM image, and (c) TEM images of AgVO3 nanowires (inset images correspond to the HRTEM image and SAED patterns); (d) EDS mappings of the AgVO3 electrode of SVO-100.
Nanomaterials 11 00569 g001
Nanomaterials 11 00569 g002 550

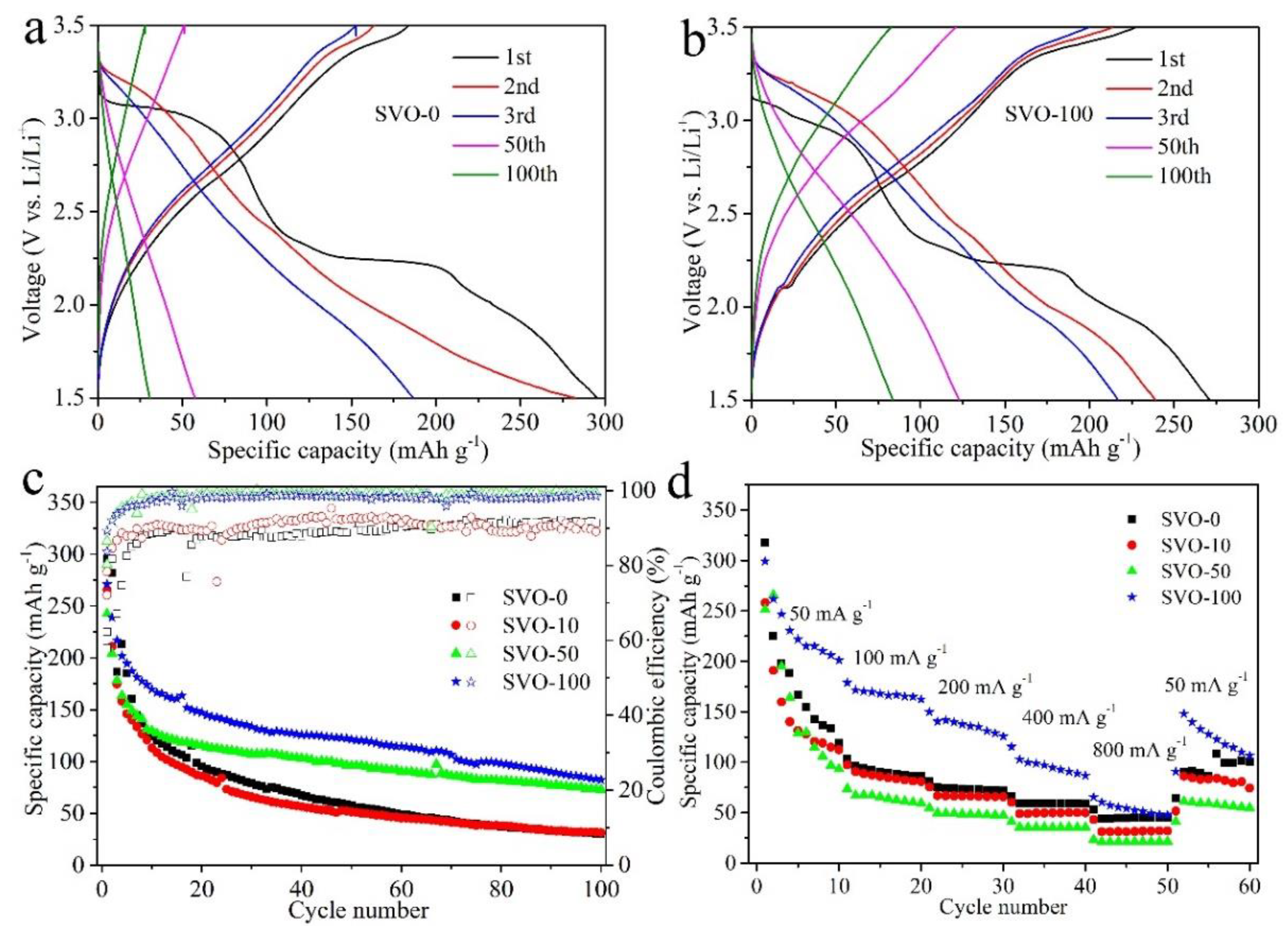

Figure 2. Charge–discharge profiles of (a) SVO-0 and (b) SVO-100 in different cycles; (c) cycling stability and Coulombic efficiency (CE) of SVO-0, SVO-10, SVO-50, SVO-100 at a current density of 50 mA g−1; and (d) rate capability of SVO-0, SVO-10, SVO-50, SVO-100 at current densities from 50 mA g−1 to 800 mA g−1.
Figure 2. Charge–discharge profiles of (a) SVO-0 and (b) SVO-100 in different cycles; (c) cycling stability and Coulombic efficiency (CE) of SVO-0, SVO-10, SVO-50, SVO-100 at a current density of 50 mA g−1; and (d) rate capability of SVO-0, SVO-10, SVO-50, SVO-100 at current densities from 50 mA g−1 to 800 mA g−1.
Nanomaterials 11 00569 g002
Nanomaterials 11 00569 g003 550

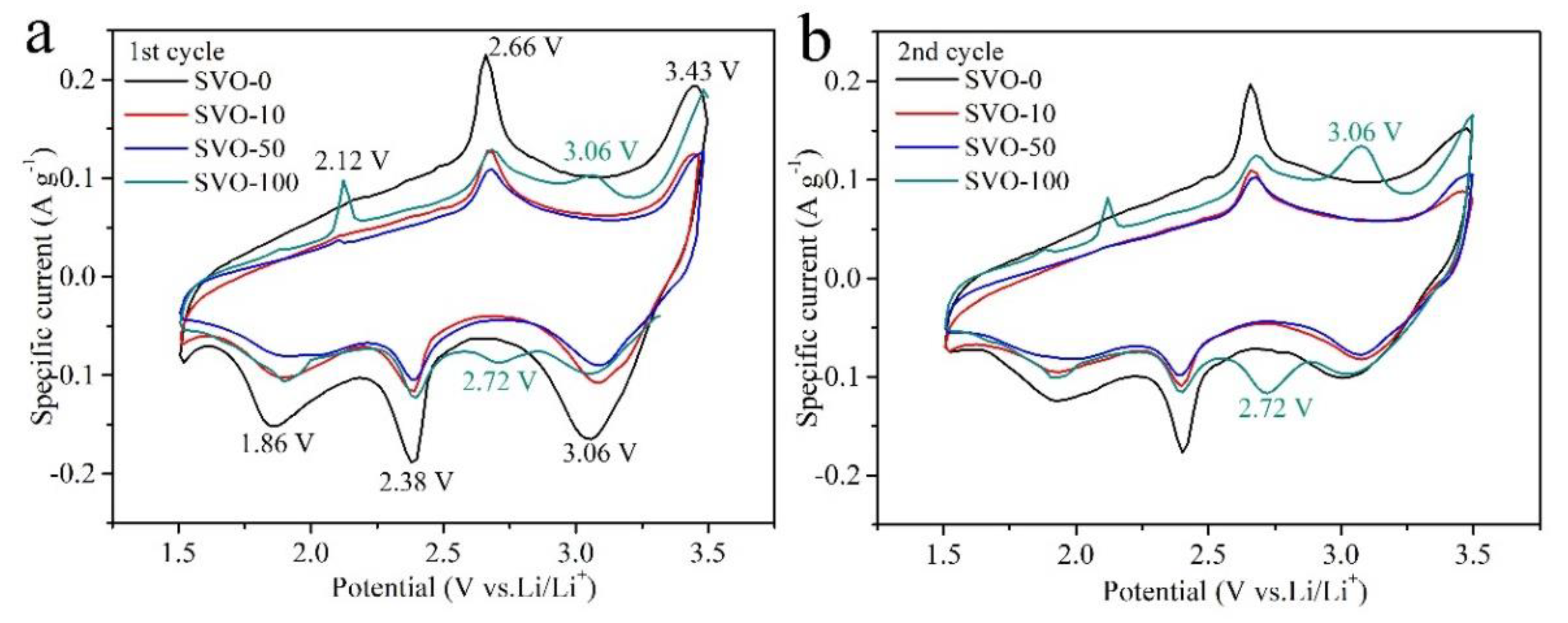

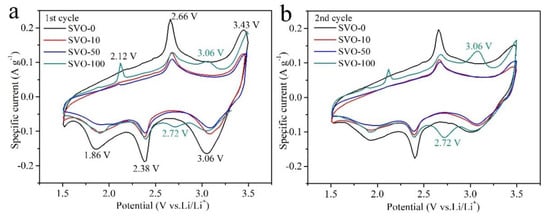

Figure 3. CV curves of SVO-0, SVO-10, SVO-50 and SVO-100 at a scanning rate of 0.2 mV s−1 in the (a) first cycle and (b) second cycle.
Figure 3. CV curves of SVO-0, SVO-10, SVO-50 and SVO-100 at a scanning rate of 0.2 mV s−1 in the (a) first cycle and (b) second cycle.
Nanomaterials 11 00569 g003
Nanomaterials 11 00569 g004 550

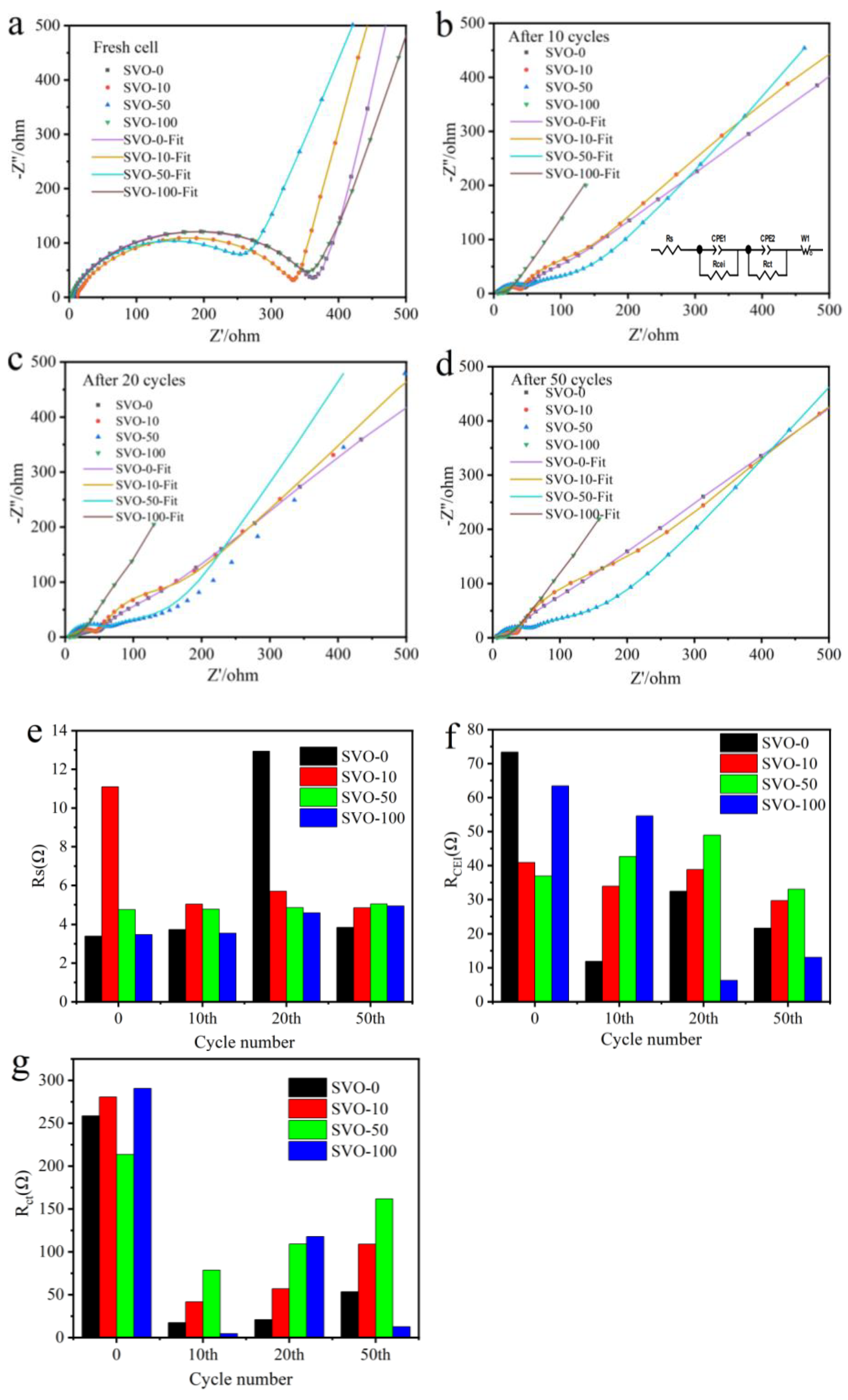

Figure 4. Nyquist plots for SVO-0, SVO-10, SVO-50, SVO-100 after (a) 0, (b) 10, (c) 20, (d) 50 battery cycles, and the equivalent circuit model in the inset of (b); the corresponding EIS simulation parameters of (e) Rs, (f) RCEI, and (g) Rct, respectively.
Figure 4. Nyquist plots for SVO-0, SVO-10, SVO-50, SVO-100 after (a) 0, (b) 10, (c) 20, (d) 50 battery cycles, and the equivalent circuit model in the inset of (b); the corresponding EIS simulation parameters of (e) Rs, (f) RCEI, and (g) Rct, respectively.
Nanomaterials 11 00569 g004
Table
Table 1. The potentials of the main oxidation and reduction peaks during the initial three cycles.
Table 1. The potentials of the main oxidation and reduction peaks during the initial three cycles.
Al2O3 ALD Cycles1st Scan2nd Scan3rd Scan
ORΔVORΔVORΔV
02.6602.3790.2812.6572.4020.2552.6532.4060.247
102.6662.3920.2742.662.3980.2622.6552.4040.251
502.6832.3970.2862.6792.4020.2772.6752.4060.269
1002.6822.3980.2842.6782.4030.2752.6742.4070.267
