High Gain and Broadband Absorption Graphene Photodetector Decorated with Bi2Te3 Nanowires

1
Center for Semiconductor Technology Convergence, Department of Electrical Engineering, Pohang University of Science and Technology, 77 Cheongam-ro, Nam-gu, Pohang, Gyeongbuk 37673, Korea
2
School of Materials Science and Engineering, Gwangju Institute of Science and Technology, 123 Cheomdangwagi-ro, Buk-gu, Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(3), 755; https://doi.org/10.3390/nano11030755
Submission received: 15 February 2021 / Revised: 6 March 2021 / Accepted: 15 March 2021 / Published: 17 March 2021
(This article belongs to the Special Issue Graphene-Based Nanomaterials)

Abstract

:
A graphene photodetector decorated with Bi2Te3 nanowires (NWs) with a high gain of up to 3 × 104 and wide bandwidth window (400–2200 nm) has been demonstrated. The photoconductive gain was improved by two orders of magnitude compared to the gain of a photodetector using a graphene/Bi2Te3 nanoplate junction. Additionally, the position of photocurrent generation was investigated at the graphene/Bi2Te3 NWs junction. Eventually, with low bandgap Bi2Te3 NWs and a graphene junction, the photoresponsivity improved by 200% at 2200 nm (~0.09 mA/W).

1. Introduction

Graphene has attracted much interest for optoelectronic applications due to its unique photonic properties, such as its broad bandwidth absorption, short carrier lifetime, and high gain by the carrier multiplication process [1,2,3,4,5,6]. The unique photonic properties of graphene mean that graphene is utilized in various optoelectronic devices, infrared sensors, optical interconnects [7], and motion detectors. However, the low photoresponsivity due to the limited light absorption rate for a single graphene sheet (πα = 2.3%) is a drawback limiting the practical applications [8,9,10].
Therefore, alternative approaches combining a graphene photodetector with additional light absorption materials have been reported [11,12,13,14]. Various absorber materials have been investigated, including quantum dots (QDs), plasmonic metal nanoparticles, perovskites, and organic complexes [11,12,13,14]. Small bandgap semiconductor material such as PbS (0.83 eV) is useful for extending the bandwidth to the near-infrared region [15]. In addition, colloidal QDs are used to obtain a high photo gain at specific wavelengths. For example, PbS QDs decorating a graphene photodetector yielded a 107 A/W photoresponsivity at 895 nm [12]. Similarly, when metal nanoparticles were utilized on the graphene channel to improve the photoabsorption using the plasmonic effect, a 6.1 mA/W of photoresponsivity was obtained at 514 nm [11]. Recently, a few studies have been carried out with perovskites and organic complexes as an absorber to improve the absorption in visible wavelengths. In the case of the perovskite-graphene photodetector, the photoresponsivity was 180 A/W at 520 nm [13]. In the organic-graphene photodetector, a photoresponsivity of ~106 A/W was obtained in the 600–1500 nm region [14].
However, when an absorber is placed on a graphene channel, it limits the applicable wavelength because the bandgap of an absorber determines the photon absorption range. In addition, in an organic-based absorber layer, the time constant is approximately hundreds of microseconds due to the low conductivity and charge trapping. Moreover, when a high-temperature process over 1000 ℃ or chemical coating process is used, carbon decomposition or residual chemical doping can affect the electronic properties of graphene. Therefore, the absorber and deposition process should be chosen very carefully.
In this sense, low bandgap Bi2Te3 may represent a good absorber candidate for a graphene photodetector. The bandgap of Bi2Te3 is 0.15–0.3 eV [16], which can absorb up to mid-infrared wavelengths and be fabricated in the form of nanowires [17,18], nanoplates [19], and nanosheets [18]. Gao et al. reported a graphene photodetector decorated with Bi2Te3 nanoplates, which was grown by thermal chemical vapor deposition (CVD) and achieved a 35 A/W photoresponsivity with a gain of up to 83 at 532 nm [19]. However, the limited coverage on the graphene channel and high-temperature CVD process can induce cracks or wrinkles due to the difference in the thermal expansion coefficient between two materials [20]. Moreover, the electronic properties of graphene are degraded during the high-temperature CVD process for Bi2Te3. Furthermore, the photoconductive gain was limited due to the low surface to volume/light absorption ratio of single-crystal Bi2Te3.
In this work, we investigated a high photoconductive gain graphene photodetector using Bi2Te3 nanowire. The photoresponsivity was increased by 200% at 980 nm after the addition of the Bi2Te3 nanowire. The damage to the graphene was minimized using a room temperature drop-casting process, and a full area coverage on the channel was achieved. Moreover, a broadband absorption range from 400 to 2200 nm and high photoconductive gain of 3 × 104 were obtained.

2. Materials and Methods

Device Fabrication

A monolayer graphene sheet (1 cm × 1 cm), grown on copper (Cu) foil by using a thermal CVD process, was transferred on the SiO2 (90 nm)/Si substrate using the poly(methyl methacrylate) (PMMA)-based wet transfer method (Figure 1a). The i-line (365 nm) lithography process was used to pattern the graphene channel and electrodes. The graphene channel was patterned using a positive photoresist and Au hard mask (20 nm) to prevent organic contamination from the photoresist (Figure 1b). Graphene channel patterning was carried out by O2 plasma Asher (100 W, 90 s), and the remaining photoresist was removed using acetone (Figure 1c). The sample was rinsed with methanol and de-ionized water for 5 min each. Then, Au metal (50 nm) was deposited using an e-beam evaporator under 10−7 Torr, and the source and drain electrode shape was patterned using lithography and metal wet etching, respectively (Figure 1d). To protect the graphene surface from the air and water degradation during the photodetector operation, 30 nm Al2O3 was deposited at 130 °C using the atomic layer deposition (ALD) process (300 cycles of trimethylammonium (TMA) and water source). Finally, the samples were annealed at 300 °C for 1 h in a vacuum chamber (10−7 Torr) [9]. On the other hand, the Bi2Te3 NWs/graphene photodetector was not passivated by Al2O3.
Bi2Te3 NWs were prepared with the conventional polyol process [21,22] (Figure S1). The size distribution of Bi2Te3 NWs was uniformly distributed, with a standard deviation of length and diameter size of 36.01 and 6.58 nm, respectively. The average length and diameter of fabricated Bi2Te3 NWs were 611.2 and 67.3 nm, respectively. The Bi2Te3 NWs were dispersed in the ethanol solution using sonication with a value of 40 kHz for 5 min, drop cast on the graphene photodetector, and dried in a desiccator for 5 min (Figure 1e,f).

3. Results and Discussion

Figure 2a,b shows the Raman spectra of Bi2Te3 NWs and graphene channel, respectively. Three distinct Raman peaks can be observed at 102, 122, and 140 cm−1 (Figure 2a). These peaks indicate the E2g, A1u, and A1g vibrational mode of Bi2Te3 NWs, denoting the quality of the single-crystallinity of Bi2Te3 NWs [23]. The Raman spectra for transferred graphene show three peaks at 1350, 1589, and 2695 cm−1 [24]; those peaks indicate the D-peak, G-peak, and 2D peak, respectively, as denoted in Figure 2b. The I(2D)/I(G) ratio of the transferred graphene layer was 2.98, which indicates single-layer graphene. Figure 2c shows the light absorbance of material stacks used in this work; graphene, Bi2Te3 NWs, and graphene/Bi2Te3 NWs in the spectral range from 0.62 to 4.6 eV. The absorbance of graphene was quite poor compared to that of Bi2Te3 NWs. The absorbance of graphene was distributed in the range of 0.057 (4.58 eV)~0.0026 (0.62 eV). The absorbance of Bi2Te3 NWs was nearly four times higher at the maximum absorption point compared to graphene. When Bi2Te3 NWs were combined with graphene, the absorbance was increased by 7.75~20.2 times in the 1.0–3.0 eV range and by ~5 times at 4.5 eV compared to the absorbance of the graphene layer alone. Even though the absorbance curve shown in Figure 2c is valid down to 0.62 eV, by extrapolating the curve near the low photon energy region (0.62–1.0 eV), the bandgap of Bi2Te3 NWs was estimated to be 0.28 eV. This value matches well with the previous result on Bi2Te3 thin film [16].
After NW decoration on the channel, the transfer curve of the graphene photodetector exhibited a significant change due to the strong electron doping effect, indicating a −14 V Dirac voltage shift, as shown in Figure 3a. The field-effect mobility of the graphene photodetector was 1624 and 1550 cm2/Vs for the electron and hole, respectively, while that of the Bi2Te3 NWs/graphene device was 1058 cm2/Vs for the electron and 1227 cm2/Vs for the hole. It has been reported that the mobility can be degraded by the phonon scattering of charge carriers when graphene is in contact with substrates or stacked by other materials and by an increase of the charge trap density [25,26]. Therefore, it is speculated that the reason for the mobility degradation of the Bi2Te3 NWs/graphene device is related to the doping and surface phonon scattering due to Bi2Te3 NWs.
The Dirac voltage of the graphene photodetector was nearly unaffected by 980 nm illumination, but the Dirac voltage of the Bi2Te3 NWs/graphene photodetector was shifted by −1 V, as shown in Figure 3b,c. Even though the shift under the light illumination is not significant, this shift indicates the presence of a photo-gating effect, affecting the Bi2Te3/graphene photodetector. Figure 4a shows a schematic diagram explaining the photo gating effect in the Bi2Te3/graphene photodetector [27]. When photons are incident in the Bi2Te3 NWs/graphene photodetector, the electron–hole pairs are generated in both Bi2Te3 NWs and the graphene channel and drift through the graphene channel. Since electrons and holes in the Bi2Te3 NWs have different diffusion and drift time constants, holes stay in the Bi2Te3 NWs for a longer period of time than electrons, inducing the Dirac voltage shift after illumination, as shown in Figure 4b,c. If the electron–hole pairs were generated without Bi2Te3 NWs, the recombination would occur in a short time. Therefore, the Fermi level of graphene is not significantly affected.
A transient photocurrent measurement with/without Bi2Te3 NW was performed to investigate the charge transfer mechanism. A Xe lamp was used as a white light source and various wavelengths from 400 to 1100 nm with a 50 nm period were applied to the device using a monochromator. The light on-off action was controlled by a chopper with a 10 Hz switching speed. During the measurement, the devices were connected to the source meter for applying bias (Vd = 0.01 V). The rising and falling time were calculated with the equations 1 − exp[−(t − ton)/τon] and exp[−(t − toff)/τoff], respectively, as shown in Figure 5a,b. The transient on-off current for the extraction rising and falling time is shown in Figure S2. The currents of 10% and 90% were valid for extracting the rising (falling) time. When the photons are incident to Bi2Te3 NW decorated devices, the photocurrent generation time is increased to 8 ms, which represents a two-fold increase compared to the control group without Bi2Te3 NWs. In the case of the falling time, Bi2Te3 NW decorated devices show a longer time of 1.2 ms, compared to 0.8 ms for the control group.
In addition, the photoconductive gain of each device was calculated using the result of the rising and falling time. The following equation can be employed to calculate the photoconductive gain: G = τ/ttr, where τ is the lifetime; ttr is the transit time, which is equal to L2/μVd; L is the channel length of the device; μ is the field-effect mobility; and Vd is the voltage applied to the drain. The photoconductive gain of the Bi2Te3 NWs/graphene photodetector was 3 × 104 at 1100 nm, which is two-fold larger than that of the only graphene sample.
The devices with Bi2Te3 NWs decoration show a longer rising/falling time compared to the control group due to the charge exchange between Bi2Te3 NW and graphene during the light illumination. In the graphene photodetector, the photocarriers are generated in the whole graphene channel, but the photocarriers generated near the graphene/metal junction can only be collected due to the short recombination time [28].
Scanning photocurrent mapping (SPCM) measurement was carried out with a 530 nm single-mode fiber laser to clarify the exact location of the photocarrier generation in our devices and compare the photocurrent generation mechanism of both the graphene photodetector and Bi2Te3 NWs/graphene photodetector. For the graphene channel device, the photocurrent was generated in the graphene/metal junction area [28]. In the case of the Bi2Te3 NWs/graphene photodetector, the photocurrent was primarily generated through the whole channel, as shown in Figure 6b,c. When Bi2Te3 NWs decorated the graphene channel, the recombination time seemed to be increased, and the whole channel could be attributed to photocurrent generation. As a result, the absorption was improved for the Bi2Te3 NWs decorated graphene photodetector. This observation confirms that the Bi2Te3 NWs improved the photocurrent generation across the graphene channel. The maximum photocurrent increased five times using Bi2Te3 NWs, from 80 to 400 nA.
Next, we examined the absorption rate and spectrum of Bi2Te3 NWs by measuring the photoresponse under an infrared illumination condition (Figure S2). The transient photoresponse measurement with near-infrared (1550 and 2200 nm) was conducted to investigate the device operation near the bandgap edge of Bi2Te3 NWs (Figure 7). The photoresponsivity of the graphene photodetector was 0.05 and 0.04 mA/W for 1550 and 2200 nm, respectively. The Bi2Te3 NWs/graphene photodetector showed a photoresponsivity similar to the graphene photodetector at 1550 nm. On the other hand, the photoresponsivity increased to 0.09 mA/W at 2200 nm as the wavelength of light became comparable to the bandgap of the Bi2Te3 NWs.
Overall, the performance of the Bi2Te3 NWs/graphene junction was improved in a wide spectral range, from visible to near-infrared. In particular, the absorption spectrum was extended to a ~2200 nm range and the photoconductive gain was improved up to 1.9 × 104. The photoconductive gain of this work is comparable to that of PbS quantum dots (103) [29] and drastic enhancements were achieved compared to the Bi2Te3 nanoplates/graphene junction (around 83).

4. Conclusions

In this work, we investigated the Bi2Te3 NWs/graphene junction using the drop-casting method. Graphene was n-doped after making contact with Bi2Te3 NWs, and the photoconductive gain was enhanced further, to 3 × 104, being 1.61 times larger than that of the only graphene photodetector. Additionally, the photoresponsivity under near-infrared was improved by 200% compared to the graphene devices. Moreover, the large area solution was processible and broadband absorption was possible using this structure.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/3/755/s1, Figure S1. SEM image of Bi2Te3 nanowires on a substrate; Figure S2. Carrier lifetime extraction for each wavelength. The carrier lifetime of the graphene photodetector was extracted with the result of transient photocurrent measurement, the on-off frequency was 10 Hz. Figure S3. Time-photocurrent characterization under 2200 nm illumination.

Author Contributions

Investigation, T.J.Y., W.S.K., K.E.C., C.K., and M.G.K.; methodology, W.S.K., C.K., and M.G.K.; resources, W.S.K., J.Y.J., and B.H.L.; supervision, T.J.Y. and B.H.L.; writing—original draft, T.J.Y. and B.H.L.; Writing—review and editing, T.J.Y. and B.H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Global Frontier Program through the Global Frontier Hybrid Interface Materials (GFHIM) (Grant No. 2013M3A6B1078873), the Creative Materials Discovery Program (Grant No. 2015M3D1A1068062), and the Nano Materials Technology Development Program (Grant No. 2016M3A7B4909942) of the National Research Foundation of Korea (NRF), funded by the Ministry of Science, ICT & Future Planning (MOSIP), Korea.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Long, M.; Wang, P.; Fang, H.; Hu, W. Progress, Challenges, and Opportunities for 2D Material Based Photodetectors. Adv. Funct. Mater. 2019, 29, 1803807. [Google Scholar] [CrossRef]
  2. Winzer, T.; Knorr, A.; Malic, E. Carrier Multiplication in Graphene. Nano Lett. 2010, 10, 4839–4843. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Brida, D.; Tomadin, A.; Manzoni, C.; Kim, Y.J.; Lombardo, A.; Milana, S.; Nair, R.R.; Novoselov, K.S.; Ferrari, A.C.; Cerullo, G.; et al. Ultrafast collinear scattering and carrier multiplication in graphene. Nat. Commun. 2013, 4, 1–9. [Google Scholar] [CrossRef] [Green Version]
  4. Urich, A.; Unterrainer, K.; Mueller, T. Intrinsic Response Time of Graphene Photodetectors. Nano Lett. 2011, 11, 2804–2808. [Google Scholar] [CrossRef]
  5. Gao, Q.; Guo, J. Quantum mechanical simulation of graphene photodetectors. J. Appl. Phys. 2012, 112, 084316. [Google Scholar] [CrossRef]
  6. Schall, D.; Porschatis, C.; Otto, M.; Neumaier, D. Graphene photodetectors with a bandwidth >76 GHz fabricated in a 6″ wafer process line. J. Phys. D Appl. Phys. 2017, 50, 124004. [Google Scholar] [CrossRef] [Green Version]
  7. Pospischil, A.; Humer, M.; Furchi, M.M.; Bachmann, D.; Guider, R.; Fromherz, T.; Mueller, T.J. CMOS-compatible graphene photodetector covering all optical communication bands. Nat. Photonics 2013, 7, 892–896. [Google Scholar] [CrossRef]
  8. Nair, R.R.; Blake, P.; Grigorenko, A.N.; Novoselov, K.S.; Booth, T.J.; Stauber, T.; Peres, N.M.R.; Geim, A.K. Fine Structure Constant Defines Visual Transparency of Graphene. Science 2008, 320, 1308. [Google Scholar] [CrossRef] [Green Version]
  9. Kang, C.G.; Lee, S.K.; Choe, S.; Lee, Y.G.; Lee, C.L.; Lee, B.H. Intrinsic photocurrent characteristics of graphene photodetectors passivated with Al_2O_3. Opt. Express 2013, 21, 23391. [Google Scholar] [CrossRef]
  10. Xia, F.; Mueller, T.; Lin, Y.M.; Valdes-Garcia, A.; Avouris, P. Ultrafast graphene photodetector. Nat. Nanotechnol. 2009, 4, 839–843. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, Y.; Cheng, R.; Liao, L.; Zhou, H.; Bai, J.; Liu, G.; Liu, L.; Huang, Y.; Duan, X. Plasmon resonance enhanced multicolour photodetection by graphene. Nat. Commun. 2011, 2, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Sun, Z.; Liu, Z.; Li, J.; Tai, G.A.; Lau, S.P.; Yan, F. Infrared Photodetectors Based on CVD-Grown Graphene and PbS Quantum Dots with Ultrahigh Responsivity. Adv. Mater. 2012, 24, 5878–5883. [Google Scholar] [CrossRef] [PubMed]
  13. Lee, Y.; Kwon, J.; Hwang, E.; Ra, C.H.; Yoo, W.J.; Ahn, J.H.; Park, J.H.; Cho, J.H. High-Performance Perovskite-Graphene Hybrid Photodetector. Adv. Mater. 2015, 27, 41–46. [Google Scholar] [CrossRef] [PubMed]
  14. Iqbal, M.A.; Cui, M.; Liaqat, A.; Faiz, R.; Hossain, M.; Wang, X.; Hussain, S.; Dang, C.; Liu, H.; Wen, W.; et al. Organic charge transfer complexes on graphene with ultrahigh near infrared photogain. Nanotechnology 2019, 30, 254003. [Google Scholar] [CrossRef] [Green Version]
  15. Ellingson, R.J.; Beard, M.C.; Johnson, J.C.; Yu, P.; Micic, O.I.; Nozik, A.J.; Shabaev, A.; Efros, A.L. Highly Efficient Multiple Exciton Generation in Colloidal PbSe and PbS Quantum Dots. Nano Lett. 2005, 5, 865–871. [Google Scholar] [CrossRef] [Green Version]
  16. Morsy, A.; Fouad, S.; Hashem, E.; El-Shazly, A. Optical Properties of Thermally Deposited Bismuth Telluride in the Wavelength Range of 2.5–10 µm. Acta Phys. Pol. A 1991, 80, 819–825. [Google Scholar] [CrossRef]
  17. Jin, C.; Xiang, X.; Jia, C.; Liu, W.; Cai, W.; Yao, L.; Li, X. Electrochemical Fabrication of Large-Area, Ordered Bi2Te3Nanowire Arrays. J. Phys. Chem. B 2004, 108, 1844–1847. [Google Scholar] [CrossRef]
  18. Sharma, A.; Srivastava, A.K.; Senguttuvan, T.D.; Husale, S. Robust broad spectral photodetection (UV-NIR) and ultra high responsivity investigated in nanosheets and nanowires of Bi2Te3 under harsh nano-milling conditions. Sci. Rep. 2017, 7, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Qiao, H.; Yuan, J.; Chun-Xu, P.; Chen, C.; Lin, S.; Wang, Y.; Song, J.; Liu, Y.; Khan, Q.; Hoh, H.Y.; et al. Broadband Photodetectors Based on Graphene–Bi2Te3 Heterostructure. ACS Nano 2015, 9, 1886–1894. [Google Scholar] [CrossRef]
  20. Chae, S.J.; Güneş, F.; Kim, K.K.; Kim, E.S.; Han, G.H.; Kim, S.M.; Shin, H.J.; Yoon, S.M.; Choi, J.Y.; Park, M.H.; et al. Synthesis of Large-Area Graphene Layers on Poly-Nickel Substrate by Chemical Vapor Deposition: Wrinkle Formation. Adv. Mater. 2009, 21, 2328–2333. [Google Scholar] [CrossRef]
  21. Chirea, M.; Freitas, A.; Vasile, B.S.; Ghitulica, C.; Pereira, C.M.; Silva, F. Gold Nanowire Networks: Synthesis, Characterization, and Catalytic Activity. Langmuir 2011, 27, 3906–3913. [Google Scholar] [CrossRef] [PubMed]
  22. Koh, Y.W.; Lai, C.S.; Du, A.Y.; Tiekink, E.R.T.; Loh, K.P. Growth of Bismuth Sulfide Nanowire Using Bismuth Trisxanthate Single Source Precursors. Chem. Mater. 2003, 15, 4544–4554. [Google Scholar] [CrossRef]
  23. Keskar, G.D.; Podila, R.; Zhang, L.; Rao, A.M.; Pfefferle, L.D. Synthesis and Raman Spectroscopy of Multiphasic Nanostructured Bi–Te Networks with Tailored Composition. J. Phys. Chem. C 2013, 117, 9446–9455. [Google Scholar] [CrossRef]
  24. Ferrari, A.C.; Meyer, J.C.; Scardaci, V.; Casiraghi, C.; Lazzeri, M.; Mauri, F.; Piscanec, S.; Jiang, D.; Novoselov, K.S.; Roth, S.; et al. Raman Spectrum of Graphene and Graphene Layers. Phys. Rev. Lett. 2006, 97, 187401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bolotin, K.; Sikes, K.; Jiang, Z.; Klima, M.; Fudenberg, G.; Hone, J.; Kim, P.; Stormer, H. Ultrahigh electron mobility in suspended graphene. Solid State Commun. 2008, 146, 351–355. [Google Scholar] [CrossRef] [Green Version]
  26. Zhu, W.; Perebeinos, V.; Freitag, M.; Avouris, P. Carrier scattering, mobilities, and electrostatic potential in monolayer, bilayer, and trilayer graphene. Phys. Rev. B 2009, 80, 235402. [Google Scholar] [CrossRef] [Green Version]
  27. Konstantatos, G.; Badioli, M.; Gaudreau, L.; Osmond, J.; Bernechea, M.; De Arquer, F.P.G.; Gatti, F.; Koppens, F.H.L. Hybrid graphene–quantum dot phototransistors with ultrahigh gain. Nat. Nanotechnol. 2012, 7, 363–368. [Google Scholar] [CrossRef]
  28. Park, J.; Ahn, Y.H.; Ruiz-Vargas, C. Imaging of Photocurrent Generation and Collection in Single-Layer Graphene. Nano Lett. 2009, 9, 1742–1746. [Google Scholar] [CrossRef]
  29. Konstantatos, G.; Howard, I.S.; Fischer, A.; Hoogland, S.; Clifford, J.P.; Klem, E.J.D.; Levina, L.; Sargent, E.H. Ultrasensitive solution-cast quantum dot photodetectors. Nat. Cell Biol. 2006, 442, 180–183. [Google Scholar] [CrossRef]

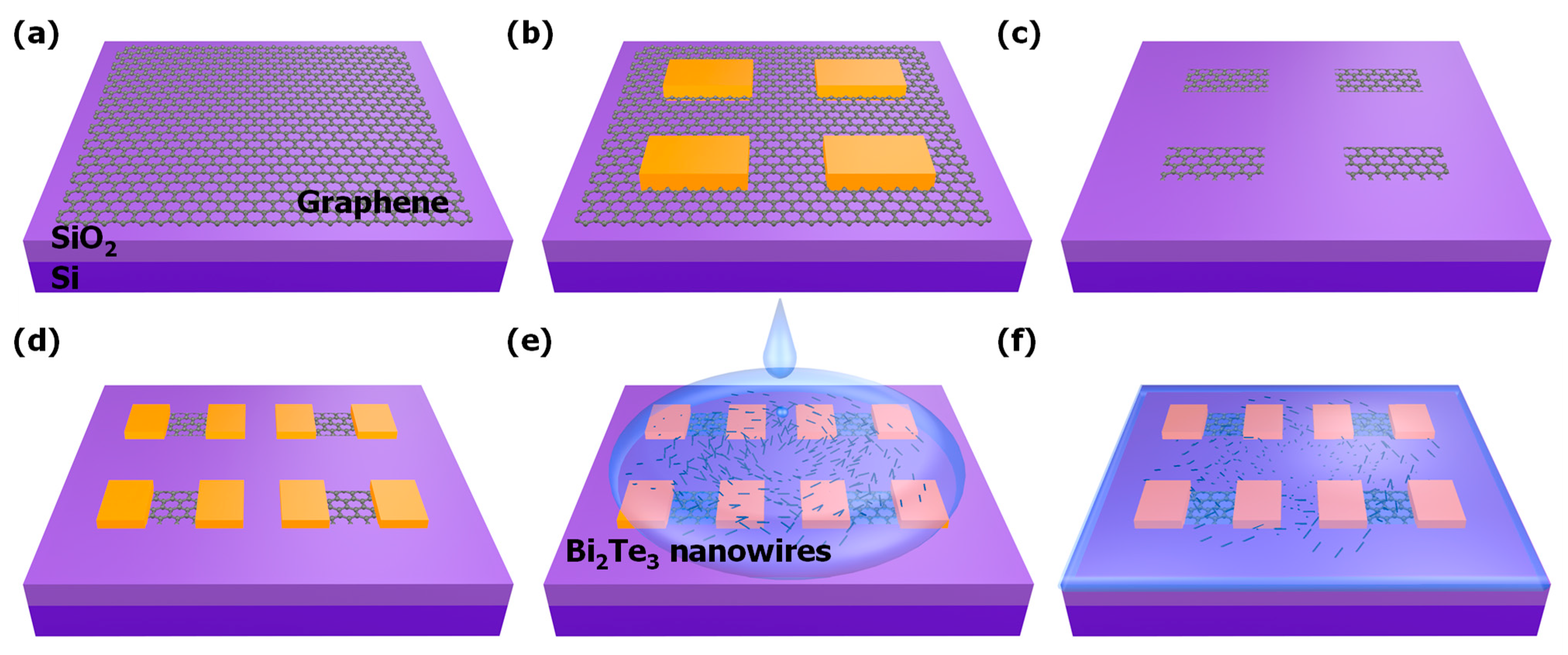

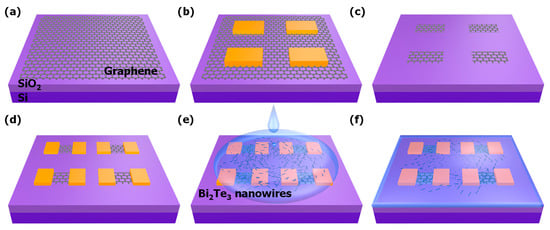

Figure 1. Schematic diagram of the Bi2Te3 nanowires (NWs)/graphene photodetector fabrication process. (a) Graphene transfer on the SiO2/Si substrate, (b) graphene channel hard mask, (c) graphene channel patterning, (d) source and drain (S/D) electrode patterning, (e) Bi2Te3 nanowires (NWs) drop casting on the device, and (f) annealing the fabricated device.
Figure 1. Schematic diagram of the Bi2Te3 nanowires (NWs)/graphene photodetector fabrication process. (a) Graphene transfer on the SiO2/Si substrate, (b) graphene channel hard mask, (c) graphene channel patterning, (d) source and drain (S/D) electrode patterning, (e) Bi2Te3 nanowires (NWs) drop casting on the device, and (f) annealing the fabricated device.
Nanomaterials 11 00755 g001

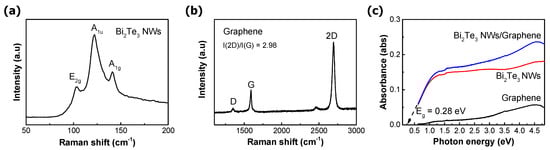

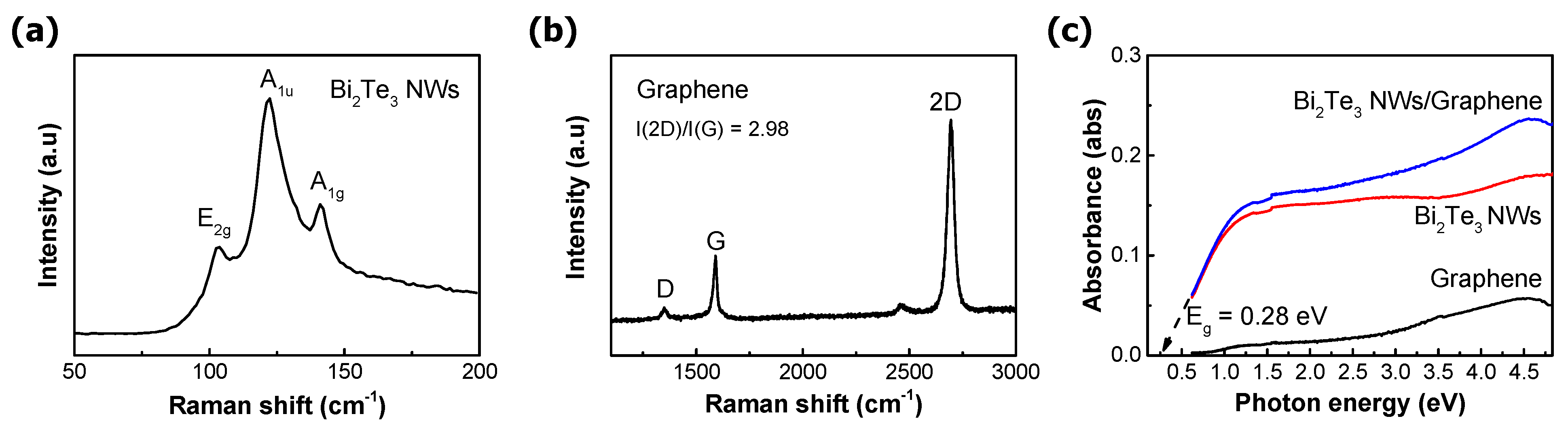

Figure 2. Raman spectroscopic measurements of (a) Bi2Te3 NWs and (b) graphene, and (c) UV-Vis absorption spectroscopy of each stack.
Figure 2. Raman spectroscopic measurements of (a) Bi2Te3 NWs and (b) graphene, and (c) UV-Vis absorption spectroscopy of each stack.
Nanomaterials 11 00755 g002

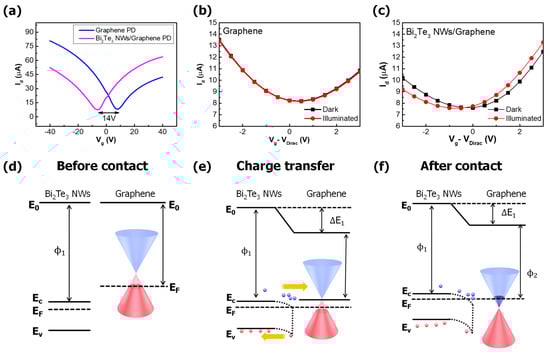

Figure 3. Band diagrams for graphene/Bi2Te3 NWs junction contact (a) before contact formation, (b) charge transfer during contact, and (c) after contact formation with Bi2Te3 NWs and graphene. E0 is the vacuum level; EF is the Fermi level; Ec and Ev are conduction and valence bands of graphene and Bi2Te3 NWs, respectively; and ϕ1 and ϕ2 are work functions of Bi2Te3 NWs and graphene, respectively. (d) Id-Vg characterization of graphene only device (in blue) and Bi2Te3 NWs decorated device (in purple). (e,f) Id-Vg characterization under 980 nm illumination with an intensity of 1 mW/cm2.
Figure 3. Band diagrams for graphene/Bi2Te3 NWs junction contact (a) before contact formation, (b) charge transfer during contact, and (c) after contact formation with Bi2Te3 NWs and graphene. E0 is the vacuum level; EF is the Fermi level; Ec and Ev are conduction and valence bands of graphene and Bi2Te3 NWs, respectively; and ϕ1 and ϕ2 are work functions of Bi2Te3 NWs and graphene, respectively. (d) Id-Vg characterization of graphene only device (in blue) and Bi2Te3 NWs decorated device (in purple). (e,f) Id-Vg characterization under 980 nm illumination with an intensity of 1 mW/cm2.
Nanomaterials 11 00755 g003

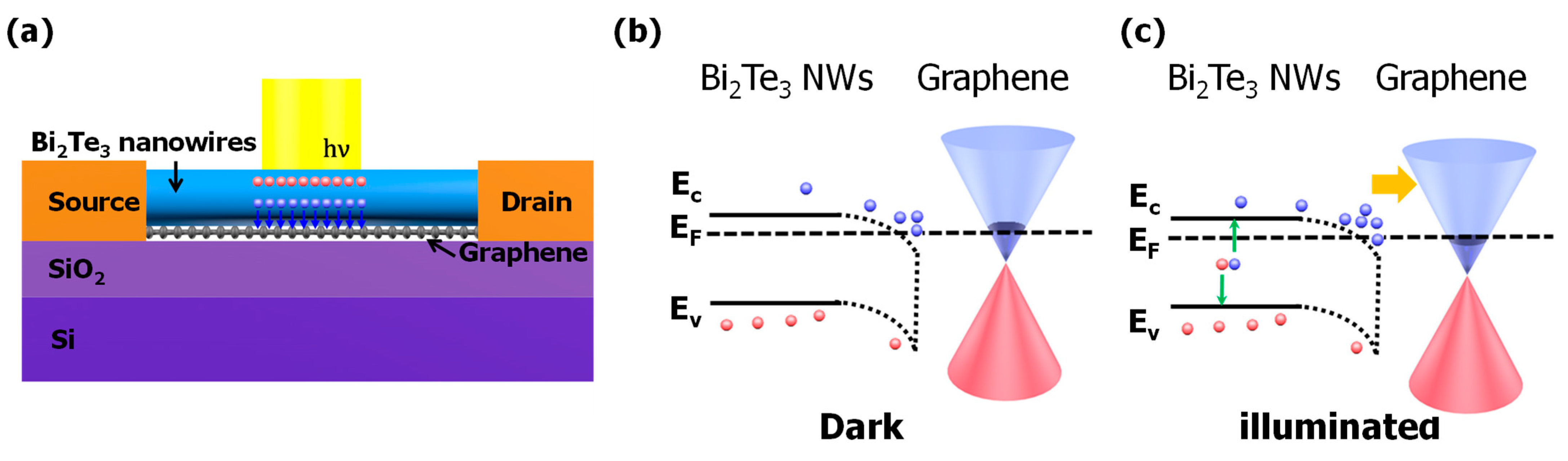

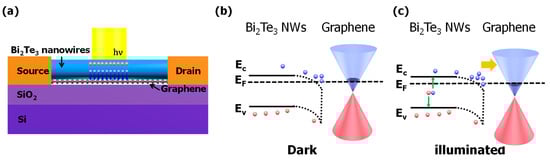

Figure 4. (a) Schematic diagram of the generation of an electron (filled circle) and a hole (open circle) under the illuminated condition for the Bi2Te3 NWs/graphene photodetector, (b) dark, and (c) illuminated status at the Bi2Te3 NWs/graphene junction.
Figure 4. (a) Schematic diagram of the generation of an electron (filled circle) and a hole (open circle) under the illuminated condition for the Bi2Te3 NWs/graphene photodetector, (b) dark, and (c) illuminated status at the Bi2Te3 NWs/graphene junction.
Nanomaterials 11 00755 g004

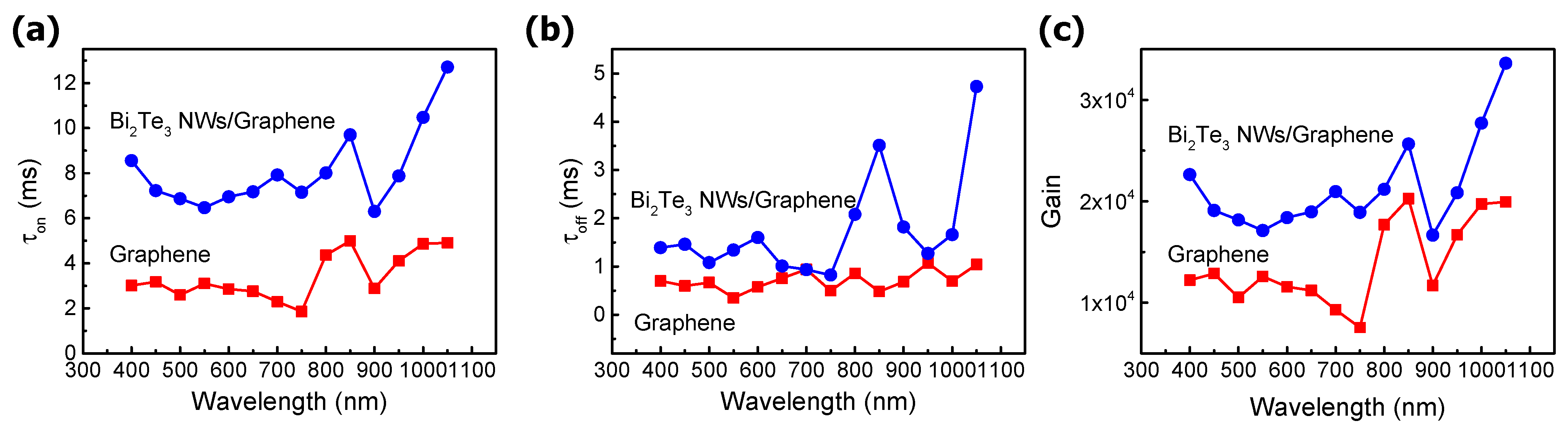

Figure 5. Carrier lifetime result for both the Bi2Te3 NWs/graphene and graphene only device. (a) τon and (b) τoff constant. (c) A photoconductive gain of both device structures. The measured wavelength range is from 400 to 900 nm.
Figure 5. Carrier lifetime result for both the Bi2Te3 NWs/graphene and graphene only device. (a) τon and (b) τoff constant. (c) A photoconductive gain of both device structures. The measured wavelength range is from 400 to 900 nm.
Nanomaterials 11 00755 g005

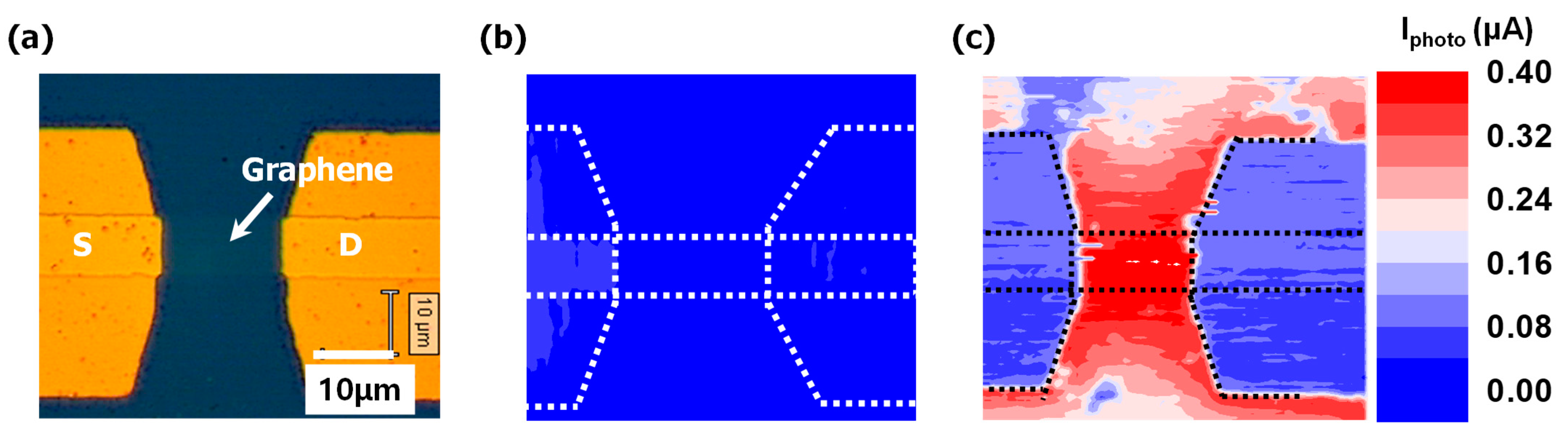

Figure 6. Scanning photocurrent mapping (SPCM) image of the Bi2Te3 NWs/graphene junction photodetector and graphene photodetector (a) optical image of the graphene photodetector device, and SPCM image of (b) the graphene photodetector and (c) Bi2Te3 NWs/graphene junction photodetector. The boundary of the source/drain metals and graphene channel are illustrated by a dotted line.
Figure 6. Scanning photocurrent mapping (SPCM) image of the Bi2Te3 NWs/graphene junction photodetector and graphene photodetector (a) optical image of the graphene photodetector device, and SPCM image of (b) the graphene photodetector and (c) Bi2Te3 NWs/graphene junction photodetector. The boundary of the source/drain metals and graphene channel are illustrated by a dotted line.
Nanomaterials 11 00755 g006

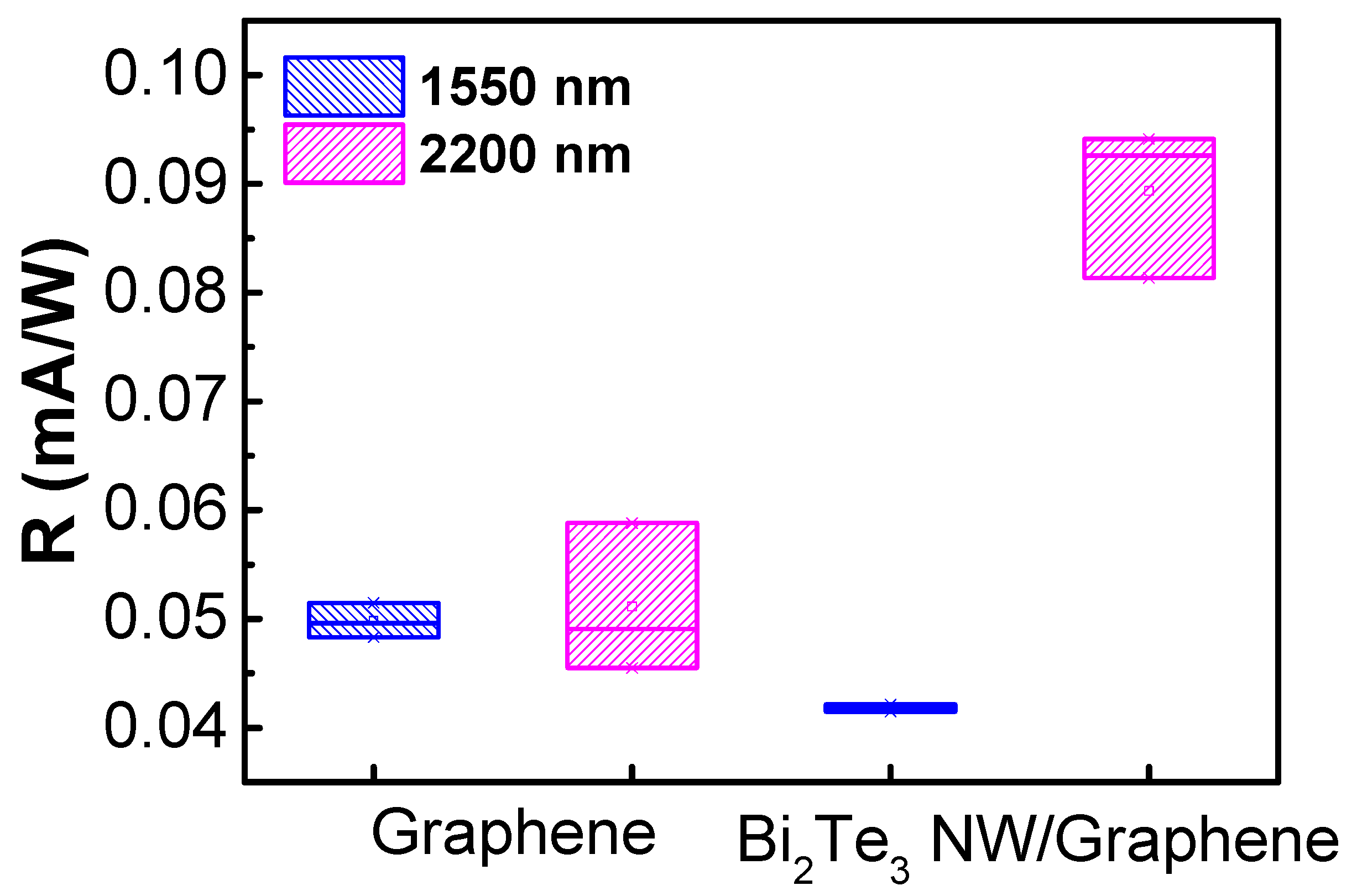

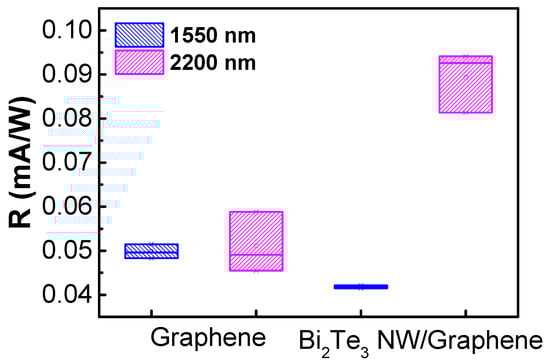

Figure 7. Short-wavelength infrared (SWIR) photoresponsivity comparison for both the graphene and Bi2Te3 NWs/graphene photodetector. Light power was 8 mW for a 1550 nm wavelength and 13 mW for 2200 nm. The device channel width and length were 5 and 3 μm, respectively.
