Highly Efficient Photocatalytic Hydrogen Evolution over Mo-Doped ZnIn2S4 with Sulfur Vacancies

by
Wei Guan
1,
Lin Zhang
1,
Peng Wang
1,
Ying Wang
1,
Haoyu Wang
1,
Xingchen Dong
1,
Ming Meng
2,
Lina Sui
1,
Zhixing Gan
1,3,*,
Lifeng Dong
1,* and
Liyan Yu
1,*
1
College of Materials Science and Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
2
School of Physics and Telecommunication Engineering, Zhoukou Normal University, Zhoukou 466001, China
3
Center for Future Optoelectronic Functional Materials, School of Computer and Electronic Information/School of Artificial Intelligence, Nanjing Normal University, Nanjing 210023, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(22), 3980; https://doi.org/10.3390/nano12223980
Submission received: 15 October 2022 / Revised: 8 November 2022 / Accepted: 8 November 2022 / Published: 11 November 2022
(This article belongs to the Special Issue Advance in Photoactive Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
The introduction of impure atoms or crystal defects is a promising strategy for enhancing the photocatalytic activity of semiconductors. However, the synergy of these two effects in 2D atomic layers remains unexplored. In this case, the preparation of molybdenum-doped thin ZnIn2S4-containing S vacancies (Mo-doped Sv-ZnIn2S4) is conducted using a one-pot solvothermal method. The coordination of Mo doping and S vacancies not only enhances visible light absorption and facilitates the separation of photogenerated carriers but also provides many active sites for photocatalytic reactions. Meanwhile, the Mo-S bonds play function as high-speed channels to rapidly transfer carriers to the active sites, which can directly promote hydrogen evolution. Consequently, Sv-ZnIn2S4 with an optimized amount of Mo doping exhibits a high hydrogen evolution rate of 5739 μmol g−1 h−1 with a corresponding apparent quantum yield (AQY) of 21.24% at 420 nm, which is approximately 5.4 times higher than the original ZnIn2S4. This work provides a new strategy for the development of highly efficient and sustainable 2D atomic photocatalysts for hydrogen evolution.

Graphical Abstract

1. Introduction

With the acceleration of global population growth and social development, environmental problems and energy deprivation emerged as two major issues that need to be addressed. Therefore, the search for alternative energy sources is of great significance to the development of society. H2 is considered as an ideal alternative energy source due to its clean, renewable and transportable advantages [1,2,3,4]. However, the conventional hydrogen production process has high energy consumption, low efficiency and serious environmental pollution, which seriously restrict the development of hydrogen. In contrast, photocatalytic fracking is a cleaner and is a more sustainable way of converting sustained solar energy into chemical energy. Its large-scale application will help alleviate problems such as the greenhouse effect and environmental pollution [5]. However, the low photocatalytic efficiency still remains a great challenge for practical applications. Therefore, in-depth research on hydrogen production by the photocatalytic cracking of water is of great significance [6,7,8,9,10].
In recent years, 2D semiconductors, such as C3N4, TiO2, CdS and MoS2, attracted much attention [11,12,13]. The two-dimensional matter shows a unique confinement of electrons in ultra-thin layers, resulting in superior optical and electronic properties. Two-dimensional ultrathin materials with suitable band gap structure have shown great potential in achieving efficient photocatalysis due to their unique structure and electronic properties. [14]. ZnIn2S4 is a classical trimetallic sulfide semiconductor with a tunable band gap of 2.06 eV to 2.86 eV. Due to its unique crystal growth mechanism and interatomic interactions, it is easy to form 2D layered structures. Currently, controllable morphologies include nanotubes [15], nanoribbons [16] and nanoflowers, and they are assembled from 2D thin nanosheets [17,18,19]. In addition, ZnIn2S4 has the advantages of being low in toxicity and possesses good photostability. However, similarly to most 2D semiconductors, ZnIn2S4 still has some problems in practical applications, such as the rapid recombination of light-generated electron-hole pairs, short carrier lifetime and low light absorption capacity.
To improve the photocatalytic activity of ZnIn2S4, a series of modifications have been carried out, including element doping, defect engineering, cocatalyst loading, morphology tuning and heterostructure construction [20,21,22,23,24]. Among them, element doping and defect engineering are considered the most effective means to enhance photocatalytic activities [25,26,27,28,29,30,31]. On the one hand, the concentration and energy distribution of carriers near the conduction band edge can be adjusted by doping the semiconductor with ions to introduce donor/acceptor energy levels, thus improving the electronic transition behavior [32,33,34,35,36,37]. For example, Huang et al. reported Mo-doped ZnIn2S4 flower-like hollow microspheres for efficient photocatalytic hydrogen evolution, and the results showed that the hydrogen evolution activity of Mo-doped ZnIn2S4 was 9 times higher (4.62 mmol g−1 h−1) than the pristine ZnIn2S4 (0.465 mmol g−1 h−1) [38]. They found that the doping of Mo into the ZnIn2S4 crystal lattices can introduce a doping energy level within the band gap. Therefore, the electronic conversion from the valence band to doping energy levels or from doping energies to the conduction band can effectively expand the light absorption range and improve the electronic conversion efficiency of solar energy. In addition, Mo doping can form Mo-S bonds, which accelerate the photogenerated carrier transport and separation, thus facilitating the transfer of light-excited carriers to the adsorbed molecules of reactants for photocatalytic reactions. A similar improvement in photocatalytic activity was also observed in Ni-doped ZnIn2S4 [39]. On the other hand, surface defects can lead to trapped photogenerated carriers, tuning their spatial distribution and prolonging their lifetime. Previous reports validated that S vacancies (Sv) enhances the absorption of visible light and adds to the photogenerated electric charge density, thereby enhancing photocatalytic activities [40]. For example, Yang et al. reported an Sv-containing half-cell ZnIn2S4, which exhibited a 7.8 times enhancement of photocatalytic hydrogen generation performance under exposure to visible light compared to pristine ZIS. Similarly, improved photocatalytic activities are also observed in ZnIn2S4 with In vacancies [41] and Zn vacancies [42]. Although metal doping and atomic vacancies have been employed separately to improve the photocatalytic action of ZnIn2S4, the coordination of these two effects is still unexplored.
Herein, a simple one-pot soluble heat method was developed to dope Mo into ZnIn2S4 nanoflakes containing Sv. An excess of thioacetamide (TAA) was added to the reaction. The adsorption of thioacetamide on the surface of the crystal hindered the growth of the crystal, leading to the formation of vacancy structure [43,44,45]. Meanwhile, Na2MoO4 was added to incorporate Mo atoms into the lattice of ZnIn2S4. The coordination of Mo doping and sulfur vacancies not only enhances the light absorption and the separation of photogenerated carriers but also provides a large number of active sites for photocatalytic reactions [46,47]. Therefore, the as-prepared Mo-doped Sv-ZnIn2S4 exhibited improved photocatalytic performance and stability. The photocatalytic hydrogen evolution rate of Sv-ZnIn2S4 with optimal Mo doping amounts reached 5.74 mmol g−1 h−1 under visible light irradiation, which is 5.4 times that of pure ZnIn2S4 and 2.6 times that of Sv-ZnIn2S4.

2. Results

As shown in Figure 1, ZIS, Sv-ZIS and Mo-Sv-ZIS were obtained by a simple single-pot soluble heat method. The number of sulfur vacancies was controlled by dosage of TAA. The amount of TAA during the synthesis was used to inhibit the growth of ZIS primary crystals, thus introducing Sv in ZIS [6]. The surface morphologies of the obtained ZIS, Sv-ZIS and Mo-Sv-ZIS are described by a field emission transmission electron microscopy (FE-TEM). As shown in Figure 2a,d, the basic morphology of the pristine ZIS is made up of a great number of two-dimensional hexagonal nanoflakes, which facilitates the acquisition of a large contact area to expose more reactive sites for the photocatalytic interaction. As shown in Figure 2b, the introduction of sulfur vacancies hardly changes the morphology. Sv-ZISs are also irregular flakes. The HRTEM image in Figure 2e shows that the crystal spacing between the planes of Sv-ZIS is 0.32 nm, which belongs to the (102) plane of ZnIn2S4. As shown in Figure 2c, after Mo doping, Mo-Sv-ZIS still maintains thin nanosheet structures. Due to the thinness of the nanosheets, there are different degrees of curling and bending (Figure S1). The HRTEM image shown in Figure 2f suggests that the interplanar crystal spacing of Mo-Sv-ZIS is 0.32 nm, which is similar to that of Sv-ZIS, indicating minor lattice distortions induced by Mo doping. The elemental distribution in the Mo-Sv-ZIS prototype is further studied by high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) (Figure 2g). Figure 2h–k show the distribution of the corresponding elements (Zn, In, S and Mo) for Mo-SV-ZIS, and Figure S2 shows the corresponding energy dispersive spectra (EDS), showing the existence of Zn, In, S and Mo components. The uniform distribution of Mo indicates that it is doped successfully into the lattice of ZIS.
ZIS, Sv-ZIS and Mo-Sv-ZIS are investigated further by XPS for chemical states and apparent chemical compositions. Figure S3 displays the full spectrum of ZIS, Sv-ZIS and Mo-Sv-ZIS containing the typical peaks of Zn 2p, In 3d, S 2p and Mo 3d, which is consistent with the EDS’ results. Figure 3a shows that the Zn 2p characteristic peaks of ZIS are located at 1022.05 eV and 1045.06 eV, which belong to 2p3/2 and 2p1/2, respectively. In comparison, the Zn 2p XPS peak positions of Sv-ZIS undergo negative shifts of 0.28 eV and 0.26 eV, separately indicating a decrease in the coordination number of Zn atoms due to the presence of sulfur vacancies [5]. The doping of Mo shifted the peak positions of Mo-Sv-ZIS positively by 0.1 eV and 0.08 eV, which means that the Zn atoms returned to the higher binding energy region after the doping of Mo. As shown in Figure 3b, the In 3d characteristic peaks of ZIS are located at 445.14 eV and 452.68 eV, which are assigned to In 3d5/2 and 3d3/2, respectively. The In 3d peaks of Mo-Sv-ZIS and Sv-ZIS are essentially the same, with negative shifts of 0.19 eV and 0.15 eV, respectively. After the addition of Mo, the XPS peak position of In is almost unchanged, while the binding energy of Zn varies more than that of In, indicating that Mo replaces the position of Zn rather than that of In. The radius of Zn atom is 1.39 Å, and the radius of Mo atom is 1.40 Å, which are very close. Therefore, it is feasible to replace the Zn atom with the Mo atom. As shown in Figure 3c, the S 2p characteristic peaks of ZIS are located at 161.88 eV and 163.18 eV, which belong to 2p3/2 and 2p1/2, respectively. On the other hand, the S 2p XPS bands of Sv-ZIS underwent negative shifts of 0.09 eV and 0.18 eV, respectively, proving the existence of S vacancies in ZIS. After doping with Mo atoms, S 2p3/2 and S 2p1/2 negatively shift to 0.13 eV and 0.14 eV, respectively. The XPS results show that Mo doping leads to a further reduction in the coordination number of S in addition to the unpaired electrons brought by Mo. These two effects make the Mo-Sv-ZIS have a high density of unpaired electrons, which are active sites for photocatalytic reactions [48]. In addition, the atomic contents are calculated from the XPS peak areas. As shown in Table S1, the atomic ratios of Zn/In/S in ZIS, Sv-ZIS and Mo-Sv-ZIS are 1/1.6/3.5, 1/1.25/2.6 and 1/1.3/2.61, respectively. The lower S content in Sv-ZIS and Mo-Sv-ZIS supports the existence of a large number of S vacancies. In addition, the elemental content was tested by inductively coupled plasma mass spectrometry (ICP-MS) (Table S2). Moreover, the sub-band located at 227.5 eV due to the formation of Mo-S bonds is observed in the Mo 3d XPS spectrum [49], which further demonstrates the successful synthesis of Mo-doped Sv-ZIS (Figure 3d). The XPS O 1s peak of metal-O bonding typically is located at about 530 eV [50,51]. Herein, the O 1s peak positions of ZIS and Sv-ZIS are 532.36 eV and 532.17 eV, respectively (Figure S4), suggesting that there is no metal-O bonding.
The crystal structures of ZIS, Sv-ZIS and Mo-Sv-ZIS are investigated by powder X-ray diffraction (XRD). In Figure 4a, the XRD motif of ZIS is the same as that of ZnIn2S4 in hexagonal form (JCPDS file card No. 72-0773) without impurity peaks. The characteristic peaks at 21.6°, 27.6°, 30.5°, 39.8°, 47.1°, 52.2° and 55.6° belong to diffractions of (006), (102), (104), (108), (110), (116) and (202) crystal planes of ZnIn2S4, respectively. Among them, the diffraction peaks of (104), (108) and (116) crystal planes become weaker in the XRD of Sv-ZIS due to the presence of sulfur vacancies. The diffraction peaks of Mo-Sv-ZIS are similar to that of Sv-ZIS, which can prove the existence of sulfur vacancies in Mo-Sv-ZIS [39,41]. The XRD of Mo-ZIS is also measured for comparison. Interestingly, a diffraction peak at 15.5° is observed in the XRD of Mo-ZIS, which corresponds to the (002) planes of MoS2. Moreover, the diffraction of (104) planes at 30.4° is noticeable. When an appropriate amount of TAA is added, no additional S vacancies form in ZIS. The doped Mo atoms tend to bond with S atoms to form MoS2, which is not conducive to the full incorporation of Mo into the lattice of ZIS. In other words, the sulfur vacancies induced by the excess TAA can facilitate the doping of Mo into ZIS lattices. As illustrated in Figure S5, with an increase in Mo doping, the (006) and (110) crystal planes of Mo-Sv-ZIS shifted to high angles, demonstrating that the Mo atoms are included in the crystal lattice of ZIS [52,53]. The intensity of the individual diffraction peak diminishes with the increase in Mo doping. In addition, no significant peaks of diffraction of Mo species are found for the highly doped 5% Mo-Sv-ZIS. These results indicate that the Mo elements are uniformly incorporated into the lattice of ZIS and have not damaged the ZIS crystal structure. The number of unpaired electrons in ZIS, Sv-ZIS and Mo-Sv-ZIS are evaluated by electron paramagnetic resonance (EPR). As shown in Figure 4b, the original ZIS does not show any discernible signals. In contrast, Sv-ZIS shows an EPR indication for a g value of 1.998, confirming the existence of the S-vacancy. In addition, the EPR signal of Mo-Sv-ZIS is more intense, indicating that the increased number of unpaired electrons in Mo-doped Sv-ZIS is due to the simultaneous presence of undercoordinated Mo and S vacancies [54]. Therefore, the EPR results suggest that the density of active sites for photocatalytic reactions increased by Mo doping and S vacancies.
Furthermore, as shown in Figure S6, the analysis of the functional groups on the surface of the composites is performed by FTIR. The observed peaks at 1633 and 1394 cm−1 are composed of water and hypdroxyl moieties adsorbed on the surface [55], implying the ready attraction of free H2O molecules for continuous H2O dissociation and the facilitation of the reaction kinetics. Meanwhile, Raman spectroscopy is also performed to obtain more details about the crystalline structure. As shown in Figure S7, in the case of ZIS, the four Raman peaks are located around 253, 308, 339 and 370 cm−1, which are assigned to the longitudinal optical mode (LO1), transverse optical mode (TO2), longitudinal optical mode (LO2) and A1g mode of crystal ZIS, separately. For the Mo-Sv-ZIS, all peaks are relatively weak, and the peaks located at 308 and 339 cm−1 are barely observable because of the doping influence and the inferior degree of crystallinity. A new band at 405 cm−1, as shown in the Raman spectrum of Mo-Sv-ZIS, comes from the coupling of Mo-S stretching vibrations and A1g modes in Mo-Sv-ZIS, further confirming the existence of Mo-S bonds [5].
The strong light absorption is beneficial to the generation of photogenerated carriers, which directly contribute to the improvement of photocatalytic performance. To investigate the optical absorption ability, UV-Vis spectra in the range of 300 to 800 nm are measured. As illustrated in Figure 5a, the primary light absorption of pristine ZIS and Sv-ZIS occurs in the wavelength range of 300–550 nm. With the introduction of S vacancies, the optical absorbance of Sv-ZIS is slightly enhanced compared to that of ZIS. After Mo doping, the optical absorption of Mo-Sv-ZIS further increased. With the increase in Mo content, the absorption in the wavelength range of 500 to 800 nm is significantly enhanced, and the color of the sample gradually deepens (inset in Figure 5a). Meanwhile, the absorption edge sightly redshifts. ZIS is a type of semiconductor with a direct band gap that can be computed from the following formula: ahv2 = A (hν- Eg). As shown in Figure 5b, the bandgaps of ZIS, Sv-ZIS and Mo-Sv-ZIS are 2.53 eV, 2.48 eV and 2.45 eV, respectively. Ultraviolet photoelectron spectra (UPS) are tested to determine the valence band position (EVB). As shown in Figure 5c, the valence band potentials (EVB, XPS) of ZIS, Sv-ZIS and Mo-Sv-ZIS are 1.38 eV, 1.58 eV and 1.36 eV, respectively. The EVB of the corresponding standard hydrogen electrodes relative to ZIS, Sv-ZIS and Mo-Sv-ZIS are then obtained based on the following equation: EVB, NHE = φ + EVB, XPS − 4.44 eV; here, φ is the power functional of the apparatus (5.1 eV). Therefore, for ZIS, Sv-ZIS and Mo-Sv-ZIS, the EVB, NHE are 2.04 eV, 2.24 eV and 2.02 eV, respectively [56].
The dynamics of excited carriers is studied through photoluminescence (PL) with time-resolved PL (TRPL). Two emission peaks at 465 nm and 528 nm are observed in the PL spectra of all samples, as indicated in Figure 5d. Among these three samples, ZIS has the highest PL intensity, which suggests an effective recombination of photogenerated carriers, greatly limiting the photocatalytic activity. However, the PL intensity of Sv-ZIS is obviously reduced, which suggests that the sulfur vacancy can act as a carrier trap and promote the separation of photocarriers [56]. It is clear that the PL intensity of the Mo-doped Sv-ZIS further decreases, indicating that photogenerated carriers can be also rapidly captured by the undercoordinated Mo, thereby significantly inhibiting the recombination of photogenerated electron-hole pairs. Time-resolved PL is tested at 465 nm and 528 nm (Figure 5e,f). The average PL lifetime (τA) is calculated according to the following equation [48]:
τ A = A 1 τ 1 2 + A 2 τ 2 2 + A 3 τ 3 2 A 1 τ 1 + A 2 τ 2 + A 3 τ 3
where τ1, τ2 and τ3 are the PL lifetimes, and A1, A2 and A3 are the corresponding amplitudes obtained by tri-exponential fittings. The fitting details are listed in Table S3 and Table S4. The average PL lifetimes of the pristine ZIS are 5.33 ns and 3.31 ns for 465 nm emission and 528 nm emission, respectively. For the Mo-Sv-ZIS, the average PL lifetimes of 465 nm and 528 nm emissions shorten to 0.08 ns and 0.8 ns. The ultra-short PL lifetimes are in good agreement with the rapid capture of photogenerated carriers by the doped Mo and sulphur vacancies.
To investigate the role of Mo doping and S vacancies on photogenerated carrier migration, photoelectrochemical tests are carried out by using ZIS, Sv-ZIS, Mo-ZIS and Mo-Sv-ZIS as photoelectrodes. As shown in Figure 6a, the EIS radius of Sv-ZIS is smaller than the original ZIS, indicating that S vacancies can reduce the interfacial transfer resistance (detailed parameters are listed in Table S5). In addition, the EIS radius of Mo-Sv-ZIS is less than Sv-ZIS and ZIS due to the presence of both doped Mo and S vacancies [41,56]. The EIS spectra of Mo-Sv-ZIS with different Mo doping levels are further investigated. As shown in Figure 6b, the EIS semicircle becomes smaller as the Mo doping level increases. However, when the Mo doping concentration is as high as 5%, the radius of the EIS semicircle increases, implying that Mo doping that is too high is not conducive to lowering the surface charge’s transport resistance. As illustrated in Figure 6c, all tested samples exhibit evident photo-responses. As expected, Mo-Sv-ZIS exhibits the highest photocurrent density, which is four times higher than that of the pristine ZIS. Therefore, we demonstrate that the coordination of Mo doping and sulfur vacancies can significantly improve the photo-response of ZIS due to optical absorption enhancement, accelerated separation and the transport of carriers. The high photocatalytic activity of Mo-Sv-ZIS is expected in combination with the dense active sites.
The photocatalytic activities are assessed by hydrogen evolution in visible light (λ > 420 nm) irradiation. As shown in Figure 6d,e, the original ZIS shows poor hydrogen evolution activity of about 887 μmol g−1 h−1. Mo-ZIS and Sv-ZIS exhibit slightly higher hydrogen evolution activities of 983 μmol g−1 h−1 and 1607 μmol g−1 h−1, respectively. Among all the samples, the 1.5% Mo-Sv-ZIS shows the highest photocatalytic hydrogen evolution rate of 5739 μmolg−1 h−1, which is 5.4 time more than the original ZIS, 2.5 times better than that of Sv-ZIS, and 4.8 times higher than that of 1.5% Mo-ZIS. AQY value of 1.5% Mo-Sv-ZIS at 420 nm shows an excellent value of 21.24%. As summarized in Table S6, photocatalytic hydrogen evolution activities over 1.5% Mo-Sv-ZIS outcompete most reported photocatalysts based on ZnIn2S4. Moreover, Mo-Sv-ZIS has stable and sustainable photocatalytic activities. As shown in Figure 6f, the hydrogen evolution rate over 1.5% Mo-Sv-ZIS did not show a significant decrease after four periods. To verify the stability of the structure, XRD and XPS of the Mo-Sv-ZIS are tested after continuous photocatalytic hydrogen evolution for 16 h. As shown in Figures S8 and S9, both XRD and XPS results show negligible change after the long-term photocatalytic reaction, verifying the excellent stability of the Mo-Sv-ZIS.
A scheme to explain the excellent photocatalytic activity of the Mo-Sv-ZIS is shown in Figure 7. The presence of S-vacancies and doped Mo atoms in ZnIn2S4 contribute to the change in electronic structure, which leads to a shift in the charged potential. In spite of the change in the position of both VB and CB, their CB potentials are still higher than the H+/H2 reduction potential and are still capable of photocatalytic hydrogen evolution. To gain more insight into the change of band positions, the density of states (DOS) of ZIS, Sv-ZIS and Mo-Sv-ZIS is calculated by using the Castep module of Materials Studio software (Figure S10). Under visible light irradiation, photogenerated electrons respond with H+ to form H2 ( H + + e − → H 2 ), while holes react with TEOA to form TEOA+ ( T E O A + h + → T E O A + ). First, Mo doping significantly improves visible light absorption. Second, S vacancy and undercoordinated Mo can capture photogenerated carriers to inhibit electron-hole recombination. Third, the introduction of S vacancies and the doping of Mo atoms allow the ZIS system to have a lower coordination number, providing more reaction sites for photocatalytic reactions. Last but not the least, the formation of Mo-S bonds accelerates the charge transfer and reduce the internal resistance. As a consequence, Mo-Sv-ZIS exhibits an extremely high photocatalytic hydrogen evolution activity.

3. Conclusions

In summary, we develop a facile one-pot solvothermal method to synthesize Mo-doped 2D ZnIn2S4 nanoflake with S vacancies. Compared to pristine ZnIn2S4, the incorporation of Mo doping and S vacancies into the crystal structure modulates the electronic structure and photo-response of ZnIn2S4, resulting in a higher visible light absorption, faster carrier transfer rate and lower internal resistance. Meanwhile, the doping of Mo atoms with S vacancies reduces the coordination number of ZnIn2S4, gaining more active sites and, thus, accelerating the catalytic reaction. Thus, the hydrogen evolution rate of 1.5% Mo-Sv-ZIS reaches 5739 μmol g−1 h−1 under visible light irradiation, which is 5.4 and 2.5 times higher than that of pristine ZIS and Sv-ZIS, respectively. The corresponding AQY at 420 nm reaches 21.24%. Therefore, we demonstrate that the synergy between elemental doping and surface defects is an effective strategy to enhance the evolution of photocatalytic hydrogen in two-dimensional semiconductors, providing an additional perspective on the evolution of photocatalytic materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12223980/s1, Experimental section; Characterizations; Photoelectrochemical measurements; Photocatalytic hydrogen production; Calculation methods; Figure S1: (a–d) TEM images of 1.5% Mo-Sv-ZIS; Figure S2: EDS of the 1.5% Mo-Sv-ZIS shows the presence of Zn, In, S and Mo; Figure S3: Full survey XPS spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS; Figure S4: High-resolution XPS spectra of O 1s of ZIS (a) and Sv-ZIS (b); Figure S5: XRD patterns of ZIS, Sv-ZIS and 1.5%Mo-Sv-ZIS with different contents of Mo; Figure S6: FT-IR spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS; Figure S7: Raman spectra of ZIS and 1.5% Mo-Sv-ZIS; Figure S8: XRD patterns of the as- prepared 1.5% Mo-Sv-ZIS and 1.5% Mo-Sv-ZIS after photocatalytic test; Figure S9: XPS spectra of 1.5% Mo-Sv-ZIS after photocatalytic test. (a) Full survey XPS spectrum, (b) Zn 2p, (c) In 3d, (d) S 2p and (e) Mo 3d; Figure S10 The partial density of sates of (a) total orbit of ZIS and Sv-ZIS, (b) total orbit of Sv-ZIS and Mo-Sv-ZIS, (c) S atomic orbital of ZIS and Sv-ZIS, (d) Mo atomic orbital of Mo-Sv-ZIS; Table S1: Elemental compositions of ZIS Sv-ZIS and 1.5%Mo-Sv-ZIS according to XPS; Table S2 Element content of ZIS, Sv-ZIS and Mo-Sv-ZIS tested by ICP-MS; Table S3: Exponential decay-fitting parameters for time-resolved PL lifetime of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS (465 nm); Table S4: Exponential decay-fitting parameters for time-resolved PL lifetime of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS (528 nm); Table S5 Impedance values of ZIS, Sv-ZIS and 1.5%Mo-Sv-ZIS obtained by fitting on the EIS results; Table S6: Comparison of the 1.5% Mo-Sv-ZIS with other ZnIn2S4 related photocatalysts. References [38,39,40,57,58,59,60,61,62,63,64,65,66,67] are cited in the supplementary materials.

Author Contributions

Conceptualization, L.Y., Z.G. and L.D.; methodology, W.G and M.M.; software, L.Z.; validation, W.G., P.W. and Y.W.; formal analysis, H.W.; investigation, X.D.; resources, L.S.; data curation, W.G.; writing—original draft preparation, W.G.; writing—review and editing, Z.G.; visualization, W.G.; supervision, L.Y.; project administration, L.D.; funding acquisition, L.Y., Z.G. and L.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially backed by the Natural Science Foundation of Shandong Province (ZR2021YQ32) and the National Natural Science Foundation of China (21776147, 21606140); the Taishan Scholar Project of Shandong Province (tsqn201909117); the Qingdao Municipal Science and Technology Bureau, China (19-6-1-91-nsh); and the International Science and Technology Cooperation Program of China (2014DFA60150).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Wang, Y.; Liu, L.; Ma, T.; Zhang, Y.; Huang, H. 2D Graphitic Carbon Nitride for Energy Conversion and Storage. Adv. Funct. Mater. 2021, 31, 1807013. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Wang, T.; Zheng, B.; Shi, J.; Cai, C.; Mao, L.; Cheng, C.; Zong, S.; Guo, X.; Chen, Q. EDTA-dominated hollow tube-like porous graphitic carbon nitride towards enhanced photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2022, 619, 289–297. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, W.; Bai, X.; Ci, Q.; Du, L.; Ren, X.; Phillips, D.L. Near-Field Drives Long-Lived Shallow Trapping of Polymeric C3N4 for Efficient Photocatalytic Hydrogen Evolution. Adv. Funct. Mater. 2021, 31, 2103978. [Google Scholar] [CrossRef]
  4. Jia, R.; Gui, Q.; Sui, L.; Huang, Y.; Lu, H.; Dong, H.; Ma, S.; Gan, Z.; Dong, L.; Yu, L. Active sites provided by the surface autocatalytic effect and quantum confinement for stable and efficient photocatalytic hydrogen generation. J. Mater. Chem. A 2021, 9, 14768–14774. [Google Scholar] [CrossRef]
  5. Wang, X.; Wang, X.; Huang, J.; Li, S.; Meng, A.; Li, Z. Interfacial chemical bond and internal electric field modulated Z-scheme Sv-ZnIn2S4/MoSe2 photocatalyst for efficient hydrogen evolution. Nat. Commun. 2021, 12, 4112. [Google Scholar] [CrossRef]
  6. Xie, J.; Zhang, H.; Li, S.; Wang, R.; Sun, X.; Zhou, M.; Zhou, J.; Lou, X.W.; Xie, Y. Defect-rich MoS2 ultrathin nanosheets with additional active edge sites for enhanced electrocatalytic hydrogen evolution. Adv. Mater. 2013, 25, 5807–5813. [Google Scholar] [CrossRef]
  7. Du, C.; Yan, B.; Yang, G. Self-integrated effects of 2D ZnIn2S4 and amorphous Mo2C nanoparticles composite for promoting solar hydrogen generation. Nano Energy 2020, 76, 105031. [Google Scholar] [CrossRef]
  8. Xiao, F.-X.; Miao, J.; Liu, B. Layer-by-layer self-assembly of CdS quantum dots/graphene nanosheets hybrid films for photoelectrochemical and photocatalytic applications. J. Am. Chem. Soc. 2014, 136, 1559–1569. [Google Scholar] [CrossRef]
  9. Maeda, K.; Higashi, M.; Lu, D.; Abe, R.; Domen, K. Efficient nonsacrificial water splitting through two-step photoexcitation by visible light using a modified oxynitride as a hydrogen evolution photocatalyst. J. Am. Chem. Soc. 2010, 132, 5858–5868. [Google Scholar] [CrossRef]
  10. Maeda, K.; Takata, T.; Hara, M.; Saito, N.; Inoue, Y.; Kobayashi, H.; Domen, K. GaN: ZnO solid solution as a photocatalyst for visible-light-driven overall water splitting. J. Am. Chem. Soc. 2005, 127, 8286–8287. [Google Scholar] [CrossRef]
  11. Kim, Y.; Coy, E.; Kim, H.; Mrówczyński, R.; Torruella, P.; Jeong, D.-W.; Choi, K.S.; Jang, J.H.; Song, M.Y.; Jang, D.-J. Efficient photocatalytic production of hydrogen by exploiting the polydopamine-semiconductor interface. Appl. Catal. B Environ. 2021, 280, 119423. [Google Scholar] [CrossRef]
  12. Wang, S.; Wang, Y.; Zhang, S.L.; Zang, S.Q.; Lou, X.W. Supporting ultrathin ZnIn2S4 nanosheets on Co/N-Doped graphitic carbon nanocages for efficient photocatalytic H2 generation. Adv. Mater. 2019, 31, 1903404. [Google Scholar] [CrossRef] [PubMed]
  13. Kageshima, Y.; Shiga, S.; Ode, T.; Takagi, F.; Shiiba, H.; Htay, M.T.; Hashimoto, Y.; Teshima, K.; Domen, K.; Nishikiori, H. Photocatalytic and Photoelectrochemical Hydrogen Evolution from Water over Cu2SnxGe1–xS3 Particles. J. Am. Chem. Soc. 2021, 143, 5698–5708. [Google Scholar] [CrossRef] [PubMed]
  14. Peng, Y.; Geng, M.; Yu, J.; Zhang, Y.; Tian, F.; Guo, Y.n.; Zhang, D.; Yang, X.; Li, Z.; Li, Z.; et al. Vacancy-induced 2H@1T MoS2 phase-incorporation on ZnIn2S4 for boosting photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2021, 298, 120570. [Google Scholar] [CrossRef]
  15. Gou, X.; Cheng, F.; Shi, Y.; Zhang, L.; Peng, S.; Chen, J.; Shen, P. Shape-controlled synthesis of ternary chalcogenide ZnIn2S4 and CuIn(S, Se)2 nano-/microstructures via facile solution route. J. Am. Chem. Soc. 2006, 128, 7222–7229. [Google Scholar] [CrossRef]
  16. Shi, L.; Yin, P.; Dai, Y. Synthesis and photocatalytic performance of ZnIn2S4 nanotubes and nanowires. Langmuir 2013, 29, 12818–12822. [Google Scholar] [CrossRef]
  17. Wang, J.; Chen, Y.; Zhou, W.; Tian, G.; Xiao, Y.; Fu, H.; Fu, H. Cubic quantum dot/hexagonal microsphere ZnIn2S4 heterophase junctions for exceptional visible-light-driven photocatalytic H2 evolution. J. Mater. Chem. A 2017, 5, 8451–8460. [Google Scholar] [CrossRef]
  18. Zhang, Q.; Zhang, J.; Zhang, L.; Cao, M.; Yang, F.; Dai, W.-L. Facile construction of flower-like black phosphorus nanosheet@ ZnIn2S4 composite with highly efficient catalytic performance in hydrogen production. Appl. Surf. Sci. 2020, 504, 144366. [Google Scholar] [CrossRef]
  19. Gao, Z.; Chen, K.; Wang, L.; Bai, B.; Liu, H.; Wang, Q. Aminated flower-like ZnIn2S4 coupled with benzoic acid modified g-C3N4 nanosheets via covalent bonds for ameliorated photocatalytic hydrogen generation. Appl. Catal. B Environ. 2020, 268, 118462. [Google Scholar] [CrossRef]
  20. Xiao, Y.; Peng, Z.; Zhang, W.; Jiang, Y.; Ni, L. Self-assembly of Ag2O quantum dots on the surface of ZnIn2S4 nanosheets to fabricate pn heterojunctions with wonderful bifunctional photocatalytic performance. Appl. Surf. Sci. 2019, 494, 519–531. [Google Scholar] [CrossRef]
  21. Yang, W.; Zhang, L.; Xie, J.; Zhang, X.; Liu, Q.; Yao, T.; Wei, S.; Zhang, Q.; Xie, Y. Enhanced photoexcited carrier separation in oxygen-doped ZnIn2S4 nanosheets for hydrogen evolution. Angew. Chem. Int. Ed. 2016, 55, 6716–6720. [Google Scholar] [CrossRef] [PubMed]
  22. Shi, X.; Mao, L.; Yang, P.; Zheng, H.; Fujitsuka, M.; Zhang, J.; Majima, T. Ultrathin ZnIn2S4 nanosheets with active (110) facet exposure and efficient charge separation for cocatalyst free photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2020, 265, 118616. [Google Scholar] [CrossRef]
  23. Sun, Y.; Gao, S.; Lei, F.; Xie, Y. Atomically-thin two-dimensional sheets for understanding active sites in catalysis. Chem. Soc. Rev. 2015, 44, 623–636. [Google Scholar] [CrossRef] [PubMed]
  24. Gao, D.; Wu, X.; Wang, P.; Yu, H.; Zhu, B.; Fan, J.; Yu, J. Selenium-enriched amorphous NiSe1+ x nanoclusters as a highly efficient cocatalyst for photocatalytic H2 evolution. Chem. Eng. J. 2021, 408, 127230. [Google Scholar] [CrossRef]
  25. Zhang, S.; Zhang, Z.; Si, Y.; Li, B.; Deng, F.; Yang, L.; Liu, X.; Dai, W.; Luo, S. Gradient Hydrogen Migration Modulated with Self-Adapting S Vacancy in Copper-Doped ZnIn2S4 Nanosheet for Photocatalytic Hydrogen Evolution. ACS Nano 2021, 15, 15238–15248. [Google Scholar] [CrossRef]
  26. Pan, J.; Zhang, G.; Guan, Z.; Zhao, Q.; Li, G.; Yang, J.; Li, Q.; Zou, Z. Anchoring Ni single atoms on sulfur-vacancy-enriched ZnIn2S4 nanosheets for boosting photocatalytic hydrogen evolution. J. Energy Chem. 2021, 58, 408–414. [Google Scholar] [CrossRef]
  27. Wang, H.; Thangamuthu, M.; Wu, Z.; Yang, J.; Yuan, H.; Tang, J. Self-assembled sulphur doped carbon nitride for photocatalytic water reforming of methanol. Chem. Eng. J. 2022, 445, 136790. [Google Scholar] [CrossRef]
  28. Zhou, T.; Li, T.; Hou, J.; Wang, Y.; Hu, B.; Sun, D.; Wu, Y.; Jiang, W.; Che, G.; Liu, C. Tailoring boron doped intramolecular donor–acceptor integrated carbon nitride skeleton with propelling photocatalytic activity and mechanism insight. Chem. Eng. J. 2022, 445, 136643. [Google Scholar] [CrossRef]
  29. Liu, Y.; Zhou, Y.; Zhou, X.; Jin, X.; Li, B.; Liu, J.; Chen, G. Cu doped SnS2 nanostructure induced sulfur vacancy towards boosted photocatalytic hydrogen evolution. Chem. Eng. J. 2021, 407, 127180. [Google Scholar] [CrossRef]
  30. Li, W.; Wang, F.; Liu, X.-y.; Dang, Y.-y.; Li, J.-y.; Ma, T.-h.; Wang, C.-y. Promoting body carriers migration of CdS nanocatalyst by N-doping for improved hydrogen production under simulated sunlight irradiation. Appl. Catal. B Environ. 2022, 313, 121470. [Google Scholar] [CrossRef]
  31. Wang, Y.; Zhang, Y.; Zhao, S.; Huang, Z.; Chen, W.; Zhou, Y.; Lv, X.; Yuan, S. Bio-template synthesis of Mo-doped polymer carbon nitride for photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2019, 248, 44–53. [Google Scholar] [CrossRef]
  32. Zhang, N.; Jalil, A.; Wu, D.; Chen, S.; Liu, Y.; Gao, C.; Ye, W.; Qi, Z.; Ju, H.; Wang, C. Refining defect states in W18O49 by Mo doping: A strategy for tuning N2 activation towards solar-driven nitrogen fixation. J. Am. Chem. Soc. 2018, 140, 9434–9443. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, H.; Zhang, L.; Wang, K.; Sun, X.; Wang, W. Enhanced photocatalytic CO2 reduction to methane over WO3·0.33 H2O via Mo doping. Appl. Catal. B Environ. 2019, 243, 771–779. [Google Scholar] [CrossRef]
  34. Wang, Y.; Xu, Y.; Wang, Y.; Qin, H.; Li, X.; Zuo, Y.; Kang, S.; Cui, L. Synthesis of Mo-doped graphitic carbon nitride catalysts and their photocatalytic activity in the reduction of CO2 with H2O. Catal. Commun. 2016, 74, 75–79. [Google Scholar] [CrossRef]
  35. Etogo, A.; Liu, R.; Ren, J.; Qi, L.; Zheng, C.; Ning, J.; Zhong, Y.; Hu, Y. Facile one-pot solvothermal preparation of Mo-doped Bi2WO6 biscuit-like microstructures for visible-light-driven photocatalytic water oxidation. J. Mater. Chem. A 2016, 4, 13242–13250. [Google Scholar] [CrossRef]
  36. Xie, P.; Yang, F.; Li, R.; Ai, C.; Lin, C.; Lin, S. Improving hydrogen evolution activity of perovskite BaTiO3 with Mo doping: Experiments and first-principles analysis. Int. J. Hydrog. Energy 2019, 44, 11695–11704. [Google Scholar] [CrossRef]
  37. Zhang, R.; Li, P.; Wang, F.; Ye, L.; Gaur, A.; Huang, Z.; Zhao, Z.; Bai, Y.; Zhou, Y. Atomically dispersed Mo atoms on amorphous g-C3N4 promotes visible-light absorption and charge carriers transfer. Appl. Catal. B Environ. 2019, 250, 273–279. [Google Scholar] [CrossRef]
  38. Xing, F.; Liu, Q.; Huang, C. Mo-Doped ZnIn2S4 Flower-Like Hollow Microspheres for Improved Visible Light-Driven Hydrogen Evolution. Sol. RRL 2019, 4, 1900483. [Google Scholar] [CrossRef]
  39. Qiu, B.; Huang, P.; Lian, C.; Ma, Y.; Xing, M.; Liu, H.; Zhang, J. Realization of all-in-one hydrogen-evolving photocatalysts via selective atomic substitution. Appl. Catal. B Environ. 2021, 298, 120518. [Google Scholar] [CrossRef]
  40. Du, C.; Zhang, Q.; Lin, Z.; Yan, B.; Xia, C.; Yang, G. Half-unit-cell ZnIn2S4 monolayer with sulfur vacancies for photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2019, 248, 193–201. [Google Scholar] [CrossRef]
  41. Luan, Q.; Xue, X.; Li, R.; Gu, L.; Dong, W.; Zhou, D.; Wang, X.; Li, B.; Wang, G.; Hou, C. Boosting photocatalytic hydrogen evolution: Orbital redistribution of ultrathin ZnIn2S4 nanosheets via atomic defects. Appl. Catal. B Environ. 2022, 305, 121007. [Google Scholar] [CrossRef]
  42. Jiao, X.; Chen, Z.; Li, X.; Sun, Y.; Gao, S.; Yan, W.; Wang, C.; Zhang, Q.; Lin, Y.; Luo, Y.; et al. Defect-Mediated Electron-Hole Separation in One-Unit-Cell ZnIn2S4 Layers for Boosted Solar-Driven CO2 Reduction. J. Am. Chem. Soc. 2017, 139, 7586–7594. [Google Scholar] [CrossRef] [PubMed]
  43. Hou, L.; Wu, Z.; Jin, C.; Li, W.; Wei, Q.; Chen, Y.; Wang, T. Flower-Like Dual-Defective Z-Scheme Heterojunction g-C3N4/ZnIn2S4 High-Efficiency Photocatalytic Hydrogen Evolution and Degradation of Mixed Pollutants. Nanomaterials 2021, 11, 2483. [Google Scholar] [CrossRef] [PubMed]
  44. Jia, T.; Liu, M.; Zheng, C.; Long, F.; Min, Z.; Fu, F.; Yu, D.; Li, J.; Lee, J.H.; Kim, N.H. One-Pot Hydrothermal Synthesis of La-Doped ZnIn2S4 Microspheres with Improved Visible-Light Photocatalytic Performance. Nanomaterials 2020, 10, 2026. [Google Scholar] [CrossRef] [PubMed]
  45. Pan, X.; Shang, C.; Chen, Z.; Jin, M.; Zhang, Y.; Zhang, Z.; Wang, X.; Zhou, G. Enhanced Photocatalytic H2 Evolution over ZnIn2S4 Flower-Like Microspheres Doped with Black Phosphorus Quantum Dots. Nanomaterials 2019, 9, 1266. [Google Scholar] [CrossRef] [Green Version]
  46. Zhang, S.; Liu, X.; Liu, C.; Luo, S.; Wang, L.; Cai, T.; Zeng, Y.; Yuan, J.; Dong, W.; Pei, Y.; et al. MoS2 Quantum Dot Growth Induced by S Vacancies in a ZnIn2S4 Monolayer: Atomic-Level Heterostructure for Photocatalytic Hydrogen Production. ACS Nano 2018, 12, 751–758. [Google Scholar] [CrossRef]
  47. Turner, N.; Single, A. Determination of peak positions and areas from wide-scan XPS spectra. Surf. Interface Anal. 1990, 15, 215–222. [Google Scholar] [CrossRef]
  48. Duan, Y.; Xue, J.; Dai, J.; Wei, Y.; Wu, C.; Chang, S.-H.; Ma, J. Interface engineering of ZnO/In2O3 Z-scheme heterojunction with yolk-shell structure for efficient photocatalytic hydrogen evolution. Appl. Surf. Sci. 2022, 592, 153306. [Google Scholar] [CrossRef]
  49. Zhang, Y.; Qiu, J.; Zhu, B.; Fedin, M.V.; Cheng, B.; Yu, J.; Zhang, L. ZnO/COF S-scheme heterojunction for improved photocatalytic H2O2 production performance. Chem. Eng. J. 2022, 444, 136584. [Google Scholar] [CrossRef]
  50. Wang, P.; Shen, Z.; Xia, Y.; Wang, H.; Zheng, L.; Xi, W.; Zhan, S. Atomic Insights for Optimum and Excess Doping in Photocatalysis: A Case Study of Few-Layer Cu- ZnIn2S4. Adv. Funct. Mater. 2019, 29, 1807013. [Google Scholar] [CrossRef]
  51. Zhong, X.; Sun, Y.; Chen, X.; Zhuang, G.; Li, X.; Wang, J.-G. Mo Doping Induced More Active Sites in Urchin-Like W18O49Nanostructure with Remarkably Enhanced Performance for Hydrogen Evolution Reaction. Adv. Funct. Mater. 2016, 26, 5778–5786. [Google Scholar] [CrossRef]
  52. Huang, X.; Gu, W.; Ma, Y.; Liu, D.; Ding, N.; Zhou, L.; Lei, J.; Wang, L.; Zhang, J. Recent advances of doped graphite carbon nitride for photocatalytic reduction of CO2: A review. Res. Chem. Intermed. 2020, 46, 5133–5164. [Google Scholar] [CrossRef]
  53. Ye, L.; Fu, J.; Xu, Z.; Yuan, R.; Li, Z. Facile one-pot solvothermal method to synthesize sheet-on-sheet reduced graphene oxide (RGO)/ZnIn2S4 nanocomposites with superior photocatalytic performance. ACS Appl. Mater. Interfaces 2014, 6, 3483–3490. [Google Scholar] [CrossRef] [PubMed]
  54. Li, X.; Kang, B.; Dong, F.; Zhang, Z.; Luo, X.; Han, L.; Huang, J.; Feng, Z.; Chen, Z.; Xu, J.; et al. Enhanced photocatalytic degradation and H2/H2O2 production performance of S-pCN/WO2.72 S-scheme heterojunction with appropriate surface oxygen vacancies. Nano Energy 2021, 81, 105671. [Google Scholar] [CrossRef]
  55. Wang, B.; Wang, X.; Lu, L.; Zhou, C.; Xin, Z.; Wang, J.; Ke, X.-k.; Sheng, G.; Yan, S.; Zou, Z. Oxygen-Vacancy-Activated CO2 Splitting over Amorphous Oxide Semiconductor Photocatalyst. ACS Catal. 2017, 8, 516–525. [Google Scholar] [CrossRef]
  56. Jia, R.; Lu, H.; Wang, C.; Guan, W.; Dong, H.; Pang, B.; Sui, L.; Gan, Z.; Dong, L.; Yu, L. Construction of 2D-layered quantum dots/2D-nanosheets heterostructures with compact interfaces for highly efficient photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2022, 608, 284–293. [Google Scholar] [CrossRef]
  57. Xue, J.; Liu, H.; Zeng, S.; Feng, Y.; Zhang, Y.; Zhu, Y.; Cheng, M.; Zhang, H.; Shi, L.; Zhang, G. Bifunctional Cobalt-Doped ZnIn2S4 Hierarchical Nanotubes Endow Noble-Metal Cocatalyst-Free Photocatalytic H2 Production Coupled with Benzyl Alcohol Oxidation. Solar RRL 2022, 6, 2101042. [Google Scholar] [CrossRef]
  58. Zhan, X.; Zheng, Y.; Li, B.; Fang, Z.; Yang, H.; Zhang, H.; Xu, L.; Shao, G.; Hou, H.; Yang, W. Rationally designed Ta3N5/ZnIn2S4 1D/2D heterojunctions for boosting Visible-Light-driven hydrogen evolution. Chem. Eng. J. 2022, 431, 134053. [Google Scholar] [CrossRef]
  59. Su, H.; Lou, H.; Zhao, Z.; Zhou, L.; Pang, Y.; Xie, H.; Rao, C.; Yang, D.; Qiu, X. In-situ Mo doped ZnIn2S4 wrapped MoO3 S-scheme heterojunction via Mo-S bonds to enhance photocatalytic HER. Chem. Eng. J. 2022, 430, 132770. [Google Scholar] [CrossRef]
  60. Bhavani, P.; Praveen Kumar, D.; Hussain, M.; Aminabhavi, T.M.; Park, Y.-K. Eco-friendly rice husk derived biochar as a highly efficient noble Metal-Free cocatalyst for high production of H2 using solar light irradiation. Chem. Eng. J. 2022, 434, 134743. [Google Scholar] [CrossRef]
  61. Kong, D.; Hu, X.; Geng, J.; Zhao, Y.; Fan, D.; Lu, Y.; Geng, W.; Zhang, D.; Liu, J.; Li, H.; et al. Growing ZnIn2S4 nanosheets on FeWO4 flowers with p-n heterojunction structure for efficient photocatalytic H2 production. Appl. Surf. Sci. 2022, 591, 153256. [Google Scholar] [CrossRef]
  62. She, P.; Qin, J.S.; Sheng, J.; Qi, Y.; Rui, H.; Zhang, W.; Ge, X.; Lu, G.; Song, X.; Rao, H. Dual-Functional Photocatalysis for Cooperative Hydrogen Evolution and Benzylamine Oxidation Coupling over Sandwiched-Like Pd@TiO2@ ZnIn2S4 Nanobox. Small 2022, 18, e2105114. [Google Scholar] [CrossRef] [PubMed]
  63. Su, H.; Rao, C.; Zhou, L.; Pang, Y.; Lou, H.; Yang, D.; Qiu, X. Mo-Doped/Ni-supported ZnIn2S4-wrapped NiMoO4 S-scheme heterojunction photocatalytic reforming of lignin into hydrogen. Green Chem. 2022, 24, 2027–2035. [Google Scholar] [CrossRef]
  64. Dai, M.; He, Z.; Zhang, P.; Li, X.; Wang, S. ZnWO4- ZnIn2S4 S-scheme heterojunction for enhanced photocatalytic H2 evolution. J. Mater. Sci. Technol. 2022, 122, 231–242. [Google Scholar] [CrossRef]
  65. Cao, M.; Yang, F.; Zhang, Q.; Zhang, J.; Zhang, L.; Li, L.; Wang, X.; Dai, W.-L. Facile construction of highly efficient MOF-based Pd@UiO-66-NH2@ ZnIn2S4 flower-like nanocomposites for visible-light-driven photocatalytic hydrogen production. J. Mater. Sci. Technol. 2021, 76, 189–199. [Google Scholar] [CrossRef]
  66. Dhingra, S.; Sharma, M.; Krishnan, V.; Nagaraja, C.M. Design of noble metal-free NiTiO3/ZnIn2S4 heterojunction photocatalyst for efficient visible-light-assisted production of H2 and selective synthesis of 2,5-Bis(hydroxymethyl)furan. J. Colloid Interface Sci. 2022, 615, 346–356. [Google Scholar] [CrossRef]
  67. Liu, L.; Liu, J.; Yang, W.; Wan, J.; Fu, F.; Wang, D. Constructing a Z-scheme ZnIn2S4-S/CNTs/RP nanocomposite with modulated energy band alignment for enhanced photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2022, 608, 482–492. [Google Scholar] [CrossRef]
Nanomaterials 12 03980 g001 550

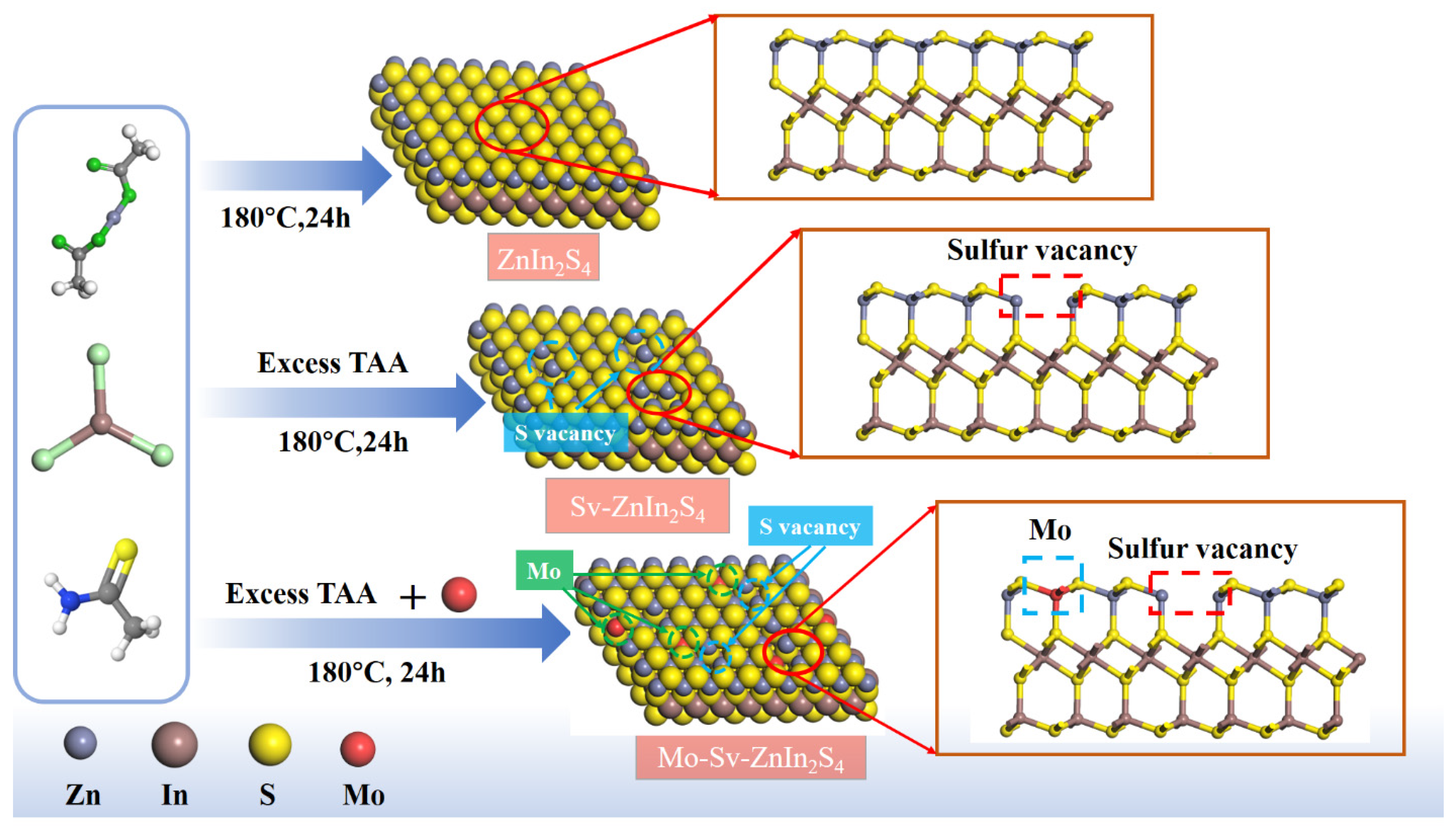

Figure 1. Schematic diagram of the synthetic routes for ZIS, Sv-ZIS and Mo-Sv-ZIS. The dotted red squares highlight the Sv. (The squares show the differences between the crystals).
Figure 1. Schematic diagram of the synthetic routes for ZIS, Sv-ZIS and Mo-Sv-ZIS. The dotted red squares highlight the Sv. (The squares show the differences between the crystals).
Nanomaterials 12 03980 g001
Nanomaterials 12 03980 g002 550

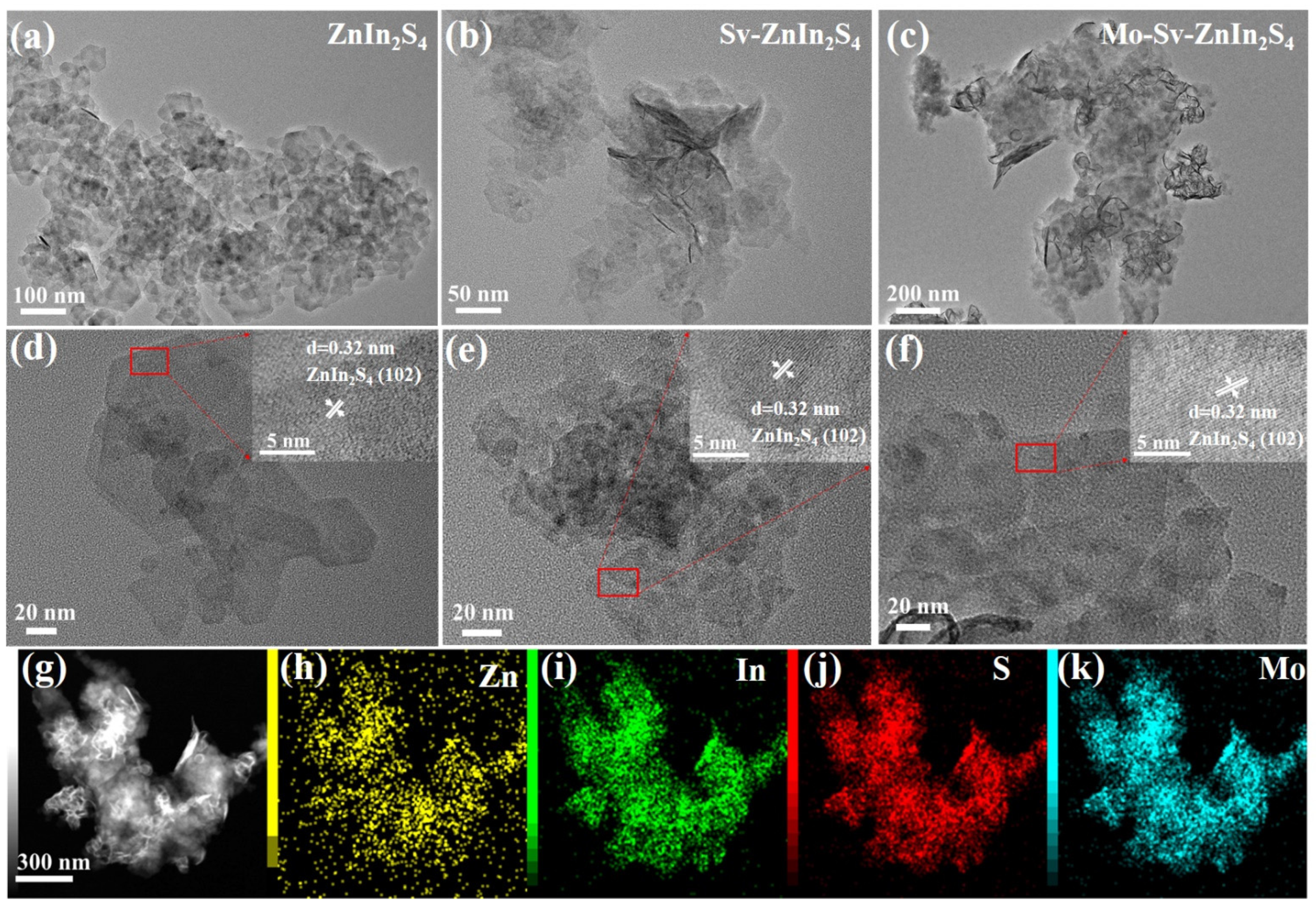

Figure 2. (a,d) TEM (a) and HRTEM (d) images of the ZIS. (b,e) TEM (b) and HRTEM (e) images of the Sv-ZIS. (c,f) TEM (c) and HRTEM (f) images of the 1.5% Mo-Sv-ZIS. (g) HAADF-STEM image of the 1.5% Mo-Sv-ZIS. (h–k) EDS element mappings of Zn (h), In (i), S (j) and Mo (k) in 1.5% Mo-Sv-ZIS. (Note: The area inside the red square is the area magnified by HRTEM).
Figure 2. (a,d) TEM (a) and HRTEM (d) images of the ZIS. (b,e) TEM (b) and HRTEM (e) images of the Sv-ZIS. (c,f) TEM (c) and HRTEM (f) images of the 1.5% Mo-Sv-ZIS. (g) HAADF-STEM image of the 1.5% Mo-Sv-ZIS. (h–k) EDS element mappings of Zn (h), In (i), S (j) and Mo (k) in 1.5% Mo-Sv-ZIS. (Note: The area inside the red square is the area magnified by HRTEM).
Nanomaterials 12 03980 g002
Nanomaterials 12 03980 g003 550

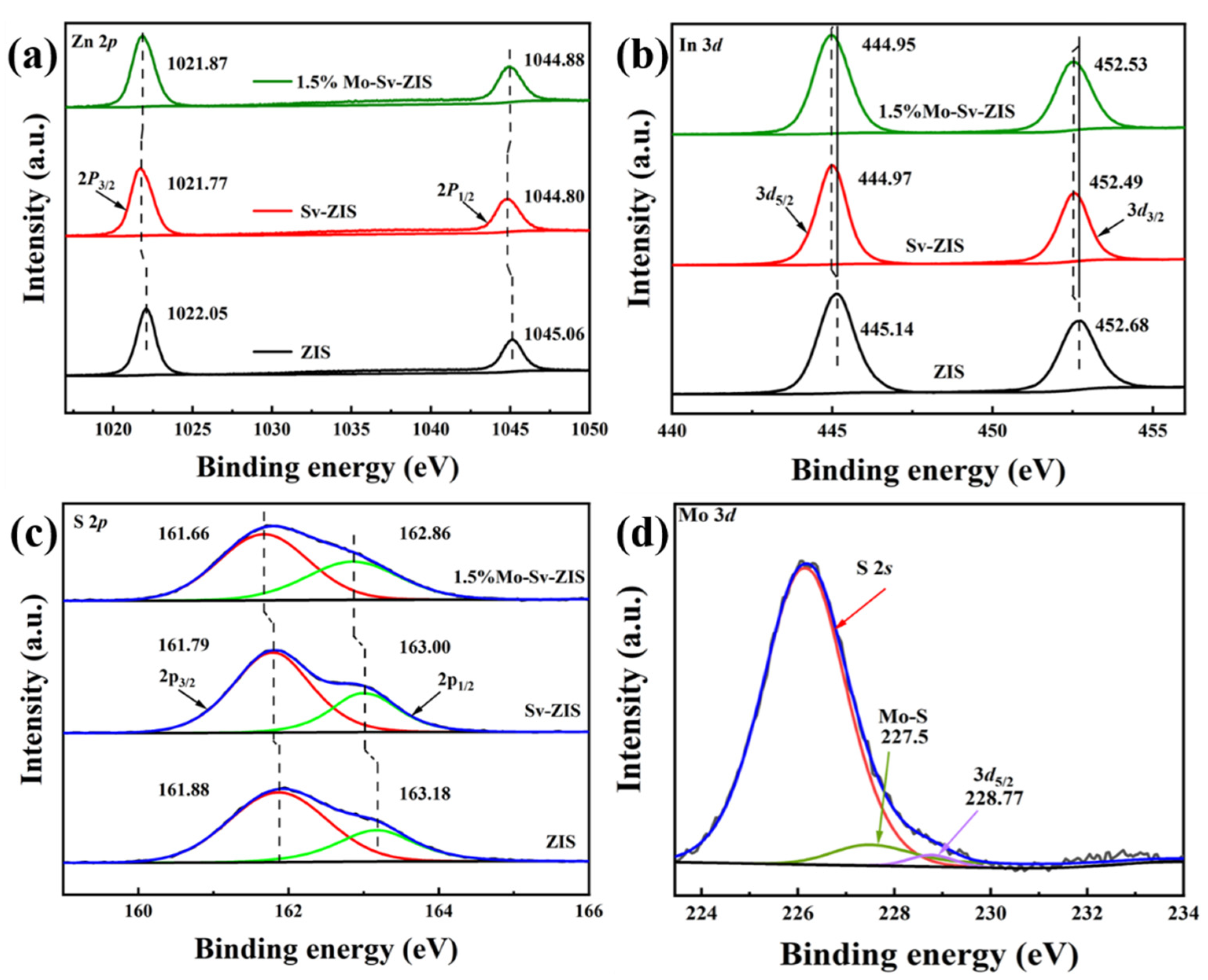

Figure 3. (a–d) High-resolution XPS spectra of Zn 2p (a), In 3d (b), S 2p (c) and Mo 3d (d) of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS.
Figure 3. (a–d) High-resolution XPS spectra of Zn 2p (a), In 3d (b), S 2p (c) and Mo 3d (d) of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS.
Nanomaterials 12 03980 g003
Nanomaterials 12 03980 g004 550

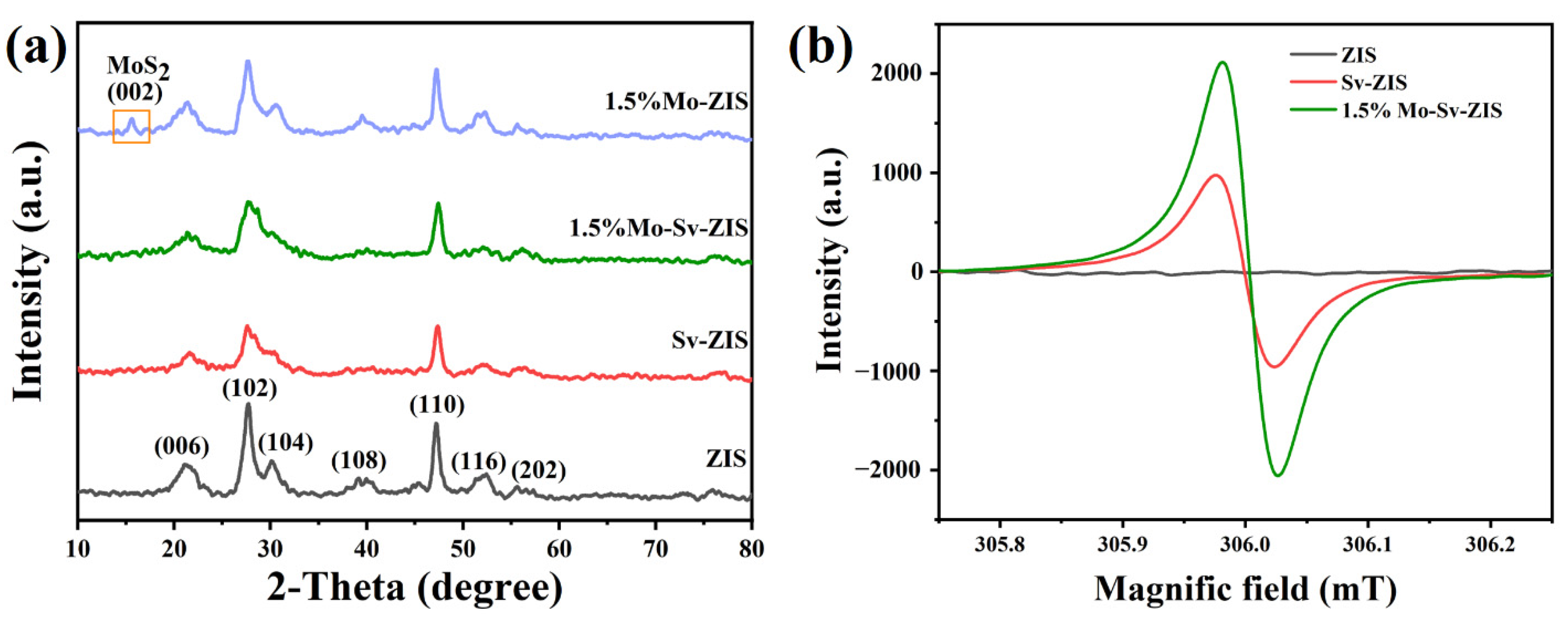

Figure 4. (a) XRD patterns of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS. (b) The EPR Spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS.
Figure 4. (a) XRD patterns of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS. (b) The EPR Spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS.
Nanomaterials 12 03980 g004
Nanomaterials 12 03980 g005 550

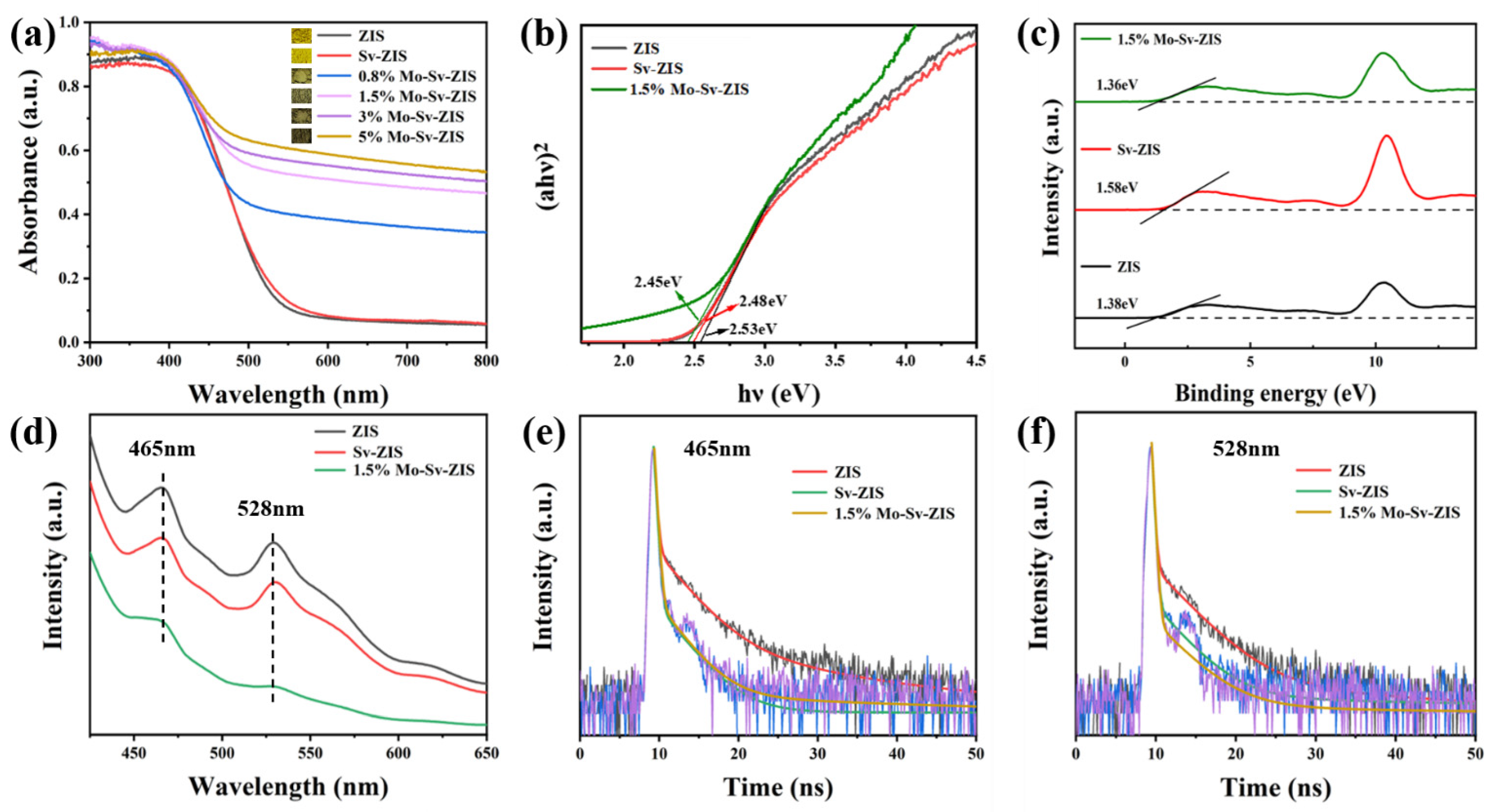

Figure 5. (a) UV–vis absorption spectra of ZIS, Sv-ZIS and x% Mo-Sv-ZIS (x = 0.8, 1.5, 3, 5). (b) (αhν)2 versus hν curves. (c) UPS spectra of the ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS. (d) PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS at 350 nm excitation. (e) Time-resolved PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS monitored at 465 nm. (f) Time-resolved PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS monitored at 528 nm.
Figure 5. (a) UV–vis absorption spectra of ZIS, Sv-ZIS and x% Mo-Sv-ZIS (x = 0.8, 1.5, 3, 5). (b) (αhν)2 versus hν curves. (c) UPS spectra of the ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS. (d) PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS at 350 nm excitation. (e) Time-resolved PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS monitored at 465 nm. (f) Time-resolved PL spectra of ZIS, Sv-ZIS and 1.5% Mo-Sv-ZIS monitored at 528 nm.
Nanomaterials 12 03980 g005
Nanomaterials 12 03980 g006 550

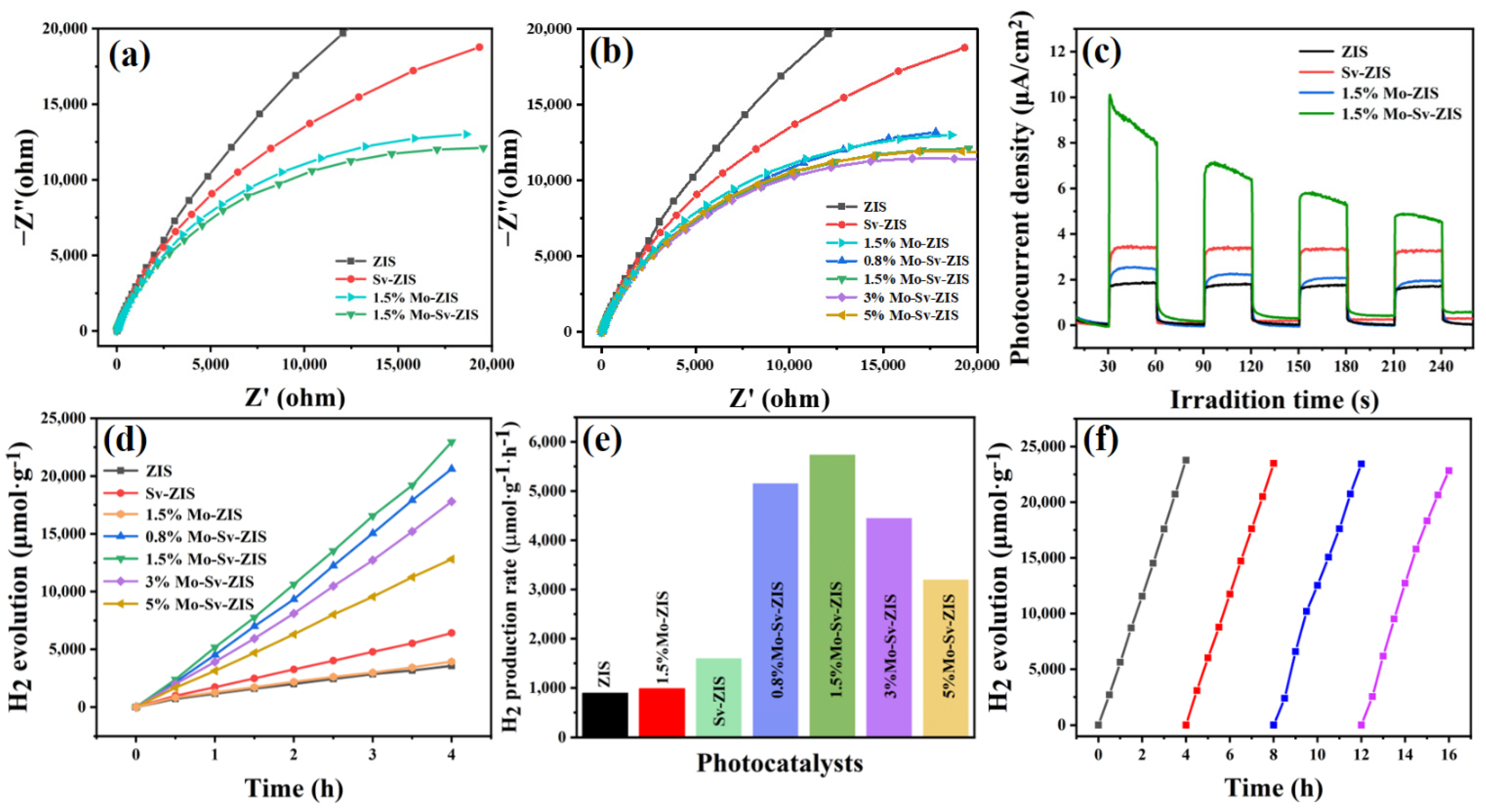

Figure 6. (a) The Nyquist plot displays the EIS of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS. (b) EIS of all the samples. (c) Transient photocurrent responses of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS electrodes under visible-light irradiation. (d) Time-dependent hydrogen evolution by photocatalysis in visible irradiation (>420 nm). (e) Photocatalytic H2 evolution rates of ZIS, Sv-ZIS, 1.5% Mo-ZIS and Mo-Sv-ZIS with different Mo contents. (f) Hydrogen evolution cycle 16 h test on 1.5% Mo-Sv-ZIS.
Figure 6. (a) The Nyquist plot displays the EIS of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS. (b) EIS of all the samples. (c) Transient photocurrent responses of ZIS, Sv-ZIS, 1.5% Mo-ZIS and 1.5% Mo-Sv-ZIS electrodes under visible-light irradiation. (d) Time-dependent hydrogen evolution by photocatalysis in visible irradiation (>420 nm). (e) Photocatalytic H2 evolution rates of ZIS, Sv-ZIS, 1.5% Mo-ZIS and Mo-Sv-ZIS with different Mo contents. (f) Hydrogen evolution cycle 16 h test on 1.5% Mo-Sv-ZIS.
Nanomaterials 12 03980 g006
Nanomaterials 12 03980 g007 550

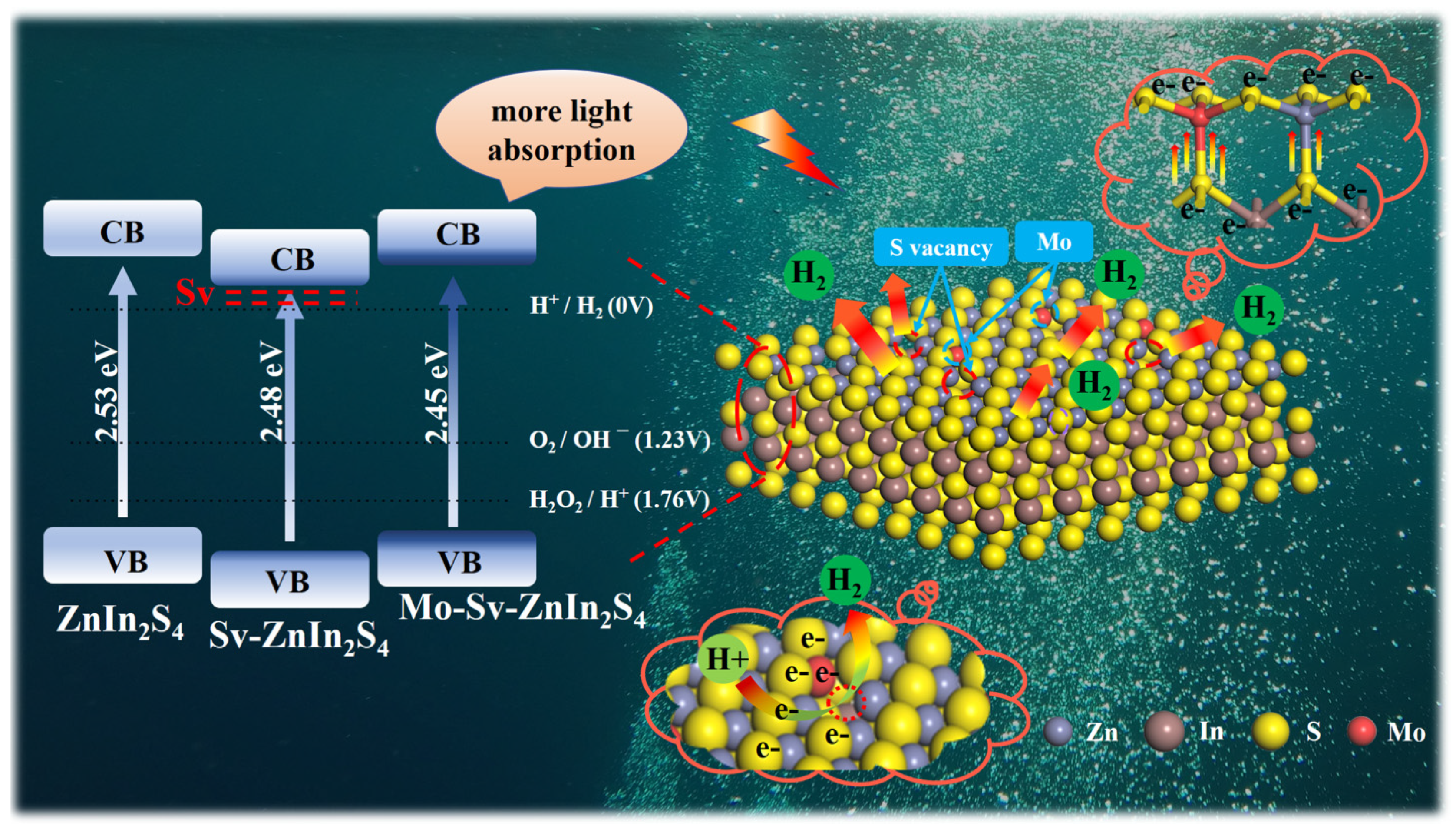

Figure 7. Schematic illustration explaining the excellent photocatalytic activity of the Mo-Sv-ZIS.
Figure 7. Schematic illustration explaining the excellent photocatalytic activity of the Mo-Sv-ZIS.
Nanomaterials 12 03980 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
