Flexible and Effective Preparation of Magnetic Nanoclusters via One-Step Flow Synthesis

by
Lin Zhou
,
Lu Ye
and
Yangcheng Lu
*
State Key Laboratory of Chemical Engineering, Department of Chemical Engineering, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(3), 350; https://doi.org/10.3390/nano12030350
Submission received: 3 January 2022 / Revised: 17 January 2022 / Accepted: 19 January 2022 / Published: 22 January 2022
(This article belongs to the Special Issue Nanomaterials Synthesis and Processing in Liquid Phase)
Browse Figures
Review Reports Versions Notes

Abstract

:
Fe3O4 nanoclusters have attractive applications in various areas, due to their outstanding superparamagnetism. In this work, we realized a one-step flow synthesis of Fe3O4 nanoclusters, within minutes, through the sequential and quantitative introduction of reactants and modifier in a microflow system. The enhanced micromixing performance enabled a prompt and uniform supply of the modifier oleic acid (OA) for both nanoparticle modification and nanocluster stabilization to avoid uncontrolled modified nanoparticles aggregation. The size of the nanoclusters could be flexibly tailored in the range of 50–100 nm by adjusting the amount of OA, the pH, and the temperature. This rapid method proved the possibility of large-scale and stable production of magnetic nanoclusters and provided convenience for their applications in broad fields.

Graphical Abstract

1. Introduction

Magnetic nanoparticles have attracted extensive attention owing to their outstanding properties [1,2,3,4]. Among other metal nanoparticles, Fe3O4 magnetic nanoparticle has been a specially popular category that is widely applied in various fields. These fields include targeted drug delivery [5,6], magnetic hyperthermia [7,8], photothermal therapy [9], contrast agent in magnetic resonance imaging (MRI) [10,11], biosensor [12], magnetic field-assisted separation [13,14], catalyst [15,16,17], and so on. Most of the applications utilized the magnetism of Fe3O4 nanoparticles, putting forward a high demand for their magnetic response.
In order to utilize the advantage of superparamagnetism instead of ferromagnetism of the bulk magnet, Fe3O4 with a size smaller than 15 nm is usually required in practice [18]. However, the magnetism of individual nanoparticles is usually too weak to make an effective magnetic response. Moreover, individual nanoparticles tend to aggregate owing to the strong surface–surface interaction and the large surface-to-volume ratio, which has a negative impact on long-term applications [19,20,21]. To resolve these problems, the controllable assembly of nanoparticles into nanoclusters, which are larger clusters containing a finite number of nanoparticles, might provide an appropriate solution [22].
Various methods have been proposed to prepare Fe3O4 nanoclusters with controllable size and shape. They could be generally summarized into two categories, namely in situ synthetic method and post-assembly of ligand-grafted nanoparticles. The representatives of the former category include solvothermal synthesis and thermal decomposition. For example, Xu [23] employed various biopolymers as structure-directing ligands to synthesize nanocrystal clusters through solvothermal synthesis and revealed the function of the self-sacrificing template of the biopolymeric ligand. Moreover, the prepared nanoclusters were applied as drug delivery vehicles to encapsulate drugs for chemotherapy for cancers. Aleksey [24] synthesized magnetite nanoclusters that could be used as contrast agents for MRI by the thermal decomposition method in one step and investigated the effect of organic acid as surfactant on the size and shape of the products. Besides the above substrates, sodium citrate [25] and sodium acetate [26] were frequently utilized as stabilizers in subsequent works. Although magnetite nanoclusters could be synthesized within one step with tunable size and morphology, the process is still challenged by some problems, such as expensive reagents, low production efficiency, poor atomic economy, and so on.
As for the post-assembly, in general, Fe3O4 nanoclusters were synthesized with preformed Fe3O4 nanoparticles, and an external trigger was employed to the system to modify the interparticle forces and initiate assembly [27]. Some processes applied encapsulation or grafting to realize assembly. Kim [28] encapsulated iron oxide nanoparticles with amphiphilic block-copolymer and obtained magnetomicelles through the crosslinking of polyacrylic acid (PAA) shells. Larken [29] obtained uniform clusters containing approximately 20 particles each, where block copolypeptide poly(EG2-lys)100-b-poly(asp)30 was bounded to the surface of the nanoparticles through electrostatic interactions to form a micelle shell that is capable of controlling the size of the clusters through altering the composition of the block copolypeptide. Zhuang [30] obtained polar-solvent-dispersible Fe3O4 nanoclusters by using solvophobic interactions. Fu [31] applied a ligand-stripping method to remove the original capping ligand with diols and induced the creation of secondary nanoclusters with different sizes. Some works have also introduced operation modules to synthesize Fe3O4 nanoclusters. For example, Chang [32] used the membrane emulsification and solvent pervaporation method to synthesize magnetic nanoclusters with sizes between 100 and 300 nm continuously and coated the clusters with silica for further functionalization. In summary, colloidal interactions were used in post-assembly, including Van der Waals force, electrostatic, ligand interactions, and so on, which could be manipulated under a mild environment, but involved with complex steps and additional solvents or functional ligands, nevertheless.
Of all the methods, controlling the surface properties of primary particles and the interaction between particles is a common key point. The agglomeration caused by the interaction between nanoparticles is a rapid and sensitive process that requires efficient control methods. In our previous work, water-dispersible Fe3O4 nanoclusters were obtained via a micromixer, which could realize rapid solvent exchange and accurate size control [33]. This method benefited from the outstanding mixing performance of the micromixer, which could achieve the even and sufficient allocation of surfactant in a short time. This inspired us to start from the nano-precipitation process and realize end-to-end continuous preparation of Fe3O4 nanoclusters by precisely tailoring the grafting behavior of oleic acid (OA) onto the surface of the nanoparticles during the modification and aqueous self-assembly process online [34,35,36,37,38,39,40,41,42,43]. This method opened up a brand-new opportunity to realize the preparation of bilayer OA-coated Fe3O4 nanoclusters with stable dispersion and adjustable size in an aqueous phase and facilitate their subsequent application to a great extent.

2. Experimental

2.1. Materials

Both anhydrous iron(III) chloride (FeCl3, 98%) and iron(II) chloride tetrahydrate (FeCl2·4H2O, 99%+) were obtained from Acros (Geel, Belgium). Ammonium hydroxide (NH3·H2O, 28 wt%) was obtained from Peking Reagent (Beijing, China). The surface ligand oleic acid (C18H34O2, 90%+) was purchased from Alfa Aesar (Lancashire, UK). All the above chemicals were used without further purification. Water used throughout the experiment was prepared by an ultrapure water system (Center 120FV-S, The lab, Shanghai, China).

2.2. Characterization

The crystal phase of the cluster was analyzed by using an X-ray powder diffractometer (XRD, D8-Advance, Bruker, Berlin, Germany). The morphology of the cluster was observed with a transmission electron microscopy (TEM, JEM2010, JEOL, Tokyo, Japan). Before TEM measurement, the dispersion sample was diluted with water to a solid content of 0.2 mg/mL, cast onto the carbon films, and dried at room temperature. The size distribution of the clusters was measured by using dynamic light scattering (DLS, Malvern Panalytical, Malvern, UK). Herein, the polydispersity index (PDI) was applied to represent the monodispersity of the cluster, which was calculated by using Equation (1)
PDI = σ 2 Z D 2
where ZD is the intensity weighted mean hydrodynamic size of the collection of particles measured by DLS, and σ is the standard deviation. To determine the amount of organic grafting on the surface, thermogravimetric analysis was carried out with a STA 409 PC apparatus (TGA, NETZSCH, Selb, Germany) at a heating rate of 10 °C·min−1, from room temperature to 600 °C, under a nitrogen atmosphere. The magnetic properties of the cluster were measured by a superconducting quantum interference device (VSM, SQUID, Quantum Design, San Diego, CA, USA). Fourier-transform infrared spectroscopy (FTIR, Nexus 670, Nicolet, Madison, WI, USA) was used to characterize the surface of the cluster. The samples were ground with KBr and pressed to the tablet before measurement. The contact-angle-measuring instrument (CA, OCAH200, Dataphysics, Filderstadt, Germany) was used to characterize the hydrophilicity of the cluster. The surface composition of the cluster was investigated by X-ray photoelectron spectroscopy (XPS, PHI5300, Ulvac-Phi, Chigasaki, Japan), and the XPS split-peak fitting process was carried out by using the method used in the literature [44].

2.3. Continuous Synthesis of Bilayer OA-Coated Fe3O4 Nanoclusters

A continuous co-precipitation, in situ modification, and self-assembly method in an aqueous solution were exploited for the preparation of finite-sized Fe3O4 nanoclusters. The schematic of the experimental setup is shown in Figure 1. The core of the setup is the membrane dispersion microreactor reported in our previous work [45], where the geometric size of the microchannel is 20 mm × 20 mm × 4 mm (length × width × height). We used a 316 L stainless-steel membrane with an average pore diameter of 5 μm as the dispersion medium. In a typical synthesis, a mixing aqueous solution containing Fe (II) (0.2 M) and Fe (III) (0.4 M) was used as the continuous fluid, and 7.3 M ammonia hydroxide was used as the dispersed fluid. Both of them were delivered at the flow rate of 10 mL/min to mix in the first membrane dispersion microreactor to generate precipitates immediately. The aqueous solution containing bare Fe3O4 nanoparticles flowed through a delayed tube with an 18.84 s residence time (residence time 1) and entered the second membrane dispersion microreactor as a continuous fluid, where the dispersed fluid of ammonia solution containing 0.1 M OA was introduced at a flow rate of 10 mL/min, to mix and trigger the modification and self-assembly process. After the slurry was aged for 12.56 s (residence time 2), a black-brown stable water-based magnetic fluid was obtained. The whole process was conducted at 60 °C, within a water bath.

3. Results and Discussion

3.1. Feasibility of Continuous Preparation of Bilayer OA-coated Fe3O4 Nanoclusters

Under the typical synthetic conditions described above, the products were characterized by using XRD, XPS, TEM, FTIR, TGA, and VSM to determine their composition, structure, morphology, and surface properties. Figure 2 shows the XRD patterns of the samples. The diffraction peaks at (220), (311), (400), (422), (511), (440), (620), and (533) are the characteristic peaks of the Fe3O4 crystal with a cubic spinel structure (JCPDS85-1436). It is known that Fe3O4 can be oxidized to γ-Fe2O3, and γ-Fe2O3 can be further transformed into α-Fe2O3 at a higher temperature. The diffraction peaks of γ-Fe2O3 and α-Fe2O3 are at (110), (113), (210), and (213) [46]. In this work, the Fe 2p XPS spectrum (Supplementary Figure S1a) could be successfully fit to three main peaks and two satellite peaks, and no peak could be attributed to impurities, such as γ- or α- Fe2O3. The lowest binding energy peak at 710.6 eV is attributed to Fe2+, with a corresponding satellite peak at 717.5 eV. A binding energy of the Fe3+ octahedral species was found at 711.6 eV, while that of tetrahedral species was 714 eV. These values are comparable to those in References [47,48], and, Fe2+/Fe3+ = 0.54, slightly greater than the 0.5 expected from the stoichiometry of Fe3O4. The above results showed that, although OA was introduced in a short time, it did not affect the formation of Fe3O4 nanoparticles with a complete crystal structure and even prevented further oxidation. Additionally, according to Scherrer’s formula, the mean size of crystal grains was 8.84 nm, which met the requirement of diameters lower than 15 nm for superparamagnetism.
From the TEM images (Figure 3a,b), it could be seen that the samples on the carbon film were quasi-spherical aggregates composed of dozens of Fe3O4 nanoparticles, and the lattice fringes had spacings of 0.25 and 0.50 nm (Figure 3c) corresponding to the (311) and (111) crystal planes of Fe3O4, respectively. The size measurement using DLS showed that the average hydraulic diameter of the clusters was 47.9 nm (PDI = 0.165) (Figure 3d), which was approximately equal to the size of the double OA layers (about 3.3 nm [49]) and the magnetite core (about 42 nm in the results of TEM). This initially implied the success of the in situ modification of OA.
Figure 4a showed the FTIR spectrum of the samples. The bare Fe3O4 nanoparticles had a strong absorption peak near 590 cm−1, which corresponded to the stretching vibration of the Fe–O bond. The bands at 2923 and 2853 cm−1 were attributed to the symmetric and asymmetric stretch of –CH2, which proved the existence of OA. In addition, the characteristic peaks belonging to the bare Fe3O4 surface at 3443 and 1630 cm−1 disappeared, and the new bands at 1531 and 1441 cm−1 appeared, corresponding to the symmetric and asymmetric stretch vibration of –COO− of OA. According to Zhang [50], the type of interaction between the carboxylate and metal atom can be distinguished by calculating the wavenumber separation between these two peaks. As illustrated in Figure 4c, the wavenumber separation was 90 cm−1, less than 110 cm−1, indicating the existence of a bidentate bond. Additionally, the stretching vibration peak of C=O corresponding to free carboxylate appeared at 1710 cm−1, which indicated that a double-molecular layer on the surface of the sample was formed by the interaction of the hydrophobic tails owing to the excessive amounts of OA. The contact angle (Supplementary Figure S2) proved that the prepared clusters had strong hydrophilicity in an alkaline environment, because the negatively charged –COO− group of the outer physically adsorbed layer provided hydrophilic and electrostatic repulsion forces for the clusters. In the XPS spectrum (Supplementary Figure S1b), the three peaks with binding energies of 530.1, 531.2, and 532.6 eV can be fitted by the O 1 s. The strongest peak at 530.1 eV resulted from lattice oxygen in Fe3O4. The peaks at 532.6 and 531.2 eV correspond to the oxygen of the carboxyl in the physically adsorbed layer and the oxygen in the bidentate bond, respectively [51,52,53]. The obvious two steps of weight loss in the results of TGA (Figure 4b) indicated that the bilayer coating of OA on the surface of Fe3O4 clusters can be achieved by rapid-flow synthesis. Among them, a slight weight loss of approximately 0.1 wt% was found between 20 and 100 °C, which could be attributed to the evaporation of a part of the bound water. The weight loss between 100 and 325 °C (18.5 wt%) was caused by the degradation of OA physically adsorbed in the outer layer. The weight loss between 325 and 500 °C (17.7 wt%) could be attributed to the degradation of OA chemically adsorbed in the inner layer. Between 500 and 600 °C, the thermogravimetric curve was level, indicating that the surface-coated OA was degraded completely. (In contrast, XPS spectra and thermogravimetric analysis of bare Fe3O4 nanoparticles under the same conditions are supplemented in Supplementary Figures S1b,d and S3, respectively).
From Figure 5, it can be seen that the coercivity and remanence of the samples were zero, exhibiting superparamagnetism with a saturation magnetization of approximately 60.5 emu/g, which was slightly lower than that of bare Fe3O4 nanoparticles (62.9 emu/g) under the corresponding conditions. This showed that the modification of OA would not change the superparamagnetic behavior of magnetic particles, but would reduce their saturation magnetization, due to the decrease of the effective atoms contributing to the magnetism of the samples. Considering the content of OA, the saturation magnetization of the magnetite core could reach 94.8 emu/g, which was even higher than the 92 emu/g of the bulk maghemite, indicating that the prepared clusters had high magnetic responsiveness.
In a word, Fe3O4 nanoclusters with a bilayer OA coating, narrow size distribution, and satisfactory saturation magnetization could be obtained within 30 s by performing continuous flow synthesis, in situ modification, and self-assembly.

3.2. Influence Factors on the Formation of Bilayer OA-Coated Fe3O4 Nanoclusters

To obtain an insight into the process of in situ modification and self-assembly of Fe3O4 nanoparticles into clusters, a series of experiments were carried out under various conditions. The experimental conditions and results are summarized in Table 1.

3.2.1. Effect of the Residence Time

By changing the residence time 1 of the particles in the microchannel after co-precipitation, the evolution of the initial particle growing process could be explored. As shown in Figure 6a, the mean size of the clusters from unaged primary particles was 110.9 nm (PDI = 0.443), showing a three-peaks distribution with the existence of large aggregates. By increasing the residence time 1 to 6.28 s, the mean size of the clusters decreased to 71.1 nm, showing a narrow unimodal size distribution (PDI = 0.201), but there was still a small tailing. When the residence time 1 was prolonged to 18.84 s, the size of the clusters significantly decreased to 47.9 nm as the PDI value decreased to 0.165. As for the XRD patterns (Supplementary Figure S4), with the increase of residence time 1 from 0 to 18.84 s, an obvious increase (45%) of the peak intensity could be found, proving the improvement of the crystallinity. The results showed that the primary particles formed by co-precipitation need to age for a certain time to reach a stable state. Otherwise, the unstable particles with more surface defects and covered with more –OH groups may result in a significant increase of the grafting of OA in the inner layer and accelerate the agglomeration rate, as well as be prone to forming unstable aggregates. In addition, prolonging the time of modification and self-assembly could produce clusters with smaller and more uniform sizes (Figure 6b). A possible explanation is that more OA was adsorbed on the outer surface of the cluster to form a denser double-layer coating in favor of cluster stabilization.

3.2.2. Effect of the Amount of OA

As shown in Figure 7, when the concentration of OA was decreased from 0.1 to 0.060 M, the mean size of the clusters increased to 97.6 nm, and the PDI also increased to 0.183. When the concentration of OA was 0.060 M, a bimodal distribution was observed, including large clusters with a size of approximately 200 nm and small clusters with a size of approximately 50 nm. When the concentration of OA was further decreased to 0.035 M, the magnetic fluid was completely unstable, and the bulk aggregates precipitated out of the aqueous phase quickly. The results showed that there was a threshold value for the amount of OA. A small amount of OA might be insufficient to stabilize all clusters against aggregation, and an excessive amount of OA would cause unnecessary waste of raw materials and increase the cost of the post-treatment process. Based on the monolayer adsorption model proposed by Shen [54], when a single spherical Fe3O4 nanoparticle (supposing that all nanoparticles were 8.8 nm spheres) was completely coated with monolayer OA, the theoretical amount of OA in the OA-modified Fe3O4 nanoparticles was 22 wt%, while 44 wt% OA was required to form a dense double-layer OA coating. When the amount of OA was more than 22 wt%, monolayer adsorption on the surface of the particles was preferentially formed via chemical bonding, inducing the instability of the particles to form clusters. To reduce the surface energy in the aqueous phase, excessive OA was physically absorbed on the primary layer with the hydrophobic tails, and the outward hydrophilic group prevented the further aggregation of the clusters until a stable double-layer coating structure was formed. Since the binding rate could be accelerated by increasing the concentration of free OA in the aqueous phase, the coating speed of the outer layer OA could be controlled by adjusting the amount of OA to realize the effective control of the size of clusters.

3.2.3. Effect of the pH

The isoelectric point of Fe3O4 was at pH = 6.5 [55]. Correspondingly, the pH of the aqueous environment might influence Fe3O4 nanoparticles in terms of electrostatic repulsion and surface properties and then affects the adsorption process of OA. We adjusted the concentration of ammonia hydroxide used in coprecipitation (the concentration of ammonia hydroxide needed for complete reaction with the iron source was 1.6 M) to investigate the effect of pH. It could be seen that the preparation process was very sensitive to the pH (Figure 8). With the decrease of pH from 10.3 to 9.7, the mean size of the cluster increased to 122.6 nm (PDI = 0.215) with a bimodal distribution. This could be attributed to the partial protonation of the hydrophilic –COO− group of outer OA layer to the hydrophobic –COOH group, inducing further agglomeration of the clusters. Notably, it was found in experiments that, by bubbling with pure nitrogen or adding HCl solution until pH ≤ 7, the clusters could precipitate from the aqueous phase, during which the hydrophilic –COO− group of the outer OA layer was completely transformed to the hydrophobic –COOH group without destruction of the bilayer-coated structure and the Fe3O4 core. The separated clusters could also be redispersed in n-hexane to realize the transfer of magnetic clusters from aqueous phase medium to oil phase medium, which might have potential applications in various fields.

3.2.4. Effect of the Temperature

At room temperature, the as-prepared magnetic emulsion was not stable in the aqueous phase (Figure 9). The clusters agglomerated heavily and rapidly precipitated out from the solution during storage. When the temperature of the system increased to 35 °C, relatively stable clusters with a mean size of 103.2 nm were obtained, but the uniformity was poor. Even a bimodal distribution was found. When the temperature was increased to 60 °C, the diameter of the clusters decreased to 47.6 nm, which could remain stable for a long time. At this temperature, the physical adsorption process of the outer OA layer was greatly accelerated, and this could effectively control the aggregation process.

3.3. Proposed Mechanism of Bilayer OA-Coated Fe3O4 Nanocluster Formation

According to the above analysis and discussion, we attempted to propose a formation mechanism of bilayer OA-coated Fe3O4 nanoclusters with the combination of nano-precipitation, in situ modification, and self-assembly process, as shown in Figure 10. In an alkaline environment, the Fe3O4 nanoparticles prepared by co-precipitation could maintain stability in the aqueous phase for a short time, due to the strong electrostatic repulsion, providing a uniform assembly environment. Additionally, the terminal hydrophobic –COOH group of OA deprotonated to the hydrophilic –COO− group, which was much more easily grafted to the hydroxyl group on the surface of the Fe3O4 nanoparticles. Thanks to the excellent mass transfer performance enabled by the micromixer, OA could be quickly adsorbed on the surface of the particles to form a monolayer coating, preventing the growth of the initial particles. Meanwhile, the action of the terminal hydrophobic chain of OA caused the instability and agglomeration of the modified particles to form clusters in the aqueous phase. Due to OA’s high surface energy in the aqueous medium, hydrophobic tails of –(CH2)7CH=CH(CH2)7CH3 of excessive OA rapidly oriented to the same hydrophobic tails of the modified clusters, forming an interdigitated bilayer structure. In addition, the negatively charged and hydrophilic –COO− group of the outer OA layer was extended into the aqueous phase, restraining the uncontrollable growth of clusters and maintaining stable dispersion in the aqueous phase, due to the electrostatic repulsion and steric hindrance effect.
The mechanism of the bilayer OA-coated Fe3O4 nanoclusters formation implies that the in situ modification and self-assembly process are tandem processes that are greatly dependent on the difference between the adsorption rate of the double OA layers. Among them, the process of nanoparticle modification by the inner OA layer was a reaction-limited regime, which could be regarded as an instant process. The process of nanocluster stabilization by the outer OA layer was a diffusion-limited regime, and the adsorption rate was controlled by the amount of OA, the pH, and the temperature. Accordingly, due to the shortening of the distance between particles in the system with a high reactant concentration, the agglomeration caused by monolayer modification of OA was intensified, causing the particles agglomerate into large aggregates in a short time. Thanks to the intensified mixing performance of the micromixer, the second layer of OA could reach the surface of the clusters promptly to inhibit the uncontrollable growth of the cluster. In contrast, the mixing performance of the stirred tank was not ideal enough to control this process (Supplementary Figures S5 and S6), owing to its poor mixing performance and uniformity of space–time. Furthermore, the product was prone to oxidation when exposed to an oxygen atmosphere for a long time in the batch process; additionally, introducing inert gas protection would bring extra energy consumption. Therefore, the highly efficient mixing and oxygen-free environment provided by micromixing technology created the conditions for the in situ modification and self-assembly of oxygen-sensitive nanoparticles, and this is more economical and executable for industrialization.

4. Conclusions

In this work, a facile and productive preparation method of Fe3O4 nanoclusters was provided by the combination of a membrane dispersion microreactor and in situ introduction of excessive OA. With the above continuous flow synthesis mode, the prepared Fe3O4 nanoclusters had the characteristics of narrow size distribution and relatively high saturation magnetization (up to 60.5 emu/g with 36.2% OA content). Based on the characterization of XRD, XPS, FTIR, TGA, and so on, the binding modes between the Fe3O4 nanoparticles and double OA layers were confirmed, indicating the effective interaction during a short period thanks to the enhanced mixing and confinement effect provided by the membrane dispersion microreactor. The effects of the residence time, amount of OA, pH, and temperature were studied comprehensively, and the mechanism of the in situ modification and self-assembly process was proposed. The method enabled the control over the adsorption rate of the double OA layers. As a result, flexible adjustment of the nanocluster size in the range of 50–100 nm was available. Compared with the multistep and hour-level preparation obtained in the batch process, the preparation of bilayer OA-coated Fe3O4 nanoclusters could be completed under a continuous and oxygen-free condition within 30 s. In a word, the method presented in our work brought a continuous synthesis of uniform Fe3O4 nanoclusters with the advantages of being effective, economic, controllable, operable, easy to scale up, and potentially suitable for industry. In addition, the synthesis approach could be readily generalized for efficient and continuous preparation of other nanoclusters.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/nano12030350/s1. Figure S1: XPS spectra of bilayer OA-coated Fe3O4 nanoclusters for (a) Fe 2p and (b) O 1 s; and bare Fe3O4 nanoparticles under the same conditions for (c) Fe 2p and (d) O 1 s. Figure S2: Contact angle of bilayer OA-coated Fe3O4 nanoclusters. Figure S3: Thermogravimetric analysis of bare Fe3O4 nanoparticles under the same conditions. Figure S4: XRD patterns for nanoclusters obtained with different residence time 1. Figure S5: (a) TEM images and (b) size distribution of bilayer OA-coated Fe3O4 nanoclusters prepared in batch. Figure S6: Thermogravimetric analysis of bilayer OA-coated Fe3O4 nanoclusters prepared in batch.

Author Contributions

Conceptualization and methodology, Y.L., L.Z. and L.Y.; formal analysis, investigation and data curation, L.Z. and L.Y.; resources and supervision, Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China under Grant, grant number 21422603, U1662120, 21978152.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Drbohlavova, J.; Hrdy, R.; Adam, V.; Kizek, R.; Schneeweiss, O.; Hubalek, J. Preparation and properties of various magnetic nanoparticles. Sensors 2009, 9, 2352–2362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Issa, B.; Obaidat, I.M.; Albiss, B.A.; Haik, Y. Magnetic nanoparticles: Surface effects and properties related to biomedicine applications. Int. J. Mol. Sci. 2013, 14, 21266–21305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Tishkevich, D.I.; Vorobjova, A.I.; Vinnik, D.A. Formation and corrosion behavior of Nickel/Alumina nanocomposites. Solid State Phenom. 2020, 299, 100–106. [Google Scholar] [CrossRef]
  4. Tishkevich, D.I.; Vorobjova, A.I.; Trukhanov, A.V. Thermal Stability of Nano-Crystalline Nickel Electrodeposited into Porous Alumina. Solid State Phenom. 2020, 299, 281–286. [Google Scholar] [CrossRef]
  5. Li, L.; Liu, C.; Zhang, L.; Wang, T.; Yu, H.; Wang, C.; Su, Z. Multifunctional magnetic–fluorescent eccentric-(concentric-Fe3O4@SiO2)@Polyacrylic acid Core–Shell nanocomposites for cell imaging and pH-responsive drug delivery. Nanoscale 2013, 5, 2249–2253. [Google Scholar] [CrossRef] [PubMed]
  6. Dukenbayev, K.; Korolkov, I.V.; Tishkevich, D.I.; Kozlovskiy, A.L.; Trukhanov, S.V.; Gorin, Y.G.; Shumskaya, E.E.; Kaniukov, E.Y.; Vinnik, D.A.; Zdorovets, M.V.; et al. Fe3O4 nanoparticles for complex targeted delivery and boron neutron capture therapy. Nanomaterials 2019, 9, 494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Feng, W.; Zhou, X.; Nie, W.; Chen, L.; Qiu, K.; Zhang, Y.; He, C. Au/Polypyrrole@Fe3O4 nanocomposites for MR/CT Dual-Modal imaging guided-photothermal therapy: An in vitro study. ACS Appl. Mater. Interfaces 2015, 7, 4354–4367. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, Y.; Song, W.; Wang, D.; Ran, H.; Wang, R.; Yao, Y.; Wang, Z.; Zheng, Y.; Li, P. Phase-shifted PFH@PLGA/Fe3O4 nanocapsules for MRI/US imaging and photothermal therapy with near-infrared irradiation. ACS Appl. Mater. Interfaces 2015, 7, 14231–14242. [Google Scholar] [CrossRef]
  9. Cabana, S.; Curcio, A.; Michel, A.; Wilhelm, C.; Abou-Hassan, A. Iron oxide mediated photothermal therapy in the second biological window: A comparative study between magnetite/maghemite nanospheres and nanoflowers. Nanomaterials 2020, 10, 1548. [Google Scholar] [CrossRef]
  10. Mosafer, J.; Abnous, K.; Tafaghodi, M.; Jafarzadeh, H.; Ramezani, M. Preparation and characterization of uniform-sized PLGA nanospheres encapsulated with oleic acid-coated magnetic-Fe3O4 nanoparticles for simultaneous diagnostic and therapeutic applications. Colloids Surf. A 2017, 514, 146–154. [Google Scholar] [CrossRef]
  11. Hu, Y.; Mignani, S.; Majoral, J.P.; Shen, M.; Shi, X. Construction of iron oxide nanoparticle-based hybrid platforms for tumor imaging and therapy. Chem. Soc. Rev. 2018, 47, 1874–1900. [Google Scholar] [CrossRef] [PubMed]
  12. Urbanova, V.; Magro, M.; Gedanken, A.; Baratella, D.; Vianello, F.; Zboril, R. Nanocrystalline iron oxides, composites, and related materials as a platform for electrochemical, magnetic, and chemical biosensors. Chem. Mater. 2014, 26, 6653–6673. [Google Scholar] [CrossRef]
  13. Wang, P.; Wang, X.; Yu, S.; Zou, Y.; Wang, J.; Chen, Z.; Alharbi, N.S.; Alsaedi, A.; Hayat, T.; Chen, Y.; et al. Silica coated Fe3O4 magnetic nanospheres for high removal of organic pollutants from wastewater. Chem. Eng. J. 2016, 306, 280–288. [Google Scholar] [CrossRef]
  14. Wu, L.; Li, L.; Li, B.; Zhang, J.; Wang, A. Magnetic, durable, and superhydrophobic polyurethane @Fe3O4@SiO2@ fluoropolymer sponges for selective oil absorption and oil/water separation. ACS Appl. Mater. Interfaces 2015, 7, 4936–4946. [Google Scholar] [CrossRef]
  15. Kandathil, V.; Fahlman, B.D.; Sasidhar, B.S.; Patil, S.A.; Patil, S.A. A Convenient, efficient and reusable N-Heterocyclic Carbene-Palladium(II) Based Catalyst Supported on Magnetite for Suzuki–Miyaura and Mizoroki–Heck Cross-Coupling Reactions. New J. Chem. 2017, 41, 9531–9545. [Google Scholar] [CrossRef]
  16. Wilczewska, A.Z.; Misztalewska, I. Direct synthesis of imidazolinium salt on magnetic nanoparticles and its palladium complex application in the heck reaction. Organometallics 2014, 33, 5203–5208. [Google Scholar] [CrossRef]
  17. Laska, U.; Frost, C.G.; Price, G.J.; Plucinski, P.K. Easy-separable magnetic nanoparticle-supported Pd catalysts: Kinetics, stability and catalyst Re-use. J. Catal. 2009, 268, 318–328. [Google Scholar] [CrossRef]
  18. Kralj, S.; Makovec, D. Magnetic Assembly of Superparamagnetic Iron Oxide Nanoparticle Clusters into Nano chains and Nanobundles. Acs Nano 2015, 9, 9700–9707. [Google Scholar] [CrossRef]
  19. Lu, A.H.; Salabas, E.L.; Schuth, F. Magnetic nanoparticles: Synthesis, protection, functionalization, and application. Angew. Chem. Int. Ed. 2007, 46, 1222–1244. [Google Scholar] [CrossRef]
  20. Park, S.-E.; Lee, S.-W.; Yang, D.; Lee, J.K. Encapsulated Fe3O4 nanoparticles with silica thin layer as an anode material for lithium secondary batteries. Phys. Scr. 2010, 139, 014027. [Google Scholar] [CrossRef]
  21. Silva, V.A.J.; Andrade, P.L.; Silva, M.P.C.; Bustamante, D.A.; De Los Santos Valladares, L.; Albino Aguiar, J. Synthesis and Characterization of Fe3O4 nanoparticles coated with fucan polysaccharides. J. Magn. Magn. Mater. 2013, 343, 138–143. [Google Scholar] [CrossRef] [Green Version]
  22. Ge, J.; Hu, Y.; Biasini, M.; Beyermann, W.P.; Yin, Y. Superparamagnetic magnetite colloidal nanocrystal clusters. Angew. Chem. Int. Ed. 2007, 46, 4342–4345. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, S.; Sun, C.; Guo, J.; Xu, K.; Wang, C. Biopolymer-directed synthesis of high-surface-area magnetite colloidal nanocrystal clusters for dual drug delivery in prostate cancer. J. Mater. Chem. 2012, 22, 19067. [Google Scholar] [CrossRef]
  24. Nikitin, A.A.; Shchetinin, I.V.; Tabachkova, N.Y.; Soldatov, M.A.; Soldatov, A.V.; Sviridenkova, N.V.; Beloglazkina, E.K.; Savchenko, A.G.; Fedorova, N.D.; Abakumov, M.A.; et al. Synthesis of iron oxide nanoclusters by thermal decomposition. Langmuir 2018, 34, 4640–4650. [Google Scholar] [CrossRef] [PubMed]
  25. Tang, Y.; Liu, Y.; Li, W.; Xie, Y.; Li, Y.; Wu, J.; Wang, S.; Tian, Y.; Tian, W.; Teng, Z.; et al. Synthesis of sub-100 nm biocompatible superparamagnetic Fe3O4 colloidal nanocrystal clusters as contrast agents for magnetic resonance imaging. RSC Adv. 2016, 6, 62550–62555. [Google Scholar] [CrossRef]
  26. Kim, J.; Tran, V.T.; Oh, S.; Kim, C.S.; Hong, J.C.; Kim, S.; Joo, Y.S.; Mun, S.; Kim, M.H.; Jung, J.W.; et al. Scalable solvothermal synthesis of superparamagnetic Fe3O4 nanoclusters for bioseparation and theragnostic probes. ACS Appl. Mater. Interfaces 2018, 10, 41935–41946. [Google Scholar] [CrossRef] [PubMed]
  27. Stolarczyk, J.K.; Deak, A.; Brougham, D.F. Nanoparticle clusters: Assembly and control over internal order, current capabilities, and future potential. Adv. Mater. 2016, 28, 5400–5424. [Google Scholar] [CrossRef]
  28. Kim, B.-S.; Qiu, J.-M.; Wang, J.-P.; Taton, T.A. Magnetomicelles: Composite nanostructures from magnetic nanoparticles and cross-linked amphiphilic block copolymers. Nano Lett. 2005, 5, 1987–1991. [Google Scholar] [CrossRef]
  29. Euliss, L.E.; Grancharov, S.G.; O’Brien, S.; Deming, T.J.; Stucky, G.D.; Murray, C.B.; Held, G.A. Cooperative assembly of magnetic nanoparticles and block copolypeptides in aqueous media. Nano Lett. 2003, 3, 1489–1493. [Google Scholar] [CrossRef]
  30. Zhuang, J.; Wu, H.; Yang, Y.; Cao, Y.C. Supercrystalline colloidal particles from artificial atoms. J. Am. Chem. Soc. 2007, 129, 14166–14167. [Google Scholar] [CrossRef]
  31. Fu, J.; He, L.; Xu, W.; Zhuang, J.; Yang, X.; Zhang, X.; Wu, M.; Yin, Y. Formation of colloidal nanocrystal clusters of iron oxide by controlled ligand stripping. Chem. Commun. 2016, 52, 128–131. [Google Scholar] [CrossRef] [PubMed]
  32. Chang, E.P.; Hatton, T.A. Membrane emulsification and solvent pervaporation processes for the continuous synthesis of functional magnetic and janus nanobeads. Langmuir 2012, 28, 9748–9758. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, X.; Lu, Y. Highly efficient and flexible preparation of water-dispersed Fe3O4 nanoclusters using a micromixer. Particuology 2019, 45, 42–48. [Google Scholar] [CrossRef]
  34. Zou, H.; Weder, C.; Simon, Y.C. Shape-memory polyurethane nanocomposites with single layer or bilayer oleic acid-coated Fe3O4 nanoparticles. Macromol. Mater. Eng. 2015, 300, 885–892. [Google Scholar] [CrossRef]
  35. Wu, H.; Hao, L.; Chen, C.; Zhou, J. Superhydrophobic Fe3O4/OA magnetorheological fluid for removing oil slick from water surfaces effectively and quickly. ACS Omega 2020, 5, 27425–27432. [Google Scholar] [CrossRef] [PubMed]
  36. Mao, X.; Yang, D.; Xie, L.; Liu, Q.; Tang, T.; Zhang, H.; Zeng, H. Probing the interactions between pickering emulsion droplets stabilized with pH-responsive nanoparticles. J. Phys. Chem. B 2021, 125, 7320–7331. [Google Scholar] [CrossRef]
  37. Li, H.; Qin, L.; Feng, Y.; Hu, L.; Zhou, C. Preparation and characterization of highly water-soluble magnetic Fe3O4 Nanoparticles via surface double-layered self-assembly method of sodium alpha-olefin sulfonate. J. Magn. Magn. Mater. 2015, 384, 213–218. [Google Scholar] [CrossRef]
  38. Maity, D.; Agrawal, D.C. Synthesis of iron oxide nanoparticles under oxidizing environment and their stabilization in aqueous and non-aqueous media. J. Magn. Magn. Mater. 2007, 308, 46–55. [Google Scholar] [CrossRef]
  39. Liu, X.; Kaminski, M.D.; Guan, Y.; Chen, H.; Liu, H.; Rosengart, A.J. Preparation and characterization of hydrophobic superparamagnetic magnetite gel. J. Magn. Magn. Mater. 2006, 306, 248–253. [Google Scholar] [CrossRef]
  40. Soares, P.I.P.; Laia, C.A.T.; Carvalho, A.; Pereira, L.C.J.; Coutinho, J.T.; Ferreira, I.M.M.; Novo, C.M.M.; Borges, J.P. iron oxide nanoparticles stabilized with a bilayer of oleic acid for magnetic hyperthermia and MRI applications. Appl. Surf. Sci. 2016, 383, 240–247. [Google Scholar] [CrossRef]
  41. Yang, K.; Peng, H.; Wen, Y.; Li, N. Re-examination of characteristic FTIR spectrum of secondary layer in bilayer oleic acid-coated Fe3O4 nanoparticles. Appl. Surf. Sci. 2010, 256, 3093–3097. [Google Scholar] [CrossRef]
  42. Chen, M.J.; Shen, H.; Li, X.; Liu, H.F. Facile synthesis of oil-soluble Fe3O4 nanoparticles based on a phase transfer mechanism. Appl. Surf. Sci. 2014, 307, 306–310. [Google Scholar] [CrossRef]
  43. Wang, Y.M.; Cao, X.; Liu, G.H.; Hong, R.Y.; Chen, Y.M.; Chen, X.F.; Li, H.Z.; Xu, B.; Wei, D.G. Synthesis of Fe3O4 magnetic fluid used for magnetic resonance imaging and hyperthermia. J. Magn. Magn. Mater. 2011, 323, 2953–2959. [Google Scholar] [CrossRef]
  44. Wilson, D.; Langell, M.A. XPS analysis of oleylamine/oleic acid capped Fe3O4 nanoparticles as a function of temperature. Appl. Surf. Sci. 2014, 303, 6–13. [Google Scholar] [CrossRef]
  45. Tang, Y.; Lu, Y.; Luo, G. Synthesis of Micro–Nano-assembled manganese carbonate via aqueous precipitation assisted by ethanol. Ind. Eng. Chem. Res. 2017, 56, 10036–10043. [Google Scholar] [CrossRef]
  46. Shouheng Sun, H.Z.; David, B.R.; Simone, R.; Philip, M.R.; Shan, X.W.; Guanxiong, L. Monodisperse MFe2O4 (M = Fe, Co, Mn) nanoparticles. J. Am. Chem. Soc. 2004, 126, 273–279. [Google Scholar] [CrossRef]
  47. Ho, C.-H.; Tsai, C.-P.; Chung, C.-C.; Tsai, C.-Y.; Chen, F.-R.; Lin, H.-J.; Lai, C.-H. Shape-controlled growth and shape-dependent cation site occupancy of monodisperse Fe3O4 nanoparticles. Chem. Mater. 2011, 23, 1753–1760. [Google Scholar] [CrossRef]
  48. Fan, T.; Pan, D.; Zhang, H. Study on Formation mechanism by monitoring the morphology and structure evolution of nearly monodispersed Fe3O4 submicroparticles with controlled particle sizes. Ind. Eng. Chem. Res. 2011, 50, 9009–9018. [Google Scholar] [CrossRef]
  49. Lan, Q.; Liu, C.; Yang, F.; Liu, S.; Xu, J.; Sun, D. Synthesis of bilayer oleic acid-coated Fe3O4 nanoparticles and their application in pH-responsive pickering emulsions. J. Colloid Interface Sci. 2007, 310, 260–269. [Google Scholar] [CrossRef]
  50. Zhang, L.; He, R.; Gu, H.-C. Oleic acid coating on the monodisperse magnetite nanoparticles. Appl. Surf. Sci. 2006, 253, 2611–2617. [Google Scholar] [CrossRef]
  51. Hitesh, G.; Bagaria, E.T.A.; Mohammed, S.; David, E.N.; Duane, T.J. Understanding mercapto ligand exchange on the surface of FePt nanoparticles. Langmuir 2006, 22, 7732–7737. [Google Scholar] [CrossRef]
  52. Yamashita, T.; Hayes, P. Analysis of XPS spectra of Fe2+ and Fe3+ Ions in oxide materials. Appl. Surf. Sci. 2008, 254, 2441–2449. [Google Scholar] [CrossRef]
  53. Poulin, S.F.R.; Moreau-Bélanger, L.; Sacher, E. Confirmation of X-ray photoelectron spectroscopy peak attributions of nanoparticulate Iron oxides, using symmetric peak component line shapes. J. Phys. Chem. C 2010, 114, 10711–10718. [Google Scholar] [CrossRef]
  54. Lifen, S.; Labinis, P.E.; Hatton, T.A. Bilayer surfactant stabilized magnetic fluids:  Synthesis and interactions at interfaces. Langmuir 1999, 15, 447–453. [Google Scholar] [CrossRef]
  55. Gu, S.; Shiratori, T.; Konno, M. Synthesis of monodisperse, magnetic latex particles with polystyrene core. Colloid. Polym. Sci. 2003, 281, 1076–1081. [Google Scholar] [CrossRef]
Nanomaterials 12 00350 g001 550

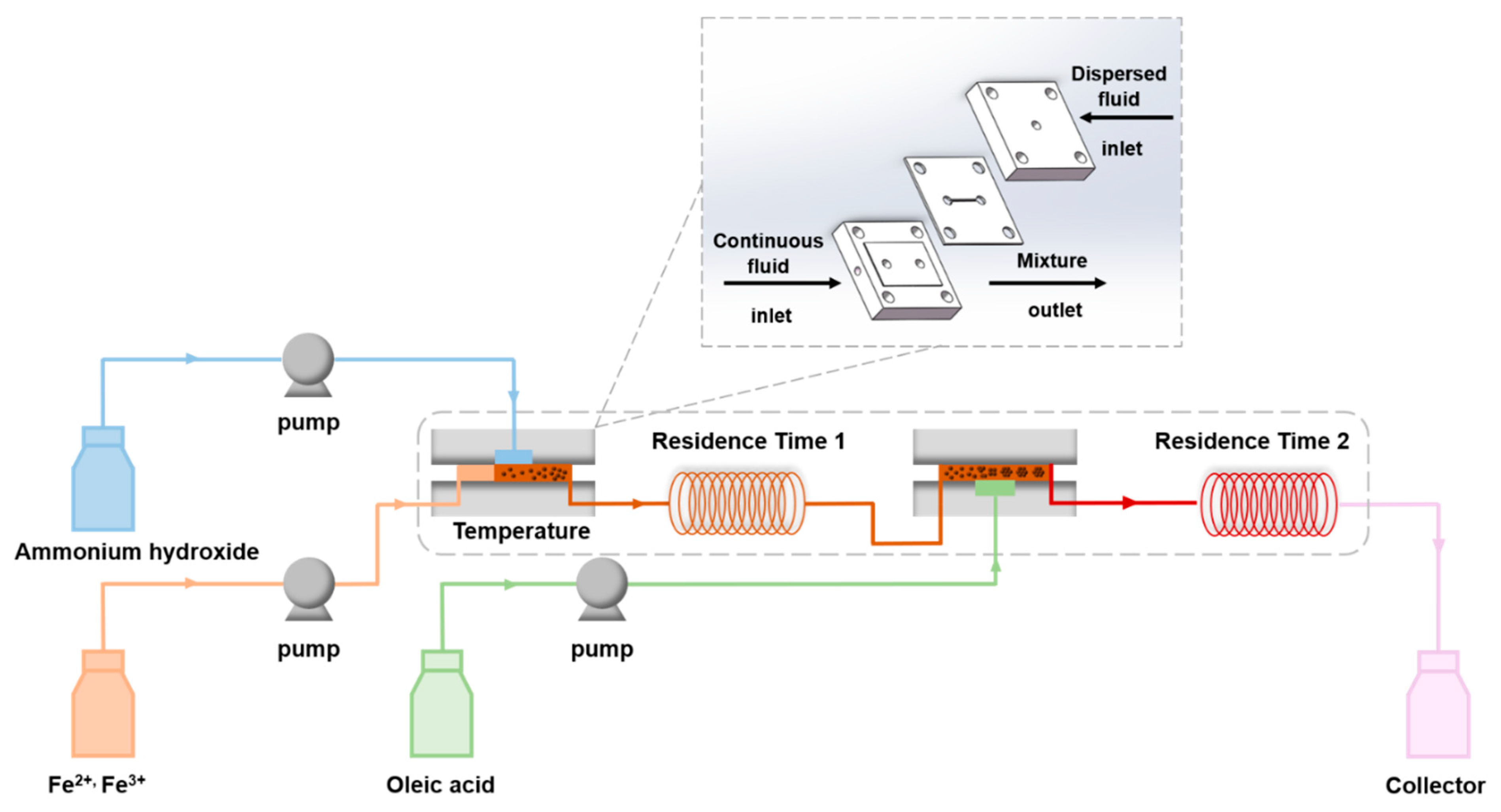

Figure 1. Schematic of the experimental setup.
Figure 1. Schematic of the experimental setup.
Nanomaterials 12 00350 g001
Nanomaterials 12 00350 g002 550
Figure 2. XRD pattern of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles under the same conditions.
Figure 2. XRD pattern of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles under the same conditions.
Nanomaterials 12 00350 g002
Nanomaterials 12 00350 g003 550

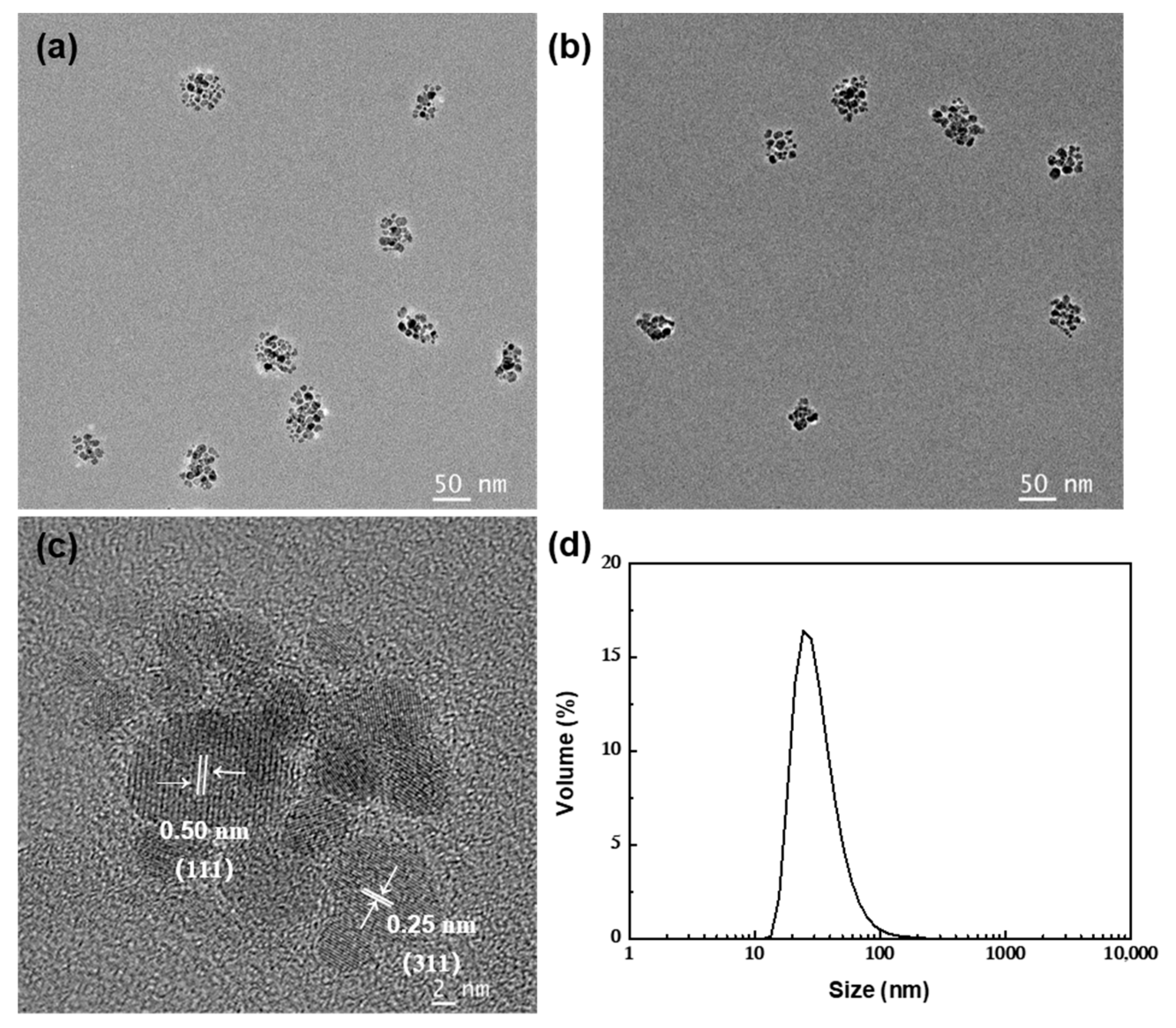

Figure 3. (a–c) TEM images of the bilayer OA-coated Fe3O4 nanoclusters and (d) size distribution.
Figure 3. (a–c) TEM images of the bilayer OA-coated Fe3O4 nanoclusters and (d) size distribution.
Nanomaterials 12 00350 g003
Nanomaterials 12 00350 g004 550

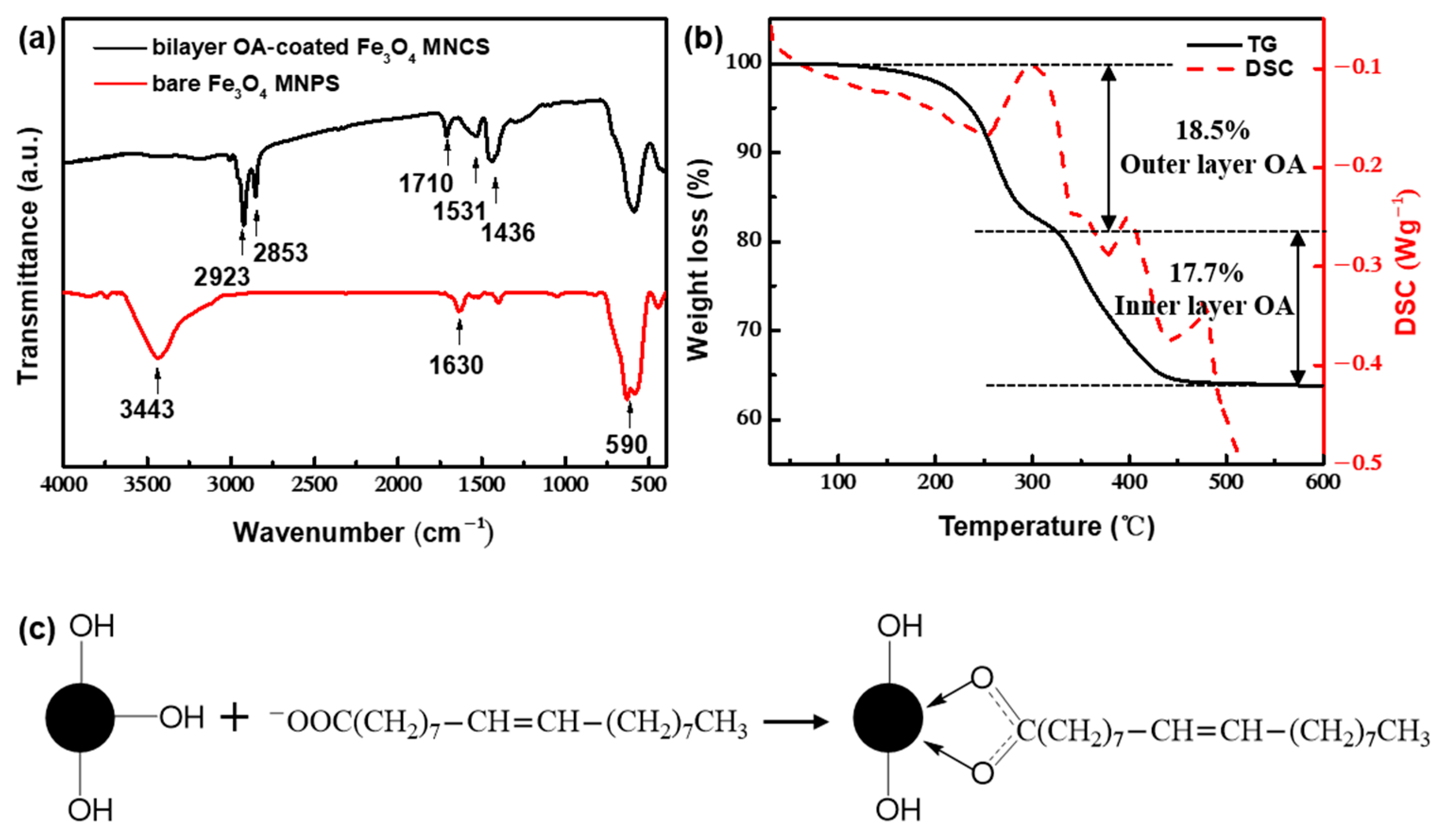

Figure 4. (a) FTIR spectra of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles under the same conditions. (b) Thermogravimetric analysis of bilayer OA-coated Fe3O4 nanoclusters. (c) Binding schemes for bidentate carboxylates.
Figure 4. (a) FTIR spectra of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles under the same conditions. (b) Thermogravimetric analysis of bilayer OA-coated Fe3O4 nanoclusters. (c) Binding schemes for bidentate carboxylates.
Nanomaterials 12 00350 g004
Nanomaterials 12 00350 g005 550
Figure 5. (a) Hysteresis loops of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles synthesized under the same conditions. (b) Magnification map of low magnetic field region.
Figure 5. (a) Hysteresis loops of bilayer OA-coated Fe3O4 nanoclusters and bare Fe3O4 nanoparticles synthesized under the same conditions. (b) Magnification map of low magnetic field region.
Nanomaterials 12 00350 g005
Nanomaterials 12 00350 g006 550

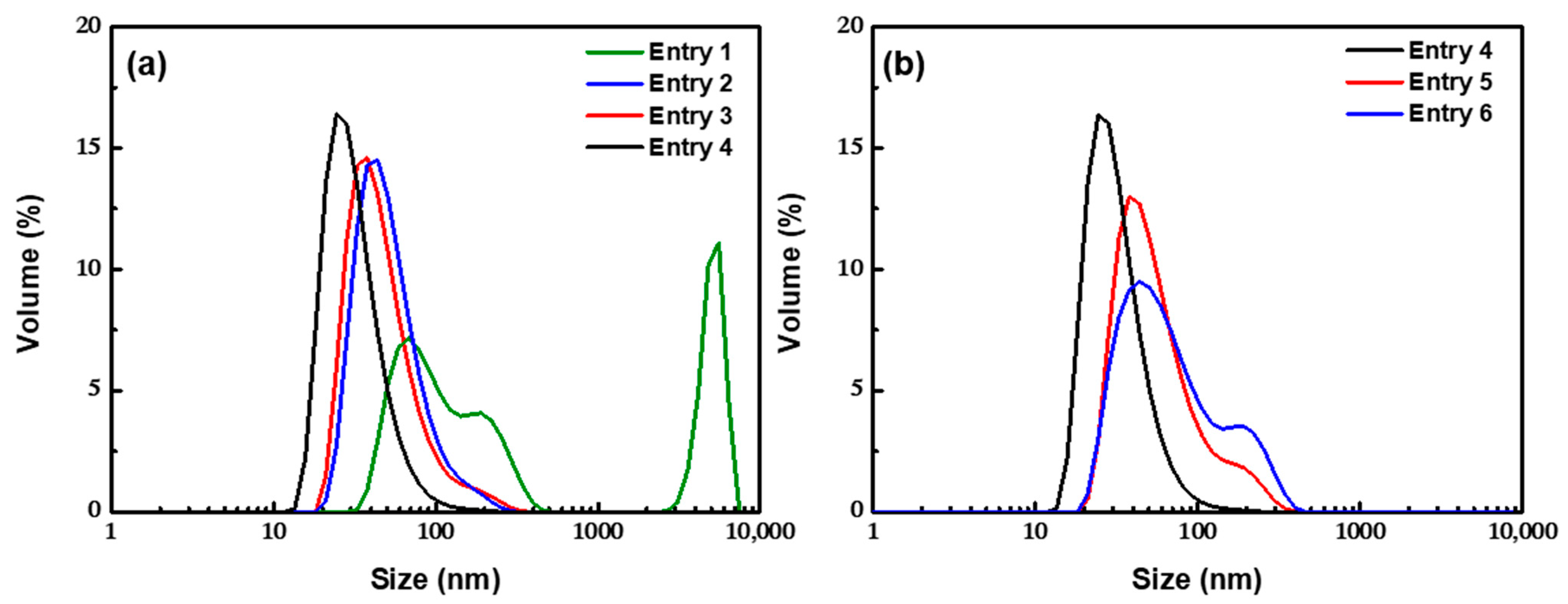

Figure 6. DLS profiles for nanoclusters obtained with (a) different residence time 1 and (b) residence time 2.
Figure 6. DLS profiles for nanoclusters obtained with (a) different residence time 1 and (b) residence time 2.
Nanomaterials 12 00350 g006
Nanomaterials 12 00350 g007 550
Figure 7. TEM images and DLS profiles for nanoclusters obtained with different amounts of OA. Scale bars indicate 20 nm.
Figure 7. TEM images and DLS profiles for nanoclusters obtained with different amounts of OA. Scale bars indicate 20 nm.
Nanomaterials 12 00350 g007
Nanomaterials 12 00350 g008 550

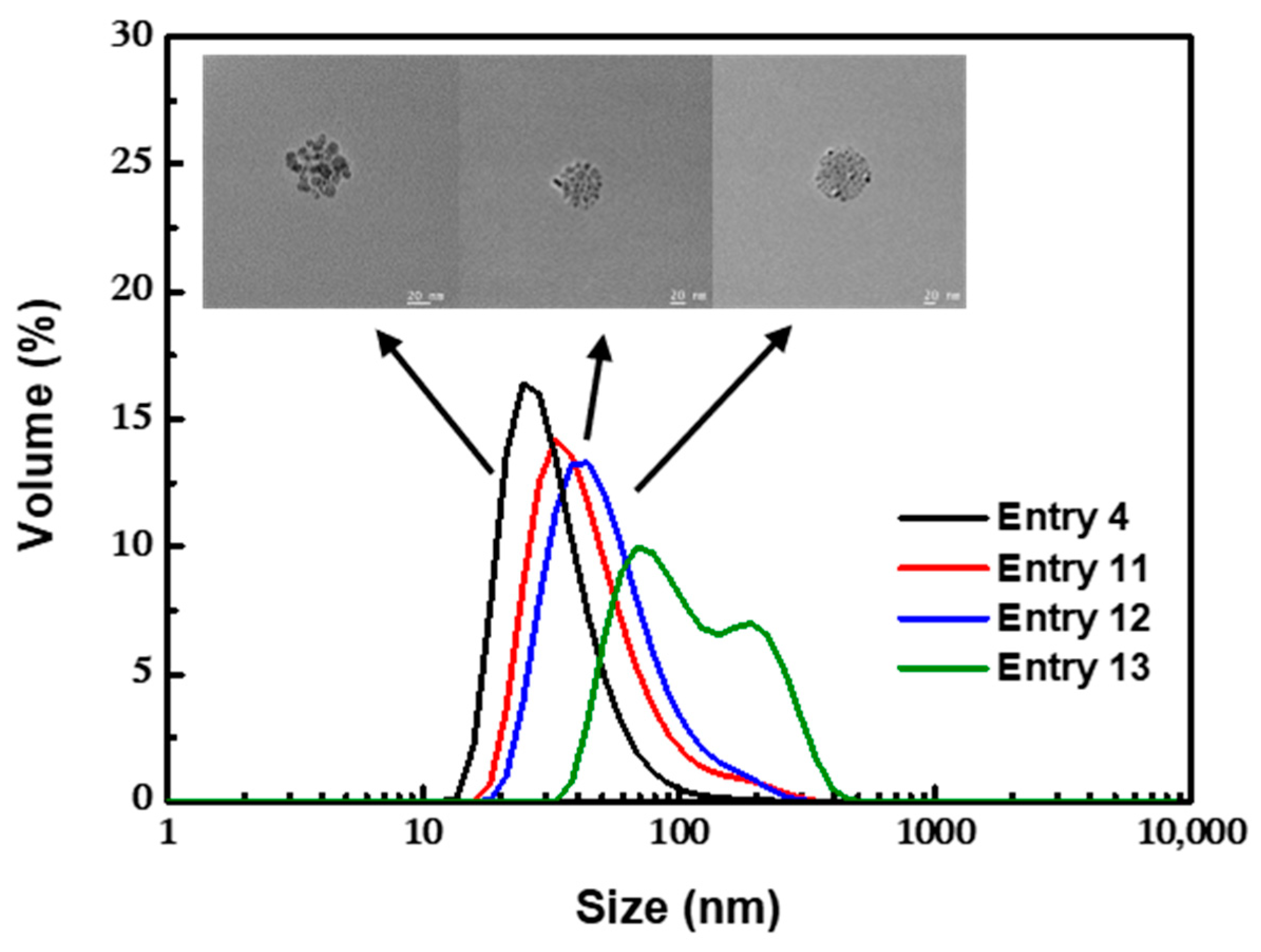

Figure 8. TEM images and DLS profiles for nanoclusters obtained with different pH values. Scale bars indicate 20 nm.
Figure 8. TEM images and DLS profiles for nanoclusters obtained with different pH values. Scale bars indicate 20 nm.
Nanomaterials 12 00350 g008
Nanomaterials 12 00350 g009 550
Figure 9. DLS profiles for nanoclusters obtained with different temperatures.
Figure 9. DLS profiles for nanoclusters obtained with different temperatures.
Nanomaterials 12 00350 g009
Nanomaterials 12 00350 g010 550

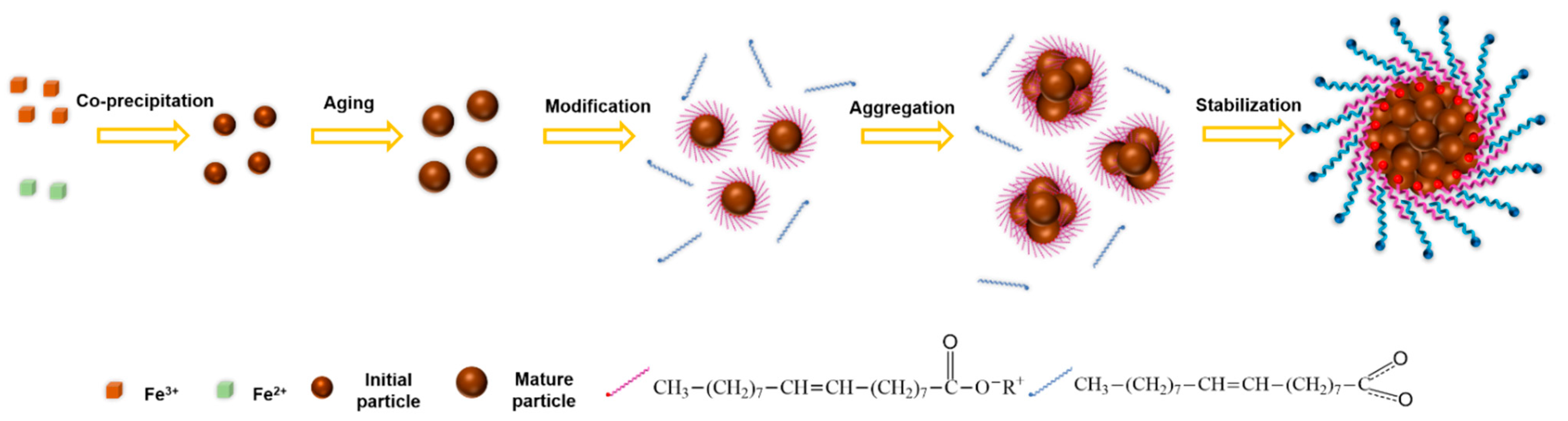

Figure 10. Schematic illustration of the formation processes of bilayer OA-coated Fe3O4 nanoclusters.
Figure 10. Schematic illustration of the formation processes of bilayer OA-coated Fe3O4 nanoclusters.
Nanomaterials 12 00350 g010
Table
Table 1. Summary of the operating conditions and sample characterization results for the continuous synthesis of bilayer OA-coated Fe3O4 nanoclusters.
Table 1. Summary of the operating conditions and sample characterization results for the continuous synthesis of bilayer OA-coated Fe3O4 nanoclusters.
EntryNH3·H2O
(M)		Oleic Acid
(M)		Residence Time 1
(s)		Residence Time 2
(s)		pHTemperature
(°C)		Cluster Size
(nm)		PDI
17.30.1012.5610.360110.90.443
27.30.16.2812.5610.36071.10.201
37.30.112.5612.5610.36070.20.197
47.30.118.8412.5610.36047.90.165
57.30.118.846.2810.36088.60.189
67.30.118.84010.36097.550.203
77.30.0718.8412.5610.36057.50.172
87.30.06018.8412.5610.36097.60.183
97.30.05518.8412.5610.360116.20.216
107.30.03518.8412.5610.360--
115.50.118.8412.5610.16062.20.174
123.70.118.8412.569.96075.20.175
132.00.118.8412.569.760122.60.215
147.30.118.8412.5610.37049.70.165
157.30.118.8412.5610.35062.90.184
167.30.118.8412.5610.335103.20.210
177.30.118.8412.5610.3RT--
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhou, L.; Ye, L.; Lu, Y. Flexible and Effective Preparation of Magnetic Nanoclusters via One-Step Flow Synthesis. Nanomaterials 2022, 12, 350. https://doi.org/10.3390/nano12030350

AMA Style

Zhou L, Ye L, Lu Y. Flexible and Effective Preparation of Magnetic Nanoclusters via One-Step Flow Synthesis. Nanomaterials. 2022; 12(3):350. https://doi.org/10.3390/nano12030350

Chicago/Turabian Style

Zhou, Lin, Lu Ye, and Yangcheng Lu. 2022. "Flexible and Effective Preparation of Magnetic Nanoclusters via One-Step Flow Synthesis" Nanomaterials 12, no. 3: 350. https://doi.org/10.3390/nano12030350

APA Style

Zhou, L., Ye, L., & Lu, Y. (2022). Flexible and Effective Preparation of Magnetic Nanoclusters via One-Step Flow Synthesis. Nanomaterials, 12(3), 350. https://doi.org/10.3390/nano12030350

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
