Preparation of Boron/Sulfur-Codoped Porous Carbon Derived from Biological Wastes and Its Application in a Supercapacitor

by
Yanbin Wang
1,2,3,
Dian Wang
1,2,3,
Zhaoxia Li
1,2,3,*,
Qiong Su
1,2,3,*,
Shuai Wei
1,2,3,
Shaofeng Pang
1,2,3,
Xiangfei Zhao
1,2,3,
Lichun Liang
1,2,3,
Lihui Kang
1,2,3 and
Shijun Cao
1,2,3
1
School of Chemical Engineering, Northwest Minzu University, Lanzhou 730030, China
2
Key Laboratory of Environmentally Friendly Composite Materials of the State Ethnic Affairs Commission, Key Laboratory of Utility of Environmental Friendly Composite Materials and Biomass in Universities of Gansu Province, Lanzhou 730030, China
3
Engineering Research Center of Biomass-Functional Composite Materials of Gansu Province, Lanzhou 730030, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(7), 1182; https://doi.org/10.3390/nano12071182
Submission received: 2 March 2022 / Revised: 24 March 2022 / Accepted: 29 March 2022 / Published: 1 April 2022
(This article belongs to the Special Issue Carbon-Based Nanomaterials for High-Performance Supercapacitors)
Browse Figures
Review Reports Versions Notes

Abstract

:
Abundant biomass resources are a good choice for preparing electrode materials for supercapacitors, but developing a versatile and simple synthetic method to convert them into electrode materials remains a challenge. In the present research, our team reports a promising strategy and cost-efficient method to fabricate boron/sulfur-codoped porous carbon from biomass sources, mainly utilizing four biomass materials. Detailed material characterization showed that the samples produced by this approach possess rich B and S doping. Additionally, the original biomass materials treated by activation produce abundant pores. Therefore, owing to the synergetic effect of abundant atomic doping and microporous/mesoporous distribution, the obtained carbon as electrode material manifested excellent specific capacitances of 290 F g−1 at a 0.5 A g−1 current density. Moreover, the specific energy of the prepared samples of the as-assembled symmetric supercapacitor is as high as 16.65 Wh kg−1 in 1 M Na2SO4, with a brilliant cyclical performance of only a 2.91% capacitance decay over 10,000 cycles. In addition, it has been verified universally that three other types of bio-wastes can also prepare electrode material using this method. This paper represents a significant attempt to turn waste biomass into treasure while also providing ideas for the design and preparation of supercapacitor electrode materials.

Graphical Abstract

1. Introduction

To face the challenge of the global resource shortage and prevent the over-consumption of fossil fuels, developing sustainable development resources based on clean energy-storing and energy-transformation equipment is regarded as an effective strategy [1,2,3]. Supercapacitors have been viewed as a very promising energy source with the benefits of rapid charging and discharging, great specific energy, and outstanding cyclic performance [4]. In the meantime, their excellent energy-storing capability, long-term stability, and lower maintenance demands make them suitable for a wide range of fields [5]. Currently, various carbon materials, such as graphene, activated charcoal, and carbon nanotubes, have been deeply researched for supercapacitor electrodes [6,7]. However, the complex properties of these carbon materials and the expensive manufacturing costs present a long road to industrialization. Therefore, how to realize low-cost, simpler manufacturing and processing is still a great challenge in practical applications. Carbon materials derived from biomass have been thought of as the currently most promising materials for supercapacitors from both economic and sustainable development points of view [8]. As reported in the literature, many biomass materials have been employed to prepare supercapacitor electrodes, such as soybean [9], kapok flowers shell [10], peach gum [11], pomelo peel [12], and locust seed meal [13].
Unfortunately, most biomass raw materials are often intractable and impure, so they cannot be directly used as electrode materials [14]. Thus, it is crucial to find an appropriate, economical, and generic approach for biochar treatment. Based on their original biological structure, lots of chemical activators are used to create pores, such as KOH [15,16], ZnCl2 [17], and H3PO4 [18]. Generally, the activation mechanism is considered to be an activation process to produce a large number of pore structures and enlarge the active region, which creates a higher diffusion rate and shorter diffusion distance of charge in the ion-transport process [19,20].
On the other hand, the surface chemical properties of the electrode are one of the factors affecting the performance of carbon-based supercapacitors. The transport of electrolyte ions depends on the wettability of carbon materials, but the biochar obtained from wastes is hydrophobic. The atomic doping (such as N, O, B, and S) [21,22,23] is capable of enhancing the surface wettability and providing more electrochemical active reaction spots to improve the interaction between porous carbon frameworks, active sites, and the electrical conductivity of carbon materials [24,25,26]. Moreover, heteroatoms can offer additional pseudocapacitance contributions to carbon materials [27].
At present, more than two kinds of heteroatomic co-doping have been widely used to improve the properties of carbon materials. Among them, B/S co-doping has been applied in many fields. Wen et al. synthesized B/S co-doped carbon material for the electrochemical nitrogen-reduction reaction (NRR) using carbon nanotubes as a matrix and nanometer reactor. Due to the interaction of B/S elements, the heteroatoms doping of the S atom resulted in a change in the position of the pz’s orbital center of the B atom so that the heteroatoms catalyst could effectively strengthen the NRR activity [28]. Tian et al. prepared S/B-rGO composites as cathode material for Li/S batteries by a simple method. They found that the introduction of B and S elements enhanced the conductivity of the composite cathode and delayed the shuttle effect, displaying good cycling stability and rate capacity [29]. Nevertheless, there are few reports about B/S co-doped carbon materials employed in supercapacitors, except for combinations such as B/N and N/S, which are widely developed for supercapacitors. According to relevant studies, B is a unique element that can act as an electrocatalyst to form an active carbon surface and promote the redox reaction of N and O functional groups [23,30,31]. In addition, the polarity of the B atom is positive, so it can chemically adsorb negative charge on the carbon skeleton surface to provide additional capacitance. S atom doping destroys the equilibrium density of electrons, which efficiently ameliorates the hydrophilicity of the carbon surface [32,33,34].
H3BO3 is a green boron dopant because of its low toxicity. It is envisaged that B atoms are introduced into biomass carbon using boric acid as a dopant. Additionally, it has been reported that when S and B are co-doped, the chemical interaction will be enhanced; additionally, the content of B will be raised [29], thereby enhancing electrochemical performance. In this paper, boron/sulfur co-doped porous carbon (B/S-SCS-1) was prepared by using the ZnCl2 activation process using boric acid and thiourea as B and S sources and sedum stem as raw materials for the electrode material of the supercapacitor. The prepared samples showed porous structures with interconnections and an abundant surface heteroatomic content. When only boron was doped, the content of the B atom was only 0.61%. While B/S was co-doped, the B content increased to 5.56%. When utilized as the electrode material for a supercapacitor in 6 M KOH, B/S-SCS-1 realizes a specific capacitance of 290.7 F g−1 at 0.5 A g−1, and the 1 M Na2SO4 utilized as the electrolyte in the assembled B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor showed great specific energy of 16.65 Wh kg−1 at 450 W kg−1. To explore the universality of this program, the same scheme was used to synthesize porous carbon with three other types of biomass wastes—walnut peel, wheat straw, and corn stalk—to verify the versatility of the method. This work provides a reference for the more convenient and lower-cost synthesis of porous carbon from biomass.

2. Materials and Methods

Preparation of Electrode Materials

The schematic for the fabrication of B/S-SCS-1 is shown in Figure 1. First, the sedum spectabile stalk was washed with deionized water and then ground into powder. Next, 2 g of H3BO3 and 2 g of CH4N2S underwent thrombolysis in 40 mL distilled water. Subsequently, 2 g of ZnCl2 and 2 g of sedum spectabile stalk were mixed in the above solution and then dried at 80 °C overnight. Then, the above mixture was transferred to a porcelain boat and annealed at 700 °C for 2 h under nitrogen protection in a tube furnace. Finally, the products were washed with 2 M HCl solution and deionized water and dried at 80 °C overnight to obtain B/S-SCS-1. The same schemes and experimental conditions were also applied to walnut peel, wheat straw, and corn stalks.
For comparison studies, raw sedum spectabile stalk carbonized under the same conditions without an activating agent and dopant was adopted as the control sample, namely, SC. The samples carbonized under the same conditions using zinc chloride as the activator were denoted as SCs, and the samples doped with boric acid as single boron were denoted as B-SCs. Using a similar method, thiourea was selected to prepare monosulfur-doped carbon materials, denoted as S-SCs, and the samples with boron doping amounts of 0.5 g and 1.5 g were named B/S-SCs-0.5 and B/S-SCs-1.5.

3. Results and Discussion

3.1. Morphology and Structural Characterization

3.1.1. Morphological Analysis

As seen in Figure 2a, the SEM images of SC highlight a lumpy structure, with a smooth surface of the sedum spectabile stalk after pyrolysis. Figure 2b,c displays the SEM images of B/S-SCS-1 at different magnifications; B/S-SCS-1 shows a clearly hierarchical porous structure, facilitating the faster adsorption and diffusion of ions from the electrolyte solution. EDS element mapping images visually exhibited that the carbon, nitrogen, oxygen, boron, and sulfur heteroatoms were uniformly distributed throughout the B/S-SCS-1 framework structures in Figure 2d. Figure 2e,f further confirms this highly interconnected network structure. Additionally, the B/S-SCS-1 high-resolution TEM images are shown in Figure 2g; lots of white spots indicate the existence of abundant micropores, and partial graphitic structures were identified from the observed lattice fringes (aligned graphite tiers), which were associated with the graphite (002) plane. The outcomes unveiled that those pore-rich carbons consisted of abundant amorphous carbons and a few graphite structures. The micropores and mesopores may be related to ZnCl2 activation. The activation of ZnCl2 can be explained as the vaporization of ZnCl2 at high temperatures. Zinc chloride molecules entered the carbon to act as a skeleton; the carbon polymer was carbonized and deposited on the skeleton. After acid and water washing, ZnCl2 was removed to form a well-developed pore structure [35]. This hierarchical porous structure offered an electroconductive net with interconnection and short ionic diffusive paths for fast charge transport and ionic migration, causing better electrochemistry properties. The morphological status of the rest of the three pore-rich carbon materials prepared via the ZnCl2 activation and B/S doping approach is presented in Figures S1–S3.

3.1.2. X-ray Diffraction (XRD), Raman, and Nitrogen Adsorption and Desorption Analysis

The X-ray diffractometer (XRD) images of the obtained B/S-SCS-1 specimens are presented in Figure 3a. B/S-SCS-1 exhibited two representative peaks at about 26° and 43.3°, associated with the diffractions of (002) and (001), respectively, and it showed the amorphous carbon characteristics of the sample and had a large number of irregular graphite crystallites [36]. The (101) peak was relatively weak, indicating that the sample graphitization was not uniform, which may be due to the lower activation temperature used in this system, while the degree of graphitization is related to the activation temperature. Figures S1–S3 revealed XRD images of these three pore-rich carbon materials; these three porous carbon materials also had similar structures. The Raman spectrum more clearly showed the difference in the degree of graphitization of the sample because it is more sensitive to the microstructure of the carbon material [37]. As presented in Figure 3b, the D peak (disordered or defective band) and G peak (crystalline graphitic band) of the carbon materials appear at the Raman shifts of 1366 cm−1 and 1593 cm−1, respectively. The samples all display a higher D peak content than the G peak, implying the existence of a large quantity of sp3-bonded carbon atoms [38]. The intensity ratio (ID/IG) of B/S-SCS-1 was calculated to be 1.02, which also demonstrated that the doping of B and S elements formed more flaws in the framework of the carbon material but was beneficial for the ion-diffusion process. Thus, it could help to improve the electrochemical performance of B/S-SCS-1.
A high porous density is desired for a perfect electrode, facilitating faster ion transport through the carbon layer. Therefore, the pore size distribution of the surface was studied by a nitrogen adsorption–desorption isotherm. As seen in Figure 3c, B/S-SCS-1 shows type-IV isothermal lines. The steep adsorption of N2 in the low-pressure range (p/p0 < 0.1) indicated the presence of micropores [39]. Further, the curve of B/S-SCS-1 increased slowly under great relative pressure (p/p0 > 0.4), which showed that B/S-SCS-1 also has characteristics of mesopores/macropores. It is worth noting that this is beneficial for buffering the electrolyte in practical applications. Combined with Figure 3d, we more accurately confirmed the presence of an abundant small proportion of narrow mesopores (2~5 nm) [40,41]. The specific surface area of B/S-SCS-1 was 360 m2 g−1, based on BET results.

3.1.3. X-ray Photoelectron Spectrometer (XPS) Analysis

The complete XPS survey scan spectrum of all samples is shown in Figure 4. It can be seen from Figure 4a that SC only contained a lower content of Na and O. When only boron was doped (B-SCs), the content of the B atom was only 0.61%. All B/S-SCS samples demonstrated five peaks corresponding to B 1s, C 1s, N 1s, S 2p, and O 1s, respectively (Figure 4a). As expected, the peaks of B and S rose in the survey XPS spectrum of B/S-SCS-1 (Figure 4b), meaning that the boron and sulfur elements were smoothly introduced into the carbon due to the use of boric acid and thiourea. At the same time, the XPS spectrum also had N and O elements that can provide N- and O-containing groups to increase the wettability of the material [42]. The high-quality XPS images of C 1s, N 1s, B 1s, and S 2p of B/S-SCS-1 were further analyzed to determine their chemical state (Table 1). The C 1s spectra were fitted by four peaks, centered at 284.6, 285.2, 286.4, and 288.3 ± 0.1 eV, designated as C-C, C-N-B, C-O/C-N, and C=O, respectively (Figure 4c). We can see that in addition to carbon–carbon bonds, it also shows a combination with other elements, in which oxygen functional groups were capable of improving the surface hydrophilicity and increasing the pseudocapacitance. N 1s XPS peak (Figure 4d) can be fitted to four components, indicating that there were four species of nitrogen atoms in the sample, including pyridine-N (N-6, 398.8 eV), pyrrole-N (N-5, 400.1 eV), quaternary-N (N-Q, 401.5 eV), and N-X (402.8 eV). The B 1s spectrum is fitted by three peaks, at 190.2, 191.1, and 192 ± 0.1 eV, which could be designated as B-C2-O, BN, and B-C-O2, respectively (Figure 4e) [43]. Studies have suggested that the relevant functional groups of B can act as an electrochemical catalyst to promote the redox reaction of N and O so that N and O content in the sample can also provide additional pseudocapacitance [44]. Moreover, the B content of B/S-SCs is 5.56 at.%, which can be attributed to the co-doping effect of B/S. The S 2p spectra in B/S-SCS-1 materials are fitted by three peaks based on 164, 165.2, and 168.9 ± 0.1 eV as the center and can be designated as C-S, C-S-C, and C-SOX-C, respectively, as shown in Figure 4f. These oxidized S functional groups were expected to enhance the wettability of the electrolyte. To explore the effect of doped heteroatoms on wettability, the contact angle measurement was implemented. As seen in Figure 5, for SC, the contact angle of ~109.2° was greater than 90°, indicating that the wetting of the SC surface was unfavorable. For B/S-SCS-1, the contact angle was ~78.1°, indicating a hydrophilic feature, which can favor the full wetting of the active species.

3.2. Electrochemical Performance of B/S-SCS-1 Materials

The electrochemical properties of all samples were first examined in a 6M KOH electrolyte (Figure S4). The CV curves of all sampled materials exhibited a typical rectangular shape (Figure S4a). Obviously, the B/S-SCS-1 material had a larger CV area than any other material. Additionally, the GCD curves of all sampled materials at a current density of 1 A g−1 exhibited almost symmetrical isosceles triangles (Figure S4b), implying their excellent electrochemical reversibility. The rate performances are compared in Figure S4c, which were consistent with CV.
Figure 6a shows the CV curve of B/S-SCS-1 at different scan rates; it can be observed from this figure that the B/S-SCS-1 electrode exhibited a broad peak in the potential range of −1 to 0 V, which suggests that the existence of superficial hetero atoms in large numbers is conducive to the formation of significant pseudocapacitance. There are two possible causes for these phenomena. On the one hand, a greater number of active heteroatoms (especially B, S) not only increase pseudocapacitance but also expose more ions on the hydrophilic surface while expanding the area of the CV ring. On the other hand, the three-dimensional porous structure promotes the conduction of electrons and improves the charge transfer [45]. Figure 6b shows the GCD diagram of B/S-SCS-1 at varying current densities. At each level of current density, the constant current charge–discharge curve corresponded to the CV curve, despite a slight deformation and a quasi-symmetrical triangle, indicating the reliable reversibility and the existence of both EDLC and pseudocapacitance. In addition, the ratio capacitances of the B/S-SCS-1 electrode diminished with the elevation of the current density, as shown in Figure 6c, which results from the reinforced diffusional limitation and lesser ionic transport time under the increased current density [13]. B/S-SCS-1 showed a maximum ratio capacitance of 290.7 F g−1 at 0.5 A g−1 and exhibited an even higher capacitor retention of 70%, even at 10 A g−1, suggesting a remarkable performance. The electrochemical performance of B/S-SCS-1 is also extremely excellent compared with previous research works (Table 2). It can thus be inferred that the heteroatom-rich electrode can not only help enhance pseudocapacitance but also improve the contact probabilities between the electrode and the electrolyte, thus ensuring a large effective surface for charge storage. Ultimately, an excellent rate of performance can be achieved for the electrode.
B/S-SCS-1 performs well at a specific capacitance, which is attributable to the synergistic effect produced by various heteroatoms. Figure 7 illustrates the mechanism followed by the synergistic effect of B and S doping on the increased capacitance for B/S-SCS-1. According to a previous report [43], the oxygen-containing groups can improve wettability and pseudocapacitance (the possible redox reactions are shown in Figure 7). The nitrogen functional groups, where N acts as heteroatoms, could ensure steady pseudocapacitance, possibly ascribed to amine groups’ redox reactions [43], as shown in Figure 7. Additionally, the B heteroatom could be treated as an electrocatalyst to accelerate the oxidation-reduction reaction of oxygen and nitrogen functional groups, thus further improving pseudocapacitance [44,51]. Particularly, the substitutions of carbon with boron in the carbon materials lattice cause a downward shift to the Fermi level, thereby enhancing charge storage and transfer within the structure of doped carbon materials [52]. The contribution of the S atom to the electrochemical property could be attributed to the introduction of C-S, which enables the n-type dopant S to provide more reversible false sites and polarized surfaces [53]. In addition, sulfur-containing functional groups can be used as a support framework for larger pores at high temperatures to reduce the shrinkage of micropores during carbonization, which enables fast ion transmission (the possible groups are displayed in Figure 7) [2].
Figure 8 shows the electrochemical performance of the B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor after the introduction of the 6 M KOH electrolyte(The real image of the symmetric device is presented in Figure S9). The CV curves of the prepared B/S-SCS-1//B/S-SCS-1 supercapacitor exhibit quasi-rectangular shapes with no significant deformation, even at a high scanning velocity of 200 mV s−1 (Figure 8a), which suggests a dominant electric double layer, fast charge/discharge process, and satisfactory electrochemistry rate property [54]. As shown in Figure 8b, the GCD curve exhibited a typical triangle, indicating high capacitance and electrochemical reversibility. From Figure 8c, it can be seen that the B/S-SCS-1//B/S-SCS-1 symmetrical supercapacitor assumed a high specific capacitance of 200 F g−1 at 0.5 A g−1, and when the current density increased to 10 A g−1, it reached a ratio capacitance of 116.4 F g−1, revealing moderate rate performance. The B/S-SCS-1/B/S-SCS-1 supercapacitor has a specific energy of 6.94 Wh kg−1 and specific power of 248.4 W kg−1 (Figure 8d). EIS analysis confirmed the enhanced kinetics of ionic transportation and charge transport in the constructed supercapacitor, as indicated by the Nyquist plot in Figure S5a. The almost vertical lines in the low-frequency area demonstrate the typical electric double-layer capacitor (EDLC) behavior with fast ion diffusion and migration [55]. At high frequencies, the presence of a full, tiny semicircle substantiates the low charge transfer resistance during the Faraday reaction and EDLC creation [38].
To further explore the practical application of electrode materials in supercapacitors, a prototype of a two-electrode supercapacitor was produced using B/S-SCS-1 in neutral 1 M Na2SO4 solutions. Compared with acidic or alkaline electrolytes, Na2SO4 electrolyte can offer a large voltage window. Since hydrogen and oxygen evolution reactions occur as the voltage increases, this causes a rapid increase in the current at a high potential. The neutral electrolytic liquid phase has less H+ and OH− for acidic and alkaline. In addition, the porous carbon structure provides rich transport and adsorption sites for H+ and OH−, thus inhibiting hydrogen and oxygen evolution reactions [56,57]. Figure 9a shows the CV measurement performed at 50 mV s−1 for the B/S-SCS-1/B/S-SCS-1 supercapacitor. When the voltage swing increases to 1.8 V, the CV curves basically remain rectangular and symmetrical, with no visible redox peaks, showing ideal capacitance behavior.
Figure 9b reveals the perfect symmetry and outstanding reversibility of the GCD curve. Based on the discharging time, the specific capacitances were estimated to be 142 F g−1 at the current density of 0.5 A g−1 (Figure 9c). The results show a downward trend with the increase in the current density. Based on the specific capacitance value and high-voltage operating range, Figure 9d shows the Ragone diagram of the B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor. It exhibits maximum specific energy of 16.65 Wh kg−1 at a specific power of 450 W kg−1 in the B/S-SCS-1//B/S-SCS-1 symmetrical supercapacitor, which is considerably higher compared to the previously reported carbon-based symmetric supercapacitors (Table 3). The samples prepared using this method can achieve a more balanced and outstanding performance with respect to capacitance, specific energy, and specific power. The cycling stability of B/S-SCS-1 was investigated, as shown in Figure 10, and the capacitor retention of the B/S-SCS-1 electrode was around 97.09% posterior to 10,000 cycles at the current density of 10 A g−1. The results indicate that the prepared B/S-SCS-1 could produce an excellent longtime cyclic performance, it may be related to the variation of the doping content [58]. Figure S5b presents the Nyquist plots of B/S-SCS-1//B/S-SCS-1. Apparently, the curve is presented as an almost-vertical line at low frequency, which implies the excellent performance of the electrochemical capacitor. Moreover, the smaller semicircle of B/S-SCS-1//B/S-SCS-1 suggests a high ionic diffusion–transference velocity [59].
To investigate the universality of this method, three biomass wastes, including walnut peel, wheat straw, and corn stalk, were employed to synthesize pore-rich carbon via an identical scheme. Figures S2–S4 and S6–S8 show the electrochemical performances of the corresponding materials. Ratio capacitances of the pore-rich carbon acquired from the walnut peel, wheat straw, and corn stalks were 240, 223, and 200.2 F g−1 at 0.5 A g−1, respectively. Their voltage also reached 1.8 V in a symmetrical system of 1 M Na2SO4 and had a specific energy of 12 Wh kg−1, 12.5 Wh kg−1, and 11.3 Wh kg−1, respectively. Additionally, they exhibited brilliant electrochemical steadiness posterior to 10,000 cycles with 98.2%, 97.6%, and 100.67 % capacitor retention, respectively. These results emphasize the versatility of our scheme in the preparation of pore-rich carbon.

4. Conclusions

In summary, our team developed a simple and versatile method to prepare B/S co-doped porous carbon. Due to the synergistic effect between the activation treatment of ZnCl2 and the doping of B and S, the as-prepared B/S-SCS-1 as-electrode material displayed a great capacitance of 290.7 F g−1 at 0.5 A g−1 as well as a brilliant rate performance. In addition, the supercapacitor established with B/S-SCS-1 produced maximal specific energy of 16.65 Wh g−1 in the 1 M Na2SO4 electrolyte, and it showed high stability with 97.09% of the initial capacitance retention posterior to 10,000 cycles. Remarkably, boric acid and thiourea proved to be effective sources of heteroatom doping. Furthermore, we used the same scheme to achieve the effective preparation of electrode materials for the other three biomass wastes. Considering the availability and versatility of the method, we expected that the B and S-codoped porous carbons materials should have broad application prospects in energy-storage devices. In the long-term sense, the full utilization of these biomass wastes can not only realize the idea of turning waste into treasure but also solve the energy problem.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12071182/s1, Material characterization; electrochemical measurements; Figure S1: (a) SEM image and (b) XRD pattern of walnut-peel-derived porous carbon; (c) GCD curves in the three-electrode system and (d) specific capacitances at different current densities, Figure S2: (a) SEM image and (b) XRD pattern of wheat-straw-derived porous carbon; (c) GCD curves in the three-electrode system and (d) specific capacitances at different current densities, Figure S3: (a) SEM image and (b) XRD pattern of corn-stalk-derived porous carbon; (c) GCD curves in the three-electrode system and (d) specific capacitances at different current densities, Figure S4: (a) CV curves at a 50 mV s−1 scan rate for electrodes containing all samples as active materials; (b) GCD curves at a 1 A g−1 scan rate for electrodes containing all samples as active materials; (c) ratio capacitances of all samples under diverse ampere densities, Figure S5: (a) Nyquist plots of a B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 6 M KOH electrolyte, (b) Nyquist plots of B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 1 M Na2SO4 electrolyte, Figure S6: Electrochemical performance of a walnut-peel-derived porous carbon symmetric supercapacitor using a 1 M Na2SO4 electrolyte. (a) CV curves of varying voltages from 1 to 1.8 V at a scan rate of 50 mV s−1, (b) GCD curves at various current densities from 0.5 to 10 A g−1, (c) the specific capacitances at different current densities and Ragone plots, (d) cycling stability and Coulombic efficiency of the device at 10A g−1, Figure S7: Electrochemical performance of a wheat-straw-derived porous carbon symmetric supercapacitor using a 1 M Na2SO4 electrolyte. (a) CV curves of varying voltage from 1 to 1.8 V at a scan rate of 50 mV s−1, (b) GCD curves at various current densities from 0.5 to 10 A g−1, (c) the specific capacitances at different current densities and Ragone plots, (d) cycling stability and Coulombic efficiency of the device at 10A g−1, Figure S8: Electrochemical performance of a corn-stalk-derived porous carbon symmetric supercapacitor using 1 M Na2SO4 electrolyte. (a) CV curves of varying voltages from 1 to 1.8 V at a scan rate of 50 mV s−1, (b) GCD curves at various current densities from 0.5 to 10 A g−1, (c) the specific capacitances at different current densities and Ragone plots, (d) cycling stability and Coulombic efficiency of the device at 10A g−1., Figure S9: The real image of the symmetric device; References [58,60] are cited in the Supplementary Materials.

Author Contributions

Y.W.: Conceptualization, Methodology, Investigation, Writing—Original Draft. D.W.: Writing—Original Draft. Z.L.: Resources, Writing—Review and Editing. Q.S.: Writing—Original Draft, Visualization. S.W.: Writing—Review and Editing, Validation. S.P.: Writing—Original Draft, Supervision. X.Z.: Writing—Original Draft, Supervision. L.L. Writing—Review and Editing. L.K.: Writing—Review and Editing. S.C.: Writing—Original Draft, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to thank the financial supports of the fund of the National Natural Science Foundation of China (22165025, 21968032), supported by the fund of the Gansu Provincial Science and Technology Plan Project (20YF8FA045), the Fundamental Research Funds for the Central Universities (31920200085, 31920210064), and the Scientific Research Foundation of Northwest Minzu University (xbmuyjrc 2020004), the Gansu Province Science Foundation for Youths (21JR1RA210), the Chemistry Discipline Innovation Team of Northwest Minzu University (1110130139, 1110130141), the Provincial first-class professional construction project (2019SJYLZY-08), the Youth Doctoral Foundation of Gansu Provincial Department of Education (2021QB-062), the Innovation Fund for Colleges and Universities of Gansu Province (2021B-064), the Innovation and Entrepreneurship Education Reform Project of Gansu Provincial School of Higher Education in 2021—Fine Chemical Innovation and Entrepreneurship Education Teaching Team, and the Teaching Quality Improvement Project of Creative and integrated education under the Background of “Four New” Construction.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

There are no conflicts of interest to declare.

References

  1. Xue, J.; Wu, T.; Dai, Y.; Xia, Y. Electrospinning and Electrospun Nanofibers: Methods, Materials, and Applications. Chem. Rev. 2019, 119, 5298–5415. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, Y.; Qu, Q.; Gao, S.; Tang, G.; Liu, K.; He, S.; Huang, C. Biomass derived carbon as binder-free electrode materials for supercapacitors. Carbon 2019, 155, 706–726. [Google Scholar] [CrossRef]
  3. Chhetri, K.; Tiwari, A.P.; Dahal, B.; Ojha, G.P.; Mukhiya, T.; Lee, M.; Kim, T.; Chae, S.-H.; Muthurasu, A.; Kim, H.Y. A ZIF-8-derived nanoporous carbon nanocomposite wrapped with Co3O4-polyaniline as an efficient electrode material for an asymmetric supercapacitor. J. Electroanal. Chem. 2020, 856, 113670. [Google Scholar] [CrossRef]
  4. Chhetri, K.; Dahal, B.; Mukhiya, T.; Tiwari, A.P.; Muthurasu, A.; Kim, T.; Kim, H.; Kim, H.Y. Integrated hybrid of graphitic carbon-encapsulated CuxO on multilayered mesoporous carbon from copper MOFs and polyaniline for asymmetric supercapacitor and oxygen reduction reactions. Carbon 2021, 179, 89–99. [Google Scholar] [CrossRef]
  5. Fong, K.D.; Wang, T.; Kim, H.K.; Kumar, R.V.; Smoukov, S.K. Semi-Interpenetrating Polymer Networks for Enhanced Supercapacitor Electrodes. ACS Energy Lett. 2017, 2, 2014–2020. [Google Scholar] [CrossRef] [Green Version]
  6. Deka, B.K.; Hazarika, A.; Kim, J.; Park, Y.-B.; Park, H.W. Recent development and challenges of multifunctional structural supercapacitors for automotive industries. Int. J. Energy Res. 2017, 41, 1397–1411. [Google Scholar] [CrossRef]
  7. Liu, C.; Li, F.; Ma, L.P.; Cheng, H.M. Advanced materials for energy storage. Adv. Mater. 2010, 22, E28–E62. [Google Scholar] [CrossRef]
  8. Berenguer, R.; García-Mateos, F.J.; Ruiz-Rosas, R.; Cazorla-Amorós, D.; Morallón, E.; Rodríguez-Mirasol, J.; Cordero, T. Biomass-derived binderless fibrous carbon electrodes for ultrafast energy storage. Green Chem. 2016, 18, 1506–1515. [Google Scholar] [CrossRef] [Green Version]
  9. Guo, N.; Luo, W.; Guo, R.; Qiu, D.; Zhao, Z.; Wang, L.; Jia, D.; Guo, J. Interconnected and hierarchical porous carbon derived from soybean root for ultrahigh rate supercapacitors. J. Alloys Compd. 2020, 834, 155115. [Google Scholar] [CrossRef]
  10. Zheng, L.-H.; Chen, M.-H.; Liang, S.-X.; Lü, Q.-F. Oxygen-rich hierarchical porous carbon derived from biomass waste-kapok flower for supercapacitor electrode. Diam. Relat. Mater. 2021, 113, 108267. [Google Scholar] [CrossRef]
  11. Wang, L.; Li, X.; Huang, X.; Han, S.; Jiang, J. Activated green resources to synthesize N, P co-doped O-rich hierarchical interconnected porous carbon for high-performance supercapacitors. J. Alloys Compd. 2022, 891, 161908. [Google Scholar] [CrossRef]
  12. Li, G.; Li, Y.; Chen, X.; Hou, X.; Lin, H.; Jia, L. One step synthesis of N, P co-doped hierarchical porous carbon nanosheets derived from pomelo peel for high performance supercapacitors. J. Colloid. Interface Sci. 2022, 605, 71–81. [Google Scholar] [CrossRef]
  13. Hou, L.; Hu, Z.; Wang, X.; Qiang, L.; Zhou, Y.; Lv, L.; Li, S. Hierarchically porous and heteroatom self-doped graphitic biomass carbon for supercapacitors. J. Colloid Interface Sci. 2019, 540, 88–96. [Google Scholar] [CrossRef] [PubMed]
  14. Li, Z.; Guo, D.; Liu, Y.; Wang, H.; Wang, L. Recent advances and challenges in biomass-derived porous carbon nanomaterials for supercapacitors. Chem. Eng. J. 2020, 397, 125418. [Google Scholar] [CrossRef]
  15. Jang, H.; Park, Y.H.; Kim, M.-H.; You, J.; Ko, J.-H.; Lee, J.T. Surface characteristics of porous carbon derived from genetically designed transgenic hybrid poplar for electric double-layer capacitors. Appl. Surf. Sci. 2021, 545, 148978. [Google Scholar] [CrossRef]
  16. Dong, S.; He, X.; Zhang, H.; Xie, X.; Yu, M.; Yu, C.; Xiao, N.; Qiu, J. Surface modification of biomass-derived hard carbon by grafting porous carbon nanosheets for high-performance supercapacitors. J. Mater. Chem. A 2018, 6, 15954–15960. [Google Scholar] [CrossRef]
  17. Han, G.; Jia, J.; Liu, Q.; Huang, G.; Xing, B.; Zhang, C.; Cao, Y. Template-activated bifunctional soluble salt ZnCl2 assisted synthesis of coal-based hierarchical porous carbon for high-performance supercapacitors. Carbon 2022, 186, 380–390. [Google Scholar] [CrossRef]
  18. Wu, M.; Li, L.; Liu, J.; Li, Y.; Ai, P.; Wu, W.; Zheng, J. Template-free preparation of mesoporous carbon from rice husks for use in supercapacitors. Carbon 2016, 98, 471–475. [Google Scholar] [CrossRef]
  19. Cai, N.; Cheng, H.; Jin, H.; Liu, H.; Zhang, P.; Wang, M. Porous carbon derived from cashew nut husk biomass waste for high-performance supercapacitors. J. Electroanal. Chem. 2020, 861, 113933. [Google Scholar] [CrossRef]
  20. Hwang, J.Y.; Li, M.; El-Kady, M.F.; Kaner, R.B. Next-Generation Activated Carbon Supercapacitors: A Simple Step in Electrode Processing Leads to Remarkable Gains in Energy Density. Adv. Funct. Mater. 2017, 27, 1605745. [Google Scholar] [CrossRef]
  21. Fang, J.; Guo, D.; Kang, C.; Wan, S.; Fu, L.; Liu, Q. N, O-enriched hierarchical porous graphite carbon flake for high performance supercapacitors. J. Electroanal. Chem. 2019, 851, 113467. [Google Scholar] [CrossRef]
  22. Li, D.; Chen, L.; Chen, L.; Sun, Q.; Zhu, M.; Zhang, Y.; Liu, Y.; Liang, Z.; Si, P.; Lou, J.; et al. Potassium gluconate-derived N/S Co-doped carbon nanosheets as superior electrode materials for supercapacitors and sodium-ion batteries. J. Power Sources 2019, 414, 308–316. [Google Scholar] [CrossRef]
  23. Chen, H.; Xiong, Y.; Yu, T.; Zhu, P.; Yan, X.; Wang, Z.; Guan, S. Boron and nitrogen co-doped porous carbon with a high concentration of boron and its superior capacitive behavior. Carbon 2017, 113, 266–273. [Google Scholar] [CrossRef]
  24. Guo, J.; Wu, D.; Wang, T.; Ma, Y. P-doped hierarchical porous carbon aerogels derived from phenolic resins for high performance supercapacitor. Appl. Surf. Sci. 2019, 475, 56–66. [Google Scholar] [CrossRef]
  25. Chen, W.; Yu, H.; Lee, S.Y.; Wei, T.; Li, J.; Fan, Z. Nanocellulose: A promising nanomaterial for advanced electrochemical energy storage. Chem. Soc. Rev. 2018, 47, 2837–2872. [Google Scholar] [CrossRef]
  26. Benzigar, M.R.; Talapaneni, S.N.; Joseph, S.; Ramadass, K.; Singh, G.; Scaranto, J.; Ravon, U.; Al-Bahily, K.; Vinu, A. Recent advances in functionalized micro and mesoporous carbon materials: Synthesis and applications. Chem. Soc. Rev. 2018, 47, 2680–2721. [Google Scholar] [CrossRef]
  27. Yao, Y.; Feng, Q.; Huo, B.; Zhou, H.; Huang, Z.; Li, H.; Yan, Z.; Yang, X.; Kuang, Y. Facile self-templating synthesis of heteroatom-doped 3D porous carbon materials from waste biomass for supercapacitors. Chem. Commun. 2020, 56, 11689–11692. [Google Scholar] [CrossRef]
  28. Wen, Y.; Zhu, H.; Hao, J.; Lu, S.; Zong, W.; Lai, F.; Ma, P.; Dong, W.; Liu, T.; Du, M. Metal-free boron and sulphur co-doped carbon nanofibers with optimized p-band centers for highly efficient nitrogen electroreduction to ammonia. Appl. Catal. B 2021, 292, 120144. [Google Scholar] [CrossRef]
  29. Tian, Y. Facile Hydrothermal Synthesis of Sulphur/Boron-doped Reduced Graphene Oxide Composite Cathodes for High- Performance Li/S Batteries. Int. J. Electrochem. Sci. 2018, 13, 3441–3451. [Google Scholar] [CrossRef]
  30. Gao, J.; Wang, X.; Zhang, Y.; Liu, J.; Lu, Q.; Liu, M. Boron-doped ordered mesoporous carbons for the application of supercapacitors. Electrochim. Acta 2016, 207, 266–274. [Google Scholar] [CrossRef]
  31. Zhao, Z.; Xie, Y. Electrochemical supercapacitor performance of boron and nitrogen co-doped porous carbon nanowires. J. Power Sources 2018, 400, 264–276. [Google Scholar] [CrossRef]
  32. Gopalakrishnan, A.; Badhulika, S. Sulfonated porous carbon nanosheets derived from oak nutshell based high-performance supercapacitor for powering electronic devices. Renew. Energy 2020, 161, 173–183. [Google Scholar] [CrossRef]
  33. Kiciński, W.; Szala, M.; Bystrzejewski, M. Sulfur-doped porous carbons: Synthesis and applications. Carbon 2014, 68, 1–32. [Google Scholar] [CrossRef]
  34. Yu, X.; Park, S.K.; Yeon, S.-H.; Park, H.S. Three-dimensional, sulfur-incorporated graphene aerogels for the enhanced performances of pseudocapacitive electrodes. J. Power Sources 2015, 278, 484–489. [Google Scholar] [CrossRef]
  35. Hayashi, J.; Kazehaya, A.; Muroyama, K.; Watkinson, A.P. Preparation of activated carbon from lignin by chemical activation. Carbon 2000, 38, 1873–1878. [Google Scholar] [CrossRef]
  36. Jia, H.; Sun, J.; Xie, X.; Yin, K.; Sun, L. Cicada slough-derived heteroatom incorporated porous carbon for supercapacitor: Ultra-high gravimetric capacitance. Carbon 2019, 143, 309–317. [Google Scholar] [CrossRef]
  37. Jiang, L.; Sheng, L.; Long, C.; Wei, T.; Fan, Z. Functional Pillared Graphene Frameworks for Ultrahigh Volumetric Performance Supercapacitors. Adv. Energy Mater. 2015, 5, 1500771. [Google Scholar] [CrossRef]
  38. Liu, M.; Niu, J.; Zhang, Z.; Dou, M.; Wang, F. Potassium compound-assistant synthesis of multi-heteroatom doped ultrathin porous carbon nanosheets for high performance supercapacitors. Nano Energy 2018, 51, 366–372. [Google Scholar] [CrossRef]
  39. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  40. Khan, A.; Senthil, R.A.; Pan, J.; Osman, S.; Sun, Y.; Shu, X. A new biomass derived rod-like porous carbon from tea-waste as inexpensive and sustainable energy material for advanced supercapacitor application. Electrochim. Acta 2020, 335, 135588. [Google Scholar] [CrossRef]
  41. Zheng, F.; Yang, Y.; Chen, Q. High lithium anodic performance of highly nitrogen-doped porous carbon prepared from a metal-organic framework. Nat. Commun. 2014, 5, 5261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Miao, J.; Dong, X.; Wang, S.; Xu, Y.; Zhai, Z.; Zhang, L.; Ren, B.; Liu, Z. New method for N-doped micro/meso porous carbon as electrode material for high-performance supercapacitors. Microporous Mesoporous Mater. 2021, 320, 111085. [Google Scholar] [CrossRef]
  43. Zhao, J.; Li, Y.; Wang, G.; Wei, T.; Liu, Z.; Cheng, K.; Ye, K.; Zhu, K.; Cao, D.; Fan, Z. Enabling high-volumetric-energy-density supercapacitors: Designing open, low-tortuosity heteroatom-doped porous carbon-tube bundle electrodes. J. Mater. Chem. A 2017, 5, 23085–23093. [Google Scholar] [CrossRef]
  44. Jung, S.M.; Lee, E.K.; Choi, M.; Shin, D.; Jeon, I.Y.; Seo, J.M.; Jeong, H.Y.; Park, N.; Oh, J.H.; Baek, J.B. Direct solvothermal synthesis of B/N-doped graphene. Angew. Chem. Int. Ed. Engl. 2014, 53, 2398–2401. [Google Scholar] [CrossRef]
  45. Niu, J.; Liu, M.; Xu, F.; Zhang, Z.; Dou, M.; Wang, F. Synchronously boosting gravimetric and volumetric performance: Biomass-derived ternary-doped microporous carbon nanosheet electrodes for supercapacitors. Carbon 2018, 140, 664–672. [Google Scholar] [CrossRef]
  46. Yu, F.; Ye, Z.; Chen, W.; Wang, Q.; Wang, H.; Zhang, H.; Peng, C. Plane tree bark-derived mesopore-dominant hierarchical carbon for high-voltage supercapacitors. Appl. Surf. Sci. 2020, 507, 145190. [Google Scholar] [CrossRef]
  47. Liu, Z.; Tian, D.; Shen, F.; Nnanna, P.C.; Hu, J.; Zeng, Y.; Yang, G.; He, J.; Deng, S. Valorization of composting leachate for preparing carbon material to achieve high electrochemical performances for supercapacitor electrode. J. Power Sources 2020, 458, 228057. [Google Scholar] [CrossRef]
  48. Niu, L.; Shen, C.; Yan, L.; Zhang, J.; Lin, Y.; Gong, Y.; Li, C.; Sun, C.Q.; Xu, S. Waste bones derived nitrogen-doped carbon with high micropore ratio towards supercapacitor applications. J. Colloid Interface Sci. 2019, 547, 92–101. [Google Scholar] [CrossRef]
  49. He, D.; Zhao, W.; Li, P.; Sun, S.; Tan, Q.; Han, K.; Liu, L.; Liu, L.; Qu, X. Bifunctional biomass-derived N, S dual-doped ladder-like porous carbon for supercapacitor and oxygen reduction reaction. J. Alloy. Compd. 2019, 773, 11–20. [Google Scholar] [CrossRef] [Green Version]
  50. Gao, J.; Fan, D.; Liu, X. Simultaneous gas expansion and nitrogen doping strategy to prepare licorice root residues-derived nitrogen doped porous carbon for supercapacitors. New J. Chem. 2021, 45, 15469–15474. [Google Scholar] [CrossRef]
  51. Dawei Wang, F.L. Zhigang Chen, Gaoqing Lu, Huiming Cheng, Synthesis and Electrochemical Property of Boron-Doped Mesoporous Carbon in Supercapacitor. Chem. Mater. 2008, 20, 7195–7200. [Google Scholar] [CrossRef]
  52. Peng, Z.; Ye, R.; Mann, J.A.; Zakhidov, D.; Li, Y.; Smalley, P.R.; Lin, J.; Tour, J.M. Flexible Boron-Doped Laser-Induced Graphene Microsupercapacitors. ACS Nano 2015, 9, 5868–5875. [Google Scholar] [CrossRef] [PubMed]
  53. Zhao, X.; Zhang, Q.; Chen, C.-M.; Zhang, B.; Reiche, S.; Wang, A.; Zhang, T.; Schlögl, R.; Sheng Su, D. Aromatic sulfide, sulfoxide, and sulfone mediated mesoporous carbon monolith for use in supercapacitor. Nano Energy 2012, 1, 624–630. [Google Scholar] [CrossRef]
  54. Mao, W.; Yue, W.; Xu, Z.; Chang, S.; Hu, Q.; Pei, F.; Huang, X.; Zhang, J.; Li, D.; Liu, G.; et al. Development of a Synergistic Activation Strategy for the Pilot-Scale Construction of Hierarchical Porous Graphitic Carbon for Energy Storage Applications. ACS Nano 2020, 14, 4741–4754. [Google Scholar] [CrossRef]
  55. Sun, F.; Qu, Z.; Gao, J.; Wu, H.B.; Liu, F.; Han, R.; Wang, L.; Pei, T.; Zhao, G.; Lu, Y. In Situ Doping Boron Atoms into Porous Carbon Nanoparticles with Increased Oxygen Graft Enhances both Affinity and Durability toward Electrolyte for Greatly Improved Supercapacitive Performance. Adv. Funct. Mater. 2018, 28, 1804190. [Google Scholar] [CrossRef]
  56. Wang, D.-W.; Li, F.; Liu, M.; Lu, G.Q.; Cheng, H.-M. 3D Aperiodic Hierarchical Porous Graphitic Carbon Material for High-Rate Electrochemical Capacitive Energy Storage. Angew. Chem. Int. Ed. 2008, 120, 379–382. [Google Scholar] [CrossRef]
  57. Bichat, M.P.; Raymundo-Piñero, E.; Béguin, F. High voltage supercapacitor built with seaweed carbons in neutral aqueous electrolyte. Carbon 2010, 48, 4351–4361. [Google Scholar] [CrossRef]
  58. Yang, W.; Yang, W.; Kong, L.; Song, A.; Qin, X.; Shao, G. Phosphorus-doped 3D hierarchical porous carbon for high-performance supercapacitors: A balanced strategy for pore structure and chemical composition. Carbon 2018, 127, 557–567. [Google Scholar] [CrossRef]
  59. Liu, S.; Cai, Y.; Zhao, X.; Liang, Y.; Zheng, M.; Hu, H.; Dong, H.; Jiang, S.; Liu, Y.; Xiao, Y. Sulfur-doped nanoporous carbon spheres with ultrahigh specific surface area and high electrochemical activity for supercapacitor. J. Power Sources 2017, 360, 373–382. [Google Scholar] [CrossRef]
  60. Guan, L.; Pan, L.; Peng, T.; Gao, C.; Zhao, W.; Yang, Z.; Hu, H.; Wu, M. Synthesis of Biomass-Derived Nitrogen-Doped Porous Carbon Nanosheests for High-Performance Supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 8405–8412. [Google Scholar] [CrossRef]
  61. Liu, B.; Liu, Y.; Chen, H.; Yang, M.; Li, H. Oxygen and nitrogen co-doped porous carbon nanosheets derived from Perilla frutescens for high volumetric performance supercapacitors. J. Power Sources 2017, 341, 309–317. [Google Scholar] [CrossRef]
  62. Zhao, G.; Chen, C.; Yu, D.; Sun, L.; Yang, C.; Zhang, H.; Sun, Y.; Besenbacher, F.; Yu, M. One-step production of O-N-S co-doped three-dimensional hierarchical porous carbons for high-performance supercapacitors. Nano Energy 2018, 47, 547–555. [Google Scholar] [CrossRef]
Nanomaterials 12 01182 g001 550

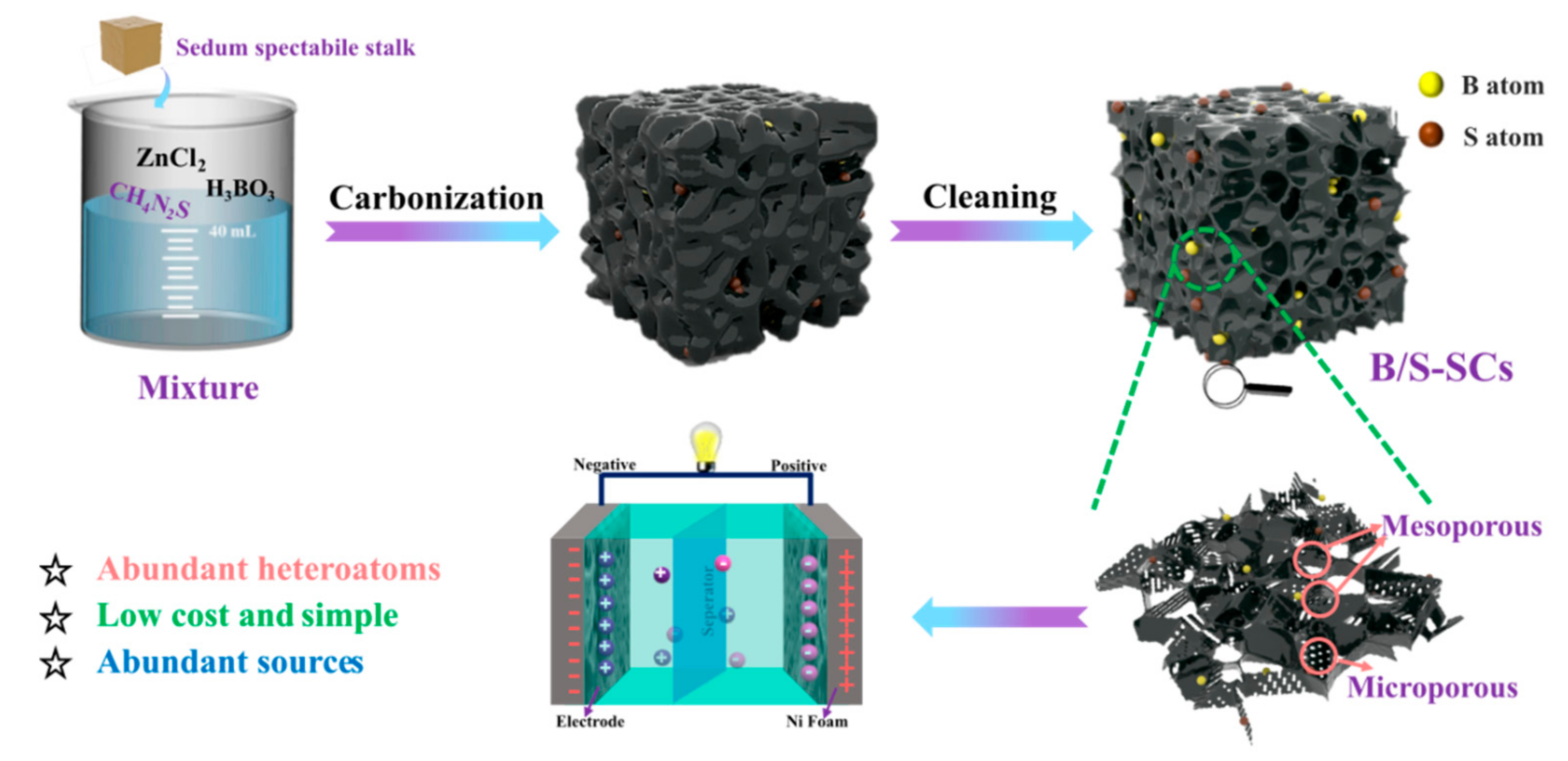

Figure 1. The synthesis route of B/S-SCs electrode.
Figure 1. The synthesis route of B/S-SCs electrode.
Nanomaterials 12 01182 g001
Nanomaterials 12 01182 g002 550

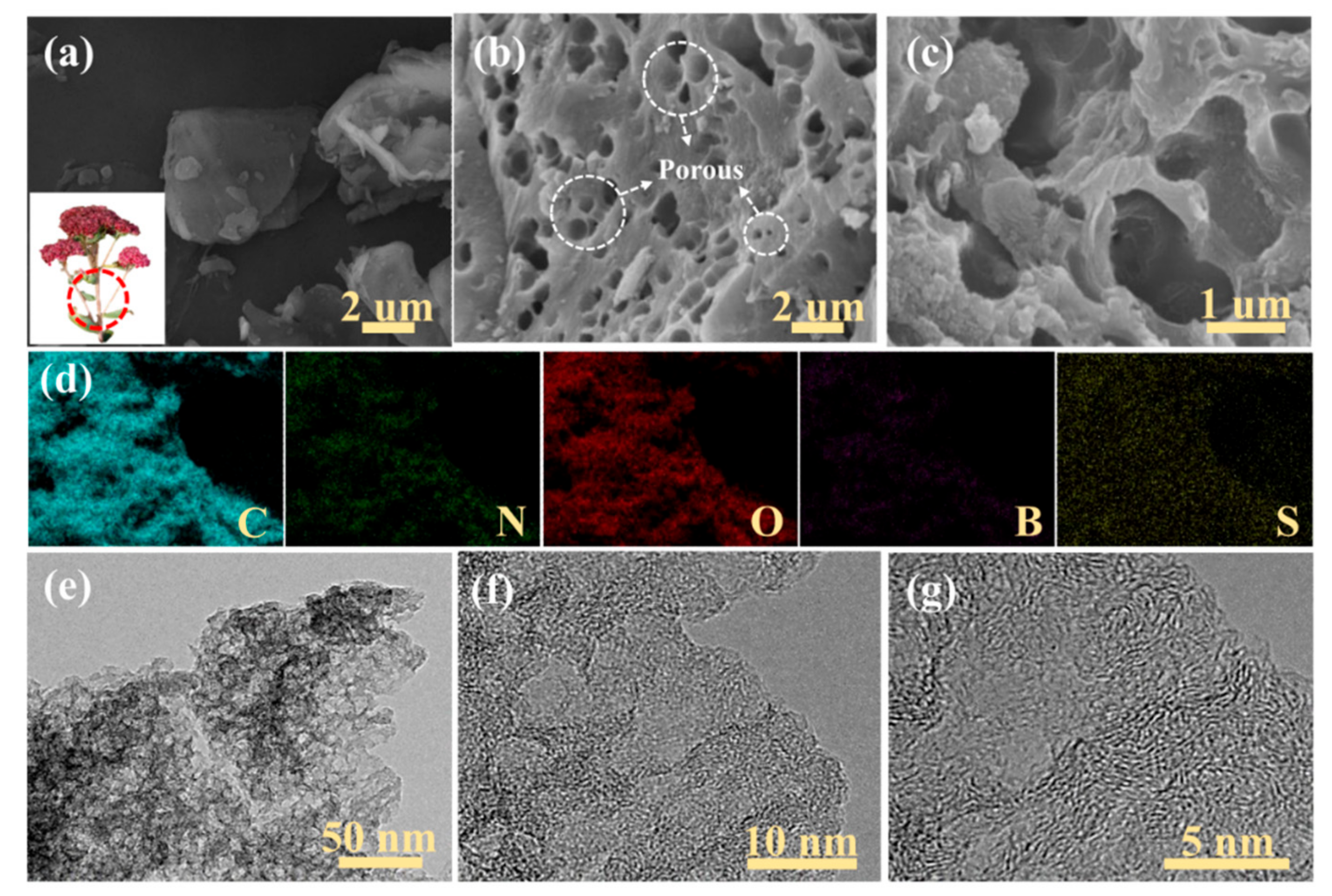

Figure 2. (a) SEM images and a photograph (inset) of SC; (b,c) SEM images of SC; (d) element mapping of C, N, O, B, and S in B/S-SCS-1; (e–g) TEM images of B/S-SCS-1 at different magnifications.
Figure 2. (a) SEM images and a photograph (inset) of SC; (b,c) SEM images of SC; (d) element mapping of C, N, O, B, and S in B/S-SCS-1; (e–g) TEM images of B/S-SCS-1 at different magnifications.
Nanomaterials 12 01182 g002
Nanomaterials 12 01182 g003 550

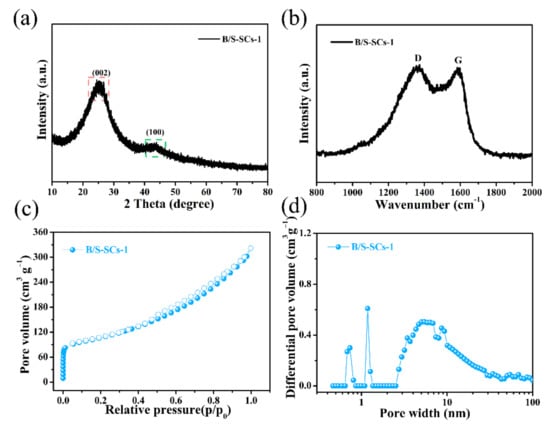

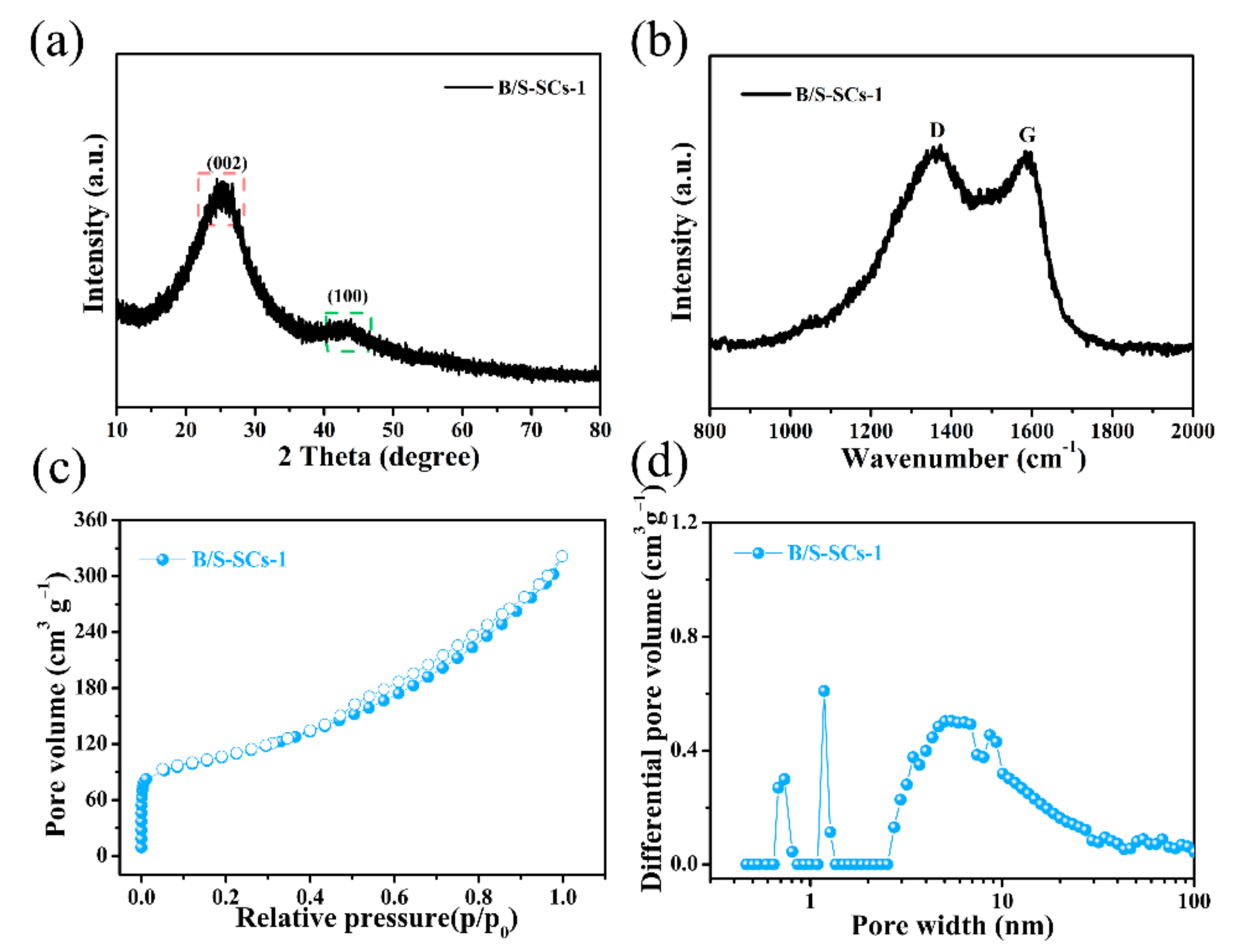

Figure 3. (a) XRD pattern; (b) Raman spectra; (c) nitrogen adsorption/desorption isotherm; (d) pore size distribution of the obtained B/S-SCS-1 electrode.
Figure 3. (a) XRD pattern; (b) Raman spectra; (c) nitrogen adsorption/desorption isotherm; (d) pore size distribution of the obtained B/S-SCS-1 electrode.
Nanomaterials 12 01182 g003
Nanomaterials 12 01182 g004 550

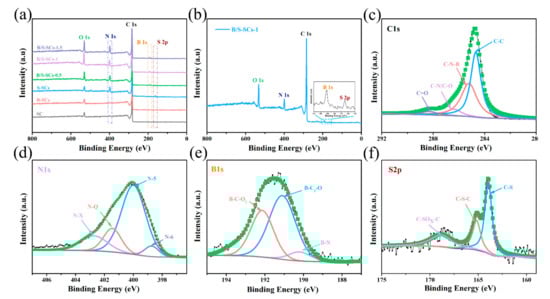

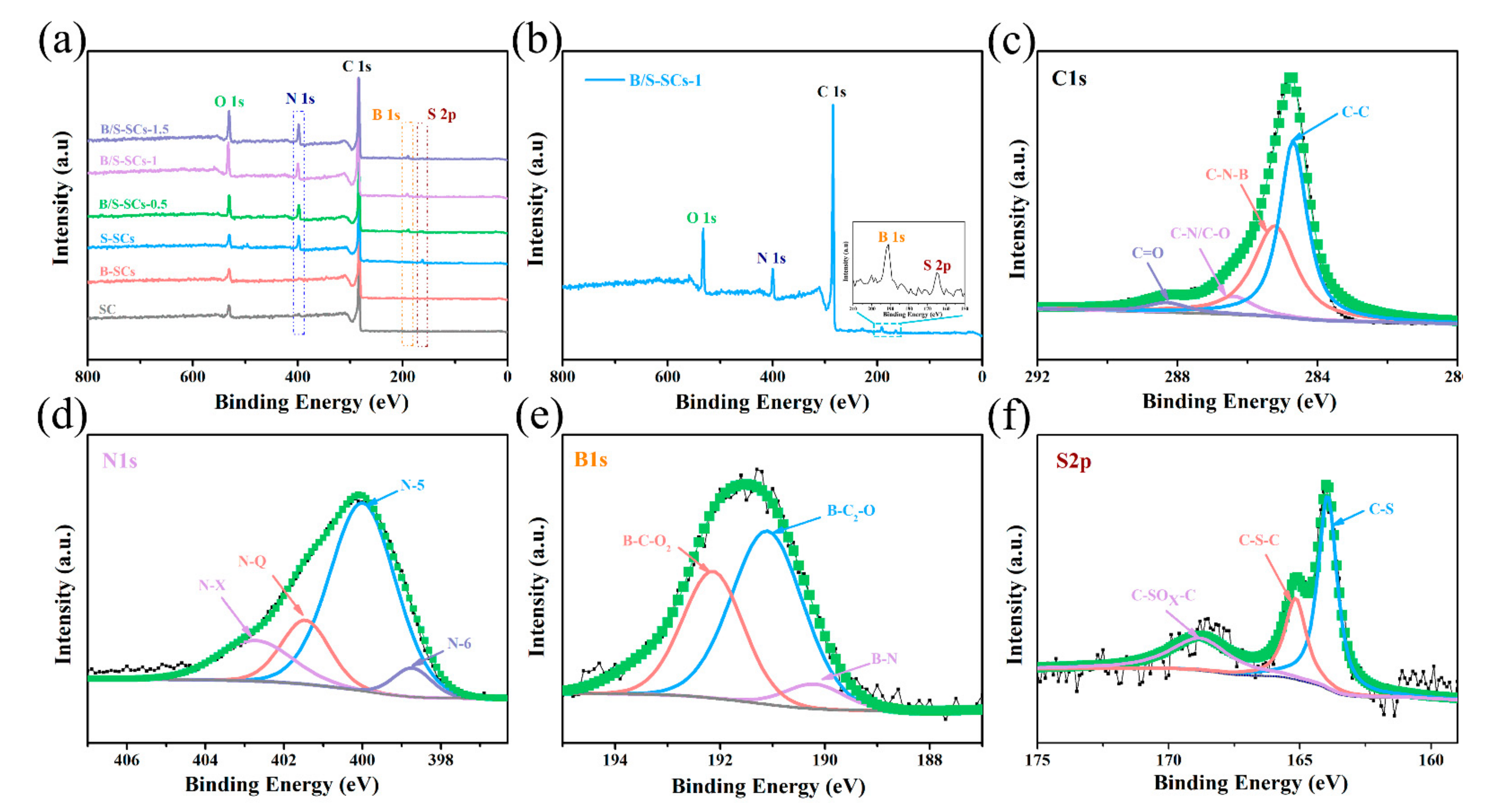

Figure 4. (a) XPS spectra of all samples; (b) XPS spectra of the B/S-SCS-1; (c) high-quality C 1s XPS images of B/S-SCS-1; (d) high-quality N 1s XPS images of B/S-SCS-1; (e) high-resolution B 1s XPS images of B/S-SCS-1; (f) high-quality S 2p XPS images of B/S-SCS-1.
Figure 4. (a) XPS spectra of all samples; (b) XPS spectra of the B/S-SCS-1; (c) high-quality C 1s XPS images of B/S-SCS-1; (d) high-quality N 1s XPS images of B/S-SCS-1; (e) high-resolution B 1s XPS images of B/S-SCS-1; (f) high-quality S 2p XPS images of B/S-SCS-1.
Nanomaterials 12 01182 g004
Nanomaterials 12 01182 g005 550

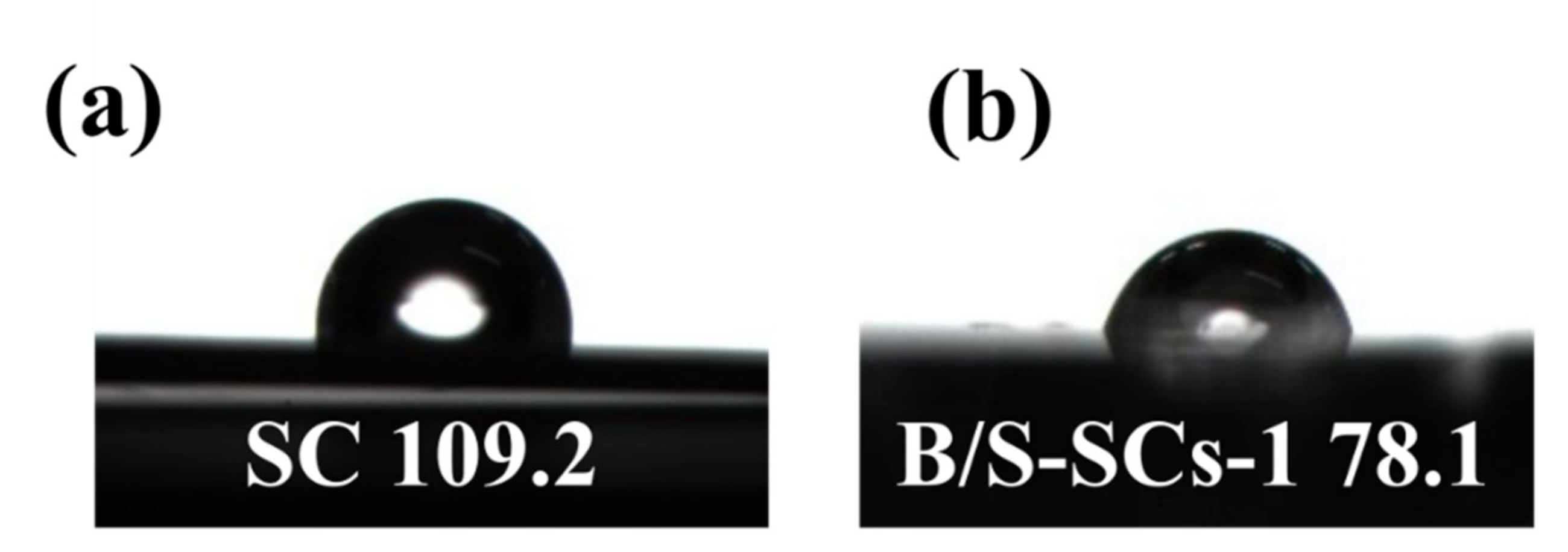

Figure 5. The contact angles formed by water drops on the surface of (a) SC and (b) B/S-SCS-1.
Figure 5. The contact angles formed by water drops on the surface of (a) SC and (b) B/S-SCS-1.
Nanomaterials 12 01182 g005
Nanomaterials 12 01182 g006 550

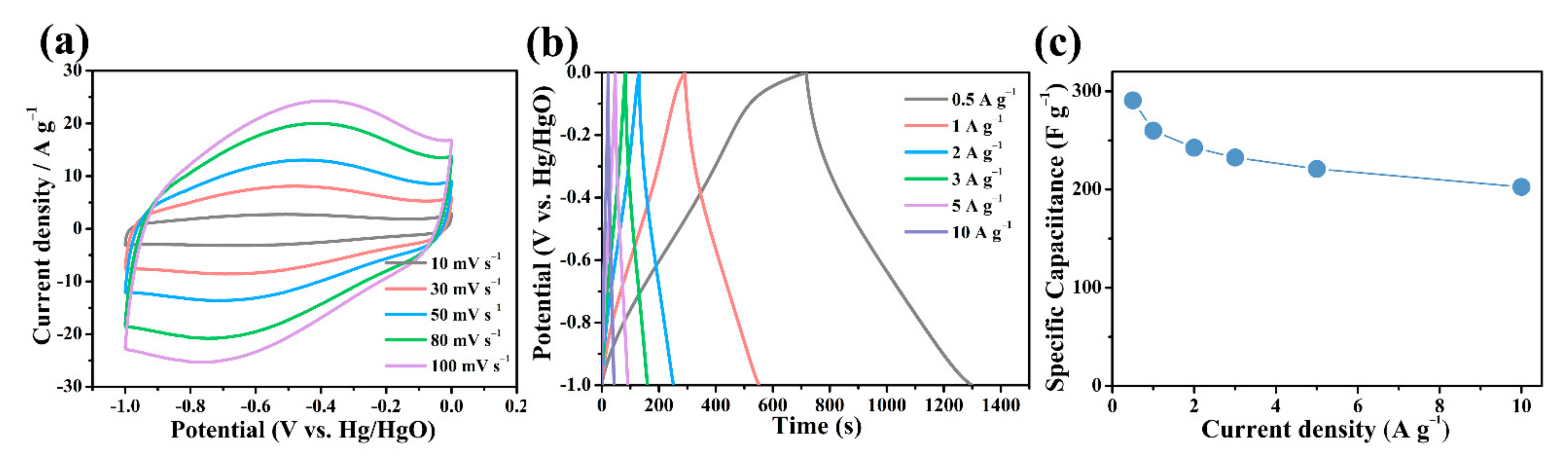

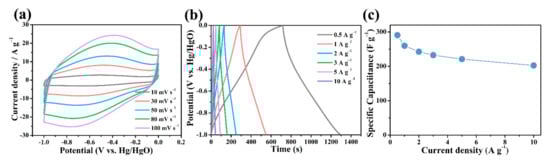

Figure 6. (a) CV and (b) GCD curves of B/S-SCS-1 at the different scan rates and current densities; (c) gravimetric capacitance as a function of specific current.
Figure 6. (a) CV and (b) GCD curves of B/S-SCS-1 at the different scan rates and current densities; (c) gravimetric capacitance as a function of specific current.
Nanomaterials 12 01182 g006
Nanomaterials 12 01182 g007 550

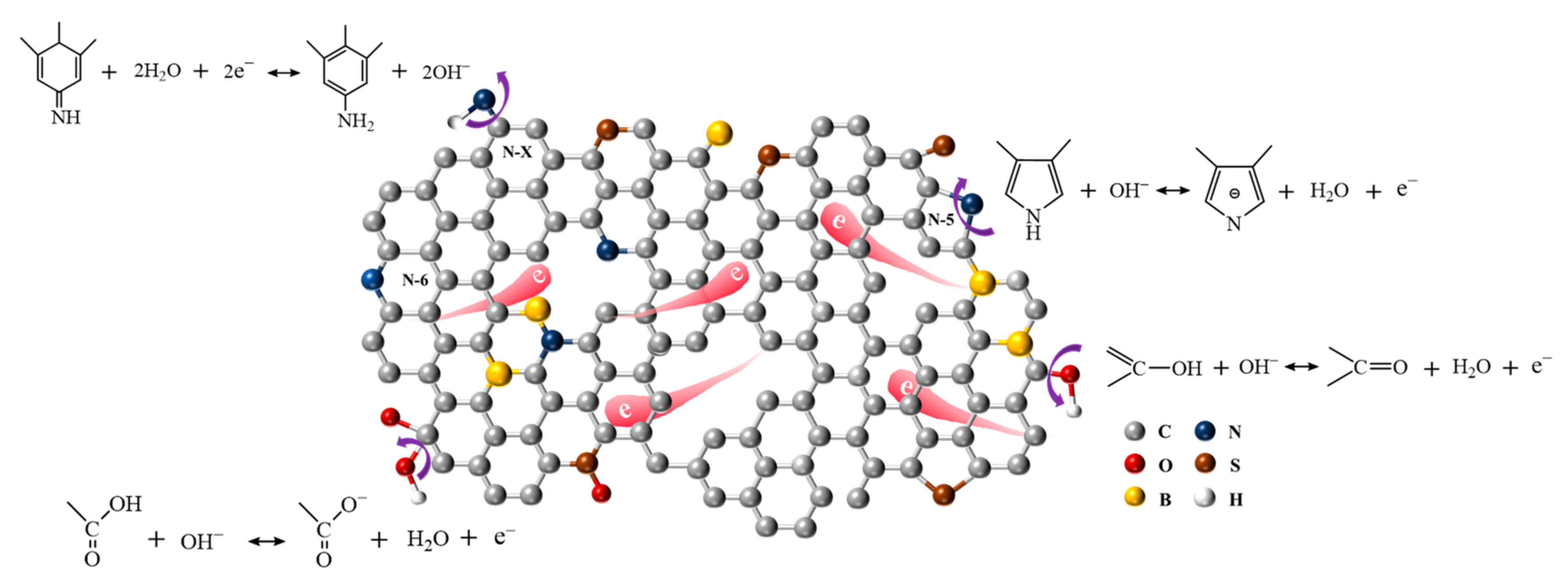

Figure 7. Effects of the N, O, B, and S heteroatoms on the increased capacitance of B/S-SCS-1.
Figure 7. Effects of the N, O, B, and S heteroatoms on the increased capacitance of B/S-SCS-1.
Nanomaterials 12 01182 g007
Nanomaterials 12 01182 g008 550

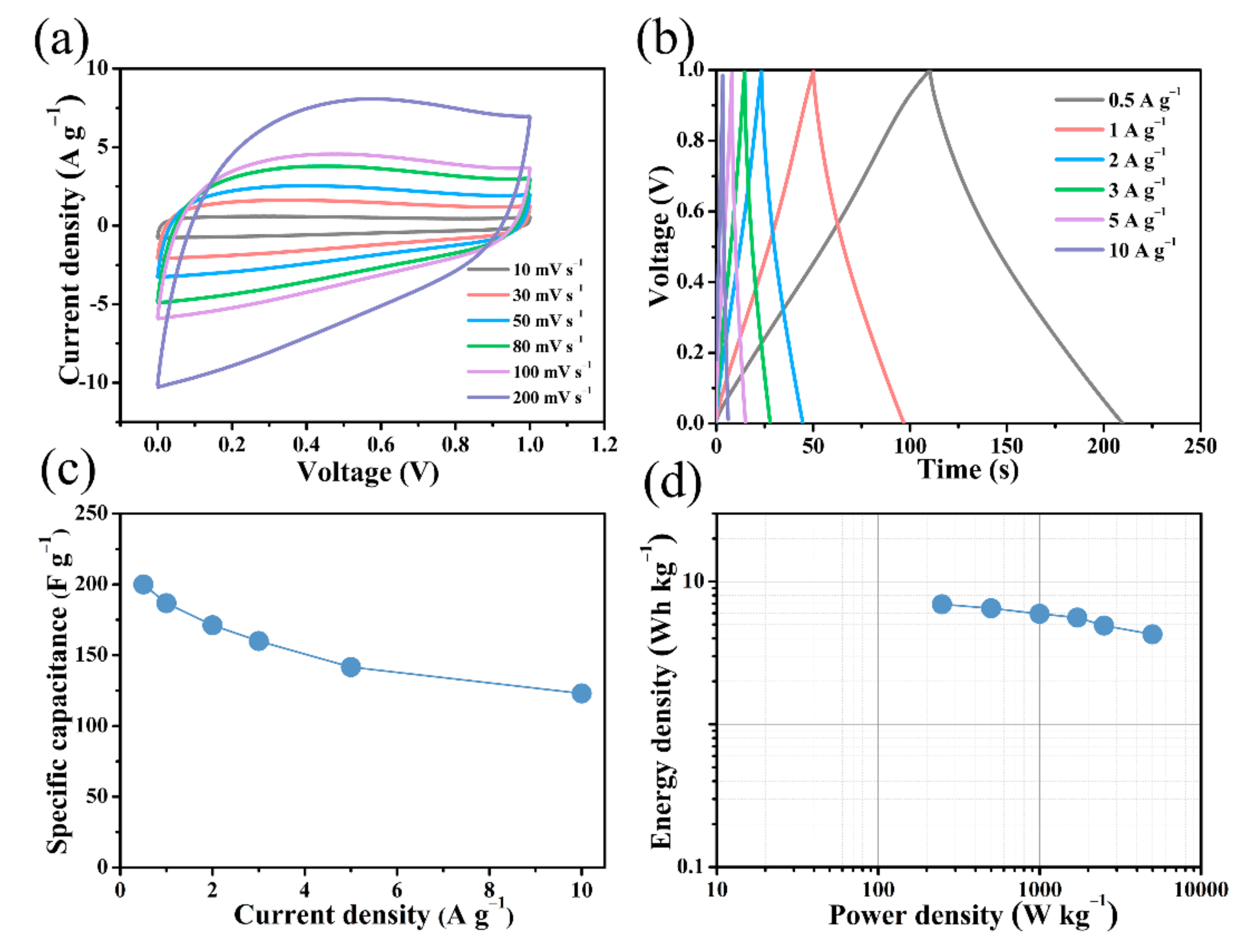

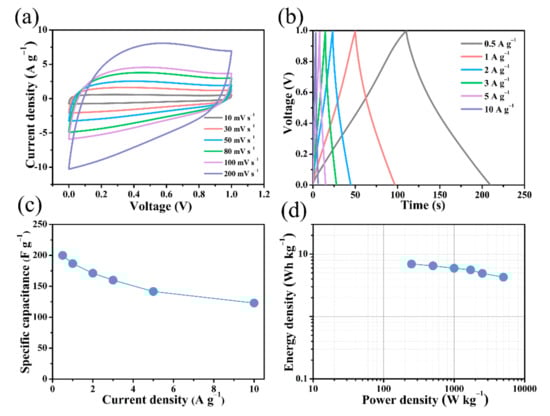

Figure 8. Electrochemical performance of B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 6 M KOH electrolyte. (a) CV curves at various scanning rates; (b) GCD curves under various ampere densities between 0.5 and 10 A g−1; (c) gravimetric capacitance as a function of specific current; (d) Ragone plots.
Figure 8. Electrochemical performance of B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 6 M KOH electrolyte. (a) CV curves at various scanning rates; (b) GCD curves under various ampere densities between 0.5 and 10 A g−1; (c) gravimetric capacitance as a function of specific current; (d) Ragone plots.
Nanomaterials 12 01182 g008
Nanomaterials 12 01182 g009 550

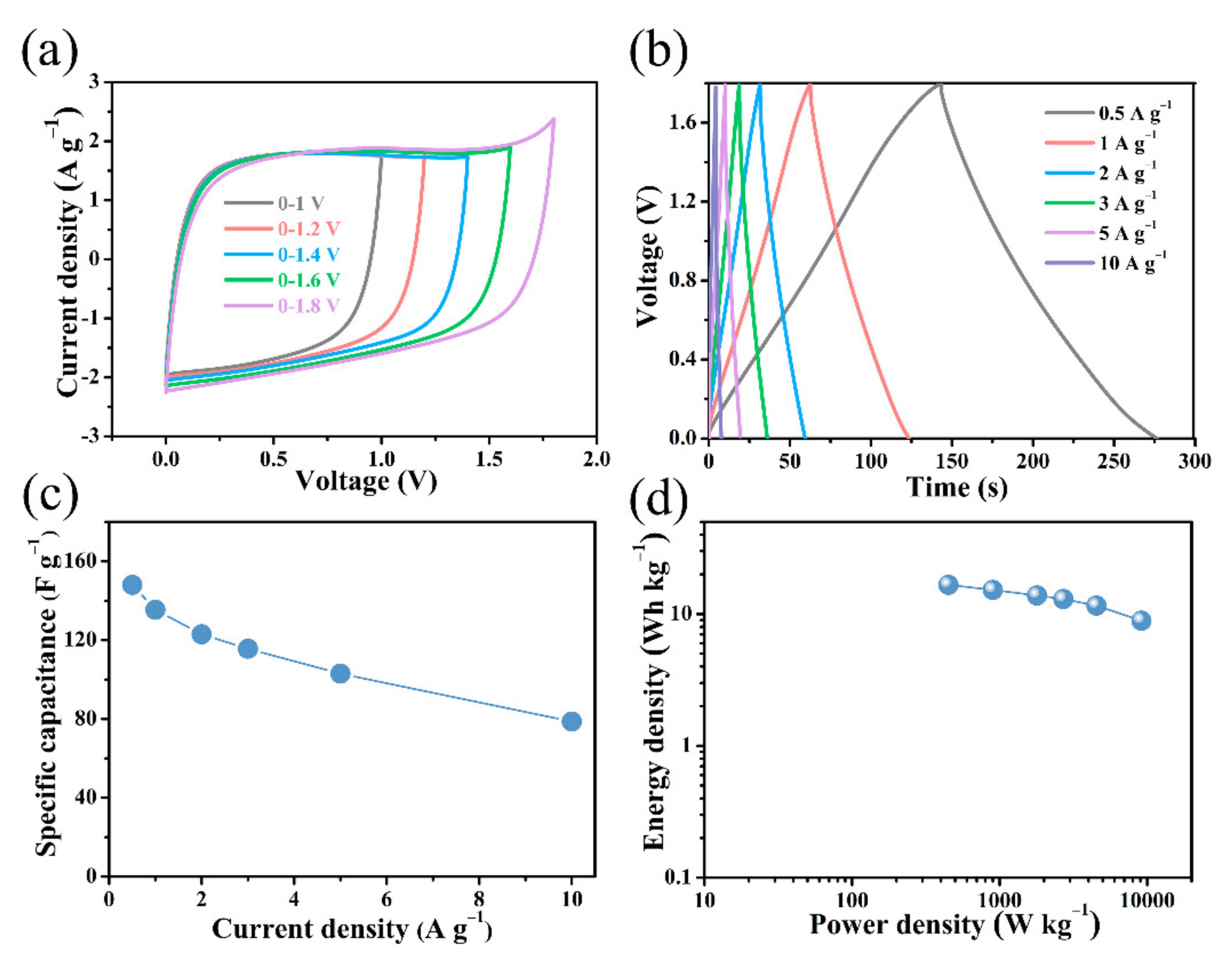

Figure 9. Electrochemical performance of B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor via 1 M Na2SO4 electrolyte. (a) CV curves acquired voltage transformation between 1 and 1.8 V under a scanning velocity of 50 mV s−1; (b) GCD curves under various current densities between 0.5 and 10 A g−1; (c) gravimetric capacitance as a function of specific current; (d) Ragone plot.
Figure 9. Electrochemical performance of B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor via 1 M Na2SO4 electrolyte. (a) CV curves acquired voltage transformation between 1 and 1.8 V under a scanning velocity of 50 mV s−1; (b) GCD curves under various current densities between 0.5 and 10 A g−1; (c) gravimetric capacitance as a function of specific current; (d) Ragone plot.
Nanomaterials 12 01182 g009
Nanomaterials 12 01182 g010 550

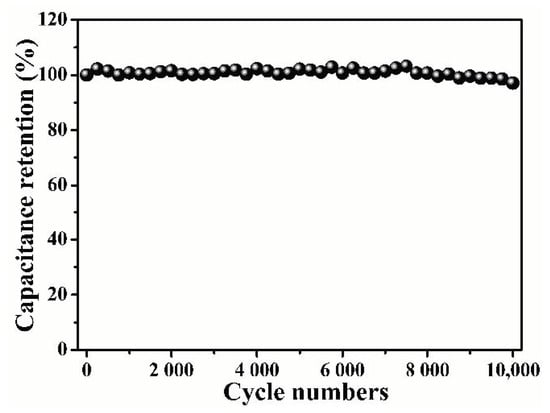

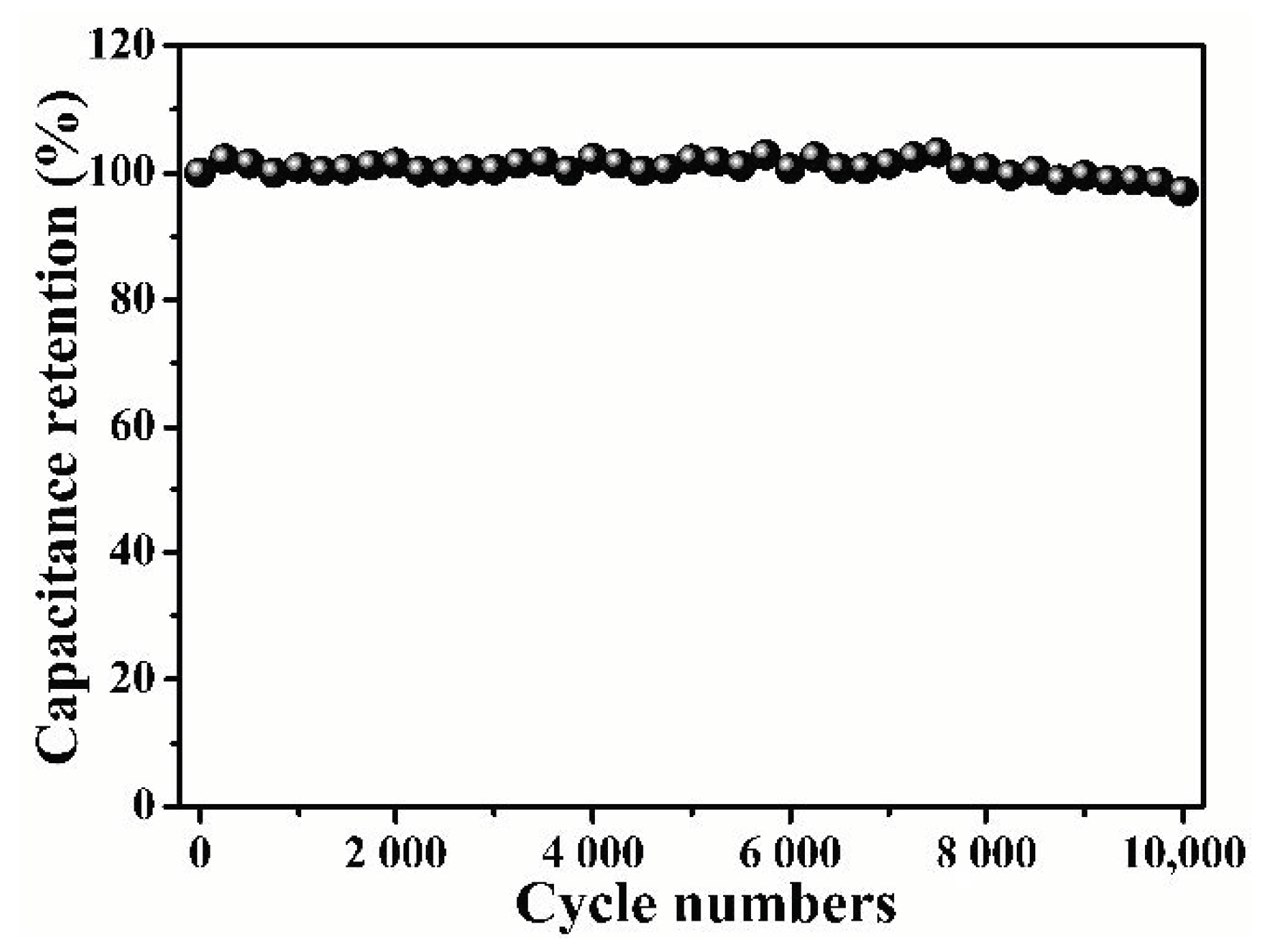

Figure 10. Cycling stability of the B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 1 M Na2SO4 electrolyte at 10 A g−1.
Figure 10. Cycling stability of the B/S-SCS-1//B/S-SCS-1 symmetric supercapacitor using 1 M Na2SO4 electrolyte at 10 A g−1.
Nanomaterials 12 01182 g010
Table
Table 1. The element contents in the as-prepared samples determined by XPS.
Table 1. The element contents in the as-prepared samples determined by XPS.
MaterialsElement Content (at.%)
CNOBS
B/S-SCs-172.7510.510.995.560.81
Table
Table 2. Comparison of specific capacitance of B/S-SCs-1 with the reported biomass-derived carbon materials in references.
Table 2. Comparison of specific capacitance of B/S-SCs-1 with the reported biomass-derived carbon materials in references.
Carbon SourceElectrolyteSpecific Capacitance
(F g−1)		Current
Density
(A g−1)		Refs.
Platanus6 M KOH286 F g−10.5 A g−1[46]
Composting leachate6 M KOH228 F g−10.5 A g−1[47]
Pork bone6 M KOH302 F g−10.5 A g−1[48]
Mulberry leaves6 M KOH214.5 F g−10.5 A g−1[49]
Licorice root6 M KOH221 F g−10.5 A g−1[50]
Sedum spectabile stalk6 M KOH290.7 F g−10.5 A g−1This work
Table
Table 3. Comparison of the specific energy value of the supercapacitor with biomass carbon in recent references.
Table 3. Comparison of the specific energy value of the supercapacitor with biomass carbon in recent references.
Carbon SourceElectrolyteSpecific EnergyRefs.
Cashew nut husk1 M Na2SO411.2 Wh kg−1[19]
Pine nut shells1 M Na2SO411.9 Wh kg−1[60]
Perilla frutescens
leaves		1 M Na2SO413.9 Wh kg−1[61]
Carrot1 M Na2SO413.9 Wh kg−1[62]
Sedum spectabile stalk1 M Na2SO416.65 Wh kg−1This work
Walnut peel1 M Na2SO412 Wh kg−1This work
Wheat straw1 M Na2SO412.5 Wh kg−1This work
Corn stalks1 M Na2SO411.3 Wh kg−1This work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Y.; Wang, D.; Li, Z.; Su, Q.; Wei, S.; Pang, S.; Zhao, X.; Liang, L.; Kang, L.; Cao, S. Preparation of Boron/Sulfur-Codoped Porous Carbon Derived from Biological Wastes and Its Application in a Supercapacitor. Nanomaterials 2022, 12, 1182. https://doi.org/10.3390/nano12071182

AMA Style

Wang Y, Wang D, Li Z, Su Q, Wei S, Pang S, Zhao X, Liang L, Kang L, Cao S. Preparation of Boron/Sulfur-Codoped Porous Carbon Derived from Biological Wastes and Its Application in a Supercapacitor. Nanomaterials. 2022; 12(7):1182. https://doi.org/10.3390/nano12071182

Chicago/Turabian Style

Wang, Yanbin, Dian Wang, Zhaoxia Li, Qiong Su, Shuai Wei, Shaofeng Pang, Xiangfei Zhao, Lichun Liang, Lihui Kang, and Shijun Cao. 2022. "Preparation of Boron/Sulfur-Codoped Porous Carbon Derived from Biological Wastes and Its Application in a Supercapacitor" Nanomaterials 12, no. 7: 1182. https://doi.org/10.3390/nano12071182

APA Style

Wang, Y., Wang, D., Li, Z., Su, Q., Wei, S., Pang, S., Zhao, X., Liang, L., Kang, L., & Cao, S. (2022). Preparation of Boron/Sulfur-Codoped Porous Carbon Derived from Biological Wastes and Its Application in a Supercapacitor. Nanomaterials, 12(7), 1182. https://doi.org/10.3390/nano12071182

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
