S-Doped NiFe2O4 Nanosheets Regulated Microbial Community of Suspension for Constructing High Electroactive Consortia

by
Jiaxin Li
1,2,
Bo Song
3,4,
Chongchao Yao
1,
Zhihao Zhang
1,
Lei Wang
3,* and
Jing Zhang
1,*
1
National Engineering Laboratory for VOCs Pollution Control Material and Technology, Research Center for Environmental Material and Pollution Control Technology, University of Chinese Academy of Sciences, Beijing 101408, China
2
Sino-Danish College, University of Chinese Academy of Sciences, Beijing 100049, China
3
Key Laboratory of Environmental Biotechnology, Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, Beijing 100085, China
4
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(9), 1496; https://doi.org/10.3390/nano12091496
Submission received: 29 March 2022 / Revised: 22 April 2022 / Accepted: 26 April 2022 / Published: 28 April 2022
(This article belongs to the Special Issue Nanomaterials for Environmental Pollutant Remediation and Circular Economy)
Browse Figures
Versions Notes

Abstract

:
Iron-based nanomaterials (NMs) are increasingly used to promote extracellular electron transfer (EET) for energy production in bioelectrochemical systems (BESs). However, the composition and roles of planktonic bacteria in the solution regulated by iron-based NMs have rarely been taken into account. Herein, the changes of the microbial community in the solution by S-doped NiFe2O4 anodes have been demonstrated and used for constructing electroactive consortia on normal carbon cloth anodes, which could achieve the same level of electricity generation as NMs-mediated biofilm, as indicated by the significantly high voltage response (0.64 V) and power density (3.5 W m−2), whereas with different microbial diversity and connections. Network analysis showed that the introduction of iron-based NMs made Geobacter positively interact with f_Rhodocyclaceae, improving the competitiveness of the consortium (Geobacter and f_Rhodocyclaceae). Additionally, planktonic bacteria regulated by S-doped anode alone cannot hinder the stimulation of Geobacter by electricity and acetate, while the assistance of lining biofilm enhanced the cooperation of sulfur-oxidizing bacteria (SOB) and fermentative bacteria (FB), thus promoting the electroactivity of microbial consortia. This study reveals the effect of S-doped NiFe2O4 NMs on the network of microbial communities in MFCs and highlights the importance of globality of microbial community, which provides a feasible solution for the safer and more economical environmental applications of NMs.

1. Introduction

Extracellular electron transfer (EET) enables some microorganisms to transfer electrons to extracellular minerals or organic matter, generating energy to maintain their growth [1,2]. EET has been widely employed to construct microbial fuel cells (MFCs) and other bioelectrochemical systems (BESs), which shows an important application prospect in wastewater treatment, electricity generation, bioremediation, and bioproduction [3,4,5,6]. In MFCs, the electrochemically active bacteria (EAB) oxidize reduced substrates and release electrons via EET; then, the electrons flow to the cathode through an external circuit [7]. Anode as the habitat for microorganisms is a critical factor in achieving high-performance MFCs. EET process is influenced by the electron transfer at the bacteria–electrode interface or biointerface. The chemical structure and surface functionality of the anode materials directly affect EET efficiency. Carbon-based electrodes have been widely used as MFC anodes due to their advantages, such as low cost, good electrical conductivity, good biocompatibility, and strong corrosion resistance [8,9]. However, due to its hydrophobicity, it is not conducive to microbial adhesion, which often leads to poor electron transfer capacity, thus causing low power output.
In situ grown nanostructures to surface modification of carbon-based materials are mainly used for facilitating EET, further enhancing MFCs performance [10,11,12,13]. Iron-based nanomaterials (NMs) play multiple functions in promoting EET [14,15,16] due to EAB can discharge electrons by reducing insoluble Fe (III) [17], and the introduction of Fe ions always promotes the enrichment of Geobacter, one of the most extensively studied EAB to date [18,19]. Moreover, Iron oxides (FexOy) can act as electron conduits [20,21], conductive assistants [22], or electron reservoirs [14] to facilitate interspecies electron transfer (IET), which simultaneously improves the potential of bioremediation. Recent studies have shown that NiFe2O4 exhibits superior electrocatalytic activity and conductivity compared to FexOy because of the presence of variable valent cations [23]. Additionally, the electrocatalyst (S-NiFe2O4) generated through a vacancy filling strategy exhibits higher catalytic activity and durability in both alkaline and neutral pH than the NiFe2O4 electrocatalyst [24,25], indicating S-NiFe2O4 electrode material has great potential as an MFC anode for electricity generation.
Diverse microbial consortia exist in natural environments, and many artificial systems, the interactions between the microbial partners in these mixed cultures have a significant impact on the combined performance of microbial consortia [26]. For example, the aerobic Bacillus positively interacts with the anaerobic Clostridium, significantly enhancing hydrogen production [27]. The “interspecies ecological communication” of Pseudomonas aeruginosa and Klebsiella variicola can enhance the electrochemical activity in MFCs [28]. Microbes in MFCs have spatial distribution heterogeneity in the whole chamber. Some studies have revealed microbial communities away from the electrodes also contribute significantly to EET and energy production [29,30]. In particular, the existence of abundant planktonic bacteria in the bulk solution (the suspension community) is also responsible for the essential source of energy production. Therefore, constructing microbial consortia based on microbial interaction regulated by NMs could be one of the possible breakthroughs for the further environmental application of MFCs. Nevertheless, the effects of S-NiFe2O4 on the diversity and network relationships of microbial communities in the whole chamber are still unclear.
This study focused on the effect of S-doped NiFe2O4 nanosheet arrays on carbon cloth (S-NFO@CC) as MFC anodes on microbial community in the solution and used it to construct efficient electroactive consortia. To achieve this goal, we compared the electricity generation performance of MFCs with different S10-NFO@CC nanomaterials, then used the suspension community with the best MFC performance for building up different MFCs, and the outcomes were evaluated in terms of voltage response and power density. Finally, the microbial diversity and interactions of different strategies were analyzed.

2. Materials and Methods

2.1. Synthesis of the S-NFO@CC Nanosheets

Carbon cloth (CC, WOS1009, 330 µm thickness, CeTech Co., Ltd., Taiwan, China) was used as the substrate after ultrasonicating it in acetone, ethanol, and deionized (DI) water for 30 min each. A mixture of Ni (NO3)2·6H2O (0.0873 g), Fe (NO3)3·9H2O (0.2424 g), NH4F (0.0527 g), and Urea (CH4N2O, 0.0902 g) was added into DI water (40 mL) stirring for 30 min. Subsequently, 15 mL mixed solution and a piece of CC with a size of 1 × 1 cm2 were transferred into a 23 mL Teflon-lined stainless steel autoclave, which was sealed and maintained at 120 °C for 6 h. After cooling to room temperature, the nickel-iron layered double hydroxide modified CC (NiFe-LDH@CC) was removed from the solution and washed several times with DI water and ethanol. The precursor was then dried at 60 °C overnight and annealed at 400 °C or 700 °C for 1 h with a heating rate of 5 °C min−1 in an N2 atmosphere to obtain the NiFe2O4 nanocrystals (NFO400@CC and NFO700@CC). Then 15 mL sulfide precursor solutions (10 mM Na2S·9H2O) and a piece of NFO@CC were transferred into the 23 mL Teflon-line stainless steel autoclave and maintained at 120 °C for 6 h or 8 h. The S-doped NiFe2O4 nanosheet arrays on CC was washed with DI water, dried at 60 °C after the sulfide conversion process, and finally marked as S10-NFO400@CC, S10(T8)-NFO400@CC, and S10-NFO700@CC.

2.2. Material Characterization and MFC Characterization

The morphology of materials was characterized by scanning electron microscopy (SEM, JEOL JSM-7900F, Tokyo, Japan) equipped with an acceleration voltage of 15.0 kV. XRD analysis was performed by Bruker D8 advance (Karlsruhe, Germany) with Cu Kα radiation (λ = 0.1542 nm) under a voltage of 40 kV and a current of 40 mA.
Two-chamber MFCs (WENOOTE Inc., Chuzhou, China) with 1 kΩ external resistance operated at 37 °C in repeated batch mode. The anode chamber and cathode chamber with the same working volume (50 mL) were separated by a proton exchange membrane (Nafion 117, Dupont Co., Wilmington, DE, USA). Each anode chamber which was equipped with either CC, NFO400@CC, S10-NFO@CC anode, was inoculated with 5.0 mL of pre-acclimated bacteria deriving originally from activated anaerobic sludge and fed with a medium solution (pH 7.0) containing 50 mM phosphate buffer solution (PBS), sodium acetate (CH3COONa, 2 g L−1), trace minerals (12.5 mL L−1), and vitamins (5 mL L−1) as described before [11]. Thereinto, the main ions of PBS solution include Na+, K+, H+, HPO42−, PO43− and Cl−. Trace minerals mainly contain Mg2+, Mn2+, Na+, SO42−, Cl−, etc. Vitamins mainly contain organics such as pyridoxine hydrochloride, riboflavin, Vitamin B12, Nicotinic acid, etc. Each cathode chamber was equipped with a commercially available 3D carbon fiber brush electrode and fed with 50 mM KCl and 50 mM K3[Fe (CN)6] solution. The anode solution was refreshed and purged with N2 for 15 min to keep anaerobic conditions when the operating voltage dropped below 0.05 V. Cell voltages of MFCs were recorded every 10 min by a digital multimeter (DAQ2650 with 7701 modules, Keithley Instruments Inc., Cleveland, OH, USA). Electrochemical polarization and power density curves were acquired by varying the external resistance at a range of 2–0.2 kΩ when the MFCs produced stable maximum voltages after four steady and repeatable voltage cycles. Maximum current density and maximum power density were normalized to the electrode surface area (calculated as a double side, 2 cm2).

2.3. Different Strategies of MFC Operation

After 1 month of operation of MFCs with CC and S10-NFO400@CC anodes, the bacteria in the bulk solution of these two anode chambers were collected, respectively, denoted planktonic_CC and planktonic_S10. As summarized in Table 1, Group 1 as a control and three other strategies were employed to construct conductive microbes using a common CC anode. New MFC with a new CC anode was inoculated with planktonic_CC (denoted Group 2) and planktonic_S10 (denoted Group 3), respectively. In addition, a reactor operated for about four months in Group 1 was replaced with a new CC anode and inoculated with planktonic_S10 as Group 4. All MFCs of four groups were operated and tested using the same electrolytes and methods shown in Section 2.2.

2.4. Microbial Community Analysis

In order to analyze the effect of S10-NFO400@CC anode on the microbial community structure and composition, anode biofilm samples and planktonic bacteria were collected at the end of the operation and analyzed by 16S rRNA high-throughput sequencing. The total DNA extraction was performed using a PowerSoil DNA Isolation Kit (MoBio PowerSoil, Carlsbad, CA, USA). DNA concentration was confirmed by a spectrophotometer (NanoDrop 2000c, Thermo Fisher Scientific, Waltham, MA, USA). The universal PCR primers of Forward 338F (5′-AYTGGGYDTAAAGVG-3′) and Reverse 806R (5′-GGACTACHVGGGTWTCTAAT-3′) were used for the amplification of V3-V4 hypervariable regions of 16S rRNA genes by thermocycler PCR system (GeneAmp 9700, Applied Biosystems, Waltham, MA, USA) and amplicons were sequenced by an Illumina MiSeq platform at the Shanghai Majorbio Co. Ltd. (Shanghai, China) The raw sequencing data were deposited in the Sequence Read Archive database (https://www.ncbi.nlm.nih.gov/sra accessed on 20 April 2022) with the final SRA accession number PRJNA820348. The microbial diversity was further analyzed using the free online platform of the Majorbio Cloud Platform (https://www.majorbio.com accessed on 20 April 2022). In addition, the phylogenetic molecular ecological networks (MENs) were constructed to compare microbial interactions among different strategies.

3. Results and Discussion

3.1. Characterization and MFC Performance of S10-NFO@CC Nanosheets

S-NiFe2O4 nanosheet arrays on carbon cloth (S-NFO@CC) was successfully synthesized by a simple hydrothermal sulfidation method. First, Fe3+ and Ni2+, with the assistance of F− as a structure-directing agent [31], reacted with CO32− and OH−, which were gradually released from urea during the hydrothermal reaction, led to the formation of NiFe-LDH nanosheets in situ arrays on carbon cloth (NiFe-LDH@CC). Subsequently, NiFe-LDH@CC was annealed to obtain NFO@CC. Then the sulfurization reaction within the presence of S2− via anion-exchange process based on the Kirkendall effect [32,33,34] to achieve S2− doping. The morphology of different NFO@CC materials is shown in Figure 1. Figure 1a–c show the whole carbon cloth substrate of NFO400@CC was covered closely and uniformly by nanosheets. Nevertheless, the hierarchical porous structure of nanosheets was destroyed under 700 °C, which can be significantly observed in NFO700@CC (Figure 1f). In addition, we can see S10-NFO@CC maintained the same morphology as the corresponding NFO@CC. However, when the sulfurization reaction time exceeded 8 h, the morphology of S10(T8)-NFO400@CC was destroyed (Figure 1l).
The crystalline phases of NFO@CC and S10-NFO@CC nanomaterials were investigated by XRD. As shown in Figure 2, NFO400@CC displayed the same crystal structure as NiFe2O4 (JCPDS: 86-2267), and some extra diffraction peaks of NFO700@CC matched by FeNi3 (JCPDS: 65-5131), which shows the high-temperature calcination forms a new phase inside the NFO700@CC. Additionally, S10-NFO@CC displayed the same crystal structure as the corresponding NFO@CC, which implies the low-temperature sulfurization could not further introduce new phases inside the NFO@CC precursor [25].
Then, two-chamber MFCs were constructed to evaluate the electricity generation performance of different S10-NFO@CC anodes. Figure 3a displays the start-up voltages of S10-NFO@CC and NFO400@CC anodes. After inoculation for 3.6 d, a stable maximum voltage of 0.58 V was obtained for the NFO400@CC anode (gray curve). The start-up time was 1 d to achieve a maximum voltage of 0.61 V for the S10-NFO400@CC anode (red curve), while the start-up time was 12 d to obtain a maximum voltage of 0.55 V for S10(T8)-NFO400@CC anode (blue curve), and 12 d to obtain a maximum voltage of 0.52 V for S10-NFO700@CC (black curve), respectively. The time to obtain the maximum repeatable voltage of the S10-NFO400@CC anode, which is the shortest one in all S10-NFO@CC anodes, is 91.7% shorter than for two other S10-NFO@CC anodes. These show different sulfurization conditions affect MFC performance, and 3D porous nanosheet-modified surfaces are conducive to bacterial adhesion and faster construction of EET pathways.
After four cycles of the voltage generation, polarization and power density curves of anodes were tested and shown in Figure 3b. The open-circuit potential of the S10-NFO400@CC anode was the highest value (0.75 V), followed by S10(T8)-NFO400@CC anode (0.71 V), S10-NFO700@CC (0.70 V), and NFO400@CC anode (0.69 V). The maximum power density generated by the S10-NFO400@CC anode was 3320.78 mW m−2 with 300 Ω of external resistance (Figure 3b, red curve), 1.6 times more than with the NFO400@CC anode (2095.66 mW m−2, external resistance: 400 Ω, gray curve). On the contrary, the maximum power density generated by S10(T8)-NFO400@CC anode was 1901.05 mW m−2 with 600 Ω of external resistance (blue curve), a 9.3% decrease compared to the NFO400@CC anode. The maximum power density generated by the S10-NFO700@CC anode was 1306.74 mW m−2 with 900 Ω of external resistance (black curve), 0.62 times that of the NFO400@CC anode. Figure 3c,d show biofilms enriched on S10-NFO400@CC and S10(T8)-NFO400@CC, respectively. The morphology of the nanosheets was covered as the growth of the biofilm. Different bacteria wrapped around the anode and promoted EET, leading to stable electricity generation. To sum up, the S10-NFO400@CC surface has a higher EET ability, obviously improving the power generation of MFC.

3.2. Effects of S10-NFO400@CC Anode on Microbial Community in Suspensions

We determined the microbial community of planktonic bacteria to analyze the effect of the S10-NFO400@CC anode on it. As shown in Figure 4a, at the phylum level, eight bacterial phyla were identified with over 1% relative abundance, and the dominating phyla were Proteobacteria, Bacteroidetes, Desulfobacterota in planktonic_CC and planktonic_S10, which were always found in the MFCs [35,36]. The difference is that Proteobacteria (75%) was the most predominant phyla in planktonic_CC, followed by Desulfobacterota (12%), Bacteroidetes (49%) were the uppermost in planktonic_S10, followed by Desulfobacterota (28%). Further identification at the genus level is illustrated in Figure 4b; Tepidiphilus, as the main component of Proteobacteria, were primarily enriched in the planktonic_CC (53.01%), followed by f_Rhodocyclaceae (16.74%), Geobacter (10.14%), and Microbacter (8.22%), whereas Desulfovibrio (27.36%), Lentimicrobium (24.59%), Petrimonas (11.64%), f_PHOS-HE36 (9.57%), Azonexus (5.74%) in the anode solution gained favorable competition with S10-NFO400@CC anode. Tepidiphilus, belonging to the family Hydrogenophilaceae, was found as the dominant bacteria in extreme environments such as oil reservoirs [37,38]. The family of Rhodocyclaceae is also related to extracellular polymeric substances (EPS) production in aerobic granular sludge (AGS) systems [39]. Geobacter [40] and Desulfovibrio [41,42,43] were well-known EAB and widely found in MFCs. Additionally, f__PHOS-HE36, as sulfur-oxidizing bacteria (SOB), Lentimicrobium, as fermentative bacteria (FB), and Azoarcus are Gram-negative and strictly anaerobic bacteria, which have been detected as dominant microorganisms in the BESs [10,44,45]. Moreover, Lentimicrobium [46] and Petrimonas [47] are FB, which might synergetically interact with Geobacter to enhance hydrogen production.
As seen in the visual heatmap comparison (Figure 5a), the microbial community of anode biofilm was similar to that of suspension in the same MFC, while there were some variations in microbial community compositions at the genus level in response to different anode materials. Figure 5b specifically analyzes the differences in genus-level bacteria between those two planktonic bacteria. Compared to planktonic_CC, a significant increase in the relative abundance of 11 bacterial taxa and a significant decrease in 4 bacterial taxa were observed in planktonic_S10. Particularly, Desulfovibrio, Lentimicrobium, Petrimonas, and f_PHOS-HE36 were significantly enriched in planktonic_S10. Tepidiphilus, f_Rhodocyclaceae, Geobacter, and Microbacter were suppressed.

3.3. Electricity Generation Performance of MFCs with Different Strategies

New MFCs with CC anodes were operated by inoculating planktonic_CC or planktonic_S10. Figure 6a displays the start-up voltages of different strategies. The start-up time was 112 h to obtain a maximum voltage of 0.55 V for CC anode inoculated with planktonic_CC (Group 2, grey curve) and 45 h to achieve a maximum voltage of 0.60 V for CC anode inoculated with planktonic_S10 (Group 3, blue curve), respectively. The start-up time of Group 2 and Group 3 is shortened by 64.4% and 85.7% compared to that of CC anode inoculated with pre-acclimated bacteria (Group 1, black curve), respectively. It is suggested that planktonic_S10 contained more EAB with higher electrochemical activity, which could contribute to the rapid start-up of MFCs and achieve the same high voltage level of S10-NFO400@CC anode. After inoculation for 61 h, a maximum voltage of 0.57 V was obtained for Group 4 (pink curve). Group 4 and Group 3 were inoculated with the same planktonic_S10, but the start-up performance of Group 4 was worse than that of Group 3, which was directly related to the biofilm attached to the inner wall of the anode chamber (lining bacteria).
Long-term operation of MFCs was performed in different groups for two months. Figure 6b illustrates the consecutive electricity generation cycles of different groups. The maximum voltage of Group 2 was stable at 0.55 to 0.56 V, and surprisingly the maximum voltage of Group 4 exceeded 0.6 V after four cycles, up to 0.64 V after one month. Oppositely, the maximum voltage in Group 3 dropped continuously until it stabilized at 0.55 V after one month. The changes in maximum voltages reflect the competition between bacteria enriched on the anode surface and imply different outcomes of anode microbes. After four cycles of the voltage generation, the maximum power density generated by Group 4 was 3497.44 mW m−2 with 300 Ω of external resistance (Figure 6c), which is close to that of the S10-NFO400@CC anode (Figure 3b). In conclusion, the electricity generation performance of Group 4 with a common carbon cloth anode could achieve the same high level as the best S-doped nanomaterial (S10-NFO400@CC anode).

3.4. Microbial Community Analysis of Anode Biofilm with Different Strategies

16S rRNA gene analysis was employed again to compare microbial communities residing in different anode biofilms. As shown in Figure 7a, at the phylum level, six bacterial phyla were identified with over 1% relative abundance and the dominating phyla were Desulfobacterota, Bacteroidetes, and Spirochaetota. Further identification at the genus level is illustrated in Figure 7b; Geobacter as the representative EAB was significantly enriched on anode biofilm of Group 2 (88.94%), followed by Group 3 (88.13%), Group 1 (45.67%), and Group 4 (41.75%). Another kind of EAB of Microbacter decreased in the anode biofilm of Group 2 (5.03%) and Group 3 (3.26%) and increased slightly in that of Group 4 (19.71%), compared to Group 1 (16.31%). Additionally, f_PHOS-HE36 of anode biofilm was a similar amount in Group 1 (12.47%) and Group 4 (11.15%).
According to the visual heatmap further comparison shown in Figure 8, there were some variations in microbial community compositions at the genus level of different anode biofilms in response to different anode materials and the existence of microbes in different locations. Moreover, the community composition on the same anode material was also different. It was noticeable that the microbial community of the anode biofilm in Group 2 and Group 3 was similar with different inoculated bacteria and similar electricity generation performance. It hints that anode biofilms show a similar trend without other influence factors during MFC operation, which adheres and enriches more Geobacter, followed by Microbacter and f_Rhodocyclaceae under the stimulation of acetate. In addition, the microbial community of the anode biofilm in Group 1 and Group 4 was also similar with different inoculated bacteria and different electricity generation performance. It was illustrated that the existence of lining bacteria remembers the microbial composition of anode biofilm, and with the cooperation of lining bacteria and inoculated bacteria, a similar composition of microbes could be obtained. Moreover, the inoculated bacteria—planktonic_S10 could play a crucial role in the improvement of electricity production. However, both the microbial community of the anode biofilm and the electricity generation performance were different between Group 3 and Group 4 with the same inoculated bacteria. It also shows the existence of lining bacteria affects the development of anode biofilms. In brief, Group 4 remembers the microbial community composition of anode biofilms, owing to lining bacteria, and remembers electricity generation performance of S10-NFO400@CC anode, attributing to planktonic bacteria acclimated by S10-NFO400@CC anode, which can be called “the Memory Effect of MFCs”. Both lining bacteria and planktonic bacteria are indispensable for achieving “the Memory Effect of MFCs”.

3.5. Molecular Ecological Networks Analysis

In order to gain a deeper insight into the nexus (competition or mutualism) of microbes during the operation of MFCs, molecular ecological networks (MENs) of microbial communities were specifically constructed (Figure 9 and Figure 10). EAB and FB appeared to have more diversified and complicated connectivity, indicating clear cooperation and competition. Figure 9a shows the relationship between microbes residing in anode biofilm mediated by NFO400@CC and S10-NFO400@CC anodes. Geobacter showed a more positive relationship with Tepidiphilus and f_Rhodocyclaceae, whereas the opposite relationships with others. Additionally, a positive correlation network was established between FB (Lentimicrobium and Petrimonas) and the other three bacteria. Figure 9b displays the nexus of microbes residing in the biofilm of CC anode after inoculating different suspensions (Group 2, Group 3, and Group 4). Geobacter showed a negative association with f_PHOS_HE36 and other bacteria. FB (Lentimicrobium and Petrimonas), Desulfovibrio, and Microbacter appeared to have more complicated connectivity. Tepidiphilus, Petrimonas, Azoarcus, and Microbacter exhibited positive affiliations, whereas the negative relationships with Desulfovibrio and f_Rhodocyclaceae. Comparison between Figure 9a,b show S10-NFO400@CC promotes the cooperation between f_PHOS_HE36 and Desulfovibrio and the cooperation between Geobacter and f_Rhodocyclaceae, respectively.
Microbial interactions constructed by planktonic_CC during MFCs operation are shown in Figure 10a. Geobacter showed a negative relationship with Desulfovibrio, Tepidiphilus, and o_Kapabacteriales, whereas f_PHOS_HE36 exhibited a positive affiliation with Microbacter and others. Moreover, a positive correlation network was established between f_Rhodocyclaceae, Pseudomonas, and the other six bacteria. Microbial interactions constructed by planktonic_S10 during MFCs operation are shown in Figure 10b. Geobacter and f_Rhodocyclaceae exhibited a more positive association with each other, whereas a negative association with others. SOB (f_PHOS-SE36) showed high positive affiliations with FB (Lentimicrobium and Petrimonas) and Azonexus. Microbacter showed a negative relationship with Desulfovibrio. Comparing Figure 10a,b, we can see that planktonic_S10 acclimated by the S10-NFO400@CC anode could enhance the positive connections of FB and SOB, thus promoting IET inside electroactive consortia. It was noticeable that the cooperation between Geobacter and f_Rhodocyclaceae promoted by NMs is sustainable, according to Figure 9a and Figure 10b.

4. Conclusions

This study has demonstrated that the S10-NFO400@CC anode achieved high electricity generation of MFC, simultaneously affecting the microbial community structure in the solution. With the cooperation of lining biofilm and planktonic bacteria, the electricity generation performance of traditional CC anode could achieve the same high level of S10-NFO400@CC anode. Network analysis regulated by S-doped anode uncovered that the introduction of iron-based nanomaterials (NMs) made Geobacter positively interact with f_Rhodocyclaceae, improving the competitiveness of EAB consortium (Geobacter and f_Rhodocyclaceae). In addition, the assistance of lining biofilm enhanced the cooperation of SOB and fermenters, promoting interspecies electron transfer, thus constructing more efficient electroactive consortia. It also implies that although planktonic bacteria acclimated by NMs alone do not remain steady-state under electrical stimulation and assistance of acetate, microbes in a larger range may assist planktonic bacteria to dominate. More attention also should be paid to the wholeness and connection of microbes in the whole artificial system or natural environment, such as lining biofilm, which could not be ignored in the long-term bioelectrochemical system and has to be further identified. These findings provide a feasible strategy for low-risk and low-cost environmental applications of NMs.

Author Contributions

J.L.: conceptualization, methodology, formal analysis, investigation, resources, data curation, visualization, writing—original draft. B.S.: methodology, validation. C.Y.: visualization. Z.Z.: investigation. L.W. and J.Z.: writing—review and editing, supervision, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21836002, 21876190 and 21976197), the National Key Research and Development Program of China (2017YFA0207204 and 2016YFA0203101), and the Fundamental Research Funds for the Central Universities (2020001840).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated for this study can be found in Sequence Read Archive under BioProject, BioProject ID: PRJNA820348 (https://www.ncbi.nlm.nih.gov/ accessed on 20 April 2022).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Reguera, G.; McCarthy, K.D.; Mehta, T.; Nicoll, J.S.; Tuominen, M.T.; Lovley, D.R. Extracellular Electron Transfer via Microbial Nanowires. Nature 2005, 435, 1098–1101. [Google Scholar] [CrossRef] [PubMed]
  2. Gralnick, J.A.; Newman, D.K. Extracellular Respiration. Mol. Microbiol. 2007, 65, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Gude, V.G. Wastewater Treatment in Microbial Fuel Cells—An Overview. J. Clean Prod. 2016, 122, 287–307. [Google Scholar] [CrossRef]
  4. Lu, L.; Lobo, F.L.; Xing, D.; Ren, Z.J. Active Harvesting Enhances Energy Recovery and Function of Electroactive Microbiomes in Microbial Fuel Cells. Appl. Energy 2019, 247, 492–502. [Google Scholar] [CrossRef] [Green Version]
  5. Mei, X.; Wang, H.; Hou, D.; Lobo, F.L.; Xing, D.; Ren, Z.J. Shipboard Bilge Water Treatment by Electrocoagulation Powered by Microbial Fuel Cells. Front. Environ. Sci. Eng. 2019, 13, 53. [Google Scholar] [CrossRef]
  6. Cestellos-Blanco, S.; Zhang, H.; Kim, J.M.; Shen, Y.; Yang, P. Photosynthetic Semiconductor Biohybrids for Solar-Driven Biocatalysis. Nat. Catal. 2020, 3, 245–255. [Google Scholar] [CrossRef]
  7. Lovley, D.R. Bug Juice: Harvesting Electricity with Microorganisms. Nat. Rev. Microbiol. 2006, 4, 497–508. [Google Scholar] [CrossRef]
  8. Li, S.; Cheng, C.; Thomas, A. Carbon-Based Microbial-Fuel-Cell Electrodes: From Conductive Supports to Active Catalysts. Adv. Mater. 2017, 29, 1602547. [Google Scholar] [CrossRef]
  9. Xie, X.; Criddle, C.; Cui, Y. Design and Fabrication of Bioelectrodes for Microbial Bioelectrochemical Systems. Energy Environ. Sci. 2015, 8, 3418–3441. [Google Scholar] [CrossRef]
  10. Liu, D.; Wang, R.; Chang, W.; Zhang, L.; Peng, B.; Li, H.; Liu, S.; Yan, M.; Guo, C. Ti3C2 MXene as an Excellent Anode Material for High-Performance Microbial Fuel Cells. J. Mater. Chem. A 2018, 6, 20887–20895. [Google Scholar] [CrossRef]
  11. Wang, R.; Yan, M.; Li, H.; Zhang, L.; Peng, B.; Sun, J.; Liu, D.; Liu, S. FeS2 Nanoparticles Decorated Graphene as Microbial-Fuel-Cell Anode Achieving High Power Density. Adv. Mater. 2018, 30, 1800618. [Google Scholar] [CrossRef] [PubMed]
  12. Xu, H.; Quan, X.; Xiao, Z.; Chen, L. Effect of Anodes Decoration with Metal and Metal Oxides Nanoparticles on Pharmaceutically Active Compounds Removal and Power Generation in Microbial Fuel Cells. Chem. Eng. J. 2018, 335, 539–547. [Google Scholar] [CrossRef]
  13. Zhang, C.; Liang, P.; Yang, X.; Jiang, Y.; Bian, Y.; Chen, C.; Zhang, X.; Huang, X. Binder-Free Graphene and Manganese Oxide Coated Carbon Felt Anode for High-Performance Microbial Fuel Cell. Biosens. Bioelectron. 2016, 81, 32–38. [Google Scholar] [CrossRef]
  14. Byrne, J.M.; Klueglein, N.; Pearce, C.; Rosso, K.M.; Appel, E.; Kappler, A. Redox Cycling of Fe(II) and Fe(III) in Magnetite by Fe-Metabolizing Bacteria. Science 2015, 347, 1473–1476. [Google Scholar] [CrossRef] [PubMed]
  15. Kato, S.; Hashimoto, K.; Watanabe, K. Microbial Interspecies Electron Transfer via Electric Currents through Conductive Minerals. Proc. Natl. Acad. Sci. USA 2012, 109, 10042–10046. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Tang, H.-Y.; Holmes, D.E.; Ueki, T.; Palacios, P.A.; Lovley, D.R. Iron Corrosion via Direct Metal-Microbe Electron Transfer. mBio 2019, 10, e00303-19. [Google Scholar] [CrossRef] [Green Version]
  17. Lovley, D.R. Dissimilatory Fe(III) and Mn(IV) Reduction. Microbiol. Rev. 1991, 55, 259–287. [Google Scholar] [CrossRef]
  18. Coates, J.D.; Phillips, E.J.; Lonergan, D.J.; Jenter, H.; Lovley, D.R. Isolation of Geobacter Species from Diverse Sedimentary Environments. Appl. Environ. Microbiol. 1996, 62, 1531–1536. [Google Scholar] [CrossRef] [Green Version]
  19. Snoeyenbos-West, O.L.; Nevin, K.P.; Anderson, R.T.; Lovley, D.R. Enrichment of Geobacter Species in Response to Stimulation of Fe(III) Reduction in Sandy Aquifer Sediments. Microb. Ecol. 2000, 39, 153–167. [Google Scholar] [CrossRef]
  20. Nakamura, R.; Okamoto, A.; Tajima, N.; Newton, G.J.; Kai, F.; Takashima, T.; Hashimoto, K. Biological Iron-Monosulfide Production for Efficient Electricity Harvesting from a Deep-Sea Metal-Reducing Bacterium. ChemBioChem 2010, 11, 643–645. [Google Scholar] [CrossRef]
  21. Jiang, X.; Hu, J.; Lieber, A.M.; Jackan, C.S.; Biffinger, J.C.; Fitzgerald, L.A.; Ringeisen, B.R.; Lieber, C.M. Nanoparticle Facilitated Extracellular Electron Transfer in Microbial Fuel Cells. Nano Lett. 2014, 14, 6737–6742. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Liu, F.; Rotaru, A.-E.; Shrestha, P.M.; Malvankar, N.S.; Nevin, K.P.; Lovley, D.R. Magnetite Compensates for the Lack of a Pilin-Associated c-Type Cytochrome in Extracellular Electron Exchange. Environ. Microbiol. 2015, 17, 648–655. [Google Scholar] [CrossRef]
  23. Javed, M.S.; Zhang, C.; Chen, L.; Xi, Y.; Hu, C. Hierarchical Mesoporous NiFe2O4 Nanocone Forest Directly Growing on Carbon Textile for High Performance Flexible Supercapacitors. J. Mater. Chem. A 2016, 4, 8851–8859. [Google Scholar] [CrossRef]
  24. Liu, J.; Zhu, D.; Ling, T.; Vasileff, A.; Qiao, S.-Z. S-NiFe2O4 Ultra-Small Nanoparticle Built Nanosheets for Efficient Water Splitting in Alkaline and Neutral PH. Nano Energy 2017, 40, 264–273. [Google Scholar] [CrossRef]
  25. Jin, J.; Yin, J.; Liu, H.; Huang, B.; Hu, Y.; Zhang, H.; Sun, M.; Peng, Y.; Xi, P.; Yan, C. Atomic Sulfur Filling Oxygen Vacancies Optimizes H Absorption and Boosts the Hydrogen Evolution Reaction in Alkaline Media. Angew. Chem. Int. Ed. Engl. 2021, 60, 14117–14123. [Google Scholar] [CrossRef]
  26. Ghosh, S.; Chowdhury, R.; Bhattacharya, P. Mixed Consortia in Bioprocesses: Role of Microbial Interactions. Appl. Microbiol. Biotechnol. 2016, 100, 4283–4295. [Google Scholar] [CrossRef]
  27. Chang, J.-J.; Chou, C.-H.; Ho, C.-Y.; Chen, W.-E.; Lay, J.-J.; Huang, C.-C. Syntrophic Co-Culture of Aerobic Bacillus and Anaerobic Clostridium for Bio-Fuels and Bio-Hydrogen Production. Int. J. Hydrog. Energy 2008, 33, 5137–5146. [Google Scholar] [CrossRef]
  28. Islam, M.A.; Ethiraj, B.; Cheng, C.K.; Yousuf, A.; Khan, M.D.M.R. An Insight of Synergy between Pseudomonas Aeruginosa and Klebsiella Variicola in a Microbial Fuel Cell. ACS Sustain. Chem. Eng. 2018, 6, 4130–4137. [Google Scholar] [CrossRef]
  29. Sun, M.; Tong, Z.-H.; Sheng, G.-P.; Chen, Y.-Z.; Zhang, F.; Mu, Z.-X.; Wang, H.-L.; Zeng, R.J.; Liu, X.-W.; Yu, H.-Q. Microbial Communities Involved in Electricity Generation from Sulfide Oxidation in a Microbial Fuel Cell. Biosens. Bioelectron. 2010, 26, 470–476. [Google Scholar] [CrossRef]
  30. Wang, B.; Liu, W.; Zhang, Y.; Wang, A. Intermittent Electro Field Regulated Mutualistic Interspecies Electron Transfer Away from the Electrodes for Bioenergy Recovery from Wastewater. Water Res. 2020, 185, 116238. [Google Scholar] [CrossRef]
  31. Wan, L.; He, C.; Chen, D.; Liu, J.; Zhang, Y.; Du, C.; Xie, M.; Chen, J. In Situ Grown NiFeP@NiCo2S4 Nanosheet Arrays on Carbon Cloth for Asymmetric Supercapacitors. Chem. Eng. J. 2020, 399, 125778. [Google Scholar] [CrossRef]
  32. Bae, S.-H.; Kim, J.-E.; Randriamahazaka, H.; Moon, S.-Y.; Park, J.-Y.; Oh, I.-K. Seamlessly Conductive 3D Nanoarchitecture of Core-Shell Ni-Co Nanowire Network for Highly Efficient Oxygen Evolution. Adv. Energy Mater. 2017, 7, 1601492. [Google Scholar] [CrossRef]
  33. Luo, Z.-M.; Wang, J.-W.; Tan, J.-B.; Zhang, Z.-M.; Lu, T.-B. Self-Template Synthesis of Co–Se–S–O Hierarchical Nanotubes as Efficient Electrocatalysts for Oxygen Evolution under Alkaline and Neutral Conditions. ACS Appl. Mater. Interfaces 2018, 10, 8231–8237. [Google Scholar] [CrossRef]
  34. Dong, S.; Hu, P.; Li, X.; Hong, C.; Zhang, X.; Han, J. NiCo2S4 Nanosheets on 3D Wood-Derived Carbon for Microwave Absorption. Chem. Eng. J. 2020, 398, 125588. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Wang, Y.; Angelidaki, I. Alternate Switching between Microbial Fuel Cell and Microbial Electrolysis Cell Operation as a New Method to Control H2O2 Level in Bioelectro-Fenton System. J. Power Sources 2015, 291, 108–116. [Google Scholar] [CrossRef]
  36. Waite, D.W.; Chuvochina, M.; Pelikan, C.; Parks, D.H.; Yilmaz, P.; Wagner, M.; Loy, A.; Naganuma, T.; Nakai, R.; Whitman, W.B.; et al. Proposal to Reclassify the Proteobacterial Classes Deltaproteobacteria and Oligoflexia, and the Phylum Thermodesulfobacteria into Four Phyla Reflecting Major Functional Capabilities. Int. J. Syst. Evol. Microbiol. 2020, 70, 5972–6016. [Google Scholar] [CrossRef]
  37. Bedoya, K.; Niño, J.; Acero, J.; Jaimes-Prada, R.; Cabarcas, F.; Alzate, J.F. Metagenomic Analysis of Biocide-Treated Neotropical Oil Reservoir Water Unveils Microdiversity of Thermophile Tepidiphilus. Front. Microbiol. 2021, 12, 741555. [Google Scholar] [CrossRef]
  38. Zhang, X.; Wang, G.; Ma, X.; Yu, J.; You, J.; Xue, Y.; Ma, Y. Tepidiphilus Baoligensis Sp. Nov., a Novel Bacterium of the Family Hydrogenophilaceae Isolated from an Oil Reservoir. Curr. Microbiol. 2020, 77, 1939–1944. [Google Scholar] [CrossRef]
  39. Szabó, E.; Liébana, R.; Hermansson, M.; Modin, O.; Persson, F.; Wilén, B.-M. Microbial Population Dynamics and Ecosystem Functions of Anoxic/Aerobic Granular Sludge in Sequencing Batch Reactors Operated at Different Organic Loading Rates. Front. Microbiol. 2017, 8, 770. [Google Scholar] [CrossRef]
  40. Nevin, K.P.; Kim, B.-C.; Glaven, R.H.; Johnson, J.P.; Woodard, T.L.; Methé, B.A.; DiDonato, R.J.; Covalla, S.F.; Franks, A.E.; Liu, A.; et al. Anode Biofilm Transcriptomics Reveals Outer Surface Components Essential for High Density Current Production in Geobacter Sulfurreducens Fuel Cells. PLoS ONE 2009, 4, e5628. [Google Scholar] [CrossRef]
  41. Kumar, S.S.; Kumar, V.; Gnaneswar Gude, V.; Malyan, S.K.; Pugazhendhi, A. Alkalinity and Salinity Favor Bioelectricity Generation Potential of Clostridium, Tetrathiobacter and Desulfovibrio Consortium in Microbial Fuel Cells (MFC) Treating Sulfate-Laden Wastewater. Bioresour. Technol. 2020, 306, 123110. [Google Scholar] [CrossRef] [PubMed]
  42. Martins, M.; Mourato, C.; Morais-Silva, F.O.; Rodrigues-Pousada, C.; Voordouw, G.; Wall, J.D.; Pereira, I.A.C. Electron Transfer Pathways of Formate-Driven H2 Production in Desulfovibrio. Appl. Microbiol. Biotechnol. 2016, 100, 8135–8146. [Google Scholar] [CrossRef] [PubMed]
  43. Qian, Y.; Xu, M.; Deng, T.; Hu, W.; He, Z.; Yang, X.; Wang, B.; Song, D.; Chen, L.; Huang, Y.; et al. Synergistic Interactions of Desulfovibrio and Petrimonas for Sulfate-Reduction Coupling Polycyclic Aromatic Hydrocarbon Degradation. J. Hazard. Mater. 2021, 407, 124385. [Google Scholar] [CrossRef] [PubMed]
  44. Sun, L.; Toyonaga, M.; Ohashi, A.; Tourlousse, D.M.; Matsuura, N.; Meng, X.-Y.; Tamaki, H.; Hanada, S.; Cruz, R.; Yamaguchi, T.; et al. Lentimicrobium Saccharophilum Gen. Nov., Sp. Nov., a Strictly Anaerobic Bacterium Representing a New Family in the Phylum Bacteroidetes, and Proposal of Lentimicrobiaceae Fam. Nov. Int. J. Syst. Evol. Microbiol. 2016, 66, 2635–2642. [Google Scholar] [CrossRef] [Green Version]
  45. Shi, C.; Xu, Y.; Liu, M.; Chen, X.; Fan, M.; Liu, J.; Chen, Y. Enhanced Bisphenol S Anaerobic Degradation Using an NZVI–HA-Modified Anode in Bioelectrochemical Systems. J. Hazard. Mater. 2021, 403, 124053. [Google Scholar] [CrossRef] [PubMed]
  46. Li, M.-T.; Rao, L.; Wang, L.; Gou, M.; Sun, Z.-Y.; Xia, Z.-Y.; Song, W.-F.; Tang, Y.-Q. Bioaugmentation with Syntrophic Volatile Fatty Acids-Oxidizing Consortia to Alleviate the Ammonia Inhibition in Continuously Anaerobic Digestion of Municipal Sludge. Chemosphere 2022, 288, 132389. [Google Scholar] [CrossRef] [PubMed]
  47. Sun, R.; Xing, D.; Jia, J.; Liu, Q.; Zhou, A.; Bai, S.; Ren, N. Optimization of High-Solid Waste Activated Sludge Concentration for Hydrogen Production in Microbial Electrolysis Cells and Microbial Community Diversity Analysis. Int. J. Hydrog. Energy 2014, 39, 19912–19920. [Google Scholar] [CrossRef]
Nanomaterials 12 01496 g001 550

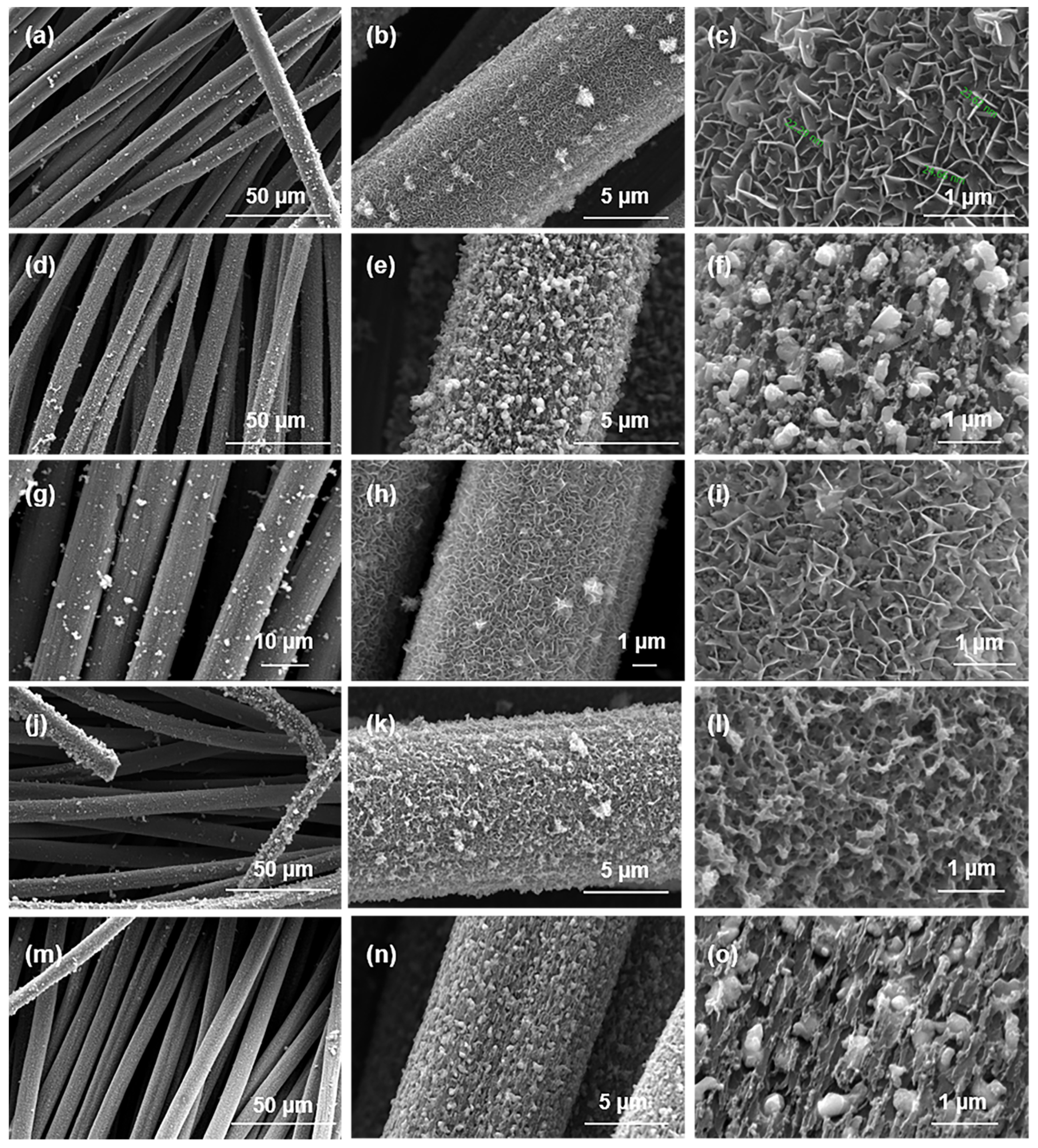

Figure 1. SEM images of (a–c) NFO400@CC, (d–f) NFO700@CC, (g–i) S10-NFO400@CC, (j–l) S10(T8)-NFO400@CC, (m–o) S10-NFO700@CC.
Figure 1. SEM images of (a–c) NFO400@CC, (d–f) NFO700@CC, (g–i) S10-NFO400@CC, (j–l) S10(T8)-NFO400@CC, (m–o) S10-NFO700@CC.
Nanomaterials 12 01496 g001
Nanomaterials 12 01496 g002 550

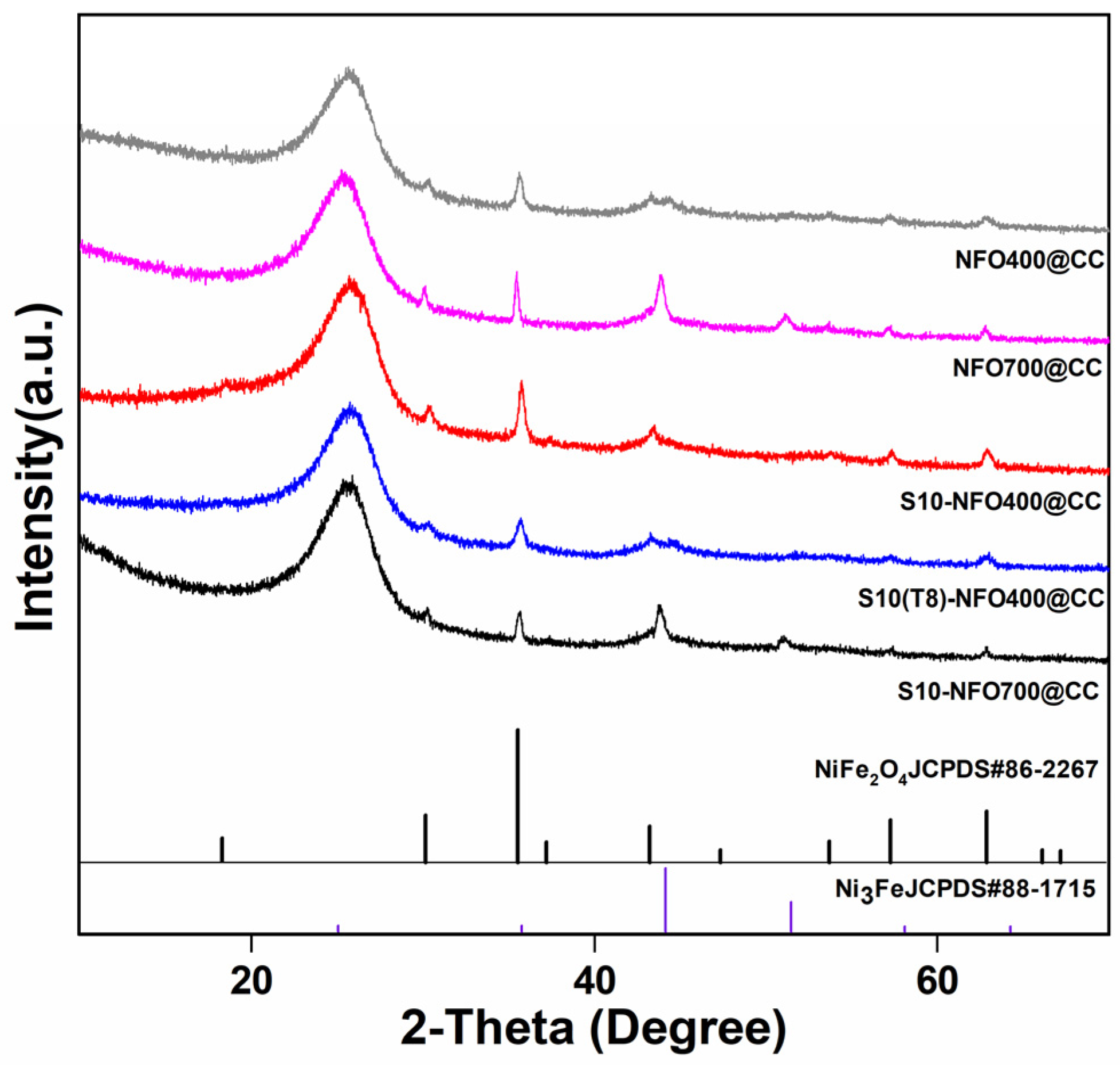

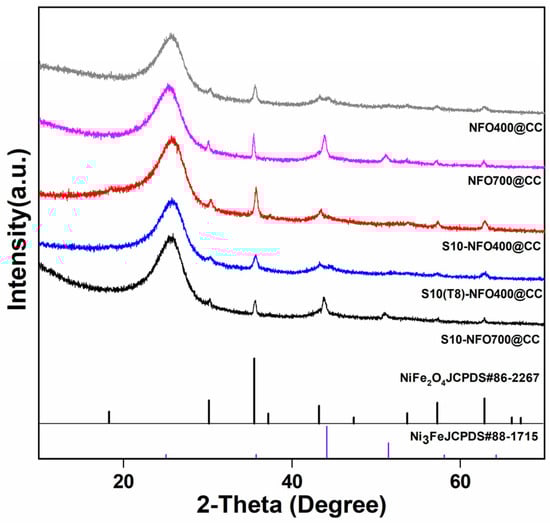

Figure 2. XRD patterns of NFO400@CC (gray curve), NFO700@CC (magenta curve), S10-NFO400@CC (red curve), S10(T8)-NFO400@CC (blue curve), S10-NFO700@CC (black curve).
Figure 2. XRD patterns of NFO400@CC (gray curve), NFO700@CC (magenta curve), S10-NFO400@CC (red curve), S10(T8)-NFO400@CC (blue curve), S10-NFO700@CC (black curve).
Nanomaterials 12 01496 g002
Nanomaterials 12 01496 g003 550

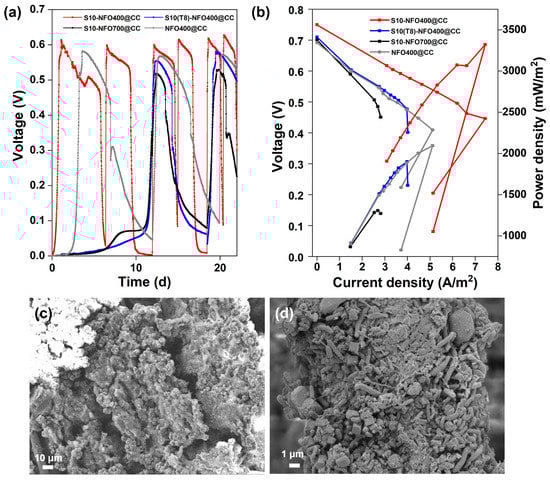

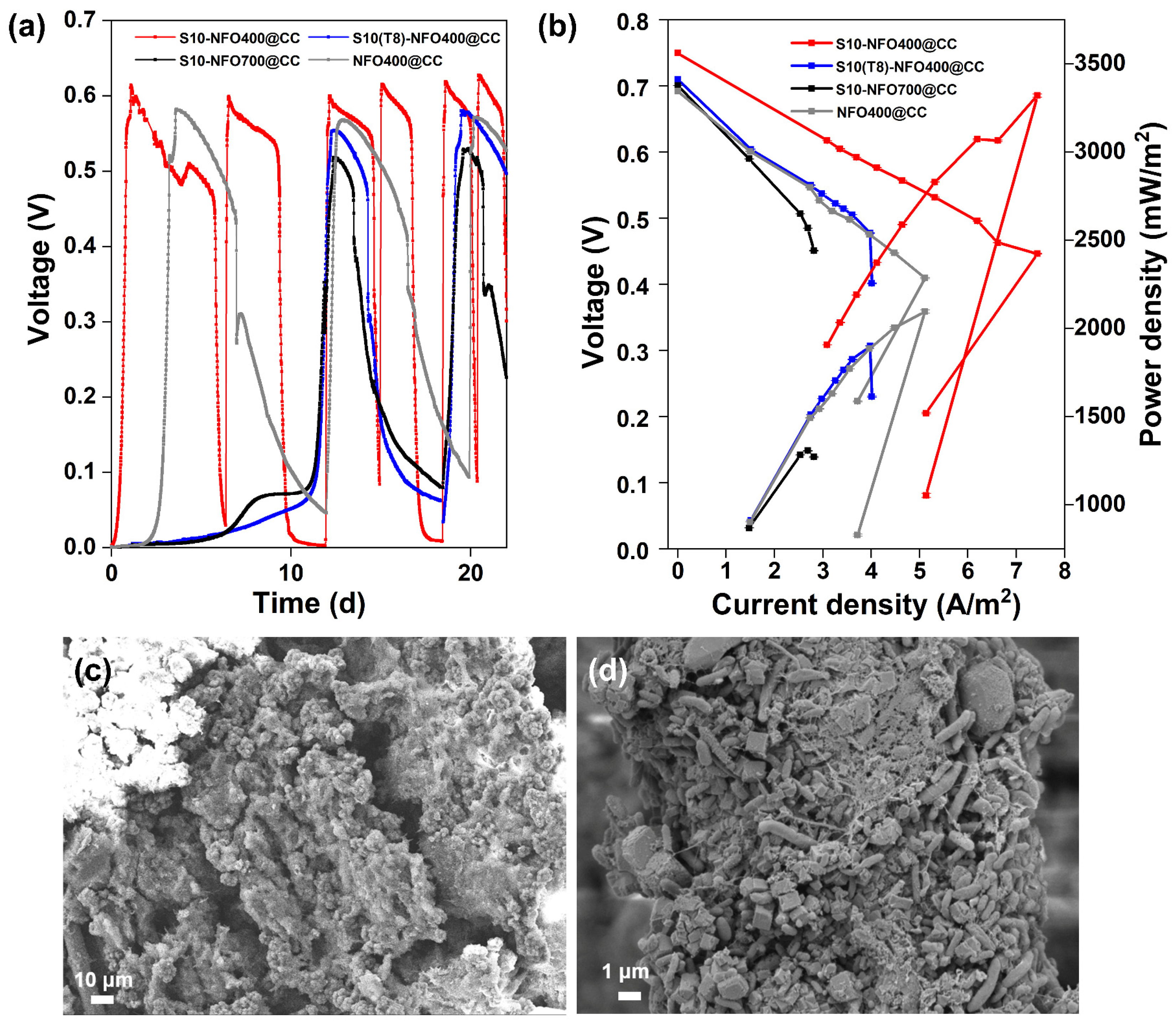

Figure 3. S10-NFO@CC as MFC anodes. (a) Start-up voltages, (b) Polarization and power density curves of S10-NFO400@CC (red curve), S10(T8)-NFO400@CC (blue curve), S10-NFO700@CC (black curve). SEM images of biofilm growth on (c) S10-NFO400@CC anode, and (d) S10(T8)-NFO400@CC anode.
Figure 3. S10-NFO@CC as MFC anodes. (a) Start-up voltages, (b) Polarization and power density curves of S10-NFO400@CC (red curve), S10(T8)-NFO400@CC (blue curve), S10-NFO700@CC (black curve). SEM images of biofilm growth on (c) S10-NFO400@CC anode, and (d) S10(T8)-NFO400@CC anode.
Nanomaterials 12 01496 g003
Nanomaterials 12 01496 g004 550

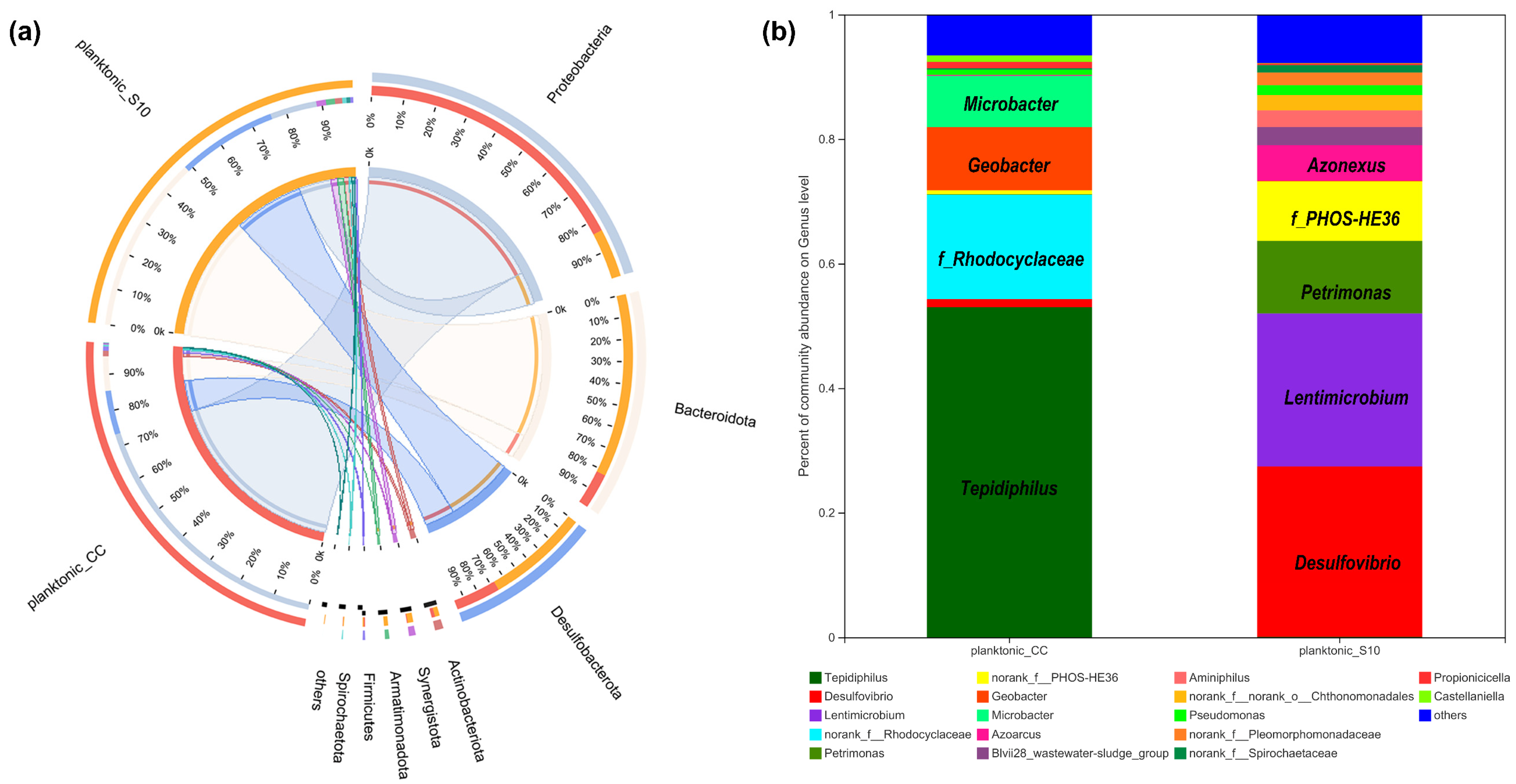

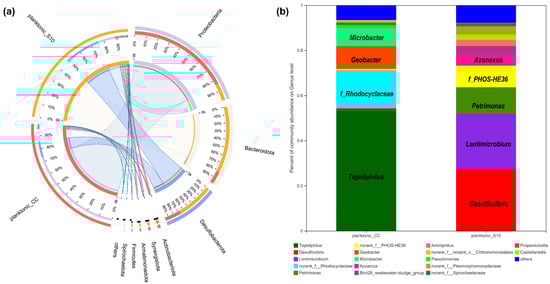

Figure 4. The relative abundance of microbial community compositions of planktonic_CC and planktonic_S10 at the phylum (a), and genus level (b), respectively.
Figure 4. The relative abundance of microbial community compositions of planktonic_CC and planktonic_S10 at the phylum (a), and genus level (b), respectively.
Nanomaterials 12 01496 g004
Nanomaterials 12 01496 g005 550

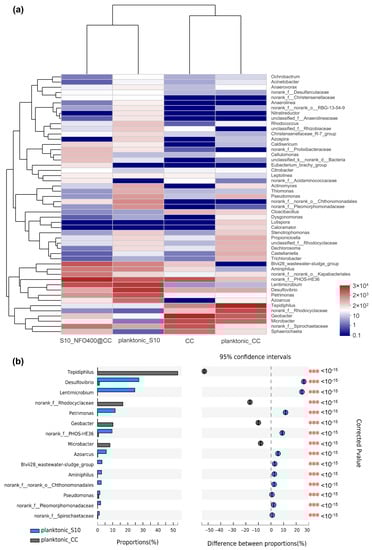

Figure 5. (a) The heatmap of the most abundant genera for anode biofilms and correspondingly planktonic bacteria. (b) Bacterial community of the planktonic bacteria had a significant difference (*** p ≤ 0.001) between CC anode and S10-NFO400@CC anode at the genus level.
Figure 5. (a) The heatmap of the most abundant genera for anode biofilms and correspondingly planktonic bacteria. (b) Bacterial community of the planktonic bacteria had a significant difference (*** p ≤ 0.001) between CC anode and S10-NFO400@CC anode at the genus level.
Nanomaterials 12 01496 g005
Nanomaterials 12 01496 g006 550

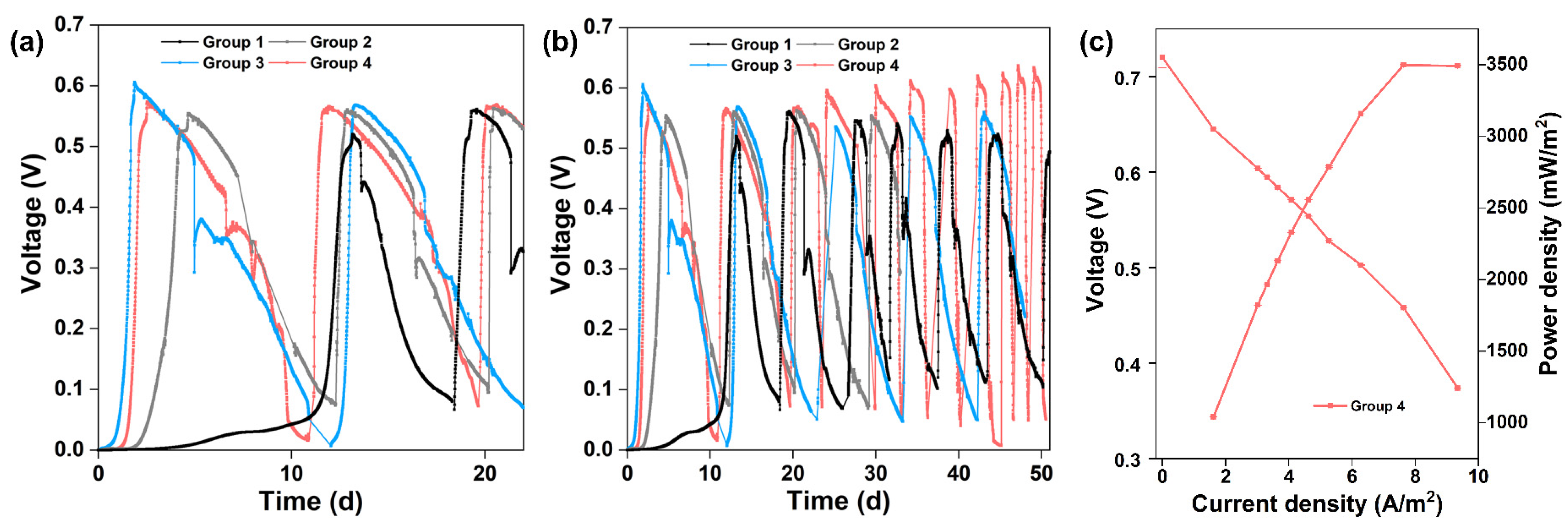

Figure 6. (a) Start-up voltages of different groups. (b) Long-term MFC stability of different groups. (c) Polarization and power density curves of Group 4.
Figure 6. (a) Start-up voltages of different groups. (b) Long-term MFC stability of different groups. (c) Polarization and power density curves of Group 4.
Nanomaterials 12 01496 g006
Nanomaterials 12 01496 g007 550

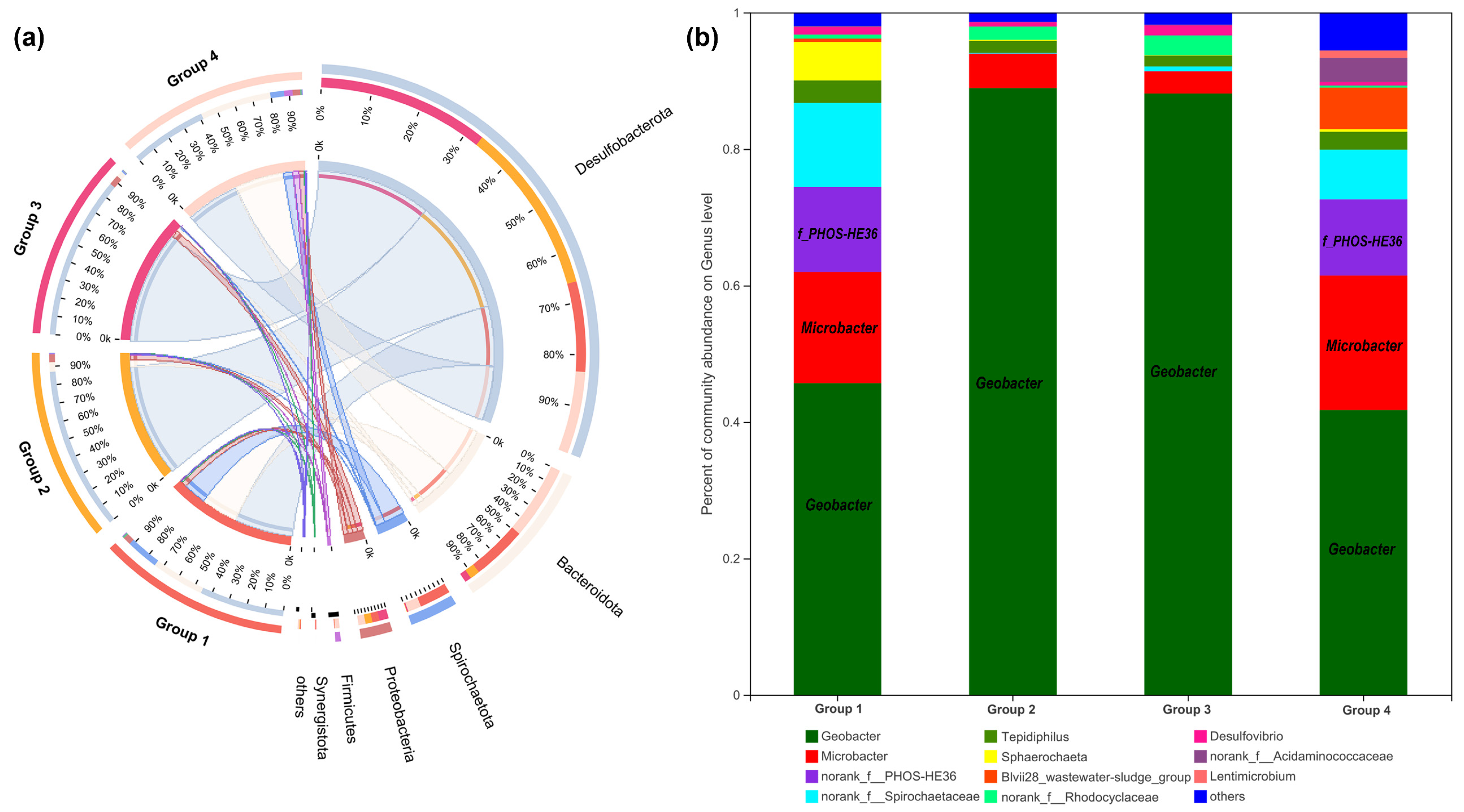

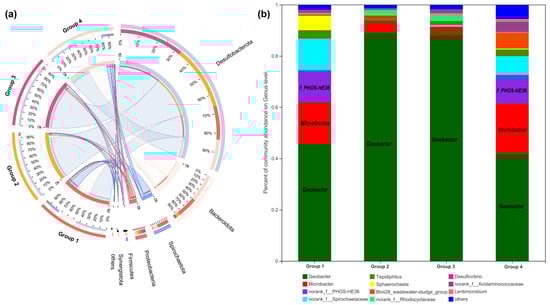

Figure 7. Microbial community analysis of anode biofilms in different groups. The relative abundance of microbial community compositions at the phylum (a), and genus level (b), respectively.
Figure 7. Microbial community analysis of anode biofilms in different groups. The relative abundance of microbial community compositions at the phylum (a), and genus level (b), respectively.
Nanomaterials 12 01496 g007
Nanomaterials 12 01496 g008 550

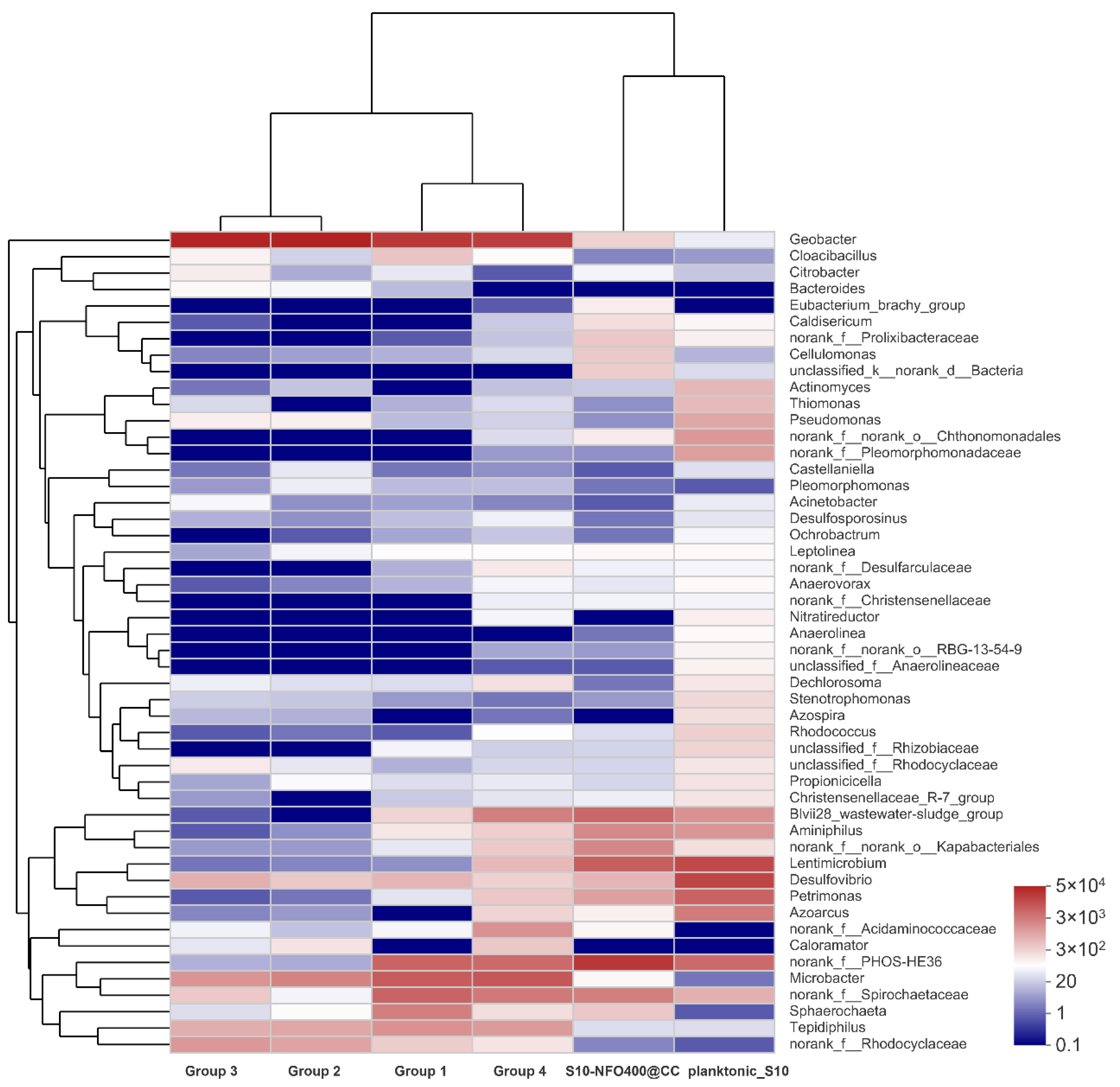

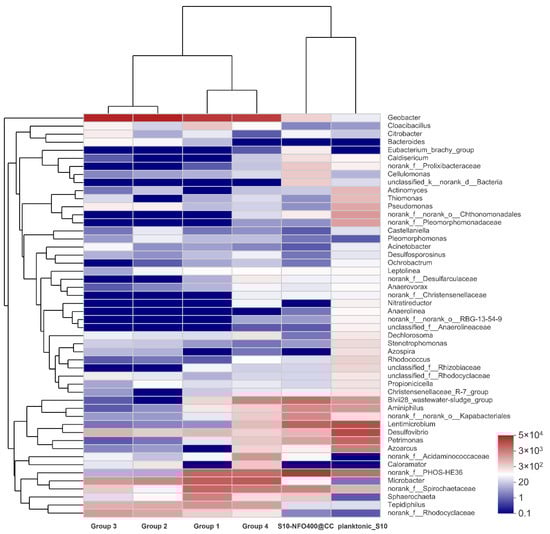

Figure 8. The heatmap of the most abundant genera for anode biofilm in different groups.
Figure 8. The heatmap of the most abundant genera for anode biofilm in different groups.
Nanomaterials 12 01496 g008
Nanomaterials 12 01496 g009 550

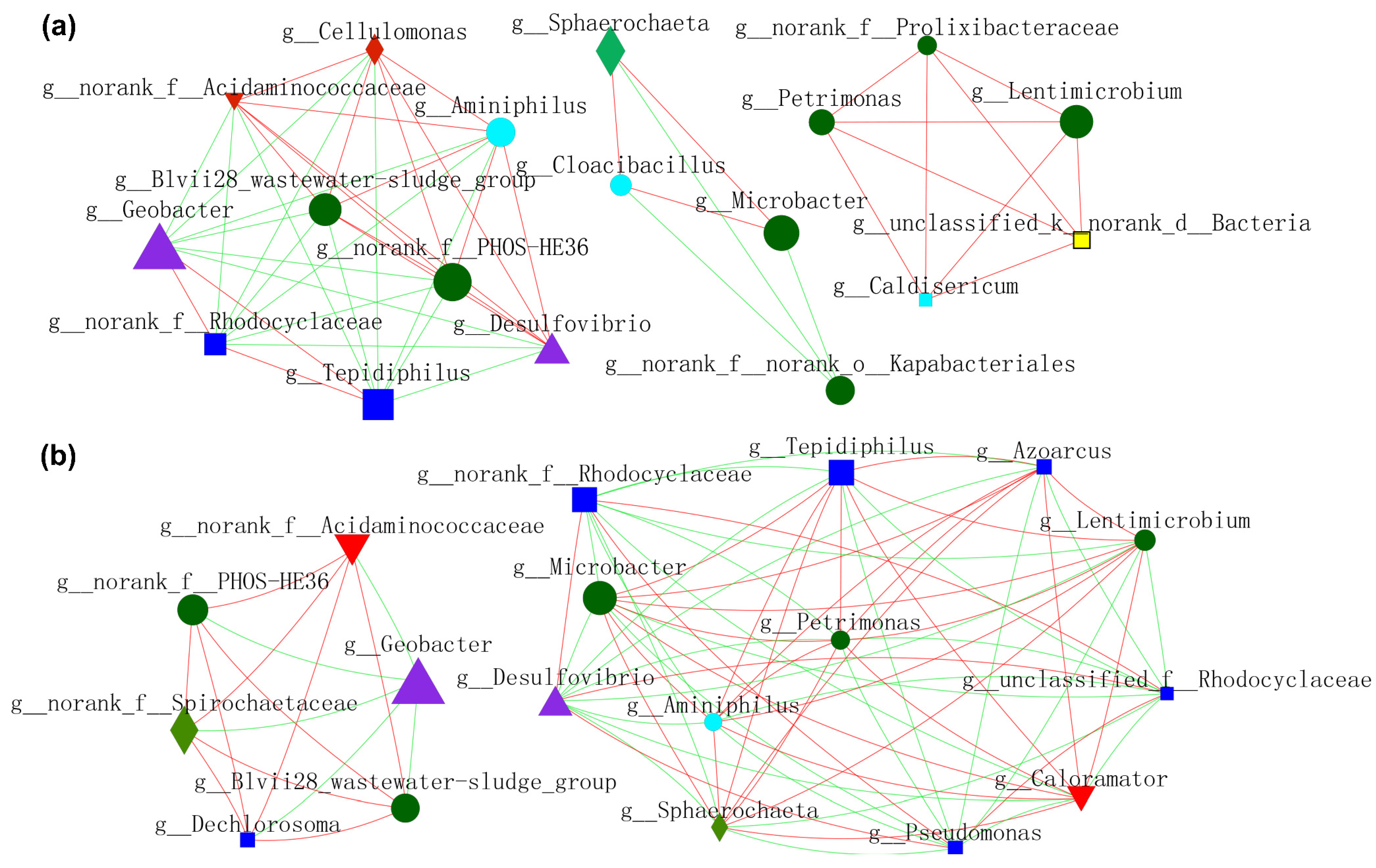

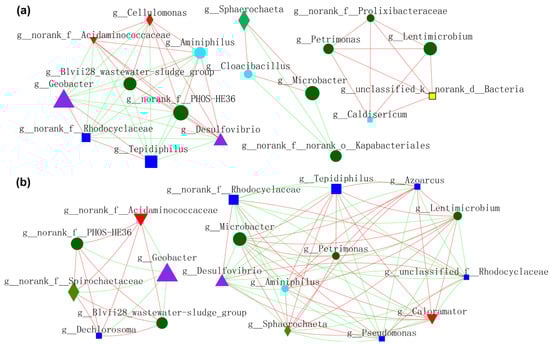

Figure 9. Molecular ecological networks (MEN) visualization of electroactive consortia in MFCs. (a) shows microbes resided in anode biofilm mediated by S-doped nanomaterials. (b) shows microbes resided in biofilm of CC anode in Group 2, Group 3 and Group 4. Different colors and shapes of nodes signifier categories of phylum: Proteobacteria (deep blue diamond), Bacteroidota (deep green round), Desulfobacterota (purple triangle), Synergistota (sky blue round), Unclassified phylum (yellow diamond, Firmicutes (red diamond), Actinobacteriota (red inverted triangle), Spirochaetota (light green diamond). A red edge indicates a positive interaction between two individual nodes, while a green edge indicates a negative interaction.
Figure 9. Molecular ecological networks (MEN) visualization of electroactive consortia in MFCs. (a) shows microbes resided in anode biofilm mediated by S-doped nanomaterials. (b) shows microbes resided in biofilm of CC anode in Group 2, Group 3 and Group 4. Different colors and shapes of nodes signifier categories of phylum: Proteobacteria (deep blue diamond), Bacteroidota (deep green round), Desulfobacterota (purple triangle), Synergistota (sky blue round), Unclassified phylum (yellow diamond, Firmicutes (red diamond), Actinobacteriota (red inverted triangle), Spirochaetota (light green diamond). A red edge indicates a positive interaction between two individual nodes, while a green edge indicates a negative interaction.
Nanomaterials 12 01496 g009
Nanomaterials 12 01496 g010 550

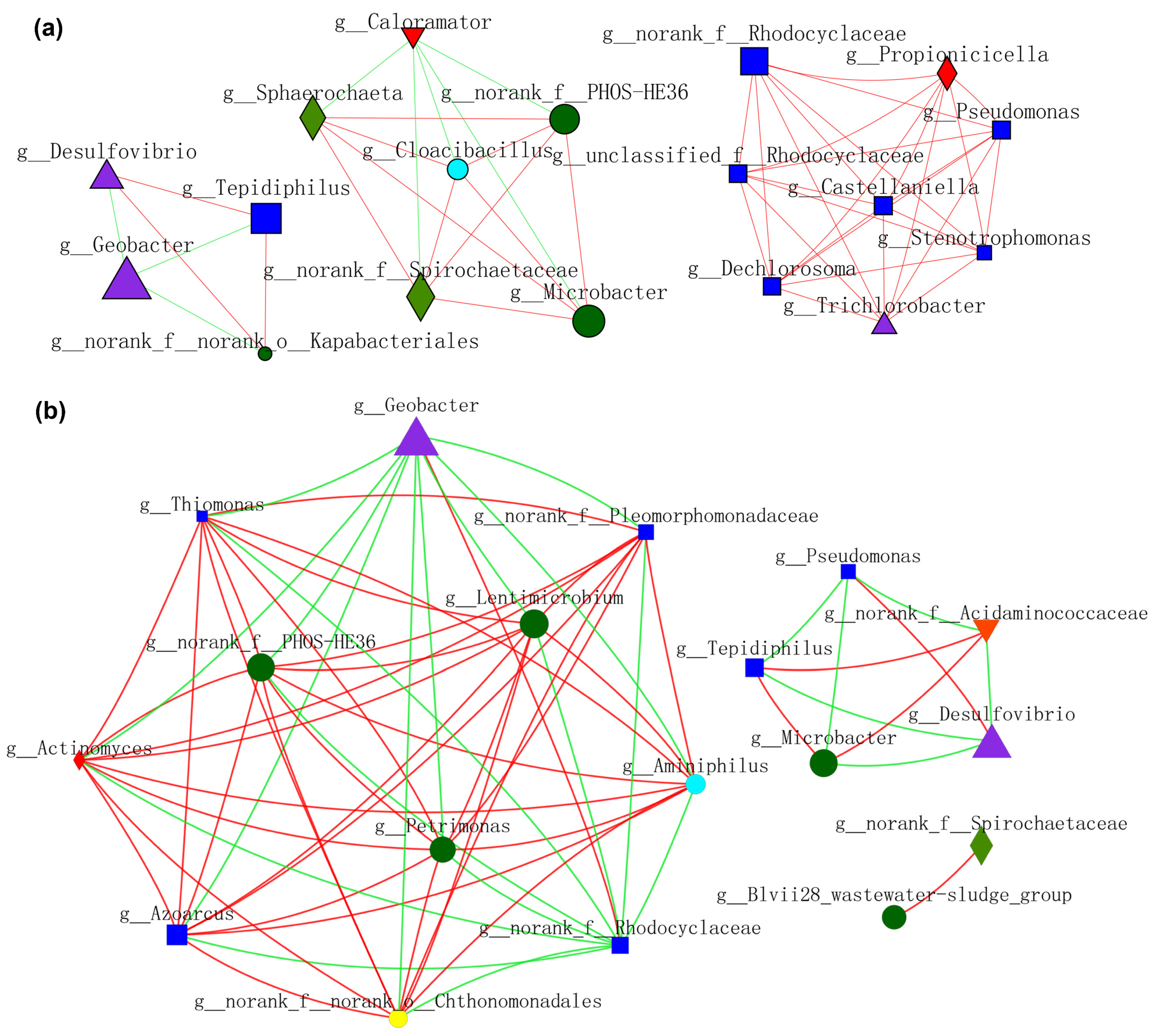

Figure 10. Molecular ecological networks (MEN) visualization dominated by (a) planktonic_CC and (b) planktonic_S10. Different colors and shapes of nodes signifier categories of phylum: Proteobacteria (deep blue diamond), Bacteroidota (deep green round), Desulfobacterota (purple triangle), Synergistota (sky blue round), Armatimonadota (yellow round), Firmicutes (red diamond), Actinobacteriota (red inverted triangle), Spirochaetota (light green diamond). A red edge indicates a positive interaction between two individual nodes, while a green edge indicates a negative interaction.
Figure 10. Molecular ecological networks (MEN) visualization dominated by (a) planktonic_CC and (b) planktonic_S10. Different colors and shapes of nodes signifier categories of phylum: Proteobacteria (deep blue diamond), Bacteroidota (deep green round), Desulfobacterota (purple triangle), Synergistota (sky blue round), Armatimonadota (yellow round), Firmicutes (red diamond), Actinobacteriota (red inverted triangle), Spirochaetota (light green diamond). A red edge indicates a positive interaction between two individual nodes, while a green edge indicates a negative interaction.
Nanomaterials 12 01496 g010
Table
Table 1. The specific description of different strategies.
Table 1. The specific description of different strategies.
GroupAnodeInoculated BacteriaReactors
1Carbon clothOriginal bacteriaNew MFC reactor
2Carbon clothPlanktonic bacteria acclimated by CC anodeNew MFC reactor
3Carbon clothPlanktonic bacteria acclimated by S10-NFO400@CC anodeNew MFC reactor
4Carbon clothPlanktonic bacteria acclimated by S10-NFO400@CC anodeUsed reactor with CC anode, containing bacteria on the inner wall (lining bacteria)
