Research on the Antibacterial Properties of MXene-Based 2D–2D Composite Materials Membrane

by
Xiaojie Cheng
1,*,
Xiaojian Qin
1,
Zhenglun Su
1,
Xun Gou
1,*,
Zhaomei Yang
2 and
Hongshan Wang
2
1
College of Life Science, Sichuan Normal University, Chengdu 610101, China
2
College of Materials and Chemistry & Chemical Engineering, Chengdu University of Technology, Chengdu 610059, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(14), 2121; https://doi.org/10.3390/nano13142121
Submission received: 29 May 2023 / Revised: 13 July 2023 / Accepted: 18 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue Two-Dimensional Materials Membrane and Adsorbent for Wastewater Treatment)
Browse Figures
Versions Notes

Abstract

:
Novel MXene-based two-dimensional (2D) membranes are widely used for water purification due to their highly controllable structure and antibacterial properties. However, in the process of membrane separation, the problems of membrane fouling, especially biological fouling, limits the further application of MXene-based membranes. In this study, in order to improve the antibacterial and separation properties of membranes, three kinds of MXene-based 2D–2D composite membranes (M2~M4) were prepared using polyethersulfone (PES) as the substrate, which were GO@MXene, O-g-C3N4@MXene and BiOCl@MXene composite membranes respectively. The results showed that the antibacterial activity of M2~M4 against Escherichia coli and Staphylococcus aureus was further improved, especially the antibacterial ratio of M4 against Escherichia coli and Staphylococcus aureus was up to 50% and 82.4%, respectively. By comparing the surface morphology of MXene membrane and modified membrane treated bacteria through scanning electron microscopy (SEM), it was found that the cell density on modified membrane was significantly lower than that of pure MXene membrane.

1. Introduction

Membrane separation technology is considered to be the most promising separation technology in the 21st century due to its characteristics of environmental protection, low consumption and continuous operation [1,2,3,4,5]. However, during the process of membrane separation in water treatment, membrane fouling emerges as a significant challenge encountered by membranes, with particular emphasis on biological pollution [6,7,8]. Microorganisms will adhere to and grow on the surface of the membranes and secrete extracellular polymers to form biofilms. Aging of the biofilms will decompose and produce proteins, polysaccharides and other substances to promote the adsorption of other microorganisms, causing pollutants to deposit on the surface of the membranes and clog the membrane pores. This leads to a decrease in the separation and permeation performance of the membrane [9,10]. Developing antibacterial membrane materials that possess high permeability, selectivity and stability holds immense importance in advancing membrane water treatment technology [11,12,13,14].
In recent years, two-dimensional materials represented by graphite oxide (GO), metal organic framework (MOF), molybdenum disulfide (MoS2), graphite phase carbon nitride (g-C3N4) and MXenes have demonstrated remarkable accomplishments in the development of high-performance membrane materials, owing to their exceptional physical and chemical properties, as well as their distinctive mass transfer pathways [15,16,17,18,19,20]. Among them, MXene (Ti3C2Tx) is a new type of 2D metal carbide or carbonitride, which is popular among 2D membrane separation materials due to its high aspect ratio, biocompatibility, hydrophilicity and good antibacterial properties. It has attracted extensive attention from scholars in the construction and design of antibacterial membranes [21,22,23]. In recent years, the design and regulation of MXene-based membranes have become one of the new ideas in the development of membrane materials. Pandey et al. [24] reported findings on MXene membranes modified with Ag nanoparticles. The addition of Ag shortened the water transport path and increased the permeability from 118 to 420 L·m−2·h−1·bar−1. In addition, the inhibitory effect of the membrane on Escherichia coli exceeded 99%. Combining MXene with other two-dimensional materials to construct a 2D–2D composite membrane can overcome the limitations of MXene itself, making the prepared MXene substrate membrane highly permeable and selective, while also improving the stability of the MXene substrate membrane [25,26,27,28,29]. Zhao et al. [30] combined MXene with ZIF-67 to prepare a high-performance gas separation membrane, which showed good chemical stability (CO2 and H2O resistance), thermal stability and high selectivity for He (selectivity for He/N2 and He/CH4 gas mixtures is higher than 13).
At present, two-dimensional membranes based on MXene materials have found extensive applications in various fields, including gas separation, water purification and organic solvent separation [31,32,33,34]. However, there is little systematic research on the antibacterial performance of MXene-based two-dimensional membranes. Graphene oxide (GO) has gained significant attention due to its abundant oxygen groups, large specific surface area and excellent adsorption ability. GO-based nanocomposites have found successful applications in various fields, including batteries [35], electronics [36], drug delivery [37], biomedicine [38] and more. Recent studies have focused on combining GO with two-dimensional materials [39] or metal nanoparticles [40] to enhance the antibacterial properties of the composites. O-g-C3N4 is considered a promising photocatalyst for addressing water pollution issues due to its chemical stability and favorable band gap [41]. BiOCl, another photocatalyst, is primarily used for water pollution treatment [42]. While scientists have made efforts to improve the light absorption range and reduce the electron–hole recombination rate of BiOCl, there is limited research comparing the antibacterial performance of these two photocatalysts. Therefore, in this work, MXene was combined with two-dimensional materials GO, oxygen-doped graphite phase carbon nitride (O-g-C3N4) and bismuth oxychloride (BiOCl) to construct three kinds of MXene-based 2D–2D composite membranes using vacuum-assisted self-assembly. The separation ability of the three 2D–2D modified membranes and the pure MXene membrane to dyes and the bacteriostasis to S. aureus and E. coli were systematically studied and compared. This study is expected to establish a certain reference basis for the development of new MXene based 2D–2D antibacterial membrane materials to alleviate the problem of biological pollution.

2. Materials and Methods

2.1. Materials

MAX (Ti3AlC2) powder was purchased from China Jilin 11 Technology Co., Ltd. (Jilin, China). PES membrane was produced by Tianjin Jinteng Experimental Equipment Co., Ltd. (Tianjin, China). Sulfuric acid (H2SO4), sodium nitrate (NaNO3), phosphoric acid (H3PO4), potassium permanganate (KMnO4), anhydrous copper sulfate (CuSO4), ammonium oxalate ((NH4)2C2O4·H2O), urea (CH4N2O) and hydrochloric acid (HCl) were bought from Chengdu Kolong Co., Ltd. (Chengdu, China). Bi(NO3)3⋅5H2O, ammonium persulfate (H8N2O8S2), Congo red (CR) and lithium fluoride (LiF, 99%) were provided by Solarbio Life Sciences (Beijing, China).

2.2. Synthesis of Two-Dimensional Nanosheets

MXene (Ti3C2Tx) materials were prepared by chemical etching of the MAX (Ti3AlC2) phase [43,44]. Firstly, a beaker containing 20 mL of 9 M HCl solution was used to slowly mix 0.5 g of LiF, followed by continuous stirring for 30 min. Then, 0.5 g MAX phase was added to the mixed solution and the temperature was maintained at 30 °C with magnetic stirring for 20 h. After that, the dispersion obtained was centrifuged repeatedly (3500 rpm, 10 min) using a centrifuge and washed repeatedly with deionized (DI) water until pH < 6. Multilayer MXene nanosheets were obtained by collecting the supernatant, and the samples were dissolved in 200 mL of DI water and sonicated at room temperature (25 °C) under nitrogen atmosphere for 6 h. The suspension obtained through sonication underwent subsequent centrifugation at a speed of 8000 rpm for a duration of 30 min. The resulting supernatant was collected and subjected to a final freeze-drying process, yielding two-dimensional MXene nanosheets.

2.3. Preparation of Other Two-Dimensional Materials

In this work, GO was prepared by an improved Hummers method [45]. Firstly, the graphite powder was dissolved in a beaker containing NaNO3 and H2SO4 solutions, and stirred continuously for 1.5 h to obtain pre-graphite oxide. Then, KMnO4 was slowly added to the beaker for 1 h to further oxidize it. After continuous stirring for 2 h, DI water and hydrogen peroxide (H2O2) solution were added to the beaker successively to remove the unreacted KMnO4. The graphene oxide (GO) was subjected to multiple DI water washes in order to achieve neutralization of remaining acid until a neutral solution was obtained. Finally, the GO was stripped ultrasonically and the synthesized GO nanosheets were collected, after which the GO powder was obtained by freeze-drying.
O-g-C3N4 was synthesized via thermal polymerization [46]. In short, 10 g urea powder was firstly added to a beaker containing DI water to obtain urea suspension, and then 1 g ammonium oxalate powder was added to the suspension, which was then placed on a magnetic agitator and magnetically stirred for 1 h at room temperature. The solution was then dried in a vacuum drying oven (80 °C) until the water in the solution completely evaporated, resulting in a white powder. The white powder was then placed in a crucible and heated for 2 h at a rate of 5 K·min−1. When the crucible was cooled, the crucible was removed and the resulting yellow powder was collected, namely O-g-C3N4.
BiOCl was prepared via a low-temperature chemical process [47]. The specific experimental operation was as follows: Firstly, 4.85 g Bi(NO3)3·5H2O was dissolved in a beaker containing 20 mL HNO3, denoting it as solution A. Then, 5.96 g KCl was dissolved in 100 mL DI water and recorded as solution B. Solution A was subjected to continuous stirring at a temperature of 30 °C, while solution B was gradually introduced into solution A through dropwise addition, ensuring simultaneous stirring. After continuous stirring for 30 min, the samples underwent separate washes with ethanol and DI water. The sample was subsequently subjected to a drying process in a blast drying oven at 60 °C for 12 h, then the white powder was obtained as BiOCl.

2.4. Preparation of Two-Dimensional Composite Membranes

The synthesis scheme for the preparation process of MXene, GO@MXene, O-g-C3N4@MXene and BiOCl@MXene composite two-dimensional membranes is shown in Figure 1. Specifically, a certain amount of MXene and other 2D materials (GO, O-g-C3N4 and BiOCl) were individually dispersed in 50 mL of DI water within separate beakers, and ultrasonic treatment was conducted at room temperature for a duration of 25 min. Then, the MXene dispersion was mixed with other 2D material dispersions and continued to be ultrasonically treated at room temperature for 15 min to obtain uniform GO@MXene, O-g-C3N4@MXene and BiOCl@MXene precursor solutions, respectively. Finally, the precursor solutions were vacuum filtered onto the PES substrate to prepare different MXene-based 2D–2D composite membranes. Table 1 shows the mass ratio of materials in all composite membranes. The MXene membrane, GO@MXene membrane, O-g-C3N4@MXene membrane and BiOCl@MXene membrane were labeled as M1~M4, respectively.

2.5. Characterization

The crystal structures of MAX, MXene, GO, O-g-C3N4 and BiOCl were characterized using an X-ray diffractometer (XRD; D8advance, Billerica, MA, USA). Characteristic peaks of the samples were detected using Fourier transform infrared spectroscopy (FTIR, Nicolet iS50, Waltham, MA, USA). The morphology of materials, the surface morphology and cross-sectional morphology of the two-dimensional membranes and the bacterial density on the surface of the original membrane and modified membrane were analyzed using scanning electron microscopy (SEM, JSM-7500F, JEOL, Japan). The absorbance of the dye solution before and after the test was recorded with a UV–Vis spectrophotometer (UV756CRT, Shanghai, China).

2.6. Permeability and Selectivity of Membranes

The permeability of the membranes was assessed by quantifying the flux of pure water with a volume of 100 mL through the vacuum filtration device. To obtain a constant flux of pure water, the membrane was pre-pressurized for more than 10 min before recording the flux. The permeability (P) can be determined using Equation (1), where V denotes the volume of pure water (L), A represents the effective membrane area (m2), t signifies the permeation time (h) and ∆ p corresponds to the permeation pressure (bar).
P = V A × t × ∆ p
The separation performance of composite membranes was measured using CR (100 ppm) as a typical pollutant, and the concentration of CR before and after separation was measured utilizing a UV spectrophotometer to obtain the retention rate (R). (R) can be calculated according to the following equation:
R ( % ) = 1 − C p C f × 100 %
where C f represents original concentration (g/L) and C p represents filtrate concentration (g/L).

2.7. Antibacterial Test

The antibacterial activity of the synthesized samples (MXene, GO@MXene, O-g-C3N4@MXene, BiOCl@MXene) was evaluated against two bacterial strains: Staphylococcus aureus (Gram-positive) and Escherichia coli (Gram-negative). Both turbidimetric and zone of inhibition methods were employed to assess the antibacterial properties of the membranes. In brief, the experimental bacterial strain was cultured in sterile Luria–Bertani (LB) broth at 200 rpm and 37 °C for 8 h. Subsequently, the culture was inoculated into 50 mL of fresh LB medium containing the different synthesized samples. Samples were collected every two hours to measure their optical density (λ = 600 nm) over a period of 24 h. Simultaneously, membrane samples of approximately 1.57 cm2 were immersed in LB medium overnight. Afterward, the suspensions collected at different time points were transferred onto LB agar plates and incubated for 16 h. The agar plates were used to count the colony-forming units (CFU), enabling the quantification of the antibacterial effectiveness of the membranes at a macroscopic scale. The viability of each sample was calculated using:
s u r v i v a l = T r e a t m e n t   c o l o n y C o n t r o l   c o l o n y × 100 %
The method for obtaining SEM images was further optimized [48]. A bacterial suspension of 500 µL with a concentration of 1 × 106 CFU was injected into LB solid medium. The composite membrane (~1.57 cm2) was then placed on the solidified plate for 12 h and incubated at 37 °C. After cultivation, the sample was removed from the Petri dish and the surface of the membrane was rinsed with sterile phosphate buffer (pH 7.4) to remove any unattached bacteria. To fix the bacteria on the membrane surface, 2.5% glutaraldehyde was applied for 24 h at 4 °C. Subsequently, the membranes were washed with 0.1 M phosphate buffer (pH 7.4) and dehydrated using a graded series of ethanol concentrations (30%, 50%, 70%, 90% and 100%). The samples were subsequently subjected to a thorough vacuum-drying process at 40 °C for 2 h and observed under a scanning electron microscope (SEM) after sputter-coating with gold.

3. Results

3.1. Characterizations of Material

MXene, GO, O-g-C3N4 and BiOCl were characterized by XRD. As shown Figure 2a, only the characteristic peak in the (002) plane was present for MXene, where the complete disappearance of the characteristic peak in the (104) plane belonging to Al proves the successful preparation of MXene [49]. In addition, there was a characteristic peak in the (001) plane in the spectrum of GO. The peaks at 13° and 27° in the spectrum of O-g-C3N4 belonged to the (100) and (002) planes, respectively [50]. In addition, according to the spectra of BiOCl, the peaks at 12.0°, 24.0°, 25.6°, 32.3°, 33.4° and 46.7° belonged to the (001), (002), (101), (110), (102) and (200) planes of BiOCl, respectively [51]. The diffraction peaks of the aforementioned 2D materials were all very similar to those in the literature [46,47,49,50,51]. Figure 2b depicts the FTIR spectra of different two-dimensional nanomaterials. The vibrational frequency of 537.6 cm−1 was specifically associated with the Bi-O bond present in BiOCl [52]. In the spectrum of O-g-C3N4, the peaks at 1800–900 cm−1 were typical stretching vibration modes of C=N and C-N heterocycles, while the peak at 3400 cm−1 was caused by N-H stretching [53,54,55,56]. The peaks appearing at 1619.8 and 3425.8 cm−1 in the spectra were due to the presence of hydroxyl groups on the surfaces of MAX, MXene, GO and BiOCl [57]. These above results indicate that MXene, GO, O-g-C3N4 and BiOCl were successfully prepared.
The scanning electron microscopy (SEM) technique was utilized to characterize the surface morphology of the two-dimensional material. In Figure 3a,b, compared with the dense lamellar MAX phase, the MXene powder with the aluminum layer etched off had a loose structure and appeared to be layered. The surface morphology of GO was similar to that of MXene, both showing a lamellar structure (Figure 3c) [58]. In addition, the O-g-C3N4 and BiOCl particles were both uneven in size but also had a distinct lamellar structure (Figure 3d,e) [47,59].

3.2. Characterizations of Membranes

Figure 4 presents the surface and cross-sectional scanning electron microscopy (SEM) images of membranes M1 to M4. As shown in Figure 4(a1,b1), M1 and M2 exhibited typical 2D membrane structures with both smooth and flat surfaces. The thickness of M1 was about 1 μm (Figure 4(a2)), whereas the thickness of the M2 separation layer was about 0.6 μm (Figure 4(b2)). Two similar 2D materials (MXene and GO) were co-blended and stacked more tightly than the pure membrane after vacuum filtration. In addition, the surface of M3 was folded (Figure 4(c1)), and the SEM cross-sectional view shows a membrane thickness of about 6.0 μm (Figure 4(c2)). In addition, many flower-like nanoparticles were present on the surface of M4 membrane (Figure 4(d1)), which was caused by the incorporation of BiOCl. The thickness of the separated layer in M4 membrane was about 3 μm (Figure 4(d2)). It can be seen that after the modification of two-dimensional materials O-g-C3N4 and BiOCl, the thickness of the membrane separation layer of M3 and M4 was significantly higher than that of M1, which can be attributed to the presence of larger-sized particles and irregular distribution of O-g-C3N4 and BiOCl.

3.3. Permeability and Selectivity of Membranes

In this study, the permeability of composite membranes was studied by using a dead-end filtration device to test the pure water permeability. As shown in Figure 5a, under the condition of 0.1 MPa, the permeability of pure MXene membrane was 417.79 L⋅m−2⋅h−1⋅bar−1. After GO modification of MXene, due to the tightly ordered stacking of MXene and GO nanosheets, the interlayer channels of the membrane were reduced, resulting in a significant decrease in the permeation flux of M2 (6.48 L⋅m−2⋅h−1⋅bar−1) [45]. In contrast, the pure water permeability flux of M3 and M4 was significantly increased, up to 1397.37 L⋅m−2⋅h−1⋅bar−1 and 1019.36 L⋅m−2⋅h−1⋅bar−1, respectively. This was due to the interweaving of O-g-C3N4 and BiOCl nanomaterials with MXene, which formed many new nanochannels in the membrane structure for molecular transport [50,60]. The removal ratios of different composite membranes for simulated wastewater Congo red (CR) dye are shown in Figure 5b, and the removal rates of CR from M1 to M4 were 82.42%, 99.12%, 67.71% and 73.53%, respectively. It is noteworthy that the permeability and the pollutant rejection ratio exhibited an opposite trend, which was consistent with the “trade-off” effect to some extent [61].

3.4. Antimicrobial Behavior Test of Membranes

The antibacterial effect of several materials on E. coli and S. aureus was evaluated using a turbidity method. Figure 6 presents the impact of the synthesized samples on bacterial growth using the turbidimetric method. The bacterial strain without any membranes was operated as a control. The results demonstrate that several materials exhibited potent inhibitory effects on pathogenic bacteria. In the case of E. coli, the optical density began to decrease after 8 h of treatment with the materials compared to the control group (Figure 6a). Conversely, for S. aureus, the decline in optical density was observed after 12 h of treatment (Figure 6b). This can be attributed to the thick and dense peptidoglycan layer present in the cell wall of Gram-positive bacteria, which limits the material’s ability to fully exhibit its bacteriostatic properties.
The antibacterial activity of multiple materials was quantitatively evaluated using a CFU counting method. Figure 7a,c illustrate the bacteriostatic performance of the materials against E. coli, which was found to be superior to their effect on S. aureus. Pure MXene membrane exhibited a relatively consistent bacteriostatic rate regardless of co-treatment. Among the synthesized samples, M4 demonstrated excellent bacteriostatic performance against E. coli, with a 50% inhibition rate at 12 h, twice that of pure MXene membrane. M3 also exhibited good bacteriostatic properties, achieving a rate of 39.7% against E. coli at 12 h. On the other hand, M2 took a longer time to exhibit its bacteriostatic effect, reaching 43.4% inhibition at 20 h. When co-cultured with S. aureus for 8 h (Figure 7b,d), the materials did not exert antibacterial properties until 12 h of co-treatment, consistent with the growth curve. Several composites exhibited similar bacteriostatic properties at 12 h, 16 h and 20 h, with the antibacterial activity of the membranes peaking at 24 h. M4 showed the highest bacteriostatic rate at 82.4%, followed by M2 at 53.7%, M3 at 38.5% and pure MXene membrane at 31.7%. This may be attributed to S. aureus reaching the decay stage at this point, allowing for sufficient interaction between the composite membrane and the bacteria.
Furthermore, the four types of membranes were placed on plates containing E. coli and S. aureus (Figure 8). After 12 h of inverted incubation, it was observed that the width of the antibacterial zone for the plate with E. coli and M4 composite membranes reached 2.7 mm, which was significantly larger than the other membranes. In contrast, there was almost no discernible bacteriostatic zone on the plates with M3 and pure MXene membrane. However, the inhibition zone width was greater for M2 compared to M4 on the plate containing S. aureus. This observation further indicates that M4 had a stronger inhibitory effect on E. coli. As a novel semiconductor catalytic material, BiOCl exhibited inhibitory effects on both E. coli and S. aureus when combined with M1, even in the absence of light, which aligns with previous studies [60].
To gain further insights into the interaction between the bacteria and membrane surface, the surface morphologies of M1, M2 and M4 after 12 h of incubation were examined using SEM (Figure 9). The bacterial cells on M2 and M4 exhibited noticeable differences compared to those on the pure MXene membrane. The densities of surviving cells on the M2 and M4 samples were significantly lower than on the pure MXene membrane. To process the samples, any loosely attached bacteria were removed by rinsing with sterile phosphate buffer. Live bacteria tend to adhere to the membrane surface through specific proteins and secrete polysaccharides, enhancing their adhesion to the material surface [62]. In contrast, dead bacteria are more easily washed away. Furthermore, it was observed that the cells on the pure MXene membrane surface appeared smooth and plump, and exhibited no signs of membrane disruption or contraction. They were overlapping with each other on the surface. Figure 9b reveals the presence of rough features and irregular depressions on the E. coli cells, along with a reduced number of surviving cells, suggesting a higher level of damage caused by M4. Additionally, the number of S. aureus cells on the M2 membrane was significantly lower compared to the pure MXene membrane (M1). The surface of bacterial cells on the M2 membrane appeared rough, with inward wrinkles and cracks, indicating extensive damage and the release of bacterial cell contents. These observations suggest that M2 and M4 achieved a bactericidal effect by damaging the cell membrane. In summary, the SEM surface analysis of bacteria treated with different materials demonstrates that incorporating MXene with various substances significantly enhances its bacteriostatic properties.
The unique layered structure of BiOCl, as a type of semiconductor photocatalyst, has been extensively researched. However, most studies have focused on enhancing the light absorption range and the recombination rate of electron–hole pairs in BiOCl through doping noble metals [42], ions [63] and hybrid heterojunctions [64]. These modifications aim to improve the photocatalytic degradation of water pollution [65,66,67]. The mechanisms underlying bacterial inactivation by BiOCl have received limited attention. Su et al. [42] discovered that the antibacterial effect of Au/BiOCl with different morphologies is significant under visible light irradiation. Fan et al. [68] demonstrated that PPy-BiOCl exhibits effective antibacterial activity of 99.25% and 99.23% against S. aureus and E. coli, respectively, under near-infrared (NIR) light. This effect is attributed to the generation of ROS and the photothermal effect of PPy-BiOCl, which rapidly and effectively destroy bacterial membranes. Song et al. [69] proposed a molecular mechanism, stating that intracellular ROS formation occurs in S. aureus bacteria in the presence of BiOCl-KIT-6, leading to bacterial eradication. In a previous study [60], we found that BiOCl-PPy@MXene also exhibits bacteriostatic properties in the absence of light. However, the antibacterial mechanism of BiOCl as a photocatalytic material on E. coli and S. aureus in the absence of light has not been extensively investigated. In this study, we observed a certain level of antimicrobial activity. Our findings suggest that bacteria tend to adhere and deposit on the irregular and rough surfaces of materials, providing favorable colonization sites [41]. Su et al. [70] demonstrated that the flower-like Au/BiOCl nanocomposite exhibited the highest photocatalytic bactericidal performance among the prepared samples. Therefore, we speculate that M4 is more likely to adhere to bacteria due to its physical structure, enabling comprehensive interaction with bacteria. To gain further insights into the antibacterial performance, we plan to investigate the interaction between BiOCl and the bacterial cell wall in the absence of light using a three-electrode system [71]. Additionally, in future studies, we aim to determine whether BiOCl can generate reactive oxygen species under dark conditions [72], as these species can damage bacterial cell components and influence bacterial survival. Graphene oxide (GO) is widely employed in the field of antibacterial research due to its unique structure, high biocompatibility and design flexibility. Various strategies have been developed to create composites with antimicrobial properties. Li [73] discovered that the structures of E. coli and S. aureus cells can be severely damaged, leading to protein leakage, when CSCl@GO composites are introduced. Da [74] investigated the interaction mechanism between GO-Ag sheets and E. coli using TEM, revealing that GO-Ag accumulates on the bacterial cell surface, resulting in cell inactivation. Comparatively, M2 demonstrates a better antibacterial effect on S. aureus compared to pure MXene membrane. This can be attributed to MXene’s characteristic two-dimensional layered structure, which provides a larger surface area. After incorporating GO, the resulting composite exhibits a larger size, leading to a stronger trapping effect on bacteria. The trapping effect restricts nutrient absorption by bacteria, ultimately leading to their demise [75]. While M3 can inhibit the growth of both E. coli and S. aureus, its effectiveness is relatively low compared to the other two composite membranes. This may be due to the fact that O-g-C3N4, being a photocatalytic material, is unable to fully exhibit its optimal bacteriostatic properties in the absence of light.

4. Conclusions

In conclusion, three types of MXene-based 2D–2D composite membranes were prepared by combining MXene with GO, O-g-C3N4 and BiOCl using vacuum-assisted self-assembly. The successful preparation of 2D materials was confirmed through XRD, FTIR and SEM characterization. Compared with the pure MXene membrane (M1), the addition of other 2D materials enhanced the antibacterial performance of the membranes, and M2~M4 demonstrated an improved antibacterial ability against E. coli and S. aureus to a certain extent, while also exhibiting a better dye CR separation ability (>67%). It is worth mentioning that M4 showed strong bacteriostatic action against both bacteria. The antibacterial activity of several materials was quantitatively evaluated using a CFU counting method. It was concluded that the bacteriostatic rate of M4 against E. coli was 50%, twice that of the pure MXene membrane. The inhibition rate of M4 against S. aureus was 82.4%, while that of pure MXene was only 31.7%. In this work, MXene-based 2D–2D composite membrane materials were constructed to improve the separation and antibacterial properties of membranes, providing a new idea for alleviating the biological contamination of membranes.

Author Contributions

Project administration, writing—original draft, resources, X.C.; data curation, methodology, X.Q.; investigation, software, Z.S.; supervision, visualization, X.G.; formal analysis, writing—review and editing, Z.Y.; conceptualization, formal analysis, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Science Foundation of Sichuan Province (2022NSFSC0155); Experimental Technology and Management Project of Laboratory and Equipment Management Department, Sichuan Normal University (SYJS2021011).

Data Availability Statement

The data that support the findings of this study are available.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Ding, L.; Li, L.; Liu, Y.; Wu, Y.; Lu, Z.; Deng, J.; Wei, Y.; Caro, J.; Wang, H. Effective ion sieving with Ti3C2Tx MXene membranes for production of drinking water from seawater. Nat. Sustain. 2020, 3, 296–302. [Google Scholar] [CrossRef]
  2. Lin, Q.; Zeng, G.; Pu, S.; Yan, G.; Luo, J.; Wan, Y.; Zhao, Z. A dual regulation strategy for MXene-based composite membrane to achieve photocatalytic self-cleaning properties and multi-functional applications. Chem. Eng. J. 2022, 443, 136335. [Google Scholar] [CrossRef]
  3. Zhang, H.; Wan, Y.; Luo, J.; Darling, S.B. Drawing on Membrane Photocatalysis for Fouling Mitigation. ACS Appl. Mater. Interfaces 2021, 13, 14844–14865. [Google Scholar] [CrossRef] [PubMed]
  4. Nunes, S.P.; Culfaz-Emecen, P.Z.; Ramon, G.Z.; Visser, T.; Koops, G.H.; Jin, W.; Ulbricht, M. Thinking the future of membranes: Perspectives for advanced and new membrane materials and manufacturing processes. J. Membr. Sci. 2020, 598, 117761. [Google Scholar] [CrossRef]
  5. Suhalim, N.S.; Kasim, N.; Mahmoudi, E.; Shamsudin, I.J.; Mohammad, A.W.; Mohamed Zuki, F.; Jamari, N.L. Rejection Mechanism of Ionic Solute Removal by Nanofiltration Membranes: An Overview. Nanomaterials 2022, 12, 473. [Google Scholar] [CrossRef]
  6. Siddique, T.; Gangadoo, S.; Quang Pham, D.; Dutta, N.K.; Choudhury, N.R. Antifouling and Antimicrobial Study of Nanostructured Mixed-Matrix Membranes for Arsenic Filtration. Nanomaterials 2023, 13, 738. [Google Scholar] [CrossRef]
  7. Sun, A.; Zhan, Y.; Feng, Q.; Yang, W.; Dong, H.; Liu, Y.; Chen, X.; Chen, Y. Assembly of MXene/ZnO heterojunction onto electrospun poly(arylene ether nitrile) fibrous membrane for favorable oil/water separation with high permeability and synergetic antifouling performance. J. Membr. Sci. 2022, 663, 120933. [Google Scholar] [CrossRef]
  8. Zhang, H.; Zhang, J.; Luo, J.; Wan, Y. A novel paradigm of photocatalytic cleaning for membrane fouling removal. J. Membr. Sci. 2022, 641, 119859. [Google Scholar] [CrossRef]
  9. Shen, L.-G.; Lei, Q.; Chen, J.-R.; Hong, H.-C.; He, Y.-M.; Lin, H.-J. Membrane fouling in a submerged membrane bioreactor: Impacts of floc size. Chem. Eng. J. 2015, 269, 328–334. [Google Scholar] [CrossRef]
  10. Zhao, X.; Zhang, R.; Liu, Y.; He, M.; Su, Y.; Gao, C.; Jiang, Z. Antifouling membrane surface construction: Chemistry plays a critical role. J. Membr. Sci. 2018, 551, 145–171. [Google Scholar] [CrossRef]
  11. Al Harby, N.F.; El-Batouti, M.; Elewa, M.M. Prospects of Polymeric Nanocomposite Membranes for Water Purification and Scalability and their Health and Environmental Impacts: A Review. Nanomaterials 2022, 12, 3637. [Google Scholar] [CrossRef]
  12. Zhu, T.; Li, X.; Zhu, X.; Liu, B.; Zhu, J.; Luo, J. Critical review of catalysis-assisted nanofiltration for micropollutants removal: Catalytic coupled nanofiltration system vs catalytic nanofiltration membrane. Crit. Rev. Environ. Sci. Technol. 2022, 53, 1009–1031. [Google Scholar] [CrossRef]
  13. Wei, Y.W.; Sayed, S.M.; Zhu, W.W.; Xu, K.F.; Wu, F.G.; Xu, J.; Nie, H.P.; Wang, Y.L.; Lu, X.L.; Ma, Q. Antibacterial and Fluorescence Staining Properties of an Innovative GTR Membrane Containing 45S5BGs and AIE Molecules In Vitro. Nanomaterials 2022, 12, 641. [Google Scholar] [CrossRef] [PubMed]
  14. Tu, W.; Liu, Y.; Chen, M.; Ma, L.; Li, L.; Yang, B. A mussel-induced approach to secondary functional cross-linking 3-aminopropytriethoxysilane to modify the graphene oxide membrane for wastewater purification. Chin. Chem. Lett. 2023, 34, 107322. [Google Scholar] [CrossRef]
  15. Zhang, H.; Zheng, Y.; Yu, S.; Chen, W.; Yang, J. A Review of Advancing Two-Dimensional Material Membranes for Ultrafast and Highly Selective Liquid Separation. Nanomaterials 2022, 12, 2103. [Google Scholar] [CrossRef]
  16. Wang, H.; He, Z.; Yang, Q.; Zeng, G.; Yang, Z.; Pu, S. Fabrication of 2D/2D composite membrane via combining functionalized MXene and MoS2 nanosheets for dye/salt separation. J. Environ. Chem. Eng. 2022, 10, 108365. [Google Scholar] [CrossRef]
  17. He, F.; Wang, Z.; Li, Y.; Peng, S.; Liu, B. The nonmetal modulation of composition and morphology of g-C3N4-based photocatalysts. Appl. Catal. B 2020, 269, 118828. [Google Scholar] [CrossRef]
  18. Liu, Y.; Liu, Y.; Chen, M.; Liu, S.; Lai, B.; Tu, W. Strategies for the construction of special wettability metal organic framework membranes: A review. J. Water Process Eng. 2023, 51, 103374. [Google Scholar] [CrossRef]
  19. Long, J.; Xie, Z.; Xue, S.; Shi, W.; Liu, Y. Highly stable and permeable graphene oxide membrane modified by carbohydrazide for efficient dyes separation. Sep. Purif. Technol. 2022, 298, 121586. [Google Scholar] [CrossRef]
  20. Ji, L.; Yan, L.; Chao, M.; Li, M.; Gu, J.; Lei, M.; Zhang, Y.; Wang, X.; Xia, J.; Chen, T.; et al. Sphagnum Inspired g-C3N4 Nano/Microspheres with Smaller Bandgap in Heterojunction Membranes for Sunlight-Driven Water Purification. Small 2021, 17, e2007122. [Google Scholar] [CrossRef]
  21. Zha, X.J.; Zhao, X.; Pu, J.H.; Tang, L.S.; Ke, K.; Bao, R.Y.; Bai, L.; Liu, Z.Y.; Yang, M.B.; Yang, W. Flexible Anti-Biofouling MXene/Cellulose Fibrous Membrane for Sustainable Solar-Driven Water Purification. ACS Appl. Mater. Interfaces 2019, 11, 36589–36597. [Google Scholar] [CrossRef] [PubMed]
  22. Lin, Q.; Liu, Y.; Zeng, G.; Li, X.; Wang, B.; Cheng, X.; Sengupta, A.; Yang, X.; Feng, Z. Bionics inspired modified two-dimensional MXene composite membrane for high-throughput dye separation. J. Environ. Chem. Eng. 2021, 9, 105711. [Google Scholar] [CrossRef]
  23. Feng, Q.; Zhan, Y.; Yang, W.; Dong, H.; Sun, A.; Li, L.; Chen, X.; Chen, Y. Ultra-high flux and synergistically enhanced anti-fouling Ag@MXene lamellar membrane for the fast purification of oily wastewater through nano-intercalation, photocatalytic self-cleaning and antibacterial effect. Sep. Purif. Technol. 2022, 298, 121635. [Google Scholar] [CrossRef]
  24. Pandey, R.P.; Rasool, K.; Madhavan, V.E.; Aïssa, B.; Gogotsi, Y.; Mahmoud, K.A. Ultrahigh-flux and fouling-resistant membranes based on layered silver/MXene (Ti3C2Tx) nanosheets. J. Mater. Chem. A 2018, 6, 3522–3533. [Google Scholar] [CrossRef]
  25. Lin, Q.; Zeng, G.; Yan, G.; Luo, J.; Cheng, X.; Zhao, Z.; Li, H. Self-cleaning photocatalytic MXene composite membrane for synergistically enhanced water treatment: Oil/water separation and dyes removal. Chem. Eng. J. 2022, 427, 119058. [Google Scholar] [CrossRef]
  26. He, S.; Zhan, Y.; Hu, J.; Zhang, G.; Zhao, S.; Feng, Q.; Yang, W. Chemically stable two-dimensional MXene@UIO-66-(COOH)2 composite lamellar membrane for multi-component pollutant-oil-water emulsion separation. Compos. B. Eng. 2020, 197, 108188. [Google Scholar] [CrossRef]
  27. Yang, Z.; Lin, Q.; Zeng, G.; Zhao, S.; Yan, G.; Ang, M.B.M.Y.; Chiao, Y.-H.; Pu, S. Ternary hetero-structured BiOBr/Bi2MoO6@MXene composite membrane: Construction and enhanced removal of antibiotics and dyes from water. J. Membr. Sci. 2022, 669, 121329. [Google Scholar] [CrossRef]
  28. Zhang, L.; Liu, Y.; Zeng, G.; Yang, Z.; Lin, Q.; Wang, Y.; Wang, X.; Pu, S. Two-dimensional Na-Bentonite@MXene composite membrane with switchable wettability for selective oil/water separation. Sep. Purif. Technol. 2023, 306, 122677. [Google Scholar] [CrossRef]
  29. Mao, Z.; Peng, X.; Chen, H. Sunlight propelled two-dimensional nanorobots with enhanced mechanical damage of bacterial membrane. Water Res. 2023, 235, 119900. [Google Scholar] [CrossRef]
  30. Zhao, Z.; Ding, L.; Hinterding, R.; Mundstock, A.; Belke, C.; Haug, R.J.; Wang, H.; Feldhoff, A. MXene assisted preparation of well-intergrown ZIF-67 membrane for helium separation. J. Membr. Sci. 2022, 652, 120432. [Google Scholar] [CrossRef]
  31. Hu, J.; Zhan, Y.; Zhang, G.; Feng, Q.; Yang, W.; Chiao, Y.-H.; Zhang, S.; Sun, A. Durable and super-hydrophilic/underwater super-oleophobic two-dimensional MXene composite lamellar membrane with photocatalytic self-cleaning property for efficient oil/water separation in harsh environments. J. Membr. Sci. 2021, 637, 119627. [Google Scholar] [CrossRef]
  32. Liu, Y.; Lin, Q.; Zeng, G.; Zhang, L.; Zhou, Y.; Sengupta, A. Nature-inspired green method decorated MXene-based composite membrane for high-efficiency oil/water separation. Sep. Purif. Technol. 2022, 283, 120218. [Google Scholar] [CrossRef]
  33. Zeng, G.; Wei, K.; Zhang, H.; Zhang, J.; Lin, Q.; Cheng, X.; Sengupta, A.; Chiao, Y.-H. Ultra-high oil-water separation membrane based on two-dimensional MXene(Ti3C2Tx) by co-incorporation of halloysite nanotubes and polydopamine. Appl. Clay Sci. 2021, 211, 106177. [Google Scholar] [CrossRef]
  34. Feng, Y.; Luo, C.; Chen, X.; Gu, J.; Zhang, Y.; Chao, M.; Li, M.; Chen, T.; Chen, X.; Wang, X.; et al. Shell inspired heterogeneous membrane with smaller bandgap toward sunlight-activated sustainable water purification. Chem. Eng. J. 2022, 440, 135910. [Google Scholar] [CrossRef]
  35. Liu, N.; Wang, L.; Tan, T.; Zhao, Y.; Zhang, Y. TiO2/GO-coated functional separator to suppress polysulfide migration in lithium-sulfur batteries. Beilstein J. Nanotechnol. 2019, 10, 1726–1736. [Google Scholar] [CrossRef] [Green Version]
  36. Eda, G.; Chhowalla, M. Chemically derived graphene oxide: Towards large-area thin-film electronics and optoelectronics. Adv. Mater. 2010, 22, 2392–2415. [Google Scholar] [CrossRef]
  37. Sun, K.K.; Li, L.; He, Y.Q.; Fan, L.; Wu, Y.Q.; Liu, L. Preparation and Drug-Delivery Properties of HKUST-1/GO Hybrid. J. Nanosci. Nanotechnol. 2016, 16, 242–245. [Google Scholar] [CrossRef]
  38. Liu, S.; Xu, A.; Gao, Y.; Xie, Y.; Liu, Z.; Sun, M.; Mao, H.; Wang, X. Graphene oxide exacerbates dextran sodium sulfate-induced colitis via ROS/AMPK/p53 signaling to mediate apoptosis. J. Nanobiotechnol. 2021, 19, 85. [Google Scholar] [CrossRef] [PubMed]
  39. Liu, X.; Miller, A.L., 2nd; Park, S.; George, M.N.; Waletzki, B.E.; Xu, H.; Terzic, A.; Lu, L. Two-Dimensional Black Phosphorus and Graphene Oxide Nanosheets Synergistically Enhance Cell Proliferation and Osteogenesis on 3D Printed Scaffolds. ACS Appl. Mater. Interfaces 2019, 11, 23558–23572. [Google Scholar] [CrossRef]
  40. Tabrizian, P.; Ma, W.; Bakr, A.; Rahaman, M.S. pH-sensitive and magnetically separable Fe/Cu bimetallic nanoparticles supported by graphene oxide (GO) for high-efficiency removal of tetracyclines. J. Colloid Interface Sci. 2019, 534, 549–562. [Google Scholar] [CrossRef]
  41. Scheuerman, T.R.; Camper, A.K.; Hamilton, M.A. Effects of substratum topography on bacterial adhesion. J. Colloid Interface Sci. 1998, 208, 23–33. [Google Scholar] [CrossRef] [Green Version]
  42. Yan, X.; Zhu, X.; Li, R.; Chen, W. Au/BiOCl heterojunction within mesoporous silica shell as stable plasmonic photocatalyst for efficient organic pollutants decomposition under visible light. J. Hazard. Mater. 2016, 303, 1–9. [Google Scholar] [CrossRef]
  43. Lin, Q.; Liu, Y.; Yang, Z.; He, Z.; Wang, H.; Zhang, L.; Belle Marie Yap Ang, M.; Zeng, G. Construction and application of two-dimensional MXene-based membranes for water treatment: A mini-review. Results Eng. 2022, 15, 100494. [Google Scholar] [CrossRef]
  44. Zeng, G.; Liu, Y.; Lin, Q.; Pu, S.; Zheng, S.; Ang, M.B.M.Y.; Chiao, Y.-H. Constructing composite membranes from functionalized metal organic frameworks integrated MXene intended for ultrafast oil/water emulsion separation. Sep. Purif. Technol. 2022, 293, 121052. [Google Scholar] [CrossRef]
  45. Zeng, G.; Lin, Q.; Wei, K.; Liu, Y.; Zheng, S.; Zhan, Y.; He, S.; Patra, T.; Chiao, Y.-H. High-performing composite membrane based on dopamine-functionalized graphene oxide incorporated two-dimensional MXene nanosheets for water purification. J. Mater. Sci. 2021, 56, 6814–6829. [Google Scholar] [CrossRef]
  46. Zhang, S.; Liu, Y.; Gu, P.; Ma, R.; Wen, T.; Zhao, G.; Li, L.; Ai, Y.; Hu, C.; Wang, X. Enhanced photodegradation of toxic organic pollutants using dual-oxygen-doped porous g-C3N4: Mechanism exploration from both experimental and DFT studies. Appl. Catal. B 2019, 248, 1–10. [Google Scholar] [CrossRef]
  47. Zhao, Z.; Cao, Y.; Dong, F.; Wu, F.; Li, B.; Zhang, Q.; Zhou, Y. The activation of oxygen through oxygen vacancies in BiOCl/PPy to inhibit toxic intermediates and enhance the activity of photocatalytic nitric oxide removal. Nanoscale 2019, 11, 6360–6367. [Google Scholar] [CrossRef]
  48. Rasool, K.; Mahmoud, K.A.; Johnson, D.J.; Helal, M.; Berdiyorov, G.R.; Gogotsi, Y. Efficient Antibacterial Membrane based on Two-Dimensional Ti3C2Tx (MXene) Nanosheets. Sci. Rep. 2017, 7, 1598. [Google Scholar] [CrossRef]
  49. Xu, J.; Zeng, G.; Lin, Q.; Gu, Y.; Wang, X.; Feng, Z.; Sengupta, A. Application of 3D magnetic nanocomposites: MXene-supported Fe3O4@CS nanospheres for highly efficient adsorption and separation of dyes. Sci. Total Environ. 2022, 822, 153544. [Google Scholar] [CrossRef] [PubMed]
  50. Zeng, G.; He, Z.; Wan, T.; Wang, T.; Yang, Z.; Liu, Y.; Lin, Q.; Wang, Y.; Sengupta, A.; Pu, S. A self-cleaning photocatalytic composite membrane based on g-C3N4@MXene nanosheets for the removal of dyes and antibiotics from wastewater. Sep. Purif. Technol. 2022, 292, 121037. [Google Scholar] [CrossRef]
  51. Wu, S.; Su, Y.; Zhu, Y.; Zhang, Y.; Zhu, M. In-situ growing Bi/BiOCl microspheres on Ti3C2 nanosheets for upgrading visible-light-driven photocatalytic activity. Appl. Surf. Sci. 2020, 520, 146039. [Google Scholar] [CrossRef]
  52. Gao, X.; Zhang, X.; Wang, Y.; Peng, S.; Yue, B.; Fan, C. Rapid synthesis of hierarchical BiOCl microspheres for efficient photocatalytic degradation of carbamazepine under simulated solar irradiation. Chem. Eng. J. 2015, 263, 419–426. [Google Scholar] [CrossRef]
  53. Mohammad, A.; Khan, M.E.; Yoon, T.; Hwan Cho, M. Na,O-co-doped-graphitic-carbon nitride (Na,O-g-C3N4) for nonenzymatic electrochemical sensing of hydrogen peroxide. Appl. Surf. Sci. 2020, 525, 146353. [Google Scholar] [CrossRef]
  54. She, X.; Wu, J.; Zhong, J.; Xu, H.; Yang, Y.; Vajtai, R.; Lou, J.; Liu, Y.; Du, D.; Li, H.; et al. Oxygenated monolayer carbon nitride for excellent photocatalytic hydrogen evolution and external quantum efficiency. Nano Energy 2016, 27, 138–146. [Google Scholar] [CrossRef]
  55. Zhao, Z.; Sun, Y.; Dong, F. Graphitic carbon nitride based nanocomposites: A review. Nanoscale 2015, 7, 15–37. [Google Scholar] [CrossRef] [PubMed]
  56. Xiang, Q.; Yu, J.; Jaroniec, M. Preparation and Enhanced Visible-Light Photocatalytic H2-Production Activity of Graphene/C3N4 Composites. J. Phys. Chem. C 2011, 115, 7355–7363. [Google Scholar] [CrossRef]
  57. Qu, L.; Zhu, G.; Ji, J.; Yadav, T.P.; Chen, Y.; Yang, G.; Xu, H.; Li, H. Recyclable Visible Light-Driven O-g-C3N4/Graphene Oxide/N-Carbon Nanotube Membrane for Efficient Removal of Organic Pollutants. ACS Appl. Mater. Interfaces 2018, 10, 42427–42435. [Google Scholar] [CrossRef]
  58. Kang, K.M.; Kim, D.W.; Ren, C.E.; Cho, K.M.; Kim, S.J.; Choi, J.H.; Nam, Y.T.; Gogotsi, Y.; Jung, H.T. Selective Molecular Separation on Ti3C2Tx-Graphene Oxide Membranes during Pressure-Driven Filtration: Comparison with Graphene Oxide and MXenes. ACS Appl. Mater. Interfaces 2017, 9, 44687–44694. [Google Scholar] [CrossRef]
  59. Liu, T.; Liu, X.; Graham, N.; Yu, W.; Sun, K. Two-dimensional MXene incorporated graphene oxide composite membrane with enhanced water purification performance. J. Membr. Sci. 2020, 593, 117431. [Google Scholar] [CrossRef]
  60. Cheng, X.; Liao, J.; Xue, Y.; Lin, Q.; Yang, Z.; Yan, G.; Zeng, G.; Sengupta, A. Ultrahigh-flux and self-cleaning composite membrane based on BiOCl-PPy modified MXene nanosheets for contaminants removal from wastewater. J. Membr. Sci. 2022, 644, 120188. [Google Scholar] [CrossRef]
  61. Park, H.B.; Kamcev, J.; Robeson, L.M.; Elimelech, M.; Freeman, B.D. Maximizing the right stuff: The trade-off between membrane permeability and selectivity. Science 2017, 356, eaab0530. [Google Scholar] [CrossRef] [Green Version]
  62. Fulaz, S.; Vitale, S.; Quinn, L.; Casey, E. Nanoparticle-Biofilm Interactions: The Role of the EPS Matrix. Trends Microbiol. 2019, 27, 915–926. [Google Scholar] [CrossRef] [PubMed]
  63. Long, Z.; Wang, H.; Huang, K.; Zhang, G.; Xie, H. Di-functional Cu2+-doped BiOCl photocatalyst for degradation of organic pollutant and inhibition of cyanobacterial growth. J. Hazard. Mater. 2022, 424, 127554. [Google Scholar] [CrossRef] [PubMed]
  64. Zhang, F.; Xiao, X.; Xiao, Y. In situ synthesis of novel type II BiOCl/CAU-17 2D/2D heterostructures with enhanced photocatalytic activity. Dalton Trans. 2022, 51, 10992–11004. [Google Scholar] [CrossRef] [PubMed]
  65. Ashraf, W.; Bansal, S.; Singh, V.; Barman, S.; Khanuja, M. BiOCl/WS2 hybrid nanosheet (2D/2D) heterojunctions for visible-light-driven photocatalytic degradation of organic/inorganic water pollutants. RSC Adv. 2020, 10, 25073–25088. [Google Scholar] [CrossRef] [PubMed]
  66. Ao, M.; Liu, K.; Tang, X.; Li, Z.; Peng, Q.; Huang, J. BiOCl/TiO2/diatomite composites with enhanced visible-light photocatalytic activity for the degradation of rhodamine B. Beilstein J. Nanotechnol. 2019, 10, 1412–1422. [Google Scholar] [CrossRef] [Green Version]
  67. Fourmont, P.; Cloutier, S.G. Screen-printed p-n BiOCl/BiFeO3 heterojunctions for efficient photocatalytic degradation of Rhodamine B. RSC Adv. 2022, 12, 24868–24875. [Google Scholar] [CrossRef]
  68. Fan, Y.; Wang, Z.; Ren, W.; Liu, G.; Xing, J.; Xiao, T.; Li, W.; Li, Y.; Yu, P.; Ning, C.; et al. Space-Confined Synthesis of Thin Polypyrrole Nanosheets in Layered Bismuth Oxychloride for a Photoresponse Antibacterial within the Near-Infrared Window and Accelerated Wound Healing. ACS Appl. Mater. Interfaces 2022, 14, 36966–36979. [Google Scholar] [CrossRef]
  69. Song, Y.; Jiang, H.; Bi, H.; Zhong, G.; Chen, J.; Wu, Y.; Wei, W. Multifunctional Bismuth Oxychloride/Mesoporous Silica Composites for Photocatalysis, Antibacterial Test, and Simultaneous Stripping Analysis of Heavy Metals. ACS Omega 2018, 3, 973–981. [Google Scholar] [CrossRef]
  70. Su, C.; Cheng, M.; Tian, F.; Chen, F.; Chen, R. Anti-oil-fouling Au/BiOCl coating for visible light-driven photocatalytic inactivation of bacteria. J. Colloid Interface Sci. 2022, 628, 955–967. [Google Scholar] [CrossRef]
  71. Zhang, L.; Jiang, Y.; Ding, Y.; Povey, M.; York, D. Investigation into the antibacterial behaviour of suspensions of ZnO nanoparticles (ZnO nanofluids). J. Nanopart. Res. 2006, 9, 479–489. [Google Scholar] [CrossRef]
  72. Hirota, K.; Sugimoto, M.; Kato, M.; Tsukagoshi, K.; Tanigawa, T.; Sugimoto, H. Preparation of zinc oxide ceramics with a sustainable antibacterial activity under dark conditions. Ceram. Int. 2010, 36, 497–506. [Google Scholar] [CrossRef]
  73. Li, X.; Sun, J.; Che, Y.; Lv, Y.; Liu, F. Antibacterial properties of chitosan chloride-graphene oxide composites modified quartz sand filter media in water treatment. Int. J. Biol. Macromol. 2019, 121, 760–773. [Google Scholar] [CrossRef] [PubMed]
  74. de Moraes, A.C.; Lima, B.A.; de Faria, A.F.; Brocchi, M.; Alves, O.L. Graphene oxide-silver nanocomposite as a promising biocidal agent against methicillin-resistant Staphylococcus aureus. Int. J. Nanomed. 2015, 10, 6847–6861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Zou, X.; Zhang, L.; Wang, Z.; Luo, Y. Mechanisms of the Antimicrobial Activities of Graphene Materials. J. Am. Chem. Soc. 2016, 138, 2064–2077. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 13 02121 g001 550

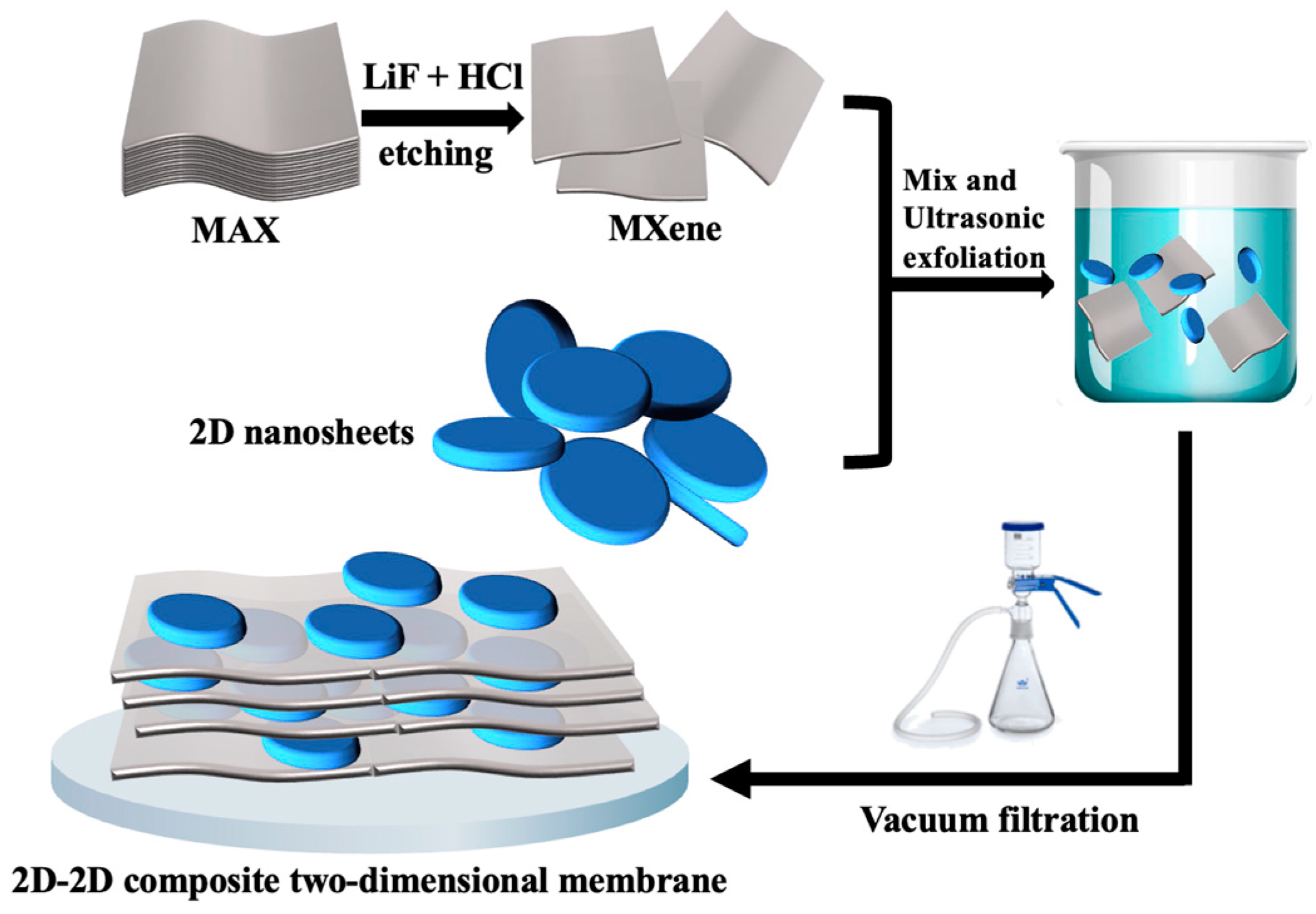

Figure 1. Preparation of MXene-based 2D–2D composite two-dimensional membrane.
Figure 1. Preparation of MXene-based 2D–2D composite two-dimensional membrane.
Nanomaterials 13 02121 g001
Nanomaterials 13 02121 g002 550

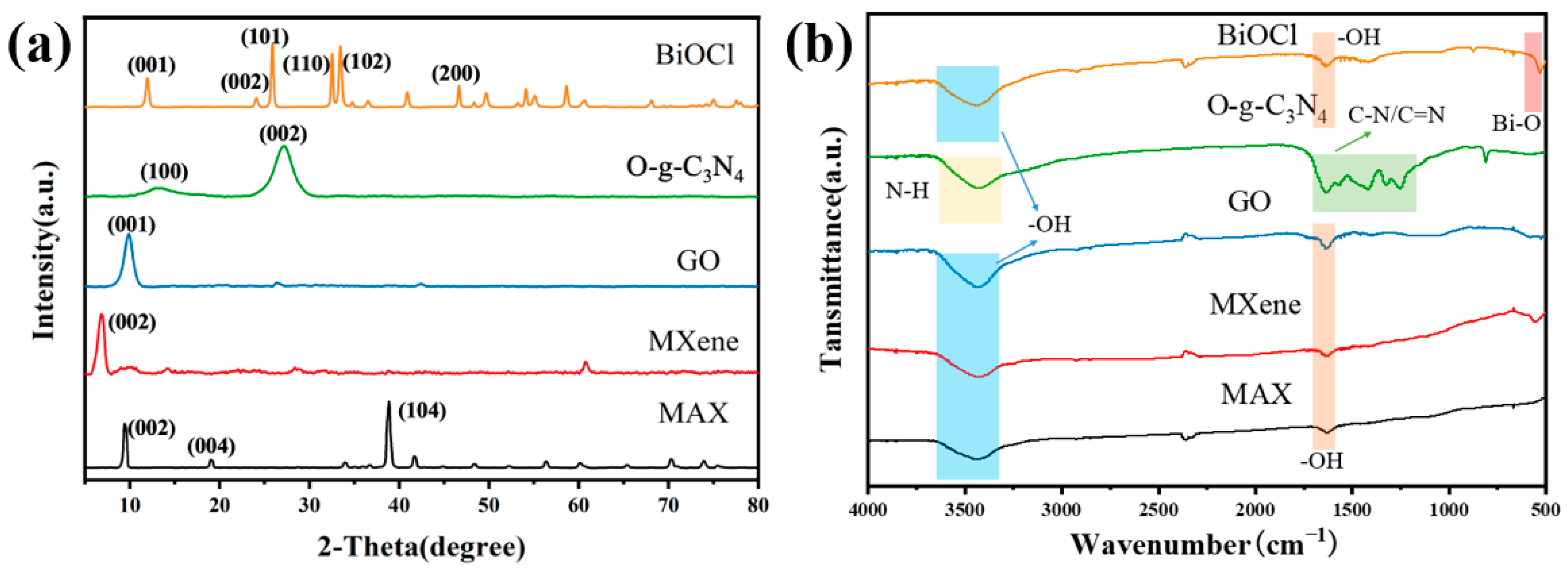

Figure 2. (a) XRD and (b) FTIR spectrums of MAX, MXene, GO, O-g-C3N4 and BiOCl.
Figure 2. (a) XRD and (b) FTIR spectrums of MAX, MXene, GO, O-g-C3N4 and BiOCl.
Nanomaterials 13 02121 g002
Nanomaterials 13 02121 g003 550
Figure 3. The SEM images for (a) MAX, (b) MXene, (c) GO, (d) O-g-C3N4 and (e) BiOCl.
Figure 3. The SEM images for (a) MAX, (b) MXene, (c) GO, (d) O-g-C3N4 and (e) BiOCl.
Nanomaterials 13 02121 g003
Nanomaterials 13 02121 g004 550
Figure 4. (a–d) The surface and cross-section SEM images for M1~M4.
Figure 4. (a–d) The surface and cross-section SEM images for M1~M4.
Nanomaterials 13 02121 g004
Nanomaterials 13 02121 g005 550

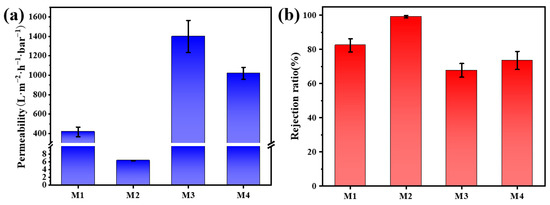

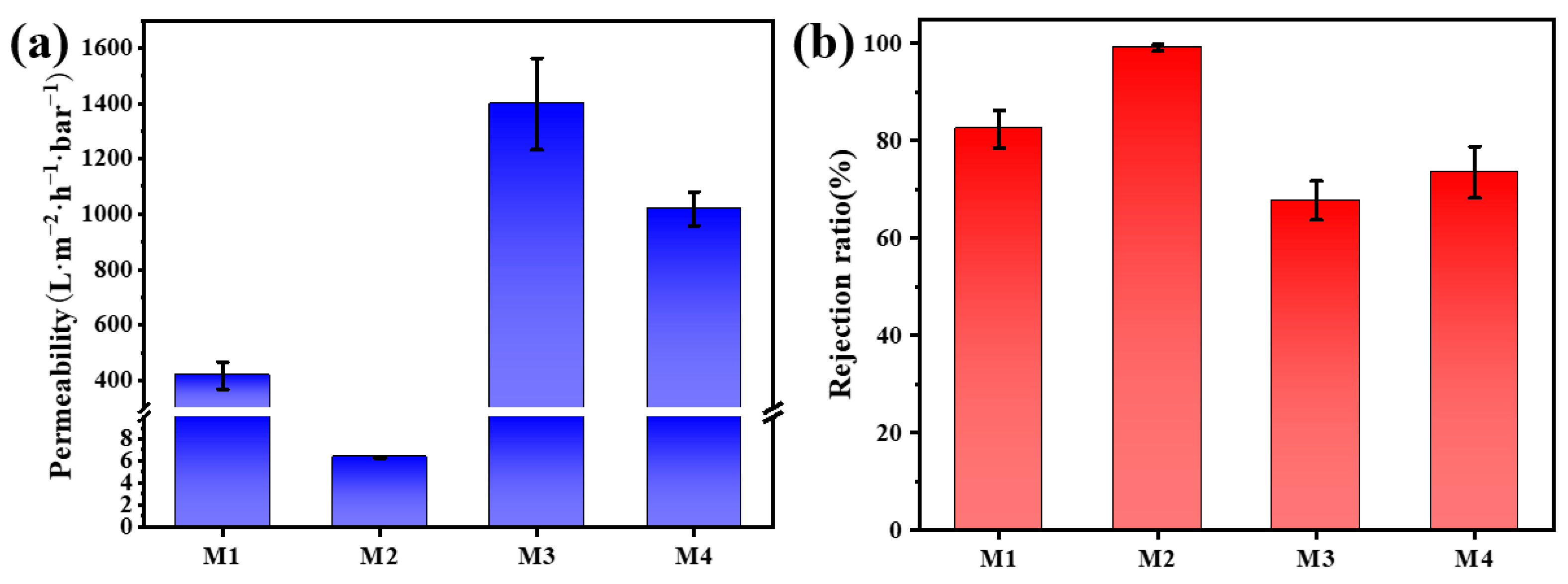

Figure 5. (a) The permeability of M1~M4 and (b) the rejection ratio of CR by M1~M4.
Figure 5. (a) The permeability of M1~M4 and (b) the rejection ratio of CR by M1~M4.
Nanomaterials 13 02121 g005
Nanomaterials 13 02121 g006 550

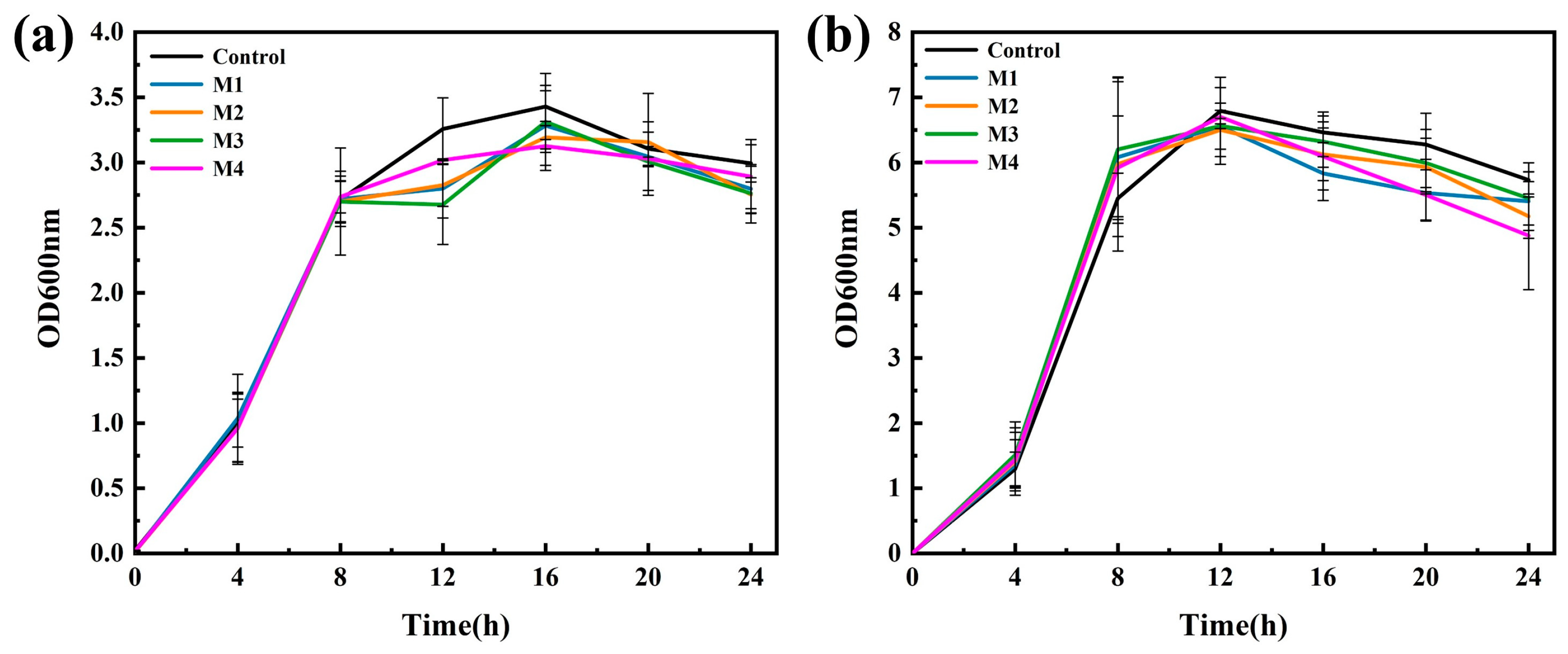

Figure 6. Growth curves of (a) E. coli and (b) S. aureus after being treated with different membranes (M1~M4). Control represents the growth curve of bacteria in the absence of membrane material.
Figure 6. Growth curves of (a) E. coli and (b) S. aureus after being treated with different membranes (M1~M4). Control represents the growth curve of bacteria in the absence of membrane material.
Nanomaterials 13 02121 g006
Nanomaterials 13 02121 g007 550

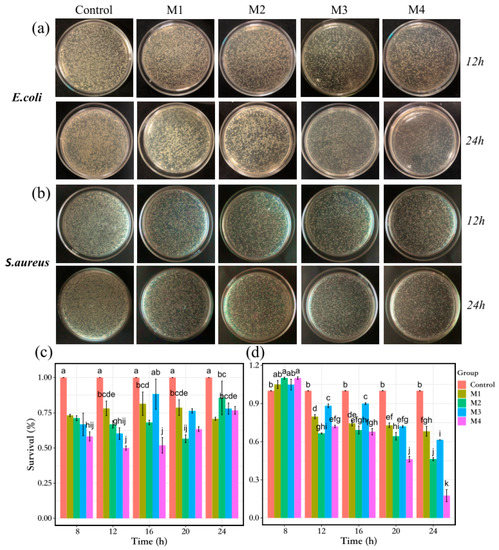

Figure 7. Digital images of (a) E. coli and (b) S. aureus colonies after treatment with different membranes (M1~M4), respectively. The relative viability of bacteria after incubation of E. coli (c) and S. aureus (d) with different membranes (M1~M4) was determined by plate counting after 24 h. Control represents the growth condition of bacteria in the absence of membrane material (different letters a–k are compact letters display of significant differences).
Figure 7. Digital images of (a) E. coli and (b) S. aureus colonies after treatment with different membranes (M1~M4), respectively. The relative viability of bacteria after incubation of E. coli (c) and S. aureus (d) with different membranes (M1~M4) was determined by plate counting after 24 h. Control represents the growth condition of bacteria in the absence of membrane material (different letters a–k are compact letters display of significant differences).
Nanomaterials 13 02121 g007
Nanomaterials 13 02121 g008 550
Figure 8. The zone inhibition produced by different membranes (M1~M4) against S. aureus (a–d) and E. coli (e–h).
Figure 8. The zone inhibition produced by different membranes (M1~M4) against S. aureus (a–d) and E. coli (e–h).
Nanomaterials 13 02121 g008
Nanomaterials 13 02121 g009 550
Figure 9. SEM image of the E. coli after treatment with M1 (a) and M4 (b) and the S. aureus after treatment with M1 (c) and M2 (d) (scale bar: 30 μm and 10 μm).
Figure 9. SEM image of the E. coli after treatment with M1 (a) and M4 (b) and the S. aureus after treatment with M1 (c) and M2 (d) (scale bar: 30 μm and 10 μm).
Nanomaterials 13 02121 g009
Table
Table 1. The detailed composite of different two-dimensional membranes.
Table 1. The detailed composite of different two-dimensional membranes.
MembraneMXene
(mg)		GO
(mg)		O-g-C3N4
(mg)		BiOCl
(mg)
M12000
M22100
M32010
M42001
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cheng, X.; Qin, X.; Su, Z.; Gou, X.; Yang, Z.; Wang, H. Research on the Antibacterial Properties of MXene-Based 2D–2D Composite Materials Membrane. Nanomaterials 2023, 13, 2121. https://doi.org/10.3390/nano13142121

AMA Style

Cheng X, Qin X, Su Z, Gou X, Yang Z, Wang H. Research on the Antibacterial Properties of MXene-Based 2D–2D Composite Materials Membrane. Nanomaterials. 2023; 13(14):2121. https://doi.org/10.3390/nano13142121

Chicago/Turabian Style

Cheng, Xiaojie, Xiaojian Qin, Zhenglun Su, Xun Gou, Zhaomei Yang, and Hongshan Wang. 2023. "Research on the Antibacterial Properties of MXene-Based 2D–2D Composite Materials Membrane" Nanomaterials 13, no. 14: 2121. https://doi.org/10.3390/nano13142121

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
