Accurate Evaluation of Electro-Thermal Performance in Silicon Nanosheet Field-Effect Transistors with Schemes for Controlling Parasitic Bottom Transistors

Abstract

The electro-thermal performance of silicon nanosheet field-effect transistors (NSFETs) with various parasitic bottom transistor (tr_pbt)-controlling schemes is evaluated. Conventional punch-through stopper, trench inner-spacer (TIS), and bottom oxide (BOX) schemes were investigated from single-device to circuit-level evaluations to avoid overestimating heat’s impact on performance. For single-device evaluations, the TIS scheme maintains the device temperature 59.6 and 50.4 K lower than the BOX scheme for n/pFETs, respectively, due to the low thermal conductivity of BOX. However, when the over-etched S/D recess depth (T_SD) exceeds 2 nm in the TIS scheme, the RC delay becomes larger than that of the BOX scheme due to increased gate capacitance (C_gg) as the T_SD increases. A higher TIS height prevents the C_gg increase and exhibits the best electro-thermal performance at single-device operation. Circuit-level evaluations are conducted with ring oscillators using 3D mixed-mode simulation. Although TIS and BOX schemes have similar oscillation frequencies, the TIS scheme has a slightly lower device temperature. This thermal superiority of the TIS scheme becomes more pronounced as the load capacitance (C_L) increases. As C_L increases from 1 to 10 fF, the temperature difference between TIS and BOX schemes widens from 1.5 to 4.8 K. Therefore, the TIS scheme is most suitable for controlling tr_pbt and improving electro-thermal performance in sub-3 nm node NSFETs.

1. Introduction

Silicon fin field-effect transistors (FinFETs) have been successfully scaled down to 3 nm nodes and have gained acceptance in the logic foundry industry [1]. The downscaling made the fin channels thinner and taller to maintain electrostatics and performance. Nevertheless, the significantly heightened fin aspect ratio resulted in a structural instability of the fins, leading to their bending and breaking [2,3]. Furthermore, the number of fins per device was depopulated from 3 to 1 fin to reduce the cell height. Performance modulation of FinFETs mainly depends on adjusting the number of fins; therefore, fin depopulation is a challenge for circuit design with FinFETs. To overcome the limitations of FinFETs, vertically stacked silicon gate-all-around nanosheet (NS) FETs have emerged as a replacement for FinFETs [4,5]. In contrast to FinFETs, NS channels are laterally wide, resulting in a low aspect ratio and stable structure [5]. In addition, continuous performance modulation is possible by adjusting the NS width, which enables flexible circuit design.

Regrettably, the distinctive structure of NSFETs leads to a parasitic bottom transistor (tr_pbt) that forms beneath the bottommost NS channel [6,7,8]. The tr_pbt is a critical failure factor that causes significant punch-through leakage because gate controllability is not achieved in the tr_pbt. Conventionally, a counter-doped punch-through stopper (PTS) layer has been used to control the leakage in tr_pbt [9]. However, the PTS loses its ability to control the leakage if the source/drain (S/D) recess is unintentionally over-etched [6,10].

The insertion of dielectric layers between the S/D and the substrate, known as the bottom oxide (BOX) scheme, is one of the commonly known methods to control the tr_pbt [10,11]. BOX acts as an etch-stop layer that regulates the S/D recess depth variations. In addition, BOX allows for the thorough blocking of the leakage path. Alternatively, the trench inner-spacer (TIS) scheme was proposed in our previous study to control tr_pbt, even under over-etched S/D recess conditions [12]. In the TIS scheme, the bottom inner-spacer is extended toward the PTS layer, preventing S/D dopants from diffusing into the channel of the tr_pbt (see Figure 1 for details). The TIS scheme is immune to variation in the over-etched S/D recess depth (T_SD) because the TIS height is always higher than the T_SD.

The main difference between the BOX and TIS schemes is the presence of an oxide layer between the S/D and the substrate. As the heat generated in the channels is primarily dissipated from the drain toward the substrate, BOX with a lower thermal conductivity (κ) than silicon hinders the heat dissipation [12,13]. This implies that the temperature of the device differs depending on the scheme used. Consequently, the electro-thermal performance may also vary, taking into account the self-heating effect (SHE).

Previous studies have compared the electro-thermal characteristics considering the schemes used to control the tr_pbt, but they have some limitations. First, some studies compared the electro-thermal performance between conventional (Conv) and BOX schemes [14,15]. However, one of them focused solely on the evaluation of the heat dissipation capability without considering the effects of heat on electrical performance. The other study primarily examined the operation of a single device in steady-state DC and neglected the heating and cooling cycles of the devices. As a result, the effects of heat on electrical performance may be overestimated. In contrast, a comparison between TIS and BOX schemes by considering the heating and cooling cycles was investigated in our previous work [12]. However, only the ability to dissipate heat during single-device operations was evaluated without quantitatively investigating the effects of heat on electrical performance. In addition, no circuit-level evaluation was conducted to reflect the actual behavior of the system-on-chip (SoC) product.

Therefore, an accurate and comprehensive evaluation of the electro-thermal performance in sub-3 nm node NSFETs with the Conv, TIS, and BOX schemes for the single-device-to-circuit level is conducted in this study. First, the device structures and simulation methods are presented in Section 2. Secondly, Section 3.1 examines the electro-thermal performance at the single-device level in steady state. Finally, in Section 3.2, the electro-thermal performance of a ring oscillator (RO) is compared based on the transient characteristics using a 3D mixed-mode simulation. All characteristics are based on fully calibrated Synopsys Sentaurus Technology Computer-Aided Design (TCAD) simulations [16,17].

2. Simulation Structure and Methodology

The TCAD simulation framework for 3-stacked silicon NSFETs was defined as follows. Both process and device simulations were performed using the Sentaurus process and device simulator [16,17]. First, we benchmarked the NSFET structures in [4] and calibrated the simulated data and parameters to match the measured transfer curves, as described in our previous work [12]. Subsequently, the NSFETs were scaled down to specifications suitable for sub-3 nm node, and then schemes were applied to control the tr_pbt. The PTS layer was doped with 2 × 10¹⁸ cm⁻³ in the Conv and TIS schemes, but undoped in the BOX scheme [11].

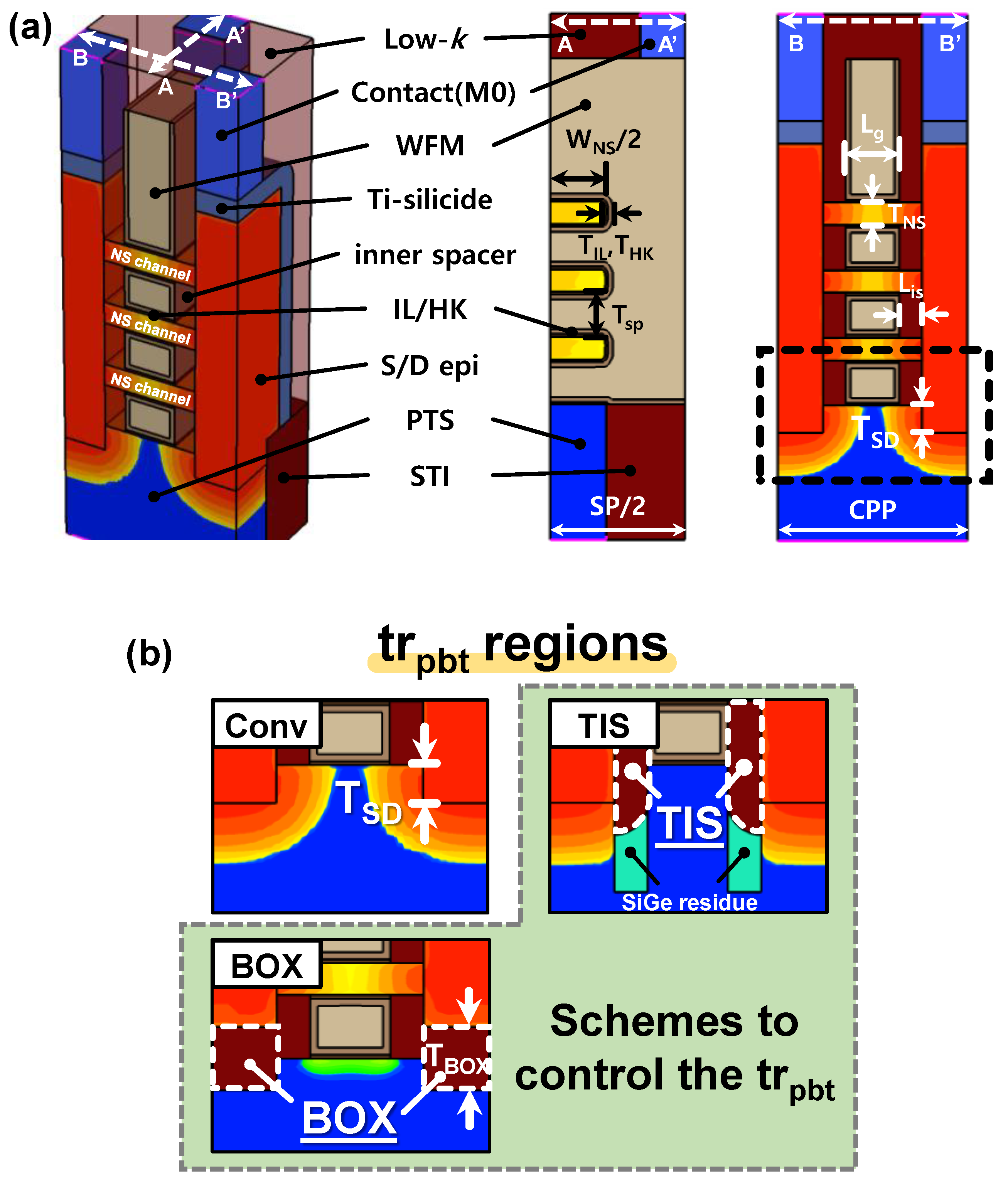

Figure 1 presents detailed NSFET structures with the Conv, TIS, and BOX schemes, where the regions with tr_pbt are highlighted. Geometric and device parameters are listed in

Table 1. Geometrical and device parameters for sub-3 nm node NSFETs.

Parameters	Values	Parameters	Values
Contact poly pitch (CPP)	42 nm	Operating voltage (VDD)	0.7 V
Sheet pitch (SP)	60 nm	BOX thickness (TBOX)	10 nm
Gate length (Lg)	12 nm	Contact resistivity	10−9 Ω·cm2
Spacing thickness (Tsp)	10 nm	M0 resistivity	5 × 10−5 Ω·cm
Inner-spacer length (Lis)	5 nm	Channel doping	1 × 1015 cm−3
NS width (WNS)	25 nm	S/D doping	5 × 1020 cm−3
NS thickness (TNS)	5 nm	PTS doping (Conv/TIS, BOX)	2 × 1018 cm−3
HfO2 thickness (THK)	1.1 nm		1 × 1015 cm−3
Interfacial layer thickness (TIL)	0.6 nm	Over-etched S/D depth (TSD)	0–6 nm

. The TIS and BOX schemes each include an additional process step compared to the Conv scheme: trench patterning prior to the Si and sacrificial layer (SiGe_0.3) epi stacking for the TIS scheme [12], and oxide deposition before the S/D epi growth for the BOX scheme. Here, The TIS scheme leaves SiGe_0.3 residues under the TIS, and the BOX thickness (T_BOX) was determined as 10 nm. Various T_SD values were considered in the Conv and TIS schemes to thoroughly verify the effects of tr_pbt.

For the device and circuit simulations, a comprehensive set of physical models was integrated to simulate various aspects of semiconductor behavior. A self-consistent hydrodynamic model was used to ensure accurate carrier and energy transport. This also facilitated the calculation of device temperatures, which reflect the thermal effects on device performance [18]. The inversion and accumulation layer model was included to account for Coulomb, phonon, and scattering from rough surfaces for carrier mobility. In addition, low-field ballistic mobility was included to account for an additional contribution to low-field mobility for devices with very short channels. The low-field mobility model was adjusted so that the simulated data matched the measured data. The Shockley–Read–Hall and Auger models considered recombination and generation, while the Hurkx model was implemented for band-to-band tunneling. To account for quantum mechanical effects, the density gradient model was used. Furthermore, the deformation potential model was included to consider strain-induced changes in the band structure, and the Slotboom model was incorporated to analyze the effects of doping on bandgap narrowing.

κ of semiconductor regions was calculated based on the Boltzmann transport equations for phonons with relaxation time approximation. In this context, dependencies of κ on physical size, doping types and concentration, alloy composition, and lattice temperature were considered [19,20,21,22,23]. The Sentaurus device simulator provides built-in functions for a self-consistent calculation of κ, and the κ values at 300 K are summarized in

Table 2. Thermal conductivities of the individual regions at 300 K.

Region	κ [W·m−1·K−1]	Region	κ [W·m−1·K−1]
Si substrate	170	HfO2	2.3
NS channel (n/p)	10.0/9.5	Low-k, BOX	0.7
PTS_Conv, TIS (n/p)	36.5/36.5	STI	1.4
PTS_BOX (n/p)	37.0/37.0	WFM	19.2
SiC0.02/SiGe0.5 S/D	30.0/13.5	Silicide	25
IL	1.4	M0	150

. For the thermal boundary condition, the adiabatic sidewalls along with the contact thermal resistivities of the substrate (r_th,sub) and the BEOL (r_th,BEOL) to be connected to the heat sink at 300 K were assumed. The r_th,sub and r_th,BEOL were calculated on a Si substrate with dimensions of 5 × 5 μm² (area), a thickness of 50 μm, and a BEOL height of 1 μm (contact-M10).

3. Results and Discussion

3.1. Evaluation of Electro-Thermal Performance of Single-Device Operations under Steady State

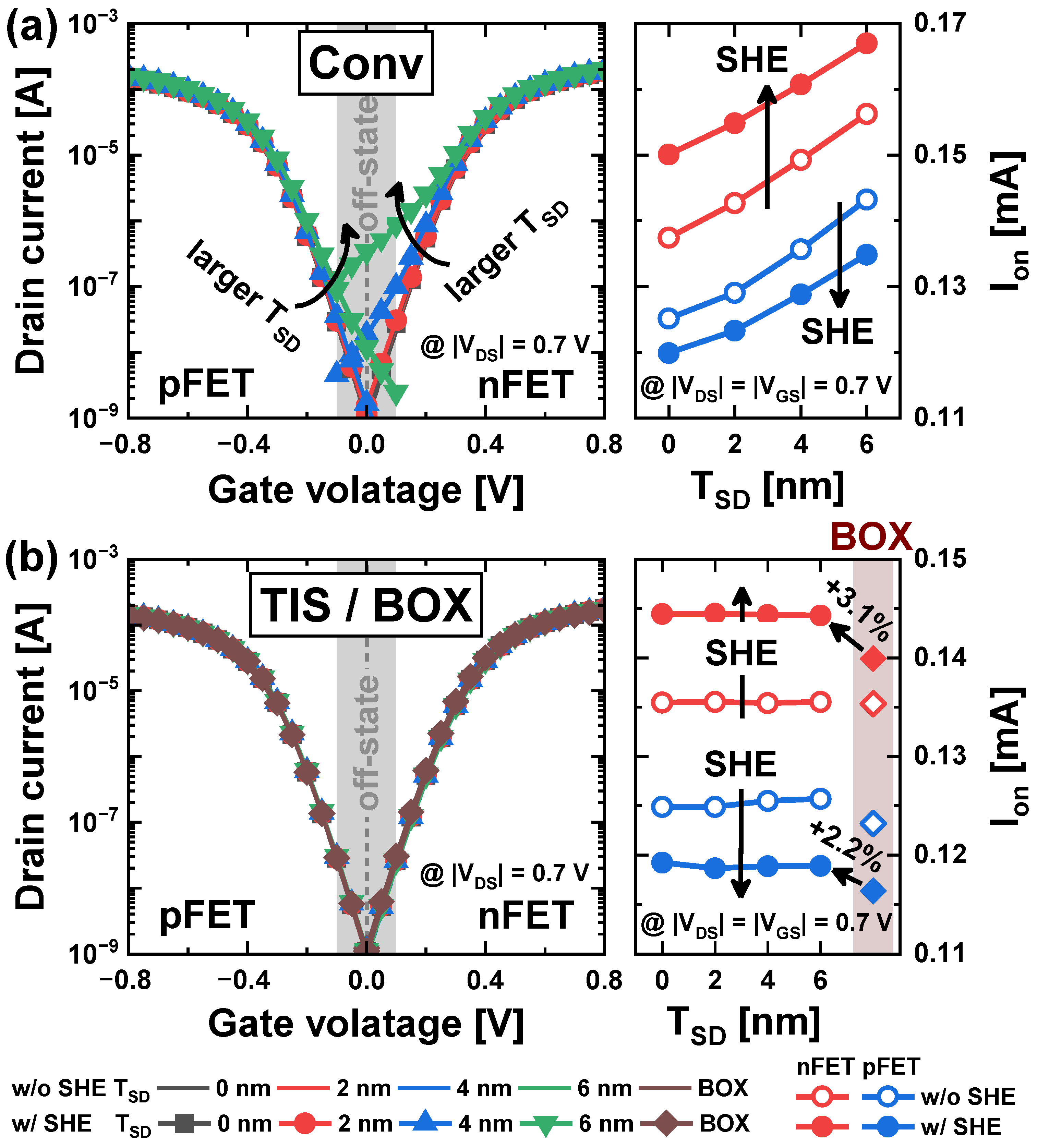

The transfer curves of Conv-NSFETs as a function of different T_SD are presented in Figure 2a. Here, the off-state current (I_off) at T_SD = 0 nm was fixed to 1 nA to allow for a fair comparison. The I_off was defined as the drain current (I_ds) at V_GS = 0 V and |V_DS| = 0.7 V. The Conv scheme shows a pronounced increase in I_off as the T_SD increases. In particular, for nFETs with T_SD ≥ 4 nm, and for pFETs with T_SD ≥ 6 nm, I_off becomes 10 times larger than that of T_SD = 0, resulting in critical failures in the SoC products [6,24]. On-state current (I_on) also increases with increasing T_SD as the leakage current in the tr_pbt contributes to I_on (I_on was defined as I_ds at |V_GS| = |V_DS| = 0.7 V). In contrast, the TIS scheme completely controls the tr_pbt, even in deep T_SD, by preventing S/D dopants from diffusing into the channel of the tr_pbt (Figure 2b) [12]. Thus, the I_on in the TIS scheme is not affected by the T_SD variations. The T_SD variations do not occur in the BOX scheme, and the tr_pbt has no effect on the I_on.

Furthermore, Figure 2 shows the effects of the SHE on the I_ds. In all three schemes, the I_off is rarely affected by SHE, but the I_on is affected. This is attributed to the negligible heat generation in the off-state, which is due to the low current level. In contrast, I_on is large enough to cause joule-heating. There are two points of analysis regarding the SHE in Figure 2: (1) the opposite I_on change trend caused by the SHE in the n/pFET, and (2) the comparison of I_on in the Con, TIS, and BOX schemes under the SHE.

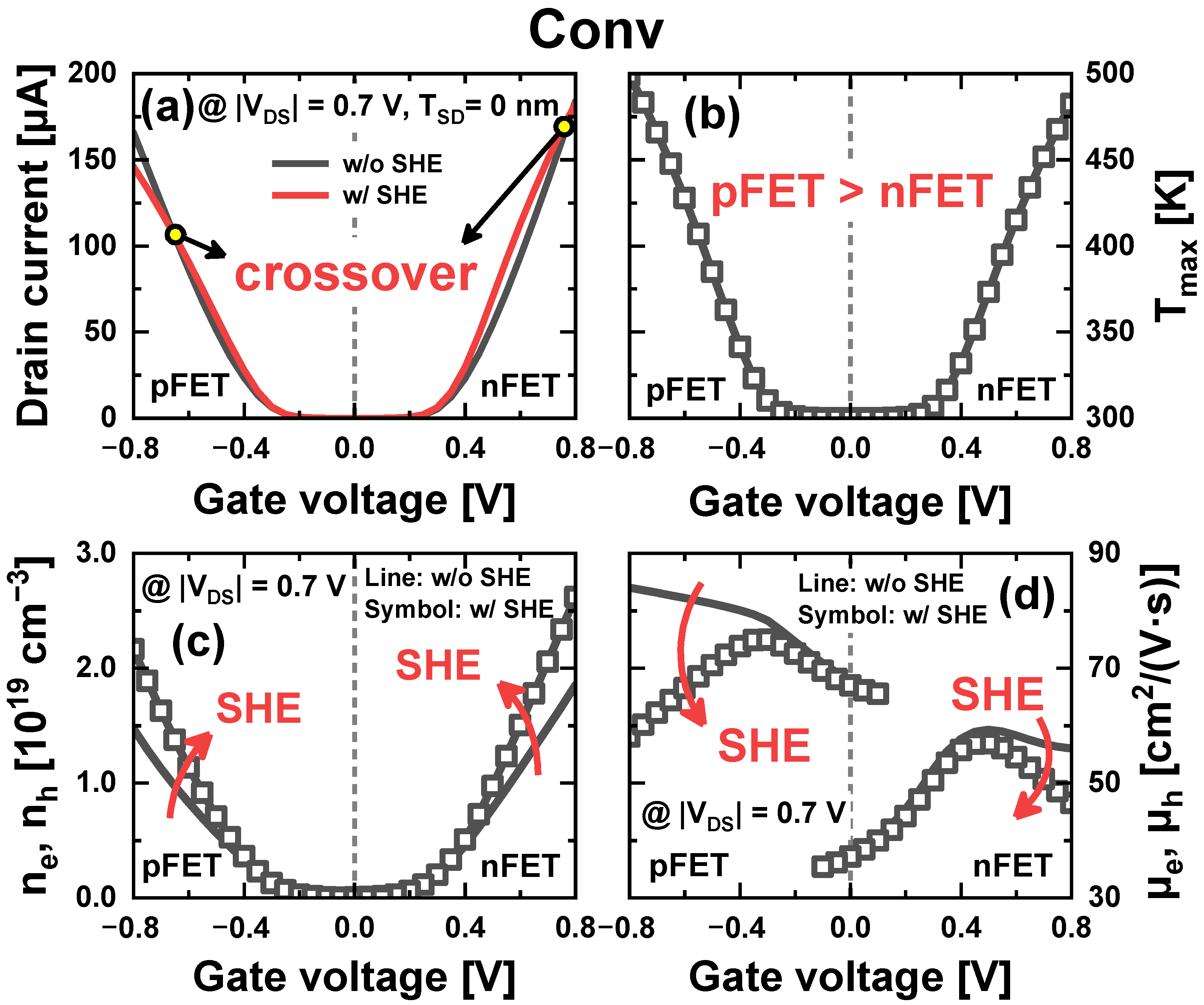

First, in all schemes, the I_on under the SHE (I_{on_SHE}) is larger than that without SHE (I_{on_noSHE}) in nFETs, whereas it is smaller in pFETs (Figure 3a). This is because the maximum lattice temperature (T_max) in pFETs is higher than that in nFETs due to the smaller κ of SiGe_0.5 S/D than that of SiC_0.02 S/D (Figure 3b). An increase in the lattice temperature leads to two opposing phenomena in I_on: (1) an increase in carrier density (n_e, n_h) and (2) a reduction in carrier mobility (μ_e, μ_h) (Figure 3c,d). The increase in carrier density is because the elevated T_max results in an increased intrinsic carrier density. The reduction in carrier mobility is caused by increased phonon scattering. The increase in carrier density is dominant at a low V_GS and the reduction in carrier mobility is dominant at a high V_GS. A crossover point (V_co) then occurs, at which the magnitudes of I_{ds_SHE} and I_{ds_noSHE} are reversed. V_co is defined as the V_GS at which I_{ds_SHE} = I_{ds_noSHE}.

In Figure 3a, I_{ds_SHE} is larger than I_{ds_noSHE} when the V_GS is smaller than the V_co. This is because the increased carrier density due to the elevated T_max dominates over the reduction in carrier mobility for V_GS ≤ V_co. For the V_GS ≥ V_co, however, the I_{ds_SHE} becomes smaller as the contributions of these two factors are reversed. Here, both μ_e and μ_h. have almost the same temperature dependence [25], and the T_max of pFET is larger than that of nFETs. Thus, the reduction in μ_h in pFET is significantly larger than μ_e in nFET. As a result, V_co was determined at a lower V_GS in pFETs than in nFETs (0.8 V for nFETs and −0.65 V for pFETs). Therefore, the I_{on_SHE} is larger than the I_{on_noSHE} nFETs, whereas it is smaller in pFETs.

Secondly, the three schemes show different trends of I_on with respect to the T_SD (Figure 2). The I_on in the Conv scheme increases linearly with deeper T_SD as the leakage current through the tr_pbt contributes to I_on. However, the I_on in the TIS scheme hardly varies with the T_SD due to the suppression of the leakage in tr_pbt. Moreover, for nFETs, the TIS scheme has a 3.1% higher I_{on_SHE} value compared to the BOX scheme, although both schemes have almost the same I_{on_noSHE} value. Similarly, for pFETs, the TIS scheme has a 2.2% higher I_{on_SHE} value than the BOX scheme.

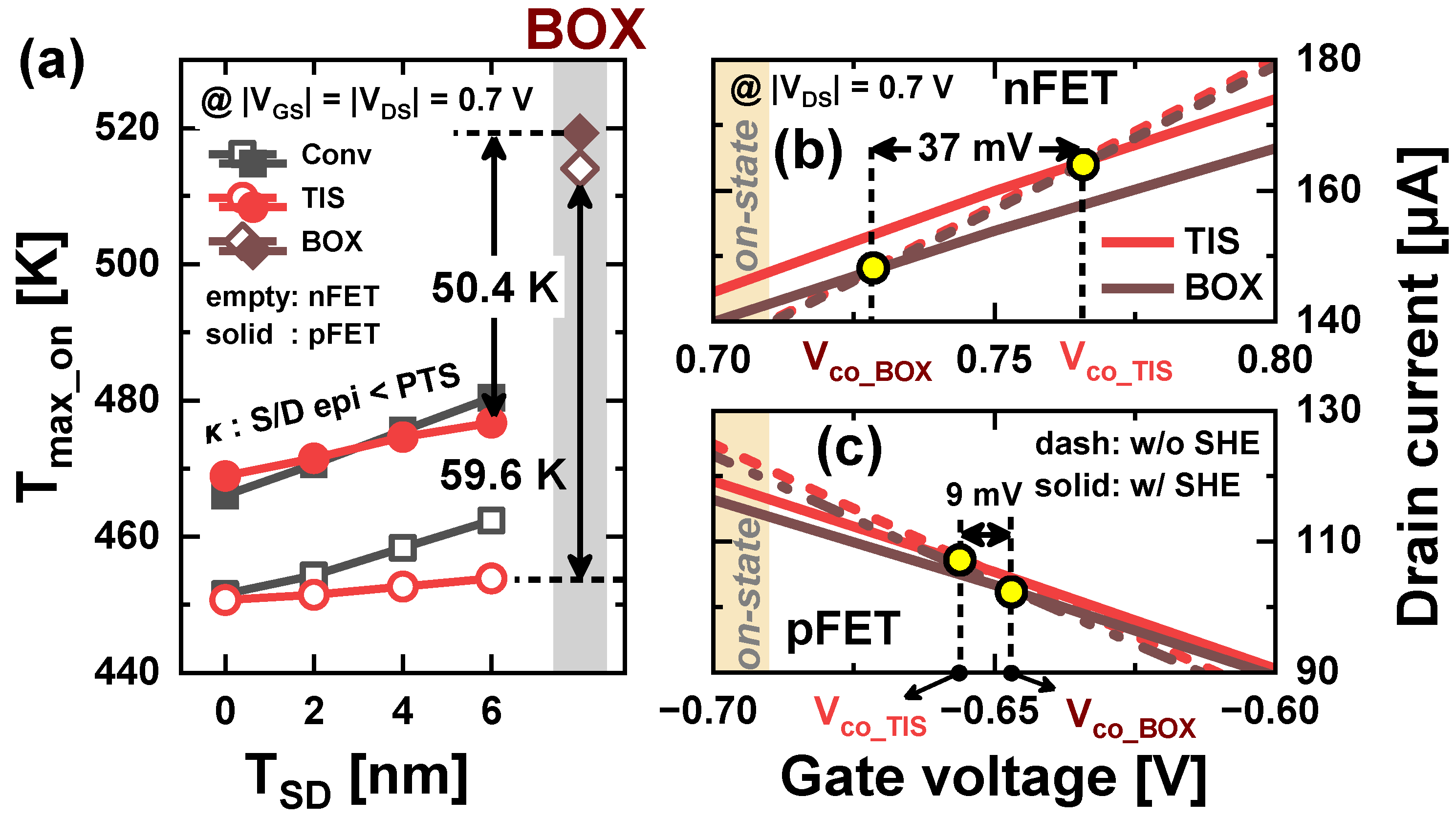

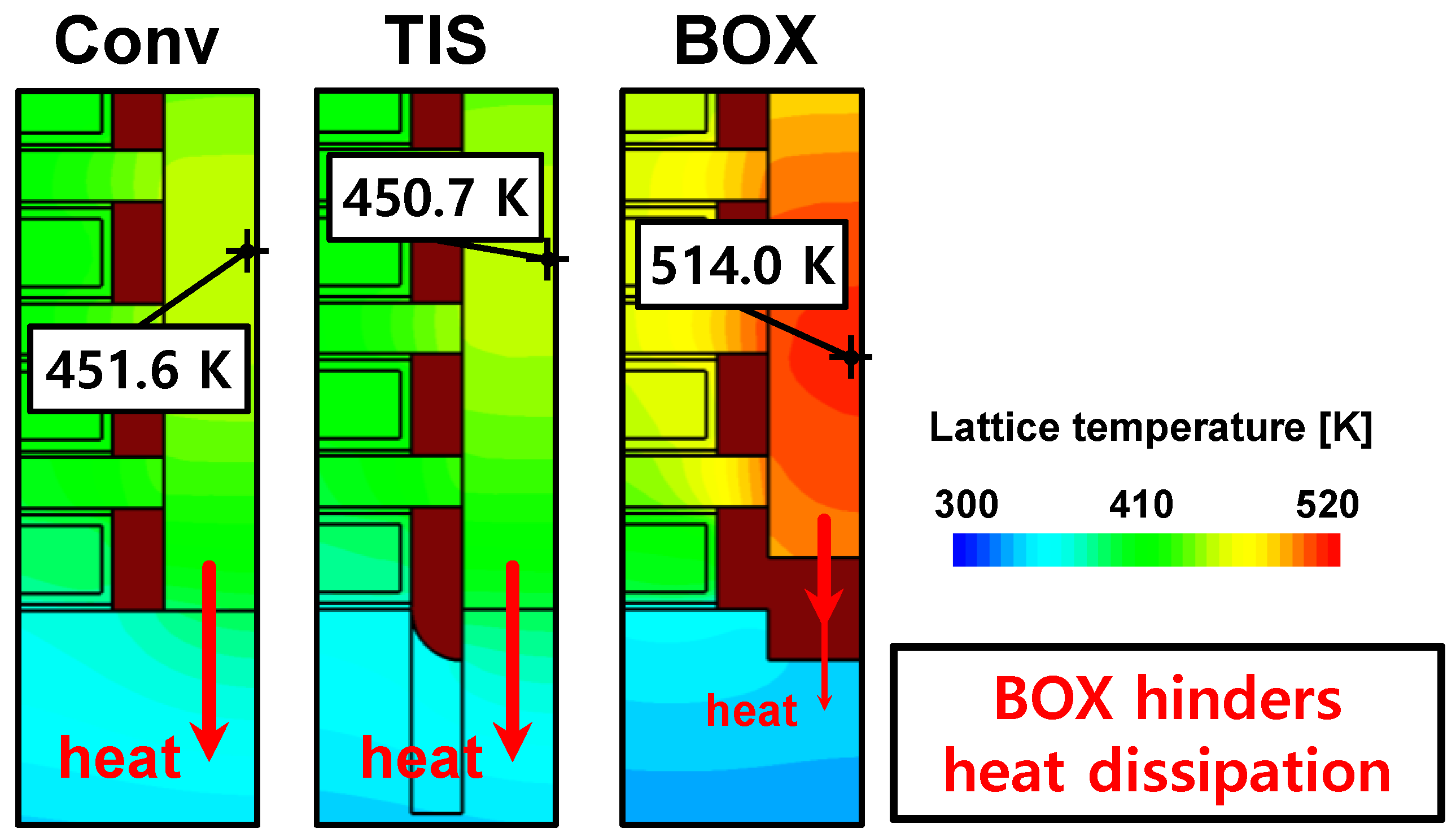

The reason for the TIS and BOX schemes showing different changes in I_{on_SHE} is attributed to the different T_max values. Conv and TIS schemes with T_SD = 0 nm have similar T_max because the heat can dissipate unhindered through the substrate (Figure 4). The similarity in T_max between the TIS and Conv schemes is an advantage of the TIS scheme, as it means that the TIS scheme can control the impact of tr_pbt without affecting thermal performance. However, the lower κ of BOX compared to the S/D epitaxy hinders heat dissipation, causing the BOX scheme to have a significantly higher T_max than the others. Furthermore, T_max in the on-state (T_{max_on}) increases linearly with the larger T_SD, as the S/D epitaxies with the lower κ than PTS intrudes the PTS (Figure 5a). Nevertheless, the BOX scheme in n/pFETs still exhibits 59.6 and 50.4 K higher T_{max_on} compared with those of the TIS scheme with T_SD = 6 nm, respectively. As a result, the reduction in carrier mobility due to the SHE is greater in the BOX scheme than in the TIS scheme. Especially in nFETs, the V_co in the BOX scheme is significantly lower than that in the TIS scheme due to the T_max difference (Figure 5b,c). Therefore, the increase in I_on due to the SHE is more pronounced in the TIS scheme than in the BOX scheme, resulting in a higher I_{on_SHE} of the TIS scheme for nFETs.

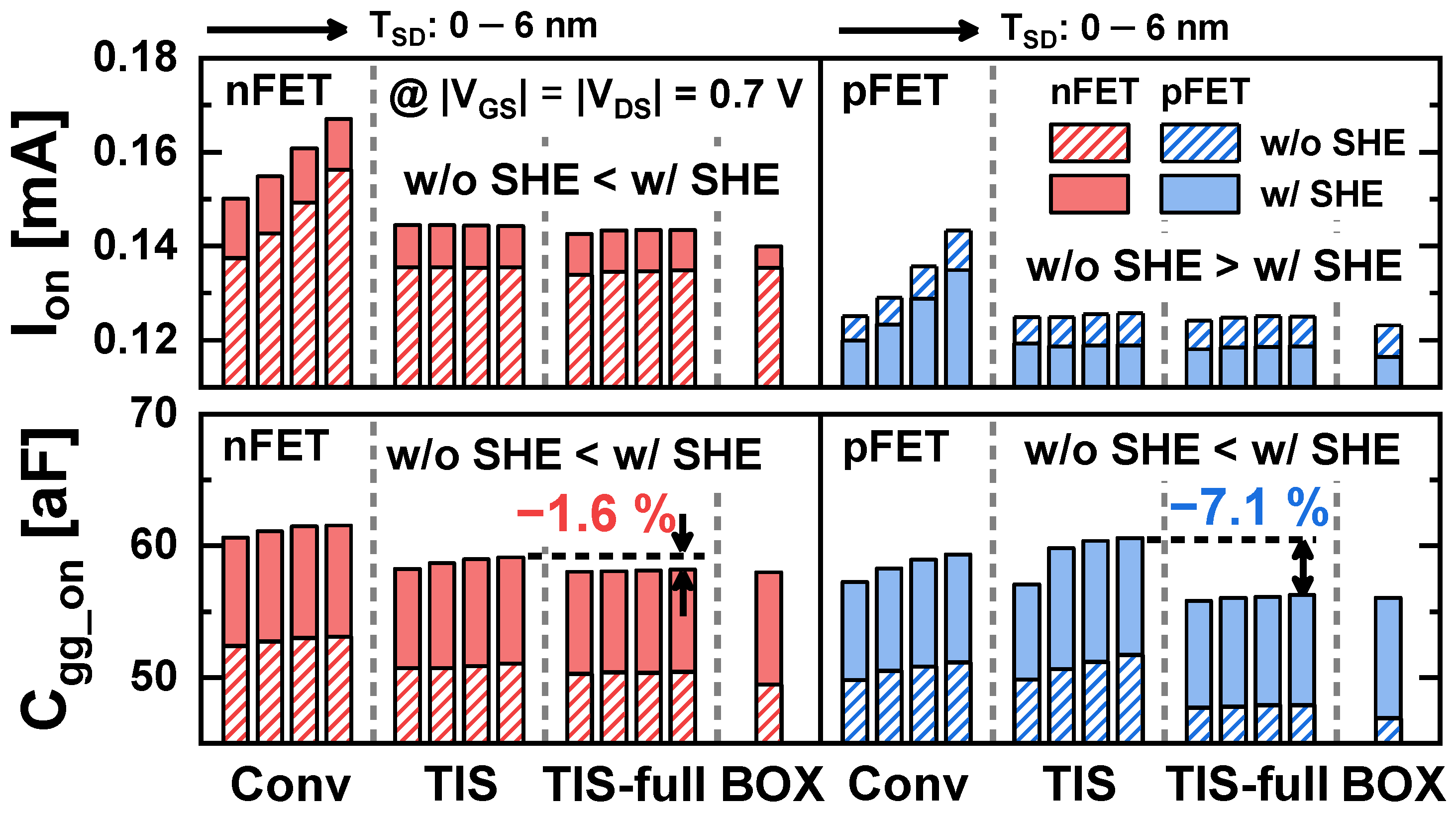

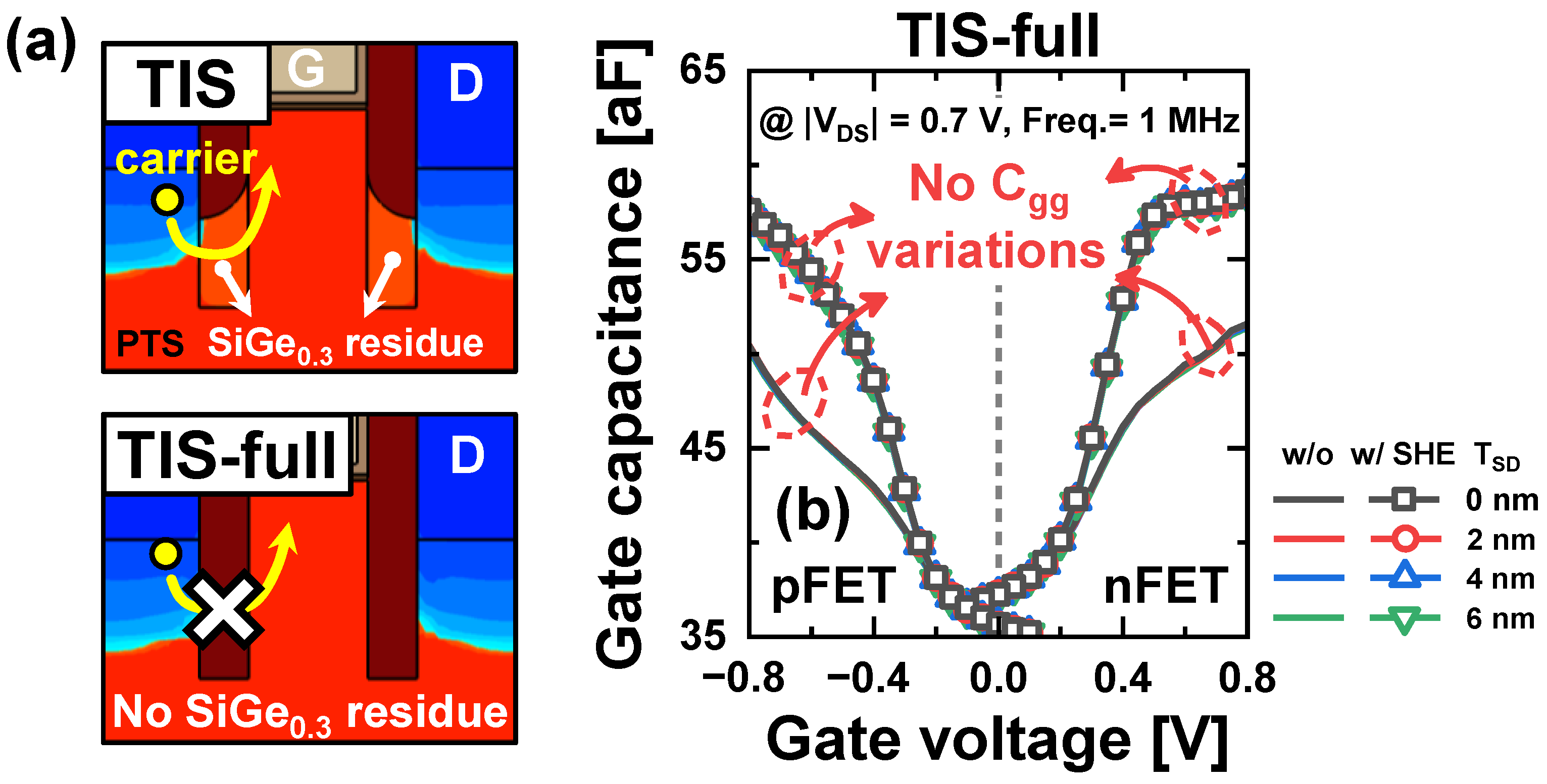

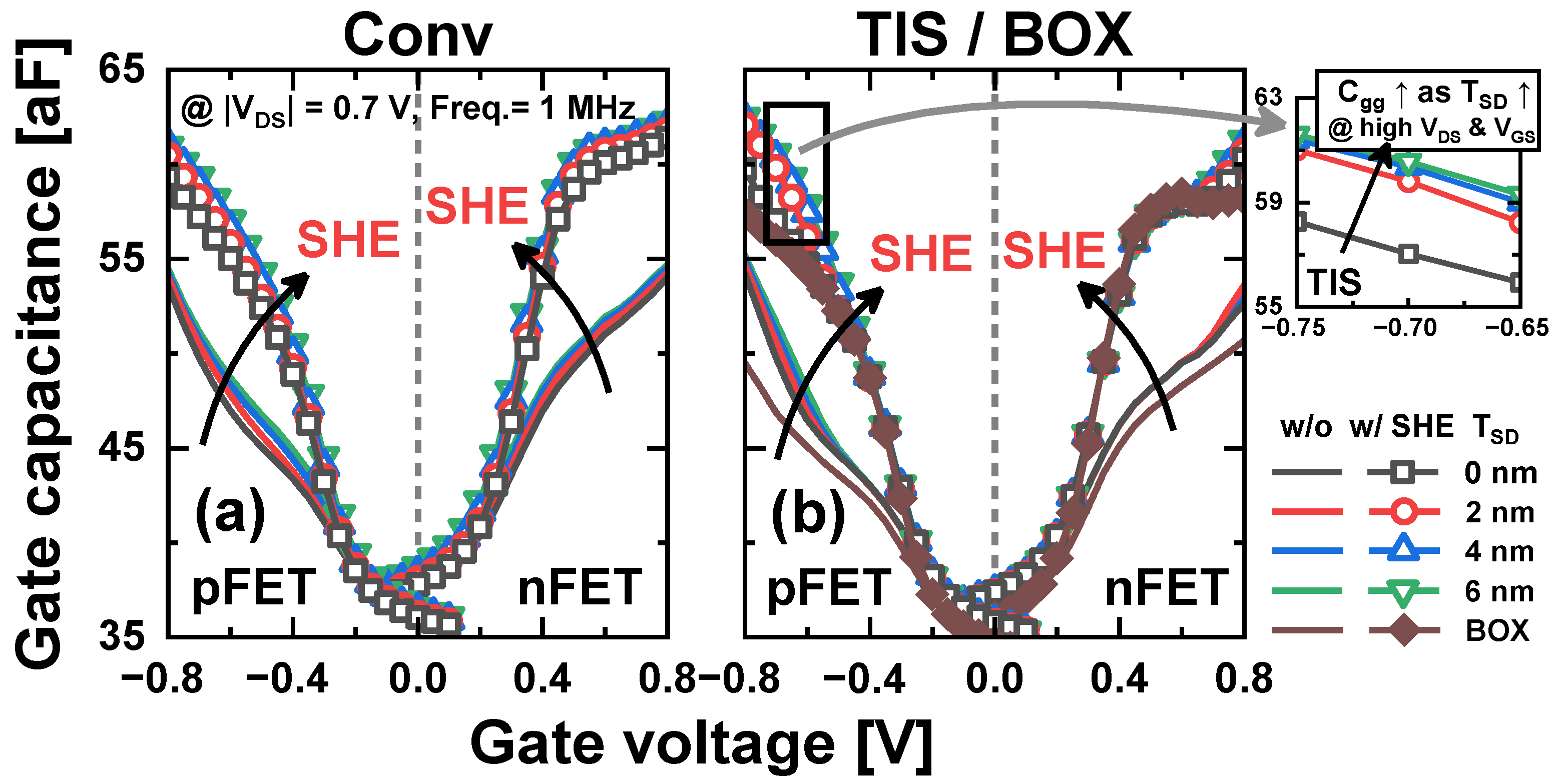

Figure 6 shows the gate capacitance (C_gg) as a function of V_GS in Conv, TIS, and BOX schemes. As increased intrinsic carriers respond to the small signal of the gate due to elevated T_max, the SHE increases the C_gg in all schemes. In the Conv scheme, the C_gg increase with a large T_SD is also due to the increased inversion capacitance of the tr_pbt (Figure 6a) [6]. In contrast, in the TIS scheme, C_gg is not dependent on the T_SD at low V_GS. However, at high V_GS, C_gg increases with a large T_SD because carriers in the source are pulled toward the PTS and respond to the small signal of the gate (inset of Figure 6b) [12]. For this reason, the formation of a deeper TIS allows for a reduction in C_gg. The TIS scheme inevitably leaves residues of the SiGe_0.3 sacrificial layer beneath the TIS during the isotropic selective etch of the sacrificial layer for inner-space formation because the depth of the trench is larger than the height of the TIS [12]. By performing an additional cleaning step to remove the SiGe_0.3 residues within the trench, the TIS can be formed to a depth equal to that of the trench. This configuration is referred to as the TIS-full scheme (Figure 7a). In the TIS-full scheme, the C_gg does not rely on the T_SD, as shown in Figure 7b. Therefore, the TIS-full scheme is also used only for a comparison. The I_on and C_gg in the on-state (C_{gg_on}) in the four schemes are summarized in Figure 8. The TIS-full scheme has almost the same I_on as the TIS scheme. However, C_{gg_on} is reduced by up to 1.6% and 7.1% in the TIS-full scheme compared with the TIS scheme for n/pFETs.

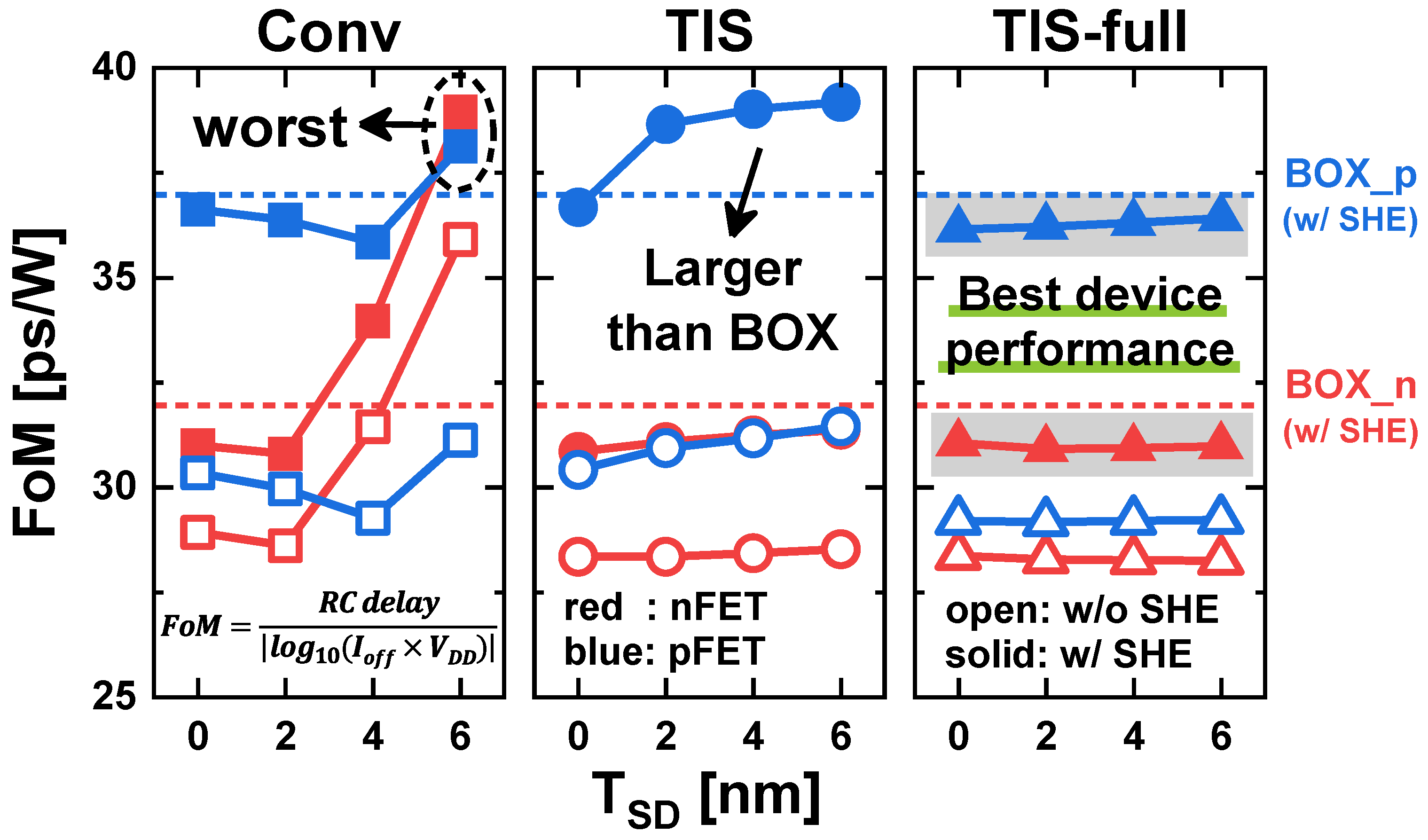

For a fair performance comparison, it is necessary to account for static power consumption. Figure-of-merit (FoM) is defined as RC delay/|log₁₀(I_off × V_DD)|, where RC delay = C_{gg_on} × V_DD/I_on. The reason that log₁₀ is taken for the static power term is that the contribution of static power should not be overestimated. The smaller the FoM, the better the electrical performance. Figure 9 illustrates the FoM as a function of the T_SD and SHE in the four schemes. First, in the Conv scheme, the FoM increases significantly with a large T_SD due to the leakage current, which spikes sharply with increasing T_SD. As a result, the Conv scheme exhibits the worst device performance with T_SD = 6 nm. Second, the FoM in the TIS scheme does not vary much with larger T_SD, except for the pFETs under the SHE. The pFETs with T_SD = 0 nm show a smaller FoM than the BOX scheme, but it increases significantly as the T_SD becomes larger due to increased C_gg (Figure 6b). Third, the FoM in the TIS-full scheme is not varied by the T_SD, and is consistently smaller than that of the BOX scheme regardless of the T_SD. Consequently, the TIS-full scheme with the smallest FoM shows the best electro-thermal performance in single-device operation under steady-state conditions.

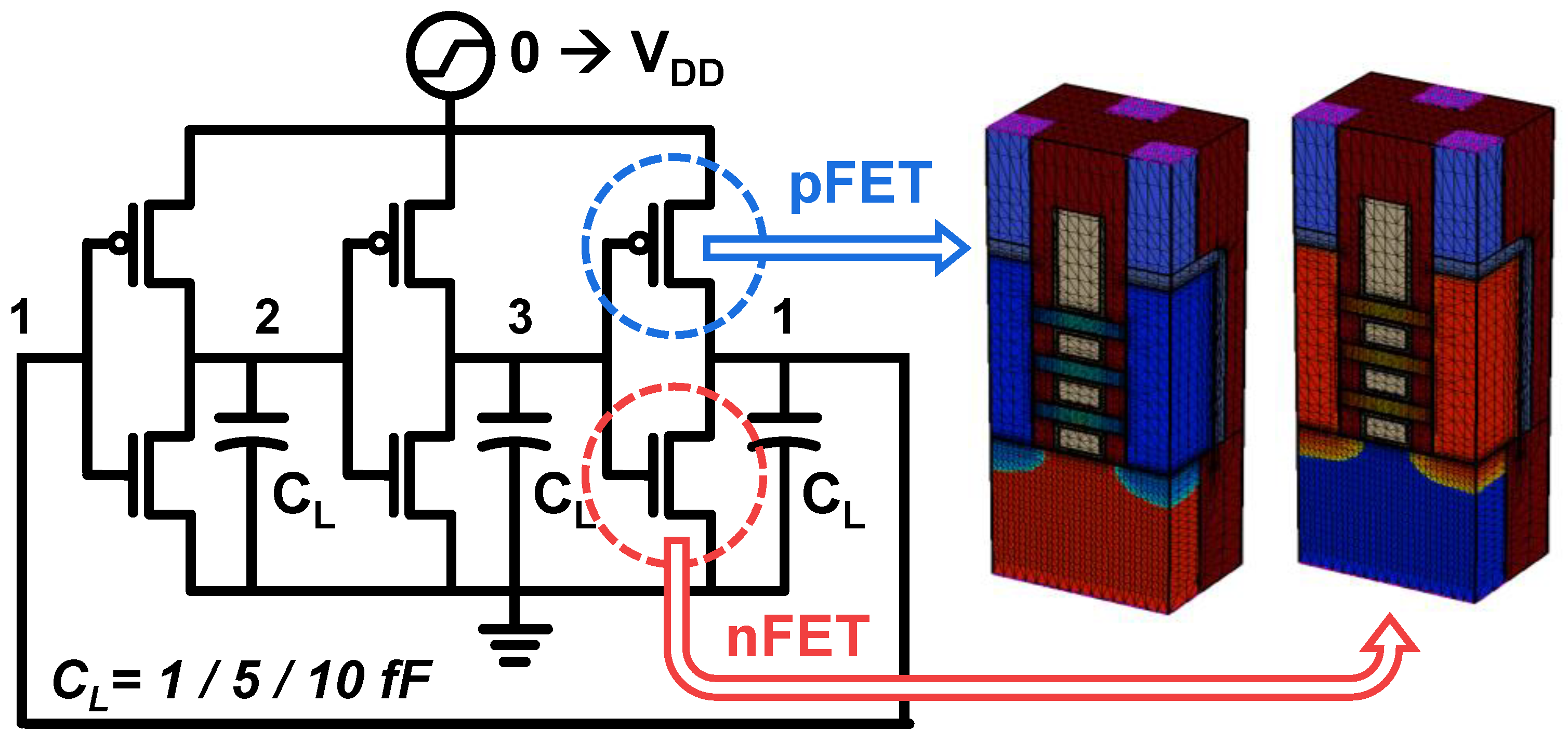

3.2. Electro-Thermal Performance of the Three-Stage Ring Oscillator in the 3D Mixed-Mode Simulation

Although a steady-state operation of devices offers insights into their characteristics, it can lead to an overestimation of the device temperature. In contrast to steady-state operation, where the cooling of the device is not considered, a circuit operate under transient conditions cycles through heating and cooling periodically. Therefore, circuit-level performance evaluation is essential to compare the electro-thermal performance of the four schemes. In Section B, the NSFET-based three-stage ring oscillator (RO) is simulated using 3D mixed-mode simulation (Figure 10) [15]. In mixed-mode simulation, the process-simulated devices are first integrated directly into the netlist of the circuit, and then the equations for the devices and the circuit are solved numerically at the same time. Despite the high CPU time required for this, the 3D mixed-mode simulation delivers much more accurate results than the compact model-based SPICE circuit simulation. In particular, the SHE-related physical effects on the transistor, such as the increased carrier density and reduced κ at an elevated temperature, are still not accurately captured in compact SPICE models.

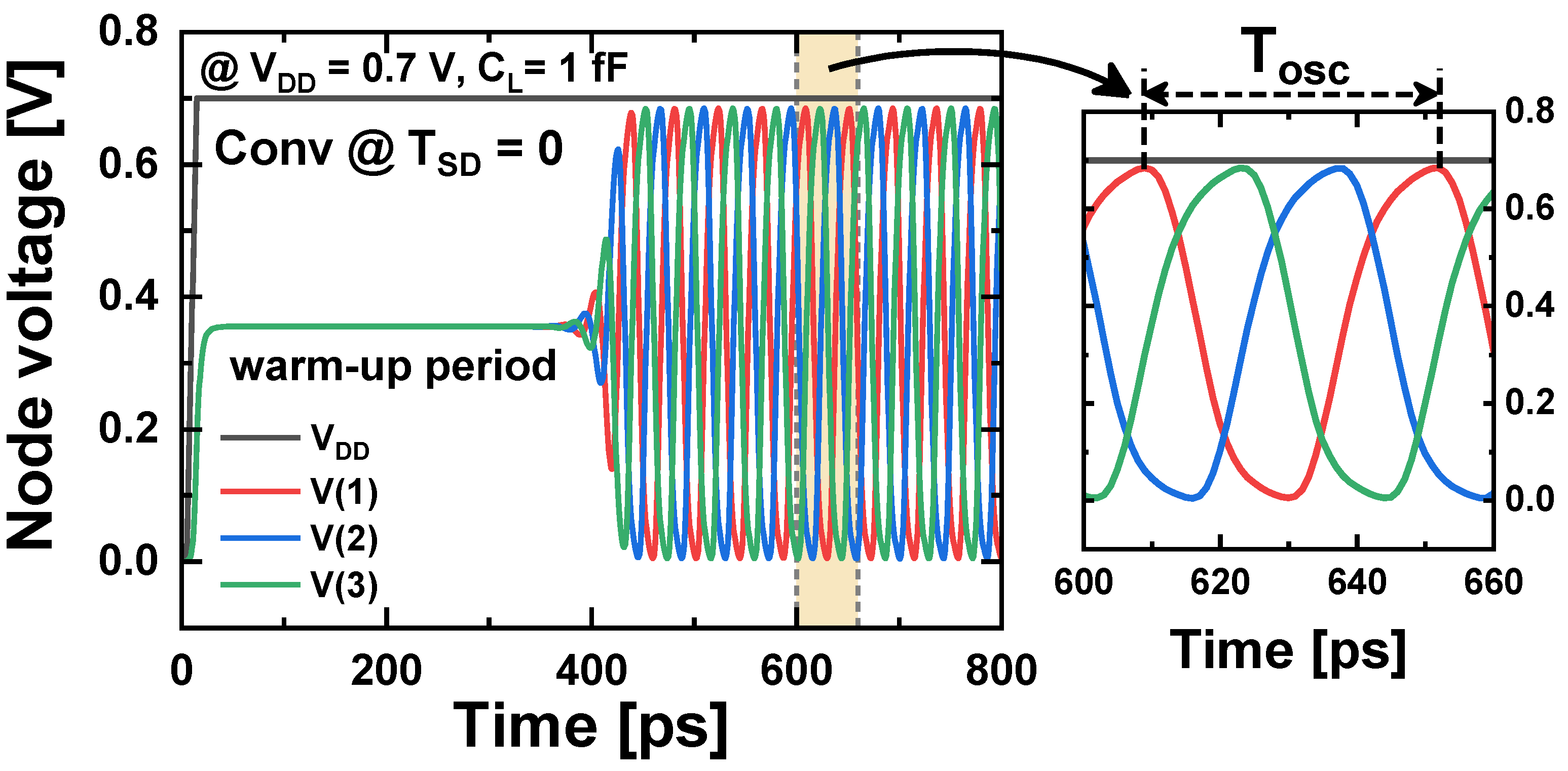

Figure 11 illustrates the transient voltage waveforms in the three-stage RO. After V_DD reaches its nominal value and a warm-up time of several hundred picoseconds has elapsed, the RO circuit begins to produce stable oscillation waveforms. The device temperature also oscillates with repeated heating and cooling in response to the transient voltage waveforms (Figure 12). In contrast to the T_max under a steady-state condition where |V_GS| and |V_DS| are fixed at the V_DD of 0.7 V and the cooling period is not considered, T_max under the RO operation is much lower. This is because V_GS and V_DS oscillate rapidly within the range of 0 to V_DD, and therefore, heat does not accumulate as much as in the steady state. Conv, TIS, and TIS-full schemes exhibit similar T_max in 1 ns after RO operation (nFET: 314.0 K, pFET: 310.0 K). However, the BOX scheme still shows an approximately 2.6 and 2.1 K higher T_max than the other schemes in n/pFET, respectively.

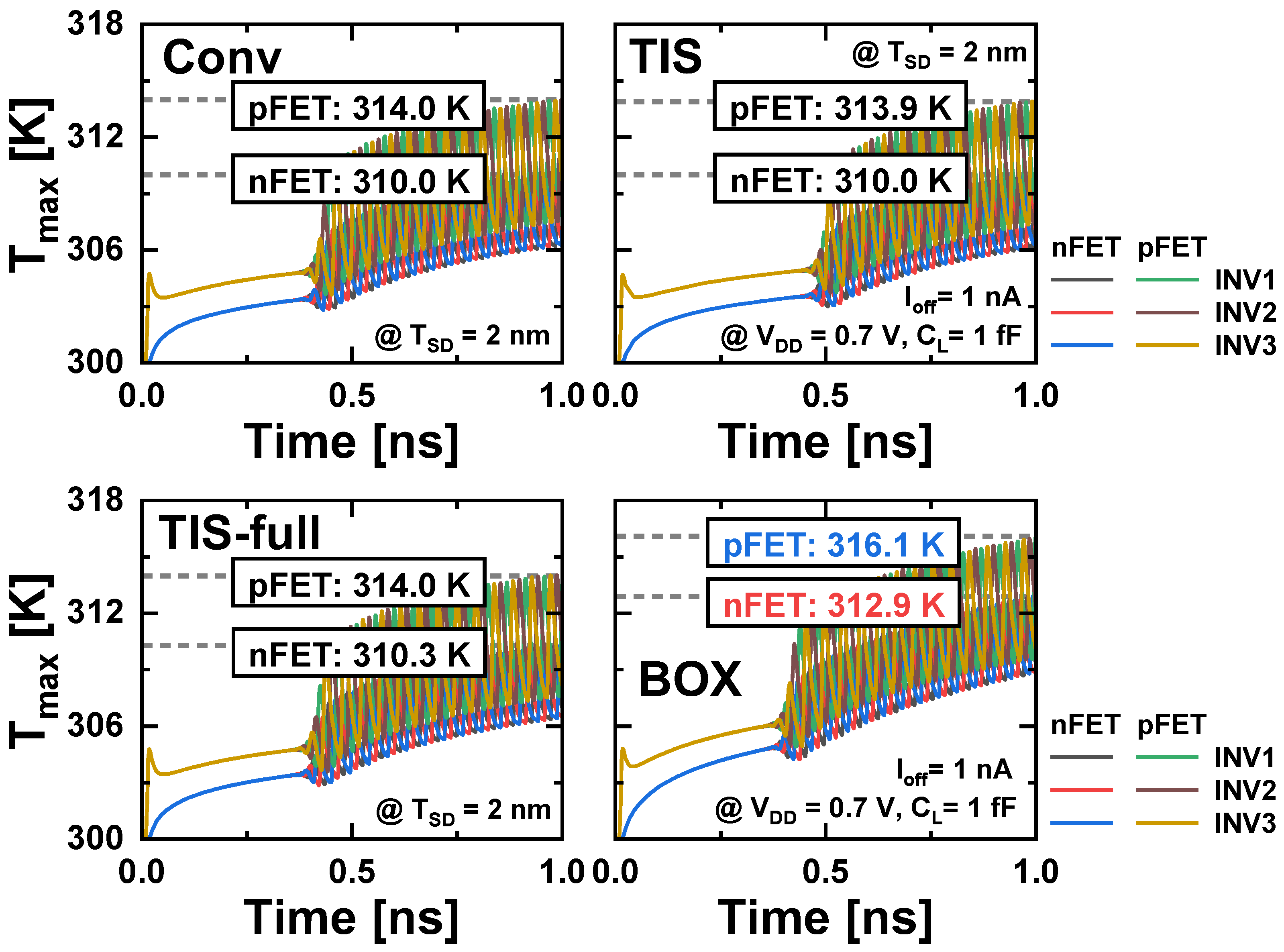

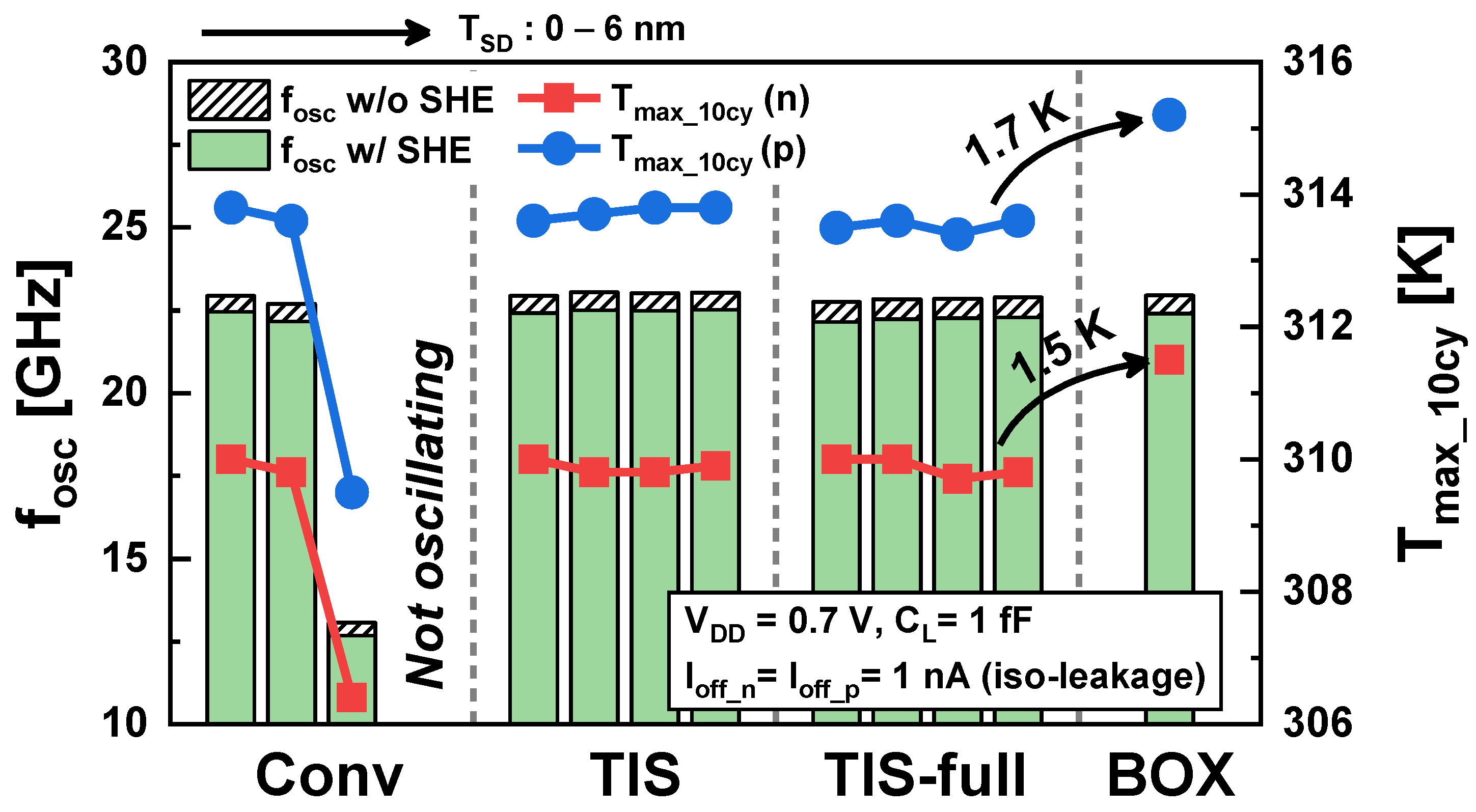

For a more accurate comparison of electro-thermal performance between the four schemes, f_osc and T_max after 10 cycles (T_{max_10cy}) after the end of the warm-up period are examined under an iso-leakage condition (I_{off_n} = I_{off_p} = 1 nA) (Figure 13). In the Conv scheme, f_osc decreases drastically when T_SD exceeds 2 nm, and T_{max_10cy} also drops accordingly. Moreover, the RO with a T_SD ≥ 6 nm does not oscillate due to the very low drive current. In contrast, in TIS and TIS-full schemes, the f_osc and T_{max_10cy} are almost retained regardless of the T_SD. Comparing the TIS, TIS-full, and BOX schemes, they exhibit almost the same f_osc. However, it is observed that T_{max_10cy} is 1.5 K and 1.7 K higher in the BOX scheme for n/pFET, respectively.

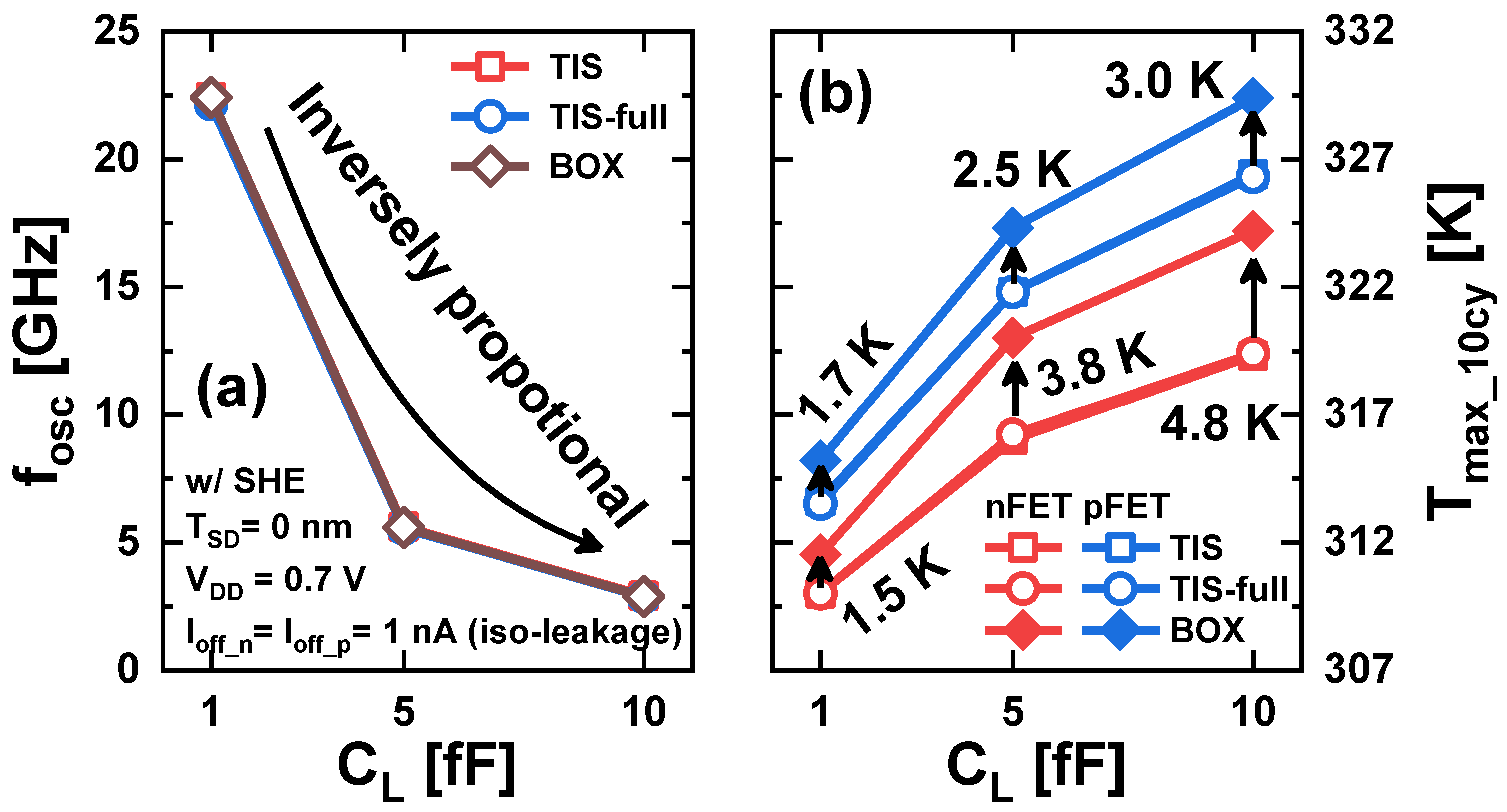

On the other hand, in large-scale integration, many circuits are interconnected, so the load capacitance (C_L) affecting the circuit operation is quite large. Therefore, the electro-thermal performance of RO under the larger C_L should also be investigated (Figure 14). The f_osc value is almost the same for each scheme and inversely proportional to C_L. This is because the larger C_L is, the larger the capacitance of the capacitor whose transistor must generate the potential change for the RO to oscillate. Alternatively, T_{max_10cy} increases with increasing C_L in all schemes. This is because a lower f_osc increases the heating time, and the time required to cool the transistor to 300 K increases more than the increased heating time [26]. Consequently, more residual heat remains in the transistor when the f_osc decreases. The TIS and TIS-full schemes exhibit almost the same T_{max_10cy}, but the BOX schemes exhibit a higher T_{max_10cy} than the others. Moreover, the T_{max_10cy} differences become larger as the C_L increases. The T_{max_10cy} differences increase from 1.5 K (1.7 K) with C_L = 1 fF to 4.8 K (3.0 K) with C_L = 10 fF for n(p)FET. This implies that the electro-thermal performance superiority of the TIS scheme may become more evident in SoC applications where the scale and complexity of integrated circuits continue to increase. Therefore, an RO consisting of NSFETs with TIS and TIS-full schemes can achieve the same electrical performance at lower device temperatures compared to the BOX scheme. Moreover, this superiority of TIS and TIS-full schemes becomes even more evident in circuits with a larger C_L.

4. Conclusions

In this study, an accurate and comprehensive evaluation of the electro-thermal performance of NSFETs with different tr_pbt-controlling schemes ranging from single-device to three-stage RO circuits was performed. When evaluated for a single-device operation, the TIS scheme not only controlled the tr_pbt effectively, but also had a lower T_max than the BOX scheme because heat dissipation was not hindered in the TIS scheme. The T_max of TIS-NSFETs was 59.6 K and 50.4 K lower than that of BOX-NSFETs in n/pFETs, respectively. However, the TIS scheme has the disadvantage that C_{gg_on} increases with increasing T_SD, resulting in a larger RC delay. This issue is particularly pronounced in pFETs, where the electro-thermal performance is worse than that of the BOX scheme when T_SD exceeds 2 nm. Meanwhile, the TIS-full scheme, which increases the height of the TIS by removing SiGe_0.3 residues below the TIS, enabled a reduction in C_{gg_on} and exhibited the best electro-thermal performance among the various schemes under iso-leakage condition. Moreover, at the RO circuit level, the TIS and TIS-full schemes exhibited slightly lower T_{max_10cy} while providing comparable f_osc with the BOX scheme. However, the thermal superiority was more pronounced as the C_L added to the RO becomes larger. When C_L was 1 fF, the difference in T_{max_10cy} of the TIS scheme was 1.5 and 1.7 K lower than that of the BOX scheme for n/pFETs, respectively. However, when C_L increased to 10 fF, the difference grew to 4.8 and 3.0 K for n/pFETs, respectively. In conclusion, it is highly recommended to use the TIS or TIS-full scheme to simultaneously control tr_pbt and improve electro-thermal performance in SoC products adapting sub-3 nm node NSFETs.
