1. Introduction
The engineering industry can be split into two groups, people who believe Moore’s law is dead and people who disagree. In 1965, Gordon Moore predicted a doubling of components per integrated circuit (IC) every year. Today, we have already reached the minimum size of a transistor that is feasible for fabrication in terms of operation and economic viability; thus, an alternative technology is needed to overcome the physical barriers of the current CMOS standard-built chips and ICs.
In the relentless pursuit of faster and more energy-efficient computing systems, the integration of photonics in digital architectures has emerged as a promising avenue [
1,
2,
3,
4,
5]. Photonic-crystal (PC)-based structures offer unprecedented opportunities for realizing high-speed and low-power computing components, revolutionizing the landscape of optical computing, chips, and ICs. This paper presents a novel configuration for an all-optical D Flip Flop (D-FF) leveraging the principles of PCs.
At the heart of any digital computing system lie arithmetic logic units (ALUs) and memory components, which are pivotal for executing computational tasks and storing data. Traditional electronic ALUs and memory units are plagued by limitations such as speed constraints and susceptibility to electromagnetic interference. However, by harnessing the unique properties of light, PC-based ALUs and memory components [
6,
7,
8,
9,
10] offer the promise of ultrafast operation and enhanced reliability, setting the stage for transformative advancements in optical computing. Several unique properties of light are utilized in PC-based components. Firstly, its speed is harnessed as light travels at incredibly high speeds, facilitating rapid data transmission and processing compared to traditional electronic signals. Additionally, photonic signals exhibit non-interference, making them less susceptible to electromagnetic interference and resulting in more reliable data transmission and storage, particularly in densely packed computing systems. Moreover, photonic devices typically operate at lower power levels than their electronic counterparts, leading to reduced energy consumption and heat dissipation, thereby enhancing overall system efficiency.
FFs represent essential building blocks in sequential logic circuits, facilitating the storage and synchronization of data. Conventional electronic FFs, while widely used, suffer from inherent limitations in speed and power consumption. In contrast, optical FFs [
11,
12,
13,
14] present a paradigm shift, offering ultrafast switching speeds and minimal energy dissipation. In particular, the D-FF holds significance for its simplicity and versatility in digital circuit design, making it an ideal candidate for optical implementation.
PCs, characterized by their periodic arrangement of dielectric materials, offer unparalleled control over the propagation of light at the nanoscale. By engineering photonic bandgaps and exploiting light–matter interactions, researchers can tailor the optical properties of these structures to realize efficient optical components, for instance, demultiplexers [
15,
16,
17], logic gates [
18,
19], polarizers [
20,
21], beam combiners [
22,
23,
24], and sensors [
25,
26]. This paper explores the design and optimization of PC-based components, including waveguides, ring resonators (RRs), and logic gates, to enable the realization of an all-optical D-FF.
Numerous alternative designs for PC-based D-FFs have been proposed. For example, one design integrates a distinctive arrangement of line waveguide and RR structures utilizing silicon (Si) and chalcogenide glass [
27]. Another configuration for an all-optical D-FF involves employing multi-mode interference on a PC platform with a square lattice structure [
28]. In our investigation, we assess the performance of our proposed D-FF structure by comparing it to these recent research findings.
To facilitate the design and simulation of complex photonic structures, advanced computational techniques such as finite-difference time-domain (FDTD) [
29] and plane-wave expansion (PWE) [
30] methods are employed. These numerical approaches enable the accurate modeling and analysis of light propagation within PCs, guiding the optimization of device performance and functionality.
In the proposed configuration, a quasi-square RR [
31,
32,
33], NOT logic gate [
34,
35], and an OR logic gate [
36,
37] are utilized to realize the essential functionalities required for the implementation of the D-FF. By integrating these key components within a PC framework, the paper aims to demonstrate an all-optical D-FF that has the capability to function across all eight possible logic states. This achievement distinguishes our proposed structure from existing works, which have predominantly displayed limited logic state compatibility.
Furthermore, the use of SiO2 as a substrate and silicon rods in our design offers practical advantages in terms of fabrication and physical testing, as compared to conventional air-based structures prevalent in the existing literature. Beyond its immediate applications, our innovative design also holds considerable potential as a memory component for quantum computing systems.
2. Principle and Analysis
2.1. Light Interference
An important principle of the correct operation of PC technology is light interference, which is a phenomenon that occurs when two or more light waves overlap and interact with each other. One outcome of this interaction is constructive interference, which occurs when the phase difference between the waves is an even multiple of π (180°); the other outcome is destructive interference, which occurs when the difference is an odd multiple of π. The amplitude or intensity of the waves inserted into the proposed device is normalized (N.I) and measured in arbitrary units [a.u] of measurement.
2.2. Light Propagation
The FDTD method computationally models light propagation within waveguide structures. It discretizes space into a grid and applies Maxwell’s equations to calculate electric and magnetic fields at each point. The waveguide’s material properties and geometry are represented within this grid. An excitation source initiates light propagation through the waveguide. The FDTD algorithm iteratively updates the fields over time, simulating the evolution of electromagnetic waves within the structure. The analysis of the simulation results provides insights into light guidance and manipulation in waveguides, aiding in the optimization of optical device designs. In this research, the FDTD method was implemented using the RSoft CAD 7.1 program.
2.3. Photonic Band Gap
The PWE method [
30] is employed to analyze photonic band gaps (PBGs) and identify operational wavelengths for photonic devices. Initially, the device structure is discretized into a periodic lattice. Each unit cell is characterized by its refractive index distribution. Plane waves are then introduced into the structure at various angles and wavelengths. Through numerical calculations, the PWE method determines the dispersion relation, which illustrates how the propagation of light waves is affected by the periodicity and refractive index distribution of the device. PBGs, regions where certain wavelengths of light cannot propagate through the structure, are identified in the dispersion relation. By examining these band gaps, one can ascertain the wavelengths at which the device will effectively function. In this context, it is important to consider the polarization modes of the electromagnetic waves, namely, Transverse Electric (TE) and Transverse Magnetic (TM) modes. The TE mode has the electric field oriented perpendicular to the direction of propagation, while the TM mode has the magnetic field oriented perpendicular to the direction of propagation. The PBG for TE and TM modes can differ, so analyzing both is crucial for a comprehensive understanding of the PC’s optical properties. The PWE method aids in the design and optimization of photonic devices by providing insights into their wavelength-selective behavior and potential performance limitations.
2.4. D-FF
The D-FF, commonly known as data FF, is widely used in the world of computing. It captures the input of D at a certain time in the clock cycle, such as the moment when the clock toggles from its negative edge to its positive edge, and the captured data at input D become the output Q. At all other times, the output Q stays unchanged. Output Q′ is the complement of output Q, and t refers to the current state’s time, while t − 1 refers to the previous state’s time. The block diagram of a classic D-FF is shown in
Figure 1a, and the truth table of the D-FF is shown in
Figure 1b.
The block diagram of the optical D-FF, depicted in
Figure 2, relies on a quasi-square RR for amplifying and guiding the light wave. Additionally, it incorporates a T-splitter to efficiently divide the wave with minimal power loss, along with OR and NOT logic gates.
3. Structure

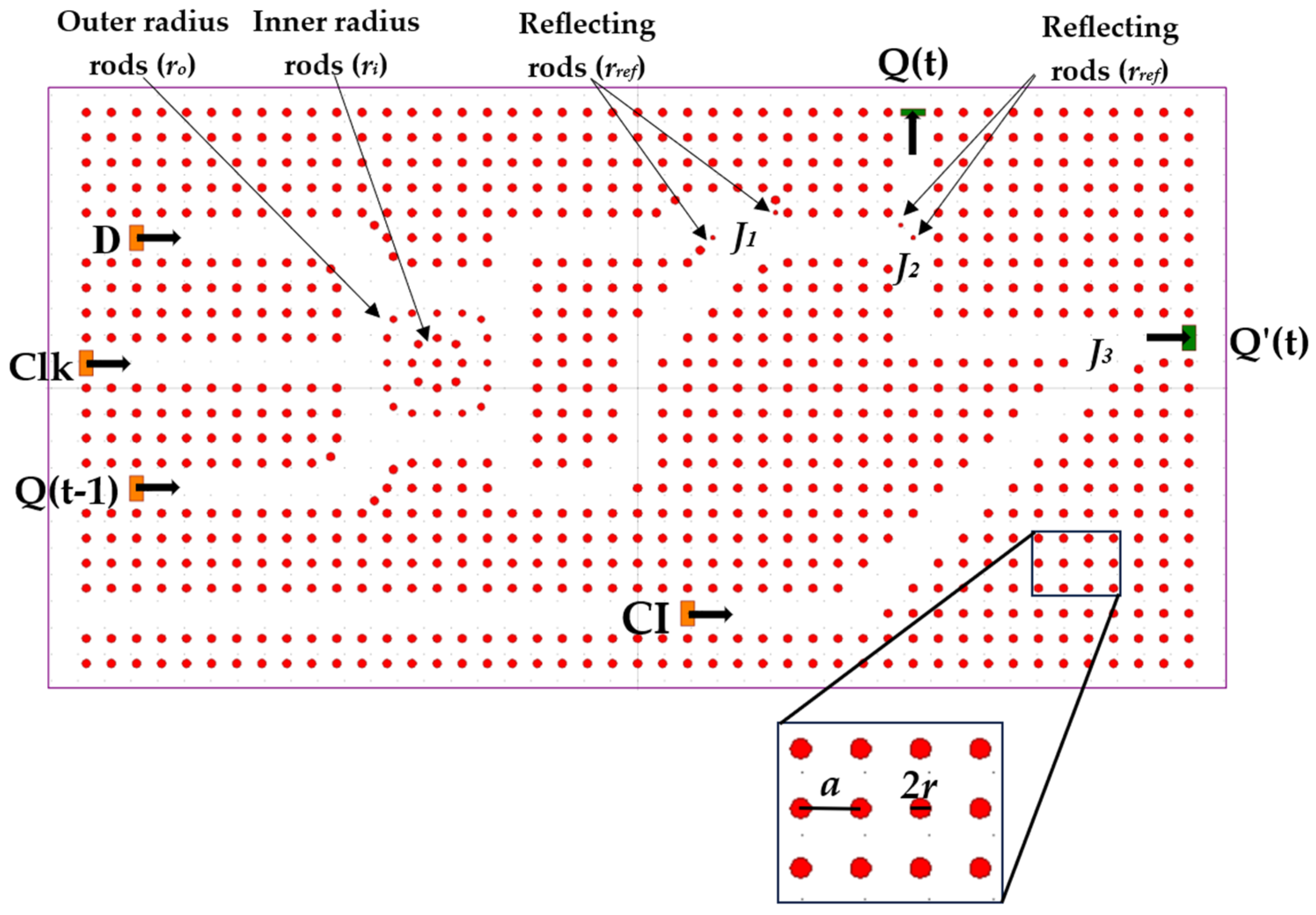

Figure 3 illustrates the suggested clocked D-FF, which features a configuration with a square lattice layout in the X–Z plane, consisting of 45 × 23 Si rods within a SiO
2 substrate. In the figure, the areas in red and white correspond to Si and SiO
2, respectively. The lattice has a constant ‘
a’ of 474 nm, with refractive indexes of 3.46 for Si and 1.45 for SiO
2. The Si rods have a radius of 0.17 times the lattice constant ‘
a’. These parameters affect the light confinement and transmission losses throughout the structure, they were determined as a result of optimization with an operating wavelength of 1550 nm.
The structure has four inputs: clock (Clk), D, Q(t − 1), and control input (CI); and two outputs: Q(t) and Q′(t). Input D is the data input, when the Clk input is at logic ‘1’ and output Q(t) obtains the value of D. Output Q′(t) obtains the complementary value of D (D′) when the Clk input is at logic ‘0’, output Q(t) obtains the value of input Q(t − 1), which is the previous state of Q(t), and Q′(t) obtains the complementary value of Q(t). Input CI is used to realize the NOT gate at output Q′(t). Inputs D, Clk, and Q(t − 1) are each guided by a waveguide into the RR, where the light waves either construct or destruct with each other, depending on the input logic state. The RR consists of an inner ring made of Si rods with a radius ri of 0.16a and an outer ring made of Si rods with a radius ‘ro’ of 0.14a. The two outputs of the RR go into the first junction J1, which acts as an OR gate; the combined light wave travels to junction J2, which acts as a T-splitter, splitting the wave with minimal power loss to output Q(t) and junction J3. The wave encounters the wave from input CI. They destructively interfere with each other, creating a NOT gate, and the resulting wave travels to output Q′(t).
To simplify and explain the operational principles of the D-FF, the structure is partitioned into distinct components.

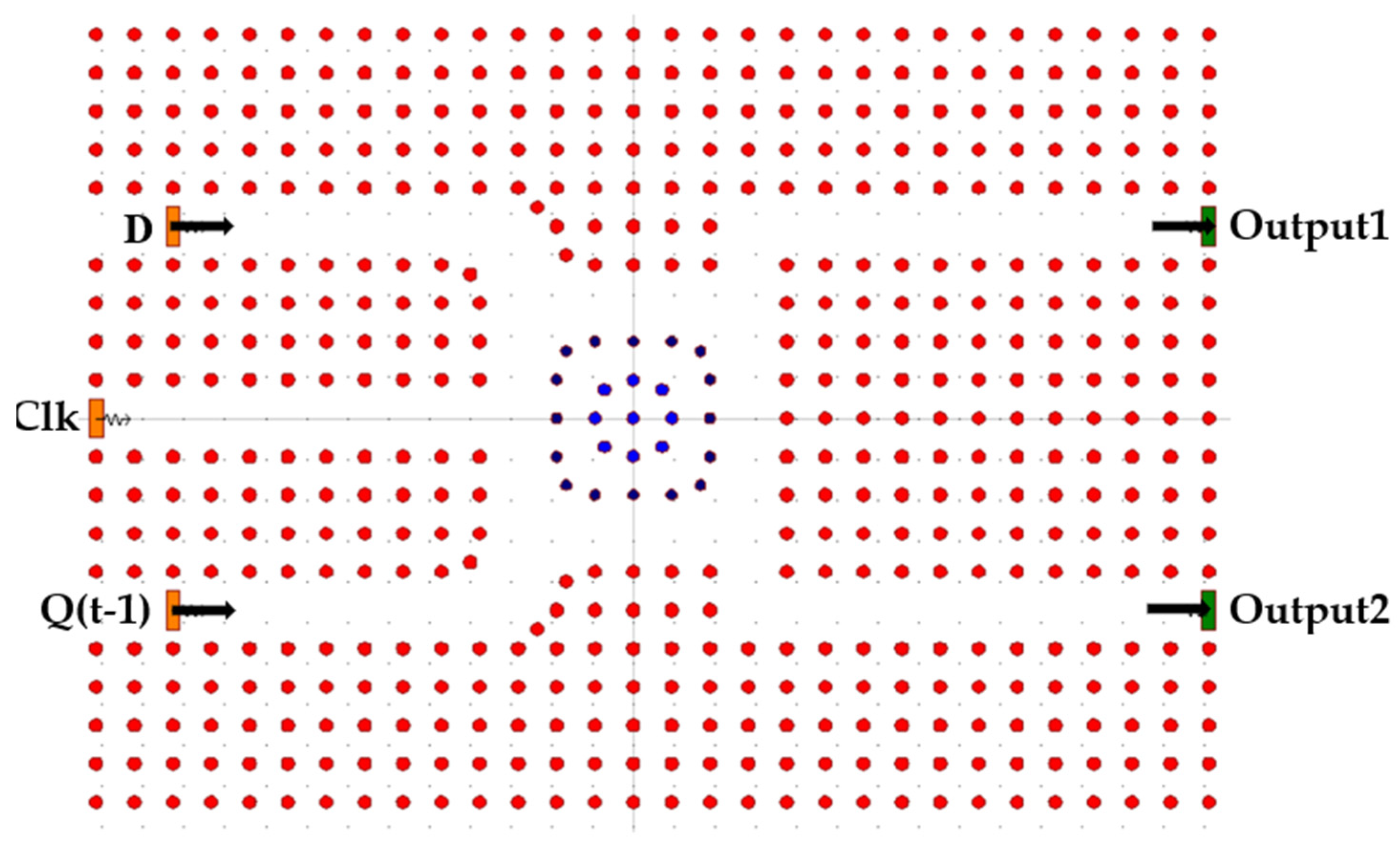

Figure 4 illustrates the first component, an RR with three inputs: D, Clk, and Q(t − 1), and two outputs.
The inner and outer radii of the ring resonator shapes were designed with inspiration from already proven similar work [
38].
Since there are three inputs, there is a total of eight logic states that are addressed in
Table 1. Each logic state is represented by power and phase shift; at the input D, logic ‘0’ and ‘1’ are defined as 0.1 a.u and 0.9 a.u, respectively, with a phase shift of 0. At the input Q(t − 1), logic ‘0’ and ‘1’ are defined as 0.1 a.u and 0.9 a.u, respectively, with a phase shift of π. At the input Clk, logic ‘0’ is defined as 0.9 a.u and a phase shift of π, and logic ‘1’ is defined as 0.9 a.u and a phase shift of 0.
The contrast ratio (
CR) refers to the difference in optical power levels between the ON and OFF states, indicating the clarity and distinction between logic ‘1’ and ‘0’ outputs and is given as:
where
P1 and
P0 represent the output power levels corresponding to logic ‘1’ and logic ‘0’, respectively.
The CR calculated at Output1 and Output2 are 3.68 dB and 3.27 dB, respectively.

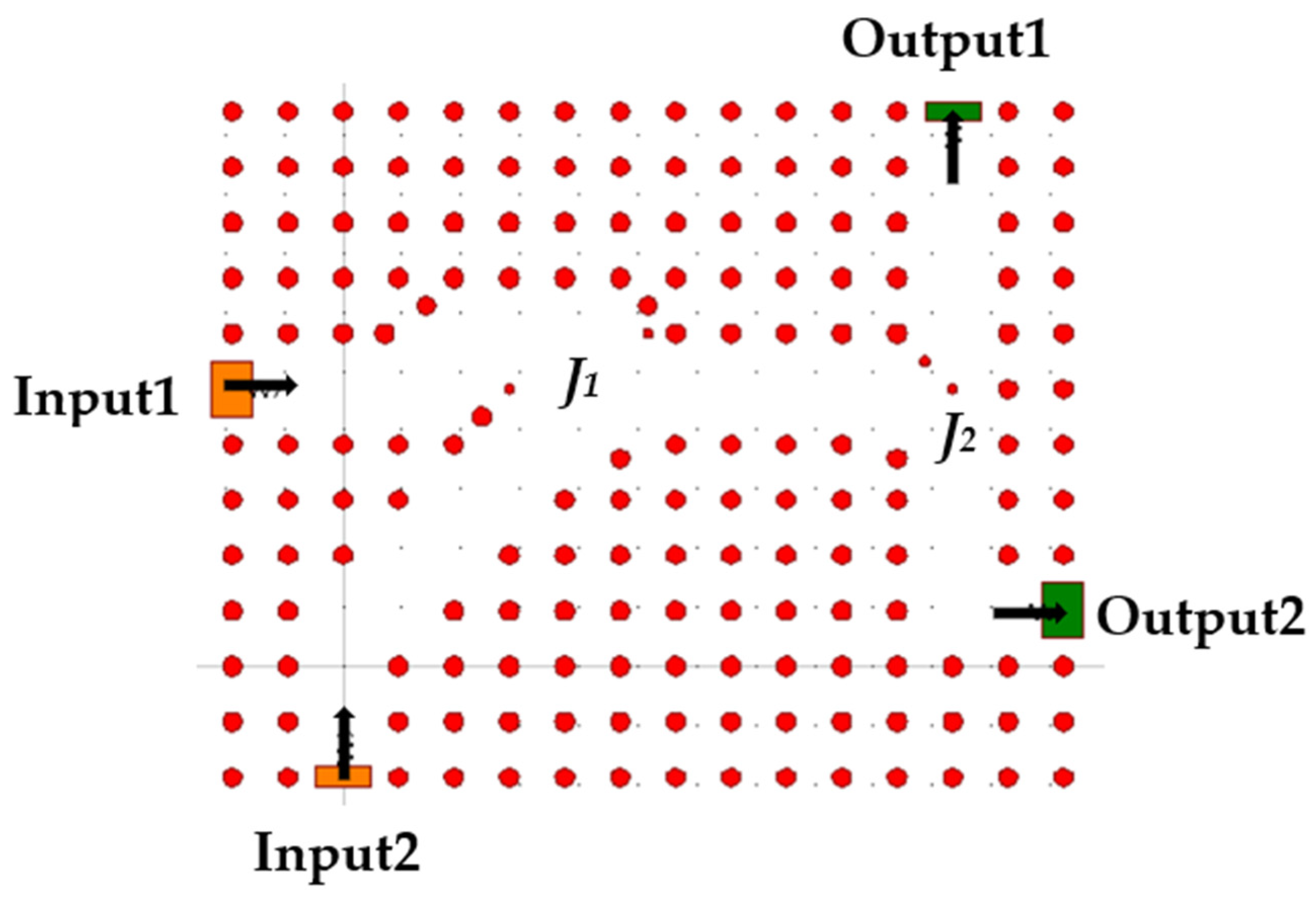

The second component described in
Figure 5 has two inputs and two outputs. The two inputs are connected to the outputs of the RR. The component realizes an OR logic gate to combine the outputs of the RR into one waveguide, and a T-splitter, to split the light wave into two waveguides, while Output1 will later be the final output Q(t), with minimal losses and the same logic state. The light waves from the inputs travel by waveguides to junction
J1, where they constructively interfere; the resulting wave travels to junction
J2 where it is split into two.
Since there are two inputs, there are a total of four logic states that are described in
Table 2. Logic state ‘0’ is represented by a power of 0.1 a.u, and logic state ‘1’ is represented by a power of 0.9 a.u.

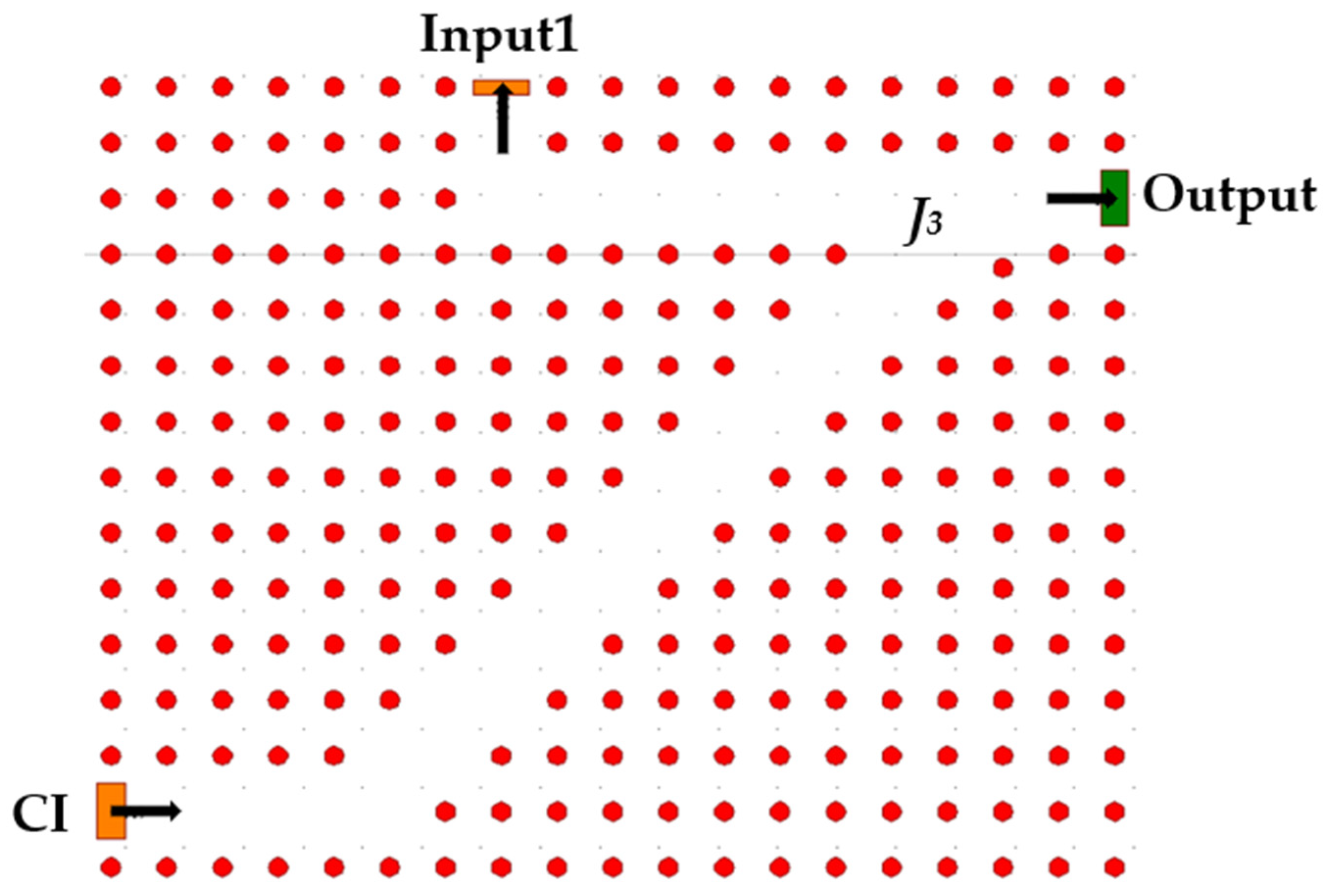

The third component described in
Figure 6 has two inputs and one output. One of the inputs is the output of the second component, and the other is a controlled input called CI. The component realizes a NOT logic gate. The CI input is, as implied, always active, and the other input is the data input. The light waves travel by waveguides to junction
J3 where they destructively interfere. The output will later become the final output Q′(t).
Since there are two inputs, there are a total of four logic states that are described in
Table 3. Logic state ‘0’ is represented by a power of 0.1 a.u, and logic state ‘1’ is represented by a power of 0.9 a.u.
4. Optimizations
Optimizations were performed on every parameter influencing and modifying the behavior of the proposed D-FF structure. This module takes in a parameter, generates a test vector, and subsequently simulates the structure using the FDTD method.
The proposed structure is based on two main parameters: the lattice constant ‘
a’ and the radius of the Si rods ‘
r’. Optimization was made on both to find the structure configuration with optimal light confinement and minimal transmission losses. For a working wavelength of 1550 nm, Si rods in SiO
2 substrate were used with refractive indexes of 3.46 and 1.45, respectively.

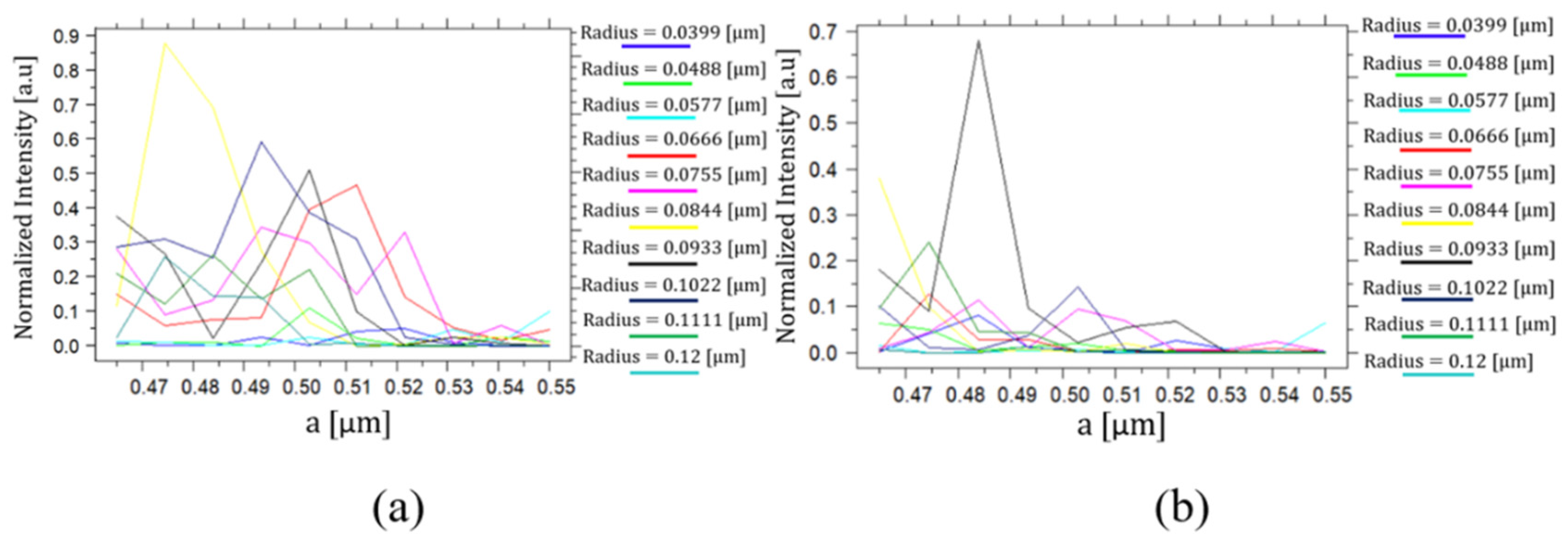

Figure 7a,b shows the normalized intensity at outputs Q(t) and Q′(t), when ‘
a’ is tested in the range of 0.465 and 0.55 μm, and ‘
r’ is tested in the range of 0.0399 and 0.12 μm.
All optimizations performed on the proposed D-FF structure used an input state such that D, Clk, and Q(t − 1) obtain the logic values of ‘0’, ‘0’, and ‘1’, respectively. The expected outputs Q(t) and Q′(t) for this state are ‘1’ and ‘0’, respectively. By analyzing
Figure 7, it can be deduced that the yellow graph has the maximal normalized intensity at output Q(t) and the minimal at output Q′(t); thus, the values assigned for ‘
a’ and ‘
r’ are 474 nm and 84.4 nm, with fabrication tolerances of
(±9.48 nm) and
(±7.8 nm), respectively.

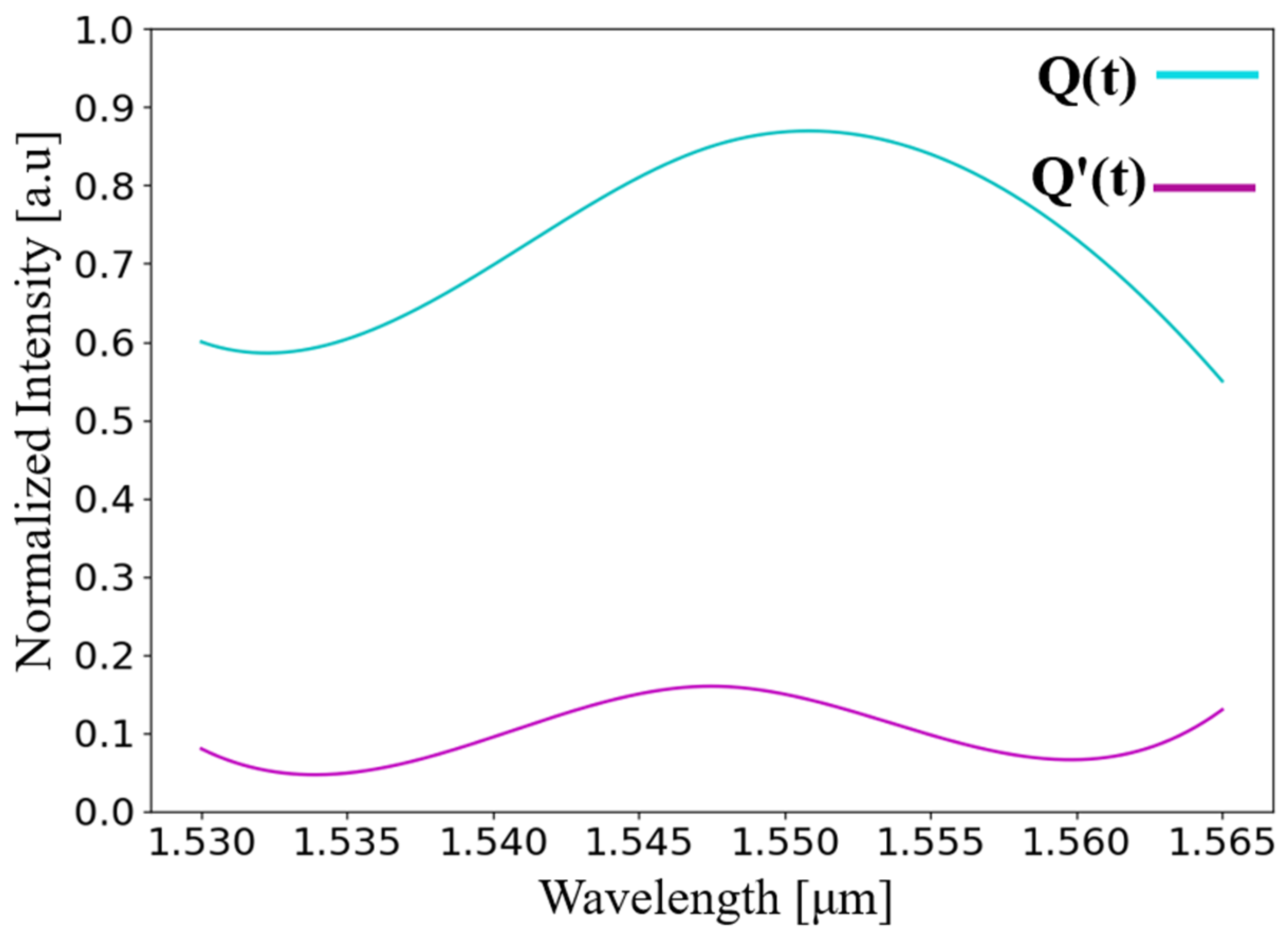

Light sensitivity determines how stable a structure is when operating at non-optimal wavelengths. Light sensitivity is an important parameter. As in real-world conditions, there are imperfections and variations in input light waves. Optimization was performed, as illustrated in
Figure 8, on the normalized intensity at the outputs Q(t) and Q′(t), with respect to the wavelength within the C-band spectrum, 1530–1565 nm.
From
Figure 8, it is deduced that for all the wavelengths in the C-band spectrum, the normalized power at Q(t) output is above 0.6 a.u, and the normalized power at Q′(t) output is below 0.2 a.u. It can also be seen that the optimal wavelength is 1550 nm, and the device is operable with
(±15.5 nm) of variation in the wavelength. These results indicate that the device has high stability and is reliable for imperfect inputs.
The RR component consists of an inner ring made of Si rods with a radius ‘
ri’ and an outer ring made of Si rods with a radius ‘
ro’; the radius of these rods is critical for the optimal operation of the D-FF, as the radius affects the interferences of the light waves by changing the geometry of the component and, thus, the lengths that the light waves travel. The optimization of ‘
ri’ and ‘

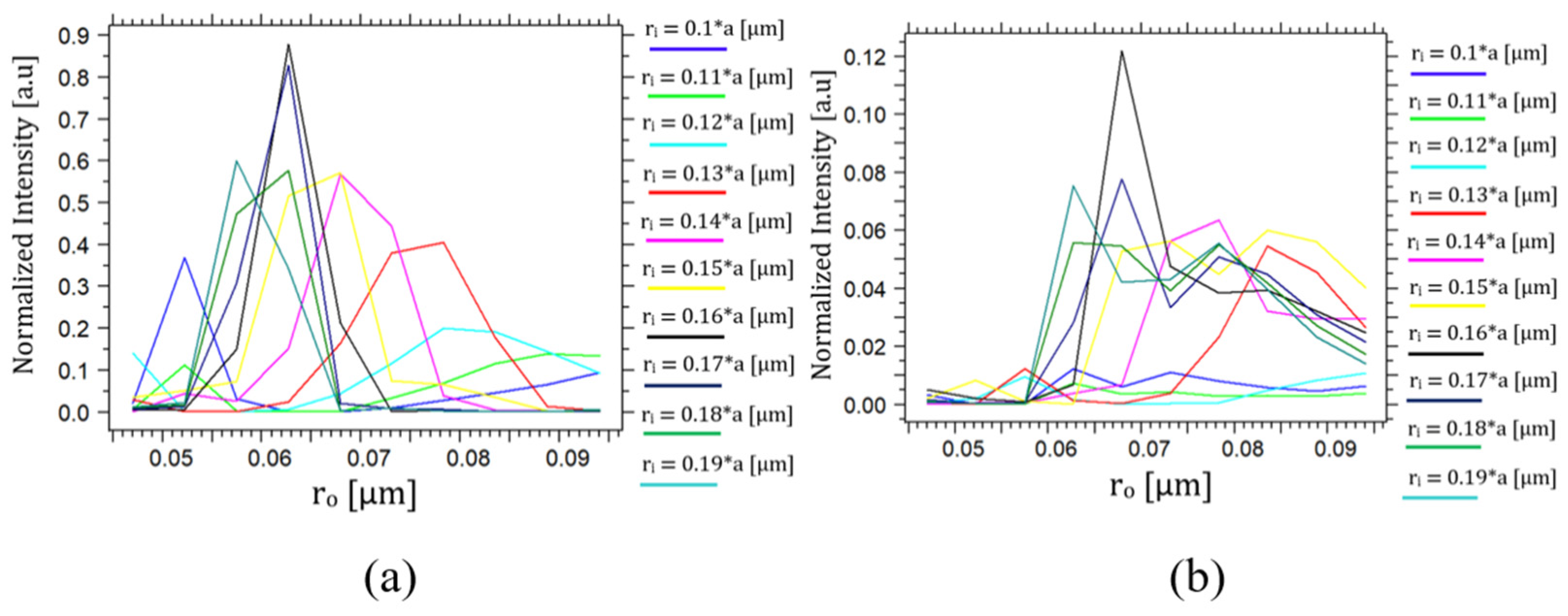

ro’ was performed simultaneously, as shown in
Figure 9a,b. The normalized intensity at the outputs Q(t) and Q′(t) as a function of ‘
ri’ and ‘
ro’ was in the range of 0.1
a to 0.19
a, when ‘
a’ is the lattice constant that was optimized to be 474 nm.
Figure 9 reveals that the black curve exhibits the highest normalized intensity at output Q(t) and the lowest at output Q′(t). Accordingly, the values designated for
ri and
ro are 0.16
a and 0.13
a, respectively, where ‘
a’ represents the optimized lattice constant set at 0.474 μm. The fabrication tolerances for ‘
ri’ and ‘
ro’ are
(±14.22 nm) and
(±12 nm).
The reflection rod’s radius ‘
rref’ impacts the traveling light waves and the power losses at the output of the device.

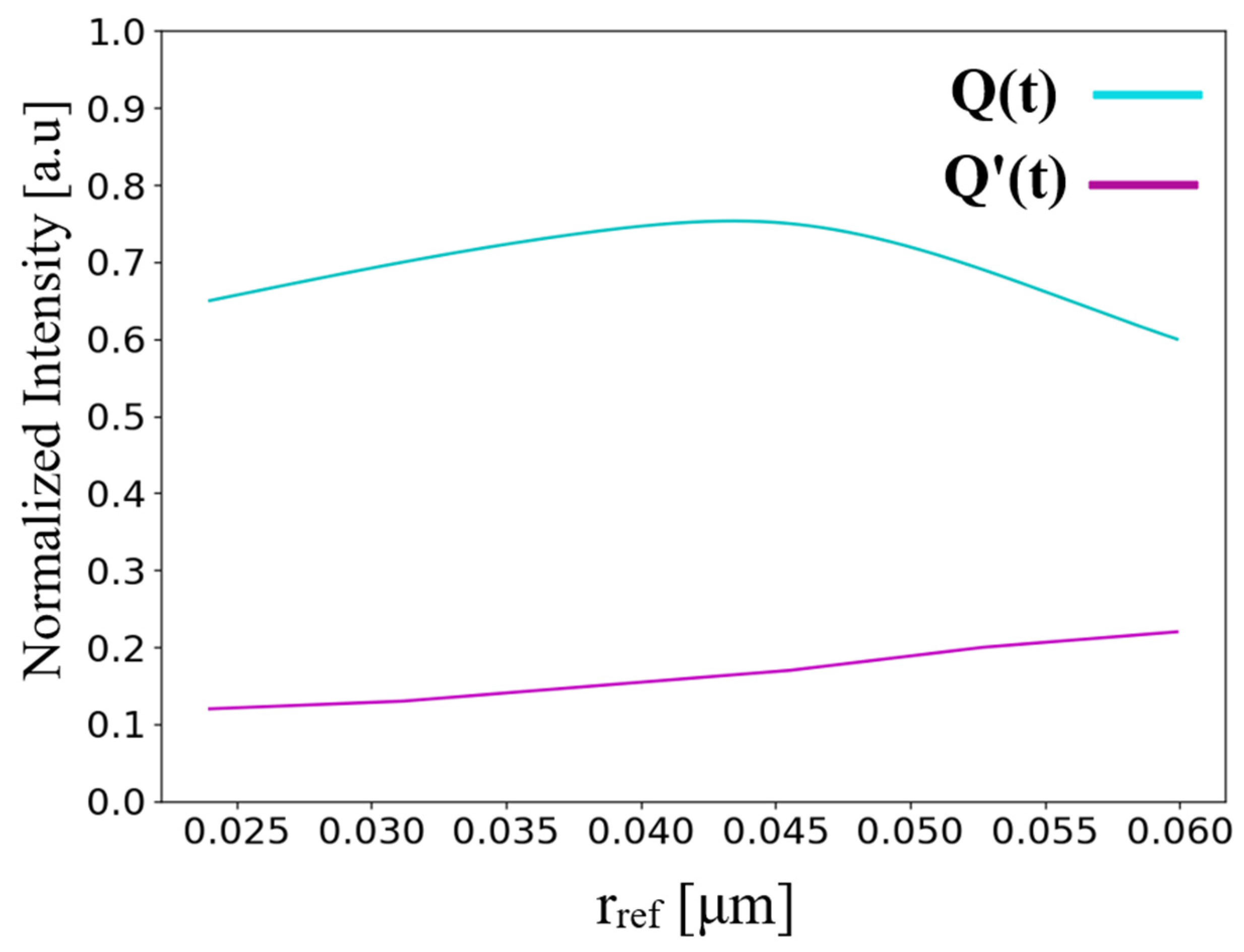

Figure 10 visualizes the normalized intensity at the outputs Q(t) and Q′(t) as a function of the reflection rods in the range of 0.3
r to 0.7
r. This is when ‘
r’ is the radius of the regular rods and was optimized to be 84.4 nm.
Figure 10 indicates that the optimal value for
rref is 0.5r, where ‘
r’ represents the radius of the regular rods and has been fine-tuned to be 84.4 nm with a fabrication tolerance of
.
5. Simulation Results
The PWE principle was utilized for solving the PBG. The FDTD method was employed to simulate the transmission diagram and reflectance of optical power in the output of the D-FF by inserting a Gaussian pulse at the inputs with different logic states.

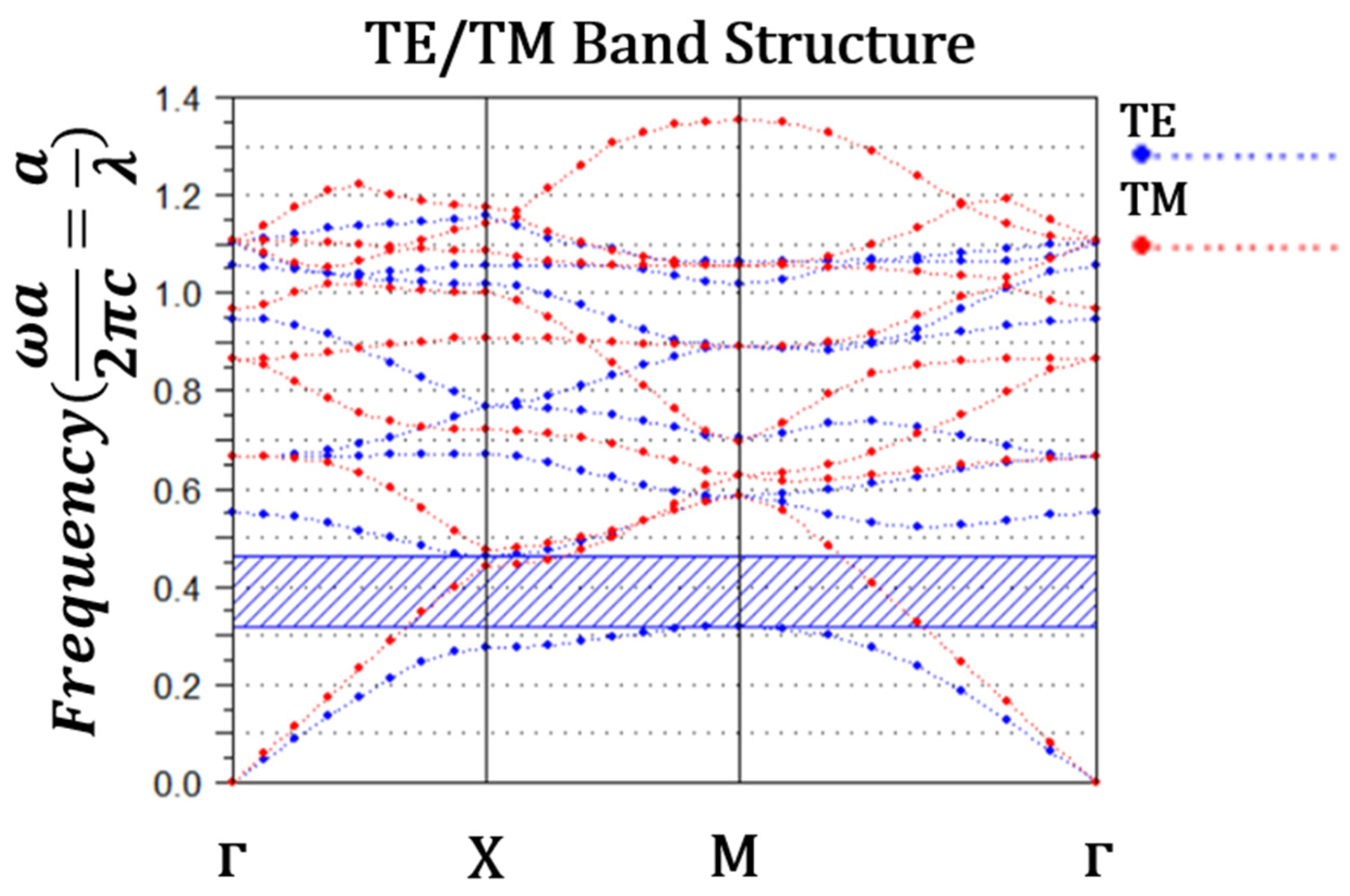

Figure 11 was generated using the Band-Solve tool, illustrating the TE polarization mode PBG for the proposed D-FF.
The bend diagram illustrates that the PBG is evident only in the TE polarization mode, aligning with expectations based on the distinctive configuration of the structure and occurs in the range of . Where ‘a’ denotes the lattice constant, set at 474 nm, this allows us to deduce the range of compatible wavelengths for our design to be . Thus, our design is compatible with the C-band spectrum and was optimized to work at 1550 nm.
The performance of the suggested D-FF structure was simulated using the FDTD method. Four out of the eight results are presented in
Figure 12a–d, each subfigure depicts a distinct logic state where Clk is logic ‘0’.

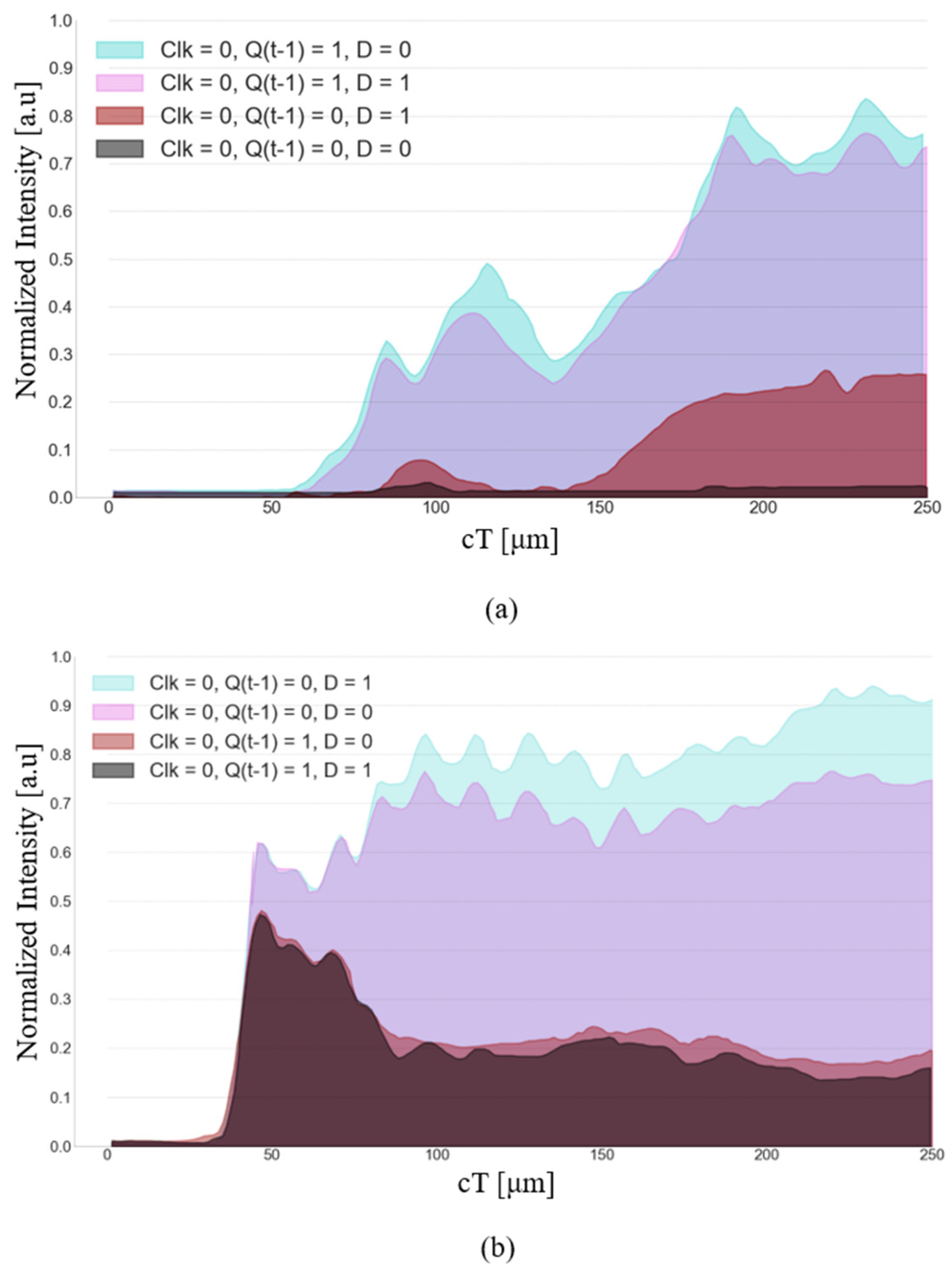

Figure 13a,b depict the normalized intensity at the outputs Q(t) and Q′(t) for the same logic states.

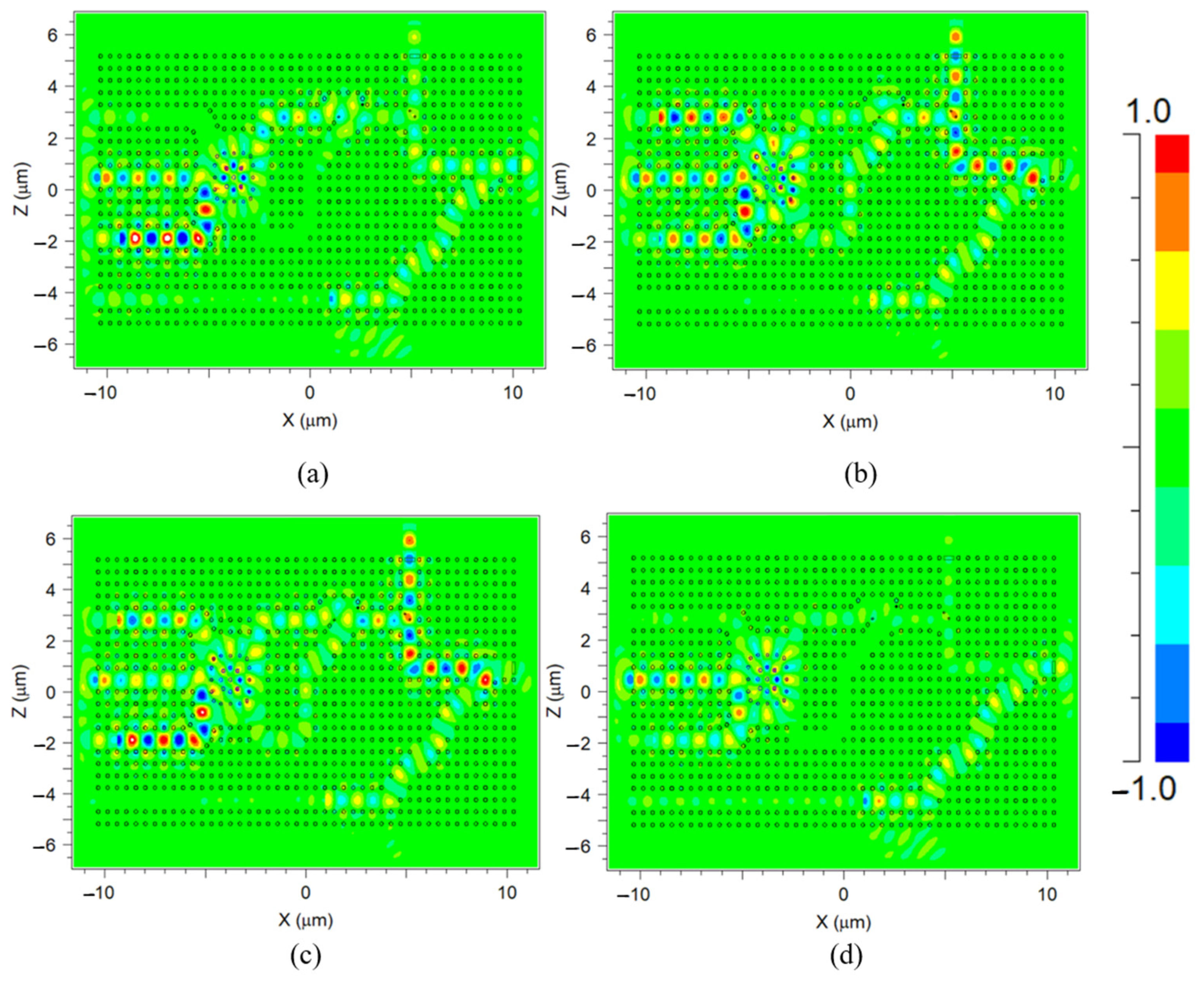

Figure 14a–d and
Figure 15a,b depict the performance of the structure and the normalized intensity at outputs Q(t) and Q′(t), respectively, for the remaining four logic states where Clk is logic ‘1’.
Figure 13 illustrates the normalized intensity at outputs Q(t) and Q′(t) for the four input logic states with Clk set to logic ‘0’. The Y-axis represents the normalized intensity of the signal at each output, and the X-axis ‘cT’ is the time times the speed of light.
For the logic state (0, 0, 0), the normalized intensity at outputs Q(t) and Q′(t) is 0.02 a.u and 0.7 a.u, respectively, at the point cT = 150 μm. For the logic state (0, 0, 1), the normalized intensity at outputs Q(t) and Q′(t) is 0.22 a.u and 0.85 a.u, respectively, at the point cT = 200 μm. For the logic state (0, 1, 0), the normalized intensity at outputs Q(t) and Q′(t) is 0.75 a.u and 0.18 a.u, respectively, at the point cT = 200 μm. For the logic state (0, 1, 1), the normalized intensity at outputs Q(t) and Q′(t) is 0.72 a.u and 0.15 a.u, respectively, at the point cT = 200 μm. A summary of the results is shown in
Table 4.
Figure 15 illustrates the normalized intensity at outputs Q(t) and Q′(t) for the four input logic states with Clk set to logic ‘1’.
Specifically, for the logic states (1, 0, 0), the normalized intensity at outputs Q(t) and Q′(t) is 0.02 a.u and 0.75 a.u, respectively, at the point cT = 150 μm. For the logic state (1, 0, 1), the normalized intensity at outputs Q(t) and Q′(t) is 0.65 a.u and 0.15 a.u, respectively, at the point cT = 150 μm. For the logic state (1, 1, 0), the normalized intensity at outputs Q(t) and Q′(t) is 0.15 a.u and 0.9 a.u, respectively, at the point cT = 200 μm. For the logic state (1, 1, 1), the normalized intensity at outputs Q(t) and Q′(t) is 0.72 a.u and 0.15 a.u, respectively, at the point cT = 190 μm. A summary of the results is shown in
Table 4.
Upon inspecting each simulation result individually, it becomes apparent that the light intensity at the outputs becomes steady after a certain period known as stabilized intensity. The duration required to reach this stabilized intensity is referred to as the stabilization time. In the case of the proposed D-FF structure, the stabilization time is determined by the longest duration taken to achieve the stabilized intensity, resulting in a stabilization time of 0.66 picoseconds. Furthermore, the logic states ‘0’ and ‘1’ can be characterized by the normalized intensity falling within the ranges of 0 a.u to 0.2 a.u and 0.6 a.u to 1 a.u, respectively. The intensity range for logic state ‘0’ is defined as the maximum allowable intensity considered as logic ‘0’, and a similar principle is applied to the intensity range for logic state ‘1’, where the range is determined by the minimum acceptable intensity considered as logic ‘1’. The CR is computed using Eq. [
1], reflecting the transmission losses, and is determined to be 4.77 dB.
A comparison between the proposed all-optical D-FF structure and other structures previously proposed in published papers is shown in
Table 5. The main characteristics of the D-FF are the stabilization time, CR, footprint, and operating wavelength. All structures compared are composed of linear, square lattice PC structures.
Table 5 demonstrates that the proposed D-FF structure presents a compelling blend of rapid stabilization time, competitive contrast ratio, optimized footprint, and compatibility with standard operating wavelengths. These attributes position it as a promising contender for advancing the realm of all-optical signal processing and logic operations. Notably, the primary breakthrough lies in the utilization of a silica substrate in the proposed photonic D-FF structure, diverging from conventional air substrates. This innovative shift enhances fabrication compatibility with CMOS processes, streamlines production, and bolsters scalability, marking a significant stride forward in the field of photonic all-optical signal processing and logic operations.
6. Conclusions
The proposed structure has been validated through simulations to effectively function as a classical D Flip Flop. This stands in contrast to other studies referenced in
Table 5, which have demonstrated four logic states out of eight. This discrepancy arises from their oversight in acknowledging that the output must directly reflect the last value it retained, a fundamental principle enabling the component to retain memory. Another advantage of the proposed structure, distinguishing it from previous studies, lies in the innovative use of SiO
2 as a substrate and as silicon rods. This approach enables fabrication and physical testing for the first time, while also offering the potential for hybridization with CMOS technology. This compatibility with CMOS technology opens up new avenues for integration and scalability, further enhancing the versatility and applicability of the proposed structure. In contrast, prior research primarily focused on air as the substrate.
The proposed structure is engineered to operate within the C-band, exhibiting low sensitivity to changes in wavelength and optimized performance at 1550 nm. It maintains operability within a ±1% variation in wavelength (1550 ± 15.5 nm), thereby expanding the range of potential applications for the device. The logic states ‘0’ and ‘1’ are delineated within the ranges of 0 a.u to 0.2 a.u and 0.6 a.u to 1 a.u, respectively, with a CR of 4.77 dB. The device achieves an overall stabilization time of 0.66 picoseconds and has a footprint of 21 μm × 12 μm.
Our D-Flip-Flop design displays impressive fabrication tolerances. With radii fabrication tolerances ranging from a minimum of 7.8 nm to a maximum of 18 nm, along with a pitch fabrication tolerance of 9.48 nm, our design achieves notable levels of precision. These tolerances ensure uniformity and reliability throughout the construction of each component, resulting in optimal performance under diverse operating conditions.
The device shows a clear distinction between logic ‘0’ and ‘1’, minimizing logic errors at the photonic decision circuit, and is a great advancement towards all-optical computing and memory units. Another promising use case for this design is a memory component for quantum computers. By observing the normalized intensity levels at the outputs, it is possible to set new logic states; for example, instead of just ‘0’ and ‘1’, power levels between 0.6 a.u and 0.8 a.u can be viewed as a new logic state.
The proposed design in this paper has an input that acts as the previous value at the output. A proposition for future research is connecting output Q(t) to input Q(t − 1) through a waveguide similar to those used in this paper, thus creating a dependency between the logic states and time. Essentially, the distance that the light will travel in the proposed waveguide will determine the time that the D-FF will hold a value and act as a memory component.
The proposed photonic D-FF presents a significant advancement towards establishing photonic arithmetic logic units. Its ability to effectively function within the C-band, low sensitivity to wavelength variations, and impressive fabrication tolerances make it a crucial component for all-optical computing architectures. Furthermore, its potential integration into quantum computing frameworks, leveraging its distinct logic states and memory capabilities, marks a promising pathway towards realizing advanced quantum computing systems.
