Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review

Kong, Fanyi; Chen, Wenqian

doi:10.3390/nano14161340

Open AccessReview

Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review

by

Fanyi Kong

and

Wenqian Chen

^*

Key Laboratory of Organic Compound Pollution Control Engineering (MOE), School of Environmental and Chemical Engineering, Shanghai University, Shanghai 200444, China

^*

Author to whom correspondence should be addressed.

Nanomaterials 2024, 14(16), 1340; https://doi.org/10.3390/nano14161340

Submission received: 13 July 2024 / Revised: 8 August 2024 / Accepted: 10 August 2024 / Published: 12 August 2024

(This article belongs to the Section Inorganic Materials and Metal-Organic Frameworks)

Download

Browse Figures

Versions Notes

Abstract

:

The escalating threat of anthropogenic climate change has spurred an urgent quest for innovative CO₂ capture and utilization (CCU) technologies. Metal–organic frameworks (MOFs) have emerged as prominent candidates in CO₂ capture and conversion due to their large specific surface area, well-defined porous structure, and tunable chemical properties. This review unveils the latest advancements in MOF-based materials specifically designed for superior CO₂ adsorption, precise separation, advanced photocatalytic and electrocatalytic CO₂ reduction, progressive CO₂ hydrogenation, and dual functionalities. We explore the strategies that enhance MOF efficiency and examine the challenges of and opportunities afforded by transitioning from laboratory research to industrial application. Looking ahead, this review offers a visionary perspective on harnessing MOFs for the sustainable capture and conversion of CO₂.

Keywords:

MOF-based materials; CO₂ capture; CO₂ conversion

1. Introduction

Climate change is one of the most critical global challenges and necessitates immediate attention. The continuous increase in greenhouse gas emissions, particularly CO₂, has triggered a series of environmental problems, including extreme weather events, forest disturbances, and water erosion [1,2,3,4]. These issues significantly impact human society, as evidenced by the heightened incidences of infectious diseases and intensified rainfall in recent years [5,6,7].

Of particular concern is the rapid escalation in global surface temperatures, surpassing the rates observed over any other 50-year period in the past two millennia. This alarming trend is expected to endure, with a potential to exert further detrimental influence on human civilization. The deleterious impacts of climate change transcend mere ecological harm, extending to food security, biodiversity, economy, and cultural heritage [8,9,10]. Central to these widespread concerns is the continuous rise of the greenhouse gas CO₂.

In the endeavor to mitigate the environmental impact of CO₂, enormous efforts have been dedicated toward accelerating the transition to sustainable energy sources and advancing traditional technologies. Among the approaches developed is carbon capture and utilization (CCU) technology, entailing the capture of CO₂ from the atmosphere or from fuel gases and conversion into value-added industrial products (Figure 1). CCU has emerged as a promising technology in reducing the concentration of CO₂ in the atmosphere [11]. The key to this technology hinges on the development of high-performance and cost-effective materials serving as sorbents or catalysts for CO₂ capture and conversion. Various materials have been explored for CO₂ capture and conversion, with solid materials being the most prominent due to their cost-effectiveness and flexible structures [12]. Notable examples include the following:

Activated carbon: Activated carbon is characterized by its high surface area, low manufacturing cost and ordered porous structure. It exhibits remarkable CO₂ capture capacity in ambient conditions. The formation of activated carbon usually involved two steps: calcination and activation [13], which is far more convenient as compared to other materials. Recently, it has been found that many forms of activated carbon can be derived from waste biomass, such as palm leaf [14], rice husk [15], and cucumber peels [16]. Not only can these biomass-derived porous carbon forms effectively adsorb CO₂, but they can also facilitate waste recycling. However, reliance on physisorption poses challenges in separating CO₂ from mixed gases, and the material’s instability under practical flue gas conditions may impede its widespread application [17].

Metal oxide: Metal oxide can provide active sites that facilitate the adsorption and activation of CO₂. Previous research found that: (1) the synergistic effect at the metal/oxide interface can regulate the adsorption and transformation of CO₂; (2) the activity and selectivity of oxide-supported metal catalysts are governed by the binding strength of CO₂ and intermediates at the metal/oxide interface; (3) by altering the binding strength at the metal/oxide interface, the pathway and selectivity of CO₂ hydrogenation reactions can be modulated [18]. Metal oxides not only exhibit their own potential for converting CO₂ into value-added long chain hydrocarbons [19,20], but they can also act as an effective promoter to boost the reaction activity by altering the electronic structure and providing electrons [21]. However, many metal oxides often exhibit low activity in reactions, necessitating the use of doping and other techniques to modulate their catalytic properties.

Metal-supported catalysts: Metal-supported catalysts typically exhibit superior particle morphology and mechanical strength, facilitating their separation from the reaction system and enabling recycling and reducing costs. So far there are various supports, including CeO₂, ZrO₂, and TiO₂, that have been used in metal-supported systems. The type of support leads to the formation of different reaction intermediates, thereby significantly affecting the activity and selectivity of the catalyst [22]. In addition, various noble metals, including Ru and Pt, as well as non-noble metals, including Ni, Co, and Fe, are commonly utilized. However, some metals tend to form carbide phases during the reaction process. The formation of these phases increases the proportion of weakly adsorbed CO species, thereby enhancing the selectivity towards CO. Once the carbonaceous species are removed from the catalyst surface through oxidation, the catalyst can regain its selectivity for the original products [23]. This also raises an issue common to many metal-supported catalysts: the formation of carbon deposition and catalyst sintering during the reaction.

Graphene-based catalysts: Graphene-based catalysts exhibit superior performance in CO₂ hydrogenation due to their intrinsic properties. These include exceptional chemical and thermal stability, superior thermal conductivity, and the capacity for nitrogen doping to generate basic sites that facilitate CO₂ activation. Furthermore, the presence of the concentrated distribution of defects is beneficial for the dispersion and stabilization of metal or oxide nanoparticles. The application prospects of graphene-based catalysts in CO₂ hydrogenation to methanol, formic acid, and olefin are promising [24]. However, under certain reaction conditions, graphene-based materials may lose their structural integrity or undergo chemical changes, affecting their long-term stability and catalytic performance.

Two-dimensional carbide-based catalysts: Mo₂C is a typical material that, owing to its superior catalytic properties, is considered a promising candidate as a 2D carbide-based catalyst, particularly for the production of CO via the reverse water–gas shift (RWGS) reaction [25]. The 2D-Mo₂C has demonstrated exceptional stability over more than 100 h of continuous operation, without any significant signs of deactivation. When compared to the industrially utilized Cu/ZnO/Al₂O₃ catalyst, 2D-Mo₂C exhibits enhanced activity and stability under identical testing conditions. As a novel CO₂ hydrogenation catalyst, 2D carbide-based catalysts not only boast high activity and selectivity but also possess excellent stability, which holds significant potential for industrial applications, though the 2D architecture may restrict the accessibility of active sites.

While these materials show potential for CO₂ capture and conversion, each faces distinct challenges that necessitate further research and development to enable their practical deployment on an industrial scale [17,26,27,28].

The design principle of materials is intrinsically linked to the mechanisms of CO₂ adsorption and reduction. The mechanism of CO₂ adsorption can be broadly categorized into physisorption and chemisorption [29]. Physisorption involves weak Van der Waals force and electrostatic force between the adsorbent and adsorbate. This necessitates the utilization of materials endowed with high specific surface areas, well-defined porous structures, and suitable pore volumes and diameters. Conversely, chemisorption involves the formation of new substances through the interaction of the adsorbent with CO₂. With respect to CO₂ reduction, external energy inputs are essential to disrupt the stable molecular structure of CO₂. CO₂ reduction mainly yields new substances such as CO, CH₄, CH₃OH, and C₂H₄ [30], which hold industrial utility. Catalysis stands as a prevalent strategy for the CO₂ reduction. The rational design of a catalyst can effectively promote the catalytic reaction. In general, desirable catalysts should feature uniformly dispersed and fully exposed active catalytic centers or, alternatively, exhibit high compatibility with other materials to augment their catalytic activity.

In this regard, considering high porosity, tunable chemical structure and large surface areas, metal–organic frameworks (MOFs), constructed by organic linkers and metal ions or clusters, appear to be a promising material class for CO₂ capture and conversion [31]. These distinctive features are not present in the aforementioned materials. Furthermore, due to flexible electronic structure and atomically dispersed active sites, MOFs hold great potential for catalytic reduction of CO₂ [32]. Notably, the intrinsic properties of MOFs can be enhanced through the regulation of organic ligands or metal centers, optimization of pore spaces, immobilization of specific functional groups, and encapsulation of guest molecules [33], thereby endowing MOFs with diverse functionalities. In addition to pristine MOFs, MOF composites and derivatives have been explored to further enhance CO₂ capture and conversion efficiency [34]. For example, Shang et al. [35] successfully synthesized CuBTC@Graphene Oxide (GO) (BTC = 1,3,5-benzenetricarboxylate) via a facile method for CO₂ capture and achieved a high adsorption capacity of 8.9 mmol g⁻¹ at 273 K, 1000 mbar. Qian et al. [36], using carbon dots (CDs) as a photosensitizer (PS) and Co(Hmim)₂/In-BDC (ZIF-67/In-MIL-68, Hmim: 2-methylimidazole, BDC: 1,4-benzenedicarboxylate) as precursor, fabricated a ternary composite CDs-Co₃O₄/In₂O₃ for CO₂ photocatalysis and obtained a high CO generation rate of 2.05 μmol h⁻¹ g⁻¹. An et al. [37] demonstrated the potential of using MOFs as a tunable platform for the design of catalysts with bimetallic centers, which exhibit high ethanol selectivity. These materials demonstrate improved efficiency in comparison to their parent MOFs.

In fact, there have been many review articles discussing MOF-based materials for CO₂ capture or conversion. As early as 2005, Millward et al. [38] first proposed MOFs as an efficient material for CO₂ storage. In the last 15 years, in 2011, Bae et al. [39] emphasized the potential applications of MOFs in the field of CO₂ separation and capture, and proposed criteria and strategies for the evaluation and design of novel MOFs. Just one year later, Hunger et al. [40] illustrated that when utilizing MOFs as additives in Mixed Matrix Membranes (MMMs), they demonstrate the potential to enhance CO₂ gas separation performance. Particularly in the past 10 years, there have been more and more research studies focusing on MOFs for CO₂ capture and utilization. For instance, in 2014, Alhamami et al. [41] primarily discussed the “breathing” behavior of MOFs in the context of CO₂ adsorption, with an emphasis on the potential spatial framework requirements necessary for the manifestation of breathing behavior in MOFs. In 2015, Kathalikkattil et al. [42] pointed out that MOFs can serve as effective materials for catalyzing the chemical fixation of CO₂ through cycloaddition with epoxides to produce cyclic carbonates and discussed strategies for enhancing the performance of MOF catalysts, as well as the challenges and prospects for realizing the industrial application of these catalysts. In 2016, He et al. [32] reported the application of MOFs in CO₂ chemical transformation, including photo and electroreduction, chemical fixation of CO₂ with epoxides, and CO₂ chemically fixed onto MOFs or terminal alkynes. Three years later, Ding et al. [43] concluded the recent progress and provided an account of the design and synthesis of MOF-based materials used in CO₂ capture and conversion. In 2020, focused on the CO₂ adsorption, Ghanbari et al. [31] discussed the adsorption properties and mechanism of CO₂ on MOF and the design of MOF structures. In 2021, Zhao et al. [44] summarized some MOF-based materials, including pristine MOFs, MOF hybrids, and MOF-derived carbon-based single-atom catalysts (SACs) used in CO₂ electrocatalytic reduction. Most recently, in 2022 and 2024, Fan et al. [45] provided an insight into cobalt-based MOF photocatalysts for CO₂ reduction to renewable energy and Liu et al. [46] discussed carbon-neutral catalysis based on MOFs in terms of opportunities and challenges. This article reviews the recent progress of CO₂ capture and conversion by using MOF-based materials. Processes and fundamentals of MOF-based materials for CO₂ adsorptive separation, photocatalytic and electrocatalytic reduction, CO₂ hydrogenation reduction, and dual functionalities are elaborated. Moreover, different strategies for enhancing MOF-based materials’ capacity, including modification of organic ligands and metal centers, fabrication of MOF composites, and MOF derivatives are summarized (Scheme 1). This work aims to foster a deep understanding of the recent progress in MOF-based materials in CO₂ removal and provides insights for future research.

2. MOFs for CO₂ Capture and Conversion

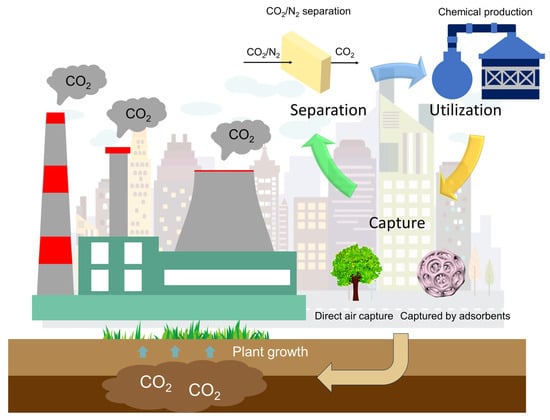

CO₂ capture can be approached through different methods, such as direct air capture (DAC) or point-source capture, each characterized by distinct CO₂ concentration levels. Therefore, the design of MOFs should be tailored to accommodate the specific concentrations of CO₂ encountered in these varying scenarios. This requires MOFs to be adaptable and efficient across a range of CO₂ concentrations, from the relatively low levels found in ambient air to the higher concentrations emitted by industrial processes. Under conditions of low concentration of CO₂, MOF design should be inclined to high specific surface area to maximize the interaction between MOF and CO₂, to reasonable aperture to selectively adsorb CO₂ molecules, and to strong CO₂-philic ligands to enhance the interaction with CO₂. In addition, the stability and regenerability of MOFs under actual DAC conditions are crucial, particularly for the effects of humidity and temperature [47]. Under conditions of high concentration of CO₂, ensuring that MOF exhibits fast adsorption and desorption rates, maintains its structural integrity and performance under the harsh conditions, and shows a good resistance to coking are critical design strategies. The following are some regulation strategies of MOFs.

2.1. Tunable Chemical Structure

2.1.1. Open Metal Sites (OMSs)

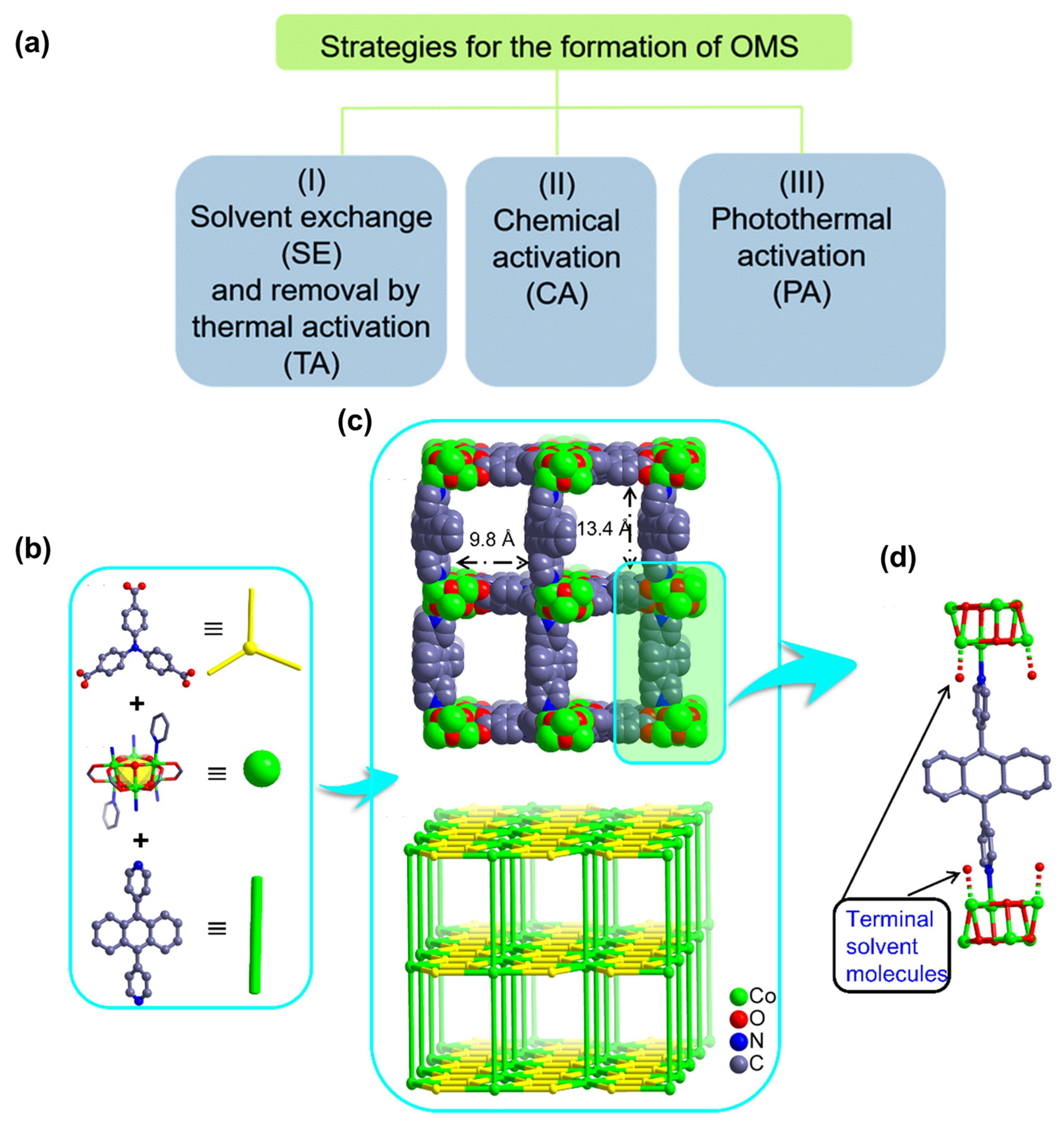

The development of OMSs with unsaturated metal coordination environments represents a prominent strategy for CO₂ capture. In typical MOF synthesis, metal centers are frequently coordinated by terminal ligands, which occupy the coordination sphere around the metal ions. However, these molecules can be removed through subsequent heating and activation, resulting in the formation of OMSs (Figure 2a). Importantly, the activation process must ensure the preservation of the original framework’s integrity. It is imperative that the inherent crystallinity and porosity of the material are maintained [48].

Accordingly, OMSs function as Lewis acid sites, capable of binding CO₂ molecules through electrostatic interaction. In a representative example [49], accessible open Co sites were engineered by removing terminal solvent molecules in a pillar-layered MOF based on [Co₆(µ₃-OH)₆] clusters linked by TCA³⁻ (4,4′,4″-tricarboxyltriphenylamine) and ABPY (4,4′-(9,10-anthracenediyl)bis-Pyridine) ligands (designated as DZU-6). The structure and topology of DZU-6 is shown in Figure 2b–d. Following activation, the structural integrity of DZU-6 is confirmed via thermogravimetric analysis (TGA) and N₂ adsorption measurements, indicating no loss of thermal stability and porosity. Subsequent CO₂ adsorption/desorption isotherms and isosteric heat of CO₂ adsorption (Q_st) analyses demonstrated an over 40% increase in CO₂ capacity and enhanced interaction with CO₂ molecules in DZU-6 compared to its non-OMS counterpart. The above results underscore the pivotal role of OMSs in MOFs, which confer a strong affinity for trapping CO₂ molecules.

2.1.2. Ligand Modification

It is important to note that the adsorption mechanism of OMSs is primarily governed by physisorption, a process that is inherently weak and less effective under low-pressure conditions. To surmount these limitations, the introduction of functional groups via ligand modification emerges as a viable strategy. Functionalized MOFs can be obtained through either pre-synthesis or post-synthesis modifications. Pre-synthesis modification entails the incorporation of organic ligands bearing functional groups at the onset of MOF synthesis. Conversely, post-synthesis modification involves the inclusion of functional groups into the as-synthesized MOFs.

Among the various functional groups, amine groups exhibit exceptional potential owing to their cost-effectiveness, high amine density, favorable absorption heat, and facile preparation. Additionally, they also demonstrate a robust CO₂ absorption capacity, particularly under ultra-dilute conditions [50]. The incorporation of amine groups is instrumental in creating Lewis basic sites (LBSs), enhancing the chemisorption ability of CO₂ through Lewis acid-base interactions. It has been shown that the presence of LBSs significantly reinforces the binding affinity between CO₂ and MOFs. To date, numerous amine precursors, including amides [51] (Figure 3a), polyamines [52] (Figure 3b), and diamines [53] (Figure 3c), have been utilized to modify MOFs, resulting in amine-functionalized MOFs with heightened CO₂ binding energy.

Beyond amine groups, a variety of other functional groups, including –CH₃, -F, and -O-Li, can also be employed for the modification of MOFs (Figure 3d–g). Certain functional groups contribute to enhancing the materials’ hydrophobicity, thereby improving the CO₂ separation performance under humid conditions [43,54,55].

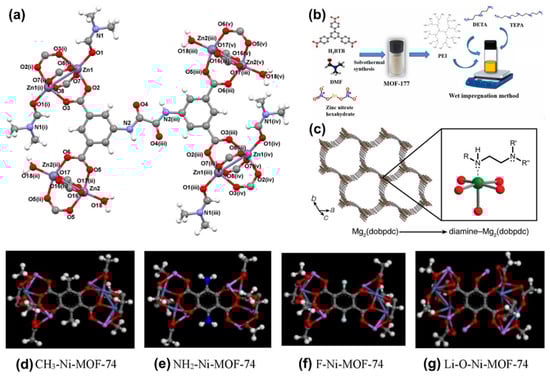

Figure 3. Illustration of (a) {[Zn₃(μ₈-OATA)_1.5(H₂O)₂(DMF)]·5/2H₂O·5DMF}_n (Zn-OATA) functionalized by oxalamide groups. H₄OATA: N,N′-bis(3,5-dicarboxyphenyl)oxalamide. Reproduced from [51]. Copyright 2021, American Chemical Society. (b) Synthetic procedure and functionalization of Zn₄O(BTB)₂ (MOF-177) by polyethyleneimine (PEI), tetraethylenepentamine (TEPA), and diethylenetriamine (DETA). Reproduced from [52]. Copyright 2021, Elsevier. (c) Illustration of Mg₂(dobpdc) (dobpdc^4– = 4,4′-dioxidobiphenyl-3,3′-dicarboxylate) functionalized by diamine groups. Reproduced from [53]. Copyright 2021, American Chemical Society. Illustration of Ni-MOF-74 functionalized by various functional groups. (d) Ni-MOF-74 functionalized by –CH₃ groups. (e) Ni-MOF-74 functionalized by –NH₂ groups. (f) Ni-MOF-74 functionalized by –F groups. (g) Ni-MOF-74 functionalized by –Li-O groups. MOF-74 consisted of transition metal cations (M) (M = Zn²⁺, Mg²⁺, Co²⁺, Cd²⁺, Mn²⁺, Fe²⁺, or Ni²⁺) and the dobdc⁴⁻ or dhtp⁴⁻ (2,5-dihydroxyterephthalate) ligand. (C: gray; O: red; H: white; N: blue; F: green; Li: pink) Reproduced from [55]. Copyright 2021, Elsevier.

2.1.3. Pore Size Control

Undoubtedly, the inborn high porosity and diverse pore sizes of MOFs play an important role in CO₂ capture. Given that the molecular kinetic diameter of CO₂ molecules is estimated to be 3.3 Å, macropores and mesopores are not appropriate for confining CO₂ within the channels. Thus, precise regulation of pore dimensions to micropores becomes significant. In essence, adjusting the pore size to align with the molecular dimensions of the target gas enhances the sieving effect [56], where large molecules are excluded due to pore size restrictions, while small molecules are accommodated.

One strategy for controlling the pore size is the rational selection of coordination networks of secondary building units (SBUs). SBUs are fundamental to the architectural diversity of MOF topologies [57]. The topology determines the resulting pore size in MOFs. Through combining rigid building units of varying geometry and multibranched organic linkers, MOFs with diverse pore structures can be synthesized [56]. For example, the CO₂/C₂H₂ separation performance can be modulated by altering anionic linkers to form a series of SIFSIX-dps-Zn variants, SIFSIX-dps-Cu (SIFSIX = SiF₆²⁻, dps = 4.4′-dipyridylsulfide), GeFSIX-dps-Cu (GeFSIX = GeF₆²⁻), and NbOFFIVE-dps-Cu (NbOFFIVE = NbOF₅²⁻), as a consequence of suitable pore size adjustment (Figure 4a) [58]. Similarly, the pore size in an In-based MOF is composed of 5-aminoisophthalic (aip) ligand and In(III) cluster; In(aip)₂) can be precisely controlled within the range of 3.4~3.6 Å (Figure 4c,d). Such exclusive pore size is responsible for efficient CO₂ sieving [59].

Pore space partition (PSP) is another strategy developed by Zhai’s group in 2017 [60]. This concept involves dividing the original cage or channel space into smaller segments by inserting a proper partition agent, such as additional organic linkers or guest species. Guided by the PSP concept, Ye et al. [61] immobilized a triangular ligand (Tripp = 2,4,6-tris(4-pyridyl)pyridine) into the cage of a porous MOF ([Co₃(μ₃-OH)(CPT)₃(H₂O)₃]Cl₂(DMA)_5.5(H₂O)₅, FJU-88) to achieve space partition (Figure 4b). Correspondingly, the pore apertures in the partitioned MOF were reduced from 12.0 × 9.4 to 5.4 × 5.1 Å². The narrowed pore sizes were favorable for separating CO₂ and C₂H₂.

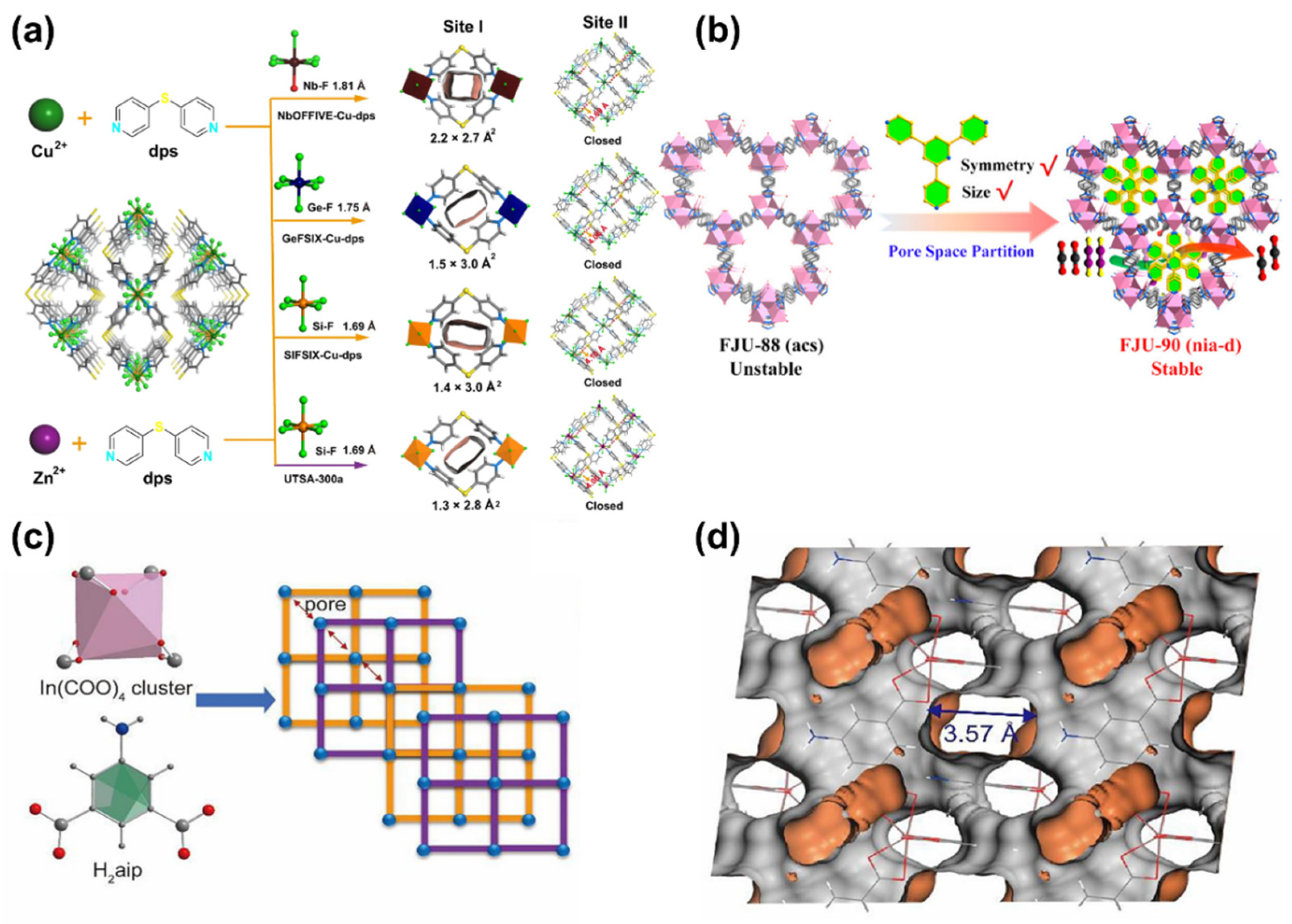

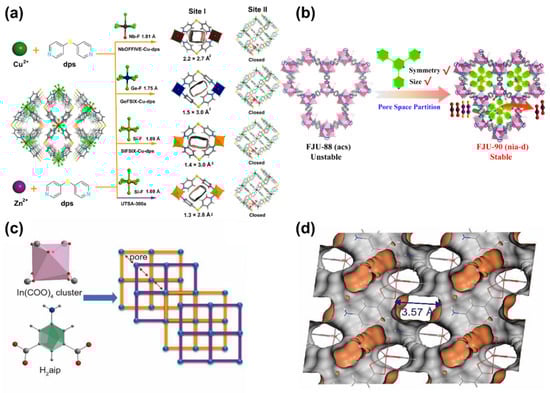

Figure 4. (a) Synthetic procedure of NbOFFIVE-Cu-dps, GeFSIX-Cu-dps, SIFSIX-Cu-dps, and UTSA-300a, and their corresponding pore aperture size in site I and II. Color code: Cu, green; F, light green; S, bright yellow; N, light blue; C, gray; Si, orange; Ge, navy blue; Nb, wine red; solvent molecules are omitted for clarity. Reproduced from [58]. Copyright 2022, Springer Nature. (b) Pore space partition strategy for FJU-88 through ligand insertion. Reproduced from [61]. Copyright 2019, American Chemical Society. (c) Synthetic procedure of In(aip)₂ and the corresponding 2D layers along c axis (corner: In cluster; edge: ligand). (d) The schematic illustration of pore structure of In(aip)₂ along b axis. Reproduced from [59]. Copyright 2022, Elsevier.

2.2. Precursors and Templates

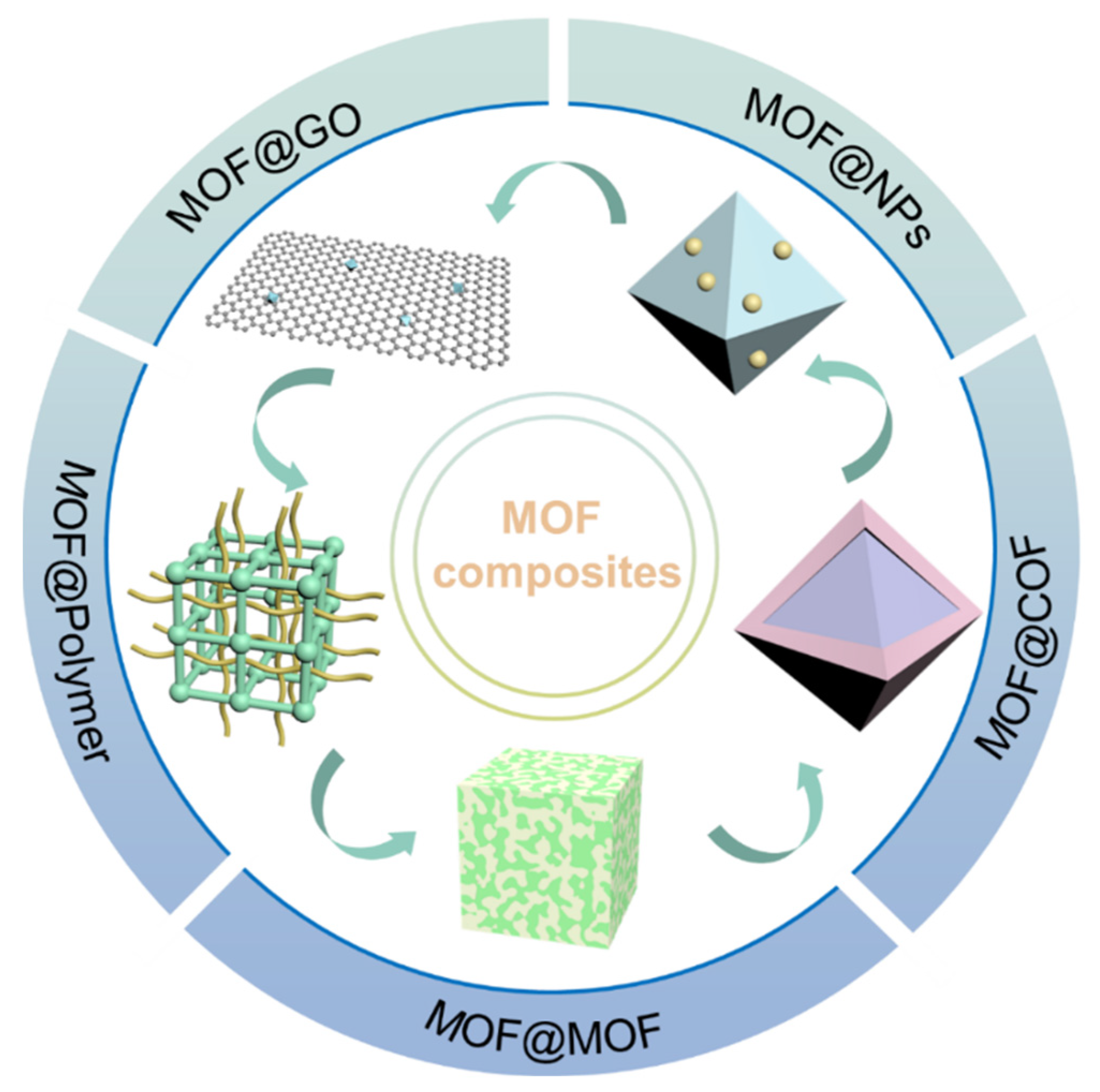

The integration of other materials with MOFs to fabricate MOF composites or MOF derivatives represents a useful design strategy. In such cases, the resulting compounds not only inherit the advantages of the original MOFs but also introduce new benefits, including new pore environments [43], larger surface areas, and additional active sites. Numerous materials, including nanoparticles (NPs), covalent organic frameworks (COFs), polymers, and GO, have been recognized for their synergistic interactions when hybridized with MOFs (Figure 5) [62]. Likewise, MOF-derived porous carbon [63], metal compounds [64], and SACs [65] also have a promising application prospect in CO₂ conversion. Needless to say, MOF composites and derivatives significantly enhance CO₂ adsorption and catalysis activity, surpassing their parent MOFs in both CO₂ capture and conversion. A variety of MOF composites will be discussed in detail in the following passage.

3. CO₂ Capture, Separation, and Conversion

3.1. CO₂ Capture and Separation

Carbon capture emerges as a crucial component of CCU technology, acting as both an initial part and a key process. Following capture, CO₂ also has to be separated from the gas mixture. During the capture phase, CO₂ is extracted from the atmosphere or industrial plant emissions and absorbed by adsorbents. Currently, carbon capture technologies can be divided into three main categories: pre-combustion capture, oxy-combustion capture, and post-combustion capture [66,67,68]. Research indicates that post-combustion capture holds the greatest potential in the application of adsorbents [69,70]. In this process, as the gas mixture passes through adsorbents, CO₂ is selectively captured while other gases are discharged with the flue gas, thus achieving CO₂ separation.

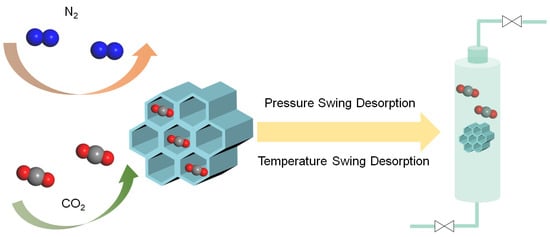

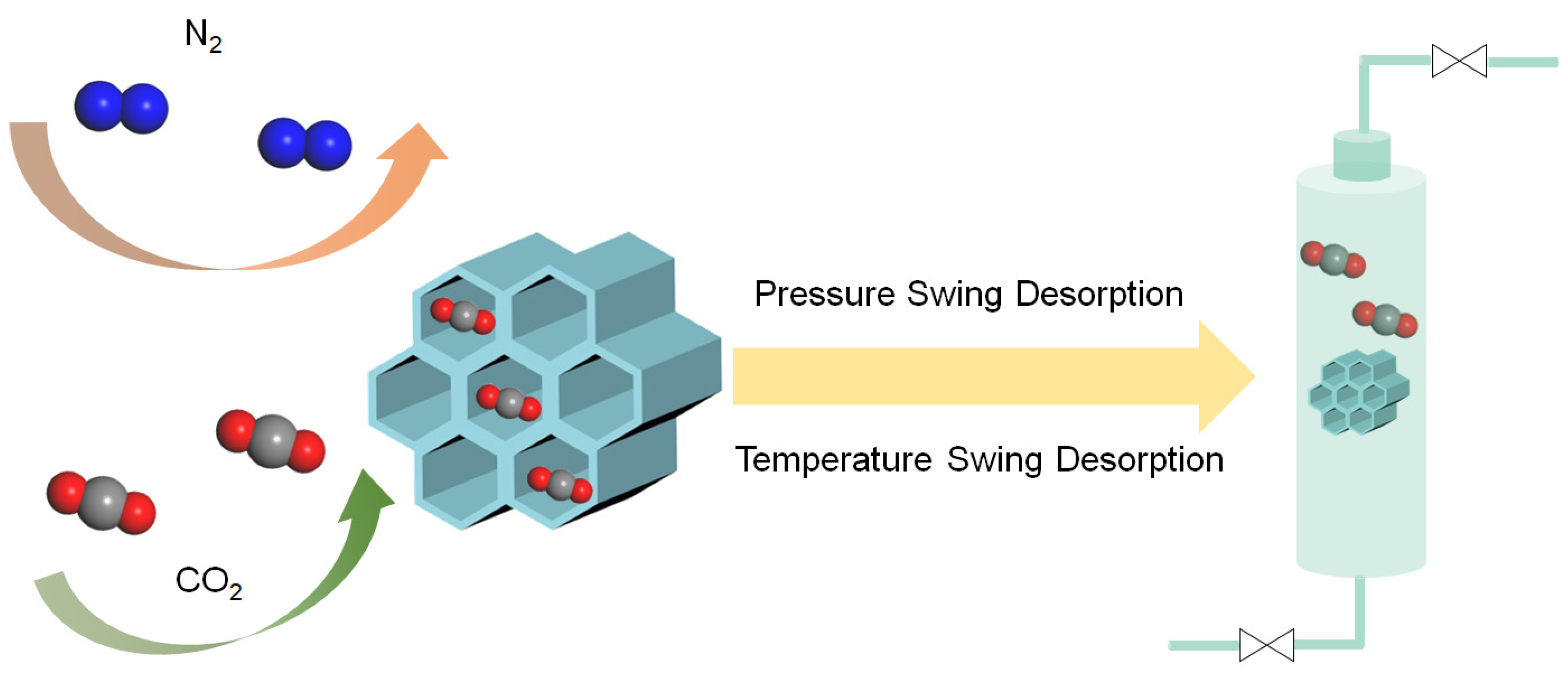

Subsequent to the capture phase, the captured CO₂ must be released from the adsorbents, a process known as desorption (Figure 6). Typically, CO₂ desorption is achieved through variations in temperature or pressure [31]. Increasing the temperature or lowering the pressure induces the gradual detachment of CO₂ from the adsorbents, leading to its enrichment. Desorption is an essential process for enabling further CO₂ utilization and facilitating adsorbent regeneration.

3.2. CO₂ Conversion

In terms of sustainable development, both light and electricity are recognized as clean and sustainable energy sources. Photocatalysis and electrocatalysis based on light and electricity are considered as straightforward pathways for CO₂ conversion. These processes necessitate the involvement of electrons and protons in the reduction of CO₂. Notably, the resultant reduction products can be categorized based on the number of electrons acquired during the reaction: (1) two-electron products HCOOH and CO; (2) four-electron product HCHO; (3) six-electron product CH₃OH; (4) eight-electron product CH₄; (5) twelve-electron product C₂H₄. The specific equations are shown in Table 1.

3.2.1. CO₂ Photocatalytic Reduction

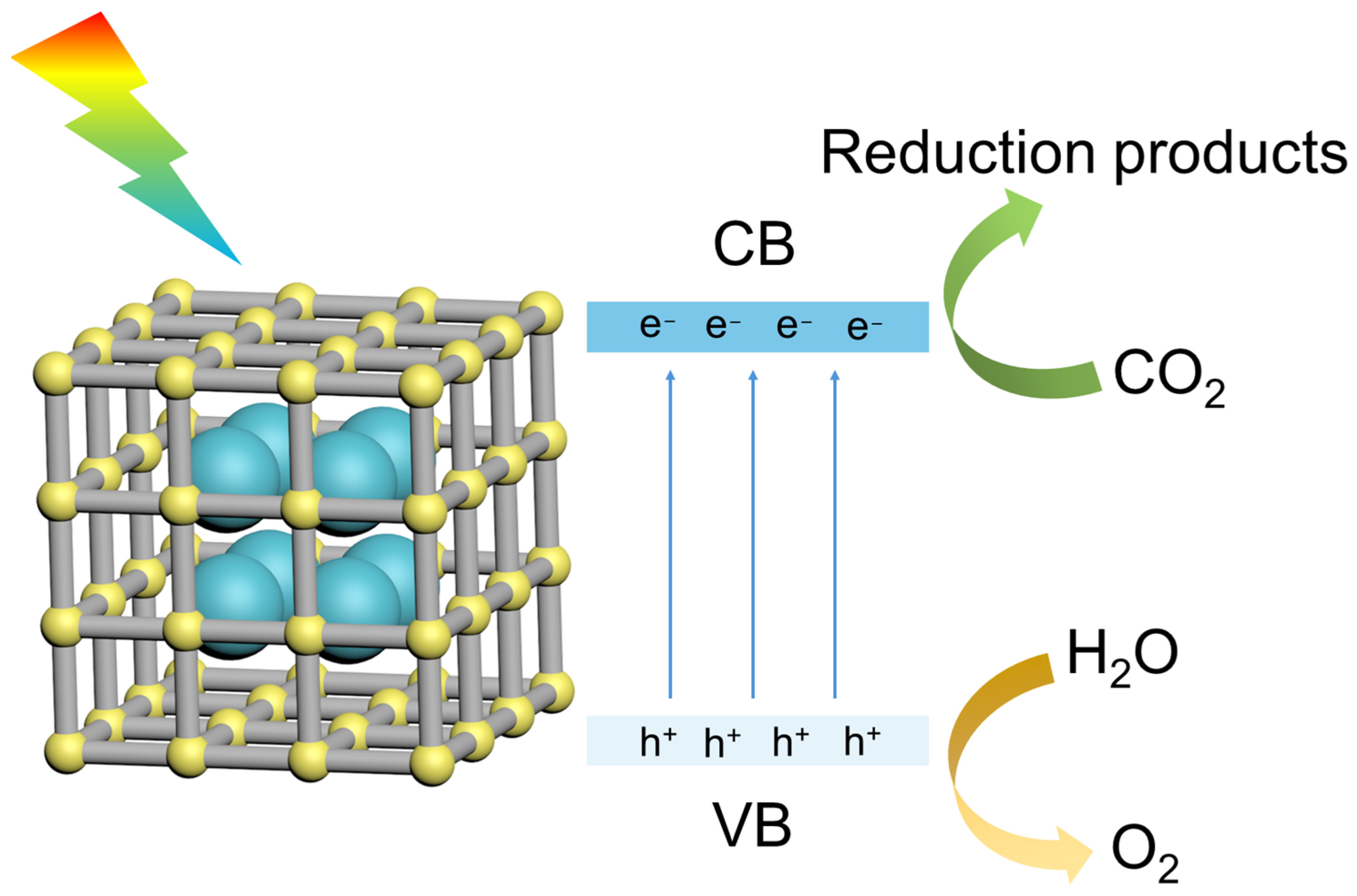

The photocatalytic reduction of CO₂ hinges upon the photoconductive properties of the materials. Upon absorption of photons, electrons initially situated in the valence band (VB) become excited and transfer to the conduction band (CB), leaving behind holes in their original positions. These photo-induced electrons possess the capacity to drive CO₂ reduction, whereas the corresponding photo-induced holes can oxidize water to produce oxygen [71] (Figure 7). To facilitate the requisite redox reactions, several conditions must be met: (1) the energy of the incident photon must exceed the band gap of the material; (2) the potential of the CB edge should be more negative than the CO₂ redox potential and the potential of the VB edge should be more positive than the water redox potential. In particular, since the thermodynamic potential of water oxidation to yield H₂ and O₂ is more favorable compared to CO₂ reduction, a large amount of energy should be input to overcome the thermodynamic and kinetic barriers of CO₂ reduction [72]. Crucially, the effective separation of photo-induced electron–hole pairs is the pivotal factor in determining the efficacy of CO₂ photocatalytic reactions; failure to achieve adequate separation may lead to rapid recombination of photo-induced carriers.

3.2.2. CO₂ Electrocatalytic Reduction

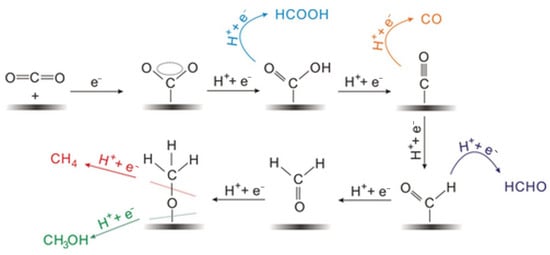

The fundamentals of electrocatalytic reduction encompass a series of intermediates, with the adsorption and desorption of key intermediates exerting significant influence on the reactions.

Upon adsorption of the CO₂ molecule onto the catalyst surface, large negative potentials should be applied to initially break the stable linear geometry for CO₂, a process known as activation. It is widely accepted that the initial step in CO₂ electrocatalytic reduction involves the acquisition of one electron, resulting in the formation of active phase *CO₂⁻. Subsequently, the activated CO₂ molecules proceed to accept electrons and protons, leading to the formation of various intermediates. C1 products represent the most easily generated products in CO₂ electrocatalytic reactions. The formation of HCOOH involves the CO₂⁻ accepting a proton (H⁺) to form either bicarbonate (HCO₃⁻) or formate (HCOO⁻), and then undergoes further reduction to form the key intermediate *OCHO, which can be further converted into HCOOH. Alternatively, CO₂ may directly transform into the *COOH intermediate, which subsequently accepts a proton to form HCOOH. On another pathway, the HCO₃⁻ can further accept an electron and a proton to form *COOH. This *COOH intermediate then undergoes a transformation by losing an oxygen atom and gaining two electrons to become *CO. Then, *CO desorbs from the catalyst surface, releasing it as gaseous CO. The H₃CO intermediate plays a crucial role in the formation of both CH₃OH and CH₄, as it can undergo a series of electron and proton transfer reactions to be transformed into either CH₃OH or CH₄ (Figure 8). Moreover, the C–C coupling reaction results in the formation of various C2 products [44,73].

3.2.3. CO₂ Hydrogenation

Hydrogen, as a green and renewable energy vector, has emerged as a compelling alternative to petroleum-based energy sources. The generation of H₂ through the electrolysis of water presents a dual solution to the ecological and energy crises. CO₂ hydrogenation in the presence of green H₂ is thus recognized as a sustainable and viable route for the synthesis of high-value fuels [74].

In this article, we primarily discuss CO₂ hydrogenation to produce C1 products. CO₂ hydrogenation to C1 products can be grouped into three main categories: RWGS reaction; CO₂ methanation; CO₂ methanolation [30]. The equations are as follows:

RWGS reaction: CO₂ + H₂ = CO + H₂O ΔH_298K = 41.2 kJ mol⁻¹

CO₂ methanation: CO₂ + 4H₂ = CH₄ + 2H₂O ΔH_298K = −165.1 kJ mol⁻¹

CO₂ methanolation: CO₂ + 3H₂ = CH₃OH + H₂O ΔH_298K = −49.5 kJ mol⁻¹

The RWGS reaction is thermodynamically favored at high temperatures due to its endothermic nature. The resultant syngas serves as a key intermediate for various chemical syntheses. Specifically, it can be utilized in the synthesis of ammonia, methanol, and through processes such as hydroformylation and the Fischer–Tropsch reaction, for the production of liquid hydrocarbons [75].

The Sabatier reaction, involving CO₂ hydrogenation to CH₄, is a critical pathway for converting CO₂ into a valuable energy carrier. The resultant CH₄ is compatible with existing natural gas infrastructure, allowing for direct pipeline injection or utilization as a fuel and chemical feedstock. Although the Sabatier reaction is exothermic and thermodynamically favorable, it faces kinetic challenges due to the requirement for an eight-electron reduction to produce CH₄. However, with the development of appropriate catalysts, this reaction can be effectively conducted at atmospheric pressure, offering a milder alternative to high-pressure processes [76]. In addition, it is also feasible to operate CO₂ methanation at a low temperature (below 300 °C) [77,78], which helps to mitigate the risk of catalyst deactivation through sintering and agglomeration, and also prevents the occurrence of the RWGS reaction. Consequently, CO₂ methanation is considered advantageous for CO₂ hydrogenation due to its favorable thermodynamics and the potential for operation under mild conditions.

Methanol finds extensive usage in various applications, including organic synthesis, pesticides, medicine, and as an energy carrier, positioning it as a promising substitute for conventional fossil fuels [79]. The synthesis of methanol can be achieved either through direct CO₂ hydrogenation or via CO hydrogenation. However, the industrial synthesis of methanol predominantly employs syngas due to the more favorable thermodynamic and kinetic properties of CO in comparison to CO₂ [80]. Overcoming the thermodynamic and kinetic barrier remains a challenge in the direct synthesis of methanol from CO₂ hydrogenation. Thermodynamically, the synthesis of methanol from CO₂ is optimally conducted at low temperatures and high pressures to minimize the generation of CO as a byproduct [79,81]. Importantly, recent research has validated the feasibility of methanol production from CO₂ at room temperature, which represents a notable advancement in the utilization of CO₂ [82].

4. MOF-Based Materials for CO₂ Capture and Separation

Capture (adsorption) stands out as one of the most outstanding properties of MOFs. Structurally, MOFs boast a high specific surface area and a porous framework, capable of accommodating adsorbate molecules. Chemically, the pore size and surface functional groups can be precisely controlled through the meticulous manipulation of metal centers or organic ligands, ensuring compatibility with target adsorbate molecules. In addition, MOFs serve as exceptional substrates for the incorporation of other materials, leading to synergistic effects between the two components. In this section, we will delve into pristine MOFs, structural modulation of MOFs, and MOF composites. The performances of various MOF-based materials, including pristine MOFs and MOF composites are illustrated in Table 2 and Table 3, respectively.

4.1. Pristine MOFs

An ideal MOF for practical industrial production must have the following properties: easy and cost-effective synthesis procedure, high CO₂ adsorption and separation performance, good stability, sustainability, mild regeneration energy consumption, and the ability to produce on a large scale. In 2020, a robust and novel MOF, dubbed MUF-17 ([Co₅(μ₃-OH)₂(aip)₄(H₂O)₂]) (MUF = Massey University Framework) was prepared by Qazvini’s groups [83]. They used cobalt acetate and 5-aminoisophthalic acid as the starting materials due to their cost-effectiveness. A reflux method instead of the conventional energy-intensive solvothermal synthesis was used as a greener synthesis approach. The as-prepared material featured a pentanuclear Co(II) cluster connected by twelve dianionic aip linkers (Figure 9a). MUF-17 showcases narrow zigzag one-dimensional pores, with cavities that have apertures around 4.7 × 4.8 Å, interconnected by narrow channels of approximately 3.1 × 3.5 Å (Figure 9c). Powder X-ray diffraction (PXRD) and gas isothermal analysis affirm its exceptional crystallinity, high purity, and thermal stability up to 280 °C, even in the presence of water vapor and oxygen. Notably, MUF-17 exhibits remarkable CO₂ capture capability at low concentrations (55.0 cm³ g⁻¹) with negligible N₂ uptake (6.1 cm³ g⁻¹) at 1 bar and 298 K (Figure 9d). This is attributed to its desirable electrostatic and hydrogen bonding interactions with CO₂, as evidenced by density functional theory (DFT) calculations (Figure 9b). Ideal adsorbed solution theory (IAST) highlights its impressive selectivity toward CO₂ over N₂ (Figure 9f). Furthermore, the calculated Q_st for CO₂ is 28.3 kJ mol⁻¹ (Figure 9e), indicating favorable gas binding strength and ease of regeneration. In spite of impressive adsorption capacity and selectivity, MUF-17 also demonstrates rapid adsorption kinetics for both CO₂ and N₂ at 293 K, reaching equilibrium capacity in less than 60 s (Figure 9g). This fast kinetics is advantageous for the adsorptive separation process under dynamic conditions. Subsequent breakthrough experiments with varying CO₂/N₂ gas mixtures confirmed the high efficiency of MUF-17 in dynamic CO₂/N₂ separation. Impressively, MUF-17 exhibits outstanding recyclability for at least 30 cycles and maintains efficient separation performance even in the presence of water.

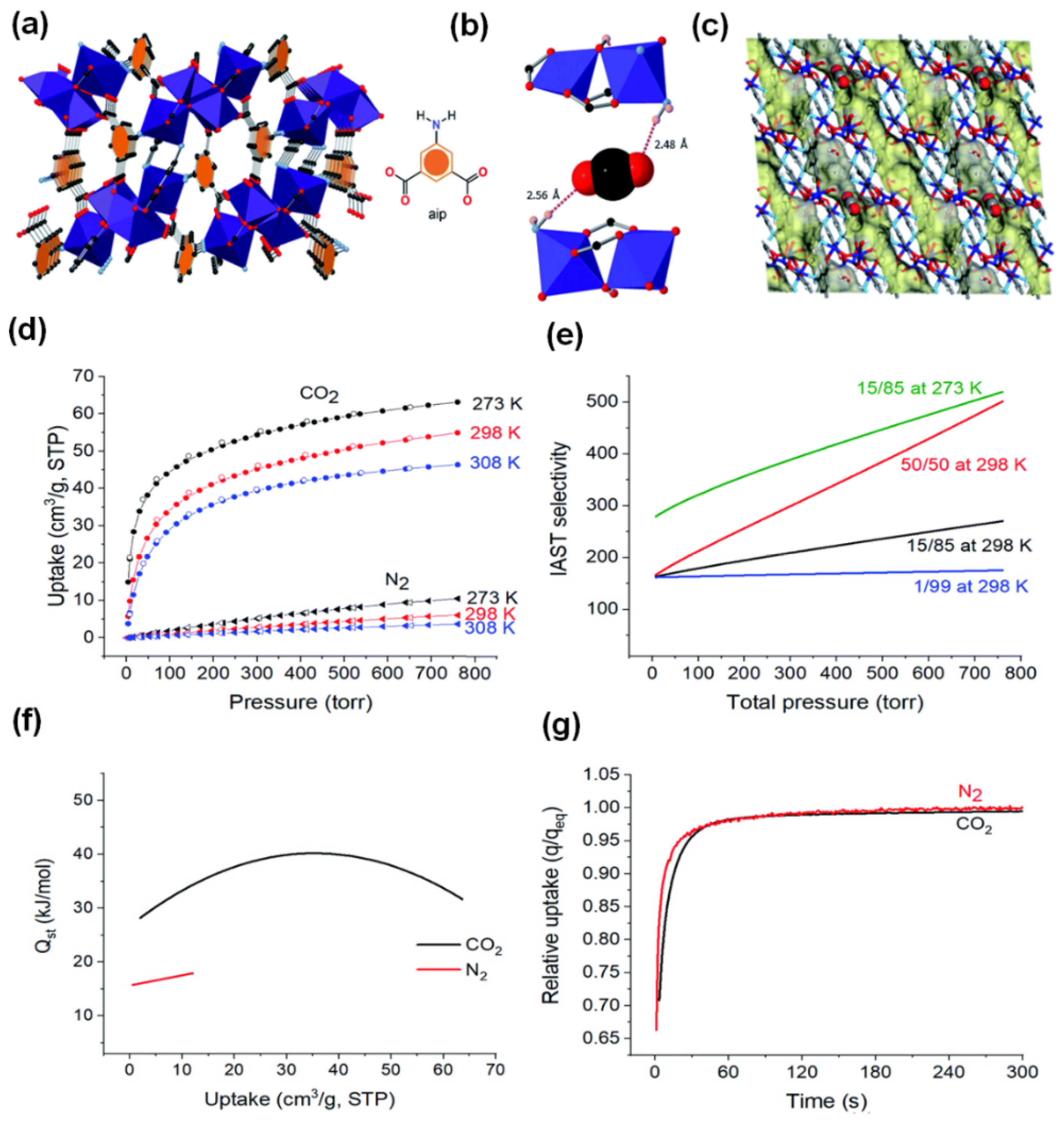

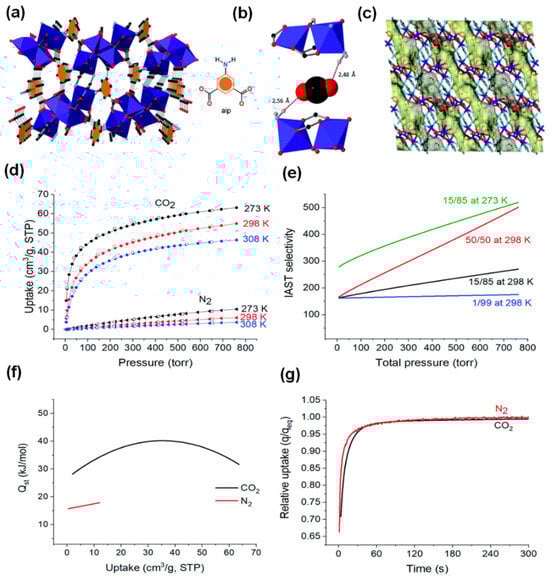

Figure 9. (a) The structure of MUF-17 with pentanuclear Co(II) clusters connected by twelve dianionic aip linkers (cobalt: dark blue; oxygen: red; carbon: dark grey; nitrogen: light blue; hydrogen atoms are omitted for clarity). (b) CO₂ binding through hydrogen bonding, (calculated by DFT). (c) The yellow and grey Connolly surface (1.0 diameter probe) shows the one-dimensional pore network of MUF-17 and the position of the CO₂ molecules at the narrowest channel neck. (d) CO₂ (circle) and N₂ (triangle), uptake adsorption (solid symbols), desorption (open symbols), isotherms at different temperatures. (e) Q_st plots for CO₂ and N₂. (f) The IAST selectivities of CO₂/N₂ with different proportions at 298 K and 273 K. (g) The kinetic profile of CO₂ and N₂ absorption of MUF-17 at 293 K after exposure to a gas dose equal to the total adsorption of the gas measured at 1 bar in the evacuated sample; q refers to the amount of absorption at time t, q_eq refers to the equilibrium rate of absorption at 293 K, 1 bar. Reproduced from [83]. Copyright 2020, Royal Society of Chemistry.

OMSs, functioning as Lewis acid sites, significantly enhance CO₂ affinity through electrostatic interactions. An exemplary instance is MOF-11 (Cu₂(ATC)·6H₂O, ATC: 1,3,5,7-Adamantane Tetracarboxylate) [84], specifically engineered for CO₂ adsorption and separation [85]. MOF-11 comprises two distinct chemical structures: one featuring dense Cu OMSs (channel Ι) and the other characterized by narrow pore window size (channel II) (Figure 10a). MOF-11 exhibits a stronger CO₂ uptake at low pressure, mainly attributed to the dense Cu OMSs. In channel Ι, multiple O-Cu electrostatic interactions between CO₂ molecules and Cu OMSs with high binding energy are observed, indicating preferential CO₂ binding. Weak N^…H-C Van der Waals interactions between N₂ molecules and CH₂ moieties in channel II suggest that N₂ molecules tend to be absorbed into the window of pores. This unique pore architecture endows the framework with a robust CO₂ affinity while simultaneously attenuating the N₂ adsorption, thus achieving high CO₂/N₂ separation performance. This research underscores the promise of monometallic MOFs with OMSs in CO₂ adsorption and separation.

Similarly, heterometallic MOFs (HMOFs) with OMSs exhibit excellent gas adsorption properties. An HMOF was prepared via Zn(II) ions and MOF ({[Pb₂(L)₂(H₂O)]H₂O}_n, with 2-(imidazol-1-yl)terephthalic acid (H₂L)) as precursors, yielding the chemical formula {[PbZn(L)₂]·DMA·H₂O}_n [86]. Upon removal of guest molecules, unsaturated Pb(II) and Zn(II) active sites, along with uncoordinated carboxylate oxygen atoms, are generated at the pore surface (Figure 10b). The activated HMOF is confirmed to possess a higher CO₂ adsorption capacity of 39.3 cm³ g⁻¹ (7.8 wt%) at 273 K and 25.5 cm³ g⁻¹ (5.0 wt%) at 298 K compared to monometallic Zn(II)- and Pb(II)-based MOFs. Moreover, attributed to the synergistic effect between OMSs and uncoordinated carboxylate oxygen atoms, the activated HMOF also affords a remarkable CO₂/CH₄ selectivity, ranging from 4.5 to 16.3 at 298 K and 8.6 to 41.3 at 273 K for the equimolar gas mixtures. In short, constructing MOFs with OMSs is a useful and effective strategy to enhance affinity for CO₂, since this is readily achievable through simple activation.

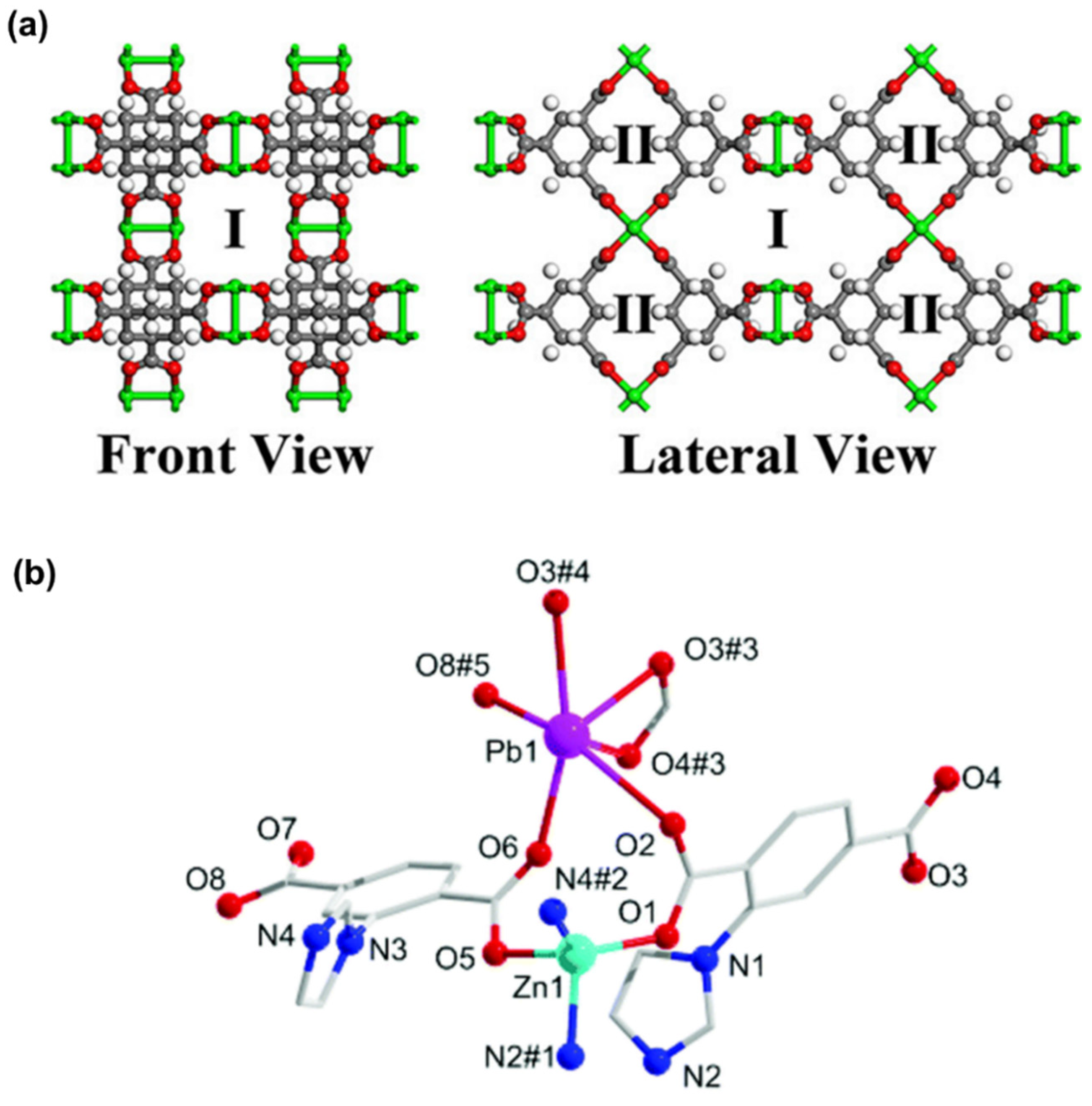

Figure 10. (a) Structure illustration of MOF-11 with channel Ι and channel II. (Cu: green; O: red; C: gray; H: white). Reproduced from [85]. Copyright 2021, American Chemical Society. (b) Coordination environment of HMOF with unsaturated Pb(II) and Zn(II) sites. Symmetry codes for HMOF: #1, 1 − x, 1 − y, 1 − z; #2, −x, 2 − y, 1 − z; #3, 1 − x, 1 − y, −z; #4, −1 + x, −y, −z; #5, −x, 1 − y, 1 − z. Reproduced from [86]. Copyright 2020, Royal Society of Chemistry.

Amino-functionalized ligands exhibit exceptional CO₂ adsorption capacity due to the Lewis basic-acid interaction. However, some amino groups may not withstand harsh conditions and compete with water molecules, leading to amino loss and diminished adsorption efficiency. Addressing this challenge, a robust MOF-808 [Zr₆O₄(OH)₄-(BTC)₂(HCOO)₆] was synthesized and functionalized with a series of amino acids to create a humidity-enhanced CO₂ uptake and low-energy regeneration material, termed MOF-808-AAs. In MOF-808-AAs, amino acid ligands are bound through carboxylation to the Zr(IV) center, forming a strong Zr(IV)-carboxylate interaction [87]. The amino groups (-NH₂ or -NH) on alkyl chains are oriented toward pores as the main place to interact and capture CO₂ from outside. Three mechanistic processes of CO₂ adsorption in MOF-808-AAs are identified: (1) Formation of carbamates or carbamic acids under dry conditions; (2) Formation of carbamates or carbamic acids with higher affinity for CO₂ in low pressures under humid conditions; (3) Formation of bicarbonates at high CO₂ concentration under humid conditions (Figure 11a). Under dry conditions, the amount of CO₂ uptake is relatively low, but upon the addition of water, CO₂ uptake increases over twofold at 4 kPa, indicating enhanced CO₂ affinity in the presence of water. The stoichiometry of bicarbonate formation under rich CO₂ and wet conditions partly explains the improved CO₂ capture performance of MOF-808-AAs. Notably, in the circumstance of (1), heat is required to regenerate the adsorbents. In contrast, an energy-efficient vacuum-swing process can be employed in the case of (3) without the need for heat input. The special pore environment, water-enhanced ability, and easy vacuum regenerability position MOF-808-AA as a promising candidate for CO₂ capture under humid conditions. Similarly, a robust metal–triazolate framework appended by amino groups achieves CO₂/H₂O kinetic adsorption selectivity up to 70 and a 20% enhancement of CO₂ capture in CO₂/N₂ breakthrough curves under humid conditions, along with strong endurance against various environmental conditions [88].

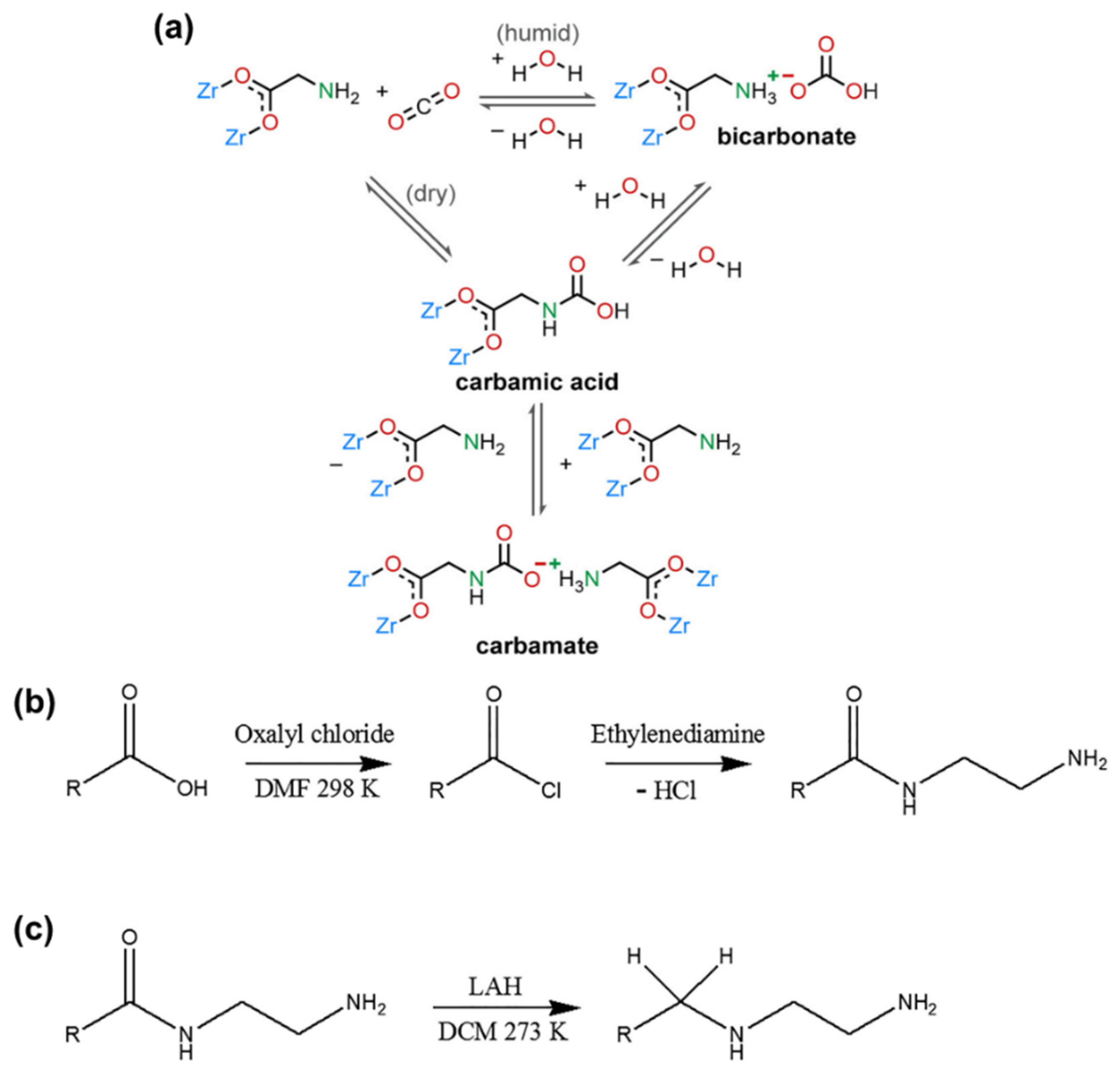

Figure 11. (a) Proposed mechanism of CO₂ adsorption of MOF-808-AAs under both dry and humid conditions. Reproduced from [87]. Copyright 2022, American Chemical Society. Reaction schemes of (b) conversion of M808-EDTA into M808-EDTA-ED. (c) Conversion of M808-EDTA-ED into M808-EDTA-ED-R. Reproduced from [89]. Copyright 2020, Elsevier.

Amides are the products of a reaction between a carboxylic acid and ammonia or an amine. However, amide groups are found to be less effective than amino groups in CO₂ adsorption. A representative example is MOF-808, which was first modified with ethylenediaminetetraacetic acid (EDTA), followed by reaction with ethylenediamine (ED) (Figure 11b), and finally reduced with lithium aluminum hydride (LAH) (Figure 11c) to form a series of materials: M808-EDTA, M808-EDTA-ED, and M808-EDTA-ED-R, respectively [89]. Among these, M808-EDTA-ED exhibits poor porosity, CO₂ adsorption quantity, isosteric heat, and CO₂ selectivity due to the high concentration of amide groups, resulting in low porosity and limited basic sites. However, further treatment with LAH converts ineffective amide groups into amino groups. The occurrence of amino groups extensively contributes to the increase in basic sites. As observed, M808-EDTA-ED-R demonstrates the most effective CO₂ absorption, with a tenfold enhancement in adsorption selectivity after LAH treatment. These results highlight how amide functional groups may hinder CO₂ adsorption by causing pore blockage or forming cyclic rings, but simple modification methods can convert them into effective groups, thereby promoting CO₂ adsorption.

Amine, a class of organic compounds, consists of molecules that contain one or more nitrogen atoms bonded to hydrogen atoms. Amine-based functionalization has been demonstrated to effectively enhance CO₂ capture. In a representative example [90], an Al-based MOF named ED@MOF-520 (MOF-520: Al₈(μ₃OH)₈(HCOO)₄(BTB)₄), integrating ethylenediamine (ED) into its structure, is designed to use for CO₂ capture. The material demonstrates exceptional performance in CO₂ capture, with a separation factor of 50 for CO₂/N₂ at 273 K, marking a significant increase over the unmodified MOF-520. The presence of amine groups in ED@MOF-520 is shown to enhance interactions with CO₂ due to the presence of uncoordinated, electron-rich nitrogen atoms within the amine groups. Furthermore, the incorporation of amine groups intensifies the molecular sieving effect by reducing the pore diameter. In addition, the Q_st measurements reveal a strong initial interaction between CO₂ and the amine groups, which is indicative of the material’s affinity for CO₂. Bose et al. [91] investigated the stability and regeneration conditions of an MOF, specifically N,N-dimethylethylenediamine (mmen) appended Mg₂(dobpdc). The results show that the mmen-appended Mg₂(dobpdc) MOF is stable at relative humidities up to 50% when the adsorption temperature ranges from 25–40 °C, with optimal regeneration achievable at 120 °C under dynamic vacuum and at 150 °C under N₂. The article underscores the potential of this specific MOF material for CO₂ capture and regeneration in practical applications. In a separate study [92], the incorporation of tetramine groups endows the MOF with a distinctive double-stepped isotherm characteristic, showing great potential for CO₂ capture from dilute sources. The study delves into the adsorption and desorption behavior of the tetramine-modified MOF under various operating conditions through numerical simulations, considering factors such as isotherm shape, heat transfer coefficient, and feed temperature, which affect the dynamics within a fixed bed. The findings highlight that the tetramine-appended MOF can achieve high purity and recovery rates for CO₂ capture under isothermal conditions. Despite the advantageous material properties of the tetramine-modified MOF, the steam-assisted temperature swing adsorption (SA-TSA) process results in high steam consumption and low productivity due to long cycle times. This indicates that further optimization of the process design is needed to enhance the overall performance and economic viability when applying this material to practical CO₂ capture applications. In addition to the above challenges, amine groups can be susceptible to chemical degradation under certain conditions, such as in the presence of oxygen or moisture, which could lead to a reduction in the number of active amine sites over time. Therefore, it is imperative to address this issue in future applications.

In addition to the aforementioned functional groups, the incorporation of -F, -CH₃, and -Li-O into parent MOFs represents another commonly employed strategy to enhance the materials’ hydrophobicity and interaction with CO₂ [55,93,94].

Fe- and Al-based MOFs are renowned for their controllable pore structure, allowing them to be used in CO₂ capture and separation. Feng et al. [95] focused on the impact of the pore environment regulated by the SBU on the gas separation performance of MOF membranes for the first time. The Fe₃(m₃-O)(CH₃COO)₆ SBU of the parent framework (soc-MOF, a stable microporous Fe-MOF) was in situ modified with imidazole (IM) molecules to construct the soc-MOF-IM polycrystalline membrane. The exact location of the incorporated IM and the reduced pore size were observed based on the crystal structure determination. The soc-MOF-IM polycrystalline membrane shows a significantly enhanced H₂/CO₂ selectivity, mainly attributed to the triggered molecular sieving effect. Al-based MOFs also show great promise. A microporous Al-based MOF, MIL-120(Al)-AP (AP and P: Institute Lavoisier and Ambient Pressure synthesis, respectively) exhibits high CO₂ uptake of 1.9 mmol g⁻¹ at 0.1 bar and 298 K [96]. In addition, the material’s moderate Q_st value of −40 kJ mol⁻¹ suggests a low energy penalty for full regeneration. An environmentally friendly ambient pressure synthesis route has been developed for the kilogram-scale production of MIL-120(Al)-AP with high yield, using inexpensive raw materials. The MOF is further shaped into mechanically stable beads with inorganic binders to simulate practical industrial production. This article highlights the potential of MIL-120(Al)-AP in post-combustion CO₂ capture and provides a comprehensive evaluation of its synthesis, performance, and cost.

4.2. MOF Composites

4.2.1. MOF/Ionic Liquids (ILs) Composite

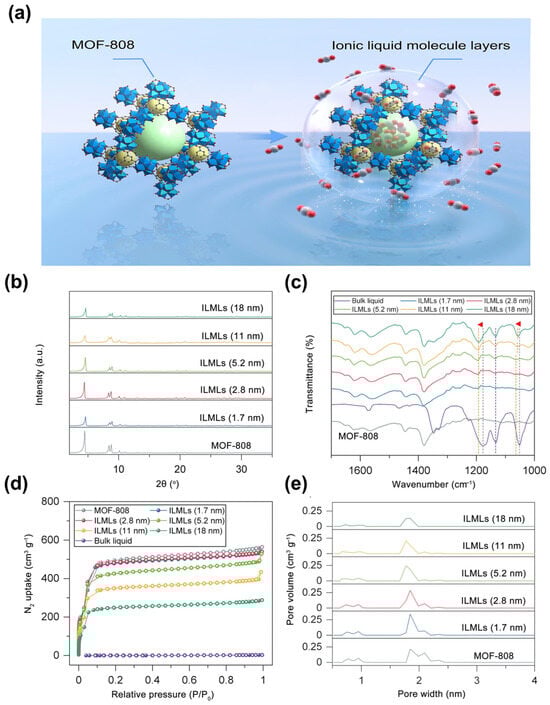

ILs are liquids entirely composed of ions. Due to their high thermal stability, low volatility, CO₂ solubility, and capture capacity, extensive research has been devoted to exploiting the application of ILs. Meng et al. [97] used a solution-mediated assembly method to deposit layers of ionic liquid molecules (ILMLs) onto MOF-808 and evaluated its gas adsorption capability (Figure 12a). MOF-808 crystal powders are treated with methanol and a specific amount of ionic liquid solution to form MOF-808 with ILMLs (MOF/ILMLs). A theoretical thickness of ILMLs ranging from 1.7 nm to 18 nm is observed as a consequence of various IL content additions. The structural integrity after ILML assembly is confirmed by PXRD patterns (Figure 12b). Fourier Transform Infrared Spectrometer (FTIR) analysis (Figure 12c) reveals blue shifts in the symmetric (1051 cm⁻¹) and asymmetric stretching vibrations of S=O (1178 cm⁻¹), indicating electrostatic interactions between ILML anions and metal nodes, thereby confirming successful assembly of ILMLs on the outer surface of MOF-808. As revealed by N₂ adsorption–desorption isotherms, MOF/ILMLs exhibit inferior N₂ uptake compared to MOF-808 (Figure 12d). Although ILMLs are capable of slightly penetrating MOFs’ pore walls and forming an interweaving layer at the IL and MOF-808 interface, the pore structures of MOF/ILMLs are minimally affected (Figure 12e). Due to the shield effect of ILMLs as an adhesive layer and MOF as a gas reservoir, the composites exhibit strong CO₂ affinity with a nearly zero sorption amount for N₂. Moreover, Zeeshan et al. [98] designed an IL/UiO-66 (UiO-66: Zr₆O₆(OH)₄(BDC)) composite for infinite CO₂ selectivity. At lower pressures (100 mbar) and a constant temperature (15 °C), an approximately 455-fold improvement of ideal CO₂/N₂ selectivity is observed. Upon the pressure further decreasing to a low-pressure region (1–50 mbar), the ideal selectivity of CO₂/N₂ is almost infinite (>100,000).

In summary, ILs have a strong shielding effect on gases such as N₂ and CH₄, allowing only CO₂ to pass through. However, some ILs manifest no CO₂ adsorption improvement or even reduced CO₂ uptake because of the existing blockage in the MOF channel. The amount, selection, and incorporation method of ILs should be carefully considered.

4.2.2. MOF/GO Composite

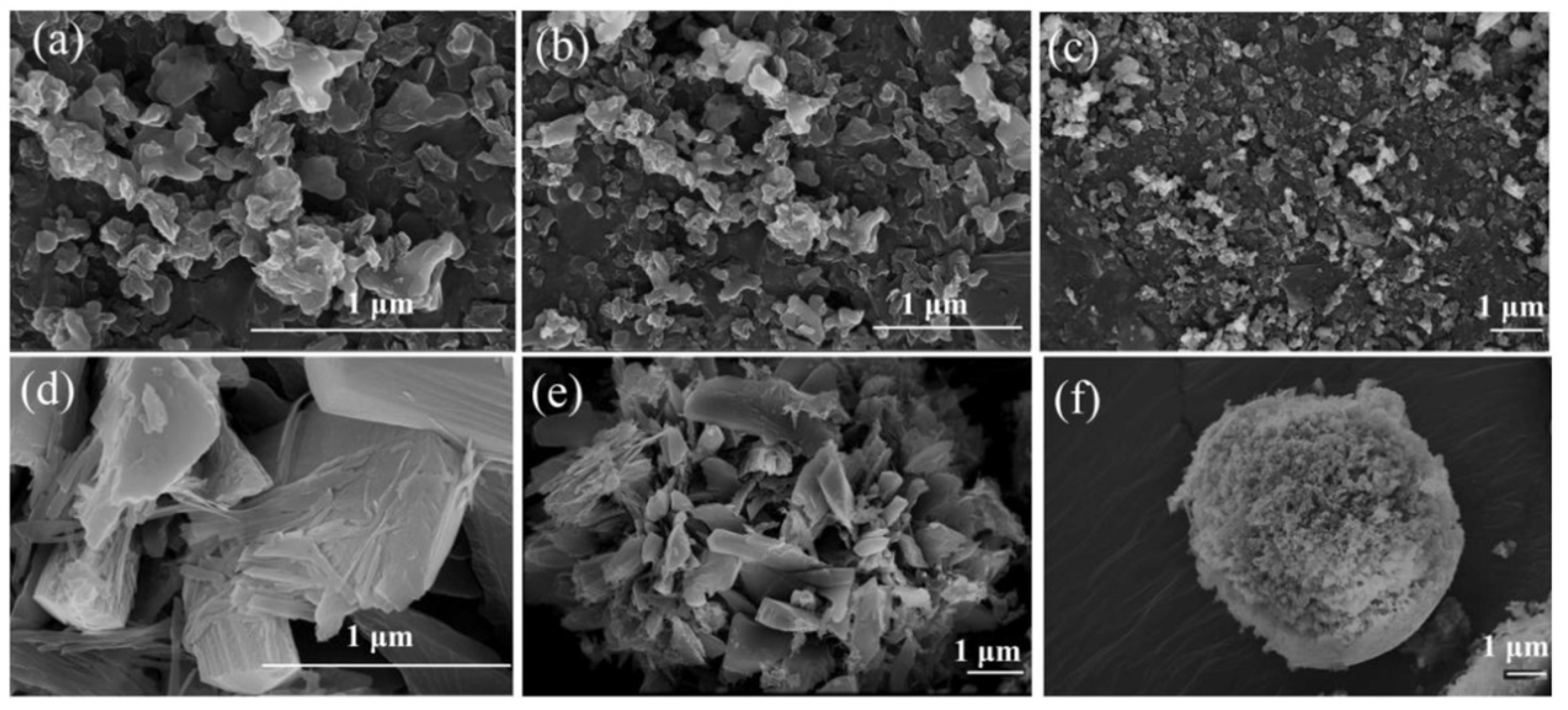

GO is a graphitic material that can be integrated with MOF to enhance CO₂ adsorption performance. Wang et al. [99] provided a comprehensive investigation into the synthesis and application of MOF@GO composites, focusing on Mg/DOBDC MOF (consisting of Mg(II) ions linked by 2,5-dioxido-1,4-benzenedicarboxylate (DOBDC) ligands) coupled with GO. The study examined the influence of various factors, including the preparation method of the MOF, the solvent used for synthesizing GO, and the volume ratio of GO in the composite. Specifically, two distinct methods were employed for synthesizing Mg/DOBDC MOF: solvothermal and mechanical stirring. Moreover, GO was synthesized and delaminated in either deionized water (GO_w) or N, N-Dimethylformamide (DMF) (GO_D) solvent. Different volumes of GO (20 mL, 30 mL, 40 mL, and 50 mL, denoted as GO₂₀, GO₃₀, GO₄₀, and GO₅₀) were added into the mixture and reacted with Mg/DOBDC to obtain the final Mg/DOBDC MOF@GO composite. As a result, scanning electron microscopy (SEM) demonstrates significant differences in morphology between Mg/DOBDC samples prepared by different methods, as well as between MOF@GO composites synthesized using different GO solvents and volumes (Figure 13 and Figure 14). Further CO₂ adsorption performance tests confirm that the adsorption capacity of Mg/DOBDC MOFs prepared by different methods is almost non-significant. The CO₂ adsorption and penetration are strongly related to the GO volumes and followed the order of Mg/DOBDC MOF@GO_W-40 < Mg/DOBDC MOF@GO_W-50 < Mg/DOBDC MOF@GO_W-20 < Mg/DOBDC MOF@GO_W-30. The optimal composite, Mg/DOBDC MOF@GO_W-30, exhibits nearly twice the CO₂ uptake of the parent MOF, reaching 8.60 mmol g⁻¹ at 0.1 MPa and 25 °C. In contrast, Mg/DOBDC MOF@GO_D with the optimal GO volume shows lower CO₂ uptake under the same conditions, indicating better improvement when using water as the solvent for GO synthesis. The mechanism underlying the enhanced performance of the MOF@GO composites involves the development of a pore structure conducive to CO₂ adsorption after GO incorporation and the exposure of additional active sites through coordination between functional groups of GO and metal sites within the MOF.

4.2.3. Other MOF Composites

Although many MOFs exhibit exceptional CO₂ adsorption capacities, they often face stability issues. Conversely, MOFs that demonstrate good thermal or chemical robustness frequently lack substantial CO₂ adsorption capabilities. To address these challenges, many efforts have been dedicated to combining two MOFs together to improve their properties. A notable example is the core–shell structure of MIL-101(Cr)@UiO-66(Zr) (denoted as MU), assembled from Cr₃F(H₂O)₂O(BDC)₃·nH₂O (MIL-101(Cr)) and UiO-66(Zr) crystals (Figure 15a) [100]. This combination leads to improved thermal stability and increased OMSs. Most importantly, an optimal pore diameter is achieved, resulting in minimal uptake of CH₄ and N₂ but enhanced uptake for CO₂, which contributes to the superior selectivity of CO₂/CH₄ and CO₂/N₂.

Additionally, integrating MOFs with biochar significantly enhances CO₂ adsorption capacity. For instance, grafting Zn(MeIm)₂ (ZIF-8, MeIm: methylimidazole) onto a biochar to form nitrogen-enriched modified biochar has shown promise [101]. Through in situ growth and annealing at temperatures ranging from 300 °C to 500 °C, the resultant MOF/biochar composite shows an obvious improvement in surface area and pore volume. Optimal CO₂ adsorption capacity, regenerability, and stability are achieved with a biochar quantity of 0.5 g and annealing at 400 °C, attributed to increased microporosity and pyrrolic nitrogen content.

Other composites such as MOF@COF and MOF@porous carbon have also demonstrated enhanced properties. For example, a core–shell like NH₂-UiO-66@Br-COFs performs better compared to single MOF and COF, thanks to the newly produced ultramicropores at the interface [102]. The synthetic procedure is presented in Figure 15b. Liu et al. [103] developed three novel composites by merging an MOF framework and porous carbon. All the as-prepared materials inherit the advantageous structure properties from both parent materials and produce noticeably higher specific surface area and additional micropores.

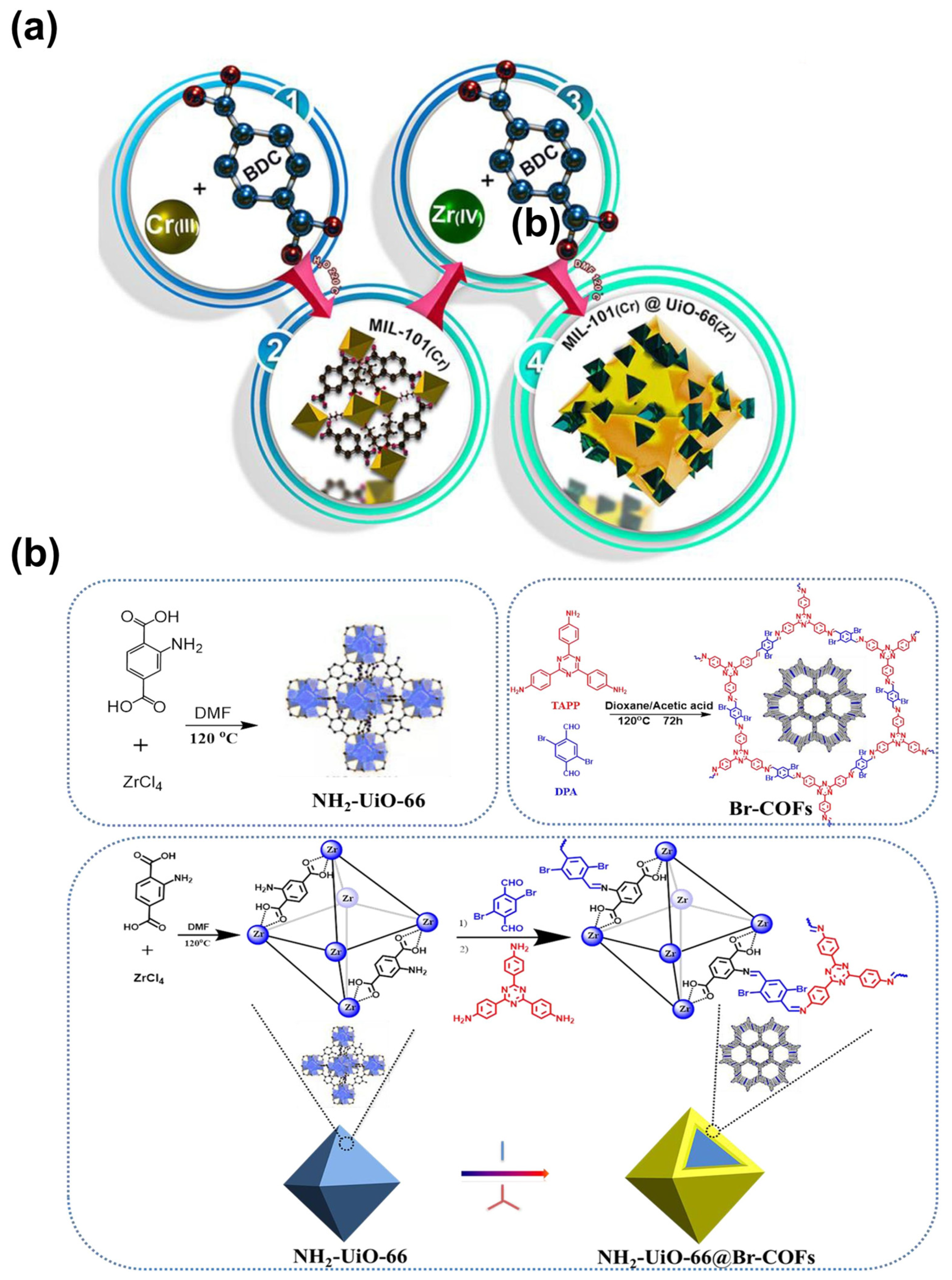

Figure 15. Synthetic procedure of (a) MU. Reproduced with permission from [100]. Copyright 2023, Elsevier. (b) NH₂-UiO-66@Br-COFs. TAPP: 4,4′,4″-(1,3,5-triazine-2,4,6-triyl) trianiline, DPA: 2,5-dibromo-1,4-diformylbenzene. Reproduced with permission from [102]. Copyright 2022, Elsevier.

Table 2. Pristine MOFs for CO₂ capture and separation and their performance.

MOF	Adsorbed Amount (mmol g⁻¹)	Pressure (kPa)	Gas Separation	IAST Selectivity (298 K, 100 kPa)	Ref.
([Co₅(μ₃-OH)₂(aip)₄(H₂O)₂])(MUF-17)	2.5	100	CO₂/N₂	501	[83]
[Cu₂(BPDC)₂(H₂O)₂]·5.6H₂O·DMA	8.6	100	CO₂/N₂	41.5	[104]
[(CH₃)₂NH₂][Zn_1.5(μ₃-O)_0.5(F-tzba)_1.25(bpy)_0.25(μ₂-F)_0.5]·2DMF·2H₂O	2.1	100	CO₂/CH₄	4.9	[105]
{[PbZn(L)₂]·DMA·H₂O}_n (HMOF)	1.8	100	CO₂/CH₄	16.3	[86]
In(aip)₂	1.3	101	CO₂/N₂	/	[59]
Cu-OATA	6.2	100	CO₂/N₂	/	[51]
MOF-808-EDTA-ED-R	1.6	100	CO₂/N₂	/	[89]
MOF-177-DETA	2.8	100	/	/	[52]
MOF-177-PEI	2.8	100	/	/	[52]
MOF-177-TEPA	4.6	100	/	/	[52]
ZnMOF	1.7	100	CO₂/CH₄	6.16	[106]
[Zr₆O₄(OH)₆(H₂O)₂ (TBAPy)₂(PhTz)]Br (NU-1000-PhTz)	1.4	100	CO₂/N₂O	1.1	[107]
F-Ni-MOF-74	/	1500	CO₂/CH₄	/	[55]
Li-O-Ni-MOF-74	195.6	1500	CO₂/CH₄	/	[55]
NH₂-Ni-MOF-74	183.6	1500	CO₂/CH₄	/	[55]
CH₃-Ni-MOF-74	160.3	1500	CO₂/CH₄	/	[55]
MOF-808-glycine	0.5	15	/	/	[87]
MOF-808-sarcosine	0.6	15	/	/	[87]
MOF-808-L-alanine	0.5	15	/	/	[87]
MOF-808-DL-alanine	0.5	15	/	/	[87]
MOF-808-(R)-3-aminobutanoic acid	0.3	15	/	/	[87]
MOF-808-(RS)-3-aminobutanoic acid	0.4	15	/	/	[87]
MOF-808-L-isoleucine	0.4	15	/	/	[87]
MOF-808-L-serine	0.6	15	/	/	[87]
MOF-808-L-threonine	0.3	15	/	/	[87]
MOF-808-L-histidine	0.3	15	/	/	[87]
MOF-808-DL-lysine	1	15	/	/	[87]
M-808-TEPA(0.3)	1.1	100	CO₂/N₂	84.4	[108]
M-808-TEPA(0.5)	1.2	100	CO₂/N₂	92.9	[108]
M-808-TEPA(1.0)	1.1	100	CO₂/N₂	174	[108]
M-808-TEPA(2.0)	1.3	100	CO₂/N₂	256	[108]
M-808-TEPA(2.5)	1	100	CO₂/N₂	156	[108]
M-808-ED(0.3)	1.2	100	CO₂/N₂	48.4	[108]
M-808-DETA(0.3)	0.7	100	CO₂/N₂	52.7	[108]

Table 3. MOF composites for CO₂ capture and separation and their performance.

MOF	Adsorbed Amount (mmol g⁻¹)	Pressure (kPa)	Gas Separation	IAST Selectivity (298 K, 100 kPa)	Ref.
CuBTC@1%GO	8.9	100	CO₂/N₂	/	[35]
HKUST-1@10UV-GO	5.14	100	CO₂/N₂	2.53	[109]
Mg/DOBDC MOF@GOw-30	8.6	100	/	/	[99]
MOF-808 with ILMLs	3	100	CO₂/N₂	478	[97]
UiO-67-ILs-Cl	3.8	101	CO₂/N₂	44.21	[110]
NH₂-UiO-66@Br-COF-1	1.9	100	CO₂/N₂	/	[102]
NH₂-UiO-66@Br-COF-2	2	100	CO₂/N₂	27	[102]
NH₂-UiO-66@Br-COF-3	2.8	100	CO₂/N₂	24.92	[102]
NH₂-UiO-66@Br-COF-4	3.9	100	CO₂/N₂	24.08	[102]
MIL-101(Cr)@UiO-66(Zr) (MU-4)	2.4	100	CO₂/CH₄	7.64	[100]
MIL-101(Cr)@UiO-66(Zr) (MU-8)	2.4	100	CO₂/CH₄	7.74	[100]

5. MOF-Based Materials for CO₂ Photocatalytic Reduction

Semiconductors (SC) are recognized for their capacity to produce photo-induced carriers upon exposure to sunlight. When photons possess energy equal to or greater than the band gap of the SC, electrons in the VB can absorb these photons and are thereby excited to the CB, leading to the formation of electron–hole pairs. However, traditional SC catalysts face limitations such as large band gaps, restricted visible light adsorption, low charge separation efficiency, and lack of definite structure [111], hindering their practical application.

In alignment with the behavior of SC, MOF has attracted a lot of attention as an alternative for SC. On one hand, as discussed in the adsorption section, MOF itself has a unique porous structure and high surface area, which is conducive to CO₂ adsorption. On the other hand, the well-defined metal nodes/clusters and organic linkers within MOFs can serve as active sites and light antenna units, respectively [112]. The strong CO₂ adsorption capacity of MOFs allows CO₂ to access the active sites, and the homogeneous distribution of metal centers promotes the CO₂ reduction process.

The performances of various MOF-based materials, including pristine MOFs and MOF composites are illustrated in Table 4 and Table 5, respectively.

5.1. Pristine MOFs

Porphyrin, the core component of chlorophyll, possesses the remarkable ability to sense photons and transmit electrons. Inspired by the uniqueness of porphyrin, integrating porphyrin ligands into MOFs to enhance light-harvesting capacity and promote efficient separation of electron–hole pairs is reckoned as a viable strategy. Numerous porphyrin-based MOFs have already achieved great performance in CO₂ photocatalytic reduction.

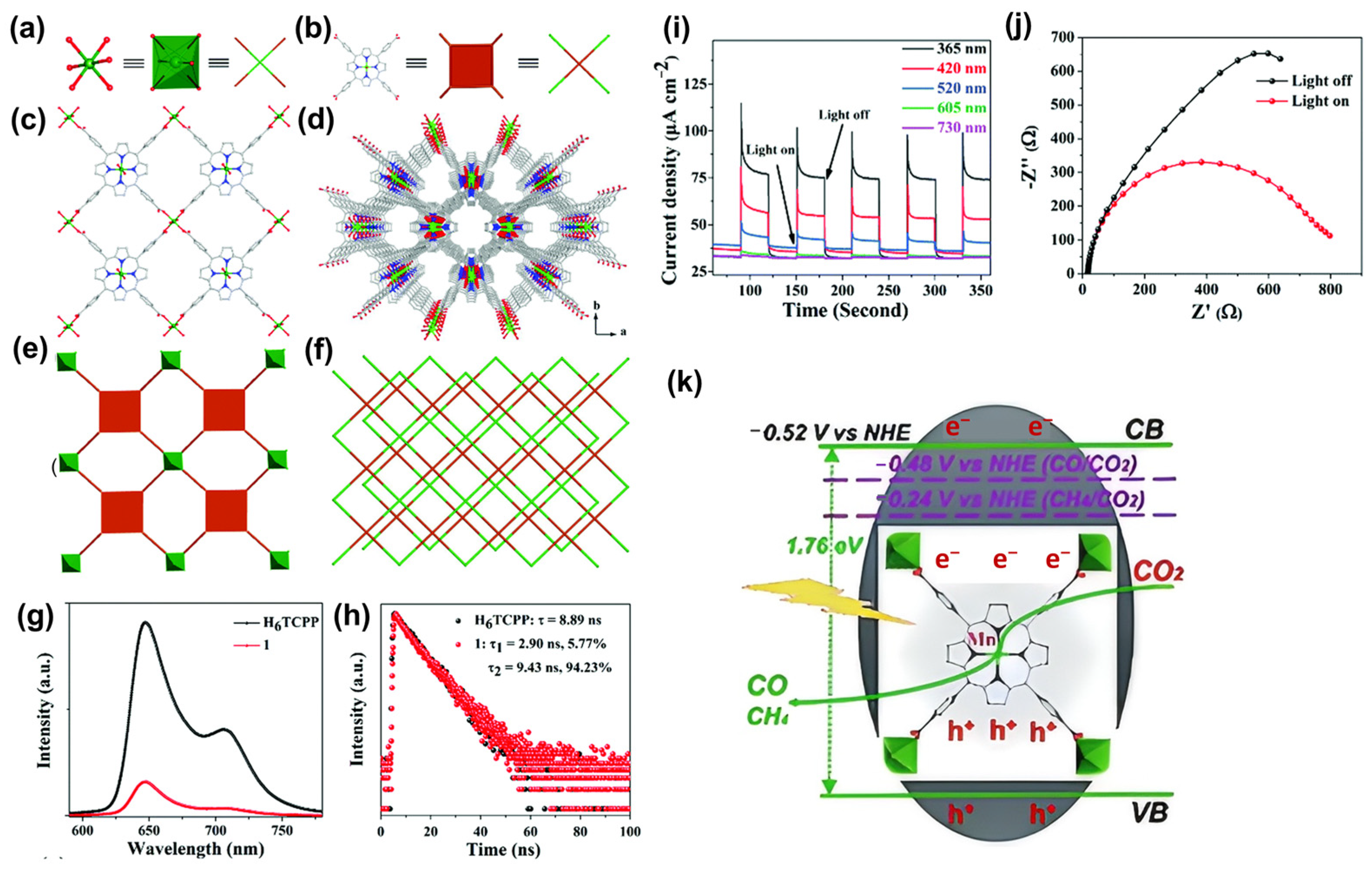

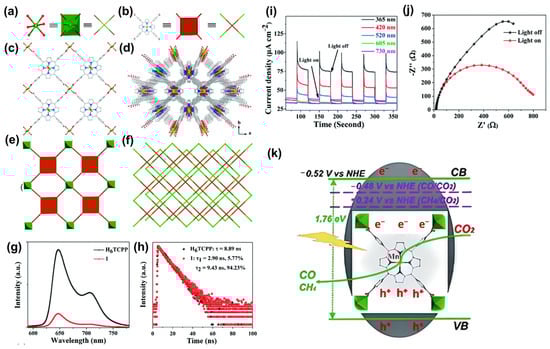

Recently, a novel two-dimensional porphyrin-based Mn-MOF [BMI]₂{Mn[Mn(H₂O)₂-TCPP](H₂O)₂} (1) based on meso-tetra(carboxyphenyl) porphyrin (H₆TCPP) with atomically dispersed unsaturated porphyrin Mn sites was proven to demonstrate superior activity in CO₂ reduction [113]. An ionic liquid [BMI]Br was used in the synthetic procedure to ensure high loading of Mn(II)-metalated porphyrin (Mn-TCPP) sites. Each Mn-TCPP ligand is connected with four mononuclear Mn(II) ions, extending in the bc plane to form 2D layers in a non-interpenetrated AB stacking pattern (Figure 16a–f). The pores’ dimensions are estimated to be about 7.49 × 13.81 Å² along the c axis and 45.2% void space is occupied by [BMI]⁺ cations. Photocatalytic experiments were carried out in a top-irradiation vessel with water vapor. Under 4 h of light illumination, CH₄ is detected as the main product, with a production rate of 53 μmol h⁻¹ g⁻¹, while a limited amount of CO is also produced with a production rate of 21 μmol h⁻¹ g⁻¹. To evaluate the optical properties of the materials, steady-state photoluminescent (PL) measurements, incident-photon-to-current conversion efficiency (IPCE) characterization, and electrochemical impedance spectroscopy (EIS) measurements were conducted for the H₆TCPP and 1. Correspondingly, H₆TCPP exhibits significant quenching of PL intensity (Figure 16g), and 1 exhibits short-lived τ₁ (Figure 16h), high photocurrent response (Figure 16i), and small impedance value (Figure 16j), indicating efficient charge separation ability. The mechanism involves Mn-TCPP acting as a light-harvesting unit for generating electron–hole pairs, and then the photo-induced electrons transfer to the catalytic Mn(II) centers for further CO₂ reduction (Figure 16k). This work sheds light on the possibility of fabricating porphyrin-based MOFs for CO₂ photoreduction in gas–solid conditions without using organic sacrificial agents.

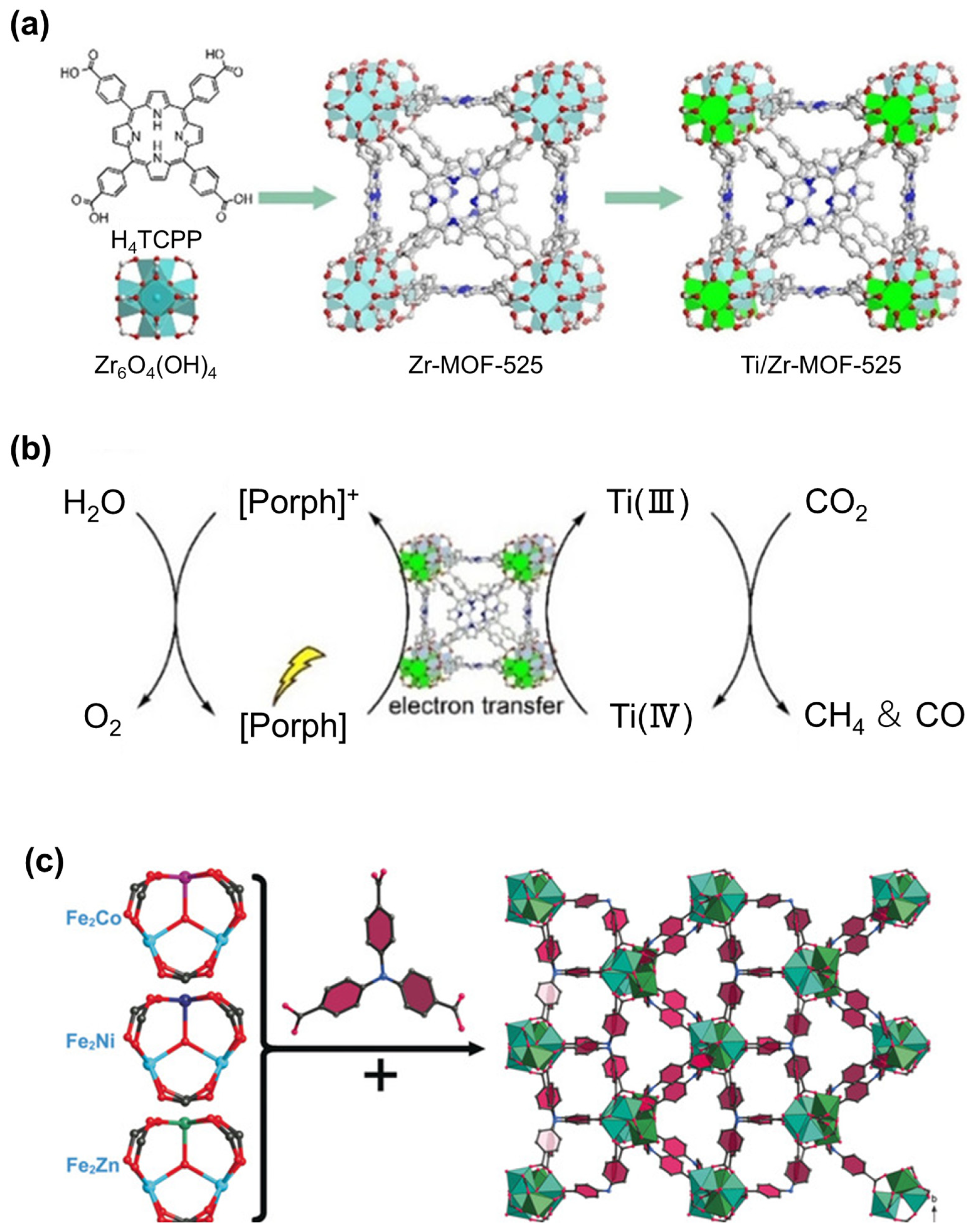

Despite the prevalent use of monometallic centers, the current trend indicates a shift toward designing bimetallic or mixed-metal centers. In 2020, Gao et al. [114] reported a mixed-metal porphyrinic framework Ti/Zr-MOF-525, synthesized by partially exchanging Zr with Ti in Zr-MOF-525 (Zr-MOF-525 consisted of Zr₆O₄(OH)₄ units and H₄TCPP ligand) for CO₂ photoreduction to CH₄ (Figure 17a). The partial replacement of Ti boosts the electron transport capacity of the entire system. The electron transfer is facilitated to the Ti-containing units for the production of CH₄ (Figure 17b). Similarly, Dong et al. [115] reported the synthesis of heterometallic Fe₂M cluster-based MOFs ([Fe₂M(μ₃-O)(TCA)₂(H₂O)₃] (M = Co, Ni, Zn), NNU-31-M) for achieving artificial photosynthetic overall reaction without the need for additional sacrificial agents and PS. These MOFs are constructed by Fe₂M(μ₃-O)(OAc)₆(H₂O)₃ clusters and photosensitive TCA ligands (Figure 17c). Among all the heterometallic cluster-based MOFs, NNU-31-Zn exhibits the best performance, with HCOOH yield of 26.3 μmol h⁻¹ g⁻¹ and selectivity of 100%. The matched band structures, weaker PL signals, and stronger photocurrent response account for the fast electron–hole separation. Further DFT calculations reveal that Zn and Fe sites play distinct roles in the reaction. Zn sites favor CO₂ conversion into HCOOH due to a relatively low energy barrier to the rate-determining step (*CO₂ to *OCHO), while Fe sites are responsible for water oxidation to oxygen. The positive synergistic effect of Zn and Fe is the main reason for the performance improvement. Obviously, the above examples offer a modification method through building two different metal sites. Furthermore, modification through developing the mixed-valence state of the metal center is another feasible way, especially for Cu-based MOFs. The mixture of Cu(I)/Cu(II) in MOF can positively affect the binding energy of the intermediates [116].

5.2. MOF Composites

The incorporation of catalytically active entities, including metal NPs/single-atom (SAs)/nanoclusters (NCs), PS, SCs, or quantum dots (QDs), into MOFs to fabricate MOF composites represents a widely endorsed strategy for the photocatalytic reduction of CO₂ [117]. The integrated species not only broaden the visible light response range but also serve as active sites for CO₂ activation. Additionally, they function as platforms for electron migration, thereby enhancing charge transfer efficiency and CO₂ production rate.

5.2.1. MOF/Encapsulated Metal Composite

The integration of encapsulated metals, including metal NPs, NCs, and SAs with MOF, offers a platform to leverage the distinctive attributes of each constituent, fostering a collective and synergistic effect [118]. Beyond the interaction between MOF and encapsulated metals, noteworthy synergies also emerge among multiple integrated metals. An illustrative example is found in Au@Pd@MOF-74 [119], where core–shell Au@Pd NPs are embedded within MOF-74, and Pt NPs are further coated onto the surface of MOF-74, resulting in Pt/Au@Pd@MOF-74. In comparison, Pt/MOF-74 is constructed comprising Pt NPs solely loaded onto the surface (Figure 18a). The CH₄ yield is contrasted on these two materials. As a result, the CH₄ yield over Pt/Au@Pd@MOF-74 reaches 12.35 μmol g⁻¹, with a CH₄ selectivity of 84%, outperforming that of monometallic NP-doped Pt/MOF-74. Each component plays a crucial role in the catalyst’s efficacy. MOF-74 serves as an electron adsorption and transport medium, Au@Pd NPs help to improve the photon adsorption capacity, and Pt NPs are capable of capturing more electrons. Absence of Pt NPs results in the sole production of CO instead of the desired CH₄, while the catalyst’s photocatalytic activity is compromised in the absence of Au@Pd NPs’ encapsulation.

Furthermore, significant progress has been made in integrating NCs and SAs into MOFs [117,120,121]. For instance, ultrasmall and highly dispersed Au NCs are stabilized within Zr₆O₆(OH)₄(TPDC) (UiO-68, TPDC: terphenyl-4,4″-dicarboxylate) using N-heterocyclic carbene (NHC) ligands via a heterogeneous nucleation approach (Figure 18b) [121]. Identically, Cu NCs are steadily incorporated into UiO-66-NH₂ and Zr₆O₄(OH)₄(fumarate)₆ (MOF-801) via a scalable room temperature fabrication approach (Figure 18c) [120]. Upon successful incorporation, both materials exhibit remarkable efficacy in CO₂ photocatalytic reduction. Moreover, Hao et al. [122] also conducted a comparative study on the catalytic performance of NPs, NCs, and SAs within an MOF membrane. The photocatalytic CO₂ reduction efficiency to HCOOH follows the order of: Ir_NPs < Ir_{NCs and SAs}/ < Ir_SAs. This divergence can be attributed to the differences in their electronic structures. Unlike Ir NPs and Ir clusters, Ir SAs exhibit a more positive charge, resulting in a relatively lower apparent activation energy for HCOOH evolution. This feature favors HCOOH formation and accelerates the reaction kinetics.

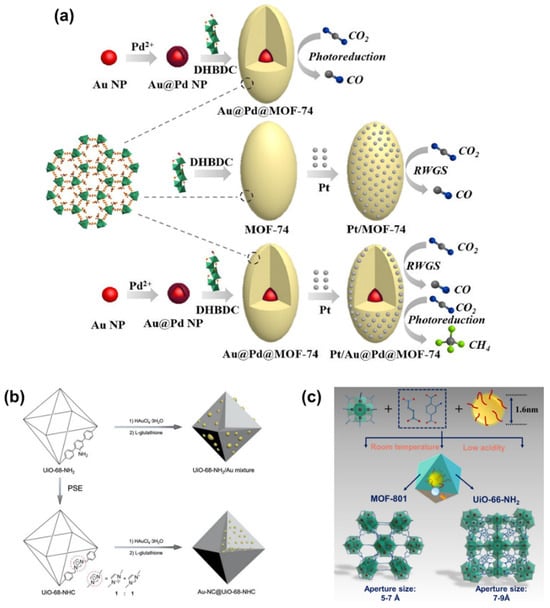

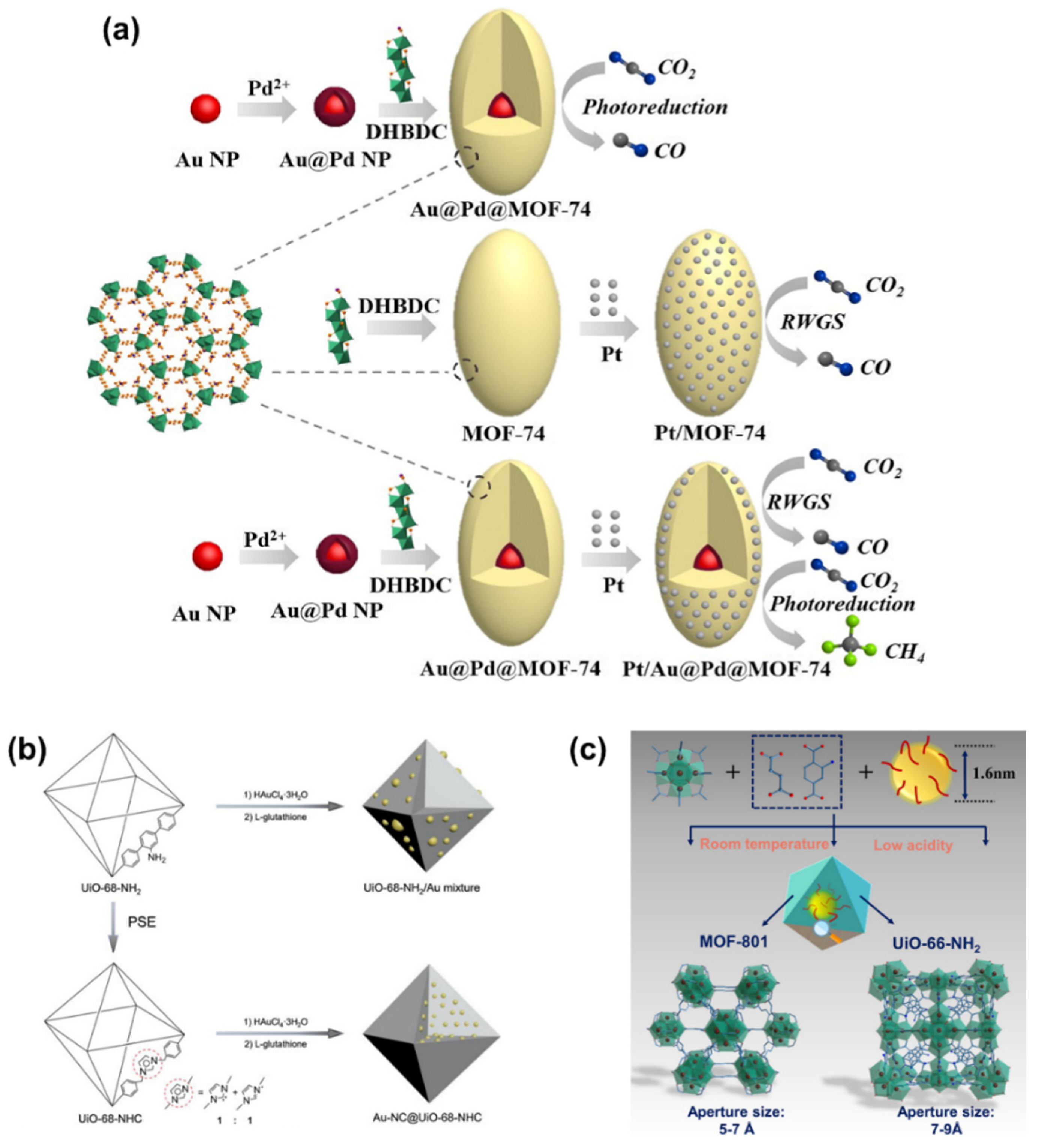

Figure 18. (a) The assembly of Au@Pd@MOF-74, Pt/MOF-74, Pt/Au@Pd@MOF-74. Au@Pd@MOF-74 for photoreduction of CO₂, Pt/MOF-74 only for RWGS of CO₂ and Pt/Au@Pd@MOF-74 both for RWGS and photoreduction of CO₂. DHBDC: 2,5-dihydroxybenzene-1,4-dicarboxylic acid. Reproduced from [119]. Copyright 2019, Elsevier. Schematic illustration of the synthetic process of (b) UiO-68-NHC, UiO-68-NH₂/Au mixture, and Au NCs incorporated into UiO-68-NHC. Reproduced from [121]. Copyright 2021, Wiley. (c) Cu NCs incorporated into MOF-801 and UiO-66-NH₂ and their aperture sizes. Reproduced from [120]. Copyright 2022, Wiley.

5.2.2. MOF/PS Composite

In photocatalysis, the integration of a PS agent is crucial to facilitate the desired reaction. Upon absorption of photons, the PS molecule transitions to an excited state, denoted as PS*. This excited state subsequently undergoes reduction, forming the PS⁻ species as it gains electrons from a sacrificial donor. The PS⁻ then donates these electrons to the catalytic center, thereby participating in the photocatalytic process, and subsequently reverts to its initial ground state. The Ru-polypyridyl complex is one of the most commonly used PS agents. Co-integrating Ru and Re as a PS and active catalyst has been validated as a useful strategy for promoting electron transfer between the PS and active catalyst [123,124]. However, due to their high cost and toxicity, the use of Ru-polypyridyl complexes is considered environmentally unfriendly. Therefore, the search for a cheap and earth-abundant element to replace Ru is of great importance. Given that Cu is easily available and cost-effective, it is regarded as one of the ideal alternatives.

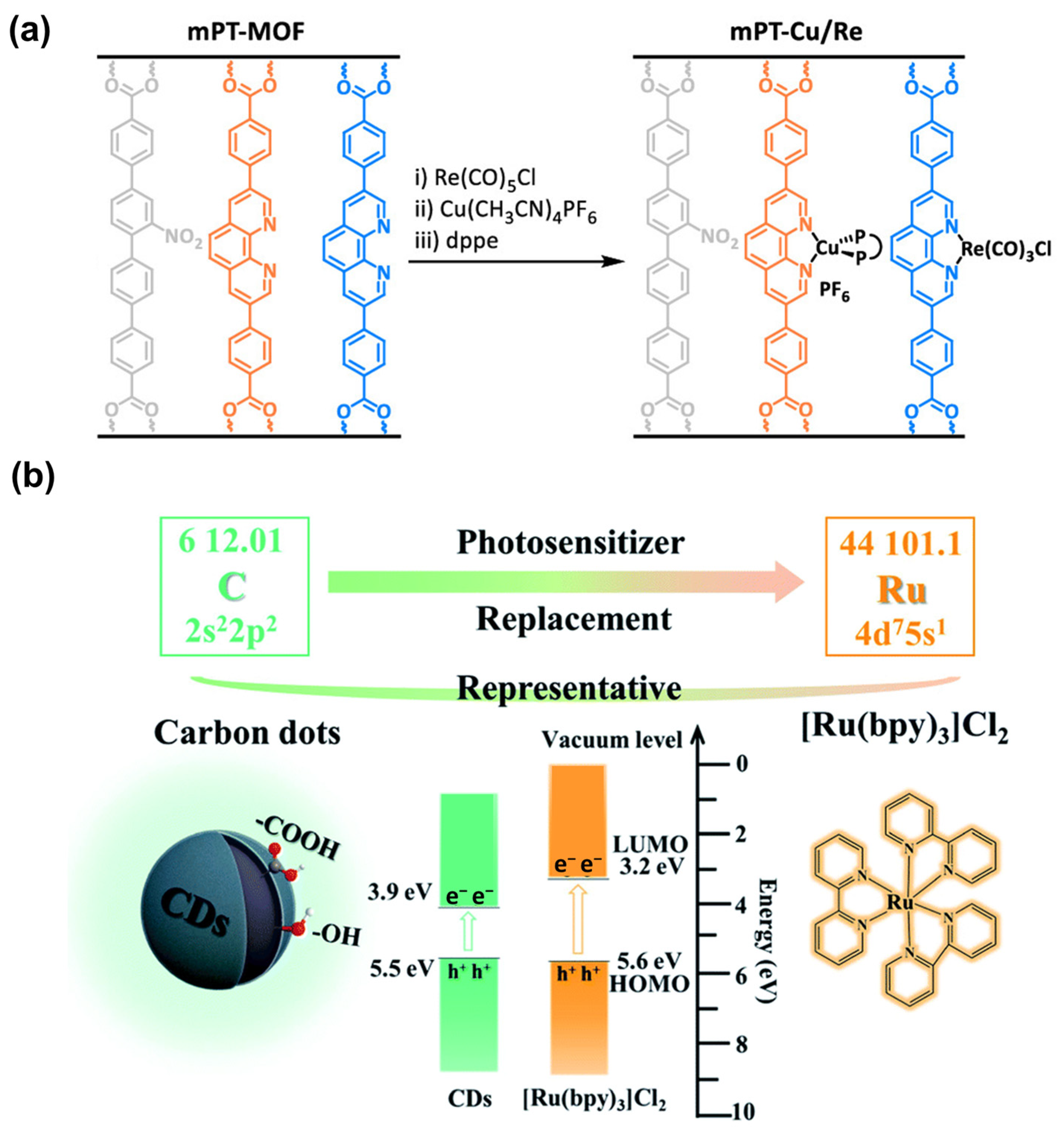

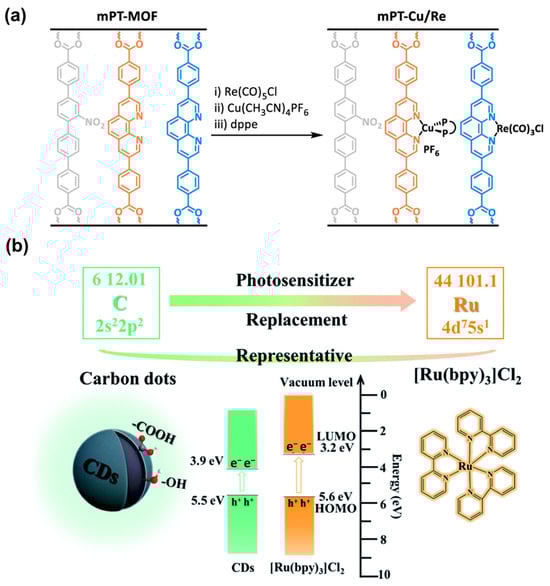

In pursuit of this goal, mPT-Cu/Re was synthesized based on mPT-MOF with mixed phenanthroline dibenzoate (PT) and 2′′-nitro-[1,1′:4′,1′′:4′′,1′′′-quaterphenyl]-4,4′′′-dicarboxylate (TPHN) ligands through stepwise metalation with Cu(CH₃CN)₄PF₆ and Re(CO)₅Cl (Figure 19a) [125]. In mPT-Cu/Re, Cu^I centers coordinate with PT and 1,2-bis(diphenylphosphino)ethane (dppe) in a distorted tetrahedral geometry, while Re centers form an octahedral geometry coordinating with PT, three carbonyl groups, and a chlorine atom. Photocatalytic experiments were carried out under 350–700 nm light irradiation with BIH as sacrificial agent. With the assistance of Cu-PS, mPT-Cu/Re exhibits a high turnover number (TON) and CO/H₂ selectivity, indicating the high solar energy conversion ability of Cu-PS.

Moreover, carbon dots (CDs) emerge as a viable alternative, distinguished by their cost-effectiveness and capacity for electron storage and transfer. The merits of CDs can be divided into three facets: (1) broadened visible light adsorption range, (2) increased exposure of active sites, and (3) enhanced charge transfer efficiency. Qian et al. [36] compared the CO₂ photocatalytic activity of a CD-based catalyst with a Ru-complex-based catalyst (Figure 19b). Surprisingly, under the same conditions, the CD-based catalyst exhibits a better CO generation rate than the Ru-complex-based catalyst, outperforming the Ru-complex-based catalyst from both economic and efficiency perspectives. Consequently, replacing the Ru complex with CDs represents a promising and economical way to fabricate PS-containing MOF materials.

5.2.3. MOF/SC Composite

The strategic assembly of MOFs with SCs to engineer heterojunctions presents an effective approach to accomplish the separation of electron–hole pairs. According to the mechanism of electron transfer pathways, heterojunctions engineered by integrating MOF with SC can be classified into three categories. The first category is type-II heterojunctions. As shown in Figure 20a, type-II heterojunctions generally exhibit higher VB and CB energies in photocatalyst (PC) I than in PC II. Due to the disparity in band energy potential between the two PCs, an internal electric field is built, which drives the migration of photo-induced electrons and holes. Photo-induced electrons in the CB of PC I transfer to the CB of PC II, while photo-induced holes in the VB of PC II migrate to the VB of PC I. Hence, effective separation of electron–hole pairs is achieved. In a typical example [126], the electron–hole transfer pathway on a sandwich homologous heterojunction constructed by In₂S₃@NH₂-MIL-68(In)@In₂S₃ (denoted as SMS(In)) follows type-II mechanism. Electrons from CB of In₂S₃ migrate and accumulate in the CB of NH₂-MIL-68(In), while holes from VB of NH₂-MIL-68(In) transfer to VB of In₂S₃ (Figure 20d). Benefiting from the heterostructure, SMS(In) demonstrates a high CO production rate under visible light irradiation. However, traditional type-II heterojunctions suffer from certain limitations. On one hand, the charge transfer pathway is thermodynamically unfavorable. On the other hand, the CB and VB with strongest redox abilities cannot be retained.

In this regard, Z-scheme heterojunctions have been proposed, using a mediator to capture the separated electrons and holes from the lower redox potential of each SC. This ensures that the most potent redox electrons and holes are retained (Figure 20b). A ternary composite TiO₂/C/MOF [127], consisting of carbonized TiO₂/PAN (PAN: polyacrylonitrile) fibers and a leaf-like zeolitic imidazolate frameworks (ZIF-L), represents a typical Z-scheme heterojunction. The photo-induced electrons from CB of TiO₂ first migrate to the carbon and then recombine with the holes from VB of ZIF-L, hence enabling the electrons to be retained in the lowest unoccupied molecular orbital of ZIF-L (Figure 20e). Although Z-scheme heterojunctions preserve the reduction ability of electrons, the issue of unfavorable thermodynamic transfer pathways remains unaddressed.

Currently, the concept of constructing S-scheme heterojunctions is proposed to overcome such a drawback. S-scheme heterojunctions are composed of an oxidation PC and a reduction PC, each featuring staggered band structures that facilitate charge separation. Upon contact, the band bending occurs as a result of the Fermi level disparity between the two PCs, establishing an internal electric field. This field persists until the Fermi levels equilibrate. The Coulombic forces generated by this electric field drive the recombination of non-essential photo-induced charge carriers, while simultaneously ensuring the effective segregation of potent electrons and holes (Figure 20c). Liang et al. [128] reported a TiO₂@CoNi-MOF hierarchical hollow nanotube for efficient CO₂ photoreduction to methane. An S-scheme mechanism is proposed, where the synergy of Coulomb interaction, internal electric field and interface band bending facilitates the corresponding charge carriers’ recombination and separation (Figure 20f). To sum up, S-scheme heterojunctions not only incorporate the advantages of type-II and Z-scheme heterojunctions but also offer a more rational electron transfer route.

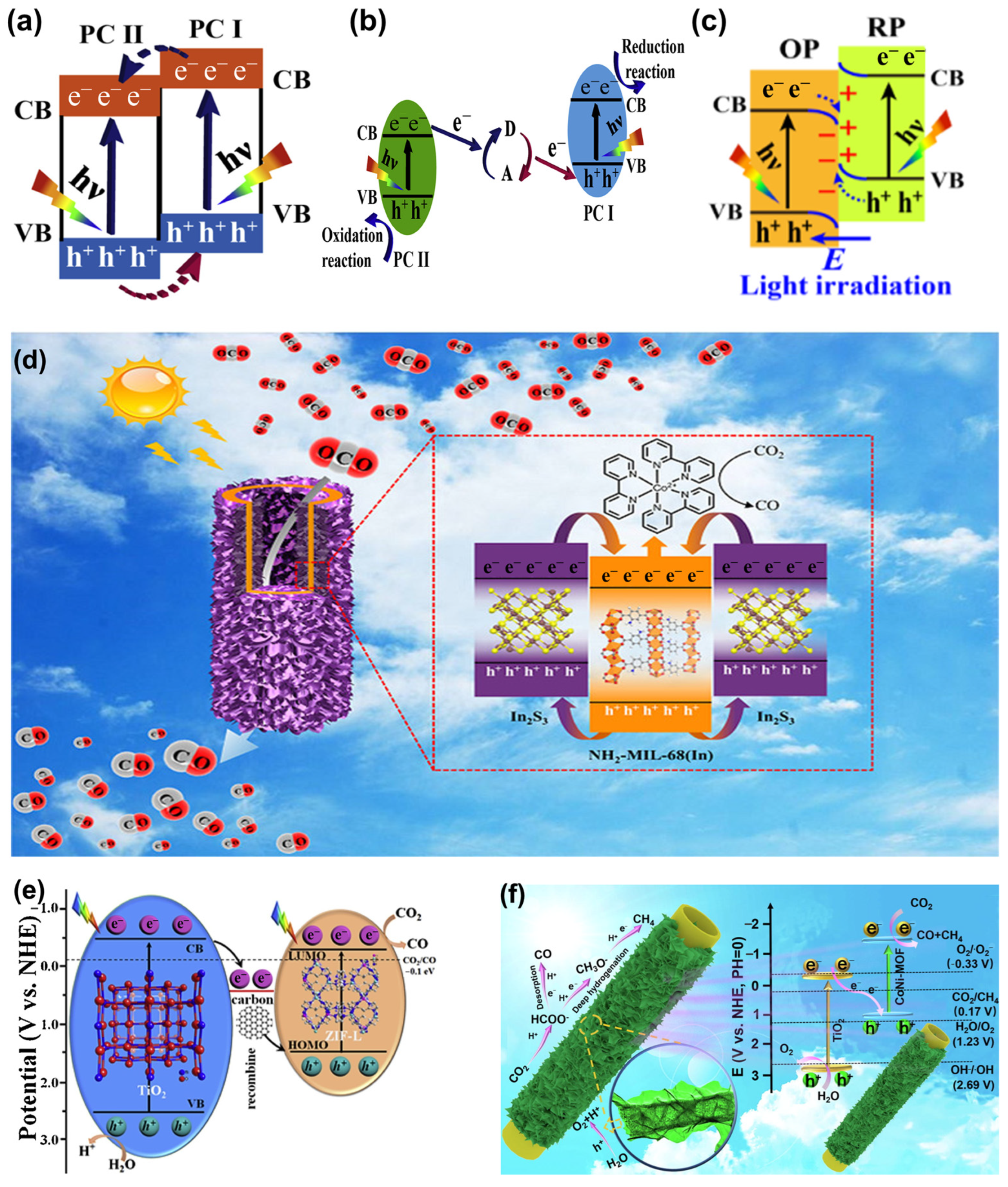

Figure 20. Schematic illustration of charge transfer in heterojunctions. (a) Charge transfer pathway of type-II heterojunction. (b) Charge transfer pathway of Z-scheme heterojunction. (c) Charge transfer pathway of S-scheme heterojunction. Reproduced from [129]. Copyright 2020, Elsevier. Schematic illustration of the mechanism of (d) type-II catalyst In₂S₃@NH₂-MIL-68(In)@In₂S₃. Reproduced from [126]. Copyright 2020, American Chemical Society. (e) Z-scheme catalyst TiO₂/C/MOF. Reproduced from [127]. Copyright 2020, Elsevier. (f) S-scheme catalyst TiO₂@CoNi-MOF. Reproduced from [128]. Copyright 2023, Elsevier.

Table 4. Pristine MOFs for CO₂ photocatalytic reduction and their performance.

MOF	Metal Node/Cluster	Main Product	Photocatalytic Efficiency (μmol h⁻¹ g⁻¹)	Selectivity (%)	Ref.
[BMI]₂{Mn[Mn(H₂O)₂-TCPP](H₂O)₂}cc	Mn²⁺	CH₄	53	71.62	[113]
NNU-55-Ni	Ni²⁺	CO	266.6	81	[130]
NNU-31-Zn	Fe₂Zn cluster	HCOOH	26.3	100	[115]
NNU-31-Co	Fe₂Co cluster	HCOOH	14.94	/	[115]
NNU-31-Ni	Fe₂Ni cluster	HCOOH	17.13	/	[115]
PCN-250-Fe₃	Fe₃ cluster	CO	13,450	/	[131]
PCN-250-Fe₂Mn	Fe₂Mn cluster	CO	21,510	/	[131]
PCN-250-Fe₂Zn	Fe₂Zn cluster	CO	19,450	/	[131]
PCN-250-Fe₂Ni	Fe₂Ni cluster	CO	15,860	/	[131]
PCN-250-Fe₂Co	Fe₂Co cluster	CO	14,010	/	[131]
Ti/Zr-MOF-525	Ti/Zr	CH₄	1.52	/	[114]

Table 5. MOF composites for CO₂ photocatalytic reduction and their performance.

MOF	Integrated Species	Main Product	Photocatalytic Efficiency (μmol h⁻¹ g⁻¹)	Selectivity (%)	Ref
MOF/NPs/SAs/NCs
IrNPs/A-aUiO	Ir NPs	HCOOH	10	16.5	[122]
Ir_x/A-aUiO	Ir NCs/Ir SAs	HCOOH	160	79.8	[122]
Ir₁/A-aUiO	Ir SAs	HCOOH	240	96.3	[122]
Au@Pd@MOF-74	Au@Pd NPs	CO	2.46	100	[119]
Pt/Au@Pd@MOF-74	Au@Pd NPs, Pt NPs	CH₄	2.47	84	[119]
MIL-101(Cr)/Ag NPs (80MA)	Ag NPs	CO	808.2	/	[132]
MIL-101(Cr)/Ag NPs (150MA)	Ag NPs	CO	298.5	/	[132]
MIL-101(Cr)/Ag NPs (400MA)	Ag NPs	CO	49.1	/	[132]
MIL-101(Cr)/Ag NPs (800MA)	Ag NPs	CO	34	/	[132]
Au-NC@UiO-68-NHC	Au NCs	CO	57.6	/	[121]
Cu NCs@UiO-66-NH₂	Cu NCs	HCOOH	128	86	[117]
Cu SAs/UiO-66-NH₂	Cu SAs	CH₃OH	5.33	/	[117]
MOF/PS
(Co/Ru)_2.4-UiO-67(bpydc)	Co/Ru	syngas	850	/	[133]
Zr-MBA-Ru/Re-MOF	Ru/Re	CO	440	>99	[123]
Ni3@Ru-UiO-67	Ni²⁺ complex/Ru	CO	426.05	>99	[134]
mPT-Cu/Re	Cu/Re	CO	11,000	89	[125]
MOF/SC
CsPbBr₃ QDs/UiO-66(NH₂)	CsPbBr₃	CO	8.21	/	[135]
CTU(CuTCPP)/0.6TiO₂	CuTCPP/TiO₂	CO	31.32	/	[136]
TiO₂/C@ZnCo-ZIF-L	TiO₂/C	CO	28.6	99	[127]
UiO-66-NH₂/Cu₂O/Cu-0.39	Cu₂O/Cu	CO	4.54	/	[137]
Ce-MOF/Bi₂MoO₆	Bi₂MoO₆	CH₄	113.87	/	[138]
g-C₃N₄-RGO-NH₂-MIL-125(Ti)	g-C₃N₄-RGO	CO	95.9	96.53	[139]
NMF/CsPbBr₃	CsPbBr₃	CO	50.7	/	[140]
TiO₂@CoNi-MOF NTs	TiO₂	CH₄	41.65	93.2	[128]

6. MOF-Based Materials for CO₂ Electrocatalytic Reduction

6.1. Pristine MOF

In electrocatalyst design, the primary objectives are to achieve exceptional adsorption capacity, ideal selectivity, high current density, rapid electron and mass transfer, and enduring stability. These attributes are essential for the development of efficient and robust electrocatalysts. One of the primary reasons for the high catalytic activity of MOFs is their uniformly dispersed active sites. The highly ordered structure in MOFs allows for the isolation and atomic dispersion of active sites, facilitating CO₂ adsorption, transfer, and reduction. Moreover, by tuning the chemical structure of MOFs, various products such as CO, HCOOH, CH₄, and C₂H₄ can be obtained.

CO and HCOOH are two readily accessible chemical products because only two electrons are required. Majidi et al. [141] fabricated 2D Copper tetrahydrixyquinone (Cu-THQ) nanoflakes (NFs) via a liquid-phase exfoliation method from bulk Cu-THQ (Cu₂(C₆O₆)₂). The average particle size of Cu-THQ NFs is approximately 140 nm, with an average statistical thickness of about 10.1 nm. LSV experiments were conducted using a Cu-THQ-coated gas diffusion electrode (GDE) as working electrode, Ag/AgNO₃ as reference electrode, and platinum mesh as counter electrode, revealing that Cu-THQ NFs exhibit an ultra-high current density of 173 mA cm⁻² at −0.45 V versus RHE toward CO selectivity, with an even lower onset potential of −0.126 V versus RHE and no detection of other carbon-based gas phase products (Figure 21a,b). Notably, Cu-THQ NFs also demonstrate considerable TON and TOF values of 7.49 × 10⁴ and 20.82 s⁻¹ at −0.43 V versus RHE, respectively (Figure 21c), indicating their high catalytic activity. The possible change in Cu²⁺ chemical environment was studied by various techniques. X-ray Photoelectron Spectroscopy (XPS) and Cu L₃-edge X-ray adsorption spectroscopy (XAS) results show that the peaks of the samples after reaction shifted to lower energy compared to the pristine sample (Figure 21d,e), signifying the changes in the chemical environment of Cu²⁺ species. To gain deeper insights into the alterations in electronic and chemical conditions, operando Cu K-edge X-ray absorption near edge spectroscopy (XANES) was conducted for Cu-THQ at various stages: open-circuit voltage (OCV), at −0.43 V versus RHE, and 12 min after the reaction ceased and returned to OCV. The XANES spectrum obtained at OCV reaffirmed the presence of Cu²⁺ state in the pristine compound. Upon applying a cathodic potential, the edge position shifts to a lower energy in comparison with the pristine state, suggesting the reduction of Cu²⁺ during electrocatalysis. After collecting data at −0.43 V versus RHE, the cell was reverted to open circuit to obtain XANES of the relaxed catalyst. The corresponding spectrum confirmed the formal Cu²⁺ state, with subtle deviations in line shape compared to the pristine compound (Figure 21f). The rapid return of the catalysts to Cu²⁺ suggests the generation of very small Cu clusters, but there were still subtle changes in the bonding of Cu and ligands.

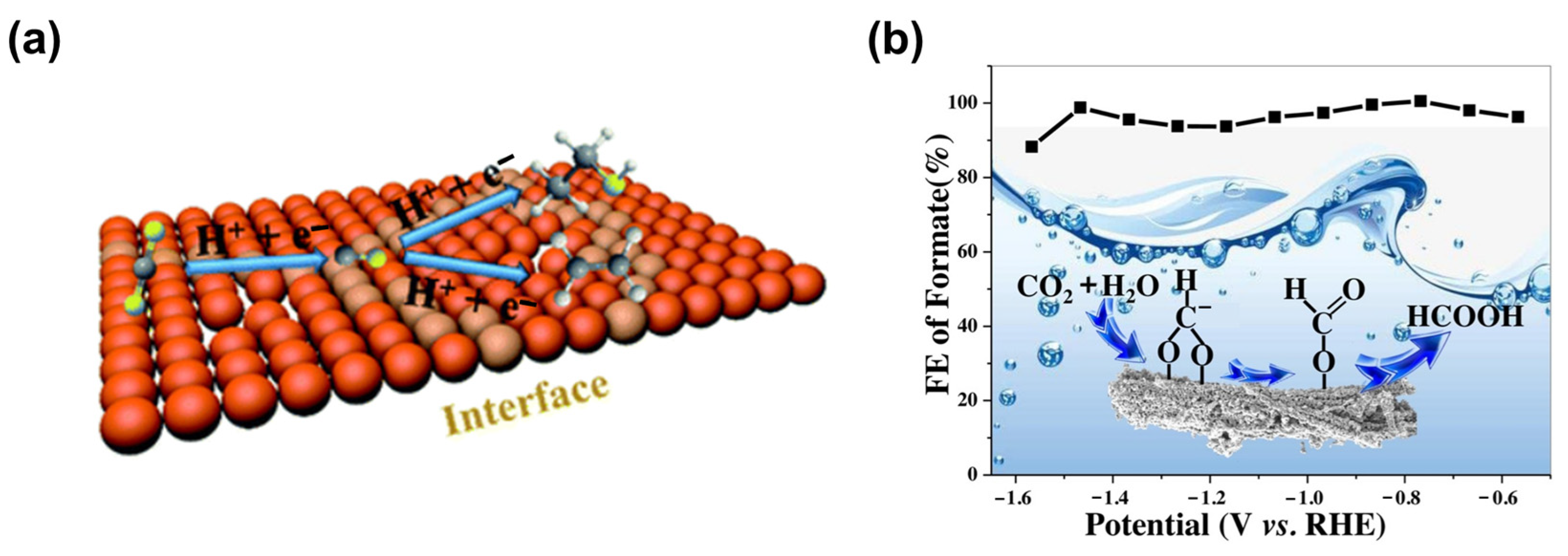

Another two-electron product, HCOOH, was successfully obtained using an In-based MOF and Sn-based MOF [142,143]. These two materials both exhibit high electrocatalytic performance. It is worth noting that neither of the above two MOFs undergo structural changes during the reaction. However, some MOFs, such as Bi-based MOFs (Bi-MOFs) [144], are prone to reconstruction. The high selectivity of HCOOH is not facilitated by the Bi-MOF itself but rather by the reconstruction occurring at the Bi/Bi-O interface. During the electrocatalytic process, Bi-MOF is reduced to Bi and Bi₂O_2.5, and this hybrid Bi/Bi-O interface serves as the real active site for CO₂RR (Figure 21g), which is beneficial for the adsorption of OCHO* intermediates, thus facilitating HCOOH formation.

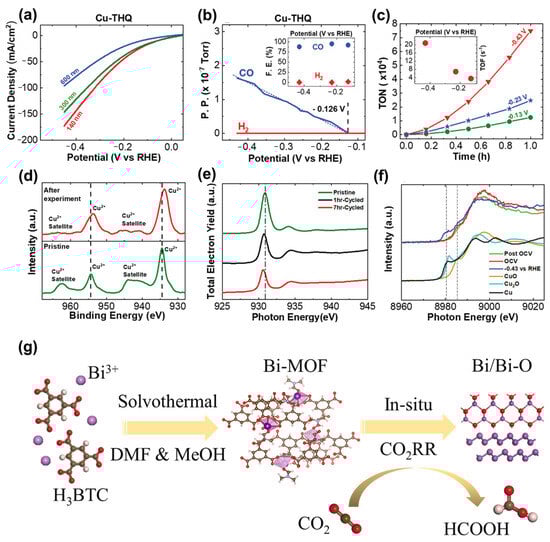

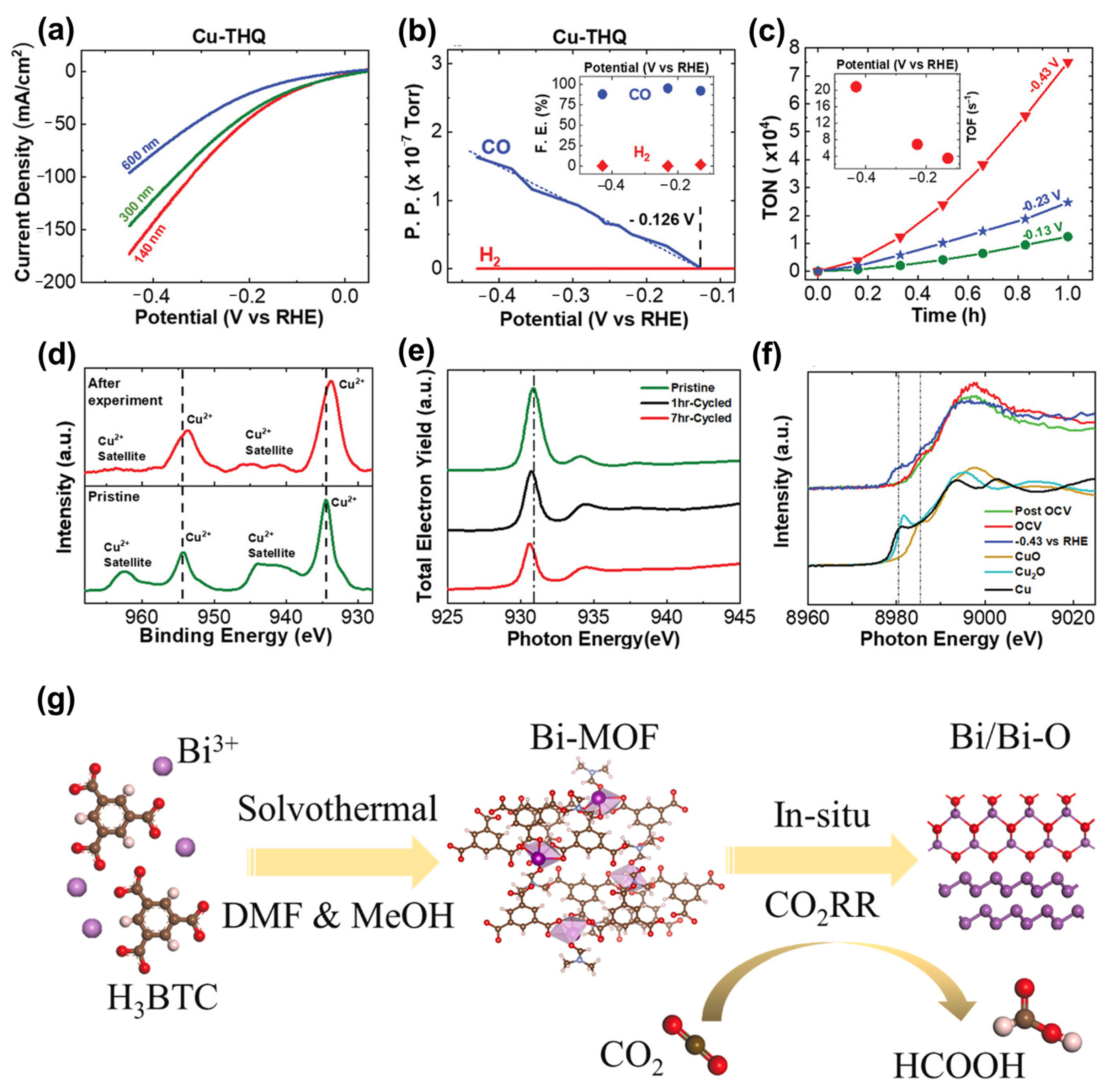

Figure 21. The performance of CO₂ reduction at low overpotentials of Cu-THQ. (a) LSV results (scan rate of 50 mV s⁻¹) for different sizes in 1 m choline chloride and 1 m KOH. (b) Differential electrochemical mass spectroscopy analysis for CO and H₂ production during LSV experiment (scan rate of 1 mV s⁻¹). The inset demonstrates the FE of CO and H₂ at various potentials. (c) TONs for CO production during 1 h chronoamperometry experiments at three different potentials. The inset demonstrates TOFs at these potentials after 1 h. Structural changes analysis of Cu-THQ. (d) XPS results of Cu 2p region in Cu-THQ before and after 7 h reaction. (e) Cu-L₃ XAS results of Cu-THQ before and after 7 h reaction displayed in total electron yield mode. (f) Operando XANES results of Cu-THQ at Cu K-edge. Reproduced from [141]. Copyright 2021, Wiley. (g) Schematic illustration of the synthetic process and reconstruction process of Bi-MOF during CO₂RR. Reproduced from [144]. Copyright 2022, Elsevier.

Multi-electron product hydrocarbons hold significant value for industrial production. To achieve the synthesis of these deep reduction products, selecting appropriate metal nodes as the catalytic active sites is crucial. Among various metals, Cu stands out as the promising metal capable of producing deep reduction products. Different Cu valence states, including Cu(0), Cu(Ι), and Cu(II), exhibit varying binding energies toward reaction intermediates [145]. The structural reconstruction during the reaction plays a crucial role in hydrocarbon generation, although this may introduce instability in the catalysts, potentially impacting their performance over multiple cycles [146].

The performances of various pristine MOFs are illustrated in Table 6.

6.2. MOF Derivatives

Many researchers have utilized MOFs as templates to fabricate MOF derivatives. This approach holds promise, as it preserves the porous structure and atomically dispersed active sites of MOFs while concurrently enhancing their chemical and electrical properties. In the following sections, we will delve into the research progress on some key MOF derivatives. The performances of various MOF derivatives are illustrated in Table 7.

6.2.1. MOF-Derived SACs

Ever since Qiao et al. [147] reported the successful assembly of isolated single Pt atoms anchored on an iron oxide support to achieve CO oxidation in 2011, the concept of SACs has gained increasing popularity in recent years. SACs are special class of catalysts wherein metal components are dispersed as individual atoms on a support material. In SACs, metal atoms exist in an isolated and dispersed form, different from the conventional NP catalysts. This unique structure imparts SACs with high catalytic activity and selectivity. Theoretically, the utilization of metal atoms can reach 100%. The tunable electronic structure and low coordinated configuration also make SACs possible to use in CO₂RR [65].

Owing to the atomically dispersed active sites separated by organic ligands, MOFs serve as ideal precursors for constructing SACs. MOF-derived SACs with different types of SA active centers have been extensively explored. Current research efforts focus on protecting the SA sites and optimizing their coordination environment. For example, MOF-derived SA Cu catalysts show great potential in the field of CO₂ electroreduction to CO [148]. Two such catalysts, namely Cu-N-C-800 and Cu-N-C-900, were synthesized by pyrolyzing an N-doped MOF (Cu(BTC)(H₂O)₃) at 800 °C and 900 °C (Figure 22a), respectively. After pyrolysis, the organic ligands were transformed into an N-doped carbon framework with Cu, and excess Cu NPs were further removed by acid leaching. XAS is an indispensable technique for characterizing SACs. XANES and extended X-ray absorption fine structure (EXAFS) spectra confirm the oxidation state of Cu atoms and the absence of a Cu–Cu bond while affirming the presence of a Cu–N bond, indicating successful synthesis of SACs (Figure 22d–f). Different pyrolysis temperatures yield distinct structural configurations. In Cu-N-C-800, one Cu(Ι) atom coordinates with two pyridinic-N atoms, forming Cu-N₂ sites, while one Cu(II) atom coordinates with four pyridinic-N atoms, resulting in Cu-N₄ sites. Adjacent Cu-N₂ sites are observed due to their proximity, whereas Cu-N₄ sites remain isolated (Figure 22b). Conversely, in Cu-N-C-900, only isolated Cu-N₂ and Cu-N₄ sites are observed (Figure 22c), as confirmed by the fitting curves of EXAFS R-space (Figure 22g). The structural difference and N coordination numbers between Cu-N-C-800 and Cu-N-C-900 significantly impact product selectivity. Cu-N-C-800 exhibits superior FE_C2H4 (24%) to FE_CH4 (13.9%) at −1.4 V vs RHE, whereas Cu-N-C-900 exhibits a completely opposite trend, with CH₄ being the dominant product. This distinction is strongly related to the coordination environment in Cu-N-C-800 and Cu-N-C-900, where the neighboring Cu-N₂ sites favor C–C coupling for C₂H₄ production, while the isolated Cu-N₂ and isolated Cu-N₄ sites are more inclined to produce CH₄.

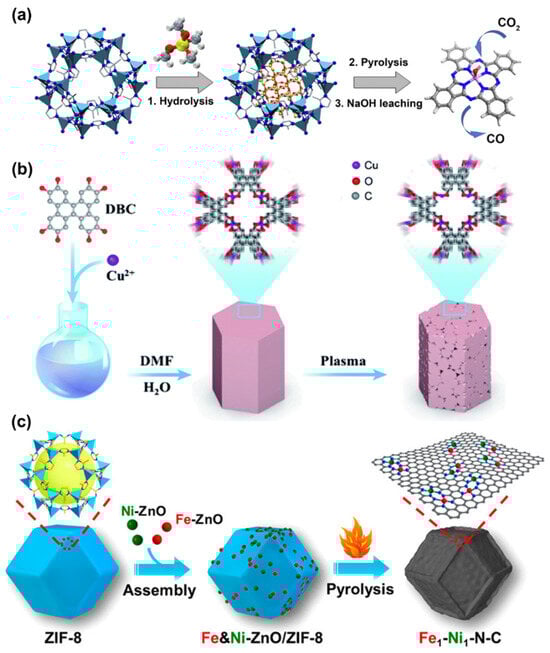

The synthetic procedure for SACs is also a major concern worth discussing. Most SACs are obtained through high-temperature pyrolysis and acid etching processes, during which the aggregation of NPs may occur. Instead, a SiO₂-protective approach is applied to prevent these issues [149]. Mesoporous nitrogen-doped carbon NPs with atomically dispersed iron sites (mesoNC-Fe) were achieved by using a three-step procedure (Figure 23a). Firstly, ZIF-8-Fe was suspended in tetramethyl orthosilicate (TMOS) solution, and further hydrolysis of TMOS resulted in the formation of ZIF-8-Fe@SiO₂. Subsequently, ZIF-8-Fe@SiO₂ was pyrolyzed at 900 °C under N₂ atmosphere to obtain NC-Fe@SiO₂. Lastly, NaOH solution was used for SiO₂ template leaching. Hydrolysis of TMOS in the MOF framework before pyrolysis is beneficial for impeding aggregation of NPs, ensuring the generation of atomically dispersed iron active sites and maintaining high surface area and mesoporosity in the carbon matrix. Alternatively, Wei et al. [150] developed a novel approach for designing SACs without pyrolysis. They synthesized an SA Cu catalyst (PA-CuDBC-1, DBC: catecholate) with low-coordinated copper sites and a hierarchically porous structure via a plasma-activated strategy (Figure 23b). The plasma treatment has no detrimental effect on the performance of the catalyst. At −1.1 V versus RHE, the total FE of carbon-containing products could reach 96.5%, with a high partial current density of 47.8 mA cm⁻². This work presents an avenue for substituting pyrolysis with a simple and effective approach under mild conditions.

The potential synergistic effect of SA pairs, particularly for adjacent SA sites, should also be of great importance for catalysis. The adjacent Fe-N₄ and Ni-N₄ sites in Fe₁-Ni₁-N-C catalysts (Figure 23c) achieve an ultrahigh FE_CO of 96.2% at −0.5 V versus RHE, surpassing those of Fe₁-N-C and Ni₁-N-C catalysts [151]. This result suggests the synergy between SAs Fe and Ni in promoting CO₂RR. DFT calculations reveal that the presence of SA Ni significantly reduces the free energy of COOH* formation on Fe sites and enhances the energy barrier for H₂ production, promoting the CO₂RR while simultaneously suppressing the Hydrogen Evolution Reaction (HER). In conclusion, the advancement of adjacent SA sites highlights their pivotal role in accelerating CO₂RR. The catalytic efficacy of the individual SA sites is enhanced through the synergistic interaction between neighboring SA sites. In addition, SA alloy catalysts have demonstrated significant advantages in CO₂ conversion towards HCOOH, suggesting that the development of MOFs in this direction opens up new possibilities for the electrochemical reduction of CO₂ [152].

6.2.2. MOF-Derived Metal Oxide

MOF-derived metal oxide exhibits enhanced intrinsic activity and conductivity in CO₂RR. Yang et al. [153] employed copper-aspartic acid (Cu-ASP) nanofibers to prepare CuO nanowires through annealing Cu-ASP nanofibers in air. CuO nanowires achieve a C2 hydrocarbon FE of approximately 70% at −1.3 V versus RHE. Previous researchers have demonstrated that the (sub)surface of oxide-derived copper catalysts serves as a critical site for binding intermediates such as CO*, COH*, and CHO*, which are key intermediates for further transformation into C2 products [154,155,156]. Similarly, in this work, the extensive surface/interfaces of the oxide-derived metastable Cu during the reaction are advantageous for stabilizing the intermediates and facilitating the rapid production of C2 products (Figure 24a).

Likewise, a novel Cu@Cu₂O heterogeneous electrocatalyst was utilized to produce methanol by calcining Cu-BTC as a MOF precursor [157]. DFT results indicate that the Cu⁰/Cu⁺ interface, together with OH species on the surface, contribute to moderate CO* binding energy and strong H* adsorption, enhancing the hydrogenation of CO* to produce methanol. Therefore, the abundant surfaces/interfaces interaction between catalysts and adsorbates of the oxide-derived Cu catalysts give us insights into engineering MOF-derived metal oxide toward selective CO₂RR.

In addition to monometal oxides, Yang et al. [158] synthesized a CuBi bimetal catalyst derived from CuBi-MOF. The formation of Bi₂Cu₂O₄ can enhance both the adsorption capacity of CO₂ molecules and the charge transfer capability. For a wide potential window, CuBi exhibits a higher CO₂ reductive activity toward HCOOH compared to MOF-derived monometallic catalysts and Bi₂CuO₄ without using MOF as a template (Figure 24b).

Figure 24. Schematic illustration of the CO₂RR mechanism of (a) CuO nanowires. Reproduced from [153]. Copyright 2020, American Chemical Society. (b) The performance and mechanism of CuBi catalyst. Reproduced from [158]. Copyright 2021, Elsevier.

6.2.3. MOF-Derived Metal/Carbon(Carbonate) Compound

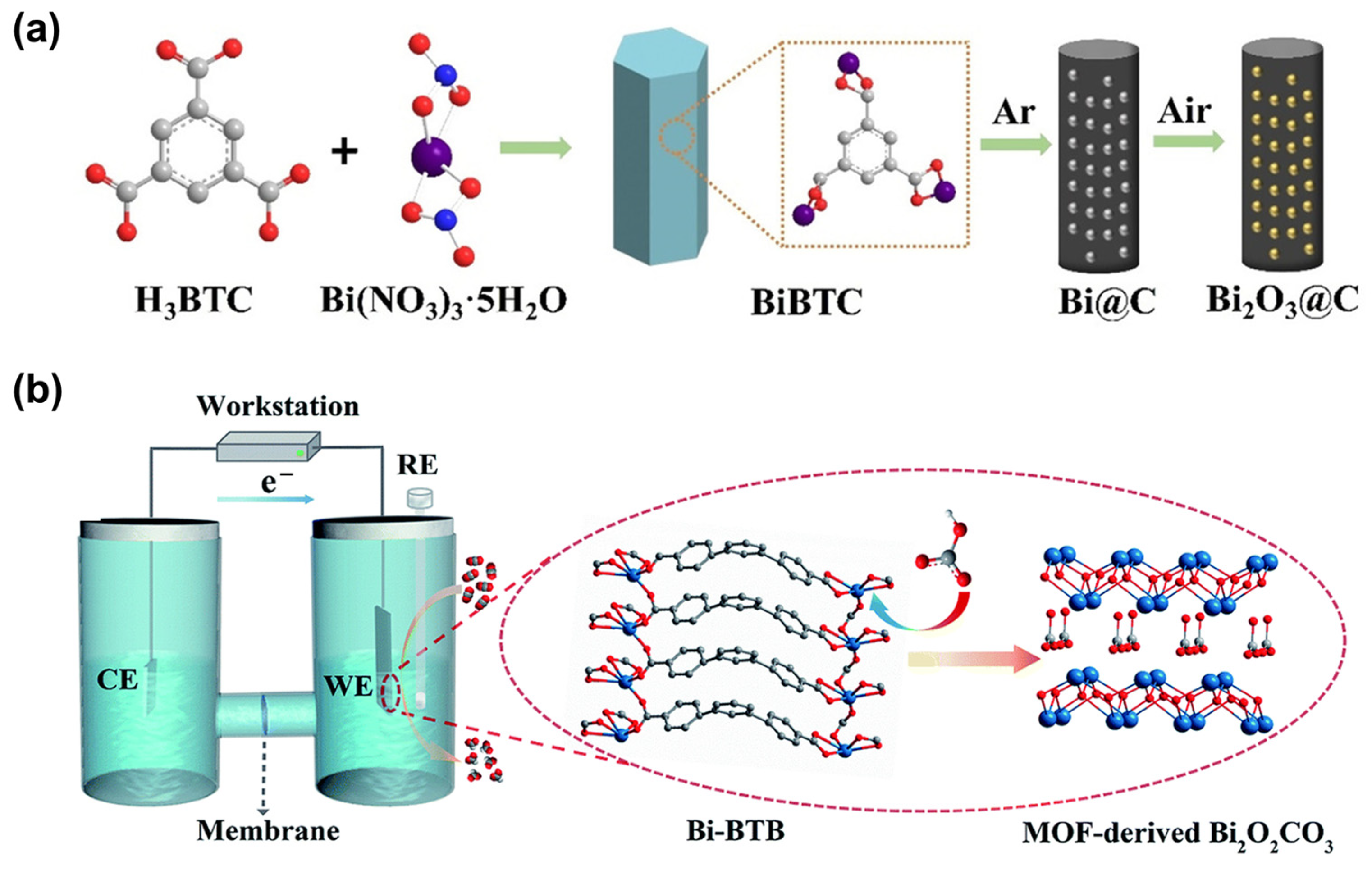

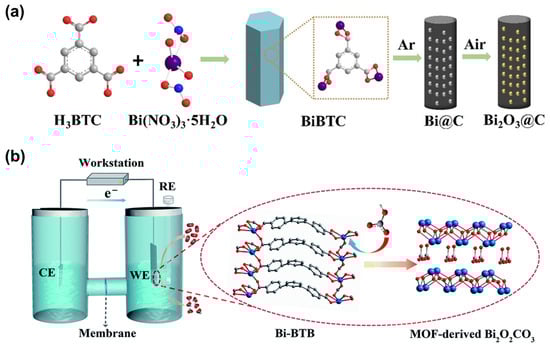

Given the high conductivity of carbon, metal/carbon hybrids are also promising catalysts. In this example [159], Bi@C was first prepared by calcinating BiBTC at 800 °C in an Ar atmosphere. By further oxidizing Bi@C at 200 °C, the corresponding Bi₂O₃@C sample was obtained (Figure 25a). The electroreduction of CO₂ was conducted both in H-type cell and flow cell configuration for comparison. In the H-type cell, the maximum FE_HCOOH reaches 92% at −0.9 V versus RHE, with a high HCOOH partial current density of 7.5 mA cm⁻². In the flow cell configuration, Bi₂O₃@C performs better with a more positive onset potential, accompanied by FE_HCOOH of over 93% for a wide range of potentials and current density up to 200 mA cm⁻² at −1.1 V versus RHE. Bi₂O₃@C also sustains its high FE_HCOOH and current density during long-term electrolysis, indicating excellent stability. The remarkable performance can be explained by the synergistic effect between carbon matrix and Bi₂O₃, where the carbon matrix helps to improve the activity and current density, and Bi₂O₃ promotes fast reaction kinetics and HCOOH selectivity. Moreover, subcarbonates can be derived from MOFs in HCO₃⁻ solution. Yuan et al. [160] discovered that the Bi-O bonds in Bi–1,3,5-tris(4-carboxy-phenyl)benzene (Bi–BTB) were broken due to the effect of HCO₃⁻, resulting in an in situ transformation into Bi₂O₂CO₃ (Figure 25b). HCO₃⁻ can break the Bi³⁺ and carboxylate bond in the original Bi-MOF and induce reconstruction to form Bi₂O₂CO₃.

6.2.4. MOF-Derived N-Doped Porous Carbon (NPC)

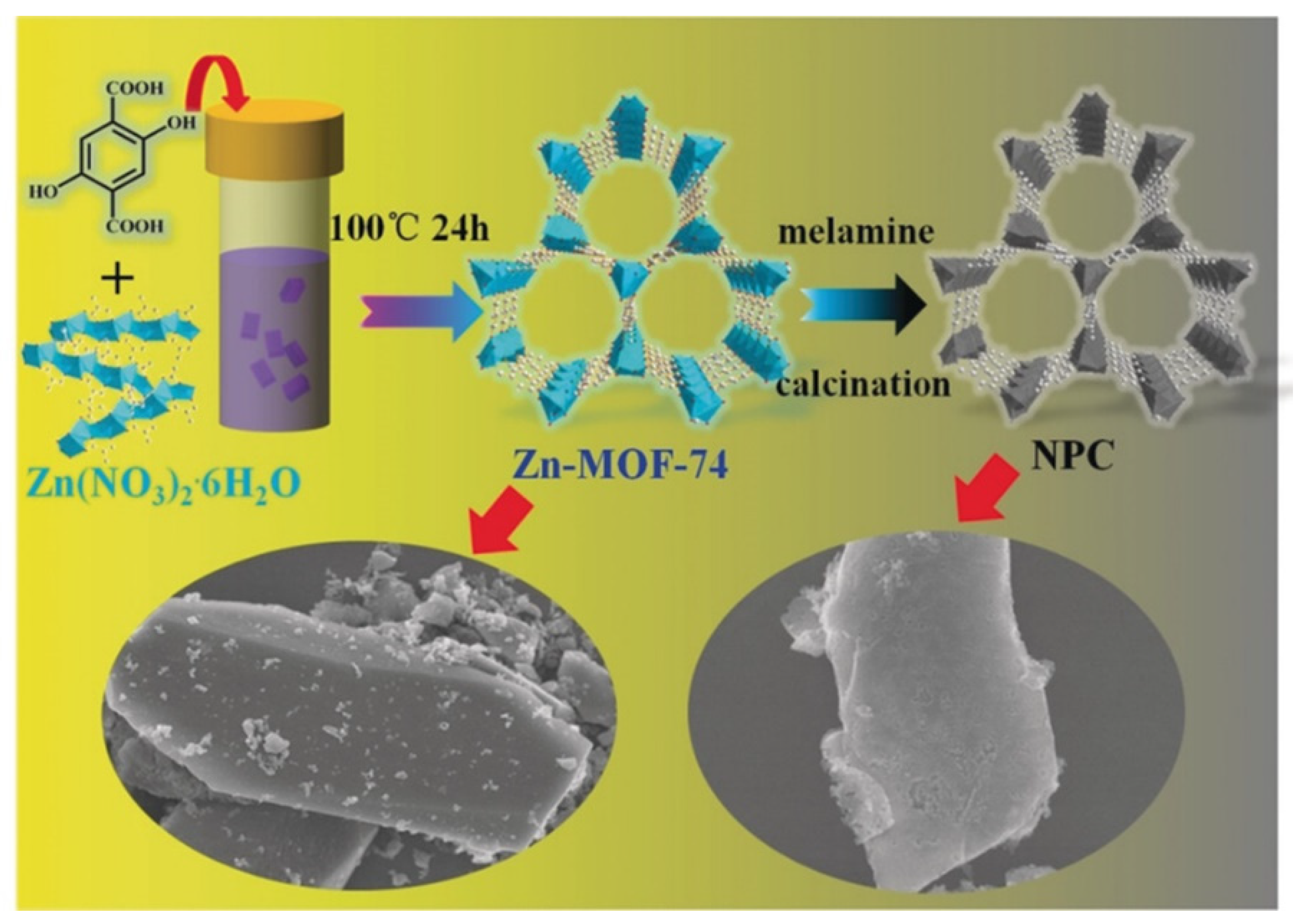

Porous carbon has shown advantages in promoting CO₂ adsorption and mass transfer. However, limited active sites have hindered its widespread use in catalysis. N species are important in CO₂ reduction to CO, with distinct types including pyridinic nitrogen, pyrrolic nitrogen, graphitic nitrogen, and oxidized nitrogen. To this end, the development of NPC has attracted great interest as a promising candidate. Ye et al. [161] reported an NPC derived from an oxygen-rich MOF precursor, Zn-MOF-74, with melamine as N source (Figure 26). By adjusting calcination conditions, the types and contents of N, along with pore size distribution, can be controlled. By increasing the temperature from 900 °C to 1000 °C, the abundance of active N species increases, alongside a higher proportion of opened pore space. As a result, the optimized NPC achieves a high FE_CO of 98.4% at −0.55 V versus RHE, with a small onset potential of −0.35 V. The exceptional performance is attributed to the presence of active N sites and large pore size. These features lower the energy barriers of the potential limiting steps for CO₂RR and make CO₂ more accessible to the active sites. Additionally, the author also prepared a porous carbon without N doping, and the result shows that both FE_CO and current density are inferior to that of NPC, further confirming the positive role of N species.

Table 6. Pristine MOFs for CO₂ electrocatalytic reduction and their performance.

MOF	Main Product	Faradic Efficiency (%)	Potential (V vs. RHE)	Ref.
Cu₂(CuTCPP)	HCOOH	68.4	−1.55 (V vs. Ag/Ag⁺)	[162]
In-BDC	HCOOH	88	−0.669	[142]
Bi-MOF	HCOOH	92	−0.64	[144]
Sn-MOF	HCOOH	92	−1.2	[143]
Sn-MOFPb₅	HCOOH	94.6	−1.1	[143]
Cu-THQ	CO	91	−0.45	[141]

Table 7. MOF derivatives for CO₂ electrocatalytic reduction and their performance.

Material	MOF Precursor	Main Product	Faradic Efficiency (%)	Potential (V vs. RHE)	Ref.
MOF-derived SACs
mesoNC-Fe	ZIF-8-Fe	CO	85	−0.73	[149]
Ni_SA-N₂-C	MgNi-MOF-74	CO	98	−0.8	[163]
Fe₁−Ni₁−N−C	Fe&Ni-ZnO/ZIF-8	CO	96.2	−0.5	[151]
PA-CuDBC-1	CuDBC	CH₄	75.3	−1.1	[150]
Ni-N-C	ZIF-8	CO	99	−0.68	[164]
Ni1-N-C (Cl)	ZIF-8	CO	94.7	−0.7	[165]
Cu−N−C-800	Cu(BTC)(H₂O)₃	C₂H₄	24.8	−1.4	[148]
Cu−N−C-900	Cu(BTC)(H₂O)₃	CH₄	38.6	−1.4	[148]
2Bn-Cu@UiO-67	UiO-67	CH₄	81	−1.5	[166]
MOF-derived metal compound
CuBi75	CuBi-MOF	HCOOH	100	−0.77	[158]
Bi₂O₃@C-800	BiBTC	HCOOH	92	−0.9	[159]
OD-Cu-3	Cu-ASP	C₂H₄	45	−1.3	[153]
Cu@Cu₂O-400	Cu-BTC	CH₃OH	45	−0.7	[157]
BiIn₅-500@C	Bi-MOF	HCOOH	97.5	−0.86	[167]
Bi₂O₂CO₃	Bi-BTB	HCOOH	96.1	−0.669	[160]
MOF-derived NPC
NPC-1000	Zn-MOF-74	CO	98.4	−0.55	[161]

7. MOF-Based Materials for CO₂ Hydrogenation

7.1. RWGS Reaction

CO serves as a pivotal precursor in chemical synthesis, particularly in Fischer–Tropsch Synthesis. This process is instrumental in the transformation of CO into a spectrum of liquid hydrocarbon fuels and an array of chemical products. An aerosol-assisted method was used to synthesize a Cu-based MOF (HKUST-1) supported on CeO₂ NP clusters. This composite was then utilized to fabricate MOF-derived Cu@CeO₂ hybrid nanomaterials for the RWGS reaction [168]. The study reveals that by reducing the Cu/Ce atomic ratio in the hybrid material, both the metal surface area and dispersion are significantly enhanced. The incorporation of CeO₂ NP clusters is shown to improve the activity and stability of the MOF-derived nanostructured catalysts. The catalysts exhibit high selectivity and operational stability for RWGS, achieving superior catalytic activity at relatively low temperatures, exemplified by a TOF of 0.1635 s⁻¹ at 400 °C. Gaje et al. [169] reported the development of a novel composite catalyst, derived from the polyoxometalate-HKUST-1 complex, forming a nanostructured Na-Cu-Mo₂C material. Utilizing a unique in situ carburization method of MOF, they immobilized Cu metal NPs uniformly dispersed onto Mo₂C. This newly developed catalyst exhibits superior performance in the RWGS reaction, with a CO production rate of 3230 mmol g_cat⁻¹ h⁻¹ and 100% CO selectivity. Notably, the catalyst retains over 80% of its initial activity even after a 250 h stability test.

7.2. CO₂ Methanation

CO₂ methanation is a key technology for integrating renewable energy with the existing natural gas infrastructure and for creating a sustainable energy system. Chen et al. [170] reported the development of a Zr-based MOF (MOF-545: Zr₆O₄(OH)₄(TCPP)_x) composite for CO₂ methanation. They initially investigated the performance of MOF-545 and Cu-modified MOF-545 (MOF-545(Cu)) as support catalysts under catalytic conditions, and found that the MOF could be transformed into a catalytically active material under high-temperature conditions.

Subsequently, Ni@MOF-545 catalysts were prepared using impregnation (IM) and double solvent (DS) methods, followed by dry reduction under hydrogen to immobilize Ni NPs. The results show that the Ni@MOF-545 catalyst, prepared using the DS method, exhibits the highest catalytic activity, with a methane production rate of 595 mmol_CH4 g_Ni⁻¹ h⁻¹ and a CO₂ conversion of 60% after approximately 3 h, along with 100% CH₄ selectivity.

7.3. CO₂ Methanolation

Given the extensive range of applications of CH₃OH in comparison to CO and CH₄, there is a significant market demand for this compound. Consequently, CO₂ hydrogenation into methanol is regarded as a process with considerable economic potential and profitability. However, despite the aforementioned advantages of CH₃OH production, it is essential to consider the technical challenges associated with the synthesis process, including the selection of catalysts, optimization of reaction conditions, and energy efficiency. Moreover, the toxicity and corrosiveness of CH₃OH must be carefully addressed in its applications.

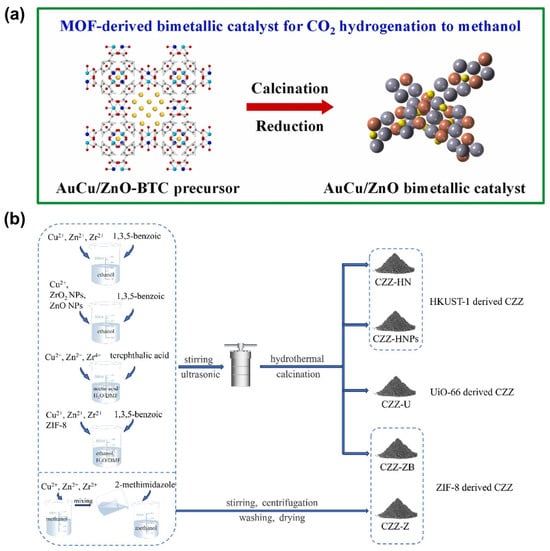

The Cu/ZnO/Al₂O₃ catalyst has been commercially used in the transformation of CO and H₂ into CH₃OH. The tri-component catalyst, with Cu as the active phase, ZnO as the promoter, and Al₂O₃ as the support, exemplifies a synergistic ensemble that endows the catalyst with remarkable activity and selectivity. The design of MOF-based materials for CO₂ methanolation is progressing toward this end. Three types of novel AuCu/ZnO bimetallic catalyst, namely AuCu/ZnO-BTC, AuCu/ZnO-BDC, and AuCu/ZnO-MOF-74, were prepared through a straightforward hydrothermal method from various MOF precursors [171] (Figure 27a). Under conditions of 250 °C and 3 MPa, the AuCu/ZnO-BTC catalyst demonstrates the highest activity, with a space–time yield (STY_MeOH) of 359 g_MeOH kg_cat⁻¹ h⁻¹, indicating high activity in the CO₂ hydrogenation reaction for CH₃OH production. Compared to the other two catalysts, AuCu/ZnO-BTC has a higher specific surface area, smaller metal particle size, more oxygen vacancies, stronger metal–support interactions, and a larger number of medium basic sites. As confirmed by in situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) studies, these features allow easy generation of *HCOO and bridged-methoxy (*b-OCH₃) species, which may work together synergistically to enhance CH₃OH synthesis activity. Wu et al. [172] utilized different MOF precursors (HKUST-1, ZIF-8, and UiO-66) to synthesize five types of MOF-derivative Cu-ZnO-ZrO₂ (CZZ) catalysts through a top–down approach (Figure 27b). These were compared with a conventionally prepared catalyst (CZZ-CP) by co-precipitation method. In the CO₂ hydrogenation reaction, MOF-derived catalysts show varying CO₂ conversion rates and methanol selectivities compared to CZZ-CP. Notably, the catalyst derived from HKUST-1 demonstrates superior CH₃OH synthesis activity and selectivity due to its enhanced metal–oxide interactions and higher number of surface Cu sites. This indicates that CO₂ hydrogenation activity is related to the number of surface Cu sites, and different Cu sites influence the product distribution. The catalyst derived from HKUST-1 shows higher STY_MeOH and TOF due to its higher Cu⁺ content and reduction properties.

Despite constructing MOF derivatives for CO₂ methanolation, the use of MOF as a support also shows promise. Vali et al. [173] presented a study on the synthesis and application of Cu/ZnO/CeO₂, supported on the MOF-5 (also denoted as HKUST-1). The Cu/ZnO/CeO₂ nanocomposite supported on MOF-5 enhances the dispersion of active sites and controls NP agglomeration during synthesis. This approach addresses the issue of low surface area in commercial Cu/ZnO/Al₂O₃ catalysts caused by NP agglomeration. The Cu/ZnO/CeO₂@MOF-5 catalyst demonstrates higher CH₃OH selectivity compared to commercial catalysts, attributed to the interfacial sites generated between MOF-5 and Cu/ZnO, favoring CH₃OH synthesis over CO. CeO₂ as a support for Cu/ZnO instead of Al₂O₃ results in smaller particle size and superior dispersion of Cu active sites. The oxygen vacancies generated on the Cu/CeO₂ interface due to metal–support interactions are found to enhance Cu dispersion and stabilize key reaction intermediates, leading to higher selectivity. This article illustrates an effective modification of traditional catalysts and elucidates the advantages of utilizing MOFs as a support.

8. MOF-Based Materials for Dual Functionalities

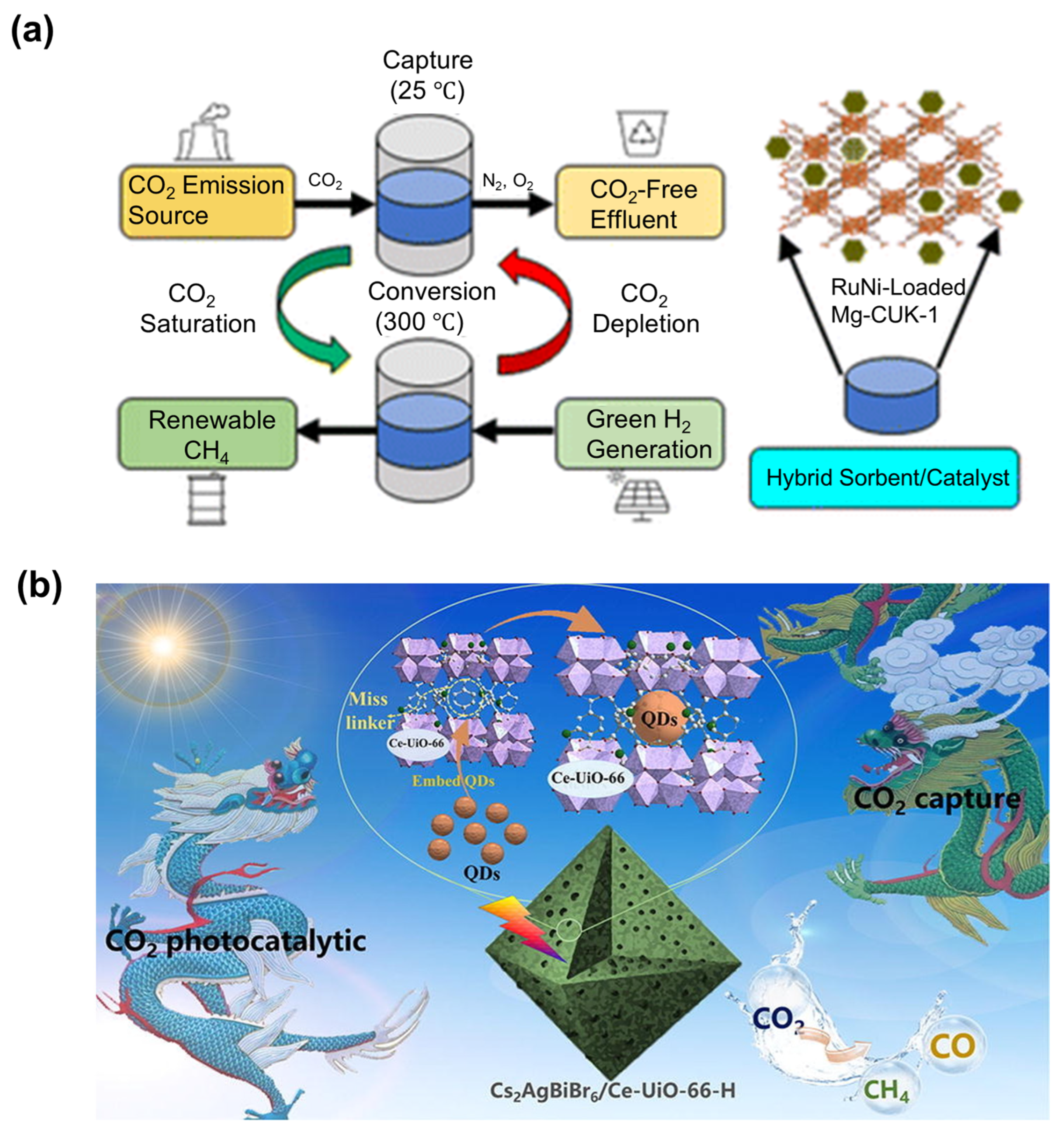

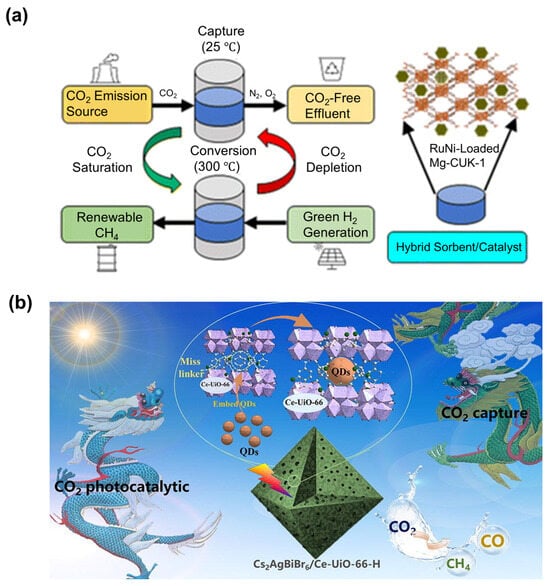

An innovative approach to CCU, known as Reactive Capture (RC), integrates the processes of CO₂ capture and conversion. This approach is designed to reduce the energy and capital costs in the production of valuable products from dilute CO₂ streams such as air or flue gas [174]. The direct conversion of captured CO₂ into value-added products eliminates the need for dedicated CO₂ desorption and compression steps, thereby reducing energy intensity and capital expenditure. The design of MOF-based materials for both CO₂ capture and conversion to form bifunctional materials shows a great application prospect. The bifunctional materials are important in reducing the operational costs and ensuring the longevity of the materials in industrial applications. These advantages make the bifunctional materials highly suitable for large-scale implementation in various industrial sectors, particularly those with high CO₂ emissions, offering a sustainable solution for carbon management and chemical production.

Timothy et al. [175] present an innovative method for the development of a hybrid sorbent/catalyst material for the efficient CO₂ capture and conversion into methane (Figure 28a). The material, named 0.3Ru2.7Ni Mg-CUK-1, integrates an MOF, Mg-CUK-1 (Mg₃(μ₃OH)₂(2,4−pdc)₂), with bimetallic RuNi NPs. This hybrid material leverages the advantages of Mg-CUK-1 for CO₂ adsorption and the catalytic properties of Ru and Ni for the hydrogenation of CO₂. The low loading of nanocatalysts on the MOF preserves substantial CO₂ uptake capacity. The excellent CO₂ conversion ability is further proven by the hydrogenation reaction due to the presence of Ru and Ni. A significant aspect of the study is the assessment of catalyst performance under oxygen exposure, which is critical for practical applications. The study found that Ru-loaded Mg-CUK-1 exhibited oxygen tolerance, maintaining CH₄ generation over multiple cycles. The introduction of Ru helps to maintain the catalytic activity of Ni in the presence of oxygen. This research highlights that the MOF hybrid can be used as an effective bifunctional material for both CO₂ capture and conversion.

In addition, an innovative class of bifunctional materials has been developed which incorporates Cs₂AgBiBr₆ QDs into the framework of Ce-UiO-66-H. This composite significantly enhances the CO₂ adsorption capacity and effectively harnesses solar energy to drive the transformation of CO₂ into useful chemical fuels (Figure 28b) [176]. The integration of Cs₂AgBiBr₆ QDs within the Ce-UiO-66-H matrix not only boosts the CO₂ uptake owing to the larger surface area and the presence of more active sites but also facilitates the separation of photogenerated charge carriers, highlighting the synergistic effect of the composite structure. This article presents a significant step forward in the creation of a novel material for CO₂ capture and photocatalytic conversion, showcasing the potential of combining inorganic SCs with MOFs for enhanced CO₂ capture and solar-energy-driven CO₂ reduction to valuable chemicals.

9. Conclusions

Recent decades have witnessed the rapid development of MOF-based materials. The continuous advancement of MOFs offers boundless opportunities for CO₂ capture and conversion, crucial for mitigating greenhouse gas emissions and addressing climate change. The inherent advantages of MOFs make them highly promising materials. The large specific surface area and porous structure facilitate efficient CO₂ adsorption. In addition, their tunable chemical structure allows for various modification strategies aimed at enhancing MOF properties. These include the formation of open metal sites and the introduction of functional groups to enhance affinity with CO₂, thus promoting interactions between CO₂ molecules and the framework. The precise architectural arrangement within MOFs ensures a uniform distribution of catalytically active sites, thereby granting them exceptional catalytic efficacy for CO₂ reduction. Additionally, MOFs serve as ideal templates and precursors for fabricating MOF composites or derivatives. The resultant materials not only inherit the corresponding merits of MOFs but also generate new benefits. Research aimed at improving CO₂ capture and conversion capacity remains ongoing, with the selection of appropriate MOFs being crucial for achieving desired results.

In this article, we have first introduced the processes and mechanisms of CO₂ capture and conversion. We then provided an overview of recent progress in MOF-based materials for CO₂ capture and conversion, including CO₂ adsorption and separation, photocatalytic reduction, electrocatalytic reduction, CO₂ hydrogenation, and dual functionalities. We highlighted that the physical structures and chemical compositions of MOFs are key factors for CO₂ adsorption and separation. The performance and selectivity of CO₂ catalytic reduction are strongly associated with the electron transfer pathways and involvement of intermediates. All the illustrated examples provided us with deep insights into synthesizing highly active and stable MOF-based materials.

10. Future Directions toward Industrial Applications

The next frontier in the advancement of MOFs for industrial applications lies in targeted enhancements that address specific industry needs. Here, we propose a focused strategy for the development of MOF-based materials for CO₂ capture and conversion.

Targeted synthesis for specific industries: The development of MOFs tailored for CO₂ capture and separation in the petrochemical industry, for instance, requires materials that can selectively adsorb and desorb CO₂ under process conditions. Future research should concentrate on the synthesis of MOFs with pore sizes and structure chemistries optimized for the capture and separation of CO₂ from CH₄, N₂, and C₂H₂. In addition, a comprehensive study on the dynamic adsorption behavior of MOFs should be undertaken.
Enhancing MOF stability under industrial conditions: For MOFs to be viable in industrial settings, they must exhibit enhanced stability in the presence of moisture, heat, and mechanical stress. Future directions should include the design of MOFs with cross-linked structures or the incorporation of inorganic elements to bolster their robustness.
Catalytic MOFs for chemical production: The integration of catalytic sites within MOFs opens up avenues for one-pot synthesis and cascade reactions. The future will see the design of MOFs that can serve as heterogeneous catalysts for CO₂-related chemical production, with a focus on optimizing catalytic activity, selectivity, and recyclability. A design strategy oriented toward MOFs with multiple catalytic sites that can perform multistep reactions within a single framework is highly desirable.
Dual functionalities for both CO₂ capture and conversion: Dual-functional MOFs offer a one-step solution that combines adsorption and catalytic conversion within the same material. This not only reduces the need for separate processes and equipment but also potentially lowers the overall cost and complexity of CO₂ management. By capturing CO₂ and converting it into valuable chemicals or fuels in a single operation, dual-functional MOFs can increase the utilization rate of CO₂, contributing to a circular carbon economy.
Regulatory compliance and safety: As MOFs move toward industrial applications, compliance with safety regulations is imperative. Future work must include comprehensive safety assessments, including toxicity and environmental impact, to ensure that MOFs meet industry standards.
Lifecycle and cost analysis: A thorough analysis of the lifecycle costs associated with MOF production, use, and disposal is essential. Future directions should include the development of cost models and strategies for recycling and reusing MOF materials to minimize waste and environmental impact.
Industrial pilot studies: Transitioning from lab scale to industrial scale requires pilot studies to evaluate the performance of MOFs in real-world conditions. Future efforts should focus on scaling up MOF production and conducting pilot trials in collaboration with industry partners.

In summary, the future of MOF-based materials in CO₂ capture and conversion will hinge on the optimization of selectivity, kinetics, activity, stability, and economical efficiency, with close collaboration between material scientists, chemical engineers, and industry stakeholders to translate these advanced materials into practical solutions.

Author Contributions

Conceptualization, F.K. and W.C.; methodology, W.C.; validation, F.K. and W.C.; formal analysis, F.K.; investigation, F.K.; resources, W.C.; data curation, F.K.; writing—original draft preparation, F.K.; writing—review and editing, W.C.; visualization, F.K.; supervision, W.C.; project administration, F.K.; funding acquisition, W.C. All authors have read and agreed to the published version of the manuscript.

Funding

The authors appreciate the financial support provided by National Natural Science Foundation of China (Nos. 12104286), Program for Professor of Special Appointment in Shanghai (Youth Oriental Scholar, QD2019005).

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

BTC	1,3,5-benzene-tricarboxylic acid	bpy	4,4′-bipyridine
BPDC	5,5′-dicarboxylate-3,3′-dipyridine	TPDC	terphenyl-4,4″-dicarboxylate
ZIF	zeolitic imidazolate framework	MeIm	methylimidazole
ZIF-8	Zn(MeIm)₂	Hmim	2-methylimidazole
ZIF-67	Co(Hmim)₂	DMF	N,N-Dimethylformamide
MIL	Materials of Institut Lavoisier	BMI	1-butyl-3-methylimidazolium
MIL-101	Cr₃F(H₂O)₂O(BDC)₃·nH₂O	BDC	1,4-benzenedicarboxylate
MIL-125	Ti₈O₈(OH)₄–(O₂C–C₆H₄–CO₂)₆	UiO	University of Oslo
UiO-66	Zr₆O₆(OH)₄(BDC)	UiO-67	Zr₆O₆(OH)₄(BPDC)
UiO-68	Zr₆O₆(OH)₄(TPDC)	TCA^3–	4,4′,4″-tricarboxyltriphenylamine
MOF-808	[Zr₆O₄(μ₃-OH)₄(OH)₆(H₂O)₆(BTC)₂]·nH₂O	HKUST	Cu₃(BTC)₂
MBA	2-(5′-methyl-[2,2′-bipyridine]-5-yl)acetic acid	OD	oxide-derived
ABPY	4,4′-(9,10-anthracenediyl)bis-Pyridine	ASP	aspartic acid
H₄OATA	N,N′-bis(3,5-dicarboxyphenyl)oxalamide	PA	plasma-activated
F-H₂tzba	2-F-4-(1H-tetrazol-5-yl) benzoic acid	NPC	N-doped porous carbon
(H₂PhTz)Br	5-carboxy-3-(4-carboxybenzyl)thiazolium bromide	DBC	catecholate
H₂bpydc	2,2′-bipyridine-5,5′-dicarboxylic acid	THQ	tetrahydroxyquinone
dobpdc^4–	4,4′-dioxidobiphenyl-3,3′-dicarboxylate	dps	4.4′-dipyridylsulfide
NNU-55-M	[M₃(5-AD)₄(CO₂)₂] (CH₃COO⁻)₂ (M: Co, Ni, 5-AD: 5-Azabenzimidazole)
NNU-31-M	[Fe₂M(μ₃-O)(TCA)₂(H₂O)₃] (M: Co, Ni, Zn)	PT	phenanthroline dibenzoate
PCN	porous coordination network	ABTC:	3,3′,5,5′-azobenzenetetracarboxylate
PCN-250	consisting of Fe₃-μ₃-oxo clusters and tetratopic azobenzene-based ABTC ligand	BTB	1,3,5-tris(4-carboxy-phenyl)benzene
aip	5-aminoisophthalic	Tripp	2,4,6-tris(4-pyridyl)pyridine
dppe	1,2-bis(diphenylphosphino)ethane
NHC	N-heterocyclic carbenes	MUF	Massey University Framework
NMF	[Ni(phen)(oba)]_n·0.5_nH₂O (phen: 1,10-phenanthroline, oba: 4,4′-oxybis (benzoate))	MOF-177	Zn₄O(BTB)₂
pdc	pyridine dicarboxylate
MOF-11	Cu₂(ATC)·6H₂O	H₂L	2-(imidazol-1-yl)terephthalic acid
BTC	1,3,5-benzenetricarboxylate	DOBDC	2,5-dioxido-1,4-benzenedicarboxylate
MOF-74	consisted of transition-metal cations (M) (M: Zn²⁺, Mg²⁺, Co²⁺, Cd²⁺, Mn²⁺, Fe²⁺, or Ni²⁺) and the dobdc⁴⁻ or dhtp⁴⁻ (2,5-dihydroxyterephthalate) ligand
TAPP	4,4′,4″-(1,3,5-triazine-2,4,6-triyl) trianiline	DPA	2,5-dibromo-1,4-diformylbenzen
H₆TCPP	meso-tetra(carboxyphenyl)porphyrin	ATC	1,3,5,7-Adamantane Tetracarboxylate
DHBDC	2,5-dihydroxybenzene-1,4-dicarboxylic acid	CO₂RR	electrochemical CO₂ reduction

References

Li, Z.; Fang, H. Impacts of climate change on water erosion: A review. Earth Sci. Rev. 2016, 163, 94–117. [Google Scholar] [CrossRef]
Ebi, K.L.; Vanos, J.; Baldwin, J.W.; Bell, J.E.; Hondula, D.M.; Errett, N.A.; Hayes, K.; Reid, C.E.; Saha, S.; Spector, J.; et al. Extreme Weather and Climate Change: Population Health and Health System Implications. Annu. Rev. Public Health 2021, 42, 293–315. [Google Scholar] [CrossRef]
Seidl, R.; Thom, D.; Kautz, M.; Martin-Benito, D.; Peltoniemi, M.; Vacchiano, G.; Wild, J.; Ascoli, D.; Petr, M.; Honkaniemi, J.; et al. Forest disturbances under climate change. Nat. Clim. Change 2017, 7, 395–402. [Google Scholar] [CrossRef]
AghaKouchak, A.; Chiang, F.; Huning, L.S.; Love, C.A.; Mallakpour, I.; Mazdiyasni, O.; Moftakhari, H.; Papalexiou, S.M.; Ragno, E.; Sadegh, M. Climate Extremes and Compound Hazards in a Warming World. Annu. Rev. Earth Pl. Sc. 2020, 48, 519–548. [Google Scholar] [CrossRef]
Fowler, H.J.; Lenderink, G.; Prein, A.F.; Westra, S.; Allan, R.P.; Ban, N.; Barbero, R.; Berg, P.; Blenkinsop, S.; Do, H.X.; et al. Anthropogenic intensification of short-duration rainfall extremes. Nat. Rev. Earth Environ. 2021, 2, 107–122. [Google Scholar] [CrossRef]
Gilbert, L. The Impacts of Climate Change on Ticks and Tick-Borne Disease Risk. Annu. Rev. Entomol. 2021, 66, 373–388. [Google Scholar] [CrossRef]
Baker, R.E.; Mahmud, A.S.; Miller, I.F.; Rajeev, M.; Rasambainarivo, F.; Rice, B.L.; Takahashi, S.; Tatem, A.J.; Wagner, C.E.; Wang, L.-F.; et al. Infectious disease in an era of global change. Nat. Rev. Microbiol. 2022, 20, 193–205. [Google Scholar] [CrossRef] [PubMed]
Abbass, K.; Qasim, M.Z.; Song, H.; Murshed, M.; Mahmood, H.; Younis, I. A review of the global climate change impacts, adaptation, and sustainable mitigation measures. Environ. Sci. Pollut. 2022, 29, 42539–42559. [Google Scholar] [CrossRef] [PubMed]
Sesana, E.; Gagnon, A.S.; Ciantelli, C.; Cassar, J.; Hughes, J.J. Climate change impacts on cultural heritage: A literature review. Wires. Clim. Change 2021, 12, e710. [Google Scholar] [CrossRef]
Mukhopadhyay, R.; Sarkar, B.; Jat, H.S.; Sharma, P.C.; Bolan, N.S. Soil salinity under climate change: Challenges for sustainable agriculture and food security. J. Environ. Manag. 2021, 280, 111736. [Google Scholar] [CrossRef] [PubMed]
Gao, W.; Liang, S.; Wang, R.; Jiang, Q.; Zhang, Y.; Zheng, Q.; Xie, B.; Toe, C.Y.; Zhu, X.; Wang, J.; et al. Industrial carbon dioxide capture and utilization: State of the art and future challenges. Chem. Soc. Rev. 2020, 49, 8584–8686. [Google Scholar] [CrossRef]
Wang, Q.A.; Luo, J.Z.; Zhong, Z.Y.; Borgna, A. CO₂ capture by solid adsorbents and their applications: Current status and new trends. Energy Environ. Sci. 2011, 4, 42–55. [Google Scholar] [CrossRef]
Rashidi, N.A.; Yusup, S. An overview of activated carbons utilization for the post-combustion carbon dioxide capture. J. CO₂ Util. 2016, 13, 1–16. [Google Scholar] [CrossRef]
Ben Salem, I.; El Gamal, M.; Sharma, M.; Hameedi, S.; Howari, F.M. Utilization of the UAE date palm leaf biochar in carbon dioxide capture and sequestration processes. J. Environ. Manag. 2021, 299, 113644. [Google Scholar] [CrossRef]
Gan, F.; Wang, B.; Guo, J.; He, J.; Ma, S.; Jiang, X.; Jin, Z. Green synthesis of porous biochar with interconnected pore architectures from typical silicon-rich rice husk for efficient CO₂ capture. Sep. Purif. Technol. 2022, 302, 122089. [Google Scholar] [CrossRef]
Kamran, U.; Rhee, K.Y.; Lee, S.-Y.; Park, S.-J. Solvent-free conversion of cucumber peels to N-doped microporous carbons for efficient CO₂ capture performance. J. Clean. Prod. 2022, 369, 133367. [Google Scholar] [CrossRef]
Guo, S.; Li, Y.; Wang, Y.; Wang, L.; Sun, Y.; Liu, L. Recent advances in biochar-based adsorbents for CO₂ capture. Carbon Capture Sci. Technol. 2022, 4, 100059. [Google Scholar] [CrossRef]
Kattel, S.; Liu, P.; Chen, J.G.G. Tuning Selectivity of CO₂ Hydrogenation Reactions at the Metal/Oxide Interface. J. Am. Chem. Soc. 2017, 139, 9739–9754. [Google Scholar] [CrossRef] [PubMed]
Khan, M.K.; Butolia, P.; Jo, H.; Irshad, M.; Han, D.; Nam, K.W.; Kim, J. Selective Conversion of Carbon Dioxide into Liquid Hydrocarbons and Long-Chain α-Olefins over Fe-Amorphous AlO_x Bifunctional Catalysts. ACS Catal. 2020, 10, 10325–10338. [Google Scholar] [CrossRef]
Ahmed, S.; Bibi, S.S.; Irshad, M.; Asif, M.; Khan, M.K.; Kim, J. Synthesis of Long-chain Paraffins over Bimetallic Na-Fe_0.9Mg_0.1O_x by Direct CO₂ Hydrogenation. Top. Catal. 2024, 67, 363–376. [Google Scholar] [CrossRef]
Ahmed, S.; Irshad, M.; Yoon, W.; Karanwal, N.; Sugiarto, J.R.; Khan, M.K.; Kim, S.K.; Kim, J. Evaluation of MgO as a promoter for the hydrogenation of CO₂ to long-chain hydrocarbons over Fe-based catalysts. Appl. Catal. B-Environ. 2023, 338, 123052. [Google Scholar] [CrossRef]
Kattel, S.; Yu, W.T.; Yang, X.F.; Yan, B.H.; Huang, Y.Q.; Wan, W.M.; Liu, P.; Chen, J.G.G. CO₂ Hydrogenation over Oxide-Supported PtCo Catalysts: The Role of the Oxide Support in Determining the Product Selectivity. Angew. Chem. Int. Ed. 2016, 55, 7968–7973. [Google Scholar] [CrossRef]
Galhardo, T.S.; Braga, A.H.; Arpini, B.H.; Szanyi, J.; Goncalves, R.V.; Zornio, B.F.; Miranda, C.R.; Rossi, L.M. Optimizing Active Sites for High CO Selectivity during CO₂ Hydrogenation over Supported Nickel Catalysts. J. Am. Chem. Soc. 2021, 143, 4268–4280. [Google Scholar] [CrossRef] [PubMed]
Mihet, M.; Dan, M.; Lazar, M.D. CO₂ Hydrogenation Catalyzed by Graphene-Based Materials. Molecules 2022, 27, 3367. [Google Scholar] [CrossRef]
Zhou, H.; Chen, Z.X.; Kountoupi, E.; Tsoukalou, A.; Abdala, P.M.; Florian, P.; Fedorov, A.; Müller, C.R. Two-dimensional molybdenum carbide 2D-Mo₂C as a superior catalyst for CO₂ hydrogenation. Nat. Commun. 2021, 12, 5510. [Google Scholar] [CrossRef] [PubMed]
Ola, O.; Maroto-Valer, M.M. Review of material design and reactor engineering on TiO₂ photocatalysis for CO₂ reduction. J. Photoch. Photobio. C 2015, 24, 16–42. [Google Scholar] [CrossRef]
Shehzad, N.; Tahir, M.; Johari, K.; Murugesan, T.; Hussain, M. A critical review on TiO₂ based photocatalytic CO₂ reduction system: Strategies to improve efficiency. J. CO₂ Util. 2018, 26, 98–122. [Google Scholar] [CrossRef]
Yancheshmeh, M.S.; Radfarnia, H.R.; Iliuta, M.C. High temperature CO₂ sorbents and their application for hydrogen production by sorption enhanced steam reforming process. Chem. Eng. J. 2016, 283, 420–444. [Google Scholar] [CrossRef]
Raganati, F.; Miccio, F.; Ammendola, P. Adsorption of Carbon Dioxide for Post-combustion Capture: A Review. Energy Fuel 2021, 35, 12845–12868. [Google Scholar] [CrossRef]
Wang, Z.J.; Song, H.; Liu, H.M.; Ye, J.H. Coupling of Solar Energy and Thermal Energy for Carbon Dioxide Reduction: Status and Prospects. Angew. Chem. Int. Ed. 2020, 59, 8016–8035. [Google Scholar] [CrossRef]
Ghanbari, T.; Abnisa, F.; Daud, W.M.A.W. A review on production of metal organic frameworks (MOF) for CO₂ adsorption. Sci. Total Environ. 2020, 707, 135090. [Google Scholar] [CrossRef] [PubMed]
He, H.; Perman, J.A.; Zhu, G.; Ma, S. Metal-Organic Frameworks for CO₂ Chemical Transformations. Small 2016, 12, 6309–6324. [Google Scholar] [CrossRef] [PubMed]
Cui, Y.; Li, B.; He, H.; Zhou, W.; Chen, B.; Qian, G. Metal-Organic Frameworks as Platforms for Functional Materials. Acc. Chem. Res. 2016, 49, 483–493. [Google Scholar] [CrossRef] [PubMed]
Cao, X.; Tan, C.; Sindoro, M.; Zhang, H. Hybrid micro-/nano-structures derived from metal-organic frameworks: Preparation and applications in energy storage and conversion. Chem. Soc. Rev. 2017, 46, 2660–2677. [Google Scholar] [CrossRef] [PubMed]
Shang, S.; Tao, Z.; Yang, C.; Hanif, A.; Li, L.; Tsang, D.C.W.; Gu, Q.; Shang, J. Facile synthesis of CuBTC and its graphene oxide composites as efficient adsorbents for CO₂ capture. Chem. Eng. J. 2020, 393, 124666. [Google Scholar] [CrossRef]
Liang, Q.; Yan, X.; Li, Z.; Wu, Z.; Shi, H.; Huang, H.; Kang, Z. Replacing Ru complex with carbon dots over MOF-derived Co₃O₄/In₂O₃ catalyst for efficient solar-driven CO₂ reduction. J. Mater. Chem. A 2022, 10, 4279–4287. [Google Scholar] [CrossRef]
An, B.; Li, Z.; Song, Y.; Zhang, J.Z.; Zeng, L.Z.; Wang, C.; Lin, W.B. Cooperative copper centres in a metal-organic framework for selective conversion of CO₂ to ethanol. Nat. Catal. 2019, 2, 709–717. [Google Scholar] [CrossRef]
Millward, A.R.; Yaghi, O.M. Metal-organic frameworks with exceptionally high capacity for storage of carbon dioxide at room temperature. J. Am. Chem. Soc. 2005, 127, 17998–17999. [Google Scholar] [CrossRef] [PubMed]
Bae, Y.S.; Snurr, R.Q. Development and evaluation of porous materials for carbon dioxide separation and capture. Angew. Chem. Int. Ed. 2011, 50, 11586–11596. [Google Scholar] [CrossRef]
Hunger, K.; Schmeling, N.; Jeazet, H.B.T.; Janiak, C.; Staudt, C.; Kleinermanns, K. Investigation of cross-linked and additive containing polymer materials for membranes with improved performance in pervaporation and gas separation. Membranes 2012, 2, 727–763. [Google Scholar] [CrossRef]
Alhamami, M.; Doan, H.; Cheng, C.H. A review on breathing behaviors of metal-organic-frameworks (MOFs) for gas adsorption. Materials 2014, 7, 3198–3250. [Google Scholar] [CrossRef] [PubMed]
Kathalikkattil, A.C.; Babu, R.; Tharun, J.; Roshan, R.; Park, D.W. Advancements in the conversion of carbon dioxide to cyclic carbonates using metal organic frameworks as catalysts. Catal. Surv. Asia 2015, 19, 223–235. [Google Scholar] [CrossRef]
Ding, M.; Flaig, R.W.; Jiang, H.-L.; Yaghi, O.M. Carbon capture and conversion using metal-organic frameworks and MOF-based materials. Chem. Soc. Rev. 2019, 48, 2783–2828. [Google Scholar] [CrossRef] [PubMed]
Zhao, Y.; Zheng, L.; Jiang, D.; Xia, W.; Xu, X.; Yamauchi, Y.; Ge, J.; Tang, J. Nanoengineering Metal-Organic Framework-Based Materials for Use in Electrochemical CO₂ Reduction Reactions. Small 2021, 17, e2006590. [Google Scholar] [CrossRef] [PubMed]
Fan, W.K.; Tahir, M. Recent advances on cobalt metal organic frameworks (MOFs) for photocatalytic CO₂ reduction to renewable energy and fuels: A review on current progress and future directions. Energy Convers. Manag. 2022, 253, 115180. [Google Scholar] [CrossRef]
Liu, M.X.; Peng, Y.; Chen, W.B.; Cao, S.; Chen, S.G.; Meng, F.L.; Jin, Y.C.; Hou, C.C.; Zou, R.Q.; Xu, Q. Metal-organic frameworks for carbon-neutral catalysis: State of the art, challenges, and opportunities. Coordin. Chem. Rev. 2024, 506, 215726. [Google Scholar] [CrossRef]
Bose, S.; Sengupta, D.; Rayder, T.M.; Wang, X.L.; Kirlikovali, K.O.; Sekizkardes, A.K.; Islamoglu, T.; Farha, O.K. Challenges and opportunities: Metal-organic frameworks for direct air capture. Adv. Funct. Mater. 2023, 2307478. [Google Scholar] [CrossRef]
Kokcam-Demir, U.; Goldman, A.; Esrafili, L.; Gharib, M.; Morsali, A.; Weingart, O.; Janiak, C. Coordinatively unsaturated metal sites (open metal sites) in metal-organic frameworks: Design and applications. Chem. Soc. Rev. 2020, 49, 2751–2798. [Google Scholar] [CrossRef]
Zhang, X.L.; Li, T.T.; Cao, Q.L.; Wang, Y.J.; Hou, W.L.; Wei, J.; Hu, H.; Sheng, J.M.; Geng, L.L.; Zhang, D.S.; et al. Constructing [Co₆(μ₃-OH)₆]-based pillar-layered MOF with open metal sites via steric-hindrance effect on ligand for CO₂ adsorption and fixation. Inorg. Chem. Commun. 2022, 139, 109347. [Google Scholar] [CrossRef]
Zhu, X.; Xie, W.; Wu, J.; Miao, Y.; Xiang, C.; Chen, C.; Ge, B.; Gan, Z.; Yang, F.; Zhang, M.; et al. Recent advances in direct air capture by adsorption. Chem. Soc. Rev. 2022, 51, 6574–6651. [Google Scholar] [CrossRef]
Güçlü, Y.; Erer, H.; Demiral, H.; Altintas, C.; Keskin, S.; Tumanov, N.; Su, B.L.; Semerci, F. Oxalamide-Functionalized Metal Organic Frameworks for CO₂ Adsorption. ACS Appl. Mater. 2021, 13, 33188–33198. [Google Scholar] [CrossRef] [PubMed]
Gaikwad, S.; Kim, Y.; Gaikwad, R.; Han, S. Enhanced CO₂ capture capacity of amine-functionalized MOF-177 metal organic framework. J. Environ. Chem. Eng. 2021, 9, 105523. [Google Scholar] [CrossRef]
Dinakar, B.; Forse, A.C.; Jiang, H.Z.H.; Zhu, Z.T.; Lee, J.H.; Kim, E.J.; Parker, S.T.; Pollak, C.J.; Siegelman, R.L.; Milner, P.J.; et al. Overcoming Metastable CO₂ Adsorption in a Bulky Diamine-Appended Metal-Organic Framework. J. Am. Chem. Soc. 2021, 143, 15258–15270. [Google Scholar] [CrossRef] [PubMed]
Cmarik, G.E.; Kim, M.; Cohen, S.M.; Walton, K.S. Tuning the Adsorption Properties of UiO-66 via Ligand Functionalization. Langmuir 2012, 28, 15606–15613. [Google Scholar] [CrossRef] [PubMed]
Chen, S.J.; Li, X.J.; Duan, J.; Fu, Y.; Wang, Z.Y.; Zhu, M.; Li, N. Investigation of highly efficient adsorbent based on Ni-MOF-74 in the separation of CO₂ from natural gas. Chem. Eng. J. 2021, 419, 129653. [Google Scholar] [CrossRef]
Lin, R.B.; Zhang, Z.J.; Chen, B.L. Achieving High Performance Metal-Organic Framework Materials through Pore Engineering. Acc. Chem. Res. 2021, 54, 3362–3376. [Google Scholar] [CrossRef] [PubMed]
Kalmutzki, M.J.; Hanikel, N.; Yaghi, O.M. Secondary building units as the turning point in the development of the reticular chemistry of MOFs. Sci. Adv. 2018, 4, eaat9180. [Google Scholar] [CrossRef] [PubMed]
Wang, J.; Zhang, Y.; Su, Y.; Liu, X.; Zhang, P.X.; Lin, R.B.; Chen, S.X.; Deng, Q.; Zeng, Z.L.; Deng, S.G.; et al. Fine pore engineering in a series of isoreticular metal-organic frameworks for efficient C₂H₂/CO₂ separation. Nat. Commun. 2022, 13, 200. [Google Scholar] [CrossRef] [PubMed]
Gu, Y.M.; Qi, H.F.; Qadir, S.; Sun, T.J.; Wei, R.C.; Zhao, S.S.; Liu, X.W.; Lai, Z.P.; Wang, S.D. A two-dimensional stacked metal-organic framework for ultra highly-efficient CO₂ sieving. Chem. Eng. J. 2022, 449, 137768. [Google Scholar] [CrossRef]
Zhai, Q.-G.; Bu, X.; Zhao, X.; Li, D.-S.; Feng, P. Pore space partition in metal-organic frameworks. Acc. Chem. Res. 2017, 50, 407–417. [Google Scholar] [CrossRef] [PubMed]
Ye, Y.; Ma, Z.; Lin, R.-B.; Krishna, R.; Zhou, W.; Lin, Q.; Zhang, Z.; Xiang, S.; Chen, B. Pore Space Partition within a Metal-Organic Framework for Highly Efficient C₂H₂/CO₂ Separation. J. Am. Chem. Soc. 2019, 141, 4130–4136. [Google Scholar] [CrossRef] [PubMed]
Chen, L.Y.; Xu, Q. Metal-Organic Framework Composites for Catalysis. Matter 2019, 1, 57–89. [Google Scholar] [CrossRef]
Chen, Y.Z.; Zhang, R.; Jiao, L.; Jiang, H.L. Metal-organic framework-derived porous materials for catalysis. Coord. Chem. Rev. 2018, 362, 1–23. [Google Scholar] [CrossRef]
He, Y.Z.; Wang, Z.W.; Wang, H.; Wang, Z.X.; Zeng, G.M.; Xu, P.; Huang, D.L.; Chen, M.; Song, B.; Qin, H.; et al. Metal-organic framework-derived nanomaterials in environment related fields: Fundamentals, properties and applications. Coord. Chem. Rev. 2021, 429, 213618. [Google Scholar] [CrossRef]
Zou, L.L.; Wei, Y.S.; Hou, C.C.; Li, C.X.; Xu, Q. Single-atom catalysts derived from metal-organic frameworks for electrochemical applications. Small 2021, 17, 2004809. [Google Scholar] [CrossRef] [PubMed]
Gibbins, J.; Chalmers, H. Carbon capture and storage. Energy Policy 2008, 36, 4317–4322. [Google Scholar] [CrossRef]
Sanz-Perez, E.S.; Murdock, C.R.; Didas, S.A.; Jones, C.W. Direct Capture of CO₂ from Ambient Air. Chem. Rev. 2016, 116, 11840–11876. [Google Scholar] [CrossRef]
Wall, T.; Liu, Y.H.; Spero, C.; Elliott, L.; Khare, S.; Rathnam, R.; Zeenathal, F.; Moghtaderi, B.; Buhre, B.; Sheng, C.D.; et al. An overview on oxyfuel coal combustion-State of the art research and technology development. Chem. Eng. Res. Des. 2009, 87, 1003–1016. [Google Scholar] [CrossRef]
Samanta, A.; Zhao, A.; Shimizu, G.K.H.; Sarkar, P.; Gupta, R. Post-Combustion CO₂ Capture Using Solid Sorbents: A Review. Ind. Eng. Chem. Res. 2012, 51, 1438–1463. [Google Scholar] [CrossRef]
Yu, C.H.; Huang, C.H.; Tan, C.S. A Review of CO₂ Capture by Absorption and Adsorption. Aerosol. Air. Qual. Res. 2012, 12, 745–769. [Google Scholar] [CrossRef]
Chang, X.; Wang, T.; Gong, J. CO₂ photo-reduction: Insights into CO₂ activation and reaction on surfaces of photocatalysts. Energy Environ. Sci. 2016, 9, 2177–2196. [Google Scholar] [CrossRef]
Wu, J.; Huang, Y.; Ye, W.; Li, Y. CO₂ Reduction: From the Electrochemical to Photochemical Approach. Adv. Sci. 2017, 4, 1700194. [Google Scholar] [CrossRef] [PubMed]
Zhang, L.; Zhao, Z.J.; Gong, J.L. Nanostructured materials for heterogeneous electrocatalytic CO₂ reduction and their related reaction mechanisms. Angew. Chem. Int. Ed. 2017, 56, 11326–11353. [Google Scholar] [CrossRef] [PubMed]
Ra, E.C.; Kim, K.Y.; Kim, E.H.; Lee, H.; An, K.; Lee, J.S. Recycling carbon dioxide through catalytic hydrogenation: Recent key developments and perspectives. Acs Catal. 2020, 10, 11318–11345. [Google Scholar] [CrossRef]
Zhou, W.; Cheng, K.; Kang, J.C.; Zhou, C.; Subramanian, V.; Zhang, Q.H.; Wang, Y. New horizon in C1 chemistry: Breaking the selectivity limitation in transformation of syngas and hydrogenation of CO₂ into hydrocarbon chemicals and fuels. Chem. Soc. Rev. 2019, 48, 3193–3228. [Google Scholar] [CrossRef] [PubMed]
Aziz, M.A.A.; Jalil, A.A.; Triwahyono, S.; Ahmad, A. CO₂ methanation over heterogeneous catalysts: Recent progress and future prospects. Green Chem. 2015, 17, 2647–2663. [Google Scholar] [CrossRef]
Lee, W.J.; Li, C.; Prajitno, H.; Yoo, J.; Patel, J.; Yang, Y.; Lim, S. Recent trend in thermal catalytic low temperature CO₂ methanation: A critical review. Catal. Today 2021, 368, 2–19. [Google Scholar] [CrossRef]
Su, X.; Xu, J.H.; Liang, B.L.; Duan, H.M.; Hou, B.L.; Huang, Y.Q. Catalytic carbon dioxide hydrogenation to methane: A review of recent studies. J. Energy Chem. 2016, 25, 553–565. [Google Scholar] [CrossRef]
Niu, J.T.; Liu, H.Y.; Jin, Y.; Fan, B.G.; Qi, W.J.; Ran, J.Y. Comprehensive review of Cu-based CO₂ hydrogenation to CH₃OH: Insights from experimental work and theoretical analysis. Int. J. Hydrogen Energy 2022, 47, 9183–9200. [Google Scholar] [CrossRef]
Zhong, J.W.; Yang, X.F.; Wu, Z.L.; Liang, B.L.; Huang, Y.Q.; Zhang, T. State of the art and perspectives in heterogeneous catalysis of CO₂ hydrogenation to methanol. Chem. Soc. Rev. 2020, 49, 1385–1413. [Google Scholar] [CrossRef] [PubMed]
Navarro-Jaen, S.; Virginie, M.; Bonin, J.; Robert, M.; Wojcieszak, R.; Khodakov, A.Y. Highlights and challenges in the selective reduction of carbon dioxide to methanol. Nat. Rev. Chem. 2021, 5, 564–579. [Google Scholar] [CrossRef] [PubMed]
Sugiyama, H.; Miyazaki, M.; Sasase, M.; Kitano, M.; Hosono, H. Room-temperature CO₂ hydrogenation to methanol over air-stable hcp-PdMo intermetallic catalyst. J. Am. Chem. Soc. 2023, 145, 9410–9416. [Google Scholar] [CrossRef]
Qazvini, O.T.; Telfer, S.G. A robust metal-organic framework for post-combustion carbon dioxide capture. J. Mater. Chem. A 2020, 8, 12028–12034. [Google Scholar] [CrossRef]
Chen, B.L.; Eddaoudi, M.; Reineke, T.M.; Kampf, J.W.; O’Keeffe, M.; Yaghi, O.M. Cu₂(ATC)·6H₂O: Design of open metal sites in porous metal-organic crystals (ATC: 1,3,5,7-adamantane tetracarboxylate). J. Am. Chem. Soc. 2000, 122, 11559–11560. [Google Scholar] [CrossRef]
Wu, H.X.; Yuan, Y.N.; Chen, Y.W.; Lv, D.F.; Tu, S.; Wu, Y.; Li, Z.; Xia, Q.B. Highly Efficient Capture of Postcombustion Generated CO₂ through a Copper-Based Metal-Organic Framework. Energy Fuel 2021, 35, 610–617. [Google Scholar] [CrossRef]
Liu, J.; Yang, G.P.; Jin, J.; Wu, D.; Ma, L.F.; Wang, Y.Y. A first new porous d-p HMOF material with multiple active sites for excellent CO₂ capture and catalysis. Chem. Commun. 2020, 56, 2395–2398. [Google Scholar] [CrossRef]
Lyu, H.; Chen, O.I.-F.; Hanikel, N.; Hossain, M.I.; Flaig, R.W.; Pei, X.; Amin, A.; Doherty, M.D.; Impastato, R.K.; Glover, T.G.; et al. Carbon dioxide capture chemistry of amino acid functionalized metal-organic frameworks in humid flue gas. J. Am. Chem. Soc. 2022, 144, 2387–2396. [Google Scholar] [CrossRef]
Shi, Z.; Tao, Y.; Wu, J.; Zhang, C.; He, H.; Long, L.; Lee, Y.; Li, T.; Zhang, Y.-B. Robust metal-triazolate frameworks for CO₂ capture from flue gas. J. Am. Chem. Soc. 2020, 142, 2750–2754. [Google Scholar] [CrossRef] [PubMed]
Park, J.M.; Yoo, D.K.; Jhung, S.H. Selective CO₂ adsorption over functionalized Zr-based metal organic framework under atmospheric or lower pressure: Contribution of functional groups to adsorption. Chem. Eng. J. 2020, 402, 126254. [Google Scholar] [CrossRef]
Wan, Y.J.; Miao, Y.F.; Zhong, R.Q.; Zou, R.Q. High-selective CO₂ capture in amine-decorated Al-MOFs. Nanomaterials 2022, 12, 4056. [Google Scholar] [CrossRef] [PubMed]
Bose, S.; Sengupta, D.; Malliakas, C.D.; Idrees, K.B.; Xie, H.M.; Wang, X.L.; Barsoum, M.L.; Barker, N.M.; Dravid, V.P.; Islamoglu, T.; et al. Suitability of a diamine functionalized metal-organic framework for direct air capture. Chem. Sci. 2023, 14, 9380–9388. [Google Scholar] [CrossRef]
Bharath, Y.; Rajendran, A. Evaluation of a tetramine-appended MOF for post combustion CO₂ capture from natural gas combined cycle flue gas by steam-assisted temperature swing adsorption. Int. J. Greenh. Gas. Con. 2024, 131, 104016. [Google Scholar] [CrossRef]
Hazra, A.; Bonakala, S.; Adalikwu, S.A.; Balasubramanian, S.; Maji, T.K. Fluorocarbon-functionalized superhydrophobic metal-organic framework: Enhanced CO₂ uptake via photoinduced postsynthetic modification. Inorg. Chem. 2021, 60, 3823–3833. [Google Scholar] [CrossRef]
Kim, S.; Yoon, T.-U.; Oh, K.H.; Kwak, J.; Bae, Y.-S.; Kim, M. Positional Installation of Unsymmetrical Fluorine Functionalities onto Metal-Organic Frameworks for Efficient Carbon Dioxide Separation under Humid Conditions. Inorg. Chem. 2020, 59, 18048–18054. [Google Scholar] [CrossRef] [PubMed]
Feng, Y.; Wang, Z.K.; Fan, W.D.; Kang, Z.X.; Feng, S.; Fan, L.L.; Hu, S.Q.; Sun, D.F. Engineering the pore environment of metal-organic framework membranes via modification of the secondary building unit for improved gas separation. J. Mater. Chem. A 2020, 8, 13132–13141. [Google Scholar] [CrossRef]
Chen, B.B.; Fan, D.; Pinto, R.V.; Dovgaliuk, I.; Nandi, S.; Chakraborty, D.; Garcia-Moncada, N.; Vimont, A.; McMonagle, C.J.; Bordonhos, M.; et al. A Scalable Robust Microporous Al-MOF for post-combustion carbon capture. Adv. Sci. 2024, 11, 2401070. [Google Scholar] [CrossRef]
Zhao, M.; Ban, Y.; Yang, W. Assembly of ionic liquid molecule layers on metal-organic framework-808 for CO₂ capture. Chem. Eng. J. 2022, 439, 135650. [Google Scholar] [CrossRef]
Zeeshan, M.; Gulbalkan, H.C.; Durak, O.; Haslak, Z.P.; Unal, U.; Keskin, S.; Uzun, A. An Integrated Computational-Experimental Hierarchical Approach for the Rational Design of an IL/UiO-66 Composite Offering Infinite CO₂ Selectivity. Adv. Funct. Mater. 2022, 32, 2204149. [Google Scholar] [CrossRef]
Wang, J.Y.; Cui, S.M.; Li, Z.H.; Wen, S.K.; Ning, P.; Lu, S.J.; Lu, P.; Huang, L.; Wang, Q. Comprehensive investigation of dynamic CO₂ capture performance using Mg/DOBDC as precursor to fabricate a composite of metallic organic framework and graphene oxide. Chem. Eng. J. 2021, 415, 128859. [Google Scholar] [CrossRef]
Fakhraie, S.; Rajabi, H.R.; Rashidi, A. Fabrication and application of novel core-shell MIL-101(Cr)@UiO-66(Zr) nanocrystals for highly selective separation of H₂S and CO₂. Chem. Eng. J. 2023, 452, 139001. [Google Scholar] [CrossRef]
Zhang, J.; Huang, D.; Shao, J.; Zhang, X.; Zhang, S.; Yang, H.; Chen, H. A new nitrogen-enriched biochar modified by ZIF-8 grafting and annealing for enhancing CO₂ adsorption. Fuel Process Technol. 2022, 231, 107250. [Google Scholar] [CrossRef]
Wang, J.J.; Wang, L.Z.; Wang, Y.; Yang, F.; Li, J.W.; Guan, X.Y.; Zong, J.J.; Zhou, F.; Huang, J.H.; Liu, Y.N. Covalently connected core-shell NH₂-UiO-66@Br-COFs hybrid materials for CO₂ capture and I₂ vapor adsorption. Chem. Eng. J. 2022, 438, 135555. [Google Scholar] [CrossRef]
Liu, Y.; Ghimire, P.; Jaroniec, M. Copper benzene-1,3,5-tricarboxylate (Cu-BTC) metal-organic framework (MOP) and porous carbon composites as efficient carbon dioxide adsorbents. J. Colloid Interface Sci. 2019, 535, 122–132. [Google Scholar] [CrossRef]
He, C.; Hou, C.; Wang, Y.M.; Gong, X.Y.; Jiang, H.L.; Sun, Y.B.; Liu, K.; Cao, X.Q. Open metal site (OMS) and Lewis basic site (LBS)-functionalized copper-organic framework with high CO₂ uptake performance and highly selective CO₂/N₂ and CO₂/CH₄ separation. CrystEngComm 2020, 22, 3378–3384. [Google Scholar] [CrossRef]
Li, Y.-Z.; Wang, G.-D.; Yang, H.-Y.; Hou, L.; Wang, Y.-Y.; Zhu, Z. Novel cage-like MOF for gas separation, CO₂ conversion and selective adsorption of an organic dye. Inorg. Chem. Front. 2020, 7, 746–755. [Google Scholar] [CrossRef]
Fan, L.; Zhao, D.; Zhang, H.; Wang, F.; Li, B.; Yang, L.; Deng, Y.; Zhang, X. A hydrolytically stable amino-functionalized Zinc(II) metal-organic framework containing nanocages for selective gas adsorption and luminescent sensing. Micropor. Mesopor. Mat. 2021, 326, 111396. [Google Scholar] [CrossRef]
Mercuri, G.; Moroni, M.; Galli, S.; Tuci, G.; Giambastiani, G.; Yan, T.; Liu, D.; Rossin, A. Temperature-Dependent Nitrous Oxide/Carbon Dioxide Preferential Adsorption in a Thiazolium-Functionalized NU-1000 Metal-Organic Framework. ACS Appl. Mater. 2021, 13, 58982–58993. [Google Scholar] [CrossRef] [PubMed]
Jun, H.J.; Yoo, D.K.; Jhung, S.H. Metal-organic framework (MOF-808) functionalized with ethyleneamines: Selective adsorbent to capture CO₂ under low pressure. J. CO₂ Util. 2022, 58, 101932. [Google Scholar] [CrossRef]
Varghese, A.M.; Reddy, K.S.K.; Bhoria, N.; Singh, S.; Pokhrel, J.; Karanikolos, G.N. Enhancing effect of UV activation of graphene oxide on carbon capture performance of metal-organic framework/graphene oxide hybrid adsorbents. Chem. Eng. J. 2021, 420, 129677. [Google Scholar] [CrossRef]
Xue, W.-L.; Wang, L.; Li, Y.K.; Chen, H.; Fu, K.X.; Zhang, F.; He, T.; Deng, Y.H.; Li, J.R.; Wan, C.-Q. Reticular Chemistry for Ionic Liquid-Functionalized Metal-Organic Frameworks with High Selectivity for CO₂. ACS Sustain. Chem. Eng. 2020, 8, 18558–18567. [Google Scholar] [CrossRef]
Gao, J.K.; Huang, Q.; Wu, Y.H.; Lan, Y.Q.; Chen, B.L. Metal-Organic Frameworks for Photo/Electrocatalysis. Adv. Energy Sustain. Res. 2021, 2, 2100033. [Google Scholar] [CrossRef]
Li, X.F.; Zhu, Q.L. MOF-based materials for photo- and electrocatalytic CO₂ reduction. Energychem 2020, 2, 100033. [Google Scholar] [CrossRef]
Qin, J.H.; Xu, P.; Huang, Y.D.; Xiao, L.Y.; Lu, W.W.; Yang, X.G.; Ma, L.F.; Zang, S.Q. High loading of Mn(ii)-metalated porphyrin in a MOF for photocatalytic CO₂ reduction in gas-solid conditions. Chem. Commun. 2021, 57, 8468–8471. [Google Scholar] [CrossRef]
Gao, W.Y.; Ngo, H.T.; Niu, Z.; Zhang, W.J.; Pan, Y.X.; Yang, Z.Y.; Bhethanabotla, V.R.; Joseph, B.; Aguila, B.; Ma, S.Q. A Mixed-Metal Porphyrinic Framework Promoting Gas-Phase CO₂ Photoreduction without Organic Sacrificial Agents. Chemsuschem 2020, 13, 6273–6277. [Google Scholar] [CrossRef]
Dong, L.Z.; Zhang, L.; Liu, J.; Huang, Q.; Lu, M.; Ji, W.X.; Lan, Y.Q. Stable heterometallic cluster-based organic framework catalysts for artificial photosynthesis. Angew. Chem. Int. Ed. 2020, 59, 2659–2663. [Google Scholar] [CrossRef]
Gao, Y.J.; Zhang, L.; Gu, Y.M.; Zhang, W.W.; Pan, Y.; Fang, W.H.; Ma, J.; Lan, Y.Q.; Bai, J.F. Formation of a mixed-valence Cu(i)/Cu(ii) metal-organic framework with the full light spectrum and high selectivity of CO₂ photoreduction into CH₄. Chem. Sci. 2020, 11, 10143–10148. [Google Scholar] [CrossRef] [PubMed]
Wang, G.; He, C.T.; Huang, R.; Mao, J.J.; Wang, D.S.; Li, Y.D. Photoinduction of Cu single atoms decorated on UiO-66-NH₂ for enhanced photocatalytic reduction of CO₂ to liquid fuels. J. Am. Chem. Soc. 2020, 142, 19339–19345. [Google Scholar] [CrossRef] [PubMed]
Li, G.D.; Zhao, S.L.; Zhang, Y.; Tang, Z.Y. Metal-organic frameworks encapsulating active nanoparticles as emerging composites for catalysis: Recent progress and perspectives. Adv. Mater. 2018, 30, 1800702. [Google Scholar] [CrossRef] [PubMed]
Han, Y.Q.; Xu, H.T.; Su, Y.Q.; Xu, Z.L.; Wang, K.F.; Wang, W.Z. Noble metal (Pt, Au@Pd) nanoparticles supported on metal organic framework (MOF-74) nanoshuttles as high-selectivity CO₂ conversion catalysts. J. Catal. 2019, 370, 70–78. [Google Scholar] [CrossRef]
Dai, S.; Kajiwara, T.; Ikeda, M.; Romero-Muñiz, I.; Patriarche, G.; Platero-Prats, A.E.; Vimont, A.; Daturi, M.; Tissot, A.; Xu, Q.; et al. Ultrasmall copper nanoclusters in zirconium metal-organic frameworks for the photoreduction of CO₂. Angew. Chem. Int. Ed. 2022, 61, e202211848. [Google Scholar] [CrossRef] [PubMed]
Jiang, Y.L.; Yu, Y.; Zhang, X.; Weinert, M.; Song, X.L.; Ai, J.; Han, L.; Fei, H.H. N-heterocyclic carbene-stabilized ultrasmall gold Nanoclusters in a Metal-Organic Framework for Photocatalytic CO₂ Reduction. Angew. Chem. Int. Ed. 2021, 60, 17388–17393. [Google Scholar] [CrossRef]
Hao, Y.-C.; Chen, L.-W.; Li, J.; Guo, Y.; Su, X.; Shu, M.; Zhang, Q.; Gao, W.-Y.; Li, S.; Yu, Z.-L.; et al. Metal-organic framework membranes with single-atomic centers for photocatalytic CO₂ and O₂ reduction. Nat. Commun. 2021, 12, 2682. [Google Scholar] [CrossRef] [PubMed]
Karmakar, S.; Barman, S.; Rahimi, F.A.; Maji, T.K. Covalent grafting of molecular photosensitizer and catalyst on MOF-808: Effect of pore confinement toward visible light-driven CO₂ reduction in water. Energy Environ. Sci. 2021, 14, 2429–2440. [Google Scholar] [CrossRef]
Stanley, P.M.; Thomas, C.; Thyrhaug, E.; Urstoeger, A.; Schuster, M.; Hauer, J.; Rieger, B.; Warnan, J.; Fischer, R.A. Entrapped molecular photocatalyst and photosensitizer in metal-organic framework nanoreactors for enhanced solar CO₂ reduction. ACS Catal. 2021, 11, 871–882. [Google Scholar] [CrossRef]
Feng, X.Y.; Pi, Y.H.; Song, Y.; Brzezinski, C.; Xu, Z.W.; Li, Z.; Lin, W.B. Metal-organic frameworks significantly enhance photocatalytic hydrogen evolution and CO₂ reduction with earth-abundant copper photosensitizers. J. Am. Chem. Soc. 2020, 142, 690–695. [Google Scholar] [CrossRef] [PubMed]
Hou, Q.Q.; Li, X.Y.; Pi, Y.H.; Xiao, J. Construction of In₂S₃@NH₂-MIL-68(In)@In₂S₃ sandwich homologous heterojunction for efficient CO₂ photoreduction. Ind. Eng. Chem. Res. 2020, 59, 20711–20718. [Google Scholar] [CrossRef]
Zhou, A.W.; Dou, Y.B.; Zhao, C.; Zhou, J.; Wu, X.Q.; Li, J.R. A leaf-branch TiO₂/carbon@MOF composite for selective CO₂ photoreduction. Appl. Catal. B-Environ. Energy 2020, 264, 118519. [Google Scholar] [CrossRef]
Liang, S.M.; Chen, Y.J.; Han, W.; Jiao, Y.Z.; Li, W.; Tian, G.H. Hierarchical S-scheme titanium dioxide@cobalt-nickel based metal-organic framework nanotube photocatalyst for selective carbon dioxide photoreduction to methane. J. Colloid Interface Sci. 2023, 630, 11–22. [Google Scholar] [CrossRef]
Xu, Q.; Zhang, L.; Cheng, B.; Fan, J.; Yu, J. S-Scheme Heterojunction Photocatalyst. Chem 2020, 6, 1543–1559. [Google Scholar] [CrossRef]
Xia, Y.-S.; Tang, M.; Zhang, L.; Liu, J.; Jiang, C.; Gao, G.-K.; Dong, L.-Z.; Xie, L.-G.; Lan, Y.-Q. Tandem utilization of CO₂ photoreduction products for the carbonylation of aryl iodides. Nat. Commun. 2022, 13, 2964. [Google Scholar] [CrossRef]
Dong, H.; Zhang, X.; Lu, Y.; Yang, Y.; Zhang, Y.-P.; Tang, H.-L.; Zhang, F.-M.; Yang, Z.-D.; Sun, X.; Feng, Y. Regulation of metal ions in smart metal-cluster nodes of metal-organic frameworks with open metal sites for improved photocatalytic CO₂ reduction reaction. Appl. Catal. B-Environ. Energy 2020, 276, 119173. [Google Scholar] [CrossRef]
Guo, F.; Yang, S.; Liu, Y.; Wang, P.; Huang, J.; Sun, W.-Y. Size Engineering of Metal-Organic Framework MIL-101(Cr)-Ag Hybrids for Photocatalytic CO₂ Reduction. ACS Catal. 2019, 9, 8464–8470. [Google Scholar] [CrossRef]
Liu, M.; Mu, Y.-F.; Yao, S.; Guo, S.; Guo, X.-W.; Zhang, Z.-M.; Lu, T.-B. Photosensitizing single-site metal organic framework enabling visible light-driven CO₂ reduction for syngas production. Appl. Catal. B-Environ. Energy 2019, 245, 496–501. [Google Scholar] [CrossRef]
Yan, Z.-H.; Ma, B.; Li, S.-R.; Liu, J.; Chen, R.; Du, M.-H.; Jin, S.; Zhuang, G.-L.; Long, L.-S.; Kong, X.-J.; et al. Encapsulating a Ni(II) molecular catalyst in photoactive metal-organic framework for highly efficient photoreduction of CO₂. Sci. Bull. 2019, 64, 976–985. [Google Scholar] [CrossRef]
Wan, S.; Ou, M.; Zhong, Q.; Wang, X. Perovskite-type CsPbBr₃ quantum dots/UiO-66(NH₂) nanojunction as efficient visible-light-driven photocatalyst for CO₂ reduction. Chem. Eng. J. 2019, 358, 1287–1295. [Google Scholar] [CrossRef]
Wang, L.; Jin, P.; Duan, S.; She, H.; Huang, J.; Wang, Q. In-situ incorporation of Copper(II) porphyrin functionalized zirconium MOF and TiO₂ for efficient photocatalytic CO₂ reduction. Sci. Bull. 2019, 64, 926–933. [Google Scholar] [CrossRef]
Zhao, X.; Sun, L.; Jin, X.; Xu, M.; Yin, S.; Li, J.; Li, X.; Shen, D.; Yan, Y.; Huo, P. Cu media constructed Z-scheme heterojunction of UiO-66-NH₂/Cu₂O/Cu for enhanced photocatalytic induction of CO₂. Appl. Surf. Sci. 2021, 545, 148967. [Google Scholar] [CrossRef]
Cai, W.; Yu, X.; Cao, Y.; Hu, C.; Wang, Y.; Zhao, Y.; Bu, Y. Electron-coupled enhanced interfacial interaction of Ce-MOF/Bi₂MoO₆ heterostructure for boosted photoreduction CO₂. J. Environ. Chem. Eng. 2022, 10, 107461. [Google Scholar] [CrossRef]
Ikreedeegh, R.R.; Tahir, M. Indirect Z-scheme heterojunction of NH₂-MIL-125(Ti) MOF/g-C₃N₄ nanocomposite with RGO solid electron mediator for efficient photocatalytic CO₂ reduction to CO and CH₄. J. Environ. Chem. Eng. 2021, 9, 105600. [Google Scholar] [CrossRef]
Xi, Y.; Zhang, X.; Shen, Y.; Dong, W.; Fan, Z.; Wang, K.; Zhong, S.; Bai, S. Aspect ratio dependent photocatalytic enhancement of CsPbBr₃ in CO₂ reduction with two-dimensional metal organic framework as a cocatalyst. Appl. Catal. B-Environ. Energy 2021, 297, 120411. [Google Scholar] [CrossRef]
Majidi, L.; Ahmadiparidari, A.; Shan, N.N.; Misal, S.N.; Kumar, K.; Huang, Z.H.; Rastegar, S.; Hemmat, Z.; Zou, X.D.; Zapol, P.; et al. 2D Copper Tetrahydroxyquinone Conductive Metal-Organic Framework for Selective CO₂ Electrocatalysis at Low Overpotentials. Adv. Mater. 2021, 33, 2004393. [Google Scholar] [CrossRef] [PubMed]
Hou, S.Z.; Zhang, X.D.; Yuan, W.W.; Li, Y.X.; Gu, Z.Y. Indium-Based Metal-Organic Framework for High-Performance Electroreduction of CO₂ to Formate. Inorg. Chem. 2020, 59, 11298–11304. [Google Scholar] [CrossRef] [PubMed]
Wang, X.Y.; Zou, Y.H.; Zhang, Y.X.; Marchetti, B.; Liu, Y.Y.; Yi, J.; Zhou, X.D.; Zhang, J.J. Tin-based metal organic framework catalysts for high-efficiency electrocatalytic CO₂ conversion into formate. J. Colloid Interface Sci. 2022, 626, 836–847. [Google Scholar] [CrossRef]
Liu, L.H.; Yao, K.L.; Fu, J.C.; Huang, Y.; Li, N.; Liang, H.Y. Bismuth metal-organic framework for electroreduction of carbon dioxide. Colloids Surf. A Physicochem. Eng. Asp. 2022, 633, 127840. [Google Scholar] [CrossRef]
Dong, L.Z.; Lu, Y.F.; Wang, R.; Zhou, J.; Zhang, Y.; Zhang, L.; Liu, J.; Li, S.L.; Lan, Y.Q. Porous copper cluster-based MOF with strong cuprophilic interactions for highly selective electrocatalytic reduction of CO₂ to CH₄. Nano Res. 2022, 15, 10185–10193. [Google Scholar] [CrossRef]
Yang, F.; Chen, A.L.; Deng, P.L.; Zhou, Y.Z.; Shahid, Z.; Liu, H.F.; Xia, B.Y. Highly efficient electroconversion of carbon dioxide into hydrocarbons by cathodized copper-organic frameworks. Chem. Sci. 2019, 10, 7975–7981. [Google Scholar] [CrossRef] [PubMed]
Qiao, B.T.; Wang, A.Q.; Yang, X.F.; Allard, L.F.; Jiang, Z.; Cui, Y.T.; Liu, J.Y.; Li, J.; Zhang, T. Single-atom catalysis of CO oxidation using Pt₁/FeO_x. Nat. Chem. 2011, 3, 634–641. [Google Scholar] [CrossRef]
Guan, A.X.; Chen, Z.; Quan, Y.L.; Peng, C.; Wang, Z.Q.; Sham, S.K.; Yang, C.; Ji, Y.L.; Qian, L.P.; Xu, X.; et al. Boosting CO₂ electroreduction to CH₄ via tuning neighboring single-copper sites. ACS Energy Lett. 2020, 5, 1044–1053. [Google Scholar] [CrossRef]
Sun, X.H.; Wang, R.M.; Ould-Chikh, S.; Osadchii, D.; Li, G.N.; Aguilar, A.; Hazemann, J.L.; Kapteijn, F.; Gascon, J. Structure-activity relationships in metal organic framework derived mesoporous nitrogen-doped carbon containing atomically dispersed iron sites for CO₂ electrochemical reduction. J. Catal. 2019, 378, 320–330. [Google Scholar] [CrossRef]
Wei, S.M.; Jiang, X.X.; He, C.Y.; Wang, S.Y.; Hu, Q.; Chai, X.Y.; Ren, X.Z.; Yang, H.P.; He, C.X. Construction of single-atom copper sites with low coordination number for efficient CO₂ electroreduction to CH₄. J. Mater. Chem. A 2022, 10, 6187–6192. [Google Scholar] [CrossRef]
Jiao, L.; Zhu, J.T.; Zhang, Y.; Yang, W.J.; Zhou, S.Y.; Li, A.W.; Xie, C.F.; Zheng, X.S.; Zhou, W.; Yu, S.H.; et al. Non-bonding interaction of neighboring Fe and Ni single-atom pairs on MOF-derived N-doped carbon for enhanced CO₂ electroreduction. J. Am. Chem. Soc. 2021, 143, 19417–19424. [Google Scholar] [CrossRef]
Zheng, T.T.; Liu, C.X.; Guo, C.X.; Zhang, M.L.; Li, X.; Jiang, Q.; Xue, W.Q.; Li, H.L.; Li, A.W.; Pao, C.W.; et al. Copper-catalysed exclusive CO₂ to pure formic acid conversion via single-atom alloying. Nat. Nanotechnol. 2021, 16, 1386–1394. [Google Scholar] [CrossRef] [PubMed]
Yang, F.; Deng, P.L.; Wang, Q.Y.; Zhu, J.X.; Yan, Y.; Zhou, L.; Qi, K.; Liu, H.F.; Park, H.S.; Xia, B.Y. Metal-organic framework-derived cupric oxide polycrystalline nanowires for selective carbon dioxide electroreduction to C2 valuables. J. Mater. Chem. A 2020, 8, 12418–12423. [Google Scholar] [CrossRef]
Li, C.W.; Ciston, J.; Kanan, M.W. Electroreduction of carbon monoxide to liquid fuel on oxide-derived nanocrystalline copper. Nature 2014, 508, 504–507. [Google Scholar] [CrossRef]
Ren, D.; Deng, Y.L.; Handoko, A.D.; Chen, C.S.; Malkhandi, S.; Yeo, B.S. Selective electrochemical reduction of carbon dioxide to ethylene and ethanol on copper(I) oxide catalysts. ACS Catal. 2015, 5, 2814–2821. [Google Scholar] [CrossRef]
Zhou, Y.S.; Che, F.L.; Liu, M.; Zou, C.Q.; Liang, Z.Q.; De Luna, P.; Yuan, H.F.; Li, J.; Wang, Z.Q.; Xie, H.P.; et al. Dopant-induced electron localization drives CO₂ reduction to C2 hydrocarbons. Nat. Chem. 2018, 10, 974–980. [Google Scholar] [CrossRef] [PubMed]
Yang, X.; Cheng, J.; Yang, X.; Xu, Y.; Sun, W.F.; Zhou, J.H. MOF-derived Cu@Cu₂O heterogeneous electrocatalyst with moderate intermediates adsorption for highly selective reduction of CO₂ to methanol. Chem. Eng. J. 2022, 431, 134171. [Google Scholar] [CrossRef]
Yang, Z.X.; Wang, H.Z.; Fei, X.; Wang, W.H.; Zhao, Y.Z.; Wang, X.S.; Tan, X.J.; Zhao, Q.S.; Wang, H.P.; Zhu, J.X.; et al. MOF derived bimetallic CuBi catalysts with ultra-wide potential window for high-efficient electrochemical reduction of CO₂ to formate. Appl. Catal. B-Environ. Energy 2021, 298, 120571. [Google Scholar] [CrossRef]
Deng, P.L.; Yang, F.; Wang, Z.T.; Chen, S.H.; Zhou, Y.Z.; Zaman, S.; Xia, B.Y. Metal-organic framework-derived carbon nanorods encapsulating bismuth oxides for rapid and selective CO₂ electroreduction to formate. Angew. Chem. Int. Ed. 2020, 59, 10807–10813. [Google Scholar] [CrossRef]
Yuan, W.W.; Wu, J.X.; Zhang, X.D.; Hou, S.Z.; Xu, M.; Gu, Z.Y. In situ transformation of bismuth metal-organic frameworks for efficient selective electroreduction of CO₂ to formate. J. Mater. Chem. A 2020, 8, 24486–24492. [Google Scholar] [CrossRef]
Ye, L.; Ying, Y.R.; Sun, D.R.; Zhang, Z.Y.; Fei, L.F.; Wen, Z.H.; Qiao, J.L.; Huang, H.T. Highly Efficient Porous Carbon Electrocatalyst with Controllable N-Species Content for Selective CO₂ Reduction. Angew. Chem. Int. Ed. 2020, 59, 3244–3251. [Google Scholar] [CrossRef] [PubMed]
Wu, J.-X.; Hou, S.-Z.; Zhang, X.-D.; Xu, M.; Yang, H.-F.; Cao, P.-S.; Gu, Z.-Y. Cathodized copper porphyrin metal-organic framework nanosheets for selective formate and acetate production from CO₂ electroreduction. Chem. Sci. 2019, 10, 2199–2205. [Google Scholar] [CrossRef]
Gong, Y.-N.; Jiao, L.; Qian, Y.; Pan, C.-Y.; Zheng, L.; Cai, X.; Liu, B.; Yu, S.-H.; Jiang, H.-L. Regulating the coordination environment of MOF-templated single-atom nickel electrocatalysts for boosting CO₂ reduction. Angew. Chem. Int. Ed. 2020, 59, 2705–2709. [Google Scholar] [CrossRef]
Ismail, F.; Abdellah, A.; Lee, H.-J.; Sudheeshkumar, V.; Alnoush, W.; Higgins, D.C. Impact of nickel content on the structure and electrochemical CO₂ reduction performance of nickel-nitrogen-carbon Catalysts derived from zeolitic imidazolate frameworks. ACS Appl. Energy Mater. 2022, 5, 430–439. [Google Scholar] [CrossRef]
Peng, J.X.; Yang, W.J.; Jia, Z.H.; Jiao, L.; Jiang, H.L. Axial coordination regulation of MOF-based single-atom Ni catalysts by halogen atoms for enhanced CO₂ electroreduction. Nano Res. 2022, 15, 10063–10069. [Google Scholar] [CrossRef]
Chen, S.; Li, W.-H.; Jiang, W.; Yang, J.; Zhu, J.; Wang, L.; Ou, H.; Zhuang, Z.; Chen, M.; Sun, X.; et al. MOF Encapsulating N-Heterocyclic Carbene-Ligated Copper Single-Atom Site Catalyst towards Efficient Methane Electrosynthesis. Angew. Chem. Int. Ed. 2022, 61, 2114450. [Google Scholar]
Guan, Y.; Zhang, X.; Zhang, Y.; Karsili, T.N.V.; Fan, M.; Liu, Y.; Marchetti, B.; Zhou, X.-D. Achieving high selectivity towards electro-conversion of CO₂ using In-doped Bi derived from metal-organic frameworks. J. Colloid Interface Sci. 2022, 612, 235–245. [Google Scholar] [CrossRef] [PubMed]
Hsueh, Y.A.; Chuah, Y.C.; Lin, C.H.; Tsai, D.H. Aerosol-assisted synthesis of metal-organic framework-derived hybrid nanomaterials for reverse water-gas shift reaction. ACS Appl. Nano Mater. 2022, 5, 8883–8893. [Google Scholar] [CrossRef]
Singh, G.; Panda, S.; Sapan, S.; Singh, J.; Chandewar, P.R.; Biradar, A.V.; Shee, D.; Bordoloi, A. Polyoxometalate-HKUST-1 composite derived nanostructured Na-Cu-Mo₂C catalyst for efficient reverse water gas shift reaction. Nanoscale 2024, 16, 14066–14080. [Google Scholar] [CrossRef]
Chen, H.M.; Brubach, J.B.; Tran, N.H.; Robinson, A.L.; Ben Romdhane, F.; Frégnaux, M.; Penas-Hidalgo, F.; Solé-Daura, A.; Mialane, P.; Fontecave, M.; et al. Zr-based MOF-545 metal-organic framework loaded with highly dispersed small size Ni nanoparticles for CO₂ Methanation. ACS Appl. Mater. Interfaces 2024, 16, 12509–12520. [Google Scholar] [CrossRef]
Xie, G.M.; Bai, X.Y.; Yu, F.; Yang, Q.Y.; Wang, Z.J. Oxygen vacancy engineering in MOF-derived AuCu/ZnO bimetallic catalysts for methanol synthesis via CO₂ hydrogenation. Catal. Today 2024, 434, 114702. [Google Scholar] [CrossRef]
Wu, X.Y.; Ding, Z.L.; Hou, R.J. MOF-derived Cu-ZnO-ZrO₂ catalysts for CH₃OH synthesis from CO₂ hydrogenation. Mol. Catal. 2024, 556, 113942. [Google Scholar] [CrossRef]
Vali, S.A.; Moral-Vico, J.; Font, X.; Sanchez, A. Cu/ZnO/CeO₂ supported on MOF-5 as a novel catalyst for the CO₂ hydrogenation to methanol: A mechanistic study on the effect of CeO₂ and MOF-5 on active sites. Catal. Lett. 2024, 154, 3157–3173. [Google Scholar] [CrossRef]
Freyman, M.C.; Huang, Z.; Ravikumar, D.; Duoss, E.B.; Li, Y.; Baker, S.E.; Pang, S.H.; Schaidle, J.A. Reactive CO₂ capture: A path forward for process integration in carbon management. Joule 2023, 7, 631–651. [Google Scholar] [CrossRef]
Zurrer, T.; Lovell, E.; Han, Z.J.; Liang, K.; Scott, J.; Amal, R. Bimetallic RuNi-decorated Mg-CUK-1 for oxygen-tolerant carbon dioxide capture and conversion to methane. Nanoscale 2022, 14, 15669–15678. [Google Scholar] [CrossRef] [PubMed]
Ding, L.; Bai, F.H.; Borjigin, B.; Li, Y.N.; Li, H.Q.; Wang, X.J. Embedding Cs₂AgBiBr₂ QDs into Ce-UiO-66-H to in situ construct a novel bifunctional material for capturing and photocatalytic reduction of CO₂. Chem. Eng. J. 2022, 446, 137102. [Google Scholar] [CrossRef]

Figure 1. Schematic illustration of the CCU technology.

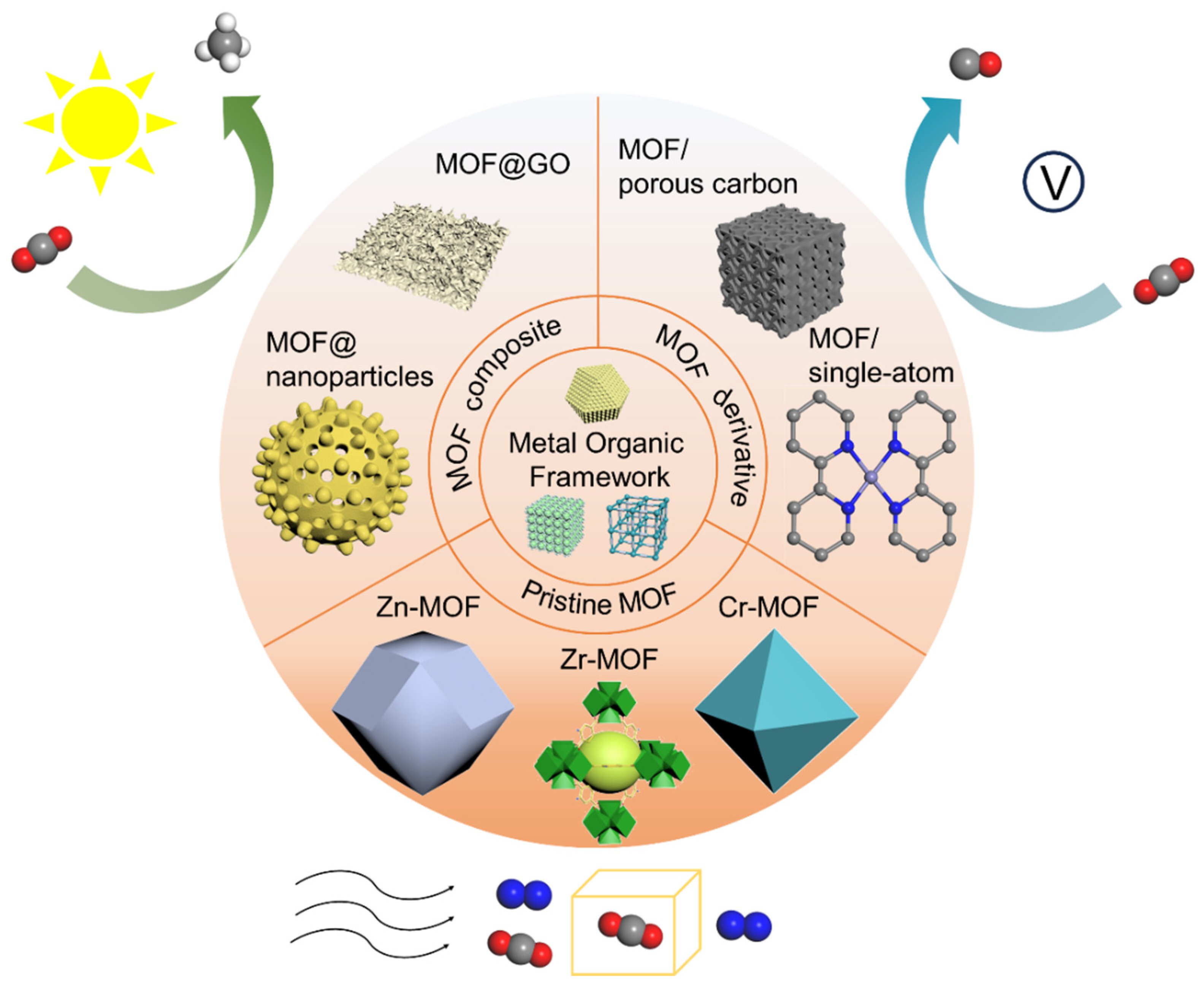

Scheme 1. Schematic illustration of MOF-based materials (pristine MOF, MOF composites, and MOF derivatives) used in CO₂ adsorption and photocatalytic and electrocatalytic reduction.

Figure 2. (a) The generation of OMSs through different methods. Reproduced from [48]. Copyright 2020, Royal Society of Chemistry. (b) The structure of TCA³⁻ ligand (top), Co₆(µ₃-OH)₆ cluster (middle), and ABPY ligand (bottom). (c) The structure (top) and topology of DZU-6 (bottom). (d) Link mode between ABPY ligand and [Co₆(µ₃-OH)₆] clusters with terminal solvent molecules. Reproduced from [49]. Copyright 2022, Elsevier.

Figure 5. Design strategies of MOF composites.

Figure 6. Schematic illustration of CO₂ capture and separation.

Figure 7. The mechanism of photocatalytic reduction of CO₂.

Figure 12. (a) Schematic illustration of MOF-808 and MOF/ILMLs. (b) PXRD patterns and (c) FTIR spectra of pristine MOF-808 and MOF/ILMLs with various thicknesses. (The red arrows represent the blue shift at 1051 cm⁻¹ and 1178 cm⁻¹, respectively) (d) N₂ adsorption–desorption isotherms of pristine MOF-808 and MOF/ILMLs with various thicknesses. (e) Pore size distributions of pristine MOF-808 and MOF/ILMLs with various thicknesses. Reproduced from [97]. Copyright 2022, Elsevier.

Figure 13. SEM images of (a–c) Mg/DOBDC prepared by solvothermal method, showing aggregation of flake-like particles. (d–f) Mg/DOBDC prepared by mechanical stirring method, showing spherical morphology. Reproduced from [99]. Copyright 2021, Elsevier.

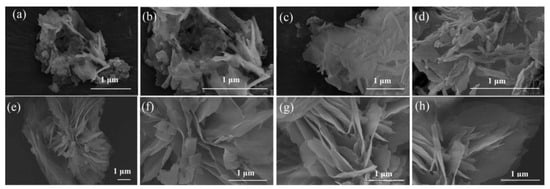

Figure 14. SEM images of (a–d) Mg/DOBDC MOF@GO_W-30 composite, showing a bird’s nest morphology. (e–h) Mg/DOBDC MOF@GO_D-40 composite, showing a lotus morphology. Reproduced from [99]. Copyright 2021, Elsevier.

Figure 16. Crystal structure and underlying network topology of Mn-MOF. (a) The Mn ions (green octahedra) are linked by four Mn-TCPP ligands ((b): brown squares) to form a 2D (4,4)-connected topology, shown in (c,e). A top view of the stacked 2D layers is shown in (d,f). Mn atoms are represented by green spheres, C by gray, O by red, and N by blue. H atoms have been omitted for clarity. (g) PL emission excitation at 520 nm and (h) time-resolved PL kinetics at 706 nm. (i) Transient photocurrent responses under varied monochromatic light. (j) EIS of 1 measured at a bias potential of 1.4 V vs. Ag/AgCl. (k) The reaction mechanism of 1. Reproduced from [113]. Copyright 2021, Royal Society of Chemistry.

Figure 17. (a) Synthetic procedure of Ti/Zr-MOF-525 (obtained by metal metathesis with Ti in the precursor Zr-MOF-525). (b) Electron transfer pathway and CO₂ photoreduction processes of Ti/Zr-MOF-525. Reproduced from [114]. Copyright 2021, Wiley. (c) Schematic illustration of NNU-31-M constructed by Fe₂M cluster and TCA ligand. Reproduced from [115]. Copyright 2020, Wiley.

Figure 19. (a) Schematic illustration of the synthetic process of mPT-Cu/Re. Reproduced from [125]. Copyright 2020, American Chemical Society. (b) Comparison between noble metal Ru complex and CDs in terms of resource consumption and economic cost. Reproduced from [36]. Copyright 2022, Royal Society of Chemistry.

Figure 22. Synthetic procedure of Cu(BTC)(H₂O)₃ and Cu-N-C-800,900. (a) Cu(BTC)(H₂O)₃ as an MOF precursor. (b) Cu-N-C-800 and (c) Cu-N-900 derived from different pyrolysis temperatures. (d) Cu-K edge XANES spectra of the samples referring to Cu foil, Cu₂O, and CuO. (e) First derivatives of the XANES region of the samples from (d). (f) FT-EXAFS Cu-K edge spectra of the samples referring to Cu foil, Cu₂O, and CuO. (g) EXAFS R-space fitting curves of Cu–N–C-900 catalyst. Reproduced from [148]. Copyright 2020, American Chemical Society.

Figure 23. Synthetic procedure of (a) mesoNC-Fe catalyst by a SiO₂-protective approach. Reproduced from [149]. Copyright 2019, Elsevier. (b) PA-CuDBC-1 catalyst by a plasma activated method. Reproduced from [150]. Royal Society of Chemistry. (c) Fe₁-Ni₁-N-C with Fe and Ni SA pairs. Reproduced from [151]. Copyright 2021, American Chemical Society.

Figure 25. (a) Synthetic process of Bi₂O₃@C. Reproduced from [159]. Copyright 2020, Wiley. (b) Schematic illustration of the reconstruction process of Bi-BTB to form Bi₂O₂CO₃ in HCO₃⁻ solution. Reproduced from [160]. Copyright 2020, Royal Society of Chemistry.

Figure 27. Schematic illustration of the synthetic procedure of (a) AuCu/ZnO catalysts from a MOF precursor. Reproduced from [171]. Copyright Elsevier, 2024. (b) Five types of CZZ catalysts from different MOF precursors. Reproduced from [172]. Copyright Elsevier, 2024.

Figure 28. The bifunctional materials of (a) RuNi-loaded Mg-CUK-1 for both CO₂ capture and conversion into CH₄. Reproduced from [175]. Copyright 2022, Royal Society of Chemistry. (b) Cs₂AgBiBr₆/Ce-UiO-66-H for both CO₂ capture and conversion into valuable chemicals. Reproduced from [176]. Copyright 2022, Elsevier.

Table 1. Various products of CO₂ reduction and the corresponding reduction potentials.

Reactions	E⁰_redox (vs.NHE)/V
CO₂ + 2H⁺ + 2e⁻ → HCOOH	−0.61
CO₂ + 2H⁺ + 2e⁻ → CO + H₂O	−0.53
CO₂ + 4H⁺ + 4e⁻ → HCHO + H₂O	−0.48
CO₂ + 6H⁺ + 6e⁻ → CH₃OH + H₂O	−0.38
CO₂ + 8H⁺ + 8e⁻ → CH₄ + 2H₂O	−0.24
2CO₂ + 12H⁺ + 12e⁻ → C₂H₄ + 4H₂O	−0.34
2CO₂ + 12H⁺ + 12e⁻ → C₂H₅OH + 3H₂O	−0.33
2CO₂ + 14H⁺ + 14e⁻ → C₂H₆ + 4H₂O	−0.27

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Kong, F.; Chen, W. Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review. Nanomaterials 2024, 14, 1340. https://doi.org/10.3390/nano14161340

AMA Style

Kong F, Chen W. Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review. Nanomaterials. 2024; 14(16):1340. https://doi.org/10.3390/nano14161340

Chicago/Turabian Style

Kong, Fanyi, and Wenqian Chen. 2024. "Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review" Nanomaterials 14, no. 16: 1340. https://doi.org/10.3390/nano14161340

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Carbon Dioxide Capture and Conversion Using Metal–Organic Framework (MOF) Materials: A Comprehensive Review

Abstract

1. Introduction

2. MOFs for CO2 Capture and Conversion

2.1. Tunable Chemical Structure

2.1.1. Open Metal Sites (OMSs)

2.1.2. Ligand Modification

2.1.3. Pore Size Control

2.2. Precursors and Templates

3. CO2 Capture, Separation, and Conversion

3.1. CO2 Capture and Separation

3.2. CO2 Conversion

3.2.1. CO2 Photocatalytic Reduction

3.2.2. CO2 Electrocatalytic Reduction

3.2.3. CO2 Hydrogenation

4. MOF-Based Materials for CO2 Capture and Separation

4.1. Pristine MOFs

4.2. MOF Composites

4.2.1. MOF/Ionic Liquids (ILs) Composite

4.2.2. MOF/GO Composite

4.2.3. Other MOF Composites

5. MOF-Based Materials for CO2 Photocatalytic Reduction

5.1. Pristine MOFs

5.2. MOF Composites

5.2.1. MOF/Encapsulated Metal Composite

5.2.2. MOF/PS Composite

5.2.3. MOF/SC Composite

6. MOF-Based Materials for CO2 Electrocatalytic Reduction

6.1. Pristine MOF

6.2. MOF Derivatives

6.2.1. MOF-Derived SACs

6.2.2. MOF-Derived Metal Oxide

6.2.3. MOF-Derived Metal/Carbon(Carbonate) Compound

6.2.4. MOF-Derived N-Doped Porous Carbon (NPC)

7. MOF-Based Materials for CO2 Hydrogenation

7.1. RWGS Reaction

7.2. CO2 Methanation

7.3. CO2 Methanolation

8. MOF-Based Materials for Dual Functionalities

9. Conclusions

10. Future Directions toward Industrial Applications

Author Contributions

Funding

Conflicts of Interest

Nomenclature

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI

2. MOFs for CO₂ Capture and Conversion

3. CO₂ Capture, Separation, and Conversion

3.1. CO₂ Capture and Separation

3.2. CO₂ Conversion

3.2.1. CO₂ Photocatalytic Reduction

3.2.2. CO₂ Electrocatalytic Reduction

3.2.3. CO₂ Hydrogenation

4. MOF-Based Materials for CO₂ Capture and Separation

5. MOF-Based Materials for CO₂ Photocatalytic Reduction

6. MOF-Based Materials for CO₂ Electrocatalytic Reduction

7. MOF-Based Materials for CO₂ Hydrogenation

7.2. CO₂ Methanation

7.3. CO₂ Methanolation
