Article

Laser-Assisted Photo-Thermal Reaction for Ultrafast Synthesis of Single-Walled Carbon Nanotube/Copper Nanoparticles Hybrid Films as Flexible Electrodes

1
Nano Hybrid Technology Research Center, Korea Electrotechnology Research Institute (KERI), Changwon 51543, Republic of Korea
2
Department of Electro-Functionality Material Engineering, University of Science and Technology (UST), Changwon 51543, Republic of Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(17), 1454; https://doi.org/10.3390/nano14171454
Submission received: 16 August 2024 / Revised: 2 September 2024 / Accepted: 4 September 2024 / Published: 6 September 2024
(This article belongs to the Section 2D and Carbon Nanomaterials)

Abstract

:
The hybridization of single-walled carbon nanotubes (SWCNTs) and Cu nanoparticles offers a promising strategy for creating highly conductive and mechanically stable fillers for flexible printed electronics. In this study, we report the ultrafast synthesis of SWCNT/Cu hybrid nanostructures and the fabrication of flexible electrodes under ambient conditions through a laser-induced photo-thermal reaction. Thermal energy generated from the nonradiative relaxation of the π-plasmon resonance of SWCNTs was utilized to reduce the Cu-complex (known as a metal–organic decomposition ink) into Cu nanoparticles. We systematically investigated the effects of SWCNT concentration and output laser power on the structural and electrical properties of the SWCNT/Cu hybrid electrodes. The SWCNT/Cu electrodes achieved a minimum electrical resistivity of 46 μohm·cm, comparable to that of the metal-based printed electrodes. Mechanical bending tests demonstrated that the SWCNT/Cu electrodes were highly stable and durable, with no significant deformation observed even after 1000 bending cycles. Additionally, the electrodes showed rapid temperature increases and stable Joule heating performance, reaching temperatures of nearly 80 °C at an applied voltage of less than 3.5 V.

1. Introduction

Flexible electronics require the interconnection of conductive materials for various applications, such as sensors, electrodes, and integrated circuits [1,2,3,4]. To achieve effective electrically conductive states in the flexible modes, nanocarbons (NCs), such as carbon nanotubes (CNTs) and graphene, have been extensively studied [5,6,7,8,9,10,11]. However, the lower electrical conductivity of NCs compared to commercially available metals presents a challenge for practical device applications. This issue can be addressed by hybridizing NCs with metal nanostructures, where the metals act primarily as conductive fillers and the NCs serve as flexible interconnects. This hybrid approach results in high electrical conductivity even under shape-deformation conditions.
Consequently, flexible electrodes have been developed using NCs hybrid materials combined with noble metal nanostructures, such as gold and silver, due to their high electrical conductivities, low melting points, and high environmental stabilities [12,13,14,15,16,17,18,19]. Nonetheless, the high cost of noble metals limits their commercial application. Recently, there has been considerable interest in hybrid electrodes based on Cu nanostructures due to their cost-effectiveness and relatively high electrical conductivity compared to noble metals [20,21]. In the fabrication of flexible electrodes, hybrid material-based inks or pastes were initially deposited using conventional coating or printing methods, followed by high-temperature thermal treatment for curing and metal sintering [22,23,24]. During thermal treatment, it was crucial to create a vacuum or introduce an inert gas to prevent the oxidation of Cu nanostructures, which could lead to increased processing costs.
Unlike Cu nanoparticle inks, solution-based Cu-complex inks have recently been used for Cu-based printed electrodes due to their cost-effectiveness, high oxidation resistance, and low-temperature decomposition without the need for vacuum or inert gas atmospheres [25,26]. Cu salts (formate, acetate, and oleate) were used as Cu precursors, combined with amine compounds (Cu-complex), and fused with various solvents to prepare Cu-complex inks. After deposition on polymeric substrates, Cu-complex inks were self-reduced to metallic Cu below 140 °C, which was comparable to the glass transition temperature of polymeric substrates, demonstrating their benefits for flexible electronics fabrication. Moreover, the size, shape, and density of Cu nanoparticles can be systemically controlled by varying the concentration of amine compounds [27]. Recently, Cu-complex ink reduction and sintering were performed under ambient conditions following a rapid heating process within milliseconds or microseconds via a photo-thermal reaction [28].
The photo-thermal reaction is a well-known phenomenon where heat is generated by irradiation with high-intensity lights, such as xenon flash lamps, microwaves, and lasers, due to the localized surface plasmon resonance of electrically conductive nanomaterials [29,30,31]. This process enables thermal heating of materials and stimulates a range of physical processes (e.g., welding of metal nanowires and sintering of metal particles) and chemical reactions (e.g., synthesis of metal nanoparticles) [32,33,34]. Due to the ultrafast and selective heating at the surface of electrically conductive nanomaterials, this process offers the advantage of rapid treatment of heat-sensitive polymeric substrates without deformation.
In this study, we introduced laser-activated single-walled CNTs (SWCNTs) as flexible printed electrodes. Among the various promising materials for next-generation flexible electronics, SWCNTs have been studied for their high electrical conductivity and flexibility due to the sp2 hybrid conjugated bonding in their carbon structures. By using SWCNTs and a Cu-complex dispersion (SWCNT/Cu-complex), we fabricated flexible electrodes composed of SWCNTs and Cu (SWCNT/Cu) hybrid materials. This was achieved through the photo-thermally activated reductive synthesis of Cu nanoparticles with sintered morphologies induced by the π-plasmon resonance of SWCNTs. The π-plasmons of SWCNTs interact strongly with ultraviolet–visible (UV–vis) light, leading to spontaneous photo-thermal conversion. We confirmed that rapid synthesis of Cu nanoparticles on SWCNTs could be achieved under ambient conditions in air. The surface morphologies and electrical properties of the SWCNT/Cu hybrid electrodes were systematically controlled by varying the SWCNT concentration and laser output power.

2. Materials and Methods

2.1. Materials and Preparation of SWCNT/Cu-Complex

SWCNT powder was purchased from OCSiAl (TUBALL, purity > 93%, Leudelange, Luxembourg). Cu(II) formate tetrahydrate and 2-ethyl-1-hexylamine were purchased from Merck (Darmstadt, Germany) and used without further purification. Copper (II) formate tetrahydrate (1 equiv.) powder was added to 2-ethyl-1-hexylamine (4 equiv.) and stirred for 10 h to form a Cu-complex solution, as reported previously [35]. After the powder was completely dissolved, varying concentrations of SWCNTs (0.1, 0.5, 1.0, and 2.0 wt%) were added to the Cu-complex solution, and the mixture was stirred with a magnetic stirring bar for 24 h and an overhead stirrer for 24 h.

2.2. Fabrication and Characterization of the SWCNTs/Cu Electrodes

The SWCNT/Cu films were prepared by bar coating the SWCNT/Cu-complex solution onto glass and PET substrates. Bar coating was performed using a thickness-adjustable applicator with a thickness of 50 µm. The coated SWCNT/Cu films were irradiated using a laser (455 nm, xTool D1 Pro, xTool) at a power of 1–8 W and an operating speed of 8 mm/s. For comparison, the Cu-complex-based films were heat-treated in a conventional tube furnace at 175 °C with a ramping rate of 3.75 °C·min−1 in an Ar atmosphere for 1 h. X-ray diffraction (XRD) data were collected using an X’Pert PRO MPD instrument (PANalytical, Malvern, UK). Temperature profiles were measured using an infrared (IR) camera (RSE30, FLUKE, Everett, WA, USA) with the help of software (Smartview IR ver. 1.0.3.144, FLUKE, Everett, USA) by FLUKE. Thermogravimetry (TG) and differential scanning calorimetry (DSC) were performed using a Q600 instrument (TA Instruments, Waters, New Castle, DE, USA). The line pattern of SWNCT/Cu was observed using an optical microscope (OM; ECLIPSE LV100, Nikon, Minato, Japan). A direct current power supply (OPS-303, ODA TECHNOLOGIES, Incheon, Republic of Korea) was used to conduct light-emitting diode (LED) lighting tests and to evaluate the Joule heating performance of the fabricated SWCNT/Cu electrodes. Heating images were captured using an IR camera. Bending tests were performed using a source meter (2636 B, Keithley, Cleveland, OH, USA) connected to the current-measurement bending equipment. Structural morphologies were examined using scanning electron microscopy (SEM; S-4800, Hitachi, Chiyoda, Japan).

3. Results and Discussion

As illustrated in Figure 1a, patterned flexible SWCNT/Cu electrodes are prepared by laser-induced photo-thermal reaction. The SWCNT/Cu-complex solution was coated onto the glass or PET film by bar coating. The SWCNT/Cu-complex films were irradiated at a laser wavelength of 455 nm to produce metallic Cu particles hybridized with SWCNTs. After rinsing the nonirradiated SWCNT/Cu-complex with ethanol, patterned flexible hybrid electrodes were obtained. This simple laser-induced patterning process originates from the light absorption of SWCNTs (Figure 1b) near 455 nm owing to the π-plasmon of the SWCNTs, resulting in nonradiative relaxation and photo-thermal conversion. Heat was generated at the surface of SWCNTs, and the temperature spontaneously increased within a few milliseconds. Thermal energy is then transferred to the neighboring Cu-complex and used as a thermal source for the decomposition of Cu-complex (Figure 1c). Time-resolved temperature distribution for a fixed exposure time of 32 s is measured to verify the effect of SWCNTs on laser-induced photo-thermal conversion (Figure 1d). The temperature profile for SWCNTs exhibited a rapid temperature increase of up to 200 °C within 0.5 s owing to the direct conversion of absorbed light into heat. This rapid temperature increase facilitated the thermal reduction of the Cu-complex and subsequent synthesis of metallic Cu nanoparticles. However, only the Cu-complex sample exhibited a negligible increase in temperature. This finding was attributed to the absence of the absorption behavior of Cu-complex with 455 nm light, even though a high absorption intensity was observed in the range of 250–300 nm.
To examine the reduction of Cu nanoparticles via the photo-thermal conversion of SWCNTs, laser irradiation was conducted on SWCNT/Cu-complex films deposited on glass substrates at varying SWCNT concentrations of 0.1, 0.5., 1.0, and 2.0 wt% at a laser power of 4 W for 30 s. As shown in XRD patterns (Figure 2a), the primary peaks of Cu (s) for SWCNT concentrations of 0.1 and 0.5 wt% are observed at 2 theta values of 43.3° and 36.5°, which correspond to the (111) crystal plane of metallic Cu and the (110) plane of Cu2O, respectively. However, under the experimental condition of 1.0 wt%, the Cu2O peak nearly vanished, and under the condition of 2.0 wt%, the result exhibited only metallic Cu (s) peaks. This finding indicated that as the SWCNT concentration increased, the reduction of Cu-complex to metallic Cu (s) occurred successfully because of the enhanced photo-thermal conversion efficiency via the π-plasmon density increase in SWCNTs. Figure 2b shows the temperature profiles of the SWCNT/Cu-complex films measured during laser irradiation. The average temperatures of 1.0 and 2.0 wt% samples were 160 and 185 °C, respectively, indicating that the temperature was much higher than the critical reduction temperature point of the Cu-complex. To further examine the relationship between the temperature and the reduction of Cu (s), TG and DSC analyses are performed (Figure 2c). Upon increasing the temperature up to 100 °C, the weight of the Cu-complex gradually decreased, indicating solvent evaporation. Significant weight loss occurred at temperatures in the range of 120–150 °C because of ligand dissociation of the Cu-complex. Based on the decomposition mechanism of Cu-complexes investigated by several groups, Cu-complexes may follow the next steps to form metallic Cu (s) (Equations (1)–(3)) [26,36].
Cu(HCOO)2L4 → Cu(HCOOH)L2 + 2L
Cu(HCOO)L2 → Cu(HCOOH) + CO2 (g) + 1/2H2 (g) + 2L
Cu(HCOO) → Cu (s) + CO2 (g) + 1/2H2 (g)
This finding was reflected by the presence of several endothermic and exothermic peaks in the DSC curve. The conversion of Cu(II)-complex to Cu(0) took place through several steps, and metallic Cu (s) was successfully prepared over 150 °C. Accordingly, metallic Cu XRD peaks are shown for samples with SWCNT concentrations of 1.0 and 2.0 wt%. To verify this, the effect of SWCNT concentration on the thickness and electrical properties of the hybrid electrodes was investigated (Figure S1). The electrical resistivity decreased with increasing the SWCNT concentration up to 1 wt%, as Cu-complex could be efficiently reduced to metallic Cu (s) due to the enhanced photo-thermal conversion efficiency via the π-plasmon density increase in SWCNTs at high concentrations. The electrical resistivity reached a minimum value of 725 ohm·cm at 1.0 wt% and increased slightly at higher concentrations due to reduced relative Cu contents. The morphologies of the SWCNT/Cu hybrid materials were determined using SEM, and it is observed that Cu nanoparticles were synthesized and decorated on well-dispersed SWCNTs. The surface morphologies of samples using 0.1 and 0.5 wt% SWCNTs exhibited surface defects in the form of small prominences, indicating Cu oxide and resulting in particle inhomogeneity (Figure 2d,e) [37,38]. The formation of small Cu oxide prominences resulted from an insufficient reduction reaction due to the low photo-thermal conversion efficiency. These oxide prominences were completely diminished at higher SWCNT concentrations of 1.0 and 2.0 wt% (Figure 2f,g). Notably, Cu nanoparticles were sintered in the same shape and direction as the SWCNTs, leading to the superior electrical and mechanical properties of the SWCNT/Cu hybrid electrodes.
To further study the generation of Cu (s) via the photo-thermal reaction of SWCNTs, laser irradiation experiments are conducted at different laser output powers (Figure 3). The reduction of Cu-complex to Cu (s) is also confirmed, along with the increasing output power of the laser, by comparing the primary peak positions of Cu2O and Cu (Figure 3a). Under low irradiation conditions of 1 and 2 W, no specific metallic or oxide Cu peaks were observed. However, broad peaks at approximately 20° were observed. These peaks could be ascribed to the absorbed or intercalated molecules on the SWCNTs [39], indicating insufficient thermal energy to produce Cu-based particles from the Cu-complex. This finding is confirmed by the complete coverage of the SWCNTs with the Cu-complex, as shown in the SEM images in Figure 3d,e. Under 3 W laser conditions, the peaks assigned to Cu2O were observed at 36.5° and 42.3°. The saturated temperature of the 3 W laser is approximately 120 °C, which is slightly lower than the reduction and formation point of the metallic Cu nanoparticles, which is in agreement with the temperature profile shown in Figure 3b. Along with the oxide peaks, metallic Cu peaks at 43.3° and 50.5° are observed under the experimental conditions of 4 W laser irradiation, which is confirmed by the SEM images of metallic Cu particles with small Cu oxide prominences, as shown in Figure 3f,g. Only sharp metallic Cu peaks were observed for the sample at 8 W, in which the observed temperature of 175 °C was much higher than that during the reduction of Cu-complex. These results are in accordance with the photo-thermal conversion of SWCNT through π-plasmon resonance, as shown in Figure 2. Figure 3c shows the electrical resistivities of the SWCNT/Cu electrodes. As anticipated, the electrical resistivities of the SWCNTs/Cu electrodes decrease with increasing laser power at 8 W, exhibiting a minimum value of 46 μohm·cm. This value was comparable to that of the thermally treated samples in the furnace at 175 °C for 1 h under Ar atmosphere, as indicated by the blue and red stars (inset of Figure 3c). Additionally, the electrical resistivities of the SWCNT/Cu electrodes prepared under laser powers of 12 and 16 W were measured as 46.8 and 47.2 μohm·cm, respectively. These values are quite similar to the electrical resistivity of 46.0 μohm·cm for the 8 W sample, indicating that the Cu-complex is completely reduced at laser irradiation conditions over 8 W. We also confirmed that the optimized laser power through the thicknesses shows similar results (Figure S2). The high electrical property originated not only from the complete reduction of the Cu-complex to metallic Cu but also from the efficient coalescence of Cu nanoparticles by the effective photo-thermal reaction of SWCNTs, which is confirmed by the SEM image in Figure 3h. Therefore, we suggest that the laser-induced photo-thermal reaction is a highly effective and ultrafast method for producing metallic Cu nanoparticles and electrically conductive electrodes combined with SWCNTs under ambient conditions.
To fabricate the patterned electrodes, we performed a laser-induced photo-thermal reaction on the SWCNT/Cu-complex coated on PET substrates (Figure 4). Notably, laser-induced photo-thermal reactions are useful for patterning without any patterning masks [40,41], although ultrafine pattern morphologies, such as width and interpattern spacing, should be optimized with precise control of the wavelength, power, operating speed, and spot size of the laser. Figure 4a shows the patterning of SWCNT/Cu electrodes fabricated using 0.5 wt% SWCNT/Cu-complex under an 8 W laser-induced photo-thermal reaction. The widths of the line patterns are controlled at 500, 600, 1000, 1200, and 1600 µm, although the line edges are not perfectly clean (Figure 4b–f). SEM images show that a curved line is well established without severe defects, similar to a straight line (Figure 4g,h). This result indicates that the laser-induced photo-thermal reaction is useful for the direct patterning of flexible electrode applications for the SWCNT/Cu hybrid materials.
In addition, we examined the flexibility of patterned electrodes under deformation (Figure 5a). Under various deformation states, such as 360° bending, twisting, and even 180° folding, the electrical properties of the SWCNT/Cu electrodes were maintained, as demonstrated by LED lightning. This finding was attributed to the well-dispersed, highly flexible SWCNT networks hybridized with highly conductive Cu nanostructures, as previously observed in the SEM images. For further evaluation of high durability, long-term bending tests for the SWCNT/Cu electrodes with 0.1 and 0.5 wt% SWCNTs were performed (Figure 5b). For comparison, Cu electrodes were fabricated by thermal treatment of the Cu-complex without SWCNT hybridization. For the Cu electrodes, the resistance change (R/R0) dramatically increased to 5455 even after 15 bending cycles under deformation conditions with a bending radius of 5R, whereas 0.1 wt% SWCNTs with Cu-complex samples retained an R/R0 value of 4.467 at 1000 bending cycles. Moreover, 0.5 wt% SWCNTs in the Cu-complex sample exhibited extremely high durability, with an R/R0 value of 1.281 after 1000 bending cycles. These results indicated that SWCNTs can act as efficient electrical and mechanical supports for hybrid materials under severely deformed conditions.
The SWCNT/Cu electrodes on the PET substrates can also be used as electrothermal film heaters, as shown in Figure 6. With increasing voltage from 1.5 to 3.5 V with a step size of 0.5 V, the SWCNT/Cu electrodes demonstrated a fast temperature increase, as shown in Figure 6a, indicating that the electrode temperature is readily adjusted by controlling the voltage. At an applied voltage of 3.5 V, the electrode temperature reaches 80 °C within 17 s, and this maximum value remains unchanged during repeated cycling, although a minute temperature fluctuation in the on-state is observed (Figure 6b). In addition, as shown in Figure 6c, a uniform temperature distribution of the electrode is observed in the IR camera image, indicating a negligible change in the electrode resistance and a well-interconnected SWCNT/Cu hybrid material with high flexibility. The Joule heating performances with high flexibility for the SWCNT/Cu electrodes are comparable to previous results for CNT/metal hybrid materials-based flexible electrodes [19,42].

4. Conclusions

In summary, laser-induced ultrafast reduction of Cu-complex has been successfully demonstrated to fabricate the SWCNT/Cu electrodes via photo-thermal conversion derived from the π-plasmon of SWCNTs. Through the laser irradiation, SWCNTs generate heat, which triggers the reaction of the Cu-complex to Cu at ambient conditions. The optimized laser irradiation condition yields sintering of Cu nanoparticles on SWCNTs and an electrical resistivity of 46 µohm·cm. Moreover, by coating SWCNT/Cu-complex solutions onto polymeric substrates and applying laser irradiation, we achieved efficient reduction of Cu-complexes to metallic Cu nanoparticles within a flexible SWCNT matrix. The results showed that increasing SWCNTs concentration improved the photo-thermal conversion and enhanced Cu reduction, resulting in electrodes with low electrical resistivity and high flexibility. The electrodes maintained excellent performance under bending, twisting, and folding deformation, demonstrating their potential for various applications. Additionally, the ability to pattern electrodes without masks and their use as electrothermal film heaters further highlight the practical advantages of this method. Overall, this approach offers a simple and effective way to produce flexible, conductive materials for advanced electronic applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14171454/s1, Figure S1: Thickness and electrical resistivity of the SWCNTs/Cu electrodes fabricated with various SWCNT concentrations; Figure S2: Electrical resistivity as a function of the output laser power for the SWCNTs/Cu electrodes with a thickness of 12 µm and 21 µm. The sample was fabricated with 0.1 wt% SWCNT/Cu-complex.

Author Contributions

Conceptualization, methodology, validation, data curation, M.-J.K. and H.J.J.; writing—original draft, M.-J.K.; writing—review and editing, M.-J.K. and H.J.J.; supervision, H.J.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Primary Research Program (24A01050, 24A01016) of the Korea Electrotechnology Research Institute and UST Young Scientist+ Research Program 2023 (No. 2023YS35) through the University of Science and Technology.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pang, C.; Lee, G.-Y.; Kim, T.-I.; Kim, S.M.; Kim, H.N.; Ahn, S.-H.; Suh, K.-Y. A flexible and highly sensitive strain-gauge sensor using reversible interlocking of nanofibers. Nat. Mater. 2012, 11, 795–801. [Google Scholar] [CrossRef] [PubMed]
  2. Zhong, Z.; Woo, K.; Kim, I.; Kim, H.; Ko, P.; Kang, D.; Kwon, S.; Kim, H.; Youn, H.; Moon, J. Defect-Free, Highly Uniform Washable Transparent Electrodes Induced by Selective Light Irradiation. Small 2018, 14, 1800676. [Google Scholar] [CrossRef] [PubMed]
  3. Liang, J.; Li, L.; Chen, D.; Hajagos, T.; Ren, Z.; Chou, S.-Y.; Hu, W.; Pei, Q. Intrinsically stretchable and transparent thin-film transistors based on printable silver nanowires, carbon nanotubes and an elastomeric dielectric. Nat. Commun. 2015, 6, 7647. [Google Scholar] [CrossRef]
  4. Han, B.; Huang, Y.; Li, R.; Peng, Q.; Luo, J.; Pei, K.; Herczynski, A.; Kempa, K.; Ren, Z.; Gao, J. Bio-inspired networks for optoelectronic applications. Nat. Commun. 2014, 5, 5674. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, D.; Ryu, K.; Liu, X.; Polikarpov, E.; Ly, J.; Tompson, M.E.; Zhou, C. Transparent, Conductive, and Flexible Carbon Nanotube Films and Their Application in Organic Light-Emitting Diodes. Nano Lett. 2006, 6, 1880–1886. [Google Scholar] [CrossRef] [PubMed]
  6. Scardaci, V.; Coull, R.; Coleman, J.N. Very thin transparent, conductive carbon nanotube films on flexible substrates. Appl. Phys. Lett. 2010, 97, 023114. [Google Scholar] [CrossRef]
  7. Geng, H.-Z.; Kim, K.K.; So, K.P.; Lee, Y.S.; Chang, Y.; Lee, Y.H. Effect of Acid Treatment on Carbon Nanotube-Based Flexible Transparent Conducting Films. J. Am. Chem. Soc. 2007, 129, 7758–7759. [Google Scholar] [CrossRef]
  8. Han, J.T.; Kim, J.S.; Jeong, H.D.; Jeong, H.J.; Jeong, S.Y.; Lee, G.-W. Modulating Conductivity, Environmental Stability of Transparent Conducting Nanotube Films on Flexible Substrates by Interfacial Engineering. ACS Nano 2010, 4, 4551–4558. [Google Scholar] [CrossRef]
  9. Bae, S.; Kim, H.; Lee, Y.; Xu, X.; Park, J.-S.; Zheng, Y.; Balakrishnan, J.; Lei, T.; Kim, H.R.; Song, Y.I.; et al. Roll-to-roll production of 30-inch graphene films for transparent electrodes. Nat. Nanotechnol. 2010, 5, 574–578. [Google Scholar] [CrossRef]
  10. Zhao, J.; Pei, S.; Ren, W.; Gao, L.; Cheng, H.-M. Efficient Preparation of Large-Area Graphene Oxide Sheets for Transparent Conductive Films. ACS Nano 2010, 4, 5245–5252. [Google Scholar] [CrossRef]
  11. Jeong, S.Y.; Kim, S.H.; Han, J.T.; Jeong, H.J.; Yang, S.; Lee, G.-W. High-Performance Transparent Conductive Films Using Rheologically Derived Reduced Graphene Oxide. ACS Nano 2011, 5, 870–878. [Google Scholar] [CrossRef]
  12. Chun, K.-Y.; Oh, Y.; Rho, J.; Ahn, J.-H.; Kim, Y.-J.; Choi, H.R.; Baik, S. Highly conductive, printable and stretchable composite films of carbon nanotubes and silver. Nat. Nanotechnol. 2010, 5, 853–857. [Google Scholar] [CrossRef] [PubMed]
  13. Lee, M.-S.; Lee, K.; Kim, S.-Y.; Lee, H.; Park, J.; Choi, K.-H.; Kim, H.-K.; Kim, D.-G.; Lee, D.-Y.; Nam, S.; et al. High-Performance, Transparent, and Stretchable Electrodes Using Graphene—Metal Nanowire Hybrid Structures. Nano Lett. 2013, 13, 2814–2821. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Y.; Chang, Q.; Huang, L. Transparent, flexible conducting graphene hybrid films with a subpercolating network of silver nanowires. J. Mater. Chem. C 2013, 1, 2970–2974. [Google Scholar] [CrossRef]
  15. Kong, B.-S.; Jung, D.-H.; Oh, S.-K.; Han, C.-S.; Jung, H.-T. Single-Walled Carbon Nanotube Gold Nanohybrids: Application in Highly Effective Transparent and Conductive Films. J. Phys. Chem. C 2007, 111, 8377–8382. [Google Scholar] [CrossRef]
  16. Yun, Y.J.; Ah, C.S.; Hong, W.G.; Kim, H.J.; Shin, J.-H.; Jun, Y. Highly conductive and environmentally stable gold/graphene yarns for flexible and wearable electronics. Nanoscale 2017, 9, 11439–11445. [Google Scholar] [CrossRef] [PubMed]
  17. Huang, S.-Y.; Zhang, K.; Yuen, M.M.F.; Fu, X.-Z.; Sun, R.S.; Wong, C.-P. Facile synthesis of flexible graphene–silver composite papers with promising electrical and thermal conductivity performances. RSC Adv. 2014, 4, 34156–34160. [Google Scholar] [CrossRef]
  18. Janas, D.; Rdest, M.; Koziol, K.K.K. Free-standing conductive thin films from gold-carbon nanotube composites. Mater. Lett. 2017, 201, 101–104. [Google Scholar] [CrossRef]
  19. Kim, I.; Woo, K.; Zhong, Z.; Lee, E.; Kang, D.; Jeong, S.; Choi, Y.-M.; Jang, Y.; Kwon, S.; Moon, J. Selective Light-Induced Patterning of Carbon Nanotube/Silver Nanoparticle Composite To Produce Extremely Flexible Conductive Electrodes. ACS Appl. Mater. Interfaces 2017, 9, 6163–6170. [Google Scholar] [CrossRef]
  20. Kholmanov, I.N.; Domingues, S.H.; Chou, H.; Wang, X.; Tan, C.; Kim, J.-Y.; Li, H.; Piner, R.; Zarbin, A.J.G.; Ruoff, R.S. Reduced Graphene Oxide/Copper Nanowire Hybrid Films as High-Performance Transparent Electrodes. ACS Nano 2013, 7, 1811–1816. [Google Scholar] [CrossRef]
  21. Subramaniam, C.; Yamada, T.; Kobashi, K.; Sekiguchi, A.; Futaba, D.N.; Yumura, M.; Hata, K. One hundred fold increase in current carrying capacity in a carbon nanotube–copper composite. Nat. Commun. 2013, 4, 2202. [Google Scholar] [CrossRef]
  22. Suh, Y.D.; Kwon, J.; Lee, J.; Lee, H.; Jeong, S.; Kim, D.; Cho, H.; Yeo, J.; Ko, S.H. Maskless Fabrication of Highly Robust, Flexible Transparent Cu Conductor by Random Crack Network Assisted Cu Nanoparticle Patterning and Laser Sintering. Adv. Electron. Mater. 2016, 2, 1600277. [Google Scholar] [CrossRef]
  23. Tsai, C.-Y.; Chang, W.-C.; Chen, G.-L.; Chung, C.-H.; Liang, J.-X.; Ma, W.-Y.; Yang, T.-N. A Study of the Preparation and Properties of Antioxidative Copper Inks with High Electrical Conductivity. Nanoscale Res. Lett. 2015, 10, 357. [Google Scholar] [CrossRef] [PubMed]
  24. Jeong, S.; Lee, S.H.; Jo, Y.; Lee, S.S.; Seo, Y.-H.; Ahn, B.W.; Kim, G.; Jang, G.-E.; Park, J.-U.; Ryu, B.-H.; et al. Air-stable, surface-oxide free Cu nanoparticles for highly conductive Cu ink and their application to printed graphene transistors. J. Mater. Chem. C 2013, 1, 2704–2710. [Google Scholar] [CrossRef]
  25. Huang, K.-M.; Tsukamoto, H.; Yong, Y.; Chiu, H.-L.; Nguyen, M.T.; Yonezawa, T.; Liao, Y.-C. Stabilization of the thermal decomposition process of self-reducible copper ion ink for direct printed conductive patterns. RSC Adv. 2017, 7, 25095–25100. [Google Scholar] [CrossRef]
  26. Farraj, Y.; Grouchko, M.; Magdassi, S. Self-reduction of a copper complex MOD ink for inkjet printing conductive patterns on plastics. Chem. Commun. 2015, 51, 1587–1590. [Google Scholar] [CrossRef]
  27. Choi, Y.-H.; Hong, S.-H. Effect of the Amine Concentration on Phase Evolution and Densification in Printed Films Using Cu(II) Complex Ink. Langmuir 2015, 31, 8101–8110. [Google Scholar] [CrossRef]
  28. Rosen, Y.S.; Yakushenko, A.; Offenhäusser, A.; Magdassi, S. Self-Reducing Copper Precursor Inks and Photonic Additive Yield Conductive Patterns under Intense Pulsed Light. ACS Omega 2017, 2, 573–581. [Google Scholar] [CrossRef]
  29. Lee, J.-W.; Kwak, J.H.; Kim, J.; Jeong, S.; Park, J.H.; Jeong, S.Y.; Seo, S.H.; Han, J.T.; Lee, G.-W.; Baeg, K.-J.; et al. Minimizing Temperature Gradient in Photonic Sintering for Defect-Free High-Conductivity Cu-Based Printed Patterns by Bidirectional Irradiation. Adv. Mater. Interfaces 2021, 8, 2100769. [Google Scholar] [CrossRef]
  30. Perelaer, J.; Gans, B.-J.; Schubert, U.S. Ink-jet Printing and Microwave Sintering of Conductive Silver Tracks. Adv. Mater. 2006, 18, 2101–2104. [Google Scholar] [CrossRef]
  31. Kumpulainen, T.; Pekkanen, J.; Valkama, J.; Laakso, J.; Tuokko, R.; Mantysalo, M. Low temperature nanoparticle sintering with continuous wave and pulse lasers. Opt. Laser Technol. 2011, 43, 570–576. [Google Scholar] [CrossRef]
  32. Ruia, J.; Kima, K.; Kim, H.-S.; Hahn, H.T.; Lashmore, D. Intense pulsed light induced platinum–gold alloy formation on carbon nanotubes for non-enzymatic glucose detection. Biosens. Bioelectron. 2010, 26, 602–607. [Google Scholar]
  33. Park, J.H.; Hwang, G.-T.; Kim, S.; Seo, J.; Park, H.-J.; Yu, K.; Kim, T.-S.; Lee, K.J. Flash-Induced Self-Limited Plasmonic Welding of Silver Nanowire Network for Transparent Flexible Energy Harvester. Adv. Mater. 2017, 29, 1603473. [Google Scholar] [CrossRef] [PubMed]
  34. Zhong, Z.; Woo, K.; Kim, I.; Hwang, H.; Kwon, S.; Choi, Y.-M.; Lee, Y.; Lee, T.-M.; Kim, K.; Moon, J. Roll-to-roll-compatible, flexible, transparent electrodes based on self-nanoembedded Cu nanowires using intense pulsed light irradiation. Nanoscale 2016, 8, 8995–9003. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, M.-J.; Kim, H.; Kim, J.; Lee, Y.J.; Lee, W.; Hwang, J.Y.; Kim, K.K.; Jeong, H.J. Molecular-level hybridization of single-walled carbon nanotubes and a copper complex with counterbalanced electrostatic interactions. Commun. Mater. 2024, 5, 111. [Google Scholar] [CrossRef]
  36. Dong, Y.; Lin, Z.; Li, X.; Zhu, Q.; Li, J.-G.; Sun, X. A low temperature and air-sinterable copper–diamine complex-based metal organic decomposition ink for printed electronics. J. Mater. Chem. C 2018, 6, 6406–6415. [Google Scholar] [CrossRef]
  37. Ahangarkani, M. In-situ formation of tungsten nano-particles by oxidation-reduction mechanism-New approach in sintering activating by means of oxide nanostructures. Mater. Lett. 2020, 261, 127128. [Google Scholar] [CrossRef]
  38. Sharna, S.; Bahri, M.; Bouillet, C.; Rouchon, V.; Lambert, A.; Gay, A.-S.; Chiche, D.; Ersen, O. In situ STEM study on the morphological evolution of copper-based nanoparticles during high-temperature redox reactions. Nanoscale 2021, 13, 9747–9756. [Google Scholar] [CrossRef]
  39. Allaf, R.M.; Rivero, I.V.; Spearman, S.S.; Hope-Weeks, L.J. On the preparation of as-produced and purified single-walled carbon nanotube samples for standardized X-ray diffraction characterization. Mater. Charact. 2011, 62, 857–864. [Google Scholar] [CrossRef]
  40. Yuan, Y.; Li, X.; Jiang, L.; Liang, M.; Zhang, X.; Wu, S.; Wu, J.; Tian, M.; Zhao, Y.; Qu, L. Laser maskless fast patterning for multitype microsupercapacitors. Nat. Commun. 2023, 14, 396. [Google Scholar] [CrossRef]
  41. An, J.W.; Hyeong, S.-K.; Kim, K.M.; Lee, H.R.; Kim, T.-W.; Bae, S.; Lee, S.-K. Facile synthesis of laser-induced graphene oxide and its humidity sensing properties. Carbon Lett. 2024, 34, 1173–1185. [Google Scholar] [CrossRef]
  42. Goak, J.C.; Kim, T.Y.; Kim, D.U.; Chang, K.S.; Lee, C.S.; Lee, N. Stable heating performance of carbon nanotube/silver nanowire transparent heaters. Appl. Surf. Sci. 2020, 510, 145445. [Google Scholar] [CrossRef]
Figure 1. Laser-induced photo-thermal reaction for ultrafast preparation of the SWCNTs/Cu hybrid electrodes. (a) Schematic of fabrication process of patterned SWCNT/Cu electrodes. (b) UV–vis absorption spectra of Cu-complex, SWCNT/Cu-complex, and SWCNT. (c) Demonstration of photo-thermal and chemical reactions of SWCNT/Cu-complex producing metallic Cu. (d) Temperature profiles of SWCNT and Cu-complex when irradiated using laser at 455 nm.
Figure 1. Laser-induced photo-thermal reaction for ultrafast preparation of the SWCNTs/Cu hybrid electrodes. (a) Schematic of fabrication process of patterned SWCNT/Cu electrodes. (b) UV–vis absorption spectra of Cu-complex, SWCNT/Cu-complex, and SWCNT. (c) Demonstration of photo-thermal and chemical reactions of SWCNT/Cu-complex producing metallic Cu. (d) Temperature profiles of SWCNT and Cu-complex when irradiated using laser at 455 nm.
Nanomaterials 14 01454 g001
Figure 2. SWCNT concentration dependence on photo-thermal reaction. (a) X-ray diffraction patterns of SWCNT/Cu electrodes and (b) temperature profiles during laser irradiation of SWCNT/Cu-complex films at different SWCNT concentrations on glass substrates. (c) Thermogravimetry and differential scanning calorimetry curves of Cu-complex at a heating rate of 5 °C min−1 under air flow of 100 mL min−1. Scanning electron microscopy (SEM) images of SWCNT/Cu electrodes at SWCNT concentrations of (d) 0.1 wt%, (e) 0.5 wt%, (f) 1.0 wt%, and (g) 2.0 wt%.
Figure 2. SWCNT concentration dependence on photo-thermal reaction. (a) X-ray diffraction patterns of SWCNT/Cu electrodes and (b) temperature profiles during laser irradiation of SWCNT/Cu-complex films at different SWCNT concentrations on glass substrates. (c) Thermogravimetry and differential scanning calorimetry curves of Cu-complex at a heating rate of 5 °C min−1 under air flow of 100 mL min−1. Scanning electron microscopy (SEM) images of SWCNT/Cu electrodes at SWCNT concentrations of (d) 0.1 wt%, (e) 0.5 wt%, (f) 1.0 wt%, and (g) 2.0 wt%.
Nanomaterials 14 01454 g002
Figure 3. Laser power dependence on photo-thermal reaction. (a) X-ray diffraction patterns of 0.1 wt% SWCNT/Cu electrodes with respect to laser irradiation power, (b) temperature profiles during laser irradiation, and (c) electrical resistivity of SWCNT/Cu electrodes fabricated with various laser powers on a glass substrate. Electrical resistivities of thermally treated samples of Cu-complex (blue star) and 0.1 wt% SWCNT/Cu (red star) in the furnace are shown in the inset. (dh) SEM images of SWCNT/Cu electrodes irradiated with output laser powers of 1, 2, 3, 4, and 8 W, respectively.
Figure 3. Laser power dependence on photo-thermal reaction. (a) X-ray diffraction patterns of 0.1 wt% SWCNT/Cu electrodes with respect to laser irradiation power, (b) temperature profiles during laser irradiation, and (c) electrical resistivity of SWCNT/Cu electrodes fabricated with various laser powers on a glass substrate. Electrical resistivities of thermally treated samples of Cu-complex (blue star) and 0.1 wt% SWCNT/Cu (red star) in the furnace are shown in the inset. (dh) SEM images of SWCNT/Cu electrodes irradiated with output laser powers of 1, 2, 3, 4, and 8 W, respectively.
Nanomaterials 14 01454 g003
Figure 4. Laser-induced photo-thermal reaction for pattering. (a) Photographs of SWCNT/Cu patterned electrodes on PET substrate. (bf) OM images of line patterns at different magnifications. (g,h) SEM images of curved and straight lines.
Figure 4. Laser-induced photo-thermal reaction for pattering. (a) Photographs of SWCNT/Cu patterned electrodes on PET substrate. (bf) OM images of line patterns at different magnifications. (g,h) SEM images of curved and straight lines.
Nanomaterials 14 01454 g004
Figure 5. Flexibility of the SWCNT/Cu electrodes. (a) Photographs of flexible SWCNT/Cu electrodes under various deformation states. (b) Repeated bending test results of the Cu and SWCNT/Cu electrodes with 0.1 and 0.5 wt% SWCNTs. Inset shows the change in electrical resistance of the samples during low bending cycles.
Figure 5. Flexibility of the SWCNT/Cu electrodes. (a) Photographs of flexible SWCNT/Cu electrodes under various deformation states. (b) Repeated bending test results of the Cu and SWCNT/Cu electrodes with 0.1 and 0.5 wt% SWCNTs. Inset shows the change in electrical resistance of the samples during low bending cycles.
Nanomaterials 14 01454 g005

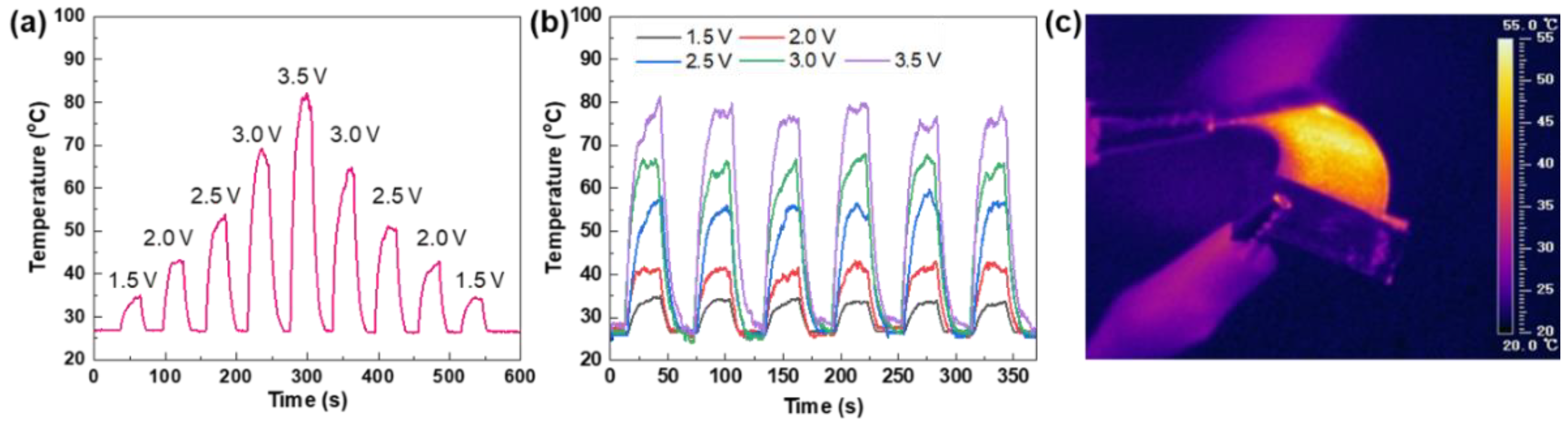

Figure 6. Joule heating performances of electrodes. (a) Temperature profile of stepwise increase and decrease in applied voltage ranging from 1.5 to 3.5 V, (b) temperature profile at applied voltage ranging from 1.5 to 3.5 V with repeated cycling, and (c) infrared camera image of SWCNT/Cu electrodes in bending state.
Figure 6. Joule heating performances of electrodes. (a) Temperature profile of stepwise increase and decrease in applied voltage ranging from 1.5 to 3.5 V, (b) temperature profile at applied voltage ranging from 1.5 to 3.5 V with repeated cycling, and (c) infrared camera image of SWCNT/Cu electrodes in bending state.
Nanomaterials 14 01454 g006
