A “Talking” between Gold Nanoparticle and a Luminescent Iridium(III) Complex: A Study of the Effect Due to the Interaction between Plasmon Resonance and a Fluorophore

by
Angela Candreva
1,2,
Loredana Ricciardi
2,
Elisabeta I. Szerb
3 and
Massimo La Deda
1,2,*
1
Department of Chemistry and Chemical Technologies, University of Calabria, I-87036 Rende, Italy
2
CNR-NANOTEC Institute of Nanotechnology, National Research Council, I-87036 Rende, Italy
3
Coriolan Dragulescu Institute of Chemistry, Romanian Academy, 24, Mihai Viteazu Bvd., 300223 Timisoara, Romania
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(19), 1543; https://doi.org/10.3390/nano14191543
Submission received: 5 August 2024 / Revised: 17 September 2024 / Accepted: 20 September 2024 / Published: 24 September 2024
(This article belongs to the Special Issue Noble Metal-Based Nanostructures: Optical Properties and Applications)
Browse Figures
Versions Notes

Abstract

:
This paper explores a novel synthesis and characterization of silica-coated gold nanorods (AuNRs) embedding a highly emissive cyclometalated iridium(III) complex, denoted as Ir1. We investigate the optical properties and the interplay between the metal compound and gold plasmon, observing how the emission of Ir1 incorporated into the nanoparticles shows two emission bands, one in the blue and the other in the green-orange range of the visible spectrum. To obtain a clearer picture of what we were observing, we synthesized analogous nanosystems, from which it was possible to highlight the effect of different features. Based on what we observed, we proposed that the fraction of the iridium(III) complex in direct contact with the surface of the gold nanoparticle undergoes a “demixing” of the excited state, which, for cyclometalated iridium complexes, is generally considered a mixed LC+MLCT state. This preliminary study sheds light on the complexity of the “talking” between a fluorophore and a plasmonic system, highlighting the importance of considering the emitter typology when modeling such systems.

1. Introduction

Metal nanoparticles (MNPs) have attracted considerable attention for their ability to interact with light from the visible to the near-infrared (NIR) through the generation of resonant surface plasmons [1,2,3]. In recent years, many efforts have been made to understand and exploit plasmonic properties and their interaction with other classes of materials, as well as their functional applications [4]. The interaction between metal nanoparticles and luminescent molecules has received particular attention, and this combination has led to various applications in different fields, from photovoltaics to biomedical [5,6].
Interacting with a fluorophore, MNPs can significantly influence the molecule properties, and, vice versa, the latter can influence the plasmon resonance. This “talking” is mediated by the surface electron oscillations of the MNPs coupled with the electronic transitions of the light-emitting molecules. Indeed, the proximity of a metal nano-core alters the excited deactivation pathways of the surface-bound molecules. One of the remarkable properties of luminescent molecules when bound to metal surfaces is the reduced excited-state lifetime as a result of energy transfer from excited dye molecules to bulk metal, and, depending on the distance between the fluorophore and the metal core, the emission intensity can be increased or decreased. Several models have been proposed to describe these interactions [7]; in general, fluorescence resonance energy transfer (FRET) is used to explain the emission quenching [8,9], or metal enhanced fluorescence (MEF) is used to model emission enhancement [10,11,12]; however, in neither case is the specific identity of the fluorophore taken into consideration.
From an experimental point of view, it becomes essential to have synthetic methods that allow one to organize chromophores with specific properties and functions on MNPs so as to produce photoresponsive organic–inorganic nano-hybrid materials. Careful synthetic design allows one to functionalize the surface of the nanoparticles with luminescent molecules, ensuring a close contact between them, or to place the fluorophore at a well-defined distance from the metal surface, using spacers such as silica. In this way, the “talking” between the plasmon and the luminophore (FRET, MEF, etc.) can be controlled.
Among MNPs, gold nanoparticles (AuNPs) have received much attention, due to their characteristic plasmon resonance in the Vis–NIR range and to their versatile procedures for obtaining homogeneous nanoparticles such as, among others [13], microemulsion [14] and seed-mediated growth methods [15,16]
Nanoparticles can be coated with various coating agents depending on the environment in which they are to be dispersed [17,18]. Additionally, coating agents can act as functionalizers, giving the nanoparticles new properties and enabling their application in fluorescence imaging, biosensing and phototherapy [19,20,21,22,23]. Silica coating represents a powerful strategy for functionalizing gold nanoparticles [24,25,26]; by encapsulating the AuNPs within a silica shell, their stability is significantly enhanced. Furthermore, the silica shell is a useful platform for further functionalization with biomolecules, polymers, or obtaining ligands [27,28]. This opens up opportunities for applications in obtained drug delivery, where the AuNPs can be engineered to selectively bind to diseased cells or tissues, delivering therapeutic payloads with precision and efficacy [29,30,31]. Moreover, the silica shell can serve as a host for embedding luminescent molecules, creating hybrid nanostructures with synergistic optical properties [32,33].
We have previously reported the synthesis and characterization of gold-core silica-shell nanospheres embedding, within the polysiloxane matrix, a highly luminescent and photosensitizing iridium(III) complex, indicated briefly as Ir1 (whose molecular structure is reported in Figure S1), to obtain an all-in-one nanoplatform for simultaneous imaging and phototherapy [34,35,36,37]. In general, iridium(III) complexes have been extensively studied for their rich and sensitive photophysical properties, mainly characterized by high phosphorescence quantum yields and sensitizing abilities [38,39,40].
On this basis, the synthesis and characterization of gold-core silica-shell nanorods encapsulating a photophysically-active Ir1 is proposed herein. To favor the solubility of the nanosystems in aqueous environments, silica-coated AuNPs were overcoated by 3-(triethoxysilyl)propylsuccinic anhydride (TPSA), which makes nanoparticles very stable in water. Compared with spheres, nanorods possess a tunable aspect ratio, providing enhanced absorption in the NIR region, where tissue penetration is maximized, promoting the use of such nanosystems in the phototherapeutic field [41]. Interestingly, the photophysical properties of the newly synthesized gold-core silica-shell nanorods, AuNR@(Ir1)SiO2@TPSA, appeared unusual, probably due to the peculiarity of the fluorophore—a cyclometalated Ir(III) compound—and to the architecture of the nanosystem. To obtain a more detailed picture, similar nanosystems were prepared, in order to isolate the contributions of the various components; in particular, and with a different synthesis method, an analogous system with a spherical gold core (AuNS@(Ir1)SiO2@TPSA) was prepared. To highlight the role of the gold core, silica nanoparticles (without the gold core) incorporating Ir1 was synthesized ((Ir1)SiO2@TPSA), while a nanosystem with a PEG-SH coating was prepared to highlight the role of the coating on the position of the plasmon band (AuNR@PEG-SH). By comparing the emission spectra and the lifetimes of the iridium(III) complex in the different nanosystems, a new effect caused by the interaction between the plasmon resonance of the nanoparticles and the luminescence of the fluorophore was observed and described.

2. Materials and Methods

Triton X-100, n-hexanol, cyclohexane, sodium 2-mercaptoethanesulfonate (MES), hexadecyltrimethylammonium bromide (CTAB, ≥96%), 5-bromosalicylic acid (5-BrSA, technical grade, 90%), O-[2-(3-Mercaptopropionylamino)ethyl]-O′-methylpolyethylene glycol (PEG-SH), hydrogen tetrachloroaurate trihydrate (HAuCl4·H2O, ≥99.9%), silver nitrate (AgNO3, ≥99.0%), L-ascorbic acid (≥99%), sodium iodide (99.99%), trisodium citrate (99%), sodium borohydride (NaBH4, 99%), isopropanol, tetraethoxysilane (TEOS), (3-aminopropyl)triethoxysilane (APTES), NaOH (98%), and MeOH were purchased from Aldrich, St. Louis, MO, USA. NH4OH (25% in water) was purchased from Chimie Plus, Saint-Paul-de-Varax, France. N-(3-triethoxysilyl)propylsuccinic anhydride (TPSA, 94%) was purchased from ABCR, Karlsruhe, Germany. Only homemade Milli-Q water, (ρ > 18 MΩ) was used for the preparation of the aqueous solution.
All of the chemicals were used as received. All glassware was washed with aqua regia, rinsed with water, sonicated 3-fold for 3 min with Milli-Q water, and dried before use. Iridium(III) complex was synthesized according to the procedure previously reported [42].
The absorption spectra have been obtained using a Perkin Elmer Lambda 900 spectrophotometer (Shelton, CT, USA).
Steady-state emission spectra were registered by a HORIBA Jobin-Yvon Fluorolog-3 FL3-211 spectrometer (Edison, NJ, USA), equipped with a 450 W Xenon arc lamp, double-grating excitation and single-grating emission monochromators (2.1 nm/mm dispersion; 1200 grooves/mm), and a Hamamatsu R928 photomultiplier tube (Hamamatsu City, Japan). Emission and excitation spectra were corrected for source intensity (lamp and grating) and emission spectral response (detector and grating) by standard correction curves.
Time-resolved measurements were carried out using the time-correlated single-photon counting (TCSPC) option on the Fluorolog 3. A nanoLED at 379 nm, fwhm < 200 ps with repetition rate at 1 MHz, was employed to excite the sample. Excitation source was directly fixed on the sample chamber at 90° to a single-grating emission monochromator (2.1 nm/mm dispersion; 1200 grooves/mm) and the emission was recorded with a TBX-04-D single-photon-counting detector. The photons collected at the detector were correlated by a time-to-amplitude converter (TAC) to the excitation pulse. Signals were recorded using an IBH Data Station Hub photon counting module, and data analysis was performed using the commercially available DAS6 software (version 6.4, HORIBA Jobin Yvon, Edison, NJ, USA). The quality of the fit was assessed by minimizing the reduced χ2 function and by visual inspection of the weighted residuals.
A transmission electron microscope (Jeol JEM-1400 Plus 120 kV, Tokyo, Japan) was used to measure the size and morphology of the gold nanoparticles. The samples for transmission electron microscopy (TEM) were prepared by the deposition of a drop of diluted solution on 300 mesh copper grids. The particles were observed at an operating voltage of 80 kV after evaporation of the solvent in air.
All experiments were conducted at 30 °C.

3. Results and Discussion

  • Synthesis of AuNR@CTAB
Following the seed-mediated growth synthetic procedure, gold nanorods with an aspect ratio of 4 (48 nm × 12 nm, long axis × short axis, respectively) were synthesized [43,44].
Preparation of the seed solution. An amount of 25 μL of 5.0 × 10−2 M HAuCl4 water solution was mixed with 4.7 mL of 0.1 M CTAB water solution. An amount of 300 μL of a freshly prepared 1.0 × 10−2 M NaBH4 water solution was then added under intense stirring.
Preparation of the growth solution. An amount of 45 mg of 5-BrSA was added to 50 mL of 0.05 × 10−2 M CTAB water solution. When completely dissolved, 480 μL of 1.0 × 10−2 M AgNO3 water solution was added. The solution was gently stirred for 15 min at 30 °C, and then 500 μL of 5.0 × 10−2 M HAuCl4 water solution was added to the mixture, starting the pre-reduction step. At the selected pre-reduction time, 130 μL of 0.1 M ascorbic acid water solution was injected under strong stirring, followed by 80 μL of seed solution. After 30 s, the stirring was stopped and the mixture was left undisturbed for at least 4 h. The sample was finally centrifuged (9000 rpm, 20 min, 30 °C).
  • Synthesis of AuNR@PEG-SH
To 50 mL aqueous solution of CTAB-coated nanorods, 1 mL aqueous solution of PEG-SH (1 × 10−4 M) was added. CTAB, which was bound to the metal surface by electrostatic bonding, was easily displaced by the SH group, which formed a covalent bond with Au [45]. The sample was stirred vigorously overnight. It was then centrifuged and the pellet dispersed in water.
  • Synthesis of AuNS@(Ir1)SiO2@TPSA and (Ir1)SiO2@TPSA
Quaternary water/oil (W/O) microemulsion was obtained by mixing 7.2 mL of Triton X-100 (surfactant), 7.2 mL of n-hexanol (co-surfactant), 30 mL of cyclohexane (oil) and a water solution consisting of a mixture of 1.8 mL HAuCl4⋅3H2O (12.75 mM) water solution, 1.8 mL MES (36.5 mM) water solution and 0.6 mL NaBH4 (423 mM) water solution, in order to synthesize the gold nanoparticles. After 5 min, 0.1 mL of the corresponding metal complex solution, obtained by direct dissolution of 1 mg of Ir1 in 0.1 mL of water, was added to the microemulsion, followed by 0.020 mL of APTES and 0.300 mL of TEOS. After 30 min, the silica polymerization reaction was completed by adding 0.160 mL of NH4OH (25%) water solution, which was then left stirring overnight. A protective charged shell was then added to the particles to provide colloidal stability in aqueous solution. A two-step addition of 0.030 mL of N-(3-triethoxysilyl) propylsuccinic anhydride after 24 and 48 h from the core formation ensured the long-term electrostatic stability of the colloid. Then, by the addition of isopropanol and water in a volume ratio 1:1:1, the microemulsion was broken. Further purification steps by ultrafiltration method (by using a crossflow device Sartorius Vivaflow® 200 equipped with 100 KDa membranes) allowed the complete removal of all unreacted species. Gold–silica nanoparticles were finally dispersed in water and filtered by a 200 nm nylon membrane.
(Ir1)SiO2@TPSA was synthesized following the above procedure, but without the addition of Ir1.
Synthesis of AuNR@SiO2@TPSA. An amount of 10 μL of 0.2 M CTAB was mixed with 2 mL of an aqueous dispersion of AuNR@CTAB (2.5 × 10−4 M). After a few seconds, 20 μL of a 0.1 M NaOH aqueous solution was added under vigorous stirring, followed by three additions, each of 12 μL, of TEOS 20% v/v in methanol under mild stirring. After 14 h, the mixture was centrifuged in EtOH twice at 6000 rpm for 10 min [46]. Successively, a solution of 2 mL of EtOH containing 5 μL of TPSA was added, and gently stirred overnight. The mixture was finally centrifuged and dispersed in water.
Synthesis of AuNR@(Ir1)SiO2@TPSA. An amount of 6 mg of Ir1 was dissolved in 2 mL of an aqueous dispersion of AuNR@CTAB (2.5 × 10−4 M). Henceforth the synthesis proceeds as in the previous case. After three purification steps, the washing waters, tested by spectroscopy, were free from iridium(III) complex.
Synthesis of AuNR@SiO2(Ir1)SiO2@TPSA. An amount of 10 μL of 0.2 M CTAB was added to 2 mL of an aqueous dispersion of AuNR@CTAB (2.5 × 10−4 M). After a few seconds, 20 μL of a 0.1 M NaOH aqueous solution was added under vigorous stirring, followed by TEOS 20% v/v (12 μL) in methanol under gentle stirring. An amount of 2 mL of an aqueous solution containing 6 mg of Ir1 was then added, followed by two additions, each of 12 μL, of TEOS 20% v/v in methanol under gentle stirring. After 14 h, the mixture was centrifuged in EtOH twice at 6000 rpm for 10 min [46]. Successively, a solution of 2 mL of EtOH containing 5 μL of TPSA was added and gently stirred overnight. Finally, the mixture was centrifuged and dispersed in water.
TEM images. Samples AuNR@(Ir1)SiO2@TPSA and AuNR@SiO2@TPSA were observed by TEM (Figure 1). Although the followed synthetic procedures are identical, the coating thickness is different; in particular, the thickness of AuNR@(Ir1)SiO2@TPSA is greater than that of AuNR@SiO2@TPSA, i.e., 22 × 18 nm vs. 18 × 15 nm, short axis × long axis, respectively.
Photophysical properties. The photophysical characterization of Ir1 has been published in various papers [14,42,47]. Here, we summarize the principal features. The absorption spectrum of Ir1 (Figure S2) is dominated, in the UV range, by the intense spin-allowed 1π–π* 1LC transitions of aromatic ligands. In the 350–450 nm range, less-intense 1MLCT bands are visible. In addition, the direct spin-forbidden population of triplet excited states is responsible for the weak tails observed above 450 nm. (3MLCT and 3LC transitions). In fact, the high spin-orbit coupling of the iridium metal core allows the mixing of triplet states with the higher-lying 1MLCT levels. The presence of a high spin-orbit coupling increases the intersystem crossing efficiency from the singlet to the triplet excited states, with a final highly efficient spin-forbidden phosphorescence emission. Ir1 in water solution (Figure S3) displays an intense luminescence band centered at 515 nm, due to the 3MLCT deactivation. As expected, the emission intensity is highly sensitive to the amount of oxygen. Time-dependent emission intensity of Ir1 (Figure S4) has been fitted by a mono-exponential decay function. In Ar-equilibrated solutions, the complex shows a lifetime value of 2.182 μs that is reduced to 0.395 μs in the presence of oxygen. As expected, the emission quantum yield decreases from the value of 0.96 measured in the absence of oxygen, to 0.10 in an air-equilibrated solution.
Figure 2 reports the extinction spectra of AuNR@(Ir1)SiO2@TPSA and AuNR@SiO2@TPSA in water solution. While the transverse plasmon band remains virtually unchanged, the longitudinal one appears red shifted from 725 to 754 nm in the NRs incorporating Ir1, compared with those without it. Furthermore, an absorption band of the complex at 420 nm is visible in the spectrum of AuNR@(Ir1)SiO2@TPSA (when compared with the spectrum in Figure S2).
It is known that the longitudinal band position of AuNRs is significantly influenced by the refractive index of the dielectric in contact with the metal surface [46,48,49]. Because the coating agent in both samples is silica, which grows by modeling on the CTAB layer, the presence of Ir1 in AuNR@(Ir1)SiO2@TPSA plays a relevant role on this layer. Considering that the iridium(III) complex has an ionic nature, it is plausible that the positively charged ion can partially displace the CTAB molecules from the gold, modifying the layer directly in contact with the metal. Furthermore, the CTAB micelles on the gold surface (which favor the ordered growth of silica [39]), are somehow disrupted and the silica, no longer confined inside the micelles, gives rise to greater shell thicknesses, as already observed for the AuNR@(Ir1)SiO2@TPSA sample with respect to AuNR@SiO2@TPSA (see above in Figure 1). To verify that Ir1 can displace the CTAB layer causing a longitudinal band red shift, growing amounts of this complex were added to a water solution of AuNR@CTAB; the obtained results, reported in Figure 3 (on the left), show an increasing red shift, confirming this effect. Ir1 can replace the CTAB layer because CTAB molecules are held onto metal surface by electrostatic interactions. If the AuNR coating was made by PEG-SH (which adheres to gold by a strong S-Au bond), Ir1 cannot replace it, and consequently no red shift should be observed. To better confirm this hypothesis, Ir1 was added to an alcoholic solution of AuNR@PEG-SH, and, in the relative extinction spectrum, no red shift is observed (Figure 3, on the right).
Then, the aqueous solutions of AuNR@SiO2@TPSA and AuNR@(Ir1)SiO2@TPSA were studied to verify their luminescence properties. While AuNR@SiO2@TPSA, as expected, does not show any emission, AuNR@(Ir1)SiO2@TPSA, which contains the fluorophore Ir1, shows a rather structured emission spectrum (Figure 4), with two bands in the blue and green range of the visible spectrum, each displaying two vibronic maxima, at 465 and 484 nm and at 515 and 542 nm, respectively.
Comparing this spectral profile with the emission of Ir1 in solution reported in Figure 4, it is clearly noted that, while the band in the green range is superimposable to the emission of the complex (although slightly red shifted), the band in the blue range deserves a more in-depth study. To evaluate the contribution of each component of the AuNR@(Ir1)SiO2@TPSA nanoplatform, we compared its emission spectrum with that of a sample in which Ir1 is embedded into silica nanoparticle (Ir1)SiO2@TPSA [14], in order to highlight the role of the plasmonic nanoparticle; subsequently, to evaluate the role of the plasmonic structure, we analyzed an identical system that had a spherical gold core, AuNS@(Ir1)SiO2@TPSA [14], instead of a rod-shaped one. Spectral profiles are compared in Figure 4, while lifetime measurements are reported in Table 1.
Considering the emission intensity decay of Ir1 encapsulated in TPSA-coated silica spheres (i.e., (Ir1)SiO2@TPSA sample), we note that, compared with Ir1 in aqueous solution, a longer lifetime appears, while the value of the short lifetime remains almost identical. The short lifetime (415 ns) can be attributed to the Ir1 fixed on the nanoparticle surface (in contact with the solvent, and thus in an environment similar to Ir1 in solution), while the longer one (2372 ns) is attributed to the decay of the iridium(III) complex embedded in the rigid silica shell. This is confirmed by the data obtained from the AuNS@(Ir1)SiO2@TPSA sample, which differs from (Ir1)SiO2@TPSA by virtue of the presence of the spherical gold core. In this case, we measured a short lifetime of 408 ns (attributable to the Ir1 on the nanoparticle surface), and a long lifetime of 1210 ns (attributed to the Ir1 into the silica matrix) that was reduced with respect to the value measured for (Ir1)SiO2@TPSA by an energy transfer process towards the gold plasmon, which peaked at 515 nm and therefore overlapped with the emission band of the fluorophore.
AuNR@(Ir1)SiO2@TPSA shows quite different photophysical properties compared with the previous samples; here, the emission spectrum features two main peaks, one located at 542 nm (similar to that shown by the previous samples at 515 nm, but now slightly red shifted), and a new band at 465 nm, absent in the previous samples. The time-resolved decays of the luminescence intensity were recorded at the maxima of the two spectral regions, i.e., at 465 and 542 nm, and the fitting procedure, using a tri-exponential function (with a chi-square of 1.28), gives the following three lifetime values: τ1 = 7 ns, τ2 = 83 ns, τ3 = 869 ns and τ1 = 18 ns, τ2 = 279 ns, τ3 = 1060 ns, respectively (see Table 1), with different values of amplitude of the components (α) depending on the emission peak.
To rationalize the properties of AuNR@(Ir1)SiO2@TPSA, it is useful to compare the photophysical features with those of AuNS@(Ir1)SiO2@TPSA, which differs from the previous sample because of the shape of the gold core and because of the synthetic procedure followed; in fact, in the case of gold nanospheres, the microemulsion method was employed [14], which uses gold nanospheres coated with MES on which TEOS polymerizes. In the case of gold nanorods, TEOS polymerizes on CTAB-coated rods. The microemulsion technique allows one to obtain isotropic nanoparticles homogeneous in shape and size, but it is not as versatile as the seed-mediated growth, thanks to which it is possible to obtain anisotropic nanoparticles of different shapes and sizes. In fact, though with this technique it is more difficult to obtain homogeneous samples, it is nevertheless widely used due to its versatility [45,50]. The microemulsion method allows one to obtain spherical nanoparticles the radius of which depends on the precursor ion concentration and surfactant to water ratio. The seed-mediated approach, indeed, allows one to obtain nanoparticles of different shapes and sizes. A key role in achieving the desired shape is played by the coating agent and the so-called shape directors (in our case CTAB as coating agent and silver nitrate as shape director). Furthermore, a bimodal reducing agent system consisting of the combination of salicylic acid and ascorbic acid allows for good control of the gold reduction at each stage of the nanorod formation, which improves the morphology control.
We propose that the high-energy and relatively high-intensity emission band at 465 nm of AuNR@(Ir1)SiO2@TPSA is ascribable to the Ir1 directly in contact with the metal. The possibility of a direct contact of the fluorophore with the metal surface is due to the ionic nature of the Ir(III) complex that allows a partial substitution of CTAB molecules on the gold surface, while this is prevented in the analogous AuNS@(Ir1)SiO2@TPSA by the strong bond between MES and gold.
From a photophysical point of view, the interactions of fluorophores with metal surfaces show several effects, including increased quantum yields, higher photostability, longer FRET distances, and reduced lifetimes. These effects are called metal-enhanced fluorescence (MEF) [11,12,51]. A fluorophore in the excited state has the properties of an oscillating dipole. The excited fluorophore can induce oscillations of the electrons in the metal. The electric field created by the metal can interact with the excited fluorophore and alter its emission. In our case, however, we observe that the interaction between the metal surface of the nanoparticle with the fluorophore does not lead to an increase in the intensity of the typical Ir1 emission band centered at 515 nm, but rather to the appearance of a new, rather structured band, at 465 nm, while the 515 nm band appears red shifted with a maximum at 542 nm.
It has been reported in many photophysical studies [52,53,54] that the luminescence of cyclometalated complexes of iridium(III) always derives from triplet levels, 3MLCT or 3LC in nature, which actually include a changeable amount of the corresponding singlets. We preliminarily propose that Ir1 molecules in direct contact with the metal surface of a nanoparticle undergo a “demixing” of the LC and MLCT states, so that it is possible to observe the 1LC emission that we identify with the 465 nm band and that is responsible for the short lifetime, while the 3MLCT results are red shifted at 542 nm.
Based on this hypothesis, we can summarize the photophysical properties of AuNR@(Ir1)SiO2@TPSA and AuNS@(Ir1)SiO2@TPSA by attributing the two emission bands and the different measured lifetimes to a different localization of Ir1 inside the gold nanoparticle. In particular, as shown in Figure 5, in the nanorods (a) and the nanospheres (b) the complexes present inside and on the surface of the siloxane matrix are responsible for the emission at 515 nm and the long and intermediate lifetimes; in the case of nanorods, where it is possible to hypothesize the presence of Ir1 in contact with the gold surface, Ir1 is responsible for the emission at 465 nm and the short lifetime, and of the red shifted band at 542 nm.
The lifetime values (τi) and the relative amplitudes of the components (αi) can be interpreted based on this model. Indeed, in the case of AuNR@(Ir1)SiO2@TPSA, it is a single fluorophore (Ir1) that exists in different environments, and the values of αi and τi can be used to determine the fractional contribution (fi) of each decay time to the steady-state intensity, calculated according to the following formula [11,51]:
f i   = α i τ i ∑ j α j τ j
As discussed above, the lifetimes measured at 465 nm, mainly attributable to the 1LC levels, are shorter than those measured at 542 nm which originate from the decay of the 3MLCT state. Multi-exponential analysis shows that, at both wavelengths, there is a contribution from the different environments in which the Ir1 chromophore is located inside the nanostructure. The value τ1 is attributed to the fraction of the Ir(III) complex in contact with the gold core, the time τ2 originates from the decay of the chromophore fraction on the nanoparticle surface, and, finally, the time value τ3 is attributed to the fraction dispersed in the siloxane matrix. As can be observed from the fi values reported in Table 2, these contributions are different depending on the observation wavelength: at 465 nm the contribution of t1 is greater than that measured at 542 nm, and this confirms the attribution of the emission at 465 nm to the 1LC state of the Ir1 fraction in direct contact with the gold core. At both wavelengths, the highest value of the fractional intensities is clearly that due to τ2, as the siloxane matrix is the one capable of hosting the largest amount of fluorophore molecules. The longest lifetime is the τ2 value, i.e., the one due to the Ir1 fraction located in the siloxane matrix. Although this fraction is closer to the gold core than the one on the nanoparticle’s surface, and therefore more subject to energy transfer towards the plasmon, this quenching is compensated for by the greater rigidity of the environment compared with the Ir1 fraction in direct contact with the aqueous environment in which the nanoparticles are dispersed.
The direct contact of the Ir1 fluorophore with the metal surface determines the emission band at 465 nm. To better confirm this, we prepared AuNR@SiO2(Ir1)SiO2@TPSA, which differs from AuNR@(Ir1)SiO2@TPSA because fluorophore was added after the first TEOS addition (i.e., between the first and the second TEOS addition, see protocol “Synthesis of AuNR@SiO2@TPSA”): in this way Ir1 was placed onto the first layer of silica shell, thus avoiding direct contact with the metal surface. In Figure 6, we report the emission spectrum of the sample AuNR@SiO2(Ir1)SiO2@TPSA. By comparing this spectrum with that obtained from AuNR@(Ir1)SiO2@TPSA we have safely shown the absence of the emission band at 465 nm due to the absence of a direct contact fluorophore-metal.

4. Conclusions

Fluorescence has always been a technique of great interest in various fields, due to its selectivity and sensitivity. In recent years, plasmonic nanomaterials have opened new avenues for the study and application of light–matter interaction processes. Nowadays, great efforts are being made to design, realize and investigate new nano-sized materials that combine the plasmonic properties of metal nanoparticles with the properties of luminescent molecules. The “talking” between the excited states of a molecule and the plasmonic resonator, the extent of which depends on the overlap between the emission band of the fluorophore and the plasmonic band of the nanoparticle, has been studied according to two main models, the FRET and the MEF, which, depending on the chromophore–nanoparticle distance and the shape of the latter, determines a quenching or an increase in the luminescence intensity. To the best of our knowledge, there are no studies that take into account the emitter specificity.
For many years our research group has been engaged in the synthesis and photophysical characterization of transition metal complexes [55] and in the synthesis of gold nanoparticles, in an effort to study the interplay between these two photoresponsive materials [56,57]. In this work we have synthesized nanosystems consisting of silica-coated gold nanorods incorporating our iridium(III) cyclometalated complex, in order to study the coupling effects of their optical properties.
Surprisingly, we observed a sort of splitting of the emission band of the metal complex, finally presenting an emission spectrum with two bands, one in the blue and the other one in the green-orange spectral range. Furthermore, we measured three values of the excited state lifetime, which we attributed to different localizations of the iridium(III) complex in the siloxane matrix at different distances from the surface of the metal core. To obtain a clearer picture of what we were observing, we synthesized analogous nano systems, from which it was possible to highlight the effect of different features. Based on what we observed, we proposed that the fraction of the iridium(III) complex in direct contact with the gold nanoparticle surface undergoes a “demixing” of the excited state, which for cyclometalated iridium complexes is generally considered a mixed LC + MLCT state.
Although in-depth theoretical and computational studies are still needed to clarify the mechanisms operating in these nanosystems, the typology of the fluorophore appears to be fundamental. As the extreme sensitivity of these new hybrid system metal cluster molecules is of considerable interest in biosensing, these results, although preliminary, constitute an important stimulus to continue research on this promising path.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/nano14191543/s1. Figure S1: Molecular structure of Ir1; Figure S2: Absorption spectrum of Ir1 in water at room temperature (3.20 × 10−5 mol/L); Figure S3: Excitation spectrum (A) in degassed water (λem = 515 nm) and emission spectra of Ir1 at room temperature in an air-saturated environment (B) or in degassed (C) water (λex = 260 nm); Figure S4: time-resolved emission decay of Ir1 in water (λex@379 nm, λmonitored = λem = 510 nm); Figure S5: time-resolved emission decays of AuNR@(Ir1)@SiO2@TPSA in water (λex@379 nm, λmonitored = λem = 465 nm (on the left), 540 nm (on the right)).

Author Contributions

Conceptualization, data curation, investigation, methodology, formal analysis, A.C.; investigation, visualization, L.R.; methodology, investigation, E.I.S.; validation, formal analysis, writing, M.L.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Progetto HY-GOLD-NUCLEO-CHIP—codice identificativo P2022FY5NK, CUP H53D23009110001—finanziato dall’Unione Europea NextGenerationEU—Piano Nazionale di Ripresa e Resilienza (PNRR)—Missione 4 “Istruzione e Ricerca”—Componente C2 Investimento 1.1, “Fondo per il Programma Nazionale di Ricerca e Progetti di Rilevante Interesse Nazionale (PRIN)” Bando PRIN 2022—Decreto Direttoriale n. 1409 del 14 settembre 2022.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Acknowledgments

The authors are grateful to Ida Daniela Perrotta Department of Biology, Ecology and Earth Sciences, Centre for Microscopy and Microanalysis (CM2), Transmission Electron Microscopy Laboratory, University of Calabria, Rende, 87036 Cosenza, Italy for TEM images.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pathak, N.K.; Sharma, R.P. Study of Broadband Tunable Properties of Surface Plasmon Resonances of Noble Metal Nanoparticles Using Mie Scattering Theory: Plasmonic Perovskite Interaction. Plasmonics 2016, 11, 713–719. [Google Scholar] [CrossRef]
  2. Zeng, S.; Baillargeat, D.; Ho, H.P.; Yong, K.T. Nanomaterials enhanced surface plasmon resonance for biological and chemical sensing applications. Chem. Soc. Rev. 2014, 43, 3426–3452. [Google Scholar] [CrossRef] [PubMed]
  3. Jana, J.; Ganguly, M.; Pal, T. Enlightening surface plasmon resonance effect of metal nanoparticles for practical spectroscopic application. RSC Adv. 2016, 6, 86174–86211. [Google Scholar] [CrossRef]
  4. Candreva, A.; Crea, R.; Nucera, A.; Barberi, R.C.; Castriota, M.; La Deda, M. Fibronectin-derived protein forms a protein corona on gold nanoparticles: Synthesis, Raman and optical properties of a new plasmonic nanocarrier. J. Mater. Sci. 2023, 58, 9618–9632. [Google Scholar] [CrossRef]
  5. Chen, F.C. Emerging Organic and Organic/Inorganic Hybrid Photovoltaic Devices for Specialty Applications: Low-Level-Lighting Energy Conversion and Biomedical Treatment. Adv. Opt. Mater. 2019, 7, 1800662. [Google Scholar] [CrossRef]
  6. Middha, E.; Liu, B. Nanoparticles of Organic Electronic Materials for Biomedical Applications. ACS Nano 2020, 14, 9228–9242. [Google Scholar] [CrossRef]
  7. Bornacelli, J.; Torres-Torres, C.; Crespo-Sosa, A.; Reyes-Esqueda, J.A.; Oliver, A. Plasmon-enhanced multi-photon excited photoluminescence of Au, Ag, and Pt nanoclusters. Nanotechnology 2024, 35, 175705. [Google Scholar] [CrossRef]
  8. Sapsford, K.E.; Berti, L.; Medintz, I.L. Materials for fluorescence resonance energy transfer analysis: Beyond traditional donor-acceptor combinations. Angew. Chem. Int. Ed. 2006, 45, 4562–4589. [Google Scholar] [CrossRef]
  9. Selvin, P.R.; Rana, T.M.; Hearst, J.E. Luminescence Resonance Energy Transfer. J. Chem. Am. Chem. Soc. 1994, 116, 6029–6030. [Google Scholar] [CrossRef]
  10. Jeong, Y.; Kook, Y.M.; Lee, K.; Koh, W.G. Metal enhanced fluorescence (MEF) for biosensors: General approaches and a review of recent developments. Biosens. Bioelectron. 2018, 111, 102–116. [Google Scholar] [CrossRef]
  11. Lakowicz, J.R. Radiative decay engineering 5: Metal-enhanced fluorescence and plasmon emission. Anal. Biochem. 2005, 337, 171–194. [Google Scholar] [CrossRef] [PubMed]
  12. Aslan, K.; Leonenko, Z.; Lakowicz, J.R.; Geddes, C.D. Annealed silver-island films for applications in metal-enhanced fluorescence: Interpretation in terms of radiating plasmons. J. Fluoresc. 2005, 15, 643–654. [Google Scholar] [CrossRef] [PubMed]
  13. Ritacco, T.; Ricciardi, L.; La Deda, M.; Giocondo, M. Controlling the optical creation of gold nanoparticles in a pva matrix by direct laser writing. J. Eur. Opt. Soc. 2016, 11, 16008. [Google Scholar] [CrossRef]
  14. Ricciardi, L.; Martini, M.; Tillement, O.; Sancey, L.; Perriat, P.; Ghedini, M.; Szerb, E.I.; Yadav, Y.J.; La Deda, M. Multifunctional material based on ionic transition metal complexes and gold-silica nanoparticles: Synthesis and photophysical characterization for application in imaging and therapy. J. Photochem. Photobiol. B Biol. 2014, 140, 396–404. [Google Scholar] [CrossRef]
  15. Candreva, A.; Di Maio, G.; Palermo, G.; Guglielmelli, A.; Strangi, G.; La Deda, M. Solvent-Dispersible Nanostructured MIMI: An Experimental and Computational Study. Appl. Sci. 2023, 13, 2982. [Google Scholar] [CrossRef]
  16. Candreva, A.; Morrone, E.; La Deda, M. Gold Sea Urchin-Shaped Nanoparticles: Synthesis and Characterization of Energy Transducer Candidates. Plasmonics 2023, 18, 291–298. [Google Scholar] [CrossRef]
  17. Candreva, A.; Di Maio, G.; La Deda, M. A quick one-step synthesis of luminescent gold nanospheres. Soft Matter 2020, 16, 10865–10868. [Google Scholar] [CrossRef]
  18. Candreva, A.; De Rose, R.; Perrotta, I.D.; Guglielmelli, A.; La Deda, M. Light-Induced Clusterization of Gold Nanoparticles: A New Photo-Triggered Antibacterial against E. coli Proliferation. Nanomaterials 2023, 13, 746. [Google Scholar] [CrossRef]
  19. Murphy, C.J.; Chang, H.H.; Falagan-Lotsch, P.; Gole, M.T.; Hofmann, D.M.; Hoang, K.N.L.; McClain, S.M.; Meyer, S.M.; Turner, J.G.; Unnikrishnan, M.; et al. Virus-Sized Gold Nanorods: Plasmonic Particles for Biology. Acc. Chem. Res. 2019, 52, 2124–2135. [Google Scholar] [CrossRef]
  20. Meyer, S.M.; Pettine, J.; Nesbitt, D.J.; Murphy, C.J. Size Effects in Gold Nanorod Light-to-Heat Conversion under Femtosecond Illumination. J. Phys. Chem. C 2021, 125, 16268–16278. [Google Scholar] [CrossRef]
  21. Huang, Y.; Liu, Q.; Wang, Y.; He, N.; Zhao, R.; Choo, J.; Chen, L. Gold nanorods functionalized by a glutathione response near-infrared fluorescent probe as a promising nanoplatform for fluorescence imaging guided precision therapy. Nanoscale 2019, 11, 12220–12229. [Google Scholar] [CrossRef] [PubMed]
  22. Pellas, V.; Hu, D.; Mazouzi, Y.; Mimoun, Y.; Blanchard, J. Gold Nanorods for LSPR Biosensing: Synthesis, Coating by Silica, and Bioanalytical Applications. Biosensors 2020, 10, 146. [Google Scholar] [CrossRef] [PubMed]
  23. Estepa-Fernández, A.; García-Fernández, A.; Lérida-Viso, A.; Morellá-Aucejo, Á.; Esteve-Moreno, J.J.; Blandez, J.F.; Alfonso, M.; Candela-Noguera, V.; Vivo-Llorca, G.; Sancenon-Galarza, F.; et al. Engineering nanoparticle communication in living systems by stigmergy: An application to enhance antitumor therapy in triple-negative breast cancer. Nano Today 2023, 48, 101692. [Google Scholar] [CrossRef]
  24. Fernández-Lodeiro, C.; Fernández-Lodeiro, J.; Fernández-Lodeiro, A.; Nuti, S.; Lodeiro, C.; LaGrow, A.; Pérez-Juste, I.; Pérez-Juste, J.; Pastoriza-Santos, I. Synthesis of tuneable gold nanostars: The role of adenosine monophosphate. J. Mater. Chem. C 2023, 11, 12626–12636. [Google Scholar] [CrossRef]
  25. Fernández-Lodeiro, A.; Djafari, J.; Fernández-Lodeiro, J.; Duarte, M.P.; Mauricio, E.M.; Capelo-Martínez, J.L.; Lodeiro, C. Synthesis of mesoporous silica coated gold nanorods loaded with methylene blue and its potentials in antibacterial applications. Nanomaterials 2021, 11, 1338. [Google Scholar] [CrossRef]
  26. Nuti, S.; Fernández-Lodeiro, A.; Galhano, J.; Oliveira, E.; Duarte, M.P.; Capelo-Martínez, J.L.; Lodeiro, C.; Fernández-Lodeiro, J. Tailoring Mesoporous Silica-Coated Silver Nanoparticles and Polyurethane-Doped Films for Enhanced Antimicrobial Applications. Nanomaterials 2024, 14, 462. [Google Scholar] [CrossRef]
  27. Medaglia, S.; Otri, I.; Bernardos, A.; Marcos, M.D.; Aznar, E.; Sancenón, F.; Martínez-Máñez, R. Synergistic antimicrobial photodynamic therapy using gated mesoporous silica nanoparticles containing curcumin and polymyxin B. Int. J. Pharm. 2024, 654, 123947. [Google Scholar] [CrossRef]
  28. Gonçalves, J.L.M.; Lopes, A.B.C.; Baleizão, C.; Farinha, J.P.S. Mesoporous silica nanoparticles modified inside and out for on:Off ph-modulated cargo release. Pharmaceutics 2021, 13, 716. [Google Scholar] [CrossRef]
  29. Mitchell, M.J.; Billingsley, M.M.; Haley, R.M.; Wechsler, M.E.; Peppas, N.A.; Langer, R. Engineering precision nanoparticles for drug delivery. Nat. Rev. Drug Discov. 2021, 20, 101–124. [Google Scholar] [CrossRef]
  30. Shah, S.W.A.; Shoaib, M.; Ghias, M.; Ahmed, M.N.; Hameed, A.; Shah, I. Surface Engineered Gold Nanorods: Intelligent Delivery System for Cancer Therapy; Elsevier Inc.: Amsterdam, The Netherlands, 2019; ISBN 9780128169605. [Google Scholar]
  31. Egan, M.; Kuscu, M.; Barros, M.T.; Booth, M.; Llopis-Lorente, A.; Magarini, M.; Martins, D.P.; Schäfer, M.; Stano, P. Toward Interdisciplinary Synergies in Molecular Communications: Perspectives from Synthetic Biology, Nanotechnology, Communications Engineering and Philosophy of Science. Life 2023, 13, 208. [Google Scholar] [CrossRef]
  32. Díez, P.; Lucena-Sánchez, E.; Escudero, A.; Llopis-Lorente, A.; Villalonga, R.; Martínez-Máñez, R. Ultrafast Directional Janus Pt-Mesoporous Silica Nanomotors for Smart Drug Delivery. ACS Nano 2021, 15, 4467–4480. [Google Scholar] [CrossRef] [PubMed]
  33. Corsini, F.; Tatsi, E.; Colombo, A.; Dragonetti, C.; Botta, C.; Turri, S.; Griffini, G. Highly emissive fluorescent silica-based core/shell nanoparticles for efficient and stable luminescent solar concentrators. Nano Energy 2021, 80, 105551. [Google Scholar] [CrossRef]
  34. Camorani, S.; Caliendo, A.; Morrone, E.; Agnello, L.; Martini, M.; Cantile, M.; Cerrone, M.; Zannetti, A.; La Deda, M.; Fedele, M.; et al. Bispecific aptamer-decorated and light-triggered nanoparticles targeting tumor and stromal cells in breast cancer derived organoids: Implications for precision phototherapies. J. Exp. Clin. Cancer Res. 2024, 43, 92. [Google Scholar] [CrossRef] [PubMed]
  35. Ricciardi, L.; Chatterjee, S.; Palermo, G.; Szerb, E.I.; Sanna, A.; Palermo, F.; Pieroni, N.; Fratini, M.; Bartolino, R.; Cedola, A.; et al. Hybrid Nanoparticles as Theranostics Platforms for Glioblastoma Treatment: Phototherapeutic and X-ray Phase Contrast Tomography Investigations. J. Nanotheranostics 2022, 3, 1–17. [Google Scholar] [CrossRef]
  36. Ricciardi, L.; Sancey, L.; Palermo, G.; Termine, R.; De Luca, A.; Szerb, E.I.; Aiello, I.; Ghedini, M.; Strangi, G.; La Deda, M. Plasmon-mediated cancer phototherapy: The combined effect of thermal and photodynamic processes. Nanoscale 2017, 9, 19279–19289. [Google Scholar] [CrossRef]
  37. Emri, G.; Paragh, G.; Tósaki, Á.; Janka, E.; Kollár, S.; Hegedűs, C.; Gellén, E.; Horkay, I.; Koncz, G.; Remenyik, É. Ultraviolet radiation-mediated development of cutaneous melanoma: An update. J. Photochem. Photobiol. B Biol. 2018, 185, 169–175. [Google Scholar] [CrossRef]
  38. Zhou, J.; Li, J.; Yin Zhang, K.; Liu, S.; Zhao, Q. Phosphorescent iridium(III) complexes as lifetime-based biological sensors for photoluminescence lifetime imaging microscopy. Coord. Chem. Rev. 2022, 453, 214334–214357. [Google Scholar] [CrossRef]
  39. Mastropietro, T.F.; La Deda, M.; Godbert, N.; Ricciardi, L.; Szerb Elisabeta, I.; Ghedini, M.; Aiello, I. 3,5-Disubstituted-2-(2′-pyridylpyrroles) Ir(III) complexes: Structural and photophysical characterization. J. Organomet. Chem. 2015, 786, 55–62. [Google Scholar] [CrossRef]
  40. Nittayacharn, P.; Abenojar, E.; La Deda, M.; Ricciardi, L.; Strangi, G.; Exner, A.A. Iridium(III) Complex-Loaded Perfluoropropane Nanobubbles for Enhanced Sonodynamic Therapy. Bioconjugate Chem. 2022, 33, 1057–1068. [Google Scholar] [CrossRef]
  41. Kang, X.; Guo, X.; An, W.; Niu, X.; Li, S.; Liu, Z.; Yang, Y.; Wang, N.; Jiang, Q.; Yan, C.; et al. Photothermal therapeutic application of gold nanorods-porphyrin-trastuzumab complexes in HER2-positive breast cancer. Sci. Rep. 2017, 7, 42069. [Google Scholar] [CrossRef]
  42. Ricciardi, L.; Mastropietro, T.F.; Ghedini, M.; La Deda, M.; Szerb, E.I. Ionic-pair effect on the phosphorescence of ionic iridium(III) complexes. J. Organomet. Chem. 2014, 772, 307–313. [Google Scholar] [CrossRef]
  43. Candreva, A.; Parisi, F.; Di Maio, G.; Scarpelli, F.; Aiello, I.; Godbert, N.; La Deda, M. Post—Synthesis heating, a key step to tune the LPR band of gold nanorods covered with CTAB or embedded in a silica shell. Gold Bull. 2022, 55, 195–205. [Google Scholar] [CrossRef]
  44. Scarabelli, L.; Grzelczak, M.; Liz-Marzán, L.M. Tuning gold nanorod synthesis through prereduction with salicylic acid. Chem. Mater. 2013, 25, 4232–4238. [Google Scholar] [CrossRef]
  45. Candreva, A.; Di Maio, G.; Parisi, F.; Scarpelli, F.; Crispini, A.; Godbert, N.; Ricciardi, L.; Nucera, A.; Rizzuto, C.; Barberi, R.C.; et al. Luminescent Self-Assembled Monolayer on Gold Nanoparticles: Tuning of Emission According to the Surface Curvature. Chemosensors 2022, 10, 176. [Google Scholar] [CrossRef]
  46. Candreva, A.; Lewandowski, W.; La Deda, M. Thickness control of the silica shell: A way to tune the plasmonic properties of isolated and assembled gold nanorods. J. Nanoparticle Res. 2021, 24, 19. [Google Scholar] [CrossRef]
  47. Fernaíndez-Hernaíndez, J.M.; Yang, C.H.; Beltraín, J.I.; Lemaur, V.; Polo, F.; Fröhlich, R.; Cornil, J.; De Cola, L. Control of the mutual arrangement of cyclometalated ligands in cationic iridium(III) complexes. Synthesis, spectroscopy, and electroluminescence of the different isomers. J. Am. Chem. Soc. 2011, 133, 10543–10558. [Google Scholar] [CrossRef]
  48. Pérez-Juste, J.; Pastoriza-Santos, I.; Liz-Marzán, L.M.; Mulvaney, P. Gold nanorods: Synthesis, characterization and applications. Coord. Chem. Rev. 2005, 249, 1870–1901. [Google Scholar] [CrossRef]
  49. Roach, L.; Coletta, P.L.; Critchley, K.; Evans, S.D. Controlling the Optical Properties of Gold Nanorods in One-Pot Syntheses. J. Phys. Chem. C 2022, 126, 3235–3243. [Google Scholar] [CrossRef]
  50. Candreva, A.; Parisi, F.; Bartucci, R.; Guzzi, R.; Di Maio, G.; Scarpelli, F.; Aiello, I.; Godbert, N.; La Deda, M. Synthesis and Characterization of Hyper-Branched Nanoparticles with Magnetic and Plasmonic Properties. ChemistrySelect 2022, 7, e202201375. [Google Scholar] [CrossRef]
  51. Lakowicz, J.R. Principles of Fluorescence Spectroscopy; Springer: Berlin/Heidelberg, Germany, 2006; ISBN 0387312781. [Google Scholar]
  52. Colombo, M.G.; Hauser, A.; Guedel; Hans, U. Evidence for strong mixing between the LC and MLCT excited states in bis(2-phenylpyridinato-C2,N′)(2,2′-bipyridine)iridium(III). Inorg. Chem. 1993, 32, 3088–3092. [Google Scholar] [CrossRef]
  53. Jayabharathi, J.; Thanikachalam, V.; Srinivasan, N.; Perumal, M.V. Evidence for strong mixing between the LC and MLCT excited states in some heteroleptic iridium (III) complexes. J. Fluoresc. 2011, 21, 1585–1597. [Google Scholar] [CrossRef]
  54. Edkins, R.M.; Wriglesworth, A.; Fucke, K.; Bettington, S.L.; Beeby, A.; Flamigni, L.; Barbieri, A.; Sabatini, C.; Ventura, B.; Barigelletti, F.; et al. Photochemistry and Photophysics of Coordination Compounds: Iridium\Photochemistry and Photophysics of Coordination Compounds II. Chem. Asian J. 2015, 10, 252–262. [Google Scholar]
  55. Ghedini, M.; Aiello, I.; Crispini, A.; Golemme, A.; La Deda, M.; Pucci, D. Azobenzenes and heteroaromatic nitrogen cyclopalladated complexes for advanced applications. Coord. Chem. Rev. 2006, 250, 1373–1390. [Google Scholar] [CrossRef]
  56. Palermo, G.; Pagnotto, D.; Ricciardi, L.; Pezzi, L.; La Deda, M.; De Luca, A. Thermoplasmonic Effects in Gain-Assisted Nanoparticle Solutions. J. Phys. Chem. C 2017, 121, 24185–24191. [Google Scholar] [CrossRef]
  57. De Luca, A.; Ferrie, M.; Ravaine, S.; La Deda, M.; Infusino, M.; Rashed, A.R.; Veltri, A.; Aradian, A.; Scaramuzza, N.; Strangi, G. Gain functionalized core-shell nanoparticles: The way to selectively compensate absorptive losses. J. Mater. Chem. 2012, 22, 8846–8852. [Google Scholar] [CrossRef]
Nanomaterials 14 01543 g001
Figure 1. TEM images of AuNR@(Ir1)SiO2@TPSA (a) (total particle size 34 × 66 nm, short axis × long axis, respectively) and of AuNR@SiO2@TPSA (b) (total particle size 30 × 63 nm short axis × long axis, respectively).
Figure 1. TEM images of AuNR@(Ir1)SiO2@TPSA (a) (total particle size 34 × 66 nm, short axis × long axis, respectively) and of AuNR@SiO2@TPSA (b) (total particle size 30 × 63 nm short axis × long axis, respectively).
Nanomaterials 14 01543 g001
Nanomaterials 14 01543 g002

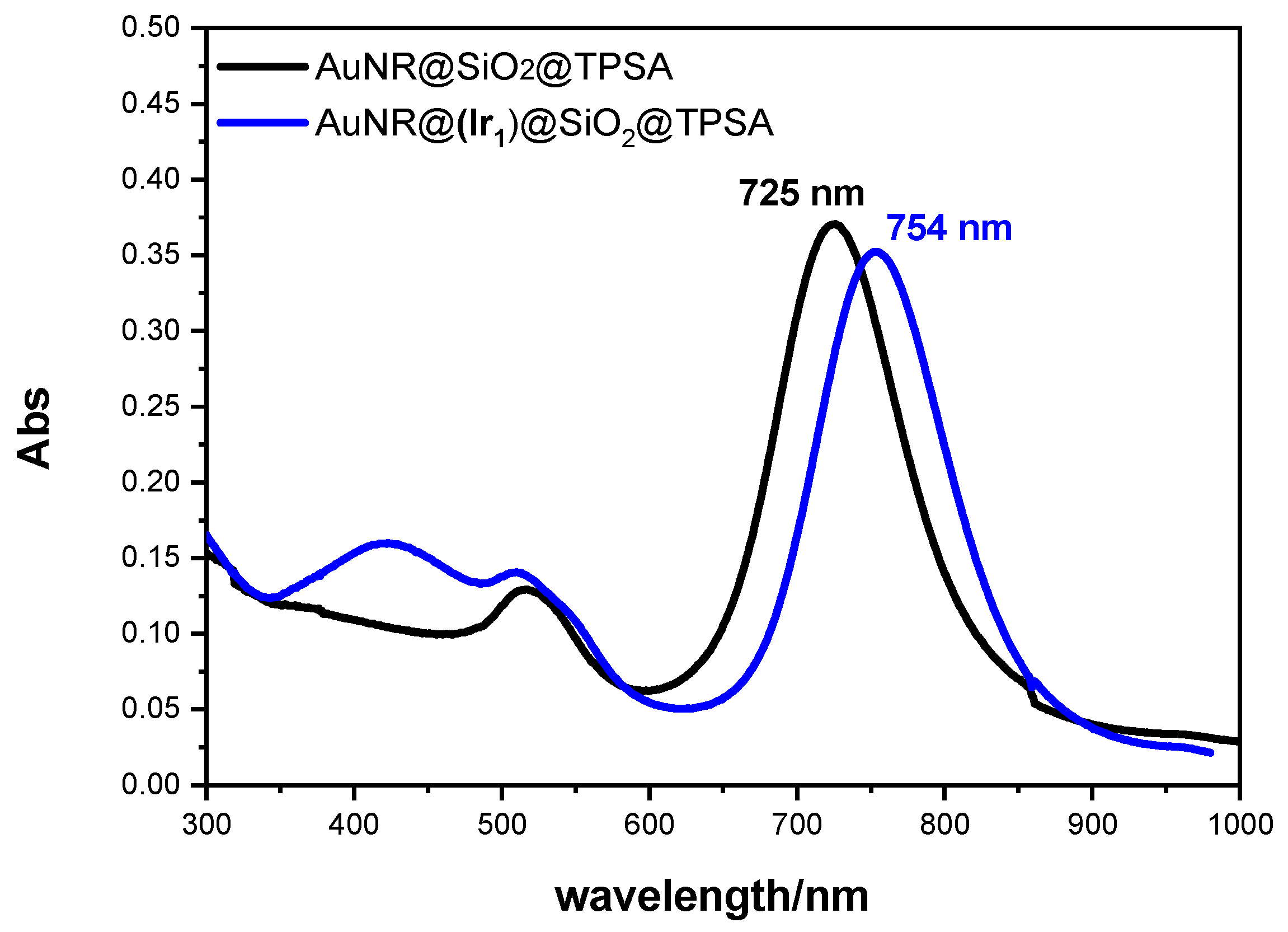

Figure 2. Extinction spectra of AuNR@(Ir1)SiO2@TPSA and of AuNR@SiO2@TPSA in water.
Figure 2. Extinction spectra of AuNR@(Ir1)SiO2@TPSA and of AuNR@SiO2@TPSA in water.
Nanomaterials 14 01543 g002
Nanomaterials 14 01543 g003

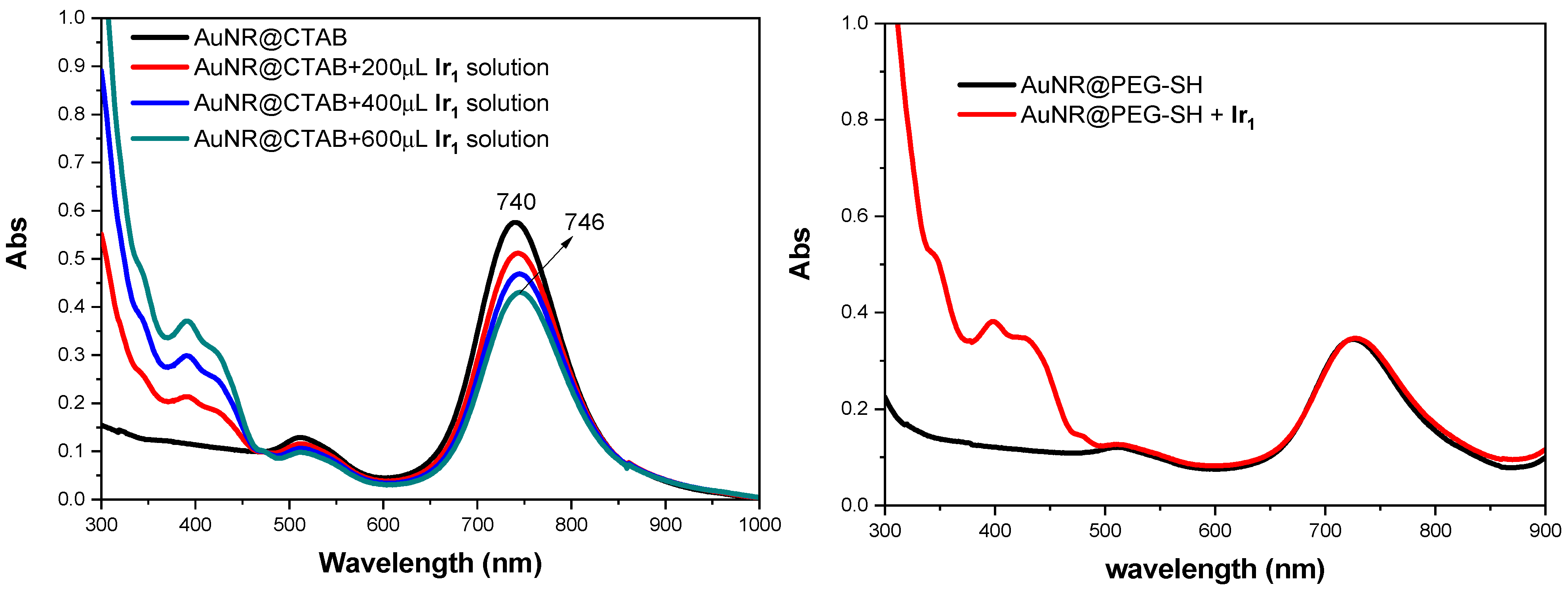

Figure 3. Spectroscopic result of the addition of Ir1 to a solution of AuNR@CTAB (extinction spectra in water on the left) and to a solution of AuNR@PEG-SH (extinction spectra in ethanol on the right).
Figure 3. Spectroscopic result of the addition of Ir1 to a solution of AuNR@CTAB (extinction spectra in water on the left) and to a solution of AuNR@PEG-SH (extinction spectra in ethanol on the right).
Nanomaterials 14 01543 g003
Nanomaterials 14 01543 g004

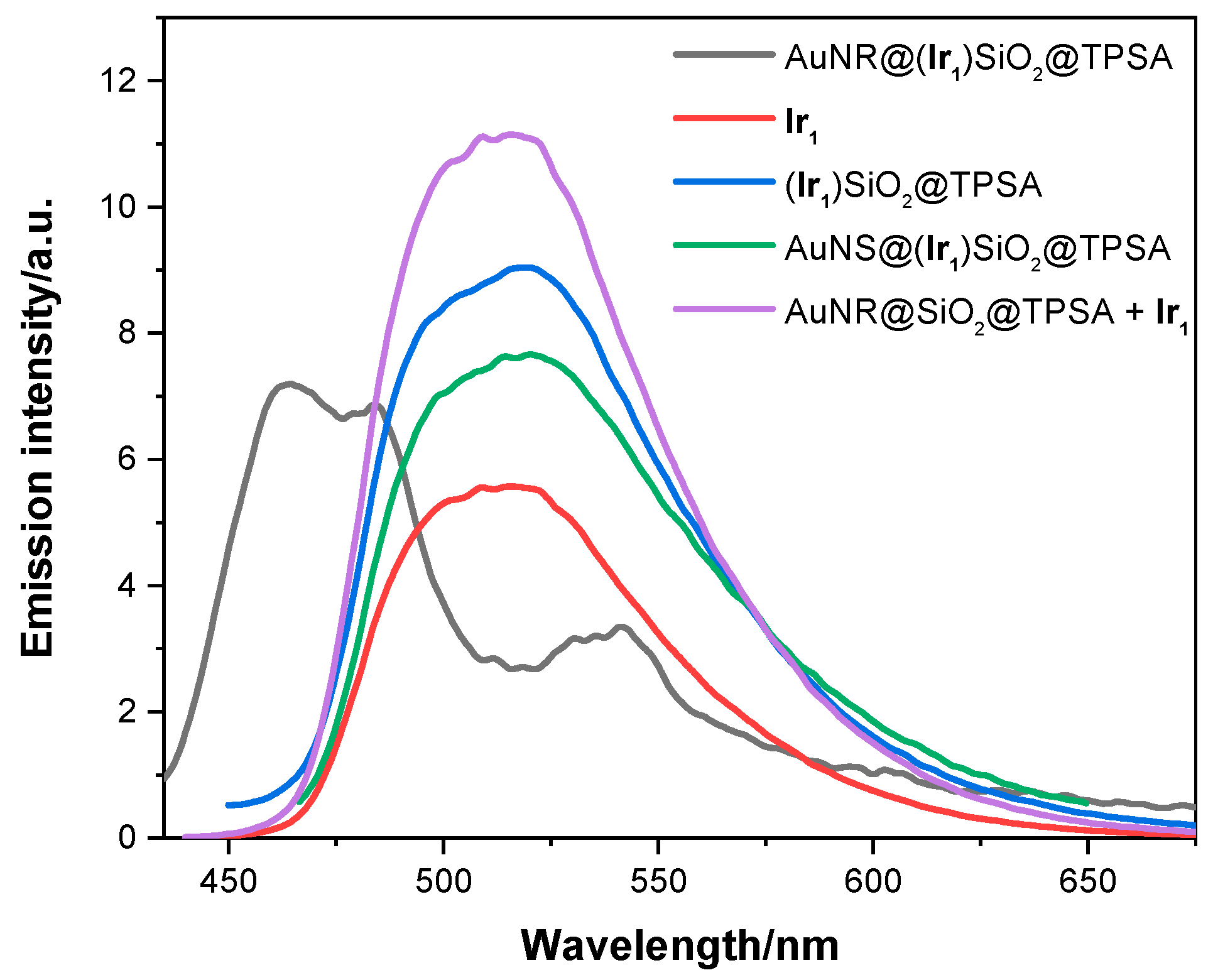

Figure 4. Emission spectra of AuNR@(Ir1)SiO2@TPSA, Ir1, (Ir1)SiO2@TPSA, AuNS@(Ir1)SiO2@TPSA and AuNR@SiO2@TPSA + Ir1 in water obtained by exciting at 390 nm.
Figure 4. Emission spectra of AuNR@(Ir1)SiO2@TPSA, Ir1, (Ir1)SiO2@TPSA, AuNS@(Ir1)SiO2@TPSA and AuNR@SiO2@TPSA + Ir1 in water obtained by exciting at 390 nm.
Nanomaterials 14 01543 g004
Nanomaterials 14 01543 g005

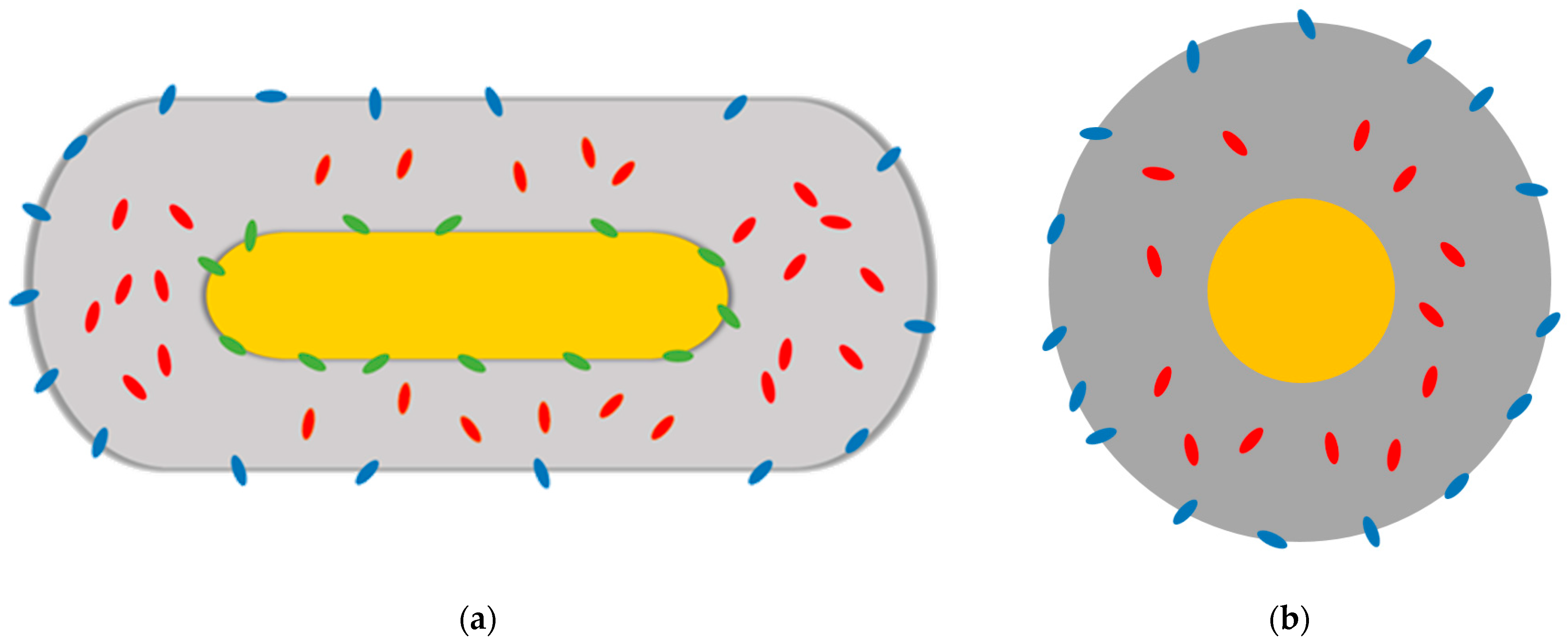

Figure 5. Graphical representation of the different location of Ir1 in AuNR@(Ir1)SiO2@TPSA (a) and in AuNS@(Ir1)SiO2@TPSA (b). The green ellipses represent Ir1 directly in contact with the gold surface; the red ellipses refer to a localization in the silica matrix; finally, the blue ellipses represent Ir1 on the silica surface.
Figure 5. Graphical representation of the different location of Ir1 in AuNR@(Ir1)SiO2@TPSA (a) and in AuNS@(Ir1)SiO2@TPSA (b). The green ellipses represent Ir1 directly in contact with the gold surface; the red ellipses refer to a localization in the silica matrix; finally, the blue ellipses represent Ir1 on the silica surface.
Nanomaterials 14 01543 g005
Nanomaterials 14 01543 g006

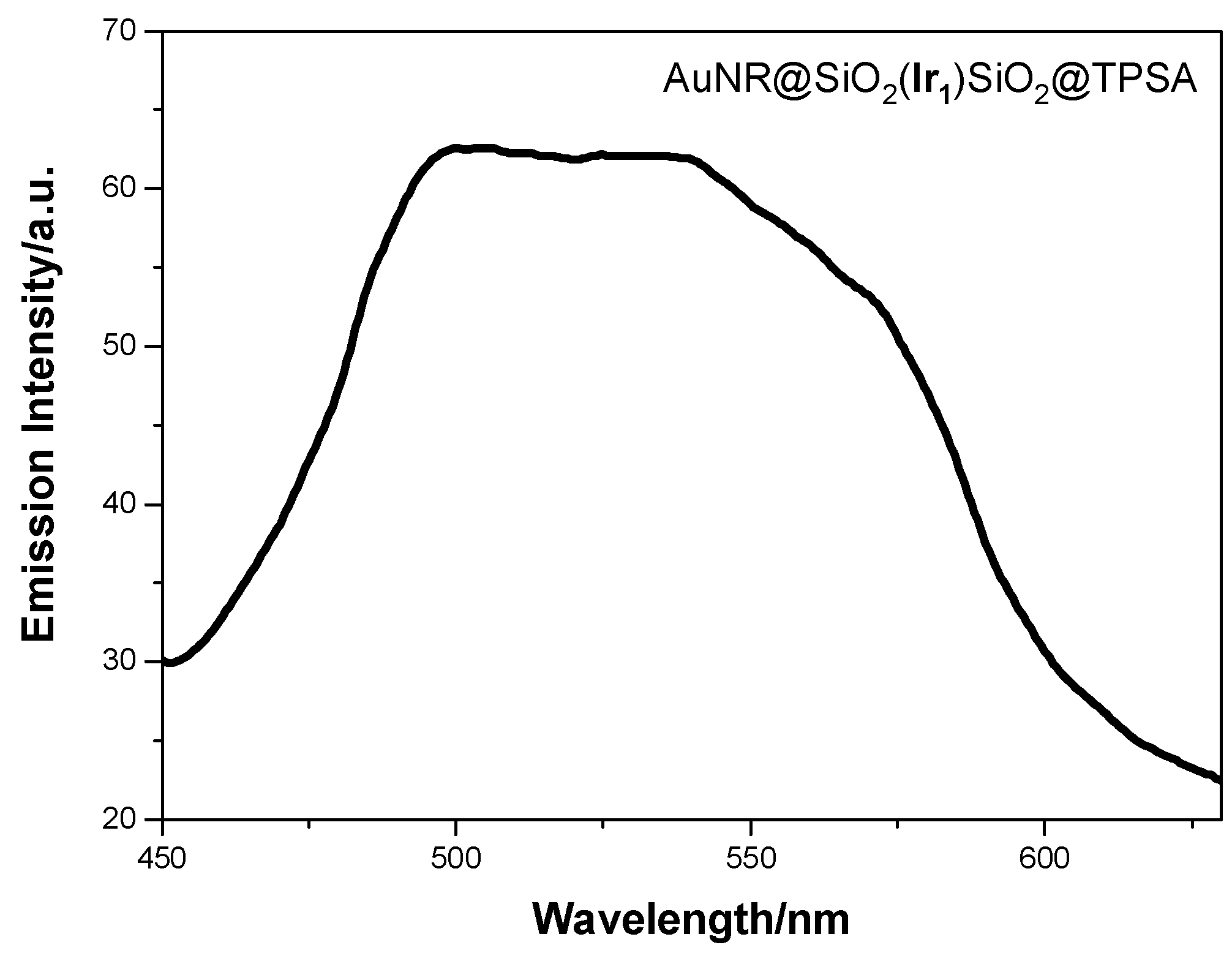

Figure 6. Emission spectra of AuNR@SiO2(Ir1)SiO2@TPSA obtained by exciting the iridium(III) complex at 390 nm.
Figure 6. Emission spectra of AuNR@SiO2(Ir1)SiO2@TPSA obtained by exciting the iridium(III) complex at 390 nm.
Nanomaterials 14 01543 g006
Table 1. Lifetimes measured in air-equilibrated water samples (reduced χ2 = 1.28). α represents the pre-exponential values.
Table 1. Lifetimes measured in air-equilibrated water samples (reduced χ2 = 1.28). α represents the pre-exponential values.
SampleEmission, λmax/nmLifetime, τ/ns (α/%)
Ir1515395
(Ir1)SiO2@TPSA515415 (56.4%); 2372 (43.6%)
AuNS@(Ir1)SiO2@TPSA515408 (31.9%); 1210 (68.1%)
AuNR@(Ir1)SiO2@TPSA4657 (15.4%); 83 (11.0%); 869 (63.6%)
54218 (2.7%); 279 (30.0%); 1060 (67.3%)
Table 2. Multiexponential analysis of the time-resolved emission intensity decays of AuNR@(Ir1)SiO2@TPSA.
Table 2. Multiexponential analysis of the time-resolved emission intensity decays of AuNR@(Ir1)SiO2@TPSA.
Observation Wavelengths (nm)Lifetimes (ns)Pre-Exponential FactorsFractional Intensities
τ1τ2τ3α1α2α3f1f2f3
4657838690.2540.110.6360.003150.016200.98065
5421827910600.0270.3000.6730.000610.104940.89445
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Candreva, A.; Ricciardi, L.; Szerb, E.I.; La Deda, M. A “Talking” between Gold Nanoparticle and a Luminescent Iridium(III) Complex: A Study of the Effect Due to the Interaction between Plasmon Resonance and a Fluorophore. Nanomaterials 2024, 14, 1543. https://doi.org/10.3390/nano14191543

AMA Style

Candreva A, Ricciardi L, Szerb EI, La Deda M. A “Talking” between Gold Nanoparticle and a Luminescent Iridium(III) Complex: A Study of the Effect Due to the Interaction between Plasmon Resonance and a Fluorophore. Nanomaterials. 2024; 14(19):1543. https://doi.org/10.3390/nano14191543

Chicago/Turabian Style

Candreva, Angela, Loredana Ricciardi, Elisabeta I. Szerb, and Massimo La Deda. 2024. "A “Talking” between Gold Nanoparticle and a Luminescent Iridium(III) Complex: A Study of the Effect Due to the Interaction between Plasmon Resonance and a Fluorophore" Nanomaterials 14, no. 19: 1543. https://doi.org/10.3390/nano14191543

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
