Article

Enhanced Catalytic Activity of CuO@CuS Core–Shell Structure for Highly Efficient HER Application

by
Abu Talha Aqueel Ahmed
,
Sangeun Cho
,
Hyunsik Im
and
Atanu Jana
*
Division of System Semiconductor, Dongguk University, Seoul 04620, Republic of Korea
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(23), 1941; https://doi.org/10.3390/nano14231941
Submission received: 14 November 2024 / Revised: 29 November 2024 / Accepted: 2 December 2024 / Published: 3 December 2024
(This article belongs to the Special Issue Current Research in Nanocrystals and Their Implications for Electrochemical Energy Storage, Conversion, and Optoelectronic Applications)
Browse Figures
Versions Notes

Abstract

:
Using electrocatalytic water reduction to produce hydrogen fuel offers significant potential for clean energy, yet its large-scale adoption depends on developing cost-effective, non-precious, and efficient catalysts to replace expensive Pt-based state-of-the-art HER catalysts. The catalytic HER performance of an active catalyst largely depends on the available catalytic active sites, conductivity, and intrinsic electrochemical kinetics, all of which can be altered by incorporating a heteroatom into the active catalyst structure. Herein, we synthesized a unique nitrogen-doped CuO@CuS (NCOS) core–shell-structured catalyst through a facile hydrothermal process followed by an efficacious nitrogenation process, and its electrochemical performance for the HER was systematically analyzed. The NCOS core–shell-structured catalyst exhibits a reduced overpotential (55 mV) and Tafel slope (107 mV dec−1) compared to the pure CuS (CS; 179 mV and 201 mV dec−1) catalyst at a current density of 10 mA cm−2. Moreover, the NCOS core–shell-structured catalyst demonstrates excellent endurance for up to 50 h of chronopotentiometric testing at a driving current density rate of 10 and 100 mA cm−2. This excellent catalytic HER activity is a result of an increased electron transfer rate and a greater number of accessible active sites, attributed to a change in structural properties and the high electronic conductivity aroused from nitrogen incorporation, as evidenced from the TOF and EIS curve analyses.

Graphical Abstract

1. Introduction

The extensive use of fossil fuels creates numerous environmental challenges, most notably contributing to climate modification through greenhouse gas discharge, which contributes to global warming, rising sea levels, extreme weather, the rise in CO2 in the atmosphere, and air pollution [1,2,3,4]. To combat these issues, our energy sources must be transformed into an alternative clean and renewable energy eco-system [5,6,7,8]. Among the various renewable sources available, hydrogen (H2), with a high energy density of 142 MJ kg−1 and zero carbon footprint, is regarded as a promising green fuel that could address global environmental challenges stemming from the excessive utilization of fossil fuels and resource depletion [9,10,11,12,13]. Unlike the traditional steam methane reforming technique, the production of H2 fuel from Earth-abundant water through electrolysis (2H2O → 2H2 + O2) is an eminently clean, durable, and efficient method [14,15,16]. Although Pt-based materials are considered the leading electrocatalysts for the HER, their high costs and limited stability hinder their scalability for widespread applications in alkaline electrolyte media [17,18,19,20]. Extensive efforts have been focused on creating Earth-abundant, stable, and inexpensive catalysts to mimic Pt-like HER activity and further the development of water electrolysis as a feasible energy conversion technology, which includes transition-metal phosphides, carbides, sulfides, borides, oxides, and nitrides [21,22,23,24,25,26,27].
Recent developments portray that there has been significant interest in first-row transition-metal sulfides (MSs) for catalytic HER applications. Specifically, Cu-based metal sulfide catalysts, owing to their favorable electronic structure, excellent redox properties, Earth abundancy, and cost-effectiveness, are seen as promising and viable alternatives to state-of-the-art Pt-based catalysts [28,29]. So far, although various Cu-based HER catalysts, such as monometal (e.g., CuO and CuS, etc.), bimetal (e.g., CuCo2O4 and CuCo2S4, etc.), core–shell (e.g., CuO@NiP and CuCo2O4@CQDs, etc.), and heterostructured catalysts (e.g., CuS/NiFe-LDH and Mo-Cu2S/CF, etc.), have been extensively explored, their catalytic activity and durability in alkaline solutions remain significantly lower than those of Pt catalysts (Table S1) [14,24,30,31,32,33,34,35,36,37]. However, Cu metal has limited catalytic HER activity because of its inability to effectively capture H atoms, and the unavoidable surface oxidation of MSs in alkaline media deteriorates the overall catalytic performance [28,38]. These challenges can be addressed by modifying the active catalyst’s electronic structure through doping with heterogeneous nitrogen atoms, and creating a core–shell structure could prevent material degradation during long-term testing in alkaline media [39,40,41,42,43,44,45,46,47,48]. Nitrogen bonding with Cu contributes to enhancing the material conductivity because of the higher electronegativity of nitrogen compared to sulfur, and this leads to larger catalytically active sites. Further, nitrogen dopants can reduce the electron-donor capability, modify the surface’s chemical and electronic properties, and result in enhanced electron transportation, leading to boosted electrochemical activity [48,49].
Inspired by the above underlying viewpoints, here, we report on a nitrogen (N)-doped CuO@CuS (NCOS) core–shell-structured catalyst synthesized on a porous three-dimensional (3D) nickel foam (NF) substrate. The design strategy is quite simple yet effective for improving catalytic HER activity in a 1.0 M KOH medium. The XRD, Raman spectroscopy, EDAX, and XPS results confirm the phase-pure formation of CuS (CS), which acts as a template to form the NCOS core–shell-structured catalyst. The detailed synthesis procedure is thoroughly discussed later in the experimental section. The NCOS core–shell-structured catalyst demonstrates outstanding HER performance by achieving low overpotentials of 55 and 179 mV at current densities of 10 and 100 mA cm−2, along with a smaller Tafel slope of 107 mV dec−1 compared to the pure CS catalyst (121 and 261 mV at 10 and 100 mA cm−2, respectively, and 201 mV dec−1). The improved HER performance is likely due to the addition of nitrogen and the core–shell structure formed on the NF substrate, which significantly boost catalytic efficiency. The excellent HER activity of the NCOS core–shell-structured catalyst is fairly comparable with the previously reported Cu-based HER catalyst in alkaline 1.0 KOH conditions, which is summarized in Table S1. Moreover, the NCOS core–shell-structured catalyst also demonstrates impressive durability without any significant voltage loss over a prolonged stability (50 h at 10 and 100 mA cm−2) test.

2. Materials and Synthesis Procedures

2.1. Chemical Materials

All chemicals used in the present experiment for the synthesis of the desired catalyst electrode were of analytical grade and were utilized directly without any additional refinement. The chemical reagents, including hydrochloric acid (HCl; 37%), urea (NH2CONH2; ≥99%), ethanol (CH3CH2OH; ≥99.50%), potassium hydroxide (KOH; ≥85%, pellets), copper nitrate trihydrate (Cu(NO3)2·3H2O; 99.999%), thiourea (NH2CSNH2; ≥99.0%), and acetone (CH3COCH3; ≥99.5%), were purchased from Sigma Aldrich (MERCK, St. Louis, MO, USA). The macroporous 3D NF substrate of thickness 1.6 mm was provided by Alantum (Seoul, Republic of Korea; sheet size of 200 mm × 300 mm).

2.2. Synthesis of CS and NCOS

The fabrication procedure for the CS and NCOS core–shell catalysts is similar to that used in our previous report, which is schematically illustrated in Figure 1, portraying the CS and NCOS catalysts with distinct surface textures [50]. In our synthesis procedure, the CS was initially grown on the pre-cleaned macroporous 3D surface of an NF substrate (electrode size of 10 mm × 50 mm with exposed area of 10 mm × 10 mm) using a hydrothermal procedure. The formed CS electrode film was then treated under a nitrogen (N2) atmosphere to form the NCOS core–shell structure. The detailed process is as follows: First, 5 mmol of Cu(NO3)2·3H2O and 30 mmol of NH2CONH2 were dissolved in a glass beaker containing 50 mL of DI water under vigorous stirring. Thereafter, 50 mmol of NH2CSNH2 was then added to this mixture until the solution became transparent at ambient room temperature (R. T.). The pre-cleaned NF substrate and the transparent mixture solution were transferred into a 0.1 L Teflon vessel in a stainless-steel autoclave. The autoclave was then sealed and moved to a muffle furnace, and the reaction was executed at a constant temperature of 160 °C for about 12 h. After undisturbed cooling up to R. T., the obtained electrode film was collected and washed with DI water and CH3CH2OH quite a few times, followed by overnight drying at 80 °C in a vacuum at ambient pressure. Subsequently, the formed CS electrode film was treated under a sealed N2 ambient atmosphere in a tubular furnace at 350 °C for 2 h to obtain the desired NCOS core–shell-structured electrode film.

2.3. Characterization of the Material

The formed electrode material’s phase, crystallinity, and structural characteristics were examined by an X-ray diffraction (XRD) spectral analysis technique. The Rigaku Smartlab (Tokyo, Japan) instrument was used to obtain the XRD spectra of both electrode films using the radiation of a CuKα source with a proceeding wavelength of 1.54056 Å. The XRD spectra were measured with a 2° min−1 scanning rate in a spectral angle (2θ) range between 20° and 80°. The material impressions and the constituent elemental bonds were scrutinized through Raman spectroscopy. The LabRam Armis instrument (Jobin Yvon, Longjumeau, France) was implemented to obtain the Raman spectra of the films by utilizing an Ar-ion laser beam with a wavelength of 514 nm. The Raman spectra were recorded in a frequency range between 200 cm−1 and 675 cm−1. The material morphology at low and high magnifications was recorded using field emission scanning electron microscopy (FE-SEM), and the chemical composition of the constituent elements was examined with the help of energy-dispersive X-ray spectroscopy (EDAX). The JEOL JSM-6701F instrument (Tokyo, Japan) was used to record the FE-SEM images, EDAX spectra, and EDAX mapping (×5000 magnification). The constituent elements’ oxidation states were evaluated through X-ray photoelectron spectroscopy (XPS). Further, the XPS spectra were obtained with a ULVAC PHI 5000 VersaProbe instrument (Kanagawa, Japan). The elemental binding energies (B. E.) of the XPS spectra were rectified using the contaminant carbon (C 1s at 284.23 eV) emission signal existing inside the vacuum chamber of the instrument.

2.4. Electrochemical HER Evaluation

The electrocatalytic HER activities of the prepared CS and NCOS electrode films were evaluated using various electrochemical measurements such as linear sweep voltammetry (LSV), chronopotentiometry, non-Faradaic cyclic voltammetry (CV), and electrochemical impedance–spectroscopy (EIS) curves. A standard three-electrode VersaSTAT instrument (Ametek Scientific Instruments, Berwyn, PA, USA) was employed to examine the characteristic catalytic HER performances in a cell containing a 1.0 M KOH electrolyte medium. The electrochemical cell was fabricated using the synthesized electrode (CS and NCOS) films, Pt foil, and a saturated calomel electrode (SCE) filled with KCl as the working, counter, and reference electrodes, respectively. The LSV curves were measured at a scan rate (v) of 1.0 mV s−1 in a voltage range between 0.0 and −1.5 V (vs. SCE). To obtain the HER overpotential, the reference SCE scale of the obtained potential was changed into a reversible hydrogen electrode (RHE) scale, and, simultaneously, ohmic loss was then compensated for using the electrolyte and internal resistance (Rs) within the electrochemical system as follows:
ERHE = (pH × 0.059) + E°SCE + ESCE,
ERHE (JRs-corrected) = ERHE − (Rs × J),
where ERHE is the obtained voltage in the RHE reference scale, pH is the potential of hydrogen, E°SCE is the standard potential of SCE at R. T., ESCE is the measured voltage on the SCE scale, and J is the driven current density. The overpotential (ɳ) was then estimated from the JRs-corrected LSV curves using the following equations:
ɳ = ERHE (JRs-corrected),
ɳ = [β × log (J)] + α,
where β is the Tafel slope obtained from the linear section of the LSV curve, and α is the constant of Equation (4). Moreover, the charge transfer characteristics during the electrochemical HER test were examined using electrochemical impedance spectroscopy (EIS). The EIS curves were recorded over a wide frequency range between 0.01 and 10 kHz with an applied AC signal amplitude of 10 mV and a negative biasing potential of 400 mV.

3. Results and Discussion

3.1. Crystallographic and Compositional Properties

The structural characteristics of the bare CS and NCOS electrode films were investigated through XRD measurements to understand the effect of the N-dopant on the material structure. Figure 2a depicts the XRD spectra of both the pure CuS and NCOS electrode films synthesized on the 3D NF substrate accompanied by a reference JCPDS card pattern (JCPDS card no. 06-0464). The extra three intense XRD peaks depicted as diamond symbols in the XRD spectra originate from the NF substrate. Characteristic diffraction peaks for the CS electrode film were observed at 29.12, 31.83, 38.94, 47.98, 53.11, and 59.35°, ascribed to the (102), (103), (105), (110), (108), and (116) crystal planes of CuS, respectively [51]. After nitrogen treatment, the NCOS electrode film revealed XRD peaks, which were very similar to those of the CS electrode film. However, a notable positive rigid shift of ~ 0.12° was observed towards higher values, and the respective diffraction peaks were slightly broadened, as evidenced from the increase in the full-width at half-maximum (FWHM). The observed shift in the diffraction peaks and the simultaneously widened FWHM might have occurred due to a reduction in the interplanar spacing owing to the smaller atomic ratio of the N-dopant, suggesting the efficacious incorporation of N atoms within the crystal lattice [52].
Thereafter, the vibrational characteristics of the CS and NCOS electrode films were examined through Raman measurements. Figure 2b shows the obtained Raman spectra, which reveal three common vibrational peaks located at 262 (Cu–S vibration), 475 (S–S ions symmetrically stretching at 4e site), and 556 (longitudinal overtone of phonons) cm−1, confirming the formation of CuS [53]. However, these identical vibrations for the NCOS electrode film were moderately blue-shifted compared to those of the CS electrode film because of the increased vibrational frequency resulting from the altered surface state during nitrogen incorporation. Apart from these characteristic Raman vibrations, the NCOS Raman spectrum reveal three additional noticeable peaks. The first Raman peak at 301 cm−1 corresponds to the Ag vibrational mode, and the latter two peaks at 343 and 595 cm−1 are associated with the Bg vibrational mode of amorphous CuO [54,55]. The presence of CuO, along with the increased CuS phase, could possibly have arisen due to surface oxidation upon high-temperature annealing. To validate the above results, EDAX analysis was then conducted for both the CS and NCOS electrode films. Figure S1 shows the EDAX spectra, which exhibit the stoichiometric ratios of the Cu and S constituents in the CS spectrum and traces of N and O along with the constituent Cu and S in the NCOS spectrum. Further, EDAX image mapping for the NCOS electrode film was also performed. Figure 2c shows the obtained EDAX mapping image for the NCOS electrode films, exhibiting the uniform presence of N (2.36%), S (45.17%), Cu (48.82%), and O (3.65%).

3.2. Chemical State Characteristics

The XPS spectra for the CS and NCOS electrode films were then recorded to analyze the elemental binding states. Figure 3a shows the full-range survey spectra of the CS and NCOS electrode films, exhibiting characteristic Cu, S, O, and N emissions. The high-resolution emission spectra for these elements were then recorded to evaluate the binding states of the constituent elements. Figure 3b displays the Cu 2p emission spectra of the CS and NCOS electrode films. Four typical emission peaks deconvoluted at 932.21 (Cu 2p3/2), 941.87 (satellite; Sat.), 952.17 (Cu 2p1/2), and 963.14 (Sat.) eV were observed for the CS electrode film. The separation of spin–orbit splitting at 19.96 eV (~20 eV) for the degenerate Cu 2p3/2 and Cu 2p1/2 states and the characteristic satellite emission peak confirm the presence of Cu2+ in the CuS structure [24,56]. For the CS electrode film, the high-resolution S 2p emission (Figure 3c) spectrum displays two deconvoluted peaks at 161.92 (S 2p3/2) and 163.11 (S 2p1/2) eV, with the 1.19 eV spin-energy separation of the characteristic peaks confirming the existence of the S2− state in the CuS structure [56,57]. Although the NCOS electrode film reveals a similar spin-energy separation of degenerate states, the peak positions of the distinctive 2p3/2 and 2p1/2 degenerate states of the characteristic Cu 2p and S 2p emissions were moderately blue-shifted compared to those for the CS electrode film. This change in the binding energy position is a result of the successful attachment of N atoms to the CuS structure because the incorporated N atoms reduce the electron density around the Cu atom and introduce lattice distortions, resulting in the peak shifting toward higher binding energies [58]. Moreover, the S 2p spectrum of the NCOS electrode film reveals an additional broad peak at 168.28 eV (SOxn−) as a result of surface oxidation, which is in good agreement with the increased O 1s peak intensity for the NCOS electrode compared to the CS electrode (Figure S2) [38]. Further, the NCOS electrode film only shows N 1s emission (Figure 3d), which is deconvoluted into four peaks at 398.63 (pyridinic N; metal nitrogen bonding), 400.03 (pyrrolic N), 401.28 (graphitic N), and 402.22 (oxidized N) eV [58,59,60,61].

3.3. Morphological Properties

The microstructure features and surface topography of the electrode films were examined by FE-SEM measurements. Figure 4a,b show the FE-SEM images of the CS electrode film, which display a densely packed spherical morphology with a randomly embossed textured surface. The average size of these spherical particles ranges between approximately 300 and 400 nm (Figure 4b). Figure 4c shows the FE-SEM images of the NCOS electrode film, which retains a similar morphology as that of the CS electrode film. However, the surface texture undergoes significant changes following nitrogen incorporation. A distinct flake-like texture (i.e., CuO shell, Figure 4d) covers the entire surface of the CS spheres (i.e., core), which might appear due to recrystallization upon surface oxidation during high-temperature heating. This ultrathin nanoflake-textured shell envelops all the interconnected CuS spheres, creating a core–shell structure, which could help to increase the catalytically active region and preserve the catalytic HER activity of the core CuS catalyst in alkaline KOH conditions.

3.4. Electrochemical HER Performance

Figure 5a shows the catalytic HER activity of the CS and NCOS core–shell-structured catalysts grown on the porous 3D architecture of NF. The NCOS core–shell-structured catalyst synthesized on the NF reveals an overpotential of 55 mV at a current density of 10 mA cm−2. In contrast, the pure CS catalyst on NF exhibits a larger overpotential of 121 mV at the same driving current density. Further, at a current density of 100 mA cm–2, the NCOS core–shell-structured catalyst achieves an overpotential of 179 mV and exhibits a Faradaic efficiency of ~98%, which are superior compared to the overpotential and Faradaic efficiency of the pure CS catalyst (261 mV at 100 mA cm−2 and a Faradaic efficiency of 87%). These findings indicate that N-doping can substantially enhance the HER activity of an active catalyst material. The HER activity of the commercial Pt/C and pure NF substrates was also measured for comparison in a 1.0 M alkaline KOH electrolyte medium at 1.0 mV s−1. The overpotential of the noble metal Pt/C catalyst is closely comparable to that of the synthesized NCOS core–shell-structured catalyst at a higher driving current density. However, an infinitesimally small voltage response was noted for the NF substrate over the entire potential scanning range compared to the synthesized catalysts, suggesting that the NF substrate itself does not play a major role in enhancing catalytic activity. Instead, it provides a large surface area for catalyst loading, which enables a more accessible surface of the deposited catalysts for the electrochemical process, and possesses sufficient mechanical stability to withstand prolonged testing. In addition, to further confirm the above results, a series of catalyst electrodes were prepared and examined in the KOH medium (Figure S3). These catalysts demonstrated consistent HER activity across multiple tests under identical conditions, confirming the reliability of the obtained catalytic HER performance.
Generally, the electrochemical HER process starts with proton discharge on the metal surface, where the water dissociates to form adsorbed hydrogen (MHads) and hydroxide ions (OH−), which is known as the Volmer reaction (M + H2O + e− → MHads + OH−, Tafel slope = 120 mV dec−1) [62]. This reaction step is either followed by electrochemical desorption, where MHads reacts with water to release H2, which is known as the Heyrovsky reaction (MHads + H2O + e− → M + OH− + H2, Tafel slope = 40 mV dec−1), or by chemical desorption, where two MHads species recombine to release H2, which is known as the Tafel reaction (2MHads → 2M + H2, Tafel slope = 30 mV dec−1). Therefore, to understand the catalytic superiority of the NCOS core–shell catalyst compared to the CS catalyst, Tafel curves (Figure 5b) were procured from the obtained LSV curves (Figure 5a). The NCOS core–shell-structured catalyst exhibits a reduced Tafel slope of 107 mV dec−1 compared to the pure CS (107 mV dec−1) catalyst. The decrement in the overpotential is associated with the enhanced reaction kinetics of the active catalyst after nitrogen treatment. The incorporated nitrogen atoms alter the electronic structure of the catalyst, which results in improved electronic conductivity and further helps to increase the electrochemically active surface area (ECSA, Figure S4a–c), thereby enhancing the rate of the reaction kinetics. The excellent electrocatalytic HER performance of the NCOS core–shell-structured catalyst in the KOH electrolyte medium is fairly comparable to that of the previously reported Cu-based metal-oxide/sulfide catalysts (Figure 5c and Table S1).
To gain insight into the altered electronic conductivity and electron transfer kinetics after nitrogen incorporation, EIS (Nyquist impedance) curves were measured for both catalysts. Figure 6a shows the EIS plots for the CS and NCOS core–shell-structured catalysts. The obtained EIS curves exhibit a semicircular curvature and were fitted through the tank circuit using Z-view software. The inset of Figure 6a shows the modeled tank circuit and the obtained parameter values, which are summarized in Table 1. The intersection of the semicircular curvature with the Zʹ-axis (i.e., X-axis) represents Rs, and the semicircular curvature is a measure of the charge transfer resistance (Rct) [38]. Therefore, the value of Rct highlights how easy electron transfer is at the electrode/electrolyte interface. The NCOS core–shell-structured catalyst demonstrates an Rs and Rct of 0.503 and 18.17 Ω, respectively. Meanwhile, the pure CS catalyst exhibits comparatively higher Rs (0.612 Ω) and Rct (29.34 Ω) values than the NCOS catalyst. This is because the N-dopant allows for a higher number of accessible catalytically active sites (Figure S4) and contributes to lowering the energy barrier for electrochemical HER processes, which results in kinetically efficient electron/ion transportation in the core–shell structure and boosts the electrocatalytic efficiency.
Thereafter, the turnover frequency (TOF) of the CS and NCOS core–shell-structured catalysts was estimated to further understand the intrinsic HER kinetics and catalytic efficiency. The TOF quantifies the number of molecules reacting at the accessible electrochemically active sites per unit time, and it can be estimated as follows [38]:
TOF = [(A × J)/(2 × F × n)],
where A is the loading area of the active catalyst material (incm2), the factor of 2 is due to the two electrons involved per mole of H2 in the HER, F is the Faraday constant (96,485.3329 A·s mol−1), and n is the number of moles of the active catalyst. Figure 6b shows the TOF curves for the CS and NCOS core–shell-structured catalysts obtained from the measured LSV curves using the above Equation (5). The NCOS core–shell-structured catalyst demonstrates a TOF of 0.313 s−1, which is significantly higher compared to the CS (0.055 s−1) catalyst at the same driving voltage. The increased TOF is a result of the improved HER kinetics after nitrogen substitution, which enable more efficient electron and ion transport across the catalyst network and are in good agreement with the Tafel (Figure 5b) and ECSA-corrected LSV curves (Figure S4d).
Owing to the overall electrocatalytic superiority of the NCOS catalyst compared to the CS catalyst, the stability of the NCOS core–shell structure was then evaluated to examine the catalysts’ endurance over a wide range of current density rates in an alkaline KOH (1.0 M) medium. Figure 6c shows the long-term chronopotentiometric stability of the NCOS core–shell-structured catalyst measured at applied current densities of 10 and 100 mA cm−2. Interestingly, the NCOS core–shell-structured catalyst demonstrated a static potential response during vigorous and continuous H2 gas bubble evolution throughout the long-term chronopotentiometric test without any significant deviation in the voltage response at both driven current densities for up to 50 h, confirming its long-term durability for the catalytic HER in an alkaline KOH medium. Its excellent stability endurance is further supported by the post-stability-measured EIS and LSV curves (Figure S5), which were measured under the same experimental conditions. Insignificant variations in the charge transfer resistance and voltage response were observed for the NCOS core–shell-structured catalyst before and after the long-term chronopotentiometric stability test, which was a result of superior electron and ion transport, contributing to the strong chronopotentiometric stability and highlighting the robustness of the core–shell-structured catalyst for catalytic HER performance. The NCOS core–shell-structured catalyst, after the accelerated long-term chronopotentiometric test, was characterized by Raman and EDAX spectrum analyses (Figure S6), which suggest that the prolonged stability evaluation did not notably change the material bindings and compositions of the constituent (Cu, S, N, and O) elements. The excellent stability of the NCOS core–shell-structured catalyst was likely due to the addition of nitrogen, which altered the electronic structure of the formed catalyst, enabling efficient electron/ion transport, and the formed core–shell structure prevented material degradation during chronopotentiometric stability testing in the KOH medium.

4. Conclusions

In summary, we incorporated nitrogen into the CS structure through a simple but effective nitrogenation method. The CS structure was prepared on the microporous architecture of 3D NF via a hydrothermal process to enhance the electrochemical HER performance of the active catalyst. The physical, morphological, and chemical characteristics confirmed the phase-pure formation of CS and its successful transformation into the unique NCOS core–shell-structured catalyst. Nitrogen incorporation significantly transformed the surface topography into a flake-like textured shell on the CS surface, which might have helped to protect the core from degradation, enhancing its chronopotentiometric stability during the catalytic HER. The catalytic activity of the NCOS core–shell-structured catalyst was significantly enhanced, demonstrating lowered overpotentials of 55 and 179 mV at 10 and 100 mA cm–2, respectively, compared to the CS (121 and 261 mV) catalyst. The boosted catalytic activity of the NCOS catalyst is linked to improved intrinsic reaction kinetics, efficient electron/ion transport, and a higher number of catalytically active sites after nitrogenation, as evidenced from the Tafel, TOF, normalized JECSA, EIS, and ECSA curve analyses. Further, the insignificant change in the voltage response during the long-term chronopotentiometric stability test over 50 h confirms its excellent endurance at low and high current density rates of 10 and 100 mA cm–2.

Supplementary Materials

The supplementary materials for this study are available for download at the following link: https://www.mdpi.com/article/10.3390/nano14231941/s1, Figure S1: EDS spectra; Figure S2: O 1s XPS spectra; Figure S3: Reliability of HER activity at 10 and 100 mA cm–2; Figure S4: non-Faradaic CV curves for the estimation of ECSA and ECSA-corrected LSV curves; Figure S5: post-stability-recorded Nyquist impedance and LSV curves; Figure S6: post-stability-recorded EDS and Raman spectra. Table S1. Comparative catalytic HER performance of our optimized NCOS core–shell-structured catalyst and other Cu-based catalyst in alkaline KOH (1.0 M) electrolyte medium at 10 mA cm–2. Table S2. Comparative electrochemical double-layer capacitance and ECSA for the CS and NCOS core–shell-structured catalysts.

Author Contributions

Visualization, conceptualization, methodology, investigation, data curation, and writing—original draft preparation, A.T.A.A.; validation, software, and formal analysis, S.C.; resources, writing—review and editing, supervision, project administration, and funding acquisition, H.I.; writing—review and editing, A.J. All authors have thoroughly reviewed the manuscript and have given their approval for the final version to be submitted for publication. All authors have read and agreed to the published version of the manuscript.

Funding

This research received funding from the National Research Foundation of Korea (NRF) as part of its Basic Science Research Program (Grant No. RS-2023-00236798).

Data Availability Statement

The data from this study can be accessed upon reasonable request to the corresponding author.

Conflicts of Interest

The authors state that they have no conflicts of interest to disclose.

References

  1. Wang, S.; Lu, A.; Zhong, C.-J. Hydrogen production from water electrolysis: Role of catalysts. Nano Converg. 2021, 8, 4. [Google Scholar] [CrossRef] [PubMed]
  2. Zhu, J.; Hu, L.; Zhao, P.; Lee, L.Y.S.; Wong, K.-Y. Recent advances in electrocatalytic hydrogen evolution using nanoparticles. Chem. Rev. 2019, 120, 851–918. [Google Scholar] [CrossRef] [PubMed]
  3. Benck, J.D.; Hellstern, T.R.; Kibsgaard, J.; Chakthranont, P.; Jaramillo, T.F. Catalyzing the Hydrogen Evolution Reaction (HER) with Molybdenum Sulfide Nanomaterials. ACS Catal. 2014, 4, 3957–3971. [Google Scholar] [CrossRef]
  4. Van der Spek, M.; Banet, C.; Bauer, C.; Gabrielli, P.; Goldthorpe, W.; Mazzotti, M.; Munkejord, S.T.; Røkke, N.A.; Shah, N.; Sunny, N. Perspective on the hydrogen economy as a pathway to reach net-zero CO2 emissions in Europe. Energy Environ. Sci. 2022, 15, 1034–1077. [Google Scholar] [CrossRef]
  5. Solangi, K.; Islam, M.; Saidur, R.; Rahim, N.; Fayaz, H. A review on global solar energy policy. Renew. Sustain. Energy Rev. 2011, 15, 2149–2163. [Google Scholar] [CrossRef]
  6. Lewis, N.S.; Crabtree, G.; Nozik, A.J.; Wasielewski, M.R.; Alivisatos, P.; Kung, H.; Tsao, J.; Chandler, E.; Walukiewicz, W.; Spitler, M. Basic Research Needs for Solar Energy Utilization. Report of the Basic Energy Sciences Workshop on Solar Energy Utilization, April 18–21, 2005; DOESC (USDOE Office of Science (SC)): Washington, DC, USA, 2005. [Google Scholar]
  7. Xu, X.; Pan, Y.; Zhong, Y.; Ran, R.; Shao, Z. Ruddlesden–Popper perovskites in electrocatalysis. Mater. Horiz. 2020, 7, 2519–2565. [Google Scholar] [CrossRef]
  8. Abdelghafar, F.; Xu, X.; Jiang, S.P.; Shao, Z. Designing single-atom catalysts toward improved alkaline hydrogen evolution reaction. Mater. Rep. Energy 2022, 2, 100144. [Google Scholar] [CrossRef]
  9. Liu, S.; Hu, Z.; Wu, Y.; Zhang, J.; Zhang, Y.; Cui, B.; Liu, C.; Hu, S.; Zhao, N.; Han, X.; et al. Dislocation-Strained IrNi Alloy Nanoparticles Driven by Thermal Shock for the Hydrogen Evolution Reaction. Adv. Mater. 2020, 32, 2006034. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, L.X.; Chen, Z.W.; Zhang, Y.; Yang, C.C.; Jiang, Q. Insight into the excellent catalytic activity of (CoMo)S2/graphene for hydrogen evolution reaction. Appl. Catal. B Environ. 2019, 258, 118012. [Google Scholar] [CrossRef]
  11. He, J.; Tong, Y.; Wang, Z.; Zhou, G.; Ren, X.; Zhu, J.; Zhang, N.; Chen, L.; Chen, P. Oxygenate-induced structural evolution of high-entropy electrocatalysts for multifunctional alcohol electrooxidation integrated with hydrogen production. Proc. Natl. Acad. Sci. USA 2024, 121, e2405846121. [Google Scholar] [CrossRef]
  12. Ren, X.; Lin, C.; Zhou, G.; He, J.; Tong, Y.; Chen, P. Pt-decorated spinel MnCo2O4 nanosheets enable ampere-level hydrazine assisted water electrolysis. J. Colloid Interface Sci. 2024, 676, 13–21. [Google Scholar] [CrossRef] [PubMed]
  13. Ren, X.; Zhang, Q.; Tong, Y.; Zhou, G.; Lin, C.; Zhao, Y.; Chen, P. Nickel-copper alloying arrays realizing efficient co-electrosynthesis of adipic acid and hydrogen. J. Energy Chem. 2025, 101, 7–15. [Google Scholar] [CrossRef]
  14. Tabassum, L.; Khairul Islam, M.; Perera, I.P.; Li, M.; Huang, X.; Tasnim, H.; Suib, S.L. Facile Synthesis of Transition-Metal-Doped (Fe, Co, and Ni) CuS/CuO/CS Nanorod Arrays for Superior Electrocatalytic Oxygen Evolution Reaction. ACS Appl. Energy Mater. 2022, 5, 12039–12048. [Google Scholar] [CrossRef]
  15. D’Amore, F.; Pereira, L.M.C.; Campanari, S.; Gazzani, M.; Romano, M.C. A novel process for CO2 capture from steam methane reformer with molten carbonate fuel cell. Int. J. Hydrogen Energy 2023, 48, 37366–37384. [Google Scholar] [CrossRef]
  16. Zhao, J.-W.; Shi, Z.-X.; Li, C.-F.; Ren, Q.; Li, G.-R. Regulation of Perovskite Surface Stability on the Electrocatalysis of Oxygen Evolution Reaction. ACS Mater. Lett. 2021, 3, 721–737. [Google Scholar] [CrossRef]
  17. Yuan, C.-Z.; Hui, K.S.; Yin, H.; Zhu, S.; Zhang, J.; Wu, X.-L.; Hong, X.; Zhou, W.; Fan, X.; Bin, F.; et al. Regulating Intrinsic Electronic Structures of Transition-Metal-Based Catalysts and the Potential Applications for Electrocatalytic Water Splitting. ACS Mater. Lett. 2021, 3, 752–780. [Google Scholar] [CrossRef]
  18. Hansen, J.N.; Prats, H.; Toudahl, K.K.; Mørch Secher, N.; Chan, K.; Kibsgaard, J.; Chorkendorff, I. Is There Anything Better than Pt for HER? ACS Energy Lett. 2021, 6, 1175–1180. [Google Scholar] [CrossRef]
  19. Chen, L.; Kang, L.; Cai, D.; Geng, S.; Liu, Y.; Chen, J.; Song, S.; Wang, Y. Ultrafine Pt-based catalyst decorated with oxygenophilic Ni-sites accelerating alkaline H2O dissociation for efficient hydrogen evolution. J. Colloid Interface Sci. 2023, 650, 1715–1724. [Google Scholar] [CrossRef] [PubMed]
  20. Anantharaj, S.; Noda, S.; Jothi, V.R.; Yi, S.; Driess, M.; Menezes, P.W. Strategies and perspectives to catch the missing pieces in energy-efficient hydrogen evolution reaction in alkaline media. Angew. Chem. Int. Ed. 2021, 60, 18981–19006. [Google Scholar] [CrossRef]
  21. Mishra, I.K.; Zhou, H.; Sun, J.; Dahal, K.; Ren, Z.; He, R.; Chen, S.; Ren, Z. Highly efficient hydrogen evolution by self-standing nickel phosphide-based hybrid nanosheet arrays electrocatalyst. Mater. Today Phys. 2018, 4, 1–6. [Google Scholar] [CrossRef]
  22. Han, N.; Yang, K.R.; Lu, Z.; Li, Y.; Xu, W.; Gao, T.; Cai, Z.; Zhang, Y.; Batista, V.S.; Liu, W. Nitrogen-doped tungsten carbide nanoarray as an efficient bifunctional electrocatalyst for water splitting in acid. Nat. Commun. 2018, 9, 924. [Google Scholar] [CrossRef] [PubMed]
  23. Yao, N.; Li, P.; Zhou, Z.; Meng, R.; Cheng, G.; Luo, W. Nitrogen engineering on 3D dandelion-flower-like CoS2 for high-performance overall water splitting. Small 2019, 15, 1901993. [Google Scholar] [CrossRef]
  24. Aqueel Ahmed, A.T.; Pawar, S.M.; Inamdar, A.I.; Kim, H.; Im, H. A Morphologically Engineered Robust Bifunctional CuCo2O4 Nanosheet Catalyst for Highly Efficient Overall Water Splitting. Adv. Mater. Interfaces 2020, 7, 1901515. [Google Scholar] [CrossRef]
  25. Yao, N.; Li, P.; Zhou, Z.; Zhao, Y.; Cheng, G.; Chen, S.; Luo, W. Synergistically tuning water and hydrogen binding abilities over Co4N by Cr doping for exceptional alkaline hydrogen evolution electrocatalysis. Adv. Energy Mater. 2019, 9, 1902449. [Google Scholar] [CrossRef]
  26. Yu, F.; Yu, L.; Mishra, I.; Yu, Y.; Ren, Z.; Zhou, H. Recent developments in earth-abundant and non-noble electrocatalysts for water electrolysis. Mater. Today Phys. 2018, 7, 121–138. [Google Scholar] [CrossRef]
  27. Vrubel, H.; Hu, X. Molybdenum boride and carbide catalyze hydrogen evolution in both acidic and basic solutions. Angew. Chem. Int. Ed. Engl. 2012, 51, 12703–12706. [Google Scholar] [CrossRef]
  28. Sajeev, A.; Paul, A.M.; Nivetha, R.; Gothandapani, K.; Gopal, T.S.; Jacob, G.; Muthuramamoorty, M.; Pandiaraj, S.; Alodhayb, A.; Kim, S.Y.; et al. Development of Cu3N electrocatalyst for hydrogen evolution reaction in alkaline medium. Sci. Rep. 2022, 12, 2004. [Google Scholar] [CrossRef] [PubMed]
  29. Ma, Y.; He, Z.; Wu, Z.; Zhang, B.; Zhang, Y.; Ding, S.; Xiao, C. Galvanic-replacement mediated synthesis of copper–nickel nitrides as electrocatalyst for hydrogen evolution reaction. J. Mater. Chem. A 2017, 5, 24850–24858. [Google Scholar] [CrossRef]
  30. Zhang, J.; Liu, P.; Wang, G.; Zhang, P.P.; Zhuang, X.D.; Chen, M.W.; Weidinger, I.M.; Feng, X.L. Ruthenium/nitrogen-doped carbon as an electrocatalyst for efficient hydrogen evolution in alkaline solution. J. Mater. Chem. A 2017, 5, 25314–25318. [Google Scholar] [CrossRef]
  31. Chang, B.; Hao, S.; Ye, Z.; Yang, Y. A self-supported amorphous Ni–P alloy on a CuO nanowire array: An efficient 3D electrode catalyst for water splitting in alkaline media. Chem. Commun. 2018, 54, 2393–2396. [Google Scholar] [CrossRef]
  32. Zequine, C.; Bhoyate, S.; Wang, F.; Li, X.; Siam, K.; Kahol, P.K.; Gupta, R.K. Effect of solvent for tailoring the nanomorphology of multinary CuCo2S4 for overall water splitting and energy storage. J. Alloys Compd. 2019, 784, 1–7. [Google Scholar] [CrossRef]
  33. Wei, S.; Qi, K.; Jin, Z.; Cao, J.; Zheng, W.; Chen, H.; Cui, X. One-Step Synthesis of a Self-Supported Copper Phosphide Nanobush for Overall Water Splitting. ACS Omega 2016, 1, 1367–1373. [Google Scholar] [CrossRef] [PubMed]
  34. Wei, G.; He, J.; Zhang, W.; Zhao, X.; Qiu, S.; An, C. Rational design of Co (II) dominant and oxygen vacancy defective CuCo2O4@ CQDs hollow spheres for enhanced overall water splitting and supercapacitor performance. Inorg. Chem. 2018, 57, 7380–7389. [Google Scholar] [CrossRef]
  35. Gong, Y.; Zhao, Y.; Chen, Y.; Wang, Y.; Sun, C. An efficient ultra-thin chain-structured copper cobalt oxide/sulfide composite catalyst for electrochemical hydrogen generation. RSC Adv. 2016, 6, 43185–43190. [Google Scholar] [CrossRef]
  36. Sarfraz, B.; Bashir, I.; Rauf, A. CuS/NiFe-LDH/NF as a Bifunctional Electrocatalyst for Hydrogen Evolution (HER) and Oxygen Evolution Reactions (OER). Fuel 2023, 337, 127253. [Google Scholar] [CrossRef]
  37. Xie, Y.; Huang, J.; Xu, R.; He, D.; Niu, M.; Li, X.; Xu, G.; Cao, L.; Feng, L. Mo-Doped Cu2S Multilayer Nanosheets Grown In Situ on Copper Foam for Efficient Hydrogen Evolution Reaction. Molecules 2022, 27, 5961. [Google Scholar] [CrossRef]
  38. Ahmed, A.T.A.; Ansari, A.S.; Pawar, S.M.; Shong, B.; Kim, H.; Im, H. Anti–corrosive FeO decorated CuCo2S4 as an efficient and durable electrocatalyst for hydrogen evolution reaction. Appl. Surf. Sci. 2021, 539, 148229. [Google Scholar] [CrossRef]
  39. Wang, C.; An, C.; Qin, C.; Gomaa, H.; Deng, Q.; Wu, S.; Hu, N. Noble Metal-Based Catalysts with Core-Shell Structure for Oxygen Reduction Reaction: Progress and Prospective. Nanomaterials 2022, 12, 2480. [Google Scholar] [CrossRef]
  40. Bharadwaj, N.; Nair, A.S.; Pathak, B. Dimensional-Dependent Effects in Platinum Core–Shell-Based Catalysts for Fuel Cell Applications. ACS Appl. Nano Mater. 2021, 4, 9697–9708. [Google Scholar] [CrossRef]
  41. Lu, Y.; Zhang, H.; Wang, Y.; Chen, Z. First principles study on the oxygen reduction reaction of Ir@Pt core-shell structure. Chem. Phys. 2022, 552, 111356. [Google Scholar] [CrossRef]
  42. Wu, T.; Guo, R.-t.; Li, C.-f.; You, Y.-h.; Pan, W.-g. Recent advances in core-shell structured catalysts for low-temperature NH3-SCR of NOx. Chemosphere 2023, 333, 138942. [Google Scholar] [CrossRef] [PubMed]
  43. Ahmed, A.T.A.; Sree, V.G.; Meena, A.; Inamdar, A.I.; Im, H.; Cho, S. In Situ Transformed CoOOH@Co3S4 Heterostructured Catalyst for Highly Efficient Catalytic OER Application. Nanomaterials 2024, 14, 1732. [Google Scholar] [CrossRef] [PubMed]
  44. Chen, D.; Li, Y.; Liao, S.; Su, D.; Song, H.; Li, Y.; Yang, L.; Li, C. Ultra-high-performance core–shell structured Ru@Pt/C catalyst prepared by a facile pulse electrochemical deposition method. Sci. Rep. 2015, 5, 11604. [Google Scholar] [CrossRef] [PubMed]
  45. Li, Y.; Ai, C.; Deng, S.; Wang, Y.; Tong, X.; Wang, X.; Xia, X.; Tu, J. Nitrogen doped vertical graphene as metal-free electrocatalyst for hydrogen evolution reaction. Mater. Res. Bull. 2021, 134, 111094. [Google Scholar] [CrossRef]
  46. Grabowska, P.; Szkoda, M.; Skorupska, M.; Lukaszewicz, J.P.; Ilnicka, A. Synergistic effects of nitrogen-doped carbon and praseodymium oxide in electrochemical water splitting. Sci. Rep. 2023, 13, 18632. [Google Scholar] [CrossRef]
  47. Kubińska, L.; Szkoda, M.; Skorupska, M.; Grabowska, P.; Gajewska, M.; Lukaszewicz, J.P.; Ilnicka, A. Combined effect of nitrogen-doped carbon and NiCo2O4 for electrochemical water splitting. Sci. Rep. 2024, 14, 26930. [Google Scholar] [CrossRef]
  48. Nguyen, A.Q.K.; Huynh, Q.; Huynh, T.T.; Pham, H.Q. Nitrogen-doping engineering in two-dimensional transition-metal carbides for electrochemical hydrogen evolution. Int. J. Hydrogen Energy 2024, 86, 638–648. [Google Scholar] [CrossRef]
  49. Jiang, D.; Wei, M.; Du, X.; Qin, M.; Shan, X.; Chen, Z. One-pot synthesis of ZnO quantum dots/N-doped Ti3C2 MXene: Tunable nitrogen-doping properties and efficient electrochemiluminescence sensing. Chem. Eng. J. 2022, 430, 132771. [Google Scholar] [CrossRef]
  50. Ahmed, A.T.A.; Ansari, A.S.; Sree, V.G.; Jana, A.; Meena, A.; Sekar, S.; Cho, S.; Kim, H.; Im, H. Nitrogen-Doped CuO@CuS Core–Shell Structure for Highly Efficient Catalytic OER Application. Nanomaterials 2023, 13, 3160. [Google Scholar] [CrossRef]
  51. Liu, J.; Xue, D. Solvothermal synthesis of copper sulfide semiconductor micro/nanostructures. Mater. Res. Bull. 2010, 45, 309–313. [Google Scholar] [CrossRef]
  52. Wei, Z.; Wang, J.; Sun, J.; Zhang, Z.; Lu, B.; Guo, J. Thermal Puffing Promoting the Synthesis of N-Doped Hierarchical Porous Carbon–CoOx Composites for Alkaline Water Reduction. ACS Omega 2021, 6, 6474–6481. [Google Scholar] [CrossRef] [PubMed]
  53. Chaki, S.H.; Tailor, J.P.; Deshpande, M.P. Covellite CuS—Single crystal growth by chemical vapour transport (CVT) technique and characterization. Mater. Sci. Semicond. Process. 2014, 27, 577–585. [Google Scholar] [CrossRef]
  54. Murthy, P.S.; Venugopalan, V.P.; Arunya, D.D.; Dhara, S.; Pandiyan, R.; Tyagi, A.K. Antibiofilm activity of nano sized CuO. In Proceedings of the International Conference on Nanoscience, Engineering and Technology (ICONSET 2011), Chennai, India, 28–30 November 2011; pp. 580–583. [Google Scholar]
  55. Yeryukov, N.A.; Milekhin, A.G.; Sveshnikova, L.L.; Duda, T.A.; Pokrovsky, L.D.; Gutakovskii, A.K.; Batsanov, S.A.; Rodyakina, E.E.; Latyshev, A.V.; Zahn, D.R.T. Synthesis and Characterization of CuxS (x = 1–2) Nanocrystals Formed by the Langmuir–Blodgett Technique. J. Phys. Chem. C 2014, 118, 23409–23414. [Google Scholar] [CrossRef]
  56. Adhikari, S.; Sarkar, D.; Madras, G. Hierarchical Design of CuS Architectures for Visible Light Photocatalysis of 4-Chlorophenol. ACS Omega 2017, 2, 4009–4021. [Google Scholar] [CrossRef] [PubMed]
  57. Jin, X.; Li, J.; Chen, G.; Xue, C.; Liu, W.; Zhu, C. Preparation of Cu2ZnSnS4-based thin film solar cells by a combustion method. Sol. Energy Mater. Sol. Cells 2016, 146, 16–24. [Google Scholar] [CrossRef]
  58. Ahmed, A.T.A.; Han, J.; Shin, G.; Park, S.; Yeon, S.; Park, Y.; Kim, H.; Im, H. Sulfur-Rich N-Doped Co9S8 Catalyst for Highly Efficient and Durable Overall Water Electrolysis Application. Int. J. Energy Res. 2023, 2023, 4176447. [Google Scholar] [CrossRef]
  59. Lee, J.Y.; Kim, N.Y.; Shin, D.Y.; Park, H.-Y.; Lee, S.-S.; Joon Kwon, S.; Lim, D.-H.; Bong, K.W.; Son, J.G.; Kim, J.Y. Nitrogen-doped graphene-wrapped iron nanofragments for high-performance oxygen reduction electrocatalysts. J. Nanopart. Res. 2017, 19, 98. [Google Scholar] [CrossRef]
  60. Ayiania, M.; Smith, M.; Hensley, A.J.R.; Scudiero, L.; McEwen, J.-S.; Garcia-Perez, M. Deconvoluting the XPS spectra for nitrogen-doped chars: An analysis from first principles. Carbon 2020, 162, 528–544. [Google Scholar] [CrossRef]
  61. Kiuchi, H.; Kondo, T.; Sakurai, M.; Guo, D.; Nakamura, J.; Niwa, H.; Miyawaki, J.; Kawai, M.; Oshima, M.; Harada, Y. Characterization of nitrogen species incorporated into graphite using low energy nitrogen ion sputtering. Phys. Chem. Chem. Phys. 2016, 18, 458–465. [Google Scholar] [CrossRef]
  62. Talha Aqueel Ahmed, A.; Ho Lee, C.; Saad Ansari, A.; Pawar, S.M.; Han, J.; Park, S.; Shin, G.; Yeon, S.; Cho, S.; Seol, J.; et al. Hybridized heterostructure of CoS and MoS2 nanoparticles for highly-efficient and robust bifunctional water electrolysis. Appl. Surf. Sci. 2022, 592, 153196. [Google Scholar] [CrossRef]
Nanomaterials 14 01941 g001

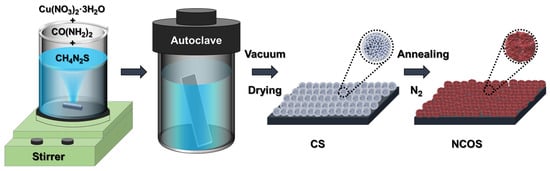

Figure 1. Schematic diagram representing the systematic synthesis process for the production of CuS (CS)- and nitrogen (N)-doped CuO@CuS (NCOS) core–shell-structured catalysts.
Figure 1. Schematic diagram representing the systematic synthesis process for the production of CuS (CS)- and nitrogen (N)-doped CuO@CuS (NCOS) core–shell-structured catalysts.
Nanomaterials 14 01941 g001
Nanomaterials 14 01941 g002

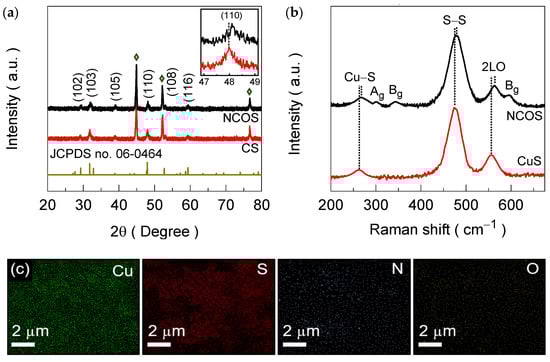

Figure 2. (a) XRD spectra of the CS and NCOS core–shell-structured electrode films measured in a spectral angle range between 20° and 80°. Notably, the additional three intense XRD peaks in the spectra arise from the NF substrate, indicated by diamond symbols. (b) Raman spectra for the CS and NCOS core–shell-structured electrode films. (c) EDAX image mapping of the constituent S, Cu, N, and O elements for the NCOS core–shell-structured electrode films.
Figure 2. (a) XRD spectra of the CS and NCOS core–shell-structured electrode films measured in a spectral angle range between 20° and 80°. Notably, the additional three intense XRD peaks in the spectra arise from the NF substrate, indicated by diamond symbols. (b) Raman spectra for the CS and NCOS core–shell-structured electrode films. (c) EDAX image mapping of the constituent S, Cu, N, and O elements for the NCOS core–shell-structured electrode films.
Nanomaterials 14 01941 g002
Nanomaterials 14 01941 g003

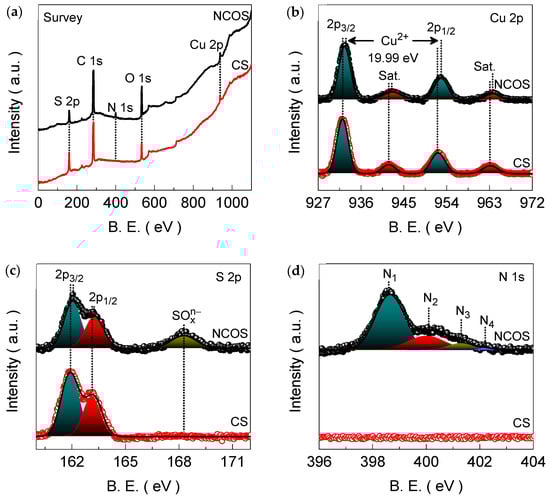

Figure 3. A comparative (a) survey and the narrow-ranged (b) Cu 2p, (c) S 2p, and (d) N 1s XPS spectra for the CS and NCOS core–shell-structured electrode films. The narrow-ranged emission spectra were deconvoluted by a Gaussian peak fitting model.
Figure 3. A comparative (a) survey and the narrow-ranged (b) Cu 2p, (c) S 2p, and (d) N 1s XPS spectra for the CS and NCOS core–shell-structured electrode films. The narrow-ranged emission spectra were deconvoluted by a Gaussian peak fitting model.
Nanomaterials 14 01941 g003
Nanomaterials 14 01941 g004

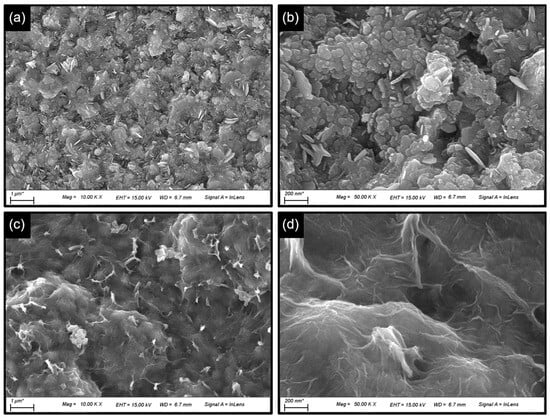

Figure 4. FE-SEM images of (a,c) CS and (b,d) NCOS core–shell-structured electrode films synthesized on the NF substrate. The FE-SEM images were captured at low and high magnifications.
Figure 4. FE-SEM images of (a,c) CS and (b,d) NCOS core–shell-structured electrode films synthesized on the NF substrate. The FE-SEM images were captured at low and high magnifications.
Nanomaterials 14 01941 g004
Nanomaterials 14 01941 g005

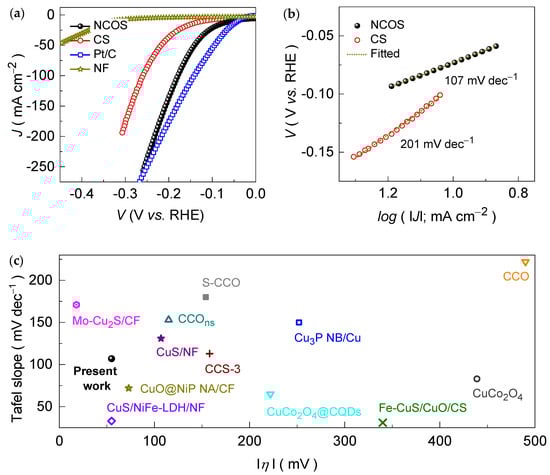

Figure 5. (a) LSV curves for the CS, NF, and NCOS core–shell-structured catalysts measured at 1.0 mV s−1 in alkaline 1.0 KOH medium. (b) Tafel plots for the CS and NCOS core–shell-structured catalysts. (c) A comparison of the HER performance of the NCOS core–shell-structured catalyst with that of the previously reported Cu-based metal-oxide/sulfide catalysts at 10 mA cm−2, evaluated in an alkaline 1.0 M KOH electrolyte medium.
Figure 5. (a) LSV curves for the CS, NF, and NCOS core–shell-structured catalysts measured at 1.0 mV s−1 in alkaline 1.0 KOH medium. (b) Tafel plots for the CS and NCOS core–shell-structured catalysts. (c) A comparison of the HER performance of the NCOS core–shell-structured catalyst with that of the previously reported Cu-based metal-oxide/sulfide catalysts at 10 mA cm−2, evaluated in an alkaline 1.0 M KOH electrolyte medium.
Nanomaterials 14 01941 g005
Nanomaterials 14 01941 g006

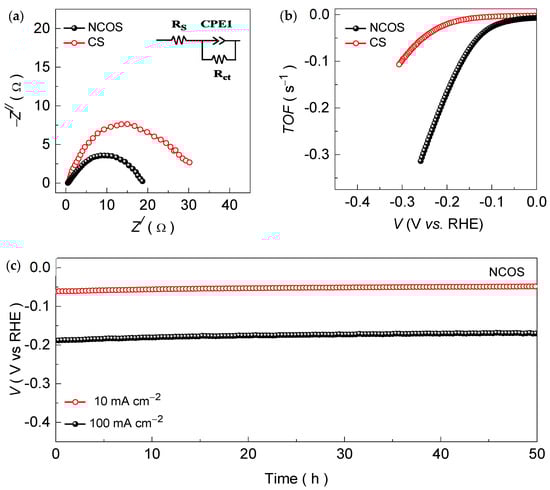

Figure 6. (a) EIS and (b) TOF curves for the CS and NCOS core–shell-structured catalysts. (c) Long-term chronopotentiometric HER stability curves for the NCOS core–shell-structured catalyst measured for up to 50 h at current densities of 10 and 100 mA cm−2.
