Article

Theoretical Investigation of Elastic, Electronic, and Thermodynamic Properties of Half-Heusler Semiconductors ZrNiPb and ZrPdPb Under Pressure

by
Xiaorui Chen
1,*,
Xin Zhang
2,
Zhibin Shao
3,
Jianzhi Gao
2 and
Minghu Pan
2,*
1
School of Mechanical and Material Engineering, Xi’an University, Xi’an 710065, China
2
School of Physics and Information Technology, Shaanxi Normal University, Xi’an 710119, China
3
Physics Laboratory, Industrial Training Center, Shenzhen Polytechnic University, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2025, 15(3), 241; https://doi.org/10.3390/nano15030241
Submission received: 2 January 2025 / Revised: 1 February 2025 / Accepted: 3 February 2025 / Published: 5 February 2025
(This article belongs to the Special Issue Surface and Interfacial Sciences of Low-Dimensional Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
The half-Heusler semiconductors ZrNiPb and ZrPdPb have attracted considerable attention due to their excellent thermoelectric performance, owing largely to their appropriate energy bandgap. However, the bandgap is sensitive to pressure, which may influence their thermoelectric behavior. In this study, the effects of pressure on the elastic, electronic, and thermodynamic properties of the half-Heusler semiconductors ZrNiPb and ZrPdPb are investigated based on first-principles calculations combined with the quasi-harmonic Debye model. After verifying their structural, dynamic, and mechanical stability, we found a small indirect bandgap of 0.36 eV for ZrNiPb and 0.49 eV for ZrPdPb, and they increase with increasing pressure. According to the obtained elastic modulus, ZrNiPb and ZrPdPb become more and more ductile as the pressure increases. In addition, the thermodynamic properties of ZrNiPb and ZrPdPb are investigated using the quasi-harmonic Debye model, as implemented in the Gibbs program, which will provide a reference for the experiment.

1. Introduction

Thermoelectric half-Heusler (HH) semiconductors, which can realize the conversion from waste heat to electric power through the Seebeck effect, have been widely studied from the viewpoint of increasing demands for sustainable and renewable energy due to the decline of fossil fuel reserves [1,2,3,4]. The performance of thermoelectric materials is described by the dimensionless figure of ZT = S2σT/κ [5,6]. In the formula, S, σ, T, and κ denote the Seebeck coefficient, the electrical conductivity, the absolute temperature, and the thermal conductivity, respectively. One can artificially improve ZT by maximizing the power factor [7,8,9,10,11] and minimizing the thermal conductivity [12,13,14,15,16]. Limited by the conflicts among these transport coefficients (S, σ, and κ), searching for materials with an intrinsically high power factor is considered as an effective strategy. Some ternary half-Heusler semiconductors are considered to be potentially thermoelectric materials precisely because of their large power factor, owing largely to the narrow energy bandgap around the Fermi level in the band structure and their superior temperature stability and mechanical properties [17,18,19]. The good thermoelectric properties of half-Heuslers have been verified [20,21]. A new half-Heusler compound, ZrNiPb, was synthesized by Zunger et al. and was found to have a power factor of 5.2 µWcm−2K−1 and a thermopower of −153.9 µV/K when ZrNiPb was placed in room temperature [22], so ZrNiPb may become a promising crystal for efficient thermoelectric materials. Based on first-principles calculation, the electronic structure and thermoelectric properties of the half-Heuslers ABPb (A = Hf, Zr; B = Ni, Pd) were recently studied [23]. It was found that the four semiconductors have a narrow bandgap, and the calculated power factor firstly increases to a peak and then decreases as the carrier concentration increased. The thermoelectric figure of merit ZT of 0.3 can be attained at a high temperature by choosing an appropriate doping level. It is possible to make the half-Heusler ZrNiPb become a potential parent candidate for efficient thermoelectricity by reducing lattice thermal conductivity through point defects and boundaries [24]. Other theoretical and experimental studies [25,26] have also demonstrated that ZrNiPb-based half-Heusler semiconductors are potential parent candidates for high-performance thermoelectric devices.
The narrow bandgaps of half-Heusler alloys are sensitive to pressure, which may influence their thermoelectric behavior [22,27]. Semiconducting half-Heusler alloys have shown to exhibit large Seebeck coefficients at room temperature and moderate electrical conductivities, which are attributed to their narrow bands associated with high effective masses. High effective masses are beneficial for high performance in thermoelectric materials. The elastic modulus is essential to offer a more in-depth understanding of the mechanical properties and hardness of the crystal. On the other hand, the thermodynamic properties are considered to be important parameters to evaluate specific behaviors when the crystals are in a high-temperature or high-pressure environment. Based on the fact that palladium belongs to the same group as nickel, studies on the electronic structures of ZrPdPb may offer useful information for the prediction of their thermoelectric behavior. However, the available information on the electronic properties of ZrPdPb under high pressure is still very limited both in experiment and theory. Predictions of the thermoelectric properties of half-Heuslers are based on reliable calculations of the band structures. In particular, band structures under pressure are very important to determine the response of the crystal to external forces. Additionally, the thermoelectric behavior of real-world thermoelectric devices may be influenced. Therefore, in this paper, the influence of pressure on the dynamic, elastic, and electronic properties of the half-Heuslers ZrNiPb and ZrPdPb are studied, and their thermodynamic properties, like the normalized volume V/V0, heat capacity Cv, and Debye temperature ΘD, are estimated by minimizing the Gibbs free energy to the volume based on the quasi-harmonic Debye model [28]. We hope this investigation will offer useful guidelines for further understanding of the thermoelectric properties of the half-Heusler semiconductors ZrNiPb and ZrPdPb.

2. Computational Details

The half-Heusler semiconductors ZrNiPb and ZrPdPb with the space group of F-43m (No.216) crystallize in a cubic structure [29] consisting of four interpenetrating fcc sublattices. In Wyckoff coordinates, Pb and Zr atoms are located at the A(0,0,0) and C(1/2,1/2,1/2) sites, and the B(1/4,1/4,1/4) site is occupied by Ni or Pd atoms. Otherwise, the D(3/4,3/4,3/4) site is unoccupied. In this work, all of the calculations were performed according to the density functional theory (DFT), as conducted within the Cambridge Sequential Total Energy Package (CASTEP) [30]. The exchange-correlation potential is described by the generalized gradient approximation (GGA) in the Perdew–Burke–Ernzerh (PBE) form [31]. The valence electron configurations of Zr(4d25s2), Ni(3d84s2), Pd(4d10), and Pb(6s26p2) were selected, respectively. The Broyden–Fletcher–Goldfarb–Shanno (BFGS) minimization was used to deal with the structural optimizations and electronic structure at different external pressures [32]. After the convergence tests, the kinetic energy cutoff for the plane-wave basis was 540 eV. The Brillouin zone was sampled with a 19 × 19 × 19 Monkhorst-Pack k-point [33]. The atom position was fully relaxed until the energy change per atom was less than 5.0 × 10−8 eV, the forces on atoms were less than 0.01 eV/Å, and all stress components were less than 0.02 GPa.

3. Results and Discussions

3.1. Structural Stability and Dynamic Stability

The obtained equilibrium lattice parameters for ZrNiPb and ZrPdPb in ground-state structures are, respectively, 6.252 and 6.485 Å, as shown in Table 1. With the purpose of obtaining the thermodynamic properties of ZrNiPb and ZrPdPb, we further calculated the total energy of ZrNiPb and ZrPdPb as the variation in the lattice constant relative to the equilibrium lattice constant ranging from −0.08 to 0.08, and the plot is shown in Figure 1. By fitting the corresponding energy–volume (E-V) data of ZrNiPb and ZrPdPb to the third-order EOS formula [34,35], the obtained bulk modulus B0 (GPa) and its first-order derivative to pressure B′0 were obtained and are listed in Table 1. It can be clearly noted that our calculated lattice parameters match well with other calculated results [23], indicating that the calculations in this study are highly reliable.
After obtaining the ground-state structures of ZrNiPb and ZrPdPb, we further checked their dynamical stability under pressure by calculating the phonon spectra dispersions, as the soft phonon modes reveal the distortion of the crystal. Figure 2 presents the calculated phonon dispersion curves in the whole Brillouin zone of the half-Heuslers ZrNiPb and ZrPdPb at high pressures up to 50 GPa. The inexistence of soft frequencies in all phonon branches confirms the dynamic stability of the half-Heuslers ZrNiPb and ZrPdPb until the pressure increases to 50 GPa. In addition, it was found that the phonon dispersions both in ZrNiPb and ZrPdPb become more and more dispersive as the pressure increases, leading to a higher group velocity and, thus, an enhanced lattice thermal conductivity [36,37,38].

3.2. Mechanical Stability and Elastic Properties

The ability of a material to recover from stress and deformation is characterized by elastic constants. As the half-Heuslers ZrNiPb and ZrPdPb crystallize in cubic symmetry, there are only three independent elastic constants, namely, C11, C12, and C44 [39]. The three elastic constants, respectively, characterize the longitudinal deformation, transverse expansion, and shear deformation of a material. By computing the stress generated by applying a small strain to an optimized unit cell, the three elastic constants of ZrNiPb and ZrPdPb as a function of pressure were calculated, and the results are illustrated in Figure 3. The mechanical stability of the two half-Heusler alloys is judged by the mechanical stability criteria [40,41]. For ZrNiPb and ZrPdPb, the three elastic constants satisfy these stability conditions, indicating that cubic ZrNiPb and ZrPdPb are mechanically stable. On the other hand, it can be seen that the three elastic constants keep on increasing moderately at all applied pressures. However, the sensitivity of C44 to increasing pressure is less than that of C11 and C12 for both ZrNiPb and ZrPdPb. This indicates that uniaxial deformation is more easily influenced by pressure than shear deformation. The influence of pressure on elastic constants can also be observed in cubic Mn2CoAl [42] and Co2MnSi [43], for they all belong to Heusler alloys and have the same half-metallicity.
After examining the mechanical stability of the half-Heuslers ZrNiPb and ZrPdPb under pressure, we further confirmed other important elastic properties reflected by the bulk modulus B, shear modulus G, and Young’s modulus E based on elastic constants according to the VRH approximation [44]. All elastic moduli of ZrNiPb and ZrPdPb as the pressure increases from 0 to 50 GPa are plotted in Figure 4. It is worth mentioning that the values of B from the VRH approximation are 115.254 GPa for ZrNiPb and 108.569 GPa for ZrPdPb, and they have nearly the same values as those obtained from energy minimization, thus indicating the reliability of the method in our calculations. As seen in Figure 4, the bulk modulus monotonically increases as the pressure increases to 50 GPa, showing that it becomes harder and harder to compress cubic ZrNiPb and ZrPdPb. On the contrary, the Young’s modulus values of ZrNiPb and ZrPdPb show a downward trend when the pressure increases beyond 20 GPa. So, ZrNiPb and ZrPdPb become stiffer as the pressure increases from 0 to 20 GPa. When the pressure continues to increase, the stiffness of ZrNiPb and ZrPdPb decreases. The brittle or ductile behavior of a material is determined by the ratio between the bulk and shear moduli (B/G). A ductile material has a B/G value greater than 1.75; otherwise, the material is more brittle. In this study, the B/G values of ZrNiPb and ZrPdPb are larger than 1.75 and increase with increasing pressure. As a result, the ductility of both ZrNiPb and ZrPdPb becomes better as the pressure increases. Moreover, the larger bulk modulus, Young’s modulus, and shear modulus of ZrNiPb suggest its greater hardness, stiffness, and resistance to shear deformation than ZrPdPb at the same pressure. This may be attributed to the smaller atomic mass and cell volume of Ni compared to Pd.

3.3. Electronic Properties

The half-Heusler semiconductors ZrNiPb and ZrPdPb are regarded as excellent thermoelectric materials, owing largely to their appropriate bandgaps. The band structure of the thermoelectric materials near the Fermi level provides very useful information to estimate transport properties. To explore their electronic properties under pressure, the energy band structures and densities of states of the half-Heuslers ZrNiPb and ZrPdPb around the Fermi level were calculated and are presented in Figure 5. The left and right parts of both columns are, respectively, the band structures and densities of states of ZrNiPb and ZrPdPb. It can be seen from the band structures that the valence band maximum (VBM) sits at the highly symmetric G point, while the conduction band minimum (CBM) is located at the X point, thus showing that ZrNiPb and ZrPdPb are both indirect-gap semiconductors. The calculated indirect bandgap in ZrNiPb is 0.36 eV, which agrees well with the other theoretical value (about 0.37 eV) obtained by using GGA and GGA + SOC [20]. ZrPdPb exhibits an indirect bandgap of 0.49 eV. Our calculated values of the bandgaps are similar to other experimental and theoretical results [22,23], indicating the reliability of the calculations in this study. Such small values of energy bandgaps are considered to be suitable for moderate temperature thermoelectric applications [45]. As ZrNiPb and ZrPdPb are compressed, the minimum of the conduction band slowly shifts toward higher energies, and the maximum of the valence band remains nearly unvaried when the applied pressure increases to 50 GPa. So, the applied pressure has little influence on the valence bands while it has clear effects on the conduction bands. As the pressure increases, on the other hand, it can also be observed that the density states around the minimum of the conduction band become sharper, resulting in an increase in the effective masses of the electrons. It is concluded that the thermoelectric properties may have greater improvements in the n-type ZrNiPb and ZrPdPb rather than in the p-type ones under pressure. ZrNiPb and ZrPdPb are anticipated to be good moderate-temperature thermoelectric materials under high pressure. When the pressure is zero, the density states around both the CBM and VBM are sharper than those of the Ni-based half-Heuslers NiVZ (Z = Al, Ga, and In) and NiTiZ (Z = Si, Ge, and Sn) [46], indicating the better thermoelectric performance of ZrNiPb and ZrPdPb. As discussed above, more dispersive phonon dispersions both in ZrNiPb and ZrPdPb result in a larger lattice thermal conductivity, which is disadvantageous for obtaining a higher thermoelectric figure of merit. So, it is necessary to select an appropriate pressure to maximize effective masses and minimize thermal conductivity. The half-Heusler semiconductors ZrNiPb and ZrPdPb are also dynamically and mechanically stable up to a pressure of 50 GPa. The thermodynamic properties of ZrNiPb and ZrPdPb are later discussed at a pressure range of 0–50 GPa.
Figure 6 shows the total magnetic moments (TMMs) of ZrNiPb and ZrPdPb and the related atom-resolved moments (AMMs) of Zr, Ni, Pd, and Pb as a function of pressure. It can be seen that both the AMMs of Zr and Pb atoms are positive in ZrNiPb and negative in ZrPdPb. The AMM of Zr in both ZrNiPb and ZrPdPb decreases rapidly as the pressure increases, while that of Pb shows the opposite trend. In addition, the AMMs of Ni in ZrNiPb and Pd in ZrPdPb both exhibit an increasing trend as the pressure increases, while Ni and Pd, respectively, hold negative and positive magnetic moments. Thus, Zr and Pb atoms exhibit antiparallel coupling with the Ni atom in ZrNiPb and with the Pd atom in ZrPdPb. Both ZrNiPb and ZrPdPb hold a TMM of 0 µB, and the value remains unvaried at different pressures. In the crystal structure of ZrNiPb (ZrPdPb), it can be seen that Zr and Ni(Pd) are the nearest neighbors. As a result, their d orbitals firstly hybridize, thus creating five new bonding orbitals and five new antibonding ones. Either bonding or antibonding orbitals contain three triple-degenerate t2g and two double-degenerate eg. Among them, three t2g orbitals, together with two eg orbitals, are unoccupied, while the others are occupied. Furthermore, the Pb atom provides four orbitals, which can accommodate electrons. Therefore, each unit cell of the half-Heuslers ZrNiPb and ZrPdPb has nine occupied orbitals in total, and the maximum number of electrons is 18. Hence, the SP rule can be described as Mt = Zt − 18. The valence electron numbers of the Zr, Ni(Pd), and Pb atoms are 4, 10, and 4, respectively, resulting in a total electron number, Zt, of 18 in ZrNiPb and ZrPdPb. So, the total magnetic moments of the half-Heuslers ZrNiPb and ZrPdPb remain zero. Heusler alloys with a zero value for their total spin magnetic moment which are made of magnetic constituents, and which belong to a special class of half-metallic antiferromagnets, are also known as fully compensated ferrimagnets. Half-metallic magnets present metallic behavior in one spin channel, while there exists a gap for the other spin channel, thus creating a 100% spin polarization current in devices. Therefore, the high spin polarization of ZrNiPb and ZrPdPb indicates that they are ideal materials for spin Seebeck investigations and for spintronics in general.

3.4. Thermodynamic Properties

The thermodynamic properties of materials help us to understand their specific behaviors when they are in a high-temperature or high-pressure environment. Therefore, we further explore the heat capacity Cv and Debye temperature ΘD of the half-Heuslers ZrNiPb and ZrPdPb under high temperature and high pressure using the quasi-harmonic Debye model based on E-V data from the above DFT calculations. The dependencies of the calculated relative volume V/V0 of ZrNiPb and ZrPdPb on temperature and pressure are plotted in Figure 7. It is shown that the relative volume of ZrNiPb and ZrPdPb monotonically decreases as the pressure or the temperature increases. Moreover, the sensitivity of the relative volume to pressure is stronger than that to temperature for both ZrNiPb and ZrPdPb.
Studying the heat capacity Cv is important to extend our knowledge about lattice vibrations, the energy band structure, the density of state, the transition of phase of the solid, and so on. The pressure and temperature effects on the heat capacity Cv of ZrNiPb and ZrPdPb are depicted in Figure 8. When the temperature is below 600 K, Cv is proportional to T3 at different pressures, obeying Debye’s law. At higher temperatures, the heat capacity Cv approaches the Dulong–Petit limit. The limit in this work is 74.32 for ZrNiPb and 74.53 Jmol−1K−1 for ZrPdPb at 0 GPa and 900 K, similar to the 73.97 Jmol−1K−1 value of NiVSb [47] and the 74.44 Jmol−1K−1 value of NaCdP [48], which also belong to half-Heusler alloys. As the Cv value of ZrNiPb is larger than that of ZrPdPb at the same pressure and temperature, we show that the ability of absorbing the heat of ZrNiPb is stronger, and it is thermodynamically more stable than ZrPdPb [48]. These calculative values of heat capacity Cv for ZrNiPb and ZrPdPb are helpful to give guidelines for other theoretical and experimental works.
In addition, the Debye temperature ΘD is another physical parameter of a crystal, which can provide information about specific heat, elastic constants, vibrations of lattice, and the melting temperature. When the temperature is below the Debye temperature, the vibrational excitations of the lattice occur mainly from acoustic vibrations, and the quantum mechanical effect makes an important contribution to tune the thermodynamic properties. Otherwise, it can be neglected when the temperature is above the Debye temperature. The variation of ΘD as a function of pressure and temperature for ZrNiPb and ZrPdPb is plotted in Figure 9. It is demonstrated that ΘD increases almost linearly as the pressure increases at a given temperature. It can also be seen that ΘD shows a downward trend with an increasing temperature.

4. Conclusions

The elastic, electronic, and thermodynamic properties of the half-Heuslers ZrNiPb and ZrPdPb under pressure were studied by employing first-principles calculations and the quasi-harmonic Debye model. Our calculated equilibrium lattice parameters and semiconducting behaviors are consistent with other theoretical results. The dynamic stability of ZrNiPb and ZrPdPb under pressure was confirmed by calculating the phonon spectra dispersions. The elastic constants under the pressure range of 0–50 GPa satisfy the generalized elastic stability criteria, indicating the mechanical stability of cubic ZrNiPb and ZrPdPb. According to VRH approximation, the obtained elastic constants indicate that the ductility of the two compounds becomes better as the pressure increases. We further reported the influence of pressure on the electronic structures of ZrNiPb and ZrPdPb and found that the energy bandgap keeps increasing as the pressure rises to 50 GPa. Furthermore, the thermodynamic properties under different pressures and temperatures were calculated. The calculated Dulong–Petit limit was 74.32 for ZrNiPb and 74.53 Jmol−1K−1 for ZrPdPb at 0 GPa and 900 K. We hope these results will provide guidelines for further theoretical and experimental works.

Author Contributions

Conceptualization, X.C.; methodology, X.Z.; software, J.G. and Z.S.; validation, M.P.; formal analysis, X.Z.; investigation, Z.S.; resources, J.G.; data curation, X.Z.; writing—original draft preparation, Z.S.; writing—review and editing, X.C.; visualization, M.P.; supervision, X.C.; project administration, X.C.; funding acquisition, X.C. and X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Basic Research Program of Shaanxi under grant number 2024JC-YBMS-076, the Science and Technology Plan Project of Xi’an under grant number 24GXFW0081-24, and the National Natural Science Foundation of China under grant number 22102129.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wu, H.J.; Zhao, L.D.; Zheng, F.S.; Wu, D.; Pei, Y.L.; Tong, X.; Kanatzidis, M.G.; He, J.Q. Broad temperature plateau for thermoelectric figure of merit ZT > 2 in phase-separated PbTe0.7S0.3. Nat. Commun. 2014, 5, 4515. [Google Scholar] [CrossRef] [PubMed]
  2. Al-Fartoos, M.M.R.; Roy, A.; Mallick, T.K.; Tahir, A.A. Advancing thermoelectric materials: A comprehensive review exploring the significance of one-dimensional nano structuring. Nanomaterials 2023, 13, 2011. [Google Scholar] [CrossRef]
  3. Hong, A.J.; Li, L.; Zhu, H.X.; Yan, Z.B.; Liu, J.M.; Ren, Z.F. Optimizing the thermoelectric performance of low-temperature SnSe compounds by electronic structure design. J. Mater. Chem. A 2015, 3, 13365. [Google Scholar] [CrossRef]
  4. Kharlamova, M.V.; Kramberger, C. Metallocene-filled single-walled carbon nanotube hybrids. Nanomaterials 2023, 13, 774. [Google Scholar] [CrossRef] [PubMed]
  5. Tan, G.J.; Zhao, L.D.; Kanatzidis, M.G. Rationally designing high-performance bulk thermoelectric materials. Chem. Rev. 2016, 116, 12123–12149. [Google Scholar] [CrossRef] [PubMed]
  6. He, J.; Tritt, T.M. Advances in thermoelectric materials research: Looking back and moving forward. Science 2017, 357, eaak9997. [Google Scholar] [CrossRef]
  7. Roychowdhury, S.; Ghosh, T.; Arora, R.; Samanta, M.; Xie, L.; Singh, N.K.; Soni, A.; He, J.Q.; Waghmare, U.V.; Biswas, K. Enhanced atomic ordering leads to high thermoelectric performance in AgSbTe2. Science 2021, 371, 722–727. [Google Scholar] [CrossRef] [PubMed]
  8. Zaia, E.W.; Sahu, A.; Zhou, P.; Gordon, M.P.; Forster, J.D.; Aloni, S.; Liu, Y.S.; Guo, J.H.; Urban, J.J. Carrier scattering at alloy nanointerfaces enhances power factor in PEDOT: PSS hybrid thermoelectrics. Nano Lett. 2016, 16, 3352–3359. [Google Scholar] [CrossRef]
  9. Kim, J.N.; Kaviany, M.; Shim, J.H. Optimized ZT of Bi2Te3-GeTe compounds from first principles guided by homogeneous data. Phys. Rev. B 2016, 93, 075119. [Google Scholar] [CrossRef]
  10. Zebarjadi, M.; Joshi, G.; Zhu, G.H.; Yu, B.; Minnich, A.; Lan, Y.C.; Wang, X.W.; Dresselhaus, M.; Ren, Z.F.; Chen, G. Power factor enhancement by modulation doping in bulk nanocomposites. Nano Lett. 2011, 11, 2225–2230. [Google Scholar] [CrossRef]
  11. Marfoua, B.; Hong, J.S. First-principles investigation of simultaneous thermoelectric power generation and active cooling in a bifunctional semimetal ZrSeTe Janus structure. Nanomaterials 2024, 14, 234. [Google Scholar] [CrossRef] [PubMed]
  12. Li, H.B.; Li, F.; Chen, Y.X.; Liang, G.X.; Luo, J.T.; Wei, M.; Zheng, Z.; Zheng, Z.H. Optimization of thermoelectric properties and physical mechanisms of Cu2Se-based thin films via heat treatment. Nanomaterials 2024, 14, 1421. [Google Scholar] [CrossRef]
  13. Zhao, L.D.; Lo, S.H.; He, J.Q.; Li, H.; Biswas, K.; Androulakis, J.; Wu, C.I.; Hogan, T.P.; Chung, D.Y.; Dravid, V.P.; et al. High performance thermoelectrics from earth-abundant materials: Enhanced figure of merit in PbS by second phase nanostructures. J. Am. Chem. Soc. 2011, 133, 20476–20487. [Google Scholar] [CrossRef]
  14. Hong, M.; Chen, Z.G.; Yang, L.; Chasapis, T.C.; Kang, S.D.; Zou, Y.C.; Auchterlonie, G.J.; Kanatzidis, M.G.; Snyder, G.J.; Zou, J. Enhancing the thermoelectric performance of SnSe1-xTex nanoplates through band engineering. J. Mater. Chem. A 2017, 5, 10713–10721. [Google Scholar] [CrossRef]
  15. Zhu, B.; Liu, X.X.; Wang, Q.; Qiu, Y.; Shu, Z.; Guo, Z.T.; Tong, Y.; Cui, J.; Gu, M.; He, J.Q. Realizing record high performance in n-type Bi2Te3-based thermoelectric materials. Energy Environ. Sci. 2020, 13, 2106–2114. [Google Scholar] [CrossRef]
  16. Huang, S.; Wang, Z.Y.; Xiong, R.; Yu, H.Y.; Shi, J. Significant enhancement in thermoelectric performance of Mg3Sb2 from bulk to two-dimensional mono layer. Nano Energy 2019, 62, 212–219. [Google Scholar] [CrossRef]
  17. Nolas, G.S.; Poon, J.; Kanatzidis, M. Recent developments in bulk thermoelectric materials. MRS Bull. 2006, 31, 199–205. [Google Scholar] [CrossRef]
  18. Yu, C.; Zhu, T.J.; Shi, R.Z.; Zhang, Y.; Zhao, X.B.; He, J. High-performance half-Heusler thermoelectric materials Hf1-x ZrxNiSn1-ySby prepared by levitation melting and spark plasma sintering. Acta Mater. 2009, 57, 2757–2764. [Google Scholar] [CrossRef]
  19. Shen, Q.; Chen, L.; Goto, T.; Hirai, T.; Yang, J.; Meisner, G.P.; Uher, C. Effects of partial substitution of Ni by Pd on the thermoelectric properties of ZrNiSn-based half-Heusler compounds. Appl. Phys. Lett. 2001, 79, 4165–4167. [Google Scholar] [CrossRef]
  20. Li, A.R.; Brod, M.K.; Wang, Y.C.; Hu, K.J.; Nan, P.F.; Han, S.; Gao, Z.H.; Zhao, X.B.; Ge, B.H.; Fu, C.G.; et al. Opening the bandgap of metallic half-Heuslers via the introduction of d-d orbital interactions. Adv. Sci. 2023, 10, 23. [Google Scholar] [CrossRef]
  21. Paul, S.; Ghosal, S.; Pati, S.K. Enhanced thermoelectric performance of Bi-based half-Heusler compounds XYBi (X: Ti, Zr, Hf; Y: Co, Rh, Ir). ACS Appl. Energy Mater. 2024, 7, 9595–9607. [Google Scholar] [CrossRef]
  22. Gautier, R.; Zhang, X.W.; Hu, L.H.; Yu, L.P.; Lin, Y.Y.; Sunde, T.O.L.; Chon, D.; Poeppelmeier, K.R.; Zunger, A. Prediction and accelerated laboratory discovery of previously unknown 18-electron ABX compounds. Nat. Chem. 2015, 7, 308–316. [Google Scholar] [CrossRef]
  23. Wang, G.T.; Wang, D.Y. Electronic structure and thermoelectric properties of Pb-based half-Heusler compounds: ABPb (A = Hf, Zr; B = Ni, Pd). J. Alloys Compd. 2016, 682, 375–380. [Google Scholar] [CrossRef]
  24. Guo, S.D. Thermoelectric properties of half-Heusler ZrNiPb by using first principles calculations. RSC Adv. 2016, 6, 47953–47958. [Google Scholar] [CrossRef]
  25. Mao, J.; Zhou, J.W.; Zhu, H.T.; Liu, Z.H.; Zhang, H.; He, R.; Chen, G.; Ren, Z.F. Thermoelectric properties of n-type ZrNiPb-based half-Heuslers. Chem. Mater. 2017, 29, 867–872. [Google Scholar] [CrossRef]
  26. Sagar, A.; Bhardwaj, A.; Lamba, M.; Novitskii, A.; Khovaylo, V.; Patnaik, S. Substantial enhancement in thermoelectric figure-of-merit of half-Heusler ZrNiPb alloys. B. Mater. Sci. 2024, 47, 146. [Google Scholar] [CrossRef]
  27. Aliabad, H.A.R.; Nodehi, Z.; Maleki, B.; Abareshi, A. Electronical and thermoelectric properties of half-Heusler ZrNiPb under pressure in bulk and nanosheet structures for energy conversion. Rare Metals 2019, 38, 1015–1023. [Google Scholar] [CrossRef]
  28. Francisco, E.; Recio, J.M.; Blanco, M.A.; Martin Pendas, A.; Costales, A. Quantum-mechanical study of thermodynamic and bonding properties of MgF2. J. Phys. Chem. A 1998, 102, 1595–1601. [Google Scholar] [CrossRef]
  29. Evers, C.B.H.; Richter, C.G.; Hartjes, K.; Jeitschko, W. Ternary transition metal antimonides and bismuthides with MgAgAs-type and filled NiAs-type structure. J. Alloys Compd. 1997, 252, 93–97. [Google Scholar] [CrossRef]
  30. Segall, M.D.; Lindan, P.J.D.; Probert, M.J.; Pickard, C.J.; Hasnip, P.J.; Clark, S.J.; Payne, M.C. First-principles simulation: Ideas, illustrations and the CASTEP code. J. Phys. Condens. Matter 2002, 14, 2717–2744. [Google Scholar] [CrossRef]
  31. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  32. Pfrommer, B.G.; Cote, M.; Louie, S.G.; Cohen, M.L. Relaxation of crystals with the Quasi-Newton method. J. Comput. Phys. 1997, 131, 233–240. [Google Scholar] [CrossRef]
  33. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188. [Google Scholar] [CrossRef]
  34. Murnaghan, F.D. The compressibility of media under extreme pressures. Proc. Nati. Acad. Sci. USA 1944, 30, 244–247. [Google Scholar] [CrossRef] [PubMed]
  35. Birch, F. Finite elastic strain of cubic crystals. Phys. Rev. 1947, 71, 809–824. [Google Scholar] [CrossRef]
  36. Pandey, T.; Parker, D.S.; Lindsay, L. Ab initio phonon thermal transport in monolayer InSe, GaSe, GaS, and alloys. Nanotechnology 2017, 28, 455706. [Google Scholar] [CrossRef]
  37. Zhou, Z.; Liu, H.; Fan, D.; Cao, G.; Sheng, C. High thermoelectric performance originating from the grooved bands in the ZrSe3 monolayer. ACS Appl. Mater. Interfaces 2018, 10, 37031–37037. [Google Scholar] [CrossRef]
  38. Gao, Z.; Tao, F.; Ren, J. Unusually low thermal conductivity of atomically thin 2D tellurium. Nanoscale 2018, 10, 12997–13003. [Google Scholar] [CrossRef]
  39. Prikhodko, M.; Miao, M.S.; Lambrecht, W.R.L. Pressure dependence of sound velocities in 3C-SiC and their relation to the high-pressure phase transition. Phys. Rev. B 2002, 66, 125201. [Google Scholar] [CrossRef]
  40. Sinko, G.V.; Smirnov, N.A. Ab initio calculations of elastic constants and thermodynamic properties of bcc, fcc, and hcp Al crystals under pressure. J. Phys. Condens. Matter 2002, 14, 6989–7005. [Google Scholar] [CrossRef]
  41. Yip, S.; Li, J.; Tang, M.; Wang, J.H. Mechanistic aspects and atomic-level consequences of elastic instabilities in homogeneous crystals. Mater. Sci. Eng. A 2001, 317, 236–240. [Google Scholar] [CrossRef]
  42. Chen, X.R.; Zhong, M.M.; Feng, Y.; Zhou, Y.; Yuan, H.K.; Chen, H. Structural, electronic, elastic, and thermodynamic properties of the spin-gapless semiconducting Mn2CoAl inverse Heusler alloy under pressure. Phys. Status Solidi B 2015, 12, 2830–2839. [Google Scholar] [CrossRef]
  43. Amari, S.; Mebsout, R.; Mecabih, S.; Abbar, B.; Bouhafs, B. First-principle study of magnetic, elastic and thermal properties of full Heusler Co2MnSi. Intermetallics 2014, 44, 26–30. [Google Scholar] [CrossRef]
  44. Hill, R. The elastic behaviour of a crystalline aggregate. Proc. Phys. Soc. A 1952, 65, 349. [Google Scholar] [CrossRef]
  45. Galanakis, I.; Dederichs, P.H.; Papanikolaou, N. Origin and properties of the gap in the half-ferromagnetic Heusler alloys. Phys. Rev. B 2002, 66, 134428. [Google Scholar] [CrossRef]
  46. Chen, X.R.; Zhang, X.; Gao, J.Z.; Li, Q.; Shao, Z.B.; Lin, H.P.; Pan, M.H. Computational search for better thermoelectric performance in Nickel-based half-Heusler compounds. ACS Omega 2021, 6, 18269–18280. [Google Scholar] [CrossRef]
  47. Gu, J.B.; Wang, C.J.; Cheng, Y.; Zhang, L.; Cai, L.C.; Ji, G.F. Structural, elastic, thermodynamic, electronic properties and phase transition in half-Heusler alloy NiVSb at high pressures. Comput. Mater. Sci. 2015, 96, 72–80. [Google Scholar] [CrossRef]
  48. Azouaoui, A. The mechanical, thermodynamical and electronic properties of NaCdP half-Heusler. Indian J. Phys. 2024, 98, 4791–4800. [Google Scholar] [CrossRef]
Nanomaterials 15 00241 g001

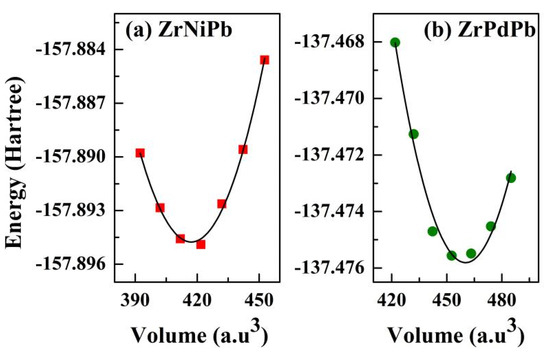

Figure 1. The calculated E-V data of ZrNiPb and ZrPdPb primitive cell.
Figure 1. The calculated E-V data of ZrNiPb and ZrPdPb primitive cell.
Nanomaterials 15 00241 g001
Nanomaterials 15 00241 g002

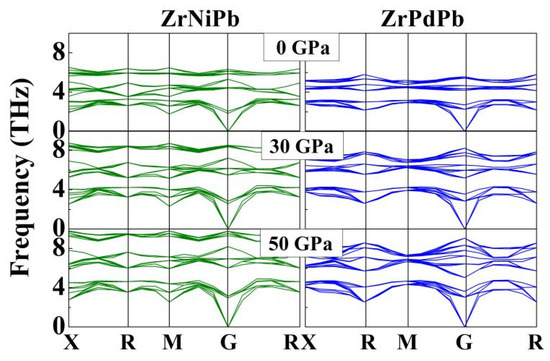

Figure 2. The calculated phonon dispersion curves of ZrNiPb and ZrPdPb at different pressures. The X, R, M, and G represent the highly symmetric points.
Figure 2. The calculated phonon dispersion curves of ZrNiPb and ZrPdPb at different pressures. The X, R, M, and G represent the highly symmetric points.
Nanomaterials 15 00241 g002
Nanomaterials 15 00241 g003

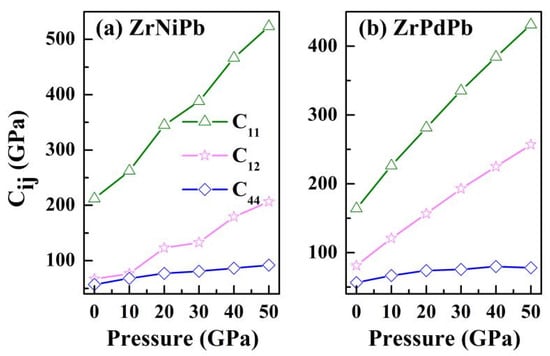

Figure 3. The calculated elastic constants Cij versus pressure for cubic ZrNiPb and ZrPdPb.
Figure 3. The calculated elastic constants Cij versus pressure for cubic ZrNiPb and ZrPdPb.
Nanomaterials 15 00241 g003
Nanomaterials 15 00241 g004

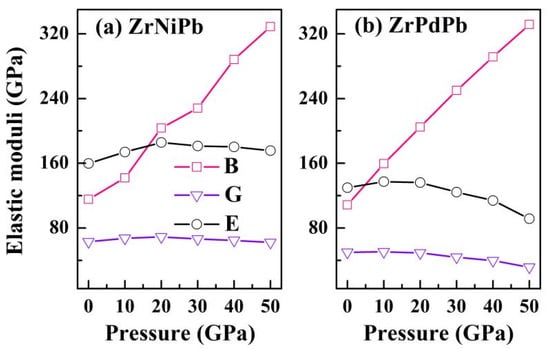

Figure 4. The obtained bulk modulus B, shear modulus G, and Young’s modulus E versus pressure.
Figure 4. The obtained bulk modulus B, shear modulus G, and Young’s modulus E versus pressure.
Nanomaterials 15 00241 g004
Nanomaterials 15 00241 g005

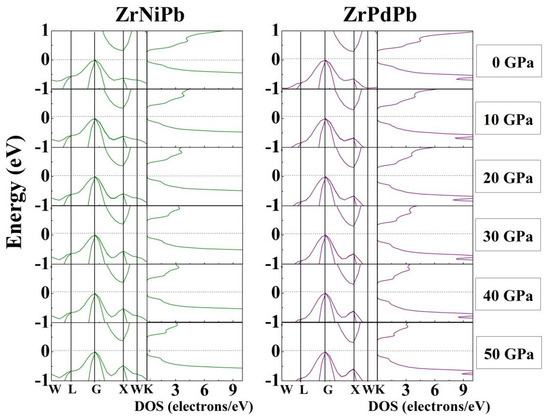

Figure 5. The band structure and density of states as functions of pressure for ZrNiPb and ZrPdPb, respectively. The horizontal dash lines indicate the Fermi level.
Figure 5. The band structure and density of states as functions of pressure for ZrNiPb and ZrPdPb, respectively. The horizontal dash lines indicate the Fermi level.
Nanomaterials 15 00241 g005
Nanomaterials 15 00241 g006

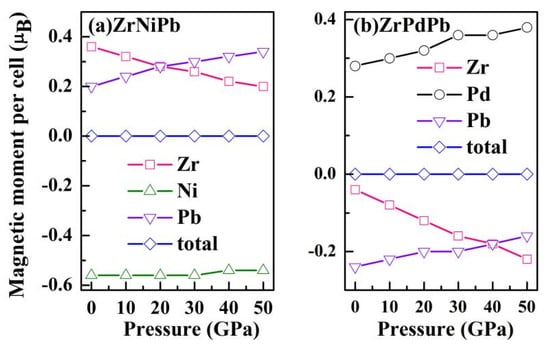

Figure 6. The total and partial magnetic moments of ZrNiPb and ZrPdPb as a function of pressure.
Figure 6. The total and partial magnetic moments of ZrNiPb and ZrPdPb as a function of pressure.
Nanomaterials 15 00241 g006
Nanomaterials 15 00241 g007

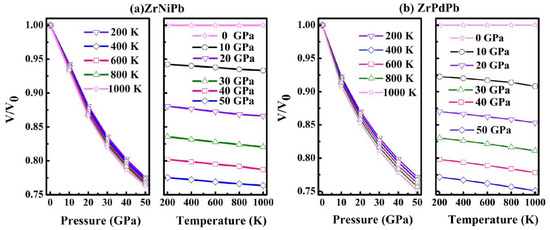

Figure 7. V/V0 as a function of pressure and temperature.
Figure 7. V/V0 as a function of pressure and temperature.
Nanomaterials 15 00241 g007
Nanomaterials 15 00241 g008

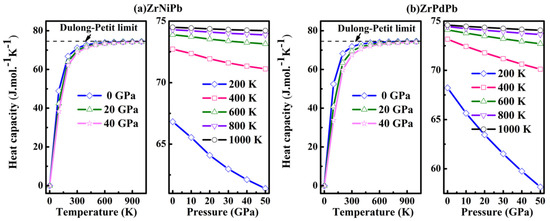

Figure 8. The heat capacity Cv as a function of pressure and temperature.
Figure 8. The heat capacity Cv as a function of pressure and temperature.
Nanomaterials 15 00241 g008
Nanomaterials 15 00241 g009

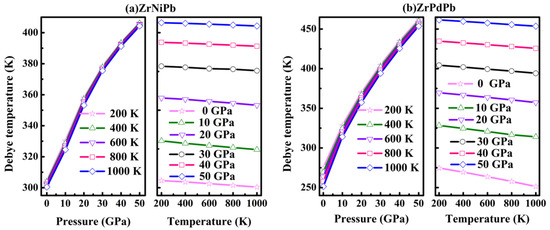

Figure 9. The Debye temperature ΘD as a function of pressure and temperature.
Figure 9. The Debye temperature ΘD as a function of pressure and temperature.
Nanomaterials 15 00241 g009
Table 1. The calculated equilibrium lattice constants a0 (Å), bulk modulus B0, and its pressure derivative B′0 (GPa) in comparison with the available values.
Table 1. The calculated equilibrium lattice constants a0 (Å), bulk modulus B0, and its pressure derivative B′0 (GPa) in comparison with the available values.
Compounda0B0B′0
ZrNiPb6.252117.354.30
Cal. [23]6.267
ZrPdPb6.485106.404.96
Cal. [23]6.506
