Facile Synthesis of Polypyrrole/MnO₂/Carbon Cloth Composites for Supercapacitor Electrodes

Abstract

In the development of flexible smart electronics, fabricating electrodes with optimized architectures to achieve superior electrochemical performance remains a significant challenge. This study presents a two-step synthesis and characterization of a polypyrrole (PPy)-MnO₂/carbon cloth (CC) nanocomposite. The MnO₂/CC substrate was first prepared via the hydrothermal method, followed by uniform PPy coating through vapor-phase polymerization in the presence of an oxidizing agent. Electrochemical measurements revealed substantial enhancement in performance, with the specific capacitance increasing from 123.1 mF/cm² for the MnO₂/CC composite to 324.5 mF/cm² for the PPy/MnO₂/CC composite at a current density of 2.5 mA/cm². This remarkable improvement can be attributed to the synergistic effects between the conductive PPy polymer and MnO₂/CC substrate and the formation of additional ion transport channels facilitated by the PPy coating. This work provides valuable insights for designing high-performance electrode materials and advances the development of composite-based energy storage devices.

1. Introduction

Wearable smart electronic devices have found extensive applications in health monitoring systems, flexible displays, and photovoltaic cells, ascribed to their flexibility and compact size advantages [1,2,3]. To power these advanced electronics, the development of novel flexible energy storage devices has become indispensable. Among the various options, supercapacitors have emerged as promising energy storage devices due to their high power density, rapid charging/discharging rates, and excellent cycling stability [4,5,6,7]. The performance of supercapacitors widely depends on three key factors: active materials, flexible substrates, and electrode fabrication processes [3,8]. Among the various materials used for electrodes, transition metal oxides and conducting polymers are invariably employed as electrode materials [9,10]. In particular, MnO₂ stands out as an attractive candidate because of its high theoretical specific capacitance (up to 1375 F g⁻¹), cost-effectiveness, and environmental friendliness [11,12,13,14,15]. However, the inevitable disadvantages of MnO₂-based electrodes, such as poor electronic conductivity and poor structural stability, make it difficult to reach high performance [13]. To overcome these challenges, researchers have explored composite strategies by combining MnO₂ with highly conductive materials, including carbon-based materials [16,17] and conducting polymers [18]. Polypyrrole (PPy), a commonly used conducting polymer, is an excellent complementary material for MnO₂ composites. The synergistic combination of MnO₂′s high pseudocapacitance and PPy’s superior conductivity can significantly enhance overall electrochemical performance [19]. Recent studies have demonstrated promising results with various MnO₂/PPy composite architectures. For instance, Bahloul et al. exploited γ-MnO₂/PPy composites via hydrothermal synthesis, achieving a substantially improved specific capacitance (141.6 F g⁻¹) [20]. Sidhu et al. fabricated PPy films embedded with MnO₂ nanoparticles through electrochemical polymerization, obtaining electrodes with both high capacitance and cycling stability [21]. Shivakumara et al. reported a facile co-precipitation method to prepare MnO₂/PPy nanocomposites exhibiting exceptional discharge capacitance and cycle life [22]. Some other composites have been reported as well. Yalovega et al. prepared NiO_x/MWCNT and CuO_x/MWCNT composites, which showed specific capacities of 149 F/g and 37 F/g at a current density of 1 A/g, respectively [23]. For flexible energy storage applications, the choice of substrate is equally crucial. Ideal substrates should combine high conductivity, flexibility, and large surface area [24,25]. With high conductivity, flexible and mechanical robustness, carbon cloth is an excellent candidate as an electrode substrate [26].

In this work, we designed and fabricated a ternary MnO₂/polypyrrole/carbon cloth (MnO₂/PPy/CC) hybrid electrode through a combined hydrothermal and vapor-phase polymerization (VPP) approach. The fabrication process involves the following procedures: (1) hydrothermal growth of MnO₂ nanorods on carbon cloth to ensure strong anchoring, followed by (2) conformal PPy coating via VPP to enhance overall conductivity. These combination methods are highly compatible with large-scale industrial production while maintaining favorable electrochemical performance in the synthetic composites. Moreover, this hierarchical architecture creates efficient ion transport pathways through synergistic effects between MnO₂ and PPy, leading to significantly enhanced electrochemical performance.

2. Experiment

2.1. Pretreatment of Carbon Cloth

Prior to use, the carbon cloth (CC) was ultrasonically cleaned in ethanol and deionized water to remove surface impurities. Subsequently, it was treated with a piranha solution (a 3:7 v/v mixture of 30% H₂O₂ and 98% H₂SO₄) at 100 °C for 1 h in a water bath to enhance surface hydrophilicity and active site density. Finally, the cloth was thoroughly rinsed with deionized water and dried for further use.

2.2. Synthesis of MnO₂/Polypyrrole on Carbon Cloth

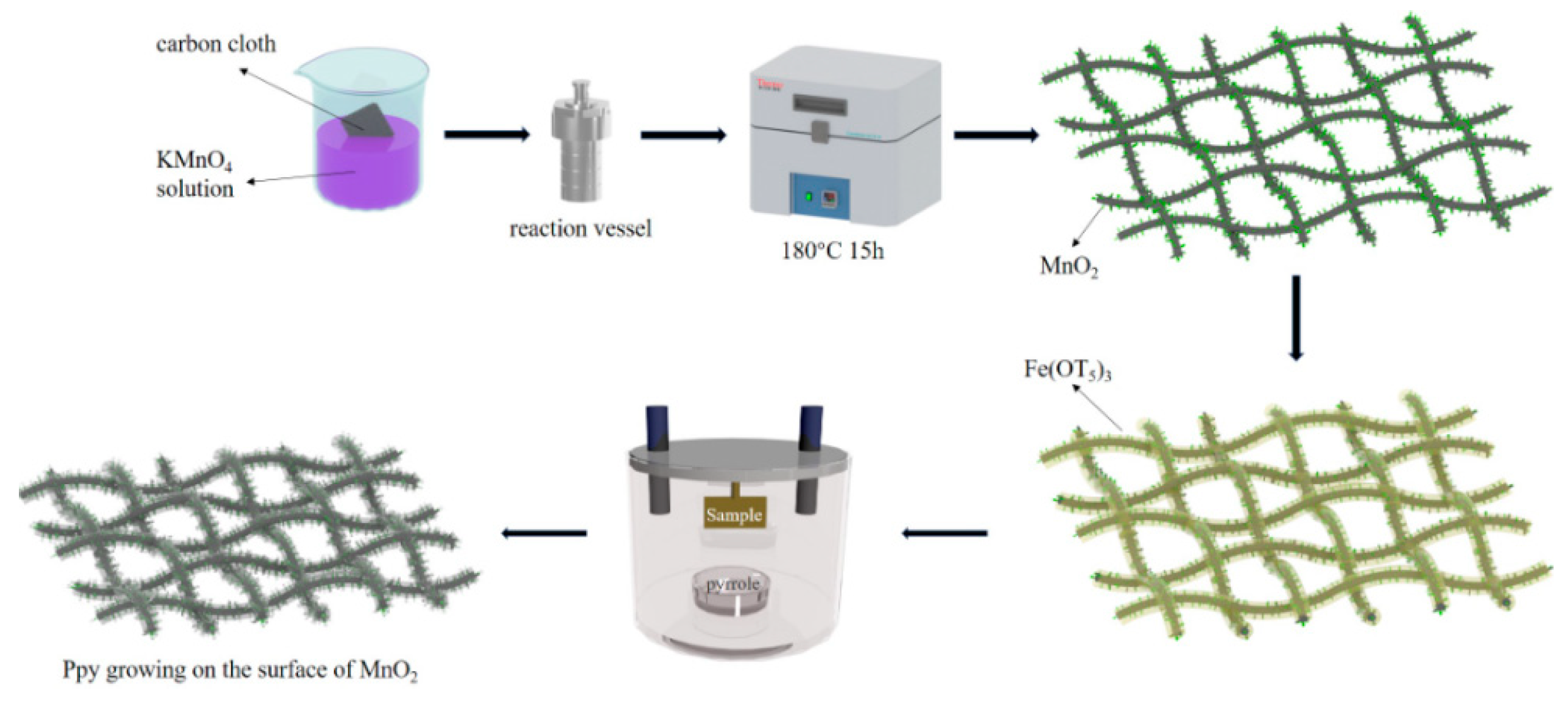

The fabrication process of the MnO₂/polypyrrole (MnO₂/PPy) flexible electrode is illustrated in Figure 1.

2.2.1. Hydrothermal Growth of MnO₂ Nanorods

A homogeneous solution was prepared by dissolving 0.5 g of KMnO₄ in 40 mL of deionized water under continuous stirring. The pretreated carbon cloth was then immersed in the solution and transferred into a 50 mL Teflon-lined stainless steel autoclave. The sealed autoclave was heated in a muffle furnace at 180 °C for 15 h. After cooling to room temperature, the MnO₂-coated carbon cloth (MnO₂/CC) was rinsed repeatedly with deionized water and dried at 60 °C.

2.2.2. Vapor-Phase Polymerization (VPP) of Polypyrrole

To deposit PPy on the MnO₂/CC substrate, an oxidant solution was first prepared by mixing 8 mL of isopropanol (IPA) with 8 mL of iron(III) p-toluenesulfonate (Fe(OTs)₃) under ultrasonic agitation for 4 h. The MnO₂/CC was then dip-coated in this solution to ensure uniform adsorption of the oxidant. After drying, the sample was placed in a vapor-phase polymerization (VPP) chamber and exposed to pyrrole monomer vapor at room temperature, allowing for in situ polymerization and conformal PPy coating.

3. Characterization

The crystallographic structures of the synthesized materials were analyzed using X-ray diffraction (XRD, Rigaku SmartLab, Cambridge, UK) and Raman spectroscopy (Advantage, 532 nm). Morphological characterization was performed using field-emission scanning electron microscopy (FE-SEM, Hitachi SU4800, Tokyo, Japan) to examine the surface microstructure of the composite electrodes. Electrochemical measurements were conducted using a CHI660D electrochemical workstation (Chenhua, Shanghai, China) in a standard three-electrode configuration. The working electrode was prepared by cutting the sample to dimensions of 1 cm × 1 cm, while a platinum plate and Ag/AgCl electrode served as the counter and reference electrodes, respectively. All tests were performed in 1 M Na₂SO₄ aqueous electrolyte at room temperature. The electrochemical performance of the flexible supercapacitor was evaluated through cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements.

4. Results and Discussion

4.1. X-ray Diffraction Analysis

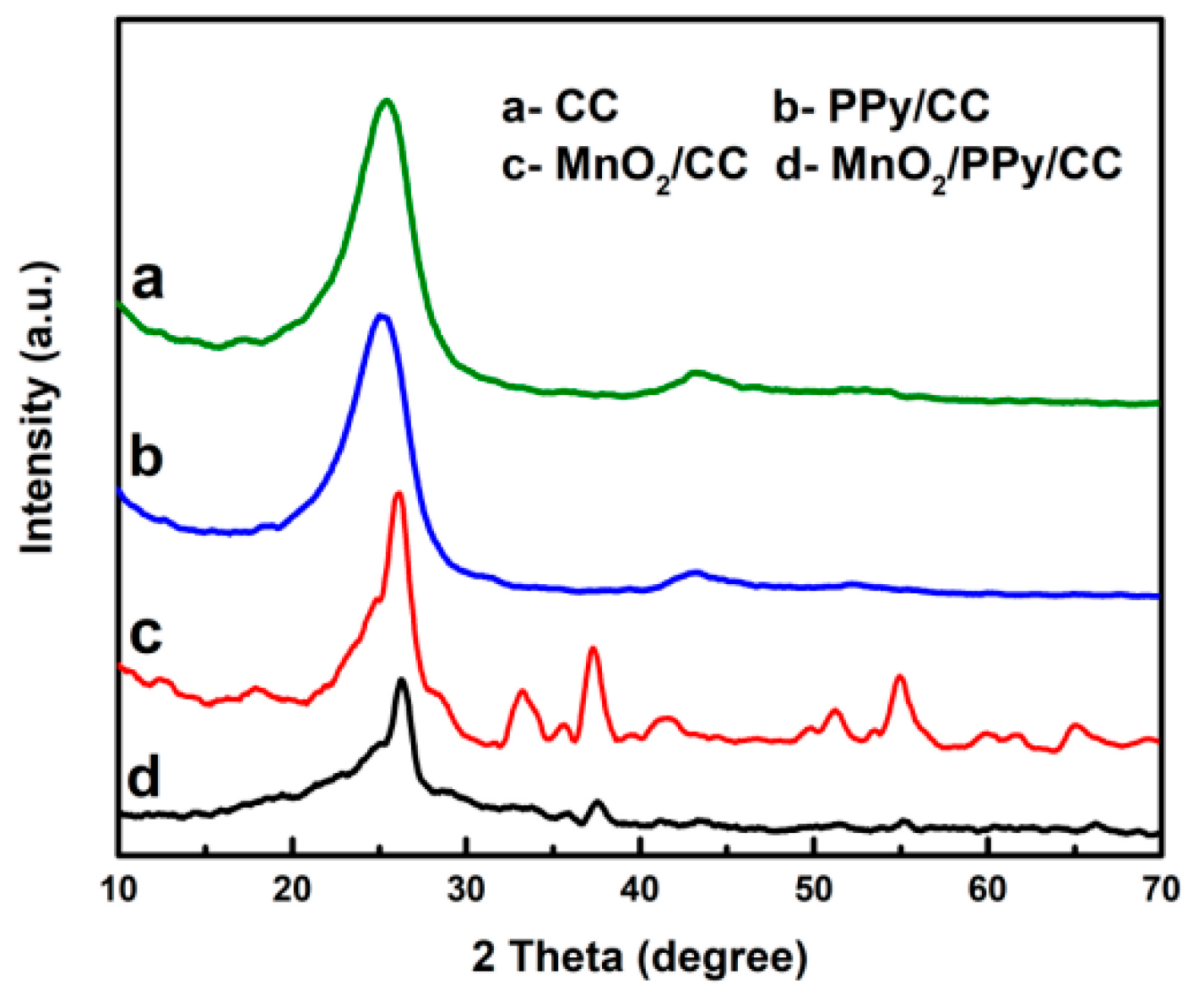

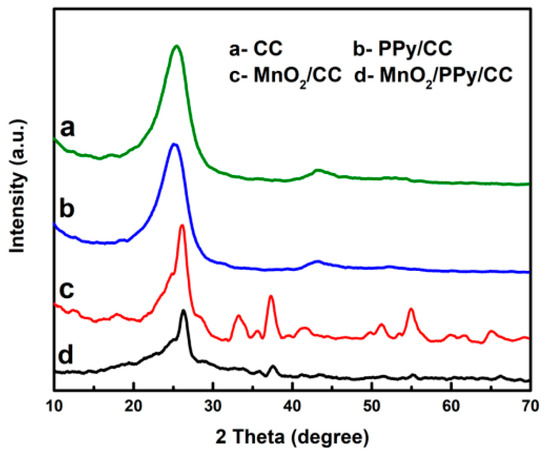

X-ray diffraction (XRD) was employed to characterize the crystalline structures of the synthesized electrodes. Figure 2 displays the XRD patterns of the (a) bare carbon cloth (CC), (b) PPy/CC, (c) MnO₂/CC, and (d) MnO₂/PPy/CC composites. The pristine CC substrate (Figure 2a) shows a prominent peak at 26.2°, consistent with the (002) plane of graphitic carbon (JCPDS #75-1621) [27]. In contrast, the PPy/CC composite (Figure 2b) exhibits no discernible crystalline peaks beyond those of CC, indicating the amorphous structure of polypyrrole [28]. For the MnO₂/CC electrode (Figure 2c), distinct diffraction peaks appear at 12.3°, 17.9°, 28.1°, 37.4°, 49.9°, 60.0°, 65.2°, and 69.5°, matching the (110), (200), (310), (211), (411), (521), (002), and (541) planes of α-MnO₂ (JCPDS #44-0141), respectively, confirming the formation of crystalline α-MnO₂ via hydrothermal synthesis. In the ternary MnO₂/PPy/CC composite (Figure 2d), the major α-MnO₂ peaks at 12.6°, 28.7°, and 37.2° (indexed to the (110), (310), and (211) planes) remain detectable, while some minor peaks observed in MnO₂/CC are less pronounced. This attenuation likely results from the partial coverage of MnO₂ by the PPy layer during vapor-phase polymerization.

4.2. Raman Spectroscopy Analysis

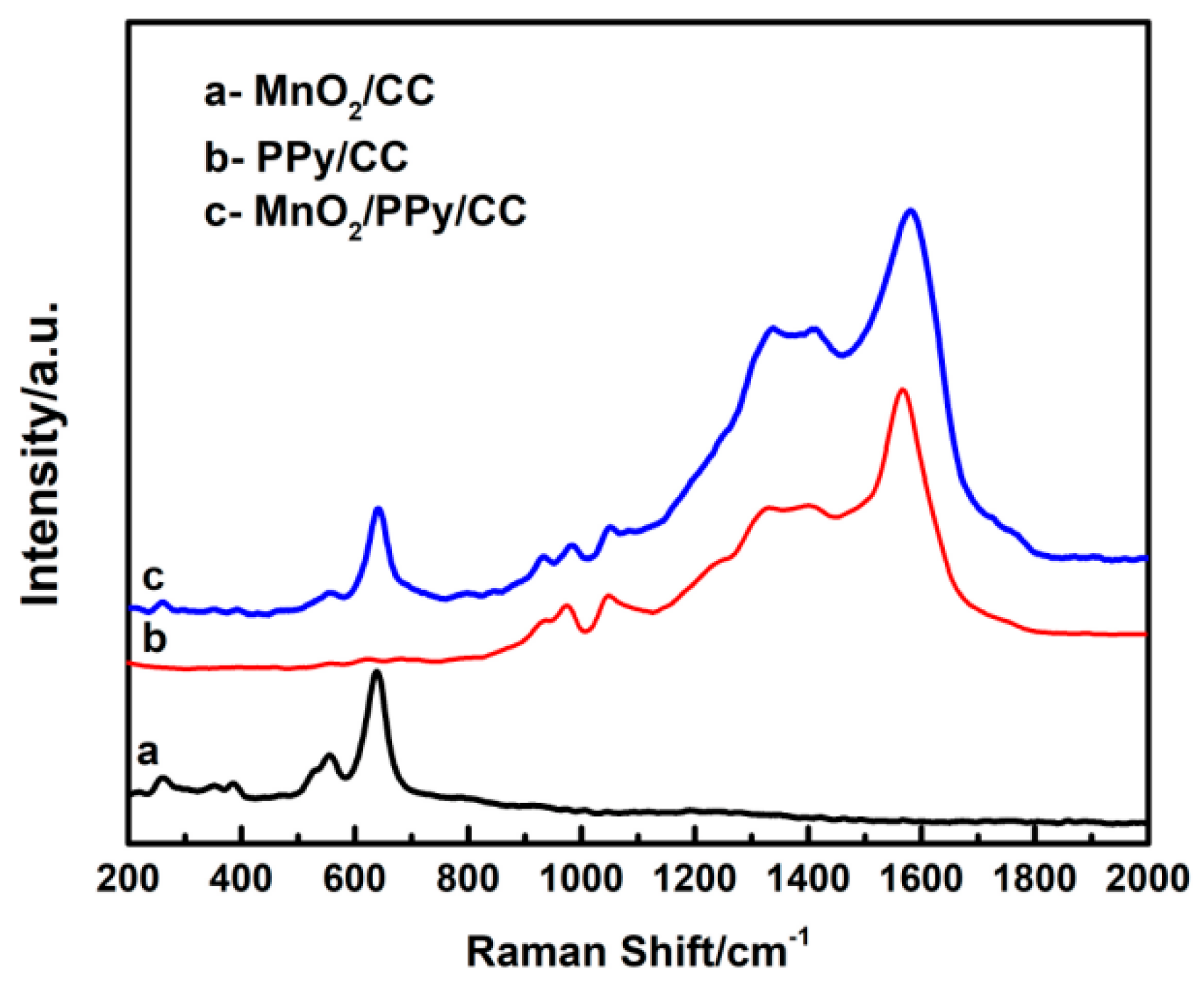

Raman spectroscopy was utilized to analyze the molecular structure and vibrational properties of the fabricated electrodes. Figure 3 compares the Raman spectra of the (a) MnO₂/CC, (b) PPy/CC, and (c) MnO₂/PPy/CC composites. In the MnO₂/CC spectrum (Figure 3a), a prominent peak appears at 634 cm⁻¹, assigned to the symmetric Mn–O stretching mode in MnO₆ octahedra [29], verifying the deposition of manganese dioxide on the carbon substrate. The PPy/CC spectrum (Figure 3b) displays key vibrational bands at 934 and 974 cm⁻¹ (C–C ring deformation), 1051 cm⁻¹ (C–H in-plane bending), 1403 cm⁻¹ (C–N stretching in polaronic PPy), and 1570 cm⁻¹ (C=C backbone stretching) [30,31,32,33]. For the ternary MnO₂/PPy/CC composite (Figure 3c), the Raman spectrum exhibits combined features of both MnO₂ and PPy. The persistence of the Mn–O peak at 634 cm⁻¹ confirms the structural integrity of MnO₂, while slight shifts in PPy-related peaks (931, 982, 1047, 1408, and 1575 cm⁻¹) indicate possible interfacial interactions between MnO₂ and PPy. The retention of all characteristic bands confirms the successful integration of MnO₂ and PPy on the carbon cloth via the hybrid hydrothermal and VPP synthesis strategy.

4.3. Morphological Characterization via Scanning Electron Microscopy

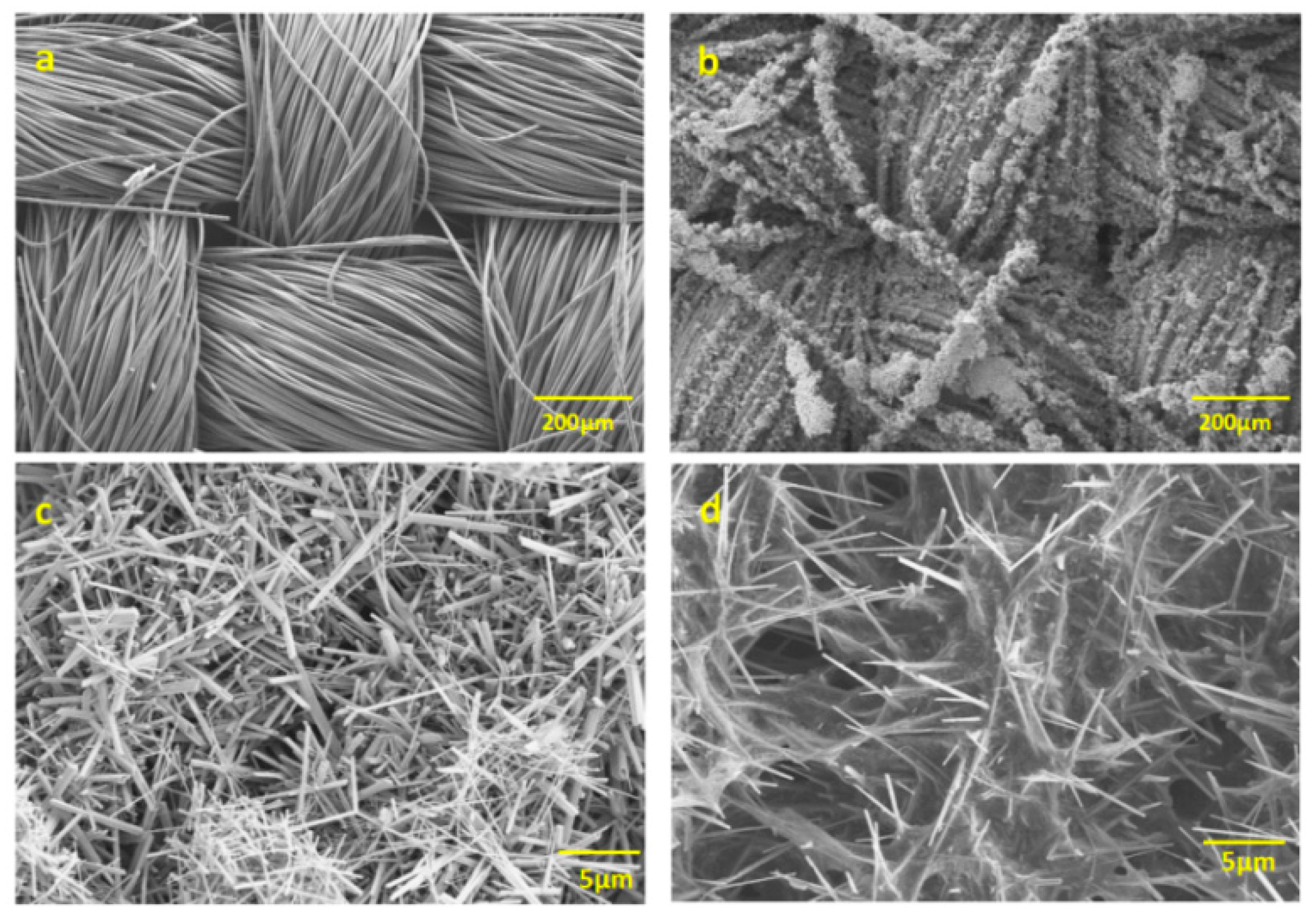

The morphological evolution of electrode materials during fabrication was examined via scanning electron microscopy (Figure 4). The bare carbon cloth substrate (Figure 4a) displays a typical woven structure consisting of smooth carbon fibers (∼20 μm diameter). After hydrothermal processing (Figure 4b), the fiber surfaces become uniformly decorated with MnO₂ nanostructures. High-resolution images (Figure 4c) show these to be densely arranged, acicular MnO₂ nanorods (∼500 nm diameter) forming an interpenetrating 3D network. This unique architecture introduces multiscale porosity that promotes both high surface area and efficient electrolyte transport [34,35,36]. The ternary composite (Figure 4d) demonstrates successful polypyrrole encapsulation, where the MnO₂ nanorods appear uniformly coated with a conformal PPy layer. This architecture exhibits advantageous characteristics for supercapacitor applications. The PPy coating enhances electronic conductivity while maintaining ionic accessibility and protects MnO₂ from structural degradation during cycling. Notably, the vapor-phase polymerization technique achieves complete surface coverage without compromising the nanorod morphology, as evidenced by the maintained structural integrity of the MnO₂ framework beneath the polymer coating. This morphology is particularly advantageous for electrochemical energy storage, as it combines the pseudocapacitive properties of MnO₂ with the conductive network of PPy while maximizing the active material–electrolyte contact area.

4.4. Electrochemical Performance

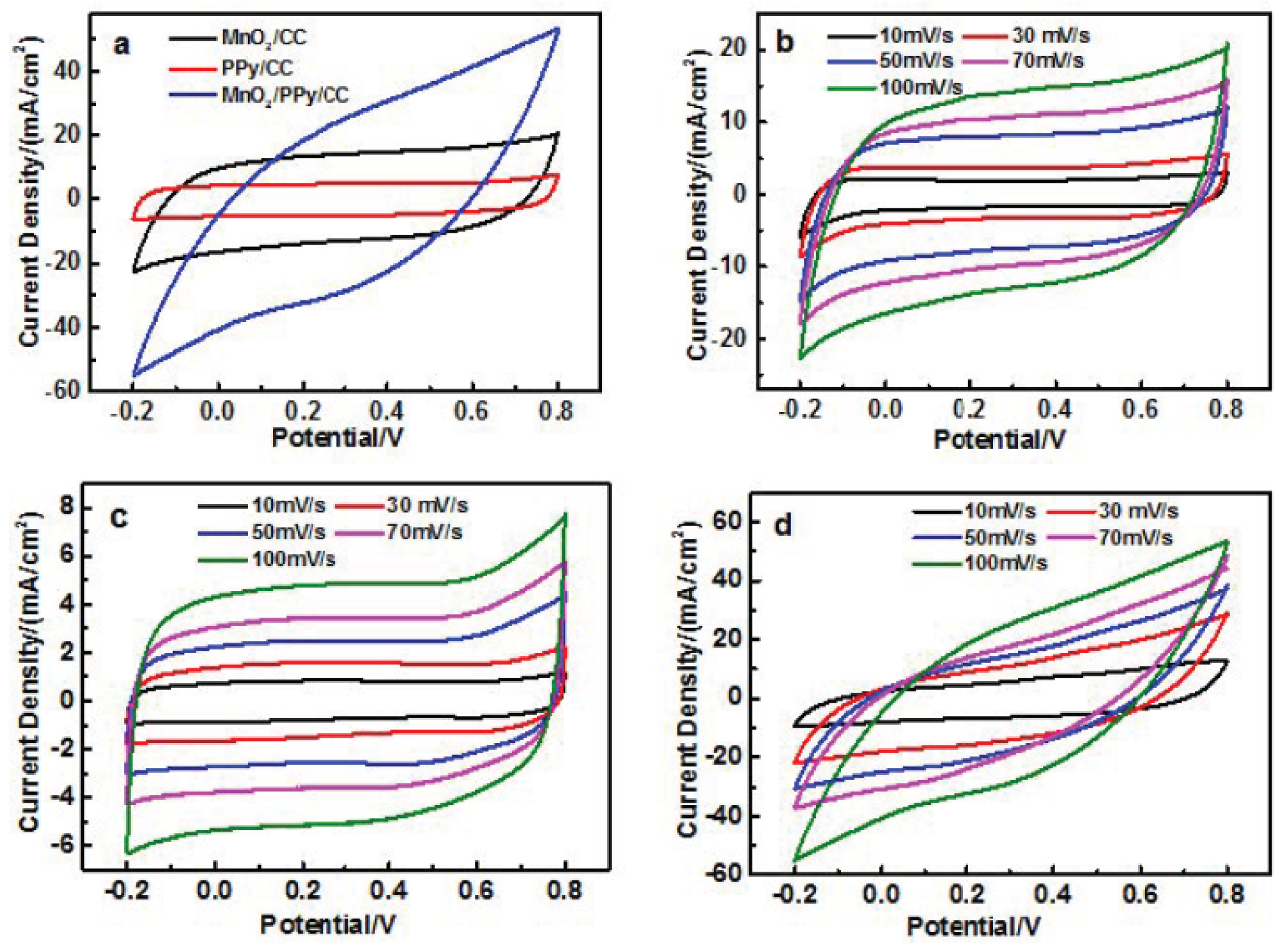

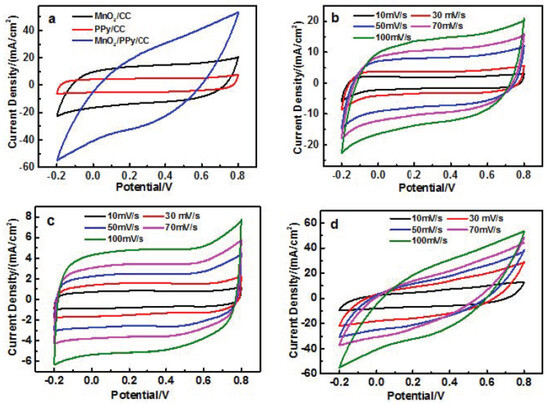

Cyclic voltammetry (CV) measurements were conducted to evaluate the electrochemical performance of MnO₂ and its composite films in 1 M Na₂SO₄ electrolyte. Figure 5a presents the CV curves of MnO₂/CC, PPy/CC, and PPy/MnO₂/CC at a scan rate of 100 mV/s within a potential window of −0.2 to 0.8 V (vs. Ag/AgCl). All of the samples show a highly symmetrical leaf-like CV shape, which indicates the superior double-layer capacitive performance [37]. The PPy contributes pseudocapacitance through rapid and reversible redox reactions involving charge compensation via ion doping/dedoping. The electrochemical behavior of PPy can be described using the following redox process [38]:

PPy⁺ + e⁻ + A⁻⇔PPy⁰·A⁻

(1)

where [PPy]⁺ represents the oxidized (p-doped) polypyrrole backbone, A⁻ is the charge-balancing anion from the electrolyte, and [PPy]⁰ denotes the neutral (reduced) state. Accordingly, as a key component of the hybrid composite, MnO₂ provides additional charge storage capacity through reversible redox reactions. The charge storage mechanism in MnO₂ can be described using the following electrochemical processes [39]:

(MnO₂)surface + Mⁿ⁺ + ne⁻ ⇔ (MnO₂ⁿ⁻Mⁿ⁺)surface

(2)

MnO₂ + Na⁺ + e⁻ ⇔ MnOONa

(3)

Notably, the PPy/MnO₂/CC composite demonstrates the largest integrated CV area among the three samples at identical scan rates, indicating superior capacitance [40]. This enhancement can be attributed to the hierarchical porous structure and synergistic effects between PPy and MnO₂ nanoparticles [34]. The vapor-phase polymerization of PPy on MnO₂ results in a unique hierarchical architecture where the clustered MnO₂ nanostructures function as physical spacers, generating well-defined interparticle voids among polymerizing pyrrole units. This engineered morphology promotes the development of an extended conductive matrix during polymerization, as evidenced by the enhanced charge transfer kinetics. Notably, the conformal PPy coating establishes continuous conductive pathways that interconnect isolated MnO₂ active centers, significantly reducing the average electron transport distance within the composite electrode [41]. Figure 6b,c display the CV profiles of MnO₂/CC, PPy/CC, and PPy/MnO₂/CC at varying scan rates (10–100 mV/s). All three electrodes show increasing current response with higher scan rates while maintaining their characteristic CV shapes, demonstrating excellent rate capability and capacitance retention [38].

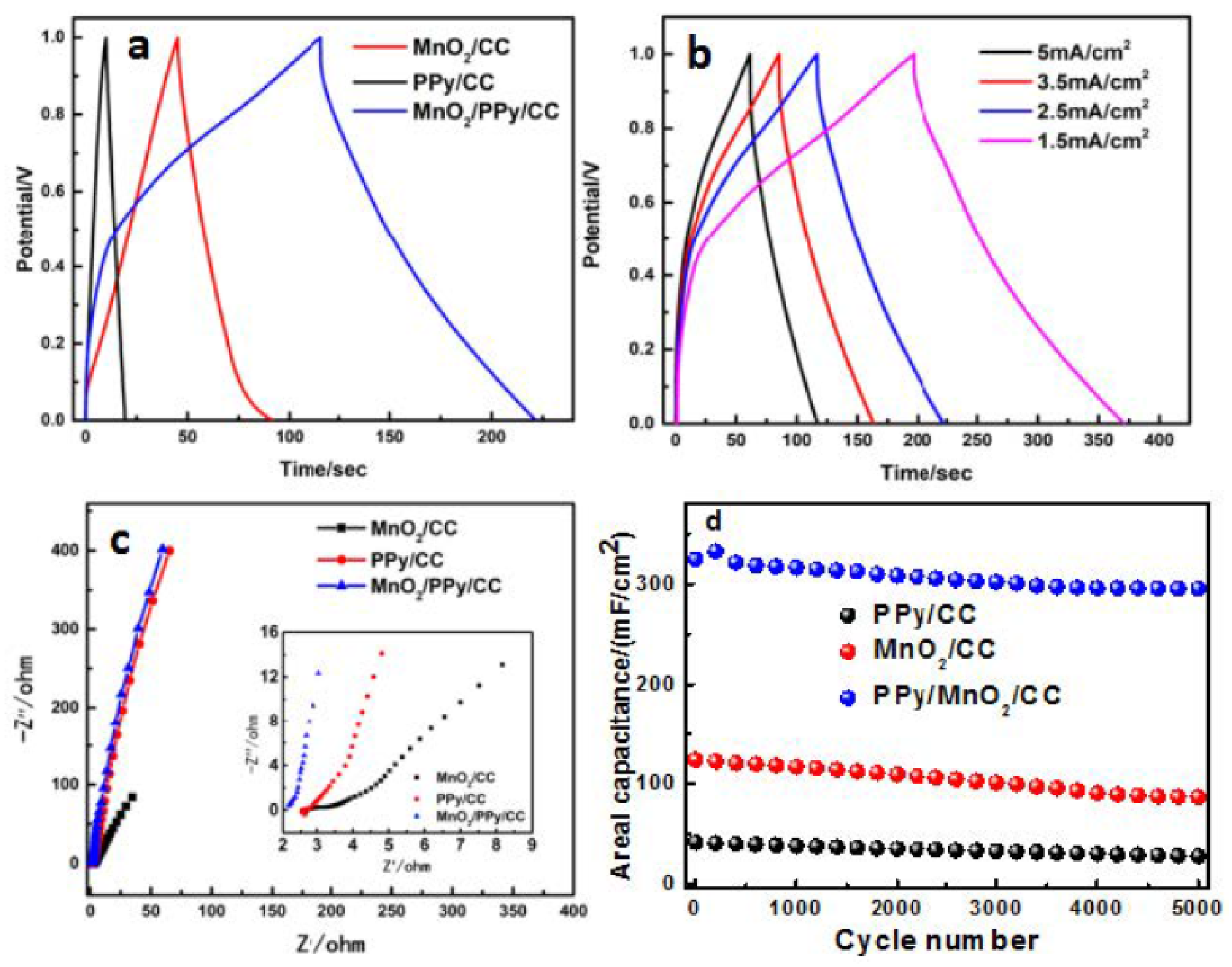

The electrochemical storage characteristics were evaluated through galvanostatic charge–discharge measurements. Figure 6a shows the galvanostatic charge–discharge (GCD) curves of MnO₂/CC, PPy/CC, and PPy/MnO₂/CC at a current density of 2.5 mA/cm². All electrodes exhibit quasi-triangular GCD profiles, indicating highly reversible charge–discharge behavior. The PPy/MnO₂/CC hybrid composite shows markedly extended operational time windows during both charging and discharging phases. This pronounced increase in discharge duration directly reflects the composite’s enhanced charge storage capability [42,43]. The areal capacitance (C) of the electrodes was calculated using the following Equation [31]:

$$C={\displaystyle \frac{I \mathsf{\Delta }t}{S \mathsf{\Delta }V}}$$

(4)

where I is the discharge current (A), Δt is the discharge time (s), S is the electrode area (cm²), and ΔV is the potential window (V). Based on this equation, the PPy/MnO₂/CC electrode delivers an outstanding areal capacitance of 324.5 mF/cm², significantly higher than those of MnO₂/CC (123.1 mF/cm²) and PPy/CC (41.1 mF/cm²). The comparisons are listed in

Table 1. Comparison of the specific capacitance of the composite electrodes.

Electrodes	Fabrication Method	Capacitance	Current Density/Scan Rate	Ref.
MnO2/PPy/CC	Hydrothermal process	45.6 mF/cm2	2.5 mV/s	[47]
MnO2/PPy	In situ interfacial redox reaction	705 F/g	2 mV/s	[36]
MnO2/PPy	Layer-by-layer method	404 F/g	1 A/g	[46]
SWNTs@MnO2/PPy	Chemical vapor deposition	351 F/g	1 mV/s	[44]
MnO2/Ni(OH)2	One-pot method	1133.3 F/g	1 A/g	[48]
β-MnO2	Hydrothermal process	625 F/g	0.25 A/g	[49]
MnO2/PPy/CC	Vapor-phase polymerization	324.5 mF/cm2 (773 F/g)	2.5 mA/cm2	this work

. We hold the opinion that the electrochemical performance enhancement of the MnO₂/PPy/CC can be attributed to three key structural advantages: (1) the hierarchical porous architecture with folded nanostructures provides abundant active sites and facilitates electrolyte penetration, (2) the continuous conductive PPy network establishes efficient charge transfer pathways, and (3) the synergistic coupling between MnO₂ and PPy optimizes both Faradaic and capacitive charge storage mechanisms. As expected and as shown in Figure 6b, the capacitance decreases with increasing current density, likely due to kinetic limitations in electrolyte ion diffusion [44]. Electrochemical impedance spectroscopy (EIS) was employed to investigate charge transfer dynamics. Figure 6c displays the Nyquist plots for MnO₂/CC, PPy/CC, and PPy/MnO₂/CC, with the inset showing an enlarged high-frequency region. All samples exhibit similar impedance spectra, featuring a semicircle in the high-frequency region (associated with charge transfer resistance, Rct) and a linear Warburg region at low frequencies (reflecting ion diffusion). The PPy/MnO₂/CC composite shows the smallest semicircle diameter and the steepest Warburg slope, indicating enhanced charge transfer kinetics and superior capacitive behavior [20]. Additionally, as shown in the enlarged view of Figure 6c, the MnO₂/PPy/CC electrode exhibits the lowest equivalent series resistance (2.15 Ω) compared to MnO₂/CC (2.64 Ω) and PPy/CC (2.57 Ω), indicating superior electrical conductivity. The improved proton diffusion in PPy/MnO₂/CC may be attributed to the conductive PPy network within the MnO₂ matrix [45,46]. Cycling stability tests were conducted at 2.5 mA/cm² for 5000 cycles (Figure 6d). The MnO₂/CC and PPy/CC electrodes suffer significant capacitance losses (68% and 73%, respectively), whereas the PPy/MnO₂/CC composite retains 91% of its initial capacitance. These results confirm that the PPy/MnO₂/CC electrode displays comparable charge storage and cycling stability compared to the other electrodes, likely due to its larger effective surface area and more efficient electron transport pathways.

5. Conclusions

In summary, we successfully fabricated a novel MnO₂/PPy composite electrode on carbon cloth via a combined hydrothermal and vapor-phase polymerization (VPP) approach. The synergistic interaction between MnO₂ and PPy significantly enhances the electrochemical performance of the composite. The optimized electrode delivers a high areal capacitance of 324.5 mF/cm² at 2.5 mA/cm², along with excellent cycling stability, retaining 91% of its initial capacitance after 5000 cycles. These superior properties, coupled with the flexibility of the carbon cloth substrate, make the MnO₂/PPy composite a promising candidate for next-generation flexible supercapacitors, particularly in wearable and smart electronic applications.
