Morphology-Controlled Synthesis of Hematite Nanocrystals and Their Optical, Magnetic and Electrochemical Performance

1
Department of Physics, Beihang University, Beijing 100191, China
2
Institute of Solid State Physics, Shanxi Datong University, Datong 037009, China
3
Beijing Institute of Space Mechanics and Electricity, Beijing 100094, China
4
Beijing Key Laboratory for Magneto-Photoelectrical Composite and Interface Science, School of Mathematics and Physics, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(1), 41; https://doi.org/10.3390/nano8010041
Submission received: 23 December 2017 / Revised: 10 January 2018 / Accepted: 11 January 2018 / Published: 15 January 2018
(This article belongs to the Special Issue Nanomaterials Based Fuel Cells and Supercapacitors)

Abstract

:
A series of α-Fe2O3 nanocrystals (NCs) with fascinating morphologies, such as hollow nanoolives, nanotubes, nanospindles, and nanoplates, were prepared through a simple template-free hydrothermal synthesis process. The results showed that the morphologies could be easily controlled by SO42− and H2PO4. Physical property analysis showed that the α-Fe2O3 NCs exhibited shape- and size-dependent ferromagnetic and optical behaviors. The absorption band peak of the α-Fe2O3 NCs could be tuned from 320 to 610 nm. Furthermore, when applied as electrode material for supercapacitor, the hollow olive-structure exhibited the highest capacitance (285.9 F·g−1) and an excellent long-term cycling stability (93% after 3000 cycles), indicating that it could serve as a candidate electrode material for a supercapacitor.

Graphical Abstract

1. Introduction

At nanoscale, metal oxides have been identified to exhibit different optical, magnetic and electrochemical performance from their bulk counterparts [1,2,3]. The synthesis of metal oxide nanocrystals (NCs) and their composites have attracted significant research interest for both fundamental investigation and practical applications [4,5]. As the most stable phase of iron oxides, hematite (α-Fe2O3) shows an n-type semiconductor (Eg = 2.1 eV) property in ambient conditions [6,7]. Due to the size and shape effect, the α-Fe2O3 NCs offer various physical and chemical properties. In virtue of their environmental friendliness, non-toxicity, excellent thermal stability, good corrosion resistance and low cost, they have been extensively investigated in the fields of catalysts [8,9], gas sensors [10], environment protection [11] and energy storage [12].
Recently, clean and renewable energy materials present promising applications in solving the problems of the energy shortage and environmental pollution. The supercapacitor is one of the most ideal and promising energy storage devices [13,14,15,16]. Hematite NC has large theoretical specific capacitance (3625 F·g−1), which favors it as electrode materials for supercapacitors [17]. For instance, porous nanoflowers [18], nanorods [19] and 3D spinous iron oxide materials [20] facilitate the faradic reaction toward electrolytes and deliver high specific capacitances and long cycle life. In addition, α-Fe2O3 nanomaterials exhibit excellent optical and magnetic properties, which could be adopted to meet the specific requirements of the desired applications. For example, the hollow NCs show a size-dependent blue shift, strong visible-light and broad infrared absorption phenomenon [21]. The α-Fe2O3 nanomaterials show ferromagnetic behavior and high coercivity in magnetic hysteresis measurements [22,23]. The rational design and synthesis of nanomaterials with different morphology have become an effective strategy to improve their optical, magnetic and electrochemical properties [24].
Though many methods have been developed to control the morphology, it is a great challenge to fabricate hematite NCs with the controlled size and morphology [25,26,27]. Among the different morphologies of nanomaterials, hollow structures have attracted much attention for their peculiar characteristics such as low density, high porosity and large specific surface area [28,29,30]. The reported hollow hematite spheres are fabricated by using the template method or the surfactant-assisted solvothermal method [31,32]. Though the as-prepared hollow structures exhibit confined morphology and narrow size distribution, the complex synthesis steps including the preparation and removal of templates as well as refining surfactant have blocked the scale-up preparation and practical applications. Recently, template-free and surfactant-free synthesis of nanomaterials has been adopted frequently because of its intrinsic advantages such as low cost and relatively simple steps [33].
Here, we adopted an environmentally friendly template-free hydrothermal synthesis method to prepare uniform hollow olive-shaped nanostructures as well as nanotubes, nanospindles and nanoplates on a large scale. Our results demonstrated that the morphology transformations were easily controlled by the SO42− and H2PO4. Furthermore, we found that the optical absorption and magnetic properties of the α-Fe2O3 NCs were associated with their sizes and shapes. Besides, electrochemical properties of as-prepared hematite were investigated.

2. Experimental Details

2.1. Materials

FeCl3·6H2O, Na2SO4, and NaH2PO4 were purchased from LANYI REAGENT Ltd. (Beijing, China). All reagents were analytic grade and employed as received without further purification.

2.2. Methods

In a typical synthesis [34], ferric chloride (FeCl3·6H2O, 0.648 g) and Na2SO4 (0.009 g) were dissolved in 60 mL distilled water and followed by the addition of NaH2PO4 (0.009 g) under magnetic stirring to form clear precursor solution. The mixture was then transferred to a 75 mL Teflon-lined autoclave and maintained at 230 °C for 12 h. After the autoclave was cooled to room temperature, the products were obtained by centrifuging and washed with ethanol and water for several times. The powders were dried at 60 °C for 6 h for further characterization.
The process parameters have a significant effect on the microstructures of NCs. To gain further insight into morphology evolution of NCs, the samples of nanotubes, nanospindles, nanoplates were prepared with the additional NaH2PO4 and Na2SO4 as well as the reaction time (see in Table S1).

2.3. Characterization and Measurement

The X-ray diffraction (XRD) patterns of the as-synthesized products were recorded on using a Bruker D8 Advance instrument (Karlsruhe, Germany) equipped with a Cu Kα radiation source, operating at 40 kV and 40 mA, and with a Ni filter. X-ray photoelectron spectroscopy (XPS) was further performed by using an ESCALAB MK II (Al Kα photon source, C1s 284.8 eV, VG Scientific LTD, London, UK). The specific surface areas of the products were determined by N2 adsorption–desorption isotherm measurements (Micrometrics, ASAP 2020, Concord, NH, USA). The morphology and structure were characterized by a Hitachi S-4800 scanning electron microscope (SEM, Tokyo, Japan) with a cold field emission gun and by a JEOL JEM-2100F transmission electron microscope (TEM, Tokyo, Japan) and high-resolution TEM (HRTEM) operated at 200 kV. The specimen for the SEM studies was prepared by dispersing the powder sample on the silicon substrate, while that for TEM and HRTEM investigations was obtained by dispersion of the as-synthesized products in ethanol and then a drop of the suspension was placed on a copper grid and dried in air.
UV-vis adsorption spectra were recorded using a Hitachi 3010 spectrophotometer (Tokyo, Japan). Magnetic properties of the as-synthesized powder samples were measured using a superconducting quantum interference device (SQUID) magnetometer (Quantum Design, San Diego, CA, USA). The electrochemical properties of the as-obtained electrodes were investigated by using conventional three-electrode system (CHI760e, Shanghai Chenhua, Shanghai, China). To prepare the working electrodes, the as-synthesized active materials were mixed with carbon black and polyvinylidene fluoride (PVDF) with a mass ratio of 7:2:1 in N-methyl-2-pyrrolidinone. The mixture was pasted on the cleaned nickel foam (area ~1 cm2) and dried in an oven at 60 °C for 12 h. The dried electrode was pressed using a hydraulic press at a pressure of 8 MPa. The loading mass of the active material on nickel foam is about 3 mg. The Ag/AgCl electrode and the Pt wire electrode were used as the reference electrode and the counter electrode, respectively. Cyclic voltammetry (CV) and chronopotentiometry (CP) were performed in KOH electrolyte of 2 mol·L−1. In the cycling stability tests, the charge-discharge current density is 1 A·g−1. The electrochemical impedance spectroscopy (EIS) was also recorded on the same electrochemical workstation. The frequency range is from 100 kHz to 0.01 Hz with an AC perturbation of 5 mV.

3. Results and Discussion

3.1. Morphological and Structural Analysis

The crystallographic structures of the as-synthesized four products were identified to be α-Fe2O3 by X-ray diffraction (Figure 1a). The detected nine peaks are well consistent with the corundum structure α-Fe2O3 (JCPDS: 33-0664) [35], corresponding to the (012), (104), (110), (113), (024), (116), (018), (214) and (300) lattice planes of α-Fe2O3, respectively. The narrow sharp peaks suggest the high crystalline nature of the α-Fe2O3 products. No other peaks are observed, indicating the high purity of the as-prepared four samples.
XPS analyses were employed to analyze the electronic structure and surface compositions of the as-prepared samples. As shown in Figure 1b,c, two peaks centered at around 710.9 and 724.4 eV in the high-resolution spectrum of Fe 2p can be ascribed to the Fe 2p3/2 and Fe 2p1/2 spin-orbit peaks of α-Fe2O3 respectively, suggesting the Fe3+ ions are dominant in the product [36]. Also, the corresponding satellite peak at 718.4 eV can be solely attributed to the presence of Fe3+ ions of α-Fe2O3, as the binding-energy values are too high to be other oxide species of iron. In addition, the O 1s core levels show the dominant oxide peaks at around 529.0 eV, which are in good agreement with the literature values of α-Fe2O3 [37]. The Fe 2p and O 1s core levels indicate that the valence states of elements Fe and O are +3 and −2, respectively. From this result with that of XRD, we can further make sure that the products are pure α-Fe2O3.
Figure 2a shows an overview SEM image of the as-synthesized hematite products in the coexistence of SO42−, and H2PO4 hydrothermal synthesis. The products are olive-shaped nanostructures with open tips in both sides (~450 nm in diameter, ~800 nm in length). The NCs with the long axis perpendicular to the silicon wafer marked by the black arrow distinctly disclose the hollow structure of the α-Fe2O3 nanoolives. TEM investigations give a deeper insight into the fine microstructures as shown in Figure 2b. The strong contrast between the relatively darker edges and the brighter center of the α-Fe2O3 NCs further confirms the hollow nature. The shell thickness can be measured to be ~50 nm. Lattice resolved high-resolution transmission electron microscopy (HRTEM) in Figure 2c demonstrates the good crystallization of the sample. Lattice fringe distances were measured to be 0.367 and 0.315 nm, respectively, which can be indexed to ( 10 1 ¯ 2 ) and ( 01 1 ¯ 3 ¯ ) planes of corundum hematite along ( 2 ¯ 3 1 ¯ 1 ) zone axis. Figure 2d shows the selected area electron diffraction (SAED) pattern of the selected area in Figure 2b, which matches well with the HRTEM results and demonstrates the single-crystal structure of the α-Fe2O3 nanoolives.
Upon careful observation, the open tips were found coarse with some voids, which might imply a corrosion process happening during the formation of the hollow structures. Thus, controlled experiments have been done to study the formation of the olive-shaped hollow α-Fe2O3. Influence of the ions in the precursor had been investigated.
Tube-like structures (~150 nm in diameter and ~400 nm in length) were obtained when the concentrations of iron ions in the precursor were halved (Figure S1). The open tips of the tubes were much rougher and broken. When the ratios of H2PO4 and SO42− to Fe3+ in the precursor were increased, corrosion behaviors were more obvious.
Without addition of SO42− in the reaction system, spindle-like hematite structures with diameter of ~150 nm and length of ~400 nm were obtained (Figure 3a). The spindles aggregated together by sharing their long axis and no voids were observed (Figure 3b). HRTEM image (Figure 3c) and SAED pattern (inset of Figure 3c) were taken from the spindle marked with black frame in Figure 3b. The spacing distance of the lattice fringes is measured to be 0.677 nm, corresponding to the (0002) planes of α-Fe2O3. The long axis of the spindles is along the [0001] direction of hematite, which could be the growth direction. With solvothermal treatment time increased to 48 h, the spindles with flat tips were obtained as shown in Figure 3d. The atomic coordination number is small, and the atoms at the tip would be corroded with the extension of time. Based on the discussion above and the literature [38], H2PO4 are essential for the formation of spindle-like structure.
The concentration of SO42− ions, which might promote the coordination-assisted dissolution process, was also investigated without addition of H2PO4. Figure 4a shows the as-prepared products of α-Fe2O3. NCs with a clear shape edge (150 nm in diameter). TEM investigation revealed that the α-Fe2O3 NCs were plate-like (marked with black frame) and some of them with the edge perpendicular to the carbon grid (marked with white arrows) also proved the plate-like morphology of the products (Figure 4b). The nanoplates precursors with discs composed of tiny aggregated particles parallel to each other were found when the reaction time was decreased to 3 h (Figure 4c,d). The time evolution confirmed that the nanoparticles shown in Figure 4a were plate-like structures.
To conclude, the phosphate ions have been reported to act as a shape controller to induce the anisotropic growth of α-Fe2O3 [38]. However, sulfate ions favor the dissolution of α-Fe2O3 because of their coordination effect with ferric ions [39]. Phosphate and sulfate ions can be adsorbed on the surface of α-Fe2O3, which could effectively prevent the detachment of iron atoms on the surfaces. The adsorption is very weak on the (0001) plane, so NCs grow along [0001] direction, which induces the appearance of olive-shaped structure. Although the adsorption of the phosphate and sulfate ions to α-Fe2O3 crystal planes is similar, the adsorption affinity of sulfate on α-Fe2O3 is much weaker than that of phosphate. Phosphate ions play a much more crucial role than sulfate ions in the formation of olive-shaped NCs. Under acidic conditions at a high reaction temperature, the tips of olive-shaped NCs may begin to dissolve. The dissolution occurs along the [0001] direction, as the (0001) plane is almost entirely exposed to solution. Therefore, in the presence of phosphate ions, the α-Fe2O3 NCs would grow along the [0001] direction, sulfate ions could coordinate with iron ions and lead to the “corrosion” of the Fe2O3. The hollow structures are formed. With the presence of phosphate ions, and the absence of sulfate ions, only spindle solid nanoparticles are formed. In contrast, duo to sulfate ions’ coordination effect with ferric ions and corrosion effect, the small nanoparticles gather to form the nanoplates.

3.2. Optical Properties

Hematite nanomaterials have been used widely as ultraviolet ray absorbents and photocatalyst [40]. The optical properties of metal NCs are determined by the size, shape, composition, and dielectric properties of NCs and their local environment. It is well-known that the iron oxides have three types of electronic transitions occurring in the optical absorption spectra: the ligand to metal charge-transfer transitions (LMCT), the ligand field transitions (d-d transitions) and the pair excitations [41]. As shown in Figure 5, hollow nanoolives and nanotubes have three broad bands around 320, 432 and 546 nm. The band at around 432 nm has a little blue-shifted as the length of hollow NCs reduces and the morphology transforms from hollow nanoolives to nanotubes, which can be attributed to the size of the hematite nanoparticles. For the band at 546 nm, no distinct tendency of peak shift is observed but the intensity is largely decreased, which is consistent with the reported hematite hollow NCs [42]. The nanospindles have broad band around 450 and 560 nm, while the nanoplates only have a broadband around 610 nm due to the electron transitions from valence band to conduction band which closely matches the value reported in the literature [43]. The absorption spectra of the nanospindles and nanoplates were dependent on their morphology. The wider spectral absorption may enhance its solar harvesting capability for visible light.

3.3. Magnetic Properties

The magnetization was investigated using a SQUID magnetometer. It is well known that the magnetic properties of materials were highly sensitive to the morphology, size, and crystal structure of the as-synthesized samples, which are different from those of bulk materials. Figure 6 shows the magnetic hysteresis loops of these samples at 300 K in the applied magnetic field in the range of −10 to 10 kOe. It is noted that the hysteresis loops do not reach saturation even up to the maximum applied magnetic field. The hysteresis loops indicate that the as prepared α-Fe2O3 NCs show ferromagnetic behaviors at room temperature which is similar to the reported cases in the literature [22]. The remnant magnetization (Mr) of olive-shaped NCs with coercivity (Hc) of 180.8 Oe is 0.168 emu·g−1, which is much higher than that of nanotube (0.082 emu·g−1). The higher Hc and Mr of the sample may be attributed to the larger particle size. In addition, the nanoplates sample displayed a remnant magnetization of 0.112 emu·g−1 and a coercivity of 202.3 Oe, both higher than that of nanotubes and nanospindles, as shown in Figure 6d. It must be owing to the unique morphology of tiny aggregated particles parallel to each other [44]. Therefore, the magnetization also has a shape-depended behavior [45].

3.4. Electrochemical Properties

The electrochemical properties of the as-obtained electrodes were investigated by using conventional three-electrode system. Figure 7a exhibits CV curves of the as-grown α-Fe2O3 NCs in the potential window of 0–0.50 V at a scan rate of 10 mV·s−1. The obvious anodic and cathodic peaks indicate the pseudocapacitance properties of the four electrodes, which demonstrate that the capacitance characteristics are mainly governed by Faradaic reactions. The reversible redox reaction is related to the conversion between Fe3+ and Fe2+, reaction is presented as follow [17]: Fe2O3 + 2e + 3H2O ↔ 2Fe(OH)2 + 2OH. In the process of charge-discharge cycles, the redox current will be higher, and the ability of charge and discharge will be increased [46]. The specific capacitance is in proportion to the area under the CV curves. Figure 7a shows that the area under the CV curve for hollow olive-shaped α-Fe2O3 is apparently much larger than those of nanotubes, nanospindles and nanoplates, which indicate that olive-shaped α-Fe2O3 have a higher specific capacitance than other samples. Besides, the charge-discharge properties of the prepared electrode are also tested under current densities of 1 A·g−1, as shown in Figure 7b. The nonlinearity in the discharge curves shows the pseudocapacitive behavior of the electrodes. This further confirms the pseudocapacitance feature of the as-prepared α-Fe2O3 products. It is found that the as obtained α-Fe2O3 products possess excellent capacitance performance. The specific capacitance of the electrode can be calculated from the discharge curve according to C = (It)/(mV), where C (F·g−1) is the specific capacitance, I (mA) is the discharge current, Δt (s) is the discharge time, m (g) is the mass of the active material in the electrode and ΔV (V) is the potential change during the discharge. Remarkably, the specific capacitance of the hollow olive-shaped NCs (275.7 F·g−1) are much higher than that of the nanotubes (206.3 F·g−1), nanospindles (127.8 F·g−1) and nanoplates (93.7 F·g−1). To further verify the electrochemical properties of hollow nanoolives, Figure S2a present the typical CV curves of hollow olive-shaped NCs at different scan rates. With the increase of the scan rate, anodic and cathodic peaks shift continuously to higher and lower potentials, respectively, because of the limited ion diffusion rate in the electrolyte [47]. The charge-discharge curves at different current density are shown in Figure S2b. The near symmetric charge and discharge curves reveal excellent electrochemical reversibility properties. The corresponding specific capacitance was 275.7, 269.8, 257.9, 229.8 and 218.3 F·g−1 at 1, 1.5, 2, 4 and 6 A·g−1 current density, respectively.
Figure 7c reveals the cycling performance of the as-prepared α-Fe2O3 products. In the cycling stability tests, the hollow olive-structure delivers the highest specific capacitance (285.9 F·g−1) and an excellent long-term cycling stability (93% after 3000 repetitive cycles), which is superior to many previously reported systems, such as ribbon shaped [48], flowerlike [18], red blood cell shaped [49] hematite, even to FeS2@Fe2O3 [50] and Fe2O3 NDs@NG [51]. This is related to its large specific surface area (see in Table S1). The specific capacitance of the nanotubes, nanospindles and nanoplates maintain about 85%, 90% and 74% under the same test conditions, respectively. Thus, although the nanospindles are low in capacitance, they have good cycle stability. In order to further study the electrochemical performance of the structures, an electrochemical impedance spectroscopy (EIS) [52] was also recorded on the same electrochemical workstation. Typical Nyquist plots of the samples are presented in Figure 7d. The EIS spectrum of the electrodes was usually composed of a semicircle at the high-frequency region and a straight line at the low-frequency region. In a low frequency, the slope of the line corresponds to the Warburg impedance, which means the electrolyte diffusion occurs within the α-Fe2O3 electrodes. The nearly straight vertical line along the imaginary axis indicates a low diffusion resistance and shows good capacitor behavior, which indicates that the hollow α-Fe2O3 electrodes possess much lower diffusion resistance. The intercept at the real axis is the solution resistance of the electrochemical system, which includes the inherent resistance of the electroactive material and contact resistance at the interface between the electrolyte and the electrode. The charge transfer resistance that is also called the Faraday resistance can be evaluated from the diameter of the semicircle in the high frequency range. The minimum value of the intercept and no semicircle was observed in the electrode of the hollow olive-shaped NCs, which indicates that hollow olive-shaped NCs provides high electronic conductivity compared with other electrodes. Therefore, the hollow olive-shaped NCs exhibit good electrochemical properties for supercapacitor applications.

4. Conclusions

We adopted a facile template-free hydrothermal synthesis route to prepare hematite structures with different morphologies, including nanoolives, nanotubes, nanospindles, and nanoplates. The particle size and shape have a remarkable effect on the optical and magnetic properties. The as-prepared NCs exhibited different absorption bands in the ultraviolet and visible regions. In addition, they also show different ferromagnetic behaviors at room temperature. When used as a supercapacitor electrode, the hollow olive-shaped exhibited high capacity (285.9 F·g−1), which can be attributed to the large number of active sites provided by unique spatial structure. The cycling test revealed that this material possesses excellent cycling stability during 3000 cycles. These results indicate that the hollow nanoolive samples can be a promising candidate material in energy storage fields.

Supplementary Materials

The following are available online at www.mdpi.com/2079-4991/8/1/41/s1, Figure S1: SEM images of the nanotubes, Figure S2: (a) CV curves of the hollow olive-shaped α-Fe2O3 electrodes at different scan rates; (b) Galvanostatic charge-discharge curves of the hollow olive-shaped α-Fe2O3 electrodes at various current densities, Table S1: The morphologies and BET surface areas of α-Fe2O3 under different reaction conditions.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Nos. 11674023, 51331002 and 51571006), Beijing Municipal Science and Technology Project (No. Z171100002217074) and the Science and Technology Project of Datong, Shanxi Province (No. 2016022).

Author Contributions

R.W. designed and guided the overall project. B.L. and Q.S. synthesized the samples and analyzed the characterization results. A.S. conducted the magnetization measurements. B.L. and R.W. wrote the manuscript. M.C., H.F. and Y.C. participated in paper draft and made many suggestions. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yu, X.G.; Marks, T.J.; Facchetti, A. Metal oxides for optoelectronic applications. Nat. Mater. 2016, 15, 383–396. [Google Scholar] [CrossRef] [PubMed]
  2. Saif, S.; Tahir, A.; Chen, Y. Green Synthesis of Iron Nanoparticles and Their Environmental Applications and Implications. Nanomaterials 2016, 6, 209. [Google Scholar] [CrossRef] [PubMed]
  3. Movlaee, K.; Ganjali, M.; Norouzi, P.; Neri, G. Iron-Based Nanomaterials/Graphene Composites for Advanced Electrochemical Sensors. Nanomaterials 2017, 7, 406. [Google Scholar] [CrossRef] [PubMed]
  4. Cheng, M.; Duan, S.B.; Fan, H.S.; Su, X.R.; Cui, Y.M.; Wang, R.M. Core@shell CoO@Co3O4 nanocrystals assembling mesoporous microspheres for high performance asymmetric supercapacitors. Chem. Eng. J. 2017, 327, 100–108. [Google Scholar] [CrossRef]
  5. Radhakrishnan, S.; Prakash, S.; Rao, C.R.K.; Vijayan, M. Organically Soluble Bifunctional Polyaniline-Magnetite Composites for Sensing and Supercapacitor Applications. Electrochem. Solid State Lett. 2009, 12, A84–A87. [Google Scholar] [CrossRef]
  6. Shen, S.; Lindley, S.A.; Chen, X.; Zhang, J.Z. Hematite heterostructures for photoelectrochemical water splitting: Rational materials design and charge carrier dynamics. Energy Environ. Sci. 2016, 9, 2744–2775. [Google Scholar] [CrossRef]
  7. Iandolo, B.; Wickman, B.; Zoric, I.; Hellman, A. The rise of hematite: Origin and strategies to reduce the high onset potential for the oxygen evolution reaction. J. Mater. Chem. A 2015, 3, 16896–16912. [Google Scholar] [CrossRef]
  8. Koukabi, N.; Kolvari, E.; Khazaei, A.; Zolfigol, M.A.; Shirmardi-Shaghasemi, B.; Khavasi, H.R. Hantzsch reaction on free nano-Fe2O3 catalyst: Excellent reactivity combined with facile catalyst recovery and recyclability. Chem. Commun. 2011, 47, 9230–9232. [Google Scholar] [CrossRef] [PubMed]
  9. Dahan, M.H.; Caspary Toroker, M. Water Oxidation Catalysis with Fe2O3 Constrained at the Nanoscale. J. Phys. Chem. C 2017, 121, 6120–6125. [Google Scholar] [CrossRef]
  10. Hao, Q.Y.; Liu, S.A.; Yin, X.M.; Du, Z.F.; Zhang, M.; Li, L.M.; Wang, Y.G.; Wang, T.H.; Li, Q.H. Flexible morphology-controlled synthesis of mesoporous hierarchical α-Fe2O3 architectures and their gas-sensing properties. Crystengcomm 2011, 13, 806–812. [Google Scholar] [CrossRef]
  11. Hua, M.; Zhang, S.; Pan, B.; Zhang, W.; Lv, L.; Zhang, Q. Heavy metal removal from water/wastewater by nanosized metal oxides: A review. J. Hazard. Mater. 2012, 211, 317–331. [Google Scholar] [CrossRef] [PubMed]
  12. Zheng, X.; Yan, X.Q.; Sun, Y.H.; Yu, Y.S.; Zhang, G.J.; Shen, Y.W.; Liang, Q.J.; Liao, Q.L.; Zhang, Y. Temperature-dependent electrochemical capacitive performance of the α-Fe2O3 hollow nanoshuttles as supercapacitor electrodes. J. Colloid Interface Sci. 2016, 466, 291–296. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Q.; Uchaker, E.; Candelaria, S.L.; Cao, G. Nanomaterials for energy conversion and storage. Chem. Soc. Rev. 2013, 42, 3127–3171. [Google Scholar] [CrossRef] [PubMed]
  14. Julien, C.M.; Mauger, A. Nanostructured MnO2 as Electrode Materials for Energy Storage. Nanomaterials 2017, 7, 396. [Google Scholar] [CrossRef] [PubMed]
  15. Radhakrishnan, S.; Kim, H.Y.; Kim, B.S. Expeditious and eco-friendly fabrication of highly uniform microflower superstructures and their applications in highly durable methanol oxidation and high-performance supercapacitors. J. Mater. Chem. A 2016, 4, 12253–12262. [Google Scholar] [CrossRef]
  16. Cheng, M.; Duan, S.B.; Fan, H.S.; Wang, R.M. From channeled to hollow CoO octahedra: Controlled growth, structural evolution and energetic applications. Crystengcomm 2016, 18, 6849–6859. [Google Scholar] [CrossRef]
  17. Nithya, V.D.; Arul, N.S. Review on α-Fe2O3 based negative electrode for high performance supercapacitors. J. Power Sources 2016, 327, 297–318. [Google Scholar] [CrossRef]
  18. Shivakumara, S.; Penki, T.R.; Munichandraiah, N. Synthesis and Characterization of Porous Flowerlike α-Fe2O3 Nanostructures for Supercapacitor Application. ECS Electrochem. Lett. 2013, 2, A60–A62. [Google Scholar] [CrossRef]
  19. Chaudhari, S.; Bhattacharjya, D.; Yu, J.-S. 1-Dimensional porous α-Fe2O3 nanorods as high performance electrode material for supercapacitors. RSC Adv. 2013, 3, 25120–25128. [Google Scholar] [CrossRef]
  20. Zheng, X.; Han, Z.C.; Chai, F.; Qu, F.Y.; Xia, H.; Wu, X. Flexible heterostructured supercapacitor electrodes based on α-Fe2O3 nanosheets with excellent electrochemical performances. Dalton Trans. 2016, 45, 12862–12870. [Google Scholar] [CrossRef] [PubMed]
  21. Rettie, A.J.E.; Chemelewski, W.D.; Wygant, B.R.; Lindemuth, J.; Lin, J.-F.; Eisenberg, D.; Brauer, C.S.; Johnson, T.J.; Beiswenger, T.N.; Ash, R.D.; et al. Synthesis, electronic transport and optical properties of Si: α-Fe2O3 single crystals. J. Mater. Chem. C 2016, 4, 559–567. [Google Scholar] [CrossRef]
  22. Rafi, M.M.; Ahmed, K.S.Z.; Nazeer, K.P.; Kumar, D.S.; Thamilselvan, M. Synthesis, characterization and magnetic properties of hematite (α-Fe2O3) nanoparticles on polysaccharide templates and their antibacterial activity. Appl. Nanosci. 2015, 5, 515–520. [Google Scholar] [CrossRef]
  23. Obaidat, I.; Nayek, C.; Manna, K.; Bhattacharjee, G.; Al-Omari, I.; Gismelseed, A. Investigating Exchange Bias and Coercivity in Fe3O4–γ-Fe2O3 Core–Shell Nanoparticles of Fixed Core Diameter and Variable Shell Thicknesses. Nanomaterials 2017, 7, 415. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, T.; Meng, X.; He, Z.; Lin, Y.; Liu, X.; Li, D.; Li, J.; Qiu, X. Preparation of Magnetic Nanoparticles via a Chemically Induced Transition: Role of Treating Solution’s Temperature. Nanomaterials 2017, 7, 220. [Google Scholar] [CrossRef] [PubMed]
  25. He, M.; Zhang, Y.; Munyemana, J.C.; Wu, T.; Yang, Z.; Chen, H.; Qu, W.; Xiao, J. Tuning the hierarchical nanostructure of hematite mesocrystals via collagen-templated biomineralization. J. Mater. Chem. B 2017, 5, 1423–1429. [Google Scholar] [CrossRef]
  26. Wang, C.W.; Yang, S.; Fang, W.Q.; Liu, P.R.; Zhao, H.J.; Yang, H.G. Engineered Hematite Mesoporous Single Crystals Drive Drastic Enhancement in Solar Water Splitting. Nano Lett. 2016, 16, 427–433. [Google Scholar] [CrossRef] [PubMed]
  27. Patra, A.K.; Kundu, S.K.; Bhaumik, A.; Kim, D. Morphology evolution of single-crystalline hematite nanocrystals: Magnetically recoverable nanocatalysts for enhanced facet-driven photoredox activity. Nanoscale 2016, 8, 365–377. [Google Scholar] [CrossRef] [PubMed]
  28. Mo, Q.L.; Wei, J.X.; Jiang, K.Y.; Zhuang, Z.Y.; Yu, Y. Hollow α-Fe2O3 Nanoboxes Derived from Metal Organic Frameworks and Their Superior Ability for Fast Extraction and Magnetic Separation of Trace Pb2+. ACS Sustain. Chem. Eng. 2017, 5, 1476–1484. [Google Scholar] [CrossRef]
  29. Fan, H.S.; Cheng, M.; Wang, Z.L.; Wang, R.M. Layer-controlled Pt-Ni porous nanobowls with enhanced electrocatalytic performance. Nano Res. 2017, 10, 187–198. [Google Scholar] [CrossRef]
  30. Shan, A.X.; Chen, Z.C.; Li, B.Q.; Chen, C.P.; Wang, R.M. Monodispersed, ultrathin NiPt hollow nanospheres with tunable diameter and composition via a green chemical synthesis. J. Mater. Chem. A 2015, 3, 1031–1036. [Google Scholar] [CrossRef]
  31. Su, C.H.; Wang, H. Capsule-like α-Fe2O3 nanoparticles: Synthesis, characterization, and growth mechanism. Cryst. Res. Technol. 2012, 47, 896–902. [Google Scholar] [CrossRef]
  32. Manukyan, K.V.; Chen, Y.S.; Rouvimov, S.; Li, P.; Li, X.; Dong, S.N.; Liu, X.Y.; Furdyna, J.K.; Orlov, A.; Bernstein, G.H.; et al. Ultrasmall α-Fe2O3 Superparamagnetic Nanoparticles with High Magnetization Prepared by Template-Assisted Combustion Process. J. Phys. Chem. C 2014, 118, 16264–16271. [Google Scholar] [CrossRef]
  33. Almeida, T.P.; Fay, M.W.; Zhu, Y.; Brown, P.D. Hydrothermal growth mechanism of α-Fe2O3 nanorods derived by near in situ analysis. Nanoscale 2010, 2, 2390–2399. [Google Scholar] [CrossRef] [PubMed]
  34. Lv, B.L.; Xu, Y.; Wu, D.; Sun, Y.H. Morphology evolution of α-Fe2O3 nanoparticles: The effect of dihydrogen phosphate anions. Crystengcomm 2011, 13, 7293–7298. [Google Scholar] [CrossRef]
  35. Lian, J.; Duan, X.; Ma, J.; Peng, P.; Kim, T.; Zheng, W. Hematite (α-Fe2O3) with Various Morphologies: Ionic Liquid-Assisted Synthesis, Formation Mechanism, and Properties. ACS Nano 2009, 3, 3749–3761. [Google Scholar] [CrossRef] [PubMed]
  36. Srivastava, V.; Kumar, S. Formation of hierarchical structures of Fe2O3 by the liquid-liquid interface technique. Crystengcomm 2014, 16, 11122–11126. [Google Scholar] [CrossRef]
  37. Xi, L.; Chiam, S.Y.; Mak, W.F.; Tran, P.D.; Barber, J.; Loo, S.C.J.; Wong, L.H. A novel strategy for surface treatment on hematite photoanode for efficient water oxidation. Chem. Sci. 2013, 4, 164–169. [Google Scholar] [CrossRef]
  38. Huo, Y.; Zhu, Y.G.; Xie, J.; Cao, G.S.; Zhu, T.J.; Zhao, X.B.; Zhang, S.C. Controllable synthesis of hollow α-Fe2O3 nanostructures, their growth mechanism, and the morphology-reserved conversion to magnetic Fe3O4/C nanocomposites. RSC Adv. 2013, 3, 19097–19103. [Google Scholar] [CrossRef]
  39. Wu, W.; Xiao, X.H.; Zhang, S.F.; Zhou, J.A.; Fan, L.X.; Ren, F.; Jiang, C.Z. Large-Scale and Controlled Synthesis of Iron Oxide Magnetic Short Nanotubes: Shape Evolution, Growth Mechanism, and Magnetic Properties. J. Phys. Chem. C 2010, 114, 16092–16103. [Google Scholar] [CrossRef]
  40. Zhou, H.S.; Mito, A.; Kundu, D.; Honma, I. Nonlinear optical susceptibility of Fe2O3 thin film synthesized by a modified sol-gel method. J. Sol-Gel Sci. Technol. 2000, 19, 539–541. [Google Scholar] [CrossRef]
  41. He, Y.P.; Miao, Y.M.; Li, C.R.; Wang, S.Q.; Cao, L.; Xie, S.S.; Yang, G.Z.; Zou, B.S.; Burda, C. Size and structure effect on optical transitions of iron oxide nanocrystals. Phys. Rev. B 2005, 71, 125411. [Google Scholar] [CrossRef]
  42. Kant, R.; Kumar, N.; Dutta, V. Fabrication of micro/nanostructured α-Fe2O3 hollow spheres: Effect of electric field on the morphological, magnetic and photocatalytic properties. RSC Adv. 2016, 6, 65789–65798. [Google Scholar] [CrossRef]
  43. Wheeler, D.A.; Wang, G.M.; Ling, Y.C.; Li, Y.; Zhang, J.Z. Nanostructured hematite: Synthesis, characterization, charge carrier dynamics, and photoelectrochemical properties. Energy Environ. Sci. 2012, 5, 6682–6702. [Google Scholar] [CrossRef]
  44. Yang, S.; Xu, Y.Y.; Sun, Y.Q.; Zhang, G.Y.; Gao, D.Z. Size-controlled synthesis, magnetic property, and photocatalytic property of uniform α-Fe2O3 nanoparticles via a facile additive-free hydrothermal route. Crystengcomm 2012, 14, 7915–7921. [Google Scholar] [CrossRef]
  45. Zhang, X.; Niu, Y.; Li, Y.; Hou, X.; Wang, Y.; Bai, R.; Zhao, J. Synthesis, optical and magnetic properties of α-Fe2O3 nanoparticles with various shapes. Mater. Lett. 2013, 99, 111–114. [Google Scholar] [CrossRef]
  46. Guan, B.Y.; Yu, L.; Wang, X.; Song, S.; Lou, X.W. Formation of Onion-Like NiCo2S4 Particles via Sequential Ion-Exchange for Hybrid Supercapacitors. Adv. Mater. 2017, 29. [Google Scholar] [CrossRef] [PubMed]
  47. Binitha, G.; Soumya, M.S.; Madhavan, A.A.; Praveen, P.; Balakrishnan, A.; Subramanian, K.R.V.; Reddy, M.V.; Nair, S.V.; Nair, A.S.; Sivakumar, N. Electrospun α-Fe2O3 nanostructures for supercapacitor applications. J. Mater. Chem. A 2013, 1, 11698–11704. [Google Scholar] [CrossRef]
  48. Sarkar, D.; Mandal, M.; Mandal, K. Design and Synthesis of High Performance Multifunctional Ultrathin Hematite Nanoribbons. ACS Appl. Mater. Interfaces 2013, 5, 11995–12004. [Google Scholar] [CrossRef] [PubMed]
  49. Liu, R.M.; Jiang, Z.X.; Liu, Q.; Zhu, X.D.; Liu, L.; Ni, L.; Shen, C.C. Novel red blood cell shaped α-Fe2O3 microstructures and FeO(OH) nanorods as high capacity supercapacitors. RSC Adv. 2015, 5, 91127–91133. [Google Scholar] [CrossRef]
  50. Zhong, Y.; Liu, J.; Lu, Z.; Xia, H. Hierarchical FeS2 nanosheet@Fe2O3 nanosphere heterostructure as promising electrode material for supercapacitors. Mater. Lett. 2016, 166, 223–226. [Google Scholar] [CrossRef]
  51. Liu, L.; Lang, J.; Zhang, P.; Hu, B.; Yan, X. Facile Synthesis of Fe2O3 Nano-Dots@Nitrogen-Doped Graphene for Supercapacitor Electrode with Ultralong Cycle Life in KOH Electrolyte. ACS Appl. Mat. Interfaces 2016, 8, 9335–9344. [Google Scholar] [CrossRef] [PubMed]
  52. Duan, S.B.; Wang, R.M. Au/Ni12P5 core/shell nanocrystals from bimetallic heterostructures: In situ synthesis, evolution and supercapacitor properties. NPG Asia Mater. 2015, 6, 1–7. [Google Scholar] [CrossRef]

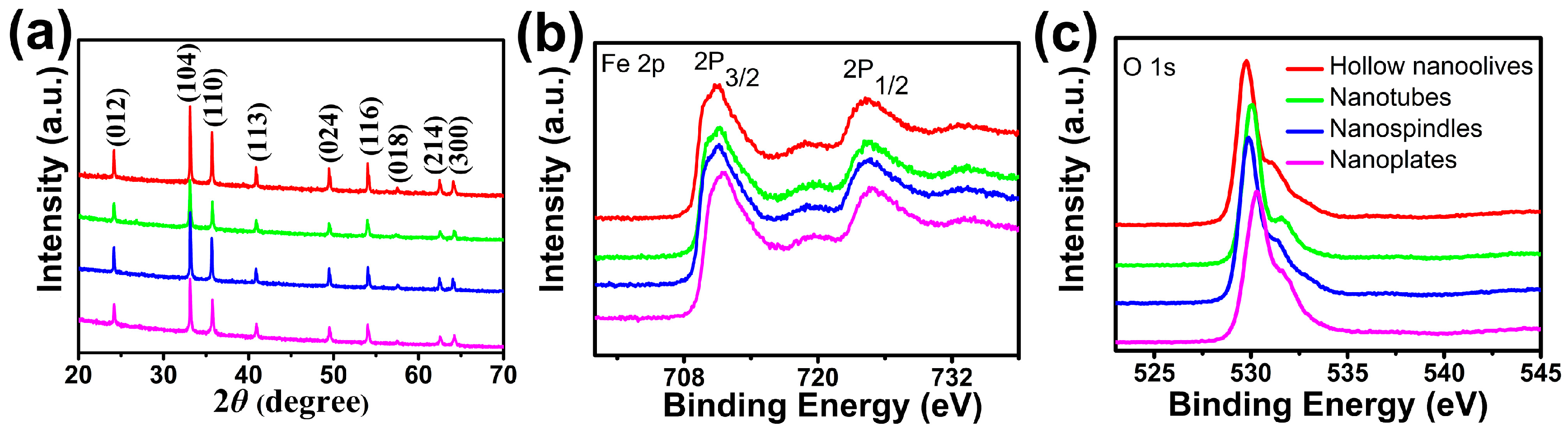

Figure 1. (a) X-ray diffraction (XRD) patterns; and X-ray photoelectron spectroscopy (XPS) spectra of (b) Fe 2p and (c) O 1s for the as-synthesized hematite (α-Fe2O3) hollow nanoolives, nanotubes, nanospindles, and nanoplates.
Figure 1. (a) X-ray diffraction (XRD) patterns; and X-ray photoelectron spectroscopy (XPS) spectra of (b) Fe 2p and (c) O 1s for the as-synthesized hematite (α-Fe2O3) hollow nanoolives, nanotubes, nanospindles, and nanoplates.
Nanomaterials 08 00041 g001
Figure 2. (a) SEM image and (b) TEM image of the hollow nanoolives; the black arrows show open tips; (c) HRTEM image and (d) SAED patterns of the selected area in (b).
Figure 2. (a) SEM image and (b) TEM image of the hollow nanoolives; the black arrows show open tips; (c) HRTEM image and (d) SAED patterns of the selected area in (b).
Nanomaterials 08 00041 g002
Figure 3. (a) SEM image and (b) TEM image of the as-synthesized nanospindles; (c) HRTEM image and SAED pattern (inset) of the selected area in (b); (d) SEM image of the products with solvothermal treatment of 48 h.
Figure 3. (a) SEM image and (b) TEM image of the as-synthesized nanospindles; (c) HRTEM image and SAED pattern (inset) of the selected area in (b); (d) SEM image of the products with solvothermal treatment of 48 h.
Nanomaterials 08 00041 g003
Figure 4. (a) SEM image; (b) TEM image and HRTEM image (inset); the white arrows in (b) show nanoplates with edges perpendicular to the carbon grid; (c) SEM image of the products synthesized by decreasing solvothermal treatment time to 3 h; (d) corresponding TEM image and a magnified image (inset) of a typical plate-like precursor.
Figure 4. (a) SEM image; (b) TEM image and HRTEM image (inset); the white arrows in (b) show nanoplates with edges perpendicular to the carbon grid; (c) SEM image of the products synthesized by decreasing solvothermal treatment time to 3 h; (d) corresponding TEM image and a magnified image (inset) of a typical plate-like precursor.
Nanomaterials 08 00041 g004

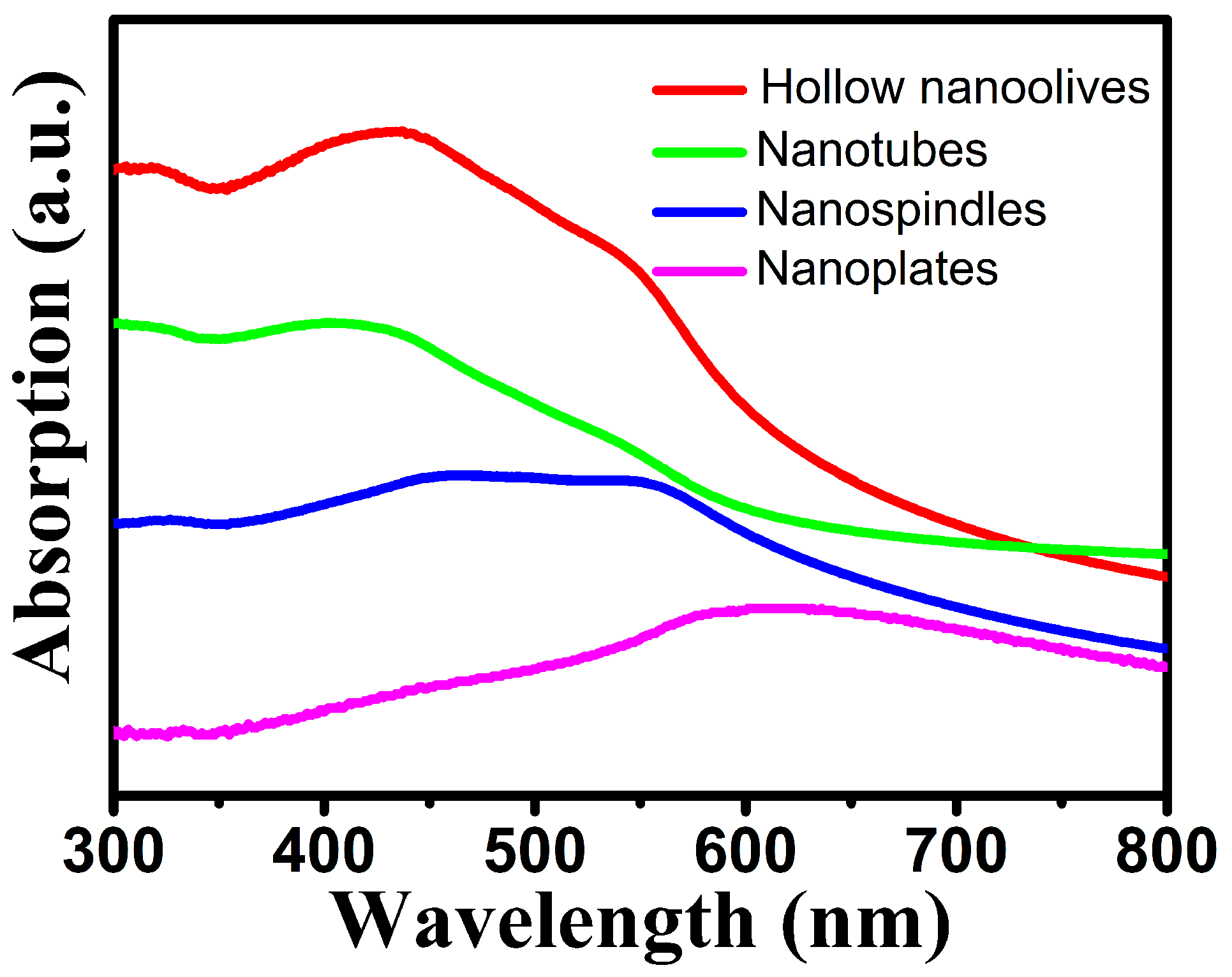

Figure 5. UV-vis spectra of different-shaped hematite NCs.
Figure 5. UV-vis spectra of different-shaped hematite NCs.
Nanomaterials 08 00041 g005

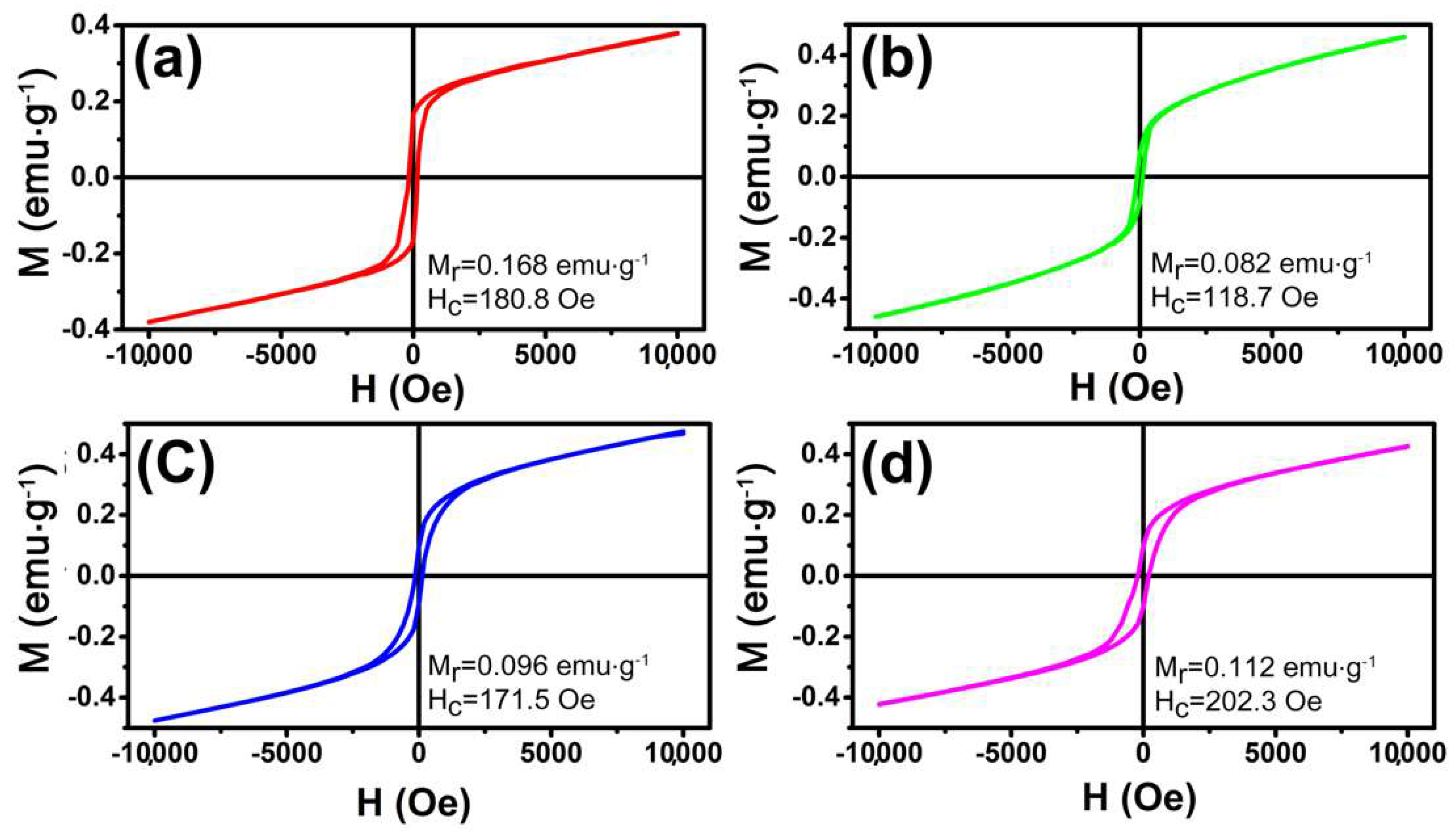

Figure 6. Magnetic hysteresis loops of the α-Fe2O3: (a) hollow nanoolives; (b) nanotubes; (c) nanospindles; (d) nanoplates.
Figure 6. Magnetic hysteresis loops of the α-Fe2O3: (a) hollow nanoolives; (b) nanotubes; (c) nanospindles; (d) nanoplates.
Nanomaterials 08 00041 g006

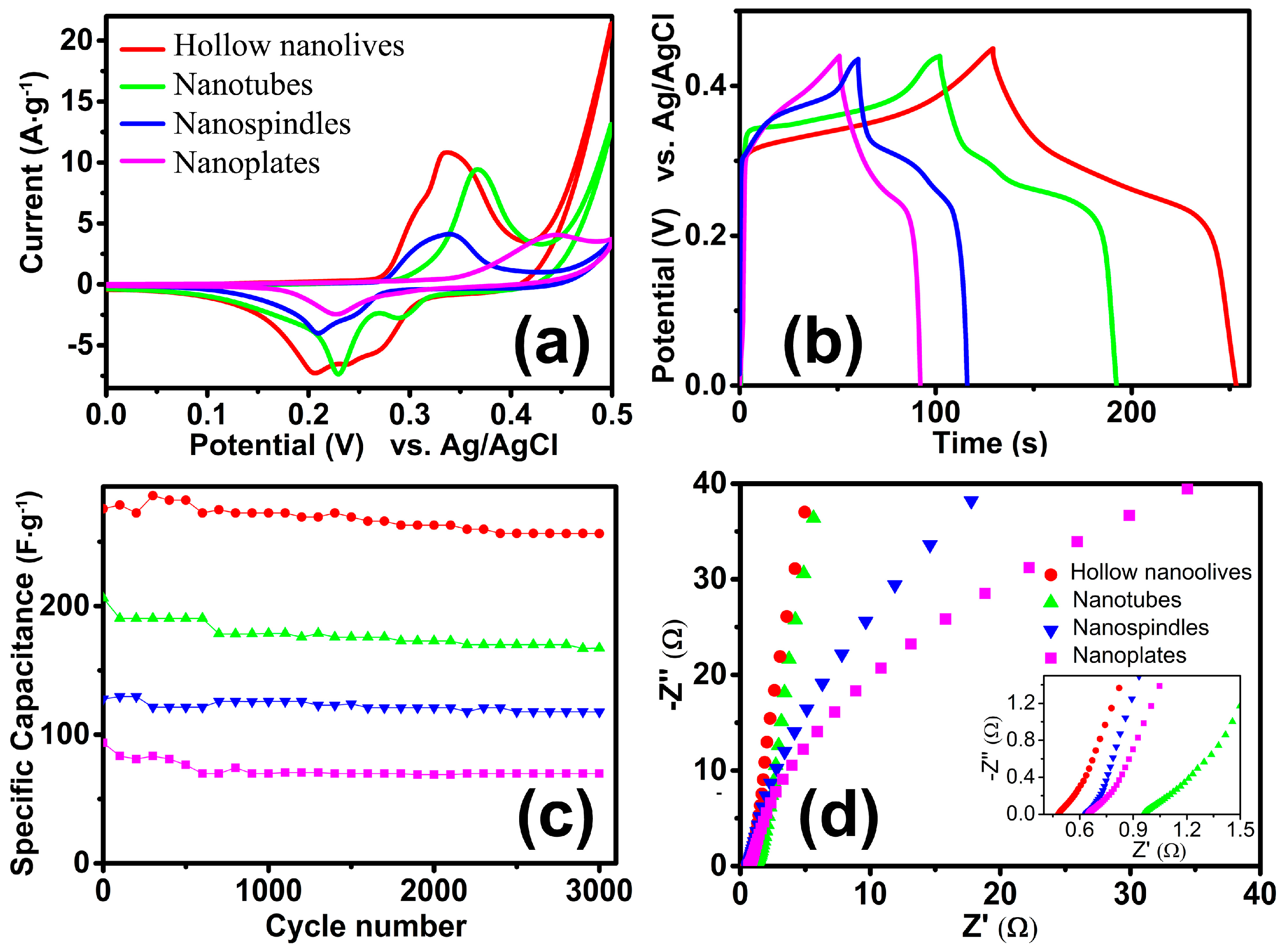

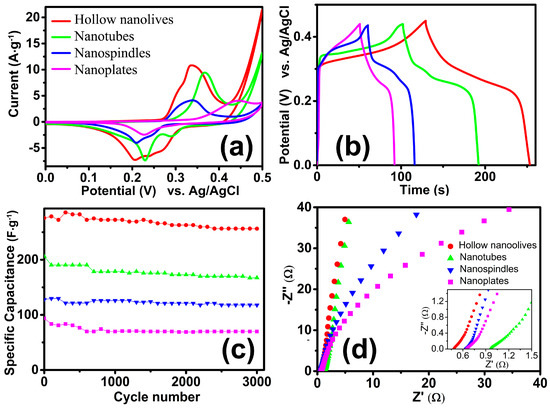

Figure 7. Electrochemical performance of Hollow nanoolives (red), Nanotubes (green), Nanospindles (blue) and Nanoplates (Magenta) in a three-electrode system. (a) CV curves; (b) Galvanostatic charge–discharge curves; (c) Long-term cyclic performances at 1 A·g−1; (d) Nyquist plots.
Figure 7. Electrochemical performance of Hollow nanoolives (red), Nanotubes (green), Nanospindles (blue) and Nanoplates (Magenta) in a three-electrode system. (a) CV curves; (b) Galvanostatic charge–discharge curves; (c) Long-term cyclic performances at 1 A·g−1; (d) Nyquist plots.
Nanomaterials 08 00041 g007
