Large Scale Process for Low Crystalline MoO₃-Carbon Composite Microspheres Prepared by One-Step Spray Pyrolysis for Anodes in Lithium-Ion Batteries

Abstract

This paper introduces a large-scale and facile method for synthesizing low crystalline MoO₃/carbon composite microspheres, in which MoO₃ nanocrystals are distributed homogeneously in the amorphous carbon matrix, directly by a one-step spray pyrolysis. The MoO₃/carbon composite microspheres with mean diameters of 0.7 µm were directly formed from one droplet by a series of drying, decomposition, and crystalizing inside the hot-wall reactor within six seconds. The MoO₃/carbon composite microspheres had high specific discharge capacities of 811 mA h g⁻¹ after 100 cycles, even at a high current density of 1.0 A g⁻¹ when applied as anode materials for lithium-ion batteries. The MoO₃/carbon composite microspheres had final discharge capacities of 999, 875, 716, and 467 mA h g⁻¹ at current densities of 0.5, 1.5, 3.0, and 5.0 A g⁻¹, respectively. MoO₃/carbon composite microspheres provide better Li-ion storage than do bare MoO₃ powders because of their high structural stability and electrical conductivity.

1. Introduction

Lithium-ion batteries (LIBs) have been attractive as the most important type of power source for energy-storage system, electric vehicles, and other electronic devices because of their high specific capacities and energy densities [1,2,3]. Transition-metal oxides (TMOs) with high theoretical energy capacities have been widely applied as replacement anodes for the current graphite of LIBs [4,5,6]. However, the low intrinsic electric conductivity and the large volume expansion of TMOs during a charge/discharge cycle result in rapid capacity fading, which hinders the commercial application of TMOs for anodes in current LIBs [7,8]. To solve these problems, compositing TMOs with carbonaceous materials has been regarded as a possible solution. Carbon could effectively buffer the stress induced by the large volume change of TMOs during the fast charging–discharging process and improve the electrical conductivity of the anodes [9,10,11]. Additionally, a carbon matrix could prevent the aggregation of the active materials during repeated cycles by surrounding them, which increases the structural stability of anode materials [12,13]. Therefore, various synthesis strategies for TMOs/carbon composites have been introduced [14,15,16,17,18]. Cho et al. [14] prepared multiroom-structured metal–carbon hybrid microspheres containing empty voids of several tens of nanometers by liquid–liquid phase segregation because of the incongruent melting of the metal salt and dextrin during the spray pyrolysis. The discharge capacity of the multiroom-structured Co₃O₄–C hybrid microspheres for LIBs at a current density of 3 A g⁻¹ for the 150th cycle was 1243 mA h g⁻¹. Zhang et al. [15] also prepared TiO₂–graphene composite nanofibers by a simple electrospinning process. The cell assembled with TiO₂–graphene composite nanofibers as an anode retained 84% of the reversible capacity after 300 cycles at a current density of 150 mA g⁻¹, which is 25% higher than bare TiO₂ nanofibers did under the same test conditions. Bhaskar et al. [16] prepared MoO₂/multiwalled carbon nanotubes (MWCNTs) composed of spherical flowerlike nanostructures of MoO₂, interconnected by MWCNTs by a one-step hydrothermal route. The one-dimensional electron-transport pathways provided by MWCNTs, which are in direct contact with the MoO₂ nanostructures, imparted an improved reversible lithium storage capacity (1143 mA h g⁻¹ at a current density of 100 mA g⁻¹ after 200 cycles).

Molybdenum oxides are candidate anode materials for LIBs because MoO₃ exhibits good electrochemical properties, has a low cost, and is environmentally friendly [19,20,21]. Therefore, MoO₃ nanomaterials with diverse morphologies such as nanoparticles, hollow, nanobelts, naowiles, and porous structures have been prepared. Lee et al. [22] synthesized MoO₃ nanoparticles using hot filament chemical vapor deposition method (HFCVD) under an argon atmosphere. Zhao et al. [23] also synthesized MoO₃ hollow microspheres by a template-free solvothermal route and subsequent heat treatment in air. The MoO₃ hollow microspheres have a relatively high specific surface area. Chen et al. [24] prepared MoO₃ nanobelts by a hydrothermal method, in which the morphology of MoO₃ nanobelts was affected with the addition of PEG. MoO_3−x nanowires were prepared by Sunkara et al. [25] in a hot-filament chemical vapor deposition reactor. Ko et al. [26] prepared three-dimensional ordered macroporous structured MoO₃ by using a polystyrene bead template via ultrasonic spray pyrolysis.

In this study, low crystalline MoO₃/carbon composite microspheres, in which MoO₃ nanocrystals were distributed homogeneously in the amorphous C matrix, were directly prepared by one-step spray pyrolysis within several seconds. In here, MoO₃ was applied as the host material of carbon microspheres in this process because of its rich chemistry with multiple valence states, low electrical resistivity, high electrochemical activity toward lithium, and affordable cost. The resulting MoO₃/carbon composite microspheres worked better in terms of cycling and rate as anode materials for LIBs than did bare MoO₃ powders. The simple process introduced in this study is expected to be useful for the large-scale synthesis of TMOs/carbon composite microspheres as practical anode materials for LIBs. Furthermore, the synthesis strategy introduced is generally applied to synthesize various metal TMOs/carbon composites, including NiO, Co₃O₄, SnO₂, and Fe₂O₃, for a wide variety of applications including energy storage.

2. Materials and Methods

2.1. Sample Preparation

Low crystalline MoO₃/carbon composite microspheres, in which MoO₃ nanocrystals were distributed homogeneously in the amorphous C matrix, were directly prepared by a one-step spray pyrolysis. The spray pyrolysis system used in this study is shown in Figure S1. In brief, droplets were generated by a 1.7-MHz ultrasonic spray generator that consisted of six vibrators, and the droplets were carried to a quartz tube reactor (length = 1200 mm, diameter = 50 mm) by a flow of N₂ (flow rate = 5 L min⁻¹). The reactor temperature was fixed at 900 °C. The spray solution was prepared by dissolving 0.1 M of MoO₃ (98%, Sigma Aldrich, St. Louis, MO, USA), 12 g L⁻¹ of polyvinylpyrrolidone (PVP, Mw 40,000, Daejung Chemicals and Metals, Siheung, Korea), and 0.02 M of sucrose in distilled water. Subsequently, an appropriate amount of hydrogen peroxide (30% H₂O₂, Sigma-Aldrich) was added to the above solution to obtain a clear spray solution. For the bare sample, MoO₃ powders without any carbon content were also prepared by spray pyrolysis. For this, the spray solution was prepared by dissolving 0.1 M of MoO₃ without a carbon precursor in H₂O₂ contained in distilled water. Subsequently, the spray pyrolysis was carried out with the prepared solution at a temperature of 900 °C by a flow of air (flow rate = 5 L min⁻¹).

2.2. Characterization Techniques

The microstructures of the resulting powders were observed by scanning electron microscopy (SEM; JEOL, JSM-6060, JEOL, Tokyo, Japan) and field-emission transmission electron microscopy (FE-TEM; JEOL, JEM-2100F, JEOL, Tokyo, Japan). The crystal phases were evaluated by X-ray diffractometry (XRD; X’Pert PRO MPD, PANalytical, Almelo, The Netherlands) using Cu K_α radiation (λ = 1.5418 Å). X-ray photoelectron spectroscopy (XPS; K-Alpha, Thermo Fisher Scientific, Waltham, MA, USA) with a focused monochromatic Al K_α at 12 kV and 20 mA was used to analyze the composition of the samples. A structural characterization of carbon in the sample was performed by Raman spectra (Jobin Yvon LabRam HR800, Horiba Jobin Yvon, Paris, France, excited by a 632.8 nm He–Ne laser) at room temperature. The surface areas of the powders were measured by the Brunauer–Emmett–Teller (BET) method, using N₂ as the adsorbate gas. Thermogravimetric analyses (TGA) were performed using a Pyris 1 TGA (Perkin Elmer, Waltham, MA, USA) within a temperature range of 25–650 °C and at a heating rate of 10 °C min⁻¹ under a static air atmosphere.

2.3. Electrochemical Measurements

The electrochemical properties of the samples were analyzed by constructing a 2032-type coin cell. The lithium cell assembly was made in an Ar-filled glove box at room temperature where water and the oxygen concentration was kept at less than 1 ppm. The anode slurry was prepared by mixing the active material, carbon black, and sodium carboxymethyl cellulose (CMC) in a weight ratio of 7:2:1. The working electrodes were formed by coating the slurry onto copper foils and subsequently dried at 70 °C for 3 h. Li metal and a microporous polypropylene film were used as the counter electrode and the separator, respectively. The electrolyte was composed of 1 M LiPF₆ dissolved in a mixture of fluoroethylene carbonate/dimethyl carbonate (FEC/DMC; 1:1 v/v). The discharge/charge characteristics of the samples were investigated by cycling over a potential range of 0.001–3.0 V under CC (constant-current) conditions. Cyclic voltammograms were measured at a scan rate of 0.1 mV s⁻¹. The negative electrode measured 1.5 cm × 1.5 cm, and the mass loading of the active materials was kept at approximately 1.5 mg cm⁻² in every electrochemical test. The electrochemical impedance spectra were obtained by performing alternating current electrochemical impedance spectroscopy (EIS; ZIVE SP1) over a frequency range of 0.01 Hz to 100 kHz.

3. Results and Discussion

Low crystalline MoO₃/C composite microspheres, in which MoO₃ nanocrystals were distributed homogeneously in the amorphous C matrix, were directly prepared by a one-step spray pyrolysis without any further treatment. Figure 1 shows the morphologies of the MoO₃/C composite microspheres obtained after the one-step spray pyrolysis. The powders were spherical and had diameters on the order of microns because they were formed from one droplet with several tens of micrometers by drying, decomposition, and crystallization inside the hot-wall reactor, as shown in Scheme 1. Additionally, there was no aggregation between the powders because the spray pyrolysis was carried out within a very short residence time of 6 s in a hot-wall reactor maintained at 900 °C under a N₂ atmosphere in Figure 1a,b. From a high-resolution TEM image in Figure 1c, it was hard to confirm the nanocrystal MoO₃ grains formed during spray pyrolysis in a microsphere structure because the amorphous-like, very small MoO₃ nanocrystals were formed during the spray pyrolysis at 900 °C within a short residence time of 6 s. The XRD result also showed the broad peak intensities of the β-MoO₃ phase in Figure 1d. The mean crystallite size of the MoO₃ powders, which was calculated from the width of the (011) peak using Scherrer’s equation, was 4 nm. Grain growth of the MoO₃ nanocrystals was effectively prohibited both by the short residence time of the droplet in the reactor and by being surrounded by the carbon formed by the decomposition of PVP and sucrose during the process. The elemental mapping images shown in Figure 1e exhibited a homogeneous distribution of Mo, O, and C, which implies that the ultrafine MoO₃ nanocrystals were homogeneously composited with C in the microsphere structure.

To identify the chemical composition of the MoO₃/C composite microspheres, XPS analysis was carried out, as shown in Figure 2. The XPS survey spectrum of the composite microspheres confirmed the presence of Mo, O, and C, as shown in Figure 2a. In the Mo 3d spectrum of the microspheres (Figure 2b), the main peaks occurred at binding energies of 231.7/232.7 eV for Mo 3d5/2 and 234.7/235.7 eV for Mo 3d3/2; the peaks located at 232.7 and 235.7 eV are characteristic of typical values of the 3d orbital doublet Mo⁶⁺, and the minor ones centered on 231.7 and 234.7 eV corresponded to the 3d orbital doublet Mo⁵⁺, which indicated that dangling bond sites where charges could be trapped existed in MoO₃ [27,28]. The C 1s XPS peak observed at 284.6 eV in Figure 2d corresponds to the binding energy of the sp² C–C bond of the carbon matrix [29,30,31].

The carbon matrix of the MoO₃/C composite microspheres was characterized by means of Raman spectroscopy. The degree of graphitization of the carbon material can typically be evaluated according to the intensity ratio of the D and G bands of carbon at approximately 1350 and 1590 cm⁻¹, respectively [32,33]. The peak intensity ratio between the D and G bands (I_D/I_G) for the MoO₃/C composite microspheres was approximately 3.2, and the absence of the 2D band at approx. 2685 cm⁻¹ demonstrated that the carbon formed in the composite was fairly disordered. Thus, a large amount of the amorphous carbon was formed by the decomposition of both PVP and sucrose during the spray pyrolysis. In general, amorphous carbon has more capacity as an anode for LIBs than graphitic carbon, which is mainly contributed by pores and voids in the microcavities of the structure. The Thermogravimetric (TG) curve of the MoO₃/C composite microspheres in Figure 3b revealed a weight loss between 380 and 460 °C because of the degradation of amorphous carbon. Therefore, the content of amorphous carbon of the MoO₃/C composite microspheres estimated from the TG analysis was 26 wt %.

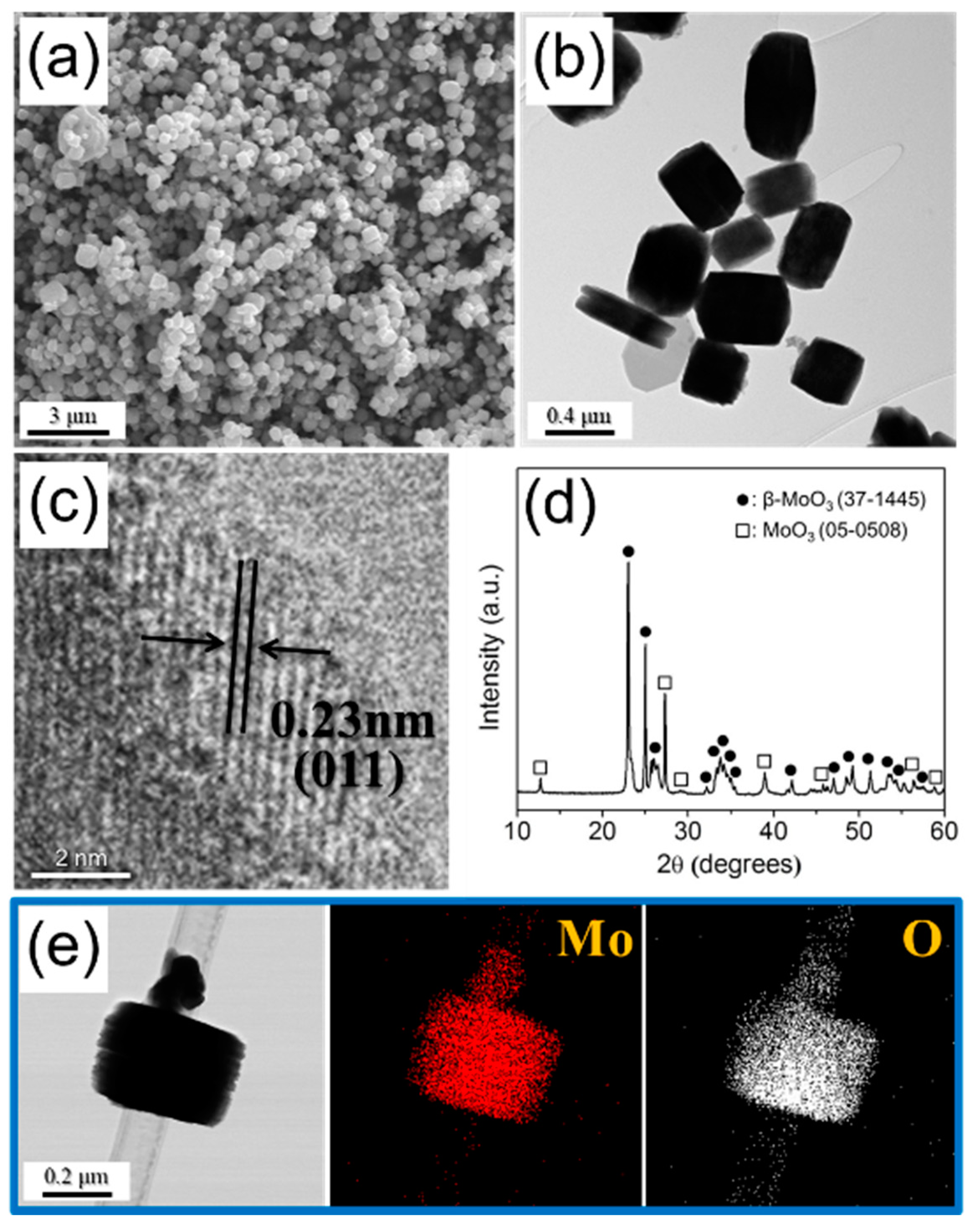

In order to clearly prove the structural merits of MoO₃/C composite microspheres as anodes for Li⁺ ion storage properties, bare MoO₃ powders without C were also prepared from the spray solution without either PVP and sucrose by spray pyrolysis, as shown in Figure 4. The mean particle size of the resulting bare MoO₃ powders, as measured from the SEM and TEM images in Figure 4a,b, was 420 nm and had no aggregation between the powders. Additionally, the resulting powders were angular, which is attributed to the crystal growth of MoO₃ particles because there was no carbon surrounding the particles during spray pyrolysis to prevent the growth of MoO₃ crystals during the short residence reaction time of the droplets. The high-resolution TEM image in Figure 4c shows clear lattice fringes separated by 0.23 nm, which corresponds to the (011) crystal plane of β-MoO₃ (JCPDS card No. 37–1445) [34]. The XRD pattern of the bare MoO₃ powders (Figure 4d) shows that they have different allotropes of MoO₃ structures, with no impurities. The thermodynamically favored α-MoO₃ phase was newly formed along with β-MoO₃ in the bare MoO₃ powders during spray pyrolysis. Bare MoO₃ powders without C were further confirmed by the elemental mapping images in Figure 4e. The BET surface areas of the MoO₃/C composite microspheres and of the bare MoO₃ powders were 4.3 and 0.6 m² g⁻¹, respectively, in Figure S2.

The electrochemical properties of the MoO₃/C composite microspheres are compared with those of the bare MoO₃ powders in Figure 5. The cyclic voltammogram (CV) curves of the MoO₃/C composite microspheres and bare MoO₃ powders performed in the 0.01–3.0 V range at a scanning rate of 0.01 mV s⁻¹ for the first four cycles are shown in Figure 5a. In the first cathodic scan of the MoO₃/C composite microspheres, the broad peaks located at 1.16 V and 0.21 V are assigned to the interaction of Li⁺ ions with the amorphous carbon matrix of the MoO₃/C composite and conversion reaction of Li_xMoO₃ to Mo₀ and Li₂O [35,36,37]. The peak at 0.05 V is also observed, caused by the Li⁺ ion’s intercalation into the C matrix [38,39]. In the anodic scans of the MoO₃/C composite microspheres, reversible peaks at 1.42 and 1.77 V are attributed to the monoclinic-orthorhombic-monoclinic phase transitions in the partially lithiated Li_xMoO₂ [35,36,37]. In the subsequent cycles, two redox peak pairs appeared at 0.21/1.3 and 1.42/1.77 V, which corresponded to the redox reaction of MoO₃ [35,40,41]. The bare MoO₃ powders showed peaks at 2.03 and 1.8 V in the first cathodic scan, which correspond to the generation of Li_xMoO₃, causing an irreversible structural change from the α-MoO₃ additionally formed in the bare MoO₃ powders to an amorphous phase [40,41,42]. The subsequent peak at 0.17 V results from the conversion reaction of Li_xMoO₃ to Mo₀ and Li₂O [35,36,37,41].

The initial discharge-charge curves of the two samples at a current density of 1.0 A g⁻¹ are shown in Figure 5b. The initial discharge capacities of the MoO₃/C composite microspheres and the bare MoO₃ powders were 1403 mA h g⁻¹ and 1478 mA h g⁻¹, respectively, and their initial Coulombic efficiencies were 75% and 72%, respectively. Although the MoO₃/C composite microspheres contained C with a high irreversible capacity loss, the initial Coulombic efficiency of the MoO₃/C composite microspheres was relatively higher than that of the bare MoO₃ powders. The high structural damage to the bare MoO₃ powders in the first discharge and charge processes resulted in a low initial Coulombic efficiency. The discharge capacity and cycling properties of the MoO₃/C composite microspheres and bare MoO₃ powders at a current density of 1.0 A g⁻¹ are shown in Figure 5c. Compared with bare MoO₃ powders, the MoO₃/C composite microspheres exhibited a satisfactorily stable cycling performance. The discharge capacity of the MoO₃/C composite microspheres decreased slightly from 1066 mA h g⁻¹ (533 mA h cc⁻¹) to 808 mA h g⁻¹ (404 mA h cc⁻¹) from the 2nd cycle to the 100th cycle, whereas that of the bare MoO₃ powders decreased rapidly from 1090 mA h g⁻¹ (621 mA h cc⁻¹) to 239 mA h g⁻¹ (136 mA h cc⁻¹) in the same cycle range. Additionally, the Coulombic efficiency of the MoO₃/C composite microspheres increased quickly to above 99% after the second cycle. The amorphous C matrix of MoO₃/C composite microspheres more effectively buffered the large volume change of the MoO₃ active material during the fast charging–discharging process. On the other hand, the structural destruction of the bare MoO₃ powders during repeated Li⁺-ion insertion and desertion processes resulted in capacity fading continuously. Therefore, better cycling of the MoO₃/C composite microspheres could be achieved because of the improved structural stability of the MoO₃.

In order to evaluate the rate performances of both samples, electrochemical tests were performed at various current densities, as shown in Figure 5d. As the current densities increased from 0.5 to 1.5, 3.0, and 5.0 A g⁻¹, the MoO₃/C composite microspheres exhibited reversible discharge capacities of 999, 875, 716, and 467 mA h g⁻¹, respectively. However, the bare MoO₃ powders delivered a low reversible discharge capacity of 352 mA h g⁻¹ at 5.0 A g⁻¹ as shown in Figure 5d. The C matrix of the MoO₃/C composite microspheres improved the electrical conductivity of the sample. Additionally, the small, amorphous MoO₃ nanograins imbedded within the C matrix decreased the diffusion distance and increased the diffusion rate of the Li⁺ ions, thus synergistically speeding up the rate of the MoO₃/C composite microspheres more than that of the bare MoO₃ powders.

The superior Li⁺-ion storage properties of the MoO₃/C composite microspheres were supported by EIS analysis, as shown in Figure 6 [43,44,45]. Nyquist plots of the samples before and after cycles were obtained by deconvolution with a Randle-type equivalent-circuit model (Figure 6d). The MoO₃/C composite microspheres and bare MoO₃ powders had similar charge-transfer resistance (Rct) values before cycling, as shown in Figure 6a. However, the cell with the MoO₃/C composite microspheres obtained after 100 cycles showed a lower Rct value of 42 Ω compared to that of 134 Ω for the bare MoO₃ powders, as shown in Figure 6b,c. The structural destruction of the bare MoO₃ powders during the repeated Li⁺-ion insertion and desertion processes increased the Rct values significantly. On the other hand, the MoO₃ nanograins embedded within the amorphous C were not pulverized during the repeated cycles. Moreover, the C matrix served as fast and continuous transport pathways for electrons upon cycling because of its high electrical conductivity. The high structural stabilities of the MoO₃/C composite microspheres with high lithium-ion storage capacities resulted in low Rct values during cycling. The MoO₃/C composite microspheres with a high structural stability during repeated lithium insertion and desertion reactions showed excellent cycling and rate performance, as shown in Figure 5.

The morphologies of the MoO₃/C composite microspheres and bare MoO₃ powders obtained after 100 cycles are shown in Figure 7. The bare MoO₃ powders were broken into several pieces after the cycles, as shown by the TEM image in Figure 7a. In contrast, the MoO₃/C composite microspheres maintained their morphologies quite well even after the repeated Li⁺ insertion and desertion processes in Figure 7b,c. The excellent Li⁺-ion storage properties of the MoO₃/C composite microspheres are, therefore, attributed to the improvement of the structural stability and electrical conductivity by the carbon composite.

4. Conclusions

In this study, low crystalline MoO₃/carbon composite microspheres in which MoO₃ nanocrystals were distributed homogeneously in the amorphous C matrix, were directly prepared by a one-step spray pyrolysis within several seconds. The MoO₃/carbon composite was spherical, with diameters on the order of microns, because they were formed from one droplet with several tens of micrometers by a series of drying, decomposition, and crystallization processes inside the hot-wall reactor during spray pyrolysis. The amorphous C matrix of the MoO₃/C composite microspheres effectively buffered the large volume change of the MoO₃ active material during the fast charging–discharging process. Therefore, a better cycling of the MoO₃/C composite microspheres could be achieved because of the improved structural stability of the MoO₃. Additionally, the small MoO₃ nanograins imbedded within the C matrix decreased the diffusion distance and increased the diffusion rate of Li⁺ ions, thus accelerating the rate of the MoO₃/C composite microspheres. The superior Li⁺-ion storage properties of the MoO₃/C composite microspheres compared to those of the bare MoO₃ were supported by an EIS analysis and by observing the morphologies of the samples obtained after 100 cycles. The simple process introduced in this study is expected to be useful for the large-scale synthesis of TMOs/carbon composite microspheres for a wide variety of applications including energy storage.
