Article

Impedimetric Sensing of Factor V Leiden Mutation by Zip Nucleic Acid Probe and Electrochemical Array

by
Arzum Erdem
* and
Ece Eksin
Analytical Chemistry Department, Faculty of Pharmacy, Ege University, Bornova, Izmir 35100, Turkey
*
Author to whom correspondence should be addressed.
Biosensors 2020, 10(9), 116; https://doi.org/10.3390/bios10090116
Submission received: 29 July 2020 / Revised: 27 August 2020 / Accepted: 3 September 2020 / Published: 7 September 2020
(This article belongs to the Special Issue Dedication to Professor Agustín Costa-García: Screen-Printed Electrodes-Based (Bio)sensors: Development and New Challenges of the 21st Century)
Browse Figures
Versions Notes

Abstract

:
A carbon nanofiber enriched 8-channel screen-printed electrochemical array was used for the impedimetric detection of SNP related to Factor V Leiden (FV Leiden) mutation, which is the most common inherited form of thrombophilia. FV Leiden mutation sensing was carried out in three steps: solution-phase nucleic acid hybridization between zip nucleic acid probe (Z-probe) and mutant type DNA target, followed by the immobilization of the hybrid on the working electrode area of array, and measurement by electrochemical impedance spectroscopy (EIS). The selectivity of the assay was tested against mutation-free DNA sequences and synthetic polymerase chain reaction (PCR) samples. The developed biosensor was a trustful assay for FV Leiden mutation diagnosis, which can effectively discriminate wild type and mutant type even in PCR samples.

Graphical Abstract

1. Introduction

Laboratory analyzers are suited for a hospital setting and requires trained personnel to operate the analyzer and interpret the results accurately. However, biosensors have many advantages since they are user-friendly and provide results rapidly with high sensitivity. A great demand for accurate monitoring of biomarkers related to important diseases is the driving force toward the development of novel analytical tools for diagnostics [1,2].
Many researchers are interested in the development of fast screening tools for clinical use. These tools are mostly based on optical or spectroscopic techniques. However, electrochemical methods have many strong points with regard to other techniques such as simple instrumentation, easy to use, low cost, and low sample necessity [3]. Electrochemical biosensors provide direct analysis of various analytes within minutes. Therefore, electrochemical biosensors can be considered as the most appropriate tool for clinical diagnosis by means of their superior features as above-mentioned. Electrochemical DNA biosensor arrays, as a member of the electrochemical biosensor family, are widely used as powerful tools for the diagnosis of genetic and infectious diseases [4,5]. Many recent works have demonstrated the usage of screen-printed electrode arrays in order to carry out multiple measurements at the same time [5,6,7,8,9]. Recently, our group developed sensitive biosensors for the detection of protein, microRNA, and SNPs [10,11,12,13,14,15].
FV Leiden, with the most common inherited prothrombotic conditions, occurs due to a single point mutation of the coagulation factor V gene in the chromosome [16]. Between 3% and 8% of Europeans carry the one copy of the Factor V Leiden mutation, and about 1 in 5000 people have two copies of the FV Leiden mutation. Inheriting one copy slightly increases the risk of developing blood clots. Furthermore, inheriting two copies—one from each parent—significantly increases the risk of developing blood clots. These abnormal clots can lead to long-term health problems or become life-threatening [17]. Due to the importance of FV Leiden mutation sensing, there is an urgent need to develop sensitive, reliable, and fast detection protocols for the FV Leiden mutation. Under this scope, the quantitative analysis of Factor V Leiden was carried out by different methodologies such as the immunosorbent assay [18], fluorescent assay [19], and sandwich-optical sensing method [20]. However, these methods require expensive facilities and complex procedures in combination with the use of radioactive/fluorescent tags. Therefore, these methods are not suitable for the development of simple and low-cost point-of-care (PoC) devices.
Zip nucleic acids contain a cationic compound, spermine, that has an impact on the affinity between the oligonucleotide and its target nucleic acid. Therefore, single base-mismatched sequences or single nucleotide polymorphisms (SNPs) can be successfully discriminated by using zip nucleic acid probes (Z-probes) [21]. Recent studies have confirmed the reliability of Z-probes such as primers, real-time PCR probes, and splice switching oligonucleotides (SSOs) [22,23,24,25]. Z-probe applications also include miRNA detection, detection of AT-rich sequences, in situ hybridization, etc. [26,27]. Furthermore, Z-probes were used as an efficient probe for the development of the impedimetric detection protocol of single nucleotide mutation related to FV Leiden in our previous study [28]. Before and after solution-phase hybridization occurred between Z-probes and its mutant type DNA target, the impedimetric measurement was performed by carbon nanofiber enriched screen-printed electrodes. The impedimetric detection of different single point mutations such as G to A, G to C, and G to T in short DNA oligonucleotides was successfully carried out. The discrimination between mutant type DNA (G to A) and wild type DNA was explored successfully even though the target sequence with a mutation (G to A) was at the 3‘-end position of both PCR products at the length of 143 nt or 220 nt. In addition, the detection of any other SNPs (G to C, or G to T) was performed in solution phase hybridization more selectively by using Z-probes in contrast to the DNA probe. Please note that this is a follow-up study of our previous study.
Herein, EIS based sensing protocol for of the FV Leiden mutation was performed by 8-channel screen-printed electrochemical arrays. In order to improve the efficiency of solution-phase nucleic acid hybridization between Z-probes and target sequence, the experimental parameters were optimized. The selectivity of the assay was tested against wild type DNA sequence and synthetic PCR samples.

2. Materials and Methods

2.1. Instruments and Chemicals

AUTOLAB-302 PGSTAT with the GPES 4.9.007 software package (Eco Chemie, Utrecht, The Netherlands) was used for electrochemical impedance (EIS) measurements.
The detailed information about oligonucleotides, PCR products, and carbon nanofibers enriched 8-channel screen-printed electrochemical arrays can be found in the Supplementary Materials.

2.2. Methodology

The following steps were carried out for EIS-based sensing of the FV Leiden mutation.
(i).
Hybridization of the Z-probe with mutant type DNA, or wild type DNA, or C-mutant type DNA, T-mutant type DNA, ODN-1, ODN-2, mutant type, and wild type PCR in the solution phase;
(ii).
Immobilization of the hybridization products on the working electrode area of the array electrode;
(iii).
Impedimetric measurements.
The desired concentrations of the Z-probe (or DNA probe) and mutant type DNA (or any other of oligonucleotides (ODNs)) were prepared in phosphate buffer saline (PBS, pH, 7.4) and mixed in the ratio of 1:1 (v:v). This mixture was allowed to undergo solution-phase hybridization for 10 min with gentle mixing at 400 rpm under room temperature using a Thermo-Shaker (Biosan, Latvia).
The solution containing hybrids of the Z-probe-DNA target or DNA probe-DNA target was dropped onto the surface of the working electrode of the array system and incubated for 15 min. Immobilization of the hybrids was performed according to the drop-casting method. After that, the electrodes were washed with PBS before measurement. The representative scheme is given in Scheme 1.

2.3. Electrochemical Impedance Spectroscopy Measurements

EIS measurements were performed as reported in our previous work [28]. The Randles circuit was used as the equivalent circuit model used for fitting EIS data, which is shown as the inset in all Nyquist diagrams.

3. Results

We aimed to apply our previous assay [28] to the 8-channel array of electrodes in order to perform multiple simultaneous analysis. This array of electrodes has been successfully employed in numerous applications based on electrochemical biosensors [10,11,12,13,14,15,29,30] while presenting their great advantages such as low sample requirement and easy implementation to point of care (PoC) system. The characterization of the carbon nanofiber enriched electrodes has been given in earlier reports [28,31,32,33].
The impedimetric sensing performance and operational characteristics of the array biosensor were evaluated after optimizing the experimental conditions (Figures S1–S7). The optimized variables are given in Table 1 and the Nyquist diagrams related to the hybridization of the Z-probe and mutant type DNA target under optimized conditions are given in Figure 1.
The effect of mutant type DNA target concentration on the hybridization process was investigated. Figure S8 shows the line graph for the tested mutant type DNA target concentrations. There was an increase at Rct up to 12.0 µg mL−1, then a decrease at Rct was recorded up to 16.0 µg mL−1. As shown in Figure S8, the highest Rct value was measured at 12.0 µg mL−1 in mutant type DNA target of 3226.0 ± 456.6 Ω with the RSD%, 14.2% (n = 3); the upper limit of the linear range was chosen as 12.0 µg mL−1. A linearity in the response based on the Rct value was obtained in the mutant type DNA concentration range varying from 2.0 to 10.0 µg mL−1. The representative Nyquist diagrams are shown in Figure 2. The limit of detection was estimated by using the Miller and Miller technique [34] and was found to be 1.9 µg mL−1 (equal to 266.0 nM, 2.6 pmol in the 10.0 µL sample) according to the calibration plot shown in the Figure S8 inset with the equation of y = 208.96x + 235.66. In addition, the sensitivity was calculated and found to be 2149.8 Ω·mL/µg·cm2.
The selectivity of the Z-probe to mutant type DNA target was then tested against the wild type DNA target. The same experiment was performed with the DNA probe instead of the Z-probe in order to compare the performance of the Z-probe.
The average Rct value was obtained of 3219.0 ± 373.0 Ω (RSD%, 11.6%, n = 3) after hybridization of the Z-probe and mutant type DNA target (Figure 3A). However, it was 1083.0 ± 65.0 Ω (RSD%, 6.0%, n = 3) after the hybridization of the Z-probe with the wild type DNA target. On the other hand, the average Rct value was obtained of 2504.0 ± 629.3 Ω (RSD%, 25.1%, n = 3) in the presence of hybrid of the DNA probe and mutant type DNA target (Figure 3B), and 2327.0 ± 89.1 Ω (RSD%, 3.8%, n = 3) with the hybrid of the DNA probe and wild type DNA target. According to the efficiency of hybridization% (HEff%), it can be said that the Z-probe exhibited a selective behavior to its wild type DNA target (shown in Table 2). Nevertheless, the DNA probe was not selective enough to the wild type target.
The selectivity of the impedimetric assay based on the Z-probe and nanomaterials enriched array biosensor was tested over different oligonucleotides with different single-base mutations located at mutant type DNA target sequence, or noncomplementary sequences, C-mutant type DNA or T-mutant type DNA or ODN-1 or ODN-2 (Figures S9 and S10). The average Rct with the HEff% is given in Table S1. The highest HEff% was found to be 89% with the hybrid form of the Z-probe and mutant type DNA. A selective behavior of the Z-probe was monitored even in the presence of DNA oligonucleotides with different single-base mutation or noncomplementary ODNs.
The impedimetric sensing of FV Leiden mutation in the PCR products with the length of 143 nt was analyzed using the Z-probe accordingly, and presented comparatively with the DNA probe. The hybridization of the 1.0 µg mL−1 Z-probe and 12.0 µg mL−1 (equals to 0.3 µM) mutant type PCR, or wild type PCR was performed under optimum experimental conditions and the average Rct with HEff% values is shown in Table 3.
The HEff% value obtained by the Z-probe (86.0%) was found to be higher than the one obtained by the DNA probe (53.0%). Hence, the discrimination of a single-base mutation was selectively and sensitively explored in the presence of the Z-probe, even when the target sequence was part of the PCR product with the length of 143 nt.
The earlier studies related to the detection of DNA using the array of electrodes are listed in Table 4 and compared to the present study.

4. Conclusions

The impedimetric analysis of the FV Leiden mutation was carried out by 8-channel screen-printed electrochemical arrays in a relatively shorter time (i.e., 30 min) compared to previous works performed by different arrays of electrodes [13,14,15,35,36,37,38,39,40,41,42,43,44,45,46,47] (see Table 4). Using screen-printed electrochemical arrays, a single-base mutation successfully discriminated complementary target DNAs by means of the Z-probe. The LODs were calculated and found to be 1.9 µg mL−1 (266.0 nM). Based on our experiences, the Z-probe based impedimetric biosensors will be at the front of furthering the expansion of a new generation of nucleic acids on the development of PoC devices.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-6374/10/9/116/s1. Figure S1. The Nyquist diagrams obtained after the hybridization of 2.0 µg mL−1 (A) DNA probe, (B) 3’Z-probe, (C) 5’Z-probe and 10.0 µg mL−1 mutant type DNA target at 25 °C. (a) electrode itself, (b) the pseudo-hybridization of DNA probe, 3’Z-probe or 5’Z-probe, (c) the hybridization of DNA probe, 3’Z-probe or 5’Z-probe and mutant type DNA target. (D) Histograms representing the average Rct values obtained by (a) electrode itself, the pseudo-hybridization of 2.0 µg mL−1 (b) DNA probe, (d) 3’Z-probe or (f) 5’Z-probe, the hybridization between 2.0 µg mL−1 (c) DNA probe, (e) 3’Z-probe or (g) 5’Z-probe and 10.0 µg mL−1 mutant type DNA target. Figure S2. Nyquist diagrams obtained by (a) electrode itself, the immobilization of 2.0 µg mL−1 of (b) spermine or (c) Z-probe, and the interaction/hybridization of 2.0 µg mL−1 of (d) spermine or (e) Z-probe with 10.0 µg mL−1 mutant type DNA target. Figure S3. The Nyquist diagrams obtained after the hybridization of 2.0 µg mL−1 Z-probe and 10.0 µg mL−1 mutant type DNA target at (A) 25 °C, (B) 50 °C and (C) 75 °C. (a) electrode itself, (b) the pseudo-hybridization of Z-probe at 25 °C, 50 °C and 75 °C, (c) the hybridization of Z-probe and mutant type DNA target at 25 °C, 50 °C and 75 °C. Figure S4. The Nyquist diagrams obtained after the hybridization of 2 µg mL−1 Z-probe and 10.0 µg mL−1 mutant type DNA target in (A) ABS (pH 4.8), (B) PBS (pH 7.4) and (C) CBS (pH 9.5). (a) electrode itself, (b) the pseudo-hybridization of Z-probe in ABS (pH 4.8), PBS (pH 7.4) or CBS (pH 9.5). (c) the hybridization of Z-probe and mutant type DNA target in ABS (pH 4.8), PBS (pH 7.4) or CBS (pH 9.5). Inset was the equivalent circuit model used for fitting of the impedance datas. Figure S5. The Nyquist diagrams obtained after the hybridization of 2.0 µg mL−1 Z-probe and 10.0 µg mL−1 mutant type DNA target in (A) PBS (pH 7.4) or (B) 0.5 mM and (C) 1.0 mM Mg2+ contained PBS (pH 7.4). (a) electrode itself, (b) the pseudo-hybridization of Z-probe in PBS (pH 7.4), or PBS (pH 7.4) containing 0.5 mM or 1.0 mM Mg2+. (c) the hybridization of Z-probe and mutant type DNA target in PBS (pH 7.4), or PBS (pH 7.4) containing 0.5 mM or 1.0 mM Mg2+. Figure S6. The Nyquist diagrams obtained after the hybridization of 2.0 µg mL−1 Z-probe and 10.0 µg mL−1 mutant type DNA target during 5 min, 10 min and 15 min. (a) electrode itself, the pseudo-hybridization of Z-probe during (b) 5 min, (c) 10 min, (d) 15min, the hybridization of Z-probe and mutant type DNA target during (b’) 5 min, (c’) 10 min and (d’) 15 min. Figure S7. Nyquist diagrams of (a) electrode itself, before (A) and after (B) the hybridization of (b) 0.25, (c) 0.5, (d) 1.0, (e) 2.0 and (f) 4.0 µg mL−1 Z-probe and 10.0 µg mL−1 mutant type DNA target. Figure S8. Line graph representing the Rct values recorded by the hybridization of 1.0 µg mL−1 Z-probe and mutant type DNA target at the concentration level from 2.0 to 16.0 µg/mL. Inset: Calibration graph based on the average Rct values (n = 3) obtained after the hybridization of Z-probe with mutant type DNA target in the concentration range from 2.0 to 10.0 µg mL−1. Figure S9. The hybridization of 1.0 µg mL−1 Z-probe and 12.0 µg mL−1 mutant type DNA target or C-mutant type DNA or T-mutant type DNA. (A) Nyquist diagrams, (B) histograms representing the Rct values obtained by (a) electrode itself, (b) the pseudo-hybridization of Z-probe, after the hybridization of Z-probe and (c) mutant type DNA target, (d) C-mutant type DNA, (e) T-mutant type DNA. Figure S10. The hybridization of Z-probe and mutant type DNA target or ODN-1 or ODN-2. (A) Nyquist diagrams, (B) histograms representing the Rct values obtained by (a) electrode itself, (b) presudo-hybridization of Z-probe, after the hybridization of Z-probe and (c) mutant type DNA target, (d) ODN-1, (e) ODN-2 (n = 3). Table S1. HEff% calculated based on the average Rct value obtained after the hybridization of Z-probe with mutant type DNA target/C-mutant type DNA/T-mutant type DNA/ODN-1/ODN-2 in contrast to the average Rct value obtained in the presence of pseudo hybridization.

Author Contributions

A.E. designed, assisted, analyzed the experiments, and wrote and revised the manuscript. E.E. performed the experiments and wrote and revised the draft manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The financial support was obtained from the Turkish Scientific and Technological Research Council (TUBITAK; Project no. 114Z400).

Acknowledgments

Arzum Erdem acknowledges the financial support from the Turkish Scientific and Technological Research Council (TUBITAK; Project no. 114Z400) as a project investigator, and she would also like to express her gratitude to the Turkish Academy of Sciences (TUBA) as a Principal Member for its partial support. Ece Eksin acknowledges a project PhD scholarship through project (TUBITAK Project no. 114Z400).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Song, S.; Xu, H.; Fan, C. Potential diagnostic applications of biosensors: Current and future directions. Int. J. Nanomed. 2006, 1, 433–440. [Google Scholar] [CrossRef] [Green Version]
  2. Sang, S.; Li, Y.; Guo, X.; Zhang, B.; Xue, X.; Zhuo, K.; Zhao, C.; Zhang, W.; Yuan, Z. A Portable Device for Rapid Detection of Human Serum Albumin using an immunoglobulin-coating-based Magnetoelastic Biosensors. Biosens. Bioelectron. 2019, 141, 111399. [Google Scholar] [CrossRef]
  3. Paleček, E.; Bartošík, M. Electrochemistry of Nucleic Acids. Chem. Rev. 2012, 112, 3427–3481. [Google Scholar] [CrossRef]
  4. Beaudet, A.L.; Belmont, J.W. Array-based DNA diagnostics: Let the revolution begin. Annu. Rev. Med. 2008, 59, 113–129. [Google Scholar] [CrossRef]
  5. Wakai, J.; Takagi, A.; Nakayama, M.; Miya, T.; Miyahara, T.; Iwanaga, T.; Takenaka, S.; Ikeda, Y.; Amano, M. A novel method of identifying genetic mutations using an electrochemical DNA array. Nucleic Acids Res. 2004, 32, e141. [Google Scholar] [CrossRef]
  6. Arduini, F.; Micheli, L.; Moscone, D.; Palleschi, G.; Piermarini, S.; Ricci, F.; Volpe, G. Electrochemical biosensors based on nanomodified screen-printed electrodes: Recent applications in clinical analysis. Trends Anal. Chem. 2016, 79, 114–126. [Google Scholar] [CrossRef] [Green Version]
  7. Mu, S.; Wang, X.; Li, Y.T.; Wang, Y.; Li, D.W.; Long, Y.T. A novel screen-printed electrode array for rapid high-throughput detection. Analyst 2012, 137, 3220–3223. [Google Scholar] [CrossRef]
  8. Apostolou, T.; Pascual, N.; Marco, M.P.; Moschos, A.; Petropoulos, A.; Kaltsas, G.; Kintzios, S. Extraction-less, rapid assay for the direct detection of 2,4,6-trichloroanisole (TCA) in cork samples. Talanta 2014, 125, 336–340. [Google Scholar] [CrossRef]
  9. Biscay, J.; Begoña, M.; García, G.; García, A.C. Electrochemical Biotin determination based on a screen printed carbon electrode array and magnetic beads. Sens. Actuators B 2014, 205, 426–432. [Google Scholar] [CrossRef]
  10. Erdem, A.; Congur, G.; Eksin, E. Multi channel screen printed array of electrodes for enzyme-linked voltammetric detection of MicroRNAs. Sens. Actuators B 2013, 188, 1089–1095. [Google Scholar] [CrossRef]
  11. Erdem, A.; Congur, G. Dendrimer modified 8-channel screen-printed electrochemical array system for impedimetric detection of activated protein C. Sens. Actuators B 2014, 196, 168–174. [Google Scholar] [CrossRef]
  12. Erdem, A.; Congur, G. Label-free voltammetric detection of MicroRNAs at multi-channel screen printed array of electrodes comparison to graphite sensors. Talanta 2014, 118, 7–13. [Google Scholar] [CrossRef] [PubMed]
  13. Erdem, A.; Eksin, E. Magnetic beads assay based on Zip nucleic acid for electrochemical detection of Factor V Leiden mutation. Int. J. Biol. Macromol. 2019, 125, 839–846. [Google Scholar] [CrossRef] [PubMed]
  14. Erdem, A.; Eksin, E. Zip nucleic acid based single-use biosensor for electrochemical detection of Factor V Leiden mutation. Sens. Actuators B 2019, 288, 634–640. [Google Scholar] [CrossRef]
  15. Erdem, A.; Eksin, E. ZNA probe immobilized single-use electrodes for impedimetric detection of nucleic acid hybridization related to single nucleotide mutation. Anal. Chim. Acta 2019, 1071, 78–85. [Google Scholar] [CrossRef] [PubMed]
  16. Bertina, R.M.; Koeleman, B.P.; Koster, T.; Rosendaal, F.R.; Dirven, R.J.; de Ronde, H.; van der Velden, P.A.; Reitsma, P.H. Mutation in blood coagulation factor V associated with resistance to activated protein C. Nature 1994, 369, 64–67. [Google Scholar] [CrossRef]
  17. Kujovich, J.L. Factor V Leiden thrombophilia. Genet. Med. 2011, 13, 1–16. [Google Scholar] [CrossRef] [Green Version]
  18. Ren, Y.; Rezania, S.; Kang, K.A. Biosensor for Diagnosing Factor V Leiden, A Single Amino Acid Mutated Abnormality of Factor V. In Advances in Experimental Medicine and Biology; Kyung, A.K., David, K.H., Duane, F.B., Eds.; Springer: Boston, MA, USA, 2008; pp. 245–252. [Google Scholar]
  19. Vlachou, M.A.; Glynou, K.M.; Ioannou, P.C.; Christopoulos, T.K.; Vartholomatos, G. Development of a three-biosensor panel for the visual detection of thrombophilia associated mutations. Biosens. Bioelectron. 2010, 26, 228–234. [Google Scholar] [CrossRef]
  20. Kang, K.A.; Ren, Y.; Sharma, V.R.; Peiper, S.C. Near real-time immuno-optical sensor for diagnosing single point mutation: A model system: Sensor for factor V Leiden diagnosis. Biosens. Bioelectron. 2009, 24, 2785–2790. [Google Scholar] [CrossRef] [Green Version]
  21. Noir, R.; Kotera, M.; Pons, B.; Remy, J.S.; Behr, J.P. Oligonucleotide- Oligospermine Conjugates (Zip Nucleic Acids): A Convenient Means of Finely Tuning Hybridization Temperatures. J. Am. Chem. Soc. 2008, 9, 13500–13505. [Google Scholar] [CrossRef] [Green Version]
  22. Moreau, V.; Voirin, E.; Paris, C.; Kotera, M.; Nothisen, M.; Rémy, J.S.; Behr, J.P.; Erbacher, P.; Lenne-Samuel, N. Zip nucleic acids (ZNAs): New high affinity oligonucleotides as potent primers for PCR and reverse transcription. Nucleic Acids Res. 2009, 37, e130. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Paris, C.; Moreau, V.; Deglane, G.; Voirin, E.; Erbacher, P.; Lenne-Samuel, N. Zip nucleic acids are potent hydrolysis probes for quantitative PCR. Nucleic Acids Res. 2010, 38, e95. [Google Scholar] [CrossRef] [PubMed]
  24. Alvandi, E.; Koohdani, F. Zip nucleic acid: A new reliable method to increase the melting temperature of real-time PCR probes. J. Diabetes Metab. Disord. 2014, 13, 26–29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Nothisen, M.; Perche-Letuvee, P.; Behr, J.-P.; Remy, J.-S.; Kotera, M. Cationic Oligospermine-Oligonucleotide Conjugates Provide Carrier-free Splice Switching in Monolayer Cells and Spheroids. Cell 2018, 13, 483–492. [Google Scholar] [CrossRef] [Green Version]
  26. Kandemir, H.; Erdal, M.E.; Selek, S.; Ay, Ö.İ.; Karababa, İ.F.; Kandemir, S.B.; Ay, M.E.; Yılmaz, Ş.G.; Bayazıt, H.; Taşdelen, B. Evaluation of several micro RNA (miRNA) levels in children and adolescents with attention deficit hyperactivity disorder. Neurosci. Lett. 2014, 580, 158–162. [Google Scholar] [CrossRef]
  27. Begheldo, M.; Ditengou, F.A.; Cimoli, G.; Trevisan, S.; Quaggiotti, S.; Nois, A.; Palme, K.; Ruperti, B. Whole-mount in situ detection of microRNAs on Arabidopsis tissues using Zip Nucleic Acid probes. Anal. Biochem. 2013, 434, 60–66. [Google Scholar] [CrossRef]
  28. Erdem, A.; Eksin, E. Electrochemical Detection of Solution Phase Hybridization Related to Single Nucleotide Mutation by Carbon Nanofibers Enriched Electrodes. Materials 2019, 12, 3377. [Google Scholar] [CrossRef] [Green Version]
  29. Martín-Yerga, D.; Costa-García, A. Towards a blocking-free electrochemical immunosensing strategy for anti-transglutaminase antibodies using screen-printed electrodes. Bioelectrochemistry 2015, 105, 88–94. [Google Scholar] [CrossRef]
  30. Bartosik, M.; Durikova, H.; Vojtesek, B.; Anton, M.; Jandakova, E.; Hrstka, R. Electrochemical chip-based genomagnetic assay for detection of high-risk human papillomavirus DNA. Biosens. Bioelectron. 2016, 83, 300–305. [Google Scholar] [CrossRef]
  31. Erdem, A.; Eksin, E.; Congur, G. Indicator-free electrochemical biosensor for microRNA detection based on carbon nanofibers modified screen printed electrodes. J. Electroanal. Chem. 2015, 755, 167–173. [Google Scholar] [CrossRef]
  32. Perez-Rafols, C.; Serrano, N.; Díaz-Cruz, J.M.; Arino, C.; Esteban, M. New approaches to antimony film screen-printed electrodes using carbon-based nanomaterials substrates. Anal. Chim. Acta 2016, 916, 17–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Eissa, S.; Alshehri, N.; Rahman, A.M.A.; Dasouki, M.; Abu-Salah, K.M.; Zourob, M. Electrochemical immunosensors for the detection of survival motor neuron (SMN) protein using different carbon nanomaterials-modified electrodes. Biosens. Bioelectron. 2018, 101, 282–289. [Google Scholar] [CrossRef] [PubMed]
  34. Miller, J.N.; Miller, J.C. In Statistics and Chemometrics for Analytical Chemistry, 5th ed.; Pearson Education: Essex, UK, 2005; p. 121. [Google Scholar]
  35. Aoki, H.; Sukegawa, T.; Torimura, M.; Nakazato, T. Nonlabeling and Nonexternal Indicator DNA Sensing Based on Ferrocene-terminated Probes Immobilized on Gold Film Electrode Arrays with Plasma and Acid Treatments. Sens. Mater. 2020, 32, 1079–1090. [Google Scholar] [CrossRef]
  36. Bratov, A.; Rmon_Axcon, J.; Abramova, N.; Merlos, A.; Adrian, J.; Sancez-Baeza, F.; Marco, M.P.; Dominguez, C. Three-dimensional interdigitated electrode array as a transducer for label-free biosensors. Biosens. Bioelectron. 2008, 24, 729–735. [Google Scholar] [CrossRef]
  37. Du, Y.; Guo, S.; Dong, S.; Wang, E. An integrated sensing system for detection of DNA using new parallel-motif DNA triplex system and graphene mesoporous silica gold nanoparticle hybrids. Biomaterials 2011, 32, 8584–8592. [Google Scholar] [CrossRef] [PubMed]
  38. Harandizadeh, Z.; Ito, T. Block Copolymer-Derived Recessed Nanodisk-Array Electrodes as Platforms for Folding-Based Electrochemical DNA Sensors. ChemElectroChem 2019, 6, 5627–5632. [Google Scholar] [CrossRef]
  39. Jambrec, D.; Kayran, Y.U.; Schuhmann, W. Controlling DNA/Surface Interactions for Potential Pulse-Assisted Preparation of Multi-Probe DNA Microarrays. Electroanalysis 2019, 31, 1943–1951. [Google Scholar] [CrossRef]
  40. Lee, J.Y.; Won, B.Y.; Park, H.G. Label-Free Multiplex DNA Detection Utilizing Projected Capacitive Touchscreen. Biotechnol. J. 2018, 13, 1700362. [Google Scholar] [CrossRef]
  41. Lee, J.G.; Yun, K.; Lim, G.S.; Lee, S.E.; Kim, S.; Park, J.K. DNA biosensor based on the electrochemiluminescence of Ru (bpy) 3 2+ with DNA-binding intercalators. Bioelectrochemistry 2007, 70, 228–234. [Google Scholar] [CrossRef]
  42. Li, X.; Lee, J.S.; Kraatz, H.B. Electrochemical Detection of Single-Nucleotide Mismatches Using an Electrode Microarray. Anal. Chem. 2006, 78, 6096–6101. [Google Scholar] [CrossRef]
  43. Liu, G.; Lao, R.; Xu, Q.; Li, L.; Zhang, M.; Song, S.; Fan, C. Single-nucleotide polymorphism genotyping using a novel multiplexed electrochemical biosensor with nonfouling surface. Biosens. Bioelectron. 2013, 42, 516–521. [Google Scholar] [CrossRef] [PubMed]
  44. Magrina, I.; Toldra, A.; Campas, M.; Ortiz, M.; Simonova, A.; Katakis, I.; Hocek, M.; O’Sullivan, C.K. Electrochemical genosensor for the direct detection of tailed PCR amplicons incorporating ferrocene labelled dATP. Biosens. Bioelectron. 2019, 134, 76–82. [Google Scholar] [CrossRef] [PubMed]
  45. Takase, S.; Miyagawa, K.; Ikeda, H. Label-Free Detection of Zeptomol miRNA via Peptide Nucleic Acid Hybridization Using Novel Cyclic Voltammetry Method. Sensors 2020, 20, 836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zhang, D.; Peng, Y.; Qi, H.; Gao, Q.; Zhang, C. Label-free electrochemical DNA biosensor array for simultaneous detection of the HIV-1 and HIV-2 oligonucleotides incorporating different hairpin-DNA probes and redox indicator. Biosens. Bioelectron. 2010, 25, 1088–1094. [Google Scholar] [CrossRef] [PubMed]
  47. Zhu, X.; Ino, K.; Lin, Z.; Shiku, H.; Chen, G.; Matsue, T. Amperometric detection of DNA hybridization using a multi-point, addressable electrochemical device. Sens. Actuators B 2011, 160, 923–928. [Google Scholar] [CrossRef]
Biosensors 10 00116 sch001 550

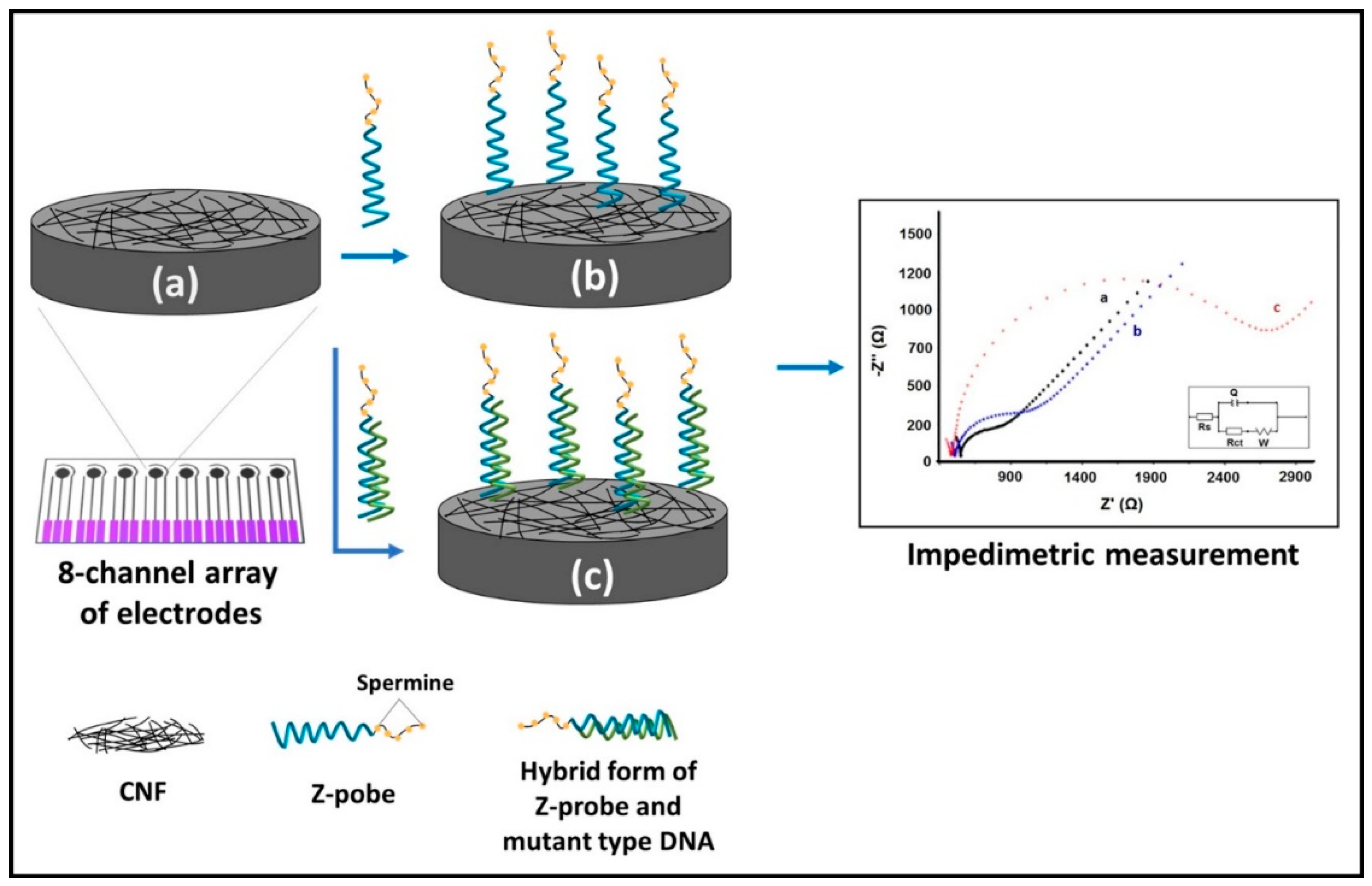

Scheme 1. The representative experimental scheme related to electrochemical impedance spectroscopy based sensing of the FV Leiden mutation. (a) Electrode control, (b) Z-probe in the absence of target, (c) the hybrid form of Z-probe and mutant type DNA target.
Scheme 1. The representative experimental scheme related to electrochemical impedance spectroscopy based sensing of the FV Leiden mutation. (a) Electrode control, (b) Z-probe in the absence of target, (c) the hybrid form of Z-probe and mutant type DNA target.
Biosensors 10 00116 sch001
Biosensors 10 00116 g001 550

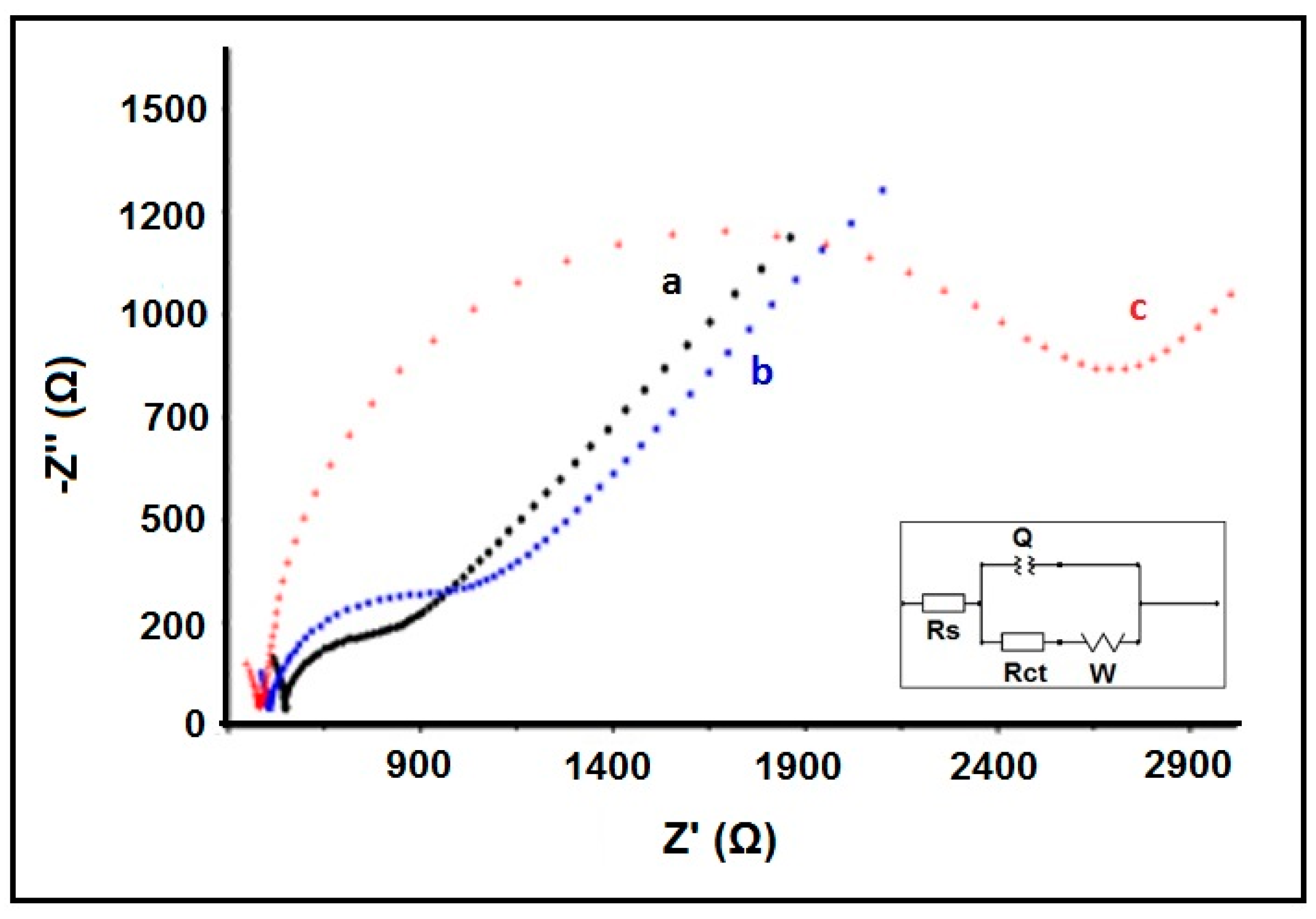

Figure 1. The Nyquist diagrams obtained after the hybridization of the Z-probe and mutant type DNA target under optimized conditions. (a) Electrode control, (b) Z-probe in the absence of target, (c) the hybrid form of Z-probe and mutant type DNA target.
Figure 1. The Nyquist diagrams obtained after the hybridization of the Z-probe and mutant type DNA target under optimized conditions. (a) Electrode control, (b) Z-probe in the absence of target, (c) the hybrid form of Z-probe and mutant type DNA target.
Biosensors 10 00116 g001
Biosensors 10 00116 g002 550

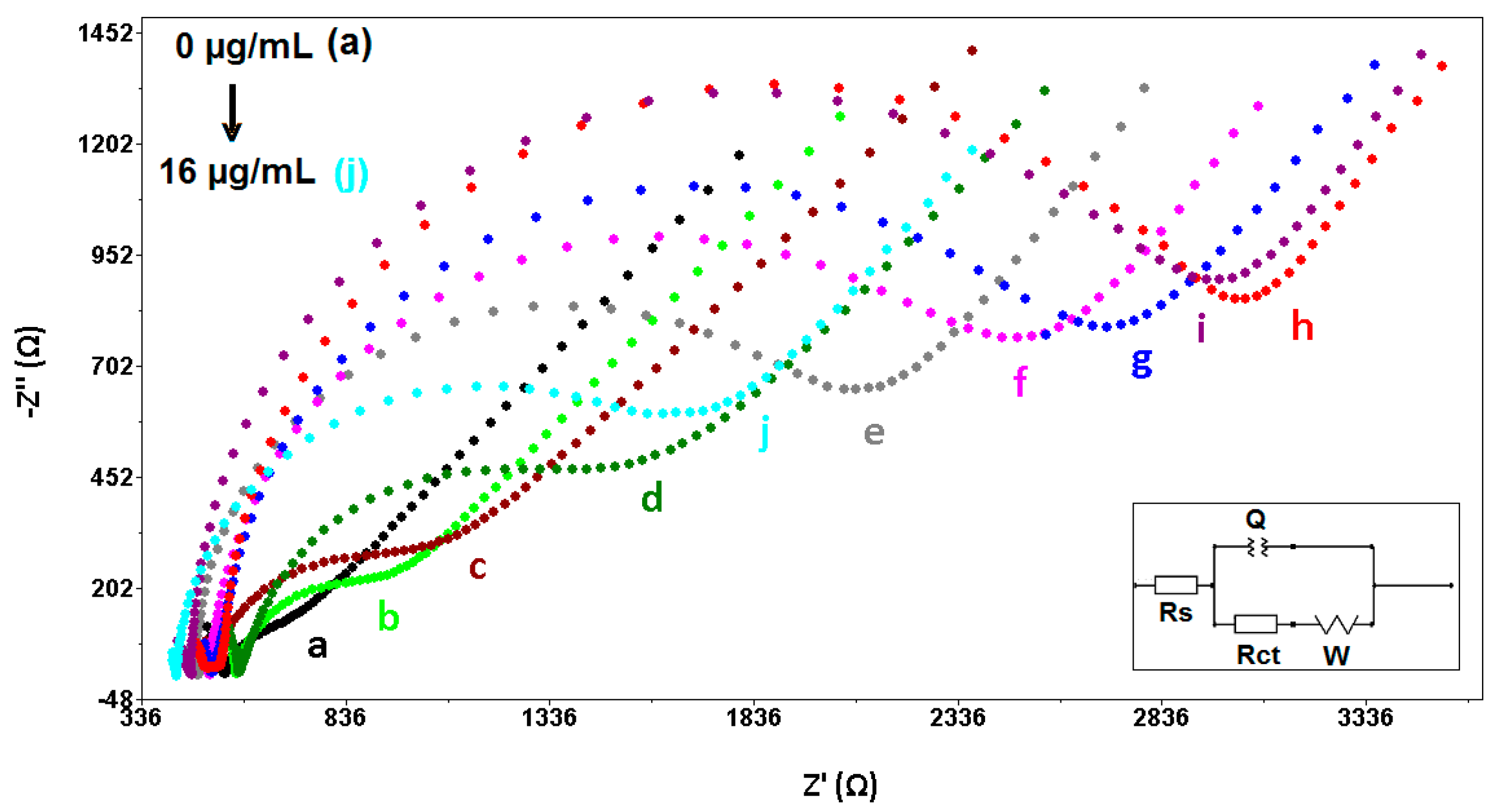

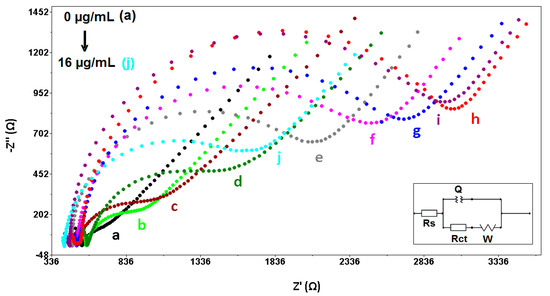

Figure 2. Nyquist diagrams related to (a) electrode control, (b) 1.0 µg mL−1 Z-probe in the absence of target, the hybrid form of Z-probe and (c) 2.0, (d) 4.0, (e) 6.0, (f) 8.0, (g) 10.0, (h) 12.0, (i) 14.0, (j) 16.0 µg mL−1 mutant type DNA target.
Figure 2. Nyquist diagrams related to (a) electrode control, (b) 1.0 µg mL−1 Z-probe in the absence of target, the hybrid form of Z-probe and (c) 2.0, (d) 4.0, (e) 6.0, (f) 8.0, (g) 10.0, (h) 12.0, (i) 14.0, (j) 16.0 µg mL−1 mutant type DNA target.
Biosensors 10 00116 g002
Biosensors 10 00116 g003 550

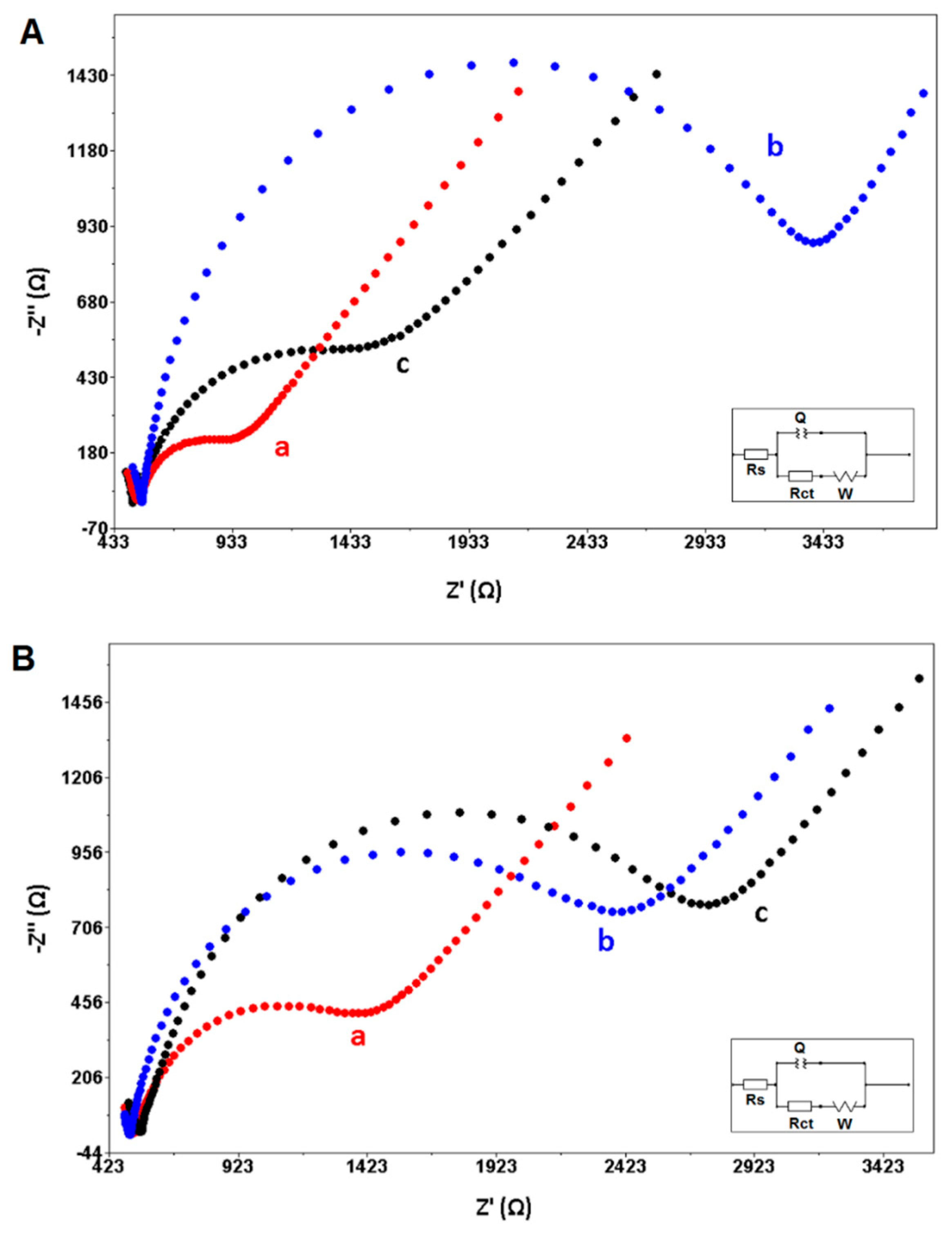

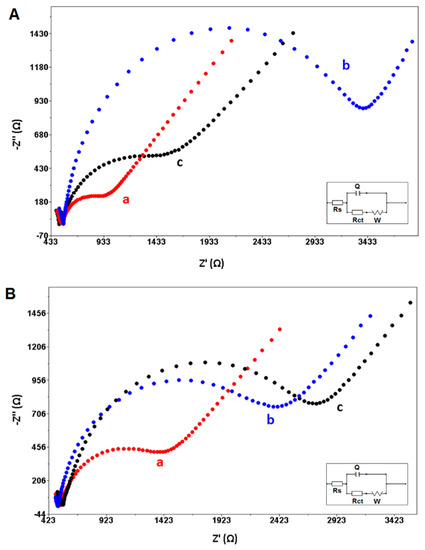

Figure 3. The hybridization between 1.0 µg mL−1 (A) Z-probe, or (B) DNA probe and 12.0 µg mL−1. mutant type DNA or wild type DNA target. Nyquist diagrams related to (a) Z-probe or DNA probe in the absence of target, the hybrid form of Z-probe, or DNA probe with (b) mutant type DNA target, (c) wild type DNA target.
Figure 3. The hybridization between 1.0 µg mL−1 (A) Z-probe, or (B) DNA probe and 12.0 µg mL−1. mutant type DNA or wild type DNA target. Nyquist diagrams related to (a) Z-probe or DNA probe in the absence of target, the hybrid form of Z-probe, or DNA probe with (b) mutant type DNA target, (c) wild type DNA target.
Biosensors 10 00116 g003
Table
Table 1. Experimental variables optimized for the impedimetric sensing performance of the array biosensor.
Table 1. Experimental variables optimized for the impedimetric sensing performance of the array biosensor.
VariableEvaluated ConditionsOptimum Condition
Hybridization temperature, °C25, 50, 7525
Hybridization buffer, pHABS (pH, 4.8)
PBS (pH, 7.4)
CBS (pH, 9.5)		PBS (pH 7.4)
[Mg2+] in hybridization buffer, mMNA *, 0.5, 1NA *
Hybridization time, minute5, 10, 1510
* NA: There is no Mg2+ available in hybridization buffer.
Table
Table 2. The average Rct values measured with the hybrid form of the Z-probe or DNA probe with mutant type DNA target/wild type DNA target and HEff% values.
Table 2. The average Rct values measured with the hybrid form of the Z-probe or DNA probe with mutant type DNA target/wild type DNA target and HEff% values.
Rct (Ω)HEff%
Z-probe369.4 ± 59.9-
Z-probe and mutant type DNA target3219.0 ± 373.089.0
Z-probe and wild type DNA target1083.0 ± 65.065.0
DNA probe848.0 ± 209.0-
DNA probe and mutant type DNA Target2504.0 ± 629.366.0
DNA probe and wild type DNA target2327.0 ± 89.163.0
Table
Table 3. The average Rct values measured with the hybrid form of the Z-probe or DNA probe with mutant type PCR or wild type PCR with the values of HEff%.
Table 3. The average Rct values measured with the hybrid form of the Z-probe or DNA probe with mutant type PCR or wild type PCR with the values of HEff%.
Rct (Ω)HEff%
Z-probe369.4 ± 59.9-
Z-probe and mutant type PCR2608.0 ± 361.386.0
Z-probe and wild type PCR1923.3 ± 516.481.0
DNA probe848.0 ± 209.0-
DNA probe and mutant type PCR1795.0 ± 481.253.0
DNA probe and wild type PCR1848.5 ± 379.754.0
Table
Table 4. The earlier studies developed for the detection of DNA by the array of electrodes in contrast to the present study.
Table 4. The earlier studies developed for the detection of DNA by the array of electrodes in contrast to the present study.
ElectrodeModificationAnaliteTechniqueAssay TimeLODReference
8-channel array of electrodesCarbon nanofiberDNA (FV Leiden mutation)DPV135 min1.6 µM[13]
8-channel array of electrodesCarbon nanofiberDNA (FV Leiden mutation)DPV35 min0.4 µM[14]
8-channel array of electrodesCarbon nanofiberDNA (FV Leiden mutation)EIS50 min133.0 nM[15]
Gold film electrode array chip-DNASWVNANA[35]
Three-dimensional interdigitated electrode arraySilaneDNAEIS24 hNA[36]
ITO electrode arrayGraphene-mesoporous silica hybrid nanosheetsDNADPV70 min10.0 fM[37]
nanodisk-array electrodespolystyrene-block-poly(methylmethacrylate)-derived thin filmsDNACV2 h0.4 nM–4.2 nM[38]
32 microelectrode Chips (gold)-DNACV30 min [39]
ITO electrode array on glass wafer-H1N1 influenza virus DNACapacitance3.5 h3.9 nM[40]
16 thru-hole array on printed circuit board-Hepatitis A-B-C virus DNA ECL3.5 hNA[41]
Gold electrode microarray-DNAEIS22 h1.0 pM[42]
16-gold electrode sensor arrays-DNACV, Amperometry3 hNA[43]
electrode array housed within the microfluidic cell-Karlodinium armiger DNASWV, Chronoamperometry17 h277.0 aM[44]
120-channel gold microelectrode array chip-miRNACV1 h140.0 zmol[45]
multi-electrode array (6-gold electrode)-HIV-1, HIV-2 DNASWV7.5 h0.1 nM[46]
16 microwells- column electrode-DNAAmperometry2 h30.0 nM[47]
8-channel array of electrodesCarbon nanofiberDNA (FV Leiden mutation)EIS25 min266.0 nMPresent work
